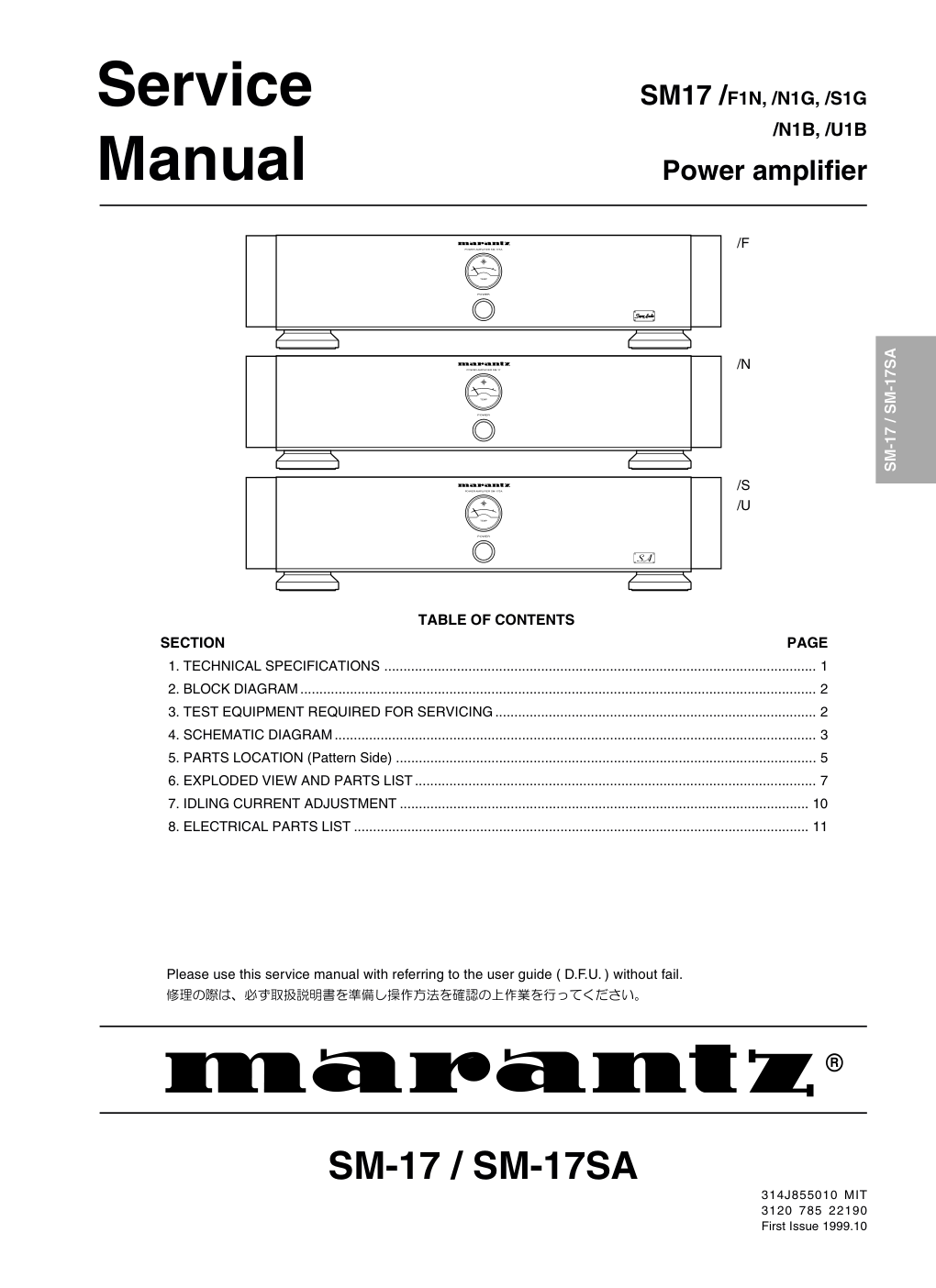

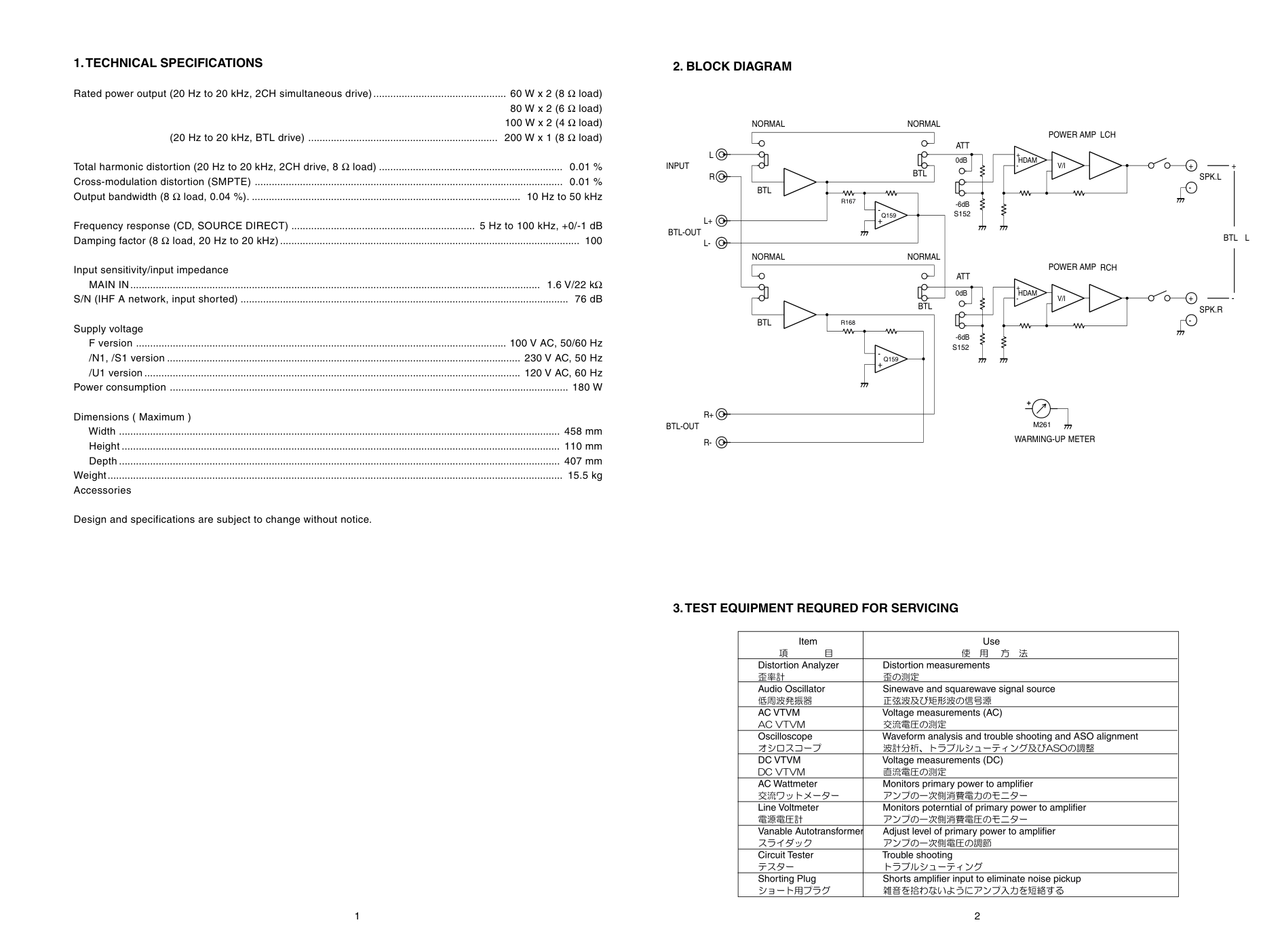

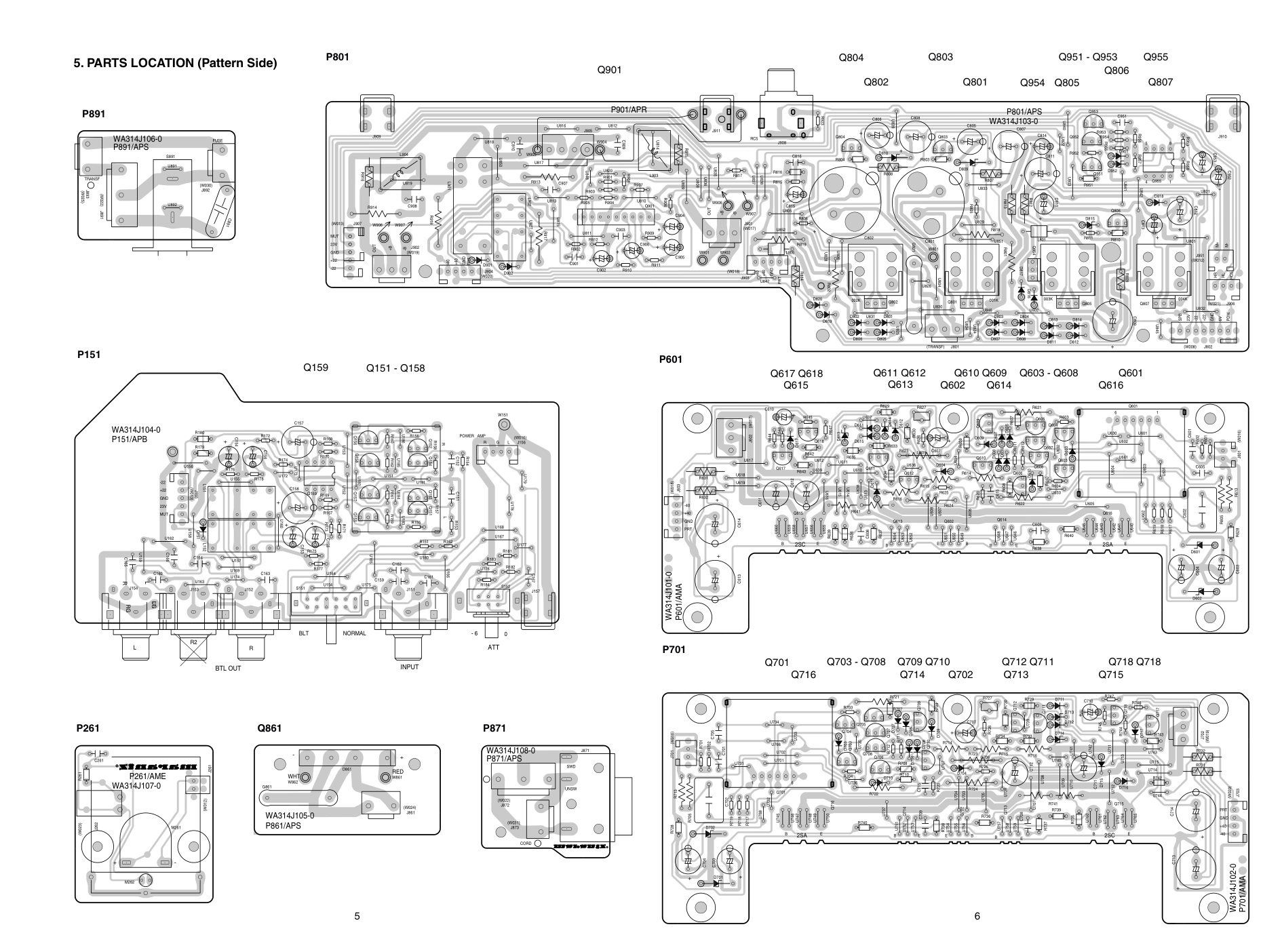

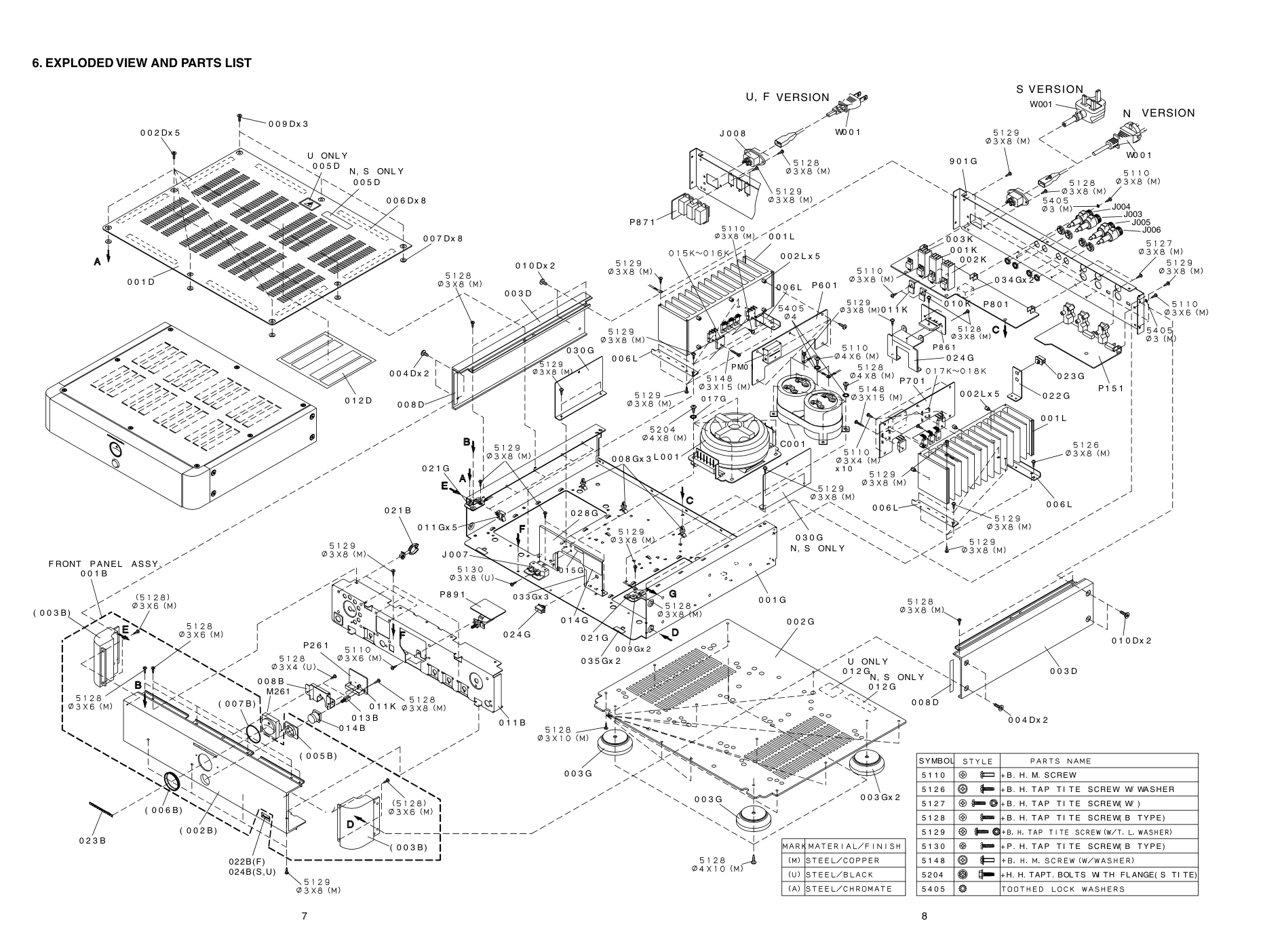

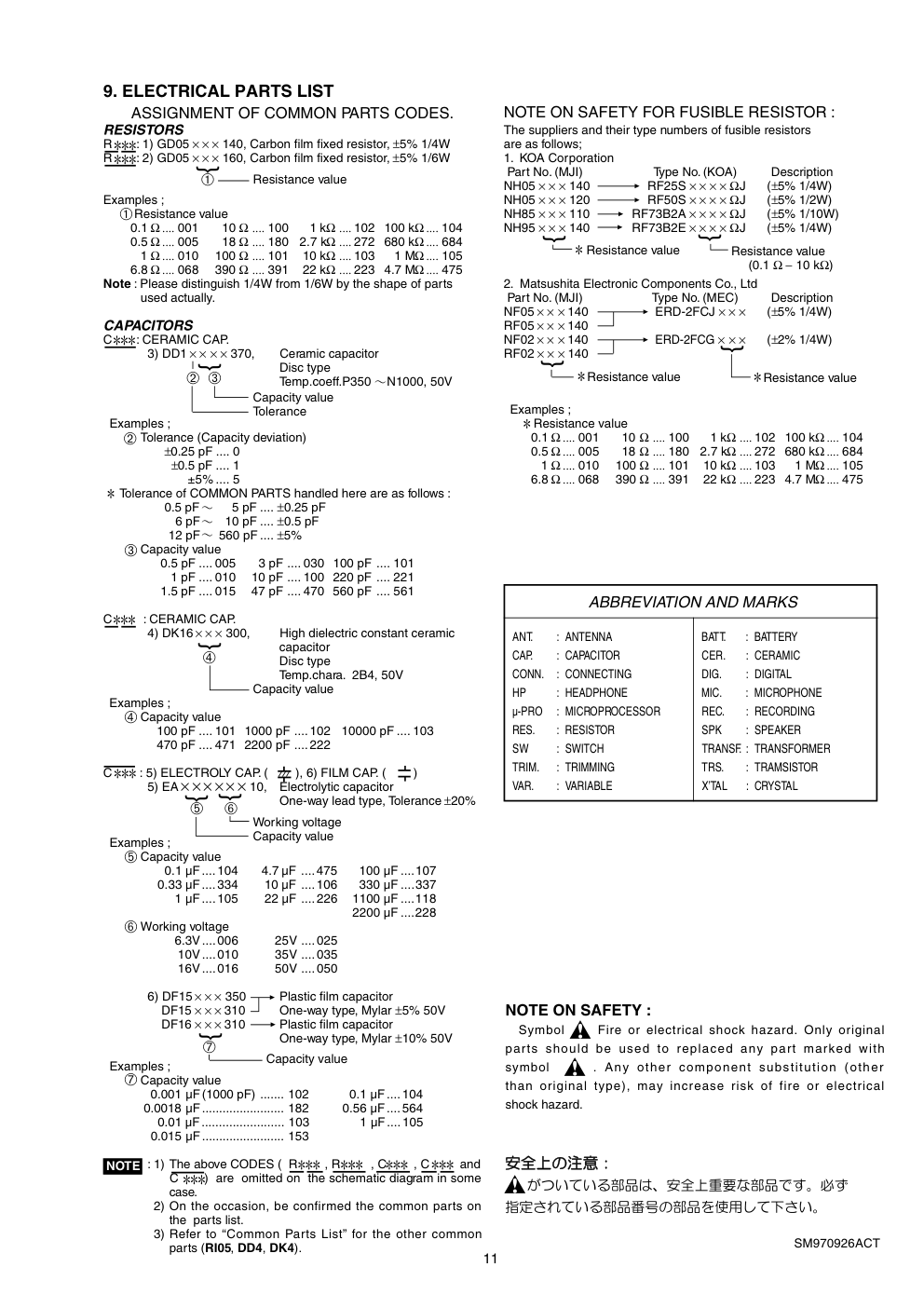

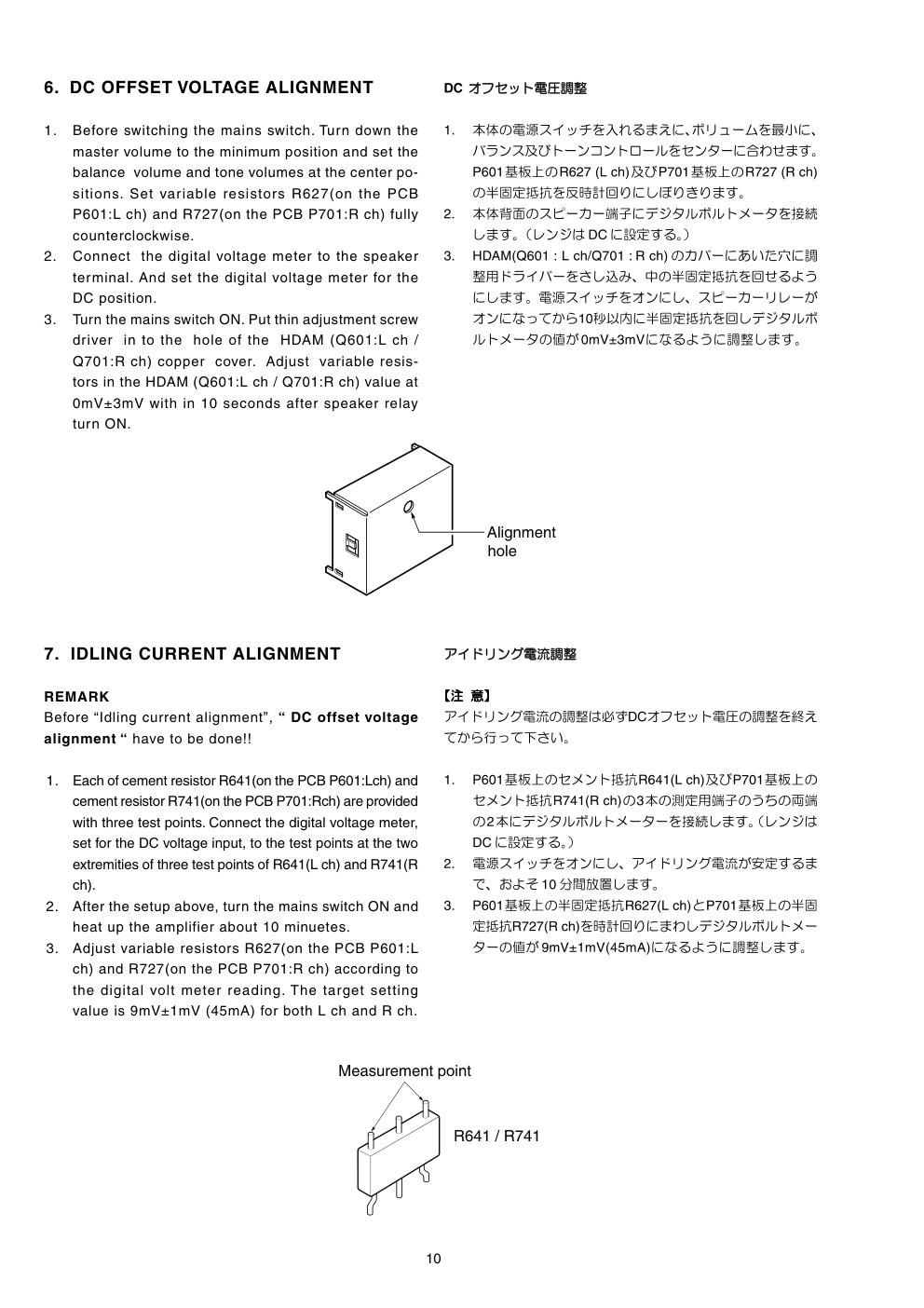

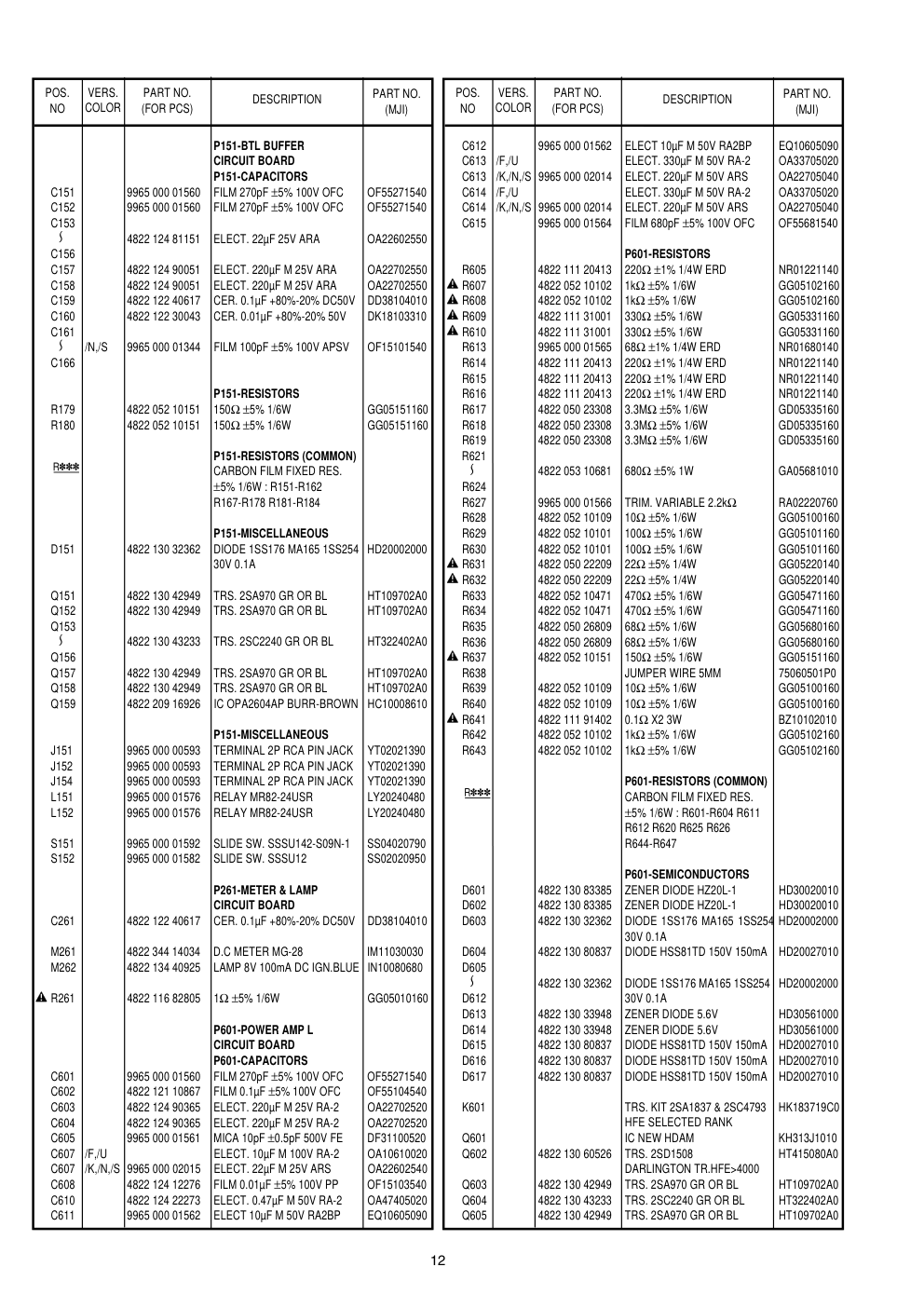

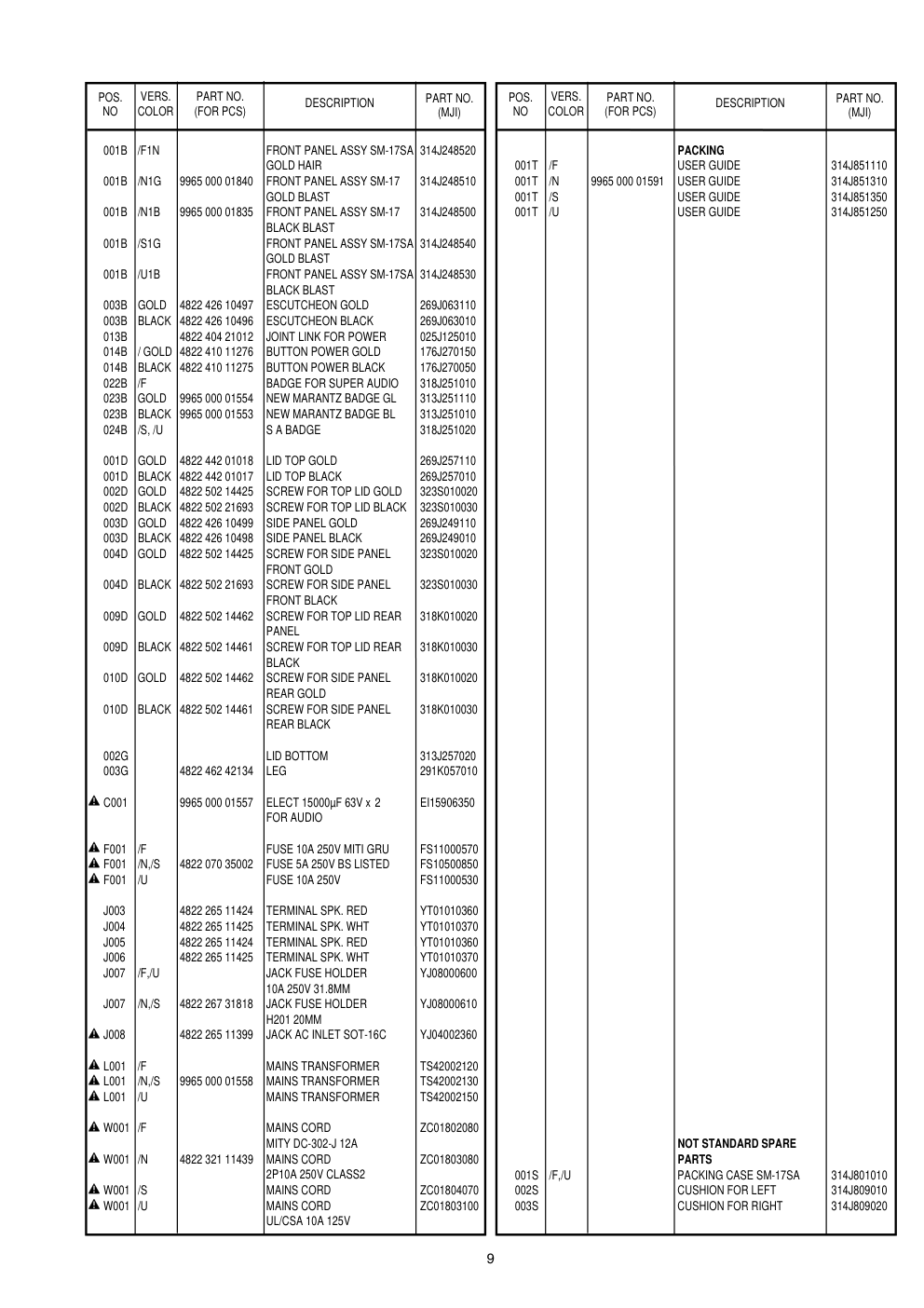

Power amplifier SM-17 / SM-17SA 314J855010 MIT 3120 785 22190 First Issue 1999.10 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................................................................................................................. 1 2. BLOCK DIAGRAM....................................................................................................................................... 2 3. TEST EQUIPMENT REQUIRED FOR SERVICING.................................................................................... 2 4. SCHEMATIC DIAGRAM.............................................................................................................................. 3 5. PARTS LOCATION (Pattern Side) .............................................................................................................. 5 6. EXPLODED VIEW AND PARTS LIST......................................................................................................... 7 7. IDLING CURRENT ADJUSTMENT ........................................................................................................... 10 8. ELECTRICAL PARTS LIST ....................................................................................................................... 11 Service Manual SM17 /F1N, /N1G, /S1G /N1B, /U1B R SM-17 / SM-17SA Please use this service manual with referring to the user guide ( D.F.U. ) without fail. TEMP POWER AMPLIFIER SM-17SA POWER TEMP POWER AMPLIFIER SM-17 POWER TEMP POWER AMPLIFIER SM-17SA POWER /F /N /S /U MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990921MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA JAMO AUSTRALIA PTY LTD 1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTD WO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213 1 2 Rated power output (20 Hz to 20 kHz, 2CH simultaneous drive)............................................... 60 W x 2 (8 Ω load) 80 W x 2 (6 Ω load) 100 W x 2 (4 Ω load) (20 Hz to 20 kHz, BTL drive) ................................................................... 200 W x 1 (8 Ω load) Total harmonic distortion (20 Hz to 20 kHz, 2CH drive, 8 Ω load) ................................................................. 0.01 % Cross-modulation distortion (SMPTE) ............................................................................................................. 0.01 % Output bandwidth (8 Ω load, 0.04 %). ............................................................................................... 10 Hz to 50 kHz Frequency response (CD, SOURCE DIRECT) ................................................................. 5 Hz to 100 kHz, +0/-1 dB Damping factor (8 Ω load, 20 Hz to 20 kHz) .......................................................................................................... 100 Input sensitivity/input impedance MAIN IN................................................................................................................................................. 1.6 V/22 kΩ S/N (IHF A network, input shorted) .................................................................................................................... 76 dB Supply voltage F version ................................................................................................................................... 100 V AC, 50/60 Hz /N1, /S1 version ............................................................................................................................. 230 V AC, 50 Hz /U1 version ..................................................................................................................................... 120 V AC, 60 Hz Power consumption ............................................................................................................................................. 180 W Dimensions ( Maximum ) Width ............................................................................................................................................................ 458 mm Height ........................................................................................................................................................... 110 mm Depth ............................................................................................................................................................ 407 mm Weight................................................................................................................................................................. 15.5 kg Accessories Design and specifications are subject to change without notice. 1. TECHNICAL SPECIFICATIONS 3. TEST EQUIPMENT REQURED FOR SERVICING 2. BLOCK DIAGRAM + - POWER AMP HDAM V/I + - METER WARMING-UP + - POWER AMP HDAM V/I + - SPK.L SPK.R + BTL - NORMAL NORMAL BTL BTL NORMAL NORMAL BTL BTL - - + + L+ L- INPUT BTL-OUT BTL-OUT R+ R- L L R ATT ATT 0dB 0dB -6dB -6dB LCH RCH R167 R168 Q159 Q159 M261 S152 S152 4. SCHEMATIC DIAGRAM 3 4 (BTL) L001 L001 Q153 Q154 Q702 Q602 S152 L152 J157 J891 J872 J891 D151 R176 R175 R154 R152 R179 R180 J156 C158 C154 C156 C153 R178 R177 R174 R172 R170 R168 R173 R167 R169 R171 R158 R156 R160 R162 Q156 R151 R157 R155 R159 C155 C157 R153 R161 J907 L151 Q159-2 Q159-1 Q155 J951 R261 J261 J262 M262 J861 R953 R955 R954 C952 R959 R951 R958 R957 R956 C953 R952 Q955-1 Q955-2 J905 F001 R720 R620 R705 R605 Q701 Q703 R716 R715 R722 R723 R747 R745 R746 C710 Q718 R744 R724 R721 C704 C703 R719 R718 R717 D708 D707 R707 R714 R713 R743 R742 R737 R731 R732 C714 C713 Q716 Q714 R740 R736 R739 R735 R734 R733 R730 Q712 R729 C707 R727 R726 R725 R708 R710 Q709 Q708 Q705 R728 R709 R701 R702 Q601 Q603 R616 R615 R622 R623 R647 R645 R646 C610 Q618 R644 R624 R621 C604 C603 R619 R618 R617 D608 D607 R607 R614 R613 R643 R642 R637 R631 R632 C614 C613 Q616 Q614 R640 R636 R639 R635 R634 R633 R630 Q612 R629 C607 R627 R626 R625 R608 R610 Q609 Q608 Q605 R628 R609 R601 R602 J703 J603 J904 J903 Q805 Q802 Q801 RM09 QM06 QM03 QM05 QM04 J705 J702 R814 R902 R809 F001 C904 W902 W901 L901 R904 R905 R913 R914 R903 R908 R911 R910 C906 C905 R901 R906 R907 R817 C902 R912 R909 W862 W861 G861 R816 R815 C815 C809 R812 C811 C810 D815 R808 R803 R802 J801 C802 C801 C808 C807 C806 R804 C805 R807 R801 J605 J602 D819 D704 D604 Q151 Q152 C167 J154 R183 R181 R182 R184 C165 C166 C261 C160 C164 C163 C159 C162 C161 J893 J892 J155 C152 Q158 C151 J152 J151 S151 Q157 M261 C951 D951 D952 Q953 Q954 Q952 Q951 J701 J601 C715 C615 J008 S891 C891 W001 J008 J892 C705 Q704 R741 D703 R704 R703 Q717 D717 D702 D701 C702 R712 R711 C708 C712 C711 D716 D715 Q715 Q713 D712 D711 D714 D713 Q711 D710 D706 D705 D709 Q706 Q710 C701 Q707 C605 Q604 R641 D603 R604 R603 Q617 D617 D602 D601 C602 R612 R611 C608 C612 C611 D616 D615 Q615 Q613 D612 D611 D614 D613 Q611 D610 D606 D605 D609 Q606 Q610 C601 Q607 Q806 Q804 Q803 RM07 RM08 RM05 RM06 RM04 RM03 RM02 RM01 DM05 DM04 DM03 DM01 DM02 QM02 QM01 J871 C816 C909 C910 J893 J873 R810 R811 R806 R805 C908 C907 D901 J901 J902 C903 C901 Q901 C001 D861 D820 D814 D813 D812 D811 D810 D809 D808 D807 D806 D805 D804 D803 D802 D801 S891 C891 W001 R/(L-) R/(L-) /F./U : 330/50V /K./N,/S : 220/50V /F./U : 330/50V /K./N,/S : 220/50V BL 2SC2240 BL 2SC2240 2SD1508 2SD1508 * 47K 47K 470 22k 150 150 * 220/25V 22/25V 22/25V 22/25V 47K 47K 100 100 2.2k 2.2k 100 2.2k 2.2k 100 10k 10k 22 22 BL 2SC2240 22k 10k 10k 22 22/25V 220/25V 470 22 OPA2064AP OPA2064AP BL 2SC2240 1 10k 10k 1/50V 10k 10 5.6k 1/6W 390k 10k 100/25V 100 NJM2904 NJM2904 * 220k 220k 1/4W 220 1/4W 220 O/Y 2SA970 1/4W 220 1/4W 220 1W 680 1W 680 22k 6.8K 22k 0.47/50V O/Y 2SA970 22k 1W 680 1W 680 220/25V 220/25V 3.3M 3.3M 3.3M * * 1k 1/4W 220 1/4W 68 1k 1k 150 1/4W 22 1/4W 22 2SA1303 2SA1837 O,Y 10 68 10 68 470 470 100 O/Y 2SA1145 100 2.2k 1.5k 3.9K 1k 330 O/Y 2SA1145 O/Y 2SA1145 2SA970 10 330 33k 470 O/Y 2SA970 1/4W 220 1/4W 220 1W 680 1W 680 22k 6.8K 22k 0.47/50V O/Y 2SA970 22k 1W 680 1W 680 220/25V 220/25V 3.3M 3.3M 3.3M * * 1k 1/4W 220 1/4W 68 1k 1k 150 1/4W 22 1/4W 22 2SA1303 2SA1837 O,Y 10 68 10 68 470 470 100 O/Y 2SA1145 100 2.2k 1.5k 3.9K 1k 330 O/Y 2SA1145 O/Y 2SA1145 2SA970 10 330 33k 470 * * * * 2SD1415 2SB1020 2SD1415 2.2K 2SC2240 2SC2240 2SA970 2SA970 1/4W 22 68k 1/4W 1 10/50V 68k 68k 1W 10 1W 10 47k 6.8k 33k 68k 0.47/50V 47/25V 68k 6.8k 6.8k 100k 47/25V 47k 220k 0.47+6.8 4.7 22k 1/50V 470/50V 1/4W 4.7 220/50V 100/25V 24.0V 1/4W 4.7 100 1/2W 1 1800/50V 1800/50V 220/50V 220/50V 100/50V 100 100/50V 1/4W 4.7 1/2W 1 S5688G HSS81 HSS81 BL 2SA970 BL 2SA970 0.01 * 39k 18k 18K 39k 100p 100p 0.1 0.01 100P 100P 0.1 100P 100P * 100V 270P BL 2SA970 100V 270P * BL 2SA970 0.1 * 5.6V 2SC2240 2SC3419Y 2SC2240 GR 2SK246 * * 680p 680p 0.01 10P/250V O/Y 2SC2240 3W 0.1X2 * 47k 47k O/Y 2SC2240 HSS81 20V 20V 0.1 100 100 0.01 10/50V 10/50V HSS81 HSS81 2SC3284 2SC4793 O,Y * * 5.6V 5.6V O/Y 2SC2705 * * * * 2SC2240 O/Y 2SC2705 100V 270P O/Y 2SC2705 10P/250V O/Y 2SC2240 3W 0.1X2 * 47k 47k O/Y 2SC2240 HSS81 20V 20V 0.1 100 100 0.01 10/50V 10/50V HSS81 HSS81 2SC3284 2SC4793 O,Y * * 5.6V 5.6V O/Y 2SC2705 * * * * 2SC2240 O/Y 2SC2705 100V 270P O/Y 2SC2705 GR 2SK246 GR 2SK246 GR 2SK246 100 100 1K 33K 1K 68 120 120 * * * * * BL 2SK170 BL 2SK170 0.01 0.01 0.01 100 1k 1k 1k 0.039 0.039 HSS81 0.1 0.01 TA7317P 15000/63V X2 S5688G S5688G S5688G S5688G S5688G 24V HZ24-2L 24V HZ24-2L S5688G S5688G S5688G S5688G S5688G S5688G S5688G S5688G 0.01 /F./U : 330/50V /K./N,/S : 220/50V /F./U : 10/100V /K./N,/S : 22/25V /F./U : 10/100V /K./N,/S : 22/25V /F./U : 330/50V /K./N,/S : 220/50V SM17/S1G 1.2 0.6 0.6 0.6 6.2 6.2 6.8 7.0 22.0 -23.7 -23.0 -44.6 -24.4 -24.5 24.5 44.6 24.4 23.0 -41.5 24.5 24.4 23.0 44.6 AC 7.4 -44.0 44.0 -20.0 -0.6 0.6 20.0 -20.0 0 0 0 0 0 0 0 0 0 20.0 -20.0 -0.6 0 0 0 0.6 20.0 -0.7 44.6 44.0 -0.7 44.0 0.0045 0.6 0.6 -0.0045 -0.6 -0.6 -44.0 -44.6 44.0 41.6 42.0 41.0 40.0 1.2 -0.6 -42.0 -44.0 -41.6 -41.0 -40.0 -0.3 0 0.3 -0.9 0.9 -19.5 -19.5 -42.0 -44.0 -41.6 -40.0 -41.0 -0.9 -0.3 -0.6 0 0.3 0.9 1.2 40.0 41.0 41.6 42.0 44.0 0.6 -44.6 -44.0 -0.6 0.6 -0.0045 0.0045 0.6 44.0 44.0 44.6 T5A/250V R L L+ RCH2 R+ P861/APS SM17/N1G SM17/N1B W031 W025 W030 W012 W030 W028 W024 W016 W013 W016 W013 -6dB 0dB ATT P261/AME 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 -22V +22V GND 23V MUT MUT 23V GND +22V -22V WA314J104-0 P151/APB WA314J106-0 P891/APS WA314J106-0 P871/APS WA314J104-0 P891/APS WA314J105-0 -45V +45V -45V +45V WA314J102-0 WA314J101-0 WA314J103-0 WA314J103-0 WA314J107-0 10A/250V INPUT NORMAL BTL Q601,Q701 R (L-) L -B +B L -B +B R 0 42.6 -1.2 -1.8 1.2 1.8 -1.8 1.8 -0.3 0.3 0 0 19.5 0 0 19.5 -0.3 0.3 1.8 -1.8 -1.8 -1.2 1.2 1.8 0 42.6 AC34.6 AC34.6 0 0 AC32.9 AC32.9 -43.1 23.7 25.4 23.6 43.1 -0.7 1.3 3.1 23.3 23.3 W022 W031 W034 R L W026 W035 J005 J005 W025 W023 W020 W019 W018 W017 W020 W019 W018 W017 W016 HDAM 5 1 P701/AMA - + 6 4 3 2 HDAM - + 6 5 4 1 3 2 P601/AMA HDAM 1 2 6 -B 5 -OUT 4 +OUT +B 3 - + F ONLY 0 0 0 0 -0.75 1.1 GND PROT OUT.R -B +B PROT GND OUT.L -B +B P901/APR P801/APS -B GND +B -B GND +B + - + - SPK (L+) (L-) FOR N FOR N BTL OUT FOR N L- R- - + - + L+ R+ (L-) (R-) SM17/F1N SM17/U1B 5 6 -40 +40 GND PRT WA314J101-0 2SA 2SC (W016) (W017) (W018) P601/AMA E Q615 + + + + + + Q616 Q614 Q613 Q602 E E B B B B E 1 6 B E D604 C609 C608 C602 R620 J601 U662 C615 C601 R638 R637 R610 R609 R608 R607 R626 R625 D602 D601 R605 U661 U638 U613 U633 U630 U601 U602 U631 U603 U604 U640 U641 U642 U643 U644 U605 U645 U632 U646 U647 U648 U634 U606 U649 U650 U651 U607 U608 U652 U653 U654 U609 U636 U637 U611 U610 U614 U615 U612 U639 U616 U655 U656 U657 U658 U659 U660 U617 U618 U619 D615 D611 R641 R640 R634 R633 R630 R629 R628 R624 R623 R622 R621 R619 R618 R617 R616 R615 R614 R613 R612 R611 R604 R603 R602 R601 Q612 Q611 Q610 Q609 Q608 Q607 Q606 Q605 Q604 Q603 Q601 D616 D614 D612 D610 D609 D608 D607 D606 D605 D603 C607 C605 C604 C603 R627 R647 R646 R645 R644 R643 R642 R639 R636 R635 R632 R631 Q618 Q617 D617 D613 C612 C611 C610 J602 J603 C614 C613 Q617 Q618 Q611 Q612 Q610 Q609 Q603 - Q608 Q601 P601 Q615 Q613 Q602 Q614 Q616 -40 +40 GND PRT WA314J102-0 2SA 2SC (W016) (W020) (W019) P701/AMA Q715 + + + + + + Q713 Q702 E E B B Q716 Q714 E B B E 1 6 B E D704 J702 C709 C708 C702 R723 R720 U768 J701 C715 U767 C701 R738 R737 R710 R709 R708 R707 R726 R725 D701 D702 R714 R715 R716 R705 U766 U744 U731 U734 U733 U702 U701 U732 U745 U746 U747 U748 U749 U750 U735 U736 U753 U752 U751 U737 U755 U754 U704 U703 U756 U739 U705 U706 U738 U757 U758 U759 U707 U708 U709 U710 U740 U741 U742 U760 U761 U762 U763 U764 U765 U712 U711 U713 U714 U715 U743 R741 R739 R736 R734 R733 R730 R729 R727 R724 C712 C707 D714 D713 D712 D711 D709 Q712 Q711 R740 R728 R722 R721 R719 R718 R717 R713 R712 R711 R704 R703 R702 R701 C705 C704 C703 D710 D708 D707 D706 D705 D703 Q710 Q709 Q708 Q707 Q706 Q705 Q704 Q703 Q701 R747 R746 R745 R744 R743 R742 R735 R732 R731 J703 C714 C713 C711 C710 D717 D716 D715 Q718 Q717 P701 Q701 Q703 - Q708 Q709 Q710 Q712 Q711 Q718 Q718 Q715 Q713 Q702 Q714 Q716 R RG LG L (W013) (W016) - 6 0 R2 R L + + + + + + G R L -22 +22 GND 23V MUT AMP POWER R L P151/APB WA314J104-0 BTL OUT INPUT U184 U181 U182 U183 U186 U185 U180 U173 U172 U162 U163 U174 U169 U175 U164 U165 U166 U177 U176 U167 U168 U179 U178 J151 J152 J153 J154 C163 C164 C167 U159 J156 J157 W151 S152 R184 R182 R183 R181 U160 C165 C166 U157 U158 L152 U156 C160 C159 D151 R179 J155 U155 U154 U153 U152 U151 Q159 Q158 Q157 Q156 Q155 Q154 Q153 Q152 Q151 C162 C161 C158 C157 C156 C155 C154 C153 C152 C151 R180 R178 R177 R176 R175 R174 R173 R172 R171 R170 R169 R168 R167 R162 R161 R160 R159 R158 R157 R156 R155 R154 R153 R152 R151 L151 S151 ATT BLT NORMAL Q159 Q151 - Q158 P151 5. PARTS LOCATION (Pattern Side) (W008) (W021) (W012) (W019) (W013) M- M+ RC5 HR HL 8 5 4 1 + + P901/APR P801/APS WA314J103-0 -40 +40 -40 +40 -22 +22 23V MUT GND -B +B OUT PRT GND PRT PDW 6V GND +22 -22 23V SPB (TRANSF) (W020) (W017) (W018) 004K 003K 001K 002K + + + + + + + + + + + + + + + + + W907 W906 OUT +B -B GND RC5 U851 R818 R819 U852 U850 W905 W801 R915 L903 U814 W904 J905 J911 C910 C909 C908 C907 C901 C816 U847 U845 U846 U848 U842 U841 U840 U839 U838 U837 U836 U835 U808 J906 J951 J909 J908 J907 C953 C952 C951 R959 R958 R957 R956 R955 R954 R953 D952 D951 Q953 Q952 Q951 R952 R951 Q955 U822 U803 Q954 R814 R813 R810 R804 R803 C812 C811 C808 C807 C806 C805 U802 U829 L801 L905 D816 U832 U833 U830 U834 U828 U831 C801 C802 R812 R807 R808 R918 R917 R913 R914 R811 J903 J904 R906 R907 R908 R909 R911 R910 R912 R903 R901 R904 R905 R902 C904 C902 C905 C906 C903 D902 D901 R916 R923 R817 R816 R815 R809 R806 R805 D818 D815 D809 D810 C810 C815 C814 Q806 C813 D817 D819 D820 D814 D812 D811 D813 D804 D808 D807 D803 D805 D801 D806 D802 Q804 Q803 U820 W907 W906 Q901 L904 L902 L901 W902 W901 J910 J902 J901 J802 J801 R802 R801 G801 Q807 Q805 Q802 Q801 C809 U827 U826 U825 U824 U821 U819 U818 U817 U816 U815 U813 U812 U811 U810 U809 U806 U805 U804 U801 P801 Q901 Q804 Q803 Q802 Q801 Q954 Q805 Q807 Q806 Q951 - Q953 Q955 (W012) (W023) P261/AME M261 WA314J107-0 - + C261 M262 R261 J262 J261 P261 (W024) WHT RED P861/APS WA314J105-0 - + D861 G861 W862 W861 J861 Q861 (W030) (W025) (W022) WA314J106-0 P891/APS TRANSF FUSE U892 S891 J892 C891 U891 J891 J893 P891 (W031) (W022) J871 P871/APS WA314J108-0 SWD CORD UNSW J873 J872 P871 7 8 6. EXPLODED VIEW AND PARTS LIST 0 0 1 B F RONT PANEL ASSY. ( 0 0 3 B) ( 0 0 3 B) 0 1 4 B ( 0 0 5 B ) ( 0 0 7 B ) 0 0 8 B 0 1 3 B 0 1 1 K 0 0 1 G 0 0 8 Gx 3 0 0 9 Gx 2 0 2 1 G 0 3 3 Gx 3 0 2 8 G 0 1 5 G 0 1 1 Gx 5 P2 6 1 J 0 0 7 0 2 1 G 0 1 4 G 0 3 5 Gx 2 0 2 4 G 022B(F) 024B(S,U) ( 0 0 2 B ) 0 2 3 B ( 0 0 6 B) 0 0 1 L P7 0 1 C0 0 1 0 0 6 L 0 0 6 L 0 0 2 L x 5 0 0 1 L 0 0 6 L 0 0 2 L x 5 PM0 1 L 0 0 1 x 1 0 0 3 0 G 0 1 7 G P6 0 1 P8 6 1 0 3 0 G 0 2 4 G N, S ONL Y 0 0 6 L 9 0 1 G 0 0 3 K 0 0 1 K 0 0 2 K P8 0 1 P1 5 1 N U, F VERSION W0 0 1 P8 7 1 J 0 0 8 W0 0 1 0 3 4 Gx 2 0 1 1 K 0 1 0 K 0 1 0 Dx 2 0 0 4 Dx 2 0 0 3 Gx 2 0 0 8 D 0 0 3 D 0 1 0 Dx 2 0 0 4 Dx 2 0 0 8 D 0 0 9 Dx 3 0 0 1 D 0 0 6 Dx 8 0 0 7 Dx 8 0 0 2 Dx 5 0 1 2 G 0 1 2 G U ONL Y N, S ONL Y 0 0 5 D U ONL Y 0 0 5 D N, S ONL Y 0 0 3 D 0 1 2 D 0 0 2 G 0 0 3 G 0 0 3 G 0 1 1 B 0 2 1 B 0 2 2 G 0 2 3 G P8 9 1 SYMBOL 5 1 1 0 + B. H. M. SCREW 5 1 2 6 + B. H. T A P T I T E SCREW W/ WASHER 5 1 2 7 + B. H. T A P T I T E SCREW( W/ ) 5 1 2 8 + B. H. T A P T I T E SCREW( B T YPE) 5 1 2 9 5 1 3 0 + P. H. T A P T I T E SCREW( B T YPE) 5 1 4 8 5 4 0 5 +H. H. TAPT. BOL TS WI TH FL ANGE( S TI TE) 5 2 0 4 J005 J006 J003 J004 M261 VERSION S VERSION W001 9 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 001B /F1N FRONT PANEL ASSY SM-17SA GOLD HAIR 314J248520 001B /N1G 9965 000 01840 FRONT PANEL ASSY SM-17 GOLD BLAST 314J248510 001B /N1B 9965 000 01835 FRONT PANEL ASSY SM-17 BLACK BLAST 314J248500 001B /S1G FRONT PANEL ASSY SM-17SA GOLD BLAST 314J248540 001B /U1B FRONT PANEL ASSY SM-17SA BLACK BLAST 314J248530 003B GOLD 4822 426 10497 ESCUTCHEON GOLD 269J063110 003B BLACK 4822 426 10496 ESCUTCHEON BLACK 269J063010 013B 4822 404 21012 JOINT LINK FOR POWER 025J125010 014B / GOLD 4822 410 11276 BUTTON POWER GOLD 176J270150 014B BLACK 4822 410 11275 BUTTON POWER BLACK 176J270050 022B /F BADGE FOR SUPER AUDIO 318J251010 023B GOLD 9965 000 01554 NEW MARANTZ BADGE GL 313J251110 023B BLACK 9965 000 01553 NEW MARANTZ BADGE BL 313J251010 024B /S, /U S A BADGE 318J251020 001D GOLD 4822 442 01018 LID TOP GOLD 269J257110 001D BLACK 4822 442 01017 LID TOP BLACK 269J257010 002D GOLD 4822 502 14425 SCREW FOR TOP LID GOLD 323S010020 002D BLACK 4822 502 21693 SCREW FOR TOP LID BLACK 323S010030 003D GOLD 4822 426 10499 SIDE PANEL GOLD 269J249110 003D BLACK 4822 426 10498 SIDE PANEL BLACK 269J249010 004D GOLD 4822 502 14425 SCREW FOR SIDE PANEL FRONT GOLD 323S010020 004D BLACK 4822 502 21693 SCREW FOR SIDE PANEL FRONT BLACK 323S010030 009D GOLD 4822 502 14462 SCREW FOR TOP LID REAR PANEL 318K010020 009D BLACK 4822 502 14461 SCREW FOR TOP LID REAR BLACK 318K010030 010D GOLD 4822 502 14462 SCREW FOR SIDE PANEL REAR GOLD 318K010020 010D BLACK 4822 502 14461 SCREW FOR SIDE PANEL REAR BLACK 318K010030 002G LID BOTTOM 313J257020 003G 4822 462 42134 LEG 291K057010 C001 9965 000 01557 ELECT 15000µF 63V x 2 FOR AUDIO EI15906350 F001 /F FUSE 10A 250V MITI GRU FS11000570 F001 /N,/S 4822 070 35002 FUSE 5A 250V BS LISTED FS10500850 F001 /U FUSE 10A 250V FS11000530 J003 4822 265 11424 TERMINAL SPK. RED YT01010360 J004 4822 265 11425 TERMINAL SPK. WHT YT01010370 J005 4822 265 11424 TERMINAL SPK. RED YT01010360 J006 4822 265 11425 TERMINAL SPK. WHT YT01010370 J007 /F,/U JACK FUSE HOLDER 10A 250V 31.8MM YJ08000600 J007 /N,/S 4822 267 31818 JACK FUSE HOLDER H201 20MM YJ08000610 J008 4822 265 11399 JACK AC INLET SOT-16C YJ04002360 L001 /F MAINS TRANSFORMER TS42002120 L001 /N,/S 9965 000 01558 MAINS TRANSFORMER TS42002130 L001 /U MAINS TRANSFORMER TS42002150 W001 /F MAINS CORD MITY DC-302-J 12A ZC01802080 W001 /N 4822 321 11439 MAINS CORD 2P10A 250V CLASS2 ZC01803080 W001 /S MAINS CORD ZC01804070 W001 /U MAINS CORD UL/CSA 10A 125V ZC01803100 PACKING 001T /F USER GUIDE 314J851110 001T /N 9965 000 01591 USER GUIDE 314J851310 001T /S USER GUIDE 314J851350 001T /U USER GUIDE 314J851250 NOT STANDARD SPARE PARTS 001S /F,/U PACKING CASE SM-17SA 314J801010 002S CUSHION FOR LEFT 314J809010 003S CUSHION FOR RIGHT 314J809020 10 6. DC OFFSET VOLTAGE ALIGNMENT 1. Before switching the mains switch. Turn down the master volume to the minimum position and set the balance volume and tone volumes at the center po- sitions. Set variable resistors R627(on the PCB P601:L ch) and R727(on the PCB P701:R ch) fully counterclockwise. 2. Connect the digital voltage meter to the speaker terminal. And set the digital voltage meter for the DC position. 3. Turn the mains switch ON. Put thin adjustment screw driver in to the hole of the HDAM (Q601:L ch / Q701:R ch) copper cover. Adjust variable resis- tors in the HDAM (Q601:L ch / Q701:R ch) value at 0mV±3mV with in 10 seconds after speaker relay turn ON. 7. IDLING CURRENT ALIGNMENT REMARK Before “Idling current alignment”, “ DC offset voltage alignment “ have to be done!! 1. Each of cement resistor R641(on the PCB P601:Lch) and cement resistor R741(on the PCB P701:Rch) are provided with three test points. Connect the digital voltage meter, set for the DC voltage input, to the test points at the two extremities of three test points of R641(L ch) and R741(R ch). 2. After the setup above, turn the mains switch ON and heat up the amplifier about 10 minuetes. 3. Adjust variable resistors R627(on the PCB P601:L ch) and R727(on the PCB P701:R ch) according to the digital volt meter reading. The target setting value is 9mV±1mV (45mA) for both L ch and R ch. Alignment hole Measurement point R641 / R741 11 SM970926ACT 9. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRAMSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. 12 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) P151-BTL BUFFER CIRCUIT BOARD P151-CAPACITORS C151 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C152 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C153 4822 124 81151 ELECT. 22µF 25V ARA OA22602550 C156 C157 4822 124 90051 ELECT. 220µF M 25V ARA OA22702550 C158 4822 124 90051 ELECT. 220µF M 25V ARA OA22702550 C159 4822 122 40617 CER. 0.1µF +80%-20% DC50V DD38104010 C160 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C161 /N,/S 9965 000 01344 FILM 100pF ±5% 100V APSV OF15101540 C166 P151-RESISTORS R179 4822 052 10151 150Ω ±5% 1/6W GG05151160 R180 4822 052 10151 150Ω ±5% 1/6W GG05151160 P151-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R151-R162 R167-R178 R181-R184 P151-MISCELLANEOUS D151 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 Q151 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q152 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q153 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q156 Q157 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q158 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q159 4822 209 16926 IC OPA2604AP BURR-BROWN HC10008610 P151-MISCELLANEOUS J151 9965 000 00593 TERMINAL 2P RCA PIN JACK YT02021390 J152 9965 000 00593 TERMINAL 2P RCA PIN JACK YT02021390 J154 9965 000 00593 TERMINAL 2P RCA PIN JACK YT02021390 L151 9965 000 01576 RELAY MR82-24USR LY20240480 L152 9965 000 01576 RELAY MR82-24USR LY20240480 S151 9965 000 01592 SLIDE SW. SSSU142-S09N-1 SS04020790 S152 9965 000 01582 SLIDE SW. SSSU12 SS02020950 P261-METER & LAMP CIRCUIT BOARD C261 4822 122 40617 CER. 0.1µF +80%-20% DC50V DD38104010 M261 4822 344 14034 D.C METER MG-28 IM11030030 M262 4822 134 40925 LAMP 8V 100mA DC IGN.BLUE IN10080680 R261 4822 116 82805 1Ω ±5% 1/6W GG05010160 P601-POWER AMP L CIRCUIT BOARD P601-CAPACITORS C601 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C602 4822 121 10867 FILM 0.1µF ±5% 100V OFC OF55104540 C603 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C604 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C605 9965 000 01561 MICA 10pF ±0.5pF 500V FE DF31100520 C607 /F,/U ELECT. 10µF M 100V RA-2 OA10610020 C607 /K,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 C608 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 C610 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C611 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C612 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C613 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C613 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C614 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C614 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C615 9965 000 01564 FILM 680pF ±5% 100V OFC OF55681540 P601-RESISTORS R605 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R607 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R608 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R609 4822 111 31001 330Ω ±5% 1/6W GG05331160 R610 4822 111 31001 330Ω ±5% 1/6W GG05331160 R613 9965 000 01565 68Ω ±1% 1/4W ERD NR01680140 R614 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R615 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R616 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R617 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R618 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R619 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R621 4822 053 10681 680Ω ±5% 1W GA05681010 R624 R627 9965 000 01566 TRIM. VARIABLE 2.2kΩ RA02220760 R628 4822 052 10109 10Ω ±5% 1/6W GG05100160 R629 4822 052 10101 100Ω ±5% 1/6W GG05101160 R630 4822 052 10101 100Ω ±5% 1/6W GG05101160 R631 4822 050 22209 22Ω ±5% 1/4W GG05220140 R632 4822 050 22209 22Ω ±5% 1/4W GG05220140 R633 4822 052 10471 470Ω ±5% 1/6W GG05471160 R634 4822 052 10471 470Ω ±5% 1/6W GG05471160 R635 4822 050 26809 68Ω ±5% 1/6W GG05680160 R636 4822 050 26809 68Ω ±5% 1/6W GG05680160 R637 4822 052 10151 150Ω ±5% 1/6W GG05151160 R638 JUMPER WIRE 5MM 75060501P0 R639 4822 052 10109 10Ω ±5% 1/6W GG05100160 R640 4822 052 10109 10Ω ±5% 1/6W GG05100160 R641 4822 111 91402 0.1Ω X2 3W BZ10102010 R642 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R643 4822 052 10102 1kΩ ±5% 1/6W GG05102160 P601-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R601-R604 R611 R612 R620 R625 R626 R644-R647 P601-SEMICONDUCTORS D601 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D602 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D603 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D604 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D605 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D612 30V 0.1A D613 4822 130 33948 ZENER DIODE 5.6V HD30561000 D614 4822 130 33948 ZENER DIODE 5.6V HD30561000 D615 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D616 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D617 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 K601 TRS. KIT 2SA1837 & 2SC4793 HFE SELECTED RANK HK183719C0 Q601 IC NEW HDAM KH313J1010 Q602 4822 130 60526 TRS. 2SD1508 DARLINGTON TR.HFE>4000 HT415080A0 Q603 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q604 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q605 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 13 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) Q606 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q607 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q608 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q609 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q610 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q611 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q612 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q613 4822 130 63635 TRS. 2SC4793 O Y HT347932A0 Q614 4822 130 63634 TRS. 2SA1837 O Y HT118372A0 Q615 4822 130 60741 TRS. 2SC3284 O P Y 125W FMG112 HT332843D0 Q616 4822 130 63674 TRS. 2SA1303 O P Y 125W FMG112 HT113033D0 Q617 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q618 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 P701-POWER AMP R CIRCUIT BOARD P701-CAPACITORS C701 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C702 4822 121 10867 FILM 0.1µF ±5% 100V OFC OF55104540 C703 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C704 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C705 9965 000 01561 MICA 10pF ±0.5pF 500V FE DF31100520 C707 /F,/U ELECT. 10µF M 100V RA-2 OA10610020 C707 /K,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 C708 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 C710 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C711 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C712 9965 000 01562 ELECT 10µF M 50V RA2BP EQ10605090 C713 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C713 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C714 /F,/U ELECT. 330µF M 50V RA-2 OA33705020 C714 /K,/N,/S 9965 000 02014 ELECT. 220µF M 50V ARS OA22705040 C715 9965 000 01564 FILM 680pF ±5% 100V OFC OF55681540 P701-RESISTORS R705 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R707 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R708 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R709 4822 111 31001 330Ω ±5% 1/6W GG05331160 R710 4822 111 31001 330Ω ±5% 1/6W GG05331160 R713 9965 000 01565 68Ω ±1% 1/4W ERD NR01680140 R714 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R715 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R716 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R717 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R718 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R719 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R721 4822 053 10681 680Ω ±5% 1W GA05681010 R724 R727 9965 000 01566 TRIM. VARIABLE 2.2kΩ RA02220760 R728 4822 052 10109 10Ω ±5% 1/6W GG05100160 R729 4822 052 10101 100Ω ±5% 1/6W GG05101160 R730 4822 052 10101 100Ω ±5% 1/6W GG05101160 R731 4822 050 22209 22Ω ±5% 1/4W GG05220140 R732 4822 050 22209 22Ω ±5% 1/4W GG05220140 R733 4822 052 10471 470Ω ±5% 1/6W GG05471160 R734 4822 052 10471 470Ω ±5% 1/6W GG05471160 R735 4822 050 26809 68Ω ±5% 1/6W GG05680160 R736 4822 050 26809 68Ω ±5% 1/6W GG05680160 R737 4822 052 10151 150Ω ±5% 1/6W GG05151160 R738 JUMPER WIRE 5MM 75060501P0 R739 4822 052 10109 10Ω ±5% 1/6W GG05100160 R740 4822 052 10109 10Ω ±5% 1/6W GG05100160 R741 4822 111 91402 0.1Ω X 2 3W BZ10102010 R742 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R743 4822 052 10102 1kΩ ±5% 1/6W GG05102160 P701-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R701-R704 R711 R712 R720 R725 R726 R744-R747 P701-SEMICONDUCTORS D701 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D702 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D703 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D704 4822 130 80837 DIODE HSS81TD 150V 150MA HD20027010 D705 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D712 30V 0.1A D713 4822 130 33948 ZENER DIODE 5.6V HD30561000 D714 4822 130 33948 ZENER DIODE 5.6V HD30561000 D715 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D716 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D717 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 K701 TRS. KIT 2SA1837 & 2SC4793 HFE SELECTED RANK HK183719C0 Q701 IC NEW HDAM KH313J1010 Q702 4822 130 60526 TRS. 2SD1508 DARLINGTON TR.HFE>4000 HT415080A0 Q703 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q704 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q705 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q706 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q707 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q708 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q709 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q710 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q711 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q712 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q713 4822 130 63635 TRS. 2SC4793 O Y HT347932A0 Q714 4822 130 63634 TRS. 2SA1837 O Y HT118372A0 Q715 4822 130 60741 TRS. 2SC3284 O P Y 125W FMG112 HT332843D0 Q716 4822 130 63674 TRS. 1 2SA1303 O P Y 125W FMG112 HT113033D0 Q717 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q718 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 P801-POWER SUPPLY & PROTECTOR CIRCUIT BOARD P801-CAPACITORS C801 9965 000 01577 ELECT 1800µF 50V FOR AUDIO EB18805020 C802 9965 000 01577 ELECT 1800µF 50V FOR AUDIO EB18805020 C805 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C806 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C807 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C808 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C809 4822 124 41542 ELECT. 470µF M 50V RA-2 OA47705020 C810 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C811 4822 124 90366 ELECT. 220µF M 50V RA-2 OA22705020 C815 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C816 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 C901 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 C902 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 C903 4822 122 40617 CER. 50V DC 0.1µF +80 -20% DD38104010 C904 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 C905 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 C906 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C907 9965 000 01575 FILM 0.039µF ±5% 100V OFC OF55393540 C908 9965 000 01575 FILM 0.039µF ±5% 100V OFC OF55393540 C909 /N,/S 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 14 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) C910 /N,/S 4822 124 12276 FILM 0.01µF ±5% 100V PP OF15103540 C951 4822 122 40617 CER. 50V DC 0.1µF +80 -20% DD38104010 C952 4822 124 41543 ELECT. 1µF M 50V OA10505020 C953 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 P801-RESISTORS R801 4822 050 21108 1Ω ±5% 1/2W GG05010120 R802 4822 050 21108 1Ω ±5% 1/2W GG05010120 R803 4822 052 10101 100Ω ±5% 1/6W GG05101160 R804 4822 052 10101 100Ω ±5% 1/6W GG05101160 R807 4822 050 24708 4.7Ω ±5% 1/4W GG05047140 R808 4822 050 24708 4.7Ω ±5% 1/4W GG05047140 R809 4822 117 10158 1Ω ±5% 1/4W GG05010140 R810 4822 052 10101 100Ω ±5% 1/6W GG05101160 R812 4822 050 24708 4.7Ω ±5% 1/4W GG05047140 R814 4822 113 90119 FUSE 22Ω ±2% 1/4W NF02220140 R816 4822 052 10478 4.7Ω ±5% 1/6W GG05047160 R913 4822 053 10109 10Ω ±5% 1W GA05100010 R914 4822 053 10109 10Ω ±5% 1W GA05100010 R917 4822 053 10331 330Ω ±5% 1W GA05331010 R918 4822 053 10331 330Ω ±5% 1W GA05331010 R951 4822 052 10109 10Ω ±5% 1/6W GG05100160 R955 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 P801-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R805 R806 R811 R815 R817 R901-R912 R952-R959 P801-SEMICONDUCTORS D801 4822 130 80839 DIODE S5688G HD20029050 D808 VRM=400V I0=1A D809 4822 130 10851 ZENER DIODE HZ24-2L HD30012010 D810 4822 130 10851 ZENER DIODE HZ24-2L HD30012010 D811 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D812 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D813 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D814 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D815 4822 130 80116 ZENER DIODE 24V HD32401000 D819 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D820 4822 130 80839 DIODE S5688G VRM=400V I0=1A HD20029050 D901 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D951 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D952 4822 130 33948 ZENER DIODE 5.6V HD30561000 Q801 4822 130 11605 TRS. 2SD1415 HT41415100 Q802 4822 130 11604 TRS. 2SB1020 HT21020100 Q803 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q804 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q805 4822 130 11605 TRS. 2SD1415 HT41415100 Q806 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q901 4822 209 83312 IC TA7317P HC10042050 Q951 4822 130 42836 F.E.T. 2SK246 GR HF202461C0 Q952 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q953 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q954 4822 130 60117 TRS. 2SC3419 Y 40V 0.8A PC=1.2W 5W HT334191Y0 Q955 4822 209 83679 IC DUAL OP-AMP NJM2904 HC10030090 P801-MISCELLANEOUS G801 4822 121 20263 CAP.COMP. 0.47µF + 6.8Ω NOISE KILLER BF47400010 L801 4822 158 60605 FERRIT BEADS B-01-RT FC90050060 L901 4822 280 70354 RELAY VB 24MBU-510 5A/240VAC LY20240310 L905 4822 158 60605 FERRIT BEADS B-01-RT FC90050060 U804 4822 158 60605 FERRITE BEADS B-01-RT FC90050060 P861 P861-RECTIFIER CIRCUIT BOARD WA314J1050 D861 9965 000 01578 DIODE D25XB60 600V 25A BRIDGE-DI HE20029290 G861 4822 121 20263 CAP.COMP. 0.47µF + 6.8Ω NOISE KILLER BF47400010 P871-ACOUTLET CIRCUIT BOARD [ /F,/U VERSION ] J871 /F,/U JACK MAINS OUTLET CCT1306-0212 YJ04001840 P891-POWER SW CIRCUIT BOARD C891 4822 121 43732 FILM 0.01µF 250V AC DF77103500 S891 4822 276 12647 PUSH SW. ESB-99753V-4 TV-8 SP01011470 PM01-HDAM CIRCUIT BOARD FOR Q601 Q701 PM01-RESISTOR RM09 4822 100 20681 TRIM. 2.2kΩ RH0638CJ3R RA02220780 PM01-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RM01-RM08 PM01-SEMICONDUCTORS DM01 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 DM05 30V 0.1A QM01 5322 130 41844 F.E.T. 2SK170 BL VGDS=-40V PD=0.4V HF201701G0 QM02 5322 130 41844 F.E.T. 2SK170 BL VGDS=-40V PD=0.4V HF201701G0 QM03 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 QM04 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 QM05 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 QM06 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
