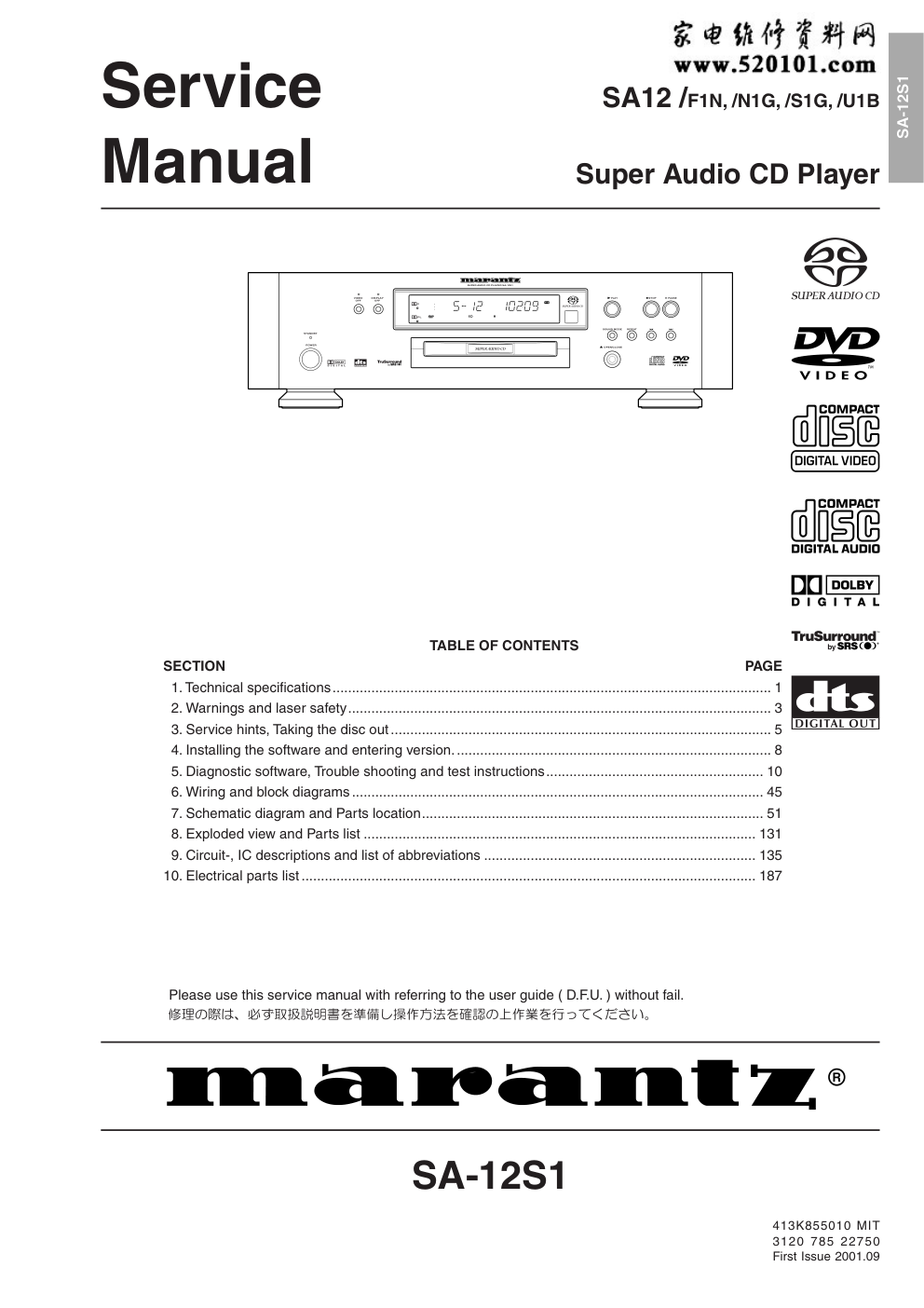

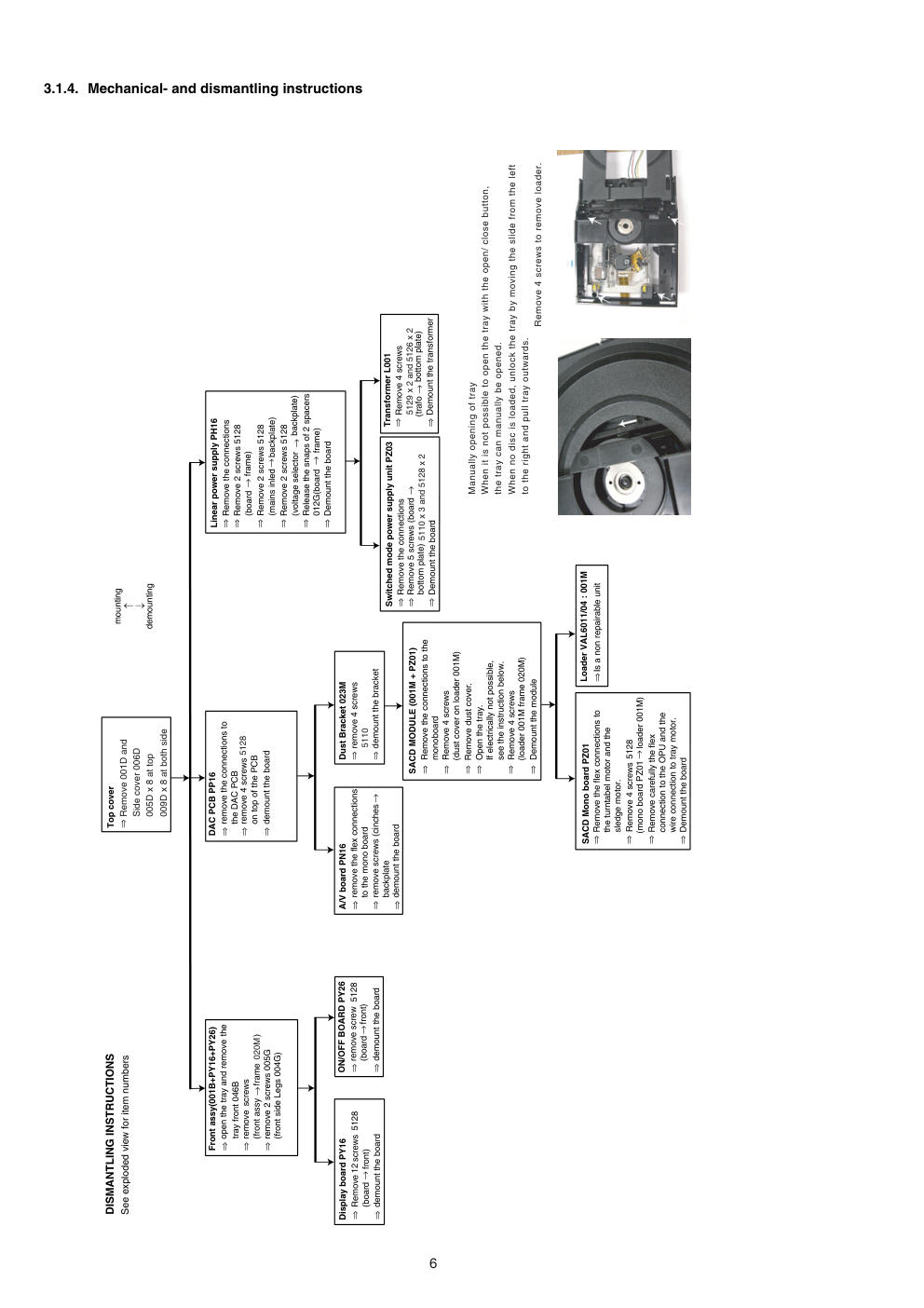

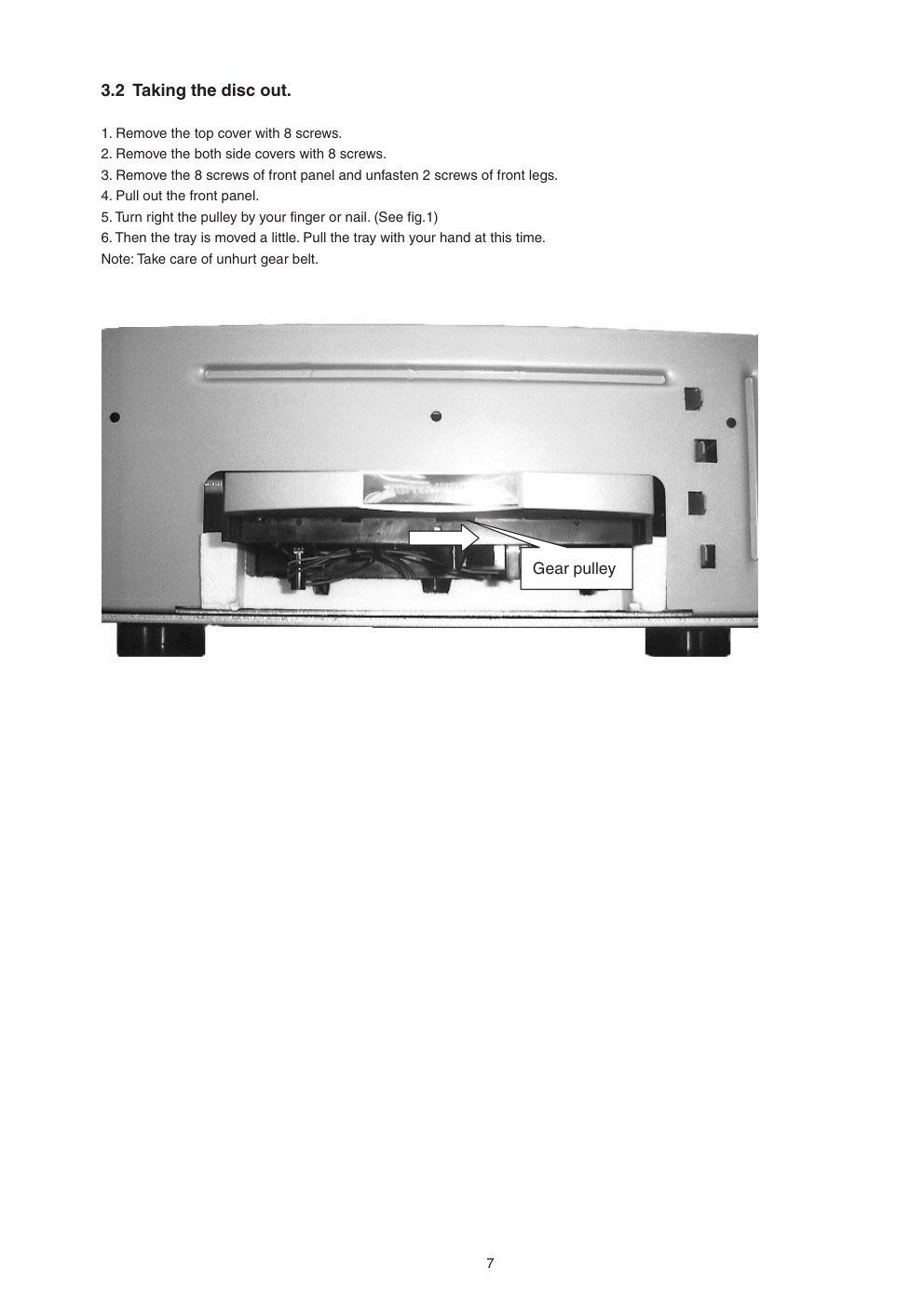

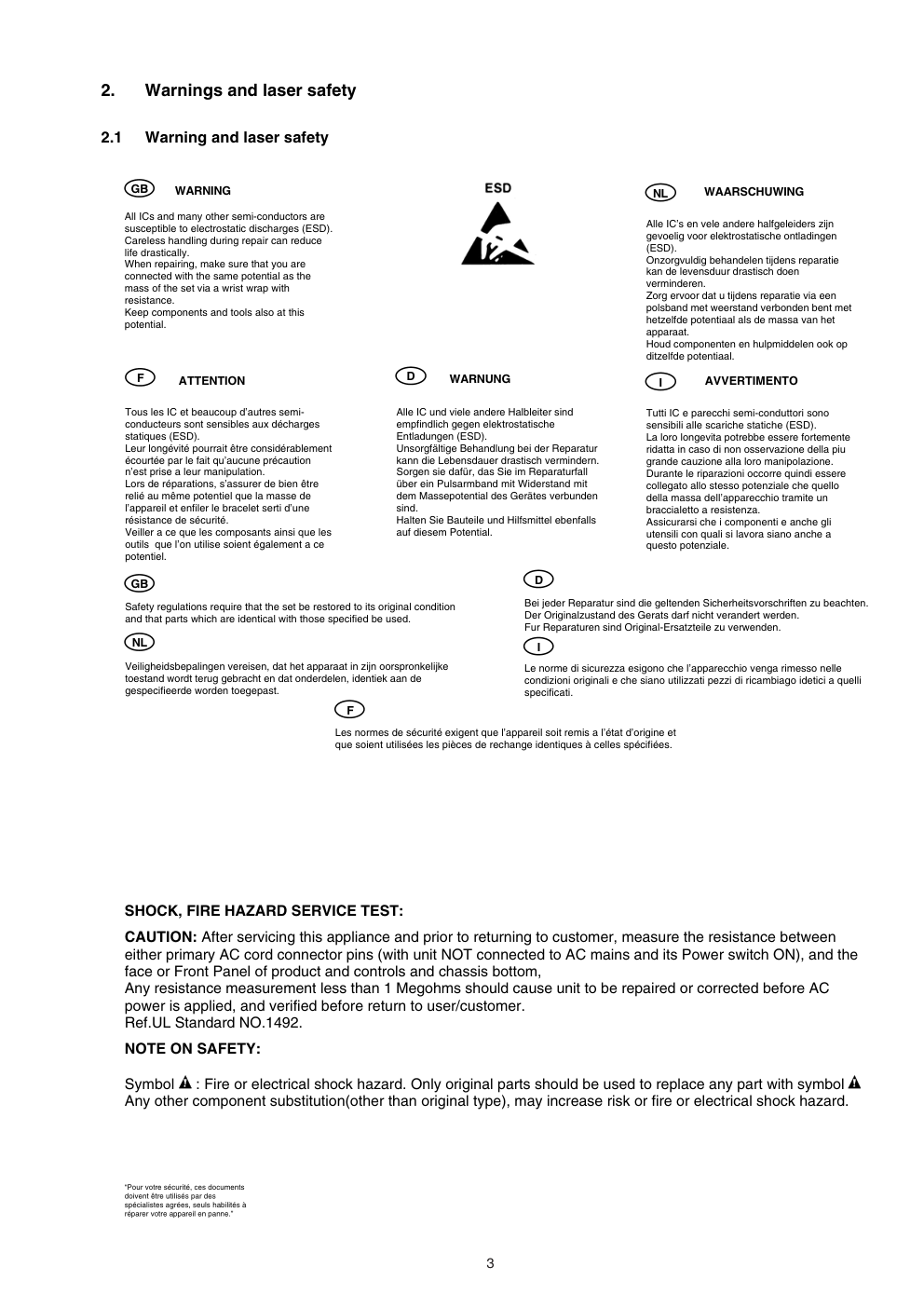

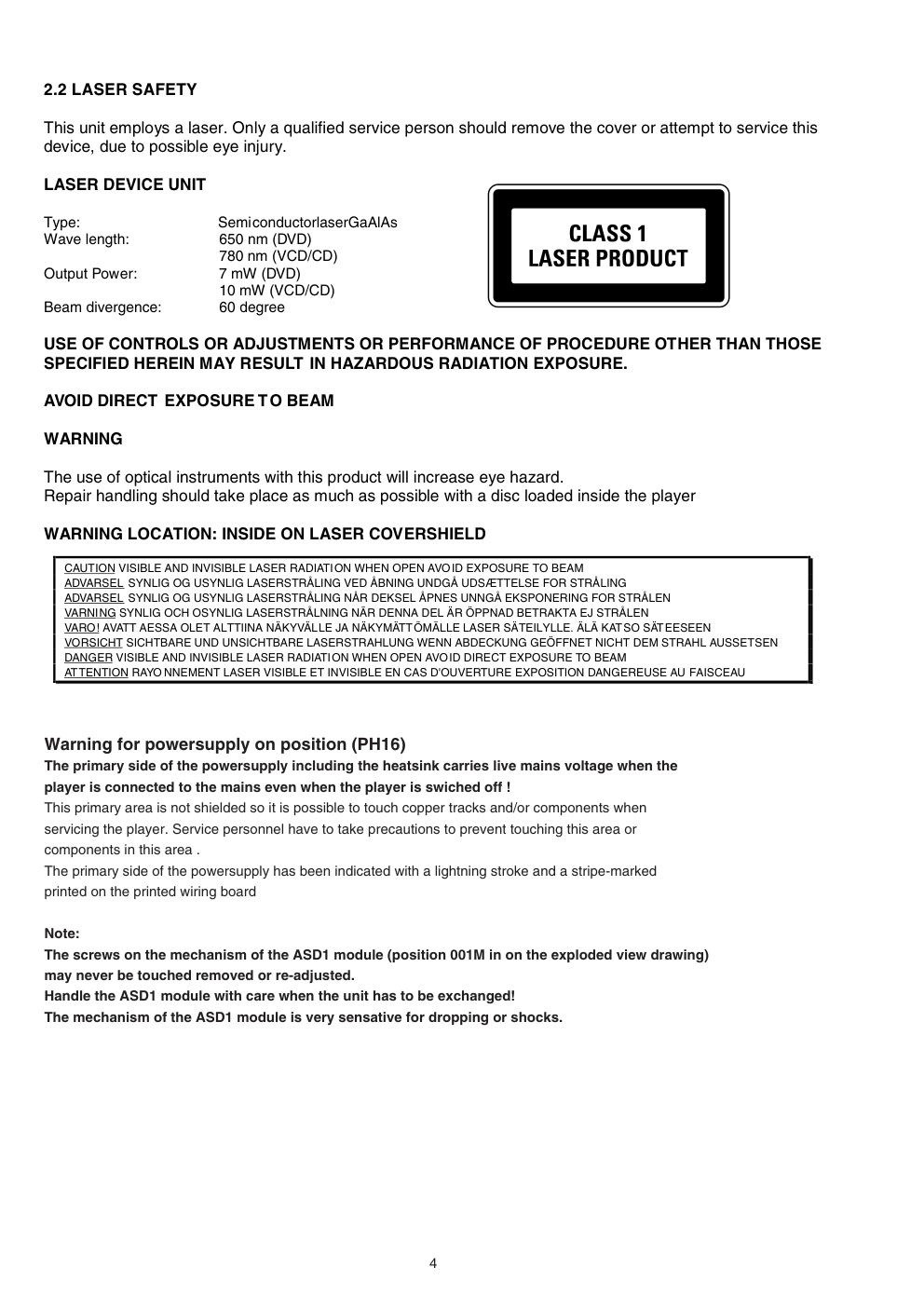

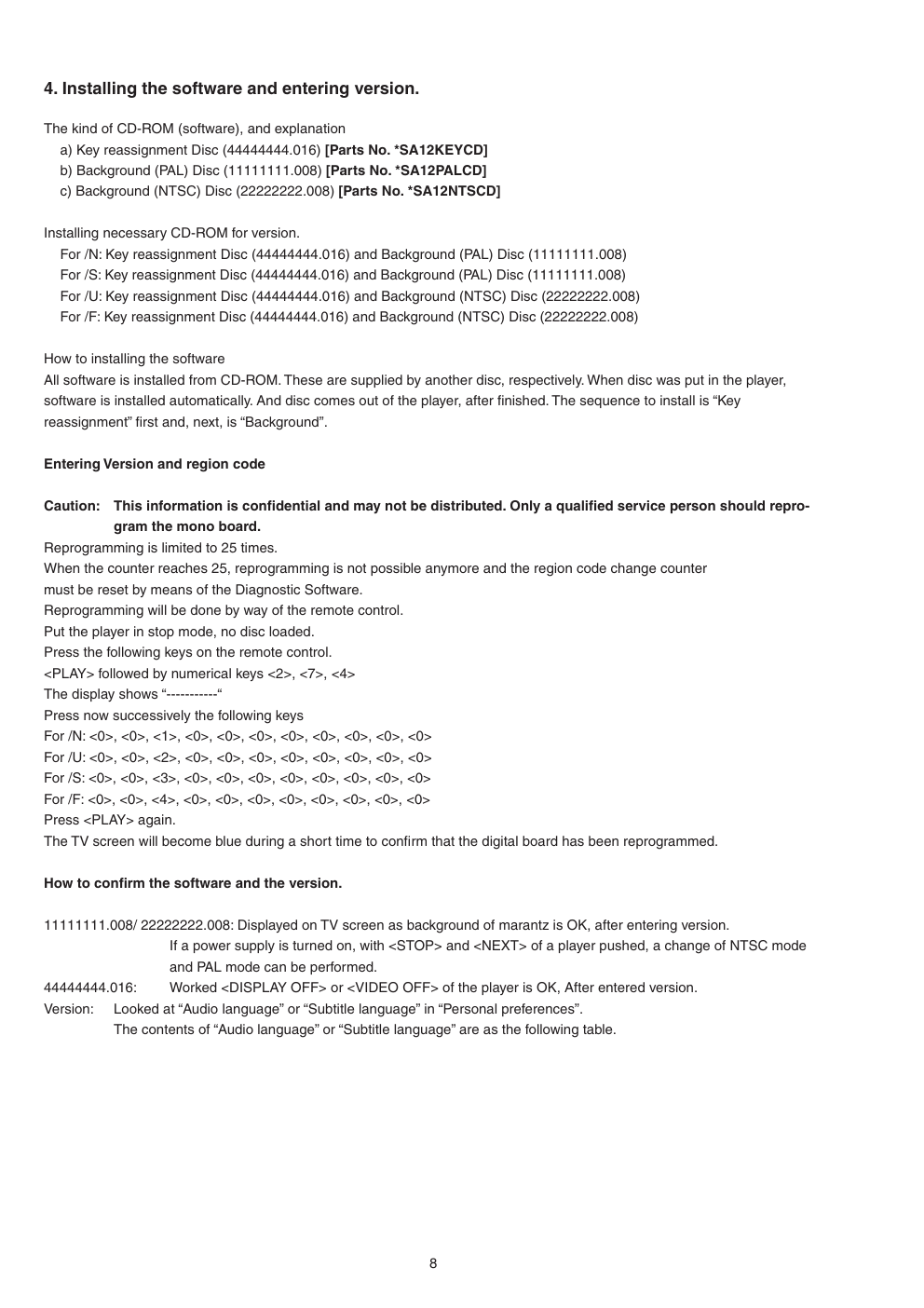

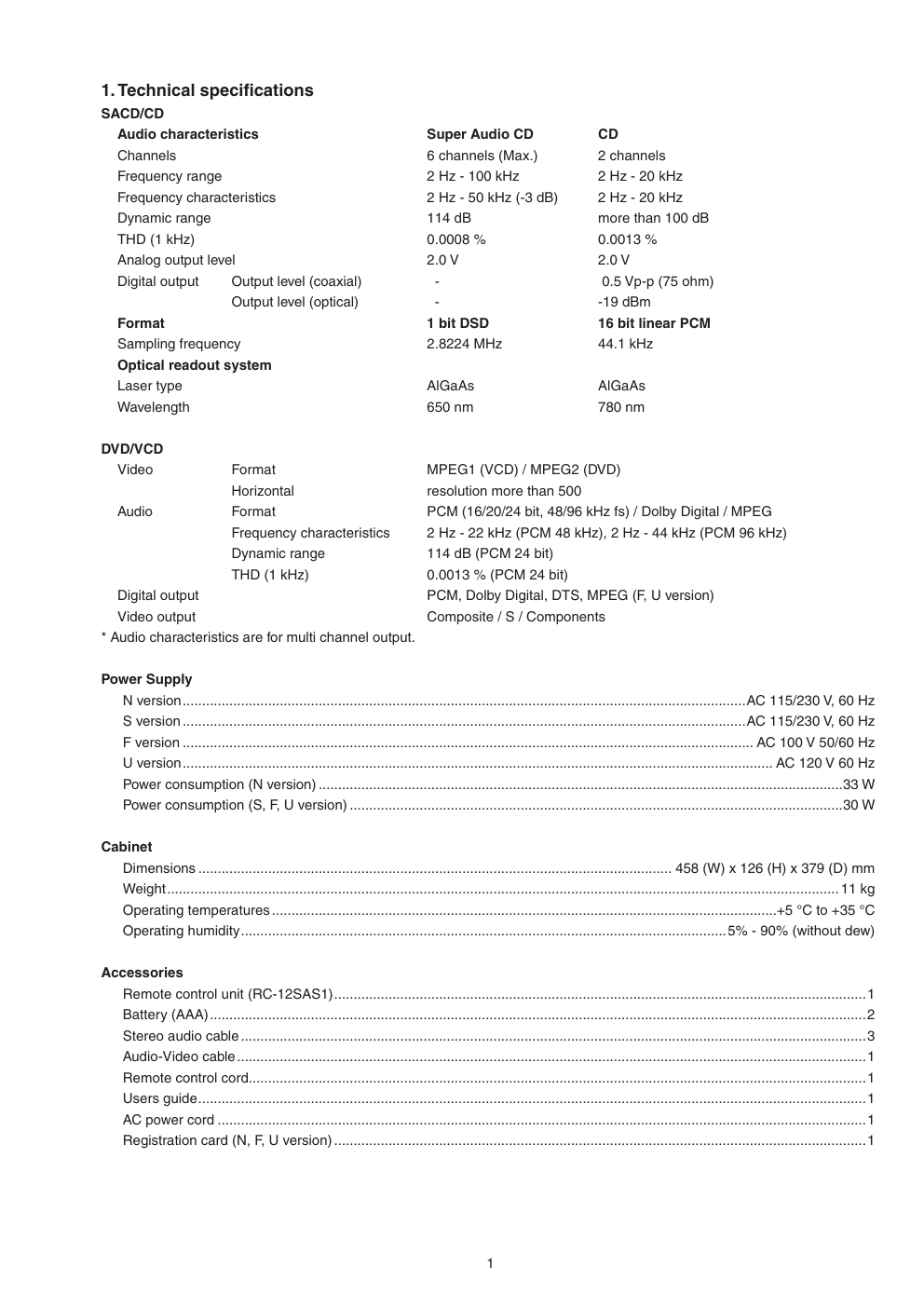

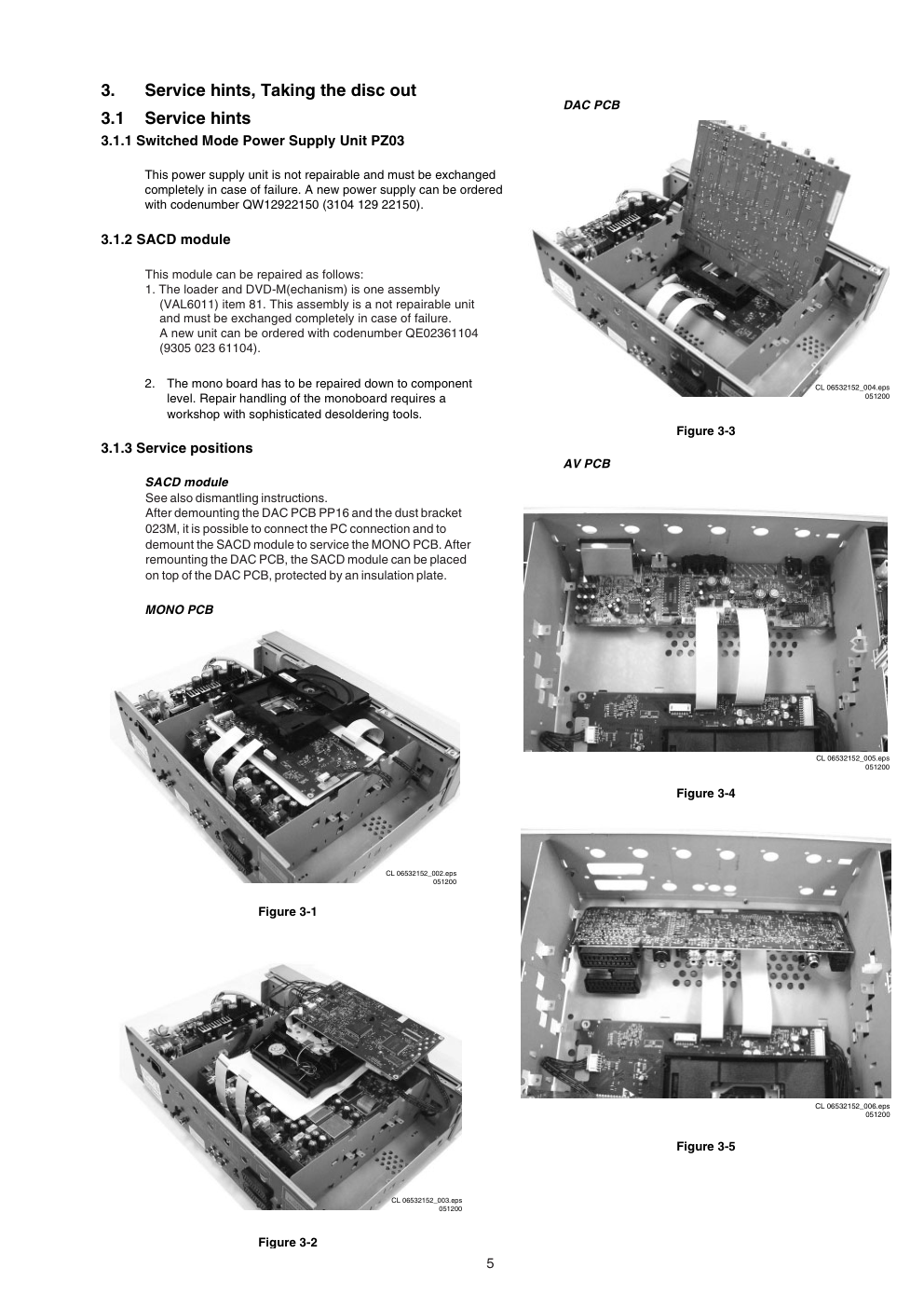

Super Audio CD Player SA-12S1 413K855010 MIT 3120 785 22750 First Issue 2001.09 TABLE OF CONTENTS SECTION PAGE 1. Technical specifi cations................................................................................................................. 1 2. Warnings and laser safety............................................................................................................. 3 3. Service hints, Taking the disc out.................................................................................................. 5 4. Installing the software and entering version.................................................................................. 8 5. Diagnostic software, Trouble shooting and test instructions........................................................ 10 6. Wiring and block diagrams.......................................................................................................... 45 7. Schematic diagram and Parts location........................................................................................ 51 8. Exploded view and Parts list ..................................................................................................... 131 9. Circuit-, IC descriptions and list of abbreviations ...................................................................... 135 10. Electrical parts list ..................................................................................................................... 187 SA12 /F1N, /N1G, /S1G, /U1B R SA-12S1 Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual PL OPEN/CLOSE POWER REPEAT STOP PLAY PAUSE SOUND MODE DISPLAY OFF STANDBY VIDEO OFF D SUPER AUDIO CD PLAYER SA-12S1 FTS MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 010620MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. Technical specifi cations SACD/CD Audio characteristics Super Audio CD CD Channels 6 channels (Max.) 2 channels Frequency range 2 Hz - 100 kHz 2 Hz - 20 kHz Frequency characteristics 2 Hz - 50 kHz (-3 dB) 2 Hz - 20 kHz Dynamic range 114 dB more than 100 dB THD (1 kHz) 0.0008 % 0.0013 % Analog output level 2.0 V 2.0 V Digital output Output level (coaxial) - 0.5 Vp-p (75 ohm) Output level (optical) - -19 dBm Format 1 bit DSD 16 bit linear PCM Sampling frequency 2.8224 MHz 44.1 kHz Optical readout system Laser type AlGaAs AlGaAs Wavelength 650 nm 780 nm DVD/VCD Video Format MPEG1 (VCD) / MPEG2 (DVD) Horizontal resolution more than 500 Audio Format PCM (16/20/24 bit, 48/96 kHz fs) / Dolby Digital / MPEG Frequency characteristics 2 Hz - 22 kHz (PCM 48 kHz), 2 Hz - 44 kHz (PCM 96 kHz) Dynamic range 114 dB (PCM 24 bit) THD (1 kHz) 0.0013 % (PCM 24 bit) Digital output PCM, Dolby Digital, DTS, MPEG (F, U version) Video output Composite / S / Components * Audio characteristics are for multi channel output. Power Supply N version.................................................................................................................................................AC 115/230 V, 60 Hz S version.................................................................................................................................................AC 115/230 V, 60 Hz F version ................................................................................................................................................... AC 100 V 50/60 Hz U version........................................................................................................................................................ AC 120 V 60 Hz Power consumption (N version) .......................................................................................................................................33 W Power consumption (S, F, U version) ...............................................................................................................................30 W Cabinet Dimensions .......................................................................................................................... 458 (W) x 126 (H) x 379 (D) mm Weight.............................................................................................................................................................................11 kg Operating temperatures..................................................................................................................................+5 °C to +35 °C Operating humidity.............................................................................................................................5% - 90% (without dew) Accessories Remote control unit (RC-12SAS1).........................................................................................................................................1 Battery (AAA).........................................................................................................................................................................2 Stereo audio cable.................................................................................................................................................................3 Audio-Video cable..................................................................................................................................................................1 Remote control cord...............................................................................................................................................................1 Users guide............................................................................................................................................................................1 AC power cord .......................................................................................................................................................................1 Registration card (N, F, U version).........................................................................................................................................1 2 2 SCART CONNECTOR SCART II (connected to TV) Pin signals: 1 Output Audio R 1.8 Vrms 2 Input Audio R 3 Output Audio L 1.8 Vrms 4 Audio GND 5 Blue/Chroma GND 6 Input Audio L 7 Bi-dir Blue out/Chroma in 0.7 Vpp +/- 0.1 V into 75 Ohm (*) 8 Output Function switch < 2 V = TV > 4.5 V / < 7 V = asp. Ratio 16:9 DVD > 9.5 V / < 12 V = asp. ratio 4:3 DVD 9 Green GND 10 not connected 11 Output Green 0.7 Vpp +/- 0.1 V into 75 Ohm (*) 12 not connected 13 Red/Chroma GND 14 fast switch GND 15 Output Red out/Chroma out 0.7 Vpp +/- 0.1 V into 75 Ohm (*) +/- 3 dB 0.3 Vpp Chroma (burst) 16 Output fast switch RGB/CVBS or Y < 0.4 V into 75 Ohm = CVBS > 1 V / < 3 V into 75 Ohm = RGB 17 Y/CVBS GND 18 fast switching GND 19 Output CVBS/Y/RGB sync 1 Vpp +/- 0.1 V into 75 Ohm (*) 20 Input CVBS/Y 21 Shield SCART I (connected to AUX) Pin signals: 1 Output Audio R 1.8 Vrms 2 Input Audio R 3 Output Audio L 1.8 Vrms 4 Audio GND 5 Blue/Chroma GND 6 Input Audio L 7 Bi-dir Blue in/Chroma out +/- 3 dB 0.3 Vpp Chroma (burst) 8 Input Function switch 9 Green GND 10 not connected 11 Input Green 12 not connected 13 Red/Chroma GND 14 fast switch GND 15 Output Red in/Chroma in 16 Input fast switch RGB/CVBS or Y 17 CVBS GND 18 fast switching GND 19 Output CVBS/Y/RGB sync 1 Vpp +/- 0.1 V into 75 Ohm (*) 20 Input CVBS/Y 21 Shield (*) for 100% white 3 2. Warnings and laser safety 2.1 Warning and laser safety SHOCK, FIRE HAZARD SERVICE TEST: CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the face or Front Panel of product and controls and chassis bottom, Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before return to user/customer. Ref.UL Standard NO.1492. NOTE ON SAFETY: Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard. F ATTENTION Tous les IC et beaucoup d’autres semi- conducteurs sont sensibles aux décharges statiques (ESD). Leur longévité pourrait être considérablement écourtée par le fait qu’aucune précaution n’est prise a leur manipulation. Lors de réparations, s’assurer de bien être relié au même potentiel que la masse de l’appareil et enfiler le bracelet serti d’une résistance de sécurité. Veiller a ce que les composants ainsi que les outils que l’on utilise soient également a ce potentiel. D WARNUNG Alle IC und viele andere Halbleiter sind empfindlich gegen elektrostatische Entladungen (ESD). Unsorgfältige Behandlung bei der Reparatur kann die Lebensdauer drastisch vermindern. Sorgen sie dafür, das Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig voor elektrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen verminderen. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevita potrebbe essere fortemente ridatta in caso di non osservazione della piu grande cauzione alla loro manipolazione. Durante le riparazioni occorre quindi essere collegato allo stesso potenziale che quello della massa dell’apparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential. WARNING Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke toestand wordt terug gebracht en dat onderdelen, identiek aan de gespecifieerde worden toegepast. Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten. Der Originalzustand des Gerats darf nicht verandert werden. Fur Reparaturen sind Original-Ersatzteile zu verwenden. Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli specificati. Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et que soient utilisées les pièces de rechange identiques à celles spécifiées. “Pour votre sécurité, ces documents doivent être utilisés par des spécialistes agrées, seuls habilités à réparer votre appareil en panne.” GB NL I D I F GB NL 4 2.2 LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 780 nm (VCD/CD) Output Power: 7 mW (DVD) 10 mW (VCD/CD) Beam divergence: 60 degree USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AVOID DIRECT EXPOSURE TO BEAM WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player WARNING LOCATION: INSIDE ON LASER COVERSHIELD CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM ATTENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU Warning for powersupply on position (PH16) The primary side of the powersupply including the heatsink carries live mains voltage when the player is connected to the mains even when the player is swiched off ! This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player. Service personnel have to take precautions to prevent touching this area or components in this area . The primary side of the powersupply has been indicated with a lightning stroke and a stripe-marked printed on the printed wiring board Note: The screws on the mechanism of the ASD1 module (position 001M in on the exploded view drawing) may never be touched removed or re-adjusted. Handle the ASD1 module with care when the unit has to be exchanged! The mechanism of the ASD1 module is very sensative for dropping or shocks. 5 3.1 Service hints 3. Service hints, Taking the disc out 3.1.1 Switched Mode Power Supply Unit PZ03 3.1.2 SACD module 2. The mono board has to be repaired down to component level. Repair handling of the monoboard requires a workshop with sophisticated desoldering tools. 3.1.3 Service positions SACD module MONO PCB Figure 3-1 Figure 3-2 DAC PCB Figure 3-3 AV PCB Figure 3-4 Figure 3-5 CL 06532152_002.eps 051200 CL 06532152_003.eps 051200 CL 06532152_004.eps 051200 CL 06532152_005.eps 051200 CL 06532152_006.eps 051200 See also dismantling instructions. After demounting the DAC PCB PP16 and the dust bracket 023M, it is possible to connect the PC connection and to demount the SACD module to service the MONO PCB. After remounting the DAC PCB, the SACD module can be placed on top of the DAC PCB, protected by an insulation plate. This power supply unit is not repairable and must be exchanged completely in case of failure. A new power supply can be ordered with codenumber QW12922150 (3104 129 22150). This module can be repaired as follows: 1. The loader and DVD-M(echanism) is one assembly (VAL6011) item 81. This assembly is a not repairable unit and must be exchanged completely in case of failure. A new unit can be ordered with codenumber QE02361104 (9305 023 61104). 6 remove 2 screws 005G (front side Legs 004G) 3.1.4. Mechanical- and dismantling instructions DISMANTLING INSTRUCTIONS Front assy(001B+PY16+PY26) ⇒ ⇒ ⇒ → Top cover ⇒ A/V board PN16 ⇒ ⇒ ⇒ DAC PCB PP16 ⇒ ⇒ ⇒ Dust Bracket 023M → → ⇒ ⇒ SACD Mono board PZ01 ⇒ ⇒ ⇒ ⇒ SACD MODULE (001M + PZ01) ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ Loader VAL6011/04 : 001M ⇒ Switched mode power supply unit PZ03 Linear power supply PH16 ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ Transformer L001 → → → → → Display board PY16 ⇒ ⇒ → ON/OFF BOARD PY26 → ⇒ ⇒ open the tray and remove tray front 046B Remove 2 screws 5128 (board Remove 2 screws 5128 (mains inled ⇒ Demount the board ⇒ Release the snaps of 2 spacers 012G(board ⇒ Remove 2 screws 5128 (voltage selector frame) backplate) frame) the 020M 5128 5128 12 (loader 001M frame 020M) (dust cover on loader 001M) 5128 (mono board PZ01 loader 001M) backplate) 5129 x 2 and 5126 x 2 → 5110 x 3 and 5128 x 2 Manually opening of tray When it is not possible to open the tray with the open/ close button, the tray can manually be opened. When no disc is loaded, unlock the tray by moving the slide from the left to the right and pull tray outwards. Remove 4 screws to remove loader. Remove 001D and Side cover 006D 005D x 8 at top 009D x 8 at both side 5128 5110 7 Gear pulley 3.2 Taking the disc out. 1. Remove the top cover with 8 screws. 2. Remove the both side covers with 8 screws. 3. Remove the 8 screws of front panel and unfasten 2 screws of front legs. 4. Pull out the front panel. 5. Turn right the pulley by your finger or nail. (See fig.1) 6. Then the tray is moved a little. Pull the tray with your hand at this time. Note: Take care of unhurt gear belt. 8 4. Installing the software and entering version. The kind of CD-ROM (software), and explanation a) Key reassignment Disc (44444444.016) [Parts No. *SA12KEYCD] b) Background (PAL) Disc (11111111.008) [Parts No. *SA12PALCD] c) Background (NTSC) Disc (22222222.008) [Parts No. *SA12NTSCD] Installing necessary CD-ROM for version. For /N: Key reassignment Disc (44444444.016) and Background (PAL) Disc (11111111.008) For /S: Key reassignment Disc (44444444.016) and Background (PAL) Disc (11111111.008) For /U: Key reassignment Disc (44444444.016) and Background (NTSC) Disc (22222222.008) For /F: Key reassignment Disc (44444444.016) and Background (NTSC) Disc (22222222.008) How to installing the software All software is installed from CD-ROM. These are supplied by another disc, respectively. When disc was put in the player, software is installed automatically. And disc comes out of the player, after fi nished. The sequence to install is “Key reassignment” fi rst and, next, is “Background”. Entering Version and region code Caution: This information is confi dential and may not be distributed. Only a qualifi ed service person should repro- gram the mono board. Reprogramming is limited to 25 times. When the counter reaches 25, reprogramming is not possible anymore and the region code change counter must be reset by means of the Diagnostic Software. Reprogramming will be done by way of the remote control. Put the player in stop mode, no disc loaded. Press the following keys on the remote control. followed by numerical keys <2>, <7>, <4> The display shows “-----------“ Press now successively the following keys For /N: <0>, <0>, <1>, <0>, <0>, <0>, <0>, <0>, <0>, <0>, <0> For /U: <0>, <0>, <2>, <0>, <0>, <0>, <0>, <0>, <0>, <0>, <0> For /S: <0>, <0>, <3>, <0>, <0>, <0>, <0>, <0>, <0>, <0>, <0> For /F: <0>, <0>, <4>, <0>, <0>, <0>, <0>, <0>, <0>, <0>, <0> Press again. The TV screen will become blue during a short time to confi rm that the digital board has been reprogrammed. How to confi rm the software and the version. 11111111.008/ 22222222.008: Displayed on TV screen as background of marantz is OK, after entering version. If a power supply is turned on, with and of a player pushed, a change of NTSC mode and PAL mode can be performed. 44444444.016: Worked or
