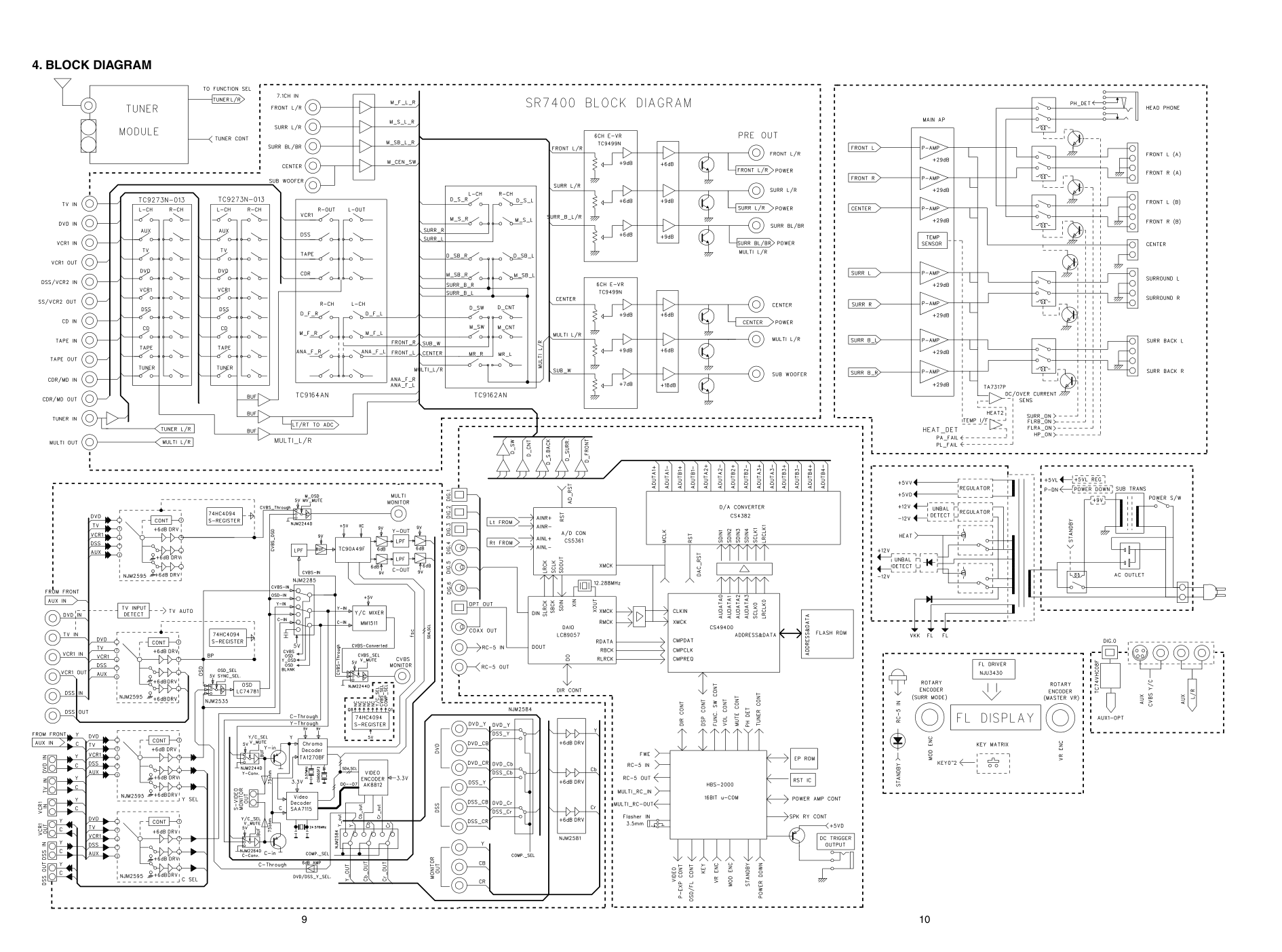

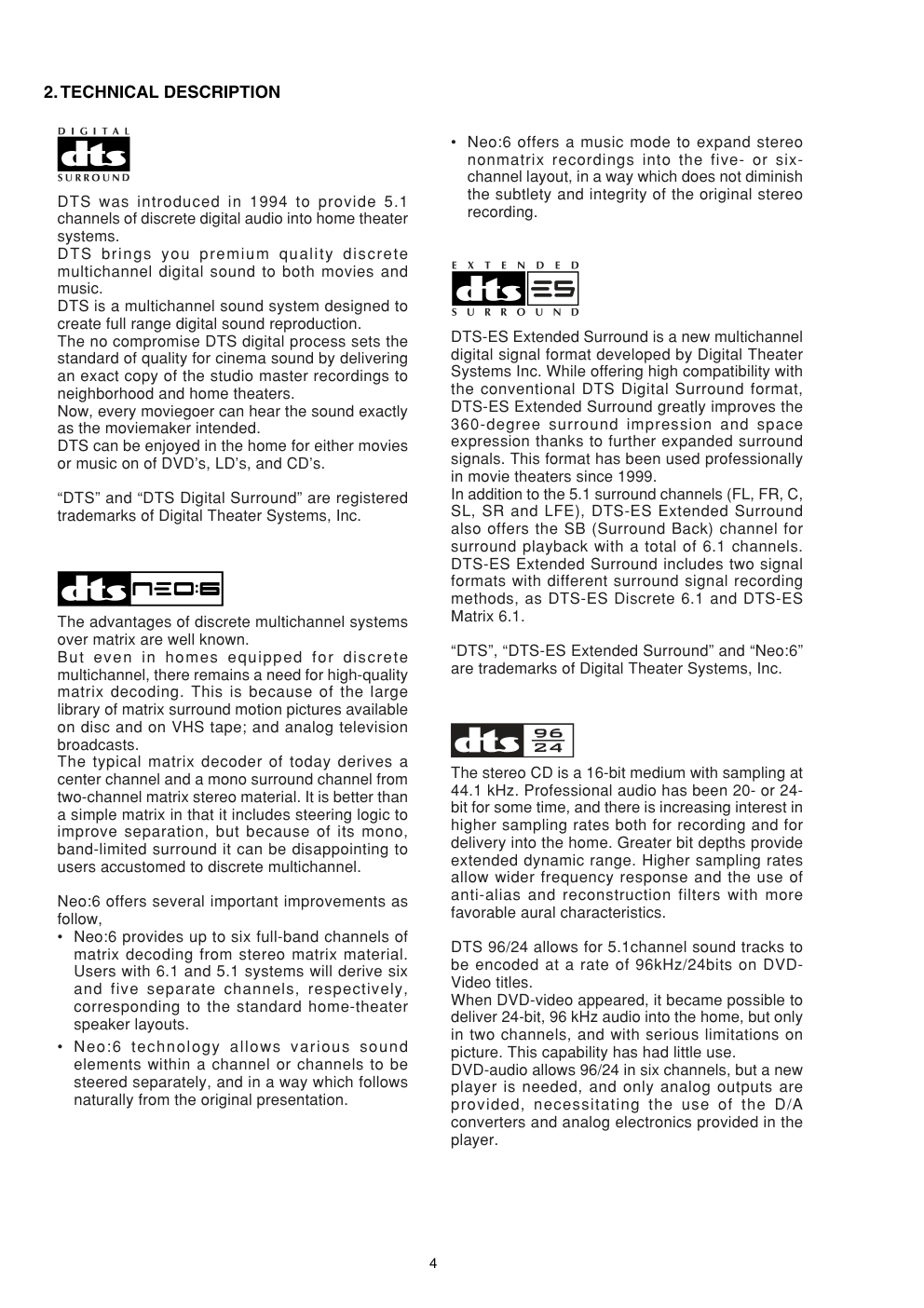

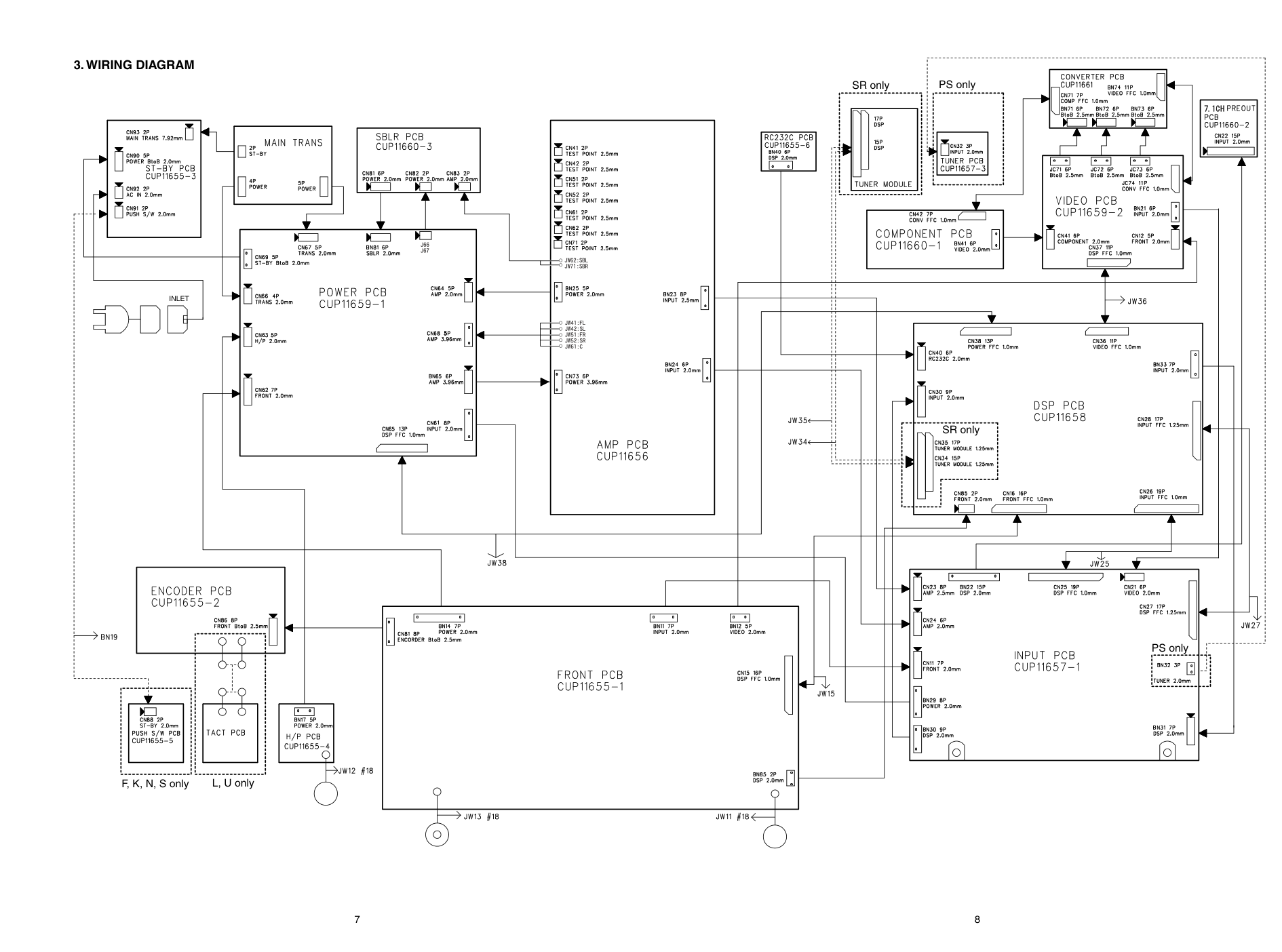

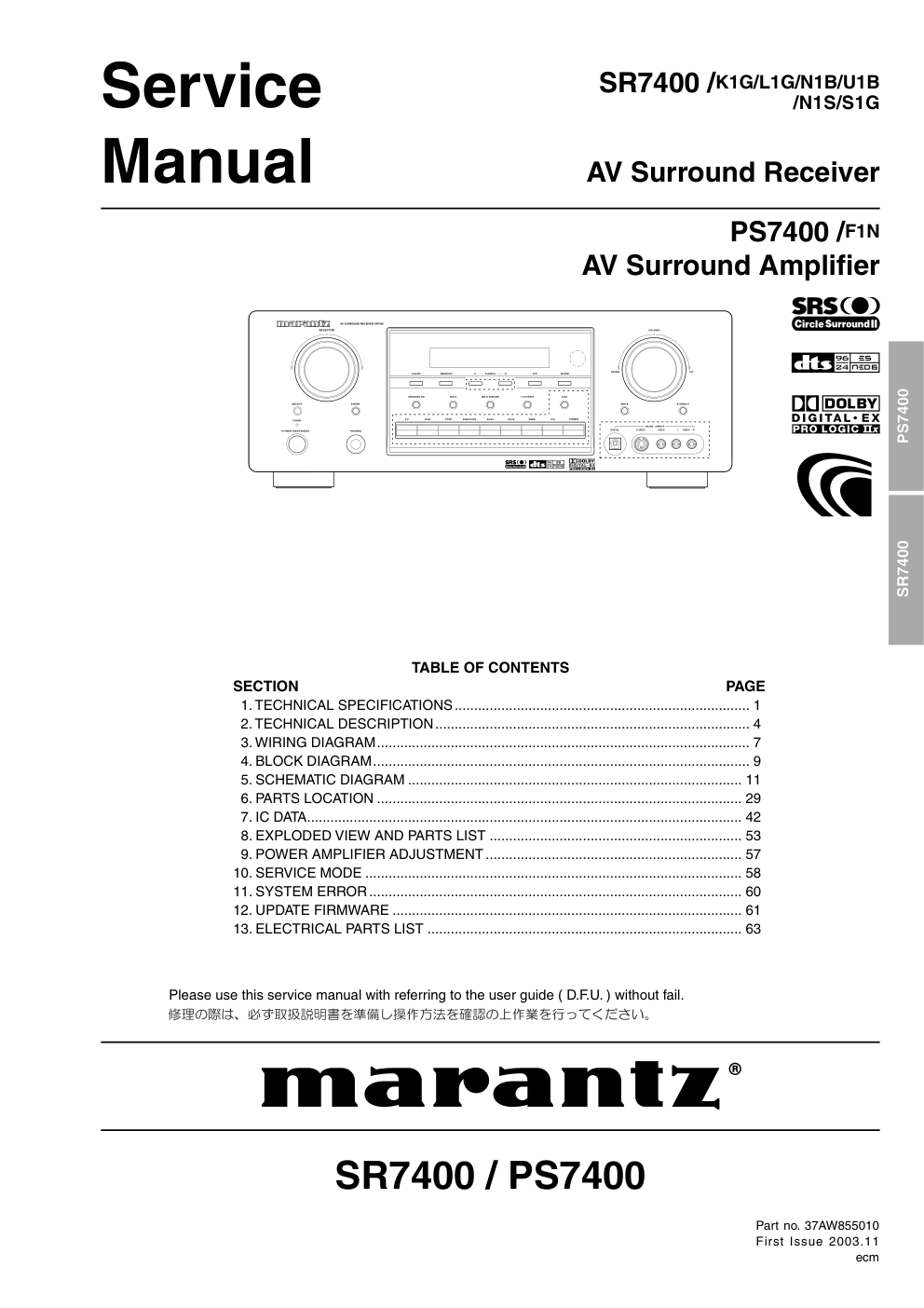

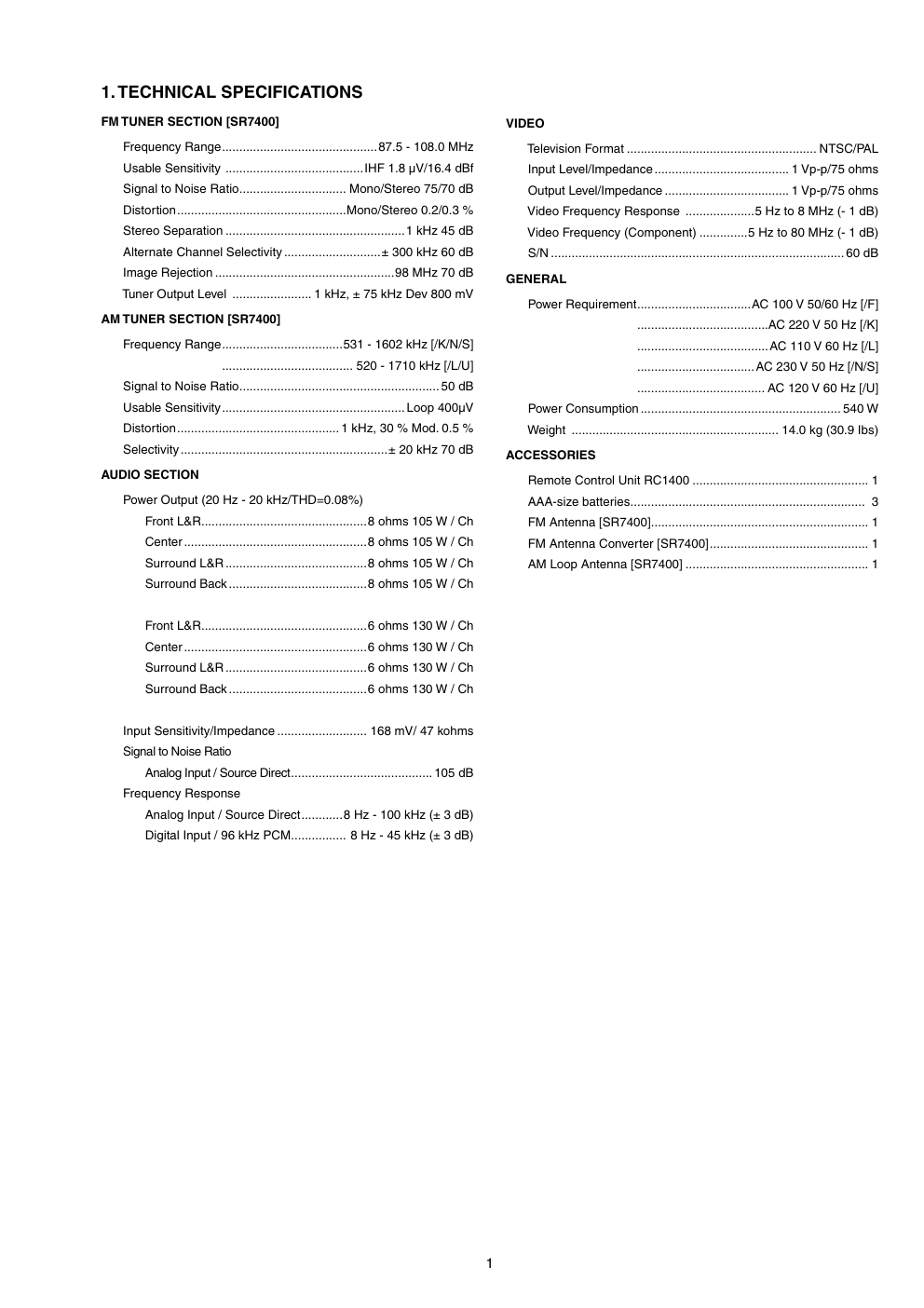

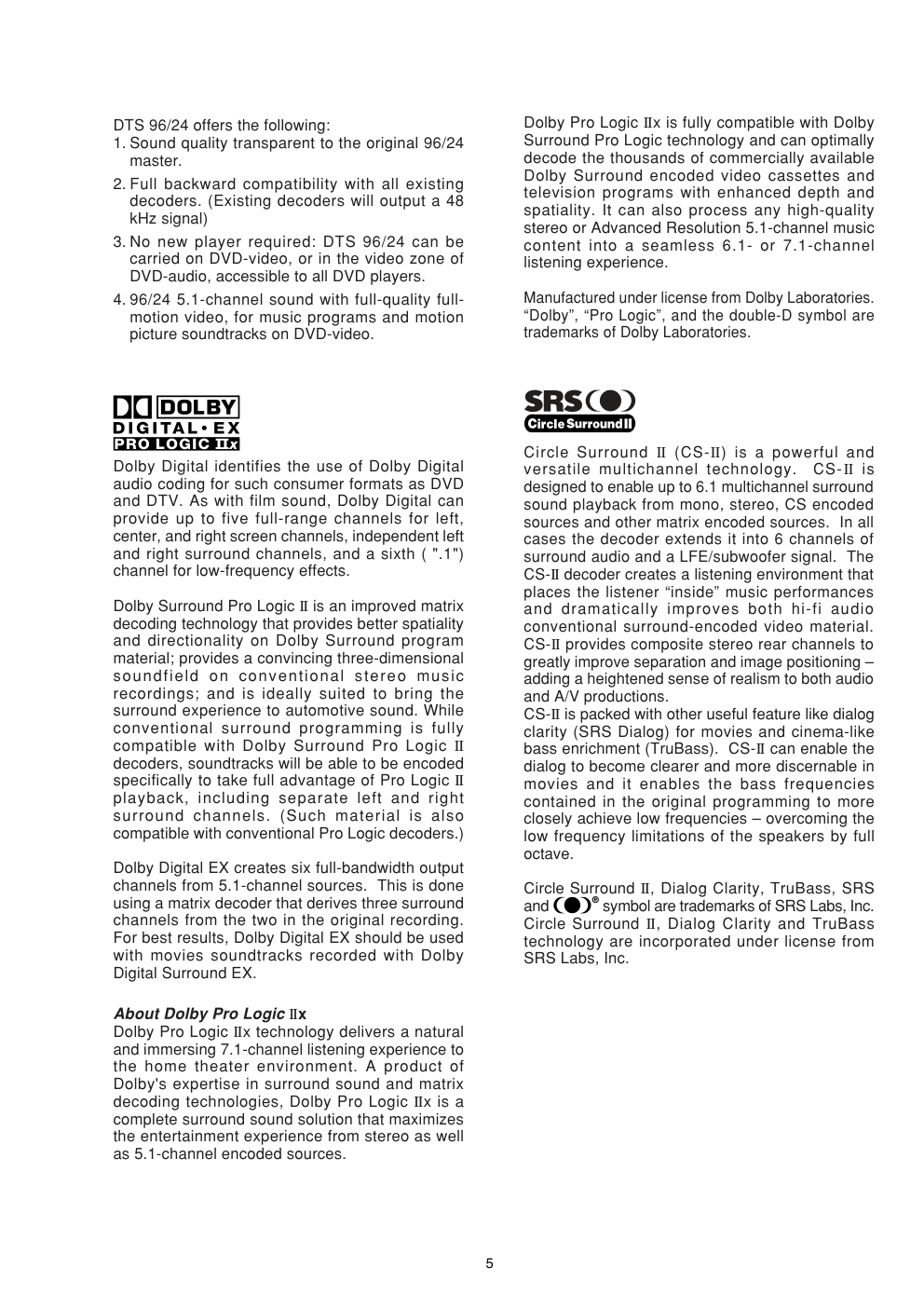

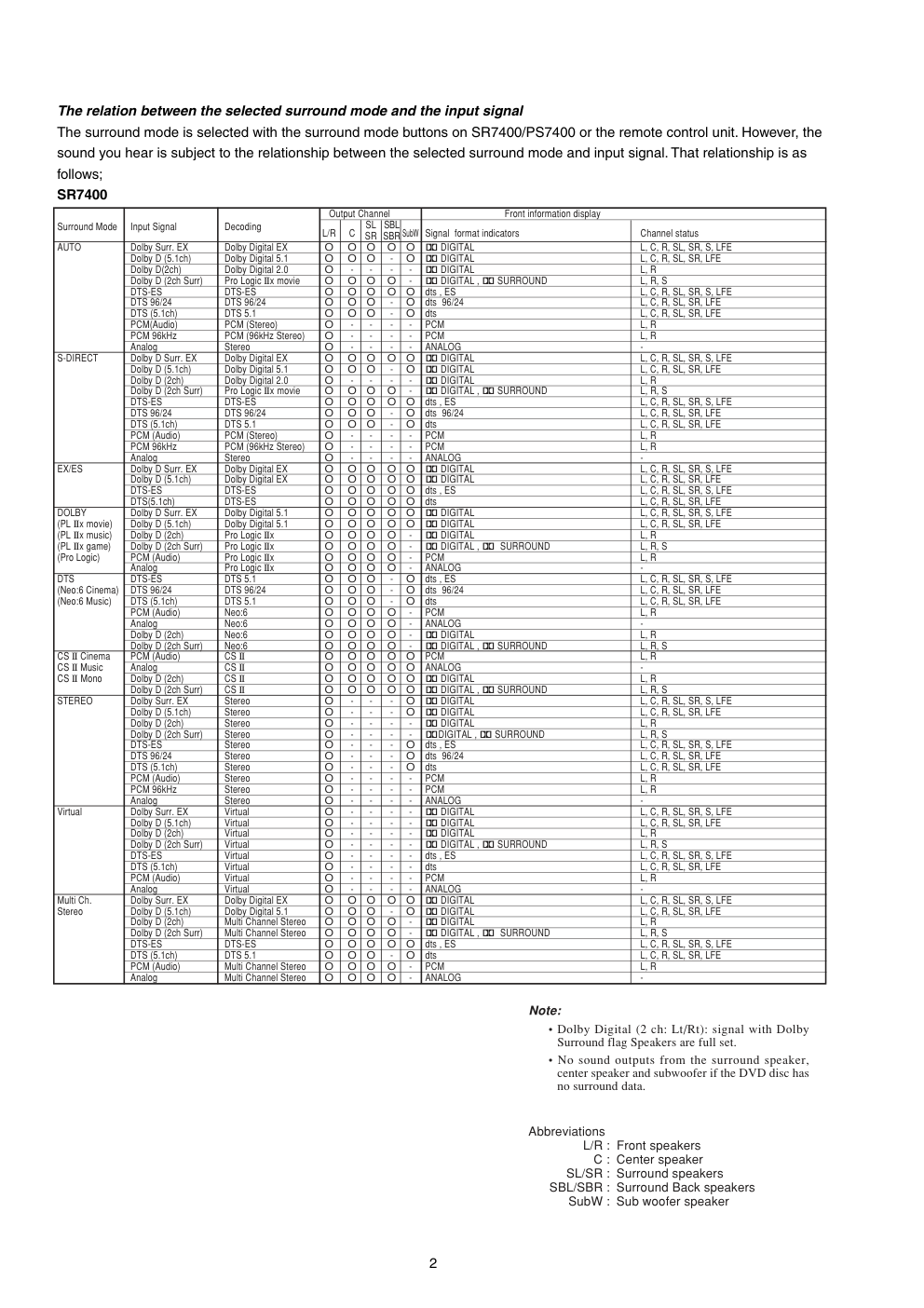

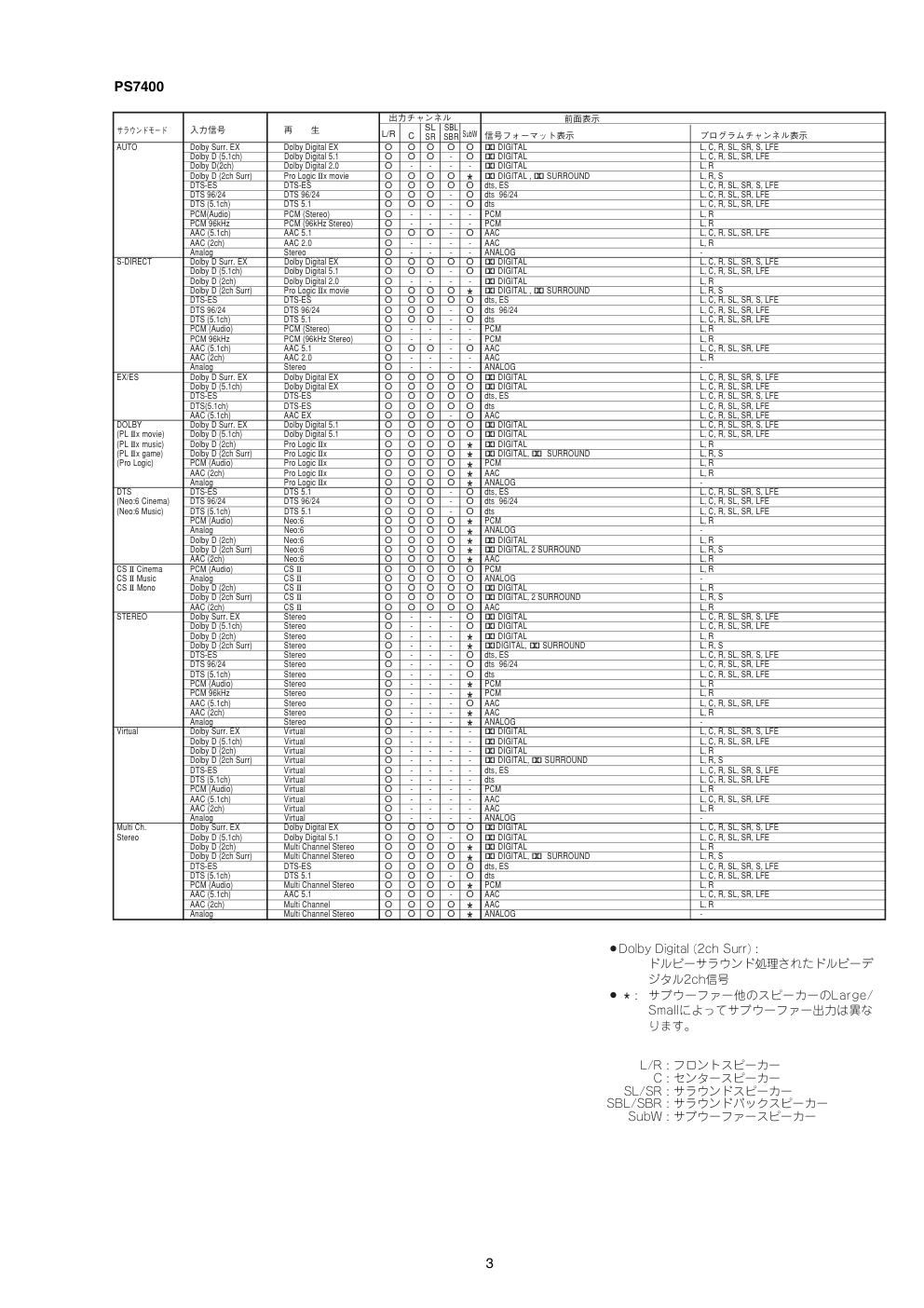

SR7400 / PS7400 Part no. 37AW855010 First Issue 2003.11 ecm Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual SR7400 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS............................................................................ 1 2. TECHNICAL DESCRIPTION................................................................................. 4 3. WIRING DIAGRAM................................................................................................ 7 4. BLOCK DIAGRAM................................................................................................. 9 5. SCHEMATIC DIAGRAM ...................................................................................... 11 6. PARTS LOCATION .............................................................................................. 29 7. IC DATA................................................................................................................ 42 8. EXPLODED VIEW AND PARTS LIST ................................................................. 53 9. POWER AMPLIFIER ADJUSTMENT .................................................................. 57 10. SERVICE MODE ................................................................................................. 58 11. SYSTEM ERROR................................................................................................ 60 12. UPDATE FIRMWARE .......................................................................................... 61 13. ELECTRICAL PARTS LIST ................................................................................. 63 AV SURROUND RECEIVER SR7400 UP SELECTOR VOLUME DOWN MEMORY TUNING MODE F/P CLEAR 7.1CH INPUT AUX2 MUTE MULTI SPEAKER MULTI SPEAKERS A/B POWER ON/STANDBY PHONES ENTER STANDBY AUX1 INPUT S-VIDEO VIDEO L AUDIO R DSS/VCR2 AUX1 VCR1 DVD TV CD CD-R TAPE TUNER S-DIRECT SELECT DIGITAL PS7400 AV Surround Receiver SR7400 /K1G/L1G/N1B/U1B /N1S/S1G PS7400 /F1N AV Surround Amplifi er MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 030307MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. 2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 HONG KONG Jolly ProAudio Broadcast Engineering Ltd. UNIT 2, 10F, WAH HUNG CENTRE, 41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 TECHNICAL AUDIO GROUP PTY, LTD 43-53 Bridge Rd., STANMORE NSW 2048 AUSTRALIA PHONE : +61 - (0)2 - 9519 - 0900 FAX : +61 - (0)2 - 9519 - 0600 AUSTRALIA 1 1. TECHNICAL SPECIFICATIONS FM TUNER SECTION [SR7400] Frequency Range.............................................87.5 - 108.0 MHz Usable Sensitivity ........................................IHF 1.8 µV/16.4 dBf Signal to Noise Ratio............................... Mono/Stereo 75/70 dB Distortion.................................................Mono/Stereo 0.2/0.3 % Stereo Separation ....................................................1 kHz 45 dB Alternate Channel Selectivity ............................± 300 kHz 60 dB Image Rejection ....................................................98 MHz 70 dB Tuner Output Level ....................... 1 kHz, ± 75 kHz Dev 800 mV AM TUNER SECTION [SR7400] Frequency Range...................................531 - 1602 kHz [/K/N/S] ...................................... 520 - 1710 kHz [/L/U] Signal to Noise Ratio..........................................................50 dB Usable Sensitivity.....................................................Loop 400µV Distortion............................................... 1 kHz, 30 % Mod. 0.5 % Selectivity............................................................± 20 kHz 70 dB AUDIO SECTION Power Output (20 Hz - 20 kHz/THD=0.08%) Front L&R................................................8 ohms 105 W / Ch Center.....................................................8 ohms 105 W / Ch Surround L&R.........................................8 ohms 105 W / Ch Surround Back........................................8 ohms 105 W / Ch Front L&R................................................6 ohms 130 W / Ch Center.....................................................6 ohms 130 W / Ch Surround L&R.........................................6 ohms 130 W / Ch Surround Back........................................6 ohms 130 W / Ch Input Sensitivity/Impedance .......................... 168 mV/ 47 kohms Signal to Noise Ratio Analog Input / Source Direct.........................................105 dB Frequency Response Analog Input / Source Direct............8 Hz - 100 kHz (± 3 dB) Digital Input / 96 kHz PCM................ 8 Hz - 45 kHz (± 3 dB) VIDEO Television Format ....................................................... NTSC/PAL Input Level/Impedance....................................... 1 Vp-p/75 ohms Output Level/Impedance .................................... 1 Vp-p/75 ohms Video Frequency Response ....................5 Hz to 8 MHz (- 1 dB) Video Frequency (Component) ..............5 Hz to 80 MHz (- 1 dB) S/N .....................................................................................60 dB GENERAL Power Requirement.................................AC 100 V 50/60 Hz [/F] ......................................AC 220 V 50 Hz [/K] ......................................AC 110 V 60 Hz [/L] ..................................AC 230 V 50 Hz [/N/S] ..................................... AC 120 V 60 Hz [/U] Power Consumption.......................................................... 540 W Weight ............................................................ 14.0 kg (30.9 Ibs) ACCESSORIES Remote Control Unit RC1400 ................................................... 1 AAA-size batteries.................................................................... 3 FM Antenna [SR7400]............................................................... 1 FM Antenna Converter [SR7400].............................................. 1 AM Loop Antenna [SR7400] ..................................................... 1 2 Surround Mode Input Signal Decoding Output Channel Front information display L/R C SL SBL SubW Signal format indicators Channel status SR SBR AUTO Dolby Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D(2ch) Dolby Digital 2.0 O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Pro Logic IIx movie O O O O - 2 DIGITAL , 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts , ES L, C, R, SL, SR, S, LFE DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM(Audio) PCM (Stereo) O - - - - PCM L, R PCM 96kHz PCM (96kHz Stereo) O - - - - PCM L, R Analog Stereo O - - - - ANALOG - S-DIRECT Dolby D Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Dolby Digital 2.0 O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Pro Logic IIx movie O O O O - 2 DIGITAL , 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts , ES L, C, R, SL, SR, S, LFE DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) PCM (Stereo) O - - - - PCM L, R PCM 96kHz PCM (96kHz Stereo) O - - - - PCM L, R Analog Stereo O - - - - ANALOG - EX/ES Dolby D Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, LFE DTS-ES DTS-ES O O O O O dts , ES L, C, R, SL, SR, S, LFE DTS(5.1ch) DTS-ES O O O O O dts L, C, R, SL, SR, LFE DOLBY Dolby D Surr. EX Dolby Digital 5.1 O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE (PL IIx movie) Dolby D (5.1ch) Dolby Digital 5.1 O O O O O 2 DIGITAL L, C, R, SL, SR, LFE (PL IIx music) Dolby D (2ch) Pro Logic IIx O O O O - 2 DIGITAL L, R (PL IIx game) Dolby D (2ch Surr) Pro Logic IIx O O O O - 2 DIGITAL , 2 SURROUND L, R, S (Pro Logic) PCM (Audio) Pro Logic IIx O O O O - PCM L, R Analog Pro Logic IIx O O O O - ANALOG - DTS DTS-ES DTS 5.1 O O O - O dts , ES L, C, R, SL, SR, S, LFE (Neo:6 Cinema) DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE (Neo:6 Music) DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) Neo:6 O O O O - PCM L, R Analog Neo:6 O O O O - ANALOG - Dolby D (2ch) Neo:6 O O O O - 2 DIGITAL L, R Dolby D (2ch Surr) Neo:6 O O O O - 2 DIGITAL , 2 SURROUND L, R, S CS II Cinema PCM (Audio) CS II O O O O O PCM L, R CS II Music Analog CS II O O O O O ANALOG - CS II Mono Dolby D (2ch) CS II O O O O O 2 DIGITAL L, R Dolby D (2ch Surr) CS II O O O O O 2 DIGITAL , 2 SURROUND L, R, S STEREO Dolby Surr. EX Stereo O - - - O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Stereo O - - - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Stereo O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Stereo O - - - - 2DIGITAL , 2 SURROUND L, R, S DTS-ES Stereo O - - - O dts , ES L, C, R, SL, SR, S, LFE DTS 96/24 Stereo O - - - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) Stereo O - - - O dts L, C, R, SL, SR, LFE PCM (Audio) Stereo O - - - - PCM L, R PCM 96kHz Stereo O - - - - PCM L, R Analog Stereo O - - - - ANALOG - Virtual Dolby Surr. EX Virtual O - - - - 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Virtual O - - - - 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Virtual O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Virtual O - - - - 2 DIGITAL , 2 SURROUND L, R, S DTS-ES Virtual O - - - - dts , ES L, C, R, SL, SR, S, LFE DTS (5.1ch) Virtual O - - - - dts L, C, R, SL, SR, LFE PCM (Audio) Virtual O - - - - PCM L, R Analog Virtual O - - - - ANALOG - Multi Ch. Dolby Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Stereo Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Multi Channel Stereo O O O O - 2 DIGITAL L, R Dolby D (2ch Surr) Multi Channel Stereo O O O O - 2 DIGITAL , 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts , ES L, C, R, SL, SR, S, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) Multi Channel Stereo O O O O - PCM L, R Analog Multi Channel Stereo O O O O - ANALOG - Note: • Dolby Digital (2 ch: Lt/Rt): signal with Dolby Surround flag Speakers are full set. • No sound outputs from the surround speaker, center speaker and subwoofer if the DVD disc has no surround data. Abbreviations L/R : Front speakers C : Center speaker SL/SR : Surround speakers SBL/SBR : Surround Back speakers SubW : Sub woofer speaker The relation between the selected surround mode and the input signal The surround mode is selected with the surround mode buttons on SR7400/PS7400 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows; SR7400 3 サラウンドモード 入力信号 再　　生 出力チャンネル 前面表示 L/R C SL SBL SubW 信号フォーマット表示 プログラムチャンネル表示 SR SBR AUTO Dolby Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D(2ch) Dolby Digital 2.0 O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Pro Logic IIx movie O O O O * 2 DIGITAL , 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts, ES L, C, R, SL, SR, S, LFE DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM(Audio) PCM (Stereo) O - - - - PCM L, R PCM 96kHz PCM (96kHz Stereo) O - - - - PCM L, R AAC (5.1ch) AAC 5.1 O O O - O AAC L, C, R, SL, SR, LFE AAC (2ch) AAC 2.0 O - - - - AAC L, R Analog Stereo O - - - - ANALOG - S-DIRECT Dolby D Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Dolby Digital 2.0 O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Pro Logic IIx movie O O O O * 2 DIGITAL , 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts, ES L, C, R, SL, SR, S, LFE DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) PCM (Stereo) O - - - - PCM L, R PCM 96kHz PCM (96kHz Stereo) O - - - - PCM L, R AAC (5.1ch) AAC 5.1 O O O - O AAC L, C, R, SL, SR, LFE AAC (2ch) AAC 2.0 O - - - - AAC L, R Analog Stereo O - - - - ANALOG - EX/ES Dolby D Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, LFE DTS-ES DTS-ES O O O O O dts, ES L, C, R, SL, SR, S, LFE DTS(5.1ch) DTS-ES O O O O O dts L, C, R, SL, SR, LFE AAC (5.1ch) AAC EX O O O - O AAC L, C, R, SL, SR, LFE DOLBY Dolby D Surr. EX Dolby Digital 5.1 O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE (PL IIx movie) Dolby D (5.1ch) Dolby Digital 5.1 O O O O O 2 DIGITAL L, C, R, SL, SR, LFE (PL IIx music) Dolby D (2ch) Pro Logic IIx O O O O * 2 DIGITAL L, R (PL IIx game) Dolby D (2ch Surr) Pro Logic IIx O O O O * 2 DIGITAL, 2 SURROUND L, R, S (Pro Logic) PCM (Audio) Pro Logic IIx O O O O * PCM L, R AAC (2ch) Pro Logic IIx O O O O * AAC L, R Analog Pro Logic IIx O O O O * ANALOG - DTS DTS-ES DTS 5.1 O O O - O dts, ES L, C, R, SL, SR, S, LFE (Neo:6 Cinema) DTS 96/24 DTS 96/24 O O O - O dts 96/24 L, C, R, SL, SR, LFE (Neo:6 Music) DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) Neo:6 O O O O * PCM L, R Analog Neo:6 O O O O * ANALOG - Dolby D (2ch) Neo:6 O O O O * 2 DIGITAL L, R Dolby D (2ch Surr) Neo:6 O O O O * 2 DIGITAL, 2 SURROUND L, R, S AAC (2ch) Neo:6 O O O O * AAC L, R CS II Cinema PCM (Audio) CS II O O O O O PCM L, R CS II Music Analog CS II O O O O O ANALOG - CS II Mono Dolby D (2ch) CS II O O O O O 2 DIGITAL L, R Dolby D (2ch Surr) CS II O O O O O 2 DIGITAL, 2 SURROUND L, R, S AAC (2ch) CS II O O O O O AAC L, R STEREO Dolby Surr. EX Stereo O - - - O 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Stereo O - - - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Stereo O - - - * 2 DIGITAL L, R Dolby D (2ch Surr) Stereo O - - - * 2DIGITAL, 2 SURROUND L, R, S DTS-ES Stereo O - - - O dts, ES L, C, R, SL, SR, S, LFE DTS 96/24 Stereo O - - - O dts 96/24 L, C, R, SL, SR, LFE DTS (5.1ch) Stereo O - - - O dts L, C, R, SL, SR, LFE PCM (Audio) Stereo O - - - * PCM L, R PCM 96kHz Stereo O - - - * PCM L, R AAC (5.1ch) Stereo O - - - O AAC L, C, R, SL, SR, LFE AAC (2ch) Stereo O - - - * AAC L, R Analog Stereo O - - - * ANALOG - Virtual Dolby Surr. EX Virtual O - - - - 2 DIGITAL L, C, R, SL, SR, S, LFE Dolby D (5.1ch) Virtual O - - - - 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Virtual O - - - - 2 DIGITAL L, R Dolby D (2ch Surr) Virtual O - - - - 2 DIGITAL, 2 SURROUND L, R, S DTS-ES Virtual O - - - - dts, ES L, C, R, SL, SR, S, LFE DTS (5.1ch) Virtual O - - - - dts L, C, R, SL, SR, LFE PCM (Audio) Virtual O - - - - PCM L, R AAC (5.1ch) Virtual O - - - - AAC L, C, R, SL, SR, LFE AAC (2ch) Virtual O - - - - AAC L, R Analog Virtual O - - - - ANALOG - Multi Ch. Dolby Surr. EX Dolby Digital EX O O O O O 2 DIGITAL L, C, R, SL, SR, S, LFE Stereo Dolby D (5.1ch) Dolby Digital 5.1 O O O - O 2 DIGITAL L, C, R, SL, SR, LFE Dolby D (2ch) Multi Channel Stereo O O O O * 2 DIGITAL L, R Dolby D (2ch Surr) Multi Channel Stereo O O O O * 2 DIGITAL, 2 SURROUND L, R, S DTS-ES DTS-ES O O O O O dts, ES L, C, R, SL, SR, S, LFE DTS (5.1ch) DTS 5.1 O O O - O dts L, C, R, SL, SR, LFE PCM (Audio) Multi Channel Stereo O O O O * PCM L, R AAC (5.1ch) AAC 5.1 O O O - O AAC L, C, R, SL, SR, LFE AAC (2ch) Multi Channel O O O O * AAC L, R Analog Multi Channel Stereo O O O O * ANALOG - PS7400 Dolby Digital (2ch Surr) : ドルビーサラウンド処理されたドルビーデ ジタル2ch信号 * : サブウーファー他のスピーカーのLarge/ Smallによってサブウーファー出力は異な ります。 L/R : フロントスピーカー C : センタースピーカー SL/SR : サラウンドスピーカー SBL/SBR : サラウンドバックスピーカー SubW : サブウーファースピーカー 4 2. TECHNICAL DESCRIPTION DTS was introduced in 1994 to provide 5.1 channels of discrete digital audio into home theater systems. DTS brings you premium quality discrete multichannel digital sound to both movies and music. DTS is a multichannel sound system designed to create full range digital sound reproduction. The no compromise DTS digital process sets the standard of quality for cinema sound by delivering an exact copy of the studio master recordings to neighborhood and home theaters. Now, every moviegoer can hear the sound exactly as the moviemaker intended. DTS can be enjoyed in the home for either movies or music on of DVD’s, LD’s, and CD’s. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. The advantages of discrete multichannel systems over matrix are well known. But even in homes equipped for discrete multichannel, there remains a need for high-quality matrix decoding. This is because of the large library of matrix surround motion pictures available on disc and on VHS tape; and analog television broadcasts. The typical matrix decoder of today derives a center channel and a mono surround channel from two-channel matrix stereo material. It is better than a simple matrix in that it includes steering logic to improve separation, but because of its mono, band-limited surround it can be disappointing to users accustomed to discrete multichannel. Neo:6 offers several important improvements as follow, • Neo:6 provides up to six full-band channels of matrix decoding from stereo matrix material. Users with 6.1 and 5.1 systems will derive six and five separate channels, respectively, corresponding to the standard home-theater speaker layouts. • Neo:6 technology allows various sound elements within a channel or channels to be steered separately, and in a way which follows naturally from the original presentation. • Neo:6 offers a music mode to expand stereo nonmatrix recordings into the five- or six- channel layout, in a way which does not diminish the subtlety and integrity of the original stereo recording. DTS-ES Extended Surround is a new multichannel digital signal format developed by Digital Theater Systems Inc. While offering high compatibility with the conventional DTS Digital Surround format, DTS-ES Extended Surround greatly improves the 360-degree surround impression and space expression thanks to further expanded surround signals. This format has been used professionally in movie theaters since 1999. In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back) channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes two signal formats with different surround signal recording methods, as DTS-ES Discrete 6.1 and DTS-ES Matrix 6.1. “DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc. The stereo CD is a 16-bit medium with sampling at 44.1 kHz. Professional audio has been 20- or 24- bit for some time, and there is increasing interest in higher sampling rates both for recording and for delivery into the home. Greater bit depths provide extended dynamic range. Higher sampling rates allow wider frequency response and the use of anti-alias and reconstruction filters with more favorable aural characteristics. DTS 96/24 allows for 5.1channel sound tracks to be encoded at a rate of 96kHz/24bits on DVD- Video titles. When DVD-video appeared, it became possible to deliver 24-bit, 96 kHz audio into the home, but only in two channels, and with serious limitations on picture. This capability has had little use. DVD-audio allows 96/24 in six channels, but a new player is needed, and only analog outputs are provided, necessitating the use of the D/A converters and analog electronics provided in the player. 5 Dolby Pro Logic IIx is fully compatible with Dolby Surround Pro Logic technology and can optimally decode the thousands of commercially available Dolby Surround encoded video cassettes and television programs with enhanced depth and spatiality. It can also process any high-quality stereo or Advanced Resolution 5.1-channel music content into a seamless 6.1- or 7.1-channel listening experience. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Circle Surround II (CS-II) is a powerful and versatile multichannel technology. CS-II is designed to enable up to 6.1 multichannel surround sound playback from mono, stereo, CS encoded sources and other matrix encoded sources. In all cases the decoder extends it into 6 channels of surround audio and a LFE/subwoofer signal. The CS-II decoder creates a listening environment that places the listener “inside” music performances and dramatically improves both hi-fi audio conventional surround-encoded video material. CS-II provides composite stereo rear channels to greatly improve separation and image positioning – adding a heightened sense of realism to both audio and A/V productions. CS-II is packed with other useful feature like dialog clarity (SRS Dialog) for movies and cinema-like bass enrichment (TruBass). CS-II can enable the dialog to become clearer and more discernable in movies and it enables the bass frequencies contained in the original programming to more closely achieve low frequencies – overcoming the low frequency limitations of the speakers by full octave. Circle Surround II, Dialog Clarity, TruBass, SRS and symbol are trademarks of SRS Labs, Inc. Circle Surround II, Dialog Clarity and TruBass technology are incorporated under license from SRS Labs, Inc. DTS 96/24 offers the following: 1. Sound quality transparent to the original 96/24 master. 2. Full backward compatibility with all existing decoders. (Existing decoders will output a 48 kHz signal) 3. No new player required: DTS 96/24 can be carried on DVD-video, or in the video zone of DVD-audio, accessible to all DVD players. 4. 96/24 5.1-channel sound with full-quality full- motion video, for music programs and motion picture soundtracks on DVD-video. Dolby Digital identifies the use of Dolby Digital audio coding for such consumer formats as DVD and DTV. As with film sound, Dolby Digital can provide up to five full-range channels for left, center, and right screen channels, independent left and right surround channels, and a sixth ( ".1") channel for low-frequency effects. Dolby Surround Pro Logic II is an improved matrix decoding technology that provides better spatiality and directionality on Dolby Surround program material; provides a convincing three-dimensional soundfield on conventional stereo music recordings; and is ideally suited to bring the surround experience to automotive sound. While conventional surround programming is fully compatible with Dolby Surround Pro Logic II decoders, soundtracks will be able to be encoded specifically to take full advantage of Pro Logic II playback, including separate left and right surround channels. (Such material is also compatible with conventional Pro Logic decoders.) Dolby Digital EX creates six full-bandwidth output channels from 5.1-channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. For best results, Dolby Digital EX should be used with movies soundtracks recorded with Dolby Digital Surround EX. About Dolby Pro Logic IIx Dolby Pro Logic IIx technology delivers a natural and immersing 7.1-channel listening experience to the home theater environment. A product of Dolby's expertise in surround sound and matrix decoding technologies, Dolby Pro Logic IIx is a complete surround sound solution that maximizes the entertainment experience from stereo as well as 5.1-channel encoded sources. 6 Personal notes: 7 8 3. WIRING DIAGRAM SR only PS only PS only SR only F, K, N, S only L, U only INLET 10 9 4. BLOCK DIAGRAM 11 12 5. SCHEMATIC DIAGRAM INPUT PCB 14 13 CONVERTER PCB 15 16 DSP PCB - 1/2 18 17 VIDEO PCB 19 20 FRONT PCB ENCODER PCB H/P PCB PUSH S/W PCB INLET PCB RC232C PCB ST-BY PCB 22 21 AMP PCB 23 24 COMPONENT PCB SBLR PCB PREOUT PCB 26 25 POWER PCB 27 28 DSP PCB - 2/2 30 29 6. PARTS LOCATION RS232C IC91 ENCODER & TACT Q806 Q802 IC11 IC12 IC15 IC14 IC17 IC18 IC31 IC32 IC21 IC29 IC28 IC30 IC24 - IC27 IC22 IC19 QC12 QC11 QC10 IC23 IC34 IC33 Q101 - Q103 Q105 - Q108 IC13 Q109 - Q112 DSP A 31 32 ST-BY IC84 IC85 Q804 Q805 DSP B IC20 IC16 34 33 FRONT IC81 Q801 Q803 IC83 IC12 H/P PUSH SW INLET TUNER [PS only] 35 36 COMPONENT IC12 IC13 Q102 Q101 IC14 AMP Q719 Q721 Q620 Q622 Q619 Q621 Q520 Q522 Q519 Q521 Q420 Q422 Q715 Q707 Q713 Q709 Q711 Q717 Q616 Q608 Q614 Q610 Q612 Q618 Q615 Q607 Q613 Q609 Q611 Q617 Q516 Q508 Q514 Q510 Q512 Q518 Q515 Q507 Q513 Q509 Q511 Q517 Q416 Q408 Q414 Q410 Q412 Q418 Q415 Q407 Q413 Q409 Q411 Q417 Q503 Q505 IC41 Q404 Q406 Q403 Q405 Q801 Q803 Q804 Q419 Q421 Q523 Q424 Q423 Q524 Q623 Q624 Q603 Q605 IC51 Q504 Q506 Q703 Q705 IC71 IC61 Q604 Q606 Q723 IC81 7.1CH PREOUT SBLR Q103 38 37 IC38 IC40 IC33 IC23 IC21 IC32 IC22 IC28 IC30 IC29 IC31 IC25 IC24 IC41 IC34 - IC37 Q222 - Q226 Q241 Q215 - Q219 Q240 Q221 Q220 Q237 - Q239 Q201 - Q207 Q208 - Q214 Q233 - Q235 IC27 IC26 INPUT 39 Q601 Q602 Q603 Q604 Q610 Q609 Q608 Q616 Q607 Q606 IC61 IC62 POWER IC64 IC63 Q615 Q611 Q614 Q612 Q613 40 IC80 IC79 IC82 IC75 IC77 IC72 IC73 IC76 VIDEO IC74 IC71 IC81 IC78 Q705 - Q707 Q712 Q711 Q710 Q708 Q703 Q704 Q702 Q701 IC09 41 CONVERTER A IC19 IC14 IC18 IC16 IC17 IC15 IC13 IC12 IC11 Q106 Q110 Q112 Q101 Q104 Q113 Q117 Q120 Q100 Q118 Q119 Q108 Q114 Q115 Q116 CONVERTER B Q107 Q109 Q111 Q105 Q102 Q103 42 7. IC DATA RX6/UI 10 Microcontroller I/F CL 40 CE 39 DI 38 Selector RX1 3 Input RX0 2 RX2 4 RX3 5 RX4 8 RX5/VI 9 Demodulation & Lock detect PLL RDATA 21 Clock Selector C bit , Ubit INT 35 EMPHA/UO 32 AUDIO 33 RERR 36 XIN 28 Modulation RXOUT 1 XMODE 41 XOUT 29 TMCK/PIO0 44 TBCK/PIO1 45 TLRCK/PIO2 46 TDATA/PIO3 47 TXO/PIOEN 48 16 17 20 22 23 RMCK RBCK RLRCK SBCK SLRCK DO 37 or Parallel Port 1/N LPF 13 27 34 24 SDIN Data Selector XMCK CKST /VO 21 RDATA 22 SBCK 23 SLRCK 24 SDIN 37 DO 38 DI 39 CE RX0 40 CL 41 XMODE 42 43 DVDD 44 TXO/PIOEN 45 TMCK/PIO0 RX3 RX1 DGND DVDD DVDD RX6/UI 12 17 RBCK 18 DGND 19 DVDD 20 RLRCK 46 TBCK/PIO1 47 48 DGND 14 15 16 13 LPF 11 10 9 8 7 6 5 4 3 2 1 35 36 33 34 31 32 29 30 27 28 25 26 LC89057W-VF4-E LC89057W-VF4-E DGND RXOUT RX2 RX4 RX5/VI AVDD AGND RMCK TLRCK/PIO2 TDATA/PIO3 DGND DVDD XMCK XOUT XIN DVDD DGND EMPHA/UO AUDIO CKST INT RERR * * * * * * /VO IC13 : LC89057W VF4-E LC89057W No. Port name I/O Description 1 RXOUT O Data Output 2 RX0 I Digital data Input (TTL) 3 RX1 I Digital data Input (Coaxial) 4 RX2 I Digital data Input (TTL) 5 RX3 I Digital data Input (TTL) 6 DGND Digital GND 7 DVDD Digital VDD 8 RX4 I Digital data Input (TTL) 9 RX5/VI I Digital data Input (TTL) 10 RX6/UI I Digital data Input (TTL) 11 DVDD Digital GND for PLL 12 DGND Digital VDD for PLL 13 LPF O Loop filter for PLL 14 AVDD Analog VDD for PLL 15 AGND Analog GND for PLL 16 RMCK O System clock Output for R (256fs, 512fs, XIN, VCO) 17 RBCK O/I Bit clock Output for R (64fs) 18 DGND Digital GND 19 DVDD Digital VDD 20 RLRCK O/I LR clock Input/Output for R 21 RDATA O Serial Audio data Input 22 SBCK O Bit clock Output for S (32fs, 64fs, 128fs) 23 SLRCK O LR clock Output for S (fs/2, fs, 2fs) 24 SDIN I Serial Audio data Input 25 DGND Digital GND 26 DVDD Digital VDD 27 XMCK O Oscillation amplifier 28 XOUT O XOUT 29 XIN I XIN or External clock Input (24.576MHz or 12.288MHz) 30 DVDD Digital VDD 31 DGND Digital GND 32 EMPHA/UO I/O Emphasis Information / U data Output / Set for chip address 33 AUDIO/VO I/O Detected non-PCM / V flag Output / Set for chip address 34 CKST I/O Clock timing Output / Switch to master or slave for demodulation 35 INT I/O Interrupt Output / Switch to Modulation or general-purpose I/O 36 RERR O Error Output (PLL lock, data error) 37 DO O IF, Read out data Output 38 DI I IF, Write data Input 39 CE I IF, Chip enable Input 40 CL I IF, Clock Input 41 XMODE I System reset Input 42 DGND Digital GND 43 DVDD Digital VDD 44 TMCK/PIO0 I/O 256fs system-clock Input for modulation / General-purpose I/O input/output 45 TBCK/PIO1 I/O 64fs bit-clock Input for modulation / General-purpose I/O input/output 46 TLRCK/PIO2 I/O Fs clock Input for modulation / General-purpose I/O input/output 47 TDATA/PIO3 I/O Serial audio data for modulation / General-purpose I/O input/output 48 TXO/PIOEN O/I Modulation data Output / General-purpose I/O enable input 43 I I I I I I I I O I I I I I I I I I I I O I O I/O RST 1 24 FILT+ M/S 2 23 REFGND LRCK 3 22 VCOM SCLK 4 21 AINR+ MCLK 5 20 AINR- VD 6 19 VA GND 7 18 GND VL 8 17 AINL- SDOUT 9 16 AINL+ DIV 10 15 TST HPF 11 14 M1 DIF 12 13 M0 Pin Name # Pin Description RST 1 Reset (Input) - The device enters a low power mode when low. M/S 2 Master/Slave Mode (Input) -In Slave mode, LRCK and SCLK become input. (FIXED LOW) LRCK 3 Left Right Clock (Input ) - Determines which channel, Left or Right, is currently active on the serial audio data line. The frequency of the left/right clock must be at the audio sample rate, Fs. SCLK 4 Serial Clock (Input ) - Serial clock for the serial audio interface. MCLK 5 Master Clock (Input ) - Clock source for the delta-sigma modulator and digital filters. Table 1 illustrates several standard audio sample rates and the required master clock frequency. VD 6 Digital Power (Input ) - Positive power supply for the digital section. Refer to the Recommended Operat- ing Conditions for appropriate voltages. GND 7,18 Ground (Input) - Ground reference. Must be connected to analog ground. VL 8 Logic Power (Input) - Determines the required signal level for the digital input/output. Refer to the Rec- ommended Operating Conditions for appropriate voltages. SDOUT 9 Serial Audio Data Output (Output) - Output for two’s complement serial audio data. DIV 10 MCLK Divider (Input) - (FIXED LOW) HPF 11 High Pass Filter Enable (Input) - The device includes a high pass filter after the decimator to remove the indeterminate DC offsets introduced by the analog buffer stage and the analog modulator. The first- order high pass filter response characteristics are detailed in the Digital Filter specifications table. The fil- ter response scales linearly with sample rate. DIF 12 Digital Interface Format (Input) - The required relationship between the Left/Right clock, serial clock and serial data is defined by the Digital Interface Format selection. Refer to Figures 8 and 9. M0 M1 13, 14 Mode Selection (Input) -(FIXED LOW) TST 15 Test Pin (Input) - This pin needs to be connected to GND. AINL+ AINL- 16, 17 Differential Left Channel Analog Input (Input) - Signals are presented differentially to the delta-sigma modulators via the AINL+/- pins. The full scale differential analog input level is specified in the Analog Characteristics Specification table. (FIXED LOW) VA 19 Analog Power (Input) - Positive power supply for the analog section. Refer to the Recommended Oper- ating Conditions for appropriate voltages. AINR+ AINR- 20, 21 Differential Right Channel Analog Input (Input) -Signals are presented differentially to the delta-sigma modulators via the AINR+/- pins. The full scale differential analog input level is specified in the Analog Characteristics Specification table. VCOM 22 Common Mode Voltage (Output) - Nominally 2.5 volts; can be used to bias the analog input circuitry to the common mode voltage of the CS5361. VCOM is not buffered and the maximum current is 10 uA. REF_GND 23 Reference Ground (Input) - Ground reference for the internal sampling circuits and must be connected to analog ground. FILT+ 24 Positive Voltage Reference (Output) - Positive reference voltage for the internal sampling circuits. Requires the capacitive decoupling to GND as shown in the Typical Connection Diagram. Voltage Reference Serial O utput Interface Digital Filter High Pass Filter High Pass Filter Decim ation Digital Filter Decim ation DAC - + S/H DAC - + S/H AINR+ SCLK SDOUT M CLK RST VCOM LRCK AINR- AINL+ AINL- FILT+ DIF M /S HPF M ODE0 M ODE1 REFGND V L DIV Q LP Filter Q LP Filter IC16 : CS5361-KSR 44 Parallel or Serial Host Interface External Memory Interface Internal Bus 32-Bit DSP Programmable Multistandard Audio Decoder Compressed Audio Interface PLL Clock Manager Shared Memory Debug Port GPIO and I/O Controller Digital Audio Interface Digital Audio Interface DSP C DSP AB Serial Audio Interface SAI 0 SAI 1 SAI 2 SAI 3 DAO 0 DAO 1 Frame Shifter Input Buffer RAM DSP RAM DSP ROM Parallel or Serial Host Interface IC19 : CS4900X Pin No. I/O Function Description 1 I/O UHS0, GPIO18 Mode Select Bit 0, General Purpose I/O 2 I/O UHS1, GPIO19 Mode Select Bit 1, General Purpose I/O 3 INTREQ Control Port Interrupt Request 4 I FA1, FSCDIN Host Address Bit One or SPI Serial Control Data Input 5 I/O GPIO20 General Purpose I/O 6 I FA0, FSCCLK Host Parallel Address Bit Zero or Serial Control Port Clock 7 I/O FHS2, FSCDIO, FSCDOUT Mode Select Bit 2 or Serial Control Port Data Input and Output, Parallel Port Type Select 8 I/O GPIO21 General Purpose I/O 9 FDAT7 DSP AB Bidirectional Data Bus 10 VDD6 2.5V Supply Voltage 11 VSS6 2.5V Ground 12 FHS0, FWR, FDS Mode Select Bit 0 or Host Write Strobe or Host Data Strobe 13 O FHS1, FRD, FR/W Mode Select Bit 1 or Host Parallel Output Enable or Host Parallel R/W 14 FDAT6 DSP AB Bidirectional Data Bus 15 I FCS Host Parallel Chip Select, Host Serial SPI Chip Select 16 O FINTREQ Control Port Interrupt Request 17 FDBCK Reserved 18 FDAT5 DSP AB Bidirectional Data Bus 19 FDAT4 DSP AB Bidirectional Data Bus 20 VDD7 2.5V Supply Voltage 21 VSS7 2.5V Ground 22 FDAT3 DSP AB Bidirectional Data Bus 23 FDBDA Reserved 24 FDAT2 DSP AB Bidirectional Data Bus 25 DBDA Debug Data 26 DBCK Debug Clock 27 FDAT1 DSP AB Bidirectional Data Bus 28 TEST Reserved 29 FDAT0 DSP AB Bidirectional Data Bus 30 I/O NV_WE, GPIO16 SRAM Write Enable, General Purpose I/O 31 I/O NV_OE, GPIO15 SRAM Output Enable, General Purpose I/O 32 I/O NV_CS, GPIO14 SRAM Chip Select, General Purpose I/O 33 SD_WE SDRAM Write Enable 34 SD_DATA0, EXTD0 SDRAM Data Bus, SRAM External Data Bus 35 SD_DATA1, EXTD1 SDRAM Data Bus, SRAM External Data Bus 36 SD_DATA2, EXTD2 SDRAM Data Bus, SRAM External Data Bus 37 SD_DATA3, EXTD3 SDRAM Data Bus, SRAM External Data Bus 38 SD_DATA4, EXTD4 SDRAM Data Bus, SRAM External Data Bus 39 SD_DQM0 SDRAM Data Mask 2 40 SD_DATA5, EXTD5 SDRAM Data Bus, SRAM External Data Bus 41 VSSSD4 3.3V SDRAM/SRAM/EPROM Interface Ground 42 VDDSD4 3.3V SDRAM/SRAM/EPROM Interface Supply 43 SD_DATA6, EXTD6 SDRAM Data Bus, SRAM External Data Bus 44 SD_DATA7, EXTD7 SDRAM Data Bus, SRAM External Data Bus 45 SD_DQM1 SDRAM Data Mask 1 46 SD_DATA15, EXTA18 SDRAM Data Bus, SRAM External Address Bus 47 SD_DATA14, EXTA17 SDRAM Data Bus, SRAM External Address Bus 48 NC5 No Connect 49 SD_DATA13, EXTA16 SDRAM Data Bus, SRAM External Address Bus 50 VSSSD3 3.3V SDRAM/SRAM/EPROM Interface Ground 51 VDDSD3 3.3V SDRAM/SRAM/EPROM Interface Supply 52 SD_DATA12, EXTA15 SDRAM Data Bus, SRAM External Address Bus 53 SD_DATA11, EXTA14 SDRAM Data Bus, SRAM External Address Bus 54 SD_DATA10, EXTA13 SDRAM Data Bus, SRAM External Address Bus 55 SD_DATA9, EXTA12 SDRAM Data Bus, SRAM External Address Bus 56 SD_DATA8, EXTA11 SDRAM Data Bus, SRAM External Address Bus 57 VSSSD2 3.3V SDRAM/SRAM/EPROM Interface Ground 58 VDDSD2 3.3V SDRAM/SRAM/EPROM Interface Supply 59 O SD_CLK_OUT SDRAM Clock Output 60 SD_ADDR9, EXTA9 SDRAM Address Bus, SRAM External Address Bus 61 I SD_CLK_IN SDRAM Re-timing Clock Input 62 SD_ADDR8, EXTA8 SDRAM Address Bus, SRAM External Address Bus 63 SD_ADDR7, EXTA7 SDRAM Address Bus, SRAM External Address Bus 64 SD_CLK_EN SDRAM Clock Enable 65 SD_ADDR6, EXTA6 SDRAM Address Bus, SRAM External Address Bus 66 SD_ADDR5, EXTA5 SDRAM Address Bus, SRAM External Address Bus 67 SD_ADDR4, EXTA4 SDRAM Address Bus, SRAM External Address Bus 68 SD_CS SDRAM Chip Select 69 VSSSD1 3.3V SDRAM/SRAM/EPROM Interface Ground 70 VDDSD1 3.3V SDRAM/SRAM/EPROM Interface Supply 71 SD_BA, EXTA19 SDRAM Bank Address Select, SRAM External Address Bus 72 SD_ADDR10, EXTA10 SDRAM Address Bus, SRAM External Address Bus 73 SD_ADDR0, EXTA0 SDRAM Address Bus, SRAM External Address Bus 74 SD_ADDR1, EXTA1 SDRAM Address Bus, SRAM External Address Bus 75 SD_ADDR2, EXTA2 SDRAM Address Bus, SRAM External Address Bus 76 SD_ADDR3, EXTA3 SDRAM Address Bus, SRAM External Address Bus 77 SD_RAS SDRAM Row Address Strobe 78 SD_CAS SDRAM Column Address Strobe 79 I/O SDATAN3, GPIO27 PCM Audio Input Data, General Purpose I/O 80 I/O SDATAN2, GPIO26 PCM Audio Input Data, General Purpose I/O 81 I/O SDATAN1, GPIO25 PCM Audio Input Data, General Purpose I/O 82 I/O SDATAN0, GPIO24 PCM Audio Input Data, General Purpose I/O 83 NC4 No Connect 84 NC3 No Connect 85 I/O LRCLKN, GPIO23 PCM Audio Input Sample Rate Clock, General Purpose I/O 86 I/O SCLKN, GPIO22 PCM Audio Input Bit Clock, General Purpose I/O 87 O LRCLK1 Audio Output Sample Rate Clock 88 NC2 No Connect 89 NC1 No Connect 90 VDD1 2.5V Supply Voltage 91 VSS1 2.5V Ground 92 I/O AUDATA7, XMT958B, GPIO31 Digital Audio Output 7, S/PDIF Transmitter, General Purpose I/O 93 I/O AUDATA6, GPIO30 Digital Audio Output 6, General Purpose I/O 94 I/O AUDATA5, GPIO29 Digital Audio Output 5, General Purpose I/O 95 I/O HDATA7, GPIO7 DSP C Bidirectional Data Bus, General Purpose I/O 96 I/O HDATA6, GPIO6 DSP C Bidirectional Data Bus, General Purpose I/O 97 I/O HDATA5, GPIO5 DSP C Bidirectional Data Bus, General Purpose I/O 98 O SCLK1 Audio Output Bit Clock 45 99 MCLK Audio Master Clock 100 VDD2 2.5V Supply Voltage 101 VSS2 2.5V Ground 102 I/O AUDATA4, GPIO28 Digital Audio Output 4, General Purpose I/O 103 I/O HDATA4, GPIO4 DSP C Bidirectional Data Bus, General Purpose I/O 104 O SCLK0 Audio Output Bit Clock 105 I/O HDATA3, GPIO3 DSP C Bidirectional Data Bus, General Purpose I/O 106 O AUDATA3, XMT958A Digital Audio Output 3, S/PDIF Transmitter 107 O AUDATA2 Digital Audio Output 2 108 O LRCLK0 Audio Output Sample Rate Clock 109 O AUDATA1 Digital Audio Output 1 110 O AUDATA0 Digital Audio Output 0 111 I CMPCLK, FSCLKN2 PCM Audio Input Bit Clock 112 I/O HDATA2, GPIO2 DSP C Bidirectional Data Bus, General Purpose I/O 113 VSS3 2.5V Ground 114 VDD3 2.5V Supply Voltage 115 I/O HDATA1, GPIO1 DSP C Bidirectional Data Bus, General Purpose I/O 116 I/O HDATA0, GPIO0 DSP C Bidirectional Data Bus, General Purpose I/O 117 O CMPREQ, FLRCLKN2 Frame Clock Data Request Out 118 I CMPDAT, FSDATAN2 PCM Audio Data Input Number Two 119 I FLRCLKN1 PCM Audio Input Sample Rate Clock 120 I/O WR, DS, GPIO10 Host Write Strobe, Host Data Strobe, General Purpose I/O 121 I/O RD, R/W, GPIO11 Host Parallel Output Enable, Host Parallel R/W, General Purpose I/O 122 PLLVSS PLL Ground Voltage 123 FILT2 Phase Locked Loop Filter 124 FILT1 Phase-Locked Loop Filter 125 PLLVDD PLL Supply Voltage 126 O CLKOUT, XTALO Crystal Oscillator Output 127 I CLKIN, XTALI External Clock Input/Crystal Oscillator Input 128 CLKSEL DSP Clock Select 129 I/O CS, GPIO9 Host Parallel Chip Select, General Purpose I/O 130 I/O A0, GPIO13 Host Parallel Address Bit 0, General Purpose I/O 131 I FSDATAN1 PCM Audio Data Input One 132 VDD4 2.5V Supply Voltage 133 VSS4 2.5V Ground 134 I FSCLKN1, STCCLK2 PCM Audio Input Bit Clock 135 SCS Host Serial SPI Chip Select 136 I SCDIN SPI Serial Control Data Input 137 VSS5 2.5V Ground 138 VDD5 2.5V Supply Voltage 139 I/O A1, GPIO12 Host Address Bit 1, General Purpose I/O 140 I/O SCDOUT, SCDIO Serial Control Port Data Input and Output 141 I/O HINBSY, GPIO8 Input Host Message Status, General Purpose I/O 142 SCCLK Serial Control Port Clock 143 I/O UHS2, CS_OUT, GPIO17 Mode Select Bit 2, External Serial Memory Chip Select, General Purpose I/O 144 I RESET Master Reset Input IC19 : CS494001-CQ IC24/IC25 : TC9499N 46 IC23 : CS4382 47 IC23 : CS4382 48 Pin Port mode = 7 I/O Use STBY Name Port Setting Note Act. init 1 PG3 I/O O I BTMOD L L FLASH ROM Addres (A18) 2 PG4 I/O I I N.C - - PULL DOWN 3 VSS I - - VSS - - GND 4 VSSNC - NC - NC GND 5 VCC I YES - Vcc - - 6 PC0 I/O O I _RSTDAC L L DAC 7 PC1 I/O O I DFS H L DAC&ADC 8 PC2 I/O O I _ATT L H ADC 9 PC3 I/O O I _RSTADC L H ADC 10 VSS I - - VSS - - GND 11 PC4 I/O O I D_A - L DIR or _ADC sel 12 PC5 I/O I I XSTATE - - DIR 13 PC6 I/O O I _CEDIR L L DIR CHIP ENABLE 14 PC7 I/O O I _XMODE L L DIR RESET 15 PB0 I/O O O IICCLK - L I2C for E2PROM 16 PB1 I/O I/O I/O IICDATA - L I2C for E2PROM 17 PB2 I/O I I _TU_SD L Tuned 18 PB3 I/O I I TU_ST H Stereo Tune/_MONO 19 VSS I - - VSS - - GND 20 PB4 I/O O I TU_MUTE H H Tuner MUTE 21 PB5 I/O O I _CE_TU L L Tuner Pack 22 PB6 I/O O I KILL_SBMUTE L H L : Multi SP H : SB SP 23 PB7 I/O O I N.C - - 24 PA0 I/O O I TUDOUT - L Tuner Pack 25 PA1 I/O O I TUCLK - L Tuner Pack 26 PA2 I/O I I TUDIN - Tuner Pack 27 PA3 I/O I I RDSDIN - Tuner Pack(RDS DATA) 28 VSS I - - VSS - - GND 29 PA4/_IRQ4 I/O INT I REQ2 L - DSP FINTR EQ 30 PA5/_IRQ5 I/O INT/I I DIR_INT DIR INT OUTPUT 31 PA6/_IRQ6 I/O INT I _P_AMP_FAIL L - Power amp Dectect 32 PA7/_IRQ7 I/O INT I IRQ7 - - RDS Clock 33 P67/_IRQ3 I/O INT I REQ1 L - DSP INTER Q 34 P66/_IRQ2 I/O INT I RERR H - DIR ERROR 35 VSS I - - VSS - - GND 36 VSS I - -- VSS - - GND 37 P65/_IRQ1 I/O INT INT WAKEUP ↑ - STANDBY MODE Release 38 P64/_IRQ0 I/O INT I _P_DOWN L - Power Down Detect 39 VCC I YES - Vcc - - +5V 40 PE0 I/O I I CONV_SENS - - Video Convert H : Yes L : No 41 PE1 I/O O I _CEEX L H P-Exp(Video)Sel A 42 PE2 I/O O I Y_OSD H L Y/C_OSD_IC_BYPASS 43 PE3 I/O O I CVBS_OSD H L CVBS_OSD_IC_BYPASS 44 VSS I - - VSS - - GND 45 PE4 I/O O I _CEOSD L H Video Circuit 46 PE5 I/O I I HINBSY - - DSP Busy Signal 47 PE6 I/O O I AFDATA - L Analog Switch DATA 48 PE7 I/O O I AFCLK - L Analog Switch CLOCK 49 PD0 I/O O I CE_TCA H L Analog Switch TC9273 50 PD1 I/O O I CE_TCB H L Analog Switch TC9262/9264 51 PD2 I/O O I MULTI MUTE H H MULTI ROOM MUTE 52 PD3 I/O O I SWMUTE H H SUB W MUTE 53 VSS I - - VSS - - GND 54 PD4 I/O O I CNTMUTE H H CENTER SP MUTE 55 PD5 I/O O I SBMUTE H H SRR B MUTE 56 PD6 I/O O I SL/SRMUTE H H SL SR MUTE 57 PD7 I/O O I L/RMUTE H H FRONT L R MUTE 58 VCC I YES I Vcc - - +5V 59 P30/TxD0 I/O SO I DSPDOUT DSP DIR Control Data OUT 60 P31/TxD1 I/O SO SO TXD H Flash WR need Pull Up 61 P32/RxD0 I/O SI I DSPDIN DSP DIR Control Data IN 62 P33/RxD1 I/O SI SI RXD - Flash WR need Pull UpReset release is H. 63 P34/SCK0 I/O SC I DSPCLK DSP DIR Control CLOCK 64 P35/SCK1 I/O O I _CEFL L L FL Driver chip sel 65 VSS I - - VSS - - GND 66 P60/_DREQ0 I/O O I VOLDATA - L Volume IC DATA 67 VSS I - - VSS - - GND 68 VSS I - - VSS - - GND 69 P61/_TEND0 I/O O I VOLCLK - L Volume IC CLOCK 70 P62/_DREQ1 I/O O I CE_VOLA H L Volume IC Chip Sel A 71 P63/_TEND1 I/O O I CE_VOLB H L Volume IC Chip Sel B IC28 : H8S/2398(HD64F2398F20) 49 Pin Port mode = 7 I/O Use STBY Name Port Setting Note Act. init 72 P27/PO7/TIOCB5/ TMO1 I/O O I FLRA_ON H L SPK A SELECT 73 P26/PO6/TIOCA5/ TMO0 I/O O I FLRB_ON H L SPK B SELECT 74 P25/PO5/TIOCB4/ TMCI1 I/O O I SURR_ON H L SURR/CNT/SB SPK ON 75 P24/PO4/TIOCA4/ TMRI1 I/O O I HEAT H L Power Amp±B_L_Sel 76 P23/PO3/TIOCD3/ TMCI0 I/O I I _HEAT_DET H - Power Amp Heat sink TempDetect 77 P22/PO2/TIOCC3/ TMRI0 I/O O I _STANDBY L L Standby Power 78 P21/PO1/TIOCB3 I/O I I _HP_DET L - HP Jack Detect 79 P20/PO0/TIOCA3 I/O O I HP_ON H L HEAD PHONE ON 80 VCL I - I VCL - - 81 _RES I YES I _RST L - Reset 82 NMI I NO I NMI - - Fix H ( At the time of the un-use ) 83 _STBY I NO I _STBY L H FixH 84 VCC I YES I Vcc - - +5V 85 XTAL I YES I XTAL - - Xtal(20M) 86 EXTAL I YES I EXTAL - - Xtal(20M) 87 VSS I - - VSS - - GND 88 PF7/ I/O I I SEL- - - Front Select. Encoder 89 VCC I YES - Vcc - - +5V 90 PF6 I/O I I SEL+ - - Front Select. Encoder 91 PF5 I/O O O _STBY LED L H Standby LED On 92 PF4 I/O O I _RSFL L L Front FL Driver 93 PF3 I/O I I VOL- - - Front Vol. Encoder 94 PF2 I/O I I VOL+ - - Front Vol. Encoder 95 PF1 I/O I I CTS - - UART 96 PF0 I/O O O RTS H UART 97 P50/TxD2/_IRQ4 I/O SO I OSDDATA - - Front FL & Video(OSD), Y/C & Sepa 4094, SAA, AK 98 P51/RxD2/_IRQ5 I I I N.C - - PULL DOWN 99 VSS I - - VSS - - GND 100 VSS I - - VSS - - GND 101 P52/SCK2/_IRQ6 I/O SC I OSDCLK - - Front FL & Video(OSD), Y/C & Sepa 4094, SAA, AK 102 P53/_ADTRG/ _IRQ7 I/O O I _RSTFL L L Reset FL Driver 103 AVCC I - - AVCC - - +5V 104 Vref I - - VREF - - +5V 105 P40/AN0 I AD AD KEY0 - - Front Key 106 P41/AN1 I AD AD KEY1 - - Front Key 107 P42/AN2 I AD AD KEY2 - - Front Key 108 P43/AN3 I AD AD _5V_DOWN - - Detect 5V 109 P44/AN4 I AD AD P_LINE_FAIL - - Emergency Protection 110 P45/AN5 I AD AD MODE - - CPU mode 111 P46/AN6/DA0 I I I _OVFL H - Peak Indicator 112 P47/AN7/DA1 I AD AD TV_AUTO H L TV Video Detect 113 AVSS I - - VSS - - GND 114 VSS I - - VSS - - GND 115 P17/PO15/TIOCB2/ TCLKD I/O T_OUT I M_RC_OUT - L RC BUS MULTI OUT 116 P16/PO14/TIOCA2 I/O T_OUT I RC_OUT L RC BUS output 117 P15/PO13/TIOCB1/ TCLKC I/O I I M_RC_IN L H Multi RC5 IN Detect Signal 118 P14/PO12/TIOCA1 I/O T_IN I VSYNC ↑ - V-sync Det. & Change OSD 119 P13/PO11/TIOCD0/ TCLKB I/O O O KILLIR H L Kill to IR input signal. 120 P12/PO10/TIOCC0/ TCLKA I/O O I DC_OUT1 L H DC Triger 121 P11/PO9/TIOCB0/ _DACK1 I/O O I SB_O H L SB Relay Control H : SB ON L : SB OFF 122 P10/PO8/TIOCA0/ _DACK0 I/O T_IN T_IN RC_IN ↓↑ - IR In for RC-5 Input polarity is reverse to SR7300. 123 MD0 I YES YES MD0 - - +5V 124 MD1 I YES YES MD1 - - Fix H 125 MD2 I YES YES MD2 - - Normal :H, Boot :L 126 PG0 I/O O I _FCS L H DSP CHIP ENABLE 127 PG1 I/O O I _RSTDSP L L DSP 128 PG2 I/O O I _SCS L H DSP CHIP ENABLE IC28 : H8S/2398(HD64F2398F20) 50 No. S Y M B O L I/O F U N C T I O N 57 V D D - Power Source : V D D =+3.0 to 5.5V 49 V S S - GND : V S S =0V 48 V F D P - VFD Driving Power Sourse V D D -20V to V D D -45V 50 O S C 1 I CR Oscillation Terminal External R and C connect to these terminals. (Target f O S C=360kHz) 51 O S C 2 O 54 CLK I Serial Clock Input Terminal The serial data input synchronizing the rise edge of this terminal. 53 C S I Chip Select Terminal When the CS terminal is "H" the serial data input is not available. 55 S I I Serial Data Input Terminal The data input is MSB first. 56 RS I Register Selection Signal Input Terminal RS="0" : Instruction Register RS="1" : Data Register 52 R S T I Reset Terminal RST="L" : Reset -Each Address -Each RAM Data -Display Digits -Contrast Control -All Display Off -All Outputs are "L" : (00)H : Unfixed : 16-digit : 8/16 Dury 61 to 64, 1 to 31 S 1 to S 3 5 O Segment Output Terminals (Internal Pull-down Resistance) 32 to 47 T1 to T1 6 O Timing Output Terminals (Internal Pull-down Resistance) 60 59 M K 1 M K 2 O Icon Output Terminals (Internal Pull-down Resistance) 58 P 1 O Output Port Terminal This terminal is suitable for LED. SI CS CL K R S VSS OSC 1 OSC 2 VD D R S T VF DP M K1 ~M K2 S 1 ~S35 P 1 T1 ~T1 6 8bits Shift Reg. Instruction D ecoder Timing Gen. C R OSC. State Reg. Display Control Address Selector Read Address Counter Line Address Counter Timing Driver DD R AM 16x8 bit CG ROM 8,400bit Port Driver CG RAM 35x8 bit Segment Driver M K RAM 16x2 bit Icon Driver RESET IC81 : NJU3430FG1 51 52 Pin Functions Pin No. Symbol Function Description 1 VSS1 Ground Ground connection (digital system ground) 2 XtalIN Crystal oscillator connection Used to connect the crystal oscillator and capacitor used to generate the internal 3 XtalOUT synchronization signal, or to input an external clock (2fsc or 4fsc). 4 CTRL1 Crystal oscillator input switching Switches between external clock input mode and crystal oscillator mode. Low = crystal oscillator mode, high = external clock mode Outputs the blank signal (the OR of the character and border signals). (Outputs a composite 5 BLANK Blanking output sync signal when MOD0 is high.) Outputs the crystal oscillator clock during reset (when the RST pin is low), but can be set up to not output this signal by microprocessor command. 6 OSCIN LC oscillator connection Connections for the coil and capacitor that form the oscillator that generates the character 7 OSCOUT output dot clock. Outputs the character signal. (Functions as the external synchronization signal discrimination signal output pin when MOD0 is high, and outputs the state of the judgment as to whether the 8 CHARA Character output external synchronization signal is present or not. Outputs a high level when the synchronization signal is present.) Outputs the dot clock (LC oscillator) during reset, but can be set up to not output this signal by microprocessor command. 9 CS Enable input Serial data input enable input. Serial data input is enabled when low. A pull-up resistor is built in (hysteresis input). 10 SCLK Clock input Serial data input clock input. A pull-up resistor is built in (hysteresis input). 11 SIN Data input Serial data input. A pull-up resistor is built in (hysteresis input). 12 VDD2 Power supply Composite video signal level adjustment power supply pin (analog system power supply). 13 CVOUT Video signal output Composite video signal output 14 NC Must be either connected to ground or left open. 15 CVIN Video signal input Composite video signal input 16 VDD1 Power supply Power supply (+5 V: digital system power supply) Video signal input for the built-in sync separator circuit (Used for either horizontal 17 SYNIN Sync separator circuit input synchronization signal or composite sync signal input when the built-in sync separator circuit is not used.) 18 SEPC Sync separator circuit bias voltage Built-in sync separator circuit bias voltage monitor pin Built-in sync separator circuit composite sync signal output. (When MOD1 is high, outputs a high 19 SEPOUT Composite sync signal output level during internal synchronization and a low level during external synchronization.) (Outputs the SYNIN input signal when the internal sync separator circuit is not used.) 20 SEPIN Vertical synchronization Inputs a vertical synchronization signal created by integrating the SEPOUT pin output signal. An signal input integrator must be attached at the SEPOUT pin. This pin must be tied to VDD1 if unused. The setting indicated by this pin takes priority in switching between the NTSC, PAL, PAL-M and 21 CTRL2 NTSC/PAL-M switching input PAL-N formats. A low level selects NTSC after a reset. The microprocessor command NTSC, PAL, PAL-M, or PAL-N setting is valid. High = PAL-M format. 22 CTRL3 SEPIN input control Controls whether or not the VSYNC signal is input to the SEPIN input. Low = VSYNC input, high = VSYNC not input. 23 RST Reset input System reset input. A pull-up resistor is built in (hysteresis input). 24 VDD1 Power supply (+5 V) Power supply (+5 V: digital system power supply) IC78 : LC74781 IC23: CS4382 IC78 : LC74781 54 53 (L, U ONLY) MEMORY F/P CLEAR MODE TUNING 36 F, U Only N Only F, K, N, S Only L, U Only 10 1 2 3 4 5 8 18 9 12 11 13 14 15 17 16 31 30 32 29 21 33 34 35 20 19 7 6 22 23 24 25 26 27 28 37 38 N Only F, L, U Only 42 42 42 42 S4 S6 S4 S2 S9 S1 S3 S1 S12 S11 S11 S8 S7 S6 S8 S7 S13 S5 S14 S14 S9 S4 S6 S4 S6 S6 S4 S4 S10 S12 S12 S12 S12 S12 S12 S12 S3 S12 S2 43 S4 S4 S4 S4 S4 41 F, K, L, U Only N Only S Only SR7400 Only SR7400 Only PS7400 Only ST-BY PCB POWER PCB ST-BY PCB RS232 PCB CONVERTER PCB DSP PCB 7.1CH PREOUT PCB COMPONENT PCB VIDEO PCB INPUT PCB AMP PCB ENCORDER PCB & TACT PCB FRONT PCB H/P PCB PUSH S/W PCB TUNER IN PCB SBLR PCB 8. EXPLODED VIEW AND PARTS LIST 55 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) 1 /N1S 28AW154030 28AW154030 KNOB MASTER KNOB (SILVER) HGK1A090XA 1 /N1B/U1B 28AW154010 28AW154010 KNOB MASTER KNOB (BLACK) HGK1A090YA 1 /F/K/L/S nsp 28AW154020 KNOB MASTER KNOB (GOLD) HGK1A090ZA 2 /F nsp 37AW248130 PANEL FRONT AL PANEL (F GOLD) CKM2A134SC24 2 /L nsp 37AW248120 PANEL FRONT AL PANEL (L GOLD) CKM2A134TC24 2 /N1B 37AW248010 37AW248010 PANEL FRONT AL PANEL (BLACK) CKM2A134UC23 2 /U1B nsp 37AW248020 PANEL FRONT AL PANEL (U BLACK) CKM2A134TC23 2 /K/S nsp 37AW248110 PANEL FRONT AL PANEL (GOLD) CKM2A134UC24 2 /N1S 37AW248210 37AW248210 PANEL FRONT AL PANEL (SILVER) CKM2A134UC40 3 /F nsp 27AW158040 WINDOW WINDOW (PS) CGU1A306W 3 /N1S 27AW158210 27AW158210 WINDOW WINDOW (SR SILVER) CGU1A306Y 3 /K/L/N1B /S/U 27AW158010 27AW158010 WINDOW WINDOW (SR) CGU1A306Z 4 /N1S 37AW105220 37AW105220 CHASSIS FRONT MOLD CHASSIS (SILVER) CGW1A358R6XG13 4 /F/K/L/S nsp 37AW105120 CHASSIS FRONT MOLD CHASSIS (GOLD) CGW1A358RFXD4 4 /N1B/U1B 37AW105020 37AW105020 CHASSIS FRONT MOLD CHASSIS (BLACK) CGW1A358XK92 5 /F/K/L/S nsp 27AW270110 BUTTON FUNCTION BUTTON (GOLD) CBT1A876RFD4 5 /N1B/U1B 27AW270010 27AW270010 BUTTON FUNCTION BUTTON (BLACK) CBT1A876K92 5 /N1S 27AW270210 27AW270210 BUTTON FUNCTION BUTTON (SILVER) CBT1A876R6G13 6 nsp nsp CUSHION KHG1A050 7 /F/K/L/N1B /S/U 243W057010 243W057010 LEG LEG CKL2A042H11 7 /N1S 243W057210 243W057210 LEG LEG SILVER CKL2A042H46 8 /F nsp nsp PCB ASSY PS7400/F1 COP11655E 8 /K nsp nsp PCB ASSY SR7400/K1 COP11655D 8 /L nsp nsp PCB ASSY SR7400/L1 COP11655I 8 /N nsp nsp PCB ASSY SR7400/N1 COP11655B 8 /S nsp nsp PCB ASSY SR7400/S1 COP11655F 8 /U nsp nsp PCB ASSY SR7400/U1 COP11655C 9 /K nsp *TS002100R MAINS TRANSF. SR7400/K1 CLT5W012ZH 9 /L nsp *TS002130R MAINS TRANSF. SR7400/L1 CLT5W012ZS 9 /N/S *TS002110R *TS002110R MAINS TRANSF. SR7400/N1 CLT5W012ZE 9 /U nsp *TS002120R MAINS TRANSF. SR7400/U1 CLT5W012ZU 10 /F/K/L/N1B /S/U 24AW251010 24AW251010 BADGE NEW MZ BADGE CGB1A117 10 /N1S 24AW251020 24AW251020 BADGE NEW MZ BADGE SILVER CGB1A117G 11 27AW355010 27AW355010 LENS STANDBY LENS CGL1A216 12 nsp nsp TAPE KHS1A032 13 /N1B 27AW270040 27AW270040 KNOB POWER SW BUTTON (BLACK) CBC1A146K92 13 /N1S 27AW270240 27AW270240 KNOB POWER SW BUTTON (SILVER) CBC1A146R6G13 13 /F/K/S nsp 27AW270140 KNOB POWER SW BUTTON (GOLD) CBC1A146RFD4 14 /F/K/N/S nsp nsp BRACKET CMD1A493 15 /F/K/N/S *SP000850R *SP000850R SWITCH CN JPP1197CSA64 KSH1A001ZV 16 *YT003160R *YT003160R TERMINAL CJJ2E020Z 17 /L nsp 27AW270130 KNOB POWER SW BUTTON TACT (GOLD) CBT1A877RFD4 17 /U1B nsp 27AW270030 KNOB POWER SW BUTTON TACT (BLACK) CBT1A877K92 18 nsp nsp BRACKET CMD1A374 19 nsp nsp HOLDER CHE1A030 20 nsp nsp CHASSIS CUA1A230 21 nsp nsp HEATSINK SR7400 CMY1A220ZA 22 /F nsp nsp PCB ASSY PS7400/F1 COP11657E 22 /K/L/N/S/U nsp nsp PCB ASSY SR7400 COP11657B 23 nsp nsp BRACKET CMD1A492 24 /F/L/U nsp nsp PCB ASSY SR7400/U1 COP11661C 24 /K/N/S nsp nsp PCB ASSY SR7400/N1 COP11661B 25 /F nsp nsp PCB ASSY PS7400/F1 COP11658E 25 /K nsp nsp PCB ASSY SR7400/K1 COP11658D 25 /L/U nsp nsp PCB ASSY SR7400/U1 COP11658C 25 /N nsp nsp PCB ASSY SR7400/N1 COP11658B 25 /S nsp nsp PCB ASSY SR7400/S1 COP11658F 26 nsp nsp PCB ASSY SR7400/N1 COP11660B 27 /K nsp *AV000330R TUNER KST-MB014MA1-8A CNVKSTMB014MA1A 27 /L/U nsp *AV000350R TUNER KST-MB014MA0-8 CNVKSTMB014MA08 27 /N/S *AV000340R *AV000340R TUNER KST-MB114LA1-8 CNVKSTMB114LA18 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 56 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) 28 /F nsp nsp PANEL REAR PANEL F1N CKF4A273Z 28 /K nsp nsp PANEL REAR PANEL K1G CKF3A273Z 28 /L nsp nsp PANEL REAR PANEL L1G CKF2A273X 28 /N1S nsp nsp PANEL REAR PANEL N1S CKF1A273Y 28 /N1B nsp nsp PANEL REAR PANEL N1B CKF1A273Z 28 /S nsp nsp PANEL REAR PANEL S1G CKF1A273X 28 /U nsp nsp PANEL REAR PANEL U1B CKF2A273Z 29 nsp nsp PCB ASSY SR7400 COP11656B 31 nsp nsp BRACKET CMD1A490 32 nsp nsp BRACKET CMD1A491K92 33 nsp nsp HEATSINK CMY1A207 34 /F/L/U nsp nsp PCB ASSY SR7400/U1 COP11659C 34 /K/N/S nsp nsp PCB ASSY SR7400/N1 COP11659B 36 *YJ002690R *YJ002690R INLET R-301(187-2P) HJJ8A001Z 41 nsp nsp HEATSINK SR7400 CMY1A225 42 nsp nsp BRACKET CMD1A387 43 nsp nsp BRACKET CMD1A510 JW15 *YU001540R *YU001540R FPC 16PIN 270MM PITCH 1MM CWC1B4A16A270A JW25 *YU001550R *YU001550R FPC 19PIN 80MM PITCH 1MM CWC1B4A19A080B JW27 *YU001570R *YU001570R FPC 17PIN 80MM PITCH 1.25MM CWC1C4A17B080B JW34 /K/L/U nsp *YU001560R FPC 15PIN 160MM PITCH 1.25MM CWC1C4A15B160B JW35 /N/S *YU001580R *YU001580R FPC 17PIN 160MM PITCH 1.25MM CWC1C4A17B160B JW36 *YU001520R *YU001520R FPC 11PIN 80MM PITCH 1MM CWC1B4A11A080A JW38 *YU001530R *YU001530R FPC 13PIN 450MM PITCH 1MM CWC1B4A13A450A JW42 *YU001500R *YU001500R FPC 7PIN 50MM PITCH 1MM CWC1B4A07A050A JW50 *YU001510R *YU001510R FPC 11PIN 50MM PITCH 1MM CWC1B4A11A050B *FC500030R *FC500030R FERRITE CORE 29X7.7X19 CLZ9W003Z F801 /F/L/U nsp *FS001080R FUSE KBA2C1002TLEY F801 /K/N/S *FS001090R *FS001090R FUSE 5A/250V(EUR) KBA2C5000TLEY PACKING /F nsp 37AW851110 USER GUIDE USER GUIDE SR7400 F CQX1A886Z /K/S nsp 37AW851350 USER GUIDE USER GUIDE SR7400 K S CQX1A885Z /L nsp 37AW851360 USER GUIDE USER GUIDE SR7400 L /N 37AW851310 37AW851310 USER GUIDE USER GUIDE SR7400 N CQX1A883Z /U nsp 37AW851250 USER GUIDE USER GUIDE SR7400 U CQX1A884Z ZK36AW0010 ZK36AW0010 UNIT KIT REMOTE CONTROLLER RC1400 HARTSR7400 38 /F nsp *ZC000350R MAINS CORD 12A/125V HJA2J076Z 38 /K nsp *ZC000330R MAINS CORD 10A/250V HJA2N075Z 38 /L nsp *ZC000370R MAINS CORD 38 /N *ZC000320R *ZC000320R MAINS CORD 2WIRE 10A/250V CJA2B054Z 38 /S nsp *ZC000340R MAINS CORD 10A/250V HJA2E077Z 38 /U nsp *ZC000310R MAINS CORD 032508/12 CJA2A070Z NOT STANDARD SPARE PART /F nsp 37AW801030 PACKING CASE PACKING CASE PS7400 CPG1A720S /K/L/S nsp 37AW801020 PACKING CASE PACKING CASE SR7400 WO CO CPG1A720T /N/U nsp 37AW801010 PACKING CASE PACKING CASE SR7400 CPG1A720U /N nsp 37AW805010 MASS CARTON MASTER PKG SR7400 N CPG1A746Y nsp 27AW809010 CUSHION CPS1A649 nsp 27AW809020 CUSHION CPS1A650 30 /F/K/L/S nsp 27AW257110 LID TOP COVER (GOLD) CKC1A139K118 30 /N1S nsp 27AW257210 LID TOP COVER (SILVER) CKC1A139G14 30 /N1B/U nsp 27AW257010 LID TOP COVER (BLACK) CKC1A139K117 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 57 9. POWER AMPLIFIER ADJUSTMENT Idling Current Alignment 1. Each of the measurement points are provided with the two test points. Set a digital Voltage meter to DC voltage input, connect the meter to the test points at both contact points. 2. After the setup above, turn on the main switch and heat up the amplifier about 10 minutes. 3. Adjust variable resistors (VR41, VR42…VR71) according to the digital voltmeter readings. The target setting value is 4.9 mV +/- 0.05 mV for each channels. Settings : Master Volume --- Minimum Speaker out --- No Load Top lid --- OPEN Channel Alignment Point Measurement Point Front L VR41 CN41 Center VR61 CN61 Front R VR51 CN51 Surr. L VR42 CN42 Surr. R VR52 CN52 Surr. Back L VR62 CN62 Surr. Back R VR71 CN71 Time Table of Idling Current Rise After Turning ON Measurement Voltage (CN**) 5 min. 4.5 mV 10 min. 4.9 mV 20 min. 5.5 mV 30 min. 6.2 mV 40 min. 6.8 mV 60 min. 7.0 mV 58 10. SERVICE MODE Microprocessor (IC28), DSP(IC20 )Version and FLD Segment Check Mode. 1. While the power is on, S-DIRECT, TAPE and SELECT buttons simultaneously more than 3 seconds. The FL display shows "SERVICE MODE"for 2 seconds then shows the model name. S E R V I C E M O D E S R 7 4 0 0 2. Press SELECT button, The software version of the microprocessor (IC28) is displayed in the format below. V 0 3 1 0 2 7 I U ⎣Year⎦ ⎣Month⎦ ⎣Date⎦ ⎣Dest.⎦ (Dest.:Destination) 3. Press SELECT button again, The software Serial Number that is wirtten in the factory is displayed. M Z x x x x x x x x x x x 4. Press SELECT button again, The software Type Number is displayed. S O F T T Y P E x x (XX is displayed in Hex) 5. Press SELECT button again, The Code Group Type Number is displayed. C O D E T Y P E x x x x (XXXX is displayed in Hex) 6. Press SELECT button again, The left half, right half and center of the label area in the FLD light on and off each other. 7. Press SELECT button again, The segments of the character area in the FLD flick in checker pattern. 8. Press SELECT button again, All the FL segments turns off. 9. Press SELECT button again. Every time SELECT button is pressed, DSP code is indicated in turn from NO.1 to NO.10. C D 0 1 0 1 0 2 0 1 0 1 ⎣No.⎦ ⎣Dev.⎦ ⎣SIG⎦ ⎣TYP⎦ ⎣Ver.⎦ No.:DSP CODE ID Dev.:Device ID SIG:CODE SIG ID TYP:CODE TYP ID Ver.:Version 10. Press SELECT button again to quit this mode. S E R V I C E M O D E S R 7 4 0 0 V 0 3 1 0 2 7 1 U Year Month Date Dest. M Z x x x x x x x x x x x S O F T T Y P E x x C O D E T Y P E x x x x C D 0 1 0 1 0 2 0 1 0 1 No. Dev. SIG TYP Ver. 59 Note : Step4, 5 is to check if CPU software is capable of DSP code. "Software Type No" is to show what "DSP Code Group" CPU is capable of. And vice versa. Step 8 is to manage the 16 codes for DSP. • When the unit is once turned into Service Mode, the unit keeps this mode until the main power is turned off. (Turning into stand-by mode does not make it quit from Service Mode.) When the unit quits from Service Mode, Information in the memory is also cleared and the unit returns to the status when it is out from the factory. Product Reset To reset the back up memory of the unit into the default status, follow the procedure below. 1. Turn of the unit and press SELECT and S-DIRECT button simultaneously more than 1.5 seconds. 2. After "DEFAULT" is displayed on FLD, power is turned off once and turned of again, EEPROM is cleared to the default status, µ-com is reset and the unit returns to the normal status. (Software Serial Number will not be cleared.) Note : When the unit is shipped from the factory, the procedure above must be done to set the unit to initial status after the tests. Personal notes: 60 11. SYSTEM ERROR When the microcomputer detects a trouble, the following information is displayed on the FLD. • After the error contents indication, Surround Mode is initialized and returned Factory mode. • The contents of the ERROR indication are the followings. 1. Trouble in DSP. If communication with DSP is troubled more than 2 seconds C H E C K D S P Indication is keep and sound is mute. 2. Trouble in DSP Code. The trouble of DSP Code was found. C H E C K D S P R O M 3. Trouble in ADC. When ADC input was chosen and CAL signal continued High about 2 seconds after the ADC Calibration start. C H E C K A D C 4.Trouble in EEP-ROM If data from EEPROM does not match. C H E C K E 2 P 5. Trouble in EEP-ROM IF If communication with EEPROM is troubled more than 2 seconds. C H E C K E 2 P I F 6. Trouble in RS-232C. If communication of Panja with RS232C is troubled more than 2 seconds. C H E C K 2 3 2 C 7. Trouble in 5V Supply If 5V supply to DATA DIR is troubled. C H E C K P O W 5 8. Trouble in Protection CPU turns off the speaker output P R O T E C T 11. SYSTEM ERROR C H E C K D S P C H E C K D S P R O M C H E C K A D C C H E C K E 2 P C H E C K E 2 P I F C H E C K 2 3 2 C C H E C K P O W 5 P R O T E C T 61 12. UPDATE FIRMWARE Software for CPU and DSP can be updated. Have *SR7400CDR update disc. There are two mode of download, regarding to the target of software as bellow. Mode 1: Download DSP's software to 4M Flash-ROM. This mode is to update the software for DSP. The target devise is 4M Flash-ROM (IC20) on CUP11658 (DSP PCB). SR7400 need to be set download condition, by three front keys. Mode 2: Download CPU's software to internal Flash-ROM. This mode is to update the software for DSP. The target devise is internal fl ash ROM of CPU (IC28) on CUP11658 (DSP PCB). The unit needs to be set to writing condition, by pushing internal switch from back-panel. The following items are required for updating. RS232C Dsub-9 pin cable (female to female/Straight type) PC (Windows 98, NT, ME, 2000) with RS-232C port. Upgrade software to CPU. Upgrade software to DSP. Use RS232C Dsub-9 pin cable (female to female/Straight type) to connect PC and the unit. COM port on PC needs to be set by dialog box for each program. COM port can be set from COM1 to COM5. Download Firmware for DSP (Mode 1) 1. Put the "DSP upgrade" folder into anywhere on your PC's hard disc. 2. Connect PC and the unit with the RS-232C cable. 3. Turn on the unit. 4. Press ENTER, MUTE and CD buttons simultaneously more than 5 seconds to turn the unit into Loading Mode. 5. "LOADING MODE" will be shown on FLD. 6. Launch "UpgradeDSP.exe" on PC. 7. Set the Baud Rate to 38400 then click Start communication button. If the connection is made successfully, a dialog box saying "Success to connect" appears and "CONNECTED" is displayed on FLD. 8. Click Send the DSP codes button on the dialog box. Progress status of downloading will be shown on PC and LOADING is displayed on FLD. 9. If downloading is completed successfully, "COMPLETED" is displayed on FLD. And a dialog box saying "Finished the DSP code transmitting" appears. Click OK and then click CLOSE to close the application. 10. Turn off the unit. Download Firmware for CPU (Mode 2) 1. Put the "CPU upgrade" folder into anywhere on your PC's hard disc. 2. Connect PC and the unit with the RS-232C cable. Personal notes: 62 3. Insert a thin rot to the hole and push the switch (SW10) inside to turn on the switch. 4. Turn on the power of the unit. (Confi rm that the stand-by LED lights in green so the unit is in the boot mode.) 5. Launch "H8Download.exe" on PC. 6. Click other fi les... button in the dialog box to specify the fi le (XXXX.mot) to be upload. 7. Click Connect button. If the connection with the H8 µ-com is successfully made, a dialogue box saying "Success to the H8 micro processor connection" appears. If the connection fails, error message will appear. 8. Click Send button to start update. 9. If the fi rmware is updated successfully, a dialog box saying "Finished the fi rmware program sending" appears. 10. Click CLOSE button to close the application. 11. Disconnect Mains power cord. 12. Turn off the internal switch that has been turned on at step 3. 13. Turn on the unit. Firmware Version Check To check the versions of the fi rmware, see "Microprocessor (CPU), DSP Version and FLD Segment Check Mode" in "SERVICE PROGRAM" section. HOLE Personal notes: 63 13. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 64 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) AMP PCB (CUP11656Z) BN23 nsp nsp CONN. CORD CWZSR7400BN23 BN24 nsp nsp CONN. CORD CWZSR7400BN24 BN25 nsp nsp CONN. CORD CWB1B905180EN BN68 nsp nsp CONN. CORD CWZSR7400BN68 BN83 nsp nsp CONN. CORD CWZSR7400BN83 C401 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C402 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C403 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C404 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C405 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C406 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C407 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C408 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C409 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C410 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C411 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C412 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C413 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C414 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C419 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C420 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C421 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C422 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C501 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C502 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C503 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C504 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C505 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C506 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C507 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C508 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C509 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C510 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C511 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C512 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C513 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C514 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C519 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C520 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C521 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C522 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C601 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C602 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C603 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C604 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C605 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C606 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C607 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C608 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C609 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C610 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C611 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C612 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C613 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C614 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C619 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 65 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C620 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C621 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C622 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C701 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C703 nsp nsp CER. CAP. 330pF 50V KB CCKT1H331KB C706 nsp nsp CER. CAP. 10pF 50V DC CCCT1H100DC C707 *OF100350R *OF100350R FILM CAP 2200pF 50V J HCQI1H222JZT C709 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C711 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C713 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C719 nsp OA10705020 ELECT. CAP. 100µF 50V HCEA1HH101T C721 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C722 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C801 nsp OA47505020 ELECT. CAP. 4.7µF 50V HCEA1HH4R7T C802 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C803 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C804 nsp OA47605020 ELECT. CAP. 47µF 50V HCEA1HH470T C805 nsp OA47405020 ELECT. CAP. 0.47µF 50V HCEA1HHR47T C807 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C808 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C809 nsp nsp CER. CAP. 4700pF 50V KB CCKT1H472ZF C810 OF15104040 OF15104040 FILM CAP 0.1µF 50V J HCQI1H104JZT C811 OF15104040 OF15104040 FILM CAP 0.1µF 50V J HCQI1H104JZT CN41 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN42 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN51 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN52 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN61 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN62 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN71 nsp nsp JACK MOLEX 5267-02A KJP02GA01ZM CN73 nsp nsp JACK A3963WV2-6P CJP06GA148ZW CN81 nsp nsp JACK KJP02GA19ZM D401 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D402 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D403 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D404 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D405 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D406 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D407 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D408 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D409 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D410 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D411 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D412 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D413 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D414 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D415 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D416 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D501 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D502 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D503 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D504 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D505 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D506 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D507 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D508 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D509 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 66 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) D510 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D511 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D512 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D513 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D514 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D515 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D516 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D601 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D602 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D603 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D604 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D605 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D606 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D607 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D608 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D609 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D610 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D611 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D612 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D613 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D614 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D615 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D616 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D701 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D703 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D705 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D707 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D709 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D710 *HD302180R *HD302180R ZENER DIODE 3.9V 1/2W HVDMTZJ3.9BT D713 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D715 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D801 *HE200250R *HE200250R DIODE US GBJ1504 HVDGBJ1504 IC41 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC51 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC61 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC71 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC81 HC10042050 HC10042050 IC HK HVITA7317P J200 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J335 Q403 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q404 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q405 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q406 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q407 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q408 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q409 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q410 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q411 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q412 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q413 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q414 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q415 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q416 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q417 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q418 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q419 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 67 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) Q420 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q421 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q422 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q423 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q424 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q503 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q504 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q505 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q506 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q507 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q508 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q509 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q510 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q511 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q512 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q513 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q514 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q515 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q516 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q517 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q518 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q519 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q520 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q521 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q522 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q523 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q524 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q603 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q604 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q605 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q606 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q607 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q608 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q609 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q610 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q611 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q612 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q613 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q614 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q615 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q616 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q617 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q618 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT Q619 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q620 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q621 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q622 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q623 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q624 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q703 *HT600010R *HT600010R TRS. KTA1266YT HVTKTA1266YT Q705 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q707 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q709 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q711 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q713 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q715 *HT600030R *HT600030R TRS. KTA1024YT HVTKTA1024YT Q717 *HT800090R *HT800090R TRS. KTC3206YA HVTKTC3206YAT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 68 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) Q719 HC20002080 HC20002080 IC SAP17NLFNO.552 BVISAP17N Q721 HC20001080 HC20001080 IC SAP17PLFNO.552 BVISAP17P Q723 *HT800060R *HT800060R TRS. KTC3200GR HVTKTC3200GRT Q801 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q803 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q804 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT R401 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R402 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R403 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R404 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R405 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R406 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R407 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R408 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R409 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R410 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R411 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R412 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R413 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R414 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R415 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R416 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R417 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R418 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R419 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R420 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R421 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R422 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R423 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R424 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R425 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R426 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R427 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R428 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R429 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R430 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R431 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R432 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R433 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R434 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R435 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R436 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R439 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R440 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R441 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R442 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R443 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R444 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R445 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R446 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R449 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R450 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R451 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R452 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R453 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R454 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R455 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 69 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R456 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R457 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R458 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R459 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R460 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R461 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R462 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R463 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R464 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R465 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R466 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R467 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R468 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R469 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R470 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R501 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R502 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R503 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R504 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R505 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R506 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R507 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R508 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R509 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R510 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R511 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R512 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R513 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R514 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R515 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R516 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R517 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R518 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R519 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R520 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R521 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R522 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R523 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R524 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R525 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R526 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R527 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R528 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R529 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R530 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R531 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R532 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R533 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R534 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R535 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R536 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R539 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R540 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R541 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R542 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R543 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R544 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 70 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R545 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R546 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R549 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R550 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R551 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R552 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R553 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R554 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R555 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R556 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R557 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R558 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R559 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R560 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R561 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R562 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R563 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R564 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R565 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R566 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R567 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R568 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R569 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R570 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R601 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R602 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R603 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R604 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R605 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R606 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R607 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R608 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R609 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R610 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R611 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R612 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R613 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R614 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R615 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R616 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R617 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R618 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R619 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R620 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R621 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R622 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R623 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R624 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R625 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R626 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R627 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R628 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R629 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R630 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R631 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R632 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R633 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 71 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R634 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R635 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R636 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R639 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R640 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R641 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R642 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R643 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R644 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R645 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R646 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R649 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R650 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R651 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R652 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R653 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R654 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R655 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R656 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R657 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R658 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R659 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R660 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R661 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R662 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R663 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R664 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R665 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R666 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R667 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R668 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R669 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R670 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R701 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R703 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R706 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R707 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R709 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R711 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R713 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R715 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R717 nsp nsp RES. 68Ω 1/6W J CRD20TJ680T R719 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R721 nsp nsp RES. 150Ω 1/6W J CRD20TJ151T R723 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R725 nsp nsp RES. 330kΩ 1/6W J CRD20TJ334T R727 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R729 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R731 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R733 nsp nsp RES. 10Ω 1/4W J CRD25TJ100T R735 nsp nsp RES. 27Ω 1/6W J CRD20TJ270T R739 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R741 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R743 nsp nsp RES. 120Ω 1W J KRG1SANJ121RT R745 nsp nsp RES. 47Ω 1W J KRG1SANJ470RT R749 nsp nsp RES. 15Ω 1/6W J CRD20TJ150T R751 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 72 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R753 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R755 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R757 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R759 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R761 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R763 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R767 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R770 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R785 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R801 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R802 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R803 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R804 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R805 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R806 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R807 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R808 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R809 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R810 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R811 nsp nsp RES. 3.3kΩ 1/6W J CRD20TJ332T R812 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R813 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R814 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R815 nsp nsp RES. 3.3kΩ 1/6W J CRD20TJ332T R816 nsp nsp RES. 6.8kΩ 1/6W J CRD20TJ682T R817 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R818 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R819 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R820 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R821 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R822 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R823 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T TH81 HP00029230 HP00029230 VARISTOR SR5400/SR6400 BRTPTFM04BD222Q VR41 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR42 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR51 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR52 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR61 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR62 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T VR71 *RA001090R *RA001090R TRIM. RES. HVN1RE221B01T COMPONENT PCB (CUP11660-1), 7.1CH PREOUT PCB (CUP11660-2), SBLR PCB (CUP11660-3) BK11 nsp nsp BRACKET CMD1A387 BK12 nsp nsp BRACKET CMD1A387 BN41 nsp nsp CONN. CORD SR7400 CWB1B906140EN C101 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C103 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C105 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C107 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C109 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C111 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C113 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C115 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C117 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C119 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 73 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C120 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C121 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C122 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C123 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C124 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C125 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C126 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C127 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C128 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C129 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C130 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C131 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C132 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C133 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C134 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C135 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C136 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C137 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C138 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C139 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C140 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C141 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C142 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C143 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C144 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C145 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C146 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C147 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C148 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C149 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C150 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C151 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C152 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C153 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C154 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C155 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C156 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C160 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C161 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C162 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C163 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C164 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C165 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C166 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C170 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C171 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C172 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C173 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C174 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C175 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C176 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C177 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C180 nsp nsp CER. CAP. 2.2pF 50V K HCBS1H2R2KCT C181 nsp nsp CER. CAP. 2.2pF 50V K HCBS1H2R2KCT C182 nsp nsp CER. CAP. 2.2pF 50V K HCBS1H2R2KCT CN22 nsp nsp JACK KJP15GA19ZM CN42 nsp nsp JACK GF102-07S-TS KJP07GA117ZG NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 74 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) CN81 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM CN82 YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM CN83 YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM D101 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT IC11 HC10230090 HC10230090 IC NJM2584D HVINJM2584D IC12 HC10230090 HC10230090 IC NJM2581D HVINJM2581D IC13 HC10230090 HC10230090 IC NJM2584D HVINJM2584D J101 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J120 JK11 *YT003210R *YT003210R TERMINAL 3P,G/B/R,SILVER CJJ4S030Z JK12 *YT003210R *YT003210R TERMINAL 3P,G/B/R,SILVER CJJ4S030Z JK13 *YT003210R *YT003210R TERMINAL 3P,G/B/R,SILVER CJJ4S030Z JK14 *YT003670R *YT003670R TERMINAL CJJ5P012Z JK15 *YT003660R *YT003660R TERMINAL SILVER PLATE CJJ4P045Z JK16 *YT003660R *YT003660R TERMINAL SILVER PLATE CJJ4P045Z Q101 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q102 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q103 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT R101 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R102 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R103 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R104 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R105 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R106 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R107 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R108 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R109 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R110 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R111 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R116 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R118 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R121 nsp nsp RES. 12kΩ 1/6W J CRD20TJ123T R122 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R123 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R124 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R125 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R126 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R130 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R131 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R132 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R133 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R134 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R135 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T RY11 LY20240490 LY20240490 RELAY 5GPA-28 DC24 HSL3B013ZE DSP PCB (CUP11658Z) BC11 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 BC12 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 BC13 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 BN33 nsp nsp JACK MOLEX53014-0710 KJP07GA19ZM C101 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C102 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C103 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C104 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C105 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C106 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 75 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C107 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C108 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C109 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C110 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C111 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C112 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C113 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C114 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C115 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C116 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C117 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C118 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C119 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C120 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C121 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C122 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C123 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C124 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C125 nsp DK98223300 CER. CAP. 0.022µF HCUS1H223KC C126 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C127 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C128 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C129 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C130 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C131 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C132 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C133 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C134 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C135 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C136 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C137 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C138 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C139 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C141 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C142 nsp DD95151300 CER. CAP. 150pF HCUS1H151JA C143 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C144 nsp DK96272300 CER. CAP. 2700pF HCUS1H272KC C145 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C146 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C148 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C149 nsp DD95151300 CER. CAP. 150pF HCUS1H151JA C150 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C151 nsp DK96272300 CER. CAP. 2700pF HCUS1H272KC C152 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C153 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C154 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C155 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C156 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C157 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C158 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C159 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C160 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C161 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C162 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C163 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C164 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C165 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 76 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C166 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C167 nsp OA22505020 ELECT. CAP. 2.2µF 50V HCEA1HH2R2T C168 nsp DD95680300 CER. CAP. 68pF HCUS1H680JA C169 nsp DK96122300 CER. CAP. 1200pF HCUS1H122KC C170 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C171 nsp DK96105200 CER. CAP. 1µF HCUS1C105ZF C172 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C173 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C174 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C175 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C176 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C177 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C178 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C179 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C180 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C181 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C182 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C183 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C184 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C185 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C186 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C187 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C188 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C189 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C190 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C191 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C192 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C193 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C194 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C195 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C196 nsp DD95101300 CER. CAP. 100pF HCUS1H101JA C197 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C198 nsp OA10505020 ELECT. CAP. 1µF 50V HCEA1HH1R0T C199 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C200 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C201 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C202 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C203 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C204 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C205 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C206 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C207 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C208 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C209 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C210 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C211 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C212 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C213 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C214 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C215 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C216 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C217 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C218 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C219 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C220 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C221 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C222 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 77 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C223 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C224 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C225 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C226 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C227 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C228 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C229 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C230 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C231 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C232 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C233 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C234 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C235 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C236 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C237 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C238 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C239 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C241 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C242 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C243 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C244 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C245 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C246 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C247 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C248 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C249 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C250 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C251 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C252 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C253 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C254 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C255 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C256 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C257 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C258 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C259 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C260 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C261 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C262 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C264 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C265 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C266 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C267 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C268 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C269 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C270 nsp DK96332300 CER. CAP. 3300pF HCUS1H332KC C271 nsp DD95471300 CER. CAP. 470pF HCUS1H471JA C272 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C273 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T C274 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KC C280 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C281 nsp DD95330300 CER. CAP. 33pF HCUS1H330JA C282 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC11 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC12 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T CC13 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC14 nsp DD91100300 CER. CAP. 10pF HCUS1H100JA NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 78 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) CC15 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC16 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC17 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T CC18 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC19 nsp DK98474200 CER. CAP. 0.47µF HCUS1C474ZF CC20 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T CC21 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC22 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC23 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA CC24 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA CC25 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC26 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1EH220T CC27 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC28 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC29 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC30 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T CC31 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC32 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC33 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T CC34 nsp OA22801620 ELECT. CAP. 2200µF 16V HCEA1CH222E CC35 nsp OA22801620 ELECT. CAP. 2200µF 16V HCEA1CH222E CC36 nsp OA22701620 ELECT. CAP. 220µF 16V HCEA1CH221T CC37 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC38 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T CC39 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC40 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T CC41 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC42 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T CC43 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CC44 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF CN16 nsp nsp JACK GF102-16S-TS KJP16GA117ZG CN26 nsp nsp JACK KJP19GA117ZG CN28 nsp nsp JACK GF120-17S-TS KJP17GA115ZG CN30 nsp nsp JACK MOLEX53014-0910 KJP09GA19ZM CN34 /F/K/N/S nsp nsp JACK GF120-17S-TS KJP17GA115ZG CN34 /L/U nsp nsp JACK GF120-15S-TS KJP15GA115ZG CN36 nsp nsp JACK GF102-11S-TS KJP11GA117ZG CN38 nsp nsp JACK GF102-13S-TS KJP13GA117ZG CN40 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM CN85 nsp nsp JACK KJP02GA19ZM DC11 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT DC12 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT DC13 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT DC14 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT DC15 *HI200020R *HI200020R L.E.D. SIR-34ST3F BVDSIR34ST3F ET01 nsp nsp TERMINAL CNE75 ET02 nsp nsp TERMINAL CNE75 IC11 HC700400Z0 HC700400Z0 IC TC74HCU04AFN HVITC74HCU04AFN IC12 HC700400Z0 HC700400Z0 IC TC74HCU04AFN HVITC74HCU04AFN IC13 HC10418030 HC10418030 IC LC89057W-VF4-E HVILC89057WVF4E IC14 HC10102090 HC10102090 IC NJM2115M HVINJM2115MDTE1 IC15 HC10102090 HC10102090 IC NJM2115M HVINJM2115MDTE1 IC16 HC10015880 HC10015880 IC CS5361-KS HVICS5361-KS IC17 HC007505K0 HC007505K0 IC TC74VHCT08FT HVITC74VHCT08FT IC18 *HC108430R *HC108430R IC TC74HC7007AFEL HVITC74HCT7007F IC19 HC10014880 HC10014880 IC CS49400-CQ HVICS49400-CQ IC20 *HS27AWX0R *HS27AWX0R ONE TIME PROM MX29LV400TTC-70 HVIMX29LV400TTC NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 79 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) IC21 HC007505K0 HC007505K0 IC TC74VHCT08FT HVITC74VHCT08FT IC22 HC010505K0 HC010505K0 IC TC74VHCT32AFT HVITC74VHCT32FT IC23 HC10012880 HC10012880 IC CS4382-KQ HVICS4382-KQ IC24 HC10102090 HC10102090 IC NJM2068MD-TE1 HVINJM2068MDTE1 IC25 HC10102090 HC10102090 IC NJM2068MD-TE1 HVINJM2068MDTE1 IC26 HC10102090 HC10102090 IC NJM2068MD-TE1 HVINJM2068MDTE1 IC27 HC10102090 HC10102090 IC NJM2068MD-TE1 HVINJM2068MDTE1 IC28 *HS27AWH0R *HS27AWH0R IC ONE TIME PROM HD64F2398F20 HVIHD64F2398F20 IC29 HC10099540 HC10099540 IC S-80145ALMC HVIS-80145ALMC IC30 *HC108390R *HC108390R IC AT24C08N10SC2.7 HVIAT24C08N10SC IC31 HC36J25050 HC36J25050 IC REG TA48033FTE16 HVITA48033FTE16 IC32 HC36J25050 HC36J25050 IC REG TA48025FTE16 HVITA48025FTE16 IC33 *HW100680R *HW100680R PHOTO UNIT H11A817B300W HVIH11A817B IC34 *HW100690R *HW100690R PHOTO UNIT RPM674CBR-S BRVRPM6936 JK11 *YJ002680R *YJ002680R OPT. CONNECTOR TORX179L HJSTORX179L JK12 *YJ002680R *YJ002680R OPT. CONNECTOR TORX179L HJSTORX179L JK13 *YJ002680R *YJ002680R OPT. CONNECTOR TORX179L HJSTORX179L JK14 *YT003290R *YT003290R TERMINAL B/B/B , N-PLATE CJJ4S018Z JK15 *YT003170R *YT003170R TERMINAL 1P,BLACK,SILVER CJJ4M048Z JK16 *YJ002670R *YJ002670R OPT. CONNECTOR TOTX179L HJSTOTX179L JK17 *YT003120R *YT003120R TERMINAL CJJ4N036Z JK20 *YT003650R *YT003650R TERMINAL SILVER PLATE CJJ4N071Z JK21 *YJ002760R *YJ002760R JACK SR7400 HJJ1D002Z L101 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC10 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC11 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC12 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC13 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC14 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC15 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC16 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC17 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC18 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC19 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC21 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC22 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC23 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC24 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC25 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC26 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC27 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC28 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC29 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC30 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC31 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC32 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC33 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC34 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC35 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC36 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC37 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC38 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC39 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC40 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC41 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC42 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC43 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 80 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) LC44 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC45 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC46 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC47 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC48 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC49 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC50 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC51 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC53 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC54 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC55 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC56 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC57 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC58 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC59 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC60 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC61 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC62 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC63 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC64 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC65 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC66 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC67 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC68 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC69 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC70 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC72 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC73 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC76 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC78 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC79 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC80 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T LC81 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T Q101 *HX900010R *HX900010R TRS. KTD1304 HVTKTD1304T Q102 *HX900010R *HX900010R TRS. KTD1304 HVTKTD1304T Q103 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S Q105 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S Q106 *HX800010R *HX800010R TRS. KRC102S HVTKRC102S Q107 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S Q108 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S Q109 *HT600020R *HT600020R TRS. KTA1268GR HVTKTA1268GRT Q110 *HX800010R *HX800010R TRS. KRC102S HVTKRC102S Q111 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S Q112 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S QC10 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S QC11 *HX800010R *HX800010R TRS. KRC102S HVTKRC102S QC12 *HX600010R *HX600010R TRS. KRA102S HVTKRA102S R101 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R102 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R103 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R104 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R105 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R106 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R107 nsp NN05750610 CHIP RES. 75Ω HRJ10DJ750T R108 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R109 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R110 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 81 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R111 nsp NN05750610 CHIP RES. 75Ω HRJ10DJ750T R112 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R113 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R114 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R115 nsp NN05750610 CHIP RES. 75Ω HRJ10DJ750T R116 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R117 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R118 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R119 nsp NN05750610 CHIP RES. 75Ω HRJ10DJ750T R120 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R121 nsp NN05750610 CHIP RES. 75Ω HRJ10DJ750T R122 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R123 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R124 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R125 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R126 nsp NN05100610 CHIP RES. 10Ω HRJ10DJ100T R127 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R128 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R129 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R131 nsp NN05221610 CHIP RES. 220Ω HRJ10DJ221T R132 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R133 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R134 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R135 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R136 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R137 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R138 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R139 nsp NN05010610 CHIP RES. 1Ω HRJ10DJ1R0T R140 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T R141 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R142 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R143 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R144 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R145 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R146 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T R147 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T R148 nsp NN05682610 CHIP RES. 6.8kΩ HRJ10DJ682T R149 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R150 nsp NN05272610 CHIP RES. 2.7kΩ HRJ10DJ272T R151 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R152 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R153 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R154 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R155 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R156 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R157 nsp NN05682610 CHIP RES. 6.8kΩ HRJ10DJ682T R158 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R159 nsp NN05272610 CHIP RES. 2.7kΩ HRJ10DJ272T R160 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R161 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R162 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R163 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R164 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R165 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R166 nsp NN05222610 CHIP RES. 2.2kΩ HRJ10DJ222T R167 nsp NN05222610 CHIP RES. 2.2kΩ HRJ10DJ222T R168 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 82 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R169 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R170 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R171 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R172 nsp NN05270610 CHIP RES. 27Ω HRJ10DJ270T R173 nsp NN05563610 CHIP RES. 56kΩ HRJ10DJ563T R174 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R175 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R176 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R177 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R178 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R179 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R180 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R181 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R182 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R183 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R184 nsp NN05152610 CHIP RES. 1.5kΩ HRJ10DJ152T R185 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R186 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R187 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R188 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R189 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R190 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R191 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R192 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R193 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R194 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R195 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R196 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R197 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R198 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R199 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R200 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R201 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R202 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R203 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R204 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R205 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R206 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T R207 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R208 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R209 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R210 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R211 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R212 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R213 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R214 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R215 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R216 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R217 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R218 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R219 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R220 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R221 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R222 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R223 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R224 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R225 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 83 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R226 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R227 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R228 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R229 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R230 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R231 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R232 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R233 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R234 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R235 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R236 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R237 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R238 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R239 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R240 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R241 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R242 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R243 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R244 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T R245 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T R246 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T R247 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R248 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R249 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R250 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R251 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R252 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R253 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R254 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R255 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R256 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R257 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R258 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R259 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R260 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R261 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R262 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R263 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R264 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R265 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R266 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R267 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R268 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R269 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R270 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R271 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R272 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R273 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R274 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R275 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R276 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R277 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R278 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R279 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R280 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R281 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R282 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 84 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R283 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R284 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R285 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R286 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R287 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R288 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R289 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R290 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R291 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R292 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R293 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R294 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R295 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R296 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R297 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R298 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R299 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R300 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R301 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R302 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R303 nsp NN05470610 CHIP RES. 47Ω HRJ10DJ470T R304 nsp NN05221610 CHIP RES. 220Ω HRJ10DJ221T R305 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T R306 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T R307 nsp NN05152610 CHIP RES. 1.5kΩ HRJ10DJ152T R308 nsp NN05221610 CHIP RES. 220Ω HRJ10DJ221T R309 nsp NN05183610 CHIP RES. 18kΩ HRJ10DJ183T R310 nsp NN05470610 CHIP RES. 47Ω HRJ10DJ470T R311 nsp NN05220610 CHIP RES. 22Ω HRJ10DJ220T R312 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R313 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T R314 nsp NN05682610 CHIP RES. 6.8kΩ HRJ10DJ682T R315 nsp NN05047610 CHIP RES. 4.7Ω HRJ10DJ4R7T R316 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R318 nsp NN05201610 CHIP RES. 200Ω HRJ10DJ201T R319 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R320 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R321 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R322 nsp NN05392610 CHIP RES. 3.9kΩ HRJ10DJ392T R323 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R324 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R325 nsp NN05182610 CHIP RES. 1.8kΩ HRJ10DJ182T R326 nsp NN05822610 CHIP RES. 8.2kΩ HRJ10DJ822T R327 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R328 nsp NN05104610 CHIP RES. 100kΩ HRJ10DJ104T R329 nsp NN05201610 CHIP RES. 200Ω HRJ10DJ201T R330 nsp NN05220610 CHIP RES. 22Ω HRJ10DJ220T R331 nsp NN05047610 CHIP RES. 4.7Ω HRJ10DJ4R7T RC11 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T RC12 nsp NN05562610 CHIP RES. 5.6kΩ HRJ10DJ562T RC13 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T RC14 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC15 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC16 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC17 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC18 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC19 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 85 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) RC20 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC21 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC22 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC23 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC24 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC25 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC26 nsp NN05010610 CHIP RES. 1Ω HRJ10DJ1R0T RC27 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T RC30 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T RC31 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T RC32 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T RC33 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T RC34 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC35 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC36 /K nsp NN05563610 CHIP RES. 56kΩ HRJ10DJ563T RC36 /F/S nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC36 /N nsp NN05832610 CHIP RES. 82kΩ HRJ10DJ823T RC37 /F nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC37 /K nsp NN05390610 CHIP RES. 39kΩ HRJ10DJ393T RC37 /L/U nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T RC37 /N/S nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T RC39 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T RC40 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC41 nsp NN05123610 CHIP RES. 12kΩ HRJ10DJ123T RC42 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC43 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC44 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T RC45 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC46 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC47 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC48 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC49 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC50 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC51 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC52 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC53 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC54 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T RC55 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T RC56 nsp NN05223610 CHIP RES. 22kΩ HRJ10DJ223T RC59 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC60 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC61 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC62 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T RC63 nsp NN05683610 CHIP RES. 68kΩ HRJ10DJ683T RC64 nsp NN05222610 CHIP RES. 2.2kΩ HRJ10DJ222T RC65 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T RC66 nsp NN05473610 CHIP RES. 47kΩ HRJ10DJ473T SW10 *SP001280R *SP001280R SWITCH SR7400 HSH2B003ZV X101 *JX001070R *JX001070R CRYSTAL 12.288MHz HOX12288E320C XC11 *JX001100R *JX001100R CRYSTAL 20MHz HOX20000E220C FRONT PCB (CUP11655Z), ENCODER & TACT PCB (CUP11655-2), ST-BY PCB (CUP11655-3), H/P PCB (CUP11655-4), PUSH S/W PCB (CUP11655-5), RS232C PCB (CUP11655-6) BK81 nsp nsp BRACKET CMD1A387 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 86 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) BK82 nsp nsp BRACKET CMD1A387 BN11 nsp nsp CONN. CORD CWB1B907230EN BN12 nsp nsp CONN. CORD CWB1B905340EN BN14 nsp nsp CONN. CORD CWB1B907370EN BN17 nsp nsp CONN. CORD CWB1C905370EN BN40 /F/K/L/N/U nsp nsp CONN. CORD CWB1B906220EN BN40 /S nsp nsp CONN. CORD CWB1B906170EN BN85 nsp nsp CONN. CORD CWB1B902320EN BN92 nsp nsp CONN. CORD CWZSR5400BN92 C801 nsp OA10701020 ELECT. CAP. 100pF 10V HCEA1AH101T C802 nsp OA10601620 ELECT. CAP. 10µF 16V HCEA1CH100T C804 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C805 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C806 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C807 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C809 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C810 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C811 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C812 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C813 nsp OA47601050 ELECT. CAP. 47µF 10V HCEA1AH470T C814 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C815 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C816 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C817 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C818 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C820 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C821 nsp OA10605020 ELECT. CAP. 10µF 50V KBS HCEA1HKS100T C822 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C824 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C825 nsp nsp CER. CAP. 390pF 50V K HCBS1H391KBT C826 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C827 nsp nsp CER. CAP. 100pF 50V K HCBS1H101KBT C828 nsp OA10701020 ELECT. CAP. 100µF 10V HCEA1AKS101T C829 nsp OA10601620 ELECT. CAP. 10µF 16V HCEA1CH100T C830 nsp OA10601620 ELECT. CAP. 10µF 16V HCEA1CH100T C831 nsp OA10601620 ELECT. CAP. 10µF 16V HCEA1CH100T C832 nsp OA10601620 ELECT. CAP. 10µF 16V HCEA1CH100T C833 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C834 nsp nsp CER. CAP. 47pF 50V J HCBS1H470JT C835 nsp nsp CER. CAP. 47pF 50V J HCBS1H470JT C836 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C837 nsp nsp CER. CAP. 1000pF 50V B HCBS1H102KBT C838 nsp nsp CER. CAP. 1000pF 50V B HCBS1H102KBT C840 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C841 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C846 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C847 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C848 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C849 /F/U nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C871 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C872 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C873 nsp nsp CER. CAP. 0.01µF 50V Z HCBS1H103ZFT C874 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C875 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C876 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C877 /F/K/N/S nsp *DK100800R CER. CAP. DKS471ME KCKDKS471ME C881 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 87 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C882 nsp OA47505020 ELECT. CAP. 4.7µF 50V HCEA1HH4R7T C883 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C884 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C885 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C886 nsp OA33802520 ELECT. CAP. 3300µF 25V HCEA1EH332E C887 nsp nsp CER. CAP. 1000pF 50V B HCBS1H102KBT C888 nsp *DK100810R CER. CAP. JP DE1610-610F103M BCKWKH103MF C890 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C891 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C901 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C902 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C903 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C904 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT C905 nsp nsp CER. CAP. 0.1µF 50V Z HCBS1H104ZFT CN15 nsp nsp JACK GF102-16S-TS KJP16GA117ZG CN81 nsp nsp JACK SR7400 KJP08GB145ZP CN86 nsp nsp JACK SR7400 KJP08GB144ZP CN88 /F/K/N/S YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM CN90 nsp nsp JACK KJP05GB99ZM CN91 /F/K/N/S YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM CN92 YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM CN93 YP04000760 YP04000760 JACK MOLEX35328-02 KJP02GA89ZM D801 *HI101090R *HI101090R L.E.D. SPR-39MVW3 HVDSPR39MVW3 D802 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D803 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 D804 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D805 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 D806 HD30821000 HD30821000 ZENER DIODE 8.2V 1/2W HVDMTZJ8.2BT D807 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D808 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D809 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D810 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D811 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D812 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D813 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D820 *HD301940R *HD301940R ZENER DIODE 3.3V 1/2W HVDMTZJ3.3BT EN81 *SR000240R *SR000240R ROTARY SWITCH EC16B243040HB HSR2A004Z EN82 *SR000180R *SR000180R ROTARY SWITCH EC16B12S00D4ZZZ HSR2A019Z F801 nsp nsp FUSE HOLDER KJCFC5S F802 /F/L/N/U *FS001070R *FS001070R FUSE KBA2D2500TLET F803 /F/L/U nsp *FS001070R FUSE KBA2D2500TLET FIP1 *HQ300620R *HQ300620R DISPLAY 16-BT-110GNK HFL16BT110GNK IC12 HC700400Z0 HC700400Z0 IC TC74HCU04AFN HVITC74HCU04AFN IC81 HC10220090 HC10220090 IC HVINJU3430F IC83 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC84 *HC108410R *HC108410R IC S-80842CNY-X HVIS-80842CNY IC85 *HC300500R *HC300500R IC REG. KA7805-ABTU HVIMC7805C IC91 *HC108440R *HC108440R IC ST202EBW HVIST202EBW J106 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J810 J816 /F/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J817 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J818 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J820 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J821 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J822 /L/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 88 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) J823 /L/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J825 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J828 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J829 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J830 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J831 /L/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J834 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J840 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J850 /K/L/N/S/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 JK81 *YT003160R *YT003160R TERMINAL CJJ2E020Z JK83 *YT003240R *YT003240R TERMINAL CJJ9M004Z JK84 *YT003220R *YT003220R TERMINAL ADVR-7100 CJJ4S028Z JK86 /F/L/U nsp *YT002410R OUTLET A204D0041P KJJ7A015Z JK86 /N *YT002430R *YT002430R OUTLET A302D0061P KJJ7A022Z JK87 *YJ002680R *YJ002680R OPT. CONNECTOR TORX179L HJSTORX179L JK91 *YT003300R *YT003300R TERMINAL KJP09TA87WM JW11 nsp nsp CONN. CORD CWE8102180RV JW12 nsp nsp CONN. CORD CWE8102050RV JW13 nsp nsp CONN. CORD CWE8102150RV L801 LY10090010 LY10090010 RELAY SDT-S-109DMR HSL1D016ZE Q801 BA10004000 BA10004000 TRS. KRA111M HVTKRA111MT Q802 BA10004000 BA10004000 TRS. KRA111M HVTKRA111MT Q803 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q804 BA20004000 BA20004000 TRS. KRC111M HVTKRC111MT Q805 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q806 BA10004000 BA10004000 TRS. KRA111M HVTKRA111MT R802 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R803 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R805 nsp nsp RES. 47Ω 1/6W J CRD20TJ470T R806 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R807 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R808 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R809 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R810 nsp nsp RES. 5.6kΩ 1/6W J CRD20TJ562T R811 nsp nsp RES. 2.7kΩ 1/6W J CRD20TJ272T R812 nsp nsp RES. 2.2kΩ 1/6W J CRD20TJ222T R813 nsp nsp RES. 1.5kΩ 1/6W J CRD20TJ152T R814 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R815 nsp nsp RES. 820Ω 1/6W J CRD20TJ821T R816 nsp nsp RES. 560Ω 1/6W J CRD20TJ561T R817 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R818 nsp nsp RES. 5.6kΩ 1/6W J CRD20TJ562T R819 nsp nsp RES. 2.7kΩ 1/6W J CRD20TJ272T R820 nsp nsp RES. 2.2kΩ 1/6W J CRD20TJ222T R821 nsp nsp RES. 1.5kΩ 1/6W J CRD20TJ152T R822 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R823 nsp nsp RES. 820Ω 1/6W J CRD20TJ821T R824 nsp nsp RES. 560Ω 1/6W J CRD20TJ561T R825 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R826 nsp nsp RES. 5.6kΩ 1/6W J CRD20TJ562T R827 nsp nsp RES. 2.7kΩ 1/6W J CRD20TJ272T R828 nsp nsp RES. 2.2kΩ 1/6W J CRD20TJ222T R829 nsp nsp RES. 1.5kΩ 1/6W J CRD20TJ152T R830 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R831 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R833 nsp nsp RES. 68kΩ 1/6W J CRD20TJ683T R834 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 89 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R835 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R836 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R837 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R838 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R839 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R840 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R841 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R842 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R843 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R844 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R845 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R846 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R847 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R851 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R852 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R853 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R854 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R855 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R856 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R857 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R859 nsp nsp RES. 330Ω 1/6W J CRD20TJ331T R871 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R872 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R873 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R874 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R875 nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R876 nsp nsp RES. 820Ω 1/6W J CRD20TJ821T R877 nsp nsp RES. 560Ω 1/6W J CRD20TJ561T R878 /F/K/N/S nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R878 /L/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R879 /F/K/N/S nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R879 /L/U nsp nsp RES. 680Ω 1/6W J CRD20TJ681T R881 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R882 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R883 nsp nsp RES. 2.2kΩ 1/6W J CRD20TJ222T R885 nsp nsp RES. 1Ω 1/6W J CRD20TJ1R0T R886 /U nsp *GG000010R RES. JP 3.3MΩ 1/2W BRDERC12UGK335T R887 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R888 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R901 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R902 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R903 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R904 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R905 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R906 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R907 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R908 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R909 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R910 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R911 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R912 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R913 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R914 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R915 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R916 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R917 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R918 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 90 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R919 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R920 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R921 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R922 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R923 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R924 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R925 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R926 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R927 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R928 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R929 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R930 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R931 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R932 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R933 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R934 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R935 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R936 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R937 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R938 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R939 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R940 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R941 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R942 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R943 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R944 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R945 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R946 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R947 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R948 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R949 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R950 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R951 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R952 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R953 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T RC81 *HW100650R *HW100650R PHOTO UNIT RPM6936-H4 HRVRPM6936H4 SW71 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW72 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW73 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW74 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW75 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW76 /U nsp *SP001210R SWITCH SKHV10910G CST1A012ZT SW77 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW78 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW79 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW80 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW81 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW82 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW83 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW84 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW85 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW86 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW87 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW88 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW89 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW90 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW91 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 91 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) SW92 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW93 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW94 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW95 *SP001210R *SP001210R SWITCH SKHV10910G CST1A012ZT SW96 /L/U nsp *SP001210R SWITCH SKHV10910G CST1A012ZT SW97 /F/K/N/S *SP000850R *SP000850R SWITCH CN JPP1197CSA64 KSH1A001ZV T801 /K nsp *TS001950R SUB TRANSF. SR5400(6400)/K1 CLT5I002ZH T801 /L nsp *TS002090R SUB TRANSF. SR5400(6400)/L1 CLT5I002ZS T801 /N/S *TS001940R *TS001940R SUB TRANSF. SR5400(6400)/N1 CLT5I002ZE T801 /U nsp *TS001970R SUB TRANSF. SR5400(6400)/U1 CLT5I002ZU INPUT PCB (CUP11657-1), TUNER PCB BN22 nsp nsp CONN. CORD CWB1B915280EN BN29 nsp nsp CONN. CORD CWB1C908450EN BN30 nsp nsp CONN. CORD CWB1C909130EN BN31 nsp nsp CONN. CORD CWB1B907120EN BN32 /F nsp nsp CONN. CORD CWB1B903200EN C201 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C202 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C203 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C204 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C205 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C206 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C207 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C208 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C209 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C210 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C211 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C212 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C213 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C214 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C215 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C216 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C217 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C218 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C219 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C220 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C221 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C222 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C223 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C224 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C225 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C226 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C227 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C228 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C229 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C230 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C231 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C232 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C233 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C234 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C235 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C236 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C237 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C238 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C239 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 92 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C240 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C241 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C242 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C243 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C244 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C245 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C246 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C247 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C248 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C249 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C250 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C251 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C252 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C254 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C256 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C258 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C260 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C262 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C264 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C266 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C267 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C268 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C269 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C270 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C271 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C272 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C273 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C274 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C275 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C276 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C281 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C282 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C283 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C284 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C285 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C286 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C287 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C288 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C289 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C290 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C291 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C292 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C293 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C294 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C295 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C296 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C297 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C298 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C299 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C300 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C301 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C302 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C303 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C304 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C305 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C306 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C307 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 93 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C308 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C309 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C310 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C311 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C312 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C313 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C314 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C315 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C316 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C317 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C318 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C319 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C320 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C321 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C322 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C323 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C324 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C325 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C326 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C327 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C328 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C329 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C330 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C331 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C332 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C333 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C334 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C335 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C336 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C337 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C338 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C339 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C340 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C341 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C342 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C343 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C344 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C345 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C346 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C347 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C348 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C349 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C350 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C351 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C354 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C355 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C356 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C357 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C358 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C359 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C360 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C361 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C362 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C363 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C364 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C365 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C366 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 94 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C367 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C368 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C369 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C370 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C371 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C372 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C373 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C374 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C375 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C376 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C377 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C378 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C379 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C380 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C381 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C382 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C386 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C387 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C388 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C389 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C390 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C393 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C394 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C395 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C396 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C397 /F nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C398 /F nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C403 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C404 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C406 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C407 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C408 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C409 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C412 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C413 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C414 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C415 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C416 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C417 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C418 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C419 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C420 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C421 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C423 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C424 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C425 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C426 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C427 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C428 nsp OA22605020 ELECT. CAP. 22µF 50V HCEA1HH220T C429 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C430 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C431 nsp nsp CER. CAP. 470pF 50V KB CCKT1H471KB C432 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C433 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C434 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB C442 nsp nsp CER. CAP. 100pF 50V KB CCKT1H101KB CN11 nsp nsp JACK MOLEX53014-0710 KJP07GA19ZM NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 95 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) CN21 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM CN23 nsp nsp JACK MOLEX 5267-08A KJP08GA01ZM CN24 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM CN25 nsp nsp JACK KJP19GA117ZG CN27 /F/L/U nsp nsp JACK GF120-15S-TS KJP15GA115ZG CN27 /K/N/S nsp nsp JACK GF120-17S-TS KJP17GA115ZG CN32 /F nsp nsp JACK KJP03GA19ZM D203 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D205 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D206 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D207 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D208 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D209 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D210 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D211 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D212 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D213 nsp *HD201730R DIODE 1N4003 KVD1N4003ST D214 nsp *HD201730R DIODE 1N4003 KVD1N4003ST ET21 nsp nsp TERMINAL CNE75 IC21 HC10470050 HC10470050 IC TC9164AN HVITC9164AN IC22 HC10468050 HC10468050 IC TC9273N HVITC9273N IC23 HC10469050 HC10469050 IC TC9162AN HVITC9162AN IC24 HC10467050 HC10467050 IC TC9499N HVITC9499N IC25 HC10467050 HC10467050 IC TC9499N HVITC9499N IC26 *HC300550R *HC300550R IC REG HVIMC7806 IC27 *HC300540R *HC300540R IC REG KA7906 HVIKA7906 IC28 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC29 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC30 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC31 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC32 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC33 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC34 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC35 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC36 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC37 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC38 HC10468050 HC10468050 IC TC9273N HVITC9273N IC40 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD IC41 HC10053090 HC10053090 IC NJM2068DD HVINJM2068DD J001 /K/N/S/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J002 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J999 JK21 *YT002960R *YT002960R JACK CJJ4R019Z JK22 *YT002960R *YT002960R JACK CJJ4R019Z JK23 *YT002960R *YT002960R JACK CJJ4R019Z JK24 *YT002960R *YT002960R JACK CJJ4R019Z JK25 *YT003660R *YT003660R JACK SILVER PLATE CJJ4P045Z JK26 *YT003660R *YT003660R JACK SILVER PLATE CJJ4P045Z JK27 /F nsp *YT003180R JACK CJJ4N063Z Q201 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q202 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q203 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q204 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q205 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q206 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q207 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 96 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) Q208 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q209 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q210 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q211 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q212 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q213 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q214 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q215 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q216 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q217 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q218 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q219 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q220 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q221 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q222 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q223 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q224 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q225 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q226 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT Q233 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q234 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q235 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q237 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q238 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q239 HT805501B0 HT805501B0 TRS. KTC2874B HVTKTC2874BT Q240 BA10002000 BA10002000 TRS. KRA104M HVTKRA104MT Q241 BA20002000 BA20002000 TRS. KRC104M HVTKRC104MT R201 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R202 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R203 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R204 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R205 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R206 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R207 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R208 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R209 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R210 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R211 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R212 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R213 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R214 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R215 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R216 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R217 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R218 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R219 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R220 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R221 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R222 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R223 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R224 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R225 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R226 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R227 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R228 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R229 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R230 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 97 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R231 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R232 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R233 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R234 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R235 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R236 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R237 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R238 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R239 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R240 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R241 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R242 nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R243 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R244 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R245 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R246 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R247 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R248 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R249 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R250 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R251 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R252 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R253 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R254 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R255 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R256 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R257 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R258 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R266 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R267 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R268 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R269 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R270 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R271 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R272 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R273 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R274 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R275 nsp nsp RES. 220 KOHM 1/5W J CRD20TJ224T R276 nsp nsp RES. 220 KOHM 1/5W J CRD20TJ224T R277 nsp nsp RES. 220 KOHM 1/5W J CRD20TJ224T R278 nsp nsp RES. 220 KOHM 1/5W J CRD20TJ224T R279 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R280 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R281 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R282 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R283 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R284 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R285 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R286 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R287 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R288 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R289 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R290 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R291 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R292 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R293 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R294 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 98 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R295 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R296 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R297 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R298 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R299 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R300 nsp nsp RES. 8.2kΩ 1/6W J CRD20TJ822T R301 nsp nsp RES. 8.2kΩ 1/6W J CRD20TJ822T R302 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R303 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R304 nsp nsp RES. 8.2kΩ 1/6W J CRD20TJ822T R305 nsp nsp RES. 8.2kΩ 1/6W J CRD20TJ822T R306 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R314 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R315 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R316 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R317 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R318 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R319 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R320 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R321 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R322 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R323 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R324 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R325 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R326 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R327 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R328 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R329 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R330 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R331 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R332 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R333 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R334 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R336 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R338 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R340 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R341 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R342 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R343 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R344 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R345 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R346 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R347 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R348 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R349 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R350 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R351 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R352 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R353 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R354 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R355 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R356 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R357 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R358 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R359 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R360 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R361 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 99 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R362 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R363 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R364 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R365 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R366 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R367 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R368 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R369 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R370 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R371 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R372 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R373 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R394 /F nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R395 /F nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R396 /F nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R397 /F nsp nsp RES. 82kΩ 1/6W J CRD20TJ823T R402 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R403 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R404 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R405 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R406 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R407 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R408 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R409 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R410 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R411 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R413 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R414 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R415 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R416 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R417 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R418 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R419 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R420 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R421 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R423 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R424 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R425 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R426 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R427 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R428 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R429 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R431 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R432 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R433 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R434 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R435 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R436 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R437 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R438 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R439 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R440 nsp nsp RES. 33Ω 1/6W J CRD20TJ330T R441 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R442 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R444 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R445 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R446 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 100 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R447 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R448 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T R449 nsp nsp RES. 47kΩ 1/6W J CRD20TJ473T POWER PCB (CUP11659-1), VIDEO PCB (CUP11659-2) BN21 nsp nsp CONN. CORD CWB1C906270EN BN65 nsp nsp CONN. CORD CWB3F006100UZ BN73 nsp nsp CONN. CORD CWB3F006100UZ BN81 nsp nsp CONN. CORD CWB1B906150EN BN82 nsp nsp CONN. CORD CWZSR7400BN82 C602 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C603 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C604 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C605 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C606 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C611 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C612 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C613 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C614 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C615 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C622 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C623 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C624 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C625 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C626 *OF100370R *OF100370R FILM CAP 0.022µF 50V J HCQI1H223JZT C633 EB10907170 EB10907170 ELECT. CAP. DL71VN 18000(M) HCET71VDL183N C634 EB10907170 EB10907170 ELECT. CAP. DL71VN 18000(M) HCET71VDL183N C638 nsp OA47601640 ELECT. CAP. 47µF 16V HCEA1CH470T C639 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C640 EA33803510 EA33803510 ELECT. CAP. 3300µF 35V HCEA1VH332E C641 nsp OA22803520 ELECT. CAP. 2200µF 35V HCEA1VH222E C642 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C644 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C645 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C646 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C647 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C648 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C649 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C651 nsp OA68801620 ELECT. CAP. 6800µF 16V HCEA1CH682E C652 EA10901670 EA10901670 ELECT. CAP. 10000µF 16V HCEA1CH103E C653 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C654 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C655 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C656 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C657 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C658 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C659 nsp OA10710020 ELECT. CAP. 100µF 100V HCEA2AH101E C661 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C662 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C663 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C664 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C665 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C702 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C704 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C706 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C707 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 101 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C708 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C710 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C711 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C712 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C713 nsp nsp CER. CAP. 68pF 50V JC CCCT1H680JC C714 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C715 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C716 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C717 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C719 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C720 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C722 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C723 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C725 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C726 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C727 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C728 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C729 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C730 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C732 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C733 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C734 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C735 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C736 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C737 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C738 nsp nsp CER. CAP. 68pF 50V JC CCCT1H680JC C739 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C740 nsp nsp CER. CAP. 68pF 50V JC CCCT1H680JC C741 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C742 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C743 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 C744 nsp OA22505020 ELECT. CAP. 2.2µF 50V HCEA1HH2R2T C745 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C746 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C747 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C748 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C749 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C751 nsp OA47505020 ELECT. CAP. 4.7µF 50V HCEA1HH4R7T C752 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C753 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C754 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C755 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C756 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C757 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C758 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C759 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C760 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C761 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C762 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C763 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C764 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C765 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C766 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C767 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C768 nsp nsp CER. CAP. 1200pF 50V KB CCKT1H122KB C769 nsp OA10505020 ELECT. CAP. 1µF 50V HCEA1HH1R0T C770 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 102 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C771 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C773 nsp nsp CER. CAP. 24pF 50V JC CCCT1H240JC C774 nsp nsp CER. CAP. 22pF 50V JC CCCT1H220JC C775 nsp OA10505020 ELECT. CAP. 1µF 50V HCEA1HH1R0T C776 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C777 nsp nsp CER. CAP. 30pF 50V JC CCCT1H300JC C778 /F/L/U nsp nsp CER. CAP. 30pF 50V JC CCCT1H300JC C778 /K/N/S nsp nsp CER. CAP. 27pF 50V JC CCCT1H270JC C779 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C780 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C781 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C782 nsp nsp CER. CAP. 220pF 50V KB CCKT1H221KB C783 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C785 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C786 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C787 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C788 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C789 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C790 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C791 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C792 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C793 nsp nsp CER. CAP. 0.022µF 50V ZF CCKT1H223ZF C794 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C795 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C796 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C797 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C798 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C799 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C800 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C802 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C803 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C804 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C805 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C806 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C807 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C808 nsp nsp CER. CAP. 50V 0.1µF CCKT1H104ZF C811 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C812 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C813 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C814 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C815 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C817 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C818 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C819 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C820 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C821 nsp nsp CER. CAP. 68pF 50V JC CCCT1H680JC C822 nsp OA47701020 ELECT. CAP. 470µF 10V HCEA1AH471T C823 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C824 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C825 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C827 nsp nsp CER. CAP. 1000pF 50V KB CCKT1H102KB C828 nsp nsp CER. CAP. 0.01µF 50V ZF CCKT1H103ZF C829 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C830 nsp nsp CER. CAP. 47pF 50V JC CCCT1H470JC C831 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C833 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C834 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 103 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) CN12 nsp nsp JACK MOLEX53014-0510 KJP05GA19ZM CN17 nsp nsp JACK MOLEX53014-0510 KJP05GA19ZM CN37 nsp nsp JACK GF102-11S-TS KJP11GA117ZG CN41 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM CN61 nsp nsp JACK MOLEX53014-0810 KJP08GA19ZM CN62 nsp nsp JACK MOLEX53014-0710 KJP07GA19ZM CN63 nsp nsp JACK MOLEX53014-0510 KJP05GA19ZM CN64 nsp nsp JACK MOLEX53014-0510 KJP05GA19ZM CN65 nsp nsp JACK GF102-13S-TS KJP13GA117ZG CN66 nsp nsp JACK MOLEX 5267-04A KJP04GA01ZM CN67 nsp nsp JACK A3963WV2-5P CJP05GA148ZW CN68 nsp nsp JACK A3963WV2-5P CJP05GA148ZW CN69 nsp nsp JACK KJP05GA98ZM CN81 nsp nsp JACK MOLEX53014-0610 KJP06GA19ZM D601 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D602 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D603 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D604 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D605 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D606 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D607 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D608 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D609 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D610 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D611 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D612 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D613 *HD201750R *HD201750R DIODE TW 1N4003 KVD1N4003SRT D614 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D615 *HD302150R *HD302150R ZENER DIODE 6.8V 1/2W HVDMTZJ6.8BT D616 *HD302190R *HD302190R ZENER DIODE 30V 1/2W HVDMTZJ30BT D617 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 D618 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D619 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D620 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D621 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D623 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D631 *HE200340R *HE200340R DIODE GBJ804 HVDGBJ804 D701 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D702 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D704 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D705 nsp *HD201750R DIODE TW 1N4003 KVD1N4003SRT D706 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT D707 nsp HD20015210 DIODE 1SS133T-77 HVD1SS133MT ET01 nsp nsp TERMINAL CNE75 IC09 *HC300560R *HC300560R IC REG HVIMC7905C IC61 *HC300500R *HC300500R IC REG KA7805-ABTU HVIMC7805C IC62 *HC300500R *HC300500R IC REG KA7805-ABTU HVIMC7805C IC63 *HC300520R *HC300520R IC REG KA7812-ABTU HVIMC7812C IC64 HC3991209F HC3991209F IC REG HVINJM7912FA IC71 HC10227090 HC10227090 IC NJM2595D HVINJM2595D IC72 HC10227090 HC10227090 IC NJM2595D HVINJM2595D IC73 HC10227090 HC10227090 IC NJM2595D HVINJM2595D IC74 *HC108400R *HC108400R IC NJM2535D HVINJM2535D IC75 HC10185090 HC10185090 IC NJM2264D HVINJM2264D IC76 HC10119090 HC10119090 IC NJM2244D HVINJM2244D IC77 HC10119090 HC10119090 IC NJM2244D HVINJM2244D IC78 HC10377030 HC10377030 IC LC74781-9013 HVILC74781-9013 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 104 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) IC79 *HC108420R *HC108420R IC TC74HC4094AP HVITC74HC4094AP IC80 *HC108420R *HC108420R IC TC74HC4094AP HVITC74HC4094AP IC81 HC10227090 HC10227090 IC NJM2595D HVINJM2595D IC82 HC10119090 HC10119090 IC NJM2244D HVINJM2244D J611 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 J837 JC71 nsp nsp JACK 25053WS-06A02 CJP06TT122ZP JC72 nsp nsp JACK 25053WS-06A02 CJP06TT122ZP JC73 nsp nsp JACK 25053WS-06A02 CJP06TT122ZP JC74 nsp nsp JACK GF102-11S-TS KJP11GA117ZG JK61 *YT003270R *YT003270R TERMINAL CJJ5Q007Z JK62 *YT003280R *YT003280R TERMINAL CJJ5P011Z JK63 *YT003680R *YT003680R TERMINAL CJJ5N005Z JK71 *YT002940R *YT002940R TERMINAL CJJ4S010Z JK72 *YT002940R *YT002940R TERMINAL CJJ4S010Z JK73 *YT002950R *YT002950R TERMINAL CJJ4N043Z JK74 *YT003260R *YT003260R TERMINAL CJJ9S001Z JK75 *YT003250R *YT003250R TERMINAL CJJ9N001Z JK76 *YT003250R *YT003250R TERMINAL CJJ9N001Z L701 nsp nsp COIL 33µH HLQ02C330JT L702 nsp nsp COIL 33µH HLQ02C330JT Q601 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q602 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q603 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q604 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q606 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q607 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q608 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q609 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q610 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q611 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q612 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q613 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q614 *HT800050R *HT800050R TRS. KTC3198YT HVTKTC3198YT Q615 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q616 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q701 *HT600040R *HT600040R TRS. KTA1267YT HVTKTA1267YT Q702 BA10001000 BA10001000 TRS. KRA102M HVTKRA102MT Q703 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q704 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q705 /K/N/S BA20004000 BA20004000 TRS. KRC111M HVTKRC111MT Q706 /K/N/S BA20004000 BA20004000 TRS. KRC111M HVTKRC111MT Q707 /K/N/S BA10001000 BA10001000 TRS. KRA102M HVTKRA102MT Q708 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q710 BA20001000 BA20001000 TRS. KRC102M HVTKRC102MT Q711 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q712 HT30001000 HT30001000 TRS. KTC3199YT HVTKTC3199YT Q713 BA10001000 BA10001000 TRS. KRA102M HVTKRA102MT R601 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R602 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T R603 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R604 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T R605 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R606 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T R607 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R608 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 105 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R609 nsp nsp RES. 220Ω 1/4W J CRD25TJ221T R610 nsp nsp RES. 330Ω 1/4W J CRD25TJ331T R611 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R612 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R613 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R614 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R615 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R616 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R617 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R618 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R619 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R620 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R622 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R623 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R624 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R625 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R626 nsp nsp RES. 10Ω 1W J KRG1SANJ100RT R627 nsp nsp RES. 330Ω CRG1ANJ331H R628 nsp nsp RES. 330Ω CRG1ANJ331H R631 nsp nsp RES. 150Ω 1/4W J CRD25TJ151T R632 nsp nsp RES. 150Ω 1/4W J CRD25TJ151T R633 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R634 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R635 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R636 nsp nsp RES. 15kΩ 1/6W J CRD20TJ153T R637 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R638 nsp nsp RES. 33kΩ 1/6W J CRD20TJ333T R639 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R640 nsp nsp RES. 1Ω CRG1ANJ1R0H R641 nsp nsp RES. 1Ω CRG1ANJ1R0H R642 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R643 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R644 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R645 nsp nsp RES. 22kΩ 1/6W J CRD20TJ223T R646 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R647 nsp nsp RES. 1Ω 1/4W J CRD25TJ1R0T R648 nsp nsp RES. 2.2kΩ 1W J KRG1SANJ222RT R649 nsp nsp RES. 1.5kΩ 1W J KRG1SANJ152RT R650 nsp nsp RES. 100Ω 1/4W J CRD25TJ101T R651 nsp nsp RES. 100Ω 1/4W J CRD25TJ101T R652 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R653 *NH000150R *NH000150R FUSE RES. 0.15Ω 1W J KRQ1AJR15H R701 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R702 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R703 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R704 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R705 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R706 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R707 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R708 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R709 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R710 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R711 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R712 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R713 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R714 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R715 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 106 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R716 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R717 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R718 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R719 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R720 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R721 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R722 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R723 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R724 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R725 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R726 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R727 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R728 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R729 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R730 nsp nsp RES. 220 KOHM 1/5W J CRD20TJ224T R731 nsp nsp RES. 10Ω 1/6W J CRD20TJ100T R732 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R733 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R734 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R735 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R736 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R737 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R738 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R739 nsp nsp RES. 12kΩ 1/6W J CRD20TJ123T R740 nsp nsp RES. 470Ω 1/6W J CRD20TJ471T R741 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R742 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R743 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R744 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R745 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R746 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R747 /F/L/U nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R750 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R752 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R753 nsp nsp RES. 220Ω 1/6W J CRD20TJ221T R756 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R758 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R759 nsp nsp RES. 3.3kΩ 1/6W J CRD20TJ332T R761 nsp nsp RES. 100kΩ 1/6W J CRD20TJ104T R762 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R763 nsp nsp RES. 3.3kΩ 1/6W J CRD20TJ332T R764 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R765 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R766 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R767 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R768 nsp nsp RES. 4.7kΩ 1/6W J CRD20TJ472T R769 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R770 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R771 nsp nsp RES. 56Ω 1/6W J CRD20TJ560T R772 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R773 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R774 nsp nsp RES. 1kΩ 1/6W J CRD20TJ102T R775 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 R776 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R777 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R778 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R781 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 107 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R782 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R783 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R786 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R787 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R788 nsp nsp RES. 1MΩ 1/6W J CRD20TJ105T R789 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R790 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R791 nsp nsp RES. 100Ω 1/6W J CRD20TJ101T R792 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T R793 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R794 nsp nsp RES. 75Ω 1/6W J CRD20TJ750T R795 nsp nsp RES. 3.3kΩ 1/6W J CRD20TJ332T RJ10 nsp nsp JUMPER SN95/PB5 , 0.6 C3A206 RJ21 nsp nsp RES. 10kΩ 1/6W J CRD20TJ103T RY61 LY20240490 LY20240490 RELAY 5GPA-28 DC24 HSL3B013ZE RY62 LY20240490 LY20240490 RELAY 5GPA-28 DC24 HSL3B013ZE RY63 LY20240490 LY20240490 RELAY 5GPA-28 DC24 HSL3B013ZE RY64 LY20240490 LY20240490 RELAY 5GPA-28 DC24 HSL3B013ZE RY65 LY20240510 LY20240510 RELAY OSA-SS-224DM3 HSL4B017ZU RY66 LY20240520 LY20240520 RELAY PCLH-203D1SP HSL4B018ZU X701 *JX001080R *JX001080R CRYSTAL 14.318MHZ HOX14318D220F X702 /K/N/S *JX001090R *JX001090R CRYSTAL 17.744MHZ HOX17744D220F CONVERTER PCB (CUP11661) BN71 nsp nsp JACK MOLEX42140-2206 KJP06HA37ZM BN72 nsp nsp JACK MOLEX42140-2206 KJP06HA37ZM BN73 nsp nsp JACK MOLEX42140-2206 KJP06HA37ZM BN74 nsp nsp JACK GF102-11S-TS KJP11GA117ZG C100 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C101 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C102 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C103 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C104 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C105 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C106 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C107 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C108 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C109 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C110 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C111 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C112 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C113 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C114 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C115 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C116 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C117 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C118 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C119 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C120 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C121 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C122 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C123 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C124 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C125 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C126 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C127 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C128 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 108 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C129 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C130 nsp DD91100300 CER. CAP. 10pF HCUS1H100JA C131 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KB C132 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C133 nsp DD95181300 CER. CAP. 180pF HCUS1H181JA C134 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C135 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C136 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C137 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C138 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C139 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C140 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C141 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C142 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C143 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C144 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C145 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C146 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C147 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C148 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C149 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C150 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C151 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C152 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C153 /F/L/U nsp DD95120300 CER. CAP. 12pF HCUS1H120JA C153 /K/N/S nsp DD91100300 CER. CAP. 10pF HCUS1H100JA C154 nsp DD91100300 CER. CAP. 10pF HCUS1H100JA C155 nsp DK96224200 CER. CAP. 0.22µF HCUS1C224ZF C156 nsp DK96222300 CER. CAP. 2200pF HCUS1H222KC C157 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C158 nsp OA22505020 ELECT. CAP. 2.2µF 50V HCEA1HH2R2T C159 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C160 nsp DK98223300 CER. CAP. 0.022µF HCUS1H223KC C161 nsp OA22505020 ELECT. CAP. 2.2µF 50V HCEA1HH2R2T C162 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C163 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C164 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C165 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C166 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C167 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C168 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C169 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C170 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C171 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C172 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C173 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C174 nsp OA10701620 ELECT. CAP. 100µF 16V HCEA1CH101T C175 nsp DK96102300 CER. CAP. 1000pF HCUS1H102KB C176 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C177 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C178 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C179 nsp DD9515030R CER. CAP. 15pF HCUS1H150JA C180 nsp DD9515030R CER. CAP. 15pF HCUS1H150JA C181 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C182 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C183 nsp DK98473300 CER. CAP. 0.047µF HCUS1H473ZF C184 nsp DK98473300 CER. CAP. 0.047µF HCUS1H473ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 109 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C185 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C186 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C187 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C188 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C189 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C190 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C191 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C192 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C193 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C194 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C195 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C196 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C197 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C198 nsp OA10605020 ELECT. CAP. 10µF 50V HCEA1HH100T C199 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C200 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C201 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C202 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C203 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C204 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C205 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C206 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C207 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C208 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C209 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C210 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C211 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC C212 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C213 nsp DD91090300 CER. CAP. 9pF CCUS1H9R0JA C214 nsp DD95220300 CER. CAP. 22pF HCUS1H220JA C215 nsp DK98473300 CER. CAP. 0.047µF HCUS1H473ZF C216 nsp DK98473300 CER. CAP. 0.047µF HCUS1H473ZF C217 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C218 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C219 nsp DK96104300 CER. CAP. 0.1µF 1608 SIZE HCUS1E104ZF C220 nsp OA47602520 ELECT. CAP. 47µF 25V HCEA1EH470T C221 nsp DK96103300 CER. CAP. 0.01µF HCUS1H103KC CN71 nsp nsp JACK GF102-07S-TS KJP07GA117ZG IC11 *HC108830R *HC108830R IC NJM2285M(TE1) HVINJM2285MTE1 IC12 *HC108840R *HC108840R IC SR7400 HVITC90A49F IC13 *HC108850R *HC108850R IC R59-4174 HVIMM1511XNRE IC14 *HC108810R *HC108810R IC SR7400 HVITA1270BF IC15 *HC900040R *HC900040R IC REG KIA7809AF HVIKIA7809AF IC16 *HC400060R *HC400060R IC TC74HC4094AFN HVITC74HC4094FN IC18 *HC108820R *HC108820R IC AK8812-T HVIAK8812 IC19 *HC900050R *HC900050R IC REG KIA78D33F HVIKIA78D33F L100 nsp nsp COIL 22µH,K HLQ02C220KT L101 nsp nsp COIL 10µH,K HLQ02C100KT L102 nsp nsp COIL 10µH,K HLQ02C100KT L103 nsp nsp COIL 10µH,K HLQ02C100KT L104 nsp nsp COIL 10µH,K HLQ02C100KT L105 nsp nsp COIL 22µH,K HLQ02C220KT L106 nsp nsp COIL 22µH,K HLQ02C220KT L107 nsp nsp COIL 10µH,K HLQ02C100KT L108 nsp nsp COIL 10µH,K HLQ02C100KT L109 nsp nsp COIL 22µH,K HLQ02C220KT L110 nsp nsp COIL 22µH,K HLQ02C220KT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 110 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) L111 nsp nsp COIL 22µH,K HLQ02C220KT Q100 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q101 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q102 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q103 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q104 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q105 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q106 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q107 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q108 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q109 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q110 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q111 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q112 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q113 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q114 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q115 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q116 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR Q117 *HT600050R *HT600050R TRS. KTA2014GR HVTKTA2014GR Q118 *HX800010R *HX800010R CHIP TR. KRC102S HVTKRC102S Q119 *HX800010R *HX800010R CHIP TR. KRC102S HVTKRC102S Q120 *HT800110R *HT800110R TRS. KTC4075GR HVTKTC4075GR R100 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R101 nsp NN05821610 CHIP RES. 820Ω HRJ10DJ821T R102 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R103 nsp NN05152610 CHIP RES. 1.5kΩ HRJ10DJ152T R104 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R105 nsp NN05821610 CHIP RES. 820Ω HRJ10DJ821T R106 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R107 nsp NN05152610 CHIP RES. 1.5kΩ HRJ10DJ152T R108 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T R109 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T R110 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T R111 nsp NN05105610 CHIP RES. 1MΩ HRJ10DJ105T R112 nsp NN05224610 CHIP RES. 220kΩ HRJ10DJ224T R113 nsp NN05222610 CHIP RES. 2.2kΩ HRJ10DJ222T R114 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R115 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R116 nsp NN05222610 CHIP RES. 2.2kΩ HRJ10DJ222T R117 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R118 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R119 nsp NN05821610 CHIP RES. 820Ω HRJ10DJ821T R120 nsp NN05123610 CHIP RES. 12kΩ HRJ10DJ123T R121 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R122 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R123 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R124 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R125 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R126 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R127 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R128 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R129 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R130 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R131 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R132 nsp NN05123610 CHIP RES. 12kΩ HRJ10DJ123T R133 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R134 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 111 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R135 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R136 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R137 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R138 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R139 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R140 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R141 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R142 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R143 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R144 nsp NN05333610 CHIP RES. 33kΩ HRJ10DJ333T R145 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R146 nsp NN05331610 CHIP RES. 330Ω HRJ10DJ331T R147 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R148 nsp NN05472610 CHIP RES. 4.7kΩ HRJ10DJ472T R149 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R150 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R151 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R152 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R153 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R154 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R155 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R156 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R157 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R158 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R159 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R160 nsp NN05330610 CHIP RES. 33Ω HRJ10DJ330T R161 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R162 nsp NN05682610 CHIP RES. 6.8kΩ HRJ10DJ682T R163 nsp NN05101610 CHIP RES. 100Ω HRJ10DJ101T R164 nsp NN05682610 CHIP RES. 6.8kΩ HRJ10DJ682T R165 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R166 nsp NN05332610 CHIP RES. 3.3kΩ HRJ10DJ332T R167 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R168 nsp NN05123610 CHIP RES. 12kΩ HRJ10DJ123T R169 nsp NN05000610 CHIP RES. 0Ω HRJ10DJ0R0T R170 nsp NN05391610 CHIP RES. 390Ω HRJ10DJ391T R171 nsp NN05183610 CHIP RES. 18kΩ HRJ10DJ183T R172 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R173 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R174 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R175 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R176 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R177 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R178 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R179 nsp NN05391610 CHIP RES. 390Ω HRJ10DJ391T R180 nsp NN05183610 CHIP RES. 18kΩ HRJ10DJ183T R181 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R182 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R183 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R184 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R185 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R186 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R187 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R188 nsp NN05391610 CHIP RES. 390Ω HRJ10DJ391T R189 nsp NN05183610 CHIP RES. 18kΩ HRJ10DJ183T R190 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R191 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 112 POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R192 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R193 nsp NN05471610 CHIP RES. 470Ω HRJ10DJ471T R194 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R195 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R196 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T R197 nsp NN05103610 CHIP RES. 10kΩ HRJ10DJ103T R198 nsp NN05102610 CHIP RES. 1kΩ HRJ10DJ102T VR11 *RA001080R *RA001080R TRIM. RES. RH0638C-471 HVN1RA471B01T VR12 *RA001080R *RA001080R TRIM. RES. RH0638C-471 HVN1RA471B01T X100 /K/N/S *JX001160R *JX001160R CRYSTAL 4.433MHz HOX04433E120TF X101 *JX001150R *JX001150R CRYSTAL 3.579MHz HOX03579E120TF X102 *FQ000580R *FQ000580R CERAMIC ACT SR7400 BVFCSBLA503KECZ X103 *JX001170R *JX001170R CRYSTAL 24.576MHz HOX24576E150TF
