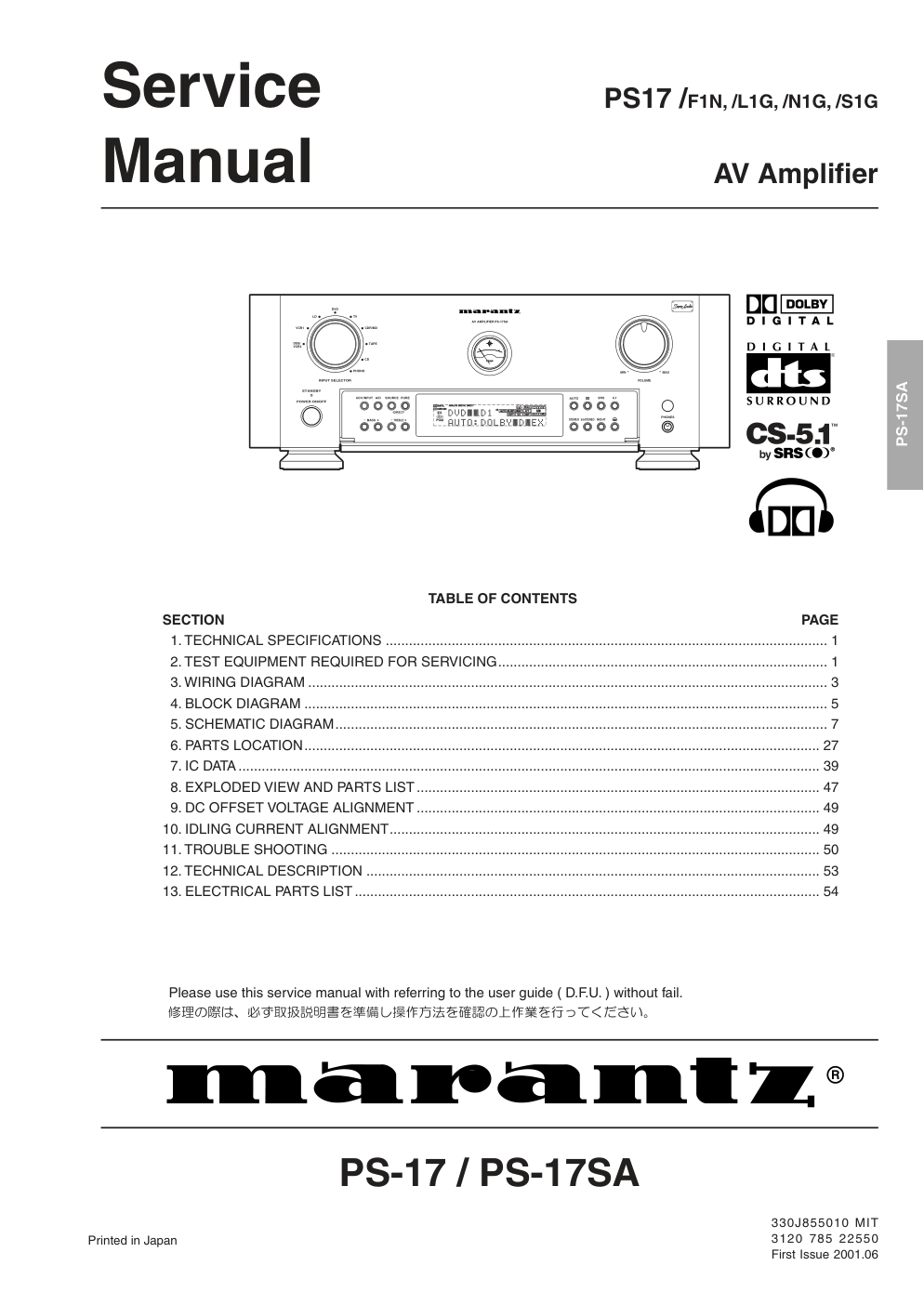

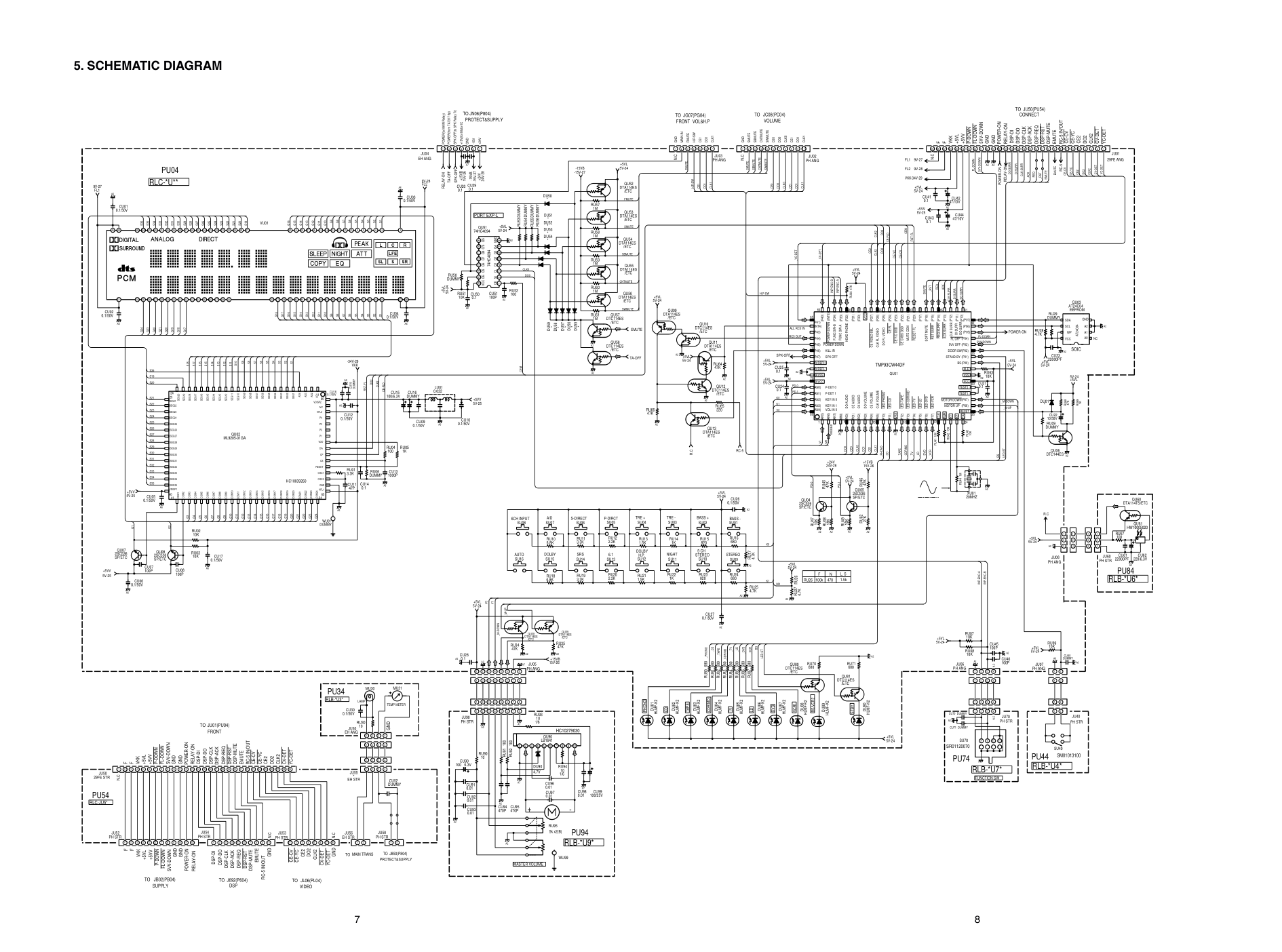

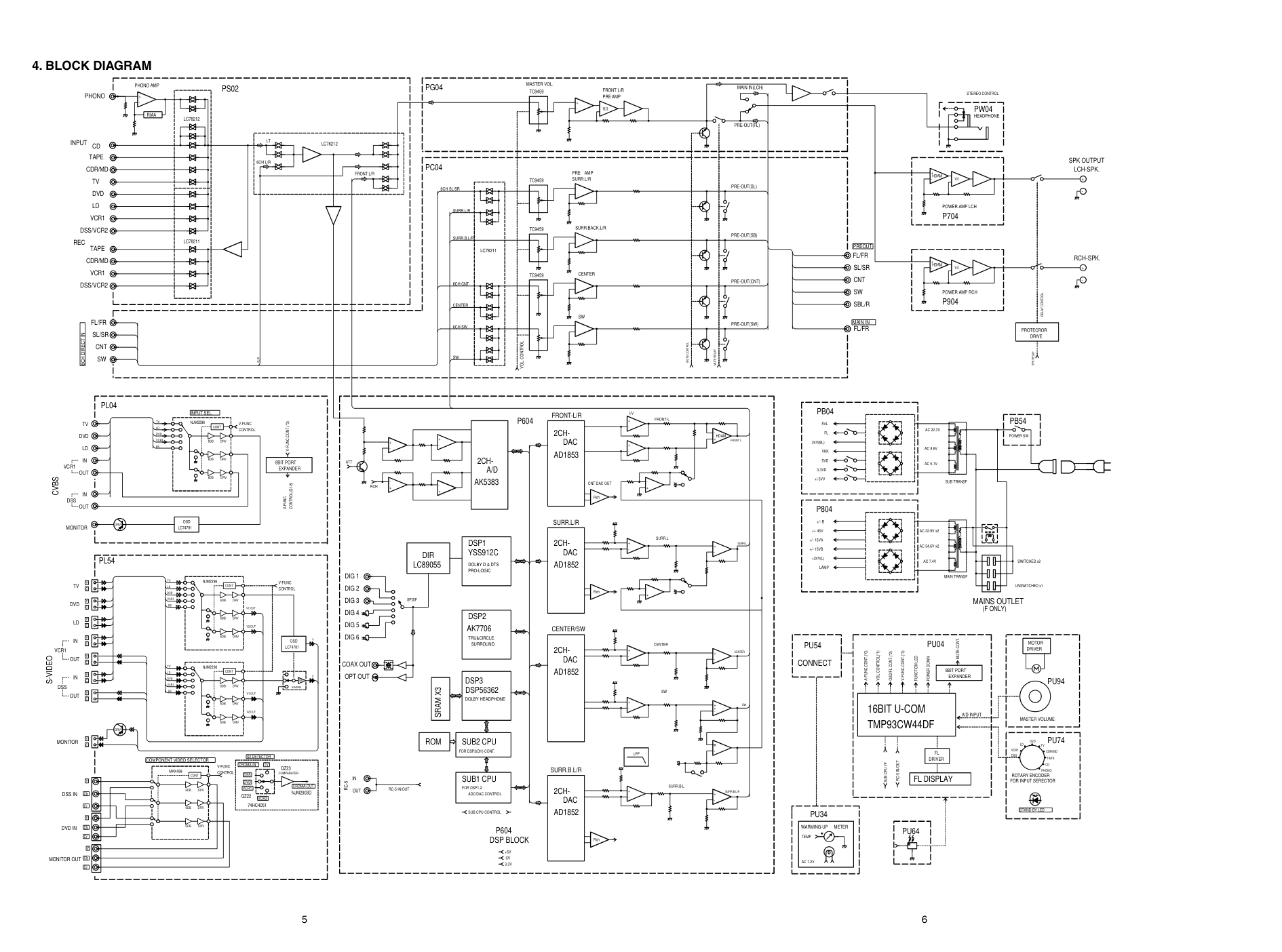

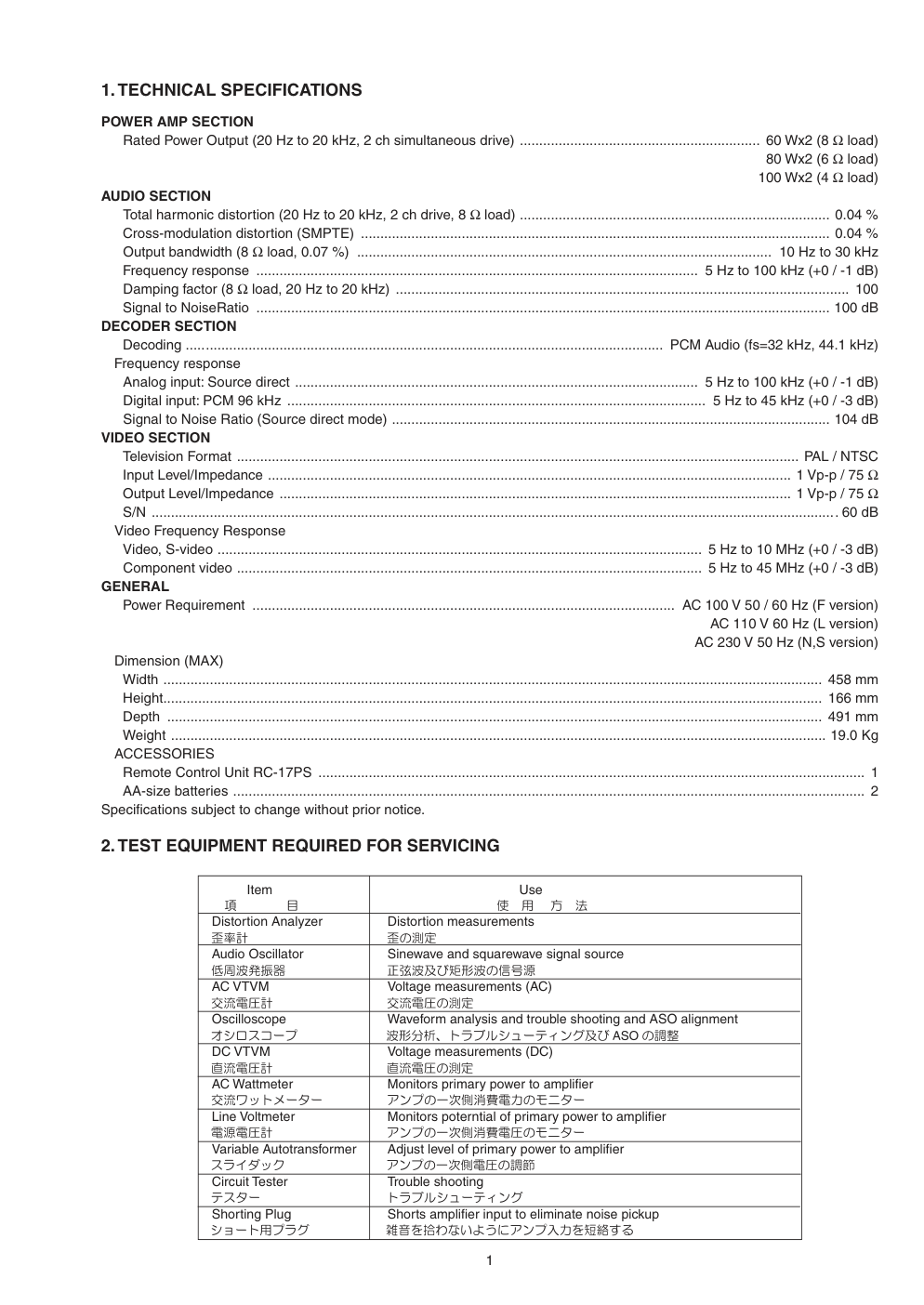

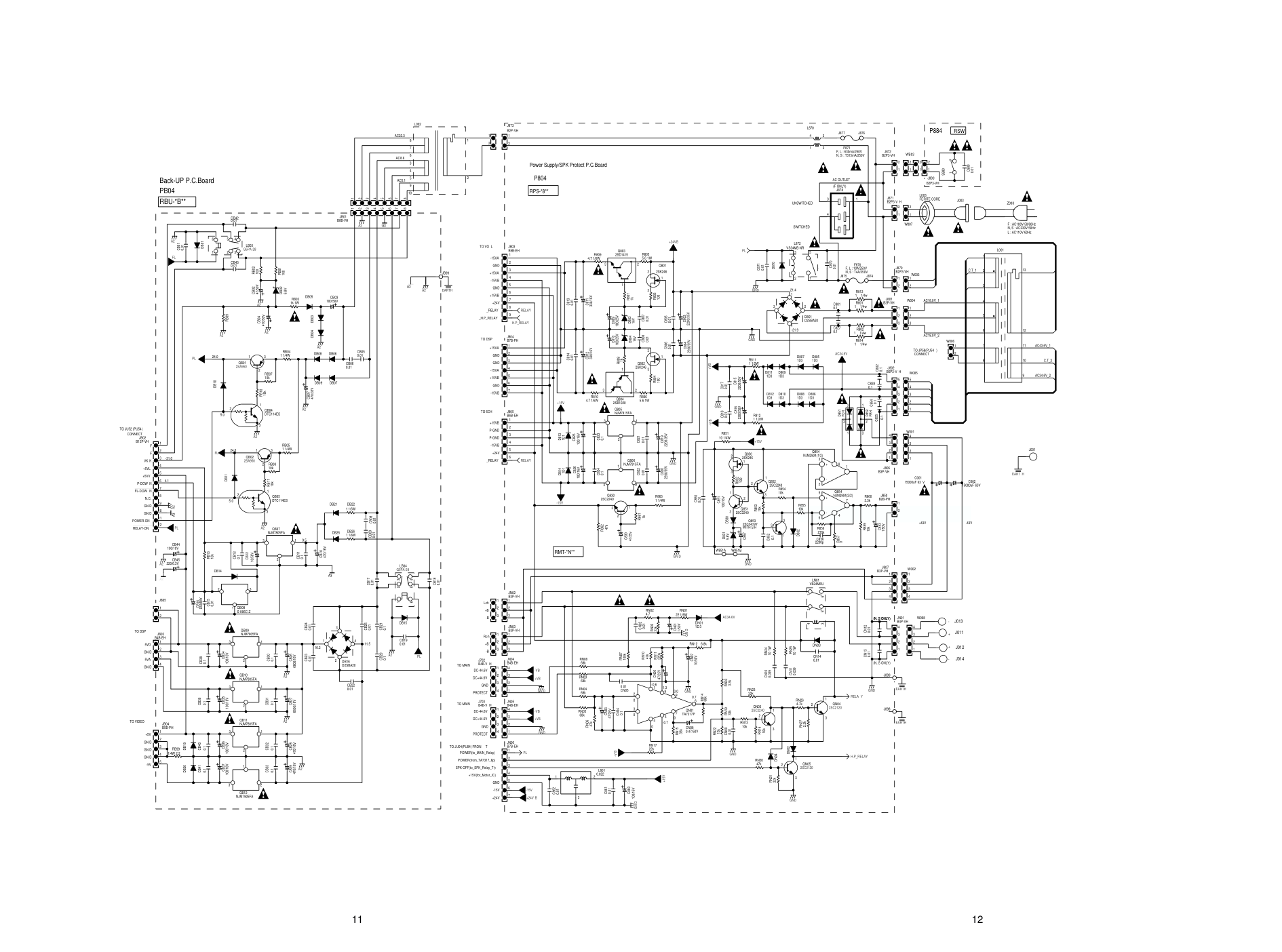

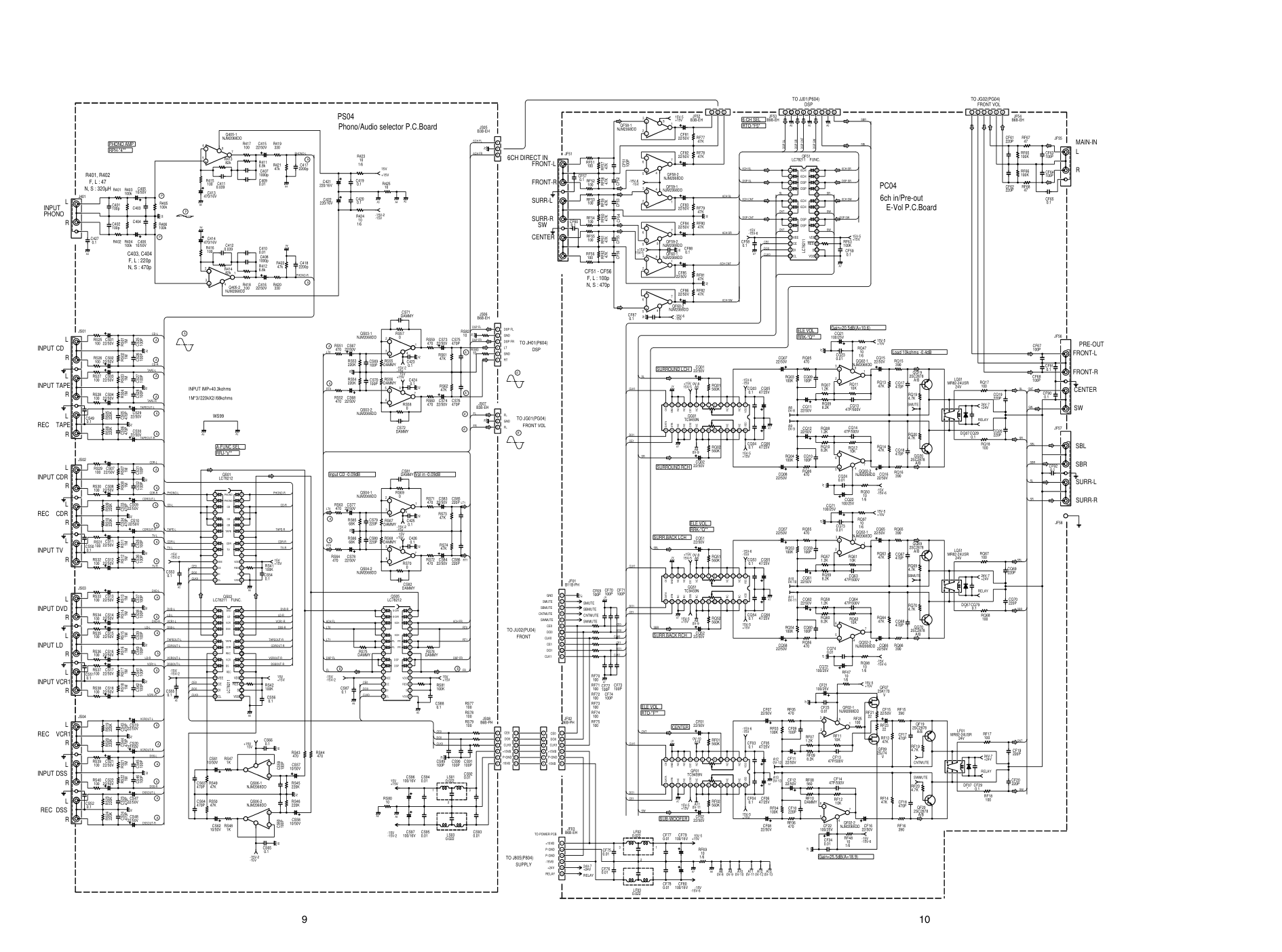

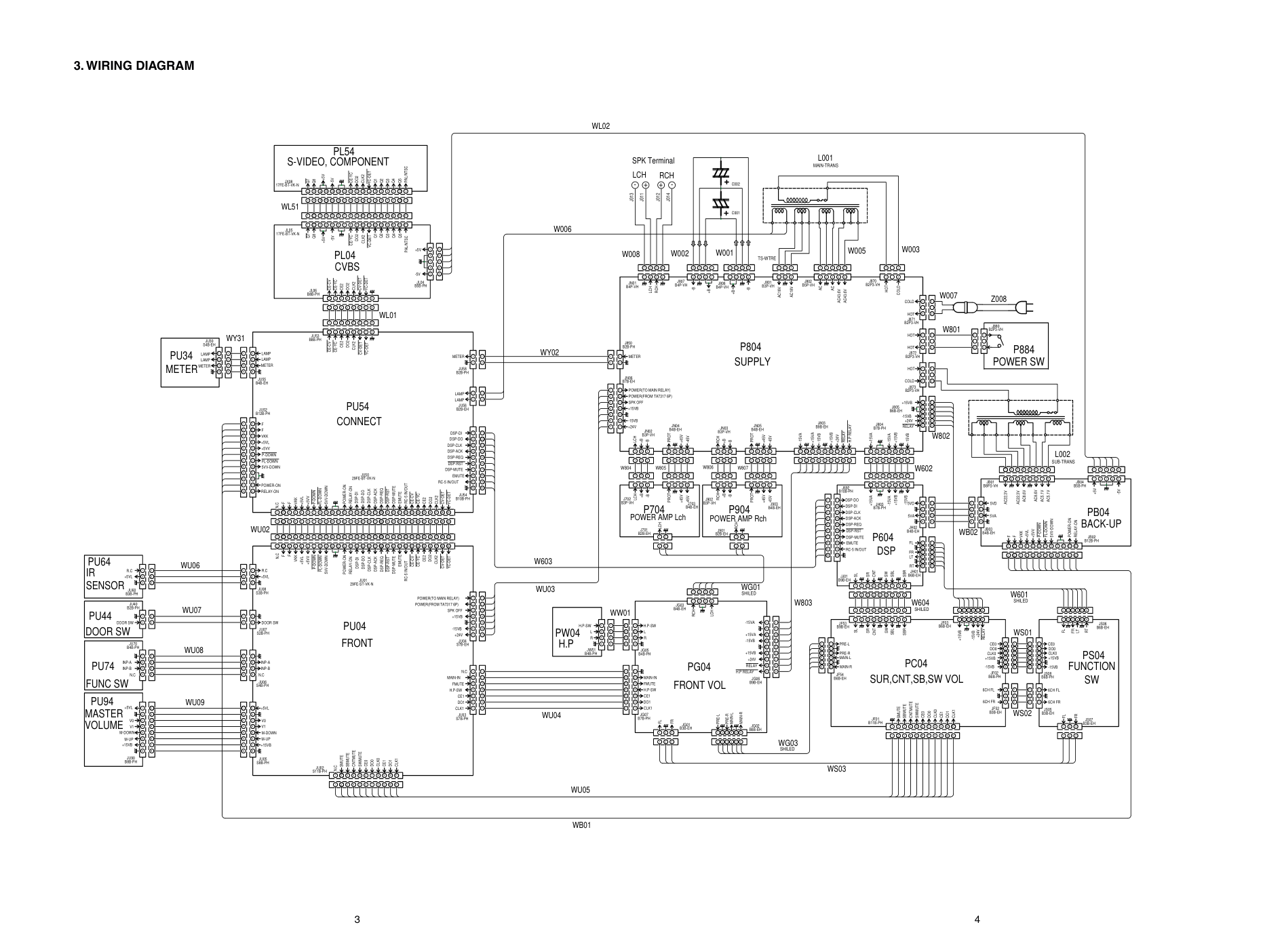

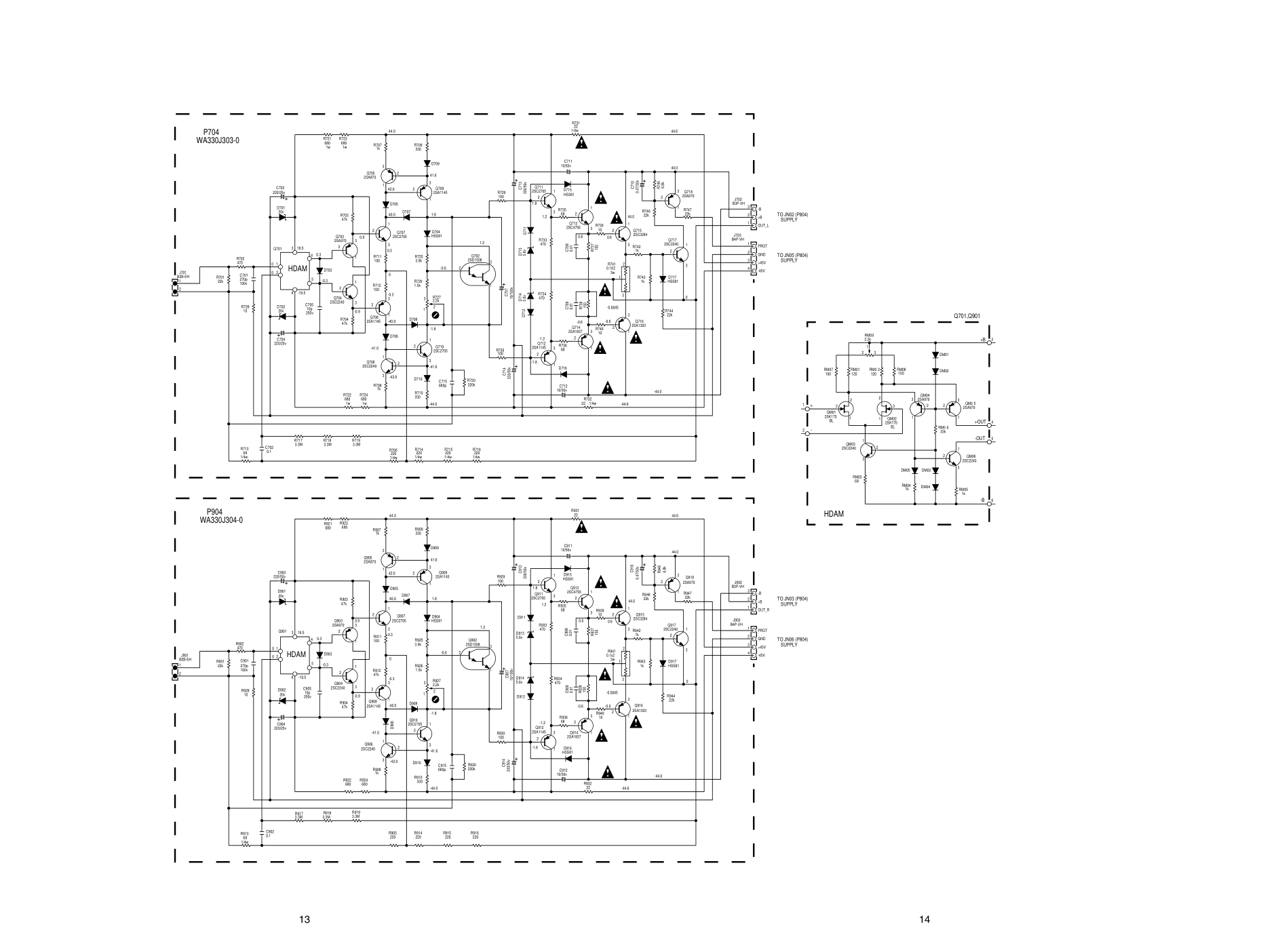

AV Amplifi er PS-17 / PS-17SA 330J855010 MIT 3120 785 22550 First Issue 2001.06 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS .................................................................................................................. 1 2. TEST EQUIPMENT REQUIRED FOR SERVICING..................................................................................... 1 3. WIRING DIAGRAM ...................................................................................................................................... 3 4. BLOCK DIAGRAM ....................................................................................................................................... 5 5. SCHEMATIC DIAGRAM............................................................................................................................... 7 6. PARTS LOCATION..................................................................................................................................... 27 7. IC DATA ...................................................................................................................................................... 39 8. EXPLODED VIEW AND PARTS LIST........................................................................................................ 47 9. DC OFFSET VOLTAGE ALIGNMENT ........................................................................................................ 49 10. IDLING CURRENT ALIGNMENT............................................................................................................... 49 11. TROUBLE SHOOTING .............................................................................................................................. 50 12. TECHNICAL DESCRIPTION ..................................................................................................................... 53 13. ELECTRICAL PARTS LIST........................................................................................................................ 54 PS17 /F1N, /L1G, /N1G, /S1G R PS-17SA Printed in Japan Please use this service manual with referring to the user guide ( D.F.U. ) without fail. MAX MIN TEMP PHONO - TREBLE BASS NIGHT PHONES INPUT SELECTOR VOLUME STANDBY CDR/MD TEMP -DIRECT- A/D 6.1 POWER ON/OFF AV AMPLIFIER PS-17SA SOURCE AUTO 5chSTEREO + - + LD TV DVD TAPE CD VCR1 VCR2 DSS/ 6CH INPUT PURE STEREO SRS Service Manual MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 001120MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. TECHNICAL SPECIFICATIONS POWER AMP SECTION Rated Power Output (20 Hz to 20 kHz, 2 ch simultaneous drive) .............................................................. 60 Wx2 (8 Ω load) 80 Wx2 (6 Ω load) 100 Wx2 (4 Ω load) AUDIO SECTION Total harmonic distortion (20 Hz to 20 kHz, 2 ch drive, 8 Ω load) ................................................................................ 0.04 % Cross-modulation distortion (SMPTE) ......................................................................................................................... 0.04 % Output bandwidth (8 Ω load, 0.07 %) ........................................................................................................... 10 Hz to 30 kHz Frequency response .................................................................................................................. 5 Hz to 100 kHz (+0 / -1 dB) Damping factor (8 Ω load, 20 Hz to 20 kHz) ..................................................................................................................... 100 Signal to NoiseRatio .................................................................................................................................................... 100 dB DECODER SECTION Decoding ........................................................................................................................... PCM Audio (fs=32 kHz, 44.1 kHz) Frequency response Analog input: Source direct ........................................................................................................ 5 Hz to 100 kHz (+0 / -1 dB) Digital input: PCM 96 kHz ............................................................................................................ 5 Hz to 45 kHz (+0 / -3 dB) Signal to Noise Ratio (Source direct mode) ................................................................................................................. 104 dB VIDEO SECTION Television Format ................................................................................................................................................. PAL / NTSC Input Level/Impedance ....................................................................................................................................... 1 Vp-p / 75 Ω Output Level/Impedance .................................................................................................................................... 1 Vp-p / 75 Ω S/N ................................................................................................................................................................................. 60 dB Video Frequency Response Video, S-video ............................................................................................................................. 5 Hz to 10 MHz (+0 / -3 dB) Component video ........................................................................................................................ 5 Hz to 45 MHz (+0 / -3 dB) GENERAL Power Requirement ............................................................................................................. AC 100 V 50 / 60 Hz (F version) AC 110 V 60 Hz (L version) AC 230 V 50 Hz (N,S version) Dimension (MAX) Width .......................................................................................................................................................................... 458 mm Height.......................................................................................................................................................................... 166 mm Depth ......................................................................................................................................................................... 491 mm Weight ......................................................................................................................................................................... 19.0 Kg ACCESSORIES Remote Control Unit RC-17PS ............................................................................................................................................. 1 AA-size batteries ................................................................................................................................................................... 2 Specifi cations subject to change without prior notice. 2. TEST EQUIPMENT REQUIRED FOR SERVICING Item Use Distortion Analyzer Distortion measurements Audio Oscillator Sinewave and squarewave signal source AC VTVM Voltage measurements (AC) Oscilloscope Waveform analysis and trouble shooting and ASO alignment DC VTVM Voltage measurements (DC) AC Wattmeter Monitors primary power to amplifi er Line Voltmeter Monitors poterntial of primary power to amplifi er Variable Autotransformer Adjust level of primary power to amplifi er Circuit Tester Trouble shooting Shorting Plug Shorts amplifi er input to eliminate noise pickup 2 Remark : Bass signal output from Sub Woofer terminal for PS-17. Sub woofer output is not active while all surround modes. Please refer to the following table. Sub Surr. Surr.B 6.1 Dolby(AC-3 2ch) Dolby US(input 5.1ch) TS(input 5.1ch) CS(input 2ch) CS-V(input 2ch) Stereo Woofer L/R (L/R) (AC-3/DTS) DTS (Pro Logic) * DD/DTS (Main spk L fix) (Main spk L fix) /karaoke Yes Large Large Large Large LFE LFE none LFE non Surr.mode L+R non Surr.mode L+R - 1 Small LFE+Sb LFE none LFE non Surr.mode L+R non Surr.mode L+R - 2 None LFE LFE none LFE non Surr.mode L+R non Surr.mode L+R Surr.Back 3 Small Large LFE+SL+SR LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R - 4 Small LFE+SL+SR+Sb LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R - 5 None LFE+SL+SR LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R Surr.Back 6 None (prohibit) LFE LFE non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R Surr.,Surr.Back 7 Small Large Large LFE+C LFE+C C LFE+C non Surr.mode L+R non Surr.mode L+R - 8 Small LFE+C+Sb LFE+C C LFE+C non Surr.mode L+R non Surr.mode L+R - 9 None LFE+C LFE+C C LFE+C non Surr.mode L+R non Surr.mode L+R Surr.Back 10 Small Large LFE+C+SL+SR LFE+C+SL+SR C LFE+C+SL+SR non Surr.mode L+R non Surr.mode L+R - 11 Small LFE+C+SL+SR+Sb LFE+C+SL+SR C LFE+C+SL+SR non Surr.mode L+R non Surr.mode L+R - 12 None LFE+C+SL+SR LFE+C+SL+SR C LFE+C+SL+SR non Surr.mode L+R non Surr.mode L+R Surr.Back 13 None (prohibit) LFE+C LFE+C non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R Surr.,Surr.Back 14 None Large Large LFE LFE none LFE non Surr.mode L+R non Surr.mode L+R Center 15 Small LFE+Sb LFE none LFE non Surr.mode L+R non Surr.mode L+R Center 16 None LFE LFE none LFE non Surr.mode L+R non Surr.mode L+R CNT,Surr.Back 17 Small Large LFE+SL+SR LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R Center 18 Small LFE+SL+SR+Sb LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R Center 19 None LFE+SL+SR LFE+SL+SR none LFE+SL+SR non Surr.mode L+R non Surr.mode L+R CNT,Surr.Back 20 None (prohibit) LFE LFE non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R CNT,Surr.,Surr.Back 21 Small Large Large Large LFE+L+R LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R - 22 Small LFE+L+R+Sb LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R - 23 None LFE+L+R LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R Surr.Back 24 Small Large LFE+L+R+SL+SR LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R - 25 Small LFE+L+R+SL+SR+Sb LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R - 26 None LFE+L+R+SL+SR LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R Surr.Back 27 None (prohibit) LFE+L+R LFE+L+R non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R Surr.,Surr.Back 28 Small Large Large LFE+L+R+C LFE+L+R+C L+R+C LFE+L+R+C non Surr.mode L+R non Surr.mode L+R - 29 Small LFE+L+R+C+Sb LFE+L+R+C L+R+C LFE+L+R+C non Surr.mode L+R non Surr.mode L+R - 30 None LFE+L+R+C LFE+L+R+C L+R+C LFE+L+R+C non Surr.mode L+R non Surr.mode L+R Surr.Back 31 Small Large LFE+L+R+C+SL+SR LFE+L+R+C+SL+SR L+R+C LFE+L+R+C+SL+SR non Surr.mode L+R non Surr.mode L+R - 32 Small LFE+L+R+C+SL+SR+Sb LFE+L+R+C+SL+SR L+R+C LFE+L+R+C+SL+SR non Surr.mode L+R non Surr.mode L+R - 33 None LFE+L+R+C+SL+SR LFE+L+R+C+SL+SR L+R+C LFE+L+R+C+SL+SR non Surr.mode L+R non Surr.mode L+R Surr.Back 34 None (prohibit) LFE+L+R+C LFE+L+R+C non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R Surr.,Surr.Back 35 None Large Large LFE+L+R LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R Center 36 Small LFE+L+R+Sb LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R Center 37 None LFE+L+R LFE+L+R L+R LFE+L+R non Surr.mode L+R non Surr.mode L+R CNT,Surr.Back 38 Small Large LFE+L+R+SL+SR LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R Center 39 Small LFE+L+R+SL+SR+Sb LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R Center 40 None LFE+L+R+SL+SR LFE+L+R+SL+SR L+R LFE+L+R+SL+SR non Surr.mode L+R non Surr.mode L+R CNT,Surr.Back 41 None (prohibit) LFE+L+R LFE+L+R non Surr.mode non Surr.mode LFE non Surr.mode L+R L+R CNT,Surr.,Surr.Back 42 None none none none none none none none none SubW,* 43 Large Large Large Large none none none none none none none none SubW,* 44 /Small /Small /Small none none none none none none none none SubW,* 45 /None /None none none none none none none none none SubW,* 46 None (prohibit) none none none none none none none none SubW,Surr.,* 47 Prohibit Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited - 58 Small Large Large Large Prohibit Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited - 59 /Small /Small /Small Prohibit Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited - 60 /None /None Prohibit Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited - 61 None (prohibit) Prohibit Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited - 62 Mute Channel NOTES No. Front Center SPK setup SubWoofer Output by Decoded mode 3 4 3. WIRING DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 1 2 3 1 2 1 2 1 2 1 2 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 1 2 3 4 1 2 3 1 2 3 4 1 2 3 1 2 3 4 5 6 7 1 2 1 2 3 1 2 3 4 1 2 3 1 2 3 4 1 2 3 1 2 3 1 2 1 2 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 1 2 3 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 1 2 1 2 3 4 5 6 7 8 9 10 1 2 1 2 1 2 3 4 5 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 1 2 1 2 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 1 2 3 4 1 2 3 1 2 3 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 9 1 2 1 2 1 2 1 2 1 2 1 2 3 4 5 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 1 2 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 1 2 3 1 2 1 2 1 2 1 2 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 1 2 3 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 1 2 3 1 2 3 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 JN01 J801 J870 J871 J872 J803 JN05 JN03 JN04 JN02 JN06 J850 J702 J703 J902 J903 JH02 JH01 J805 JJ01 JG07 JG01 JG02 JG06 J692 JU04 JU03 JU08 JU07 JU06 JU02 JU60 JU40 JU70 JU05 JU90 JU55 JU54 JU56 JU58 JU53 JL06 JL05 JX08 JL04 JU30 JB03 JS08 JS06 JS07 JU52 JB04 JB02 C002 C001 JB01 JS05 JU50 JU01 J701 J901 J873 J880 JG03 JG05 JW51 JF03 JF02 JF52 JF01 JF54 JF53 JH03 J804 J802 J806 J807 B4P-VH B3P-VH B2P3-VH B2P3-VH B2P3-VH B9B-EH B4B-EH B3P-VH B4B-EH B3P-VH B7B-EH B2B-PH B3P-VH B4B-EH B3P-VH B4B-EH B4B-EH B6B-EH B6B-EH B9B-EH B7B-PH B3B-EH B6B-EH B9B-EH B10B-PH S7B-EH S7B-PH S3B-PH S2B-PH S4B-PH S11B-PH B3B-PH B2B-PH B4B-PH S8B-PH B8B-PH B4B-EH B10B-PH B2B-EH B2B-PH B8B-PH B8B-PH 17FE-BT-VK-N 17FE-BT-VK-N B5B-PH S4B-EH B4B-EH B6B-PH B6B-EH B3B-EH B12B-PH B5B-PH B12B-PH B8PS-VH B3B-EH 29FE-BT-VK-N 29FE-ST-VK-N B2B-EH B2B-EH B2P3-VH B2P3-VH B4B-EH B4B-PH B4B-PH B6B-EH B6B-PH B3B-EH B11B-PH B6B-EH B9B-EH B7B-PH B7B-PH B5P-VH B4P-VH B4P-VH P804 SUPPLY POWER AMP Lch POWER AMP Rch P704 P904 P604 DSP PG04 FRONT VOL PW04 H.P PU04 FRONT PU64 IR SENSOR PU44 DOOR SW PU74 FUNC SW PU94 VOLUME PU54 CONNECT CVBS PL04 PL54 S-VIDEO, COMPONENT PU34 METER PC04 SUR,CNT,SB,SW VOL PB04 BACK-UP PS04 FUNCTION SW POWER SW L002 SUB-TRANS L001 MAIN-TRANS MASTER LCH RCH + + - - WL51 WL02 WL01 WY31 WY02 W006 W603 WU06 WU07 WU08 WU09 WU05 WB01 WU03 WU04 W008 W002 W001 W005 W003 Z008 W007 W801 W802 W602 WB02 W803 WG01 W804 W805 W806 W807 WW01 WS03 WG03 W601 W604 WS01 WS02 TS-WTRE WU02 SHILED SHILED P884 Q7 Q8 +5V -5V CE-YC DO2 CLK2 Q1 Q2 Q3 Q4 Q5 PAL/NTSC Q7 Q8 +5V -5V CE-YC DO2 CLK2 Q1 Q2 Q3 Q4 Q5 PAL/NTSC CE-YC CE-CV CE2 DO2 CLK2 CV-DET YC-DET CE-YC CE-CV CE2 DO2 CLK2 CV-DET YC-DET +5V -5V +5V -5V METER METER METER LAMP LAMP LAMP LAMP F F VKK +5VL +5VV P-DOWN FL-DOWN 5VV-DOWN POWER-ON RELAY-ON F F VKK +5VL +5VV P-DOWN FL-DOWN 5VV-DOWN POWER-ON RELAY-ON F F VKK +5VL +5VV P-DOWN FL-DOWN 5VV-DOWN POWER-ON RELAY-ON DSP-DI DSP-DO DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE RC-5 IN/OUT CE-CV CE-YC CE2 DO2 CLK2 CV-DET YC-DET N.C F F VKK +5VL +5VV P-DOWN FL-DOWN 5VV-DOWN POWER-ON RELAY-ON DSP-DI DSP-DO DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE RC-5 IN/OUT CE-CV CE-YC CE2 DO2 CLK2 CV-DET YC-DET N.C LAMP LAMP DSP-DI DSP-DO DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE RC-5 IN/OUT DSP-DI DSP-DO DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE RC-5 IN/OUT +5VL R.C +5VL R.C DOOR SW DOOR SW INP-A INP-B N.C INP-A INP-B N.C +5VL V0 V1 M-DOWN M-UP +15VB +5VL V0 V1 M-DOWN M-UP +15VB POWER(FROM TA7317 6P) POWER(TO MAIN RELAY) SPK OFF +15VB -15VB +24V POWER(FROM TA7317 6P) POWER(TO MAIN RELAY) SPK OFF +15VB -15VB +24V MAIN-IN FMUTE H.P-SW CE1 DO1 CLK1 MAIN-IN FMUTE H.P-SW CE1 DO1 CLK1 SMUTE SBMUTE CNTMUTE SWMUTE CE0 DO0 CLK0 CE1 DO1 CLK1 SMUTE SBMUTE CNTMUTE SWMUTE CE0 DO0 CLK0 CE1 DO1 CLK1 H.P-SW L R H.P-SW L R FL FR FL FR PRE-L PRE-R MAIN-L MAIN-R PRE-L PRE-R MAIN-L MAIN-R LCH RCH LCH RCH -15VA +15VA -15VB +15VB +24V RELAY H.P RELAY -15VA +15VA -15VB +15VB +24V RELAY H.P RELAY YC-DET YC-DET METER N.C N.C -B +B -B +B LCH LCH -B +B RCH -B +B RCH PROT +45V -45V PROT +45V -45V PROT +45V -45V PROT +45V -45V +15VA -15VA +15VB -15VB +15VA -15VA +15VB -15VB LCH RCH -B +B +B -B AC18V AC18V AC43.6V AC43.6V AC AC COLD HOT COLD HOT HOT HOT HOT COLD +15VB -15VB +24V RELAY +15VB -15VB +24V RELAY FL FR LT RT FL FR LT RT 5VD 5VA 5VD 5VA SL SR CNT SW SBL SBR SL SR CNT SW SBL SBR AC22.3V AC22.3V AC8.6V AC8.6V AC5.1V AC5.1V CE0 DO0 CLK0 +15VB -15VB CE0 DO0 CLK0 +15VB -15VB 6CH FL 6CH FR 6CH FL 6CH FR SHILED SHILED SPK Terminal J011 J013 J012 J014 4. BLOCK DIAGRAM 5 6 6DB CONT 6DB 6DB DRV DRV DRV NJM2296 6DB CONT 6DB 6DB DRV DRV DRV NJM2296 6DB CONT 6DB 6DB DRV DRV DRV NJM2296 LPF OSD LC74781 OSD LC74781 DRV DRV DRV NJM2264 6DB CONT 6DB 6DB DRV DRV DRV MAX499 MUTE CONTROL MUTE RELAY SPK RELAY VOL. CONTROL V1/OUT V1/OUT V2/OUT V2/OUT Y C SURR.L/R CENTER SW CENTER SW SURR.L 6CH SL/SR FRONT L TV LD DVD VCR1 VCR1 DVD LD TV VCR1 DVD LD TV SURR.B.L/R BS BS BS 6CH SW SURR.B.L/R FRONT L/R 6CH CNT 6L/R HEADPHONE PROTECROR DRIVE STEREO CONTROL P704 PW04 DSP BLOCK P604 -5V +5V FRONT-L FL DISPLAY STAND-BY LED SUB CPU I/F 5VL FL VKK MAIN TRANSF POWER SW 3.3V RC-5 IN/OUT ROTARY ENCODER SUB CPU CONTROL VCR1 TV LD DVD IN OUT IN OUT MONITOR INPUT SEL. CVBS Y C Y Y Y Y Y Y Y C C C C C C C VCR1 TV LD DVD IN OUT IN OUT MONITOR S-VIDEO OUT RC-5 IN RC-5 IN/OUT 16BIT U-COM TMP93CW44DF DRIVER FL PL04 PL54 P604 PU04 SPK OUTPUT + - HDAM V/I + - FOR INPUT SERECTOR + - MASTER VOL. V/I AMP PRE FRONT L/R AMP PRE + - HDAM V/I + - LCH-SPK. RCH-SPK. REC SPDIF COAX OUT OPT OUT DIG 1 DIG 2 DIG 3 DIG 4 DIG 5 DIG 6 + - + - + - 2CH- DAC 2CH- A/D + - + - + - + - METER WARMING-UP LT MAIN IN(LCH) PRE-OUT(FL) PRE-OUT(SL) PRE-OUT(CNT) PRE-OUT(SW) RELAY CONTROL 2CH- DAC 2CH- DAC ATT AD1853 AC 32.9V x2 AC 34.6V x2 AC 7.4V +24V(L) SUB TRANSF AC 5.1V AC 8.6V AC 22.3V 5VD 24V(BL) + - I/V SURR.L/R CENTER SW HDAM + - + - + - + - 2CH- DAC + CD TAPE CDR/MD TV LD DVD VCR1 INPUT TAPE CDR/MD VCR1 MONITOR OUT Y Y Y COMPONENT VIDEO SELECTOR 6CH L/R FL/FR SL/SR CNT SW PRE-OUT(SB) PREOUT 6CH DIRECT IN POWER AMP LCH PHONO PHONO AMP RIAA + - PRO-LOGIC DRIVER MOTOR MASTER VOLUME A/D INPUT TEMP SRAM X3 +/-5VV AK7706 TRU&CIRCLE. SURROUND DSP56362 DOLBY HEADPHONE DOLBY D & DTS SURR.L/R CENTER POWER DOWN FUNCTION LED SURR.B.L/R SW FRONT-L/R CENTER/SW + - + - Rch Rch Rch RCH SURR.L SURR.B.L CNT DAC OUT V-FUNC CONTROL V-FUNC CONTROL AK5383 AD1852 AD1852 FL/FR SL/SR CNT SW SBL/R +/- B +/- 45V LAMP 3.3VD + - + - + - + - SURR.BACK.L/R AD1852 DVD IN Cb Cr Cb Cr Cb Cr TV DSS DVD VCR2 VCR1 COMPARATER CROMA-IN CROMA-OUT S2 DETECTOR NJM2903D 74HC4051 QZ22 QZ23 +/- 15VA +/- 15VB PHONO CD TAPE CDR/MD TV LD DVD VCR1 POWER AMP RCH PG04 PC04 PU74 PU94 PB54 PB04 P904 P804 PU64 PS02 CONNECT PU54 LC78212 LC78211 LC78212 LC78211 TC9459 TC9459 TC9459 TC9459 EXPANDER V-FUNC V-FUNC CONTROL A-FUNC.CONT.(*0) VOL CONTROL(*1) OSD/FL CONT.(*2) V-FUNC.CONT.(*3) V-FUNC.CONT.(*3) 8BIT PORT DSP1 YSS912C DIR LC89055 CONTROL(Q1-8) SUB2 CPU DSP2 DSP3 ADC/DAC CONTROL FOR DSP1,2 FOR DSP3(DH) CONT. ROM SUB1 CPU EXPANDER 8BIT PORT MUTE CONT. UNSWITCHED x1 SWITCHED x2 MAIN IN FL/FR MAINS OUTLET DSS DSS/VCR2 DSS/VCR2 DSS DSS DSS IN PU34 AC 7.2V (F ONLY) 7 8 5. SCHEMATIC DIAGRAM 80 24 25 40 41 64 65 50 55 60 70 75 45 15 20 10 5 30 35 1 (AN6) (AN7) (MNI) (P67) (P00) (P01) (P02) (P03) (P04) (P05) (P06) (P07) (P10) (P11) (P13) (P15) (INT0) (INT4) (AN0) (AN1) (AN2) (AN3) (AN4) VSS X1 X2 EA RESET TEST1 TEST2 VCC VSS ALE VCC VREFH VREFL AVSS AVCC (AN5) )P60) )P61) )P62) )P63) )P64) )P65) )P70) )P71) )P72) )P73) )P74) )P75) )P76) )P77) CLK AM8 )P12) (P14) (P16) (P17) (P20) (P21) (P22) (P23) (P24) (P26) (P27) (P30) (P31) (P32) (P33) (P34) (P40) )P41) )P43) )P44) )P45) )P46) )P47) TMP93CW44DF (P66) (P25) 80 1 24 25 40 41 64 65 AD1 AD2 AD3 AD4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 VDISP1 COM1 COM2 COM3 COM4 COM5 COM6 COM7 COM8 COM9 COM10 COM11 COM12 COM13 COM14 COM15 COM16 COM17 COM18 COM19 COM20 COM21 COM22 COM23 COM24 VFL1 GND OSC0 OSC1 RESET CS CP DA VDD P1 P2 P3 P4 VFL2 NC VDISP2 HC10039260 2 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 48 49 51 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 97 98 44 45 54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 2 3 4 5 6 7 8 9 10 11 12 1 2 1 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 1 2 1 2 1 2 GND A0 A1 A2 SDA SCL WP VCC AT24C04 1 2 C C 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CE SI CL Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q'S QS OE VCC GND 74HC4094 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 QU01 SU01 SU02 SU03 SU04 SU05 SU06 SU07 CU01 CU02 CU03 CU04 CU05 CU08 CU11 RU01 RU04 RU05 RU10 RU11 RU12 RU13 RU14 RU15 RU16 RU17 RU18 RU19 RU20 RU21 RU22 RU23 RU24 RU25 DU80 QU02 RU41 RU42 RU02 RU03 CU12 CU09 CU10 CU15 CU16 RU06 LU01 RU27 DU81 DU82 DU83 DU84 DU85 DU86 DU87 DU88 DU89 RU90 CU90 CU91 CU92 CU93 CU94 CU95 RU91 RU92 CU96 CU98 CU99 CU97 RU95 QU51 RU51 RU52 RU57 RU58 RU59 RU60 RU61 RU63 CU50 CU51 CU06 CU07 CU21 CU22 CU23 CU24 CU25 CU17 CU28 RU67 QU90 RU07 RU08 CU62 SU08 SU09 SU10 SU11 SU12 SU13 SU14 SU15 SU16 JU52 JU58 JU56 JU53 JU54 JU60 JU90 JU70 VU01 CU13 CU14 JU01 RU89 MU30 MU31 JU30 CU42 CU44 CU45 CU46 JU02 JU03 JU04 JU05 JU06 JU07 JU08 JU40 RU64 RU65 RU66 RU88 RU44 RU43 RU46 RU62 RU49 RU47 CU40 RU69 RU68 RU80 RU81 RU82 RU83 RU84 RU85 RU86 RU87 RU70 RU71 CU18 CU19 CU61 CU30 QU61 QU03 SU70 SU40 WU01 RU28 RU93 RU94 DU90 JU50 RU29 DU51 DU52 DU53 DU56 DU57 DU58 DU59 DU55 DU50 DU01 QU57 QU58 QU10 QU12 QU06 QU60 QU05 QU04 QU80 QU81 QU09 QU11 QU13 QU52 QU53 QU54 QU55 QU56 QU07 QU08 XU01 RU30 RU56 RU55 RU54 RU53 RU50 QU38 QU39 RU34 RU35 RU09 RU45 RU48 WU99 JU55 CU41 CU43 CU52 CU26 CU27 CU20 CU29 CU70 CU71 DU54 RU26 * * * * * * * 0.1/50V 0.1/50V 0.1/50V 0.1/50V 0.1/50V 100P 47P 3.3K 100 1K 6.8K 3.3K 2.2K 1.5K 1K 820 680 4.7K 6.8K 3.3K 2.2K 1.5K 1K 820 680 4.7K HLMF-K2 ML9205-01GA 10K 10K 10K 10K 0.1/50V 0.1/50V 0.1/50V 100/6.3V DUMMY DUMMY 0.022 4.7K HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 HLMF-K2 10 100 6.3V 0.01 0.01 0.01 470P 470P 100 100 0.01 0.01 100/25V 0.01 74HC4094 10K 100 1M 1M 1M 1M 1M 10K 0.1 100P 0.1/50V 100P 0.1 10/50V 22000PF 0.1 0.1 0.1/50V 0.1 100 LB1641 10K 10K 220/6.3V * * * * * * * * * 1000P 0.1 10K 47/10V 47/10V 100P 100P 47K 220 47K 47K 1M 10K 47K 27K 10K 10K DUMMY 1K 47K 680 680 680 680 680 680 680 680 680 680 0.1/50V DUMMY 22000PF 0.1/50V HW10005020 AT24C04 EEPROM DUMMY 4.7K 10 1/6 10 1/6 4.7V DUMMY * * * * * * * * * * DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC114ES /ETC DTC144ES DTA114TS/ETC 2SC536 SP/ETC 2SC536 SP/ETC DTC114ES /ETC DTC114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC 2SC536 SP/ETC 2SC536 SP/ETC 20MHZ 10 DUMMY DUMMY DUMMY DUMMY DUMMY DTA114ES /ETC DTA114ES /ETC 47K 47K DUMMY 47K 18K * 0.1 0.1 DUMMY 0.1/50V 0.1/50V 0.1 0.1 DUMMY DUMMY * EMUTE EMUTE TA-OFF TA-OFF SPK-OFF +5VL 5V-24 +5VL 5V-24 FL1 9V-27 FL2 9V-28 VKK -34V-29 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +5VV 5V-25 +5VV 5V-25 +5VV 5V-25 +15VB 15V-26 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +15VB 15V-26 SPK-OFF -15VB -15V-27 -15VB -15V-27 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +5VL 5V-24 +24V 24V-28 +5VL 5V-24 +15VB 15V-26 +24V 24V-28 +5VL 5V-24 RC-5 RC-5 R.C R.C +5VL 5V-24 +5VL 5V-24 POWER-ON +5VL FL1 FL2 VKK +5VV 5V-24 9V-27 9V-28 -34V-29 5V-25 POWER-ON RELAY-ON RELAY-ON +5VL 5V-24 M0 K0 K1 PD-0 PD-1 K0 K1 PD-0 PD-1 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 G24 G23 G22 G21 G20 G19 G18 G17 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S19 S20 S36 G3 G4 G5 G6 G1 G2 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S19 S20 S36 G24 G23 G22 G21 G20 G19 G18 G17 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S18 S5 S16 S15 S14 S4 S11 S13 S3 S12 S2 S7 S6 S8 S9 S17 S10 S1 V0 V1 V0 V1 M0 DO0 CE0 CLK0 DO1 CE1 CLK1 BS CE0 DO0 CLK0 CE1 DO1 CLK1 CE1 DO1 CLK1 DO2 CLK2 CE-FLD CEM FMUTE FMUTE SMUTE SBMUTE SBMUTE CNTMUTE CNTMUTE SWMUTE SWMUTE SMUTE LED-ST _PHONO _CD _DVD _LD _TV _CDR/MD _TAPE _PHONO _CD _TAPE _CDR/MD _TV _LD _DVD _VCR CLK0 DO0 H.P-SW H.P-SW _RST-FL CLK2 DO2 CE-YC CE-CV CE2 CE-FLD DO2 CLK2 INP-ENC-A INP-ENC-B INP-ENC-B INP-ENC-A _RST-FL CEM _CV-DET _YC-DET _YC-DET _CV-DET CLK2 DO2 CE2 CE-YC CE-CV DO SURR DI SURR CLK SURR ACK REQ _RST SMUTE SMUTE _RST REQ ACK CLK SURR DI SURR DO SURR _FL-DOWN 5VV-DOWN 5VV-DOWN _FL-DOWN BS LED-ST _VCR _M-DOWN _M-UP _M-UP _M-DOWN STBY MODE0 ALL RC5 IN KILL IR SPK OFF P-DET 0 KEY IN 0 KEY IN 1 P-DET 1 RC5 OUT A/D 6CH INPUT PU04 RLC-*U** CD TAPE CDR/MD TV LD DVD VCR1 AUTO DOLBY DOLBY H.P. STEREO STEREO 5-CH P-DIRCT VOL IN 0 MASTER VOLUME PU74 PHONO FUNCTION SW GND GND MAIN-IN FMUTE CE1 DO1 CLK1 H.P-SW NC BS/VCR2 PORT EXP-L SMUTE SBMUTE CNTMUTE SWMUTE CE0 DO0 CLK0 CE1 DO1 CLK1 RC-5 IN/OUT GND POWER(from TA7317 6p) SPK-OFF(to SPK Relay Tr) POWER(to MAIN Relay) +15V(for Motor IC RLB-*U7* PU94 RLB-*U9* SRS TO JC08(PC04) VOLUME TO JG07(PG04) FRONT VOL&H.P -15V DO AUDIO CE AUDIO CK AUDIO CE VOLUME CLK VOLUME DO VOLUME LED-PHONO LED-CD LED-TAPE LED-TV LED-CDR/MD LED-LD LED-DVD LED-VCR FUNC SW-A FUNC SW-B BS STAND-BY DOOR SW 5VV OFF DO SURR DI SURR CLK SURR RST SURR FL OFF SOFT MUTE REQ SURR ACK SURR CE CVBS OSD CE Y/C OSD CE FL DO FL VIDEO CLK FL VIDEO CE VIDEO SEL HEAD PHONE POWER DOWN POWER DOWN HC10279030 N.C N.C DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE DSP-DI DSP-DO +24V RU26 F N PU84 RLB-*U6* S-DIRECT NIGHT TRE + TRE - BASS + BASS - 6.1 EH ANG PH ANG PH ANG PH ANG PH ANG PH STR VKK GND +5VL F F +5VV TO SUPPLY 5VV-DOWN FL-DOWN P-DOWN GND TO J692(P604) TO DSP RC-5 IN/OUT DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE GND DSP-DI DSP-DO GND DO2 CLK2 CE-CV CE-YC YC-DET CV-DET CE2 N.C N.C PU54 PH STR PH STR PH STR DO2 CLK2 CE-CV CE-YC YC-DET CV-DET CE2 EH STR EH STR PH STR PH ANG PH STR N.C N.C TEMP METER PROTECT&SUPPLY JL06(PL04) VIDEO RLC-JU5* TO MAIN TRANS TO PROTECT&SUPPLY PH STR GND TO JN06(P804) J850(P804) A2 A2 A2 A2 A2 A2 A2 A7 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A6 A2 A2 A2 A2 A2 A2 A2 A2 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A2 A2 A2 A2 A2 A2 A7 A7 A7 A7 MUTE CEM RESET FL + - VKK GND +5VL F F +5VV TO 5VV-DOWN FL-DOWN P-DOWN GND JU50(PU54) CONNECT A2 A6 A2 A6 POWER-ON N.C RC-5 IN/OUT DSP-CLK DSP-ACK DSP-REQ DSP-RST DSP-MUTE EMUTE DSP-DI DSP-DO DO2 CLK2 CE-CV CE-YC YC-DET CV-DET CE2 VKK GND +5VL F F +5VV 5VV-DOWN FL-DOWN P-DOWN GND POWER-ON 29FE ANG JB02(PB04) 29FE STR N.C TO JU01(PU04) FRONT POWER-ON LAMP PU34 RLB-*U3* PU44 RLB-*U4* SOIC A6 PH ANG PH STR A6 EH ANG 5k x2(B) RELAY-ON RELAY-ON RELAY-ON SR01120070 A2 A2 SM01013100 MOTOR DOWN MOTOR UP 100k 470 A2 A2 L, S 1.5k 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VEE VDD VSS CE DI CL S RES 30 29 LC78211 6CH 6CH 6CH 6CH DSP DSP DSP DSP VDD NC NC NC CS1 NC NC GND CK VSS NC NC NC CS2 NC NC STB DATA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VDD NC NC NC CS1 NC NC GND CK VSS NC NC NC CS2 NC NC STB DATA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VDD NC NC NC CS1 NC NC GND CK VSS NC NC NC CS2 NC NC STB DATA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VEE VDD VSS CE DI CL S RES 30 29 LC78211 LD DVD VCR DSS TAPE CDR VCR REC REC BS VEE CE DI CL VDD RES S VSS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 PHONO PHONO CD CD CD TAPE CDR TV DSP VEE CE DI CL VDD RES S VSS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 S-DIR DSP 6CH S-DIR 6CH FL FL FR FR 1 2 3 4 5 6 + - + - + - + - 1 2 3 4 5 6 1 2 3 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 - + - + 1 2 3 1 2 3 - + 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 - + + - + - + - + - + - + - + - + - + - + - + - + - RS05 RS06 RS09 RS10 RS27 RS28 RS29 RS30 RS31 RS32 RS33 RS34 RS35 RS36 RS37 RS38 RS39 RS40 RS19 RS20 RS23 RS24 RS41 RS42 RS43 RS44 RS49 RS50 C401 C402 R401 R402 R403 R404 C403 C404 C405 R411 R412 C407 C408 C409 C410 C411 C412 R413 R414 R415 R416 C413 C414 R417 R419 R420 R421 R422 C415 C416 C417 C418 C419 C420 J401 CS01 CS02 CS03 CS04 CS07 CS08 CS09 CS10 CS11 CS12 CS13 CS14 CS15 CS16 CS17 CS18 CS19 CS20 CS21 CS22 CS25 CS26 CS27 CS28 CS29 CS30 CS31 CS32 CS35 CS36 CS37 CS38 CS39 CS40 CS41 CS42 CS45 CS46 CS47 CS48 CS53 CS54 CS55 CS56 CS57 CS58 CS61 CS62 CS63 CS64 CS65 CS67 CS68 CS75 CS76 CS77 CS78 CS83 CS73 CS74 CS84 CS87 CS88 CS89 CS90 CS91 CS92 CS93 CS94 CS95 CS96 CS97 RS51 RS52 C423 C424 C425 CS66 RS59 RS60 RS61 RS62 RS63 RS64 RS71 RS72 RS77 RS78 RS79 RS80 R425 LS01 LS03 QS03-1 QS03-2 QS04-1 QS04-2 QS06-1 QS06-2 JS05 JS06 JS07 R418 RS81 C426 CQ19 CQ20 CQ01 CQ02 CQ07 CQ15 CQ17 QQ19 CQ29 CQ21 CQ16 CQ18 QQ20 CQ08 CQ22 CF01 CF02 CQ11 CQ12 CQ69 CQ70 CQ51 CQ52 CQ57 CQ65 CQ67 QQ69 CQ79 CQ71 CQ66 CQ68 QQ70 CQ58 CQ72 CQ61 CQ62 CF19 CF20 CF07 CF15 CF17 QF19 CF29 LF01 CF21 CF10 CF16 CF18 QF20 CF08 CF22 CF11 CF12 LQ51 LQ01 QF07 RF21 RQ17 CQ03 CQ04 RQ01 RQ02 RQ05 RQ11 RQ13 RQ15 DQ07 RQ06 RQ12 RQ14 RQ16 RQ18 CF03 CF04 RF01 RF02 RQ19 RQ20 RQ67 CQ53 CQ54 RQ51 RQ52 RQ55 RQ61 RQ63 RQ65 DQ57 RQ56 RQ62 RQ64 RQ66 RQ68 RQ69 RQ70 RF17 RF05 RF11 RF13 RF15 DF07 RF06 RF12 RF14 RF16 RF18 RF19 RF20 QF09 RF25 QQ01 QQ51 QF01 QQ02-1 QQ02-2 QQ52-1 QQ52-2 QF02-1 QF02-2 QS02 C406 C427 R405 R406 RS25 RS26 CS79 CS80 RS70 RS69 CS85 CS86 RS57 RS58 C421 C422 RS01 RS02 RS03 RS04 RS07 RS08 RS11 RS12 RS13 RS14 RS15 RS16 RS17 RS18 RS21 RS22 JS08 CQ55 CQ56 CF05 CF06 CQ05 CQ06 CQ23 CQ24 CQ73 CQ74 CF23 CF24 RF23 RQ07 RQ09 RQ08 RQ10 RQ57 RQ58 RQ59 RQ60 RF07 RF09 RF08 JF52 RF51 RF52 RF53 RF54 RF55 RF56 RF63 RF65 RF66 RF67 RF68 RF69 RF70 RF71 RF72 RF73 RF74 RF75 QF51 JF53 JF54 JF55 JF01 JF02 JF03 LF02 LF03 CF51 CF52 CF53 CF54 CF55 CF56 CF58 CF59 CF61 CF62 CF63 CF64 CF65 CF67 CF68 CF69 CF70 CF71 CF72 CF73 CF74 CF75 CF76 CF77 CF79 CF78 CF80 JF58 CF81 CF82 QF58-1 RF77 RF78 CF83 CF84 RF79 RF80 QF58-2 QF59-1 CF85 CF86 RF81 RF82 QF60-1 RF57 RF58 RF59 RF60 RF61 RF62 RS73 RS74 RQ03 RQ04 RQ53 RQ54 RF03 RF04 CQ09 CQ10 CQ59 CQ60 CF09 CQ13 CQ14 CQ63 CQ64 CF13 CF14 R423 R424 QF59-2 QF60-2 CF87 CF88 RF48 RF47 RQ98 RQ97 RQ50 RQ47 CS69 CS70 CS59 CS60 RS53 RS54 RS65 RS66 RS45 RS46 CF91 CF90 CF92 JF56 JF57 QS01 CF57 CF60 JS01 JS02 JS03 CS50 CS49 CS51 JS04 CS52 QS05 JF51 RS83 RS82 Q405-2 Q405-1 RS47 RS48 CS05 CS06 CS33 CS34 CS43 CS44 CS23 CS24 RS55 CS71 RS56 CS72 CS81 CS82 RS67 RS68 RS75 RS76 RF10 CF51 - CF56 F, L : 100p N, S : 470p C403, C404 F, L : 220p N, S : 470p R401, R402 F, L : 47 N, S : 320µH 220K 220K 220K 220K 100 100 100 100 100 100 100 100 100 100 100 100 100 100 220K 220K 220K 220K 100K 100K 470 470 47K 47K 100p 100p 100k 100k 10/50V 6.8k 6.8k 1000p 1000p 0.01 0.01 0.039 0.039 82k 82k 100 100 470/16V 470/16V 100 330 330 47k 47k 22/50V 22/50V 2200p 2200p 0.1 0.1 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 100P 100P 100P 100P 22/50V 22/50V 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 100P 22/50V 22/50V 0.1 0.1 0.1 0.1 10/50V 10/50V 10/50V 10/50V 470P 470P 0.1 22/50V 22/50V 470P 470P 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 0.1 0.1 100P 100P 100P 0.01 0.01 0.01 0.01 100/16V 100/16V 470 470 0.1 0.1 0.1 0.1 470 470 47K 47K 470 470 470 470 100 100 100 10 10 0.022 0.022 NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD B3B-EH B6B-EH B3B-EH 100 100K 0.1 220P 220P 22/50V 22/50V 22/50V 22/50V 470P 2SC2878 A/B 0.1 100/25V 22/50V 470P 2SC2878 A/B 22/50V 100/25V 22/50V 22/50V 22/50V 22/50V 220P 220P 22/50V 22/50V 22/50V 22/50V 470P 2SC2878 A/B 0.1 100/25V 22/50V 470P 2SC2878 A/B 22/50V 100/25V 22/50V 22/50V 220P 220P 22/50V 22/50V 470P 2SC2878 A/B 0.1 MR82-24USR 24V 100/25V 220P 22/50V 470P 2SC2878 A/B 22/50V 100/25V 22/50V 22/50V MR82-24USR 24V MR82-24USR 24V 2SK170 V 22 100 0.1 0.1 560K 560K 470 10K 47K 390 * 470 10K 47K 390 100 0.1 0.1 560K 560K 4.7K 4.7K 100 0.1 0.1 560K 560K 470 10K 47K 390 * 470 10K 47K 390 100 4.7K 4.7K 100 470 10K 47K 390 * 470 10K 47K 390 100 4.7K 4.7K 2SJ74 V 100 TC9459N TC9459N TC9459N NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD LC78211 FUNC. 10/50V 0.1 100k 100k 100 100 220P 220P 0 0 220P 220P 0 0 220/16V 220/16V 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M 1M B6B-PH 47/25V 47/25V 47/25V 47/25V 47/25V 47/25V 0.01 0.01 0.01 0.01 0.01 0.01 22 1.2K 8.2K 1.2K 8.2K 1.2K 1.2K 8.2K 8.2K 1.2K 8.2K 560 B3B-EH 100 100 100 100 100 100 100K 100K 100K 47 47 10 1/6 100 100 100 100 100 100 LC78211 FUNC. B9B-EH B6B-EH B11B-PH B6B-PH B6B-EH 0.022 0.022 100P 0.1 0.1 220P 220P 100P 100P 0.1 100P 100P 100P 100P 100P 100P 100P 100P 0.01 0.01 0.01 100/16V 0.01 100/16V 22/50V 22/50V NJM2068DD 47K 47K 22/50V 22/50V 47K 47K NJM2068DD NJM2068DD 22/50V 22/50V 47K 47K NJM2068DD 47K 47K 47K 47K 47K 47K 47K 47K 100K 100K 100K 100K 100K 100K 100P 100P 100P 100P 100P 47P/500V 47P/500V 47P/500V 47P/500V 47P/500V 47P/500V 10 10 NJM2068DD NJM2068DD 0.1 0.1 10 1/6 10 1/6 10 1/6 10 1/6 10 1/6 10 1/6 100P 100P 100P 100P 220K 220K 68K 68K 220K 220K 0.1 0.1 0.1 LC78212 0.1 0.1 0.1 0.1 0.1 0.1 LC78212 10 10 NJM2068DD NJM2068DD 1K 1K 470P 470P 470P 470P 470P 470P 470P 470P DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY +15V 15V +15V 15V -15V -15V-2 -15V -15V-2 +15V 15V -15V -15V-2 +15V 15V -15V -15V-2 +15V -15V 15V -15V-2 +15V -15V 15V -15V-2 +15V 15V -15V -15V-2 -15V -15V-2 +15V 15V +15V -15V +15V +24V -15V +15V +24V -15V +15V +24V -15V -15V +15V A8 A9 A8 A9 -15V +15V A10 A11 +15V +15V -15V +24V A8 A9 A10 A11 +15V -15V +15V A8 A9 A10 A11 +15V A12 A13 +15V A12 A13 15V-5 -15V-6 15V-5 24V-7 -15V-6 RELAY SBMUTE CNTMUTE SWMUTE 15V-5 24V-7 -15V-6 SMUTE 15V-5 24V-7 -15V-6 -15V-6 15V-5 0V-8 0V-9 0V-8 0V-9 -15V-6 15V-5 0V-10 0V-11 15V-5 SMUTE 15V-5 -15V-6 24V-7 0V-8 0V-9 0V-10 0V-11 15V-5 RELAY -15V-6 15V-5 0V-8 0V-9 0V-10 0V-11 15V-5 SBMUTE RELAY 0V-12 0V-13 15V-5 0V-12 0V-13 CNTMUTE RELAY SWMUTE +15V -15V 15V-5 -15V-6 +15V 15V-5 -15V -15V-6 TAPE-L TAPE-R TAPEOUT-L TAPEOUT-R CDR-L CDROUT-L TV-R CDROUT-R TV-L VCR1-L VCR1-L TAPEOUT-L CDROUT-L CE0 DO0 CLK0 CLK0 DO0 CE0 CE0 DO0 CLK0 CD-L CD-R 6CH FL 6CH FR DSP FL DSP FR FL FR PHONO-L PHONO-R LT0 RT0 LT1 RT1 LT0 RT1 LT0 RT0 CE0 DO0 CLK0 6CH FL 6CH FR DSP FL DSP FR FL FR VCROUT-L CE0 DO0 CLK0 6CH SR 6CH SL DSP SL DSP SR DSP CNT DSP SW DSP SL DSP SR 6CH CNT DSP CNT 6CH SW DSP SW DO1 CE1 SL SR SL CNT CNT SR SW SW 6CH SL 6CH SR 6CH CNT 6CH SW CLK1 CNT SW CE1 DO1 CLK1 CE0 DO0 CLK0 CLK1 DO1 CE1 SBL SBR SBR SBL SL SR SR SL CNT SW SBL SBR SBL SBR CLK1 DO1 CE1 CNT SW DVD-L DVD-R LD-L LD-R DVD-L LD-L VCROUT-R DVD-R LD-R VCR1-R PHONO-R TAPEOUT-R CDROUT-R CD-R TAPE-R CDR-R TV-R DSS-L DSSOUT-L DSSOUT-R DSS-R VCR1-R VCROUT-L VCROUT-R DSS-L DSS-R DSSOUT-L DSSOUT-R CDR-R PHONO-L CD-L TAPE-L CDR-L TV-L LT1 RT0 L R CD INPUT L R A2 A2 L R L R A2 A2 L R L R A2 A2 TAPE INPUT REC TAPE INPUT REC TV INPUT L R INPUT L R A2 A2 L R L R A2 A2 L R L R A2 A2 INPUT REC INPUT REC INPUT VCR1 VCR1 CDR CDR A5 A5 A5 A5 A5 A5 A5 A5 A5 A5 CE0 DO0 CLK0 L R INPUT PHONO PHONO AMP RPH-*4** A-FUNC SEL RRJ-*s** A5 A5 A4 A5 A5 A4 A4 A4 A4 A4 A2 A2 A2 A2 A5 A2 A2 A2 A2 1 2 3 Phono/Audio selector P.C.Board P-GND A4 PS04 DSP FL GND DSP FR GND FL FL GND A6 A6 6CH DIRECT IN FRONT-L FRONT-R SURR-L SURR-R CENTER SW A7 A7 A7 SURROUND LCH 6-CH SEL ELE VOL RTO-*F** SURROUND RCH A7 ELE VOL RRK-*Q** A7 A7 A7 MAIN-IN L R FRONT-L FRONT-R SURR-L SURR-R CENTER SW SBL SBR CENTER SUB-WOOFER CE0 DO0 CLK0 P-GND 1 2 3 A7 A7 A7 A6 TO POWER PCB A7 A7 A7 A7 ELE VOL RRK-*Q** A7 A7 A7 A6 CE0 GND SMUTE SBMUTE CNTMUTE SWMUTE DO0 CLK0 CE1 DO1 CLK1 P-GND P-GND +24V RELAY PRE-OUT SURR.BACK LCH SURR.BACK RCH FRONT A7 A7 A7 A7 DVD LD 6 5 8 7 1 4 2 3 3 4 1 2 8 6 5 7 3 4 1 2 8 6 5 7 3 2 1 6 5 4 7 6 7 4 5 1 3 2 3 2 8 1 7 4 6 5 TO JU02(PU04) 1/6 1/6 TO J805(P804) SUPPLY TO JG01(PG04) FRONT VOL TO JH01(P604) DSP DSP TO JJ01(P604) TO JG02(PG04) FRONT VOL input CD -0.09dB Vol in -0.09dB Load 10kohms -0.4dB Gain=20.5dB(A=10.6) Gain=25.5dB(A=18.9) RTO-*F5* PC04 LT RT 8 8 A6 A6 A6 A6 6ch in/Pre-out E-Vol P.C.Board 3 2 1 8 6 5 4 7 3 2 1 6 5 7 3 2 1 8 6 5 7 8 4 4 INPUT IMP=40.3kohms 1M*3//220kX2//68kohms A2 A2 WS99 +15VB -15VB +15VB -15VB +15VB -15VB DSS DSS A A A A A A A A A A A A A A A A A A A A A A A A A A A P P P A A B B A A A' A' A' A' A' A' 11 12 A2 A2 A2 A2 AC18.0V_1 C.T_1 AC43.6V_1 C.T_2 AC34.6V_2 AC18.0V_2 A2 A2 A2 A2 A2 2SA950 A2 2SA950 A2 A2 A2 A2 A2 A2 A2 PL 2SC2120 RELA Y H.P_RELAY GND GND RELAY RELAY H.P_RELAY GN D PL GND GND GN D GND GND GND GND GN D GN D GND GND G5PA-28 G5PA-28 EARTH EARTH +24V B -15V +15V -VB -V B -VB +VB +VB AC34.6V +24VB +VB -V B +15V -15V +15V AC34.6V PL PL FL PL FL EART H 2SC2240 2SC2120 A2 EARTH A2 A2 JB04 JB03 JB02 QB11 QB12 QB10 QB09 QB08 QB07 CB37 CB36 CB29 CB28 CB41 CB40 CB33 CB32 CB35 CB34 CB27 CB26 CB16 CB12 CB10 CB11 CB13 CB15 CB30 CB38 CB31 CB39 DB20 DB19 DB14 DB16 CB22 CB23 CB24 CB25 CB21 CB20 CB17 CB18 CB19 DB15 DB21 DB25 CB08 CB09 RB13 QB05 DB11 RB11 RB08 QB02 RB05 RB07 QB04 QB01 DB10 RB10 RB04 DB08 DB06 DB07 DB09 DB03 DB04 DB05 CB07 CB06 CB05 CB03 CB04 CB02 DB02 RB02 RB01 RB03 L002 JB01 DB01 CB01 CB42 CB43 JN06 JN05 JN04 JN03 JN02 L801 C862 C861 C860 QN01 RN17 RN14 RN06 RN05 RN04 CN03 CN04 CN08 RN15 CN09 RN10 RN11 CN06 CN07 RN12 RN08 RN09 RN07 CN05 RN19 RN20 RN21 DN04 RN22 QN05 DN03 LN01 CN10 CN11 RN24 RN25 CN14 CN02 RN02 RN03 RN01 DN01 CN01 JN01 W008 CN13 CN12 J850 R860 R859 C853 Q854 Q854 R856 R857 R855 R854 D832 Q853 C852 R853 Q852 Q851 Q850 R852 D830 D831 C851 C850 Q830 C830 R861 R862 C825 D814 C823 C820 D813 Q806 C822 C819 C826 C821 Q805 C824 R851 Q804 Q803 R806 R804 R810 R808 Q802 D804 D803 C810 C809 C808 C807 R807 C806 C805 C804 C803 Q801 R805 R809 R803 C811 C812 C813 C814 J803 J804 J805 J873 D801 J872 WB03 J880 J871 W007 J870 W003 L870 J877 J876 S880 C880 Z008 L872 J875 J874 C870 D870 C871 J801 W004 C801 C827 C817 C818 C815 C816 R811 R812 D811 D809 D807 D805 D812 D810 D808 D806 D851 D852 C802 C828 C854 C855 J011 J012 J013 J014 C001 C002 J703 J702 DB22 DB26 L001 W006 R802 R801 LB04 LB03 J899 J898 J878 F870 F871 J001 J802 W005 J806 W001 J807 W002 RN13 RN16 QN03 RN23 DN02 RN26 RN27 QN04 RB99 R863 RN30 JB99 RB09 R814 R813 CB44 CB45 C856 C857 W851A W851B JB05 B5B-PH B4B-EH B12P-VH NJM7805FA NJM7905FA NJM7805FA NJM7805FA S-806C-Z NJM7805FA 100/10V 100/10V 470/16V 470/16V 0.1 0.1 0.1 0.1 100/10V 100/10V 6800/16V 6800/16V DUMMY 10/50V 470/16V 0.1 0.1 0.01 0.1 0.1 0.1 0.1 D2SBA20 0.01 0.01 0.01 0.01 0.1 0.1 0.01 0.01 0.01 0.01 0.01 10k DTC114ES 10k 10k 1 1/4W 10k DTC114ES 10k 1 1/4W 470/35V 0.01 0.01 100/50V 470/50V 47/50V 6.8V 100 100 1k 1W B8B-VH 0.01 0.01 0.01 B7B-EH B4B-EH B4B-EH B3P-VH B3P-VH 0.022 0.01 0.01 100/16V TA7317P 22k 68k 47k 68k 68k 47/25V 0.1 0.47/50V 33k 0.01 47k 220k 47/25V 10/50V 6.8k 68k 68k 100k 0.01 33k 47k 22k 15k VB24MBU 0.039 0.039 10 1W 10 1W 0.01 0.01 4.7 22k 22 1/6W 1D 3 1/50V B4P-VH 0.01 0.01 B2B-PH 3.3k 10k 1/50V NJM2904(2/2) NJM2904(1/2) 270k 0 10k 10k 2SC3419Y WITH S.H 0.1 10k 2SC2240 2SC2240 2SK246 100 5.6V 100/16V 0.01 2SC2240 47/25v 1k 47k 100/16V 1D1 0.1 2200/35V 1D1 NJM7915FA 0.01 2200/35V 100/16V 0.01 NJM7815FA 0.1 10 1/4W 2SB1020 2SD1415 5.6 1W 100 4.7 1/6W 1k 2SK246 16V 16V 100/25V 100/25V 0.01 0.01 1k 0.01 0.01 2200/35V 2200/35V 2SK246 5.6 1W 4.7 1/6W 100 330/16V 330/16V 0.01 0.01 B9B-EH B7B-PH B6B-EH B2P-VH D2SBA20 B2P3-VH B2P3-VH B2P3-V H B2P3-VH 0.01 VS24MB-NR 0.01 0.01 B3P-VH 0.1 0.1 0.01 0.01 2200/50V 2200/50V 1 1/2W 1 1/2W 1D3 1D3 1D3 1D3 1D3 1D3 1D3 1D3 FCH FRH 0.1 0.1 0.1 0.1 15000uF 63 V 15000uF 63V B4B-V H B4B-V H 1 1/4w 1 1/4w F, L : 630mA/250V B6P3-V H B3P-VH B3P-VH 10k 10k 22k 4.7k 2.2k 1/4W 2.2 1 1/4W 3.3k 1 1/4w 1 1/4w 100/10V 220/6.3V 2200p N, S : T315mA/250V TO JU52 (PU54) CONNECT TO DSP TO VIDEO Back-UP P.C.Board PB04 RBU-*B** AC OUTLET UNSWITCHED SWITCHED P884 RSW P804 Power Supply/SPK Protect P.C.Board RPS-*8** TO VO L TO DSP TO 6CH TO MAIN TO MAIN TO JU04(PU04) FRON T TO JP58(PU54 ) CONNECT J003 FERITE CORE L003 F : AC100V 50/60Hz N, S : AC230V 50Hz L : AC110V 60Hz AC22.3 AC8.6 AC5.1 RMT-*N** - + + - (N, S ONLY) (N, S ONLY) -43V +43V A3 A3 A3 A3 24.0 24.0 5.0 -31.0 4.1 9.5 10.2 -11.5 21.4 -21.9 0 0 0 -0.7 0 0.7 3.0 1.3 -0.6 5.0 1 1/6W 1 1/6W (N, S ONLY) (F ONLY) F, L : 10A/250V N, S : T4A/250V 1 +5V 2 GN D 3 GN D 4 GN D 5 -5V 1 5VD 2 GN D 3 5VA 4 GN D 1 F 2 F 3 VK K 4 +5VL 5 +5VV 6 P-DOW N 7 FL-DOW N 8 N.C. 9 GN D 10 GN D 11 POWER-ON 12 RELAY-ON 2 1 3 1 2 3 2 1 3 2 1 3 1 3 2 2 1 3 2 3 1 4 1 2 3 1 2 3 1 2 3 1 2 3 10 9 5 3 6 8 4 7 2 1 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 POWER(to_MAIN_Relay) 2 POWER(from_TA7317_6p) 3 SPK-OFF(to_SPK_Relay_Tr) 4 +15V(for_Motor_IC) 5 GND 6 -15V 7 +24V 4 3 2 1 4 3 2 1 1 2 3 1 2 3 1 2 3 6 7 5 4 2 3 9 8 1 1 2 3 1 2 5 6 3 4 4 3 2 1 4 3 2 1 1 2 7 5 + 6 - 4 1 3 + 2 - 8 2 3 1 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 2 1 3 1 3 2 1 2 3 1 2 3 1 2 3 1 -15VA 2 GND 3 +15VA 4 -15VB 5 GND 6 +15VB 7 +24V 8 _RELAY 9 _H.P_RELAY 1 +15VA 2 GND 3 GND 4 -15VA 5 +15VB 6 GND 7 -15VB 1 +15VB 2 P-GND 3 P-GND 4 -15VB 5 +24V 6 _RELAY 1 2 1 2 3 2 1 4 2 1 2 1 2 1 2 1 2 1 2 1 1 2 1 2 4 1 3 2 1 2 2 1 3 5 1 2 3 1 2 3 2 3 1 1 3 2 1 DC-44.6V 2 DC+44.6V 3 GND 4 PROTECT 1 DC-44.6V 2 DC+44.6V 3 GND 4 PROTECT 1 Rch 2 +B 3 -B 1 Lch 2 +B 3 -B 2 3 10 13 12 1 5 6 4 7 8 11 9 1 2 3 2 1 4 5 6 4 5 6 3 2 1 1 3 4 5 4 3 2 1 5 4 3 2 1 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 1 2 3 1 2 13 14 470 HDAM 270p 100v 22k B2B-EH 10 20v 220/25v 220/25v 20v 2SA970 2SC2240 47k 2SC2705 100 100 2SA1145 47k 680 1w 680 1w 2SA1145 2SA970 1k 330 HSS81 3.9k 1.5k 10p 250v 2SD1508 2.2k 2SC2705 2SC2240 1k 330 680 1w 680 1w 10/100v 680p 220k 3.3M 3.3M 3.3M 0.1 68 1/4w 220 1/4w 1/4w 220 1/4w 220 1/4w 220 100 100 330/50v 330/50v 2SA1145 5.6v 5.6v 2SC2705 HSS81 470 2SC4793 68 150 0.01 2SC3284 10 1k 0.1X2 3w 470 2SA1837 68 2SA1303 10 1k HSS81 2SC2240 22k 22 1/4w 22 1/4w 0.47/50v 6.8k 22k 2SA970 22k B3P-VH B4P-VH 0.1 0.1x2 3w 47k 150 680 2SA970 100 2SC4793 3.3M 2SA1145 HSS81 68 2SA1303 22 6.8k 5.6v 220 HSS81 100 22k 680 2SC2240 10p 250v B2B-EH 2SC3284 220/25v HDAM HSS81 330/50v HSS81 2SC2705 470 330/50v 2SC2705 2SA1145 470 100 20v 22k 1.5k 0.01 680p 10 2SC2705 10/100v 470 68 1/4w 1k 0.47/50v 330 22k 2SD1508 270p 100v 10 220 220 220k 680 68 B4P-VH 2SA970 220 220/50v 10 1k 3.3M 330 2SA970 20v 3.3M 47k 22 2SC2240 680 1k 1k 5.6v 2SA1837 B3P-VH 3.9k 2.2k 2SC2240 22k 47k 2SA1145 2SA970 33k 2SA970 100 120 2.2k 2SK170 2SK170 120 100 2SC2240 2SC2240 1k 1k 68 150 0.01 150 0.01 10/50v 10/50v 10/50v 10/50v 3 1 2 6 5 4 1 2 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 3 2 3 1 2 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 3 2 1 1 2 3 4 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 1 2 3 3 1 2 6 5 4 1 2 3 1 2 3 1 2 3 1 2 3 1 3 2 1 2 3 4 1 2 3 1 2 3 1 2 3 1 2 3 3 2 1 3 1 2 1 2 3 1 2 3 1 2 3 1 2 3 2 3 1 3 1 2 3 1 2 1 2 3 1 2 3 R702 Q701 C701 R701 J701 R728 D702 C704 D703 C703 D701 Q703 Q704 R703 Q707 R711 R712 Q708 R704 D706 D705 R723 R721 Q709 Q705 R707 D709 R709 D707 D704 R725 R726 D708 C705 Q702 R727 Q710 Q706 D710 R708 R710 R722 R724 C707 C715 R720 R718 R717 R719 C702 R713 R705 R714 R716 R715 R730 R729 C713 C714 D712 Q712 D714 D711 D713 Q711 D715 R733 Q713 R735 R737 C708 Q715 R739 R742 R741 R734 Q714 R736 Q716 R740 R743 D717 Q717 R744 D716 R732 R731 C710 R745 R746 Q718 R747 J702 J703 C902 D907 R941 D906 R903 R937 D908 R924 D909 Q918 R930 Q913 R918 Q912 D903 D916 R935 Q916 R931 R945 D913 R914 D917 R929 R901 R921 Q904 C905 D905 J901 Q915 C904 Q901 D915 C913 D910 D904 Q907 R933 C914 Q910 Q909 R934 D911 R911 D902 R944 R926 C908 C915 R939 Q911 C907 R902 R913 D912 R942 C910 R910 R946 Q902 C901 R940 R905 R916 R920 R923 R936 J903 Q905 R915 C903 R928 R907 R919 R909 Q903 D901 R917 R904 R932 Q917 R922 R908 R943 D914 Q914 J902 R925 R927 Q906 R947 R912 Q908 DM01 DM02 QM0 5 RM0 6 QM04 RM08 RM0 2 RM09 QM02 QM01 RM01 RM07 QM03 QM06 DM03 DM05 DM04 RM04 RM05 RM03 R738 C709 R938 C909 C711 C712 C911 C912 1 2 3 4 5 6 +B +OUT -OUT -B + - HDAM BL BL Q701,Q901 P704 WA330J303-0 P904 WA330J304-0 -B +B OUT_L PROT GND +45V -45V TO JN02 (P804) SUPPLY TO JN05 (P804) SUPPLY -45V TO JN03 (P804) SUPPLY -B +B OUT_R PROT TO JN06 (P804) SUPPLY GND +45V 0 0 -19.5 19.5 0.3 -0.3 -0.9 -0.3 -40.0 -41.0 -42.0 -44.0 -41.6 -1.8 0 -0.6 0.3 0.9 40.0 42.0 44.0 41.6 1.8 1.2 1.8 1.2 -1.2 -1.8 -0.6 -0.6 -0.0045 0.6 0.6 44.0 -44.6 -44.0 44.0 44.6 0 0 1.8 -0.6 -44.0 -42.0 -0.6 0 -1.8 -0.0045 1.2 0.3 44.6 0.3 19.5 42.0 -19.5 41.6 44.0 -1.2 0.9 0.6 0.6 44.0 40.0 44.0 -44.6 -0.3 -0.9 -0.3 1.2 -44.0 1.8 -1.8 0 -41.6 -41.0 0 -40.0 -0.6 15 16 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 V- GND V+ NJM2296 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 V- GND V+ NJM2296 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 V- GND V+ NJM2296 1 5 10 12 13 15 20 24 GND GND GND GND GND GND A0 EN LE GND CS VEE VCC VEE VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 C Y C Y C Y CG YG CG YG CG YG GND RING RING RING C Y C Y C Y CG YG CG YG CG YG GND RING RING RING 4 6 COM 7 5 INH VEE GND C B A 3 0 1 2 VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CE SI CL Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q'S QS OE VCC GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 74HC4094 1 2 3 4 5 1 2 3 4 5 6 7 8 VDD1 VSS1 RST CNT3 CNT2 XIN XOUT CNT1 BRK SEPIN SEP-O OSC-I OSC-O SEPC S-IN CHARA CS SCLK DATA VDD2 CV-O N.C CVIN VDD1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 VDD1 VSS1 RST CNT3 CNT2 XIN XOUT CNT1 BRK SEPIN SEP-O OSC-I OSC-O SEPC S-IN CHARA CS SCLK DATA VDD2 CV-O N.C CVIN VDD1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 GND V+ 1 2 3 4 5 6 7 8 NJM2264 DRV CLMP C Y C Y CG YG RING CG YG RING GND RL01 QL04 XL01 LL01 JL01 JL02 JL03 RX01 RX02 RX03 RX04 RX05 RX06 RX07 RX08 RX09 RX10 RX11 RX12 RX13 RX14 CX02 CX04 CX06 CX08 CX09 CX10 CX12 CX13 CX14 LX01 XX01 RL02 RL03 RL04 RL05 RL06 RL07 RL08 RL19 CL07 CL08 CL09 CL10 CL11 CL12 CL13 CL14 CL15 CL16 CL19 CL32 RX15 RX16 CL18 CX16 CX26 CX27 CX28 CX29 QX04 QX05 QX11 QX12 RX70 RX71 RX72 RX73 RX74 RX75 CX75 RL20 RL21 RL23 RL24 RL26 RL27 RL29 RL30 RL31 RL32 CL20 CL22 CL23 CL24 CL25 CL26 CL27 CL28 CL29CL30 CL31 CL33 CL34 CL35 CL36 RX27 RX28 RX29 RX30 RX31 RX32 RX33 RX34 RX36 RX37 RX38 RX40 RX41 RX42 RX43 RX45 RX47 RX48 RX49 RX50 RX51 RX52 RX53 RX55 RX56 RX57 RX58 RX59 RX60 RX61 RX62 CX32 CX33 CX34 CX35 CX36 CX37 CX38 CX39 CX40 CX41 CX42 CX43 CX44 CX45 CX46 CX47 CX48 CX49 CX51 CX52 CX53 CX54 CX55 CX56 CX57 CX58 CX59 CX62 CX63 CX89 CX90 CX91 CX92 CX93 JX09 JX10 LX02 LX03 CL17 CL21 QX70 RX82 RX83 RX84 CX22 CX24 CX23 CX25 CX70 CX76 CX77 CX78 JL04 CL42 CL43 CL40 CL41 CL45 QL09 RL36 RL37 RL38 RL39 RL40 RL41 JL06 LL02 LL03 JL05 JX08 RL25 CL38 CX01 CX03 CX05 CX07 CX11 CX30 CX31 CX60 CX61 RL28 RX39 CX15 CX86 QL01 QX01 QX02 DX03 DX02 DX05 DL01 DX04 QX13 QX14 QX10 QX03 QX09 QL08 QL03 QL02 DX01 CX88 CL39 CL03 CL05 RL14 RL15 RL16 RL17 RL18 RL09 RL10 RL11 CL02 CL01 RL12 CL04 RL13 RX78 RX79 RX22 RX23 RX24 RX25 RX26 CX17 CX18 CX19 CX20 CX21 RX17 RX18 RX19 RX20 RX21 CL37 CX50 RX35 JX04 JX05 JX06 JX01 CL44 JX03 JX02 XL02 RL33 QL07 QL05 QL06 CL47 CL46 CX87 CX80 QX07 QX06 QX08 RX64 RX65 RX66 CV01 CV02 CV03 RX67 RX68 RX69 CV04 CV05 CV06 RX46 RL22 DAMM85 RL35 RX54 XX02 RX44 CX84 CX82 CX83 CX94 CX95 CX85 CX73 CX72 CX64 CX65 CX67 CX68 CX74 CX69 CX71 CX66 CX96 CX97 CX98 82 LC74781 14.31818MHz 33UH 82 82 82 82 82 82 82 82 75 75 82 82 75 75 33UH 10/50V 10/50V 10/50V 10/50V 22/16V 470/6V 10/50V 22/16V 470/6V 14.31818MHz 82 82 82 75 82 75 75 68 47P CH 47P CH 10/50V 10/50V 10/50V 10/50V * 10/50V * 470/6V 47P CH 1200P 75 75 0.1 470/6V 0.1 0.1 0.1 0.1 NJM2264 LC74781 74HC4051 NJM2903D 75 75 75 75 75 75 10/50V 220 10K 100K 10K 220 220 1M 47K 10K 10K 0.1 0.1 100/10V DAMMY 2.2/50V 1/50V 22P CH 24P CH 22P CH 22P CH 10/50V 1/50V 0.1 100/10V 1/50V 68 68 3.3K 2.2K 100K 10K 12K 220 4.7K 3.3K 2.2K 1M * 220 47K 10K 10K 220 100K 100K 100K 100K 100K 10K 15K 3.3K 10K 10K 220 10K 10K 10/50V 2.2/50V 1/50V 0.01 0.1 0.01 100/10V 0.1 DAMMY 22P CH 24P CH 22P CH 22P CH 1200P 1/50V 1/50V 0.1 100/10V 10/50V 0.1 0.01 0.01 0.01 0.01 0.1 100/10V 0.01 47P CH 47P CH 10/16V 0.01 0.01 0.01 0.01 0.022 0.022 220/10V 220/10V MAX499 75 75 75 220/10V 220/10V 220/10V 220/10V 10/50V 470/6V 470/6V 470/6V B5B-PH 0.01 0.01 0.01 0.01 0.1 74HC4094 10K 10K 10K 10K 10K 100 B8B-PH 0.022 0.022 17FE-BT-VK-N 17FE-BT-VK-N 12K 10/16V 10UF/16V 10UF/16V 10UF/16V 10UF/16V 10UF/16V 47P CH 47P CH 47P CH 47P CH * * 10UF/16V 10UF/16V NJM2296D NJM2296D NJM2296D * * * * * DTA114ES /ETC DTA114ES /ETC 2SC536 SP/ETC 2SC536 SP/ETC 2SC536 SP/ETC 2SC536 SP/ETC 2SC536 SP/ETC 2SC536 SP/ETC * 10/16V 10/16V 10/50V 10/50V 4.7 4.7 4.7 4.7 4.7 0.01 0.01 0.01 10/50V 10/50V 0.01 10/50V 0.01 4.7 0.01 10 10 10 10 10 10/50V 10/50V 10/50V 10/50V 10/50V 0.01 0.01 0.01 0.01 0.01 10/50V 10/50V 3.3K 470P 17.31818MHz L, N, S ONLY * DTA114ES /ETC L, N, S ONLY DTC114TS L, N, S ONLY DTC114TS L, N, S ONLY 22P CH L, N, S ONLY 22P CH L, N, S ONLY 22P CH L, N, S ONLY 22P CH L, N, S ONLY DTC114TS L, N, S ONLY DTC114TS L, N, S ONLY DTA114ES /ETC L, N, S ONLY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY 10K 17.31818MHz L, N, S ONLY 10K 0.1 0.1 220/6.3V 0.1 220/6.3V 0.1 10/50V 10/50V 0.01 0.01 0.01 0.01 10/50V 0.01 10/50V 0.01 0.01 0.01 0.01 -5V -5V-21 +5V 5V-20 +5V 5V-20 +5V 5V-20 -5V -5V-21 +5V 5V-20 +5V 5V-20 +5V 5V-20 +5V 5V-22 +5V 5V-22 -5V -5V-23 -5V -5V-23 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 -5V -5V-23 +5V 5V-22 +5V 5V-22 -5V -5V-23 +5V 5V-22 +5V 5V-22 +5V 5V-22 +5V 5V-22 -5V -5V-23 +5V 5V-22 -5V -5V-23 +5V 5V-20 -5V -5V-21 +5V 5V-20 +5V 5V-22 +5V 5V-20 TV(Y) TV DVD-CB DVD-Y DVD-CB OUT-Y OUT-CB OUT-CR TV(C) TV(Y) TV Q1 Q2 TV(C) CE-YC DO2 CE-CV CLK2 DO2 YC-DET S2TV S2LD S2VCR VCR(C) VCR(Y) VCR(C) VCR(Y) Q1 Q2 Q1 Q2 Q5 Q3 Q4 Q5 Q3 Q4 Q5 Q3 Q4 Q4 Q3 Q2 S2TV DVD-Y S2VCR Q7 Q8 OUT-Y OUT-CB OUT-CR Q5 Q5 Q7 Q8 DO2 CLK2 CE2 Q7 Q8 Q7 Q8 Q5 DVD LD LD DVD DBS-Y DBS-Y S2DVD DVD(C) DVD(Y) LD(C) LD(Y) DBS(Y) DBS(C) S2DBS S2DBS S2LD S2DVD LD(C) DVD(C) DBS(C) LD(Y) DVD(Y) DBS(Y) Q3 Q4 Q1 Q2 CE-YC DO2 CLK2 Q1 Q2 Q3 Q4 Q5 YC-DET YC-DET CV-DET CLK2 DO2 CE2 CE-YC CE-CV Q5 Q4 Q3 Q2 Q1 YC-DET CLK2 DO2 CE-YC VCR DBS-CR DBS-CR DBS-CB DBS-CB DVD-CR DVD-CR DBS DBS VCR CLK2 PAL/_NTSC PAL/_NTSC PAL/_NTSC PAL/_NTSC PAL/_NTSC CV-DET PL04 PL54 RVC-*L** RVS-*X** Video selector(CVBS) P.C.Board TV H H H H H H H FUNC. 1 2 3 4 5 6 7 8 VIDEO SELECTOR VIDEO SELECTOR OSD CONTROL OSD CONTROL CVBS-IN/OUTPUT TV IN OUT MONITOR LD DVD IN OUT COMPONENT-IN/OUTPUT MONITOR DVD Y Y Y TV IN OUT MONITOR LD DVD IN OUT Y C S2 VIDEO SELECTOR 2.7V S2 DC SEL. MUTE H H H H VIDEO SELECT H L L L H H L H H L Q1 Q2 Q3 Q4 Q5 Q7 Q8 QL01,QX01,02,-NJM2296 QX11-HC4051 H H SYM -NO INPUT L L VCR *L *L L *H *L *L *H Y/C-IN/OUTPUT VCR1 VCR1 H L H * * * *: Don't care QX70 MAX499 *Lor*H:NJM2296 Don't care GND DO2 CLK2 CE-CV CE-YC PORT EXP +5V GND GND GND -5V CE2 Q7 Q8 +5V -5V GND GND PAL/_NTSC DO2 CLK2 Q1 Q2 Q3 Q4 Q5 Q7 Q8 +5V -5V GND GND PAL/_NTSC DO2 CLK2 Q1 Q2 Q3 Q4 Q5 DVD LD DBS L L H * DBS/VCR2 DBS/VCR2 +5V +5V TO JB04(PB04) BUCK-UP TO JX08(PL54) TO JL05(PL04) VIDEO S-VIDEO TO JU53(PU54) CONNECT DBS/VCR2 CV-DET YC-DET YC-DET CE-YC CE-YC YC-DET F ONLY F ONLY PB/CB PR/CR PB/CB PR/CR PB/CB PR/CR Video selector(Y/C,Component) P.C.Board COMP.SEL. 17 18 + - 1 2 3 4 5 6 7 8 9 - + 1 2 3 4 5 6 1 2 3 1 2 3 4 5 6 7 1 2 3 4 1 2 3 4 + - + - 1 2 3 4 1 2 3 4 7 8 9 2 3 1 1 2 3 4 JG01 CG07 CG08 CG11 CG12 CG13 CG17 CG18 CG19 CG20 CG21 CG23 CG25 CG27 CG24 CG22 CG31 CG32 CG33 CG34 CG35 CG40 CG41 QG03 QG05 QG07 QG09 QG11 QG13 QG15 QG17 QG19 QG06 QG04 QG10 QG08 QG14 QG12 QG18 QG16 QG20 JG02 CW01 CW02 CW05 CW06 CW09 CW10 CW11 CW12 CW15 CW16 QW03 QW04 QW05 QW06 RG67 RG69 RG21 RG23 RG24 RG70 RG72 RG74 RG40 RG38 RW25 RW23 RW15 RW17 RW19 RW21 RW22 RW18 RW16 RW20 RW24 RW26 JG06 QG01 CG26 RG71 RG37 RG39 RG73 LG01 LG02 LW01 CG05 CG06 DW02 DW01 RW27 RW28 CW53 CW50 CW51 RG43 RG41 RG79 RG75 RG81 RG77 RG42 RG44 RG80 RG76 RG82 RG78 RG64 RG66 RG08 RG06 RG84 RG86 RG10 RG83 RG85 RG09 RG14 RG26 RG01 RG02 RG05 RG07 RG11 RG12 RG13 RG19 RG20 RG22 RG25 RG27 RG28 RG29 RG31 RG30 RG32 RG33 RG35 RG36 RG51 RG52 RG53 RG54 RG55 RG56 RG57 RG58 RG59 RG60 RG61 RG62 RG63 RG65 RW01 RW02 RW05 RW06 RW07 RW08 RW09 RW11 RW12 RW14 CG36 CG37 CG38 CG39 CG03 CG04 CG29 CG30 CW19 CW17 CW18 CW03 CW04 CW07 CW08 QW01-1 QW01-2 QG02-2 QG02-1 DG07 DW05 DG08 DG01 DG05 DG03 DG02 DG04 DG06 RG03 RG04 CG09 CG10 RG47 RG49 RG50 RG48 WG02 JG05 QG21 LG03 LG04 CW52 WW50 JW50 JW51 JG03 JG07 RG46 RG45 CG15 CG16 CG02 CG01 RW03 RW04 RG68 RG34 CG14 CG28 RG87 RG88 B3B-EH 22/50V 22/50V 10P/250V 10P/250V 100P 220P 220P 220P 220P 100/25V 0.1 100/25V 0.1 0.1 100/25V 220P 220P 100P 100P 100P 100/16V 100/16V 2SA1048 Y/GR 2SC2458 Y/GR 2SC2458 Y/GR 2SA1048 Y/GR 2SA1048 Y/GR 2SC2458 Y/GR 2SC2240 2SA970 2SC2878 A/B 2SC2458 Y/GR 2SA1048 Y/GR 2SA1048 Y/GR 2SC2458 Y/GR 2SC2458 Y/GR 2SA1048 Y/GR 2SA970 2SC2240 2SC2878 A/B B6B-EH 22/50V 22/50V 22/50V 22/50V 0.022 0.022 100/25V 100/25V 100/25V 100/25V 2SC2240 2SC2240 2SA970 2SA970 47 47 47 47 47 47 47 47 47 47 10 1/6 10 1/6 10 1/6 10 1/6 2.2 1/6 10 1/6 10 1/6 10 1/6 10 1/6 2.2 1/6 10 1/6 10 1/6 B9B-EH TC9459F 100/25V 47 47 47 47 MR82-24USR 24V MR82-24USR 24V MR82-24USR 24V 100/25V 100/25V 1SS302 1SS302 10 1/6 10 1/6 0.01 0.01 0.01 1.8K 1.8K 1.5K 1.5K 1.2K 1.2K 1.8K 1.8K 1.5K 1.5K 1.2K 1.2K 270 270 390 470 270 270 390 270 270 390 15K 330 560K 560K 470 390 15K 15K 15K 330 330 22 330 330 330 820 330 820 330 220K 220K 220K 390 390 100 100 4.7K 4.7K 10K 10K 100 100 100 10 270 270 470 470 10K 10K 10K 10K 10K 10K 10K 10K 0.01U 0.01U 0.01U 0.01U 0.1U 16V 0.1U 16V 0.1U 16V 0.1U 16V 0.1U 16V 0.1U 16V 0.1U 16V 220P 50V 220P 50V 22P 50V 22P 50V NJM2068M NJM2068M NJM2068M NJM2068M 1SS302 1SS302 1SS302 1SS302 1SS302 1SS302 1SS302 1SS302 1SS302 100K 100K 100P 100P 10 10 10 10 B4B-PH 2SC2120 0.022 0.022 0.01 B4B-PH B4B-EH B7B-EH 100K 100K 22/25V 22/25V 22/25V 22/25V 22K 22K 47 220K 100P 0.1 DAMMY DAMMY A16 A17 0V-16 0V-17 A16 0V-16 FMUTE A18 0V-18 A18 0V-18 +15VG 15V-44 -15VG -15V-45 +24V 24V-46 A18 0V-18 A18 0V-18 -15VG -15V-45 +15VG 15V-44 MAIN IN MAIN IN FMUTE A18 0V-18 A17 0V-17 A16 0V-16 +24V 24V-46 +24V 24V-46 +15VG 15V-44 -15VG -15V-45 A18 0V-18 A18 0V-18 +15VH 15V-46 A19 0V-19 +15VH 15V-46 +15VH 15V-46 +24V 24V-46 _RELLAY _H.P A19 0V-19 A19 0V-19 A19 0V-19 A19 0V-19 A18 0V-18 A18 0V-18 A16 0V-16 A17 0V-17 A18 0V-18 -15VG -15V-45 +15VG 15V-44 A17 0V-17 -15VH -15V-47 -15VH -15V-47 A19 0V-19 A19 0V-19 A19 0V-19 _RELLAY _H.P -15VH -15V-47 H.P SW H.P SW A16 0V-16 CE1 DO1 CLK1 CE1 DO1 CLK1 ELE VOL FL GND RVR-*G** FRONT LCH FRONT RCH GND LCH GND Front E-Vol/H.P AMP P.C.Board PG04 Head-Phone P.C.Board RHP-*W** M M M M M M M M M M M M M M GND MAIN-IN FMUTE H.P SW CE1 DO1 CLK1 GND GND +24V DATA STB NC CS2 NC VDD VSS NC CS1 NC GND NC 1 10 12 13 20 24 6 5 4 7 3 2 8 1 6 5 8 7 3 2 4 1 PW04 TO FRONT L R GND SW L R SW JU03(PU04) _RELAY _H.P RELAY -15VA +15VA -15VB +15VB FR RCH TO J803(P804) SUPPLY TO JS07(PS04) FUNCTION TO JC04(PC04) SUR,C,SB,SW VOL TO J701(P704) MAIN Lch TO J901(P904) MAIN Rch RHP-*W** GND N.C(ON) GND(OFF) S S S S 19 20 30 31 50 51 80 81 100 1 VDD1 RAMCEN RAMA16 RAMA15 SDIB0 SDIB1 SDIB2 XI XO VSS AVDD TEST TEST OVFB CPO AVSS VDD2 SDOA2 SDOA1 SDOA0 RAMA14 RAMA13 RAMA12 RAMA11 RAMA10 VSS VDD1 OPORT0 OPORT1 OPORT2 OPORT3 OPORT4 OPORT5 OPORT6 OPORT7 VSS VDD2 RAMA9 RAMA8 RAMA7 SDOB2 SDOB1 SDOB0 SDBCK1 SDWCK1 VSS VDD2 NONPCM CRC MUTE KARAOKE SURENC RAMA6 RAMA5 VSS RAMA4 IC TEST RAMA3 CSB CS SO SI SCK RAMA2 VDD1 RAMD0 RAMD1 RAMD2 RAMD3 RAMD4 RAMD5 RAMD6 RAMD7 VSS VDD2 SDWCK0 SDBCK0 SDIA0 SDIA1 RAMA1 RAMA0 RAMWEN RAMOEN VSS VDD2 IPORT7 IPORT6 IPORT5 IPORT4 IPORT3 IPORT2 IPORT1 IPORT0 VSS YSS912 SDBCK0 DTSDATA AC3DATA SDOB3 SDIB3 AC-3,DTS,PRO-LOGIC DECODER 1 12 13 24 25 36 37 48 80 1 24 25 40 41 64 65 33 32 16 17 64 1 49 48 SDOUT1 SDOUT2 SDOUT3 SDOUT4 DVDD DVSS SDIN1 SDIN2 SDIN3 LRCLK BITCLK CLKO CTRL DVDD DVSS XTI XTO TESTI1 INIT_RESET DSP_RESET SMODE JX RQ SCLK SI DVSS DVDD SO RDY DRDY LSEL CAS RAS WE A0 A1 A2 A3 A4 DVSS DVDD A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 DVDD DVSS OE IO0 IO1 IO2 IO3 IO4 IO5 IO6 IO7 10 20 30 40 60 GND VCC 1G B 1C3 1C2 1C1 1C0 1Y 2G A 2C3 2C2 2C1 2C0 2Y 1 8 9 16 NC IN GND VCC OUT 1 2 3 4 5 6 7 8 9 10 GND TRIG RST OUT THRE DISC VCC CONT NC IN GND VCC OUT 1 2 3 4 5 6 7 8 TMP93PW44ADF 2 3 2 3 2 3 2 3 OUT VDD GND D3 D2 D1 D0 Y W ST GND VCC D4 D5 D6 D7 A B C 1 8 9 16 D3 D2 D1 D0 Y W ST GND VCC D4 D5 D6 D7 A B C 1 8 9 16 VDD GND S0 X1 REF CLK S1 X2 GND VCC A1 Y2 A2 Y1 G G QR04 RR01 RR02 CR01 CR02 QR01 QR01-1 QR01-3 QR01-2 QR01-4 RR29 CR03 QR01-5 QR01-6 RR03 CR09 RR18 CR08 JR09 CR17 C635 C633 X692 C696 C699 Q694-1 Q694-2 C640 R613 Q615 Q606 CR29 CR24 CR30 CR28 CR18 CR19 RR22 CR27 QR06-1 QR06-2 QR06-5 QR06-3 QR06-4 RR26 RR19 CR21 C618 Q613 C619 C620 C626 QD52 C623 RR21 QR06-6 CR64 CR67 J692 RR30 JR12 CR34 CR35 C615 R614 Q694-3 R616 C636 C680 Q616 R692 C683 DR01 DR02 RR07 RR08 RR10 RR11 QR04-2 QR04-3 QR04-4 RR13 RR04 RR05 JR04 JR01 RR06 JR05 RR15 JR06 RR16 CR11 LR01 JR08 DC04 DC05 RR09 DR03 L692 L693 L694 L695 L696 L697 L698 C698 R690 C697 Q695 R694 R680 R676 R691 DC01 DC02 DC03 C690 QR02 QR03 CR26 CR20 CR22 C602 NC04 NC05 NC06 NC07 NC08 NC09 NC10 NC11 NC12 NC13 NC14 NC15 NC16 NC18 NC19 R608 R607 R606 R603 R602 R601 C621 C624 C625 C622 R696 R620 R621 R633 CR62 CR63 CR65 CR66 NC17 D694 D695 D693 D696 LD59 LR02 L602 LR55 LR54 D698 R631 R682 R634 R669 R670 R671 R672 R673 R674 Q601 QR05 Q609 CR16 C694 R681 C691 R689 R688 R687 R686 R685 R684 C693 CR33 CR32 Q604 Q607 R605 C609 C601 C606 R604 C603 C607 X601 C608 C605 C614 C613 C617 R612 C612 R611 R610 R609 C611 C610 C642 R636 R635 C641 C632 C631 C630 C634 CR31 C692 CR14 CR15 CR12 RR17 JR07 CR06 RR14 CR05 CR04 CR07 RR12 R679 R678 QR04-1 Q618-1 Q694 QR06 C681 Q605 C695 RR25 CR25 RR24 CR23 RR23 C682 R697 Q618 R695 R693 C627 Q617 R615 C629 C628 R617 R638 R683 CR10 R630 R632 J655 CR79 CR77 CR78 74HC00F 75 75 0.1 50V 0.1 50V 74HCU04F 0 0.1 50V 75 0.1 16V 33 1000P 50V YL01010320 0.1 16V 0.1 16V 0.1 16V 20MHz 22p 50V 22p 50V 0.1 16V 10k TC7W32FU 74HC153AP 0.1 16V 0.1 50V 0.1 16V 0.1 16V 0.01 0.01 5.1K 0.1 16V 6.8K 47K 0.01 50V 0.1 16V TC7SH04FU 0.01 0.01 220/10V BA033T 100/10V 10K 100/10V 100/10V B10B-PH 47 0.01 50V 0 0.1 16V 10k 0 220/6.3V 0.1 16V TC7SH04FU 0 100/10V 1SS302 1SS302 100K 100K 4.7K 4.7K 10K 1K 1K 1K 10K 75 470P 50V 100K 1SS302 BLm11 BLm11 BLm11 BLm11 BLm11 BLm11 BLm11 0.1 16V 47k 0.01 50V S-807 4.5V 0 10k 10k 47k 0.1 16V 74HC151AF 74HC151AF 47/16V 100/10V 0.1 16V 100/10V 0 0 0 0 0 0 100/10V 0.01 0.01 0.01 10k 0 0 0 0.01 0.01 0.01 0.01 ISS301 ISS301 ISS300 ISS301 0.022 0.022 0.022 0.022 0.022 ISS300 47k 10k 10k 0 0 0 0 0 0 LC89055W 0.1 16V 0.1 16V 10k 0.01 50V 10k 10k 10k 10k 10k 10k 0.1 16V 0.1 16V 0.1 16V AK7706 TC7W125FU 10k 470p 50V 0.1 16V 100/10V 1M 22p 50V 22p 50V 12.288MHz 0.1 16V 0.1 16V 0.1 16V 0.01 50V 0.1 16V 100k 0.1 16V 0 0 0 0.1 16V 0.1 16V 0.01 50V 100k 100k 0.01 50V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 100/10V 0.1 50V 33 0.1 16V 10K 0.1 16V 0.1 16V 100/10V 4.7K 10k 10k TC7W04FU 74HCT7007 220/6.3V ICS502M 100/10V 75 0.01 50V 3K 0.01 50V 8.2K DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY B8B-PH DAMMY DAMMY DAMMY DAMMY 5VD 5VD 5VD 5VD 5DA 5DA 5DA 5DA 5DA 5DA 5DA 5DA 5DR 33D 5DY 5DY 5DY 33D 33D 5DY 33D 33D 5DY 33D +5VD 5VD 33D 5DA 5DA +5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD +5VD 5VD 5VD 5VD 5DR 5DR 5DR 5DR 5DR 5DR 5VD 5DR 5DY 33D +5VD 5VD 5VD 5DA 3DM 5VD 5VD 5VD 5VD 5V-20 5V-20 5V-20 5V-20 5V-21 5V-21 5V-21 5V-21 5V-21 5V-21 _RSTDA _ATT FS96 _RSTAD MIXF MCLK2 BCLK2 WCLK2 LRDA SRDA2 CWDA2 SBDA2 5V-21 5V-21 SFMT 5V-22 3.3V-23 5V-24 5V-24 5V-24 3.3V-23 3.3V-23 5V-24 3.3V-23 3.3V-23 5V-24 3.3V-23 5V-20 MIXS 5V-20 3.3V-23 RC-5 HPMUTE HPFS1 HPFS0 _HPPD HPMO1 HPMO0 HPBUSY _J3RST 5V-21 5V-21 _UMUTE 5V-20 EMUTE 5V-20 5V-20 5V-20 5V-20 CAL 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 ADDATA 5V-20 5V-20 5V-20 5V-22 5V-22 5V-22 5V-22 5V-22 5V-22 5V-20 5V-22 5V-24 3.3V-23 5V-20 5V-20 5V-20 EMUTE 5V-21 3.3V-26 RC-5 5V-20 5V-20 5V-20 5V-20 ZEROMUTE CWDA2 SRDA2 LRDA2 WCLK1 BLCK X12M _HPRST LRDA1 SRDA1 CWDA1 LRDA0 SRDA0 CWDA0 WCLK1 BCLK1 512FS 512FS _AKRST1 SCLK2 DO2 FS96 SMUTE _RSTAD _ATT _RSTDA MIXF IFDI IFDO IFSCK _IFACK _IFREQ _RESETC IFDI IFDO IFSCK _IFACK CAL _RSTDA FS96 CSFLAG _RSTAD KILLC CSEL3 CSEL2 CSEL1 ISEL1 ISEL2 ISEL3 _HPRST _IC CAL DO0 SCLK0 _IFREQ DI0 SMUTE _ATT _RESETC _CSD _CSBD _RQ _IRST _IC OVFB DHSEL ERF FS96 MCLK2 BCLK2 WCLK2 LRDA2 SDIDR DHDA0 SRDA2 CWDA2 SBDA2 ADDATA _XMODE _CEDIR SCLK1 CSFLAG XSTATE DO1 DI1 ADDATA SDIDR BCLK1 WCLK1 SBDA2 ISEL1 ISEL2 ISEL3 CSEL1 CSEL2 CSEL3 KILLC SCLK0 DO0 _CSD _CSBD LRDA0 SRDA0 CWDA0 SRDA1 LRDA1 CWDA1 SDIDR WCLK2 WCLK1 BCLK1 BCLK2 MCLK1 X12M LRDA2 SRDA2 CWDA2 OVFB _RQ DI1 DO1 SCLK1 D/_A _UMUTE _IRST _AKRST RDY1 XSTATE _XMODE _CEDIR RDY DI2 D/_A ERF _UMUTE MIXS _AKRST _IRST DI0 X12M SBDA1 SBDA1 MCLK2 MCLK1 FS96 HPMO0 MIXF MIXS HPMO1 _HPPD HPFS0 HPFS1 HPMUTE HPBUSY SCLK2 DO2 DHSEL BSP1 BSP1 DI2 _J3RST _J3RST HPBUSY HPMO0 HPMO1 _HPPD HPFS0 HPFS1 HPMUTE ERF _IC _J3RST _J3RST _AKRST1 _AKRST RDY RDY1 _J3RST _UMUTE _UMUTE MCLK2 CWDA2 SRDA2 LRDA2 WCLK1 BCLK1 X12M _HPRST TO P604-4/4 GND VCC GND VCC 1 1 2 3 4 5 6 8 9 10 11 12 13 1 2 3 4 10 11 12 13 DIGITAL DIGITAL INPUT INPUT D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 1 1 1 DIGITAL-OUT OPT DIGITAL-OUT COAX ISEL2 ISEL3 L L H H L L H L L DIG1 DIG2 DIG3 DIG4 DIG5 DIG6 H H L H L H L H H DIG.5 DIG.6 DIG.4 DIG.3 DIG.2 DIG.1 D1 D2 D3 D4 D5 D6 9 8 5 6 QR02 D2 D2 D2 D2 D2 D2 D2 D5 D5 D5 D5 D5 D5 D5 D5 DSPMUTE GND DSP-CLK DSP-DO DSP-DI DSP-REQ DSP-ACK DSP-RST MODE0 KEY4 KEY3 KEY2 KEY1 KEY0 VCC GND SW0 NMI DO0 DI0 SCLK0 DO1 DI1 SCLK1 VSS CLK AM8/16 X1 X2 EA REESET _ATT TEST1 TEST2 VCC VSS ALE ISEL1 ISEL2 ISEL3 CSEL1 CSEL2 CSEL3 KILLC D_A _UMUTE FS96 _CSDSP1 _CSBDSP1 _CEDIR _IC _XMODE VCC _RSTAD _IFACK IFSCK IFDO IFDI CSFLAG OVFB _IFREQ ERF VREFH VREFL AVSS AVCC KEY0 KEY1 KEY2 KEY3 KEY4 SMUTE XSATE GND VCC D2 D2 D2 D2 D5 D5 D2 GND VCC D2 D2 D2 D2 D2 D2 D2 D4 D4 D4 D4 D4 D4 D4 D4 D4 D4 DISEL DOUT DIN0 DIN1 DIN2 DGND DVDD R VIN LPF AVDD AGND CKOUT BCK LRCK DATAO XSTATE DGND XMCK XOUT XIN DVDD EMPH AUDIO CSFLAG F0/P0/C0 F1/P1/C1 F2/P2/C2 VF/P3/C3 DVDD DGND AUTO BPSYNC ERROR DO DI CE CL XSEL MOD0 MOD1 DGND DVDD DOSEL0 DOSEL1 CKSEL0 CKSEL1 XMOD 10 NC NC D2 D2 D2 D2 D2 MCLK BCLK WCLK D5 D5 D5 D5 D5 D4 _RQ _INITRST _AKRST _RSTDAC LOCK D2 D2 D2 D2 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 FOR AK7706 D5 FOR DSP56362 FOR.YSS912 D5 HPMODE0 HPMODE1 _HPPD HPFS0 HPFS1 HPMUTE TEST DO2 _HPRST RDY EMUTE RC-5 DSP-MUTE HPBUSY CAL _BYPASS DI2 DHSEL MIXF MIXS IN OUT RC-5 IN/OUT D2 D5 13 12 1 2 11 3 4 9 8 5 6 7 1 5 3 1 D4 D4 D4 D4 TO JU50(PU54) CONNECT D5 D5 D5 D5 P604-1/4 DSP RDR-*R** RDP-*6** D5 D5 M D4 D5 D5 D5 GND VCC D2 D2 ISEL2 TO P604-4/4 TO P604-3/4 TO P604-4/4 P604-1/4 DSP 21 22 + - + - + - + - 3 4 5 6 1 2 + - + - + - + - DGND MCLK CLATCH CCLK CDATA AGND FILTR ZEROR AVDD FILTB IDPM1 IDPM0 ZELOL MUTE LRCLK BCLK SDATA DVDD INT4X INT2X DEEMP IREF OUTL+ OUTL- FCR OUTR- OUTR+ RST DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 - + - + - + - + 1 2 3 4 1 2 3 4 5 6 7 CH31 CH33 RH63 RH65 RD01 RD02 RH29 RH43 RH41 RH45 RH47 RH49 RH51 RH53 RH55 RH57 RH05 RH31 RH37 RH39 RH33 RH35 RH69 RH67 RH01 RH59 RH61 RH07 RH03 QH01-1 QH01-2 CH32 CH34 RH64 RH66 RH30 RH44 RH42 RH46 RH48 RH50 RH52 RH54 RH56 RH58 RH06 RH32 RH38 RH40 RH34 RH70 RH68 RH02 RH60 RH62 RH08 RH04 QH02-1 QH02-2 RD03 RC05 RC11 RC09 RC06 RC12 RC10 RC42 RC17 RC18 RC01 RC07 RC02 RC08 RC03 RC19 RC04 RC20 RC13 RC14 JH01 RC25 RC31 RC29 RC26 RC32 RC30 RC41 RC37 RC38 RC21 RC27 RC22 RC28 RC23 RC39 RC24 RC40 RH21 RH25 RH13 RH17 RH23 RH27 RH15 RH19 RH22 RH26 RH14 RH18 RH24 RH28 RH16 RH20 RJ02 RJ04 RJ10 RJ12 RJ06 RJ08 RJ03 RJ01 RJ11 RJ09 RJ07 RJ05 RJ13 RJ14 RJ23 RJ22 RJ24 RJ27 RJ28 RJ15 RJ25 RJ16 RJ26 RJ21 QJ01-1 QJ01-2 QJ02-1 QJ02-2 RJ17 RJ18 RC15 RC16 LD01 LD05 LD02 LD06 CR71 CR72 CK50 CK49 LK42 LK41 CK58 CK57 LK44 LK43 CR70 CR75 CR76 CR73 CR74 QC04 QC24 QH03 QH04 QH05 QH06 QH23 QH24 QH13 QH21 QH19 QH20 QH22 QH14 QC07 JH04 JR10 RH09 RH11 RH12 RH10 RH85 RH86 RH87 RH88 RC81 RC73 QC17 RC74 RC75 RC76 QC01 QC02 QC05 QC06 QC09 QC10 QC11 QC12 QC21 QC22 QC25 QC26 CD25 CD17 CD21 CD13 CD09 CD05 CD01 LD09 QD01 CD29 CH21 CH09 CH13 CH15 CH17 CH19 CH37 CH35 CH23 CH25 CH11 CH27 CH29 CH22 CH10 CH14 CH16 CH18 CH20 CH38 CH36 CH24 CH26 CH12 CH28 CH30 QD02 CD26 CD18 CD22 CD14 CD10 CD06 CD02 LD10 QH27-1 CC01 CC07 CC09 QH27-2 CC02 CC08 CC10 CC05 CC06 CC03 CC04 CC11 CC12 QC23-1 CC21 CC27 CC29 QC23-2 CC22 CC28 CC30 CC25 CC26 CC23 CC24 CC31 CC32 CJ06 CJ08 CJ02 CJ04 CJ21 CJ07 CJ05 CJ03 CJ01 CJ11 CJ12 CJ22 CJ18 CJ17 CJ19 CJ20 CJ15 CJ16 CJ23 CJ25 CJ26 CR51 CR58 CR52 CR59 CK52 CK51 CK60 CK59 CR50 CR57 CH39 CH40 JH02 CR55 CR68 CR56 CR69 JH03 CR53 CR60 CR54 CR61 QH15 QH17 QH11 QH12 QH16 QH18 QH07 QH08 QH09 QH10 QH25 QH26 CH51 CH52 LR50 LR51 LR52 LR53 LR58 LR56 LR57 CJ27 CJ28 CH41 CH42 CH43 CH44 DH01 DH06 DH02 DH04 DH03 DH05 CJ24 CK75 CK76 CH01 CH03 CH02 CH04 CH45 CH47 DD01 RH89 CH46 CH48 RH36 RH90 DD02 CJ09 CJ13 CJ10 CJ14 CC33 CC13 470/25V 470/25V 47 47 2.7K 390 3.3K 120 120 68 22 22 33K 1K 1K 100 10K 3.3K 2.2K 2.2K 2.2K 2.2K 47K 560 10K 47 47 10K 10K NJM2082D NJM2082D 470/25V 470/25V 47 47 3.3K 120 120 68 22 22 33K 1K 1K 100 10K 3.3K 2.2K 2.2K 2.2K 47K 560 10K 47 47 10K 10K NJM2082D NJM2082D 390 10K 47K 100 10K 47K 100 1M 2.2K 2.2K 5.6K 10K 5.6K 10K 4.7K 2.2K 4.7K 2.2K 12K 12K B6B-EH 10K 47K 100 10K 47K 100 1M 2.2K 2.2K 4.7K 10K 4.7K 10K 4.7K 2.2K 4.7K 2.2K 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 10K 180K 10K 47K 47K 12K 560 12K 560 180K NJM2068M NJM2068M NJM2068M NJM2068M 15K 15K 1.2K 1.2K * * * * 100/10V 100/10V 220/16V 220/16V * * 220/16V 220/16V * * 100/10V 220/16V 220/16V 220/16V 220/16V DTA114EU DTA114EU 2SK170 BL 2SK170 BL 2SK170 BL 2SK170 BL 2SK170 BL 2SK170 BL 2SC2240 2SC2240 2SC2240 2SC2240 2SC2240 2SC2240 DTA114EU 18K 8.2K 8.2K 18K 10 10 10 10 1M 2.2K DTA114EU 2.2K 2.2K 2.2K 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 10/35V 0.1 16V 10/35V 0.1 16V 100/25V 0.1 16V 220/10V BLM11 AD1853JRS DAC 0.1 16V 33P 50V 330P 680P 680P 270P 270P 0.1 16V 0.1 16V 47/25V 2200P 470P 0.1 16V 0.1 16V 33P 50V 330P 680P 680P 270P 270P 0.1 16V 0.1 16V 47/25V 2200P 470P 0.1 16V 0.1 16V AD1852JRS DAC 10/50V 0.1 16V 10/50V 0.1 16V 100/10V 0.1 16V 100/10V BLM11 NJM2068M 10/50V 100/10V 220P 50V NJM2068M 10/50V 100/10V 220P 50V 220P 50V 220P 50V 0.01 0.01 47/25V 47/25V NJM2068M 10/50V 100/10V 220P 50V NJM2068M 10/50V 100/10V 220P 50V 220P 50V 220P 50V 0.01 0.01 22/50V 22/50V 270P 270P 820P 820P 0.1 16V 270P 270P 820P 820P 680P 680P 0.1 16V 22/50V 22/50V 220P 220P 47P 47P 0.1 16V 100/25V 100/25V 0.01 0.01 0.01 0.01 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.01 0.01 220P 220P B4B-EH 0.01 0.01 0.01 0.01 B7B-PH 0.01 0.01 0.01 0.01 2SA970 2SA970 2SK389 GR/BL 2SK389 GR/BL 2SA970 2SA970 2SKJ74 BL 2SKJ74 BL 2SKJ74 BL 2SKJ74 BL 2SKJ74 BL 2SKJ74 BL 220P 220P 0.022 0.022 0.022 0.022 0.022 0.022 0.022 22/50V 22/50V 22/25V 22/25V 22/25V 22/25V 1SS302 1SS302 1SS302 1SS302 1SS302 1SS302 0.1 16V DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY 2.2K DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY A9 A9 A9 A9 -15VC 5VA -15VD +5VA A11 A11 A11 A11 +15VC -15VC +15VD -15VD -15VC 5VA 5VA 5DD A9 A9 A9 +15VC -15VC A9 A9 A9 A9 -15VC +15VC A9 +15VC -15VC A9 A9 A9 A9 -15VC +15VC 5VA A11 A11 5DD +15VC -15VC A9 A11 +15VD -15VD +15VC -15VC +15VC +15VC -15VC +15VC -15VD +15VD -15VD +15VD A9 A11 5DD 5VA D8 D8 D10 D10 +15VG -15VG A9 +15VA -15VA A11 5VD D8 A15 D10 D14 D12 A9 A11 A13 +15VA -15VA +15VG -15VG A9 A9 A9 A11 0V-9 0V-9 0V-9 0V-9 -15V-37 5V-31 -15V-39 5V-31 0V-11 0V-11 0V-11 0V-11 15V-36 -15V-37 15V-38 -15V-39 SL SR LT RT -15V-37 5V-31 ALLMUTE ZEROFR ZEROMUTE ZEROMUTE ZEROSR AAA 5V-31 5V-30 0V-9 0V-9 SFMT _RSTDA FS96 MCLK2 BCLK2 WCLK2 LRDA 0V-9 15V-36 -15V-37 0V-9 0V-9 0V-9 0V-9 -15V-37 15V-36 0V-9 15V-36 -15V-37 0V-9 0V-9 0V-9 0V-9 -15V-37 15V-36 SRDA2 5V-31 0V-11 0V-11 5V-30 MIXF 15V-36 -15V-37 SWMIXF 0V-9 0V-11 MIXS 15V-38 -15V-39 SWMIXS 15V-36 -15V-37 15V-36 15V-36 -15V-37 15V-36 -15V-39 15V-38 -15V-39 15V-38 0V-9 0V-11 5V-30 5V-31 0V-8 0V-8 0V-10 0V-10 15V-44 -15V-45 0V-9 15V-32 -15V-33 0V-11 5V-20 0V-8 0V-15 0V-10 0V-14 0V-12 0V-9 0V-11 0V-13 15V-32 -15V-33 15V-44 -15V-45 MIXS 0V-9 0V-9 ALLMUTE ALLMUTE ALLMUTE _UMUTE ZEROFR ZEROSR 0V-9 0V-11 FS96 MCLK2 LRDA WCLK2 BCLK2 MCLK2 FS96 _RSTDA WCLK2 BCLK2 LRDA SRDA2 SRDA2 BCLK2 WCLK2 SFMT SFMT FS96 MCLK2 SFMT _RSTDA _RSTDA HDAM SHILED + - 032G M M M 2 3 4 1 5 6 8 7 M M M + - M M M 2 3 4 1 5 6 8 7 M M M M M M M M 5 6 8 7 3 2 4 1 8 4 M M M M M M M M M M 2 3 4 1 2 3 1 5 6 8 7 5 6 7 4 8 L.P.F FL OUT FR OUT M DAC for Surr.ch SubWoofer Mix M M D2 FOR DIG M 5VD D6 FOR AD/DA-DIG A7 FOR AD/DA-ANA GND GND 5VA FOR AD/DA +/-15V A7 LT IN RT IN D5 GND GND +15VA -15VA +15VB -15VB TO JS06(PS04) 1 2 3 7 5 6 TO FUNCTION JS06(PS04) TO JB03(PB04) BUCK-UP TO J804(P804) SUPPLY D4 M M THD=0.0005% Gain=-0.4dB+6dB(0.952x2) NOISE(FLAT) =4.85UV NOISE(100KHZ)=4.85UV NOISE(20KHZ) =2.16UV Noise(A-Weig)=1.80uV 1kHz,0dB=1.333V RDD-*H** I/V Conveter P604-2/4 L.P.F RDD-*J** DSP 1kHz,0dB(-3dBdown)=0.70V fc=115kHz 1kHz,0dB=1.537V DAC for Front.ch RDD-*D** Front.Lch Front.Rch Surr.Lch Surr.Rch GND 1kHz,0dB=1.466V 10k*2//8.2k=3.11k 1kHz,0dB=1.166V 1kHz,0dB=2.00V S S S S S S S TO 3/4PAGE TO P604-1/4 P604-2/4 DSP TO P604-3/4 TO P604-3/4 23 24 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - 1 2 3 4 5 6 7 8 9 DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 VREFL GNDL VCOML AINL+ AINL- ZCAL VD DGND CAL RST SM2 SM1 LRCK SCLK SDATA FSYNC MCLK DFS HPFE TEST BGND AGND VA AINR- AINR+ VCOMR GNDR VREFR - + - + RK33 RK21 RK25 RK23 RK19 RK01 RK03 RK05 RK07 RK15 RK17 RK09 RK11 RK13 QK03-2 QK05-1 QK03-1 QK05-2 LK01 RK27 RK29 RK22 RK26 RK24 RK20 RK02 RK04 RK06 RK08 RK16 RK18 RK10 RK12 RK14 QK04-2 QK06-2 QK04-1 QK06-1 RK28 RK30 RC53 RC56 RC51 RC62 RC69 RC55 RC57 RC59 RC52 RC54 RJ32 RJ34 RJ40 RJ42 RJ36 RJ38 RJ33 RJ31 RJ41 RJ39 RJ37 RJ35 RJ43 RJ44 RJ51 RJ47 RJ48 RJ52 RJ55 RJ56 RJ45 RJ53 RJ46 RJ54 RJ49 RJ50 QJ31-1 QJ31-2 QJ32-1 QJ32-2 RJ62 RJ64 RJ70 RJ72 RJ66 RJ68 RJ63 RJ61 RJ71 RJ69 RJ67 RJ65 RJ73 RJ74 RJ81 RJ77 RJ78 RJ82 RJ93 RJ94 RJ75 RJ91 RJ76 RJ92 RJ79 RJ80 QJ61-1 QJ62-1 QJ61-2 QJ62-2 RJ87 RJ89 RJ83 RJ85 RJ88 RJ90 RJ84 RJ86 LD03 LD07 LD04 LD08 RK34 RK35 LK03 CK64 CK63 LK05 LK45 CK68 CK67 LK47 LK46 CK72 CK71 LK49 LK48 JJ01 QK07 QK08 QK12 QJ63 QJ64 RJ95 RJ96 RC72 RC77 RC78 RC79 RC80 QC13 QC14 QC15 QC16 QK10 QK11 QD03 CD27 CD19 CD23 CD15 CD11 CD07 CD03 LD11 QD04 CD28 CD20 CD24 CD16 CD12 CD08 CD04 LD12 CK05 CK03 CK19 CK21 CK23 CK01 CK17 CK27 CK15 CK25 CK13 CK29 CK07 CK09 CK11 QK01 CK06 CK04 CK20 CK22 CK24 CK02 CK18 CK28 CK16 CK26 CK14 CK30 CK08 CK10 CK12 QC53-1 QC53-2 CC56 CC51 CC52 CJ36 CJ38 CJ32 CJ34 CJ51 CJ37 CJ35 CJ33 CJ31 CJ41 CJ42 CJ52 CJ48 CJ47 CJ49 CJ50 CJ45 CJ81 CJ82 CJ83 CJ84 CJ66 CJ68 CJ62 CJ64 CJ67 CJ65 CJ63 CJ61 CJ71 CJ72 CJ78 CJ77 CJ79 CJ80 CJ75 CJ76 CJ87 CJ89 CJ88 CJ90 CJ91 CJ95 CJ93 CJ97 CJ92 CJ96 CJ94 CJ98 CK43 CK44 CK66 CK65 CK45 CK47 CK48 CK46 CK70 CK69 CK74 CK73 CK61 CK62 QJ65 QJ66 CJ29 CJ30 CJ53 CJ54 CJ55 CJ56 CJ57 CJ58 CJ59 CJ60 DK01 DK04 DK02 DK03 CK32 CK34 CK36 CK42 LK02 CK41 RK36 CK40 CK37 CK39 CK38 RK31 CK35 CK31 CK33 RC61 CC55 QC51 CJ46 CJ69 RK39 RK41 DD03 CJ39 CJ43 CJ44 CJ40 RK32 DD04 CJ73 RK37 CJ74 CJ70 RK42 RK40 JK01 CK77 RC71 1M 10K 330 10K 330 5.6K 2.7K 2.2K 4.7K 10K 10K 10K 10K 10K NJM2068M NJM2068M NJM2068M NJM2068M * 10 10 10K 330 10K 330 5.6K 2.7K 2.2K 4.7K 10K 10K 10K 10K 10K NJM2068M NJM2068M NJM2068M NJM2068M 10 10 47K 2.7K 470 10K 2.2K 1.2K 8.2K 1.5K 470 47K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 10K 22K 22K 10K 47K 47K 47K 560 47K 560 180K 180K NJM2068M NJM2068M NJM2068M NJM2068M 22K 22K 22K 22K 22K 22K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 470 10K 22K 1.8K 10K 47K 47K 47K 560 47K 560 180K 27K NJM2068M NJM2068M NJM2068M NJM2068M 47 47 47 47 47 47 47 47 * * * * 4.7K 4.7K * 220/16V 220/16V * * 220/16V 220/16V * * 220/16V 220/16V * * B9B-EH NJM78L09A NJM79L09A DTA114EU 2SK170 BL 2SK170 BL 10 10 22K 2.2K 2.2K 2.2K 2.2K 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B AD1852JRS DAC 10/50V 0.1 16V 10/50V 0.1 16V 100/10V 0.1 16V 100/10V BLM11 AD1852JRS DAC 10/35V 0.1 16V 10/35V 0.1 16V 220/6.3V 0.1 16V 220/6.3V BLM11 220P 50V 22/25V 100P 50V 1500P 0.1 16V 22/25V 10/50V 0.1 16V 100P 50V 0.1 16V 10/50V 0.1 16V 10/50V 47P 50V 220P 50V AK5383VS ADC 220P 50V 22/25V 100P 50V 1500P 0.1 16V 22/25V 10/50V 0.1 16V 100P 50V 0.1 16V 10/50V 0.1 16V 10/50V 47P 50V 220P 50V NJM2068M NJM2068M 220P 50V 220P 50V 220P 50V 270P 270P 820P 820P 0.1 16V 270P 270P 820P 820P 560P 560P 0.1 16V 22/50V 22/50V 220P 220P 47P 0.1 16V 0.1 16V 100/25V 100/25V 0.022 0.022 0.27 0.27 270P 270P 820P 820P 560P 470P 22/50V 22/50V 220P 220P 47P 47P 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 100/25V 0.1 16V 100/25V 0.1 16V 100/25V 0.1 16V 100/25V 10/35V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 2SKJ74 BL 2SKJ74 BL 22/50V 22/50V 22/25V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 22/50V 1SS302 1SS302 1SS302 1SS302 10/16V 0.1 16V 0.22U 220/6.3V * 0.1 16V 0 100P 50V 0.1 16V 0.1 16V 220/6.3V 0 0.22U 10/16V 0.1 16V 10K 220P 50V 2SC2878 A/B 47P DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY B2B-EH DAMMY DAMMY DAMMY -15VB 5DD A13 A13 A13 A13 A13 A15 A15 A15 A15 A15 A15 A15 A15 A15 A15 BIAS +15VB -15VB +15VE -15VE +15VF -15VF A15 5VA A13 A13 5DD 5VA A15 A15 5DD BIAS -15VB +15VB BIAS +15VB -15VB 5VA 5DD 5VA BIAS -15VB +15VB BIAS +15VB -15VB 5VA A15 A15 +15VF -15VF -15VE +15VE -15VE +15VE -15VF -15VF +15VF +15VF -15VF +15VF -15VF +15VF 5VA D12 D12 D14 D14 +15VA -15VA +15VA -15VA A13 +15VA -15VA A15 A13 A15 -15V-35 5V-30 ADDATA CAL SWMIXF SWMIXS 0V-13 0V-13 0V-13 0V-13 0V-13 0V-15 0V-15 0V-15 0V-15 0V-15 0V-15 0V-15 0V-15 0V-15 0V-15 2.5V-29 15V-34 -15V-35 15V-40 -15V-41 15V-42 -15V-43 0V-15 ZEROMUTE ZEROMUTE ZEROSW ZEROSBR _RSTDA FS96 MCLK2 BCLK2 WCLK2 SBDA2 5V-31 0V-13 0V-13 5V-30 5V-31 0V-15 0V-15 5V-30 _ATT 2.5V-29 LT -15V-35 15V-34 2.5V-29 15V-34 -15V-35 5V-31 5V-30 5V-31 FS96 MCLK2 BCLK2 WCLK2 _RSTAD 2.5V-29 RT -15V-35 15V-34 2.5V-29 15V-34 -15V-35 5V-31 0V-15 CWDA2 0V-15 15V-42 -15V-43 -15V-41 15V-40 -15V-41 15V-40 -15V-43 -15V-43 15V-42 15V-42 -15V-43 15V-42 -15V-43 15V-42 SFMT 5V-31 0V-12 0V-12 0V-14 0V-14 15V-32 -15V-33 15V-32 -15V-33 0V-13 15V-32 -15V-33 0V-15 0V-13 0V-15 SL SR AAA ALLMUTE ALLMUTE ALLMUTE ALLMUTE ZEROSBR ZEROSW MCLK2 SBDA2 WCLK2 BCLK2 MCLK2 SBDA2 BCLK2 WCLK2 CWDA2 BCLK2 WCLK2 WCLK2 BCLK2 WCLK2 BCLK2 CAL CAL _RSTAD _RSTAD FS96 MCLK2 SFMT SFMT SFMT _RSTDA _RSTDA _RSTDA MCLK2 FS96 FS96 FS96 FS96 MCLK2 CWDA2 M M M M M 8 6 5 4 7 2 3 8 1 4 D6 D6 D6 D6 D6 D6 M 8 4 2 3 8 1 6 5 4 7 5 6 8 7 3 2 4 1 M M M M M M M M 2 3 4 1 2 3 1 5 6 8 7 5 6 7 4 8 M M M M M M M M 2 3 1 2 3 1 5 6 7 5 6 7 M M 4 4 8 8 TO P604-1/4 M M RDA-*K** L.P.F RDA-*K** ADC Lch Rch A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 SBL OUT SBR OUT SW OUT CNT OUT SL OUT SR OUT GND GND GND 3 2 1 5 6 7 5 6 7 3 2 1 1 2 3 1 2 3 TO JC03(PC04) SUR,C,SB,SW VOL 1kHz,0dB=1.337V RDA-*K** RDD-*D** DAC for SurrBack.ch DAC for CNT/SW RDD-*C** SubWoofer.ch Center 30Hz,0dB=0.515V 1kHz,0dB=1.4V RDD-*J** L.P.F SurrBack.Lch SurrBack.Rch 1kHz,0dB=1.98V D6 FROM 2/4PAGE S S S S S S S S S S S S S S S S 1 2 A7 P604-3/4 DSP From 2/4Page From 2/4Page From 2/4Page From 2/4Page P604-3/4 DSP TO P604-1/4 25 26 33 32 16 17 64 1 49 48 A8 A9 A10 A11 A12 A13 A14 A15 VSS VDD A16 A17 A18 MISO MOSI SCK SS IF SW DSP3RST PINIT NC HPBUSY VDD NC NC HPMUTE HPFS1 HPFSO HPPD HPMO1 HPMO0 AVREF AVDD RESET XT2 XT1 IC X2 X1 VSS HREQ NC NC NC LED0 LED1 LED2 LED3 NC NC RD NC NC ASTB AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 NC AVSS 1 10 20 36 37 72 73 108 109 144 30 40 50 60 70 80 90 100 140 130 120 1 16 17 32 A0 A1 A2 A3 CE DO0 DO1 Vcc Vss DO2 DO3 WE A4 A5 A6 A7 A8 A9 A10 A11 A12 DO5 DO4 Vss Vcc DO6 DO7 OE A13 A14 A15 A16 1 16 17 32 A0 A1 A2 A3 CE DO0 DO1 Vcc Vss DO2 DO3 WE A4 A5 A6 A7 A8 A9 A10 A11 A12 DO5 DO4 Vss Vcc DO6 DO7 OE A13 A14 A15 A16 1 16 17 32 A0 A1 A2 A3 CE DO0 DO1 Vcc Vss DO2 DO3 WE A4 A5 A6 A7 A8 A9 A10 A11 A12 DO5 DO4 Vss Vcc DO6 DO7 OE A13 A14 A15 A16 NC IN GND VCC OUT 1 2 3 4 5 6 7 Q654-1 Q654-2 Q654 Q653 Q655 Q655-1 Q655-3 Q655-2 Q652 R622 R623 R624 R626 J651 Q651 C646 C647 C648 C616 R648 R649 R661 C643 C639 R662 C644 C649 R627 X693 C645 R641 R640 R639 R629 R628 R642 R643 R645 R646 R647 C637 Q608 Q612 Q610 Q611 C650 C651 C652 C653 C654 C655 L650 C657 C658 C659 C660 C661 C662 C663 C664 C665 C666 C667 C668 C669 C670 C671 C675 C676 C677 C678 C604 Q614 C679 C656 R650 R651 R652 R653 R654 R655 R656 R657 R659 R660 R664 R666 R668 C672 C673 C674 L651 Q654-3 R619 R675 R665 R663 R667 R625 C638 C684 D697 R618 R644 R658 74HCT7007 M27C4001 TC7WHU04FU 74HC573AF 47k 47k 47k 47k B7B-EH 0.1 16V 100/10V 0.1 16V 0.1 16V 10k 10k 10k 100/10V 0.1/16V 10k 0.1 16V 0.01 50V 100k 8MHz 0.1 16V 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0.1 16V M56362 SRAM(1M) SRAM(1M) SRAM(1M) 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V * 0.1 50V 0.015 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.01 50V 0.1 16V 0.1 16V TC7SH04FU 220/6.3V 22/25V 100k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0 10k 0.01 0.01 100/10V 0.022 0 0 DAMMY DAMMY DAMMY DAMMY 100/10V DAMMY DAMMY DAMMY DAMMY DAMMY 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 5VD 33D 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 5V-20 HPMUTE HPFS0 HPFS1 _HPPD HPMO0 HPMO1 HPBUSY _J3RST _SS _HPRST _J3RST 5V-20 3.3V-23 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 3DM 33D 3DM 3DM 3DM 3DM 3DM 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-23 3.3V-26 3.3V-26 3.3V-26 3.3V-26 3.3V-26 33D 3.3V-23 CWDA2 SRDA2 LRDA2 WCLK1 BCLK1 X12M _HPRST A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A8 A9 A10 A11 A15 A13 A14 A16 A17 A18 MISO MOSI SCK3 _SS _HPRST PINT _HREQ HPBUSY HPMUTE HPFS1 HPFS0 _HPPD HPMO1 HPMO0 _J3RST _RD ASTB AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 _RD AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD2 AD3 AD4 AD5 AD6 AD7 ASTB A0 A1 A2 A3 A4 A5 A6 A7 A12 A7 A6 A5 A4 A3 A2 A1 A0 AD0 AD1 AD7 _J3RST HPMUTE HPFS0 HPFS1 _HPPD HPMO0 HPMO1 HPBUSY _J3RST _IRQA _WR _RD RA0 RA1 RA2 RA3 RA4 RA5 RA6 RA7 RA8 RA9 RA10 RA11 RA12 RA13 RA14 RA15 RA16 RD7 RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 RD16 RD17 RD18 RD19 RD20 RD21 RD22 RD23 RA4 RA5 RA6 RA8 RA9 RA10 RA11 RA12 RA4 RA5 RA6 RA8 RA9 RA10 RA11 RA12 RA4 RA5 RA6 RA8 RA9 RA10 RA11 RA12 _WR RD3 RD2 RD1 RD0 RA3 RA2 RA1 RA15 _RD RD7 RD6 RD5 _WR RD11 RD10 RD9 RA3 RA2 RA1 RA15 _RD RD15 RD14 RD13 _WR RD20 RD21 RD22 RD23 RA3 RA2 RA1 RA15 _RD RD16 RD17 RD18 SCLK3 MISO MOSI _SS _HREQ _IRQA RA0 RA7 RD19 RA14 RA16 RA0 RD8 RA7 RD12 RA14 RA16 RA0 RA7 RD4 RA13 RA14 RA16 RA13 RA13 AA2 AA2 CWDA2 SRDA2 LRDA2 WCLK1 BCLK1 X12M DHA0 PINT _HPRET RD6 RD5 RD4 RD3 RD2 RD1 RD0 CWDA2 SRDA2 LRDA2 WCLK1 BCLK1 X12M P604-4/4 DSP SUB-CPU UPD780021F D4 D4 D4 D4 D4 GND VCC D4 D4 D4 D4 D4 D4 D4 D4 D4 D4 1 16 17 32 D4 D4 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 FOR DSP56362 SCK _SS _HREQ SDO0 SDO1 SDI3 SDI2 VCC GND SDI1 SDI0 NC D5 FST FSR SCKR SCKT HCKT HCKR VCC GND VCC _HDS HRW _HACK _HOREQ VCC GND ADO ACI TIO0 _HCS NC NC NC NC NC NC HA2 HA1 HA0 H7 H6 H5 NC NC NC NC NC NC NC H4 H3 VCC GND NC NC H2 H1 H0 _RESET VCC PCAP GND GND VCC AA3 NC AA2 _CAS _DE GND EXTAL VCC VCC GND CLKOUT NC NC NC D5 NC NC PINIT _TA _BR _BB VCC GND _WR _RD AA1 AA0 NC NC NC _BG A0 A1 VCC GND A2 A3 A4 A5 VCC A6 A7 A8 A9 VCC GND A10 A11 GND VCC A12 A13 A14 A15 VCC GND A16 A17 D0 D1 D2 VCC GND D3 D4 D5 D6 D7 D8 VCC GND D9 D10 D11 D12 D13 D14 VCC GND D15 D16 D17 D18 D19 VCC GND D20 VCC GND D21 D22 D23 D5 MODD MODC MODB MODA _TRST TDO TDI TCK TMS MOSI MISO D5 NC NC NC NC NC D5 D5 M TO J3 U-COM D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 TO P604-1/4 TO P604-1/4 P604-4/4 DSP 27 28 QC12 QC11 QJ02 QC26 QC25 - QC21 QJ01 QD02 QH26-QH12(Even No.) QH04-QH10(Even No.) QH25-QH11(Odd No.) QH03-QH09(Odd No.) QC15 QC15 QC51 QC53 QJ64 QJ63 - QJ66 QJ62 QJ61 QC17 QC09 QC10 QC05 QC06 QH27 QC01 QC02 QC07 QC04 QD01 QD04 Q652 Q653 Q651 Q654 Q608 Q612 - Q610 Q615 Q695 Q617 Q604 Q607 Q605 Q606 Q609 Q694 Q613 Q601 QAR06 QR05 QR01-QR03 QD03 QJ31 QJ32 QC13 QC14 QR04 Q618 QK07 QK08 QK01 QK06 - QK03 QK10 - QK12 P604 6. PARTS LOCATION 29 30 QN01 Q854 QN05 - QN03 Q850-Q852 Q830 Q853 Q805 Q806 Q801 Q803 Q804 Q802 P804 P884 QG01 QG02 QG03 - QG18 QG19 QG20 QG21 QW01 QW03-QW06 PG04 31 32 Q717 Q718 Q711 Q712 Q710 Q709 Q706 Q708 Q707 Q705 Q703 Q704 Q715 Q713 Q702 Q714 Q716 P704 Q917 Q918 Q911 Q912 Q910 Q909 Q905 Q907 Q907 Q906 Q904 Q903 Q915 Q913 Q902 Q914 Q916 P904 PB04 QB01 QB0 QB04 QB05 QB07 QB08 QB09 QB10-QB12 33 34 QF09 QQ19 QQ19 QQ20 QQ69 QQ52 QQ51 QQ22 QQ01 QQ70 QQ19 QQ19 QF02 QF01 QF20 QF60 QF59 QF51 QF58 PC04 QS02 QS01 QS05 QS04 QS03 Q405 QS01 PS04 35 36 QL01 QL06 QL07 QL05 QL09 QL02 QL03 QL04 QL08 PL04 QX05 QX06 - QX08 QX14-QX12 QX11 QX04 QX01 QX02 QX09 QX10 QX03 PL54 37 38 PU04 QU52 - QU58 QU39 QU38 QU07 QU08 QU51 QU51 QU09-QU13 QU01 QU04 QU05 QU06 QU81 PU34 PU44 PU54 PU64 PU74 PU94 PW04 39 7. IC DATA QU01 : TMP93PW44ADF Port Setting pin port name I/O use Name Opt. Act. P-Off Stop Note 1 P55/AN5 I AN VOL_V1 - - OP Vol Driver output 1 2 P56/AN6 I AN MODE_SW0 - - OP MODE SWITCH 0 3 P57/AN7 I - - - - OP - 4 MNI I - - To Vss 5 P60/TXD0 I/O O DO_ Audio - L OP Audio DO0 6 P61/RXD0 I/O O CE_ Audio H L OP Audio CE0 7 P62/SCLK0 I/O O CLK_ Audio - L OP Audio CLK0 8 P63/TXD1 I/O O DO_ Volume L L OP Volume DO1 9 P64/RXD1 I/O O CE_ Volume H L OP Volume CE1 10 P65/SCLK1 I/O O CLK_ Volume H L OP Volume CLK1 11 P70/WAIT I/O O LED0 L H OP PHONO LED 12 P71 I/O O LED1 L H OP CD LED 13 Vss I Vss - 14 P72 I/O O LED2 L H OP TAPE LED 15 P73 I/O O LED3 L H OP CDR/MD LED 16 P74 I/O O LED4 L H OP TV LED 17 P75 I/O O LED5 L H OP LD LED 18 P76 I/O O LED6 L H OP DVD LED 19 P77 I/O O LED7 L H OP VCR1 LED 20 CLK O - n.c. Pull up 21 AM8/16 I - n.c. Pull up 22 X1 I X1 20MHz 23 X2 O X2 20MHz 24 EA I - n.c. Pull up 25 RESET I RESET 26 P66/XT1 I/O O MOTOR_UP L H OP Motor Driver UP 27 P67/XT2 I/O O MOTOR_DOWN L H OP Motor Driver DOWN 28 TEST1 I - - To TEST2 29 TEST2 I - - To TEST1 30 Vcc I Vcc - 31 Vss I Vss - 32 ALE O - n.c. Pull up 33 P00/AD0 I/O O LED8 H L OP BS LED 34 P01/AD1 I/O O LED_STANDBY H L OP STAND BY LED 35 P02/AD2 I/O I DOOR_ SW H - OP Door SW 36 P03/AD3 I/O O 5V_POWER_ON H L OP 5V POWER output 37 P04/AD4 I/O O FL_POWER_ON H L OP FL output 38 P05/AD5 I/O O POWER_ON H - OP Power OFF output 39 P06/AD6 I/O O CLK_EEPROM - - OP EEPROM CLK 40 P07/AD7 I/O I/O DATA_EEPROM - - OP EEPROM DATA Port Setting pin port name I/O use Name Opt. Act. P-Off Stop Note 41 P10/AD8 I/O O DO_SURR - L OP Surr. I/F Data Out 42 P11/AD9 I/O I DI_SURR - - OP Surr. I/F Data In 43 P12/AD10 I/O O CK_SURR - L OP Surr. I/F CLK 44 P13/AD11 I/O I ACK_SURR L - OP Surr. I/F Acknowledge. 45 P14/AD12 I/O O REQ_SURR L L OP Surr. I/F Request 46 P15/AD13 I/O O RST_SURR L L OP Surr. I/F Reset 47 P16/AD14 I/O O SOFT_MUTE H L OP Soft Mute ON 48 P17/AD15 I/O - - - L OP - 49 P20/A0 I/O O RST_FL L H OP FL Driver Reset 50 P21/A1 I/O O CE_MUTE - L OP Mute(4094 Device0) CEM 51 P22/A2 I/O O CE_OSD0 L L OP CVBS OSD Driver CE 52 P23/A3 I/O O CE_OSD1 L L OP Y/C OSD Driver CE 53 P24/A4 I/O O CE_FL L L OP FL Driver CE 54 P25/A5 I/O O DO_DISP - L OP FL, OSD, Video I/F DO2 55 P26/A6 I/O O CK_DISP - L OP FL, OSD, Video I/F CLK2 56 P27/A7 I/O O CE_VIDEO L L OP Video(4094 Device1) CE2 57 Vcc I Vcc - 58 P30/RD O - - - L OP - 59 P31/WR O - - - L OP - 60 P32/SCK I/O I HEAD_PHONE_SW H - OP Head Phone Switch 61 P33/SO I/O I Function_ SW_A - - OP Function. SW A 62 P34/SI I/O I Function_ SW_B - - OP Function. SW B 63 P35/INT0 I/O INT POWER_DOWN L - OP Power Down 64 P40/INT1 I/O I VIDEO_DETECT0 L L OP CVBS Video Detector 65 P41/TO3 I/O I VIDEO_DETECT1 L L OP Y/C Video Detector 66 P42/INT4 I/O INT ALL_RC5_IN H L OP RC-5 Input(Main) 67 P43/INT5 I/O I - - - OP - 68 P44/TO4 I/O O MAIN_RC5_OUT H L OP Main RC-5 Output 69 P45/INT6 I/O INT POWER_ DOWN - - OP Power Down 70 P46/INT7 I/O O KILL_IR H L OP Kill IR signal 71 P47/TO6 I/O O SPEAKER_OFF H H OP Speaker Relay OFF 72 VrefH I VrefH - 73 VrefL I VrefL - 74 Avss I Avss - 75 Avcc I Avcc - 76 P50/AN0 I AN POWER_DETECT0 - - OP Power Detect 0 77 P51/AN1 I AN POWER_DETECT1 - - OP Power Detect 1 78 P52/AN2 I AN KEY_INPUT0 - - OP Key Input 0 79 P53/AN3 I AN KEY_INPUT1 - - OP Key Input 1 80 P54/AN4 I AN VOL_V0 - - OP Vol. Driver output 0 I I Q609 : TMP93PW44ADF pin port name I/O use Name Port Setting Note Opt. Act. Init. Stop 1 P55/AN5 I I MODE_SW0 - - Link Host or _Stand alone 2 P56/AN6 I I HPBUSY H - Dolby HP system busy 3 P57/AN7 I CAL H - ADC Calibration 4 NMI - - - - to GND 5 P60/TXD0 I/O O DO0 H Data out to DSP1 6 P61/RXD0 I/O I DI0 - Data In from DSP1 7 P62/SCLK0 I/O O SCLK0 H Clock Out to DSP1 8 P63/TXD1 I/O O DO1 H Data out to DIR 9 P64/RXD1 I/O I DI1 - Data In from DIR 10 P65/SCLK1 I/O O SCLK1 H Clock Out to DIR 11 P70/WAIT I/O O HPMODE0 L Dolby HP mode 12 P71 I/O O HPMODE1 L Dolby HP mode 13 Vss I Vss GND - - GND 14 P72 I/O O _HPPD L L Dolby HP system down 15 P73 I/O O HPFS0 L Dolby HP fs 16 P74 I/O O HPFS1 L Dolby HP fs 17 P75 I/O O HPMUTE H L Dolby HP mute 18 P76 I/O O BYPASS H L Bpass DSP 2 19 P77 I DI_DSP2 - - Data from AK7706 20 CLK - n.c. - - pull up 21 AM8/16 - n.c. - - pull up 22 X1 X1 20MHz - - 23 X2 X2 20MHz - - 24 EA - n.c. - - pull up 25 RESET I RESET _RSTC L - Reset from Main CPU 26 P66/XT1 I/O O SMUTE H H Soft mute by DAC 27 P67/XT2 I/O O _ATT L H Attenuate to ADC IN 28 TEST1 - - - - Connect to TEST2 29 TEST2 - - - - Connect to TEST1 30 Vcc I Vcc +5VD - - Vcc 31 Vss I Vss GND - - GND 32 ALE - fixed - - pull up 33 P00/AD0 I/O O ISEL1 - - Digital Input Selector 34 P01/AD1 I/O O ISEL2 - - Digital Input Selector 35 P02/AD2 I/O O ISEL3 - - Digital Input Selector 36 P03/AD3 I/O O CSEL1 - - Digital output Selector 37 P04/AD4 I/O O CSEL2 - - Digital output Selector 38 P05/AD5 I/O O CSEL3 - - Digital output Selector 39 P06/AD6 I/O O KILLC H - Kill Digital output 40 P07/AD7 I/O I _WR_J3 L - J3 Write Flash Mem. *1 I/O O I I I O I I O pin port name I/O use Name Port Setting Note Opt. Act. Init. Stop 41 P10/AD8 O CLK_DSP2 H Clock for AK7706 42 P11/AD9 O D_A - H Digital / _Analog select 43 P12/AD10 O DO_DSP2 H Data for AK7706 44 P13/AD11 O _UMUTE L L Hard Mute for Tr 45 P14/AD12 O FS96 H L 96kHz fs 46 P15/AD13 O HPDATA H L select HP data 47 P16/AD14 O _RESETHP L L reset for HP 48 P17/AD15 O _CS_DSP1 L H _CS_DSP1(main DSP) 49 P20/A0 O _CSB_DSP1 L H _CS DSP1(sub DSP) 50 P21/A1 O _REQ_DSP2 L H _RQ for AK7706 51 P22/A2 O _CE_DIR L G _CE for DIR 52 P23/A3 O _INITRST L L Initial Reset AK7706 53 P24/A4 O _RSTDSP2 L L DSP Reset AK7706 54 P25/A5 O _RSTDA L L Reset DAC 55 P26/A6 O _IC L L Reset DSP1 56 P27/A7 O _XMODE L L _Reset DIR 57 Vcc Vcc +5VD - - Vcc 58 P30/RD O _RSTAD L L Reset & Cal for ADC 59 P31/WR O _IFACK L H Ack to main CPU 60 P32/SCK I IFSCK - - Clock from main CPU 61 P33/SO O IFDO - H Data to main CPU 62 P34/SI I IFDI - - Data from main CPU 63 P35/INT0 INT OVFB H - Over Level (sub DSP1) 64 P40/INT1 INT XSTATE H - MCLK status(L:/unstable) 65 P41/TO3 O MIXF - L SW mix to Front LR 66 P42/INT4 INT (LOCK) L - Reserved 67 P43/INT5 INT ERF H - DIR Error 68 P44/TO4 I CSFLAG H - Ch. Status(fall edge DIR) 69 P45/INT6 INT _IFREQ L - Request from main CPU 70 P46/INT7 INT RDY_DSP2 - - Ready for AK7706 71 P47/TO6 O MIXS - L SW mix to Surr LR&FrontL/R 72 VrefH VrefH +5VD - - ref High voltage for int. AD 73 VrefL VrefL GND - - ref Low voltage for int. AD 74 Avss Avss GND - - GND for Int. AD 75 Avcc Avcc +5VD - - Vcc for Int. AD 76 P50/AN0 AN KEY_INPUT0 - - Optional key input 0 77 P51/AN1 AN KEY_INPUT1 - - Optional key input 1 78 P52/AN2 AN KEY_INPUT2 - - Optional key input 2 79 P53/AN3 AN KEY_INPUT3 - - Optional key input 3 80 P54/AN4 AN KEY_INPUT4 - - Optional key input 4 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I I I I I I I I I QU01 : TMP93PW44ADF Q609 : TMP93PW44ADF 40 Q651 : µPD78F0034GC PLL OnCE Clock Generator Internal Data Bus YAB XAB PAB YDB XDB PDB GDB MODB/IRQB MODC/IRQC External Data Bus Switch 11 MODD/IRQD DSP56300 12 16 24-Bit 24 18 DDB DAB Peripheral Core YM_EB XM_EB PM_EB PIO_EB Expansion Area SHI JTAG 6 5 RESET MODA/IRQA PINIT/NMI EXTAL Address Control Data Triple Timer Host Interface ESAI Address Generation Unit Six Channel DMA Unit Program Interrupt Controller Program Decode Controller Program Address Generator Data ALU 24 24 + 56 56-bit MAC Two 56-bit Accumulators 56-bit Barrel Shifter Power Mngmnt. DRAM/SRAM Bus Interface & I - Cache Control External Address Bus Switch Memory Expansion Area Program RAM/ Instruction Cache 3072 24 Program ROM 30K 24 Bootstrap ROM 192 24 X Data RAM 5632 24 ROM 6144 24 Y Data RAM 5632 24 ROM 6144 24 CLKOUT DAX (SPDIF) 2 Q608 : DSP56362 SDOUT3 SDOUT2 SDIN1 SDIN2 SDIN3 SDOUT1 DSP CONTROLLER XTO XTO SMODE CTRL XTI XTI CLKOUT BITCLK LRCLK JX SI RQ SO RDY DSP RESET INIT RESET JX DRDY DRDY SI RQ SO SCLK SCLK RDY CLKOUT BITCLK LRCLK SMODE CTRL DSP RESET INIT RESET TESTI1 TESTI1 SDOUT4 IO7~IO0 OE A16~A0 WE RAS CAS EXTERNAL RAM IO7~IO0 OE A16~A0 WE RAS CAS CONTROLLER SDOUT3 SDOUT2 SDOUT1 SDOUT4 SDIN1 SDIN2 SDIN3 CP0,CP1 CRAM 384 X 16 DP0,DP1 DRAM 256 X 24 MPX16 MPX24 Data IO7~IO0 Delay Data 16bit OFRAM 48 X 20 X Y Multiply 16 X 24 -> 40 Micon I/F Control PRAM 512 X 32 DEC PC Stack : 1level MUL DBUS SHIFT A B ALU 34bit Overflow Margin: 4bit DR0 ~ 3 Over Flow Data Generator Divider 24 24 16 Peak Detector TMP 8 X 24bit 2 X 24/20/16 bit 2 X 24/20/16bit 2 X 24/20/16bit 2 X 24bit 2 X 24bit 2 X 24bit Serial I/F CBUS(16bit) DBUS(24bit) 40bit 24bit 34bit 34bit 24bit SDIN1 SDIN2 SDIN3 SDOUT1 SDOUT2 SDOUT3 Ext RAM Control Address A16~A0 2 X 24bit SDOUT4 Q604 : AK7706VT Q651(µPD78F0034GC) Port Setting Pin Port Name I/O Use Name Opt. Act. P-Off Stop Note 1 P50/A8 I/O O A8 Address Bus 2 P51/A9 I/O O A9 Address Bus 3 P52/A10 I/O O A10 Address Bus 4 P53/A11 I/O O A11 Address Bus 5 P54/A12 I/O O A12 Address Bus 6 P55/A13 I/O O A13 Address Bus 7 P56/A14 I/O O A14 Address Bus 8 P57/A15 I/O O A15 Address Bus 9 Vss0 - Vss0 GND GND 10 Vdd0 - Vdd0 +5VD Power Supply 11 P30 I/O O A16 Address Bus 12 P31 I/O O A17 Address Bus 13 P32 I/O O A18 Address Bus 14 P33 I/O I RESERVE Pulled Down 15 P34/SI31 I/O I SI31_HPDSP Serial Input 16 P35/SO31 I/O O SO31_ HPDSP Serial Output 17 P36/SCK31 I/O O SCK31_ HPDSP Serial Clock 18 P20/SI30 I/O O SS_ HPDSP HPDSP Select 19 P21/SO30 I/O I IF_SW H= Switch, L=SUB2 20 P22/SCK30 I/O O HPDSP _RST L HPDSP Reset 21 P23/RxD0 I/O O PINIT HPDSP PINIT 22 P24/TxD0 I/O I RESERVE Pulled Down 23 P25/ASCK0 I/O O HPBUSY H SUB2 Busy Status 24 Vdd1 - Vdd1 +5VD Power Supply 25 Avss - AVss Vss0 26 P17/ANI7 I I RESERVE Pulled Down 27 P16/ANI6 I I RESERVE Pulled Down 28 P15/ANI5 I I HPMUTE H HPDSP Mute 29 P14/ANI4 I I HPFS1 HPDSP FS 30 P13/ANI3 I I HPFS0 HPDSP FS 31 P12/ANI2 I I _HPPD SUB2 System Down 32 P11/ANI1 I I HPMODE1 DH 33 P10/ANI0 I I HPMODE0 DH 34 Avref - Vss0 35 Avdd - Vdd0 36 RESET I I _RESETHP L SUB2 Reset 37 XT2 - - - Vdd0 38 XT1 I I - 39 IC - VPP 40 X2 - X2 8MHz 41 X1 I X1 8MHz 42 Vss1 - Vss1 GND GND 43 P00/INTP0 I I HREQ_ HPDSP HPDSP Request 44 P01/INTP1 I I RESERVE Pulled Down 45 P02/INTP2 I I RESERVE Pulled Down 46 P03/INTP3/ ADTRG I I RESERVE Pulled Down 47 P70/TI00/TO0 I/O O LED_BYPASS H BYPASS LED 48 P71/TI01 I/O O LED_DH1 H DH1 LED 49 P72/TI50/TO50 I/O O LED_DH2 H DH2 LED 50 P73/TI51/TO51 I/O O LED_DH3 H DH3 LED 51 P74/PCL I/O I _IRQA L_ Edge MODE A 52 P75/BUZ I/O I RESERVE Pulled Down 53 P64/RD I/O O READ H_ Edge Read Strobe 54 P65/WR I/O O WRITE 55 P66/WAIT I/O O WAIT Wait 56 P67/ASTB I/O O LATCH L_ Edge LATCH 57 P40/AD0 I/O I/O AD0 Address/Data Bus 58 P41/AD1 I/O I/O AD1 Address/Data Bus 59 P42/AD2 I/O I/O AD2 Address/Data Bus 60 P43/AD3 I/O I/O AD3 Address/Data Bus 61 P44/AD4 I/O I/O AD4 Address/Data Bus 62 P45/AD5 I/O I/O AD5 Address/Data Bus 63 P46/AD6 I/O I/O AD6 Address/Data Bus 64 P47/AD7 I/O I/O AD7 Address/Data Bus 41 SERIAL DATA INTERFACE 8 x Fs INTERPOLATOR SERIAL CONTROL INTERFACE AUTO-CLOCK DIVIDE CIRCUIT VOLUME MUTE CONTROL DATA INPUT 3 2 DIGITAL SUPPLY CLOCK IN ANALOG OUTPUTS 2 2 ZERO FLAG ANALOG SUPPLY DE-EMPHASIS MUTE RESET 2 SERIAL MODE 16-/18-/20-/24-BIT DIGITAL DATA INPUT AD1852 MULTIBIT SIGMA- DELTA MODULATOR ATTEN/ MUTE DAC MULTIBIT SIGMA- DELTA MODULATOR 8 x Fs INTERPOLATION ATTEN/ MUTE VOLTAGE REFERENCE DAC I Pin Input/ Output Pin Name Description 1 DGND Digital Ground. 2 MCLK Master Clock Input. Connect to an external clock source at either 256 FS, 384 FS, 512 FS, 768 FS, or 1024 FS. 3 I I I CLATCH Latch Input for Control Data. This input is rising-edge sensitive. 4 CCLK Control Clock Input for Control Data. Control input data must be valid on the rising edge of CCLK. CCLK may be continuous or gated. 5 CDATA Serial Control Input, MSB first, containing 16 bits of unsigned data per channel. Used for specifying channel-specific attenuation and mute. 6 NC No Connect. 7 I 192/48 Selects 48 kHz (LO) or 192 kHz Sample Frequency. 8 ZEROR Right Channel Zero Flag Output. This pin goes HI when Right Channel has no signal input for more than 1024 LR Clock Cycles. 9 DEEMP De-Emphasis. Digital de-emphasis is enabled when this input signal is HI. This is used to impose a 50 µs/15 µs response characteristic on the output audio spectrum at an assumed 44.1 kHz sample rate. Curves for 32 kHz and 48 kHz sample rates may be selected via SPI control register. 10 I 96/48 Selects 48 kHz (LO) or 96 kHz Sample Frequency. 11, 15 I AGND Analog Ground. 12 O OUTR+ Right Channel Positive Line Level Analog Output. 13 O OUTR– Right Channel Negative Line Level Analog Output. 14 O FI LTR Voltage Reference Filter Capacitor Connection. Bypass and decouple the voltage reference with parallel 10 µF and 0.1 µF capacitors to the AGND. 16 O OUTL– Left Channel Negative Line Level Analog Output. 17 O OUTL+ Left Channel Positive Line Level Analog Output. 18 I AVDD Analog Power Supply. Connect to Analog 5 V Supply. 19 FILTB Filter Capacitor Connection. Connect 10 µF capacitor to AGND (Pin 15). 20 I IDPM1 Input Serial Data Port Mode Control One. With IDPM0, defines 1 of 4 serial modes. 21 I IDPM0 Input Serial Data Port Mode Control Zero. With IDPM1, defines 1 of 4 serial modes. 22 O ZE ROL Left Channel Zero Flag Output. This pin goes HI when Left Channel has no signal input for more than 1024 LR Clock Cycles. 23 I MUTE Mute. Assert HI to mute both stereo analog outputs. Deassert LO for normal operation. 24 I R ESET Reset. The AD1852 is reset on the rising edge of this signal. The serial control port registers are reset to the default values. Connect HI for normal operation. 25 I L/RCLK Left/Right Clock Input for Input Data. Must run continuously. 26 I B CLK Bit Clock Input for Input Data. Need not run continuously; may be gated or used in a burst fashion. 27 I SD ATA Serial Input, MSB first, containing two channels of 16, 18, 20, and 24 bits of twos complement data per channel. 28 I DVDD Digital Power Supply Connect to digital 5 V supply. TableI. Serial Data Input Mode IDPM1 (Pin 20) IDPM0 (Pin 21) Serial Data Input Format 0 0 Right-Justified 0 1 I 2S-Compatible 1 0 Left-Justified 1 1 DSP I I O QD02 - QD04 : AD1852 42 SERIAL DATA INTERFACE 8 x Fs INTERPOLATOR SERIAL CONTROL INTERFACE AUTO-CLOCK DIVIDE CIRCUIT VOLUME MUTE CONTROL DATA INPUT 3 2 DIGITAL SUPPLY CLOCK IN ANALOG OUTPUTS 2 2 ZERO FLAG ANALOG SUPPLY DE-EMPHASIS MUTE 2 SERIAL MODE DIGITAL DATA INPUT AD1853 MULTIBIT SIGMA- DELTA MODULATOR ATTEN/ MUTE IDAC MULTIBIT SIGMA- DELTA MODULATOR 8 x Fs INTERPOLATOR ATTEN/ MUTE VOLTAGE REFERENCE IDAC INT2 x INT4 x RESET DCRAM 24w L8b CGROM 240w x 35b CGRAM 16w x 35b ADRAM 24w x 4b 8-bit Shift Register Command Decoder Control Circuit Timing Generator1 Oscillator Timing Generator2 Digit Control Duty Control Grid Driver Port Driver AD Driver Segment Driver Write Address Counter Read Address Counter Address Selector SEG1 SEG35 AD1 AD4 VDISP VDD GND VFL RESET DA CP CS OSC0 OSC1 P1 P4 COM1 COM24 QD01 : AD1853 QU02 : ML9205-01GA LRCK VREFL GNDL SCLK SMODE1 FSYNC Serial Output Interface SMODE2 DGND VA AGND BGND CAL RST VD Controller SDATA MCLK DFS HPFE ZCAL AINR- GNDR Delta-Sigma Modulator Delta-Sigma Modulator Voltage Reference Voltage Reference Decimation Filter Decimation Filter HPF HPF Calibration SRAM VCOML AINL+ AINL- AINR+ VCOMR VREFR 12 11 14 13 16 15 19 17 18 8 7 10 9 21 22 23 27 28 26 24 25 6 5 4 3 2 1 No. Pin Name I/O Func tion 1 VREFL O Lch Reference Voltage Pin, 3.75V Norm ally connected to GNDL with a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor. 2 GNDL - Lch Reference Ground Pin, 0V 3 VCOML O Lch Common Voltage Pin, 2.75V 4 AINL+ I Lch Analog posi tive input Pin 5 AINL- I Lch Analog negat ive input Pin 6 ZCAL I Zero Cal ibration Cont rol Pin This pin cont rol s the calibration referenc e signal . "L": VCOML and VCOMR "H": Analog Input Pins (AINL+-, AINR+-) 7 VD - Digital Power Suppl y Pin, 3.3V 8 DGND - Digital Ground Pin, 0V 9 CAL O Calibration A ctive Signal Pin "H" means the offset calibrat ion cyc le is in progress . Offset calibration starts when RS T goes "H". CAL goes "L" after 8704 LRCK cycles for DFS="L", 17408 LRCK cyc les for DFS ="H". 10 RST I Reset Pin When " L", Digital section is powered-down. Upon ret urni ng " H", an offset calibration cyc le is started. An offset calibration cyc le shoul d always be initiated after power-up. 11 SMODE2 I Serial Interface Mode Select Pin 12 SMODE1 I MSB first, 2's compliment. SMODE2 SMODE1 MODE LRCK L L Slave mode : MSB justified : H/L L H Master mode : Similar to 2I S : H/L H L Slave mode : I S : L/H 2 H H Master mode : I S : L/H 2 13 LRCK I/O Left/R ight Channel Select Clock Pin LRCK goes " H" at SMODE2="L" and " L" at SMODE2="H" duri ng reset when SMODE1 "H". 14 SCLK I/O Serial Data Clock P in Data is clocked out on the falling edge of SCLK. Slave mode: SCLK requi res m ore than 48f s clock. Master mode: SCLK output s a 128fs(DFS="L" ) or 64f s(DFS="H") clock. SCLK stays "L" duri ng reset. 15 SDATA O Serial Data Output Pin MSB first , 2's complement. SDATA stays " L" duri ng res et. 16 FSYNC I/O Frame Synchroni zation Signal Pin Slave mode: When "H", the data bits are clock ed out on SDATA. In I 2S mode, FSYNC is Don’t care. Master mode: FSYNC output s 2fs clock. FSYNC stays "L" duri ng reset . 17 MCLK I Master Clock I nput Pin 256fs at DFS="L", 128fs at DFS="H". 18 DFS I Doubl e Speed Sampling Mode Pin "L": Norm al Speed "H": Doubl e Speed 19 HPFE I High Pass Filter Enabl e Pin "L": Disable "H": Enabl e 20 TEST I Test Pin ( pul l-down pi n) Shoul d be connect ed to GND. 21 BGND - Subst rate Ground Pin, 0V 22 AGND - Analog Ground Pin, 0V 23 VA - Analog Suppl y Pin, 5V 24 AINR- I Rch Analog negat ive input Pin 25 AINR+ I Rch Analog posi tive input Pin 26 VCOMR O Rch Common Voltage Pin, 2.75V 27 GNDR - Rch Referenc e Ground P in, 0V 28 VREFR O Rch Referenc e Voltage Pin, 3.75V Norm ally connected to GNDR with a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor QK01 : AK5383 43 No. Name I/O FUNCTION 1 VDD1 - +5V power supply (for I/Os) 2 RAMCEN O External SRAM interface /CE 3 RAMA16 O External SRAM interface address 16 4 RAMA15 O External SRAM interface address 15 5 SDIB0 I+ PCM input 0 to Sub DSP 6 SDIB1 I+ PCM input 1 to Sub DSP 7 SDIB2 I+ PCM input 2 to Sub DSP 8 XI I Crystal oscillator connection (12.288 MHz) 9 XO O Crystal oscillator connection 10 VSS - Ground 11 AVDD - +3.3 V power supply (for PLL circuit) 12 SDIB3 I+ PCM input 3 to Sub DSP 13 TEST Test terminal (to be open in normal use) 14 TEST Test terminal (to be open in normal use) 15 OVFB O Detection of overflow at Sub DSP 16 DTSDATA O Detection of DTS data 17 AC3DATA O Detection of AC-3 data 18 SDOB3 O PCM output from Sub DSP 19 CPO A Output terminal for PLL, to be connected to ground through the external analog filter circuit 20 AVSS - Ground (for PLL circuit) 21 VDD2 - +3.3 V power supply (for core logic) 22 SDOA2 O PCM output from Main DSP (C, LFE) 23 SDOA1 O PCM output from Main DSP (LS, RS ) 24 SDOA0 O PCM output from Main DSP (L, R) 25 RAMA14 O External SRAM interface address 14 26 RAMA13 O External SRAM interface address 13 27 RAMA12 O External SRAM interface address 12 28 RAMA11 O External SRAM interface address 11 29 RAMA10 O External SRAM interface address 10 30 VSS - Ground 31 VDD1 - +5V power supply (for I/Os) 32 OPORT0 O Output port for general purpose 33 OPORT1 O Output port for general purpose 34 OPORT2 O Output port for general purpose 35 OPORT3 O Output port for general purpose 36 OPORT4 O Output port for general purpose 37 OPORT5 O Output port for general purpose 38 OPORT6 O Output port for general purpose 39 OPORT7 O Output port for general purpose 40 VSS - Ground 41 VDD2 - +3.3 V power supply (for core logic) 42 RAMA9 O External SRAM interface address 9 43 RAMA8 O External SRAM interface address 8 44 RAMA7 O External SRAM interface address 7 45 SDOB2 O PCM output from Sub DSP 46 SDOB1 O PCM output from Sub DSP 47 SDOB0 O PCM output from Sub DSP 48 SDBCK1 I+ Bit clock input for SDOA, SDIB, SDOB 49 SDWCK1 I+ Word clock input for SDOA, SDIB, SDOB 50 VSS - Ground 51 VDD2 - +3.3 V power supply (for core logic) 52 NONPCM O Detection of non-PCM data 53 CRC O Detection of AC-3 CRC error 54 MUTE O Detection of auto mute 55 KARAOKE O Detection of AC-3 karaoke data CPO XO XI SDOB0 SDOB1 SDOB2 SDWCK1 SDBCK1 OPORT0-7 IPORT0-7 SO SI SCK /CS OVFB RAMA0-16 RAMOEN RAMWEN RAMCEN RAMD0-7 SDIB2 SDIB1 SDIB0 SDOA2 SDOA1 SDOA0 Delay RAM SDIASEL SDIA1 SDIA0 SDWCK0 SDBCK0 /SDBCK0 /CSB SCK SI SDOACKSEL SDIBCKSEL SDOBCKSEL Operating clock (30MHz) CRC ERAMUSE External RAM SDOB Interface 24 * 16 Sub DSP SDIB Interface SDOA Interface SDIBSEL SDIA Interface Input Buffer decoder 24 * 24 Main DSP AC-3/Pro Logic/DTS Data RAM Microprocessor Control Registers Control signals Coefficient / Program RAM STREAM0-7 PLL L, R LS, RS C, LFE SDOB3 SDIB3 SURENC KARAOKE MUTE CRC AC3DATA DTSDATA NONPCM Interface Control signals interface Q601 : YSS912 44 No. Name I/O FUNCTION 56 SURENC O Detection of AC-3 2/0 mode Dolby surround encoded input 57 /SDBCK0 O Inverted SDBCK0 clock output (refer to Block diagram) 58 RAMA6 O External SRAM interface address 6 59 RAMA5 O External SRAM interface address 5 60 VSS - Ground 61 RAMA4 O External SRAM interface address 4 62 /IC Is Initial clear 63 TEST Test terminal (to be open in normal use) 64 RAMA3 O External SRAM interface address 3 65 /CSB Is+ Sub DSP Chip select 66 /CS Is Microprocessor interface Chip select input 67 SO Ot Microprocessor interface Serial data output 68 SI Is Microprocessor interface / Sub DSP Serial data input 69 SCK Is Microprocessor interface / Sub DSP clock input 70 RAMA2 O External SRAM interface address 2 71 VDD1 - +5V power supply (for I/Os) 72 RAMD0 I+/ O External SRAM interface data (STREAM0 output when External SRAM is not in use) 73 RAMD1 I+/ O External SRAM interface data (STREAM1 output when External SRAM is not in use) 74 RAMD2 I+/ O External SRAM interface data (STREAM2 output when External SRAM is not in use) 75 RAMD3 I+/ O External SRAM interface data (STREAM3 output when External SRAM is not in use) 76 RAMD4 I+/ O External SRAM interface data (STREAM4 output when External SRAM is not in use) 77 RAMD5 I+/ O External SRAM interface data (STREAM5 output when External SRAM is not in use) 78 RAMD6 I+/ O External SRAM interface data (STREAM6 output when External SRAM is not in use) 79 RAMD7 I+/ O External SRAM interface data (STREAM7 output when External SRAM is not in use) 80 VSS - Ground 81 VDD2 - +3.3 V power supply (for core logic) 82 SDWCK0 I Word clock input for SDIA, SDOA, SDIB, SDOB 83 SDBCK0 I Bit clock input for SDIA, SDOA, SDIB, SDOB 84 SDIA0 I AC-3 bitstream (or PCM) data input for Main DSP 85 SDIA1 I AC-3 bitstream (or PCM) data input for Main DSP 86 RAMA1 O External SRAM interface address 1 87 RAMA0 O External SRAM interface address 0 88 RAMWEN O External SRAM interface /WE 89 RAMOEN O External SRAM interface /OE 90 VSS - Ground 91 VDD2 - +3.3 V power supply (for core logic) 92 IPORT7 I+ Input port for general purpose 93 IPORT6 I+ Input port for general purpose 94 IPORT5 I+ Input port for general purpose 95 IPORT4 I+ Input port for general purpose 96 IPORT3 I+ Input port for general purpose 97 IPORT2 I+ Input port for general purpose 98 IPORT1 I+ Input port for general purpose 99 IPORT0 I+ Input port for general purpose 100 VSS - Ground NOTE) Is: Schmidt trigger input terminal I+: Input terminal with a pull-up resistor O: Digital output terminal Ot: Tri-state digital output terminal A: Analog terminal 45 C bit detection fs calculation Lock detection Data demodulation block Input block Pa, Pb detection Microcontroller IF No. Pin name I/O Function 1 DISEL I Data input pin (DIN0, DIN1) selection input pin 2 DOUT O Input bi-phase data through output pin 3 DIN0 I Digital data input pin (CMOS level, with pull-down resistance when no selected) 4 DIN1 I Digital data input pin (CMOS level, with pull-down resistance when no selected) 5 DIN2 I Digital data input pin (TTL level) 6 DGND Digital GND 7 DV DD Digital power supply 8 R I VCO gain control input pin 9 VIN I VCO free-running frequency setting input pin 10 LPF O PLL loop filter setting pin 11 A VDD Analog power supply 12 A GND Analog GND 13 CKOUT O Clock output pin (256 fs, 384 fs, 512 fs, crystal oscillation, VCO free-running oscillation) 14 BCK O 64 fs clock output pin 15 LRCK O fs clock output pin (L = R-ch, H = L-ch, I 2S = inverted) 16 DATAO O Data output pin 17 XSTATE O Source clock switch monitor output pin 18 DGND Digital GND 19 DV DD Digital power supply 20 XMCK O Crystal oscillation clock output pin (24.576 MHz or 12.288 MHz) 21 XOUT O Crystal oscillator connection output pin 22 XIN I Crystal oscillator connection input pin, external signal input supported (24.576 MHz or 12.288 MHz) 23 EMPHA O Channel status emphasis information output pin 24 AUDIO O Channel status bit 1 (non-PCM data detection bit) output pin 25 CSFLAG O First 40 channel status bits update flag output pin 26 F0/P0/C0 O Input fs calculation signal output/Pc data type output/input word length information output pin 27 F1/P1/C1 O Input fs calculation signal output/Pc data type output/input word length nformation output pin 28 F2/P2/C2 O Input fs calculation signal output/Pc data type output/input word length information output pin 29 VF/P3/C3 O Validity flag output/Pc data type output/input word length information output pin 30 DV DD Digital GND 31 DGND Digital power supply 32 AUTO O Non-PCM burst data transfer detection signal (Pa, Pb detection) output pin 33 BPSYNC O Non-PCM burst preamble Pa, Pb, Pc, Pd sync signal output pin 34 ERROR O PLL lock error or data error flag output pin 35 DO O Microcontroller IF/read data output pin 36 DI I Microcontroller IF/write data input pin 37 CE I Microcontroller IF/Chip enable input pin 38 CL I Microcontroller IF/clock input pin 39 XSEL I [XIN] crystal oscillation selection input pin (24.576 MHz or 12.288 MHz) 40 MODE0 I Mode setting input pin 41 MODE1 I Mode setting input pin 42 DGND Digital GND 43 DV DD Digital power supply 44 DOSEL0 I Output data format selection input pin 45 DOSEL1 I Output data format selection input pin 46 CKSEL0 I Output clock selection input pin 47 CKSEL1 I Output clock selection input pin 48 XMODE I System reset input pin Note: *Perform digital power supply (DVDD) and analog power supply (AVDD) ON/OFF with the same potential and the same timing as a latch-up countermeasure. QR05 : LC89055 46 8. EXPLODED VIEW AND PARTS LIST NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 001B /F FRONT PANEL AL GOLD 330J248110 001B /L, /S FRONT PANEL AL GOLD S 330J248140 001B /N 9965 000 09139 FRONT PANEL AL GOLD N 330J248130 002B 9965 000 01554 BADGE MZ GOLD 313J251110 003B 9965 000 09140 FRONT PANEL MOULD GOLD 330J248120 005B 9965 000 09141 WINDOW GOLD 330J158010 006B 4822 381 11893 LENS FUNCTION 269J355010 007B 9965 000 09142 ESCUTCHEON CONER GOLD 330J063110 009B /F,/L,/S ESCUTCHEON METER GOLD 289J063120 009B /N 4822 532 13059 ESCUTCHEON METER GLD N 289J063110 011B /F BADGE SUPER AUDIO 318J251010 011B /L,/S BADGE S. A 313J251020 012B 4822 381 12016 LENS IR GOLD 256J355030 013B 4822 381 11677 LENS POWER 230K355020 015B 9965 000 09144 BUTTON GOLD 330J270110 016B 9965 000 09145 ARM HINGE DOOR L GOLD 330J002110 017B 9965 000 09146 ARM HINGE DOOR R GOLD 330J002120 018B 9965 000 01801 SHAFT DOOR 300J112010 021B 9965 000 09147 DAMPER DOOR 391H130010 023B /F DOOR PANEL GOLD 330J162110 023B /L,/N,/S 9965 000 09148 DOOR PANEL GOLD BLAST 330J162120 026B 4822 526 20213 MAGNET DOOR MAGNET 271K305500 028B SPRING DOOR ESD 330J115010 029B 9965 000 09149 BUSHING L R 330J259110 040B 9965 000 09150 KNOB MASTER 330J154110 041B 9965 000 09151 KNOB FUNCTION GOLD 330J154120 042B 4822 410 11276 BUTTON POWER 176J270150 043B 4822 404 21012 JOINT LINK POWER BUTTON 025J125010 044B 4822 256 92097 HOLDER FL 183J271020 062B 9965 000 09152 MASK IR 300J303030 070B WASHER 245S012020 001D 9965 000 09153 LID TOP GOLD 330J257110 002D 9965 000 06313 SCREW SCR.TOP LID 323S010040 003D 9965 000 09154 SIDE PANEL 330J249110 004D 4822 502 14613 SCREW SCR.SIDE PANEL 258S010020 062G 4822 462 42134 LEG 291K057010 C001 9965 000 09106 ELECT. CAP. 5000µF 63V GOLD TUNE OB15906330 C002 9965 000 09106 ELECT. CAP. 15000µF 63V GOLD TUNE OB15906330 J003 4822 265 11399 JACK 2P AC INLET SOT-16C YJ04002360 J011 4822 265 11424 TERMINAL WBT-0765 RED YT01010360 J012 4822 265 11424 TERMINAL WBT-0765 RED YT01010360 J013 4822 265 11425 TERMINAL WBT-0765 WHT YT01010370 J014 4822 265 11425 TERMINAL WBT-0765 WHT YT01010370 L001 /F MAINS TRANSF. R-400 100V 50/60Hz TS42002160 L001 /L MAINS TRANSF. R-400 110V 60Hz TS42002190 L001 /N,/S 9965 000 09107 MAINS TRANSF. R-400 230V 50Hz EMC TS42002180 L002 /F MAINS TRANSF. R-25D R-CORE FOR F TS72502010 L002 /L MAINS TRANSF. R-25D R-CORE 110V 60Hz TS72502030 L002 /N,/S 9965 000 09108 MAINS TRANSF. R-25D R-CORE FOR N TS72502020 L003 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 L601 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 L603 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 PACKING 001T /F USER GUIDE FOR F 330J851110 001T /L,/S USER GUIDE FOR S 330J851350 001T /N 9965 000 09155 USER GUIDE FOR N 330J851310 Z001 9965 000 09138 REMOTE COMMANDER RC-17PS ZK330JSRR Z008 /F,/L 4822 321 11337 MAINS CORD MITY DC-302-J 125V 12A ZC01802080 Z008 /N 4822 321 11033 MAINS CORD AC 250V 10A CLASS-2 ZC01803080 Z008 /S MAINS CORD AC 250V 10A FOR UK ZC01804100 NOT STANDARD SPARE PARTS 001S /F PACKING CASE 330J801010 002S CUSHION L 330J809010 003S CUSHION R 330J809020 * 47 48 0 1 4 Bx 2 0 1 8 B 0 2 2 G 5 1 2 8 3 X6 ( M) 0 2 3 B 5 1 5 0 2 . 6 X6 ( U) x 2 0 2 1 B 5 1 2 8 2 X5 ( B) 0 1 8 B 0 1 6 B 0 2 4 B 0 1 7 B 0 1 3 B ( 0 0 1 B) 0 0 9 B 0 1 0 B 0 1 2 B 5 1 2 8 3 X6 ( U) x 2 0 4 0 B 5 1 2 8 3 X6 ( M) x 1 5 0 0 3 B 0 5 7 B 0 0 6 Bx 9 5 1 2 6 3 X1 0 ( M) x 2 0 0 5 B 0 6 2 B ( 0 0 7 B) ( 5 1 2 6 ) 3 X6 ( U) x 3 0 4 1 B ( 0 0 7 B) ( 5 1 2 6 ) 3 X6 ( U) x 3 5 1 2 8 3 X8 ( U) x 2 0 2 9 Bx 2 0 0 2 B MU3 1 0 5 9 B x 2 0 6 6 B x 2 0 1 1 B 0 3 0 B( 0 0 1 B) ( 0 0 7 Bx 2 ) ( SCREWx 6 ) F RONT PANEL ASSY. 0 3 1 Bx 2 0 6 5 Bx 4 0 5 5 G 0 1 1 G 5 1 2 9 3 X8 ( M) 5 1 2 8 3 X8 ( M) x 2 0 1 3 G 0 6 3 B 5 1 2 9 3 X8 ( M) 0 2 6 B 0 2 8 B 0 6 1 B 0 6 7 B 0 0 1 D 0 0 2 Dx 8 0 1 1 Dx 8 0 0 3 D 0 0 4 Dx 4 0 1 0 Dx 8 0 2 5 G 5 1 0 4 3 X6 ( M) x 2 5 1 2 8 3 X6 ( M) x 2 PU9 4 0 0 8 G 5 1 2 8 3 X8 ( M) x 3 0 0 2 G 0 0 2 G 0 3 3 G 5 1 5 0 3 X6 ( M) x 1 0 0 4 Dx 4 5 1 5 0 3 X6 ( M) x 1 P8 8 4 0 4 6 Gx 4 PU5 4 PG0 4 0 5 4 Gx 2 0 0 3 D 0 1 2 Dx 7 0 6 2 Gx 2 5 1 2 7 3 X8 ( M) 0 6 0 G 0 6 2 G 0 4 2 B 0 4 3 B 0 4 6 B 0 4 7 B 0 4 9 B 5 1 2 8 3 X6 ( M) x 1 0 1 5 Bx 2 5 1 2 8 3 X8 ( M) x 1 0 5 1 2 8 3 X8 ( M) x 1 5 1 2 8 3 X8 ( M) x 1 0 0 6 G 5 1 2 6 3 X8 ( M) x 3 PU0 4 0 2 1 Gx 2 PU6 4 PU7 4 PU4 4 PU3 4 0 6 2 G PW0 4 VU0 1 0 0 6 K 0 4 4 B 0 6 3 Gx 4 0 3 6 B 0 0 5 K 5 1 2 6 3 X8 ( M) x 1 9 0 5 6 Bx 2 0 4 5 Gx 2 0 6 0 K 0 4 7 Gx 3 9 0 1 G 9 0 4Gx 4 5 1 2 9 3 X8 ( M) x 2 Z 0 0 8 5 1 1 0 3 X8 ( M) x 6 0 4 0 K, 0 3 0 K 0 1 0 K, 0 2 0 K 0 5 0 K 5 1 1 0 3 X6 ( M) x 3 0 2 0 Gx 2 0 4 9 Gx 3 5 1 2 6 3 X8 ( M) x 5 PF 0 4 5 1 2 6 3 X8 ( M) x 5 5 1 2 8 3 X8 ( M) x 2 5 1 2 8 3 X8 ( M) x 3 2 5 1 2 9 3 X8 ( M) x 3 P8 0 4 5 1 2 9 3 X8 ( M) PS0 4 PC0 4 0 4 0 Gx 2 0 4 2 Gx 3 F UNCT I ON P6 0 4 0 4 9 Gx 3 5 1 2 9 3 X8 ( M) x 4 5 1 2 8 3 X8 ( M) x 1 5 1 2 9 3 X8 ( M) x 1 5 1 1 0 3 X6 ( M) x 3 0 7 0 K 5 1 2 8 3 X8 ( M) x 2 1 0 0 K 0 4 1 Gx 2 5 1 1 0 3 X6 ( M) x 2 0 3 0 Gx 2 5 1 2 8 3 X8 ( M) x 4 0 9 0 K 5 1 2 8 3 X8 ( M) x 1 0 8 0 K 0 5 2 Gx 1 2 0 3 2 Gx 2 PB0 4 0 5 6 G 0 4 1 Gx 2 0 5 7 Gx 2 0 1 5 Gx 3 0 1 6 G 0 1 6 G 0 0 1 G L 0 0 2 5 4 0 5 4 ( M) x 4 0 4 3 Gx 3 5 1 2 6 3 X8 ( M) x 3 0 5 0 Gx 3 PL 0 4 MARK ( M) ( A) MATERIAL / FINISH ST E EL / COPPER SYMBOL ST YL E PART S NAME 5 1 1 0 + B. H. M. SCREW 5 1 2 6 + B. H. T AP T I T E SCREW W / W ASHER 5 1 2 8 + B. H. T AP T I T E SCREW ( B T YPE ) 5 1 5 0 + F . H. T AP T I T E SCREW ( B T YPE ) 5 1 4 8 + B. H. M. SCREW ( W / WASHER) ST EEL / CHROMAT E 5 1 2 9 + B. H. T AP T I T E SCREW(W / T . L . WASHER) 5 2 0 4 + H. H. T APT . BOL T S W I T H F L ANGE( S T I T E) 5 3 1 1 HEXAGON NUT S 5 4 0 5 T OOT HED L OCK WAS HERS 5 4 1 1 F L AT WASHERS 0 0 1 L P9 0 4 C0 0 1 0 0 6 L 0 0 6 L 0 0 2 L x 5 5 1 4 8 3 X1 5 ( M) x 4 5 4 0 5 4 0 0 1 L 0 0 6 L 0 0 2 L x 5 0 1 5 K 0 1 6 K 0 1 7 K 0 1 8 K P7 0 4 5 1 2 9 3 X8 ( M) 0 0 6 L 5 1 2 9 3 X8 ( M) x 8 5 1 1 0 3 X6 ( M) x 1 0 5 1 2 6 3 X8 ( M) x 3 PM0 1 5 2 0 4 4 X8 ( M) x 4 5 1 2 9 3 X8 ( M) x 2 5 1 2 9 3 X8 ( M) x 2 0 7 4 Gx 2 PM0 1 5 2 0 4 4 X8 ( M) x 4 5 1 2 6 3 X8 ( M) x 3 5 4 0 5 4 ( M) x 4 5 1 1 0 4 X6 ( M) x 4 5 4 0 5 4 ( M) x 4 L 0 0 1 5 4 0 5 4 ( M) x 4 0 7 3 G 5 1 2 9 3 X8 ( M) 5 1 2 9 3 X8 ( M) 5 1 2 9 3 X8 ( M) 5 1 2 9 3 X8 ( M) 5 1 1 0 3 X8 ( M) x 6 J003 J013 J011 J012 J014 49 50 Measurement point R641 / R741 Alignment hole 9. DC OFFSET VOLTAGE ALIGNMENT 1. Before turning on the main power switch, turn down the main volume to the minimum position. Turn the variable resisters R727 on the PCB P701(L ch) and R927 on the PCB P901(R ch) counterclockwise to the end. 2. Connect a digital voltage meter to the speaker terminals on the backside. (Set the meter at DC position) 3. Put an adjustment screw driver into the hole on the cover of HDAMs(Q701:L ch/Q901:R ch) to adjust the variable resister inside. Turn on the main power and within 10 seconds after the speaker relay turns on adjust the variable resister to 0mV±3mV of the digital voltage meter reading. 10. IDLING CURRENT ALIGNMENT REMARK Idling current adjustment must be done AFTER DC offset voltage adjustment is done. 1. Connect a digital voltage meter to the terminals that are the two terminals at the both side out of three terminals on the cement resisters R741(L ch) and R941(R ch). See the fi gure below. (Set the meter at DC position) 2. Turn on the main power and wait about 10 minutes until the idling current becomes stable. 3. Turn the variable resisters R727 on the PCB P701(L ch) and R927 on the PCB P901(R ch) clockwise and adjust those to become the readings of the digital voltage meter to 9mV±1mV(45mA) . 11. TROUBLE SHOOTING no yes no yes no no yes yes no yes no yes no yes no yes No Power Standby LED Lights up on standby FLD shows ERROR PWR1? Supply +24V to PU04 ? PU04 has any problem. QU01(76p or 77p) lnput level is too Low. Can P804 supply +15VB? Connection has problem To be check POWER ON or PL signal Main Transf(L001) or Meter Lamp(MU30) has any problem Vkk or FL is not supplied to PU04 Power supply circuite (PB04) has any problem. To be check +5VL or PDOWN signal Supply +15VB to PU04? P804 has any problem Can P804 supply +24VB? Temp Meter Light On ? Relay (L872:P804) control is no no yes yes no yes no yes no no yes yes no yes no no yes yes No sound from SPK on Analog Stereo mode Audio SW(PS04), Volume, I/V amp(PG04) has any problem. Analog S-Direct is OK ? Audio SW, Volume, & Power Amp are OK Q601,QD01(P604) has problem Test Tone is OK ? Audio SW, Volume, & Power Amp are OK P604 (QK01:ADC) has any problem Main in is OK ? P804(Power) has problem Pre output is OK ? Relay (LG01:PG04) control is Connection has problem Can P804 Supply ±B or ±VB ? To be check PROTECT signal ? P704,P904 (Power amp) has problem Relay (LN01:P804) control is to be check POWER or SPK-OFF signal, QN01 has problem Connection has problem TAPE OUT is OK ? Volume, & Power Amp are OK PS04(QS01,02:Audio SW) has any problem no no yes yes no no yes yes no yes No sound from SPK on PCM STEREO(Digital In) Analog S-Direct is OK ? to be check Main in at SPK Output Test tone is OK ? Pre output is OK ? Encode status LED shows ? 96k PCM is OK ? Audio SW(PS04), Volume, I/V amp(PG04) has any problem. DIR:QR01(P604) has problem. DAC circuite(P604) any has problem. DIR is OK. DSP:Q601(P604) any has problem. DIR,DAC are OK. DSP(601) input stage has problem. To be check QR06. 51 no yes no no no yes yes yes no no yes yes No sound from SPK on AC-3/DTS decode 6ch Direct is OK ? Test tone is OK ? Pre output is OK ? Encode status LED shows ? Encode status LED shows ? DAC & DSP are no problem Decoding is no problem P604 has trouble 96k PCM is OK? L/R DAC is no problem DIR & Q601input is no DIR:QR01 or DSP:Q601(P604) has any problem. DIR(QR01) or QR06 has any problem. To be check signal(SDIDR) Error Mute circuite has problem. To be check QR04 Front L/R DAC circuite(P601) has any problem. To be check Q606. DSP:Q601(P601) output stage or other ch DAC(QD02,03,04) has problem. To be check Q606. 6ch SW(PS04,PC04)), Volume, I/V amp(PG04) has any problem. to be check Main in at SPK Output no yes no no no yes yes yes no yes No sound from SPK on analog Dolby 6ch Input is OK ? Test tone is OK ? Pre output is OK ? DAC & DSP-out are no problem Decoding is no problem P604 has trouble Q601& DAC are no problem Digital PCM ProLogic is OK ? Digital PCM ProLogic is OK ? to be check Main in at SPK Output 6ch SW(PS04,PC04), Volume, I/V amp(PG04) has any problem. DIR(QR01) or QR06 has any problem. To be check signal(SDIDR) ADC(QK01) has any problem. QK01 can not output data. To be check QK01 or Lt/Rt input on P604 DSP:Q601or DAC:QD01,02,03,04(P604) has any problem. Clock output form DSP:Q601 has any problem. 52 no no yes yes no no yes yes no yes No sound from Headphone on Dolby HP Analog S-Direct is OK ? to be chech HP RELAY signal, QN05 has problem Relay (LW01:PG04) control is OK? Supply ± 15VH to Opamp(QW01) ? to be check ±15VH Line, TR(QW03-06) has any problem HP amp(QW01) has any problem 96k PCM is OK ? Q606 has problem BPBUSY(Q6 09:2P) is Low level ? HP DSP:Q608 or ROM Q653 has any problem HP DSP:Q608 in/output stage has any problem OSD IC (QL04,QX05) or no driver QL02 QX10 have any trouble yes no yes Input to OSD IC(QL04 QX05) has trouble Video input detection has any trouble. To be ckeck CV-DET Y/C-DET No picture from Monitor output OSD menu is shown? Video Input select circutes have problem VCR1&2 out are OK ? Video output stage are no problem OSD ICs control is no problem 53 12. TECHNICAL DESCRIPTION This product has two DSP ICs, one is for Dolby Digital (AC-3) decoding or DTS (Digital Theater System) decoding, another is for Dolby H.P. processing. Multi channel sound is reproduced by connecting with DVD player or LD player. Also Dolby Pro Logic decode is available to analog audio and PCM digital audio. Additionally, 96kHz PCM stereo audio playback is possible. Decoding circuit is consist of 13 ICs (DIR, tree DSP, ADC, fi ve DAC, two data separator and CPU). DOLBY DIGITAL (AC-3) Dolby Digital delivers six totally separate (discrete) channels of sound. Like Dolby Surround Pro Logic, it includes Left, Center and Right channels across the front of the room. Dolby Surround Pro Logic provides a single limited-bandwidth (100 Hz to 7,000 Hz) surround channel which is typically played back in the home through two channels of amplifi cation and two speakers. In comparison, Dolby Digital provides separate (discrete) left surround and right surround channels, for more precise localization of sounds and a more convincing, realistic ambience. And, with Dolby Digital, all fi ve main channels are full range (3 Hz to 20,000 Hz). A subwoofer could be added to each channel, if desired. The sixth channel, the Low Frequency Effects Channel, will, at times, contain additional bass information to maximize the impact of scenes such as explosions, crashes, etc. Because this channel has only a limited frequency response (3 Hz to 120 Hz), it is sometimes referred to as the .1 channel. When added to the 5 full range channels, the Dolby Digital system is sometimes referred to as having 5.1 channels. DTS An amazing new technology for surround-sound entertainment, DTS Digital Surround is an encode/decode system that delivers six channels (5.1) of master-quality, 20-bit audio. In the encoding process, the DTS algorithm encrypts six channels of 20-bit digital audio information in the space previously allotted for only two channels of 16-bit linear PCM. Then during playback, the DTS decoder reconstructs the original six channels of 20-bit digital audio. Each of these six channels is audibly superior to the 16-bit linear PCM audio found on conventional compact discs. SRS The playback mode is selected as follows depending on the input signals and speakers used. · When the setting calls for the surround speakers to be used: UltraSurround processing is added when multi-channel signals are input. This causes the sound to be reproduced in a wide sound fi eld with improved links between the channels. Circle Surround playback is performed when 2-channel signals are input. In this case, either music mode or cinema mode can be selected. CS CINEMA: This is suited to movie playback. Conventional movies recorded in surround sound will also be played back as 5.1-channel sound. CS MUSIC: This is suited to music playback. Two-channel music sources are converted into 5.1-channel sound for playback. · When the selling does not call for the surround speakers to be used: Using only the front speakers virtual surround sound playback results to give the impression that surround speakers are present. Virtual surround sound playback using TruSurround is performed when multi-channel sound is input. CS Virtual surround sound playback is performed when 2-channel signals are input. In this case, the Circle Surround effect can be enjoyed by the front speakers alone. Note: The effect will differ depending on the playback source and viewing/listening position. The sound of some sources may be played back unnaturally. Playback is not initiated for 96 kHz PCM input signals. 6.1 Surround This can be used when back surround speakers are used. Unique matrix processing is performed for the surround channels among the 5.1-channel signals to generate back surround channels. This further enhances the sound of the source subjected to Surround EX or DTS-ES processing. 54 13. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. 55 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) PB04-BACK UP SUPPLY CIRCUIT BOARD PB04-CAPACITORS CB01 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB02 4822 124 22276 ELECT. 47µF M 50V RA-2 OA47605020 CB03 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 CB04 4822 124 23068 ELECT. 220µF M 63V RA-2 OA22706320 CB05 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB06 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB07 4822 124 41541 ELECT. 470µF M 35V RA-2 OA47703520 CB08 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB09 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB10 4822 124 22722 ELECT. 1000µF 16V M RA-2 OA10801620 CB11 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB12 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CB13 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB15 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB19 CB20 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB21 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB22 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB25 CB26 4822 124 12328 ELECT. 6800µF 16V RA2 OA68801620 CB27 4822 124 12328 ELECT. 6800µF 16V RA2 OA68801620 CB28 4822 124 22277 ELECT. 470µF 16V M RA-2 OA47701620 CB29 4822 124 22277 ELECT. 470µF 16V M RA-2 OA47701620 CB30 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB33 CB34 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CB37 CB38 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CB41 CB42 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB43 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CB44 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CB45 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 PB04-RESISTORS RB03 4822 053 10561 560Ω ±5% 1W GA05561010 RB04 4822 117 10158 1Ω ±5% 1/4W GG05010140 RB05 4822 117 10158 1Ω ±5% 1/4W GG05010140 RB99 4822 116 83963 2.2Ω ±5% 1/4W GG05022140 PB04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W :RB02 RB02 RB07-RB11 RB13 PB04-SEMICONDUCTORS DB01 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB02 4822 130 80318 ZENER DIODE 6.8V HD30681000 DB03 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB11 DB14 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB15 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB16 4822 130 83067 DIODE D3SB20 3A 200V HE20020290 DB19 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB20 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB21 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB22 4822 116 82805 RES. 1Ω ±5% 1/6W GG05010160 DB25 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DB26 4822 116 82805 RES. 1Ω ±5% 1/6W GG05010160 QB01 9965 000 09110 TRS. 2SA950 GR OR R HT109501A0 QB02 9965 000 09110 TRS. 2SA950 GR OR R HT109501A0 QB04 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QB05 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QB07 4822 209 83824 IC NJM7805FA +5V HC38905090 QB08 4822 209 15921 IC RESET S-806D-Z SEIKO HC10077530 QB09 4822 209 83824 IC NJM7805FA +5V HC38905090 QB10 4822 209 83824 IC NJM7805FA +5V HC38905090 QB11 4822 209 83824 IC NJM7805FA +5V HC38905090 QB12 4822 209 30258 IC NJM7905FA HC39905090 PB04-MISCELLANEOUS JB01 PLUG VH-8P SIDE YP06011080 LB03 9965 000 05895 RELAY G5PA-28 5A/250VAC LY20240490 LB04 9965 000 05895 RELAY G5PA-28 5A/250VAC O LY20240490 PC04 ELE.VOL./6CH SW CIRCUIT BOARD PC04-CAPACITORS CF01 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF01 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF02 4822 124 90362 ELECT. 22µF 50V OA22605020 CF03 4822 122 40617 CER. 0.1µF 50V DD38104010 CF04 4822 122 40617 CER. 0.1µF 50V DD38104010 CF05 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CF06 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CF07 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF07 /L 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF07 /N 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF07 /S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF08 4822 124 90362 ELECT. 22µF 50V OA22605020 CF09 9965 000 01344 FILM 100pF J 100V OF15101540 CF10 4822 121 10792 FILM 220pF J 100V OF15221540 CF11 4822 124 90362 ELECT. 22µF 50V OA22605020 CF12 4822 124 90362 ELECT. 22µF 50V OA22605020 CF13 4822 123 30086 MICA 47pF J 500V DF35470520 CF14 4822 123 30086 MICA 47pF J 500V DF35470520 CF15 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF15 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF16 4822 124 90362 ELECT. 22µF 50V OA22605020 CF17 9965 000 05891 FILM 470pF J 100V OF15471540 CF18 9965 000 05891 FILM 470pF J 100V OF15471540 CF19 4822 121 10792 FILM 220pF J 100V OF15221540 CF20 4822 121 10792 FILM 220pF J 100V OF15221540 CF21 4822 124 41535 ELECT. 100µF 25V OA10702520 CF22 4822 124 41535 ELECT. 100µF 25V OA10702520 CF23 4822 122 40586 CER. 10000pF DA17103110 CF24 4822 122 40586 CER. 10000pF DA17103110 CF29 4822 122 40617 CER. 0.1µF 50V DD38104010 CF51 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF51 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF52 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF52 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF53 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF53 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF54 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF54 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF55 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF55 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF56 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CF56 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 CF57 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF58 4822 122 40617 CER. 0.1µF 50V DD38104010 CF59 4822 122 40617 CER. 0.1µF 50V DD38104010 CF60 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF61 4822 121 10792 FILM 220pF J 100V OF15221540 CF62 4822 121 10792 FILM 220pF J 100V OF15221540 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 56 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CF63 9965 000 01344 FILM 100pF J 100V OF15101540 CF64 9965 000 01344 FILM 100pF J 100V OF15101540 CF65 4822 122 40617 CER. 0.1µF 50V DD38104010 CF67 9965 000 01344 FILM 100pF J 100V OF15101540 CF68 9965 000 01344 FILM 100pF J 100V OF15101540 CF75 9965 000 01569 CER. 0.01µF 50V DD38103010 CF76 9965 000 01569 CER. 0.01µF 50V DD38103010 CF77 9965 000 01569 CER. 0.01µF 50V DD38103010 CF78 9965 000 01569 CER. 0.01µF 50V DD38103010 CF79 4822 124 90354 ELECT. 100µF 16V OA10701620 CF80 4822 124 90354 ELECT. 100µF 16V OA10701620 CF81 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF81 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF82 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF82 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF83 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF83 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF84 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF84 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF85 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF85 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF86 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CF86 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CF87 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF88 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF90 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF91 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CF92 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CQ01 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ01 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ02 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ02 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ03 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ04 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ05 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CQ06 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CQ07 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ07 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ08 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ08 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ09 9965 000 01344 FILM 100pF J 100V OF15101540 CQ10 9965 000 01344 FILM 100pF J 100V OF15101540 CQ11 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ12 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ13 4822 123 30086 MICA 47pF J 500V DF35470520 CQ14 4822 123 30086 MICA 47pF J 500V DF35470520 CQ15 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ15 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ16 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CQ16 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CQ17 9965 000 05891 FILM 470pF J 100V OF15471540 CQ18 9965 000 05891 FILM 470pF J 100V OF15471540 CQ19 4822 121 10792 FILM 220pF J 100V OF15221540 CQ20 4822 121 10792 FILM 220pF J 100V OF15221540 CQ21 4822 124 41535 ELECT. 100µF 25V OA10702520 CQ22 4822 124 41535 ELECT. 100µF 25V OA10702520 CQ23 4822 122 40586 CER. 10000pF DA17103110 CQ24 4822 122 40586 CER. 10000pF DA17103110 CQ29 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ51 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ52 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ53 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ54 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ55 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CQ56 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CQ57 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ58 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ59 9965 000 01344 FILM 100pF J 100V OF15101540 CQ60 9965 000 01344 FILM 100pF J 100V OF15101540 CQ61 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ62 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ63 4822 123 30086 MICA 47pF J 500V DF35470520 CQ64 4822 123 30086 MICA 47pF J 500V DF35470520 CQ65 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ66 4822 124 90362 ELECT. 22µF 50V OA22605020 CQ67 9965 000 05891 FILM 470pF J 100V OF15471540 CQ68 9965 000 05891 FILM 470pF J 100V OF15471540 CQ69 4822 121 10792 FILM 220pF J 100V OF15221540 CQ70 4822 121 10792 FILM 220pF J 100V OF15221540 CQ71 4822 124 41535 ELECT. 100µF 25V OA10702520 CQ72 4822 124 41535 ELECT. 100µF 25V OA10702520 CQ73 4822 122 40586 CER. 10000pF DA17103110 CQ74 4822 122 40586 CER. 10000pF DA17103110 CQ79 4822 122 40617 CER. 0.1µF 50V DD38104010 PC04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CF69-CF74 PC04-RESISTORS RF47 4822 052 10109 10Ω 1/6W GG05100160 RF48 4822 052 10109 10Ω 1/6W GG05100160 RQ47 4822 052 10109 10Ω 1/6W GG05100160 RQ50 4822 052 10109 10Ω 1/6W GG05100160 RQ97 4822 052 10109 10Ω 1/6W GG05100160 RQ98 4822 052 10109 10Ω 1/6W GG05100160 PC04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RF01-RF21 F23 RF25 RF51-RF63 RF65-RF75 RF77-RF82 RQ01-RQ20 RQ51-RQ70 PC04-SEMICONDUCTORS DQ07 4822 130 32362 DIODE HD20002000 DQ57 4822 130 32362 DIODE HD20002000 QF01 9965 000 01359 IC TC9459N ELE.VOLUME HC10443050 QF02 4822 209 73064 IC NJM-2068-DD HC10053090 QF07 5322 130 41844 F.E.T. 2SK170 V LANK HF201701H0 QF09 4822 130 62649 F.E.T. 2SJ74 V LANK HF100741H0 QF19 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QF20 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QF51 4822 209 32552 IC LC78211 HC10308030 QF58 4822 209 73064 IC NJM-2068-DD HC10053090 QF59 4822 209 73064 IC NJM-2068-DD HC10053090 QF60 4822 209 73064 IC NJM-2068-DD HC10053090 QQ01 9965 000 01359 IC TC9459N ELE.VOLUME HC10443050 QQ02 4822 209 73064 IC NJM-2068-DD HC10053090 QQ19 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QQ20 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QQ51 9965 000 01359 IC TC9459N ELE.VOLUME HC10443050 QQ52 4822 209 73064 IC NJM-2068-DD HC10053090 QQ69 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QQ70 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 PC04-MISCELLANEOUS JF51 9965 000 09131 TERMINAL YKC21-3439 YT02060510 JF55 4822 290 61242 TERMINAL 14X14 RA 2L2P B YT02021360 JF56 9965 000 09132 TERMINAL PREOUT FRONT C ENTRE WOOFER YT02041120 JF57 9965 000 09132 TERMINAL PREOUT SURROUND BACK YT02041120 LF01 9965 000 01576 RELAY MR82-24USR LY20240480 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 57 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) LF02 4822 242 73843 EMI FILTER 0.022uF FM12223010 LF03 4822 242 73843 EMI FILTER 0.022uF FM12223010 LQ01 9965 000 01576 RELAY MR82-24USR LY20240480 LQ51 9965 000 01576 RELAY MR82-24USR LY20240480 PG04-FRONT ELE.VOL CIRCUIT BOARD PG04-CAPACITORS CG01 /F 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CG01 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CG02 /F 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CG02 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CG03 4822 126 11687 CER. CHIP 0.1uF DK98104200 CG04 4822 126 11687 CER. CHIP 0.1uF DK98104200 CG05 4822 124 41535 ELECT. 100µF 25V OA10702520 CG06 4822 124 41535 ELECT. 100µF 25V OA10702520 CG07 4822 124 90362 ELECT. 22µF 50V OA22605020 CG08 4822 124 90362 ELECT. 22µF 50V OA22605020 CG09 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CG10 9965 000 01344 FILM 100pF J 100V APSV OF15101540 CG11 9965 000 01561 MICA 10pF 250V FE DF31100520 CG12 9965 000 01561 MICA 10pF 250V FE DF31100520 CG13 9965 000 01344 FILM 100pF J 100V OF15101540 CG14 9965 000 01344 FILM 100pF J 100V OF15101540 CG15 /F 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CG15 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CG16 /F 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CG16 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CG17 4822 121 10792 FILM 220pF J 100V OF15221540 CG18 4822 121 10792 FILM 220pF J 100V OF15221540 CG19 4822 121 10792 FILM 220pF J 100V OF15221540 CG20 4822 121 10792 FILM 220pF J 100V OF15221540 CG21 4822 124 41535 ELECT. 100µF 25V OA10702520 CG22 4822 124 41535 ELECT. 100µF 25V OA10702520 CG23 4822 122 40617 CER. 0.1µF 50V DD38104010 CG24 4822 122 40617 CER. 0.1µF 50V DD38104010 CG25 4822 124 41535 ELECT. 100µF 25V OA10702520 CG26 4822 124 41535 ELECT. 100µF 25V OA10702520 CG27 4822 122 40617 CER. 0.1µF 50V DD38104010 CG28 4822 122 40617 CER. 0.1µF 50V DD38104010 CG29 4822 126 11687 CER. CHIP 0.1uF DK98104200 CG30 4822 126 11687 CER. CHIP 0.1uF DK98104200 CG31 4822 121 10792 FILM 220pF J 100V OF15221540 CG32 4822 121 10792 FILM 220pF J 100V OF15221540 CG36 4822 126 11703 CER. CHIP 0.01uF DK98103300 CG37 4822 126 11703 CER. CHIP 0.01uF DK98103300 CG38 4822 126 11703 CER. CHIP 0.01uF DK98103300 CG39 4822 126 11703 CER. CHIP 0.01uF DK98103300 CG40 4822 124 90354 ELECT. 100µF 16V OA10701620 CG41 4822 124 90354 ELECT. 100µF 16V OA10701620 CW01 4822 124 90362 ELECT. 22µF 50V OA22605020 CW02 4822 124 90362 ELECT. 22µF 50V OA22605020 CW03 4822 126 13883 CER. CHIP 220pF 50V DD95221300 CW04 4822 126 13883 CER. CHIP 220pF 50V DD95221300 CW05 4822 124 90362 ELECT. 22µF 50V OA22605020 CW06 4822 124 90362 ELECT. 22µF 50V OA22605020 CW07 4822 122 33761 CER. CHIP 22pF 50V DD95220300 CW08 4822 122 33761 CER. CHIP 22pF 50V DD95220300 CW11 4822 124 41535 ELECT. 100µF 25V OA10702520 CW12 4822 124 41535 ELECT. 100µF 25V OA10702520 CW15 4822 124 41535 ELECT. 100µF 25V OA10702520 CW16 4822 124 41535 ELECT. 100µF 25V OA10702520 CW17 4822 126 11687 CER. CHIP 0.1uF DK98104200 CW18 4822 126 11687 CER. CHIP 0.1uF DK98104200 CW19 4822 126 11687 CER. CHIP 0.1uF DK98104200 PG04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CG33-CG35 PLASTIC FILM CAPACITOR ±5% 50V :CW09 CW10 PG04-RESISTORS RG01 9965 000 09003 CHIP 560kΩ 1/16W NN05564610 RG02 9965 000 09003 CHIP 560kΩ 1/16W NN05564610 RG03 4822 117 13632 CHIP 100kΩ ±5% 1/16W NN05104610 RG04 4822 117 13632 CHIP 100kΩ ±5% 1/16W NN05104610 RG05 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RG06 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RG07 4822 051 30391 CHIP 390Ω 1/16W NN05391610 RG10 RG11 4822 051 30153 CHIP 15kΩ 1/16W NN05153610 RG14 RG19 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RG20 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RG21 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG22 4822 117 12139 CHIP 22Ω 1/16W NN05220610 RG23 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG24 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG25 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RG28 RG29 4822 117 12968 CHIP 820Ω 1/16W NN05821610 RG30 4822 117 12968 CHIP 820Ω 1/16W NN05821610 RG31 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RG32 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RG33 4822 117 12891 CHIP 220kΩ 1/16W NN05224610 RG36 RG37 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG40 RG41 4822 116 83211 CHIP 1.8kΩ 1/16W NN05182610 RG44 RG45 4822 117 13632 CHIP 100kΩ ±5% 1/16W NN05104610 RG46 4822 117 13632 CHIP 100kΩ ±5% 1/16W NN05104610 RG47 4822 052 10109 10Ω ±5% 1/6W GG05100160 RG48 4822 052 10109 10Ω ±5% 1/6W GG05100160 RG49 4822 052 10109 10Ω ±5% 1/6W GG05100160 RG50 4822 052 10109 10Ω ±5% 1/6W GG05100160 RG51 4822 051 30391 CHIP 390Ω 1/16W NN05391610 RG52 4822 051 30391 CHIP 390Ω 1/16W NN05391610 RG53 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RG54 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RG55 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RG56 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RG57 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RG58 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RG59 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RG60 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RG61 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RG62 4822 051 30109 CHIP 10Ω 1/16W NN05100610 RG63 4822 116 83829 CHIP 270Ω 1/16W NN05271610 RG66 RG67 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG68 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG69 4822 051 30479 CHIP 47Ω 1/16W NN05470610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 58 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RG70 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RG74 RG75 4822 051 30152 CHIP 1.5kΩ 1/16W NN05152610 RG76 4822 051 30152 CHIP 1.5kΩ 1/16W NN05152610 RG77 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RG78 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RG79 4822 051 30152 CHIP 1.5kΩ 1/16W NN05152610 RG80 4822 051 30152 CHIP 1.5kΩ 1/16W NN05152610 RG81 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RG82 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RG83 4822 116 83829 CHIP 270Ω 1/16W NN05271610 RG86 RW01 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RW02 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RW03 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RW04 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RW05 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RW09 RW11 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RW12 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RW14 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RW15 4822 052 10109 10Ω 1/6W GG05100160 RW18 RW19 4822 053 10109 10Ω ±5% 1W GA05100010 RW20 4822 053 10109 10Ω ±5% 1W GA05100010 RW21 4822 052 10109 10Ω 1/6W GG05100160 RW28 PG04-RESISTORS DG01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DG08 DW01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DW02 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DW05 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 QG01 9965 000 01373 IC TC9459FELE-VOL UMEN HC10449050 QG02 4822 209 17155 IC NJM2068M HC10102090 QG03 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG04 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG05 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG06 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG07 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG08 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG09 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG10 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG11 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG12 4822 130 60107 TRS. 2SA1048 Y OR R HT110482B0 QG13 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG14 4822 130 60839 TRS. 2SC2458 Y OR R HT324582B0 QG15 4822 130 43233 TRS. 2SC2240 HT322402A0 QG16 4822 130 43233 TRS. 2SC2240 HT322402A0 QG17 4822 130 42949 TRS. 2SA970 HT109702A0 QG18 4822 130 42949 TRS. 2SA970 HT109702A0 QG19 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QG20 4822 130 43818 TRS. 2SC2878 A OR B HT328782A0 QG21 4822 130 42292 TRS. 2SC2120 HT321201A0 QW01 4822 209 17155 IC NJM2068M HC10102090 QW03 4822 130 43233 TRS. 2SC2240 HT322402A0 QW04 4822 130 43233 TRS. 2SC2240 HT322402A0 QW05 4822 130 42949 TRS. 2SA970 HT109702A0 QW06 4822 130 42949 TRS. 2SA970 HT109702A0 PG04-MISCELLANEOUS LG01 9965 000 01576 RELAY MR82-24USR LY20240480 LG02 9965 000 01576 RELAY MR82-24USR LY20240480 LG03 4822 242 73843 EMI FILTER 0.022uF FM12223010 LG04 4822 242 73843 EMI FILTER 0.022uF FM12223010 LW01 9965 000 01576 RELAY MR82-24USR LY20240480 PL04-VIDEO CIRCUIT BOARD PL04-CAPACITORS CL01 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CL05 CL07 4822 122 31205 CER. 47pF J CH 50 DD15470300 CL08 4822 122 31205 CER. 47pF J CH 50 DD15470300 CL09 5322 124 21731 ELECT. 10µF 50V OA10605020 CL12 CL13 JUMPER 75060501P0 CL14 5322 124 21731 ELECT. 10µF 50V OA10605020 CL15 JUMPER 75060501P0 CL16 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CL17 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CL18 4822 122 40617 CER. 0.1µF 50V DD38104010 CL19 4822 122 31205 CER. 47pF J CH 50 DD15470300 CL20 4822 122 40617 CER. 0.1µF 50V DD38104010 CL21 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CL22 4822 122 40617 CER. 0.1µF 50V DD38104010 CL23 4822 124 90353 ELECT. 100µF 10V OA10701020 CL25 4822 124 40763 ELECT. 2.2µF 50V OA22505020 CL26 4822 124 41543 ELECT. 1µF 50V OA10505020 CL27 5322 122 32143 CER. 22pF J CH 50 DD15220300 CL28 4822 126 11591 CER. 24pF J CH 50 DD15240300 CL29 5322 122 32143 CER. 22pF J CH 50 DD15220300 CL30 5322 122 32143 CER. 22pF J CH 50 DD15220300 CL31 5322 124 21731 ELECT. 10µF 50V OA10605020 CL33 4822 124 41543 ELECT. 1µF 50V OA10505020 CL34 4822 122 40617 CER. 0.1µF 50V DD38104010 CL35 4822 124 90353 ELECT. 100µF 10V OA10701020 CL36 4822 124 41543 ELECT. 1µF 50V OA10505020 CL37 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CL38 4822 124 90352 ELECT. 10µF 16V OA10601620 CL39 4822 124 90352 ELECT. 10µF 16V OA10601620 CL40 9965 000 01569 CER. 0.01µF 50V DD38103010 CL43 CL45 4822 122 40617 CER. 0.1µF 50V DD38104010 CL46 /L,/N,/S 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 CL47 /L,/N,/S 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 CX80 /N,/S 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 CX87 /N,/S 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 PL04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CL32 CL44 PL04-RESISTORS RL05 4822 111 41355 75Ω J 1/6W GD05750160 RL07 4822 111 41355 75Ω J 1/6W GD05750160 RL08 4822 111 41355 75Ω J 1/6W GD05750160 RL09 4822 122 40586 CER. 10000pF DA17103110 RL13 RL28 JUMPER 75060501P0 RL33 /F JUMPER 75060501P0 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 59 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) PL04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RL01-RL04 RL06 RL14-RL21 RL23-RL27 RL29 RL30-RL32 RL36-RL41 PL04-SEMICONDUCTORS DL01 4822 130 32362 DIODE HD20002000 QL01 9965 000 09133 IC NJM2296 DVIDEO SW HC10217090 QL02 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QL03 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QL04 4822 209 15524 IC OSD IC LC74781 HC10377030 QL05 /L,/N,/S 4822 130 61227 DIG.TRS BA10001000 QL07 DTA114ES UN4111 10K 10K QL08 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QL09 5322 209 11532 IC 74HC4094 16PIN DIP HC709449B0 PL04-MISCELLANEOUS JL01 9965 000 07100 TERMINAL 14X14 RCA 1L3P Y YT02030600 JL02 9965 000 07100 TERMINAL 14X14 RCA 1L3P Y YT02030600 JL03 4822 265 11619 TERMINAL 14X14 RCA 1L2P Y YT02021630 LL01 4822 157 62922 CHOKE COIL 33µH J LC13333800 LL02 4822 242 73843 EMI FILTER 0.022µF FM12223010 LL03 4822 242 73843 EMI FILTER 0.022µF FM12223010 XL01 4822 242 80288 CRYSTAL .31818MHz JX14001260 XL02 /L,/N,/S 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 PL54-S-VIDEO CIRCUIT BOARD PL54-CAPACITORS CX01 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX02 5322 124 21731 ELECT. 10µF 50V OA10605020 CX03 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX04 5322 124 21731 ELECT. 10µF 50V OA10605020 CX05 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX06 5322 124 21731 ELECT. 10µF 50V OA10605020 CX07 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX08 5322 124 21731 ELECT. 10µF 50V OA10605020 CX09 4822 124 41796 ELECT. 22µF 16V OA22601620 CX10 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX11 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX12 5322 124 21731 ELECT. 10µF 50V OA10605020 CX13 4822 124 41796 ELECT. 22µF 16V OA22601620 CX14 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX15 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX16 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX17 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX18 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX19 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX20 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX21 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX22 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CX23 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CX24 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CX25 9965 000 01318 ELECT. 220µF M 10V RA-2 OA22701020 CX26 4822 122 40617 CER. 0.1µF 50V DD38104010 CX29 CX30 4822 122 31205 CER. 47pF J CH 50V BLK DD15470300 CX31 4822 122 31205 CER. 47pF J CH 50V BLK DD15470300 CX32 5322 124 21731 ELECT. 10µF 50V OA10605020 CX33 4822 124 40763 ELECT. 2.2µF 50V OA22505020 CX34 4822 124 41543 ELECT. 1µF 50V OA10505020 CX35 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CX36 4822 122 40617 CER. 0.1µF 50V DD38104010 CX37 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CX38 4822 124 90353 ELECT. 100µF 10V OA10701020 CX39 4822 122 40617 CER. 0.1µF 50V DD38104010 CX41 5322 122 32143 CER. 22pF J CH 50 DD15220300 CX42 4822 126 11591 CER. 24pF J CH 50 DD15240300 CX43 5322 122 32143 CER. 22pF J CH 50 DD15220300 CX44 5322 122 32143 CER. 22pF J CH 50 DD15220300 CX45 CER. 1200pF DK16122300 CX46 4822 124 41543 ELECT. 1µF 50V OA10505020 CX47 4822 124 41543 ELECT. 1µF 50V OA10505020 CX48 4822 122 40617 CER. 0.1µF 50V DD38104010 CX49 4822 124 90353 ELECT. 100µF 10V OA10701020 CX50 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CX51 5322 124 21731 ELECT. 10µF 50V OA10605020 CX52 4822 122 40617 CER. 0.1µF 50V DD38104010 CX53 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CX56 CX57 4822 122 40617 CER. 0.1µF 50V DD38104010 CX58 4822 124 90353 ELECT. 100µF 10V OA10701020 CX59 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CX60 4822 122 31205 CER. 47pF J CH 50V BLK DD15470300 CX63 CX64 4822 122 40586 CER. 10000pF DA17103110 CX69 CX70 5322 124 21731 ELECT. 10µF 50V OA10605020 CX75 CX76 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX77 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX78 9965 000 01040 ELECT. 470µF 6.3V OA47700620 CX80 /L 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 CX82 4822 122 40617 CER. 0.1µF 50V DD38104010 CX83 4822 124 41537 ELECT. 220µF 6.3V OA22700620 CX84 4822 122 40617 CER. 0.1µF 50V DD38104010 CX85 4822 122 40617 CER. 0.1µF 50V DD38104010 CX86 4822 124 11947 ELECT. 10µF 16V EQ10601630 CX87 /L 5322 122 32143 CER. 22pF J CH 50V BLK DD15220300 CX88 4822 124 90352 ELECT. 10µF 16V OA10601620 CX89 4822 124 90352 ELECT. 10µF 16V OA10601620 CX90 9965 000 01569 CER. 0.01µF 50V DD38103010 CX93 CX94 4822 122 40617 CER. 0.1µF 50V DD38104010 CX95 4822 124 41537 ELECT. 220µF 6.3V OA22700620 CX96 4822 122 40586 CER. 10000pF DA17103110 CX97 4822 122 40586 CER. 10000pF DA17103110 CX98 4822 122 40586 CER. 10000pF DA17103110 PL54-RESISTORS RX09 4822 111 41355 75Ω J 1/6W GD05750160 RX10 4822 111 41355 75Ω J 1/6W GD05750160 RX13 4822 111 41355 75Ω J 1/6W GD05750160 RX16 RX17 4822 122 40586 CER. 10000pF DA17103110 RX21 RX39 JUMPER 75060501P0 RX41 /F JUMPER 75060501P0 RX70 4822 111 41355 75Ω J 1/6W GD05750160 RX75 RX77 JUMPER 75060501P0 RX78 JUMPER 75060501P0 RX82 4822 111 41355 75Ω J 1/6W GD05750160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 60 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RX83 4822 111 41355 75Ω J 1/6W GD05750160 RX84 4822 111 41355 75Ω J 1/6W GD05750160 PL54-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RX01-RX08 RX11 RX12 RX22-RX38 RX40 RX42 RX43-RX45 RX47-RX62 PL54-SEMICONDUCTORS DX01 4822 130 32362 DIODE HD20002000 DX02 4822 130 32362 DIODE HD20002000 DX03 4822 130 32362 DIODE HD20002000 DX04 9965 000 01374 ZENER DIODE MTZ2.7B HD30271000 DX05 4822 130 32362 DIODE HD20002000 QX01 9965 000 09133 IC NJM2296 DVIDEO SW HC10217090 QX02 9965 000 09133 IC NJM2296D VIDEO SW HC10217090 QX03 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QX04 9965 000 09136 IC NJM2264 HC10185090 QX05 4822 209 15524 IC LC74781 OSD HC10377030 QX06 /L,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QX07 /L,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QX08 /L,/N,/S 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QX09 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QX10 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QX11 9965 000 01380 IC C-MOS IC 74HC4051 HC705100B0 QX12 4822 209 83088 IC NJM2903D DUAL COMPAR. HC10022090 QX13 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QX14 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QX70 9965 000 09137 IC RGB VIDEO SW MAX499 HC10141990 PL54-MISCELLANEOUS JX01 9965 000 01375 TERMINAL 3P S-VIDEO GOLD YT02030550 JX02 9965 000 01375 TERMINAL 3P S-VIDEO GOLD YT02030550 JX03 9965 000 01376 TERMINAL 2P S-VIDEO GOLD YT02021520 JX04 9965 000 09134 TERMINAL DVD COMPONENT YT02030680 JX05 9965 000 09134 TERMINAL DBS/VCR2 COMP. YT02030680 JX06 9965 000 09135 TERMINAL 3P RCA - YT02030580 LX01 4822 157 62922 CHOKE COIL 33µH J LC13333800 LX02 4822 242 73843 EMI FILTER 0.022µF FM12223010 LX03 4822 242 73843 EMI FILTER 0.022µF FM12223010 XX01 4822 242 80288 CRYSTAL 14.31818MHz JX14001260 XX02 /L 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XX02 /N 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XX02 /S 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 PS04-FUNCTION CIRCUIT BOARD PS04-CAPACITORS CS01 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS01 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS02 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS02 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS03 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS03 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS04 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS04 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS05 9965 000 05891 FILM 470pF J 100V OF15471540 CS06 9965 000 05891 FILM 470pF J 100V OF15471540 CS07 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS07 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS08 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS08 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS09 4822 124 90362 ELECT. 22µF 50V OA22605020 CS10 4822 124 90362 ELECT. 22µF 50V OA22605020 CS11 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS11 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS12 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS12 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS13 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS13 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS14 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS14 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS15 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS15 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS16 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS16 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS17 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS17 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS18 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS18 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS19 4822 124 90362 ELECT. 22µF 50V OA22605020 CS20 4822 124 90362 ELECT. 22µF 50V OA22605020 CS21 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS21 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS22 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CS22 /L,/N,/S 4822 124 80578 ELECT. 22µF 25V ARA OA22602550 CS23 9965 000 05891 FILM 470pF J 100V OF15471540 CS24 9965 000 05891 FILM 470pF J 100V OF15471540 CS25 9965 000 01344 FILM 100pF J 100V OF15101540 CS28 CS29 4822 124 90362 ELECT. 22µF 50V OA22605020 CS30 4822 124 90362 ELECT. 22µF 50V OA22605020 CS31 9965 000 01344 FILM 100pF J 100V OF15101540 CS32 9965 000 01344 FILM 100pF J 100V OF15101540 CS33 9965 000 05891 FILM 470pF J 100V OF15471540 CS34 9965 000 05891 FILM 470pF J 100V OF15471540 CS35 9965 000 01344 FILM 100pF J 100V OF15101540 CS39 CS40 9965 000 01344 FILM 100pF J 100V OF15101540 CS41 9965 000 01344 FILM 100pF J 100V OF15101540 CS42 9965 000 01344 FILM 100pF J 100V OF15101540 CS43 9965 000 05891 FILM 470pF J 100V OF15471540 CS44 9965 000 05891 FILM 470pF J 100V OF15471540 CS45 9965 000 01344 FILM 100pF J 100V OF15101540 CS46 9965 000 01344 FILM 100pF J 100V OF15101540 CS47 4822 124 90362 ELECT. 22µF 50V OA22605020 CS48 4822 124 90362 ELECT. 22µF 50V OA22605020 CS49 4822 122 40617 CER. 0.1µF 50V DD38104010 CS56 CS57 5322 124 21731 ELECT. 10µF 50V OA10605020 CS58 5322 124 21731 ELECT. 10µF 50V OA10605020 CS59 9965 000 01344 FILM 100pF J 100V OF15101540 CS60 9965 000 01344 FILM 100pF J 100V OF15101540 CS61 5322 124 21731 ELECT. 10µF 50V OA10605020 CS62 5322 124 21731 ELECT. 10µF 50V OA10605020 CS63 4822 121 42327 FILM DF15471350 CS64 4822 121 42327 FILM DF15471350 CS65 4822 122 40617 CER. 0.1µF 50V DD38104010 CS66 4822 122 40617 CER. 0.1µF 50V DD38104010 CS67 4822 124 90362 ELECT. 22µF 50V OA22605020 CS68 4822 124 90362 ELECT. 22µF 50V OA22605020 CS69 9965 000 01344 FILM 100pF J 100V OF15101540 CS70 9965 000 01344 FILM 100pF J 100V OF15101540 CS73 4822 124 90362 ELECT. 22µF 50V OA22605020 CS74 4822 124 90362 ELECT. 22µF 50V OA22605020 CS75 4822 121 42327 FILM 470pF DF15471350 CS76 4822 121 42327 FILM 470pF DF15471350 CS77 4822 124 90362 ELECT. 22µF 50V OA22605020 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 61 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CS78 4822 124 90362 ELECT. 22µF 50V OA22605020 CS79 4822 121 10792 FILM 220pF J 100V OF15221540 CS80 4822 121 10792 FILM 220pF J 100V OF15221540 CS83 4822 124 90362 ELECT. 22µF 50V OA22605020 CS84 4822 124 90362 ELECT. 22µF 50V OA22605020 CS85 4822 121 10792 FILM 220pF J 100V OF15221540 CS86 4822 121 10792 FILM 220pF J 100V OF15221540 CS87 4822 122 40617 CER. 0.1µF 50V DD38104010 CS88 4822 122 40617 CER. 0.1µF 50V DD38104010 CS92 CS93 9965 000 01569 CER. 0.01µF 50V DD38103010 CS94 9965 000 01569 CER. 0.01µF 50V DD38103010 CS95 CS96 4822 124 90354 ELECT. 100µF 16V OA10701620 CS97 4822 124 90354 ELECT. 100µF 16V OA10701620 C401 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 C402 /F,/L 9965 000 01344 FILM 100pF J 100V APSV OF15101540 C403 /F,/L 4822 121 10792 FILM 220pF 100V PP OF15221540 C403 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 C404 /F,/L 4822 121 10792 FILM 220pF 100V PP OF15221540 C404 /N,/S 9965 000 05891 FILM 470pF 100V PP OF15471540 C405 5322 124 21731 ELECT. 10µF 50V OA10605020 C406 5322 124 21731 ELECT. 10µF 50V OA10605020 C407 4822 121 70437 FILM 1000pF 100V OF15102540 C408 4822 121 70437 FILM 1000pF 100V OF15102540 C409 4822 124 12276 FILM 0.01µF 100V OF15103540 C410 4822 124 12276 FILM 0.01µF 100V OF15103540 C413 4822 124 22277 ELECT. 470µF 16V M OA47701620 C414 4822 124 22277 ELECT. 470µF 16V OA47701620 C415 4822 124 90362 ELECT. 22µF 50V OA22605020 C416 4822 124 90362 ELECT. 22µF 50V OA22605020 C419 4822 122 40617 CER. 0.1µF 50V DD38104010 C420 4822 122 40617 CER. 0.1µF 50V DD38104010 C421 4822 124 12404 ELECT. 220µF 16V OA22701620 C422 4822 124 12404 ELECT. 220µF 16V OA22701620 C423 4822 122 40617 CER. 0.1µF 50V DD38104010 C427 PS04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CS89 CS90 PLASTIC FILM CAPACITOR ±5% 50V : C411 C412 C417 C418 PS04-RESISTORS RS57 0Ω J 1/6W GD05000160 RS70 RS82 4822 052 10109 10Ω ±5% 1/6W GG05100160 RS83 4822 052 10109 10Ω ±5% 1/6W GG05100160 R401 /N,/S 4822 156 11019 CHOKE COIL 320mH TOROID. LC13240010 R402 /N,/S 4822 156 11019 CHOKE COIL 320mH TOROID. LC13240010 R423 4822 052 10109 10Ω ±5% 1/6W GG05100160 R424 4822 052 10109 10Ω ±5% 1/6W GG05100160 R425 4822 052 10109 10Ω 1/6W GG05100160 PS04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R401-R406 R411-R422 RS01-RS54 RS59-RS66 RS71-RS74 RS77-RS81 PS04-SEMICONDUCTORS QS01 4822 209 32553 IC LC78212 HC10309030 QS02 4822 209 32552 IC LC78211 HC10308030 QS03 4822 209 73064 IC NJM-2068-DD HC10053090 QS04 4822 209 73064 IC NJM-2068-DD HC10053090 QS05 4822 209 32553 IC LC78212 HC10309030 QS06 4822 209 73064 IC NJM-2068-DD HC10053090 Q405 4822 209 73064 IC NJM-2068-DD HC10053090 PS04-MISCELLANEOUS JS01 9965 000 09131 TERMINAL YKC21-3439 YT02060510 JS04 J401 4822 290 61242 TERMINAL 14X14 RA 2L2P B YT02021360 LS01 4822 242 73843 EMI FILTER 0.022uF FM12223010 LS03 4822 242 73843 EMI FILTER 0.022uF FM12223010 PU04-FRONT(CPU/FL) CIRCUIT BOARD PU04-CAPACITORS CU01 4822 126 11558 CER. 0.1µF 50V DA17104110 CU06 CU07 4822 126 10364 CER. 100pF 50V DA16101110 CU08 4822 126 10364 CER. 100pF 50V DA16101110 CU09 4822 126 11558 CER. 0.1µF 50V DA17104110 CU10 4822 126 11558 CER. 0.1µF 50V DA17104110 CU11 4822 126 10513 CER. 47pF DA15470110 CU12 4822 126 11558 CER. 0.1µF 50V DA17104110 CU13 4822 122 33639 CER. 1000pF 50V DA16102110 CU14 4822 122 40617 CER. 0.1µF 50V DD38104010 CU15 4822 126 10935 ELECT. 100µF 6.3V EJ10700610 CU17 4822 126 11558 CER. 0.1µF 50V DA17104110 CU18 4822 126 11558 CER. 0.1µF 50V DA17104110 CU21 4822 122 40617 CER. 0.1µF 50V DD38104010 CU22 5322 124 21731 ELECT. 10µF 50V OA10605020 CU23 4822 122 40588 CER. 22000pF 25V DA17223110 CU24 4822 122 40617 CER. 0.1µF 50V DD38104010 CU25 4822 122 40617 CER. 0.1µF 50V DD38104010 CU28 4822 122 40617 CER. 0.1µF 50V DD38104010 CU41 4822 122 40617 CER. 0.1µF 50V DD38104010 CU42 4822 124 23056 ELECT. 47µF 10V EJ47601010 CU43 4822 122 40617 CER. 0.1µF 50V DD38104010 CU44 4822 124 23056 ELECT. 47µF 10V EJ47601010 CU45 4822 126 10364 CER. 100pF 50V DA16101110 CU46 4822 126 10364 CER. 100pF 50V DA16101110 CU50 4822 122 40617 CER. 0.1µF 50V DD38104010 CU51 CER. 100pF DK16101300 PU04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RU01-RU05 RU07 RU08 RU10-RU28 RU34 RU35 RU41-RU49 RU51 RU52 RU57 RU58-RU66 RU68-RU71 RU80 RU81-RU89 PU04-SEMICONDUCTORS DU01 4822 130 32362 DIODE HD20002000 DU50 4822 130 32362 DIODE HD20002000 DU59 DU80 4822 130 11569 L.E.D. LHMF-K2 RED HI10005340 DU89 QU01 9965 000 09125 IC TMP93PW44ADF PROGRAMED * HS330JT3R QU02 9965 000 03868 IC ML9205-01GA FL DRIVER HC10039260 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 62 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QU03 9965 000 08235 IC AT24C04N-10SI-2.5 HC10033990 QU04 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QU05 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QU06 4822 130 42594 DIG.TRS. DTC144ES BA20002000 QU07 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QU08 4822 130 41947 TRS. 2SC536SP ETC HT30001000 QU09 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU10 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 QU11 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU12 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 QU13 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU38 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU39 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU51 5322 209 11532 IC 74HC4094 16PIN HC709449B0 QU52 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QU56 QU57 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 QU58 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 QU80 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 QU81 4822 130 60588 DIG.TRS. DTC114ES ETC BA20001000 PU04-MISCELLANEOUS JU01 JACK 29FE-ST-VK-N YJ07020250 LU01 4822 242 73843 EMI FILTER 0.022uF FM12223010 SU01 9965 000 00373 TACT SWITCH SP01013370 SU16 VU01 9965 000 09126 DISPLAY UNIT 24-BT-12GN F HQ32402410 XU01 9965 000 01346 SERAMIC VIB. CERALOCK 20MHz FQ02005030 PU34-TEMP. METER CIRCUIT BOARD CU30 4822 126 11558 CER. 0.1µF 50V DA17104110 MU30 4822 134 40925 LAMP 8V 100mA LAMP (DC IGN.)BLUE IN10080680 MU31 4822 344 14034 D.C METER MG-28 IM11030030 RU30 4822 052 10109 10Ω ±5% 1/6W GG05100160 PU44-DOOR SW CIRCUIT BOARD SU40 9965 000 09124 MINI SWITCH SPPB5A0100 SM01013100 PU54-CONNECTOR CIRCUIT BOARD JU50 JACK 29FE-BT-VK-N 29PIN YJ07020620 PU64-IR SENSOR CIRCUIT BOARD CU61 4822 122 40588 CER. 22000pF 25V DA17223110 CU62 4822 124 80087 ELECT. 220µF 6.3V EJ22700610 RU67 100Ω 1/6W GD05101160 QU60 4822 130 63211 DIG.TRS. DTA114TS UN4115 KRA111M 10K BA10004000 QU61 4822 209 16157 PHOTO UNIT PNA4655M00XB IR SENSOR HW10005020 PU74-FUNC.SEL.SW CIRCUIT BOARD RU72 4822 117 10158 1Ω UKIBOUSHI GG05010140 SU70 4822 273 20368 ROTARY SWITCH SRRSIC-F12-1 L30 SR01120070 PU94-MASTER VOL. CIRCUIT BOARD PU94-CAPACITORS CU90 ELECT. 100µF 50V EA10700610 CU91 9965 000 01569 CER. 0.01µF 50V DD38103010 CU92 9965 000 01569 CER. 0.01µF 50V DD38103010 CU93 9965 000 01569 CER. 0.01µF 50V DD38103010 CU94 CER. 470pF 25V DK16471300 CU95 CER. 470pF 25V DK16471300 CU96 9965 000 01569 CER. 0.01µF 50V DD38103010 CU97 9965 000 01569 CER. 0.01µF 50V DD38103010 CU98 9965 000 01569 CER. 0.01µF 50V DD38103010 CU99 ELECT. 100µF 50V EA10700610 PU94-RESISTORS RU90 4822 052 10109 10Ω 1/6W GG05100160 RU91 100Ω 1/6W GD05101160 RU92 100Ω 1/6W GD05101160 RU93 4822 052 10109 10Ω 1/6W GG05100160 RU94 4822 052 10109 10Ω 1/6W GG05100160 RU95 9965 000 09123 VARI. 5kΩ B RK16312MC M9 RY05020010 PU94-SEMICONDUCTORS DU90 4822 130 10667 ZENER DIODE NTJ4.7B 4.7V HD30471000 QU90 4822 209 30193 IC LB1641 MOTOR DRIVER HC10279030 PW04-HEADPHONE CIRCUIT BOARD CW50 4822 122 40586 CER. 10000pF DA17103110 CW51 4822 122 40586 CER. 0.01µF 16V DA17103110 CW52 4822 122 40617 CER. 0.1µF 50V DD38104010 CW53 4822 122 40586 CER. 0.01µF 16V DA17103110 JW50 4822 265 11525 H.P JACK GLD HLJ2307-01-3163 YJ01004330 JW51 4822 267 30894 JACK B4B-PH-K-S YJ06006240 P604-DSP/ADC/DAC CIRCUIT BOARD P604-CAPACITORS CC01 5322 124 21731 ELECT. 10µF 50V OA10605020 CC02 5322 124 21731 ELECT. 10µF 50V OA10605020 CC03 4822 126 11703 CER. CHIP 0.01uF DK98103300 CC04 4822 126 11703 CER. CHIP 0.01uF DK98103300 CC05 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC06 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC07 4822 124 90353 ELECT. 100µF 10V OA10701020 CC08 4822 124 90353 ELECT. 100µF 10V OA10701020 CC09 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC10 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC11 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CC12 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CC21 5322 124 21731 ELECT. 10µF 50V OA10605020 CC22 5322 124 21731 ELECT. 10µF 50V OA10605020 CC23 4822 126 11703 CER. CHIP 0.01uF DK98103300 CC24 4822 126 11703 CER. CHIP 0.01uF DK98103300 CC25 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC26 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC27 4822 124 90353 ELECT. 100µF 10V OA10701020 CC28 4822 124 90353 ELECT. 100µF 10V OA10701020 CC29 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC30 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC31 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CC32 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CC51 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC52 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC55 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CC56 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CD01 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CD02 4822 124 90353 ELECT. 100µF 10V OA10701020 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 63 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CD03 4822 124 90353 ELECT. 100µF 10V OA10701020 CD04 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CD05 4822 126 11687 CER. CHIP 0.1uF DK98104200 CD08 CD09 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CD10 4822 124 90353 ELECT. 100µF 10V OA10701020 CD11 4822 124 90353 ELECT. 100µF 10V OA10701020 CD12 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CD13 4822 126 11687 CER. CHIP 0.1uF DK98104200 CD20 CD21 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD22 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CD22 /L,/N,/S 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD23 5322 124 21731 ELECT. 10µF 50V OA10605020 CD24 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD25 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD26 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CD26 /L,/N,/S 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD27 5322 124 21731 ELECT. 10µF 50V OA10605020 CD28 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CD29 4822 126 11687 CER. CHIP 0.1uF DK98104200 CH09 4822 126 14166 FILM 330pF 100V PP OF15331540 CH10 4822 126 14166 FILM 330pF 100V PP OF15331540 CH11 9965 000 05891 FILM 470pF 100V PP OF15471540 CH12 9965 000 05891 FILM 470pF 100V PP OF15471540 CH13 4822 121 43382 FILM 680pF J M 50V DF15681350 CH14 4822 121 43382 FILM 820pF J 50V DF15681350 CH15 4822 121 43382 FILM 680pF J M 50V DF15681350 CH16 4822 121 43382 FILM 680pF J M 50V DF15681350 CH17 9965 000 09113 FILM 270pF 100V PP OF15271540 CH20 CH21 4822 126 11671 CER. CHIP 33pF ±5 % CG 50V DD95330300 CH22 4822 126 11671 CER. CHIP 33pF ±5 % CG 50V DD95330300 CH23 9965 000 08135 ELECT. 47µF 50V M ARS OA47605040 CH24 9965 000 08135 ELECT. 47µF 50V M ARS OA47605040 CH27 4822 126 11687 CER. CHIP 0.1uF DK98104200 CH30 CH31 4822 124 23649 ELECT. 470µF 25V OA47702520 CH34 CH35 4822 126 11687 CER. CHIP 0.1uF DK98104200 CH38 CH39 4822 121 10792 FILM 220pF J 100V OF15221540 CH40 4822 121 10792 FILM 220pF J 100V OF15221540 CH41 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CH44 CH51 4822 121 10792 FILM 220pF J 100V OF15221540 CH52 4822 121 10792 FILM 220pF J 100V OF15221540 CJ01 9965 000 07023 FILM 820pF J 50V DF15821350 CJ04 CJ05 9965 000 09113 FILM 270pF 100V PP OF15271540 CJ08 CJ11 4822 121 43382 FILM 680pF J M 50V DF15681350 CJ12 4822 121 43382 FILM 680pF J M 50V DF15681350 CJ15 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ16 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ17 4822 124 90362 ELECT. 22µF 50V OA22605020 CJ18 4822 124 90362 ELECT. 22µF 50V OA22605020 CJ19 4822 121 10792 FILM 220pF J 100V OF15221540 CJ20 4822 121 10792 FILM 220pF J 100V OF15221540 CJ21 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ24 CJ25 4822 124 41535 ELECT. 100µF 25V OA10702520 CJ26 4822 124 41535 ELECT. 100µF 25V OA10702520 CJ27 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ27 /L,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ28 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ28 /L,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ29 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ30 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ31 9965 000 07023 FILM 820pF J 50V DF15821350 CJ34 CJ35 9965 000 09113 FILM 270pF 100V PP OF15271540 CJ38 CJ41 9965 000 06697 FILM 560pF 100V PP OF15561540 CJ42 9965 000 06697 FILM 560pF 100V PP OF15561540 CJ45 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ46 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ47 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ47 /L,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ48 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ48 /L,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ49 4822 121 10792 FILM 220pF J 100V OF15221540 CJ50 4822 121 10792 FILM 220pF J 100V OF15221540 CJ51 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ52 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ53 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ54 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ60 CJ61 9965 000 07023 FILM 820pF J 50V DF15821350 CJ63 9965 000 07023 FILM 820pF J 50V DF15821350 CJ65 9965 000 09113 FILM 270pF 100V PP OF15271540 CJ67 9965 000 09113 FILM 270pF 100V PP OF15271540 CJ71 9965 000 06697 FILM 560pF 100V PP OF15561540 CJ72 9965 000 05891 FILM 470pF J 100V OF15471540 CJ75 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ76 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CJ77 /F 4822 124 90362 ELECT. 22µF M 50V RA-2 OA22605020 CJ77 /L,/N,/S 9965 000 02015 ELECT. 22µF M 25V ARS OA22602540 CJ78 4822 124 90362 ELECT. 22µF 50V OA22605020 CJ79 4822 121 10792 FILM 220pF J 100V OF15221540 CJ80 4822 121 10792 FILM 220pF J 100V OF15221540 CJ81 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ82 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ83 4822 124 41535 ELECT. 100µF 25V OA10702520 CJ84 4822 124 41535 ELECT. 100µF 25V OA10702520 CJ87 4822 126 11687 CER. CHIP 0.1uF DK98104200 CJ94 CJ95 4822 124 41535 ELECT. 100µF 25V OA10702520 CJ98 CK01 4822 124 90362 ELECT. 22µF 50V OA22605020 CK04 CK05 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CK06 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CK07 5322 124 21731 ELECT. 10µF 50V OA10605020 CK08 5322 124 21731 ELECT. 10µF 50V OA10605020 CK09 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 CK10 4822 122 33777 CER. CHIP 47pF RH 50 DD95470300 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 64 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CK11 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CK12 4822 122 10172 CER. CHIP 220pF 50V DK96221300 CK13 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CK13 /L,/N,/S 4822 124 90386 ELECT. 10µF 25V ARA OA10602550 CK14 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CK14 /L,/N,/S 4822 124 90386 ELECT. 10µF 25V ARA OA10602550 CK15 4822 122 31765 CER. CHIP 100pF 50V DD95101300 CK16 4822 122 31765 CER. CHIP 100pF 50V DD95101300 CK17 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CK17 /L,/N,/S 4822 124 90386 ELECT. 10µF 25V ARA OA10602550 CK18 /F 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CK18 /L,/N,/S 4822 124 90386 ELECT. 10µF 25V ARA OA10602550 CK19 4822 122 31765 CER. CHIP 100pF 50V DD95101300 CK20 4822 122 31765 CER. CHIP 100pF 50V DD95101300 CK21 9965 000 01568 FILM 1500pF J 100V OF15152540 CK22 9965 000 01568 FILM 1500pF J 100V OF15152540 CK23 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK30 CK31 4822 124 90352 ELECT. 10µF 16V OA10601620 CK32 4822 124 90352 ELECT. 10µF 16V OA10601620 CK33 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK34 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK35 9965 000 06287 CER. CHIP 0.22µF DK98224200 CK36 9965 000 06287 CER. CHIP 0.22µF DK98224200 CK37 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK38 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CK39 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK40 4822 122 31765 CER. CHIP 100pF 50V DD95101300 CK41 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK42 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CK43 4822 124 80543 ELECT. 10µF 35V ARS OA10603540 CK44 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK48 CK49 4822 124 12404 ELECT. 220µF 16V OA22701620 CK50 4822 124 12404 ELECT. 220µF 16V OA22701620 CK51 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK52 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK57 4822 124 12404 ELECT. 220µF 16V OA22701620 CK58 4822 124 12404 ELECT. 220µF 16V OA22701620 CK59 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK62 CK63 4822 124 12404 ELECT. 220µF 16V OA22701620 CK64 4822 124 12404 ELECT. 220µF 16V OA22701620 CK65 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK66 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK67 4822 124 12404 ELECT. 220µF 16V OA22701620 CK68 4822 124 12404 ELECT. 220µF 16V OA22701620 CK69 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK70 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK71 4822 124 12404 ELECT. 220µF 16V OA22701620 CK72 4822 124 12404 ELECT. 220µF 16V OA22701620 CK73 4822 126 11687 CER. CHIP 0.1uF DK98104200 CK74 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR01 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 CR02 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 CR03 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 CR04 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR05 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR06 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR07 4822 124 90353 ELECT. 100µF 10V OA10701020 CR08 5322 126 11578 CER. CHIP 1000P 50V DK96102300 CR09 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR11 4822 126 11568 CER. CHIP 470P 50V DK96471300 CR12 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 CR14 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR15 4822 124 90353 ELECT. 100µF 10V OA10701020 CR16 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR17 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR18 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR19 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR20 4822 124 90353 ELECT. 100µF 10V OA10701020 CR21 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 CR22 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR23 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 CR24 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 CR25 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 CR26 4822 124 41539 ELECT. 47µF 16V OA47601620 CR27 4822 126 11687 CER. CHIP 0.1uF DK98104200 CR33 CR34 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 CR35 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 CR50 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR63 CR64 4822 124 90353 ELECT. 100µF 10V OA10701020 CR65 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR66 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR67 4822 124 90353 ELECT. 100µF 10V OA10701020 CR68 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR69 4822 126 11703 CER. CHIP 0.01uF DK98103300 CR70 4822 124 90353 ELECT. 100µF 10V OA10701020 CR71 4822 124 90353 ELECT. 100µF 10V OA10701020 CR72 4822 124 90353 ELECT. 100µF 10V OA10701020 CR73 4822 124 12404 ELECT. 220µF 16V OA22701620 CR76 C601 4822 126 11687 CER. CHIP 0.1uF DK98104200 C602 4822 124 90353 ELECT. 100µF 10V OA10701020 C603 4822 122 33761 CER. CHIP 22pF 50V DD95220300 C604 4822 126 11687 CER. CHIP 0.1uF DK98104200 C605 4822 126 11687 CER. CHIP 0.1uF DK98104200 C606 4822 124 90353 ELECT. 100µF 10V OA10701020 C607 4822 122 33761 CER. CHIP 22pF 50V DD95220300 C608 4822 126 11687 CER. CHIP 0.1uF DK98104200 C609 4822 121 42327 FILM 470pF J M 50V DF15471350 C610 4822 126 11687 CER. CHIP 0.1uF DK98104200 C611 4822 126 11687 CER. CHIP 0.1uF DK98104200 C612 4822 126 11687 CER. CHIP 0.1uF DK98104200 C613 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 C614 4822 126 11687 CER. CHIP 0.1uF DK98104200 C618 C619 4822 126 11703 CER. CHIP 0.01uF DK98103300 C620 4822 126 11703 CER. CHIP 0.01uF DK98103300 C621 4822 124 90353 ELECT. 100µF 10V OA10701020 C622 4822 126 11703 CER. CHIP 0.01uF DK98103300 C623 4822 124 90353 ELECT. 100µF 10V OA10701020 C624 4822 126 11703 CER. CHIP 0.01uF DK98103300 C625 4822 126 11703 CER. CHIP 0.01uF DK98103300 C626 9965 000 01318 ELECT. 220µF 10V OA22701020 C630 4822 126 11687 CER. CHIP 0.1uF DK98104200 C635 C636 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 C637 4822 126 11687 CER. CHIP 0.1uF DK98104200 C638 4822 124 90353 ELECT. 100µF 10V OA10701020 C639 4822 126 11687 CER. CHIP 0.1uF DK98104200 C640 4822 126 11687 CER. CHIP 0.1uF DK98104200 C641 4822 126 14417 CER. CHIP 0.01µF 50V DK96103300 C642 4822 126 14417 CER. CHIP 0.01µF 50V DK96103300 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 65 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) C643 4822 124 90353 ELECT. 100µF 10V OA10701020 C644 4822 126 11687 CER. CHIP 0.1uF DK98104200 C645 4822 126 11687 CER. CHIP 0.1uF DK98104200 C646 4822 126 11687 CER. CHIP 0.1uF DK98104200 C647 4822 124 90353 ELECT. 100µF 10V OA10701020 C648 4822 126 11687 CER. CHIP 0.1uF DK98104200 C649 4822 126 14417 CER. CHIP 0.01µF 50V DK96103300 C650 4822 126 11687 CER. CHIP 0.1uF DK98104200 C655 C656 9965 000 01581 ELECT. 22µF 25V OA22602520 C657 4822 126 13837 CER. CHIP 0.1µF 50V DK96104200 C659 4822 126 11687 CER. CHIP 0.1uF DK98104200 C671 C672 4822 126 11703 CER. CHIP 0.01uF DK98103300 C673 4822 126 11703 CER. CHIP 0.01uF DK98103300 C674 4822 124 90353 ELECT. 100µF 10V OA10701020 C675 4822 126 11687 CER. CHIP 0.1uF DK98104200 C676 4822 126 11687 CER. CHIP 0.1uF DK98104200 C677 4822 126 14417 CER. CHIP 0.01µF 50V DK96103300 C678 4822 126 11687 CER. CHIP 0.1uF DK98104200 C679 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 C680 4822 126 11687 CER. CHIP 0.1µF DK98104200 C681 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 C683 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C690 4822 126 11687 CER. CHIP 0.1uF DK98104200 C691 4822 126 14417 CER. CHIP 0.01µF 50V DK96103300 C692 4822 126 11687 CER. CHIP 0.1uF DK98104200 C693 4822 126 11687 CER. CHIP 0.1uF DK98104200 C694 4822 126 11687 CER. CHIP 0.1uF DK98104200 C695 4822 124 90353 ELECT. 100µF 10V OA10701020 C696 4822 122 33761 CER. CHIP 22pF 50V DD95220300 C697 5322 126 11583 CER. CHIP 0.01µF 50V DK96103200 C698 4822 126 11687 CER. CHIP 0.1uF DK98104200 C699 4822 122 33761 CER. CHIP 22pF 50V DD95220300 P604-CAPACITORS (COMMON) PLASTIC FILM CAPACITOR ±5% 50V :C658 CH25 CH26 CJ62 CJ64 CJ66 CJ68 P604-RESISTORS RC01 4822 051 30562 CHIP 5.6kΩ 1/16W NN05562610 RC02 4822 051 30562 CHIP 5.6kΩ 1/16W NN05562610 RC03 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RC04 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RC05 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC06 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC07 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC08 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RC09 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RC10 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RC11 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC12 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC13 4822 051 30123 CHIP 12kΩ 1/16W NN05123610 RC14 4822 051 30123 CHIP 12kΩ 1/16W NN05123610 RC15 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RC16 4822 117 11817 CHIP 1.2kΩ 1/16W NN05122610 RC17 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RC20 RC21 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RC24 RC25 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC28 RC29 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RC30 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RC31 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC32 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC37 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RC40 RC41 4822 051 30105 CHIP 1.0MΩ 1/16W NN05105610 RC42 4822 051 30105 CHIP 1.0MΩ 1/16W NN05105610 RC51 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RC52 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RC53 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC54 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RC55 4822 117 11817 CHIP 1.2kΩ ±5% 1/16W NN05122610 RC56 4822 051 30272 CHIP 2.7kΩ ±5% 1/16W NN05272610 RC57 4822 117 12902 CHIP 8.2kΩ ±5% 1/16W NN05822610 RC59 4822 051 30152 CHIP 2.2kΩ 1/16W NN05152610 RC61 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC62 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RC69 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RC72 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RC73 4822 051 30222 CHIP 2.2kΩ ±5% 1/16W NN05222610 RC80 RC81 4822 051 30105 CHIP 1MΩ ±5% 1/16W NN05105610 RD01 4822 051 30272 CHIP 2.7kΩ 1/16W NN05272610 RD02 4822 051 30391 CHIP 390Ω 1/16W NN05391610 RD03 4822 051 30391 CHIP 390Ω 1/16W NN05391610 RH01 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RH08 RH09 4822 116 83819 CHIP 18kΩ ±5% 1/16W NN05183610 RH10 4822 116 83819 CHIP 18kΩ ±5% 1/16W NN05183610 RH11 4822 117 12902 CHIP 8.2kΩ ±5% 1/16W NN05822610 RH12 4822 117 12902 CHIP 8.2kΩ ±5% 1/16W NN05822610 RH13 4822 051 30479 CHIP 47Ω ±5% 1/16W NN05470610 RH14 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RH28 RH29 4822 051 30332 CHIP 3.3kΩ ±5% 1/16W NN05332610 RH30 4822 051 30332 CHIP 3.3kΩ ±5% 1/16W NN05332610 RH31 4822 051 30332 CHIP 2.2kΩ 1/16W NN05332610 RH32 4822 051 30332 CHIP 3.3kΩ ±5% 1/16W NN05332610 RH33 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RH40 RH41 4822 051 30121 CHIP 120Ω 1/16W NN05121610 RH44 RH45 4822 051 30689 CHIP 68Ω 1/16W NN05680610 RH46 4822 051 30689 CHIP 68Ω 1/16W NN05680610 RH47 4822 117 12139 CHIP 22Ω 1/16W NN05220610 RH50 RH51 4822 051 30333 CHIP 33kΩ 1/16W NN05333610 RH52 4822 051 30333 CHIP 33kΩ 1/16W NN05333610 RH53 4822 051 30102 CHIP 1kΩ 1/16W NN05102610 RH56 RH57 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RH58 4822 051 30101 CHIP 100Ω 1/16W NN05101610 RH59 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RH66 RH67 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RH68 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RH69 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 66 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RH70 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RH85 4822 051 30109 CHIP 10Ω ±5% 1/16W NN05100610 RH88 RJ01 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ14 RJ15 4822 051 30123 CHIP 12kΩ 1/16W NN05123610 RJ16 4822 051 30123 CHIP 12kΩ 1/16W NN05123610 RJ17 4822 051 30153 CHIP 15kΩ ±5% 1/16W NN05153610 RJ18 4822 051 30153 CHIP 15kΩ ±5% 1/16W NN05153610 RJ21 4822 051 30184 CHIP 180kΩ ±5% 1/16W NN05184610 RJ22 4822 051 30184 CHIP 33kΩ 1/16W NN05184610 RJ23 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ24 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ25 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ26 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ27 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ28 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ31 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ44 RJ45 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ46 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ47 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RJ48 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RJ49 4822 051 30184 CHIP 180kΩ ±5% 1/16W NN05184610 RJ50 4822 051 30184 CHIP 180kΩ ±5% 1/16W NN05184610 RJ51 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ52 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ53 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ54 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ55 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ56 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ61 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ62 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ63 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ64 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ65 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ66 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ67 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ68 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ69 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ70 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ71 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ72 4822 051 30223 CHIP 22kΩ 1/16W NN05223610 RJ73 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RJ74 4822 051 30471 CHIP 470Ω 1/16W NN05471610 RJ75 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ76 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ77 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RJ78 4822 116 83211 CHIP 1.8kΩ ±5% 1/16W NN05182610 RJ79 4822 051 30184 CHIP 180kΩ ±5% 1/16W NN05184610 RJ80 4822 051 30273 CHIP 27kΩ ±5% 1/16W NN05273610 RJ81 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ82 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RJ83 4822 051 30479 CHIP 47Ω 1/16W NN05470610 RJ90 RJ91 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ92 4822 051 30561 CHIP 560Ω 1/16W NN05561610 RJ93 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ94 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RJ95 4822 051 30109 CHIP 10Ω ±5% 1/16W NN05100610 RJ96 4822 051 30109 CHIP 10Ω ±5% 1/16W NN05100610 RK01 4822 051 30562 CHIP 5.6kΩ ±5% 1/16W NN05562610 RK02 4822 051 30562 CHIP 5.6kΩ ±5% 1/16W NN05562610 RK03 4822 051 30272 CHIP 2.7kΩ 1/16W NN05272610 RK04 4822 051 30272 CHIP 2.7kΩ 1/16W NN05272610 RK05 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RK06 4822 051 30222 CHIP 2.2kΩ 1/16W NN05222610 RK07 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RK08 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RK09 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RK18 RK19 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RK20 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RK21 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RK24 RK25 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RK26 4822 051 30331 CHIP 330Ω 1/16W NN05331610 RK27 4822 051 30109 CHIP 10Ω 1/16W NN05100610 RK30 RK31 4822 116 82487 CHIP 0Ω 1/16W NN05000610 RK33 4822 051 30105 CHIP 1.0MΩ 1/16W NN05105610 RK34 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RK35 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RK36 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RR01 4822 051 30759 CHIP 75Ω 1/16W NN05750610 RR02 4822 051 30759 CHIP 75Ω 1/16W NN05750610 RR03 4822 051 30759 CHIP 75Ω 1/16W NN05750610 RR04 4822 051 30102 CHIP 1kΩ 1/16W NN05102610 RR05 4822 051 30102 CHIP 1kΩ 1/16W NN05102610 RR06 4822 051 30102 CHIP 1kΩ 1/16W NN05102610 RR07 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 RR08 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 RR09 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 RR10 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RR11 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RR12 4822 051 30472 CHIP 4.7kΩ 1/16W NN05472610 RR13 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RR14 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RR15 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RR16 4822 051 30759 CHIP 75Ω 1/16W NN05750610 RR17 4822 051 30339 CHIP 33Ω 1/16W NN05330610 RR18 4822 051 30339 CHIP 33Ω 1/16W NN05330610 RR19 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 RR21 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 RR22 9965 000 06300 CHIP 5.1kΩ ±5% 1/16W NN0551261R RR23 4822 117 12902 CHIP 8.2kΩ 1/16W NN05822610 RR24 4822 051 30302 CHIP 3kΩ ±5% 1/16W NN05302610 RR25 4822 051 30759 CHIP 75Ω 1/16W NN05750610 RR26 4822 051 30682 CHIP 6.8kΩ 1/16W NN05682610 RR29 4822 116 82487 CHIP 0Ω 1/16W NN05000610 RR30 4822 051 30479 CHIP 47Ω 1/16W NN05470610 R601 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R602 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R603 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R604 4822 051 30105 CHIP 1.0MΩ 1/16W NN05105610 R605 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R606 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R611 R612 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 R613 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R614 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 R616 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 R619 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 67 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R620 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R621 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R622 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R623 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R624 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R626 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R627 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 R628 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R629 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R631 4822 117 12925 CHIP 47kΩ ±5% 1/16W NN05473610 R633 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R634 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 R635 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 R636 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 R639 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R643 R645 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R649 R650 4822 117 13632 CHIP 100kΩ 1/16W NN05104610 R651 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R657 R659 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R660 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R661 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R662 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 R664 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 R666 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 R668 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 R669 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 R675 R676 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R678 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R682 R684 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 R689 R690 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R691 4822 117 12925 CHIP 47kΩ 1/16W NN05473610 R692 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 R694 4822 116 82487 CHIP 0Ω 1/16W NN05000610 R696 4822 051 30103 CHIP 10kΩ 1/16W NN05103610 P604-SEMICONDUCTORS DH01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DH06 DK01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DK04 DR01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DR02 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DR03 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 D693 4822 130 83715 CHIP DIODE ISS301 HZ21005000 D696 D698 4822 130 80522 CHIP DIODE ISS300 HZ21006000 QC01 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC02 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC04 4822 130 61903 DIG.TRS. DTA114EU BA10026210 QC05 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC06 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC07 4822 130 61903 DIG.TRS. DTA114EU BA10026210 QC09 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC16 QC17 4822 130 61903 DIG.TRS. DTA114EU BA10026210 QC21 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC22 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC23 4822 209 17155 IC NJM2068M HC10102090 QC24 4822 130 61903 DIG.TRS. DTA114EU BA10026210 QC25 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC26 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC51 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QC53 4822 209 17155 IC NJM2068M HC10102090 QD01 9965 000 09114 IC AD1853JRS DAC 24/96kHz HC10071840 QD02 9965 000 06290 IC AD1852 DAC 24BIT/96kHz HC10014840 QD03 9965 000 06290 IC AD1852 DAC 24BIT/96kHz HC10014840 QD04 9965 000 06290 IC AD1852 DAC 24BIT/96kHz HC10014840 QD52 3141 018 50260 IC BA033T +3.3V 1A HC36J33210 QH01 9965 000 09115 IC NJM2082D DUAL J-OP-AMP HC10080090 QH02 9965 000 09115 IC NJM2082D DUAL J-OP-AMP HC10080090 QH03 5322 130 41844 F.E.T. 2SK170 BL HF201701G0 QH06 QH07 4822 130 62649 F.E.T. 2SK74 BL HF100741G0 QH10 QH11 4822 130 42843 F.E.T. 2SK389 GR OR BL HF203892A0 QH12 4822 130 42843 F.E.T. 2SK389 GR OR BL HF203892A0 QH13 4822 130 43233 TRS. 2SC2240 HT322402A0 QH14 4822 130 43233 TRS. 2SC2240 HT322402A0 QH15 4822 130 42949 TRS. 2SA970 HT109702A0 QH18 QH19 4822 130 43233 TRS. 2SC2240 HT322402A0 QH22 QH23 5322 130 41844 F.E.T. 2SK170 BL HF201701G0 QH24 5322 130 41844 F.E.T. 2SK170 BL HF201701G0 QH25 4822 130 62649 F.E.T. 2SK74 BL HF100741G0 QH26 4822 130 62649 F.E.T. 2SK74 BL HF100741G0 QH27 4822 209 17155 IC NJM2068M HC10102090 QJ01 4822 209 17155 IC NJM2068M HC10102090 QJ02 4822 209 17155 IC NJM2068M HC10102090 QJ31 4822 209 17155 IC NJM2068M HC10102090 QJ32 4822 209 17155 IC NJM2068M HC10102090 QJ61 4822 209 17155 IC NJM2068M HC10102090 QJ62 4822 209 17155 IC NJM2068M HC10102090 QJ63 5322 130 41844 F.E.T. 2SK170 BL HF201701G0 QJ64 5322 130 41844 F.E.T. 2SK170 BL HF201701G0 QJ65 4822 130 62649 F.E.T. 2SK74 BL HF100741G0 QJ66 4822 130 62649 F.E.T. 2SK74 BL HF100741G0 QK01 9965 000 09111 IC AK5383VS 96kHz ADC HC10033480 QK03 4822 209 17155 IC NJM2068M HC10102090 QK06 QK07 9965 000 09112 IC NJM78L09A +9V 0.1A HC38109090 QK08 4822 209 83826 IC NJM79L09A -9V 0.1A HC39109090 QK10 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QK11 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QK12 4822 130 61903 DIG.TRS. DTA114EU BA10026210 QR01 4822 209 31568 IC 74HCU04 CMOS FLAT HC700400Z0 QR02 9965 000 01342 IC TC74HC151AF HC715100Z0 QR03 9965 000 01342 IC TC74HC151AF HC715100Z0 QR04 4822 209 30426 IC CMOS 74HC00 FLAT HC700000Z0 QR05 9965 000 06294 IC LC89055 SPDIF RECORDER HC10405030 QR06 4822 209 13267 IC TC74HCT7007AF SOP HC800705Q0 Q601 9965 000 01321 IC YSS912 DTS/AC-3 DECOD. HC10014640 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 68 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) Q604 9965 000 09116 IC AK7706VT DSP HC10032480 Q605 9965 000 09117 IC ICS502M HC10142990 Q606 4822 209 12079 IC TCW125FU HC715300Z0 Q607 4822 209 90597 IC TCW125FU HC10409050 Q608 9965 000 09118 IC XCB56362PV100 HC10112170 Q609 9965 000 09119 IC TMP93PW44ADF PROGRAMMED HS330JT2R Q610 9965 000 09120 IC SRAM 1M 3.3V 10NS HC10143990 Q611 9965 000 09120 IC SRAM 1M 3.3V 10NS HC10143990 Q612 9965 000 09120 IC SRAM 1M 3.3V 10NS HC10143990 Q613 4822 209 90685 IC TC7SH04FU HC007705K0 Q614 4822 209 90685 IC TC7SH04FU HC007705K0 Q615 9965 000 01326 IC TCW32FU HC10419050 Q616 4822 209 90685 IC TC7SH04FU HC007705K0 Q651 9965 000 09121 IC µPD78F0034GC-AB8 PROGRAMMED HS330JN0R Q652 4822 209 12848 IC 74HC573 FLAT HC757300R0 Q653 9965 000 09122 IC 4M EEPROM PROGRAMMED HC330JSTR Q654 4822 209 13267 IC TC74HCT7007AF SOP HC800705Q0 Q655 9965 000 06673 IC TC7WHU04FµF TRIPLE INVERTER HC008005K0 Q694 4822 209 33521 IC TC7W04FU HC10382050 Q695 4822 209 32921 IC S-80745AN HC10048530 P604-MISCELLANEOUS JR01 4822 267 41157 TERMINAL 14X14 RA 1L3P B YT02030610 JR04 9322 155 48687 OPT RECEIVER P1FA550RZ YJ15000180 JR05 9322 155 48687 OPT RECEIVER P1FA550RZ YJ15000180 JR06 9322 155 48687 OPT RECEIVER P1FA550RZ YJ15000180 JR07 4822 290 81638 TERMINAL 14X14 RA 1L1P B YT02010790 JR08 9322 155 28667 OPT OUTPUT P1FA550TZ YJ15000190 JR12 9965 000 03413 TERMINAL 14X14 RCA 1L2P O YT02021640 LD01 4822 526 10584 FERRITE CORE FC90090010 LD08 ZBF-503D-00TA LD09 4822 157 10884 INDUCTOR BLM11 FN31000010 LD12 LD59 4822 242 73843 EMI FILTER 0.022uF FM12223010 LK01 4822 526 10584 FERRITE FC90090010 LK03 CORE ZBF-503D-00TA LK05 4822 526 10584 FERRITE CORE ZBF-503D-00TA FC90090010 LK41 4822 526 10584 FERRITE CORE FC90090010 LK49 ZBF-503D-00TA LR01 4822 142 60422 PULSE TRANSF. TPS247MN-0386AN TP41042030 LR02 4822 242 73843 EMI FILTER 0.022uF FM12223010 LR50 4822 242 73843 EMI FILTER 0.022uF FM12223010 LR53 LR54 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LR55 4822 242 73843 EMI FILTER 0.022uF FM12223010 LR58 L602 4822 242 73843 EMI FILTER 0.022uF FM12223010 L650 4822 526 10584 FERRITE CORE ZBF-503D-00TA FC90090010 L651 4822 242 73843 EMI FILTER 0.022uF FM12223010 L692 4822 157 10884 INDUCTOR BLM11 FN31000010 L698 X601 4822 242 10851 CRYSTAL 12.288MHz AT-49 JX12013260 X692 9965 000 01346 CERAMIC VIB. CST20 00MXW FQ02005030 X693 9965 000 04977 CERAMIC VIB. CSTS MG 8MHz 15pF FQ08004060 P704-MAIN AMP LCH CIRCUIT BOARD P704-CAPACITORS C701 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C702 4822 121 10867 FILM 0.1µF ±5% 100V OFC OF55104540 C703 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C704 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C705 9965 000 01561 MICA 10pF ±0.5pF 500V FE DF31100520 C707 4822 124 23562 ELECT. 10µF M 100V RA-2 OA10610020 C708 4822 124 12276 FILM 0.01µF 100V PP OF15103540 C710 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C711 9965 000 01562 ELECT. 10µF M 50V RA2BP EQ10605090 C712 9965 000 01562 ELECT. 10µF M 50V RA2BP EQ10605090 C713 9965 000 02014 ELECT. 220µF 50V ARS OA22705040 C714 9965 000 02014 ELECT. 220µF 50V ARS OA22705040 C715 9965 000 01564 FILM 680pF ±5% 100V OFC OF55681540 P704-RESISTORS R705 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R707 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R708 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R709 4822 111 31001 330Ω ±5% 1/6W GG05331160 R710 4822 111 31001 330Ω ±5% 1/6W GG05331160 R713 9965 000 01565 68Ω ±1% 1/4W ERD NR01680140 R714 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R715 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R716 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R717 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R718 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R719 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R721 4822 116 52115 680Ω ±5% 1W GA05681010 R724 R727 9965 000 01566 TRIM. 2.2KΩ VERT RA02220760 R728 4822 052 10109 10Ω ±5% 1/6W GG05100160 R729 4822 052 10101 100Ω ±5% 1/6W GG05101160 R730 4822 052 10101 100Ω ±5% 1/6W GG05101160 R731 4822 050 22209 22Ω ±5% 1/4W GG05220140 R732 4822 050 22209 22Ω ±5% 1/4W GG05220140 R733 4822 052 10471 470Ω ±5% 1/6W GG05471160 R734 4822 052 10471 470Ω ±5% 1/6W GG05471160 R735 4822 050 26809 68Ω ±5% 1/6W GG05680160 R736 4822 050 26809 68Ω ±5% 1/6W GG05680160 R737 4822 052 10151 150Ω ±5% 1/6W GG05151160 R738 JUMPER 75060501P0 R739 4822 052 10109 10Ω ±5% 1/6W GG05100160 R740 4822 052 10109 10Ω ±5% 1/6W GG05100160 R741 4822 111 91402 FIXED 0.10Ω x 2 3W BZ10102010 R742 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R743 4822 052 10102 1kΩ ±5% 1/6W GG05102160 P704-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W :R701-R704 R711 R712 R720 R725 R726 R744-R747 P704-SEMICONDUCTORS D701 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D702 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D703 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D704 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 * * * NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 69 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) D705 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D712 30V 0.1A D713 4822 130 33948 ZENER DIODE 5.6V HD30561000 D714 4822 130 33948 ZENER DIODE 5.6V HD30561000 D715 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D716 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D717 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 Q701 9965 000 09127 UNIT & H-IC NEW HDAM KH313J1010 Q702 4822 130 60526 TRS. 2SD1508 DARLINGTON HT415080A0 Q703 4822 130 42949 TRS. 2SA970GR OR BL HT109702A0 Q704 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q705 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q706 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q707 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q708 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q709 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q710 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q711 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q712 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q713 4822 130 63635 TRS. 2SC4793 O OR Y HT347932A0 Q714 4822 130 63634 TRS. 2SA1837 O OR Y HT118372A0 Q715 4822 130 63676 TRS. 2SC3284 O P Y 125W HT332843D0 Q716 4822 130 63674 TRS. 1 2SA1303 O P Y 125W HT113033D0 Q717 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q718 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 P804-POWER SUPPLY CIRCUIT BOARD P804-CAPACITORS CN01 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CN02 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CN03 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CN04 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CN05 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CN06 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 CN07 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020 CN08 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 CN09 4822 122 30043 CER. 0.01µF Z 50V DK18103310 CN12 /L,/N,/S 4822 122 40586 CER. 10000pF DA17103110 CN13 /L,/N,/S 4822 122 40586 CER. 10000pF DA17103110 CN14 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C801 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C802 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C803 9965 000 09128 ELECT. UFW1V222MHA1AA G OC22803530 C804 9965 000 09128 ELECT. UFW1V222MHA1AA G OC22803530 C805 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C808 C809 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C810 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 C811 9965 000 08115 ELECT. OA33701640 C812 9965 000 08115 ELECT. OA33701640 C813 9965 000 01569 CER. 0.01µF +80%-20% 50V DD38103010 C814 9965 000 01569 CER. 0.01µF +80%-20% 50V DD38103010 C815 9965 000 09129 ELECT. UFW1H222MHA1AA G OC22805030 C816 9965 000 09129 ELECT. UFW1H222MHA1AA G OC22805030 C817 9965 000 01569 CER. 0.01µF +80%-20% 50V DD38103010 C818 9965 000 01569 CER. 0.01µF +80%-20% 50V DD38103010 C819 4822 124 11583 ELECT. 2200µF M 35V RA-2 OA22803520 C820 4822 124 11583 ELECT. 2200µF M 35V RA-2 OA22803520 C821 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C822 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C823 4822 122 40617 CER. 0.1µF +80%-20% DD38104010 C824 4822 122 40617 CER. 0.1µF +80%-20% DD38104010 C825 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C826 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C827 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C828 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C830 4822 124 22698 ELECT. 47µF M 25V RA-2 OA47602520 C850 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C851 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C852 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C853 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C854 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C855 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 C857 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C860 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C861 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C862 4822 122 30043 CER. 0.01µF Z 50V DK18103310 C870 CER. DE1607-1F 103M-KH DK17103910 C871 4822 122 30043 CER. 0.01µF Z 50V DK18103310 PV04-CAPACITORS (COMMON) PLASTIC FILM CAPACITOR ±5% 50V :C856 CN10 CN11 P804-RESISTORS RN01 4822 052 10229 22Ω ±5% 1/6W GG05220160 RN24 4822 053 10109 10Ω ±5% 1W GA05100010 RN25 4822 053 10109 10Ω ±5% 1W GA05100010 R801 4822 117 10158 1Ω ±5% 1/4W GG05010140 R802 4822 117 10158 1Ω ±5% 1/4W GG05010140 R805 4822 116 60323 5.6Ω ±5% 1W GA05056010 R806 4822 116 60323 5.6Ω ±5% 1W GA05056010 R809 4822 052 10478 4.7Ω ±5% 1/6W GG05047160 R810 4822 052 10478 4.7Ω ±5% 1/6W GG05047160 R811 4822 050 21108 1Ω ±5% 1/2W GG05010120 R812 4822 050 21108 1Ω ±5% 1/2W GG05010120 R813 4822 117 10158 1Ω ±5% 1/4W GG05010140 R814 4822 117 10158 1Ω ±5% 1/4W GG05010140 R851 4822 052 10109 10Ω ±5% 1/4W GG05100140 R857 0Ω ±5% 1/6W GD05000160 R863 4822 117 10158 1Ω ±5% 1/4W GG05010140 P804-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R803 R804 R807 R808 R852-R856 R859-R862 RN01-RN17 RN19-RN23 RN26-RN30 P804-SEMICONDUCTORS DN01 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DN02 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DN03 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DN04 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D801 4822 130 10413 BRIDGE DIODE D2SBA20 HE20027290 D803 4822 130 80674 ZENER DIODE 16V HD31601000 D804 4822 130 80674 ZENER DIODE 16V HD31601000 D805 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D814 D830 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D831 4822 130 33948 ZENER DIODE 5.6V HD30561000 D832 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D851 9322 143 37687 DIODE FCH20A15 HE10005100 D852 9965 000 09130 DIODE FRH20A15 HE10006100 D870 4822 130 82421 DIODE 1D3 1A 200V HD20002710 QN01 4822 209 83312 IC TA7317P HC10042050 QN03 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 QN04 4822 130 42292 TRS. 2SC2120 O HT321201A0 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 70 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QN05 4822 130 42292 TRS. 2SC2120 O HT321201A0 Q801 4822 130 42836 F.E.T. 2SK246 Y OR GR HF202462B0 Q802 4822 130 42836 F.E.T. 2SK246 Y OR GR HF202462B0 Q803 4822 130 11605 TRS. 2SD1415 HT41415100 Q804 4822 130 11604 TRS. 2SB1020 HT21020100 Q805 4822 209 83317 IC NJM7815FA +15V 1A HC38915090 Q806 4822 209 61256 IC NJM7915FA HC39915090 Q830 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q850 4822 130 42836 F.E.T. 2SK246 Y OR GR HF202462B0 Q851 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q852 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q853 4822 130 60117 TRS. 2SC3419 Y 40V 0.8A HT334191Y0 Q854 4822 209 83679 IC NJM2904 DUAL OP-AMP HC10030090 P804-MISCELLANEOUS F870 /F FUSE 250V 10A MITI GRU FS11000570 F870 /L FUSE 10A 250V GGL10 GBM10 U/C/D FS11000530 F870 /N,/S 4822 070 34002 FUSE 4 A 250V BS LISTED FS10400850 F871 /F,/L FUSE 630mA 250V FBT UL/MITI FS10063350 F871 /N,/S 4822 070 33151 FUSE 315mA 250V BS LISTED FS10031850 J878 /F 4822 267 31417 JACK AC OUTLET YJ04001840 LN01 4822 280 70354 RELAY VB 24MBU-510 5A 240VAC LY20240310 L801 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 L870 4822 157 70419 LF-4D-102 FN01020020 L872 4822 280 80773 RELAY VS24MB-NR TV-8 SEMKO LISTED LY10240240 P884-POWER SW CIRCUIT BOARD C880 CER. DE1607-1F 103M-KH DK17103910 S880 9965 000 01777 PUSH SWITCH SDDLB1-B1-D2 TV-5 M3 LEAD LEG SP01012460 P904-MAIN AMP RCH CIRCUIT BOARD P904-CAPACITORS C901 9965 000 01560 FILM 270pF ±5% 100V OFC OF55271540 C902 4822 121 10867 FILM 0.1µF ±5% 100V OFC OF55104540 C903 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C904 4822 124 90365 ELECT. 220µF M 25V RA-2 OA22702520 C905 9965 000 01561 MICA 10pF ±0.5pF 500V FE DF31100520 C907 4822 124 23562 ELECT. 10µF M 100V RA-2 OA10610020 C908 4822 124 12276 FILM 0.01µF 100V PP OF15103540 C910 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C911 9965 000 01562 ELECT. 10µF M 50V RA2BP EQ10605090 C912 9965 000 01562 ELECT. 10µF M 50V RA2BP EQ10605090 C913 9965 000 02014 ELECT. 220µF 50V ARS OA22705040 C914 9965 000 02014 ELECT. 220µF 50V ARS OA22705040 C915 9965 000 01564 FILM 680pF ±5% 100V OFC OF55681540 P904-RESISTORS R905 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R907 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R908 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R909 4822 111 31001 330Ω ±5% 1/6W GG05331160 R910 4822 111 31001 330Ω ±5% 1/6W GG05331160 R913 9965 000 01565 68Ω ±1% 1/4W ERD NR01680140 R914 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R915 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R916 4822 111 20413 220Ω ±1% 1/4W ERD NR01221140 R917 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R918 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R919 4822 050 23308 3.3MΩ ±5% 1/6W GD05335160 R921 4822 116 52115 680Ω ±5% 1W GA05681010 R924 R927 9965 000 01566 TRIM. 2.2KΩ VERT RA02220760 R928 4822 052 10109 10Ω ±5% 1/6W GG05100160 R929 4822 052 10101 100Ω ±5% 1/6W GG05101160 R930 4822 052 10101 100Ω ±5% 1/6W GG05101160 R931 4822 050 22209 22Ω ±5% 1/4W GG05220140 R932 4822 050 22209 22Ω ±5% 1/4W GG05220140 R933 4822 052 10471 470Ω ±5% 1/6W GG05471160 R934 4822 052 10471 470Ω ±5% 1/6W GG05471160 R935 4822 050 26809 68Ω ±5% 1/6W GG05680160 R936 4822 050 26809 68Ω ±5% 1/6W GG05680160 R937 4822 052 10151 150Ω ±5% 1/6W GG05151160 R938 JUMPER 75060501P0 R939 4822 052 10109 10Ω ±5% 1/6W GG05100160 R940 4822 052 10109 10Ω ±5% 1/6W GG05100160 R941 4822 111 91402 FIXED 0.10Ω x 2 3W BZ10102010 R942 4822 052 10102 1kΩ ±5% 1/6W GG05102160 R943 4822 052 10102 1kΩ ±5% 1/6W GG05102160 P904-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R901-R904 R911 R912 R920 R925 R926 R944-R947 P904-SEMICONDUCTORS D901 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D902 4822 130 83385 ZENER DIODE HZ20L-1 HD30020010 D903 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D904 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D905 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 D912 30V 0.1A D913 4822 130 33948 ZENER DIODE 5.6V HD30561000 D914 4822 130 33948 ZENER DIODE 5.6V HD30561000 D915 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D916 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 D917 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010 K901 TRS. KIT 2SA1837 2SC4793 HFE SELECTED RANK HK183719C0 Q901 9965 000 09127 UNIT & H-IC NEW HDAM KH313J1010 Q902 4822 130 60526 TRS. 2SD1508 DARLINGTON HT415080A0 Q903 4822 130 42949 TRS. 2SA970GR OR BL HT109702A0 Q904 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q905 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 Q906 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q907 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q908 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q909 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q910 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q911 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 Q912 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 Q913 4822 130 63635 TRS. 2SC4793 O OR Y HT347932A0 Q914 4822 130 63634 TRS. 2SA1837 O OR Y HT118372A0 Q915 4822 130 63676 TRS. 2SC3284 O P Y 125W HT332843D0 Q916 4822 130 63674 TRS. 2SA1303 O P Y 125W HT113033D0 Q917 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0 Q918 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
