夏普SHARP DV-L70 DVD机电路原理图

分类:电子电工 日期: 点击:0
夏普SHARP DV-L70 DVD机电路原理图-0 夏普SHARP DV-L70 DVD机电路原理图-1 夏普SHARP DV-L70 DVD机电路原理图-2 夏普SHARP DV-L70 DVD机电路原理图-3 夏普SHARP DV-L70 DVD机电路原理图-4 夏普SHARP DV-L70 DVD机电路原理图-5 夏普SHARP DV-L70 DVD机电路原理图-6 夏普SHARP DV-L70 DVD机电路原理图-7 夏普SHARP DV-L70 DVD机电路原理图-8 夏普SHARP DV-L70 DVD机电路原理图-9

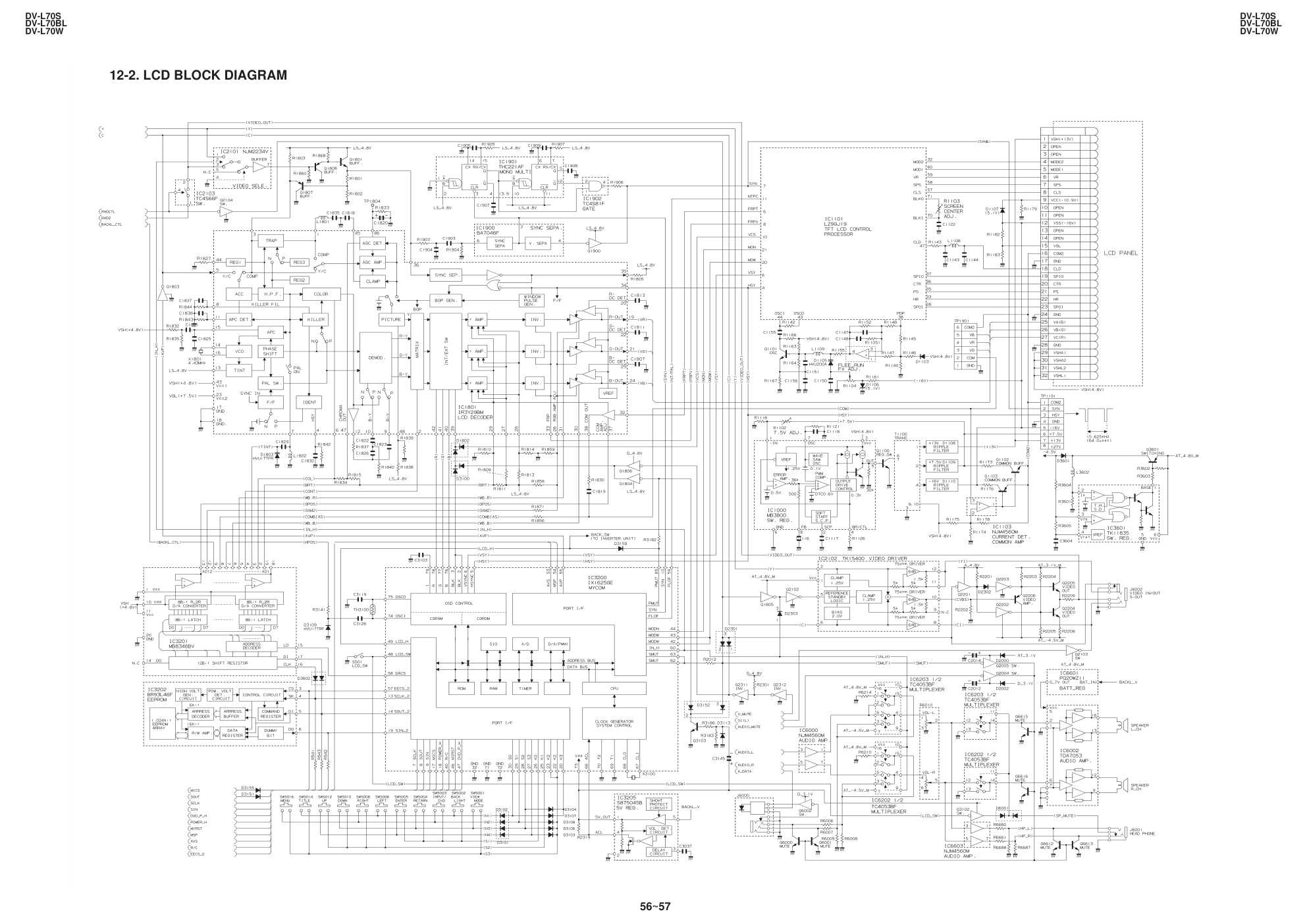

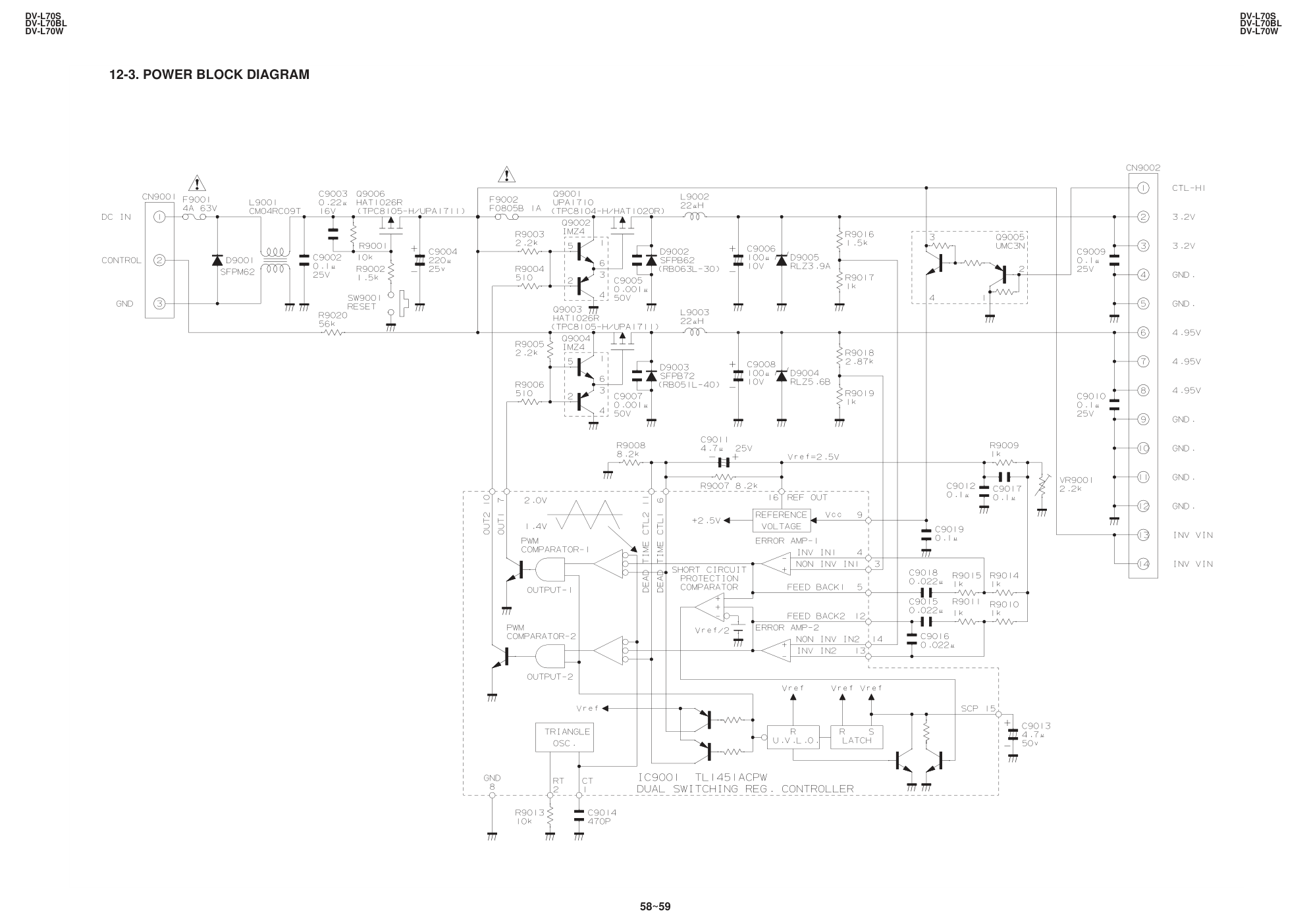

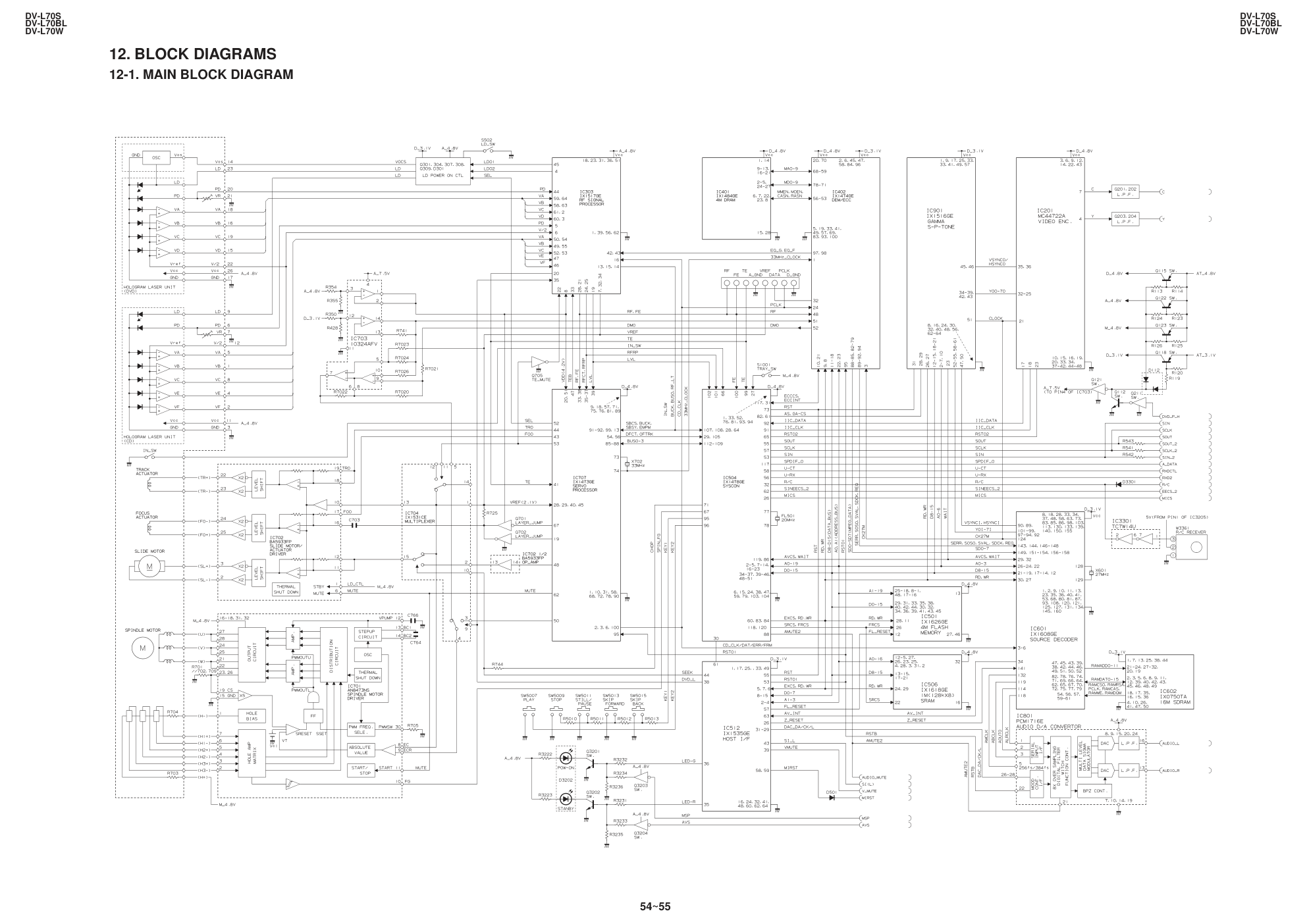

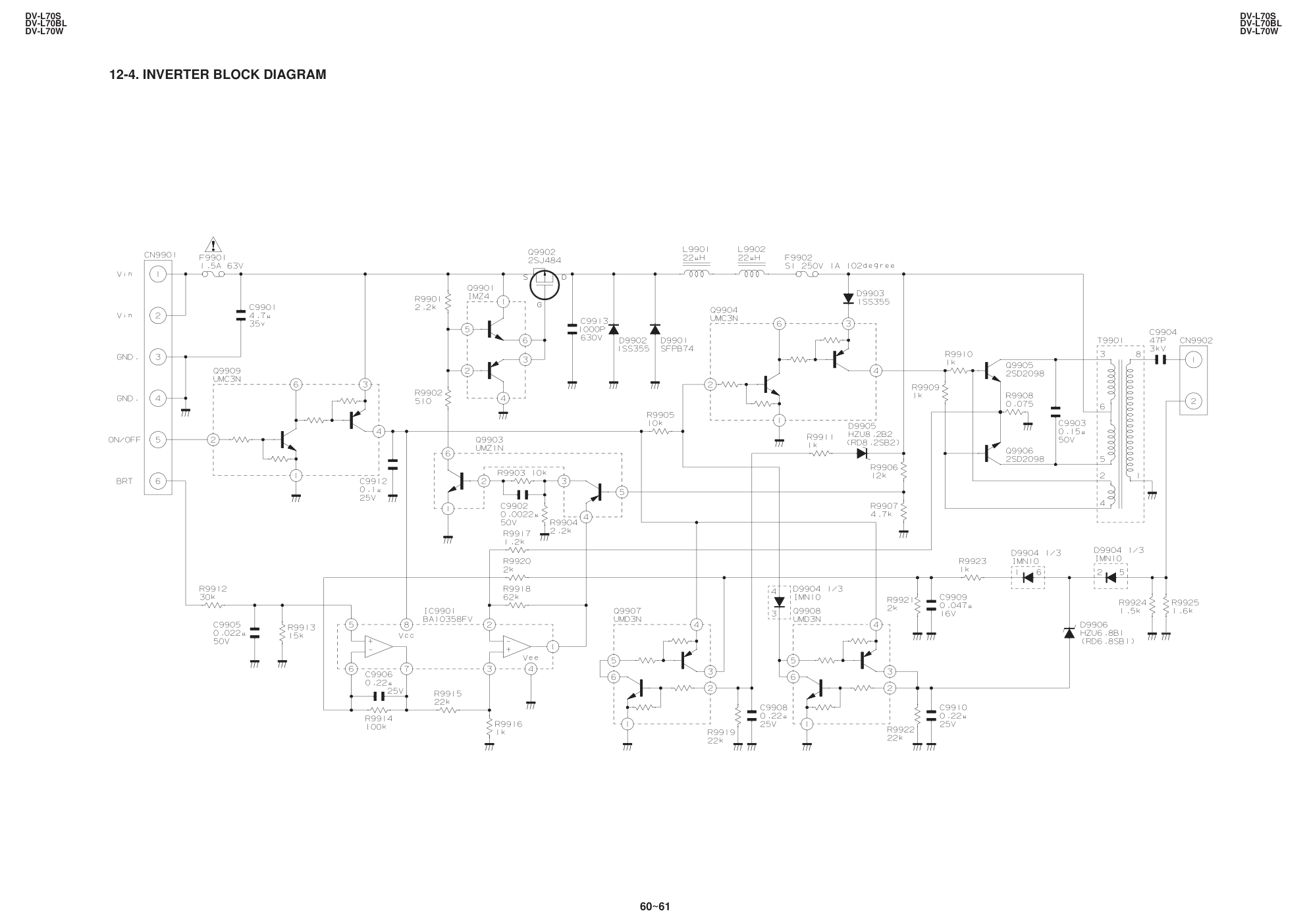

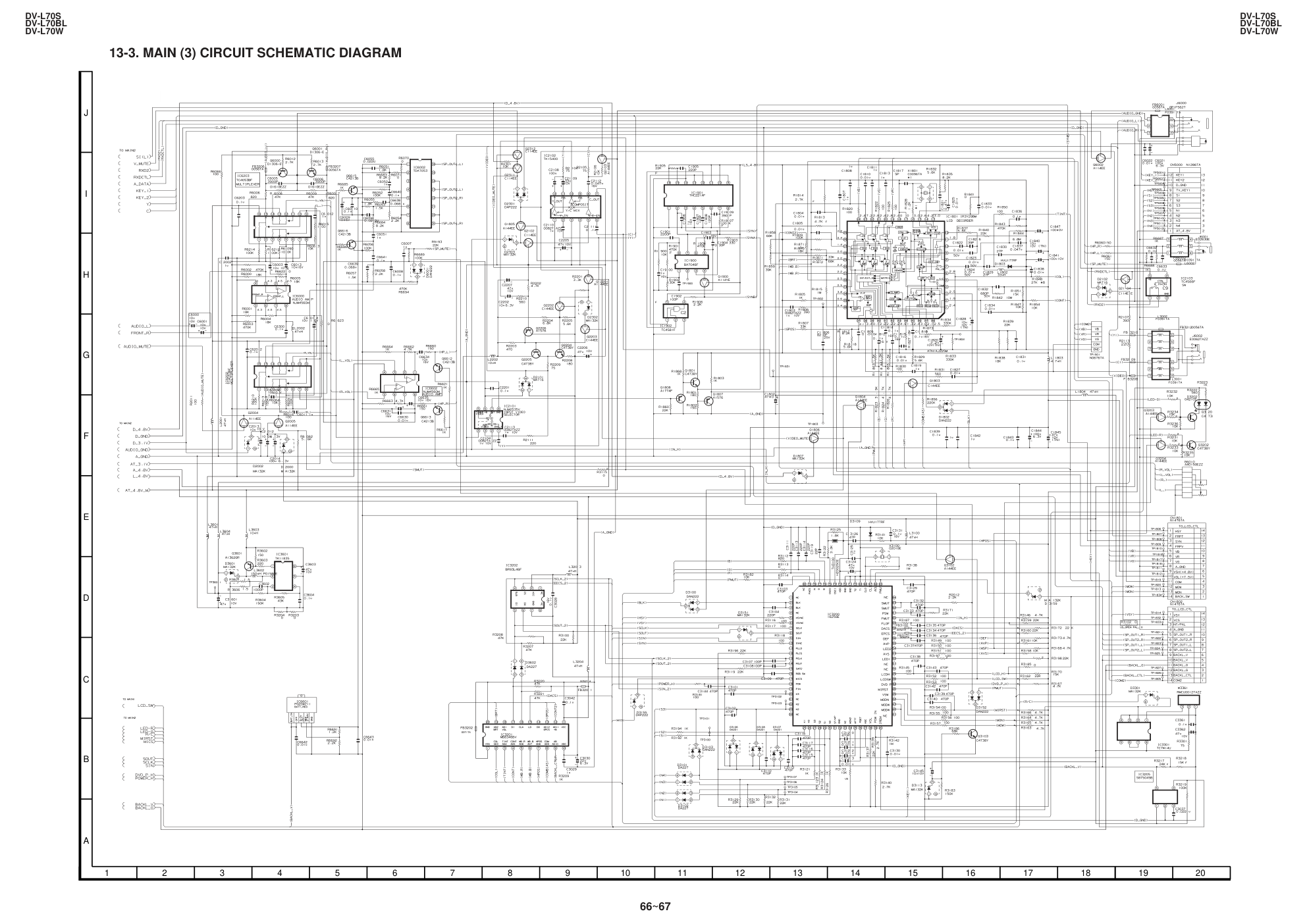

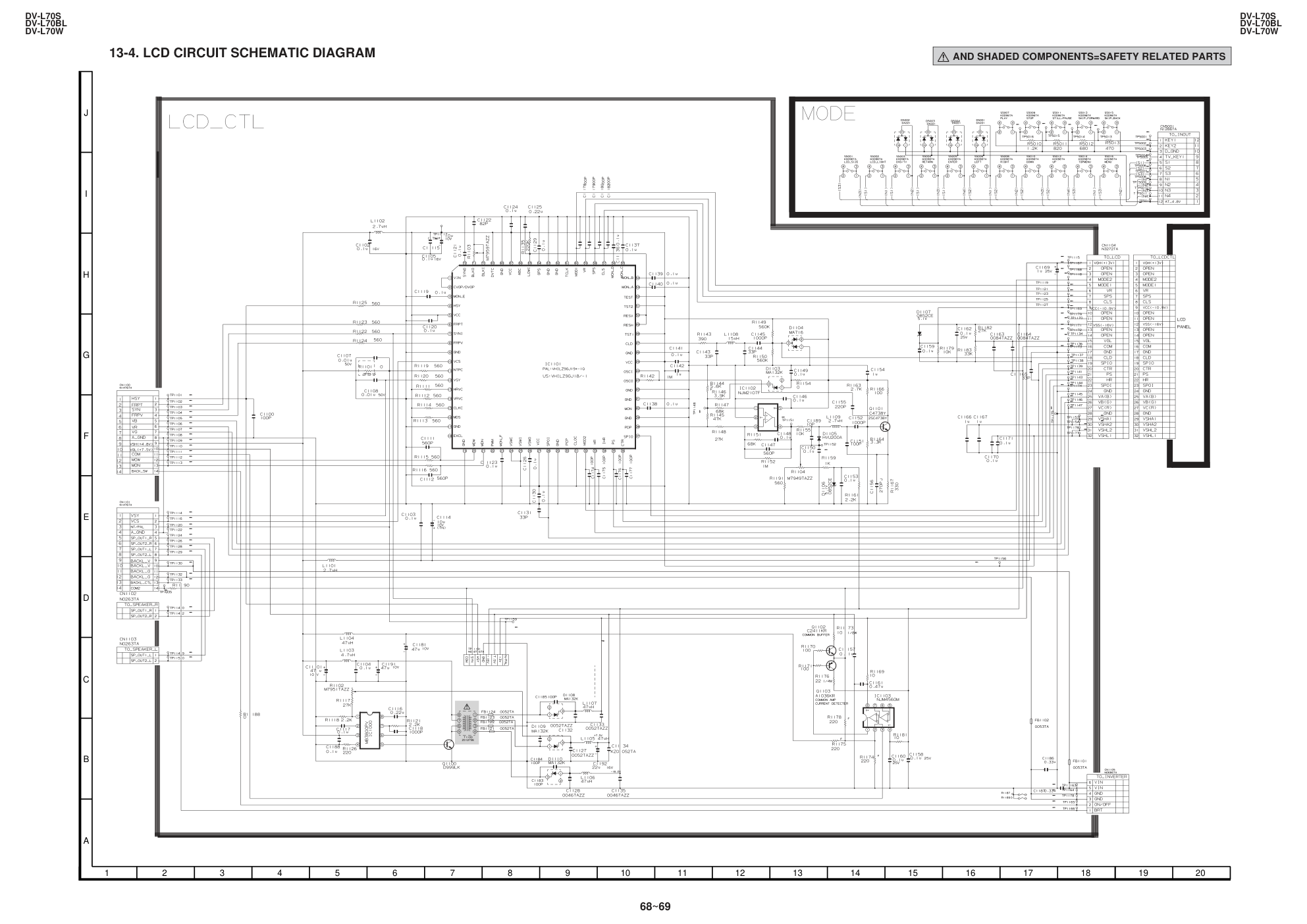

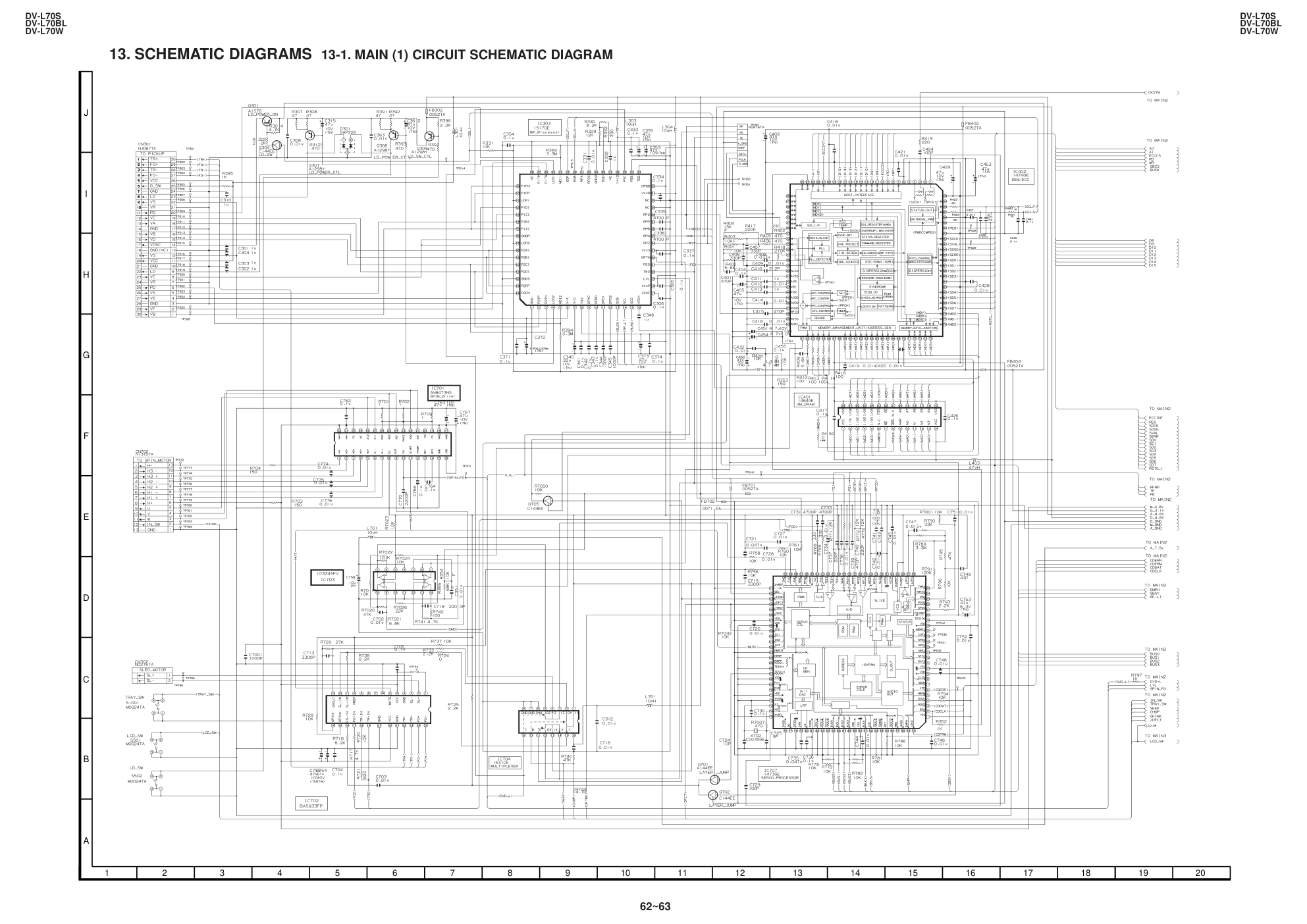

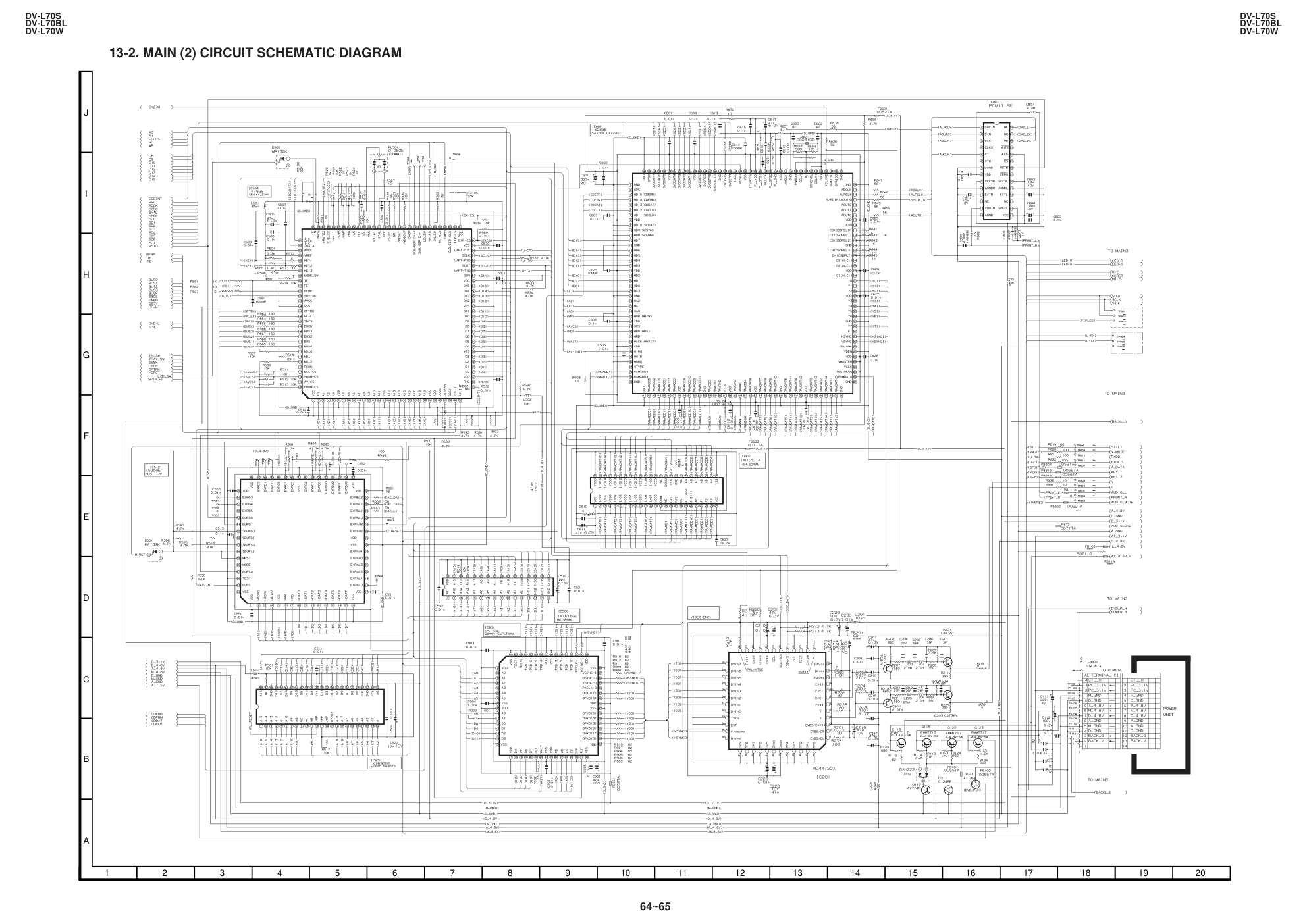

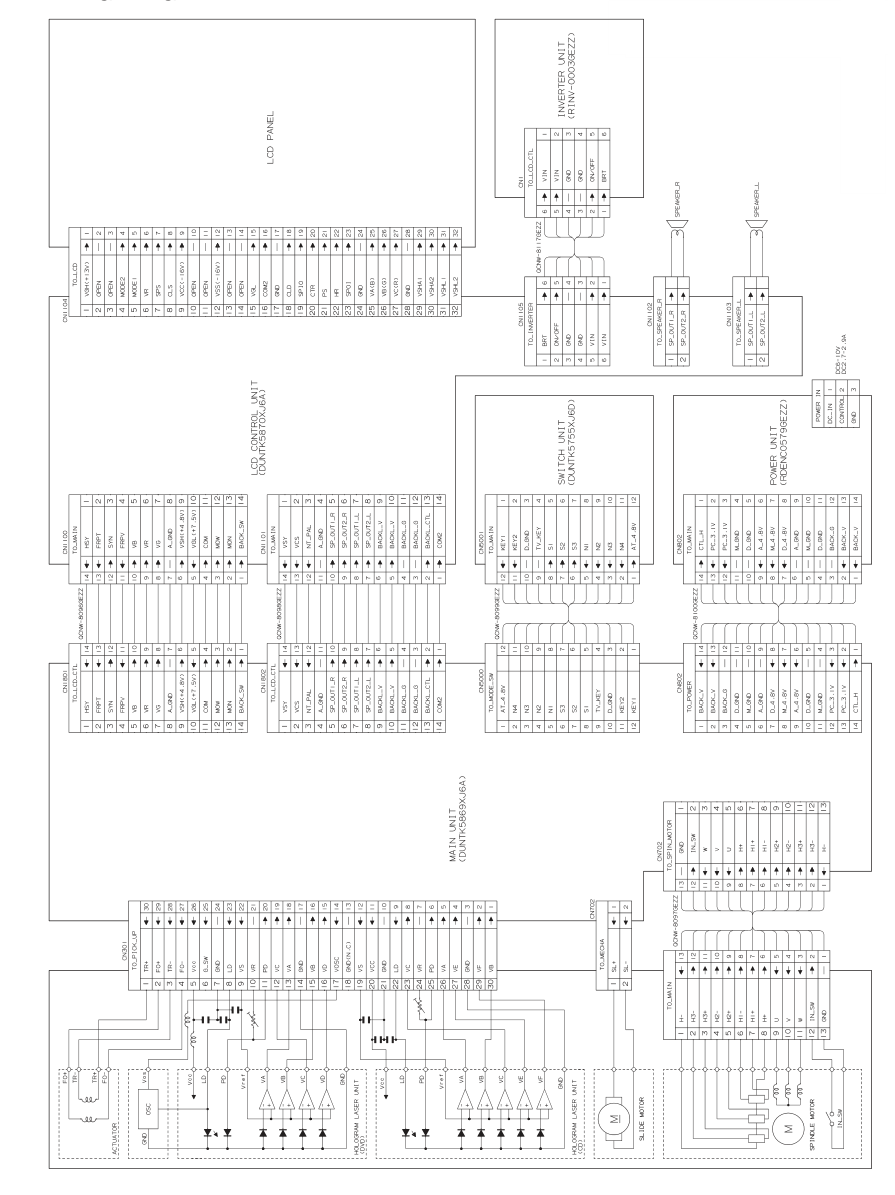

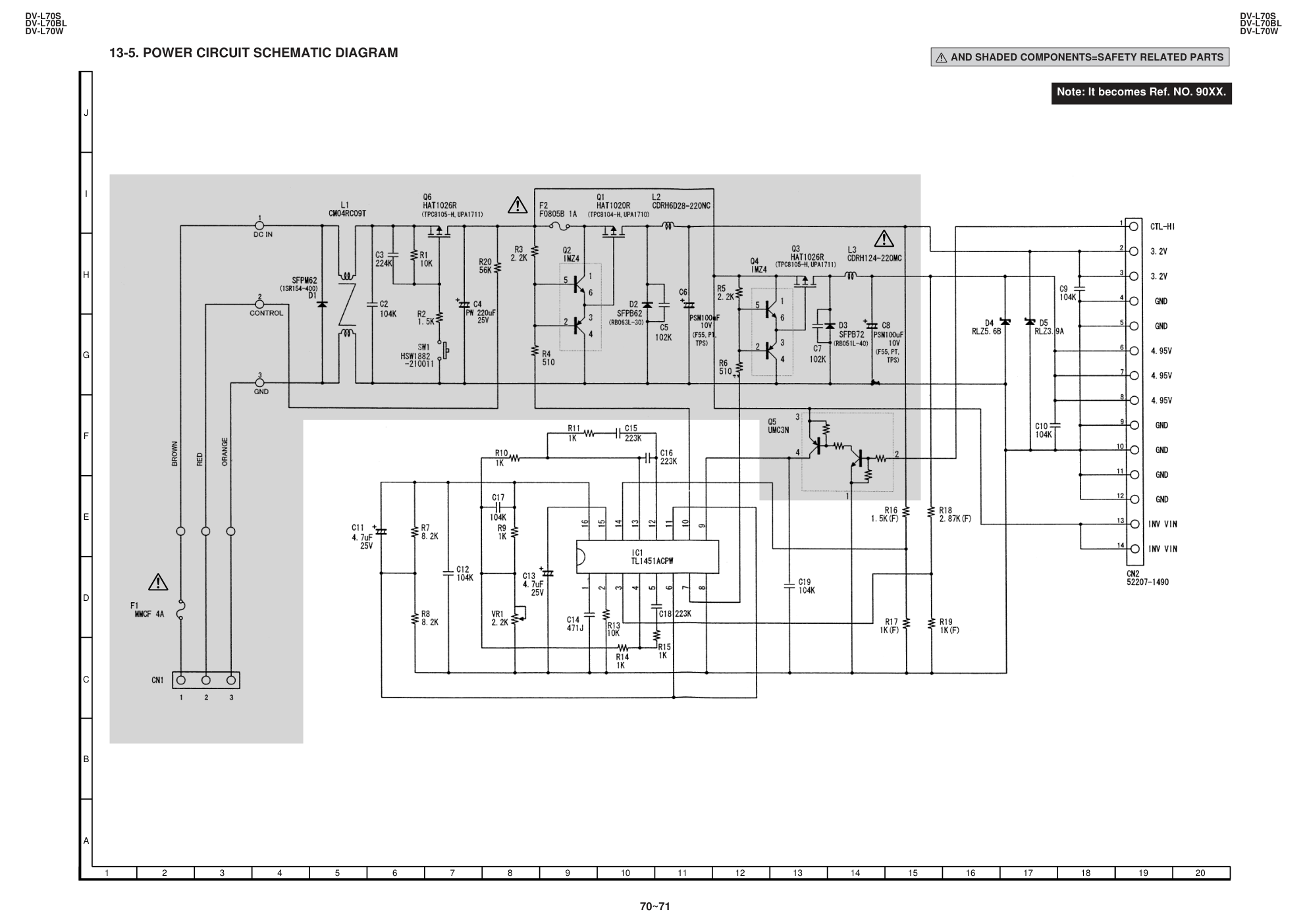

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 54~55 12. BLOCK DIAGRAMS 12-1. MAIN BLOCK DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 56~57 12-2. LCD BLOCK DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 58~59 12-3. POWER BLOCK DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 60~61 12-4. INVERTER BLOCK DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 62~63 13. SCHEMATIC DIAGRAMS 13-1. MAIN (1) CIRCUIT SCHEMATIC DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 64~65 13-2. MAIN (2) CIRCUIT SCHEMATIC DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 66~67 13-3. MAIN (3) CIRCUIT SCHEMATIC DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 68~69 13-4. LCD CIRCUIT SCHEMATIC DIAGRAM å AND SHADED COMPONENTS=SAFETY RELATED PARTS å� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A B C D E F G H I J DV-L70S DV-L70BL DV-L70W DV-L70S DV-L70BL DV-L70W 70~71 13-5. POWER CIRCUIT SCHEMATIC DIAGRAM å� å� å� Note: It becomes Ref. NO. 90XX. å AND SHADED COMPONENTS=SAFETY RELATED PARTS
