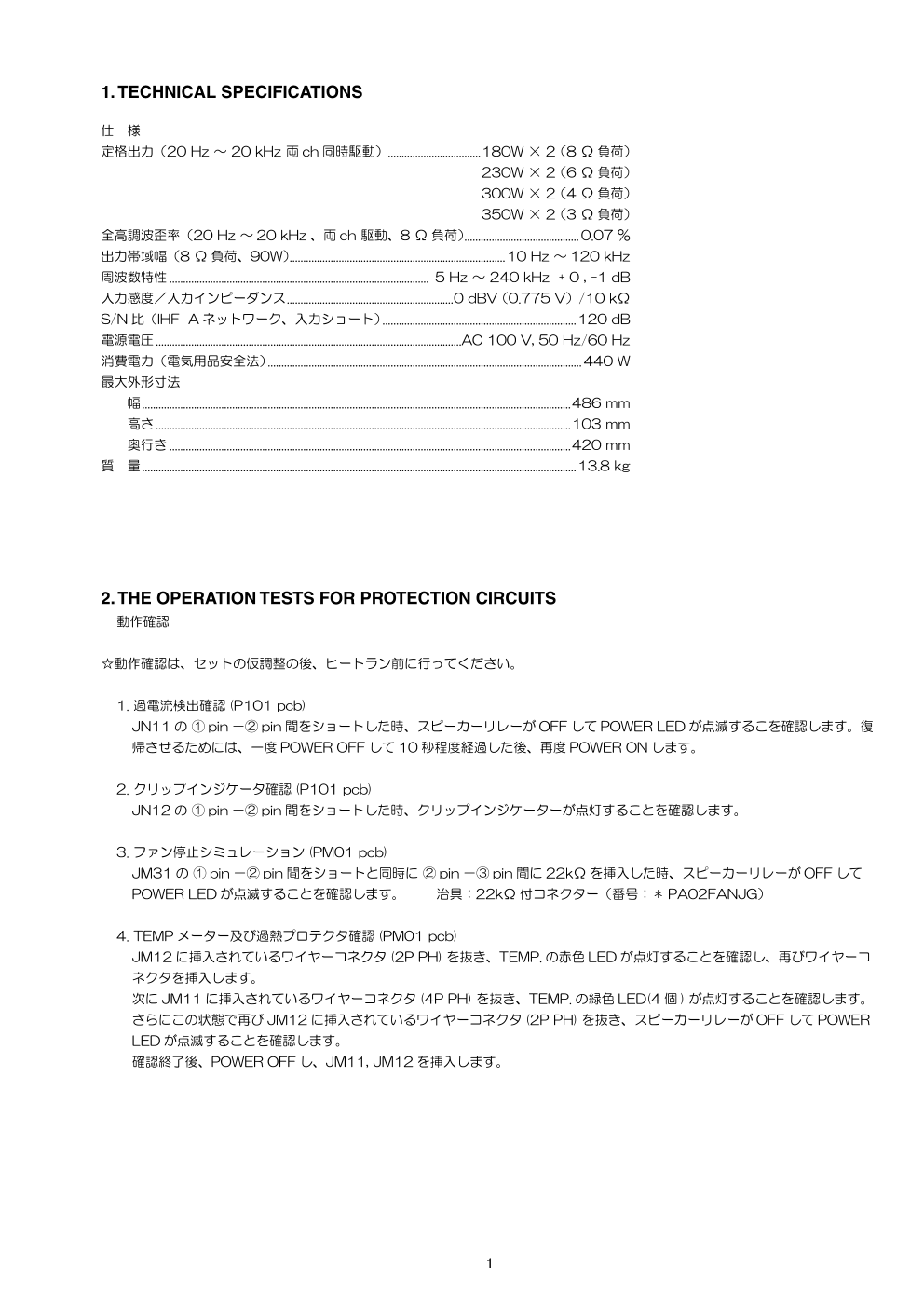

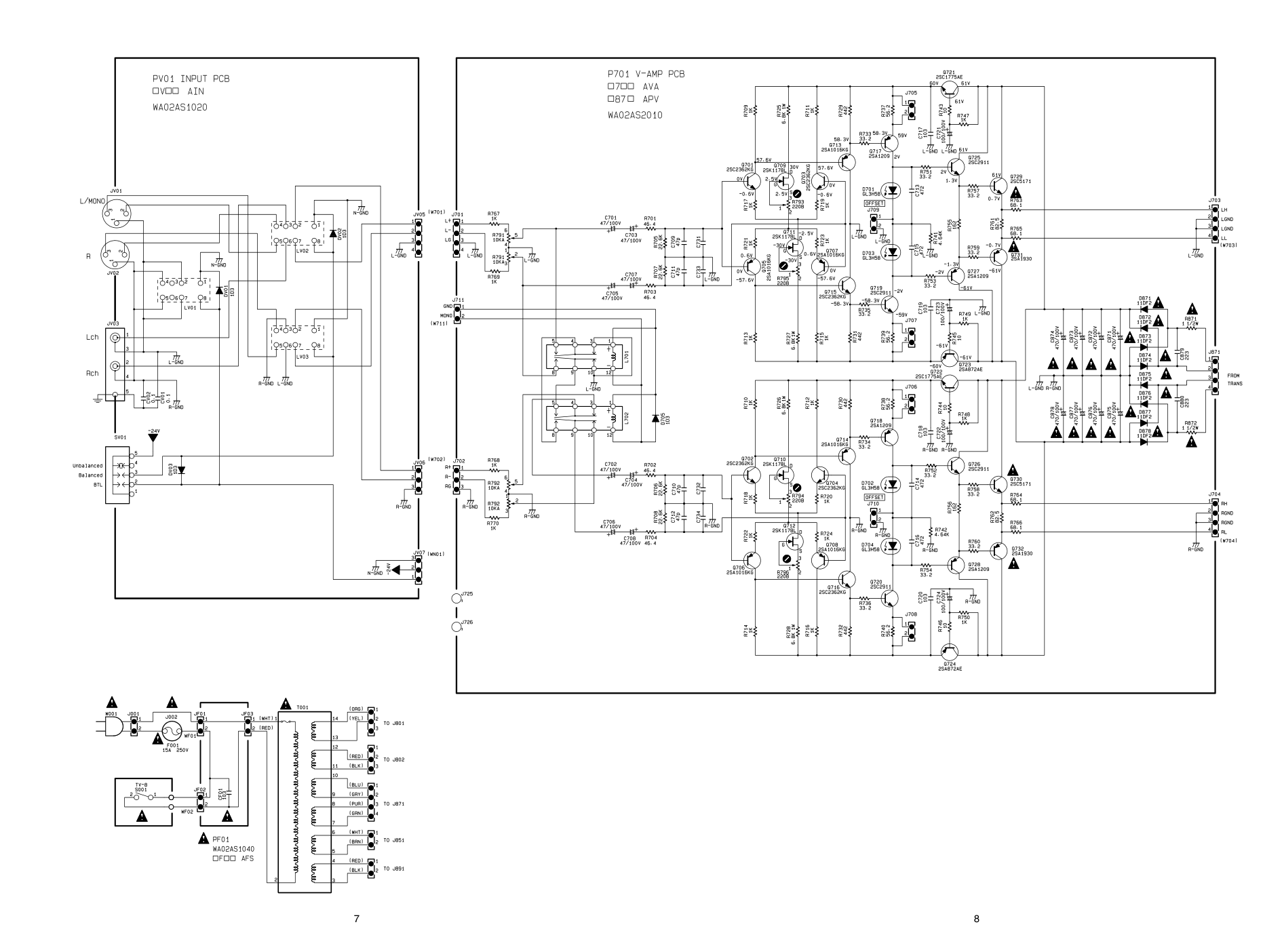

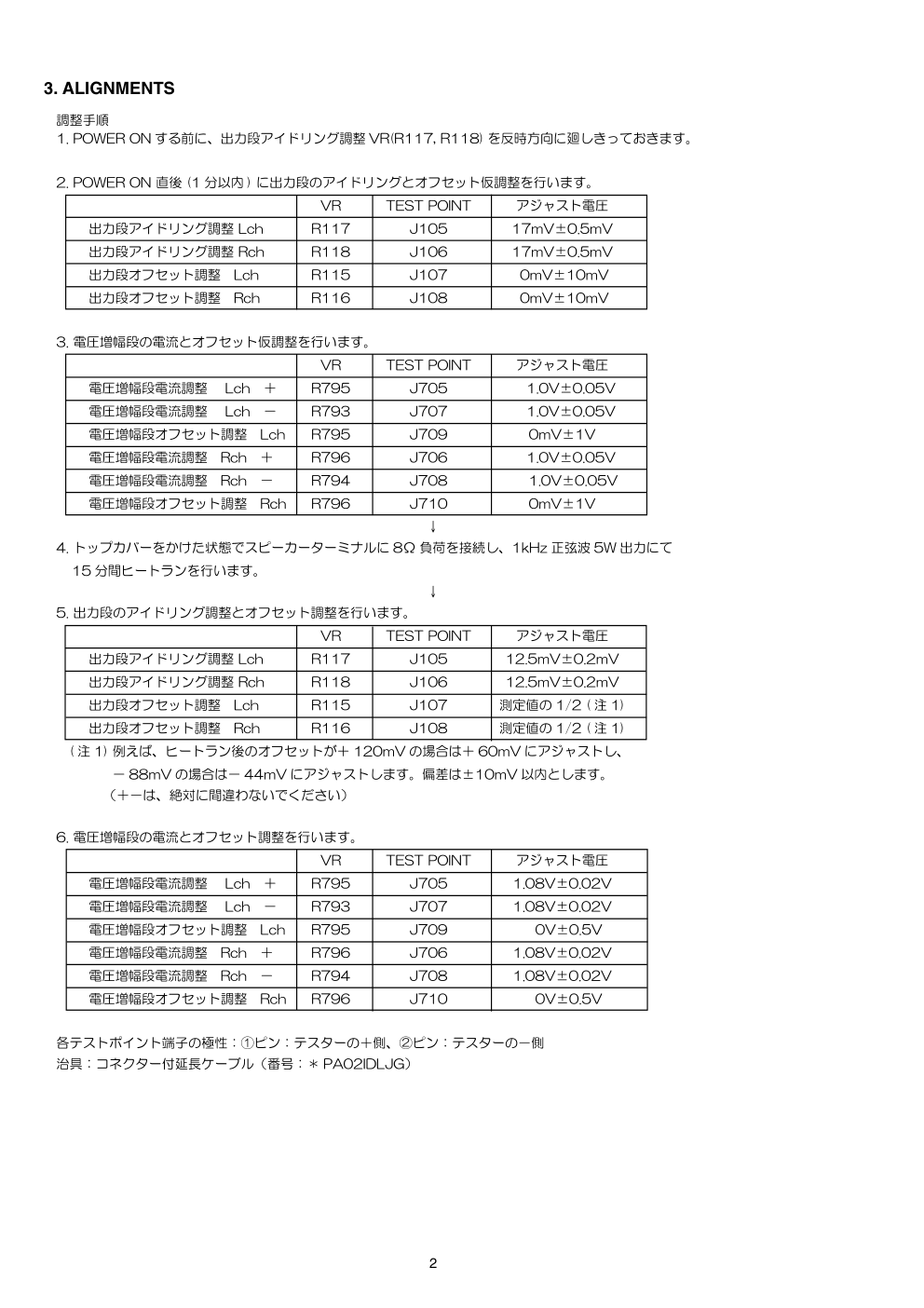

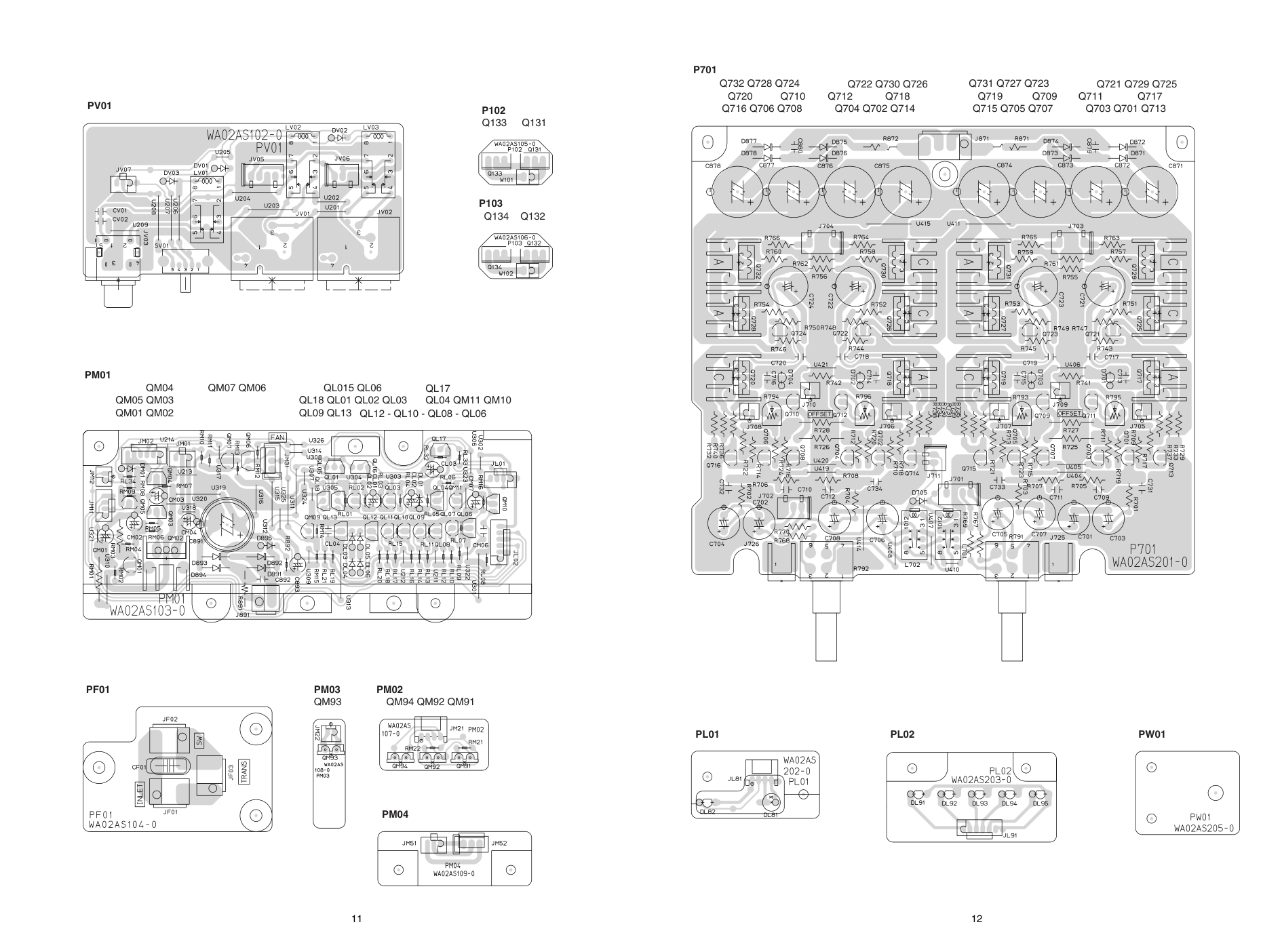

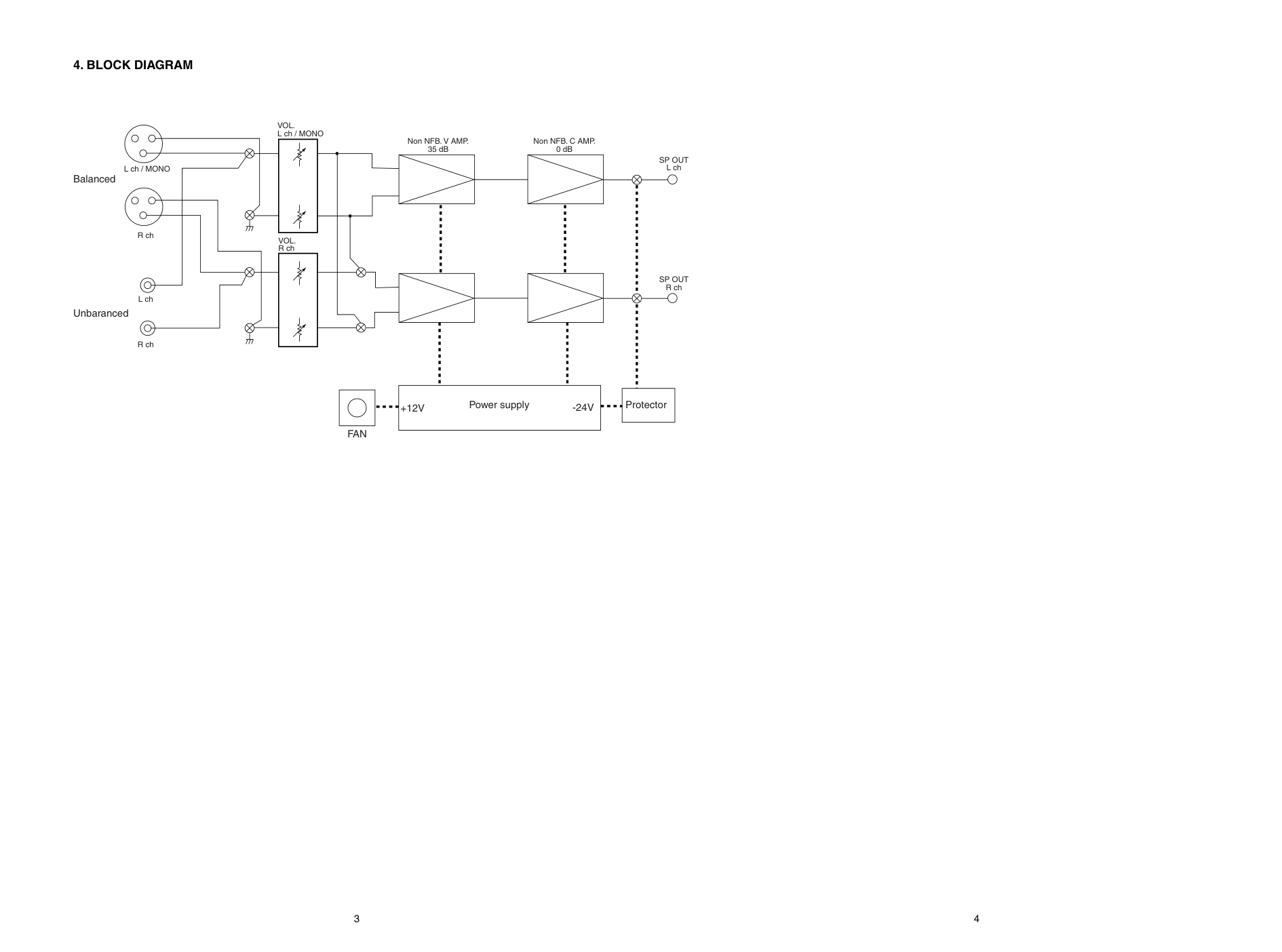

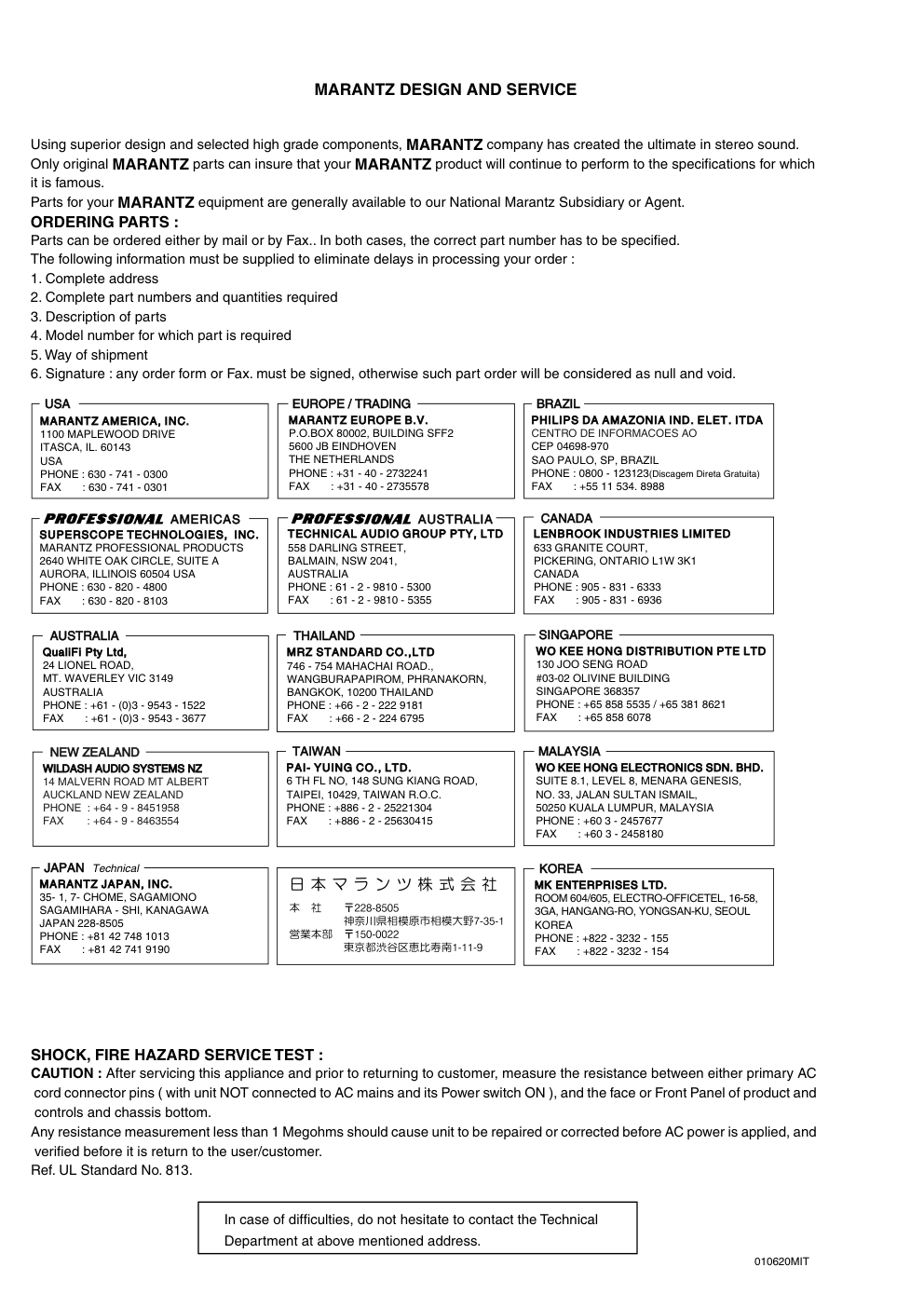

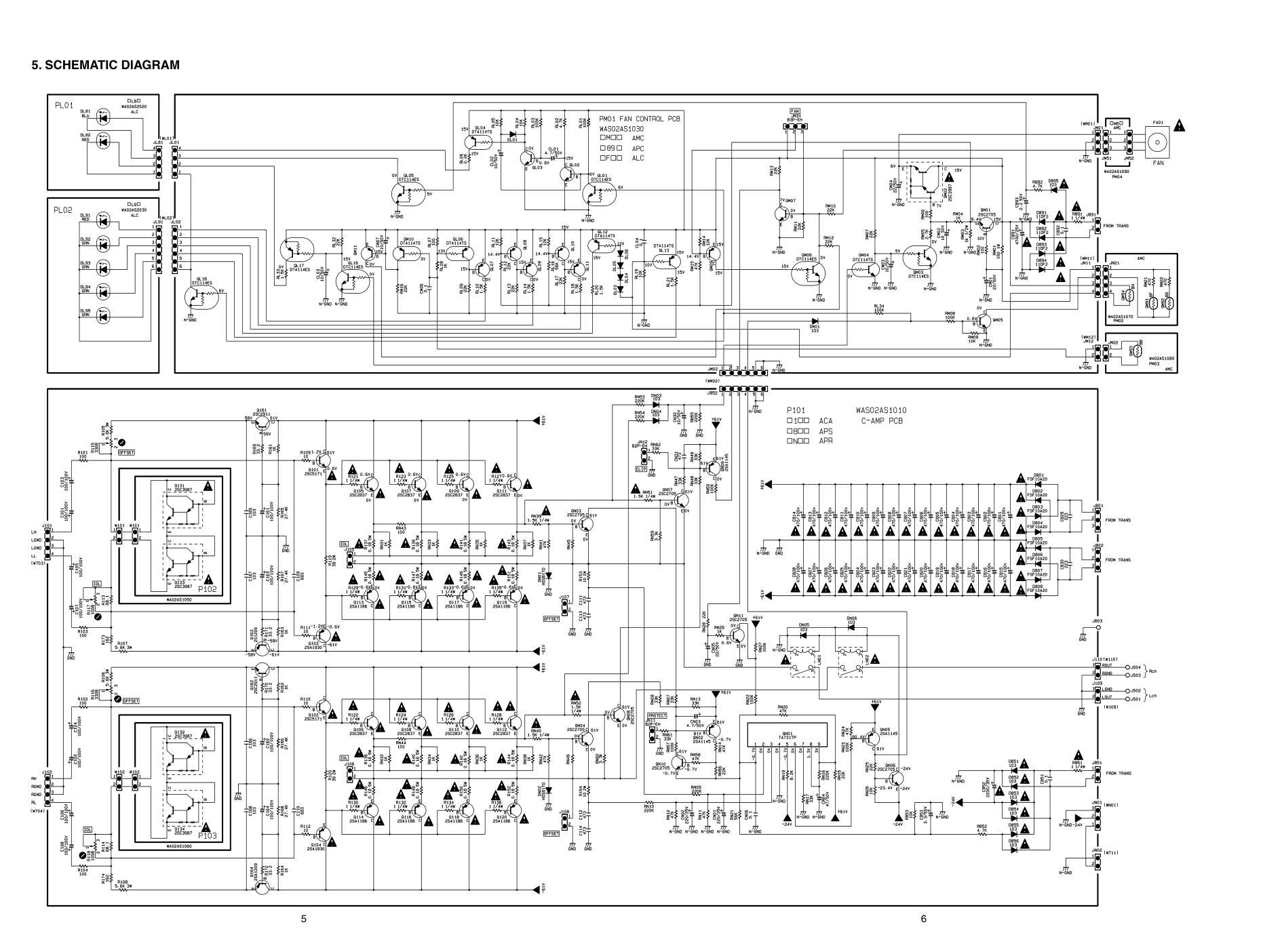

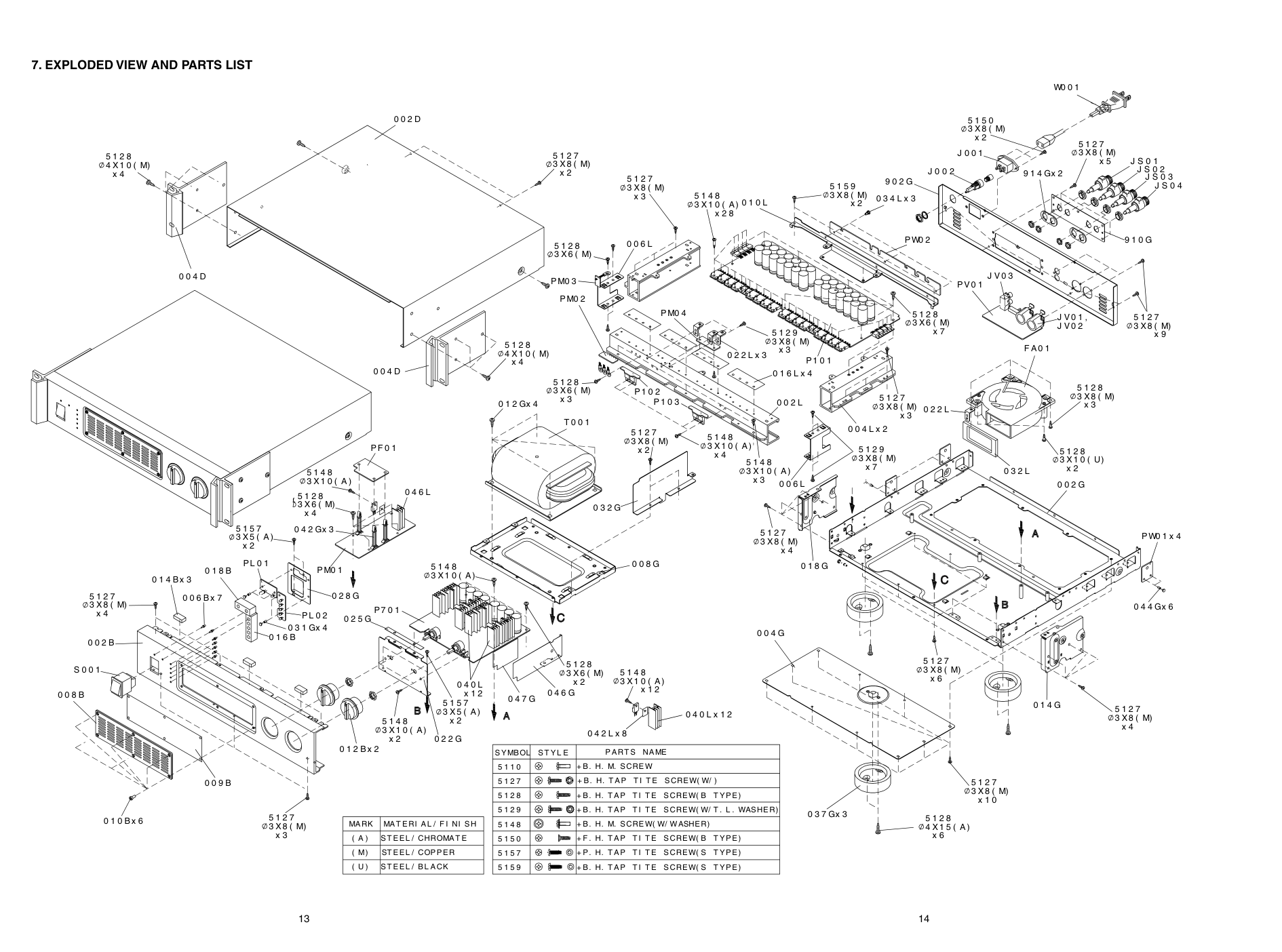

Monitor Amplifi er PA02 02AS855010 MIT First Issue 2001.11 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................................................................................. 1 2. THE OPERATION TESTS FOR PROTECTION CIRCUITS ........................................ 1 3. ALIGNMENTS............................................................................................................. 2 4. BLOCK DIAGRAMS.................................................................................................... 3 5. SCHEMATIC DIAGRAM.............................................................................................. 5 6. PARTS LOCATION...................................................................................................... 9 7. EXPLODED VIEW AND PARTS LIST....................................................................... 13 8. ELECTRICAL PARTS LIST....................................................................................... 16 PA02 /F1S R PA02 Printed in Japan Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual MAX MAX MIN MIN MAX MAX MIN MIN POWER POWER CLIP CLIP MAIN VOLUME L MAIN VOLUME L / BTL BTL MAIN VOLUME R MAIN VOLUME R TEMP. TEMP. Printed on 100% Recycled Paper MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 813. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 010620MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. TECHNICAL SPECIFICATIONS 2 3. ALIGNMENTS 3 4 4. BLOCK DIAGRAM Balanced L ch / MONO R ch R ch L ch Unbaranced VOL. L ch / MONO VOL. R ch Non NFB. V AMP. 35 dB Non NFB. C AMP. 0 dB SP OUT L ch SP OUT R ch Power supply Protector FAN -24V +12V 6 5 5. SCHEMATIC DIAGRAM 7 8 10 9 6. PARTS LOCATION Q119 Q117 Q115 Q113 Q103 Q101 Q111 Q109 Q107 Q105 Q120 Q118 Q116 Q114 Q104 Q102 Q112 Q110 Q108 Q106 QN11 QN09 QN07 QN03 QN04 QN08 QN10 QN02 QN06 QN05 Q163 Q161 Q164 Q162 P101 PW02 11 12 PV01 PM01 QM04 QM07 QM06 QM05 QM03 QM01 QM02 QL015 QL06 QL18 QL01 QL02 QL03 QL09 QL13 QL12 - QL10 - QL08 - QL06 QL04 QM11 QM10 QL17 PF01 Q131 P102 Q133 P103 Q132 Q134 PM02 QM94 QM92 QM91 PM03 QM93 PM04 P701 Q732 Q728 Q724 Q722 Q730 Q726 Q731 Q727 Q723 Q721 Q729 Q725 Q720 Q710 Q712 Q718 Q719 Q709 Q711 Q717 Q716 Q706 Q708 Q704 Q702 Q714 Q715 Q705 Q707 Q703 Q701 Q713 PL01 PL02 PW01 14 13 5 1 2 7 3 X 8 ( M) x 3 0 1 0 Bx 6 0 0 2 B 5 1 2 7 3 X8 ( M) x 4 0 1 4 Bx 3 0 1 6 B 0 1 8 B 0 2 8 G 0 3 1 Gx 4 5 1 5 7 3 X5 ( A ) x 2 PL 0 1 PL 0 2 0 1 2 Bx 2 0 0 8 B 0 0 6 Bx 7 0 2 5 G 0 0 9 B 5 1 4 8 3 X1 0 ( A) x 2 5 1 5 7 3 X 5 ( A) x 2 0 2 2 G 9 1 0 G 5 1 5 0 3 X8 ( M) x 2 5 1 2 7 3 X8 ( M) x 5 9 1 4 Gx 2 PV0 1 W0 0 1 J S 0 3 J S 0 2 J S 0 4 J S 0 1 J V 0 3 J 0 0 1 J 0 0 2 J V0 1 , J V0 2 0 3 2 L 5 1 2 7 3 X8 ( M) x 9 9 0 2 G 5 1 2 8 3 X1 0 ( U) x 2 F A0 1 5 1 2 8 3 X8 ( M) x 3 5 1 4 8 3 X1 0 ( A) x 1 2 0 4 2 L x 8 0 4 0 L x 1 2 5 1 4 8 3 X 1 0 ( A ) PM0 1 PF 0 1 0 4 6 L 5 1 2 8 3 X 6 ( M) x 4 0 4 2 Gx 3 P7 0 1 5 1 2 8 3 X6 ( M) x 2 5 1 4 8 3 X1 0 ( A) 0 4 0 L x 1 2 0 4 6 G 0 4 7 G 0 0 4 G 5 1 2 7 3 X8 ( M) x 1 0 5 1 2 7 3 X8 ( M) x 6 5 1 2 7 3 X8 ( M) x 4 5 1 2 8 4 X1 5 ( A ) x 6 0 3 7 Gx 3 0 1 8 G 0 1 4 G 0 0 2 G PW0 1 x 4 5 1 2 7 3 X8 ( M) x 4 0 4 4 Gx 6 0 2 2 L MARK ( A ) ( U ) MAT ERI AL / F I NI SH ST EEL / BL ACK S YMBOL ST YL E P ART S NAME 5 1 1 0 + B. H. M. SCRE W 5 1 2 7 + B. H. T AP T I T E SCREW( W/ ) 5 1 2 8 + B. H. T AP T I T E SCREW( B T YPE) 5 1 5 0 + F . H. T AP T I T E SCREW( B T YPE) 5 1 5 7 + P. H. T AP T I T E SCREW( S T YPE) ST EEL / CHROMA T E 5 1 4 8 + B. H. M. SCRE W( W/ W ASHER) 5 1 5 9 + B. H. T AP T I T E SCREW( S T YPE) 5 1 2 9 + B. H. T AP T I T E SCREW( W/ T . L . WASHER) ( M) ST EEL / COPPER S 0 0 1 0 0 4 D 0 0 4 D 0 0 2 D 5 1 2 8 4 X1 0 ( M) x 4 5 1 2 7 3 X8 ( M) x 2 5 1 2 8 4 X1 0 ( M) x 4 5 1 2 7 3 X8 ( M) x 2 0 3 2 G 0 1 2 Gx 4 0 0 8 G T 0 0 1 C C 5 1 5 9 3 X 8 ( M) x 2 0 1 0 L P1 0 1 5 1 2 8 3 X6 ( M) x 7 PW0 2 0 3 4 L x 3 5 1 4 8 3 X1 0 ( A) x 2 8 0 2 2 L x 3 5 1 2 9 3 X8 ( M) x 3 0 1 6 L x 4 0 0 4 L x 2 0 0 2 L 5 1 4 8 3 X1 0 ( A) x 3 P1 0 2 P 1 0 3 5 1 4 8 3 X1 0 ( A) x 4 5 1 2 7 3 X8 ( M) x 3 5 1 2 8 3 X6 ( M) x 3 PM0 2 5 1 2 7 3 X8 ( M) x 3 5 1 2 9 3 X8 ( M) x 7 0 0 6 L PM0 4 PM0 3 0 0 6 L 5 1 2 8 3 X6 ( M) 7. EXPLODED VIEW AND PARTS LIST 15 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) 002B FRONT PANEL (PA02 F) 02AS248010 006B 4822 381 11893 LED LENS 269J355010 008B FRONT COVER 02AS053010 009B NET (PANEL-FRONT COVER) 02AS202010 010B SCREW FOR FRONT COVER 02AS010010 012B VOLUME KNOB (L R) 02AS154010 014B BUFFER FOR LID nsp 016B REFLECTOR FOR TEMP. LED nsp 018B REFRECTOR FOR POWER PEAK LED nsp 002D LID nsp 004D HANDLE nsp 002G MAIN CHASSIS nsp 004G LID BOTTOM COVER nsp 008G TRANSF. CHASSIS nsp 012G SCREW FOR TRANS 02AS010020 014G FRONT BRACKET (R) nsp 018G FRONT BRACKET (L) nsp 022G VOLUME BRACKET nsp 025G SPACER FOR VR BRACKET nsp 028G LED PCB BRACKET nsp 031G CLAMPER FOR LED PCB 284J005010 032G SHIELD nsp 037G LEG 288S057120 042G SUPPORT FOR POWER PCB nsp 044G CLAMPER FOR WIRE BIND PCB 284J005010 046G SHIELD FOR V-AMP PCB nsp 047G INSULATOR FOR SHIELD (046G) nsp 902G REAR PANEL nsp 910G REAR PANEL SP TERMINAL nsp 914G SPACER FOR SPK.TERMINAL nsp 002L MAIN HEATSINK nsp 004L SUB HEATSINK nsp 006L HEATSINK BRACKET nsp 010L HEATSINK STAY nsp 016L INSULATOR FOR TR 02AS120010 022L RETAINER FOR FAN PCB nsp 032L FAN BUFFER nsp 034L CLAMPER FOR STAY+PCB 284J005010 040L HEATSINK FOR V-AMP PCB nsp 042L INSULATOR FOR TR 01AS120020 046L HEATSINK FOR FAN CONTROL PCB nsp FA01 D.C MOTOR FAL6F12LLS SCIROCCO FAN MM01200380 F001 FUSE 15A 250V SM15 MITI 32-1246 FS11500540 JS01 TERMINAL SP RED YT01010780 JS02 TERMINAL SP WHT YT01010770 JS03 TERMINAL SP WHT YT01010770 JS04 TERMINAL SP RED YT01010780 J001 JACK AC INLET TYPE HF-301 YJ04002550 J002 4822 256 30232 JACK FUSE HOLDER YJ08000300 S001 MAINS SWITCH JW-L11RKK SC01010580 T001 MAINS TRANSF. FOR PA02 R-700 TS87001010 W001 MAINS CORD CORDSET FOR F OFC 2P ZC01803130 002T U PACKING SER GUIDE 02AS851110 NOT STANDARD SPARE PARTS 002S PACKING CASE 02AS801010 004S CUSHION 02AS809010 005S CUSHION 02AS809020 010T TOOL HEX-KEY WRENCH 9710100070 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 16 8. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 17 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) P101-C-AMP CIRCUIT BOARD P101-CAPAITORS C101 4822 124 80771 ELECT 100 F 100V RA-2 OA10710020 C108 C109 FILM 0.068 F 5% 100V OF55683540 C110 FILM 0.068 F 5% 100V OF55683540 C111 FILM 0.047 F 5% 100V OF55473540 C114 C161 4822 124 80771 ELECT 100 F 100V RA-2 OA10710020 C164 C165 FILM 0.01 F 5% 100V OF55103540 C168 C801 4822 124 12275 ELECT 470 F M 100V RA-2 OA47710020 C828 C829 FILM 0.022 F 5% 100V OF55223540 C830 FILM 0.022 F 5% 100V OF55223540 C851 CER. 0.1 F +80 -20% 50V DD38104040 C852 4822 124 22695 ELECT 2200 F M 35V RA-2 OA22803520 C853 4822 124 42182 ELECT 3.3 F M 50V RA-2 OA33505020 CN01 4822 124 90365 ELECT 220 F M 25V RA-2 OA22702520 CN02 4822 124 90365 ELECT 220 F M 25V RA-2 OA22702520 CN03 4822 124 22274 ELECT 4.7 F M 50V RA-2 OA47505020 CN04 4822 124 22276 ELECT 47 F M 50V RA-2 OA47605020 CN05 4822 124 90362 ELECT 22 F M 50V RA-2 OA22605020 CN06 CER. 0.1 F +80 -20% 50V DD38104040 CN32 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 P101-CAPACITORS(COMMON) C PLASTIC FILM CAPACITOR 5% 50V : CN31 P101-RESISTORS R101 100 1% 1/4W GM11410000 R104 R105 5.6k 5% 3W GA05562030 R108 R109 10 1% 1/4W GM114100G0 R112 R113 68.1 1% 1/4W GM114681G0 R114 68.1 1% 1/4W GM114681G0 R115 TRIMMING RH068 CERMET 330B 0.3W RA03311100 R116 TRIMMING RH068 CERMET 330B 0.3W RA03311100 R117 TRIMMING RH068 CERMET 100B 0.3W RA01011100 R118 TRIMMING RH068 CERMET 100B 0.3W RA01011100 R119 5322 116 51677 39 5% 2W GA05390020 R120 5322 116 51677 39 5% 2W GA05390020 R121 4822 117 10158 1 5% 1/4W GG05010140 R136 R137 4822 116 80153 0.18 10% 5W GO10182050 R152 R153 4822 053 11109 10 5% 2W GA05100020 R154 4822 053 11109 10 5% 2W GA05100020 R161 1k 1% 1/4W GM11410010 R164 R165 27.4k 1% 1/4W GM11427420 R168 R169 33.2 1% 1/4W GM114332G0 R172 R173 162 1% 1/4W GM11416200 R174 162 1% 1/4W GM11416200 R851 4822 117 10158 1 5% 1/4W GG05010140 RN39 4822 050 21502 1.5k 5% 1/4W GG05152140 RN40 4822 050 21502 1.5k 5% 1/4W GG05152140 RN51 4822 050 21502 1.5k 5% 1/4W GG05152140 RN52 4822 050 21502 1.5k 5% 1/4W GG05152140 P101-RESISTORS COMMON) R CARBON FILM FIXED RES. 5% 1/6W : R852 R853 RN07-RN17 RN19-RN29 RN31-RN38 RN41-RN44 RN47-RN50 RN53-RN62 P101-SEMICONDUCTORS D801 DIODE FSF10A20 HD20056100 D808 D851 4822 130 82421 DIODE 1D3 1A/200V HD20002710 D856 DN01 4822 130 80837 DIODE HSS81TD 150V 150MA HD20027010 DN02 4822 130 80837 DIODE HSS81TD 150V 150MA HD20027010 DN03 4822 130 82421 DIODE 1D3 1A/200V HD20002710 DN06 Q101 TRS. 2SC5171 HT35171000 Q102 TRS. 2SC5171 HT35171000 Q103 TRS. 2SA1930 HT11930000 Q104 TRS. 2SA1930 HT11930000 Q105 TRS. 2SC2837 Y HT328371C0 Q112 Q113 TRS. 2SA1186 Y HT111861C0 Q120 Q131 Q134 TRS. 2SC3987 50V 3A HFE4000 HT33987000 Q161 TRS. 2SC2911 S HT329111B0 Q162 TRS. 2SC2911 S HT329111B0 Q163 TRS. 2SA1209 S HT112091B0 Q164 TRS. 2SA1209 S HT112091B0 QN01 4822 209 83312 IC TA7317P HC10042050 QN02 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 QN03 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN04 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN05 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 QN06 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN07 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN08 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN09 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0 QN10 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QN11 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 18 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) P101-MISCELLANEOUS LN01 4822 280 10343 RELAY VS-24MBU-551-UC GOLD CONTACT LY10240270 LN02 4822 280 10343 RELAY VS-24MBU-551-UC GOLD CONTACT LY10240270 P701-V-AMP CIRCUIT BOARD P701-CAPACITORS C701 ELECT 47 F M 100V RA-2 OA47610020 C708 C709 4822 123 30086 MICA 47pF J 500V DF35470520 C712 C713 FILM 4700pF 5% 100V OF55472540 C716 C717 FILM 0.01 F 5% 100V OF55103540 C720 C721 4822 124 80771 ELECT 100 F 100V RA-2 OA10710020 C724 C871 4822 124 12275 ELECT 470 F M 100V RA-2 OA47710020 C878 C879 FILM 0.022 F 5% 100V OF55223540 C880 FILM 0.022 F 5% 100V OF55223540 P701-RESISTORS R701 46.4 1% 1/4W GM114464G0 R704 R705 9965 000 00596 22.6k 1% 1/4W GM11422620 R708 R709 1k 1% 1/4W GM11410010 R724 R725 4822 053 10682 6.8k 5% 1W GA05682010 R728 R729 442 1% 1/4W GM11444200 R732 R733 33.2 1% 1/4W GM114332G0 R736 R737 56.2 1% 1/4W GM114562G0 R740 R741 4.64k 1% 1/4W GM11446410 R742 4.64k 1% 1/4W GM11446410 R743 10 1% 1/4W GM114100G0 R746 R747 1k 1% 1/4W GM11410010 R750 R751 33.2 1% 1/4W GM114332G0 R754 R755 162 1% 1/4W GM11416200 R756 162 1% 1/4W GM11416200 R757 33.2 1% 1/4W GM114332G0 R760 R761 82.5 1% 1/4W GM114825G0 R762 82.5 1% 1/4W GM114825G0 R763 68.1 1% 1/4W GM114681G0 R766 R767 1k 1% 1/4W GM11410010 R770 R791 VAR. 10KA*2 MASTER VL L RM01031190 R792 VAR. 10KA*2 MASTER VL R RM01031190 R793 R796 TRIMMING RH068 CERMET 220B 0.3W RA02211100 R871 4822 050 21108 1 5% 1/2W GG05010120 R872 4822 050 21108 1 5% 1/2W GG05010120 P701-SEMICONDUCTORS D871 DIODE 11DF2 1A 200V FRD HD20057100 D878 D701 D704 L.E.D. GL3HS8 (SUNSET ORANGE) HI10111320 D705 4822 130 82421 DIODE 1D3 1A/200V HD20002710 Q701 4822 130 43813 TRS. 2SC2362K G RANK HT323621G0 Q704 Q705 TRS. 2SA1016K G RANK HT110161G0 Q708 Q709 F.E.T. 2SK117 BL RANK HF201171D0 Q712 Q713 TRS. 2SA1016K G HT110161G0 Q714 TRS. 2SA1016K G HT110161G0 Q715 4822 130 43813 TRS. 2SC2362K G HT323621G0 Q716 4822 130 43813 TRS. 2SC2362K G HT323621G0 Q717 TRS. 2SA1209 S HT112091B0 Q718 TRS. 2SA1209 S HT112091B0 Q719 TRS. 2SC2911 S HT329111B0 Q720 TRS. 2SC2911 S HT329111B0 Q721 4822 130 43192 TRS. 2SC1775A E HT317751E0 Q722 4822 130 43192 TRS. 2SC1775A E HT317751E0 Q723 4822 130 43617 TRS. 2SA872A E HT108721E0 Q724 4822 130 43617 TRS. 2SA872A E HT108721E0 Q725 TRS. 2SC2911 S HT329111B0 Q726 TRS. 2SC2911 S HT329111B0 Q727 TRS. 2SA1209 S HT112091B0 Q728 TRS. 2SA1209 S HT112091B0 Q729 TRS. 2SC5171 HT35171000 Q730 TRS. 2SC5171 HT35171000 Q731 TRS. 2SA1930 HT11930000 Q732 TRS. 2SA1930 HT11930000 P701-MISCELLANEOUS L701 9965 000 01570 RELAY ED2-24V LY20240470 L702 9965 000 01570 RELAY ED2-24V LY20240470 PF01-POWER CONNECT CIRCUIT BOARD CF01 CER. CAP.DE1607-1F 103M-KH DK17103910 PL01-POWER LED CIRCUIT BOARD DL81 L.E.D. BLU LED FOR POWER HI10039080 DL82 4822 130 80326 L.E.D. RED LED FOR CLIP HI10062320 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 19 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) PL02-TEMP LED CIRCUIT BOARD DL91 4822 130 80326 L.E.D. RED LED FOR TEMP HI10062320 DL92 4822 130 11363 L.E.D. GRN LED FOR TEMP HI10095320 DL95 PM01-FAN CONTROL CIRCUIT BOARD PM01-CAPACITORS C891 4822 124 81133 ELECT 4700 F 25V RA-2 OA47802520 C892 CER. 0.1 F +80 -20% 50V DD38104040 C893 4822 124 90357 ELECT 2.2 F M 50V RA-2 OA22505020 CL01 4822 124 22274 ELECT 4.7 F M 50V RA-2 OA47505020 CL02 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 CL03 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 CL04 CER. 0.1 F +80 -20% 50V DD38104040 CM01 4822 124 90362 ELECT 22 F M 50V RA-2 OA22605020 CM02 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 CM03 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 CM04 4822 124 90362 ELECT 22 F M 50V RA-2 OA22605020 CM06 CER. 0.1 F +80 -20% 50V DD38104040 CM07 4822 124 22571 ELECT 10 F M 50V RA-2 OA10605020 PM01-RESISTORS R891 4822 117 10158 1 5% 1/4W GG05010140 RM01 4822 053 10151 150 5% 1W GA05151010 RM03 4822 050 21022 1k 5% 1/2W GG05102120 P1M1-RESISTORS COMMON) R CARBON FILM FIXED RES. 5% 1/6W : R892 RL01-RL21 RL32 RN33 RL34 RM02 RM04-RM16 RM21 RM22 PM01-SEMICONDUCTORS D891 DIODE 11DF2 1A 200V FRD HD20057100 D894 D895 4822 130 82421 DIODE 1D3 1A/200V HD20002710 DM01 4822 130 82421 DIODE 1D3 1A/200V HD20002710 DL01 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DL03 DL06 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QL01 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QL02 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 ETC. HT30001000 QL03 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 ETC. HT30001000 QL04 4822 130 63211 DIG. TRS. DTA114TS/UN4115 10K BA10004000 QL05 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QL06 4822 130 63211 DIG. TRS. DTA114TS/UN4115 10K BA10004000 QL07 QL11 4822 130 42715 TRS. 2SA1048 2SA933S 2SA1267 ETC. HT10001000 QL12 4822 130 63211 DIG. TRS. DTA114TS/UN4115 10K BA10004000 QL13 4822 130 63211 DIG. TRS. DTA114TS/UN4115 10K BA10004000 QL16 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QL17 4822 130 61227 DIG. TRS. DTA114ES/UN4111 10K 10K BA10001000 QL18 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QM01 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0 QM02 TRS. 2SC3987 50V 3A HFE4000 HT33987000 QM03 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QM04 4822 130 61189 DIG. TRS. DTC114TS/UN4215 10K BA20004000 QM05 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 ETC. HT30001000 QM06 4822 130 60588 DIG. TRS. DTC114ES/UN4211 10K 10K BA20001000 QM07 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 ETC. HT30001000 QM09 4822 130 42715 TRS. 2SA1048 2SA933S 2SA1267 ETC. HT10001000 QM10 4822 130 63211 DIG. TRS. DTA114TS/UN4115 10K BA10004000 QM11 4822 130 42715 TRS. 2SA1048 2SA933S 2SA1267 ETC. HT10001000 PM02-TEMP SENSOR CIRCUIT BOARD QM91 VARISTOR PTH487A01BF222TS 2.2KW HP00042230 QM92 4822 126 90009 VARISTOR PTH487A01BD222TS 2.2KW HP00029230 QM94 VARISTOR PTH487A01 BH222TS POSISTER HP00023230 PM03-TEMP. SENSOR SUB CIRCUIT BOARD QM93 4822 130 42848 VARISTOR POSISTOR PTH487 (01BB-120) HP00009230 PV01-INPUT CIRCUIT BOARD PV01-CAPACITORS CV01 CER. 0.1 F +80 -20% 50V DD38104040 CV02 CER. 0.1 F +80 -20% 50V DD38104040 PV01-SEMICONDUCTORS DV01 4822 130 82421 DIODE 1D3 1A/200V HD20002710 DV02 4822 130 82421 DIODE 1D3 1A/200V HD20002710 DV03 4822 130 82421 DIODE 1D3 1A/200V HD20002710 PV01-MISCELLANEOUS JV01 9965 000 02540 JACK NC3FAH2 4P YJ01004340 JV02 9965 000 02540 JACK NC3FAH2 4P YJ01004340 JV03 4822 290 81598 TERMINAL 2P RCA JACK YKC21-3255 (GOLD) YT02021130 LV01 9965 000 01576 RELAY MR82-24USR LY20240480 LV02 9965 000 01576 RELAY MR82-24USR LY20240480 LV03 9965 000 01576 RELAY MR82-24USR LY20240480 SV01 SLIDE SW. SSSF113-S06N1 SS01030300
