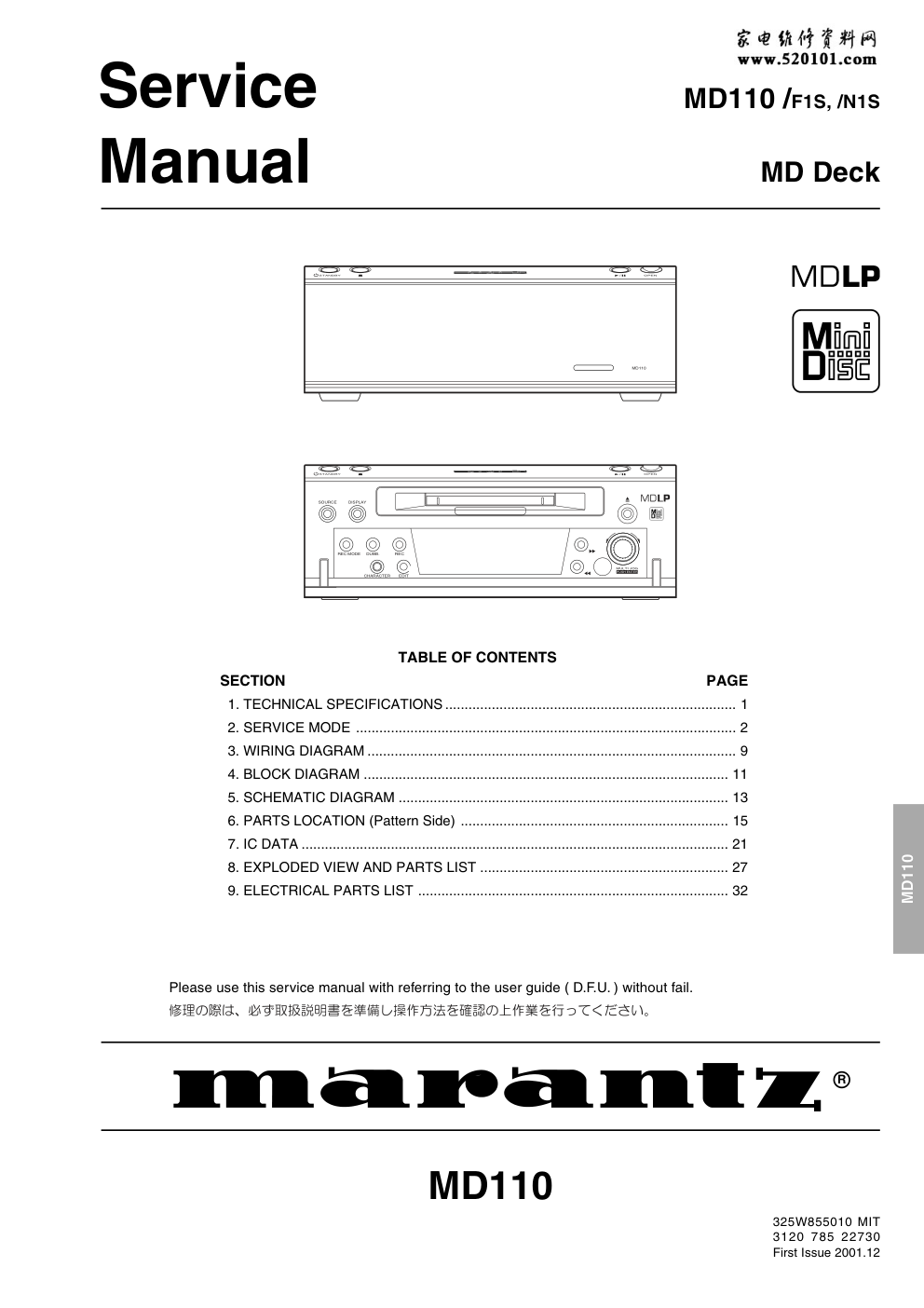

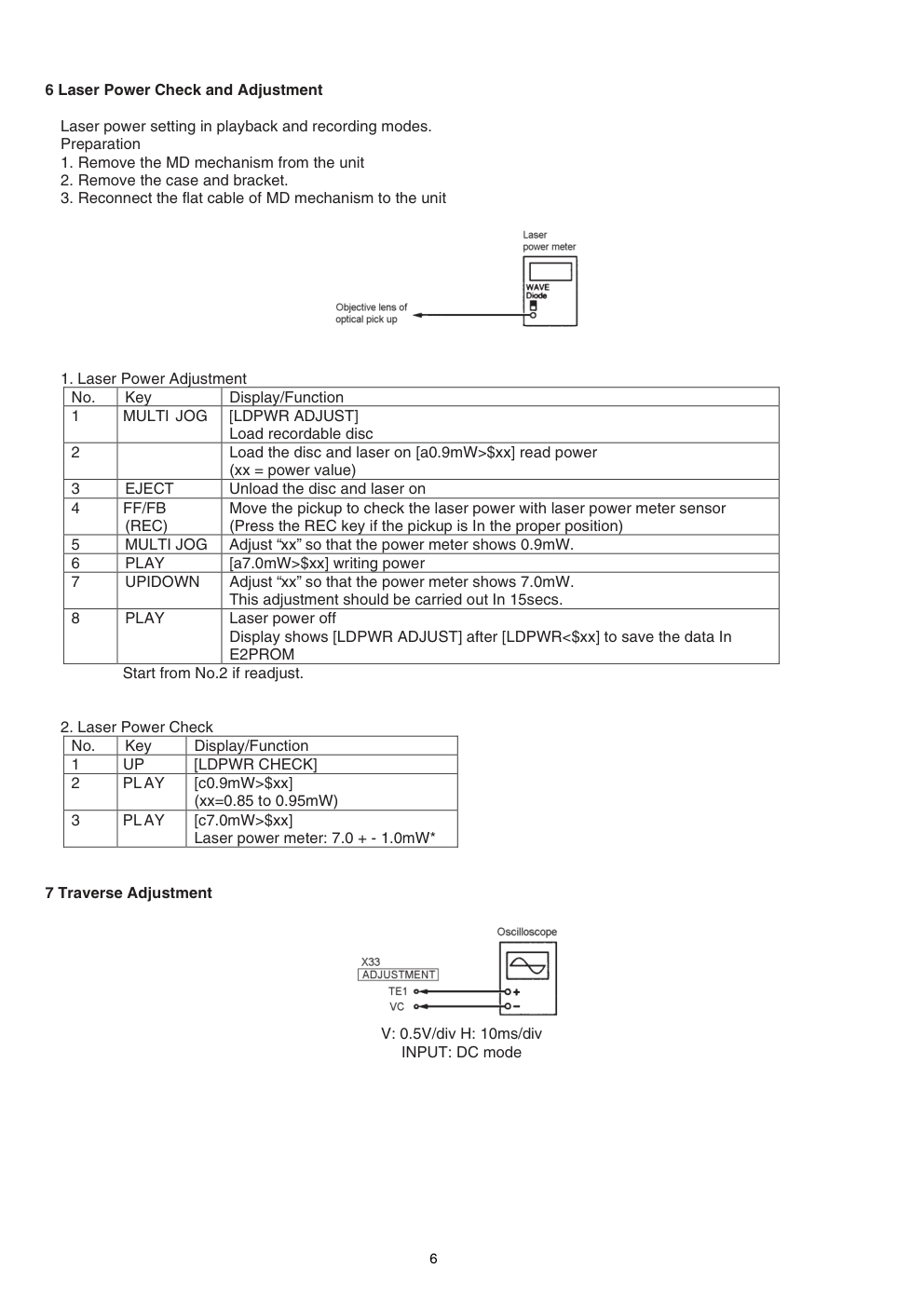

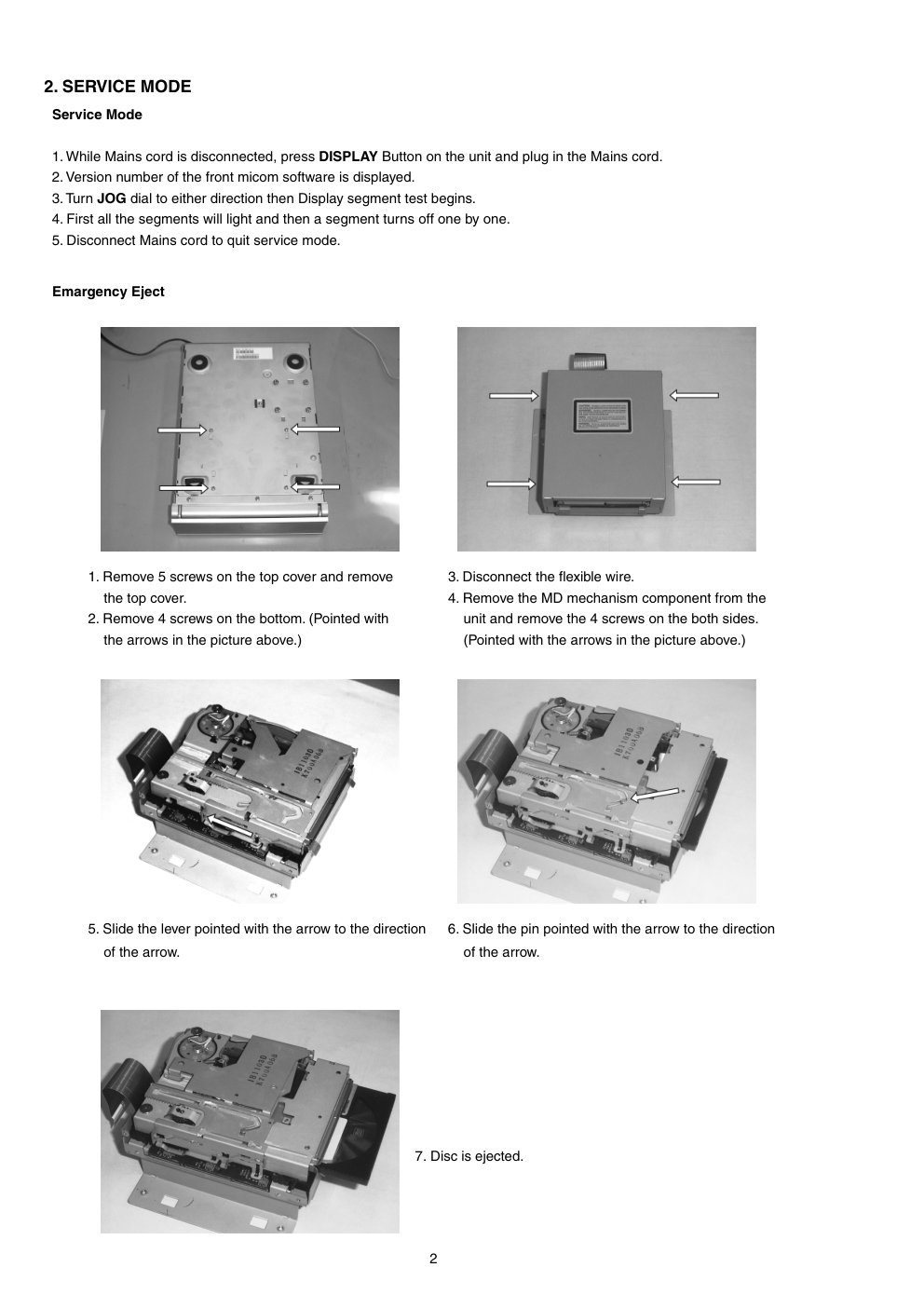

MD110 325W855010 MIT 3120 785 22730 First Issue 2001.12 Service Manual R Please use this service manual with referring to the user guide ( D.F.U. ) without fail. MD110 /F1S, /N1S MD Deck TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ........................................................................... 1 2. SERVICE MODE .................................................................................................. 2 3. WIRING DIAGRAM ............................................................................................... 9 4. BLOCK DIAGRAM .............................................................................................. 11 5. SCHEMATIC DIAGRAM ..................................................................................... 13 6. PARTS LOCATION (Pattern Side) ..................................................................... 15 7. IC DATA .............................................................................................................. 21 8. EXPLODED VIEW AND PARTS LIST ................................................................ 27 9. ELECTRICAL PARTS LIST ................................................................................ 32 MULTI JOG DISPLAY SOURCE EDIT REC REC MODE CHARACTER DUBB. PUSH ENTER MD110 STANDBY OPEN STANDBY OPEN MD110 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. TECHNICAL SPECIFICATIONS MAIN UNIT (MD110) Type ........................................................................................................................... MiniDisc Digital Audio System Laser ......................................................................................................................................... Semiconductor laser Recording method ............................................................................... Magnetic field modulation overwrite method RPMs ......................................................................................................... Approximately 400rpm to 900rpm (CLV) Sampling frequency .....................................................................................................................................44.1 kHz Frequency characteristics ........................................................................................................20 to 20 kHz (± 1 dB) S/N .................................................................................................................................................. 85 dB or greater Total Harmonic Distortion ................................................................................................................. 0.005 % or less Wow and Flutter ............................................................................................................ Less than measurable limits Line output level .......................................................................................................................................... 2.0 Vrms Analog Input ........................................................................................................................................... 250 mVrms GENERAL Power supply ......................................................................................................... AC 100 V 50 / 60 Hz (F version) AC 230 V 50 Hz (N version) Power Consumption ......................................................................................16 W Maximum external dimensions (W x H x D)............................................................................. 210 x 71.5 x 310 mm Weight.............................................................................................................................................................. 3.3 kg ACCESSORIES Remote Control Transmitter (RC110DRMD/N1S, RC110DRMDF/F1S) .................................................................. 1 External dimensions (W x H x D) ........................................................................................ 50.5 x 154.5 x 25 mm Weight ............................................................................................................................................................. 60 g AA type batteries ..................................................................................................................................................... 2 Stereo audio cable ............................................................................................................................................ 1 pair Coaxial cable ........................................................................................................................................................... 1 Remote control cable ............................................................................................................................................... 1 The specifications and external appearance are subject to change without notice. Some portions of the illustrations that appear in this manual may differ slightly from the actual product. This product is licensed under U.S. and foreign patents of Dolby Laboratories. 2 Service Mode 1. While Mains cord is disconnected, press DISPLAY Button on the unit and plug in the Mains cord. 2. Version number of the front micom software is displayed. 3. Turn JOG dial to either direction then Display segment test begins. 4. First all the segments will light and then a segment turns off one by one. 5. Disconnect Mains cord to quit service mode. Emargency Eject 1. Remove 5 screws on the top cover and remove 3. Disconnect the flexible wire. the top cover. 4. Remove the MD mechanism component from the 2. Remove 4 screws on the bottom. (Pointed with unit and remove the 4 screws on the both sides. the arrows in the picture above.) (Pointed with the arrows in the picture above.) 5. Slide the lever pointed with the arrow to the direction 6. Slide the pin pointed with the arrow to the direction of the arrow. of the arrow. 7. Disc is ejected. 2. SERVICE MODE 3 TEST MODE 1 How to Setting and Cancel Test Mode Setting: While pressing the PLAY/PAUSE keys, insert the power cord to the wall outlet. Cancel: Pull out the power cord. Key Operation for Adjustment Key Operation MULTI JOG Select parameter and mode. PLAY Fix items. Change of display in every check. STOP Cancel or back of test mode. 2 Remained Keys Operation Key Operation DISPLAY Display changes. FF Pickup moves outwards when press FF key FB Pickup moves inwards when press FB key 3 Selection of test mode 13 test modes are selected by pressing UPIDOWN keys. No. Display Description Section 1 TEMP ADJUST The work of adjustment is unnecessary in this mode 6-5 2 LDPWR ADJUST Laser power adjustment 6-6 3 LDPWR CHECK Laser power check 6-6 4 EFBAL ADJUST Traverse adjustment 6-7 5 TE B. ADJUST Automatic EF balance adjustment 6 FBIAS ADJUST Focus bias adjustment 6-8 7 CPLAY MODE Continuous playback mode 5-4 8 CREC MODE Continuous recording mode 5-5 9 STT-LIMIT SW Check the mechanism start limit SW position - 10 JUMP MODE Track jump checking mode - 11 SRV DAT READ Servo data reading - 12 EEP MODE E2PROM data reading or rewrite - 13 EEP INITIAL E2PROM data initializing - For more information on each adjustment mode, refer to each section of 6, "Electrical adjustment". If other adjustment mode has been entered incorrectly, press the STOP key to exit the mode. *The number 9 -13 are not used for service. If these modes have been entered incorrectly, press the STOP key immediately to exit the mode. Specially, do not use EEP INITIAL. (E2PROM data has initialized if used it.) 4 continuous Playback Mode 1. Setting of Continuous Playback Mode No. Key Display/Function 1 MULTI JOG Select [CPLAY MODE] 2 Load disc 3 PLAY [CPLAY MID] [c=xxxx a=yy] error (xxxx=C1 error, yy=ADIP error) 4 DISPLAY [CPLAY (zzzz)] CPLAY address (MID=0300h, OUT=0700h, IN=0030h cluster) 5 DISPLAY [h****d@@@@] address (****=current head address, @@@@=ADIP address In No.5, Display shows [-] if can't read disc. 2. Change of Playback Points (In continuous playback mode) No. Key Display/Function 1 PLAY [CPLAY OUT] 2 Carry out No.4 and 5 in the above table 3 PLAY [CPLAY IN] 4 Carry out No.4 and 5 in the above table 5 STOP [CPLAY MODE] 6 EJECT Disc out 5 Continuous Recording Mode 1. Continuous Recording Setting No. Key Display/Function 1 MULTI JOG Select [CREC MODE] 2 Load the recordable disc 3 PLAY [CREC MID] 4 PLAY [CREC (zzzz)] CREC address (0300h cluster = recording start point) 5 DISPLAY [h****d@@@@] address 6 DISPLAY [c=xxxx a=yy] error 7 DISPLAY [CREC (zzzz)] 8 STOP [c=xxxx a=yy] 2. Change and End of Recording Points No. Key Display/Function 1 Carry out No.1 to 3 in the above table Select [CREC MID] 2 MULTI JOG [CREC OUT] 3 PLAY [CREC (zzzz)] CREC address (0700h cluster = recording start point) Carry out No.5 to 8 in the above table 4 Carry out No.1 to 3 in the above table 5 PLAY Select [CREC MID] 6 MULTI JOG Select [CREC IN] 7 PLAY [CREC (zzzz)] CREC address (0300h cluster = recording start point) Carry out No.5 to 8 in the above table 8 EJECT Disc out Starting address is the followings. IN=30h cluster, MID=300h cluster, OUT=700h cluster 1. The recording start addresses of IN, MID, and OUT are described below. IN 30H cluster MID 300H cluster OUT 700H cluster 2. An erasure prevention control is not detected in the test mode. Be careful not to enter the continuous recording mode using a disc containing the data that should not be erased. 3. Do not record continuously for more than five minutes. 4. Take care that no vibration is applied during continuous recording. Electrical adjustment 1 Precaution during confirmation of Laser Diode emission During adjustment, do not view the emission of a laser diode from lust above for confirmation. This may damage your eyes. 4 5 2 Precaution on handling of Optical pick-up (KMS-260B) The laser diode in an optical pick-up is easy to be subject to electrostatic destruction. Therefore, solder-bridge the laser tap on the flexible board when handling the optical pick-up. When removing the flexible board from the connector, make a solder bridge in advance, then remove the board. Be careful not to remove the solder bridge before inserting the connector. Moreover, take careful measures against electrostatic destruction. The flexible board is cut easily. Handle the flexible board with care. 3 Precaution during adjustment 1) Perform the adjustment and confirmation marked with "O" in the order shown in the table when the parts below are replaced. BD board Optical pick-up IC6 D101 IC1, IC2, IC10 1.Temperature compensation offset adjustment X O O O 2. Laser power adjustment O O X O 3.Trtvense adjustment O O X O 4. Focus bias adjustment O O X O 5. Error rate confirmation O O X O 2) In the test mode, perform the adjustment. After adjustment is completed, chancel the test mode. 3) Perform the adjustment in the order described. 4) Use the following tools and measurement equipment. CD test disc TGYS-1 Laser power meter Oscilloscope (with bandwidth of more than 40 M Ohms) (Calibrate the probe before measurement) Digital voltmeter Thermometer 5) Take care that VC and GND (ground) are not connected on the oscilloscope when two or more signals are moni- tored on the oscilloscope. (VC and GND are short-circuited in this case,) 4 Creating the recordable continuous recording disc This disc is used for focus bias adjustment and error rate confirmation. How to create the recordable continuous recording disc is 5-5 5 Offset Adjustment No. Kay Display/Function 1 MULTI JOG Select [TEMP ADJUST] 2 PLAY [TEMP = xx (yy)] (xx = compensation data, yy = setting temperature 3 MULTI JOG Input "yy" with present temp. 4 PLAY [TEMP=**SAVE] [TEMP ADJUST] in writing data 6 Laser Power Check and Adjustment Laser power setting in playback and recording modes. Preparation 1. Remove the MD mechanism from the unit 2. Remove the case and bracket. 3. Reconnect the flat cable of MD mechanism to the unit 1. Laser Power Adjustment No. Key Display/Function 1 MULTI JOG [LDPWR ADJUST] Load recordable disc 2 Load the disc and laser on [a0.9mW>$xx] read power (xx = power value) 3 EJECT Unload the disc and laser on 4 FF/FB (REC) Move the pickup to check the laser power with laser power meter sensor (Press the REC key if the pickup is In the proper position) 5 MULTI JOG Adjust “xx” so that the power meter shows 0.9mW. 6 PLAY [a7.0mW>$xx] writing power 7 UPIDOWN Adjust “xx” so that the power meter shows 7.0mW. This adjustment should be carried out In 15secs. 8 PLAY Laser power off Display shows [LDPWR ADJUST] after [LDPWR<$xx] to save the data In E2PROM Start from No.2 if readjust. 2. Laser Power Check No. Key Display/Function 1 UP [LDPWR CHECK] 2 PL AY [c0.9mW>$xx] (xx=0.85 to 0.95mW) 3 PL AY [c7.0mW>$xx] Laser power meter: 7.0 + - 1.0mW* 7 Traverse Adjustment V: 0.5V/div H: 10ms/div INPUT: DC mode 6 FE Balance 1. Recordable Disc No. Key Display/Function 1 Connect the oscilloscope to TE1 and VC in X33 PCB 2 MULTI JOG Select [EFBAL ADJUST] 3 Load the recordable disc 4 PLAY [EFBAL MO-W] 5 PLAY [EF=$**MOW] 6 MULTI JOG Write adjustment. Adjust the waveform as follows. 7 PLAY Display shows [EF=$**MOR] after [EFB=**xSAVE] to save the data in E2PROM. Mode changes write to read Focus and disc servo are on. Tracking servo off. 8 MULTI JOG Read power adjustment. Adjust the waveform as follows. 9 PLAY PLAY Save the data in E2PROM. Display shows [EFBAL MO-P] Display shows [EF=$**MOP] (Pickup travels to search pits and tune the servo to on.) 10 MULTI JOG Adjust the waveform as follows. 11 PLAY Display shows [EFBAL CHANGE] after [EFB=**xSAVE] to save the data in E2PROM. Display shows [EFBAL CHANGE] disc motor stops. 12 EJECT Unload disc. 2. PER Master Test Disc (TGYS-1) No. Key Display/Function 1 Load the disc (TGYS-1). 2 PLAY [EF=$**CD] servo is on 3 MULTI JOG Adjust the waveform as follows. 4 Save the data in E2PROM. Display shows [EFB=**xSAVE] in brief time. [EFBAL ADJUST] 5 EJECT Unload disc. During this adjustment, the oscilloscope changes in units of about 2%. Adjust so that the waveform comes nearest to the specified value. (MO groove read power traverse adjustment) Notes: 1. Data is erased during MO write when a recorded disc is used for this adjustment 2. If the traverse waveform is difficult to be monitored, connect an oscilloscope as shown in the figure below. 7 8 Focus Bias Adjustment Use the special disc (continuous recorded disc) No. Key Display/Function 1 MULTI JOG Select [FBIAS ADJUST] 2 Load the disc. 3 PLAY [a=xx yyyy/zz] point a (xx = focus bias yyyy = C1error) 4 UP Adjust "yyyy" to 220* 5 PLAY [b=xx yyyy/zz] point b 6 DOWN Adjust "yyyy" to 220* 7 PLAY [xx yyyy/zzc=] point c Check "yyyy" within 50 8 PLAY Display shows [aa bb cc(xx)] focus bias adjust (aa = point a, bb=b, cc=c ) Notes: 1. The relation between the C1 error and focus bias value is shown in the figure below. Points "a" and "b" in the figure are detected by the above adjustment. Focal position "C" is automatically obtained from points "a" and “b” by calculation. 2. The C1 error rate fluctuates. Therefore, perform the adjustment according to the observed mean value. 9 Error Rate Check 1. CD Error Rate No. Key Display/Function 1 MULTI JOG [CPLAY MODE] 2 Load the test disc (TGYS-1) 3 PLAY Display shows [CPLAY MID] Access and [c=xxxx a=yy] xxxx=C1 error (lower 20) yy = AIDP error 4 STOP [CPLAY MODE] 5 EJECT Unload disc. 2. MO Error Rate No. Key Display/Function 1 MULTI JOG [CPLAY MODE] 2 Load the recordable disc 3 PLAY Display shows [CPLAY MID] Access and [c=xxxx a=yy] xxxx=C1 error (lower 50) yy = AIDP error (00) 4 STOP [CPLAY MODE] 5 EJECT Unload disc. 8 9 10 3. WIRING DIAGRAM 4. BLOCK DIAGRAM 11 12 13 14 5. SCHEMATIC DIAGRAM 15 16 6. PARTS LOCATION (Pattern Side) MAIN BOARD Q20 Q10 IC12 IC7 IC9 IC11 IC10 IC8 Q12 Q8 Q9 REC BOARD 17 18 Q21 Q14 Q15 Q1 Q2 IC4 Q4L Q4R Q16-Q18 Q19 Q5-Q7 IC13 Q3L Q3R MAIN BOARD IC1 IC3 IC2 REC BOARD 19 20 FRONT BOARD Q302 Q303 - Q306 Q300 Q301 Q307 21 7. IC DATA Pin Configuration IC1/3/4:NJM2068 LP PACKAGE (TOP VIEW) CATHODE ANODE REF Functional Block Diagram CATHODE REF ANODE + _ Vref Pin Assignment IC7:TL431 22 IC2:KIC9459N PIN CONNECTION PIN DESCRIPTION 23 Outline 64P2G-A Digit outputs Segment outputs 55 54 53 52 51 50 49 48 47 46 45 44 43 42 39 36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 41 40 38 37 35 34 33 64 63 62 61 60 59 58 57 56 DIG11 DIG10 DIG09 DIG08 DIG07 DIG06 DIG05 DIG04 DIG03 DIG02 DIG01 DIG00 RESET Vcc1 P1 SDATA SCK CS P0 XOUT XIN Vss SEG35 Vp SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG09 SEG08 SEG07 SEG06 SEG05 SEG04 SEG03 SEG02 SEG01 SEG00 Vcc2 DIG12/SEG36 DIG13/SEG37 DIG14/SEG38 DIG15/SEG39 Reset input Chip select input Shift clock input Serial data input Universal bidirectional ports Clock output Clock input Segment outputs Digit / segment outputs PIN CONFIGURATION RESET SCK SDATA XIN , XOUT P1, P0 Vcc1 Vcc2 Vss Vp Symbol Pin name Comment Reset input CS Chip select input When "L", M66005 is initialized. When "L", communication with the MCU is possible. When "H", any instruction from the MCU is neglected. Shift clock input Serial input data is taken and shifted by the positive edge of SCK. Serial data input Clock input Clock output When use as a CR oscillator, connect external resistor and capacitor. When use an external clock, input external clock to XIN, and XOUT must be opened. DIG00~ DIG15 Digit output Connect to digit (grid) pins of VFD. Connect to segment (anode) pins of VFD. Pins from SEG00 to SEG39 correspond to segment pins of VFD as shown in the table below. SEG36~SEG39 pins are common to DIG12~DIG15 pins. So, when use SEG36~SEG39, the number of digit to be used is decreased. Segment output Universal port Generally, use this port as the static output port. This port also operates as the timing IN/OUT port to control another M66005. Positive power supply for internal logic. Positive power supply for DIG and SEG outputs. GND (0V) Negative power supply to pull down. SEG00~ SEG39 P1 : bidirectional P0 : output PIN DESCRIPTIONS IC300:M66005F 24 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION 1, 3, 5, 9, 11, 13 1A to 6A data inputs 2, 4, 6, 8, 10, 12 1Y to 6Y data outputs 7 GND ground (0 V) 14 VCC positive supply voltage Fig.1 Pin configuration. Fig.4 Functional diagram. Fig.5 Schematic diagram (one inverter). IC13:74HC04 25 26 IC6:CXP84648 PIN ASSIGNMENT 25 A_MUTE OUTPUT A_MUTE ACTIVE LOW O 26 D_MUTE OUTPUT D_MUTE ACTIVE LOW O 27 N.C I/O 28 PO_OFF_CONT OUTPUT FOR RLY ACTIVE HIGH O 29 BACKUP_V I 30 RESET INPUT CPU ACTIVE HIGH I 31 EXTAL OUTPUT FOR 12.288MHZ CRYSTAL O 32 XTAL 12.288MHZ CRYSTAL 33 VSS GND 34 32MHZ CRYSTAL 35 TEX OUTPUT FOR 32MHZ CRYSTAL O 36 AVSS AVSS GND 37 AVREF REFERENC VOLTAGE VDD 38 BACKUP_CH OUTPUT BACKUP CHACK O 39 KEY1 DATA INPUT KEY SCAN CHECK PORT for AD KEY INPUT O 40 KEY2 DATA INPUT KEY SCAN CHECK PORT for AD KEY INPUT O 41 KEY3 DATA INPUT KEY SCAN CHECK PORT for AD KEY INPUT O 42-45 N.C I/O 46 FL_RESET OUTPUT RESET FOR M66005 O 47 FL_CS OUTPUT CS FOR M66005 O 48-54 N.C I/O 55 RC5 SY IN/OUT SYSTEM CONTROL "HIGH": SYSTEM MODE, "LOW": INT MODE O 56 RMC OUTPUT FOR REMOCON DATA O 57-59 N.C O 60 PO_OFF_DET OUTPUT FOR POWER DOWN O 61 N.C I/O 62 N.C I/O 63 RC5_OUT OUTPUT FOR CONTROLING RC-5 O 64 RC5_IN INPUT FOR CONTROLING RC-5 I 65 FL_CLK OUTPUT CLK FOR M66005 O 66 N.C I/O 67 FL_DATA OUTPUT DATA FOR M66005 O 68 ENCODER I 69 ENCODER I 70 BACK/PO_ON OUTPUT TO DRIVE POWER ON(GREEN) ACTIVE HIGH O 71 ST-BY OUTPUT TO DRIVE STBY LED(RED) ACTIVE HIGH O 72 VDD VDD +5V 73 VDD VDD +5V 74 RMC-CONTROL OUTPUT FOR RC-5 ON/OFF O 75-80 N.C I/O VSS TX PIN NO PIN NAME OPERATION DESCRIPTION ASSIGN PIN NO PIN NAME OPERATION DESCRIPTION ASSIGN 1-3 N.C I/O 4 ME_CTXD UART Communication O 5 ME_CRXD UART Communication I/O 6-13 N.C I/O 14 ME_BACK_ON O 15 CE O 16 M E_RESET O 17-19 N.C I/O 20 OPTION PULL-UP(ENG) / PUII-DOWN(JAP) I/O 21 N.C I/O 22 VOL_CLK CLK SIGNAL OUTPUT 9459F ELECTRONIC VOLUME CONTROL O 23 VOL_EN EN SIGNAL OUTPUT 9459F ELECTRONIC VOLUME CONTROL O 24 VOL_DA DA SIGNAL OUTPUT 9459F ELECTRONIC VOLUME CONTROL O PIN FUNCTION 27 28 8. EXPLODED VIEW AND PARTS LIST F X2 30 TL 29 1 4 X2 3 6 X3 H 5 PD 7 X3 8 X3 49 E X2 E X2 25 TA X2 PC 19 31 H J X3 32 33 34 PF 24 23 35 36 K X2 K 44 40 G 41 42 43 37 38 X2 10 9 K X2 11 M X2 27 26 K X7 L X4 46 12 45 13 D X4 39 X2 A X4 15 14 A 28 A 2 E 16 47 B A A 17 48 18 A A X2 C X7 I 20 21 X3 22 X4 A1 29 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 1 9965 000 11414 PANEL DOOR 325W162010 2 nsp LABEL LASER CAUTION-CD nsp 3 9965 000 10697 ARM DOOR L 323W002010 4 9965 000 10698 CUSHION DOOR 323W259010 A1 9965 000 11415 FRONT PANEL SUB ASSY 325W248500 5 nsp PANEL FRONT nsp 6 nsp BUTTON POWER B nsp 7 nsp BUTTON POWER A nsp 8 9965 000 11103 BUTTON DISPLAY 325W270040 9 9965 000 10701 DAMPER GEAR (KIFCO) 323W130010 10 9965 000 10702 BRACKET DOOR C 323W160060 11 nsp P.C.B ASSY FRONT nsp 12 nsp CHASSIS MAIN nsp 13 F nsp POWER TRANS 100V/50HZ 57x27 *TS001340R 13 N 9965 000 11416 POWER TRANS 230V/50HZ 57x27 *TS001330R 14 nsp BRACKET SIDE nsp 15 nsp SUPPORTER PCB nsp 16 F nsp CHASSIS BACK nsp 16 N nsp CHASSIS BACK nsp 17 F nsp STOPPER 323W259020 17 N 9965 000 11058 STOPPER 323W259030 18 F nsp MAINS CORD ASSY *YC000560R 18 N 9965 000 10705 MAINS CORD ASSY *YC000570R 19 9965 000 11202 KNOB SHUTTLE 325W154010 20 9965 000 10708 BADGE MARANTZ 323W251010 21 9965 000 11109 BUTTON MENU 325W270010 22 9965 000 11110 BUTTON REC 325W270020 23 nsp WINDOW DISPLAY MD nsp 24 9965 000 11417 DOOR MD 325W162100 25 9965 000 11418 SPRING MD 325W115010 26 nsp BRACKET MD DOOR nsp 27 nsp SUPPORTER FLT MD nsp 28 nsp SUPPORTER P.C. nsp 29 9965 000 10709 WINDOW REMOCON B 323W158030 30 9965 000 10713 ARM DOOR R 323W002020 31 9965 000 11111 PLATE EARTH A 323W123010 32 9965 000 10714 SPRING DOOR C 323W115010 33 9965 000 10715 KNOB EJECT 323W154020 34 nsp SUPPORTER EJECT nsp 35 nsp WINDOW REMOCON A nsp 36 9965 000 10716 BRACKET DOOR A 323W160010 37 9965 000 10717 SPRING DOOR A 323W115020 38 9965 000 10718 CUSHION FOOT F 323W057010 39 9965 000 10719 CUSHION FOOT B 323W057020 40 9965 000 10720 HOLDER HINGE B 323W271020 41 9965 000 10721 HOLDER HINGE A 323W271010 42 9965 000 10703 SPRING DOOR B 323W115030 43 9965 000 10722 BRACKET DOOR B 323W160020 44 9965 000 10723 RING 323W353100 45 nsp BRACKET MECHA MD nsp 46 nsp MD MODULE MGM-07000A KPJ 325W304500 47 N nsp P.C.B ASSY MAIN nsp 47 F nsp P.C.B ASSY MAIN nsp 48 N nsp P.C.B ASSY REC nsp 48 F nsp P.C.B ASSY REC nsp 49 9965 000 11113 CABINET TOP 324W257010 PC nsp PLATE EARTH "C" nsp PF nsp PLATE EARTH "F" nsp PD nsp PLATE EARTH "D" nsp TA nsp TAPE ARM nsp TL nsp TAPE LENS nsp A nsp SCREW +2S 3x8 B-TYPE ZNY/BH nsp B nsp SCREW +2S 3x17 B-TYPE ZNY/BH nsp C nsp SCREW +2S 3x10 B-TYPE(DOT) BK/BH nsp D nsp SCREW +3S 4x8 P+S-WASHER ZNY/BH nsp E nsp SCREW +2S 3x8 B-TYPE CR/BH nsp F nsp SCREW +2S 2x6 BK/PH nsp G nsp SCREW +2S 3x8 PI9.5 B-TYPE ZNY nsp H nsp SCREW +2S 3x5 B-TYPE BK/FH nsp I nsp SCREW +3S 3x5 BK/FH nsp J nsp SCREW +2S 3x6 B-TYPE ZNY/BH nsp K nsp SCREW +2S 3x8 ZNY/PH nsp L nsp SCREW +3S 2.6x4 ZNW/BH nsp M nsp SCREW 2PS 3x8Y nsp PACKING - N 9965 000 11419 USER GUIDE 325W851310 - F nsp USER GUIDE 325W851110 - N 9965 000 11420 REMOTE CONTROLLER RC110DRMD ZK326W0010 - F nsp REMOTE CONTROLLER RC110DRMDF ZK325W0010 NOT STANDARD SPARE PARTS - N nsp CARD nsp - F nsp CARD nsp - F nsp CARD nsp - nsp BOX,GIFT 325W801010 - nsp CUSHION,SNOW 323W809010 30 40 13 40 9 36 43 30 36 31 6 10 41 31 8 7 11 25 32 26 35 39 39 39 39 39 1 28 19 45 38 38 38 46 14 18 44 44 35 15 5 29 21 41 20 36 48 23 37 16 39 2 35 24 42 3 35 27 35 22 17 27 27 12 36 27 36 36 33 59 58 4 34 51 35 35 35 50 52 53 49 47 54 55 57 56 A C A B D D B C 31 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 1 nsp A10-3531 CHASSIS(TU) nsp 2 nsp J19-6125 BRACKET ASSY nsp 3 nsp G02-1716 FLAT SPRING(THRUST) nsp 4 nsp D13-2510 RACK(GEAR) nsp 5 nsp D10-3958 LEVER(LIMIT) nsp 6 nsp A11-1189 SUB CHASSIS ASSY nsp 7 nsp D10-3959 ARM ASSY(MAIN) nsp 8 nsp D10-3961 LEVER ASSY(HEAD) nsp 9 nsp D10-3963 SLIDER(MAIN) nsp 10 nsp D13-2511 GEAR(FINAL) nsp 11 nsp J19-6127 HOLDER ASSY nsp 12 nsp A15-0106 FRAME nsp 13 nsp F11-0503 SHIELDING CASE nsp 15 nsp D10-3982 ROD(SUB) nsp 16 nsp D10-3957 ROD nsp 18 nsp A11-1187 SUB CHASSIS ASSY(TU) nsp 19 nsp D13-2504 GEAR(LOAD A) nsp 20 nsp D13-2505 GEAR(LOAD B) nsp 21 nsp D13-2516 GEAR(LOAD C) nsp 24 nsp D13-2509 GEAR (INTERMEDIATE) nsp 25 nsp D10-3964 SLIDER(LOAD) nsp 26 nsp D10-3965 ARM(LOAD) nsp 27 nsp J02-1492 INSULATOR nsp 28 nsp G01-4230 TORSION COIL SP(SPM) nsp 29 nsp G01-4231 EXTENSION COIL SPRING nsp 30 nsp G01-4235 EXTENSION COIL SPRING nsp 31 nsp G01-4233 TORSION COIL SPRING nsp 32 nsp G01-4234 EXTENSION COIL SPRING nsp 33 nsp N39-1745 MACHINE SCREW 1.7*4.5 nsp 34 nsp N09-3104 MECHINE SCREW 1.7*2 nsp 35 nsp N09-3279 MACHINE SCREW 1.7*3 nsp 36 nsp N09-5113 SCREW 1.7*7 (B-TITE) nsp 37 nsp N09-5229 SCREW 1.4*1.8 nsp 38 nsp N09-5230 SCREW 1.4*2.2 (S-TITE) nsp 39 nsp N09-5231 SCREW 1.7*4 (B-TITE) nsp 40 nsp N86-2004 BIND TAPTITE SC 2*4(S-TITE) nsp 41 nsp N19-0366 FLAT WASHER 2.1*4*0.5CUT nsp 42 nsp N19-1511 FLAT WS 2.5*0.9*0.25 CUT nsp 43 nsp N19-1171 FLAT WS 1.6*3.5*0.25 CUT nsp 44 nsp N09-5285 MACHINE SCREW(B) 1.7*4.5 nsp 45 nsp T42-0983 MOTOR ASSY *MM001170R 47 nsp E35-2689 WIRING HARNESS(SLED) nsp 49 nsp E35-2690 WIRE HARNESS nsp 50 nsp E35-2691 FLAT CABLE L=80MM *YU000960R 51 nsp E35-2348 FLAT CABLE(PU) 21P *YU000970R 52 nsp X33-1260 PCB ASSY *ZZ001870R 53 nsp T42-0984 MOTOR ASSY(LOAD) *MM001180R 54 nsp T42-0985 MOTOR ASSY(SLED) *MM001190R 55 nsp D13-2506 GEAR ASSY nsp 56 nsp G16-1236 SHEET nsp 57 nsp G11-2825 SOFT TAPE nsp 58 nsp T25-0111-05 PICKUP KMS-260E *ZZ001880R 59 nsp T30-0027-05 REC HEAD RM-21E *LH400180R 32 9. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT 33 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) MAIN CIRCUIT BOARD MAIN - CAPACITORS C6L nsp ELECT,22µF-M/16V,5x5-5RE nsp C6R nsp ELECT,22µF-M/16V,5x5-5RE nsp C7L nsp FILM,ST-0.0027µF-J/100V-5RE nsp C7R nsp FILM,ST-0.0027µF-J/100V-5RE nsp C8L nsp CER.CHIP,220pF-J/50V-1608 nsp C8R nsp CER.CHIP,220pF-J/50V-1608 nsp C9L nsp ELECT,22µF-M/16V,5x5-5RE nsp C9R nsp ELECT,22µF-M/16V,5x5-5RE nsp C10L nsp CER.CHIP,470pF-J/50V-1608 nsp C10R nsp CER.CHIP,470pF-J/50V-1608 nsp C11 nsp CER.CHIP,0.01µF-K/50V-1608 nsp C12 nsp CER.CHIP,10pF-D/50V-1608 nsp C13 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C14 nsp CER.CHIP,22pF-J/50V-1608 nsp C15 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C16 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C17 nsp CER.CHIP,22pF-J/50V-1608 nsp C18 9965 000 11120 CER.AC(SAFETY), DE7150-487F 472MVAI DK17472840 C19 nsp CER.,0.01µF-Z/500V-5RE nsp C20 nsp ELECT,1000µF-M/25V(SHL), 10x20L-5RE OEMONLY nsp C21 nsp CER.CHIP,0.01µF-K/50V-1608 nsp C22 nsp ELECT,SHL 10000µF 16V M 18x35 P=7.5MM nsp C23 nsp CER.,0.01µF-Z/500V-5RE nsp C28 C29 nsp CER.CHIP,0.01µF-K/50V-1608 nsp C30 nsp CER.CHIP,100pF-J/50V-1608 nsp C31 nsp ELECT,10µF-M/50V,5x11-5RE nsp C32 nsp ELECT,100µF-M/50V,8x11.5-5 nsp C33 nsp ELECT,10µF-M/50V,5x11-5RE nsp C34 nsp ELECT,2200µF-M/16V,10x20 nsp C35 nsp ELECT,2200µF-M/16V,10x20 nsp C36 nsp CER.CHIP,0.01µF-K/50V-1608 nsp C37 nsp CER.CHIP,27pF-J/50V-1608 nsp C38 nsp ELECT,470µF-M/10V,6.3x11-5 nsp C39 nsp CER.CHIP,100pF-J/50V-1608 nsp C40 nsp ELECT,1000µF-M/10V,10x12.5 nsp C41 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C42 9965 000 11128 DOUBLE LAYER(70), 0.047F-70UA/5.5V-5RE *EX000090R C43 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C44 nsp CER.CHIP,220pF-J/50V-1608 nsp C45 nsp CER.CHIP,220pF-J/50V-1608 nsp C46 nsp ELECT,1µF-M/50V,3x5-5RE nsp C47 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C48 9965 000 11120 CER.AC(SAFETY),DE7150-487F 472MVAI DK17472840 C49 nsp ELECT,10µF-M/50V,5x11-5RE nsp C50 9965 000 11120 CER.AC(SAFETY), DE7150-487F 472MVAI DK17472840 C51 nsp CER.CHIP,27pF-J/50V-1608 nsp C52 nsp ELECT,2.2µF-M/50V,5x11-5RE nsp C53 9965 000 11128 DOUBLE LAYER(70), 0.047F-70UA/5.5V-5RE *EX000090R C55 nsp ELECT,47µF-M/16V,5x11-5RE nsp C56 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C57 nsp CER.CHIP,18pF-J/50V-1608 nsp C58 nsp CER.CHIP,18pF-J/50V-1608 nsp MAIN - RESISTORS R10 nsp CHIP,3.3K-J,1/16W-1608REEL nsp R11 nsp CHIP,3.3K-J,1/16W-1608REEL nsp R12 nsp CHIP,680-J,1/16W-1608REEL nsp R13L nsp CHIP,4.7K-J,1/16W-1608REEL nsp R13R nsp CHIP,4.7K-J,1/16W-1608REEL nsp R14L nsp CHIP,12K-J,1/16W-1608REEL nsp R14R nsp CHIP,12K-J,1/16W-1608REEL nsp R15L nsp CHIP,4.7K-J,1/16W-1608REEL nsp R15R nsp CHIP,4.7K-J,1/16W-1608REEL nsp R16L nsp CHIP,220-J,1/16W-1608REEL nsp R16R nsp CHIP,220-J,1/16W-1608REEL nsp R17L nsp CHIP,220-J,1/16W-1608REEL nsp R17R nsp CHIP,220-J,1/16W-1608REEL nsp R18L nsp CHIP,100-J,1/16W-1608REEL nsp R18R nsp CHIP,100-J,1/16W-1608REEL nsp R19L nsp CHIP,4.7K-J,1/16W-1608REEL nsp R19R nsp CHIP,4.7K-J,1/16W-1608REEL nsp R20L nsp CHIP,4.7K-J,1/16W-1608REEL nsp R20R nsp CHIP,4.7K-J,1/16W-1608REEL nsp R21 nsp CHIP,100K-J,1/16W-1608REEL nsp R22 nsp CHIP,100-J,1/16W-1608REEL nsp R23 nsp CHIP,75-J,1/16W-1608REEL nsp R24 nsp CHIP,100K-J,1/16W-1608REEL nsp R25 nsp CHIP,10K-J,1/16W-1608REEL nsp R26 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R27 nsp CHIP,120-J,1/16W-1608REEL nsp R28 nsp CHIP,120-J,1/16W-1608REEL nsp R29 nsp 47-J,1/4W-R.REEL nsp R30 nsp 4.7-J,1/4W,R.REEL nsp R31 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R32 nsp 5.6K-J,1/5W-52RE-AX nsp R33 nsp 22K-J,1/5W-52RE-AX nsp R34 nsp CHIP,10K-J,1/16W-1608REEL nsp R37 nsp 150-J,1W-R.REEL nsp R38 nsp 1.6K-J,1/5W-52RE-AX nsp R39 nsp 1.5K-J,1/5W-52RE-AX nsp R40 nsp 4.7K-J,1/5W-52RE-AX nsp R41 nsp CHIP,100-J,1/16W-1608REEL nsp R42 nsp CHIP,100K-J,1/16W-1608REEL nsp R43 nsp CHIP,4.7K-J,1/16W-1608REEL nsp R44 nsp CHIP,47K-J,1/16W-1608REEL nsp R45 nsp CHIP,47K-J,1/16W-1608REEL nsp R46 nsp CHIP,3.9K-J,1/16W-1608REEL nsp R47 nsp CHIP,1K-J,1/16W-1608REEL nsp R48 nsp CHIP,2.7K-J,1/16W-1608REEL nsp R49 nsp CHIP,100K-J,1/16W-1608REEL nsp R50 nsp CHIP,100K-J,1/16W-1608REEL nsp R51 nsp CHIP,100-J,1/16W-1608REEL nsp R52 nsp CHIP,10K-J,1/16W-1608REEL nsp R57 R58 nsp CHIP,12K-J,1/16W-1608REEL nsp R59 nsp CHIP,12K-J,1/16W-1608REEL nsp R60 nsp CHIP,12K-J,1/16W-1608REEL nsp R65 nsp CHIP,47-J,1/16W-1608REEL nsp R66 nsp CHIP,1K-J,1/16W-1608REEL nsp R67 nsp CHIP,47-J,1/16W-1608REEL nsp R68 nsp CHIP,1K-J,1/16W-1608REEL nsp R69 nsp CHIP,1M-J,1/16W-1608REEL nsp R70 nsp CHIP,10K-J,1/16W-1608REEL nsp R71L nsp CHIP,680-J,1/16W-1608REEL nsp R71R nsp CHIP,680-J,1/16W-1608REEL nsp R73 nsp 1-J,1/4W-R.TYPE REEL nsp R74 nsp CHIP,47K-J,1/16W-1608REEL nsp R75 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R77 nsp 1-J,1/4W-R.TYPE REEL nsp N F 34 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) MAIN - SEMICONDUCTORS D1 9965 000 11119 D CHIP,1SS355USM *HD201580R D5 D6 9965 000 10728 DIODE,IN4007 52 1000V 1A *HD201570R D9 D11 4822 130 32778 DIODE,1SS133T-72-52MM HD20015210 D12 4822 130 83067 D,RECTIFIER BRIDGE, D3SB20/DBF40C 5A-4PIN HE20020290 D13 9965 000 10728 DIODE,IN4007 52 1000V 1A *HD201570R D20 D23 9965 000 11119 D CHIP,1SS355USM *HD201580R D24 9965 000 11119 D CHIP,1SS355USM *HD201580R D27 9965 000 11119 D CHIP,1SS355USM *HD201580R D28 4822 130 32778 DIODE,1SS133T-72-52MM HD20015210 D29 4822 130 32778 DIODE,1SS133T-72-52MM HD20015210 D30 9965 000 11119 D CHIP,1SS355USM *HD201580R D31 9965 000 11119 D CHIP,1SS355USM *HD201580R D32 9965 000 11119 D CHIP,1SS355USM *HD201580R IC4 5322 209 13406 IC,NJM2068MD-SOP8P *HC107380R IC7 4822 209 81397 ILINEAR-REGULATOR, TL431CLP 3PIN *HC300440R IC8 4822 209 31631 IC,KIA7805PI, 20W-TO220IS MOLD HC3890509F IC9 4822 209 31631 IC,KIA7805PI, 20W-TO220IS MOLD HC3890509F IC10 9965 000 11426 IC,ICP-N15 T104/PROTEC-REEL FU60115020 IC11 9965 000 11426 IC,ICP-N15 T104/PROTEC-REEL FU60115020 IC12 9965 000 11129 IC,KIA7032P,3.2V/TO92-RELL *HC107390R IC13 9965 000 10992 IC,INVRTR MC74HCU04AD SOP14 *HC700180R Q1 9965 000 11427 CHIP TRS.2SA,KRA103S (SOP) *BA001400R Q2 4822 130 60729 CHIP TRS.2SC, DTC124EK,0.2W/SMT-REEL *BA001080R Q3L 9965 000 10744 CHIP TRS.2SC, KTC2875B 0.15W/LOW-ON-RES SOT23(RTK)-REEL *HT300870R Q3R 9965 000 10744 CHIP TRS.2SC, KTC2875B 0.15W/LOW-ON-RES SOT23(RTK)-REEL *HT300870R Q4L 9965 000 10744 CHIP TRS.2SC, KTC2875B 0.15W/LOW-ON-RES SOT23(RTK)-REEL *HT300870R Q4R 9965 000 10744 CHIP TRS.2SC, KTC2875B 0.15W/LOW-ON-RES SOT23(RTK)-REEL *HT300870R Q5 4822 130 60729 CHIP TRS.2SC, DTC124EK,0.2W/SMT-REEL *BA001080R Q6 4822 130 60729 CHIP TRS.2SC, DTC124EK,0.2W/SMT-REEL *BA001080R Q7 9965 000 11427 CHIP TRS.2SA,KRA103S (SOP) *BA001400R Q8 4822 130 50437 SEMI,BRT/NPN RC,DTC143ES, 0.3W/TO92M-REEL *BA001300R Q9 9965 000 10444 SEMI,BRT/NPN RC,KRC107M, 0.4W/TO92M-REEL *BA001070R Q10 4822 130 11683 SEMI,TR/GE PNP 2SA, KSA916Y,0.9W/TO92L-REEL *HT100460R Q12 9965 000 11425 SEMI,TR/GE NPN 2SD, KTC2026Y TO220IS BULK 2W *HT300780R Q14 4822 130 60326 CHIP TRS.2SA, DTA144EK,0.2W/SMT-REEL *BA001050R Q15 4822 130 60729 CHIP TRS.2SC, DTC144EK,0.2W/SMT-REEL *BA001040R Q18 N 9965 000 10753 CHIP TRS.2SC, KRC102S T/P (KEC) *BA001220R Q18 N 4822 130 60729 CHIP TRS.2SC, DTC144EK,0.2W/SMT-REEL *BA001040R Q18 F 9965 000 10753 CHIP TRS.2SC, KRC102S T/P (KEC) *BA001220R Q18 F 4822 130 60729 CHIP TRS.2SC, DTC144EK,0.2W/SMT-REEL *BA001040R Q19 9965 000 10753 CHIP TRS.2SC, KRC102S T/P (KEC) *BA001220R Q20 4822 130 61227 SEMI,BRT/PNP RA, DTA114ES,0.3W/TO92M-REEL *BA001330R Q21 4822 130 90326 CHIP TRS.2SA, DTA114TK,0.2W/SMT-REEL *BA001280R ZD1 9965 000 11210 D,ZENER,MTZJ20B-0.5W/ 5MA-52MM *HD301950R ZD2 4822 130 11627 D,ZENER,MTZJ15B-0.5W/ 5MA-52MM *HD302000R ZD3 4822 130 11627 D,ZENER,MTZJ15B-0.5W/ 5MA-52MM *HD302000R ZD4 4822 130 10667 D,ZENER,MTZJ4.7B-0.5W/ 5MA-52MM HD30471000 ZD5 4822 130 80317 D,ZENER,MTZJ5.1B-0.5W/ 5MA-52MM HD30511000 MAIN - MISCELLANEOUS CN1 nsp CN.FPC 1.0MM, 52806-2610 26P STRAIGHT nsp CN2 nsp CN.WAFER 2.5MM,5267-08A 8P nsp CN3 nsp CN.FPC 1.0MM, 52806-1910 19P STRAIGHT nsp CN4 nsp CN.WAFER 2.0MM, 35336-1010 10P nsp CN5 nsp CN.WAFER 2.0MM, 35336-0510 5P nsp F1 N 4822 070 31601 FUSE (5.2x20), 250V-T160MA-S/V/B/R(YARN) *FS000450R F1 nsp FUSE (5.2x20),250V-S1A-U/ *FS000830R F1L nsp HOLDER,FUSE CLIP, PI5.2-REEL nsp F1R nsp HOLDER,FUSE CLIP, PI5.2-REEL nsp GND1 nsp TERMINAL, ALL PBST/GND PLATE-REEL nsp J8 nsp CHIP,0-J,1/8W-3216REEL nsp J126 JACK1 9965 000 10734 TER,RCA 4PIN, DAERYUNG/JK040131PN *YT002460R JACK2 9965 000 11212 MODULE,GP1F37R1/ OPTICAL TRANSMITE *YJ002500R JACK3 9965 000 11127 TER,RCA 1PIN, JE010003PN(GND) BLACK *YT002670R JACK4 9965 000 11126 TER,RCA 2PIN,JK020130LN (GND PLATE&PIN)/ORINGE *YJ002490R LT1 9965 000 11422 COIL,LINE FILTER, UU1116 1MH(411B) *FN000150R RL1 9965 000 11424 RELAY,SDT-S-109LMR 9V 250V/5A *LY000280R SW1 9965 000 10732 SW,SLIDE,SSAF112NA011 *SS000700R T1 N 9965 000 11027 TRANS ST/BY,230/50 RV5080R 28x25 Io=22MA 12.5Vx0.1A(DC) *TS001540R T1 nsp TRANS ST/BY,AVC5/ 100V 50HZ 28x15 *TS001370R W1 nsp CN.WAFER 7.92MM, YW396-32V 2P nsp W2 nsp CN.WAFER 3.96MM,35328-0210 nsp XTAL1 9965 000 11423 CRYSTAL,12.288MHZ, HC49U-CL;20pF *JX000890R XTAL2 9965 000 11124 CRYSTAL,MX-38T(32.768KHZ) NDK *JX000830R F F 35 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) FRONT CIRCUIT BOARD FRONT - CAPACITORS C300 nsp ELECT,100µF-M/10V,6.3x5-5RE nsp C301 nsp CER.CHIP,0.01µF-K/50V-1608 nsp C304 C305 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C306 nsp CER.CHIP,100pF-J/50V-1608 nsp C308 nsp ELECT,100µF-M/10V,6.3x5-5RE nsp C309 nsp CER.CHIP,0.1µF-K/50V-1608 nsp C312 C313 nsp CER.CHIP,220pF-J/50V-1608 nsp C314 nsp CER.CHIP,220pF-J/50V-1608 nsp C315 nsp CER.CHIP,220pF-J/50V-1608 nsp C316 nsp CER.CHIP,0.047µF-Z/50V-1608 nsp C317 nsp CER.CHIP,0.047µF-Z/50V-1608 nsp FRONT - RESISTORS R300 nsp CHIP,1.5K-J,1/16W-1608REEL nsp R301 nsp CHIP,1.8K-J,1/16W-1608REEL nsp R302 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R303 nsp CHIP,2.7K-J,1/16W-1608REEL nsp R304 nsp CHIP,1.5K-J,1/16W-1608REEL nsp R305 nsp CHIP,1.8K-J,1/16W-1608REEL nsp R306 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R307 nsp CHIP,1.5K-J,1/16W-1608REEL nsp R308 nsp CHIP,1.8K-J,1/16W-1608REEL nsp R309 nsp CHIP,2.2K-J,1/16W-1608REEL nsp R310 nsp CHIP,2.7K-J,1/16W-1608REEL nsp R311 nsp CHIP,47-J,1/16W-1608REEL nsp R312 nsp CHIP,270-J,1/16W-1608REEL nsp R313 nsp CHIP,270-J,1/16W-1608REEL nsp R314 nsp CHIP,270-J,1/16W-1608REEL nsp R315 nsp CHIP,1K-J,1/16W-1608REEL nsp R316 nsp CHIP,100-J,1/16W-1608REEL nsp R317 nsp CHIP,100-J,1/16W-1608REEL nsp R318 nsp CHIP,10K-J,1/16W-1608REEL nsp R319 nsp CHIP,27K-J,1/16W-1608REEL nsp R320 nsp CHIP,4.7K-J,1/16W-1608REEL nsp R321 nsp CHIP,4.7K-J,1/16W-1608REEL nsp R322 nsp CHIP,270-J,1/16W-1608REEL nsp R323 nsp CHIP,4.7K-J,1/16W-1608REEL nsp R324 nsp CHIP,1K-J,1/16W-1608REEL nsp R327 nsp CHIP,1K-J,1/16W-1608REEL nsp R328 nsp CHIP,1K-J,1/16W-1608REEL nsp R329 nsp CHIP,1.2K-J,1/16W-1608REEL nsp FRONT - SEMICONDUCTORS D300 9965 000 11119 D CHIP,1SS355USM *HD201580R D301 9965 000 11119 D CHIP,1SS355USM *HD201580R IC300 9965 000 10762 IC,M66005FP-SOP64P / FL DRIVER *HC107180R Q300 9965 000 10753 CHIP TRS.2SC,KRC102S T/P (KEC) *BA001220R Q301 9965 000 10753 CHIP TRS.2SC,KRC102S T/P (KEC) *BA001220R Q302 9965 000 10753 CHIP TRS.2SC,KRC102S T/P (KEC) *BA001220R Q303 4822 130 60941 CHIP TRS.2SA,DTA114EK, 0.2W/SMT-REEL BA10023210 Q304 9965 000 11131 CHIP TRS.2SC,KRC104S (SOP) *BA001290R Q305 4822 130 60941 CHIP TRS.2SA,DTA114EK, 0.2W/SMT-REEL BA10023210 Q306 9965 000 11131 CHIP TRS.2SC,KRC104S (SOP) *BA001290R Q307 9965 000 10753 CHIP TRS.2SC,KRC102S T/P (KEC) *BA001220R ZD300 4822 130 83142 D,ZENER,MTZJ6.2B-0.5W/ 5MA-52MM HD30621000 FRONT - MISCELLANEOUS CP3 nsp CN.FPC 1.0MM, 52807-1910 19P ANGLE nsp FLT300 9965 000 11421 DISPLAY FLT, 14-ST-37GN/MD110 *HQ300480R LED300 9965 000 10758 LED,PI5-RD, GR/HLD50RG,DUAL *HI100980R LED301 9965 000 10757 LED,HL-50CDG GREEN MILKY RESIN (MAN,5PI,P=2.5) *HI100970R LED302 9965 000 10757 LED,HL-50CDG GREEN MILKY RESIN (MAN,5PI,P=2.5) *HI100970R RM300 9965 000 10754 MODULE,REMOCON, NJL64H380A *HW100520R SW300 9965 000 10760 SW,TACT, THVH472GAA *SP001150R SW301 9965 000 10761 SW,TACT,SKHV10920A, 5MM/260G-REEL *SP001140R SW307 SW308 9965 000 10760 SW,TACT,THVH472GAA *SP001150R SW309 9965 000 10760 SW,TACT,THVH472GAA *SP001150R SW310 9965 000 10761 SW,TACT,SKHV10920A, 5MM/260G-REEL *SP001140R SW311 9965 000 11207 SW,ROTARY, EC12B24S2033ZZZ/WITHPUSH *SR000170R SW311 9965 000 10761 SW,TACT,SKHV10920A, 5MM/260G-REEL *SP001140R SW312 9965 000 10761 SW,TACT,SKHV10920A, 5MM/260G-REEL *SP001140R REC CIRCUIT BOARD REC - CAPACITORS C1L nsp CER.CHIP,100pF-J/50V-1608 nsp C1R nsp CER.CHIP,100pF-J/50V-1608 nsp C2L nsp ELECT,22µF-M/16V,5x5-5RE nsp C2R nsp ELECT,22µF-M/16V,5x5-5RE nsp C3L nsp ELECT,22µF-M/16V,5x5-5RE nsp C3R nsp ELECT,22µF-M/16V,5x5-5RE nsp C4L nsp ELECT,22µF-M/16V,5x5-5RE nsp C4R nsp ELECT,22µF-M/16V,5x5-5RE nsp C5L nsp ELECT,1µF-M/50V,3x5-5RE nsp C5R nsp ELECT,1µF-M/50V,3x5-5RE nsp REC - RESISTORS R1L nsp CHIP,1K-J,1/16W-1608REEL nsp R1R nsp CHIP,1K-J,1/16W-1608REEL nsp R2L nsp CHIP,100K-J,1/16W-1608REEL nsp R2R nsp CHIP,100K-J,1/16W-1608REEL nsp R3L nsp CHIP,100K-J,1/16W-1608REEL nsp R3R nsp CHIP,100K-J,1/16W-1608REEL nsp R4 nsp CHIP,1K-J,1/16W-1608REEL nsp R5 nsp CHIP,1K-J,1/16W-1608REEL nsp R6 nsp CHIP,1K-J,1/16W-1608REEL nsp R72L nsp CHIP,270-J,1/16W-1608REEL nsp R72R nsp CHIP,270-J,1/16W-1608REEL nsp R76L nsp CHIP,820-J,1/16W-1608REEL nsp R76R nsp CHIP,820-J,1/16W-1608REEL nsp R7L nsp CHIP,100K-J,1/16W-1608REEL nsp R7R nsp CHIP,100K-J,1/16W-1608REEL nsp R8L nsp CHIP,100-J,1/16W-1608REEL nsp R8R nsp CHIP,100-J,1/16W-1608REEL nsp R9L nsp CHIP,1.5K-J,1/16W-1608REEL nsp R9R nsp CHIP,1.5K-J,1/16W-1608REEL nsp 36 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) REC - SEMICONDUCTORS IC1 5322 209 13406 IC,NJM2068MD-SOP8P *HC107380R IC2 9965 000 01373 IC,KIC9459F/SOP24P HC10449050 IC3 5322 209 13406 IC,NJM2068MD-SOP8P *HC107380R REC - MISCELLANEOUS BKT1 nsp BRACKET,AVR3300(E3) (DENON) SPTE 0.8t/SCREW nsp BKT2 nsp BRACKET,AVR3300(E3) (DENON) SPTE 0.8t/SCREW nsp CP4 nsp CN.WAFER 2.0MM, 35237-1010 10P nsp CP5 nsp CN.WAFER 2.0MM, 35237-0510 5P nsp J19 nsp CHIP,0-J,1/8W-3216REEL nsp J109
