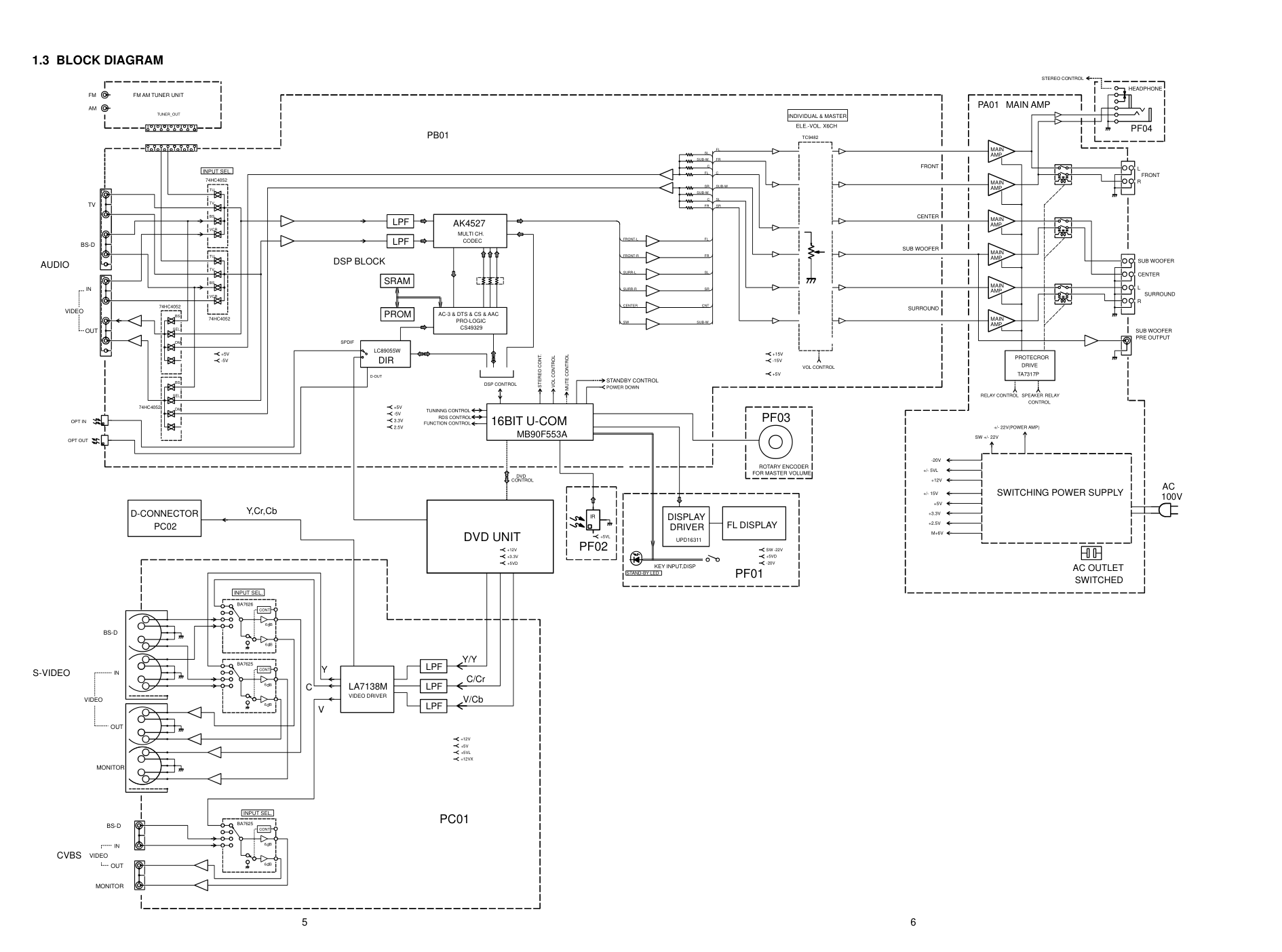

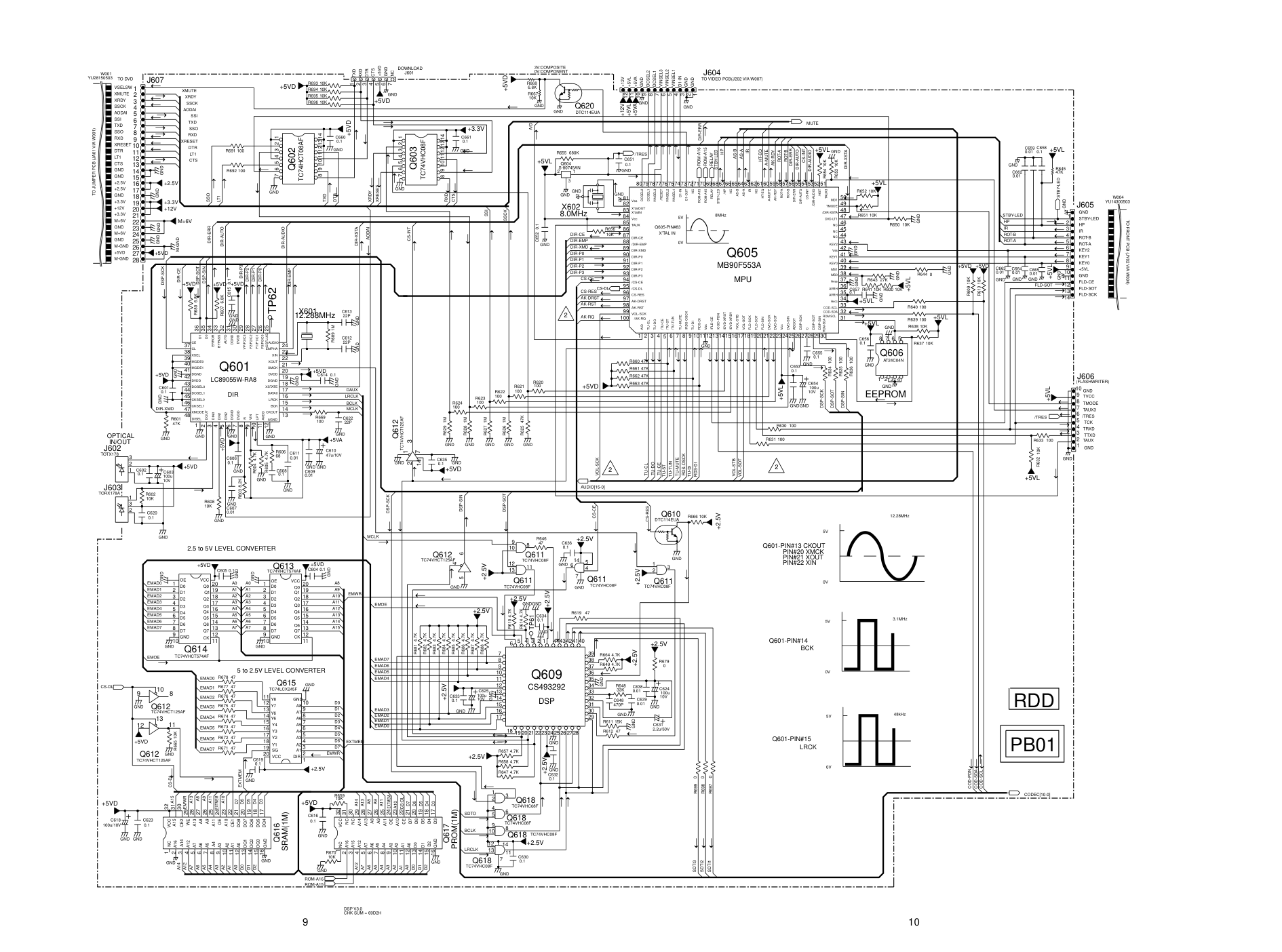

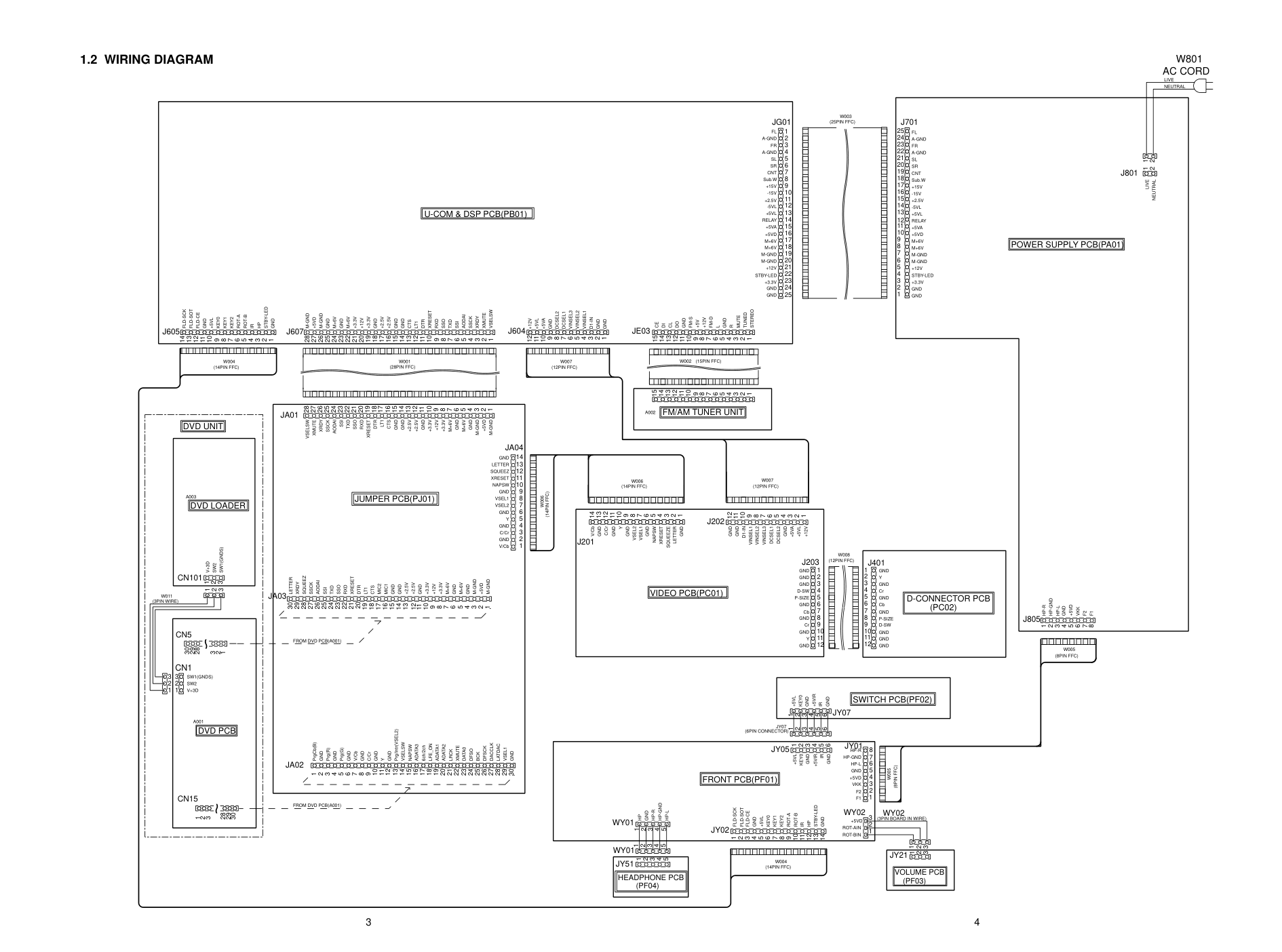

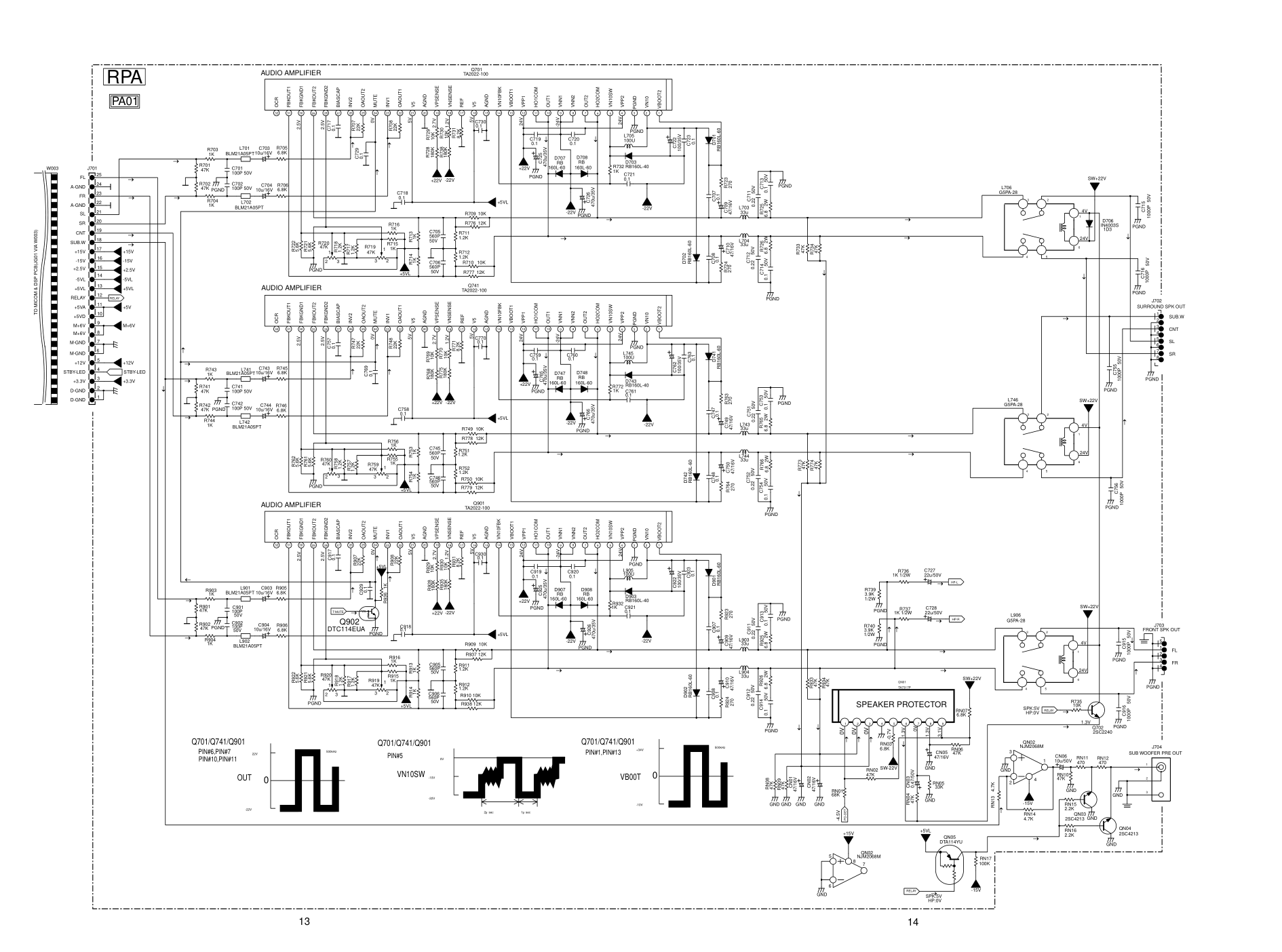

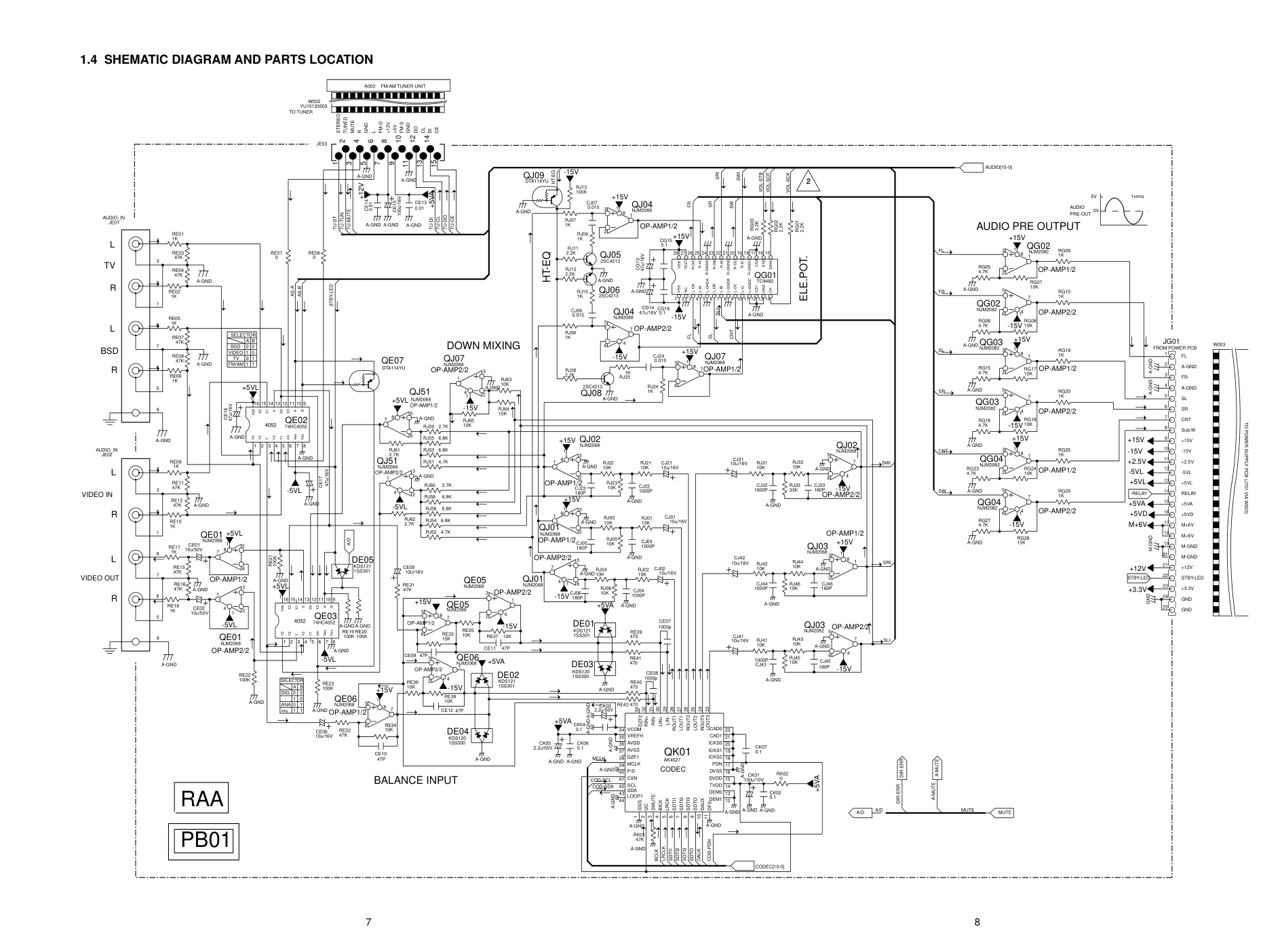

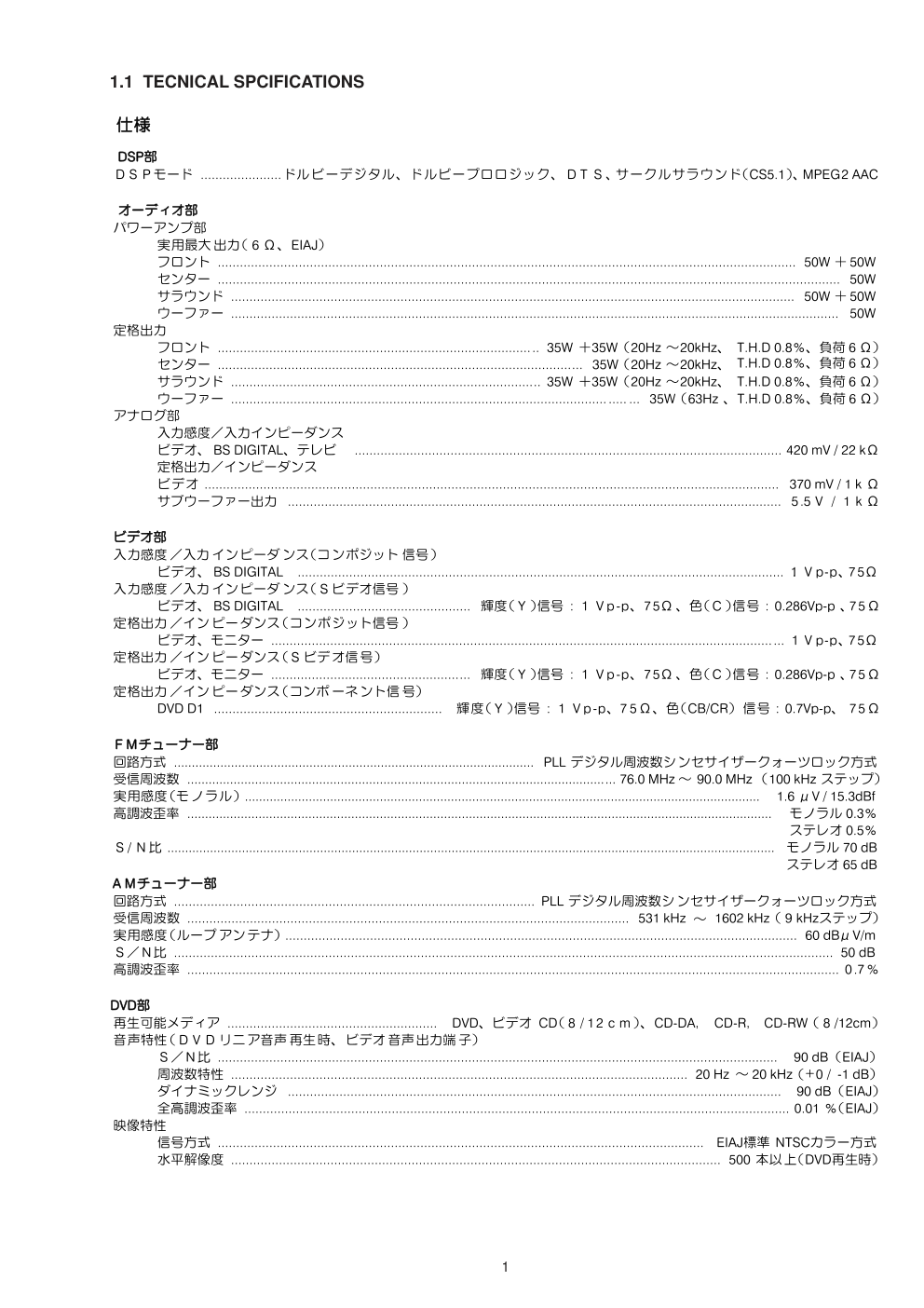

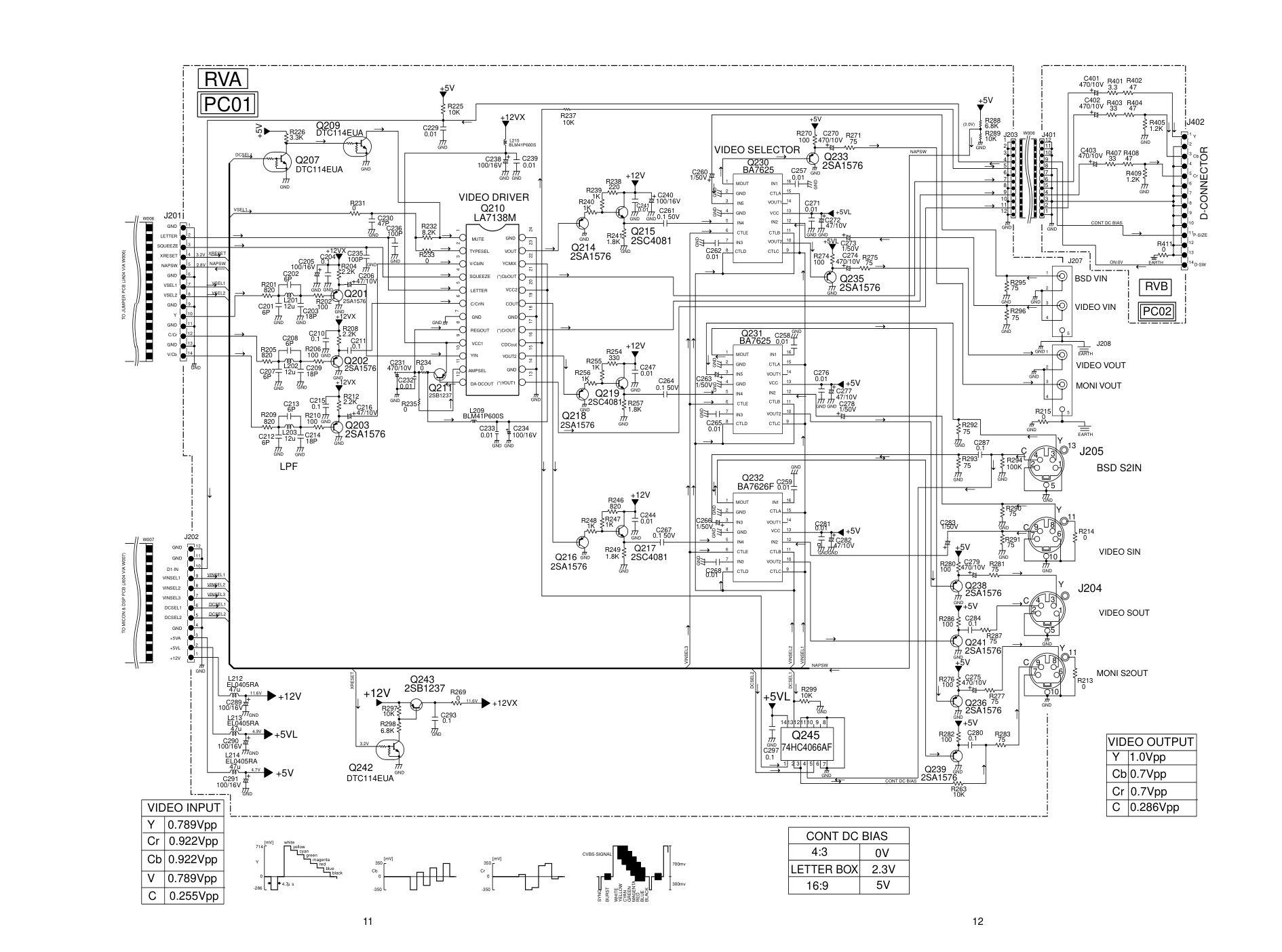

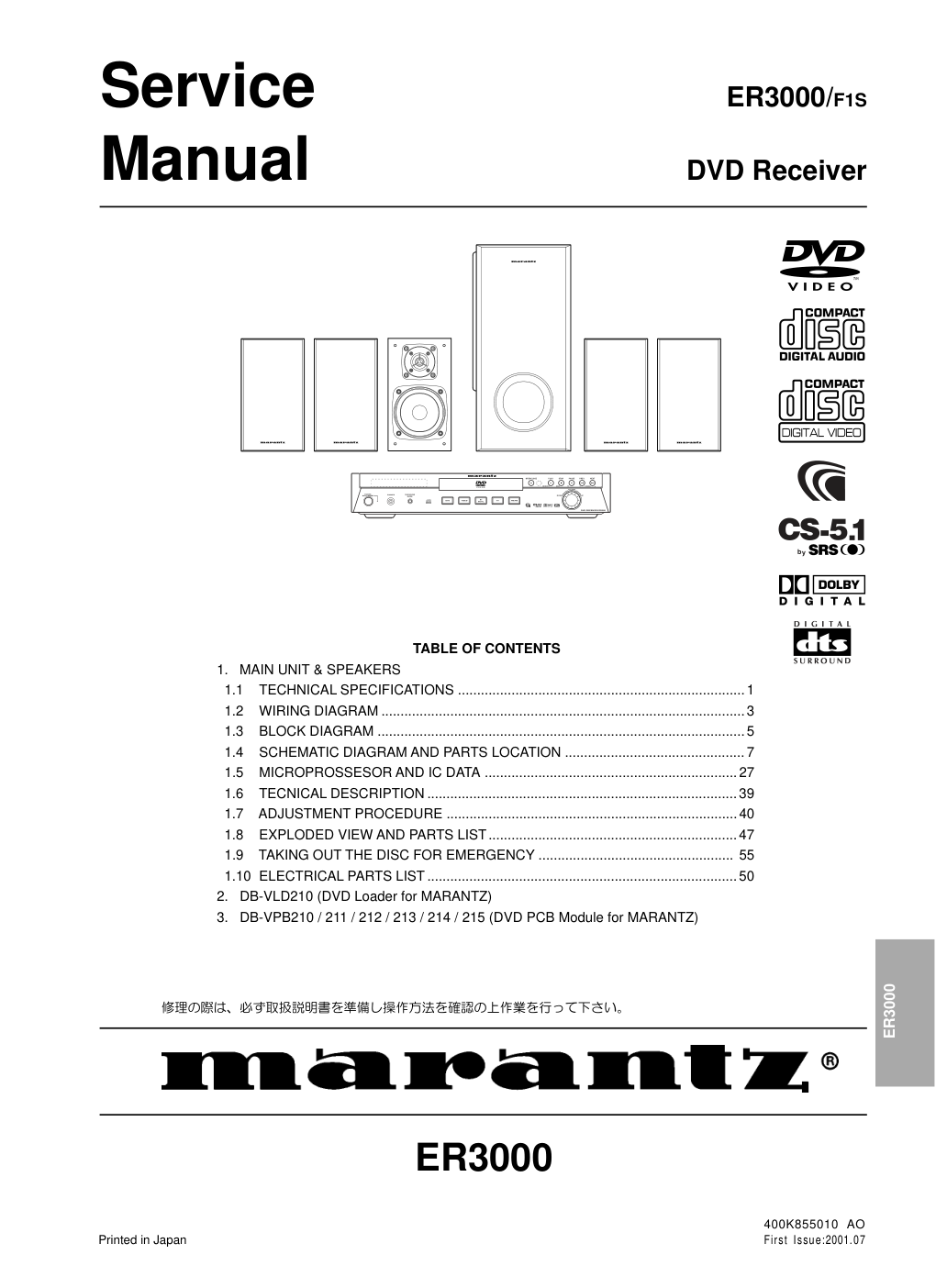

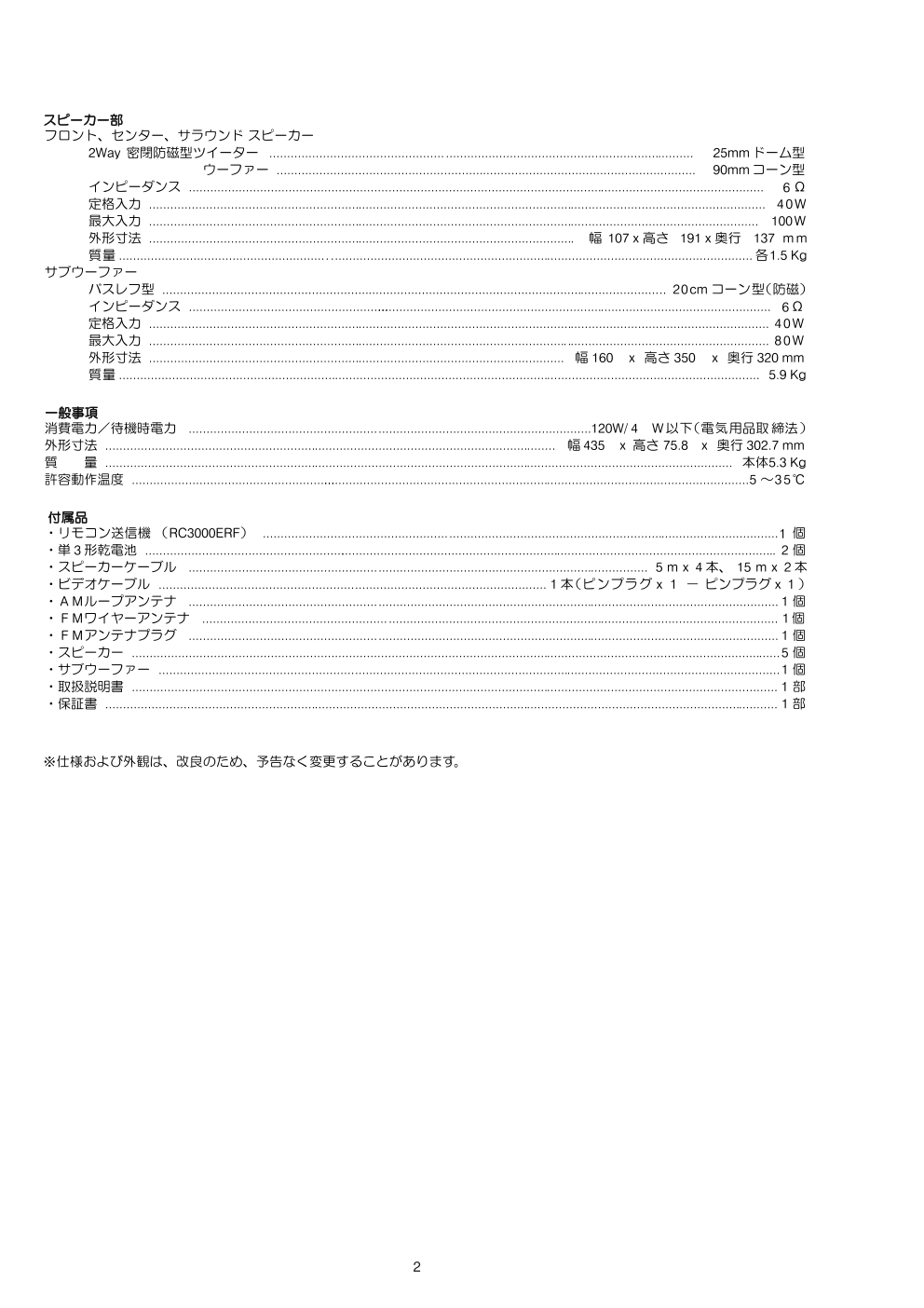

Service Manual 400K855010 AO First Issue:2001.07 DVD Receiver ER3000 Printed in Japan TABLE OF CONTENTS 1. MAIN UNIT & SPEAKERS 1.1 TECHNICAL SPECIFICATIONS ........................................................................... 1 1.2 WIRING DIAGRAM ............................................................................................... 3 1.3 BLOCK DIAGRAM ................................................................................................ 5 1.4 SCHEMATIC DIAGRAM AND PARTS LOCATION ............................................... 7 1.5 MICROPROSSESOR AND IC DATA ..................................................................27 1.6 TECNICAL DESCRIPTION .................................................................................39 1.7 ADJUSTMENT PROCEDURE ............................................................................40 1.8 EXPLODED VIEW AND PARTS LIST.................................................................47 1.9 TAKING OUT THE DISC FOR EMERGENCY ................................................... 55 1.10 ELECTRICAL PARTS LIST .................................................................................50 2. DB-VLD210 (DVD Loader for MARANTZ) 3. DB-VPB210 / 211 / 212 / 213 / 214 / 215 (DVD PCB Module for MARANTZ) ER3000 TV FM/AM BS DIGITAL VIDEO DVD VOLUME DOWN UP DVD RECEIVER ER3000 MEMORY MODE F/P PREV. STOP OPEN/CLOSE TUNING PLAY PAUSE NEXT ON/STANDBY POWER PHONES MODE SURROUND ER3000/F1S MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620 A.O USA USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA CANADA LENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA AUSTRALIA QualiFi Pty Ltd, QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND NEW ZEALAND WILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN TAIWAN PAI- YUING CO., LTD. PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA AUSTRALIA KOREA KOREA MK ENTERPRISES LTD. MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1.1 TECNICAL SPCIFICATIONS 2 J607 28 M-GND 27 +5VD 26 M-GND 25 GND 24 M+6V 23 GND 22 M+6V 21 +3.3V 20 +12V 19 +3.3V 18 GND 17 +2.5V 16 +2.5V 4 SSCK 15 GND 3 XRDY 14 GND 2 XMUTE 13 CTS 1 VSELSW 12 LT1 11 DTR 10 XRESET 9 RXD 8 SSO 7 TXD 6 SSI 5 AODAI J605 14 FLD-SCK 13 FLD-SOT 12 FLD-CE 11 GND 10 +5VL 9 KEY0 8 KEY1 7 KEY2 6 ROT-A 5 ROT-B 4 IR 3 HP 2 STBY-LED 1 GND JA01 28 VSELSW 27 XMUTE 26 XRDY 25 SSCK 24 AODAI 23 SSI 22 TXD 21 SSO 20 RXD 19 XRESET 18 DTR 17 LT1 16 CTS 4 GND 15 GND 3 M-GND 14 GND 2 +5VD 13 +2.5V 1 M-GND 12 +2.5V 11 GND 10 +3.3V 9 +12V 8 +3.3V 7 M+6V 6 GND 5 M+6V JA04 1 V/Cb 2 GND 3 C/Cr 4 GND 5 Y 6 GND 7 VSEL2 8 VSEL1 9 GND 10 NAPSW 11 XRESET 12 SQUEEZ 13 LETTER 14 GND J203 1 2 3 4 5 6 7 8 9 10 11 12 J401 12 11 10 9 8 7 6 5 4 3 2 1 J604 1 2 3 4 5 6 7 8 9 10 11 12 JE03 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 J701 1 2 3 4 5 6 7 8 9 10 11 12 13 25 14 15 16 17 18 19 20 21 22 23 24 JG01 1 2 3 4 5 6 7 8 9 10 11 12 13 25 14 15 16 17 18 19 20 21 22 23 24 J201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 J202 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JY01 1 2 3 4 5 6 7 8 WY02 1 2 3 JY05 1 2 3 4 5 6 WY02 1 2 3 JY21 1 2 3 1 2 3 4 5 6 JY07 1 2 3 4 5 6 JY02 1 2 3 4 5 6 7 8 9 10 11 12 13 14 WY01 1 2 3 4 5 WY01 1 2 3 4 5 JY51 1 2 3 4 5 J805 1 2 3 4 5 6 7 8 CN101 1 2 3 CN1 1 2 3 1 2 JA02 1 PrgCb(B) 2 GND 3 Prg(R) 4 GND 5 Prg(G) 6 GND 7 V/Cb 8 GND 9 C/Cr 10 GND 11 Y 12 GND 13 Prg/Intr(VSEL2) 25 BCK 14 VSELSW 26 DFSCK 15 NAPSW 27 DACCLK 16 ADATA3 28 LATDAC 17 6ch/2ch 29 VSEL1 18 LFE_ON 30 GND 19 ADATA1 20 ADATA2 21 LRCK 22 XMUTE 23 DATA0 24 DFSO JA03 1 M-GND 2 +5VD 3 M-GND 4 GND 5 M+6V 6 GND 7 M+6V 8 +3.3V 9 +12V 10 +3.3V 11 GND 12 +2.5V 13 +2.5V 25 SSI 14 GND 26 AODAI 15 GND 27 SSCK 16 MIC1 28 SQUEEZ 17 MIC2 29 XRDY 18 CTS 30 LETTER 19 LT1 20 DTR 21 XRESET 22 RXD 23 SSO 24 TXD W801 AC CORD 1 2 3 1 2 3 J801 1 2 CN5 123 28 29 30 CN15 123 28 29 30 A002 FM/AM TUNER UNIT W002 W004 ROT-AIN ROT-BIN +5VD +5VIR KEY0 GND IR GND +5VL GND +12V VINSEL2 +5VA VINSEL3 D1-IN VINSEL1 GND GND DCSEL2 +5VL DCSEL1 W008 +12V VINSEL3 DCSEL2 VINSEL2 DCSEL1 GND VINSEL1 GND GND +5VL +5VA D1-IN W001 CE DI CL DO GND +5V FM-S +12V FM-D L GND R MUTE TUNED STEREO FL A-GND FR A-GND SL SR CNT Sub.W +15V -15V +2.5V -5VL +5VL RELAY +5VA +5VD M+6V M+6V M-GND M-GND +12V STBY-LED +3.3V GND GND V/Cb GND C/Cr GND Y GND VSEL2 VSEL1 GND NAPSW XRESET SQUEEZE LETTER GND W006 W005 F1 F2 VKK +5VD GND HP-L HP-GND HP-R FLD-SCK FLD-SOT FLD-CE GND +5VL KEY0 KEY1 KEY2 ROT-A ROT-B IR HP STBY-LED GND HP-R HP-GND HP-L GND +5VD VKK F2 F1 POWER SUPPLY PCB(PA01) U-COM & DSP PCB(PB01) VIDEO PCB(PC01) JUMPER PCB(PJ01) D-CONNECTOR PCB (PC02) FRONT PCB(PF01) SWITCH PCB(PF02) HEADPHONE PCB VOLUME PCB (PF03) DVD PCB (PF04) LIVE NEUTRAL W007 M+6V FR SL +15V -5VL +3.3V GND A-GND +5VD SR M+6V FL Sub.W +5VL +12V +5VA A-GND CNT GND RELAY -15V M-GND STBY-LED +2.5V M-GND GND GND GND GND GND GND GND D-SW P-SIZE Cb Cr Y GND GND Cb P-SIZE Cr Y GND D-SW GND GND GND GND GND KEY0 +5VIR +5VL GND IR HP-L HP-GND HP-R GND HP (14PIN FFC) (28PIN FFC) (12PIN FFC) (15PIN FFC) (14PIN FFC) (12PIN FFC) W003 (25PIN FFC) (8PIN FFC) (6PIN CONNECTOR) (3PIN BOARD IN WIRE) DVD LOADER A003 A001 W011 (3PIN WIRE) FROM DVD PCB(A001) FROM DVD PCB(A001) DVD UNIT LIVE NEUTRAL V+3D SW2 SW1(GNDS) SW2 SW1(GNDS) V+3D JY07 (14PIN FFC) W004 (8PIN FFC) W005 (12PIN FFC) W007 (14PIN FFC) W006 3 4 1.2 WIRING DIAGRAM BS SEL DM BS SEL DM TU TV BS VCR TU TV BS VCR CONT BA7626 dB 6 dB 6 CONT BA7625 6 B d 6 B d CONT BA7625 6 B d 6 B d 74HC4052 74HC4052 74HC4052 74HC4052 DVD CONTROL +12V +3.3V +5VD +5VL SW -22V +5VD -20V +12V +5VL +5V +12VX FL FR SR SL CNT SUB-W SUB-W C FL C SUB-W SL SR SUB-W C FR FL FR SL SR FRONT-L FRONT-R SURR-L SURR-R CENTER SW FM AM HEADPHONE PROTECROR DRIVE MAIN AMP CENTER SURROUND FRONT L R L R STEREO CONTROL INDIVIDUAL & MASTER ELE.-VOL. X6CH VOL CONTROL SUB WOOFER +15V -15V +5V AUDIO INPUT SEL. TV MAIN AMP MAIN AMP MAIN AMP MAIN AMP MAIN AMP SPEAKER RELAY IN OUT CONTROL DSP BLOCK LPF -5V +5V DIR PRO-LOGIC MULTI CH. CODEC SPDIF SRAM FOR MASTER VOLUME ROTARY ENCODER SURROUND CENTER FRONT RELAY CONTROL AC AC OUTLET 3.3V TC9482 TUNER_OUT FM AM TUNER UNIT SUB WOOFER +5V AK4527 OPT IN MAIN AMP LPF -5V +5V 2.5V MUTE CONTROL VOL CONTROL FUNCTION CONTROL TUNINNG CONTROL RDS CONTROL STAND-BY LED STANDBY CONTROL 16BIT U-COM POWER DOWN DSP CONTROL DRIVER IR KEY INPUT,DISP 100V SWITCHING POWER SUPPLY +/- 15V MONITOR MONITOR INPUT SEL. CVBS IN OUT INPUT SEL. IN OUT S-VIDEO D-CONNECTOR Y,Cr,Cb Y C V LPF LPF LPF Y/Y C/Cr V/Cb SWITCHED STEREO CONT. D-OUT DISPLAY SUB WOOFER PRE OUTPUT BS-D VIDEO OPT OUT VIDEO BS-D VIDEO LA7138M PC01 LC89055W PB01 AC-3 & DTS & CS & AAC CS49329 MB90F553A PF01 PF02 UPD16311 PF03 PA01 PF04 +/- 22V(POWER AMP) TA7317P PC02 BS-D PROM DVD UNIT FL DISPLAY M+6V +12V +/- 5VL +2.5V +3.3V -20V SW +/- 22V VIDEO DRIVER 5 6 1.3 BLOCK DIAGRAM 7 8 1.4 SHEMATIC DIAGRAM AND PARTS LOCATION A-GND A-GND A-GND CJ07 0.015 QG04 NJM2082 OP-AMP2/2 7 5 6 4 QJ51 OP-AMP2/2 NJM2068 1 3 2 4 RJ06 10K -5VL A-GND CE02 10u/50V CG13 47u/16V QJ09 DTA114YU QK01 AK4527 41 CSN 12 DEM1 13 DEM0 14 TVDD 15 DVDD 16 DVSS 17 PDN 18 ICKS2 19 ICKS1 20 ICKS0 21 CAD1 22 CAD0 40 P/S 39 MCLK 38 DZF1 33 DZF2 32 RIN+ 31 RIN- 30 LIN+ 29 LIN- 28 ROUT1 27 LOUT1 26 ROUT2 25 LOUT2 24 ROUT3 23 LOUT3 37 AVSS 36 AVDD 44 LOOP1 43 SDA 42 SCL 35 VREFH 34 VCOM 11 DFS 10 DAUX 9 SDTO 8 SDTI3 7 SDTI2 6 SDTI1 5 LRCK 4 BICK 3 SMUTE 2 I2C 1 SDOS CE06 10u/16V RE41 470 A-GND QG01 TC9482 1 VSS 2 NC 3 L-OA 4 L-IA 5 L-GNDA 6 L-OB 7 L-IB 8 L-GNDB 9 L-OC 10 L-IC 11 L-GNDC 12 CS1 13 GND 14 CK 28 VDD 27 TEST 26 R-OA 25 R-IA 24 R-GNDA 23 R-OB 22 R-IB 21 R-GNDB 20 R-OC 19 R-IC 18 R-GNDC 17 CS2 16 STB 15 DATA RE10 1K CJ43 1000P RJ55 6.8K RJ53 6.8K CE11 47P CJ24 0.015 +5VD RJ26 2.2K A-GND -15V RG27 4.7K DE05 1SS301 A-GND RJ31 10K RK02 0 A-GND RJ65 10K RE42 470 RG19 1K RE03 47K RELAY CJ04 1000P RE22 100K A-GND +5VA A-GND A-GND A-GND RJ22 10K RE09 1K M+6V -5VL 1 RJ56 6.8K -5VL CG15 0.1 +5VL 1 QJ04 OP-AMP2/2 NJM2068 7 5 6 4 M-GND RE36 10K +15V 1 RG16 4.7K CK03 2.2u/50V QG02 NJM2082 OP-AMP1/2 1 3 2 8 RJ46 10K A-GND -15V +3.3V A-GND +5VA RE20 100K -15V 1 RE05 1K A-GND -15V RE17 1K QE05 OP-AMP1/2 NJM2068 7 5 6 8 A-GND RG28 15K RE15 47K A-GND RE23 100K RJ11 2.2K RJ24 1K RJ04 10K RJ33 33K CK01 100u/10V A-GND RE38 10K A-GND CODEC[10-0] A-GND CE05 10U/16V A-GND -15V 1 A-GND A-GND CG14 47u/16V -5VL A-GND Y0 Y2 Y Y3 Y1 Inh Vee Vss Vdd X2 X1 X X0 X3 A B 4052 QE02 74HC4052 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 5V 0V 1vrms +15V +5VL 1 CE08 1000p RE06 1K A-GND A-GND A-GND CJ08 0.015 A-GND RE19 100K CE15 100u/16V A-GND STBY-LED A-GND +15V 1 QE01 OP-AMP1/2 NJM2068 7 5 6 8 RG17 10K RJ08 1K QG02 NJM2082 OP-AMP2/2 7 5 6 4 RJ21 10K RG06 4.7K QE06 OP-AMP1/2 NJM2068 7 5 6 8 RJ01 10K +5VA A-GND RJ59 2.7K RE21 100K A-GND DE02 1SS301 RJ42 10K QG03 NJM2082 OP-AMP1/2 1 3 2 8 A-GND DE03 1SS300 RE07 47K +5VL 1 RE34 10K CE16 47u/16V A-GND RJ63 10K +15V 1 RK01 47K +5VL RG08 10K -15V 1 RE58 0 CK04 0.1 RE02 1K A-MUTE +12V CJ01 10u/16V QE05 OP-AMP2/2 NJM2068 1 3 2 4 RJ32 10K GND A-GND A-GND RJ58 6.8K RE35 10K RG01 2.2K +15V 1 +15V A-GND RG29 1K QE01 OP-AMP2/2 NJM2068 1 3 2 4 MUTE RJ43 10K RJ25 1K +15V 1 CE12 47P RJ07 1K JE03 1 STEREO 2 TUNED 3 MUTE 4 R 5 GND 6 L 7 FM-D 8 +12V 9 +5V 10 FM-S 11 GND 12 DO 13 CL 14 DI 15 CE QJ01 OP-AMP1/2 NJM2068 1 3 2 8 A-GND RJ10 1K RJ52 4.7K A-GND QJ04 NJM2068 OP-AMP1/2 1 3 2 8 RG23 4.7K QJ08 2SC4213 CJ23 180P CE14 0.01 A-GND RG18 10K CK05 2.2u/50V +5VA RJ60 2.7K RG25 1K QJ51 OP-AMP1/2 NJM2068 7 5 6 8 QJ03 NJM2068 OP-AMP1/2 1 3 2 8 A/D CJ45 180P A-GND RJ12 2.2K CE07 1000p CJ03 1000P DIR-ERR -15V +5VA A-GND QG04 NJM2082 OP-AMP1/2 1 3 2 8 A-GND A-GND QJ06 2SC4213 RE08 47K +15V 1 QG03 NJM2082 OP-AMP2/2 7 5 6 4 RJ61 2.7K RG07 10K CJ21 10u/16V RE04 47K CJ31 10u/16V CE10 47P QJ02 OP-AMP1/2 NJM2068 1 3 2 8 RG03 2.2K +15V AUDIO[15-0] JG01 FROM POWER PCB 1 FL 2 A-GND 3 FR 4 A-GND 5 SL 6 SR 7 CNT 8 Sub.W 9 +15V 10 -15V 11 +2.5V 12 -5VL 13 +5VL 25 GND 14 RELAY 15 +5VA 16 +5VD 17 M+6V 18 M+6V 19 M-GND 20 M-GND 21 +12V 22 STBY-LED 23 +3.3V 24 GND A-GND CJ05 180P CK07 0.1 RG20 1K CJ22 1000P A-GND RJ05 10K QJ03 NJM2082 OP-AMP2/2 7 5 6 4 RE32 47K RG15 4.7K CE09 47P -15V 1 RJ23 10K RE37 10K CJ02 10u/16V +15V 1 RG05 4.7K QE06 OP-AMP2/2 NJM2068 1 3 2 4 QJ05 2SC4213 RG10 1K CE13 0.01 RJ51 4.7K CE01 10u/50V +2.5V JE02 AUDIO_IN 4 8 2 1 7 6 3 5 9 RE12 47K QJ02 NJM2068 OP-AMP2/2 7 5 6 4 RE11 47K A-GND +15V 1 A-GND -15V 1 RJ13 100K QJ01 OP-AMP2/2 NJM2068 7 5 6 4 QJ07 OP-AMP2/2 NJM2068 1 3 2 4 QJ07 NJM2068 OP-AMP1/2 7 5 6 8 RJ02 10K RJ45 10K RG24 10K RJ41 10K RE33 10K A-GND A-GND RJ54 6.8K RG02 2.2K CJ33 180P A-GND A-GND CJ32 1000P CG16 0.1 -15V CJ42 10u/16V RE16 47K A-GND DE01 1SS301 DE04 1SS300 JE01 AUDIO_IN 4 8 2 1 7 6 3 5 9 A/D -5VL RG09 1K CJ06 180P RJ03 10K A-GND +15V 1 CK02 0.1 A-GND RJ64 10K A-GND RJ62 2.7K CK06 0.1 RJ44 10K A-GND A-GND RE40 470 CJ46 180P CE17 47u/16V -15V A-GND RE39 470 -15V RE31 47K -15V CJ41 10u/16V RE57 0 RJ09 1K RE18 1K +12V +5VL A-GND Y0 Y2 Y Y3 Y1 Inh Vee Vss Vdd X2 X1 X X0 X3 A B 4052 QE03 74HC4052 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 A-GND A-GND A-GND A-GND RE01 1K QE07 DTA114YU A-GND CJ44 1000P +5VA 2 SDTO SDTI3 SDTI2 SDTI1 LRCLK BCLK COD-SCL COD-SDA MCLK TU-MUTE TU-TUN TU-ST COD-PDN TU-CE TU-DO TU-CL TU-DI VOL-STB VOL-SOT VOL-SCK FL SL SR CNT SW SWI SRI SLI DAUX STBY-LED SWI SRI SLI HT-EQ AS-A AS-B SL SR SW CNT FR FL FR MUTE DIR-ERR A-MUTE A/D TV BSD VIDEO IN VIDEO OUT VIDEO TV FM/AM A B 0 0 1 0 0 1 1 1 0 0 - ANA B 0 1 stby 1 1 DIG 1 A 0 L R L R L R L R YU15120503 RAA PB01 BSD KDS121 KDS120 KDS121 KDS121 KDS120 TO POWER SUPPLY PCB (J701 VIA W003) W003 TO TUNER W002 A002 FM/AM TUNER UNIT ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ SELECTOR SELECTOR CODEC DOWN MIXING HT-EQ ELE.POT. AUDIO PRE OUTPUT ↑ ↑ BALANCE INPUT ↑ ↑ ↑ ↑ ↑ AUDIO PRE-OUT Q601 LC89055W-RA8 48 XMODE 14 BCK 15 LRCK 16 DATA0 17 XSTATE 18 DGND 19 DVDD 20 XMCK 21 XOUT 22 XIN 23 EMPHA 24 AUDIO 36 D1 35 D0 34 ERROR 33 BYPASS 32 AUTO 31 DGND 30 DVDD 29 VP/P3/C3 28 F2/P2/C2 27 F1/P1/C1 26 F0/P0/C0 25 CSFLUG 40 MODE0 41 MODE1 42 DGND 13 CKOUT 47 CKSEL1 46 CKSEL0 45 DOSEL1 44 DOSEL0 43 DVDD 39 XSEL 38 CL 37 CE 12 AGND 11 AVDD 10 LPT 9 VIN 8 R 7 DVDD 6 DGND 5 DIN2 4 DIN1 3 DIN0 2 DOUT 1 DISEL Q616 SRAM(1M) 1 NC 2 A16 3 A14 4 A12 5 A7 6 A6 7 A5 8 A4 9 A3 10 A2 11 A1 12 A0 13 DQ1 14 DQ2 15 DQ3 16 GND 17 DQ4 18 DQ5 19 DQ6 20 DQ7 21 DQ8 22 CE1 23 A10 24 OE 25 A11 26 A9 27 A8 28 A13 29 WE 30 CE2 31 A15 32 VCC J603 TORX178A 1 3 2 J602 TOTX178 3 2 1 Q605 MB90F553A 1 A/D 2 TU-CL 3 TU-DO 4 /TU-CE 5 /TU-ST 6 /TU-TUN 7 TU-MUTE 8 /RDS-OSCK 9 TU-DI 10 RDS-DI 11 Vss 12 /FLD-CE 13 /COD-PDN 14 /DVD-XRST 15 /DVD-XRDY 16 /VOL-STB 17 VOL-SOT 18 FLD-SCK 19 FLD-SOT 20 FLD-SIN 31 ROM-SCL 32 COD-SDA 33 COD-SCL 34 Avcc 100 /AK-RQ 99 VOL-SCK 98 AK-RST 97 AK-DRST 96 CS-RES 95 /CS-DL 94 /CS-CE 93 DIR-P3 92 DIR-P2 91 DIR-P1 90 DIR-P0 89 DIR-XMD 88 /DIR-EMP 87 DIR-CE 86 85 TAUX 80 DCSEL2 79 DCSEL1 78 VINSEL3 77 /RESET 76 VINSEL2 75 VINSEL1 74 D1-IN 73 D1-OUT 72 NC 71 ROM-A15 70 ROM-A15 69 RELAY 68 STBY-LED 67 /HP 66 NC 65 AS-B 64 AS-A 63 IR 62 NC 61 HT-EQ 84 Vcc 83 X’talIN 82 X’talOUT 81 Vss 35 AVRH 36 AVRH 37 Avss 38 MS0 39 MS1 40 KEY0 41 KEY1 42 Vss 43 KEY2 44 NC 45 NC 46 NC 47 DVD-LT1 48 /DIR-XSTA 49 TMODE 50 MD1 21 DVD-SCK 22 DVD-SOT 23 Vcc 24 DVD-SIN 25 ABOOT 26 DSP-SCK 27 C 28 DSP-SOT 29 DSP-SIN 30 ROM-SDA 60 A-MUTE 59 AK-RDY 58 ROT-A 57 ROT-B 56 DIR-ERR 55 DIR-AUTO 54 CS-INT 53 /DIR-AUDIO 52 /HST 51 TAUX3 Q602 TC74HCT08AF 1 2 3 4 5 6 7 14 13 12 11 10 9 8 Q604 S-80745AN 3 1 2 Q606 AT24C04N 1 2 3 4 5 6 7 8 J601 DOWNLOAD 1 TXD 2 RXD 3 DTR 4 CTS 5 6 7 J606 (FLASHWRITER) 10 GND 9 TVCC 8 TMODE 7 TAUX3 6 /TRES 5 TCK 4 TRXD 3 TTXD 2 TAUX 1 GND Q603 TC74VHC08F 1 2 3 4 5 6 7 14 13 12 11 10 9 8 R645 47K MUTE CODEC[10-0] AUDIO[15-0] C652 0.1 X602 8.0MHz GND C606 0.1 GND GND C610 47u/10V GND R603 8.2K C607 0.01 GND R604 4.7K C609 0.01 GND R605 4.7K GND C611 0.01 GND R606 68 C608 0.1 R636 100 R635 100 R634 100 GND C618 100u/10V C623 0.1 GND R691 100 R692 100 C660 0.1 GND C661 0.1 GND GND GND GND GND GND GND GND GND GND GND GND GND C603 100u C602 0.1 GND R602 10K C620 0.1 GND GND GND C601 0.1 R601 47K GND GND R607 6.8K C615 0.1 GND R629 1M GND R624 100 R628 1M GND R623 100 R627 1M GND R622 100 R626 1M GND R621 100 R625 47K GND R620 100 R660 47K R661 47K R662 47K R663 47K R631 100 R630 100 R633 100 R632 10K C655 0.1 GND C653 0.1 GND C654 100u GND GND GND C656 0.1 GND GND GND GND GND R637 10K R638 10K GND R639 100 R640 100 R643 27K GND R641 10K C657 0.1 GND GND R650 10K GND GND GND R651 10K R652 10K R653 10K R654 10K R655 680K C651 0.1 +5VL +5VL +5VL +5VL +5VL +5VL +5VL +5VD +5VD +5VD +5VD +5VD +5VD +5VD +5VA +5VD +5VL +5VL +5VL +5VL +5VD +5VD +5VL GND GND X601 12.288MHz C612 22P GND C613 22P GND TP61 TP62 R608 10K GND Q609 CS493292 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22232425262728 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 1 2 3 4 5 6 Q617 PROM(1M) 1 NC 2 A16 3 A15 4 A12 5 A7 6 A6 7 A5 8 A4 9 A3 10 A2 11 A1 12 A0 13 D0 14 D1 15 D2 16 GND 17 D3 18 D4 19 D5 20 D6 21 D7 22 CE 23 A10 24 OE 25 A11 26 A9 27 A8 28 A13 29 A14 30 NC 31 NC 32 VCC Q611 TC74VHC08F 2 1 3 Q611 TC74VHC08F 4 5 6 14 7 Q614 TC74VHCT574AF OE D0 D1 D2 D3 D4 D5 D6 D7 GND VCC CK Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 GND +2.5V R648 33K C648 470P C639 0.01 R649 4.7K R664 4.7K C638 0.01 C624 100u +2.5V +2.5V +2.5V R612 47 R611 15K C631 2.2u/50V GND GND GND GND GND +2.5V GND C634 0.1 GND C633 0.1 C625 100u GND R614 4.7K GND GND GND +5VD +5VD C605 0.1 GND GND C604 0.1 Q613 TC74VHCT574AF OE D0 D1 D2 D3 D4 D5 D6 D7 GND VCC CK Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 GND GND GND +2.5V C619 0.1 Q615 TC74LCX245F DIR A1 A2 A3 A4 A5 A6 A7 A8 GND VCC Y8 Y7 Y6 Y6 Y4 Y3 Y2 Y1 SG GND Q612 TC74VHCT125AF 12 13 11 R671 47 R672 47 R673 47 R675 47 R674 47 R676 47 R677 47 +5VD C616 0.1 GND +5VD R665 10K GND GND R678 47 GND Q618 TC74VHC08F 5 4 6 Q618 TC74VHC08F 13 12 11 14 7 Q618 TC74VHC08F 10 9 8 Q618 TC74VHC08F 2 1 3 R646 47 R666 10K Q611 TC74VHC08F 10 9 8 Q611 TC74VHC08F 13 12 11 Q612 TC74VHCT125AF 5 4 6 +2.5V C632 0.1 GND R657 4.7K R658 4.7K R647 4.7K +2.5V R610 4.7K +2.5V +2.5V GND +2.5V GND C636 0.1 GND Q612 TC74VHCT125AF 2 1 3 7 14 +5VD GND C635 0.1 +2.5V +2.5V GND GND GND R619 47 +2.5V C630 0.1 C614 0.1 GND R656 10K Q612 TC74VHCT125AF 9 10 8 R644 0 GND GND GND Q610 DTC114EUA C662 0.01 C659 0.01 C658 0.1 J607 TO DVD 28 M-GND 27 +5VD 26 M-GND 25 GND 24 M+6V 23 GND 22 M+6V 21 +3.3V 20 +12V 19 +3.3V 18 GND 17 +2.5V 16 +2.5V 4 SSCK 15 GND 3 XRDY 14 GND 2 XMUTE 13 CTS 1 VSELSW 12 LT1 11 DTR 10 XRESET 9 RXD 8 SSO 7 TXD 6 SSI 5 AODAI GND GND +2.5V +3.3V +12V M+6V GND GND M-GND +5VD +5VA +5VL +12V Q620 DTC114EUA R667 10K R668 6.8K +5VD +3.3V J605 14 FLD-SCK 13 FLD-SOT 12 FLD-CE 11 GND 10 +5VL 9 KEY0 8 KEY1 7 KEY2 6 ROT-A 5 ROT-B 4 IR 3 HP 2 STBY-LED 1 GND 10K R693 10K R694 10K R695 10K R696 +5VD R688 4.7K R687 4.7K R686 4.7K R685 4.7K R684 4.7K R683 4.7K R682 4.7K R681 4.7K R659 10K R670 10K GND GND GND R600 10K +5VD +5VD R609 10K R613 10K R680 6.8K +5VD R679 0 R689 1M R698 0 R697 0 R699 0 /TRES ROM-A16 ROM-A15 RELAY CS-DL ROM-A16 ROM-A15 CS-DL STBY-LED J604 TO VIDEO PCB(J202 VIA W007) 1 2 3 4 5 6 7 8 9 10 11 12 /TRES C663 0.01 C664 0.01 C665 0.01 C622 22P GND R669 100 5V 0V 8MHz 5V 0V 12.28MHz 5V 0V 3.1MHz 5V 0V 48kHz 2 2 2 D3 D4 D7 D6 D5 DIR-CE DIR-P3 DIR-P2 DIR-P0 DIR-EMP DIR-AUDIO CS-INT DIR-AUTO DIR-ERR ROT-B DIR-AUDIO DIR-AUTO DIR-XSTA DIR-XSTA STBY-LED IR AK-RDY ROT-A VOL-STB A-MUTE RDS-OSCK TU-MUTE TU-CE TU-DO TU-CL HP DIR-ERR DIR-ERR TU-ST TU-TUN TU-DI RDS-DI DSP-SIN DSP-SOT DSP-SCK TXD DTR XRDY XRESET RXD CTS SSCK A14 A13 A8 A9 A11 EXTMEM A10 CS-DL D7 D6 D5 D4 D3 A12 A7 A6 A5 A4 A3 A2 A1 A0 D0 D1 D2 A14 A12 A7 A5 A15 EMWR A13 A8 A9 EXTMEM EMWR EMOE DAUX LRCLK SDTO BCLK LRCLK DIR-CE DIR-EMP DIR-XMD DIR-P0 DIR-P1 DIR-P2 DIR-P3 CS-CE CS-RES AK-DRST AK-RST AK-RQ EMOE EMWR EXTMEM A10 EXTMEM A11 A4 A3 A2 A1 A0 D0 D1 D2 A6 A7 A6 A5 A4 A3 A2 A1 A0 8 7 10 9 6 5 4 3 2 1 13 14 11 12 15 16 17 18 19 20 8 7 10 9 6 5 4 3 2 1 13 14 11 12 15 16 17 18 19 20 3 4 1 2 5 6 7 8 9 10 18 17 20 19 16 15 14 13 12 11 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 D7 D6 D5 D4 D3 D2 D1 D0 EMAD7 EMAD6 EMAD5 EMAD4 EMAD1 EMAD7 EMAD6 EMAD5 EMAD4 EMAD3 EMAD2 EMAD1 EMAD0 AS-B AS-A CS-INT CS-RES DSP-SIN DSP-SCK ROT-A HT-EQ DSP-SOT CS-CE LT1 SSO A/D SSI AODAI DIR-XMD XMUTE XRDY SSCK AODAI SSI TXD SSO CTS LT1 DTR XRESET RXD EMAD0 EMAD2 EMAD3 DSP-SCK IR ROT-B HP EMAD7 EMAD6 EMAD5 EMAD4 EMAD3 EMAD2 EMAD1 EMAD0 MCLK COD-PDN COD-SCL COD-SDA STBY-LED SDTI3 SDTI1 SDTI2 CS-DL BCLK MCLK VOL-SOT FLD-SOT DSP-SIN DSP-SOT DIR-P1 VOL-SCK 0V:COMPONENT 3V:COMPOSITE RDD PB01 10V 10V 10V 10V TO FRONT PCB (JY02 VIA W004) W004 YU14300503 YU28150503 TO JUMPER PCB (JA01 VIA W001) W001 GND VINSEL3 +12V +5VA GND +5VL GND DCSEL1 D1-IN VINSEL2 VINSEL1 DCSEL2 ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ CHK SUM = 69D2H ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ OPTICAL IN/OUT DIR 2.5 to 5V LEVEL CONVERTER 5 to 2.5V LEVEL CONVERTER MPU EEPROM DSP ↓ ↓ ↓ +5VD GND NC ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ DSP V3.0 ↓ ↓ ↓ Q605-PIN#83 X’TAL IN Q601-PIN#13 CKOUT PIN#20 XMCK PIN#21 XOUT PIN#22 XIN BCK Q601-PIN#14 LRCK Q601-PIN#15 9 10 12 11 Q210 LA7138M 1 MUTE 2 TYPESEL 3 V/CbIN 4 SQUEEZE 5 LETTER 6 C/CrIN 7 GND 8 REGOUT 9 VCC1 10 YIN 11 AMPSEL 12 DA-DCOUT 24 GND 23 VOUT 22 YCMIX 21 (*)CbOUT 20 VCC2 19 COUT 18 GND 17 (*)CrOUT 16 CDCout 15 YOUT2 14 GND 13 (*)YOUT1 Q230 BA7625 3 IN5 5 IN4 15 CTLA 14 VOUT1 1 MOUT 2 GND 4 GND 8 CTLD 16 IN1 6 CTLE 7 IN3 9 CTLC 10 VOUT2 11 CTLB 12 IN2 13 VCC R235 0 C232 0.01 C233 0.01 GND Q217 2SC4081 Q231 BA7625 3 IN5 5 IN4 15 CTLA 14 VOUT1 1 MOUT 2 GND 4 GND 8 CTLD 16 IN1 6 CTLE 7 IN3 9 CTLC 10 VOUT2 11 CTLB 12 IN2 13 VCC Q232 BA7626F 3 IN3 5 IN4 15 CTLA 14 VOUT1 1 MOUT 2 GND 4 GND 8 CTLD 16 IN1 6 CTLE 7 IN3 9 CTLC 10 VOUT2 11 CTLB 12 IN2 13 VCC +5VL J205 5 1 3 2 4 13 +12V R237 10K 10 6 8 7 9 11 J204 5 1 3 2 4 10 6 8 7 9 11 C231 470/10V Q211 2SB1237 R234 0 GND L209 BLM41P600S C234 100/16V GND GND EARTH J203 1 2 3 4 5 6 7 8 9 10 11 12 J401 12 11 10 9 8 7 6 5 4 3 2 1 R288 6.8K R289 10K Q245 74HC4066AF 1 2 3 4 5 6 7 14 8 9 10 11 12 13 +5V GND +5V J402 1 Y 2 3 Cb 4 5 Cr 6 7 8 9 10 11P-SIZE 12 13 14D-SW +5V +5VL +5VL +12V +12VX +5V +5VL +5V Q238 2SA1576 Q235 2SA1576 Q233 2SA1576 Q216 2SA1576 Q201 2SA1576 R201 820 C201 6P GND C202 6P L201 12u C203 18P GND C204 0.1 GND R202 100 R204 2.2K GND C205 100/16V GND C211 0.1 GND Q202 2SA1576 GND C209 18P L202 12u +12VX R208 2.2K C207 6P C208 6P C210 0.1 GND GND R205 820 R206 100 GND GND R212 2.2K R210 100 C212 6P C213 6P L203 12u +12VX GND GND R209 820 Q203 2SA1576 GND C215 0.1 C214 18P C289 100/16V GND GND L213 47u C290 100/16V C291 100/16V L214 47u GND R263 10K R299 10K C297 0.1 GND GND GND R249 1.8K GND GND R246 820 R247 1K R248 1K C244 0.01 GND R256 1K +12V C247 0.01 Q219 2SC4081 R257 1.8K R254 330 Q218 2SA1576 GND GND GND R255 1K R239 1K R240 1K Q214 2SA1576 GND C241 0.01 GND R241 1.8K +12V Q215 2SC4081 GND R238 220 C240 100/16V GND C235 100P GND C236 100P GND R231 0 C230 47P R232 8.2K R233 0 R225 10K C229 0.01 GND GND C238 100/16V GND C239 0.01 GND C260 1/50V C262 0.01 GND GND GND C257 0.01 GND GND C263 1/50V GND C258 0.01 GND C265 0.01 GND GND C266 1/50V GND C268 0.01 GND C259 0.01 GND GND GND C274 470/10V R275 75 R274 100 C273 1/50V C271 0.01 GND C272 47/10V GND C270 470/10V R271 75 R270 100 C277 47/10V GND +5V C276 0.01 GND C278 1/50V R292 75 GND GND +5V GND C281 0.01 C282 47/10V C287 0.1 R293 75 GND R294 100K GND GND GND GND GND GND R290 75 GND C283 1/50V R291 75 GND GND GND GND R295 75 GND GND GND GND R296 75 GND R280 100 C279 470/10V R281 75 GND+5V Q241 2SA1576 R286 100 GND R287 75 C284 0.1 +5V C275 470/10V Q236 2SA1576 R276 100 GND R277 75 C280 0.1 Q239 2SA1576 +5V R282 100 GND R283 75 GND Q209 DTC114EUA Q207 DTC114EUA R226 3.3K +5V GND C402 470/10V R405 1.2K R403 33 R404 47 GND R408 47 R407 33 C403 470/10V GND R409 1.2K GND J201 1 GND 2 LETTER 3 SQUEEZE 4 XRESET 5 NAPSW 6 GND 7 VSEL1 8 VSEL2 9 GND 10 Y 11 GND 12 C/Cr 13 GND 14 V/Cb C206 47/10V C216 47/10V J202 12 11 10 9 8 7 6 5 4 3 2 1 R401 3.3 R402 47 C401 470/10V L212 47u EARTH J207 1 2 5 3 4 J208 1 2 5 3 4 EARTH R215 0 R214 0 R213 0 +12VX L215 BLM41P600S Q242 DTC114EUA +12VX R298 6.8K R297 10K GND +12V Q243 2SB1237 R269 0 GND C293 0.1 R411 0 C261 0.1 50V C264 0.1 50V C267 0.1 50V 0 [mV] white yellow cyan green red magenta blue black 714 -286 4.7μ s Y 0 [mV] 350 -350 Cr 700mv 300mv SYNC BURST WHITE YELLOW CYAN GREEN MAGENTA RED BLUE BLACK CVBS-SIGNAL 0 [mV] 350 -350 Cb VINSEL3 VINSEL1 DCSEL2 VINSEL2 DCSEL1 DCSEL1 DCSEL2 VSEL1 VINSEL3 VINSEL1 VINSEL2 DCSEL1 XRESET NAPSW VSEL1 VSEL2 XRESET NAPSW NAPSW VIDEO VIN VIDEO VOUT MONI VOUT VIDEO SIN MONI S2OUT (3.0V) VIDEO SOUT BSD S2IN BSD VIN RVA RVB Y 1.0Vpp Cb 0.7Vpp Cr 0.7Vpp C 0.286Vpp Y 0.789Vpp Cr 0.922Vpp Cb 0.922Vpp V 0.789Vpp C 0.255Vpp TO MICON & DSP PCB (J604 VIA W007) W007 DCSEL2 DCSEL1 VINSEL3 VINSEL2 VINSEL1 D1-IN GND GND +12V +5VL +5VA GND TO JUMPER PCB (JA04 VIA W006) W006 W008 EL0405RA EL0405RA EL0405RA PC02 3.2V 2.8V ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ 11.6V 4.9V 4.7V 11.6V 3.2V VIDEO INPUT 0V 2.3V 5V 4:3 LETTER BOX 16:9 CONT DC BIAS CONT DC BIAS VIDEO OUTPUT Y C Y C Y C Y C ON:0V CONT DC BIAS ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ VIDEO SELECTOR D-CONNECTOR ↑ LPF VIDEO DRIVER ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ PC01 R707 22K R708 22K R730 10K R731 8.2K C717 0.1 R705 6.8K R706 6.8K R703 1K R704 1K R701 47K R702 47K C701 100P 50V C702 100P 50V L701 BLM21A05PT L702 BLM21A05PT C703 10u/16V -22V +22V R729 10K +5VL C718 0.1 +22V -22V C719 0.1 C720 0.1 C722 100/35V C723 0.1 D701 RB160L-60 D703 RB160L-40 C721 0.1 -22V R732 1K L705 100U R723 270 R724 270 C709 47/16V C710 47/16V C707 0.1 C708 0.1 D702 RB160L-60 L703 33u L704 33u C711 0.22 50V C713 0.1 50V R725 6.8 2W R726 6.8 2W C714 0.1 50V C712 0.22 50V R733 47K R734 47K D706 1D3 SW+22V R709 10K R710 10K R711 1.2K R712 1.2K C705 560P 50V C706 560P 50V R713 1K R714 1K +5VL R716 1K R715 1K R717 1.2K R718 1.2K R719 47K 3 2 1 R720 47K 2 3 1 R721 5.6K R722 5.6K PGND R750 10K C749 47/16V +5VL R751 1.2K +22V PGND C758 0.1 C762 100/35V R743 1K R747 22K C759 0.1 C763 0.1 R741 47K -22V R759 47K 3 2 1 R773 47K C753 0.1 50V C757 0.1 L741 BLM21A05PT R762 5.6K L743 33u -22V R772 1K R769 10K +22V +5VL C742 100P 50V -22V R744 1K L742 BLM21A05PT C761 0.1 D742 RB160L-60 R766 6.8 2W R760 47K 2 3 1 C754 0.1 50V C748 0.1 R748 22K C741 100P 50V R764 270 C751 0.22 50V R745 6.8K R755 1K C752 0.22 50V R770 10K C745 560P 50V D743 RB160L-40 R746 6.8K L745 100U R752 1.2K R749 10K R756 1K R763 270 D741 RB160L-60 R742 47K R771 8.2K C746 560P 50V C760 0.1 R757 1.2K SW+22V R758 1.2K R761 5.6K C747 0.1 R774 47K C750 47/16V R765 6.8 2W R754 1K L744 33u R753 1K R929 10K +22V L904 33u R931 8.2K C909 47/16V +22V C921 0.1 R913 1K +5VL R930 10K +5VL C906 560P 50V C902 100P 50V PGND R907 22K D902 RB160L-60 C905 560P 50V -22V C919 0.1 R926 6.8 2W C918 0.1 C923 0.1 C922 100/35V R920 47K 2 3 1 R901 47K R903 1K C914 0.1 50V C920 0.1 -22V D903 RB160L-40 R919 47K 3 2 1 C908 0.1 R917 1.2K R933 47K R908 22K SW+22V C913 0.1 50V R906 6.8K R918 1.2K C917 0.1 C901 100P 50V L905 100U L901 BLM21A05PT R921 5.6K R922 5.6K R912 1.2K C907 0.1 R924 270 R909 10K R934 47K L903 33u R916 1K C911 0.22 50V -22V C910 47/16V R923 270 R925 6.8 2W R915 1K R904 1K D901 RB160L-60 R905 6.8K R932 1K R914 1K C912 0.22 50V L902 BLM21A05PT R911 1.2K R902 47K R910 10K QN01 TA7317P 9 8 7 6 5 4 3 2 1 RN07 6.8K RN03 6.8K RN05 33K RN01 68K RN02 47K RN06 47K CN05 47/16V CN02 47/16V CN01 47/16V GND GND SW-22V SW+22V GND +15V -15V -5VL +5VL +5V J701 FL A-GND FR A-GND SL SR CNT SUB.W +15V -15V +2.5V -5VL +5VL RELAY +5VA +5VD M+6V M+6V M-GND M-GND +12V STBY-LED +3.3V D-GND D-GND 25 24 23 22 21 20 19 18 17 16 15 14 13 1 12 11 10 9 8 7 6 5 4 3 2 M+6V +12V PGND PGND PGND PGND PGND +2.5V PGND PGND PGND PGND PGND PGND Q701 TA2022-100 1 VBOOT2 2 VN10 3 PGND 4 VPP2 5 VN10SW 6 HO2COM 7 OUT2 8 VNN2 9 VNN1 10 OUT1 11 HO1COM 12 VPP1 13 VBOOT1 14 VN10FBK 15 AGND 16 V5 17 REF 18 VNSENSE 19 VPSENSE 20 AGND 21 V5 22 OAOUT1 23 INV1 24 MUTE 25 OAOUT2 26 INV2 27 BIASCAP 28 FBKGND2 29 FBKOUT2 30 FBKGND1 31 FBKOUT1 32 OCR Q741 TA2022-100 1 VBOOT2 2 VN10 3 PGND 4 VPP2 5 VN10SW 6 HO2COM 7 OUT2 8 VNN2 9 VNN1 10 OUT1 11 HO1COM 12 VPP1 13 VBOOT1 14 VN10FBK 15 AGND 16 V5 17 REF 18 VNSENSE 19 VPSENSE 20 AGND 21 V5 22 OAOUT1 23 INV1 24 MUTE 25 OAOUT2 26 INV2 27 BIASCAP 28 FBKGND2 29 FBKOUT2 30 FBKGND1 31 FBKOUT1 32 OCR Q901 TA2022-100 1 VBOOT2 2 VN10 3 PGND 4 VPP2 5 VN10SW 6 HO2COM 7 OUT2 8 VNN2 9 VNN1 10 OUT1 11 HO1COM 12 VPP1 13 VBOOT1 14 VN10FBK 15 AGND 16 V5 17 REF 18 VNSENSE 19 VPSENSE 20 AGND 21 V5 22 OAOUT1 23 INV1 24 MUTE 25 OAOUT2 26 INV2 27 BIASCAP 28 FBKGND2 29 FBKOUT2 30 FBKGND1 31 FBKOUT1 32 OCR HP-L HP-R R736 1K 1/2W R728 180K R768 180K R928 180K +3.3V RN04 47K CN03 0.47/50V RN09 47K RN08 47K GND GND C704 10u/16V C743 10u/16V C744 10u/16V C903 10u/16V C904 10u/16V Q902 DTC114EUA +5VL R936 1K PGND R738 180K R775 180K R935 180K C725 470u/35V PGND C726 470u/35V PGND C925 470u/35V C926 470u/35V PGND PGND C765 470u/35V C766 470u/35V PGND PGND R737 1K 1/2W RELAY GND CN06 10u/50V GND RN11 470 RN10 47K GND J704 SUB WOOFER PRE OUT 1 3 2 STBY-LED RELAY PD-DET T-MUTE J703 FRONT SPK OUT 5 1 2 3 4 L706 G5PA-28 6 1 5 4 2 3 L746 G5PA-28 6 1 5 4 2 3 L906 G5PA-28 6 1 5 4 2 3 Q702 2SC2240 R735 10K J702 SURROUND SPK OUT 1 2 3 4 5 6 7 8 22u/50V C727 C728 22u/50V QN04 2SC4213 QN03 2SC4213 GND GND RN12 470 RN15 2.2K RN16 2.2K QN05 DTA114YU RN17 100K -15V +5VL RELAY RN14 4.7K GND RN13 4.7K R739 3.9K R740 3.9K PGND PGND QN02 NJM2068M 1 3 2 4 QN02 NJM2068M 7 5 6 8 -15V +15V GND PGND PGND PGND R777 12K R776 12K R778 12K R779 12K R937 12K R938 12K C729 0.1 C769 0.1 C929 0.1 C730 0.1 C770 0.1 C930 0.1 D707 RB D708 RB D748 RB D747 RB D908 RB D907 RB C715 1000P 50V C716 1000P 50V C755 1000P 50V C756 1000P 50V C915 1000P 50V C916 1000P 50V PGND PGND PGND PGND PGND PGND 0 22V -22V 500kHz 0 +34V -10V 500kHz 0V -22V -10V 1μ sec 2μ sec RPA PA01 1.3V 3.1V IN4003S SUB.W CNT SL SR FL FR TO MICOM & DSP PCB(JG01 VIA W003) W003 1/2W 1/2W 160L-60 160L-60 160L-60 160L-60 160L-60 160L-60 → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → 0V 0V 0V → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → AUDIO AMPLIFIER AUDIO AMPLIFIER AUDIO AMPLIFIER 2.5V 2.5V 0V 5V 2.7V 1.2V 5V 24V -24V 24V 0V 24V 2.5V -24V 2.5V 1.2V 2.7V 5V 24V 5V 24V 2.5V 1.2V 2.7V 5V 24V 5V -24V 2.5V 0V SPEAKER PROTECTOR -0.7V 1.3V 1.3V 4V 24V 24V 4V 4V 24V → → → → SPK:5V HP:0V 0V -4.5V HP:0V SPK:5V → → Q701/Q741/Q901 PIN#6,PIN#7 PIN#10,PIN#11 OUT Q701/Q741/Q901 PIN#5 VN10SW PIN#1,PIN#13 VB00T Q701/Q741/Q901 13 14 C822 100u/16V D819 1D3 GND C817 470u/10V L807 G5PA-28 6 1 5 4 2 3 R829 10K +12V D818 1D3 T-MUTE +2.5V Q802 NTH22D3R0LA C828 100u/16V C825 470u/10V D808 FMG-22S 1 2 3 R805 18K R834 2.2K R819 10K C823 100u/16V HP-R C816 470u/25V R833 1K J806 R832 3.3K 2 C821 0.1 1 2 Q805 NJM78M15FA 2 1 3 T801 ER4014AF 14 9 1 13 6 7 2 3 4 12 11 10 15 16 5 +22V C815 1000u/25V Q807 SI-8033S 5 4 1 2 3 Q816 NJM78M05FA 2 1 3 C813 4700u D809 FMG-22S 1 2 3 2 R836 4.7K GND C814 1000u C844 100u/16V GND C812 4700u C843 4700P +5V C830 0.1 C811 10/50V GND GND J807 1 2 C824 0.1 D801 RBV-606 3 2 1 4 R835 2.2K L801 ELF24V035A 3 2 4 1 Q809 SI-3050C 3 4 5 2 1 Q811 SI-3050C 3 4 5 2 1 C836 3300P 2KV D816 1SS301 D807 FMB-G14L R828 10K +5VL PGND Q813 2SC2240 R831 10K C801 0.22 Q808 DTC114EUA GND R808 1K M+6V -15V C827 0.1 Q821 2SC4213 R826 10K D804 1SS301 R830 10K R838 22K R812 1K EARTH D810 RB160L-40 C833 470u/10V GND C834 0.01 -22V Q820 PQ1CZ21H2ZP 5 4 1 2 3 R822 1K C819 1u/50V C842 4700P J802 AC OUTLET GND R803 680 C808 2200P D806 RB160L-40 Q818 NJM7812FA 2 1 3 R802 1.8K R815 15K D812 RB160L-40 D821 1SS301 R809 120K 1/6W Q806 NJM79M15FA 3 1 2 R825 1k SW-22V C805 1000P Q804 NJM431L W801 AC CORD C839 100u/50V C806 680u/200V L808 G5PA-1 4 3 1 2 +5VL D815 1SS301 C840 22u/50V R801 22K Q814 2SC2240 Q817 NJM79M05FA 3 1 2 C820 0.1 R813 15K R804 150K -5VL M801 2 1 SW+22V Q810 DTC114EUA C807 4700P J803 +3.3V L805 100u PD-DET GND D802 PC123F2 2 1 3 4 C818 470u/10V SW-22V C809 0.033 GND D820 UDZ-16B +5V L803 47u C803 4700P J804 HP-L R810 0.1 5W C832 470u/10V D805 1SS301 GND C837 2200P J801 VA 2 1 D811 RB160L-40 L804 47u Q819 2SA1576 R811 0 GND Q812 DTC114EUA C802 0.1 Q803 2SK2730 F801 5A C841 470u/10V C829 470u/10V R806 47 D813 1SS301 R807 10 1/6W J805 1 HP-R 2 HP-GND 3 HP-L 4 GND 5 +5VD 6 VKK 7 F2 8 F1 R814 1K Q815 PQ2TZ15u 5 4 1 2 3 STBY-LED D814 1SS301 +15V C804 4700P R816 0 C831 0.1 Q801 AN8037 1 TR 2 OCR 3 CF 4 CLM 5 GND 6 OUT 7 VCC 8 SD 9 FB C838 47u/10V +5V R837 22K C810 100u/50V RPO PA01 35V 25V KDS121 KDS121 KDS121 REF K A KDS121 KDS121 KDS121 1N4003S 1N4003S -20V Vin Vc Vo GND NC Vin Vout GND Oadj ON/OFF GND ON/OFF Vout Vin Oadj KDS121 NEUTRAL LIVE 35V TO FRONT PCB (JY01 VIA W005) W005 IN Vc OUT CONT GND Vc GND IN OUT CONT LIVE NEUTRAL FOR Q803 HEAT SINK FAN AC100V MAX100W 24V STBY:0V ON:5V DC130V ↑ ↓ 7.8V 6.7V 2.5V -4.5V 24V STBY:10V ON:0.8V STBY:24V ON:0V ON:0V STBY:5V -24V STBY:0V ON:-24V STBY:0V ON:24V ON:6V 9.5V 0.8V 5V -5V STBY:0V ON:15V STBY:0V ON:-15V 0V 0V 5V -24V -23V AC100V 10V -12V → → → → → → → STBY:0V ON:12V 2V → SWITCHED SWITCHING POWER SUPPLY PRIMARY SECONDARY → → REGULATOR ON:2.5V ON:3.3V ON:5V STBY:0V STBY:0V ON:-20V IMPORTANT SAFETY NOTICE: COMPONENTS IDENTIFIED BY MARK HAVE SPECIAL CHARACTERISTICS. IMPORTANT FOR SAFETY,WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY MANUFACTURER’S SPECIFIED PART. THE UNIT OF RESISTANCE IS OHM, K=1000 OHM, M=1000 KOHM. THE CAPACITANCE IS MICROFARAD P=PICO FARAD. THIS SCHEMATIC DIAGRAM MAY BE MODIFIED AT ANY TIME WITH THE IMPROVEMENT OF PERFORMANCE. ALL VOLTAGE ARE MEASURED WITH GROUND. DC:VALUES WITH NO SIGNAL AC:RMS ON/OFF ON/OFF 15 16 F-G SY36 OPEN/CLOSE 1 2 RY14 1K RY38 4.7K SY21 WY01 1 2 3 4 5 DY07 JY51 1 2 3 4 5 JY52 5 3 7 8 1 4 2 RY21 47 QY04 DTC114EU RY22 47 F-G 1 2 3 4 5 6 F-G RY39 4.7K DY09 F-G 1 2 3 CY02 0.1 DY10 2 F-G 1 2 3 4 5 F-G +5VL 2 F-G F-G CY01 47u/10V JY02 14 GND 13 STBY-LED 12 HP 11 IR 10 ROT-B 9 ROT-A 8 KEY2 7 KEY1 6 KEY0 5 +5VL 4 GND 3 FLD-CE 2 FLD-SOT 1 FLD-SCK +5VL 2 RY13 680 +5VL JY05 TO M-KEY 1 2 3 4 5 6 JY01 1 F1 2 F2 3 VKK 4 +5VD 5 GND 6 HP-GND 7 HP-L 8 HP-R JY07 1 2 3 4 5 6 F-G DY11 SLR 342VC STANDBY RY37 10K F-G F-G +5VD RY01 10 +5VL +5VD VY01 1 F1 5 G1 6 G2 7 G3 8 G4 9 G5 10 G6 11 G7 12 G8 13 G9 14 G10 15 G11 16 G12 23 S16 24 S15 25 S14 26 S13 27 S12 28 S11 29 S10 30 S9 31 S8 32 S7 33 S6 34 S5 35 S4 36 S3 37 S2 38 S1 41 F2 42 F2 2 F1 RY31 4.7K CY03 47u/10V RY05 220 RY04 47K QY05 RPM6936-V4 VCC VO GND RY03 47K RY36 1.2K +5VD F-G RY33 680 DY02 F-G RY35 1K SY35 PLAY/MEMO 1 2 RY18 47 RY32 470 QY03 DTC114EU DY01 F-G SY02 FM/AM 1 2 QY02 DTC114EU +5VD RY02 56K F2 DY04 F1 RY11 4.7K F-G F2 F1 JY21 1 2 3 CY06 0.1 F-G RY16 1.2K +5VD +5VD RY19 47 +5VD F-G 2 RY12 470 VKK VKK DY03 QY01 UPD16311 1 SW1 2 SW2 3 SW3 4 SW4 5 D-OUT 6 D-IN 7 IC 8 CLK 9 STB 10 KEY1 11 KEY2 12 KEY3 13 KEY4 14 VDD 15 S1 16 S2 17 S3 18 S4 19 S5 20 S6 21 S7 22 S8 23 S9 24 S10 25 S11 26 S12 27 S13 28 S14 29 S15 30 S16 31 G12 32 G11 33 VDD 34 VEE 35 G10 36 G9 37 G8 38 G7 39 G6 40 G5 41 G4 42 G3 43 G2 44 G1 45 VDD 46 LED5 47 LED4 48 LED3 49 LED2 50 LED1 51 VSS 52 OSC CY05 1000P RY15 1K 2 RY34 1K CY04 1000P DY06 SY06 DVD 1 2 SY34 STOP/MODE 1 2 SY01 SURROUND 1 2 RY17 10K SY33 PAUSE/FP 1 2 SY32 PREV/DOWN 1 2 SY31 NEXT/UP 1 2 +5VD DY05 SY07 STANDBY 1 2 SY05 VIDEO 1 2 CY51 WY51 1000P SY04 BSD 1 2 SY03 TV 1 2 RY20 47 WY02 1 2 3 CY52 1000P CY53 1000P CY54 1000P DY08 CE-FLD CK-FLD D-FLD S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 G12 G11 G8 G7 G6 G5 G4 G3 G2 G1 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G9 KEY1 CE-FLD KEY0 KEY1 KEY0 G1 D-FLD CK-FLD KEY2 KEY2 G10 DVD VIDEO BSD TV FM/AM PF01 PF04 PF03 PF02 HP_OUT TO POWER SUPPLY PCB (J805 VIA W005) W005 W004 TO MICON & DSP PCB (J605 VIA W004) FL DISPLAY ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ -20V -23V -24V 5V 0V ON:0V STBY:5V 5V 0V 0V 0V 0V 0V HP:5V SPK:0V 0V 0V 5V 5V 0V 0V 5V 5V 0V (RED) -20V -23V -24V 5V 5V (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) (GREEN) MASTER VOLUME HP-R HP-GND HP-L FL DRIVER IR SENSOR 5V 5V HEADPHONE ↑ ↑ ↑ RFA RFA ↑ ↑ ↑ RFA ↑ RFA HP GND HP-R HP-GND HP-L ROT-BIN ROT-AIN +5VD +5VL KEY0 GND +5VIR IR GND 17 18 19 20 JA01 TO AUDIO PCB(J607 VIA W001) 28 VSELSW 27 XMUTE 26 XRDY 25 SSCK 24 AODAI 23 SSI 22 TXD 21 SSO 20 RXD 19 XRESET 18 DTR 17 LT1 16 CTS 4 GND 15 GND 3 M-GND 14 GND 2 +5VD 13 +2.5V 1 M-GND 12 +2.5V 11 GND 10 +3.3V 9 +12V 8 +3.3V 7 M+6V 6 GND 5 M+6V JA03 FROM DVD PCB(A001) 　 1 M-GND 2 +5VD 3 M-GND 4 GND 5 M+6V 6 GND 7 M+6V 8 +3.3V 9 +12V 10 +3.3V 11 GND 12 +2.5V 13 +2.5V 25 SSI 14 GND 26 AODAI 15 GND 27 SSCK 16 MIC1 28 SQUEEZ 17 MIC2 29 XRDY 18 CTS 30 LETTER 19 LT1 20 DTR 21 XRESET 22 RXD 23 SSO 24 TXD JA02 FROM DVD PCB(A001) 1 PrgCb(B) 2 GND 3 Prg(R) 4 GND 5 Prg(G) 6 GND 7 V/Cb 8 GND 9 C/Cr 10 GND 11 Y 12 GND 13 Prg/Intr(VSEL2) 25 BCK 14 VSELSW 26 DFSCK 15 NAPSW 27 DACCLK 16 ADATA3 28 LATDAC 17 6ch/2ch 29 VSEL1 18 LFE_ON 30 GND 19 ADATA1 20 ADATA2 21 LRCK 22 XMUTE 23 DATA0 24 DFSO JA04 TO VIDEO PCB(J201 VIA W006)　　 1 V/Cb 2 GND 3 C/Cr 4 GND 5 Y 6 GND 7 VSEL2 8 VSEL1 9 GND 10 NAPSW 11 XRESET 12 SQUEEZ 13 LETTER 14 GND CA01 470u/10V LOADER A003 DVD PCB A001 CA02 470u/10V RJA PJ01 W011 RAO DVD UNIT PJ01 21 22 PA01 Q817 Q803 Q816 Q802 Q811 Q801 Q821 Q809 Q813 Q902 Q804 Q810 Q814 Q820 Q806 Q805 Q818 Q807 Q901 Q741 Q808 QN04 QN05 QN03 QN02 QN01 Q702 Q819 Q812 23 24 PB01 Q617 Q616 Q606 Q609 Q605 Q620 Q610 Q607 Q601 Q619 Q303 Q302 QJ09 QJ08 QE07 QK01 QJ05 QJ06 QG02~QG18 PB01 QJ02 QJ03 QJ01 QG01 QJ07 QJ04 QE03 Q301 QJ51 QE01 QE05 QE06 QE04 Q603 Q602 Q608 Q611 Q604 Q615 Q612 Q613 Q618 Q614 QE02 25 26 PF02 PF04 PC01 Q214 Q230 Q215 Q234 Q235 Q233 Q201 Q238 Q245 Q207 Q209 Q202 Q203 Q218 Q211 Q231 Q210 Q237 Q216 Q217 Q243 Q242 Q240 Q244 Q232 Q219 Q241 Q239 Q236 PC02 PF01 QY04 QY01 QY02 QY03 PF03 Pin No. Port Name I/O Name Active 1 P20/A16 O A/D H(Analog) 2 P21/A17 O TU-CL - Tuner Pack (PLL:LC72131),RDS:LC72720 3 P22/A18 O TU-DO - Tuner Pack (PLL:LC72131),RDS:LC72720 4 P23/A19 O TU-CE L Tuner Pack (PLL:LC72131),RDS:LC72720 5 P24/A20 I TU-ST L Tuner Pack (LC1837M) 6 P25/A21 I TU-TUN L Tuner Pack (LC1837M) 7 P26/A22 O TU-MUTE H Tuner Pack (LC1837M) 8 P27/A23 O RDS-OSCK L RDS:LC72720 9 P30/ALE I TU-DI - Tuner Pack (PLL:LC72131) 10 P31/RD I RDS-DI - RDS:LC72720 11 Vss I Vss - 12 P32/WRL O FLD-CE L FL Driver:UPD16311 13 P33/WRH O COD-PDN L CODEC:AK4527 14 P34/HRQ O DVD-XRST L DVD UNIT:DV535 15 P35/HAK O DVD-XRDY L DVD UNIT:DV535 16 P36/RDY O VOL-STB L System E_Volume:TC9482 17 P37/CLK O VOL-SOT - System E_Volume:TC9482 18 P40/SCK O FLD-SCK - FL Driver:UPD16311, Flash ROM Writer 19 P41/SOT O FLD-SOT - FL Driver:UPD16311, Flash ROM Writer 20 P42/SIN I FLD-SIN - Flash ROM Writer 21 P43/SCK1 O DVD-SCK - DVD UNIT:DV535 22 P44/SOT1 O DVD-SOT - DVD UNIT:DV535 23 Vcc I Vcc - 24 P45/SIN1 I DVD-SIN - DVD UNIT:DV535 25 P46/ADTG O ABOOT L(OD) DSP:CS49329 26 P47/SCK0 O DSP-SCK - DSP:CS49329,AK7706,DIR:LC89055 27 C C - 28 P50/SDA0/SOT0 O DSP-SOT - DSP:CS49329,AK7706,DIR:LC89055 29 P51/SCL0/SIN0 I DSP-SIN - DSP:CS49329,AK7706,DIR:LC89055 30 P52/SDA1 I/O ROM-SDA - EEPROM:AT24C04N 31 P53/SCL1 O ROM-SCL - EEPROM:AT24C04N 32 P54/SDA2 I/O COD-SDA - CODEC:AK4527 33 P55/SCL2 O COD-SCL - CODEC:AK4527 34 Avcc I Avcc - 35 AVRH I AVRH - 36 AVRL I AVRL - 37 Avss I Avss - 38 P60/AN0 I MS0 - 39 P61/AN1 I MS1 - 40 P62/AN2 I KEY0 - 41 P63/AN3 I KEY1 - 42 Vss I Vss - 43 P64/AN4 I KEY2 - 44 P65/AN5 NC - 45 P66/AN6 NC - 46 P67/AN7 NC - 47 P70/IRQ0 I DVD-LT1 H DVD UNIT:DV535 48 P71/IRQ1 I DIR-XSTA L DIR:LC89055 49 MD0 I TMODE - 50 MD1 I MD1 - 51 MD2 I TAUX3 - 52 HST I HST L 53 P72/IRQ2 I DIR-AUDIO L(PCM) DIR:LC89055 54 P73/IRQ3 I CS-INT L DSP:CS49300 55 P74/IRQ4 I DIR-AUTO H DIR:LC89055 56 P75/IRQ5 I DIR-ERR H DIR:LC89055 57 P76/IRQ6 I ROT-B - Encoder:EC16B24304 58 P77/IRQ7 I ROT-A - Encoder:EC16B24304 59 P80/TIN0 I AK-RDY H DSP:AK7706 60 P81/TIN1 O A-MUTE H 61 P82/TOT0 O HT-EQ H 62 P83/TOT1 NC - 63 P84/IN0 I IR - 64 P85/IN1 O AS-A - Selector:74HC4052 65 P86/IN2 O AS-B - Selector:74HC4052 66 P87/IN3 NC - 67 P90/OUT0 I HP L 68 P91/OUT1 O STBY-LED H 69 P92/PPG0 O RELAY H 70 P93/PPG1 O ROM-A15 - ROM 71 P94/PPG2 O ROM-A16 - ROM 72 P95/PPG3 NC - 73 P96/PPG4 0 D1-OUT H DVD UNIT:DV535 74 P97/PPG5 I D1-IN L D1 Connector 75 PA0/OUT2 O VINSEL1 - Video Selecter:BA7625,BA7626 76 PA1/OUT3 O VINSEL2 - Video Selecter:BA7625,BA7626 77 RST I RESET L 78 PA2 O VINSEL3 - Video Selecter:BA7625,BA7626 79 PA3 O DCSEL1 - DC Selecter:74HC4066 80 PA4/CKOT O DCSEL2 - DC Selecter:74HC4066 81 Vss Vss - 82 XO O X’tal OUT - 83 XI I X’tal IN - 84 Vcc Vcc - 85 P00/AD00 I TAUX Rom Writer 86 P01/AD01 I PU 87 P02/AD02 O DIR-CE L DIR:LC89055 88 P03/AD03 I DIR-EMP H DIR:LC89055 89 P04/AD04 O DIR-XMD L DIR:LC89055 90 P05/AD05 I DIR-P0 H DIR:LC89055 91 P06/AD06 I DIR-P1 H DIR:LC89055 92 P07/AD07 I DIR-P2 H DIR:LC89055 93 P10/AD08 I DIR-P3 H DIR:LC89055 94 P11/AD09 O CS-CE L DSP:CS49329 95 P12/AD10 O CS-DL L DSP:CS49329 96 P13/AD11 O CS-RES H DSP:CS49329 97 P14/AD12 O AK-DRST L DSP:AK7706 98 P15/AD13 O AK-RST L DSP:AK7706 99 P16/AD14 O VOL-SCK - System E_Volume:TC9482 100 P17/AD15 O AK-RQ L DSP:AK7706 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 P20/A16 P21/A17 P22/A18 P23/A19 P24/A20 P25/A21 P26/A22 P27/A23 P30/ALE P31/RD VSS P32/WRL P33/WRH P34/HRQ P35/HAK P36/RDY P37/CLK P40/SCK P41/SOT P42/SIN P43/SCK1 P44/SOT1 VCC P45/SIN1 P46/ADTG P47/SCK0 C P50/SDA0/SOT0 P51/SCL0/SIN0 P52/SDA1 PA4/CKOT PA2 RST PA1/OUT3 PA0/OUT2 P97/PPG5 P96/PPG4 P95/PPG3 P94/PPG2 P93/PPG1 P92/PPG0 P91/OUT1 P92/OUT0 P87/IN3 P86/IN2 P85/IN1 P84/IN0 P83/TOT1 P82/TOT0 P81/TIN1 P80/TIN0 P77/IRQ7 P76/IRQ6 P75/IRQ5 P74/IRQ4 P73/IRQ3 P72/IRQ2 HST MD2 PA3 P17/AD15 P16/AD14 P15/AD13 P14/AD12 P13/AD11 P12/AD10 P11/AD09 P10/AD08 P07/AD07 P06/AD06 P05/AD05 P04/AD04 P03/AD03 P02/AD02 P01/AD01 P00/AD00 VCC X1 X0 VSS P53/SCL1 P54/SDA2 P55/SCL2 P60/AN0 P61/AN1 P62/AN2 P63/AN3 VSS P64/AN4 P65/AN5 P66/AN6 P67/AN7 P70/IRQ0 P71/IRQ1 MD0 MD1 AVCC AVRH AVRL AVSS X0, X1 RST HST 4 P00 to P07/ AD00 to AD07 P10 to P17/ AD08 to AD15 P20 to P27/ A16 to A23 P30/ALE P31/RD P32/WRL P33/WRH P34/HRQ P35/HAK P36/RDY P37/CLK CKOT/PA4 PA2, A3 OUT2, OUT3/ PA0, A1 PPG5/P97 PPG4/P96 PPG3/P95 PPG2/P94 PPG1/P93 PPG0/P92 OUT0, OUT1/ P90, P91 IN0 to IN3/ P84 to P87 TOT0, TOT1/ P82, P83 TIN0, TIN1/ P80, P81 IRQ0 to IRQ7/ P70 to P77 AN0 to AN7/ P60 to P67 AVCC AVRH, AVRL AVSS P40/SCK P41/SOT P42/SIN P43/SCK1 P44/SOT1 P45/SIN1 P46/ADTG P47/SCK0 P50/SDA0/SOT0 P51/SCL0/SIN0 P52/SDA1 P53/SCL1 P54/SDA2 P55/SCL2 ROM RAM UART F F M C 16 L X B U S Clock control circuit* Port 0 Port 1 Port 2 Port 3 Port 4 Communication prescaler Extended I/O serial interface 1 Extended I/O serial interface 0 I2C interface 0 I2C interface 1 Port 5 CPU Core of F2MC-16LX family Interrupt controller Port A Clock monitor function Port 9 8/16 PPG x 3c h I/O timer 16-bit output compare unit x 4 channels 16-bit input capture unit x 4 channels 16-bit free-run timer 16-bit reload timer x 2 channels Port 8 Port 7 External interrupt A/D converter (8/10 bits) Port 6 *: Specifications of evaluation model (MB90V550A) Contains no internal ROM. Contains 6 KB of internal RAM. Contains the same internal resources as the other products in the MB90550A/550B series. Q605 :MB90F553A BLOCK DIAGRAM PIN CONFIGURATION 27 28 PIN FUNCTION 1.5 MICROPROCESSOR AND IC DATA 29 30 Note: * Perform digital power supply (DVDD) and analog power supply (AVDD) ON/OFF with the same potential and the same timing as a latch-up countermeasure. No. Pin name I/O Function 1 DISEL I Data input pin (DIN0, DIN1) selection input pin 2 DOUT O Input bi-phase data through output pin 3 DIN0 I Digital data input pin (CMOS level, with pull-down resistance when no selected) 4 DIN1 I Digital data input pin (CMOS level, with pull-down resistance when no selected) 5 DIN2 I Digital data input pin (TTL level) 6 DGND Digital GND 7 DVDD Digital power supply 8 R I VCO gain control input pin 9 VIN I VCO free-running frequency setting input pin 10 LPF O PLL loop filter setting pin 11 AVDD Analog power supply 12 AGND Analog GND 13 CKOUT O Clock output pin (256 fs, 384 fs, 512 fs, crystal oscillation, VCO free-running oscillation) 14 BCK O 64 fs clock output pin 15 LRCK O fs clock output pin (L = R-ch, H = L-ch, I2S = inverted) 16 DATAO O Data output pin 17 XSTATE O Source clock switch monitor output pin 18 DGND Digital GND 19 DVDD Digital power supply 20 XMCK O Crystal oscillation clock output pin (24.576 MHz or 12.288 MHz) 21 XOUT O Crystal oscillator connection output pin 22 XIN I Crystal oscillator connection input pin, external signal input supported (24.576 MHz or 12.288 MHz) 23 EMPHA O Channel status emphasis information output pin 24 AUDIO O Channel status bit 1 (non-PCM data detection bit) output pin 25 CSFLAG O First 40 channel status bits update flag output pin 26 F0/P0/C0 O Input fs calculation signal output/Pc data type output/input word length information output pin 27 F1/P1/C1 O Input fs calculation signal output/Pc data type output/input word length nformation output pin 28 F2/P2/C2 O Input fs calculation signal output/Pc data type output/input word length information output pin 29 VF/P3/C3 O Validity flag output/Pc data type output/input word length information output pin 30 DVDD Digital GND 31 DGND Digital power supply 32 AUTO O Non-PCM burst data transfer detection signal (Pa, Pb detection) output pin 33 BPSYNC O Non-PCM burst preamble Pa, Pb, Pc, Pd sync signal output pin 34 ERROR O PLL lock error or data error flag output pin 35 DO O Microcontroller IF/read data output pin 36 DI I Microcontroller IF/write data input pin 37 CE I Microcontroller IF/Chip enable input pin 38 CL I Microcontroller IF/clock input pin 39 XSEL I [XIN] crystal oscillation selection input pin (24.576 MHz or 12.288 MHz) 40 MODE0 I Mode setting input pin 41 MODE1 I Mode setting input pin 42 DGND Digital GND 43 DVDD Digital power supply 44 DOSEL0 I Output data format selection input pin 45 DOSEL1 I Output data format selection input pin 46 CKSEL0 I Output clock selection input pin 47 CKSEL1 I Output clock selection input pin 48 XMODE I System reset input pin PIN CONFIGURATION PIN FUNCTION Q601 : LC89055W-RA8 BLOCK DIAGRAM 31 32 SDOS LOOP1 1 I2C 44 2 SMUTE 3 BICK 4 LRCK 5 SDTI1 6 SDTI2 7 SDTI3 8 SDTO 9 DAUX 10 DFS 11 LOOP0/SDA/CDTI 43 DIF1/SCL/CCLK 42 41 40 MCLK 39 DZF1 38 AVSS 37 AVDD 36 VREFH 35 VCOM 34 NC 12 DZFE 13 TVDD 14 DVDD 15 DVSS 16 17 TST 18 NC 19 ADIF 20 CAD1 21 CAD0 22 33 32 31 30 29 28 27 26 25 24 23 DZF2/OVF RIN+ RIN- LIN+ LIN- ROUT1 LOUT1 ROUT2 LOUT2 ROUT3 LOUT3 AK4527BVQ Top View PDN DIF0/CSN P/S Audio I/F LPF LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LOUT1 ROUT1 LOUT2 ROUT2 LOUT3 ROUT3 DAC DATT AK4527B ADC HPF ADC HPF RIN- RIN+ LIN- LIN+ LRCK BICK SDOUT1 SDOUT2 SDOUT3 AC3 SDIN MCKO LRCK BICK XTI XTO DIR SDTO AK4112A RX4 RX3 RX2 RX1 LRCK BICK SDTI1 SDTI2 SDTI3 DAUX SDOS MCLK LRCK BICK SDOUT SDIN1 SDIN2 SDIN3 MCLK SDTO Format Converter No. Pin Name I/O Function 1 SDOS I SDTO Source Select Pin (Note 1) "L": Internal ADC output, "H": DAUX input 2 I2C I Control Mode Select Pin "L": 3-wire Serial, "H": I2C Bus 3 SMUTE I Soft Mute Pin (Note 1) When this pin goes to "H", soft mute cycle is initialized. When returning to "L", the output mute releases. 4 BICK I Audio Serial Data Clock Pin 5 LRCK I Input Channel Clock Pin 6 SDTI1 I DAC1 Audio Serial Data Input Pin 7 SDTI2 I DAC2 Audio Serial Data Input Pin 8 SDTI3 I DAC3 Audio Serial Data Input Pin 9 SDTO O Audio Serial Data Output Pin 10 DAUX I AUX Audio Serial Data Input Pin 11 DFS I Double Speed Sampling Mode Pin (Note 1) "L": Normal Speed, "H": Double Speed 12 NC - No Connect No internal bonding. 13 DZFE I Zero Input Detect Enable Pin "L": mode 7 (disable) at parallel mode, zero detect mode is selectable by DZFM2-0 bits at serial mode "H": mode 0 (DZF1 is AND of all six channels) 14 TVDD - Output Buffer Power Supply Pin, 2.7V~5.5V 15 DVDD - Digital Power Supply Pin, 4.5V~5.5V 16 DVSS - Digital Ground Pin, 0V 17 PDN I Power-Down & Reset Pin When "L", the AK4527B is powered-down and the control registers are reset to default state. If the state of P/S or CAD0-1 changes, then the AK4527B must be reset by PDN. 18 TST I Test Pin This pin should be connected to DVSS. 19 NC - No Connect No internal bonding. 20 ADIF I Analog Input Format Select Pin "H": Full-differential input, "L": Single-ended input 21 CAD1 I Chip Address 1 Pin 22 CAD0 I Chip Address 0 Pin QK01 : AK4527 BLOCK DIAGRAM PIN CONFIGURATION PIN FUNCTION 33 34 FBKGND1 AGND VNNSENSE VPPSENSE AGND V5 OAOUT1 INV1 MUTE OAOUT2 INV2 VBOOT2 BIASCAP FBKGND2 FBKOUT2 FBKOUT1 V5 VN10FDBK VBOOT1 VPP1 NC OUT1 VNN1 VNN2 OUT2 NC VPP2 VN10GND VN10 HMUTE 30 16 17 18 19 20 21 22 23 24 25 26 27 28 29 1 15 14 13 11 10 12 9 8 7 6 5 4 3 2 32 31 REF VN10SW Pin Function Description 1, 13 VBOOT2, VBOOT1 Bootstrap voltages for gate drive of high side MOSFET s 2 VN10 Floating supply input. Normally connected to the output of onboard VN10 buck converter. This voltage must be stable and referenced to VNN. 3 VN10GND Power ground for onboard VN10 generator. Electrically tied to the TA2022 case. 4, 12 VPP2, VPP1 Positive power supply input pins. 5 VN10SW Switching output voltage for onboard VN10 generator (buck converter). 6 NC Not connected internally. May be connected to pin 7 without any loss of functionality or performance. 7,10 OUT2, OUT1 Power amplifier outputs. 8, 9 VNN2, VNN1 Negative power supply inputs. 11 NC Not connected internally. May be connected to pin 10 without any loss of functionality or performance. 14 VN10FDBK Feedback for onboard VN10 generator (nominally 11V above VNN) 15, 20 AGND Analog Ground. 16, 21 V5 5V power supply input. 17 REF Used to set internal bias currents. The pin voltage is typically 1.1V. 18 VNNSENSE Negative supply voltage sense input. This pin is used for both over and under voltage sensing for the VNN supply. 19 VPPSENSE Positive supply voltage sense input. This pin is used for both over and under voltage sensing for the VPP supply. 22, 25 OAOUT1, OAOUT2 Outputs of Input Stage op amps. 23, 26 INV1, INV2 Inverting inputs of Input Stage op amps. 24 MUTE Logic input. A logic high puts the amplifier in mute mode. Ground pin if not used. Please refer to the section, Mute Control, in the Application Information. 27 BIASCAP Bandgap reference times two (typically 2.5VDC). Used to set the common mode voltage for the input op amps. This pin is not capable of driving external circuitry. 28, 29 FBKGND2, FBKOUT2 Output voltage differential feedback for channel 2. 30,31 FBKGND1, FBKOUT1 Output voltage differential feedback for channel 1. 32 HMUTE Logic Output. A logic high indicates both amplifiers are muted, due to the mute pin state, or a fault such as an overcurrent, undervoltage, or overvoltage condition. HMUTE OAOUT1 INV1 OUT1 22 23 32 10 VPP1 VNN1 Processing & Modulation VBOOT1 13 VN10 FBKOUT1 31 FBKGND1 30 V5 AGND 21 20 V5 15 AGND AGND V5 16 OAOUT2 INV2 OUT2 25 26 7 VPP2 VNN2 Processing & Modulation VBOOT2 1 VN10 FBKOUT2 29 FBKGND2 28 - + V5 AGND MUTE 24 V5 BIASCAP 27 17 REF 12 VPP1 9 VNN1 8 VNN2 4 VPP2 VN10GND 19 VPPSENSE 18 VNNSENSE 3 VN10 Generator VN10SW 5 VN10FBK 14 VN10 2 2.5V 200K - + 6 NC 11 NC Q701 : TA2022-100 Q609 : CS493292 BLOCK DIAGRAM BLOCK DIAGRAM PIN CONFIGURATION PIN CONFIGURATION PIN FUNCTION 6 8 9 QN01 : TA7317P 1 2 3 4 5 7 POWER ON/OFF DETECT CIRCUIT OVER CURRENT DETECT CIRCUIT DC VOLTAGE DETECT CIRCUIT MUTING CIRCUIT OR CIRCUIT DISCHARGE CIRCUIT CONSTANT VOLTAGE CIRCUIT SCHMIDE CIRCUIT RELAY DRIVE CIRCUIT SUBSTRATE DATA7:0, CS Parallel or Serial Host Interface CMPCLK, Compressed PLL FILT1 VA Framer DD DC MCLK SCLK LRCLK AUDATA [2.0 ] XMT958/AUDATA3 CMPDAT, SCLKN2 CMPREQ, LRCLKN2 SCLKN1, STCCLK2 LRCLKN1 SDATAN1 Data In put Interface Digital Audio Input Interface FILT2 AGND Clock Manager CLKIN CLKSEL Shifter Input Buffer Controller RAM Input Buffer DGND[3:1 ] VD [3:1 ] 24- Bit DSP Processing RAM Program Memory RAM Dat a Memory ROM Program Memory ROM Data Memory STC EMAD7:0, GPIO7: 0 R/W, EMOE, GPIO11 RD, DS, EMWR, GPIO10 WR, SCDOUT, PSEL, GPIO9 SCDIO, A0, SCCLK A1, SCDI N ABOOT, INT REQ EXTMEM, GPIO8 Out put Formatter RAM Buffer Output RESET SDATAN2 7 8 9 10 11 12 13 14 15 16 17 39 38 37 36 35 34 33 32 31 30 29 18 19 20 21 22 23 24 25 26 27 28 6 5 4 3 2 1 44 43 42 41 40 CS493XX-CL 44-pin PLCC Top View VD2 DATA4,EMAD4,GPIO4 VA DATA5,EMAD5,GPIO5 DATA6,EMAD6,GPIO6 DATA7,EMAD7,GPIO7 A0, SCCLK A1, SCDIN RD,R/W,EMOE,GPIO11 WR,DS,EMWR,GPIO10 AUDATA3, XMT958 DGND1 VD1 SDATAN1 EXTMEM, GPIO8 ABOOT, INTREQ SCDIO, SCDOUT,PSEL,GPIO9 CS DATA0,EMAD0,GPIO0 DATA1,EMAD1,GPIO1 DATA2,EMAD2,GPIO2 DATA3,EMAD3,GPIO3 DGND2 RESET DD DC AUDATA2 AUDATA1 AUDATA0 LRCLK SCLK MCLK VD3 DGND3 SCLKN1, STCCLK2 LRCLKN1 CMPDAT, SDATAN2, RCV958 CMPCLK, SCLKN2 CMPREQ, LRCLKN2 CLKIN CLKSEL FILT2 FILT1 AGND QG01 : TC9482F BLOCK DIAGRAM PIN CONFIGURATION PIN FUNCTION Q606 : AT24C04N BLOCK DIAGRAM PIN CONFIGURATION 1 2 3 4 8 7 6 5 A0 A1 A2 GND VCC WP SCL SDA 08A 35 36 37 38 DIN DOUT CLK Key1 to Key4 SW1 to SW4 STB R 4 4 OSC 5-bit latch Key data memory (4 12) Timing generator key scan Display memory 20 bit x x 16 Word Command decoder Dimming circuit 4-bit latch 16 8 8 8 8 20 12 Seg1 Seg12 Seg13/Grid16 Seg20/Grid9 Grid1 Grid8 16-bit shift register Data selector Segment/grid driver Grid driver Segment driver 20-bit output latch Serial I/F VDD LED1 LED5 VDD (+5 V) VSS (0 V) VEE (- 30 V) 1 SW1 2 SW2 3 SW3 4 SW4 5 DOUT 6 DIN 7 IC 8 CLK 9 STB 10 KEY1 11 KEY2 12 KEY3 13 KEY4 39 Grid6 38 Grid7 37 Grid8 36 Seg20/Grid9 35 Seg19/Grid10 34 VEE 33 VDD 32 Seg18/Grid11 31 Seg17/Grid12 30 Seg16/Grid13 29 Seg15/Grid14 28 Seg14/Grid15 27 Seg13/Grid16 14 VDD 15 Seg1/KS1 16 Seg2/KS2 17 Seg3/KS3 18 Seg4/KS4 19 Seg5/KS5 20 Seg6/KS6 21 Seg7/KS7 22 Seg8/KS8 23 Seg9/KS9 24 Seg10/KS10 25 Seg11/KS11 26 Seg12/KS12 52 OSC 51 VSS 50 LED1 49 LED2 48 LED3 47 LED4 46 LED5 45 VDD 44 Grid1 43 Grid2 42 Grid3 41 Grid4 40 Grid5 Pin No. Symbol Pin Name Description 6 DIN Data input Inputs serial data at rising edge of shift clock, starting from lower bit. 5 DOUT Data output Outputs serial data at falling edge of shift clock, starting from lower bit. This is N-ch open-drain output pin. 9 STB Strobe Initializes serial interface at rising or falling edge to make PD16311 waiting for reception of command. Data input after STB has fallen is processed as command. While command data is processed, current processing is stopped, and serial interface is initialized. While STB is high, CLK is ignored. 8 CLK Clock input Reads serial data at rising edge, and outputs data at falling edge. 52 OSC Oscillator pin Connect resistor for determining oscillation frequency to this pin. 15 to 26 Seg1/KS1 to Seg12/KS12 High-voltage output (segment) Segment output pins (Dual function as key source) 44 to 37 Grid1 to Grid6 High-voltage output (grid) Grid output pins 27 to 32 35 to 36 Seg13/Grid16 to Seg20/Grid9 High-voltage output (segment/grid) These pins are selectable for segment or grid output. 50 to 46 LED1 to LED5 LED output CMOS output. +20 mA max. 10 to 13 Key1 to Key4 Key data input Data input to these pins is latched at end of display cycle. 1 to 4 SW1 to SW4 Switch input These pins constitute 4-bit general-purpose input port. 14, 33, 45 VDD Logic power 5 V 10 % 51 VSS Logic ground Connect this pin to GND of system. 34 VEE Pull-down level VDD 35 V max. 7 IC Internally connected Be sure to leave this pin open (this pin is at VDD level). BLOCK DIAGRAM PIN CONFIGURATION PIN FUNCTION QY01 : uPD16311GC-AB6 Q617 : AT27C010 BLOCK DIAGRAM PIN CONFIGURATION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 VPP A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 O0 O1 O2 GND VCC PGM NC A14 A13 A8 A9 A11 OE A10 CE O7 O6 O5 O4 O3 39 1.6 TECNICAL DESCRIPTION CLASS-T DIGITAL AUDIO AMPLIFIER TECHNOLOGY (TRIPATH) A Watershed in Digital Amplification Tripath amplifiers use a completely new proprietary method of Digital Power Processing“ that provides superior performance to conventional methods of amplification. For the first time, both high signal fidelity AND high power efficiency can be achieved with the same technology. Tripath refers to this DPP“ based amplifier as a Class-T design. The underlying technology of Class-T does not use PWM and is not a pure analog approach (Classes -A and -AB). It combines the benefits of both with a completely new approach. Tripath s Class-T amplifiers are the first application of this breakthrough approach. Class-T amplifiers provide the signal fidelity of sophisticated discrete-component linear Class-A and -AB designs, while offering high power efficiencies and the potential to need less exotic engineering to achieve high-end audiophile performance. These amplifiers also reduce cost for amplifier overhead at high power levels (such as power supply, filtering, and heat venting). Class-T provides power conversion efficiencies of 80 percent to more than 90 percent, which is equal to or better than Class-D amplifiers. 40 1.7 ADJUSTMENT PROCEDURE RS (Right Surround) , LS (Left Surround) , C (Center) , SW (Sub Woofer) R (Front Right) , L (Front Left) RS R720 LS R719 C R760 SW R759 R R920 L .......... .......... .......... .......... .......... .......... R919 41 R920, R919 R720, R719 R760, R759 R, L C, SW RS, LS 42 43 44 45 46 y Standby Factory Mode1 Neutral Condition 0 MA Vxxxx Push POWER Button? Yes TUNER TEST Mode No1-6 TEST Mode Region Check Push FM/AM Button Push NEXT/PREV Button Push PAUSE+DVD Button Push PAUSE+FM/AM Button And POWER Button Push DVD Button Push NEXT/PREV Button ・RAM Clear ・STANDBY LED Ligting Push POWER Button 48 47 0 0 1 B 0 0 2 B 0 0 5 B 0 0 7 B 0 1 3 B 0 3 7 B 5 1 2 5 3 X 1 0 ( A ) x 4 5 1 2 8 3 X 8 ( A ) x 2 0 2 7 B P F 0 4 P F 0 3 0 0 9 B 0 1 0 B 0 0 8 B 0 1 1 B 0 0 6 B 0 3 9 B 0 4 2 B x 2 P B 0 1 5 1 2 8 3 X 8 ( A ) 0 3 0 G x 3 5 1 2 8 3 X 8 ( A ) x 2 9 0 1 G 5 1 2 5 3 X 1 0 ( U ) x 2 5 1 2 5 3 X 1 0 ( U ) x 5 9 0 5 G 5 1 2 5 3 X 1 0 ( U ) x 4 5 1 2 5 3 X 1 0 ( U ) x 4 5 1 2 5 3 X 1 0 ( U ) x 2 5 1 2 8 3 X 8 ( U ) x 3 T 8 0 1 A 0 0 2 P C 0 2 J 4 0 2 P C 0 1 5 1 2 8 3 X 1 0 ( A ) x 7 5 1 2 6 3 X 1 2 ( A ) x 6 0 3 2 G x 2 , 0 3 3 G x 5 5 1 2 8 3 X 8 ( A ) x 6 0 3 5 G 5 1 2 8 3 X 8 ( A ) 9 3 8 G 5 1 2 8 2 X 4 ( A ) 9 3 5 G 5 1 2 8 3 X 1 5 ( A ) x 4 M8 0 1 0 3 8 G 5 1 2 8 2 X 4 ( A ) x 2 9 3 7 G x 2 0 4 2 G 0 1 9 G 0 3 3 G 0 4 1 G 0 3 3 G 5 1 2 8 3 X 8 ( A ) x 2 0 3 7 G W8 0 1 0 3 2 G P A 0 1 5 1 2 8 3 X 1 0 ( A ) x 4 0 0 5 G 5 1 2 8 3 X 8 ( A ) x 3 A 0 0 3 0 3 1 B 0 0 4 G P A 0 0 1 J 0 1 0 1 0 G x 4 0 0 2 G x 2 0 0 1 G ( 0 0 5 D ) ( 0 0 3 D ) 0 0 7 D x 6 0 0 8 G ( 0 0 7 G x 2 ) 0 1 7 G x 2 0 2 1 G 0 0 9 G x 2 0 0 8 G 5 1 2 8 3 X 8 ( A ) x 2 5 1 2 8 3 X 8 ( A ) x 2 5 1 2 8 3 X 8 ( A ) x 2 5 1 2 8 3 X 8 ( A ) x 2 0 2 5 G 0 0 1 D T O P C O V E R A S S Y . 0 1 6 G 0 1 5 G x 3 5 1 2 8 3 X 6 ( A ) x 3 0 2 9 B P F 0 1 5 1 2 5 3 X 1 0 ( A ) x 5 5 1 2 5 3 X 1 0 ( A ) x 3 P F 0 2 0 0 6 Z 0 2 8 B 5 1 2 8 3 X 8 ( A ) x 2 V Y 0 1 MA RK ( U) ( A ) MATERIA L / F I NIS H S T E E L / B L A C K SYMBOL S T Y L E P A RTS NA M E 5 1 2 8 + B . H. T A P T I T E S CRE W ( B T Y P E ) S T E E L / CHROMATE 5 1 2 5 + B . H. T A P T I T E S CRE W ( P T Y P E ) 5 1 2 6 + B . H. T A P T I T E S CRE W W/ WA S HE R 1.8 EXPLODED VIEW AND PARTS LIST 49 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) 001B KGW1A307M7ZK107 FRONT PANEL 400K248010 002B KKM1A108ZC30 FRONT AL PANEL 400K063010 005B BGX1A303ZA VOL KNOB ASSY 400K154500 007B WINDOW 400K158020 008B BGB1A097 MZ BADGE FOR WINDOW 313J251030 009B ADHESIVE FOR WINDOW 400K122110 010B KGX1A307 IR FILTER 400K107040 011B BLIND SHEET 400K107120 013B KBT1A759ZA FUNCTION BUTTON ASSY 400K270500 027B KGL1A191A18 LENS FOR STANDBY 400K355010 031B KGR1A224M7H39 ESCUTCHEON FOR TRAY 400K063020 001D KKC1A117ZA TOP LID ASSY 400K257500 007D BHD1A031 SCREW(TOP LID FIX) 318K010020 007G KHG1A039Z FOOT RUBBER ASSY (FRONT & REAR) 400K107500 021G KUC1A031K111 SIDE PANEL(R) 400K249010 025G KUC1A030K111 SIDE PANEL(L) 400K249020 905G KHR1A028 AC CORD BUSH (SAM JIN SJCH-1) 400K259010 A001 BOP11432B DB-VPB211 DVD PCB MODULE ZK324J0210 A002 BNVTFCE1J101A TFCE1J101A TUNER UNIT FOR JAPAN AV01201140 W801 BJA2J049Z AC CORD F OR U *YC000520R NOT STANDARD SPARE PARTS A003 BJDDB-VLD210 DB-VLD210 DVD LOADER 402K304500 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 50 SW10 (SUB WOOFER) SW01 SW02 SW03 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) SW01 SW10NET NET ASS’Y (SW10) 400K202510 SW02 KA320LP185SOZ WOOFER UNIT (SW10) *QK000050R SW03 KJJ3N012 SPEAKER TERMINAL *YT002340R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 51 LS100/LS100C (SATELLITE) LS01 LS02 LS02 LS03 LS04 LS06 LS05 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) LS01 LS100NET NET ASS’Y (LS100) 400K202520 LS01 LS100CNET NET ASS’Y (LS100C) 400K202530 LS02 KHG1A187 NET HOLDER (LS100/LS100C) 400K259010 LS03 KAS1HK183SYZA TWEETER ASS’Y (LS100/LS100C) *QK000060R LS04 KAS9LP184SOZA WOOFER ASS’Y (LS100/LS100C) *QK000070R LS05 KSN1ALS100 NETWORK ASS’Y (LS100/LS100C) *ZZ001730R LS06 KJJ3N012 SPEAKER TERMINAL *YT002340R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 52 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) PACKING 001T KQX1A673Z USER GUIDE 400K851110 006Z BARTER3000F1S REMOTE CONTROLLER RC3000ERF AZ400K02F0 NOT STANDARD SPARE PARTS 001S KPG1A632Z PACKING CASE (UNIT) 400K801010 003S KPS1A515 CUSHION(SPK,BOTTOM) 400K809010 005S KPS1A516 CUSHION(SPK,CENTER) 400K809020 007S KPS1A517 CUSHION(SPK,TOP) 400K809030 009S CUSHION(UNIT,FRONT) 400K809040 011S CUSHION(UNIT,REAR) 400K809050 013S KQB1A323Z SHIPPING LABEL nsp 015S KPB1A013Y POLYETHYLENE BAG (ER3000) nsp 017S KPS1A634 PACKING CASE (SPEAKER) 400K801020 019S KPG1A633Z MASTER CARTON 400K805010 020S POLY BAG (SATELLITE SPEAKER) nsp 021S POLY BAG (SUB WOOFER) nsp 002T FLY SHEET(SPK) 400K851120 003T BQE1A133Z WARRANTY(F) nsp 004T USERS CARD nsp 005T KPB1061Y POLY BAG FOR INST nsp 020T POLY BAG FOR INST (SPEAKER) nsp 001Z KSA267 FM ANTENNA nsp 002Z KLR1T201 ANTENNA ADAPTER nsp 003Z KSA3A013Z LOOP ANTENNA nsp 004Z KABAAM1.5V BATTERY R6P KR CP-2 nsp 005Z KJS4M011Y VIDEO CABLE (YELLOW) 2.0M nsp 007Z KWX1A020 & KWX1A021 SPEAKER CABLE KIT nsp 011Z ATTACHED LABEL nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 0 0 4 Z 0 1 1 S 0 0 9 S 0 0 1 S B A T T E R Y R E M O T E C O N T R O L L E R 0 0 6 Z 0 0 3 Z L O O P A N T E N N A A N T E N N A 0 0 5 Z V I D E O C A B L E 0 0 2 Z A D A P T E R 0 0 1 Z F M A N T E N N A 0 0 1 T U S E R G U I D E 0 1 5 S 0 0 5 T 0 0 4 T U S E R ’ S C A R D 0 0 7 Z 0 0 7 S S A T E L L I T E S P E A K E R S U B W O O F E R S P E A K E R 0 0 5 S S A T E L L I T E S P E A K E R x 4 0 0 3 S 0 1 7 S 0 1 9 S 0 0 1 S E R 3 0 0 0 0 1 7 S S P E A K E R M A S T E R C A R T O N 0 1 3 S x 1 0 0 3 T ( ) 0 1 3 S 0 2 1 S 0 2 0 S 0 2 0 S 0 2 0 S 0 1 1 Z L A B E L 0 2 0 T 0 0 2 T F L Y S H E E T 0 1 3 S 400K80902 400K80903 PACKING 53 54 55 56 1.9 TAKING OUT THE DISC FOR EMERGENCY 10. ELECTRICAL PARTS LIST Fig.1 Fig.2 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R 1) GD05 x x x 140, Carbon film fixed resistor, 5% 1/4W R 2) GD05 x x x 160, Carbon film fixed resistor, 5% 1/6W 1 Resistance value Examples 1 Resistance value 0.1 ..... 001 10 ......100 1k ......102 100k ...... 104 0.5 ..... 005 18 ......180 2.7k ......272 680k ...... 684 1 ..... 010 100 ......101 10k ......103 1M ...... 105 6.8 ..... 068 390 ......391 22k ......223 4.7M ...... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 x x x x 370, Ceramic capacitor Disc type Temp.coeff. P350~N1000, 50V 3 Capacity value 2 Tolerance Examples 2 Tolerance (Capacity deviation) 0.25 pF ....... 0 0.5 pF ....... 1 5 % ....... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF - 5 pF ....... 0.25 pF 6 pF - 10 pF ..... 0.5 pF 12 pF - 560 pF ... 5 % 3 Capacity value 0.5 pF .... 005 3 pF ..... 030 100 pF ..... 101 1 pF .... 010 10 pF ..... 100 220 pF ..... 221 1.5 pF .... 015 47 pF ..... 470 560 pF ..... 561 C : CERAMIC CAP. 4) DK16 x x x 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V 4 Capacity value Examples 4 Capacity value 100 pF .....101 1000 pF .... 102 10000 pF .... 103 470 pF .....471 2200 pF .... 222 C : 5) ELECTROLY CAP.( ), 6)FILM CAP ( ) 5) EA x x x x x x 10, Electrolytic capacitor One-way lead type,Tolerance 20% 6 Working voltage 5 Capacity value Examples 5 Capacity value 0.1 F .... 104 4.7 F .... 475 100 F ..... 107 0.33 F .... 334 10 F .... 106 330 F ..... 337 1 F .... 105 22 F .... 226 1100 F ..... 118 2200 F .... 228 6 Working voltage 6.3 V ...... 006 25 V ..... 025 10 V ...... 010 35 V ..... 035 16 V ...... 016 50 V ..... 050 6) DF15 x x x 350 Plastic film capacitor DF15 x x x 310 One-way type, Mylar 5% 50V DF16 x x x 310 Plastic film capacitor One-way type, Mylar 10% 50V 7 Capacity value Examples 7 Capacity value 0.001 F (1000 pF) ...... 102 0.1 F......104 0.0018 F........................ 182 0.56 F......564 0.01 F........................ 103 1 F......105 0.015 F........................ 153 1) The above CODES(R ,R ,C ,C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts(Rl05, DD4, DK4). NOTE NOTE ON SAFETY: Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol Any other component substitution ( other than original type), may increase risk of fire or electrical shock hazard. 990521 A.O NOTE ON SAFETY FOR FUSIBLE RESISTOR : The suppliers and their type numbers of fusible resistors are as follows ; 1 . KOA Corporation Part No.(MJI) Type No.(KOA) Description NH05 x x x 140 RF25S x x x x J J J J 5% (1/4W) NH05 x x x 120 RF50S x x x x 5% (1/2W) NH85 x x x 110 RF73B2A x x x x 5% (1/10W) NH95 x x x 140 RF73B2E x x x x 5% (1/4W) Resistance value Resistance value(0.1 - 10k ) 2. Matsushita Electronic Components Co., Ltd Part No.(MJI) Type No.(MEC) Description NF05 x x x 140 ERD-2FCJ x x x ( 5% 1/4W) RF05 x x x 140 NF02 x x x 140 ERD-2FCG x x x ( 2% 1/4W) RF02 x x x 140 Resistance value Examples Resistance value 0.1 ..... 001 10 ..... 100 1k ..... 102 100k ..... 104 0.5 ..... 005 18 ..... 180 2.7k ..... 272 680k ..... 684 1 ..... 010 100 ..... 101 10k ..... 103 1M ..... 105 6.8 ..... 068 390 ..... 391 22k ..... 223 4.7M ..... 475 ABBREVIATION AND MARKS ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE -PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’ TAL : CRYSTAL : : 57 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) PA01-PWR AMP PWR SUPPLY CIRCUIT BOARD PA01-CAPACITORS CN01 KCEA1EH470T ELECT 47 F M 16V OA47601620 CN02 KCEA1EH470T ELECT 47 F M 16V OA47601620 CN03 KCEA1HHR47T ELECT 0.47 F M 50V OA47405020 CN05 KCEA1EH470T ELECT 47 F M 16V OA47601620 CN06 KCEA1HH100T ELECT 10 F M 50V OA10605020 C701 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C702 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C703 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C704 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C705 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C706 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C707 KCUS1H104ZF CER. CHIP 0.1 F 50V F DK98104300 C708 KCUS1H104ZF CER. CHIP 0.1 F 50V F DK98104300 C709 KCEA1EH470T ELECT 47 F M 16V OA47601620 C710 KCEA1EH470T ELECT 47 F M 16V OA47601620 C715 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C716 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C717 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C721 C722 KCEA1VH101T ELECT 100 F M 35V OA10703520 C723 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C725 KCEA1VH471E ELECT 470 F M 35V OA47703520 C726 KCEA1VH471E ELECT 470 F M 35V OA47703520 C727 KCEA1HH220T ELECT 22 F M 50V OA22605020 C728 KCEA1HH220T ELECT 22 F M 50V OA22605020 C729 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C730 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C741 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C742 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C743 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C744 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C745 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C746 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C747 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C748 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C749 KCEA1EH470T ELECT 47 F M 16V OA47601620 C750 KCEA1EH470T ELECT 47 F M 16V OA47601620 C755 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C756 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C757 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C761 C762 KCEA1VH101T ELECT 100 F M 35V OA10703520 C763 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C765 KCEA1VH471E ELECT 470 F M 35V OA47703520 C766 KCEA1VH471E ELECT 470 F M 35V OA47703520 C769 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C770 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C805 KCUS1H102KB CHIP 1000pF 10% B 50V DK96102300 C806 KCET2DFHX681ND ELECT 680 F 200V *EA001040R C808 KCUS1H222KB CER. CHIP 2200pF 10% DK96222300 C809 KCUS1H333KB CER. CHIP 0.033 F 10% DK96333200 C810 KCEA1HH101T ELECT 100 F M 50V OA10705020 C811 KCEA1HH100T ELECT 10 F M 50V OA10605020 C812 KCEA1VH472E ELECT 4700 F 35V EA47803510 C813 KCEA1VH472E ELECT 4700 F 35V EA47803510 C814 KCEA1EH102E ELECT 1000 F 25V OA10802520 C815 KCEA1EH102E ELECT 1000 F 25V OA10802520 C816 KCEA1EH471E ELECT 470 F 25V M OA47702520 C817 KCEA1AH471T ELECT 470 F M 10V OA47701020 C818 KCEA1AH471T ELECT 470 F M 10V OA47701020 C819 KCEA1HH1R0T ELECT 1 F M 50V OA10505020 C820 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C821 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C822 KCEA1CH101T ELECT 100 F M 16V OA10701620 C823 KCEA1CH101T ELECT 100 F M 16V OA10701620 C824 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C825 KCEA1AH471T ELECT 470 F M 10V OA47701020 C827 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C828 KCEA1CH101T ELECT 100 F M 16V OA10701620 C829 KCEA1AH471T ELECT 470 F M 10V OA47701020 C830 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C831 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C832 KCEA1AH471T ELECT 470 F M 10V OA47701020 C833 KCEA1AH471T ELECT 470 F M 10V OA47701020 C837 KCUS1H222KB CER. CHIP 2200pF 10% DK96222300 C838 KCEA1EH470T ELECT 47 F M 10V OA47601020 C839 KCEA1HH101T ELECT 100 F M 50V OA10705020 C840 KCEA1HH220T ELECT 22 F M 50V OA22605020 C841 KCEA1AH471T ELECT 470 F M 10V OA47701020 C844 KCEA1CH101T ELECT 100 F M 16V OA10701620 C901 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C902 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C903 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C904 KCEA1CAH100T ELECT 10 F M 16V OA10601620 C905 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C906 KCUS1H561JC CER. CHIP 560pF 10% DK96561300 C907 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C908 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C909 KCEA1EH470T ELECT 47 F M 16V OA47601620 C910 KCEA1EH470T ELECT 47 F M 16V OA47601620 C915 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C916 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 C917 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C921 C922 KCEA1VH101T ELECT 100 F M 35V OA10703520 C923 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C925 KCEA1VH471E ELECT 470 F M 35V OA47703520 C926 KCEA1VH471E ELECT 470 F M 35V OA47703520 C929 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C930 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 PA01-CAPACITORS(COMMON) C PLASTIC FILM CAPACITOR 5% 50V : C711-C714 C751-C754 C911-C914 PA01-RESISTORS RN01 KRJ10DJ683T CHIP 68k 5% 1/16W NN05683610 RN02 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN03 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 RN04 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN05 KRJ10DJ333T CHIP 33k 5% 1/16W NN05333610 RN06 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN07 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 RN08 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN09 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN10 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RN11 KRJ10DJ471T CHIP 470 5% 1/16W NN05471610 RN12 KRJ10DJ471T CHIP 470 5% 1/16W NN05471610 RN13 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RN14 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RN15 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RN16 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RN17 KRJ10DJ104T CHIP 100k 5% 1/16W NN05104610 R701 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R702 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R703 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R704 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 58 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) R705 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R706 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R707 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R708 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R709 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R710 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R711 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R712 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R713 KRJ10DJ102T CHIP 1k -5% 1/16W NN05102610 R716 R717 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R718 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R719 KVN1RA473B01T SEMI FIXED 47k RA04730780 R720 KVN1RA473B01T SEMI FIXED 47k RA04730780 R721 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R722 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R723 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R724 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R725 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R726 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R728 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 R729 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R730 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R731 KRJ10DJ822T CHIP 8.2k 5% 1/16W NN05822610 R732 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R733 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R734 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R735 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R736 KRJ12EJ102T CHIP 1k 5% 1/2W *RI000200R R737 KRJ12EJ102T CHIP 1k 5% 1/2W *RI000200R R738 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 R739 KRJ12EJ392T CHIP 3.9k 5% 1/2W RI05392120 R740 KRJ12EJ392T CHIP 3.9k 5% 1/2W RI05392120 R741 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R742 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R743 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R744 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R745 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R746 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R747 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R748 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R749 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R750 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R751 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R752 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R753 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R756 R757 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R758 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R759 KVN1RA473B01T SEMI FIXED 47k RA04730780 R760 KVN1RA473B01T SEMI FIXED 47k RA04730780 R761 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R762 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R763 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R764 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R765 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R766 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R768 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 R769 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R770 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R771 KRJ10DJ822T CHIP 8.2k 5% 1/16W NN05822610 R772 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R773 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R774 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R775 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 R776 KRJ10DJ123T CHIP 12k 5% 1/16W NN05123610 R779 R801 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R802 KRJ10DJ182T CHIP 1.8k 5% 1/16W NN05182610 R803 KRJ10DJ681T CHIP 680 5% 1/16W NN05681610 R804 KRJ10DJ154T CHIP 150k 5% 1/16W NN05154610 R805 KRJ10DJ183T CHIP 18k 5% 1/16W NN05183610 R806 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R808 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R811 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R812 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R813 KRJ10DJ153T CHIP 15k 5% 1/16W NN05153610 R814 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R815 KRJ10DJ153T CHIP 15k 5% 1/16W NN05153610 R816 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R819 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R822 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R825 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R826 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R828 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R831 R832 KRJ10DJ332T CHIP 3.3k 5% 1/16W NN05332610 R833 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R834 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 R835 KRJ10DJ682T CHIP 2.2k 5% 1/16W NN05682610 R836 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R837 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R838 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R901 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R902 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R903 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R904 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R905 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R906 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R907 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R908 KRJ10DJ223T CHIP 22k 5% 1/16W NN05223610 R909 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R910 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R911 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R912 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R913 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R916 R917 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R918 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R919 KVN1RA473B01T SEMI FIXED 47k RA04730780 R920 KVN1RA473B01T SEMI FIXED 47k RA04730780 R921 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R922 KRJ10DJ562T CHIP 5.6k 5% 1/16W NN05562610 R923 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R924 KRJ10DJ271T CHIP 270 5% 1/16W NN05271610 R925 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R926 KRG2SANJ6R8H METAL OXIDE FILM 6.8 5% 2W NK05068020 R928 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 R929 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R930 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R931 KRJ10DJ822T CHIP 8.2k 5% 1/16W NN05822610 R932 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R933 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R934 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R935 KRJ10DJ184T CHIP 180k 5% 1/16W NN05184610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) R936 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R937 KRJ10DJ123T CHIP 12k 5% 1/16W NN05123610 R938 KRJ10DJ123T CHIP 12k 5% 1/16W NN05123610 PA01-RESISTORS(COMMON) R CARBON FILM FIXED RES. 5% 1/6W : R807 R809 PA01-SEMICONDUCTORS D701 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D702 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D703 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D706 KVD1N4003SRT DIODE TW 1N4003S or 1D3 HD200010AR D707 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D708 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D741 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D742 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D743 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D747 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D748 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D801 BVDGBJ604 DIODE BRIDGE RBV-606 400V 6A HE20004080 D802 BVIPC123FY IC PHOTO COUPLER PC-123F2 HW10032320 D804 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 D805 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 D806 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D807 KMYBVDFMBG14LZA DIODE FMB-G14L & HEAT SINK ASSY *HC200120R D808 KMYBVDFMG2SZA DIODE FMG-22S &HEAT SINK ASSY *HC200130R D809 KMYBVDFMG22SZA DIODE FMG-22S &HEAT SINK ASSY *HC200130R D810 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D811 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D812 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D813 D816 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 D818 KVD1N4003SRT DIODE TW 1N4003S or 1D3 HD200010AR D819 KVD1N4003SRT DIODE TW 1N4003S or 1D3 HD200010AR D820 BVDUDZ-16B DIODE ZENER UDZ-16B HZ31601000 D821 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 D901 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D902 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D903 BVDRB160L40TE25 DIODE RB160L-40 TE25 SBD 40V 1A HZ20061210 D907 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R D908 BVDRB160L60TE25 DIODE RB160L-60 TE25 SBD 60V 1A *HZ200160R Q701 KMYBVITA2022ZA IC TA2022-100 HC10140990 Q702 BVT2SC2240GRT TRS. 2SC2240 (GR) HT322401A0 Q741 KMYBVITA2022ZA IC TA2022-100 HC10140990 Q801 BVIAN8037 IC SW REGULATOR AN8037 HC10174020 Q802 BRTNTH22D3R0LA THERMISTOR POWER NTH22D3R0LA HH00006230 Q803 KMYBVT2SK270ZA FET 2SK2730 HF22730000 Q804 BVINJM431L IC SHUNT REGULATOR NJM431 HC33136090 Q805 BVINJM78M15FA IC REGULATOR NJM78M15FA(0.5A 15V) HC3851509F Q806 BVINJM79M15FA IC REGULATOR NJM79M15FA(0.5A -15V) HC3951509F Q807 BVISI8033S IC REGULATOR(SW) SI-8033S HC91903080 Q808 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q809 KMYBVISI3050CZA IC SI-3050C HC10006080 Q810 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q811 KMYBVISI3050CZA IC SI-3050C HC10006080 Q812 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q813 BVT2SC2240GRT TRS. 2SC2240 (GR) HT322401A0 Q814 BVT2SC2240GRT TRS. 2SC2240 (GR) HT322401A0 Q815 BVIPQ2TZ15U IC CHIP REGULATOR(2.5V) PQ2TZ15U HC98903320 Q816 KMYNJM78M05FAZA IC NJM78M05FA HC3850509F Q817 BVINJM79M05FA IC REGULATOR NJM79M05FA -5V 0.5A HC3950509F Q818 KMYNJM7812FAYA IC NJM7812FA +12V HC3891209F Q819 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q820 BVIPQ1CZ21H2ZP IC CHIP REGULATOR(SW) PQ1CZ21H2ZP HC91915320 Q821 BVT2SC4213B TRS. CHIP(MUTING/SW) 2SC4213 HX342132A0 Q901 KMYBVITA2022ZA IC TA2022-100 HC10140990 Q902 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 QN01 BVITA7317P IC PROTECTOR TA7317P HC10042050 QN02 BVINJM2068M IC OP AMP NJM2068M HC10102090 QN03 BVT2SC4213B TRS. CHIP(MUTING/SW) 2SC4213 HX342132A0 QN04 BVT2SC4213B TRS. CHIP(MUTING/SW) 2SC4213 HX342132A0 QN05 BVTDTA114YUA TRS. CHIP DTA114YU BA12307000 PA01-MISCELLANEOUS F801 KBA2C5000NRJ FUSE 5A FS10500360 J702 KJJ5Q009Z TERMINAL SPEAKER (8P RED/BLK) *YT002290R J703 KJJ5P014Z TERMINAL SPEAKER CN *YT002300R J704 KJJ4M036Z BOARD JACK (1P BLK) JE010003CN *YT002310R J802 KJJ7A012Z OUTLET AC A2-02-D003-OP *YJ002350R L701 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 L702 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 L703 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L704 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L705 BLZ9M001Z COIL CHIP(100 H K) NLC322522 LU17104010 L706 BSL3B013ZE RELAY (DC24V) G5PA-28 5A/250VAC LY20240490 L741 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 L742 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 59 60 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) L743 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L744 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L745 BLZ9M001Z COIL CHIP(100 H K) NLC322522 LU17104010 L746 BSL3B013ZE RELAY (DC24V) G5PA-28 5A/250VAC LY20240490 L801 KLFKE0901 FILTER LINE *FN000120R L803 KLT470K705CT COIL CHOKE TSL0709-470KR94 *LC107280R L804 KLT470K705CT COIL CHOKE TSL0709-470KR94 *LC107280R L805 KLT101K705CT COIL CHOKE TSL0709-101KR94 LC11044600 L807 BSL3B013ZE RELAY (DC24V) G5PA-28 5A/250VAC LY20240490 L808 BSL1B012ZE RELAY (DC24V) POWER G5PA-1 5A LY10240280 L901 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 L902 BLZ9J003Z BEAD FERRITE(CHIP) BLM21A05PT FC90020050 L903 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L904 KLZ9L001Z COIL CHIP SLF12575-330M3R2 LU80333060 L905 BLZ9M001Z COIL CHIP(100 H K) NLC322522 LU17104010 L906 BSL3B013ZE RELAY (DC24V) G5PA-28 5A/250VAC LY20240490 M801 KMD1A441ZA FAN BRACKET ASS’Y MM01200290 T801 KLT5K004Z TRANS POWER(40X45) TS14157010 PB01-U-COM DSP CIRCUIT BOARD PB01-CAPACITORS CE01 KCEA1HH100T ELECT 10 F M 50V OA10605020 CE02 KCEA1HH100T ELECT 10 F M 50V OA10605020 CE05 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CE06 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CE07 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CE08 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CE09 KCUS1H470JC CER. CHIP 47pF 5% 50V DD95470300 CE12 CE13 KCUS1H103KB CER. CHIP 0.01 F 10% 25V DK96103200 CE14 KCUS1H103KB CER. CHIP 0.01 F 10% 25V DK96103200 CE15 KCEA1CH101T ELECT 100 F M 16V OA10701620 CE16 KCEA1EH470T ELECT 47 F M 16V OA47601620 CE17 KCEA1EH470T ELECT 47 F M 16V OA47601620 CG13 KCEA1EH470T ELECT 47 F M 16V OA47601620 CG14 KCEA1EH470T ELECT 47 F M 16V OA47601620 CG15 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CG16 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CJ01 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ02 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ03 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ04 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ05 KCUS1H181JC CER. CHIP 180pF 5% 50V DD95181300 CJ06 KCUS1H181JC CER. CHIP 180pF 5% 50V DD95181300 CJ07 KCUS1H153KB CER. CHIP 0.015 F 10% 16V DK96153200 CJ08 KCUS1H153KB CER. CHIP 0.015 F 10% 16V DK96153200 CJ21 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ22 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ23 KCUS1H181JC CER. CHIP 180pF 5% 50V DD95181300 CJ24 KCUS1H153KB CER. CHIP 0.015 F 10% 16V DK96153200 CJ31 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ32 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ33 KCUS1H181JC CHIP 180pF 5% 50V DD95181300 CJ41 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ42 KCEA1CAH100T ELECT 10 F M 16V OA10601620 CJ43 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ44 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CJ45 KCUS1H181JC CER. CHIP 180pF 5% 50V DD95181300 CJ46 KCUS1H181JC CER. CHIP 180pF 5% 50V DD95181300 CK01 KCEA1CH101T ELECT 100 F M 10V OA10701020 CK02 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CK03 KCEA1HH2R2T ELECT 2.2 F M 50V OA22505020 CK04 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CK05 KCEA1HH2R2T ELECT 2.2 F M 50V OA22505020 CK06 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CK07 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C601 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C602 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C603 KCEA1CH101T ELECT 100 F M 10V OA10701020 C604 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C605 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C606 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C607 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C608 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C609 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C610 KCEA1EH470T ELECT 47 F M 10V OA47601020 C611 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C612 KCUS1H220JC CER. CHIP 22pF 5% 50V DD95220300 C613 KCUS1H220JC CER. CHIP 22pF 5% 50V DD95220300 C614 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C615 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C616 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C618 KCEA1CH101T ELECT 100 F M 10V OA10701020 C619 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C620 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C622 KCUS1H220JC CER. CHIP 22pF 5% 50V DD95220300 C623 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C624 KCEA1CH101T ELECT 100 F M 10V OA10701020 C625 KCEA1CH101T ELECT 100 F M 10V OA10701020 C630 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C631 KCEA1HH2R2T ELECT 2.2 F M 50V OA22505020 C632 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C636 C638 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C639 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C648 KCUS1H471KB CER. CHIP 470pF 10% DK96471300 C651 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C652 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C653 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C654 KCEA1CH101T ELECT 100 F M 10V OA10701020 C655 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C658 C659 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C660 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C661 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C662 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C665 PB01-RESISTORS RE01 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE02 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE03 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE04 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE05 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE06 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE07 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE08 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 61 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) RE09 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE10 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE11 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE12 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE15 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE16 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE17 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE18 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RE19 KRJ10DJ104T CHIP 100k 5% 1/16W NN05104610 RE23 RE31 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE32 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RE33 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RE38 RE39 KRJ10DJ471T CHIP 470 5% 1/16W NN05471610 RE42 RE57 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 RE58 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 RG01 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RG02 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RG03 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RG05 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG06 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG07 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RG08 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RG09 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RG10 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RG15 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG16 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG17 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RG18 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RG19 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RG20 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RG23 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG24 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RG25 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RG27 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RG28 KRJ10DJ153T CHIP 15k 5% 1/16W NN05153610 RG29 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RJ01 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ06 RJ07 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RJ10 RJ11 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RJ12 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RJ13 KRJ10DJ104T CHIP 100k 5% 1/16W NN05104610 RJ21 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ22 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ23 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ24 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RJ25 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RJ26 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 RJ31 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ32 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ33 KRJ10DJ333T CHIP 33k 5% 1/16W NN05333610 RJ41 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ46 RJ51 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RJ52 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RJ53 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 RJ56 RJ58 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 RJ59 KRJ10DJ272T CHIP 2.7k 5% 1/16W NN05272610 RJ62 RJ63 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ64 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RJ65 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RK01 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RK02 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R600 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R601 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R602 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R603 KRJ10DJ822T CHIP 8.2k 5% 1/16W NN05822610 R604 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R605 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R606 KRJ10DJ680T CHIP 68 5% 1/16W NN05680610 R607 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R608 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R609 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R610 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R611 KRJ10DJ153T CHIP 15k 5% 1/16W NN05153610 R612 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R613 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R614 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R619 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R620 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R624 R625 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R626 KRJ10DJ105T CHIP 1M 5% 1/16W NN05105610 R629 R630 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R631 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R632 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R633 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R636 R637 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R638 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R639 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R640 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R641 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R643 KRJ10DJ273T CHIP 27k 5% 1/16W NN05273610 R644 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R645 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R646 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R647 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R648 KRJ10DJ333T CHIP 33k 5% 1/16W NN05333610 R649 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R650 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R654 R655 KRJ10DJ684T CHIP 680k 5% 1/16W NN05684610 R656 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R657 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R658 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R659 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R660 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 R663 R664 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R665 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R666 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) R667 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R668 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R669 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R670 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R671 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R678 R679 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R680 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R681 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 R688 R689 KRJ10DJ105T CHIP 1M 5% 1/16W NN05105610 R691 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R692 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R693 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R696 R697 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R698 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R699 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 PB01-SEMICONDUCTORS DE01 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 DE02 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 DE03 BVD1SS300 DIODE CHIP KDS120 or 1SS300 HZ21006000 DE04 BVD1SS300 DIODE CHIP KDS120 or 1SS300 HZ21006000 DE05 BVD1SS301 DIODE CHIP KDS121 or 1SS301 HZ21005000 QE01 BVINJM2068M IC OP AMP NJM2068M HC10102090 QE02 BVI74HC4052D IC 74HC4052 HC705200Z0 QE03 BVI74HC4052D IC 74HC4052 HC705200Z0 QE05 BVINJM2068M IC OP AMP NJM2068M HC10102090 QE06 BVINJM2068M IC OP AMP NJM2068M HC10102090 QE07 BVTDTA114YUA TRS. CHIP DTA114YU BA12307000 QG01 BVITC9482F IC ELECT VOL TC9482F *HC106890R QG02 BVINJM2082M IC OP AMP NJM2082M HC10103090 QG03 BVINJM2082M IC OP AMP NJM2082M HC10103090 QG04 BVINJM2082M IC OP AMP NJM2082M HC10103090 QJ01 BVINJM2068M IC OP AMP NJM2068M HC10102090 QJ02 BVINJM2068M IC OP AMP NJM2068M HC10102090 QJ03 BVINJM2068M IC OP AMP NJM2068M HC10102090 QJ04 BVINJM2068M IC OP AMP NJM2068M HC10102090 QJ05 BVT2SC4213B TRS. CHIP 2SC4213 HX342132A0 QJ06 BVT2SC4213B TRS. CHIP 2SC4213 HX342132A0 QJ07 BVINJM2068M IC OP AMP NJM2068M HC10102090 QJ08 BVT2SC4213B TRS. CHIP 2SC4213 HX342132A0 QJ09 BVTDTA114YUA TRS. CHIP DTA114YU BA12307000 QJ51 BVINJM2068M IC OP AMP NJM2068M HC10102090 QK01 BVIAK4527VQ IC CODEC AK4527 *HC106900R Q601 BVILC89055WRA8 IC DIR LC89055W-RA8 HC10405030 Q602 BVITC74HCT08AF IC QUAD AND GATE(2 IN) TC74HCT08AF HC700805Q0 Q603 BVITC74VHC08F IC QUAD AND GATE(2 IN) TC74VHC08F HC10452050 Q604 BVIS80745AND9 DETECTOR CHIP VOLTAGE S-80745AN-D9 HC10048530 Q605 IC FLASH MB90F553APF *HS332WF0R Q606 BVICSI24W04J IC EEPROM AT24C04N-10SI-2.5 HC10033990 Q609 BVICS493292 IC DSP CS493292 HC10009880 Q610 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q611 BVITC74VHC08F IC QUAD AND GATE(2 IN) TC74VHC08F HC10452050 Q612 BVITC74VHCT125A IC QUAD BUS BUFFER TC74VHCT125AF HC712505Q0 Q613 BVITC74VHCT574A IC OCTAL D FLIP-FLO TC74VHCT574AF HC008505K0 Q614 BVITC74VHCT574A IC OCTAL D FLIP-FLO TC74VHCT574AF HC008505K0 Q615 BVITC74LCX245F IC OCTAL BUS TRANSCEIVER TC74LCX245F HC008605K0 Q616 BVIIS61C1024J IC SRAM (1M) 8X128K 15OR20 NS SOJ HC10088000 Q617 IC O.T.P EPROM AT27C010-90PC *HS332WATR Q618 BVITC74VHC08F IC QUAD AND GATE(2 IN) TC74VHC08F HC10452050 Q620 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 PB01-MISCELLANEOUS JE01 KJJ4P028Z JACK BOARD JE040060 *YT002280R JE02 KJJ4P028Z JACK BOARD JE040060 *YT002280R J602 BJS9L001Z MODULE TOS LINK OPTICAL OUTPUT YJ15000110 J603 BJSTORX178B MODULE OPTICAL RECEIVER YJ15000160 X601 KOX12288E220TF CRYSTAL 12.288MHz (AT-49) JX12013260 X602 BOXCSTCC8000MG CERALOCK CSTCC8.00MG-TC 8.000MHz FQ08004070 PC01-VIDEO CIRCUIT BOARD PC01-CAPACITORS C201 KCUS1H060DC CER. CHIP 6pF 0.5pF 50V DD91060300 C202 KCUS1H060DC CER. CHIP 6pF 0.5pF 50V DD91060300 C203 KCUS1H180JC CER. CHIP 18pF 5% 50V DD95180300 C204 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C205 KCEA1CH101T ELECT 100 F M 16V OA10701620 C206 KCEA1EH470T ELECT 47 F M 10V OA47601020 C207 KCUS1H060DC CER. CHIP 6pF .5pF 50V DD91060300 C208 KCUS1H060DC CER. CHIP 6pF 0 0 .5pF 50V DD91060300 C209 KCUS1H180JC CER. CHIP 18pF 5% 50V DD95180300 C210 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C211 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C212 KCUS1H060DC CER. CHIP 6pF 0.5pF 50V DD91060300 C213 KCUS1H060DC CER. CHIP 6pF 0.5pF 50V DD91060300 C214 KCUS1H180JC CER. CHIP 18pF 5% 50V DD95180300 C215 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C216 KCEA1EH470T ELECT 47 F M 10V OA47601020 C229 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C230 KCUS1H470JC CER. CHIP 47pF 5% 50V DD95470300 C231 KCEA1AH471T ELECT 470 F M 10V OA47701020 C232 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C233 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C234 KCEA1CH101T ELECT 100 F M 16V OA10701620 C235 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C236 KCUS1H101JC CER. CHIP 100pF 5% 50V DD95101300 C238 KCEA1CH101T ELECT 100 F M 16V OA10701620 C239 KCUS1H103KB CER.CHIP 0.01 F 10% 50V DK96103300 C240 KCEA1CH101T ELECT 100 F M 16V OA10701620 C241 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C244 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C247 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C257 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C258 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C259 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C260 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C262 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 62 63 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) C263 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C265 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C266 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C268 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C270 KCEA1AH471T ELECT 470 F M 10V OA47701020 C271 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C272 KCEA1EH470T ELECT 47 F M 10V OA47601020 C273 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C274 KCEA1AH471T ELECT 470 F M 10V OA47701020 C275 KCEA1AH471T ELECT 470 F M 10V OA47701020 C276 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C277 KCEA1EH470T ELECT 47 F M 10V OA47601020 C278 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C279 KCEA1AH471T ELECT 470 F M 10V OA47701020 C280 KCUS1H104ZF CER. CHIP 0.1 FF 50V DK98104300 C281 KCUS1H103KB CER. CHIP 0.01 F 10% 50V DK96103300 C282 KCEA1EH470T ELECT 47 F M 10V OA47601020 C283 KCEA1HH1R0T ELECT 1 F 50V OA10505020 C284 KCUS1H104ZF CER.CHIP 0.1 F F 50V DK98104300 C287 KCUS1H104ZF CER.CHIP 0.1 F F 50V DK98104300 C289 KCEA1CH101T ELECT 100 F M 16V OA10701620 C290 KCEA1CH101T ELECT 100 F M 16V OA10701620 C291 KCEA1CH101T ELECT 100 F M 16V OA10701620 C293 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 C297 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 PC01-CAPACITORS(COMMON) C PLASTIC FILM CAPACITOR 5% 50V : C261 C264 C267 PC01-RESISTORS R201 KRJ10DJ821T CHIP 820 5% 1/16W NN05821610 R202 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R204 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 R205 KRJ10DJ821T CHIP 820 5% 1/16W NN05821610 R206 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R208 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 R209 KRJ10DJ821T CHIP 820 5% 1/16W NN05821610 R210 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R212 KRJ10DJ222T CHIP 2.2k 5% 1/16W NN05222610 R213 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R214 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R215 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R225 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R226 KRJ10DJ332T CHIP 3.3k 5% 1/16W NN05332610 R231 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R232 KRJ10DJ822T CHIP 8.2k 5% 1/16W NN05822610 R233 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R234 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R235 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R237 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R238 KRJ10DJ221T CHIP 220 5% 1/16W NN05221610 R239 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R240 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R241 KRJ10DJ182T CHIP 1.8k 5% 1/16W NN05182610 R246 KRJ10DJ821T CHIP 820 5% 1/16W NN05821610 R247 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R248 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R249 KRJ10DJ182T CHIP 1.8k 5% 1/16W NN05182610 R254 KRJ10DJ331T CHIP 330 5% 1/16W NN05331610 R255 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R256 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 R257 KRJ10DJ182T CHIP 1.8k 5% 1/16W NN05182610 R263 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R269 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 R270 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R271 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R274 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R275 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R276 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R277 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R280 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R281 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R282 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R283 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R286 KRJ10DJ101T CHIP 100 5% 1/16W NN05101610 R287 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R288 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R289 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R290 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R293 R294 KRJ10DJ104T CHIP 100k 5% 1/16W NN05104610 R295 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R296 KRJ10DJ750T CHIP 75 5% 1/16W NN05750610 R297 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 R298 KRJ10DJ682T CHIP 6.8k 5% 1/16W NN05682610 R299 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 PC01-SEMICONDUCTORS Q201 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q202 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q203 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q207 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q209 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q210 BVILA7138M IC VIDEO AMP LA7138M HC10406030 Q211 BVT2SB1237R TRS. 2SB1237 (R) HT212371C0 Q214 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q215 BVT2SC4081R TRS. CHIP 2SC4081 (BR) HX340811B0 Q216 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q217 BVT2SC4081R TRS. CHIP 2SC4081 (BR) HX340811B0 Q218 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q219 BVT2SC4081R TRS. CHIP 2SC4081 (BR) HX340811B0 Q230 BVIBA7625 IC VIDEO SW BA7625 HC10189210 Q231 BVIBA7625 IC VIDEO SW BA7625 HC10189210 Q232 BVIBA7626F IC VIDEO SW BA7626F *HC106910R Q233 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q235 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q236 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q238 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q239 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q241 BVT2SA1576AQ TRS. CHIP 2SA1576(FQ) HX115761A0 Q242 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 Q243 BVT2SB1237R TRS. 2SB1237 (R) HT212371C0 Q245 BVI74HC4066D IC SWITCHING 74HC4066 AF HC706600Z0 PC01-MISCELLANEOUS J204 KJJ9N001Z JACK S-VIDEO (2P/H) 2P S TERMINAL *YT002320R J205 KJJ9N001Z JACK S-VIDEO (2P/H) 2P S TERMINAL *YT002320R J207 KJJ4N051Z JACK IN/OUT(2P YEL) JE0201635N *YT002330R J208 KJJ4N051Z JACK IN/OUT(2P YEL) JE0201635N *YT002330R L201 KLQ120J405T COIL PEAKING(RADIAL) EL0405RA-120 LC11233900 L202 KLQ120J405T COIL PEAKING(RADIAL) EL0405RA-120 LC11233900 L203 KLQ120J405T COIL PEAKING(RADIAL) EL0405RA-120 LC11233900 L209 BLZ9O001Z BEAD FERRITE(CHIP) BLM41P600S PT FN31060010 L212 KLQ470J405T COIL PEAKING(RADIAL) EL0405RA-470 LC14733900 L213 KLQ470J405T COIL PEAKING(RADIAL) EL0405RA-470 LC14733900 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 64 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) L214 KLQ470J405T COIL PEAKING(RADIAL) EL0405RA-470 LC14733900 L215 BLZ9O001Z BEAD FERRITE(CHIP) BLM41P600S PT FN31060010 PC02-D CONNECTOR CIRCUIT BOARD PC02-CAPACITORS C401 KCEA1AH471T ELECT 470 F M 10V OA47701020 C402 KCEA1AH471T ELECT 470 F M 10V OA47701020 C403 KCEA1AH471T ELECT 470 F M 10V OA47701020 PC02-RESISTORS R401 KRJ10DJ3R3T CHIP 3.3 5% 1/16W NN05033610 R402 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R403 KRJ10DJ330T CHIP 33 5% 1/16W NN05330610 R404 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R405 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R407 KRJ10DJ330T CHIP 33 5% 1/16W NN05330610 R408 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 R409 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 R411 KRJ10DJ0R0T CHIP 0 5% 1/16W NN05000610 PC02-MISCELLANEOUS J402 BJJYKF45-3001 CONNECTOR D TERMINAL YKF45-3001 YJ11000660 PF01-FRONT DISPLAY CIRCUIT BOARD PF01-CAPACITORS CY02 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 CY04 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CY05 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 PF01-RESISTORS RY01 KRJ10DJ100T CHIP 10 5% 1/16W NN05100610 RY02 KRJ10DJ563T CHIP 56k 5% 1/16W NN05563610 RY03 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RY04 KRJ10DJ473T CHIP 47k 5% 1/16W NN05473610 RY05 KRJ10DJ221T CHIP 220 5% 1/16W NN05221610 RY11 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RY12 KRJ10DJ471T CHIP 470 5% 1/16W NN05471610 RY13 KRJ10DJ681T CHIP 680 5% 1/16W NN05681610 RY14 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RY15 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RY16 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 RY17 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 RY18 KRJ10DJ470T CHIP 47 5% 1/16W NN05470610 RY22 RY38 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RY39 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 PF01-SEMICONDUCTORS DY01 BVDTLGE1008A L.E.D CHIP TLGE1008A(T04) *HI100940R DY10 DY11 KVD342VCTB7T089 L.E.D RED SLR-342VC HI10071210 QY01 BVIUPD16311GC IC FIP DRIVE PD16311GC-AB6 FTD HC10283060 QY02 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 QY03 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 QY04 BVTDTC114EUA TRS. CHIP DTC114EU BA20035210 PF01-MISCELLANEOUS SY01 BST1A016ZT SW TACT SP01013310 SY07 VY01 KFL12BT123GNK F.I.P FL DISPLAY 12-BT-123GNK HQ31005410 PF02-FRONT SWITCH CIRCUIT BOARD PF02-CAPACITOR CY06 KCUS1H104ZF CER. CHIP 0.1 F F 50V DK98104300 PF02-RESISTORS RY31 KRJ10DJ472T CHIP 4.7k 5% 1/16W NN05472610 RY32 KRJ10DJ471T CHIP 470 5% 1/16W NN05471610 RY33 KRJ10DJ681T CHIP 680 5% 1/16W NN05681610 RY34 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RY35 KRJ10DJ102T CHIP 1k 5% 1/16W NN05102610 RY36 KRJ10DJ122T CHIP 1.2k 5% 1/16W NN05122610 RY37 KRJ10DJ103T CHIP 10k 5% 1/16W NN05103610 PF02-SEMICONDUCTOR QY05 BRVRPM6936V4 SENSOR REMOCON RPM6936-V4 (IR) HW10004210 PF02-MISCELLANEOUS SY31 BST1A016ZT SW TACT SP01013310 SY36 PF03-VOLUME (ROTARY SW) CIRCUIT BOARD SY21 BSR2A017Z VR ENCODER EC16B2410207 SR01240020 PF04-HEADPHONE JACK CIRCUIT BOARD PF04-CAPACITORS CY51 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 CY52 KCUS1H102KB CER. CHIP 1000pF 10% 50V DK96102300 PF04-CAPACITORS(COMMON) C HIGH DIELECTRIC CONSTANT CERAMIC CAPACITORS 10% 50V : CY53 CY54 PF04-MISCELLANEOUS JY52 BJJ2D005Z JACK MINI PHONE TC3B-160-02C *YJ002340R PJ01-JUMPER CIRCUIT BOARD PJ01-CAPACITORS CA01 KCEA1AH471T ELECT 470 F M 10V OA47701020 CA02 KCEA1AH471T ELECT 470 F M 10V OA47701020 NOT STANDARD SPARE PARTS W001 KWC1C4A28B150A FFC (JA01-J607) 28P X 150mm YU28150500 W002 KWC1C4A15B150A FFC (JE03-TUNER) 15P X 150mm YU15150500 W003 KWC1C4A25B060A FFC (J601-J701) 25P X 60mm YU25060500 W004 KWC1C4A14B300A FFC (J605-JY02) 14P X 300mm YU14300500 W005 KWC1C4A08B080A FFC (JY01-J805) 8P X 80mm YU08080500 W006 KWC1C4A14B100A FFC (JA04-J201) 14P X 100mm YU14100500 W007 KWC1C4A12B060A FFC (J202-J604) 12P X 60mm YU12060500 W008 KWC1C4A12B060A FFC (J203-J401) 12P X 60mm YU12060500 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. DVD Loader for MARANTZ TABLE OF CONTENTS SECTION PAGE 2.DB-VLD 210 (DVD Loader for MARANTZ) 2.1 EXTERIOR ............................................................................................................................................ 2-1 2.2 LOARDING MECHANISM ASSY .......................................................................................................... 2-2 2.3 TRAVERSE MECHANISM ASSYS ....................................................................................................... 2-3 Service Manual DB-VLD210 Please use this service manual with referring to the user guide (D.F.U) without fail. R DB-VLD210 First Issue:2001.04 Printed in Japan DVD Player : DV7010 DV7100 DV-18mkII DV-17 EC1000 ER3000 2.1 EXTERIOR 1 2 4 Refer to "Service Manual for DVD PCB Module" 3 (1) EXTERIOR PARTS LIST 2-1 Mark No. Part No. Description Part No. (for PCS) (for MJI) 1 — VWS1446, DVDM Assy DB-VPB210 ZK402K0210 1 — VWS1449, DVDM Assy DB-VPB211 ZK324J0210 1 9965 000 07628 VWS1447, DVDM Assy DB-VPB212 ZK402K0230 1 — VWS1448, DVDM Assy DB-VPB213 ZK402K0220 1 — VWS1450, DVDM Assy DB-VPB214 ZK324J0220 1 — VWS1451, DVDM Assy DB-VPB215 ZK408K0210 NSP 2 — VWT1174, Loader Assy — 3 9965 000 07934 VNL1858, Tray 402K163210 NSP 4 — PPZ30P080FMC, Screw — Open POWER SUPPLY ASSY side Short SW Pickup Flexible Cable Short DISASSEMBLY OF TRAVERSE MECHANISM ASSY Traverse Mechanism Assy-S Float Base (Top View) Unhook (×2) Unhook Unhook LOADING MECHANISM ASSY PARTS LIST 2.2 LOADING MECHANISM ASSY 22 20 21 18 To DVDM Assy CN4 To DVDM Assy CN3 To DVDM Assy CN2 15 12 11 13 14 4 5 9 2 10 8 7 4 3 6 1 16 17 Refer to "2.3 TRAVERSE MECHANISM ASSY-S". 2-2 1 9965 000 07935 VXX2653, *ZK000310R Traverse Mechanism Assy-S NSP 2 — VWG2171, LOAB Assy — 3 9965 000 07936 VNL1862, Drive Cam 402K054210 4 9965 000 07937 VNL1861, Drive Gear 402K058210 5 9965 000 07938 VNL1820, Lock Plate 402K104210 NSP 6 — PNW2968, Loading Bases — 7 9965 000 07939 VEB1315, Belt 402K264210 8 9965 000 07940 VNL1866, Gear Pulley 402K262210 NSP 9 — JGZ17P028FMC, Screw — 10 9965 000 07941 VNL1860, Loading Gear 402K058220 11 9965 000 07942 VXX2505, Loading Motor Assy *ZZ001600R Mark No. Part No. Description Part No. (for PCS) (for MJI) NSP 12 — PXM1027, — DC Motor / 0.3W (LOADING) 13 — PNW1634, Motor Pulley 296W262010 NSP 14 — VKP2253, Connector Assy — 15 9965 000 07943 VDA1842, Flexible Cable (08P) *YU000790R 16 9965 000 07944 VNL1865, Float Base 402K105210 17 9965 000 07945 VEB1286, Floating Rubber 402K056210 18 9965 000 07946 VDA1843, Flexible Cable (24P) *YU000800R 20 9965 000 07947 VNE2162, Clamper Plate 402K104220 21 9965 000 07948 VNL1738, Clamper 402K005210 22 9965 000 07949 VNL1859, Bridge 402K104230 Mark No. Part No. Description Part No. (for PCS) (for MJI) 2.3 TRAVERSE MECHANISM ASSY-S TRAVERSE MECHANISM ASSY-S PARTS LIST • Top View 30 16 34 19 8 15 10 10 22 33 23 5 14 10 37 18 32 13 10 37 18 26 25 27 29 7 7 7 3 1 11 28 33 6 35 20 12 21 4 9 31 37 17 24 37 36 To DVDM Assy CN3 2 21 9 17 2-3 NSP 1 — VWG2048, SMEB Assy — NSP 2 — VWG2009, FGSB Assy — NSP 3 — VXM1079, Motor — NSP 4 — VXM1084, Motor — NSP 5 — VWY1055, Pickup Assy — NSP 6 — DEC2040, Table Sheet — NSP 7 — VBA1058, Screw — NSP 8 — VBH1278, Centering Spring — 9 9965 000 07950 VBH1317, Hook Spring 296W115050 10 9965 000 07951 VBH1303, Skew Spring 296W115060 11 9965 000 07952 VBH1308, Gear Spring 296W115070 NSP 12 — VEC1959, Reflected Sheet — NSP 13 — VLL1504, Guide Bar — NSP 14 — VLL1505, Sub-guide Bar — 15 9965 000 07953 VNC1017, Hold Spring 296W115080 NSP 16 — VNE2070, Magnet Holder — NSP 17 — VNE2154, Motor Base — NSP 18 — VNE2155, Cover — NSP 19 — VNL1746, Centering Ring — NSP 20 — VNL1747, Disc Table — 21 9965 000 07954 VNL1770, Hook 296W258010 NSP 22 — VNL1802, FFC Holder — NSP 23 — VNL1806, Mechanism Base — NSP 24 — VNL1807, FG Holder — 25 9965 000 07955 VNL1808, Gear A 296W058090 26 9965 000 07956 VNL1809, Gear B 296W058100 27 9965 000 07957 VNL1810, Gear C 296W058110 28 9965 000 07958 VNL1811, Slider 296W125010 NSP 29 — VNL1814, Gear D — NSP 30 — VYM1024, Magnet — NSP 31 — JFZ17P025FZK, Screw — NSP 32 — JGZ17P028FMC, Screw — NSP 33 — VBA1051, Screw — NSP 34 — VXX2507, Magnet Holder Assy — 35 9965 000 07959 VXX2649, Spindle Motor Assy *ZK000290R 36 9965 000 07960 VXX2650, Carriage Motor Assy *ZK000300R NSP 37 — PBA1069, Screw —- Mark No. Part No. Description Part No. (for PCS) (for MJI) Mark No. Part No. Description Part No. (for PCS) (for MJI) DVD PCB Module for MARANTZ TABLE OF CONTENTS SECTION PAGE 3. DB-VPB210 / 211 / 212 / 213 / 214 / 215 (DVD PCB Module for MARANTZ) 3.1 BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .................................................................................. 3-1 3.2 PCB CONNECTION DIAGRAM ............................................................................................................ 3-10 3.3 PCB PARTS LIST.................................................................................................................................. 3-24 Service Manual DB-VPB210, DB-VPB211, DB-VPB212, DB-VPB213, DB-VPB214, DB-VPB215 Please use this service manual with referring to the user guide (D.F.U) without fail. R DB-VPB210/211/212/213/214/215 First Issue:2001.05 Printed in Japan DVD Player : DV7010 DV7100 DV-18mkII DV-17 EC1000 ER3000 The DVD module is different with each product and version. Refer to the following table. Vers. Model /U, /F, /A /K, /L, /S, /C /N DV7010 DB-VPB210 DB-VPB213 DB-VPB212 DV-18mkII DB-VPB210 DB-VPB213 DV-17 DB-VPB210 DB-VPB213 DB-VPB212 DV7100 DB-VPB215 Vers. Model /F, /A, /S, /C /K, /L /N EC1000 DB-VPB211 DB-VPB214 ER3000 DB-VPB211 DB-VPB214 (DB-VPB217) 3.1 BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1.1 BLOCK DIAGRAM 3-1 SPDL MOTOR TRKG F_DRV FCS 18,19 22,23 15 4 1 3 2 57-60 63-66 15 4 1 3 3 54 56 55 46 56 57 42 35 31 13 12 10 9 3 20 37 28 46 14 45 48 47 32 33 30 31 39 2 7 35 15 3 32 8 34 14 5 1 2 2 1 3 2 1 3 7 3 8 5 OEIC PICKUP ASSY F_RTN RF RF B1-B4 (24P) (24P) T_DRV T_RTN SPDL+ SPDO 16M 4 27M 27M 16M XSACK SREQ ADAI(AC3) ADAO VOUT YOUT COUT 27M ED0- ED7 SD0-SD7 SLDO TDO FDO TE FE PH BH DSPRF RFO SPDL- SLDR_R SLDR_F V+3D SW2 SW1 (GNDS) LOAD+ LOAD- LOADING MOTOR S101 LOADING POSITION SW CARRIAGE MOTOR CN4 RF IC IC1 LA9701M DVD DECODER BY CHIP IC12 PE5108A MPEG2 DECODER AV-1 16M SDRAM IC18 MB86373B IC19 MB811171622A -100FN WORK SRAM (1M) IC14 KM68V1000CLT-7L SYSTEM CONTROL CPU IC11 PD3410A FLASH MEMORY (4M) IC13 IC13 4M DRAM IC15 MN414800CSJ-07 CLOCK GENERATOR IC21 CY2081SL-638 SPDL & FTS DRIVER SERVO DSP IC3 M56788FP IC2 LC78652W (8P) CN3 (8P) CN202 CN2 CN1 CN101 (30P) CN5 6-9 170 107 27M 197 36/16M 205 B SMEB ASSY A LOAB ASSY D DVDM ASSY : Audio Signal Route (L ch) : V/Cb Signal Route (V/Cb) : Y Signal Route (Y) : R Signal Route (R) : G Signal Route (G) : B Signal Route (B) : C/Cr Signal Route (C/Cr) : RF Signal Route M M 78,80-84 86,87 2,4-9, 11 91 89 64 62 45 39 36 33 6 16M 5 36/16M 1 V+6M V12M SW+5 V3VD V25V 5 7 9 2 8 13 18,19 22,23 84 VOUT YOUT COUT R/C G/Y V Y C B/COMP 7 17 20 23 29 4 1 6ch NTSC/PAL ENCODER IC26 MC44724A 39-46 (V/Cb) (Y) (C/Cr) Q87 ED0- ED7 Q89 Q91 Q83 Q81 Q85 DB-VPB212 ONLY 19 27 26 (30P) CN5 ADAO 3 5 1 (30P) CN15 (V/Cb) (Y) (C/Cr) 7 11 9 23 (R) (G) (B) DB-VPB210 VYW1761 (4M) DB-VPB211 VYW1762 (4M) DB-VPB212 VYW1761 (4M) DB-VPB213 VYW1763 (8M) DB-VPB214 VYW1763 (8M) DB-VPB215 VYW1761 (4M) R/C G/Y B/COMP 27 58 23 25 Pro-1 IC27 PM0026A 68-75 Q87 ED0- ED7 Q89 Q91 DB-VPB215 ONLY D 1/3- D 3/3 DVDM ASSY DB-VPB210 (VWS1446) DB-VPB211 (VWS1449) DB-VPB212 (VWS1447) DB-VPB213 (VWS1448) DB-VPB214 (VWS1450) DB-VPB215 (VWS1451) D LOAB ASSY (VWG2171) TRAVERSE MECHANISM ASSY (VWT1161) LOADING MECHANISM ASSY (VWT1179) PICKUP ASSY (VWY1055) A SMEB ASSY (VWG2048) B FGSB ASSY (VWG2009) C LOADING MOTOR ASSY : VXX2505 SPINDLE MOTOR ASSY : VXX2649 CARRIAGE MOTOR ASSY : VXX2650 S101 : VSK1011 S201 : DSG1016 R101 330 CN101 S3B-PH-K-S CN202 VKN1212 CN201 52044-0345 : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE (F) (F) (T) (T) (F) (T) (T) (T) (T) (F) (F) (F) (F) (F) (F) (F) (F) (F) (T) (T) (F) (T) : SLIDER SERVO LOOP LINE (S) (S) (S) (S) (S) 3.1.2 LOAB, SMEB, FGSB ASSYS and OVERALL WIRING DIAGRAM 3-2 D 1/3 DVDM ASSY (VWS1446, VWS1449, VWS1447, VWS1448, VWS1450, VWS1451) 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D CHECKER CHIP IC5 BA4510F 1/2 CN4 DKN1193 CN3 VKN1763 CN2 S2B-PH-SM3 CN1 S3B-PH-SM3 LOADING MOTOR ASSY PICKUP ASSY CN202 B CN101 A 2SC4081 RF IC SPDL & FTS DRIVER IC3 1 2 4 7 DTC114EUA (DVD) (DVD) (DVD) (DVD) (CD) (CD) (T) (F) (F) (F) (F) (F) (T) (T) (T) (T) (F) (S) (S) (T) (T) (T) (F) (F) (F) (S) (S) (S) (F) (T) (T) (F) (F) (F) (F) (F) (T) (T) (T) (T) (T) 3.1.3 DVDM ASSY (1/3) 3-3 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 3/3 D IC5 BA4510F 2/2 IC7 BA4510F IC7 BA4510F 2/2 1/2 ADDRESS SERVO DSP IC LANDMARK for CHECKER R1 R2 DB-VPB212 33k 22k DB-VPB210, 211, 213, 214 Not used 10k DB-VPB215 10k Not used RESISTOR CAPACITOR 8 10 11 9 5 6 (DVD) (DVD) (CD) (CD) (T) (F) (F) (T) (S) : RF SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (F) (T) (S) : The power supply is shown with the marked box. 3-4 D 2/3 DVDM ASSY (VWS1446, VWS1449, VWS1447, VWS1448, VWS1450, VWS1451) 3/3 D 1/3 D 3/3 D 3/3 D 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 3/3 D 1/3 D 1/3 D 1/3 D 2/3 D 3/3 D 1/3 D RESISTOR CAPACITOR WORK SRAM (1M) FLASH MEMORY 4M DRAM BY CHIP DVD DATA PROCESSOR KM68V1000CLT-7L IC13 DB-VPB210 VYW1761 (4M) DB-VPB211 VYW1762 (4M) DB-VPB212 VYW1761 (4M) DB-VPB213 VYW1763 (8M) DB-VPB214 VYW1763 (8M) DB-VPB215 VYW1761 (4M) (DVD) 3.1.4 DVDM ASSY (2/3) 3-5 3/3 D 3/3 D 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 3/3 D 3/3 D 1/3 D 1/3 D 1/3 D 1/3 D 1/3, 3/3 D 1/3, 3/3 D 1/3 D 1/3 D 3/3 D 20MHz SH SYSTEM CONTROL CPU 3�5 CONVERTER Q3 Q3 Q3 RN1911 R501 R502 DB-VPB212, 215 Not used Not used DB-VPB210, 211, 213, 214 0 0 CN5 DB-VPB210 VKN1516 DB-VPB211 VKN1626 DB-VPB212 VKN1516 DB-VPB213 VKN1516 DB-VPB214 VKN1626 DB-VPB215 VKN1516 : RF SIGNAL ROUTE : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : The power supply is shown with the marked box. 3-6 D 3/3 DVDM ASSY (VWS1446,VWS1449, VMS1447, VWS1448,VWS1450) DB-VPB210 / 211 / 212 / 213 / 214 ONLY AV-1 MPEG2 DECODER 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 2/3 D 16M SDRAM RGB ENCODER DB-VPB212 ONLY 13 16 12 15 14 17 (VCB) (Y) (C) (VCB) (VCB) (Y) (Y) (C) (C) (VCB) (VCB) (Y) (Y) (C) (C) (R) (G) (R) (G) (B) (B) 3.1.5 DVDM ASSY (3/3) 3-7 RESISTOR CAPACITOR 2/3 D 1/3 D 2/3 D 2/3 D 2/3 D 2/3 D DB-VPB210, 211, 213, 214 ONLY DB-VPB212 ONLY R825 180F: DB-VPB212 200F: DB-VPB210, 211, 213, 214 CLOCK GENERATOR CN5 DB-VPB210 VKN1516 DB-VPB211 VKN1626 DB-VPB212 VKN1516 DB-VPB213 VKN1516 DB-VPB214 VKN1626 : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) : R SIGNAL ROUTE (R) : G SIGNAL ROUTE (G) : B SIGNAL ROUTE (B) (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (VCB) (VCB) (VCB) (Y) (Y) (Y) (Y) (B) (R) (G) (B) (R) (G) (B) (R) (G) (B) (R) (G) (C) (C) (C) (C) 3-8 3-9 AV-1 16M SDRAM 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D 2/3F D D 3/3F DVDM ASSY (VWS1451) DB-VPB215 ONLY (VCB) (Y) (C) (VCB) (Y) (C) (VCB) (Y) (C) 1316 1215 1417 3-10 CN15 VKN1516 Pro-1 CLOCK GENERATOR 2/3F D 2/3F D 2/3F D 1/3 D 2/3F D 2/3F D CN106 E 3/3F : AUDIO SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : V/CB SIGNAL ROUTE (VCB) : Y SIGNAL ROUTE (Y) : C SIGNAL ROUTE (C) (VCB) (Y) (C) (VCB) (VCB) (VCB) (Y) (Y) (Y) (C) (C) (C) WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : MJK1, Title 1-chp 1 or TDV-540, Title 2-chp1 No. 5 : CD, ABEX-784 Track 1 or PHILIPS SBC 429 Track1 No. 12 to 14 : MJK1, Title 1-chp 4 or TDV-540, Title 2-chp1 No. 15 to 17 : MJK1, Title 1-chp 5 or TDV-540, Title 2-chp1 1 Foot of R169 (RF) V: 100mV/div. H: 0.2µsec/div. 2 TP2 (RFO) V: 500mV/div. H: 0.1µsec/div. 3 4 TP3 (Tracking Error) (AI-Inner Tracking Off) V: 500mV/div. H: 2msec/div. 5 IC2 - pin 39 (EFM before slice) V: 1V/div. H: 1µsec/div. 6 IC2 - pin 1 (EFM) V: 1V/div. H: 0.2µsec/div. 7 IC3 - pin 41 (REGB) V: 1V/div. H: 5msec/div. 8 Foot of R261 (FPWM) V: 1V/div. H: 5msec/div. 9 Foot of R262 (VPWM) V: 1V/div. H: 5msec/div. 10 Foot of R263 (PPWM) V: 1V/div. H: 5msec/div. 11 Foot of R264 (RPWM) V: 1V/div. H: 5msec/div. 12 IC18 - pin 45 (Composite Video output) V: 2V/div. H: 1msec/div. 13 IC18 - pin 39 (Y output) V: 0.2V/div. H: 5msec/div. 14 IC18 - pin 36 (C output) V: 0.2V/div. H: 5msec/div. 15 IC18 - pin 45 (CB output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 16 IC18 - pin 39 (Y output when selecting color difference output) V: 0.2V/div. H: 5msec/div. 17 IC18 - pin 36 (CR output when selecting color difference output) V: 2V/div. H: 5msec/div. GND GND GND GND GND GND GND GND GND GND GND GND 3-11 (VNP1722-A) (VNP1732-A) CARRIAGE MOTOR SPINDLE MOTOR BLK RED M M NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 3.2 PCB CONNECTION DIAGRAM 3.2.1 LOAB and SMEB ASSYS (VNP1762-A) (VNP1774-A) (VNP1762-A) (VNP1774-A) CN1 D CN3 D C LOAB ASSY A SMEB ASSY B LOAB ASSY A SIDE A SIDE B 3-12 3.2.2 DVDM ASSY DVDM ASSY D SIDE A (VNP1760-A) Q3 Q121 Q103 Q91 Q83 Q7 Q6 Q101 Q107 Q81 IC1 IC7 IC11 IC15 IC21 IC18 IC3 Q4 Q5 Q102 Q109 IC5 IC8 • This PCB is a four-layered board. 3-13 DVDM ASSY D LOADING MOTOR ASSY PICKUP ASSY CN202 B CN101 A SIDE B (VNP1760-A) Q1 IC12 IC2 IC19 Q112 Q114 Q113 Q131 Q106 Q85 Q89 Q87 Q251 IC26 IC27 IC13 IC14 • This PCB is a four-layered board. 3-14 • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. LC78652W (DVDM ASSY : IC2) • DSP IC Block Diagram 3.2.3 IC • List of IC LC78652W, PD3410A, MB86373B 33 FE 32 TE 29 TILTE 30 RF_PH 31 RF_BH 28 JITT 26 TES 51 HFLIO 81 VPDO 15 XOUT 73 BUSYB 8 XTALOUT 100 LEFM 97 LEFM2 52 LASER 92 JV MPX Servo Processor (16 16+32 32) 8bit A/D 8bit D/A CMP Track Counter 56 PP2/EVENT Event Counter 55 FG 39 EFMIN 80 VCOC 96 DVDSYNC 14 XIN 58 CSB 94 ADRAO 60 WRB 59 RDB 91 CDFR 90 DVDFR 1 EFMOUT SLCIST1,2 FG Counter SLC CLV PLL Frame Synchronous Detection, Protection, Insertion EFM Demodulation Error Detect Correction C1-Twofold, C2-Fourfold Supplement/Mute D Attenuate Deemphasis Filter Clock Generator Command Interface 34,35 SLCO1,2 36,37 PCKIST1,2 87,88 PD01-3 83-85 P0-7 63-70 PP0-3 93 PCK For De-Interleave 16k SRAM DOUT Serial Out Sub Code Decode CRC DVD Lock Detection 74 SQOUT 47 FDO 48 TDO 45 SLDO 46 SPDO 44 TBAL 43 TILTDO 42 AUXO 24 DRF 22 FAST 95 DVDSYEQ 23 V_PB 21 FSEQ 77 WRQ 17 EMPH 4 ROMCK 5 LRSY 19 DOUT 3 ROMXA 57 RESB 2 C2F 20 EFLG 9 FSX 12 PW 18 SBSY 11 SFSY 75 CQCKB TEST1-4 76 RWC 10 SBCK 25,27 38,50 7 FBUSYB General Purpose Register 53,54 ,56 3-15 •Pin Function . o N e m a N Pin I/O on it c n u F 1 T U O M F E O M F E e ula v d e t a ts - y r a nib s a w t a h t e t a ts e h t t u p t u O 2 F 2 C O t u p t u o g alf 2 C 3 A X M O R O t u p t u o a t a d M O R - D C 4 K C M O R O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc tfih S 5 Y S R L O t u p t u o a t a d M O R - D C r o f t u p t u o k c olc R / L 6 3 P P O /I t u p t u o D O - h c N t u p nila n gis .c n y s D V D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 B Y S U B F O t u p t u o D O - h c N n oit a r e p o s s e c o r p P S D f o t u p t u o la n gis y s u B 8 T U O L A T X O t u p t u o k c olc m e ts y s la n r e tx E 9 X S F O t u p t u o la n gis .c n y s e m a rf 1 D C 0 1 K C B S I t u p ni k c olc t u o g nid a e r e d o c b u S 1 1 Y S F S O e d o c b u s f o t u p t u o la n gis .c n y s e m a r F 2 1 W P O t u p t u o W d n a V , U , T , S , R , Q , P e d o c b u S 3 1 S S V − nip D N G 4 1 N I X I ) z H M 4 4 3 9 . 6 1 ( r o t a n o s e r la ts y r c a tc e n n o C 5 1 T U O X O r o t a n o s e r la ts y r c a tc e n n o C 6 1 1 D D V D − tiu c ric n oit allic s o e h t f o ylp p u s r e w o p V 3 . 3 7 1 H P M E O sis a h p m e e d e h t f o nip r o tin o M 8 1 Y S B S O k c olb e d o c b u s e h t f o t u p t u o la n gis .c n y S 9 1 T U O D O t u p t u o a t a d J A I E oid u A 0 2 G L F E O 2 C d n a 1 C n oitc e rr o c r o rr e e h t f o r o tin o m e t a ts n oitc e rr o c r o rr E 1 2 Q E S F O la n gis .c n y s e m a rf D V D / D C e h t f o r o tin o m n oitc e t e D 2 2 T S A F O t u p t u o D O - h c N r o tin o m d e e p s k c a b y al P 3 2 B P _ V O lo rt n o c V L C / o v r e s h g u o r e h t f o t u p t u o r o tin o M 4 2 F R D O r o tin o m s u c o f n I 5 2 3 T S E T I 3 t u p ni ts e T 6 2 S E T I t u p nila n gis r o rr e g nik c a r T 7 2 2 T S E T I 2 t u p ni ts e T 8 2 T T IJ I L L P M F E f o t u p nila n gis g nitc e t e d ytit n a u q r e ttiJ 9 2 E T L I T I t u p nila n gis r o rr e tli T 0 3 H P _ F R I t u p nila n gis dlo h k a e p F R 1 3 H B _ F R I t u p nila n gis dlo h m o tt o b F R 2 3 E T I t u p nila n gis r o rr e g nik c a r T 3 3 E F I t u p nila n gis r o rr e s u c o F 4 3 1 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 1 nip g nitt e s t n e rr u C 5 3 2 T S I C L S − C L S r o f p m u p e g r a h c t n e rr u c t n a ts n o c e h t f o 2 nip g nitt e s t n e rr u C 6 3 1 O C L S O C L S r o f 1 t u p t u o lo rt n o C 7 3 2 O C L S O C L S r o f 2 t u p t u o lo rt n o C 8 3 1 T S E T I 1 t u p ni ts e T 9 3 N I M F E I t u p ni + M F E / M F E 0 4 D D V A − o v r e s r o f A / D d n a D / A f o ylp p u s r e w o p V 5 1 4 S S V A − o v r e s r o f A / D d n a D / A f o D N G 2 4 O X U A O t u p t u o y r ailix u a A D 3 4 O D T L I T O t u p t u o la n gis lo rt n o c tli T 4 4 L A B T O t u p t u o la n gis lo rt n o c e c n ala b g nik c a r T 5 4 O D L S O t u p t u o la n gis lo rt n o c d el S 6 4 O D P S O t u p t u o la n gis lo rt n o c eld nip S 7 4 O D F O t u p t u o la n gis lo rt n o c s u c o F 8 4 O D T O t u p t u o la n gis lo rt n o c g nik c a r T 9 4 F E R V − o v r e s r o f A / D f o le v el e c n e r e f e R 0 5 4 T S E T I 4 t u p ni ts e T 3-16 . o N e m a N n i P O /I on it c n u F n i P 1 5 IO L F H I/O ut p t u o /t u p nila n gis n oitc e t e d r o rri M 2 5 R E S A L O lo rt n o c F F O / N O r e s al r o f nip t u p t u O 3 5 B D C _ D V D / 0 P P O I/ ut p t u o la n gis n oit a ni m ir c sid c si D / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 4 5 B R R E C R C / 1 P P O /I t u p t u o la n gis tlu s e r C R C e d o c b u S / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 5 5 G F I t u p ni r e t n u o c G F 6 5 T N E V E / 2 P P I/O u p ni r e t n u o c t n e v E / t u p t u o /t u p ni tr o p e s o p r u p -la r e n e G 7 5 B S E R I ut p ni t e s e R 8 5 B S C I t u p ni tc ele s pih C 9 5 B D R I t u p nila n gis g nid a e r e t a ts la n r e t n I 0 6 B R W I t u p nila n gis g nitir w a t a d / d n a m m o C 1 6 2 D D V D − ylp p u s r e w o p V 5 2 6 S S V − D N G 3 6 0 P O / ut p t u o /t u p ni a t a d / d n a m m o C 4 6 1 P 5 6 2 P 6 6 3 P 7 6 4 P 8 6 5 P 9 6 6 P 0 7 7 P 1 7 S S V − D N G 2 7 1 D D V D − la n r e t ni r o f ylp p u s r e w o p V 3 . 3 3 7 B Y S U B O s s e c o r p d n a m m o c f o t u p t u o la n gis y s u B 4 7 T U O Q S O Q e d o c b u s f o t u p t u o lair e S 5 7 B K C Q C I t u p t u o a t a d Q e d o c b u s r o f t u p ni k c olc tfih S 6 7 C W R I Q e d o c b u s f o t u p ni n ois si m r e p e t a d p U 7 7 Q R W O Q e d o c b u s f o r o tin o m y d a e r t u o d a e R 8 7 S S V A − k c olc m e ts y s la n r e t ni r o f D N G L L P 9 7 R F P R V − k c olc m e ts y s r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 0 8 C O C V I k c olc m e ts y s r o f r e tlif L L P a tc e n n o C 1 8 O D P V O 2 8 D D V A − k c olc m e ts y s r o f ylp p u s r e w o p V 5 L L P 3 8 1 O D P I/O ck a b y alp M F E r o f 1 nip n oitc e n n o c r e tlif L L P 4 8 2 O D P O / ck a b y alp M F E r o f 2 nip n oitc e n n o c r e tlif L L P 5 8 3 O D P O / ck a b y alp M F E r o f 3 nip n oitc e n n o c r e tlif L L P 6 8 S S V A − k c a b y alp M F E r o f D N G L L P 7 8 1 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 1 g nitt e s t n e rr u C 8 8 2 T S I K C P − k c a b y alp M F E r o f p m u p e g r a h c t n e rr u c t n a ts n o c L L P f o 2 g nitt e s t n e rr u C 9 8 D D V A − k c a b y alp M F E r o f ylp p u s r e w o p V 5 L L P 0 9 R F D V D − 1 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 1 9 R F D C − 2 k c a b y alp M F E r o f L L P f o g nitt e s e g n a r n oit allic s o O C V 2 9 V J O k c a b y alp M F E r o f k c olc L L P f o t u p t u o r e ttiJ 3 9 K C P O k c a b y alp M F E r o f t u p t u o k c olc ti B 4 9 O A R D A I t u p ni s s e r d d A 5 9 Q E Y S D V D I t u p ni e slu p e zin o r h c n y s D V D 6 9 C N Y S D V D I t u p nila n gis s u o n o r h c n y s D V D 7 9 2 M F E L O 2 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O 8 9 1 D D V D − O /I r o f ylp p u s r e w o p V 3 . 3 9 9 S S V − D N G 0 0 1 M F E L O 1 K C P h ti w M F E e ula v d e t a ts - y r a nib s a w h cih w la n gis a t u o d n a t u c t a h t e t a ts e h t t u p t u O I I I 3-17 PD3410A (DVDM ASSY : IC11) • System Control IC • Pin Function . o N k r a M e m a N n i P O /I on it c n u F 1 L S A C X / 3 S C X 3 S C X O t u p t u o la n gis tc ele s pih c ) P I H C Y M ( A 5 9 9 4 D P 2 D N G D N G − D N G 3 K C CK U P HC . C . N 4 C C V D 3 + V − D 3 + V 5 K L C I P − O /I . C . N 6 A T A D I P − O /I . C . N 7 D N G D N G − D N G 8 0 H T R O P − O . C . N 9 1 H T R O P − O . C . N 0 1 2 H T R O P H V M 6 3 O )r o t a r e n e g k c ol C ( F 8 5 1 2 U B 1 1 3 H T R O P 2 L E S _ V O ]le d o m Y W [ la ni m r e t trik s e h t f o t u p t u o la n gis g nih cti w s S / e tis o p m o C 2 1 C C V D 3 + V − D 3 + V 3 1 4 H T R O P − O . C . N 4 1 5 H T R O P − O . C . N 5 1 6 H T R O P − O . C . N 6 1 7 H T R O P − O . C . N 7 1 D N G D N G − D N G 8 1 L A T X E L A T X E I r o t a n o s e r ci m a r e c a tc e n n o C 9 1 L A T X L A T X O 0 2 C C V D 3 + V − D 3 + V 1 2 0 G T R O F0 D S C X ( t u p t u o la n gis tc ele s pih c C A D ← ) 3 T A L X 2 2 1 G T R O P − O . C . N 3 2 2 G T R O P − O . C . N 4 2 3 G T R O P − O . C . N 5 2 4 G T R O P − O . C . N 6 2 D N G D N G − D N G 7 2 5 G T R O P − O . C . N 8 2 6 G T R O P − O . C . N 9 2 7 G T R O TE U M A X oid u a e h t f o t u p t u o la n gis e t u m e g a ts ts a L 0 3 0 F T R O P 8 4 X 4 4 O t u p t u o la n gis g nih cti w s S F 8 4 / 4 4 C A D 1 3 1 F T R O P − I . C . N 2 3 2 F T R O P N O D 3 O t u p t u o la n gis g nih cti w s s s a p y b / N O oid u a D 3 3 3 C C V D 3 + V − D 3 + V 4 3 3 F T R O P − O . C . N 5 3 4 F T R O ST R S V A X tr o p t e s e r .c n y S 6 3 5 F T R O P − O . C . N O O O O P P P 3-18 D O X O F O F O . o N k r a M e m a N n i P O /I on it c n u F 7 3 6 F T R O P − O . C . N 8 3 7 F T R O P E V S C X O ]le d o m Y W [ r e d o c n e o e div e h t f o t u p t u o la n gis elb a n e n oit a cin u m m o c lair e S 9 3 D N G D N G − D N G 0 4 S S V A D N G − D N G 1 4 C C V A D 3 + V − D 3 + V 2 4 P _ A T U O V R D O L O t u p t u o e vir d g nid a o L 3 4 F E R V D 3 + V − D 3 + V 4 4 P _ B T U O I E T O t u p t u o la n gis t e sff o g nik c a r T 5 4 S S V A D N G − D N G 6 4 S S V A D N G − D N G 7 4 0 E T R O P L E S _ V O t u p t u o la n gis g nih cti w s e tis o p m o c/t n e n o p m o C 8 4 1 E T R O P − I . C . N 9 4 2 E T R O P − I . C . N 0 5 3 E T R O T1 S F O / t 1 u p t u o t n e m ts ujd a t e sff o s u c o F 1 5 4 E T R O P T2 S F O /I t 2 u p t u o t n e m ts ujd a t e sff o s u c o F 2 5 5 E T R O P NH I F D /I ut p t u o la n gis t n u h s tc e f e D 3 5 6 E T R O P C X / D V t u p t u o la n gis g nih cti w s D C / D V D 4 5 7 E T R O P ON _ 1 D t u p t u o la n gis N O e d oid r e s al m n 0 5 6 5 5 0 D T R O P ON _ 2 D t u p t u o la n gis N O e d oid r e s al m n 0 8 7 6 5 C C V D 3 + V − D 3 + V 7 5 1 D T R O P E T / D P D O t u p t u o la n gis g nih cti w s s m a e b 3 / m a e b 1 8 5 2 D T R O P F F O G A O C I F R f o t u p t u o la n gis g nih cti w s F F O / N O C G A 9 5 3 D T R O P X 2 D C X O ) D C V ( k c a b y alp d e e p s elb u o d e h t g nih cti w s r o f t u p t u o la n gi S 0 6 4 D T R O P G C I E O O t u p t u o la n gis g nih cti w s nia g C I E O 1 6 D N G D N G − D N G 2 6 5 D T R O P N O M X O t u p t u o lo rt n o c r o t o m eld nip s e h t f o t u p t u o la n gis g nih cti w s F F O / N O 3 6 6 D T R O P − O . C . N 4 6 7 D T R O P − I . C . N 5 6 0 J T R O P UT M V R D X t u p t u o e t u m r e vir D 6 6 1 J T R O P − O . C . N 7 6 2 J T R O P ST R P S D X t e s e r P S D o v r e S 8 6 3 J T R O P − I . C . N 9 6 C C V D 3 + V − D 3 + V 0 7 4 J T R O NT E _ M y rt n e e d o m ts e T 1 7 5 J T R O P − O . C . N 2 7 6 J T R O SW _ L E S t u p ni W S e tis o p m o c/t n e n o p m o C 3 7 7 J T R O P − I . C . N 4 7 2 A C O I T / 0 B SY U B C t u p ni y s u b d n a m m o C 5 7 2 B C O I T / 1 B SY U B A t u p ni y s u b e c n e u q e s - o t u A 6 7 3 A C O I T / 2 B P 2 T N I X I ) 1 - V A ( 2 t u p ni t p u rr e t n I 7 7 C C V D 3 + V − D 3 + V 8 7 3 B C O I T / 3 B P 1 T L O r ello rt n o c L F e h t o t t u p t u o la n gis e s n o p s e r n oit a cin u m m o C 9 7 4 A C O I T / 4 B P Y S B S I t u p ni .c n y s k c olb e d o c b u S 0 8 T S E T M X − D) 3 + V ( la ni m r e t ts e T 1 8 D M U P C X − I D) 3 + V ( la ni m r e t ts e T 2 8 S E R ET S E R X t u p ni t e s e R I P L O O L O O P T I I I I I P V X P X P I X 3-19 . o N k r a M e m a N n i P O /I on it c n u F 3 8 D N G ND G − D N G 4 8 0 N A OS P D O L t u p ni n oitis o p g nid a o L 5 8 1 N A OS P D L S t u p ni n oitis o p r e dil S 6 8 2 N A − I . C . N 7 8 3 N A SW _ P A N t u p ni W S L A P / O T U A / C S T N 8 8 4 N A EM O X n oitc e t o r p le d o m M E O f o la ni m r e t t u p n I 9 8 5 N A AD E D D L y alp sid e ula v t n e rr u c D L r o f t u p n I 0 9 6 N A − I . C . N 1 9 7 N A − I . C . N 2 9 f e r v A 3D + V − D 3 + V 3 9 C C V A 3D + V − D 3 + V 4 9 S S V A ND G − D N G 5 9 4 B C O I T / 5 B P − I . C . N 6 9 LKC C T / 4 A X C O I T / 6 B P 2F C t u p ni r o rr e 2 C 7 9 KD L C T / 4 B X C O I T / 7 B P DF R X r ello rt n o c L F e h t m o rf t u p ni ts e u q e r n oit a cin u m m o C 8 9 0 D x R / 8 B P SI S )r ello rt n o c L F ( t u p ni a t a d lair e S 9 9 0 D x T / 9 B P SO S )r ello rt n o c L F ( t u p t u o a t a d lair e S 0 0 1 C C V 3D + V − D 3 + V 1 0 1 1 D x R / 0 1 B P XD R C 2 3 2 - S R e h t f o t u p ni a t a D 2 0 1 1 D x T / 1 1 B P XD T C 2 3 2 - S R e h t f o t u p t u o a t a D 3 0 1 0 K C S / 4 Q R I X / 2 1 B P CK S S /O I r) ello rt n o c L F ( t u p t u o k c olc lair e S 4 0 1 1 K C S / 5 Q R I X / 3 1 B P 10 L Q R I X ) P I H C Y M ( 0 # t u p ni t p u rr e t n I 5 0 1 D N G ND G − D N G 6 0 1 6 Q R I X / 4 1 B P 11 L Q R I X ) P I H C Y M ( 1 # t u p ni t p u rr e t n I 7 0 1 7 Q R I X / 5 1 B P T0 N I X ) 1 - V A ( 0 # t u p ni t p u rr e t n I 8 0 1 0 A C O I T / 4 S C X / 0 A P S4 C X t u p t u o la n gis tc ele s pih c P S D o v r e S 9 0 1 S A R X / 5 S C X / 1 A P − O . C . N 0 1 1 0 B C O I T / 6 S C X / 2 A P S6 C X t u p t u o la n gis tc ele s pih c 1 - V A 1 1 1 T I A W X IT A W X t u p nila n gis tia W 2 1 1 L R W X RL W X L t u p t u o e slu p e tir W 3 1 1 D N G ND G − D N G 4 1 1 H R W X RH W X H t u p t u o e slu p e tir W 5 1 1 D R X RD X t u p t u o e slu p d a e R 6 1 1 K C A B X / 7 A P ET D R U C X t u p nila n gis n oitc e t e d t n e rr u c -r e v O 7 1 1 Q E R B X / 8 A P TS C t u p ni ti m r e p r e fs n a rt C 2 3 2 - S R 8 1 1 / T U O Q R I X / H A X / 9 A P G R T D A X R T D O t u p t u o ti m r e p r e fs n a rt C 2 3 2 - S R 9 1 1 1 A C O I T / L P D / 0 1 A P T1 N I X ) 1 - V A ( 1 t u p ni t p u rr e t n I 0 2 1 1 B C O I T / H P D / 1 1 A P LD H T t u p nila n gis dlo h g nik c a r T 1 2 1 C C V 3D + V − D 3 + V 2 2 1 / 0 K C A D / 0 Q R I X / 2 1 A P A K L C T 0 K C A D O ) P I H C Y M ( t u p t u o e s n o p s e r A M D 3 2 1 / 1 Q R I X / 3 1 A P B K L C T / 0 Q E R D X 0 Q E R D X I ) P I H C Y M ( t u p ni ts e u q e r A M D 4 2 1 K1 C A D X / 2 Q R I X / 4 1 A P K1 C A D X ) 1 - V A ( t u p t u o e s n o p s e r A M D 5 2 1 Q1 E R D X / 3 Q R I X / 5 1 A P Q1 E R D X ) 1 - V A ( t u p ni ts e u q e r A M D 6 2 1 0 D A D0 /O I s 0 u b a t a D I I I I I I I I I I I I I I I I O O O O O O O O I 3-20 . o N k r a M e m a N n i P O /I on it c n u F 7 2 1 D N G ND G − D N G 8 2 1 1 D A D1 /O I s 1 u b a t a D 9 2 1 2 D A D2 /O I s 2 u b a t a D 0 3 1 3 D A D3 /O I s 3 u b a t a D 1 3 1 4 D A D4 /O I s 4 u b a t a D 2 3 1 5 D A D5 /I O s 5 u b a t a D 3 3 1 6 D A D6 /O I s 6 u b a t a D 4 3 1 C C V 3D + V − D 3 + V 5 3 1 D7 A D7 /O I s 7 u b a t a D 6 3 1 D8 A D8 /O I s 8 u b a t a D 7 3 1 D9 A D9 /O I s 9 u b a t a D 8 3 1 10 D A 10 D /O I 10 s u b a t a D 9 3 1 D N G ND G − D N G 0 4 1 11 D A 11 D /O I 11 s u b a t a D 1 4 1 12 D A 12 D /O I 12 s u b a t a D 2 4 1 13 D A 13 D /O I 13 s u b a t a D 3 4 14 1 D A 14 D /O I 14 s u b a t a D 4 4 1 C C V 3D + V − O O O O O O O O O O O O O O O O O O O O O O O O D 3 + V 5 4 1 15 D A 15 D /O I 15 s u b a t a D 6 4 1 ) S B H X ( 0 A A0 0 s u b s s e r d d A 7 4 1 1 A A1 1 s u b s s e r d d A 8 4 1 2 A A2 2 s u b s s e r d d A 9 4 1 D N G ND G − D N G 0 5 1 A3 A3 3 s u b s s e r d d A 1 5 1 A4 A4 4 s u b s s e r d d A 2 5 1 A5 A5 5 s u b s s e r d d A 3 5 1 A6 A6 6 s u b s s e r d d A 4 5 1 A7 A7 7 s u b s s e r d d A 5 5 1 A8 A8 8 s u b s s e r d d A 6 5 1 A9 A9 9 s u b s s e r d d A 7 5 1 0 1 A 10 A 0 1 s u b s s e r d d A 8 5 1 1 1 A 11 A 1 1 s u b s s e r d d A 9 5 1 2 1 A 12 A 2 1 s u b s s e r d d A 0 6 1 3 1 A 13 A 3 1 s u b s s e r d d A 1 6 1 4 1 A 14 A 4 1 s u b s s e r d d A 2 6 1 5 1 A 15 A 5 1 s u b s s e r d d A 3 6 1 6 1 A 16 A 6 1 s u b s s e r d d A 4 6 1 7 1 A 17 A 7 1 s u b s s e r d d A 5 6 1 C C V 3D + V − D 3 + V 6 6 1 8 1 A 18 A 8 1 s u b s s e r d d A 7 6 1 9 1 A 19 A 9 1 s u b s s e r d d A 8 6 1 0 2 A 20 A ]le d o m M A R [ 0 2 s u b s s e r d d A 9 6 1 1 2 A 21 A . C . N 0 7 1 I M N X MI N X D 3 + V 1 7 1 D N G ND G − D N G 2 7 1 0 1 S C X − O . C . N 3 7 1 0 2 S C X 20 S C X M O R h s alf e h t f o t u p t u o la n gis tc ele s pih C 4 7 1 2 2 S C X − O ] le d o m M E O [ M O R I U G e h t f o t u p t u o la n gis tc ele s pih C 5 7 1 3 2 S C X 23 S C X M A R S e h t f o t u p t u o la n gis tc ele s pih C 6 7 1 2 S C X − O . C . N I 3-21 MB86373B (DVDM ASSY : IC18) • MPEG2 Decoder IC • Block Diagram Memory Controller Block Audio Clock Generation Block System Clock Generation Block Control Block Video Decoder Block Sync. Control Block Reset Signal Starting Signal NTSC/PAL Video Encoder DAC OSD Sub- picture MIX Audio Decoder Block System Clock Clock for video Clock for audio LPF VCO Clock Signal Video Output (Y,C,Comp/Y,Cb,Cr) Digital Signal Output (Component/ Composite) System Decoder Block CPU Interface CPU Clock Generation Block 27MHz Audio Output Internal Bus Reset Signal 16Mbit SDRAM Exclusive Parallel port Input Signal Picture Block Whole Control Block Video Output Block 3-22 • Pin Function No. Pin Name Function 1 L E S K L C I ) F F O : " L " , N O : " H "( L L P f o la n gis F F O / N O 27 DD V − ylp p u s r e w o p V 5 . 2 2 N7 P C G I D ) B S M ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S M ( )tib - 9 ( t u p t u o la n gis Y la tigi D 8 2 4 P M O C G I D O t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 3 S S V − D N G 29 P3 M O C G I D 4 6 N P C G I D O t u p t u o la n gis t n e n o p m o c la tigi D )tib - 9 ( t u p t u o la n gis Y la tigi D 0 3 2 P M O C G I D 5 5 N P C G I D 31 P1 M O C G I D 6 4 N P C G I D 32 P0 M O C G I D ) B S L ( t u p t u o la n gis e tis o p m o c la tigi D ) B S L ( t u p t u o la n gis C la tigi D 7 3 N P C G I D 33 CK A D t u p t u o k c olc z H M 7 2 8 2 N P C G I D 34 C. . N − n oitc e n n o c n o N 9 1 N P C G I D 35 A3 S S V − )r e tr e v n o c A / D ( D N G 0 1 D D V − ylp p u s r e w o p V 5 . 2 36 AC N A la n gis t u p t u o ) C ( r olo c g ola n A 1 1 0 N P C G I D O ) B S L ( t u p t u o la n gis t n e n o p m o c la tigi D ) B S L ( )tib - 9 ( t u p t u o la n gis Y la tigi D 7 3 3 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 2 1 L E S B R O la tigid e h t t a la n gis n oit a ni m ir c sid r C d n a b C .t u p t u o la n gis t n e n o p m o c .t u p t u o la n gis Y la tigid e h t t a B S L 8 3 2 A S S V − )r e tr e v n o c A / D ( D N G 3 1 S H X O la n gis t u p t u o .c n y s la t n o zir o H 39 AY N A la n gis t u p t u o ) Y ( e c n a ni m ul g ola n A 4 1 S V X O la n gis t u p t u o .c n y s la citr e V 40 A2 D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 5 1 S S V − D N G 41 F E R V I r e tr e v n o c A / D r o f e g a tlo v e c n e r e f e R 6 1 T E S E R X I la n gis t e s e r I S L 42 RO V r e tr e v n o c A / D f o nip g nitt e s t n e rr u c la n r e t n I 7 1 C N Y S C D L X I ) e d o m D L ( t u p nila n gis .c n y s la n r e tx E 43 A4 D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 8 1 Y E K O y alr e v o D S O d n a D L r o f la n gis Y E K ) e d o m D L ( 4 4 A1 S S V − )r e tr e v n o c A / D ( D N G 9 1 D P O f o la n gis t u p t u o tlu s e r n o sir a p m o c e s a h P ) e d o m D L ( .c n y s la t n o zir o h 5 4 P M O C A N A O la n gis t u p t u o e tis o p m o c g ola n A 0 2 D L F V O la n gis la tigid e h t t a la n gis n oit a ni m ir c sid dlei F dleif d d o : L dleif n e v e : H t u p t u o 6 4 1 A D D V − r e tr e v n o c A / D ni-tliu b r o f( ylp p u s r e w o p V 5 . 2 ) yln o 1 2 9 P M O C G I D O ) B S M ( t u p t u o la n gis e tis o p m o c la tigi D ) B S M ( t u p t u o la n gis C la tigi D 7 4 F B O la n gis g alf ts r u B 2 2 8 P M O C G I D t u p t u o la n gis e tis o p m o c la tigi D t u p t u o la n gis C la tigi D 8 4 K L B X O la n gis g nik n alb e tis o p m o c V / H 3 2 7 P M O C G I D 49 T4 S E T ." n e p o " o t t e s ,ylla m r o N 4 2 6 P M O C G I D 50 SS V − D N G 5 2 5 P M O C G I D 51 T0 S E T ." n e p o " o t t e s ,ylla m r o N 6 2 S S V − D N G 52 T1 S E T ylla m r o n s u t a ts " L " I/O No. Pin Name Function I/O O O O O O O I I 3-23 3 5 N II A D I ) F I D P S ( t u p nila n r e tx e f o t u p ni a t a d la tigi D 92 10 S R D A H ) B S M ( la n gis s u b s s e r d d a U P C 4 5 A T A D D C I t u p nila n r e tx e f o t u p ni a t a d oid u A ) D C o t d n o p s e rr o c ( 3 9 S9 R D A H al n g si s u b s s e r d d a U P C 5 5 R L D C I t u p nila n r e tx e f o t u p ni k c olc le n n a h c a t a D ) D C o t d n o p s e rr o c ( 4 9 8 S R D A H 6 5 K C B D C I t u p nila n r e tx e f o t u p ni k c olc a t a D ) D C o t d n o p s e rr o c ( 5 9 7 S R D A H 7 5 3 A T A D O A O a t a d e d o c e d oid u A 6 9 S S V − D N G 8 5 2 A T A D O A 97 DD V − ylp p u s r e w o p V 5 . 2 9 5 1 A T A D O A 98 S6 R D A H I la n gis s u b s s e r d d a U P C 0 6 S S V − D N G 99 S5 R D A H 1 6 D D V − ylp p u s r e w o p V 5 . 2 00 1 S4 R D A H 2 6 0 A T A D O A O a t a d e d o c e d oid u A 01 1 S3 R D A H 3 6 M C P O A O t u p t u o e c a fr e t ni oid u a la tigi D ) a t a d n ois s e r p m o c ( 2 0 1 2 S R D A H B) S L ( la n gis s u b s s e r d d a U P C 4 6 I A D O A O ) a t a d e d o c e d ( t u p t u o e c a fr e t ni oid u a la tigi D 03 1 15 A T A D H O /I ) B S M ( la n gis s u b a t a d U P C 5 6 K C R L O r e tlif la tigid d n a A / D r o f k c olc le n n a h c a t a D 04 1 14 A T A D H la n gis s u b a t a d U P C 6 6 K C M O A O r e tlif la tigid d n a A / D r o f k c olc r e ts a M 05 1 13 A T A D H 7 6 K C B O er tlif la tigid nd a A / D r o f k c olc ti B 06 1 2 1 A T A D H 8 6 2 T S E T I . " n e p o " o t t e s ,ylla m r o N 7 0 1 S S V − D N G 9 6 3 T S E T 08 1 11 A T A D H O /I la n gis s u b a t a d U P C 0 7 C N − n oitc e n n o c n o N 09 1 10 A T A D H 1 7 T S R P S D X I ." n e p o " o t t e s ,ylla m r o N 10 1 A9 T A D H 2 7 S S V − D N G 11 1 A8 T A D H 3 7 5 T S E T O ." n e p o " o t t e s ,ylla m r o N 12 1 A7 T A D H 4 7 C N − ." n e p o " o t t e s ,ylla m r o N 3 1 1 6 A T A D H 5 7 C N 14 1 DD V − ylp p u s r e w o p V 5 . 2 6 7 C N 15 1 A5 T A D H O /I la n gis s u b a t a d U P C 7 7 C N 16 1 A4 T A D H 8 7 7 D S I t u p ni a t a d lella r a P 17 1 A3 T A D H 9 7 D D V − ylp p u s r e w o p V 5 . 2 18 1 A2 T A D H 0 8 6 D S I t u p ni a t a d lella r a P 9 1 1 S S V − D N G 1 8 5 D S 20 1 A1 T A D H O /I la n gis s u b a t a d U P C 2 8 4 D S 21 1 A0 T A D H B) S L ( la n gis s u b a t a d U P C 3 8 3 D S 22 1 EL S S U B la n gis n oitc ele s h t di w s u B ) s u b tib - 6 1 : 1 ,s u b tib - 8 : 0 ( 4 8 2 D S 23 1 CK A D S O X la n gis e g d el w o n k c a a t a d D S O 5 8 S S V − D N G 24 1 EQ R D S O X la n gis ts e u q e r a t a d D S O 6 8 1 D S I t u p ni a t a d lella r a P 5 2 1 1 L E S U P C H I O , C R A P S : 0 0 ( la n gis n oitc ele s U P C ) e v r e s e R : 1 1 , m e ts y s 8 6 : 0 1 , m e ts y s 6 8 : 1 0 7 8 0 D S 26 1 L0 E S U P C H 8 8 R R E X I la n gis t u p ni r o rr E 27 1 T3 N I X PU C e h t o t la gn is ts e u q e r t p u rr e t n I 9 8 K C A S X I la n gis e g d el w o n k c A 28 1 T2 N I X 0 9 T S E T X I e s u la m r o n t a " H " o t t e S 29 1 T1 N I X 1 9 Q E R S O la n gis ts e u q e r a t a D 30 1 SS V − D N G No. Pin Name Function I/O No. Pin Name Function I/O I I I I O 3-24 1 3 1 D D V − ylp p u s r e w o p V 5 . 2 70 1 AS C R D M X M A R D S r o f la n gis S A C 2 3 1 0 T N I X O U P C o tla n gis ts e u q e r t p u rr e t n I 71 1 M1 Q D R D M X r o f la n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 3 3 1 Y D R T X E X O U P C o t la n gis y d a e R : m e ts y s 8 6 , C R A P S o t la n gis ) K C A ( e g d el w o n k c A : m e ts y s 6 8 U P C 2 7 1 S S V − D N G 4 3 1 W R H I la n gis e tir w / d a e r U P C 73 1 WE R D M X M A R D S r o f la n gis elb a n e e tir W 5 3 1 N I K L C H I t u p ni k c olc ts o H 74 1 M0 Q D R D M X r o fla n gis elb a n e t u p t u o / k s a m t u p n I M A R D S 6 3 1 S C H X I la n gis tc ele s pih c I S L 75 1 T8 A D R D M /O I AM R D S r o f la n gis s u b a t a D 7 3 1 S A H X I e b o rts s s e r d d a U P C : m e ts y s 8 6 , C R A P S s u t a ts s s e r d d a U P C : m e ts y s 6 8 6 7 1 S S V − D N G 8 3 1 3 E B H X I al n gis elb a n e e ty b U P C 7 7 1 7 T A D R D M O /I or SDRAM f la n gis s u b a t a D O /I or SDRAM f la n gis s u b a t a D 9 3 1 2 E B H X 78 1 T9 A D R D M 0 4 1 1 E B H X 79 1 T6 A D R D M 1 4 1 0 E B H X 80 1 10 T A D R D M 2 4 1 S S V − D N G 81 1 T5 A D R D M 3 4 1 4 R D A R D M O AM R D S r o f la n gis s s e r d d A 2 8 1 S S V − D N G 4 4 1 3 R D A R D M 83 1 DD V − ylp p u s r e w o p V 5 . 2 5 4 1 5 R D A R D M 4 8 1 1 1 T A D R D M 6 4 1 2 R D A R D M 85 1 T14 A D R D M 7 4 1 D D V − ylp p u s r e w o p V 5 . 2 86 1 12 T A D R D M 8 4 1 S S V − D N G 87 1 T3 A D R D M 9 4 1 6 R D A R D M O M A R D S r o f la n gis s s e r d d A 8 8 1 3 1 T A D R D M 0 5 1 1 R D A R D M 89 1 SS V − D N G 1 5 1 7 R D A R D M 90 1 T2 A D R D M O /I M A R D S r o fla n gis s u b a t a D 2 5 1 0 R D A R D M B) S L ( M A R D S r o f la n gis s s e r d d A 91 1 14 T A D R D M 3 5 1 8 R D A R D M AM R D S r o f la n gis s s e r d d A 92 1 T1 A D R D M 4 5 1 S S V − D N G 93 1 15 T A D R D M B) S M ( M A R D S r o fla n gis s u b a t a D 5 5 1 6 T S E T I ylla m r o n s u t a ts " L " 4 9 1 T0 A D R D M /O I B) S L ( M A R D S r o fla n gis s u b a t a D 6 5 1 7 T S E T 95 1 SS V − D N G 7 5 1 8 T S E T 96 1 C. . N − n oitc e n n o c n o N 8 5 1 9 T S E T 97 1 7M 2 K C I t u p ni k c olc m e ts y S 9 5 1 0 1 R D A R D M O M A R D S r o f la n gis s s e r d d A 8 9 1 S S V − D N G 0 6 1 9 R D A R D M 99 1 7M 2 K C O t u p t u o k c olc m e ts y S 1 6 1 1 1 R D A R D M B) S M ( M A R D S r o f la n gis s s e r d d A 00 2 O) C V ( A S S V − ) yln o O C V r o f( D N G 2 6 1 S C R D M X O M A R D S r o f la n gis tc ele s pih C 01 2 O) C V ( A D D V − ) yln o O C V r o f( ylp p u s r e w o p V 5 . 2 3 6 1 E K C R D M O M A R D S r o fla n gis elb a n e k c ol C 02 2 PF L I oid u a r o f t u p t u o r e tr e v ni k c olb L L P 4 6 1 S S V − D N G 03 2 PF L M oid u a r o f t u p ni r e tr e v ni k c olb L L P 5 6 1 D D V − ylp p u s r e w o p V 5 . 2 04 2 PF L O oid u a r o f t u p t u o r o tc e t e d e s a h P 6 6 1 S A R R D M X O M A R D S r o f la n gis S A R 05 2 CO V O k c olc oid u a r o f t u p ni O C V 7 6 1 K L C R D M O M A R D S r o f la n gis t u p t u o k c ol C 06 2 SS V − D N G 8 6 1 S S V − D N G 07 2 ST R L L P X la n gis t e s e r n oitc e s L L P 9 6 1 N I K L C R D M I M A R D S r o f la n gis t u p ni k c ol C 08 2 ST R C N Y S X la n gis t e s e r C N Y S No. Pin Name Function I/O No. Pin Name Function I/O O O O O I I I I I O O O 3-25 3.3 PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 x 10 1 → 561......................................................... RD1/4PU 5 6 1 J 47k Ω → 47 x 10 3 → 473......................................................... RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 x 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F 3-26 Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) LOAB ASSY A SMEB ASSY B SWITCH S101 9965 000 07961 VSK1011 *SM000340R OTHERS NSP CN101 — S3B-PH-K-S, KR CONNECTOR — NSP — — VNP1762, PC BOARD LOAB — SEMICONDUCTOR PC101 9965 000 07963 GP2S60 *HW100500R RESISTOR NSP R101 — RS1/10S331J — C FGSB ASSY SWITCH S201 9965 000 07962 DSG1016 *SP001020R OTHERS NSP CN201 — 52044-0345, 3P FFC CONNECTOR — NSP CN202 — VKN1212, 8P FFC CONNECTOR — NSP 210,211,213,214,215 — — VNP1695, PC BOARD SMEB — NSP 212 — — VNP1722, PC BOARD SMEB — Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) SEMICONDUCTORS IC21 9965 000 07964 CY2081SL-638 *HC106340R IC14 9965 000 07965 KM68V1000CLT-7L *HC106350R IC1 9965 000 07966 LA9701M *HC105850R IC2 9965 000 07967 LC78652W *HC105860R IC3 9965 000 07968 M56788FP *HC105870R IC19 9965 000 07969 MB811171622A-100FN *HC106040R IC18 9965 000 07970 MB86373B *HC106360R 212 IC26 9965 000 07971 MC44724A *HC106640R IC15 9965 000 07972 MN414800CSJ-07 *HC105900R IC5,IC7 4822 209 30455 NJM2100M (or BA4510F) HC10085090 IC11 9965 000 07973 PD3410A *HU100400R 215 IC27 — PM0026A *HC106770R D Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) DVDM ASSY 3-27 Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) IC12 9965 000 07974 PE5108A *HC106370R IC8 4822 209 17539 TC7SHU04F *HC105940R 210,212,215 IC13 9965 000 07975 VYW1761 (4M) *HC106750R 211 IC13 — VYW1762 (4M) *HC106760R 213,214 IC13 — VYW1763 (8M) *HC106380R Q106,Q109,Q81,Q83,Q85 4822 130 10698 2SA1576A HX100012A0 212,215 Q87,Q89,Q91 4822 130 10698 2SA1576A HX100012A0 Q114,Q121,Q251 4822 130 60669 2SC4081 HX300012A0 Q131 9965 000 07976 DTC114EUA *BA000910R Q102 4822 130 63838 HN1A01F BA10011050 Q103,Q6,Q7 9965 000 07977 HN1B04FU *BA000920R Q101 4822 130 63843 HN1C01F *BA000930R Q112,Q113 9965 000 07978 HN1C01FU *BA000940R Q107,Q4,Q5 9965 000 07979 RN1902 *BA001020R Q3 9965 000 07980 RN1911 *BA000960R Q1 9965 000 07981 RN4982 *BA001030R D301 9965 000 07982 KV1471E *HZ400020R D6 9322 154 46685 RB501V-40 *HZ200100R D665,D666 9965 000 06882 RB521S-30 *HZ200110R COILS NSP L150,L330 — LCYA100J2520 — NSP L304 — LCYA2R7J2520 — NSP L81 — VTL1067, CHIP COIL — L85,L911 9965 000 07983 VTL1084, CHIP BEADS *FC900240R CAPACITORS NSP C123,C146,C613,C843 — CCSRCH101J50 — NSP C322 — CCSRCH120J50 — NSP C135 — CCSRCH121J50 — NSP C104-C108 — CCSRCH150J50 — NSP C206,C210,C211 — CCSRCH151J50 — NSP C333 — CCSRCH180J50 — NSP C116,C151,C314 — CCSRCH220J50 — NSP C152 — CCSRCH221J50 — NSP C127,C209,C337 — CCSRCH331J50 — NSP C134,C236 — CCSRCH470J50 — NSP C122,C208 — CCSRCH471J50 — NSP C126,C335 — CCSRCH560J50 — NSP C334 — CCSRCH5R0C50 — NSP C124,C132 — CCSRCH680J50 — NSP C117,C240,C352,C360 — CCSRCH681J25 — NSP C845,C846 — CCSRCK2R0C50 — NSP C129,C142,C842 — CEV101M10 — NSP 212 C827 — CEV101M10 — NSP C113,C139 — CEV220M16 — NSP C405,C413,C700,C808 — CEV221M4 — NSP C111,C149,C205,C207,C401 — CEV470M6R3 — NSP C403,C407 — CEV470M6R3 — NSP C140,C223,C224,C252,C264 — CKSQYB105K10 — NSP C312 — CKSQYB105K10 — NSP C148,C217,C327,C414 — CKSQYF105Z16 — NSP C801,C802,C807,C809-C815 — CKSQYF105Z16 — NSP C817-C821 — CKSQYF105Z16 — NSP 212 C826,C828 — CKSQYF105Z16 — NSP C216,C313 — CKSRYB102K50 — NSP C133,C136,C203,C220,C225 — CKSRYB103K50 — NSP C239,C320,C321,C603,C625 — CKSRYB103K50 — NSP C703,C711 — CKSRYB103K50 — NSP C101,C102,C114,C118,C119 — CKSRYB104K16 — NSP C121,C138,C204,C212,C213 — CKSRYB104K16 — NSP C227,C231,C263,C315,C317 — CKSRYB104K16 — NSP C332,C804 — CKSRYB104K16 — NSP C153,C266 — CKSRYB223K25 — NSP C357 — CKSRYB223K50 — NSP C354 — CKSRYB332K50 — NSP C214,C251,C261,C351 — CKSRYB472K50 — NSP C330 — CKSRYB682K50 — NSP C109,C110,C120,C130,C131 — CKSRYF104Z16 — NSP C143,C150,C202,C215 — CKSRYF104Z16 — NSP C221,C222,C226,C230,C235 — CKSRYF104Z16 — NSP C265,C299,C319,C359,C367 — CKSRYF104Z16 — NSP C369,C370,C402,C404,C406 — CKSRYF104Z16 — NSP C408,C410,C412,C601,C602 — CKSRYF104Z16 — NSP C604-C612,C614,C615 — CKSRYF104Z16 — NSP C617-C620,C626,C701,C702 — CKSRYF104Z16 — NSP C704-C710,C712-C724,C726 — CKSRYF104Z16 — NSP C831-C833,C844 — CKSRYF104Z16 — NSP 212 C822-C825,C829,C830 — CKSRYF104Z16 — NSP 212 C834-C836,C858,C859 — CKSRYF104Z16 — NSP 215 C834-C836,C865-C869,C871-C876 — CKSRYF104Z16 — NSP 215 C861-C864 — CKSRYF105Z16 — NSP 215 C870 — CKSQYB104Z25 — NSP C368,C411 (47mF/16V) — VCH1166 — RESISTORS NSP R123 (39 OHM) — ACN7047 — NSP R732,R733,R735,R736 (47k OHM) — ACN7077 — NSP R632 (100OHM) — DCN1092 — NSP R608,R609,R613,R624,R627 — DCN1094 — (10k OHM) NSP R629,R631,R633,R638,R654 — DCN1094 — (10k OHM) NSP R657,R658,R664,R706 — DCN1094 — (10kOHM) NSP R717,R718 (10k OHM) — DCN1094 — NSP R121,R663 (10k OHM) — DCN1104 — NSP R712,R715,R881 (0 OHM) — DCN1106 — NSP 212 R838 (0 OHM) — DCN1106 — NSP R1020,R2010,R2020,R2030,R2040 — RS1/10S0R0J — NSP R3050,R4010,R4020,R4030,R4040 — RS1/10S0R0J — NSP R4050,R4060,R407,R685,R722 — RS1/10S0R0J — NSP R8000,R821 — RS1/10S0R0J — NSP 210,211,213,214 R501,R502,R801,R802,R828 — RS1/10S0R0J — NSP 212 R803,R304,R829,R854 — RS1/10S0R0J — -R856,R858-R860 NSP 212 R875,R920,R922,R970 — RS1/10S0R0J — -R973,R8010 NSP 212 R8200 — RS1/10S0R0J — NSP R202,R3510 — RS1/10S101J — NSP 212 R839 — RS1/16S103J — NSP 210,211,213,214 R2 — RS1/16S103J — NSP 212 R2 — RS1/16S223J — NSP 212 R1 — RS1/16S333J — NSP 215 R1 — RS1/16S103J — NSP R700 — RS1/10S1R2J — NSP 212 R836,R837 — RS1/16S1001F — NSP R807 — RS1/16S1201F — NSP 212 R831,R832 — RS1/16S1201F — NSP R806 — RS1/16S1501F — NSP R363,R365 — RS1/16S1503F — NSP 212 R825 — RS1/16S1800F — NSP 212 R834,R385 — RS1/16S1801F — NSP 210,211,213,214,215 R825 — RS1/16S2000F — NSP 212 R822-R824 — RS1/16S2000F — NSP R826,R827 — RS1/16S2000F — NSP 212 R830 — RS1/16S2002F — NSP R805 — RS1/16S2701F — NSP 212 R833 — RS1/16S3902F — NSP R361,R364 — RS1/16S6202F — NSP 215 R866 — RS1/16S103J — NSP 215 R808 — RS1/16S8202F — NSP 215 R822-R824 — RS1/16S1200F — NSP 215 R845-R847 — RS1/16S182J — NSP 215 R854,R856 — RS1/16S4R7J — NSP 215 R855,R861-R865,R868-R871 — RS1/16S0R0J — NSP 215 R971-R974,R8640 — RS1/16S0R0J — NSP 215 R872 — RS1/16S3001F — NSP 215 R873 — RS1/16S6800F — NSP 215 R874 — RS1/16S1201F — NSP 215 R8610,R8620,R8630 — RS1/10S0R0J — NSP Other Resistors — RS1/16SxxxJ — 3-28 Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) Mark Ver. No. Part No. Description Part No. (DB-VPBxxx) (for PCS) (for MJI) OTHERS CN4 9965 000 07984 DKN1193, FLEXIBLE CONNECTOR *YJ002230R X2 9965 000 07985 DSS1110, CHIP CERALOCK (20MHz) *FQ000450R NSP CN2 — S2B-PH-SM3, PH CONNECTOR — NSP CN1 — S3B-PH-SM3, PH CONNECTOR — NSP — — VDA1681, FLEXIBLE CABLE (07P) — NSP 210,212,213,215 CN15,CN5 — VKN1516, CONNECTOR 30P — NSP 211,214 CN15,CN5 — VKN1626, B TO B CONNECTOR 30P — NSP CN3 — VKN1763, 8P FFC CONNECTOR — NSP — — VRW1773, BAR-CODE LABEL — X1 9965 000 07986 VSS1147, CRYSTAL RESONATOR (13.824MHz) *JX000700R 210 — — VWS1446, DVDM Assy DB-VPB210 ZK402K0210 211 — — VWS1449, DVDM Assy DB-VPB211 ZK324J0210 212 — 9965 000 07628 VWS1447, DVDM Assy DB-VPB212 ZK402K0230 213 — — VWS1448, DVDM Assy DB-VPB213 ZK402K0220 214 — — VWS1450, DVDM Assy DB-VPB214 ZK324J0220 215 — — VWS1451, DVDM Assy DB-VPB215 ZK408K0210 3-29
