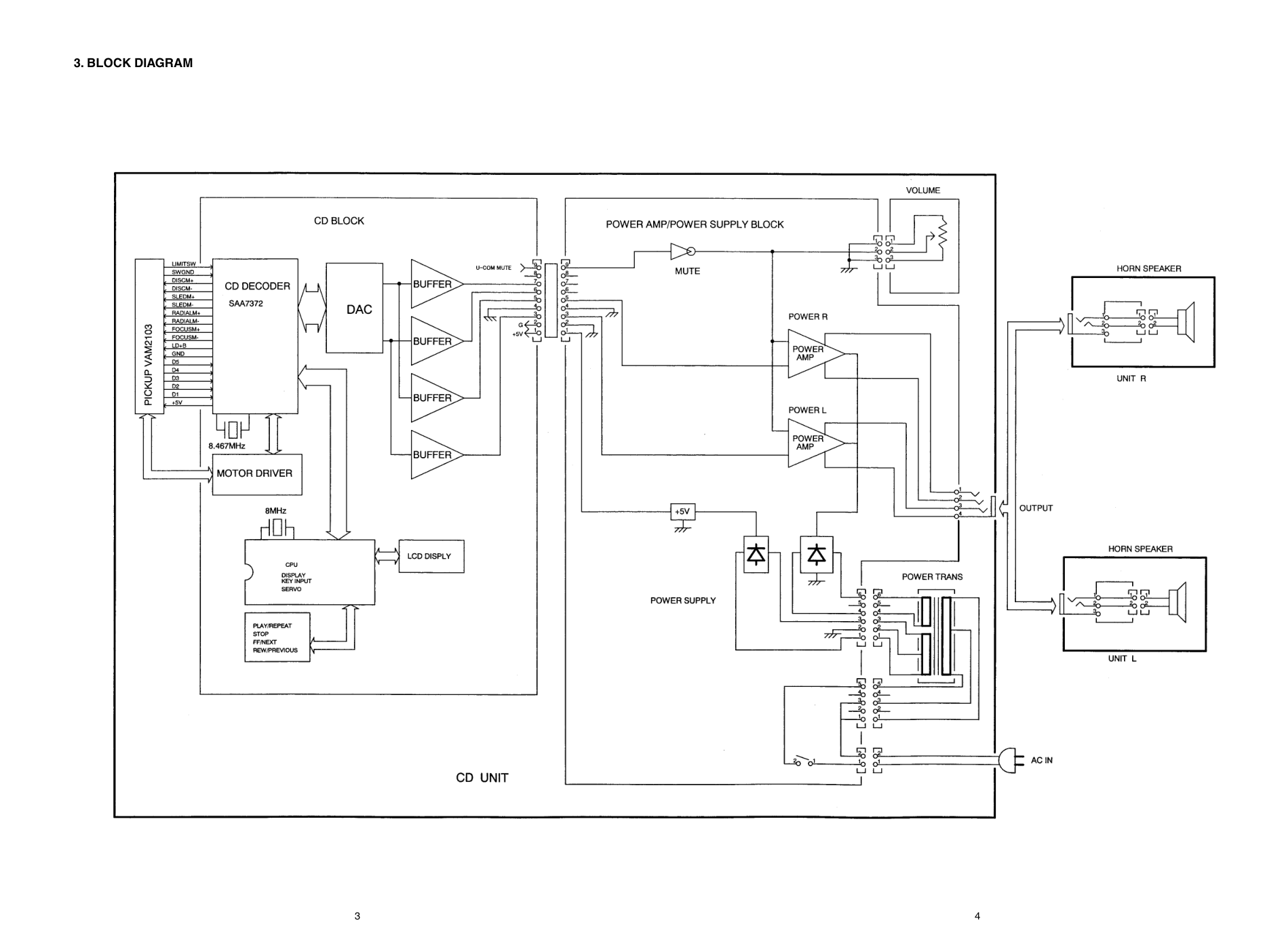

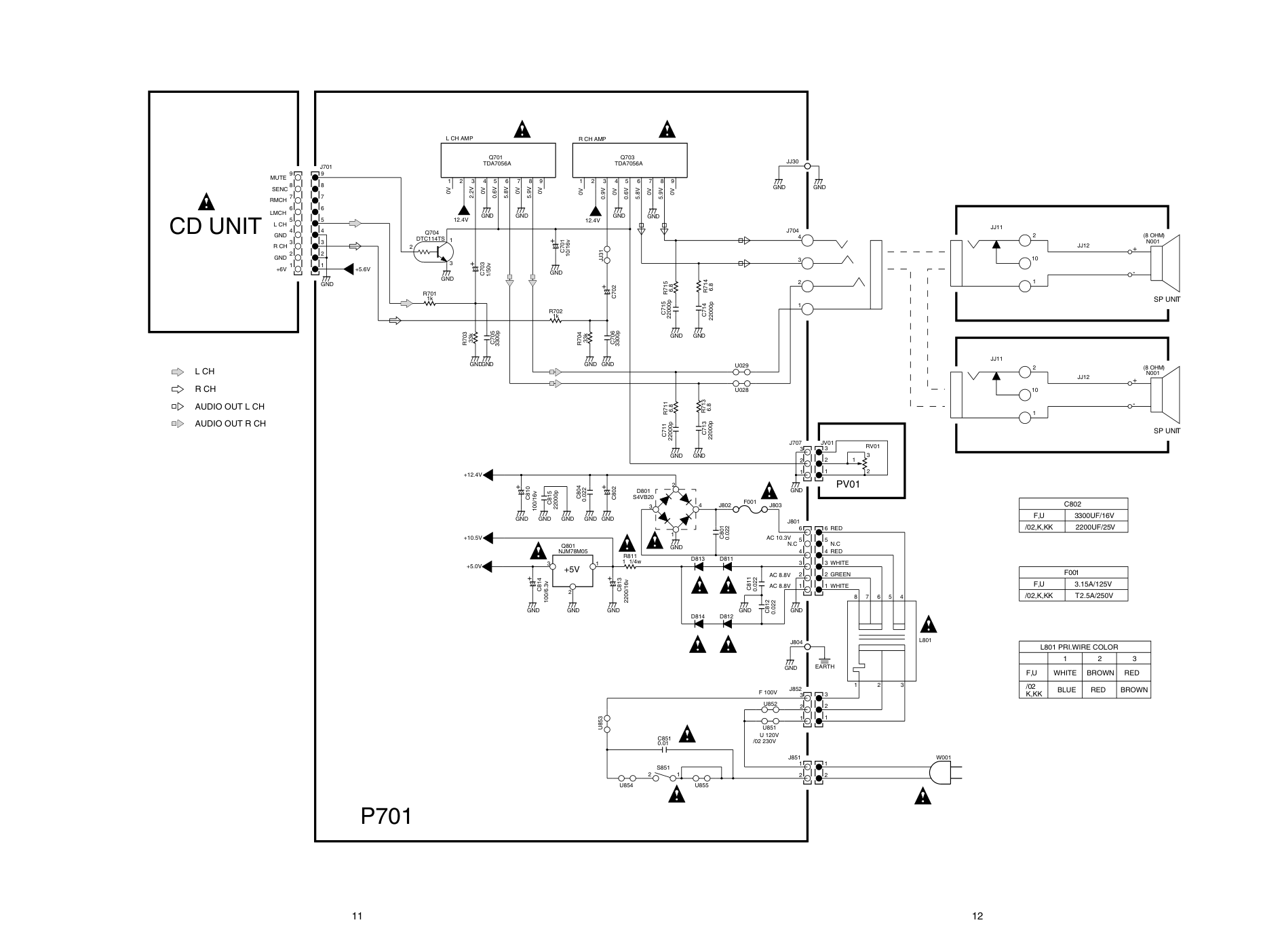

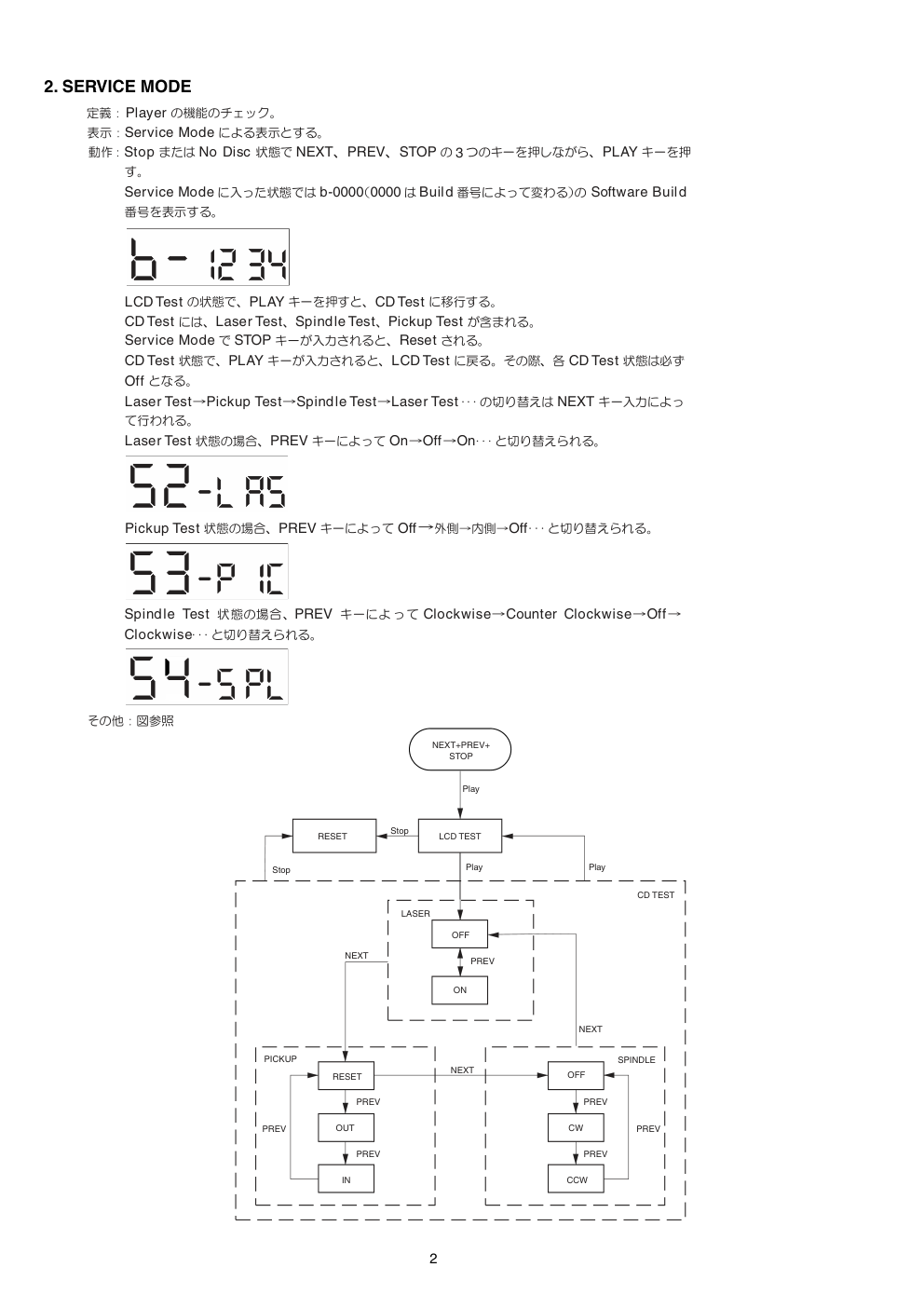

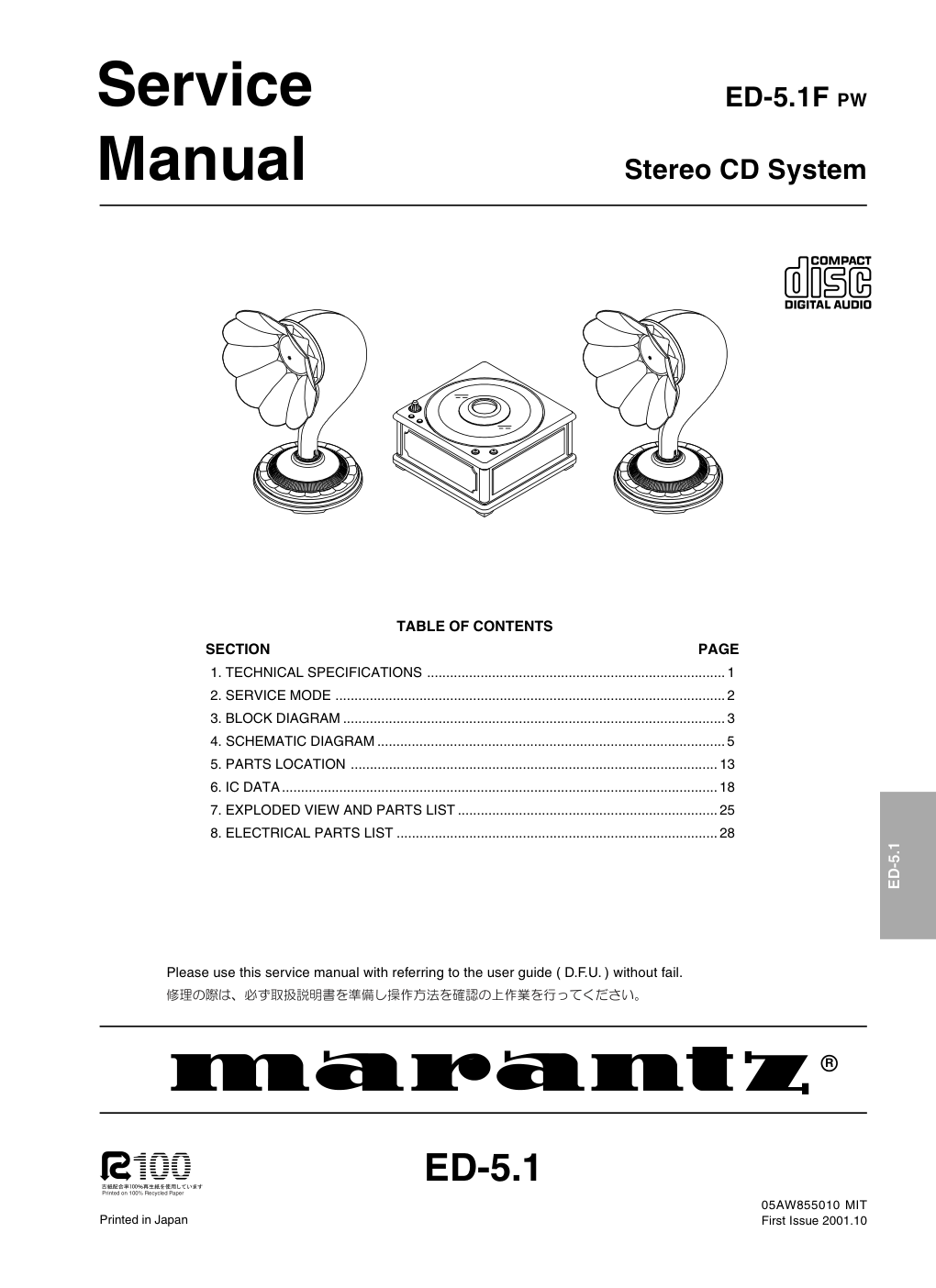

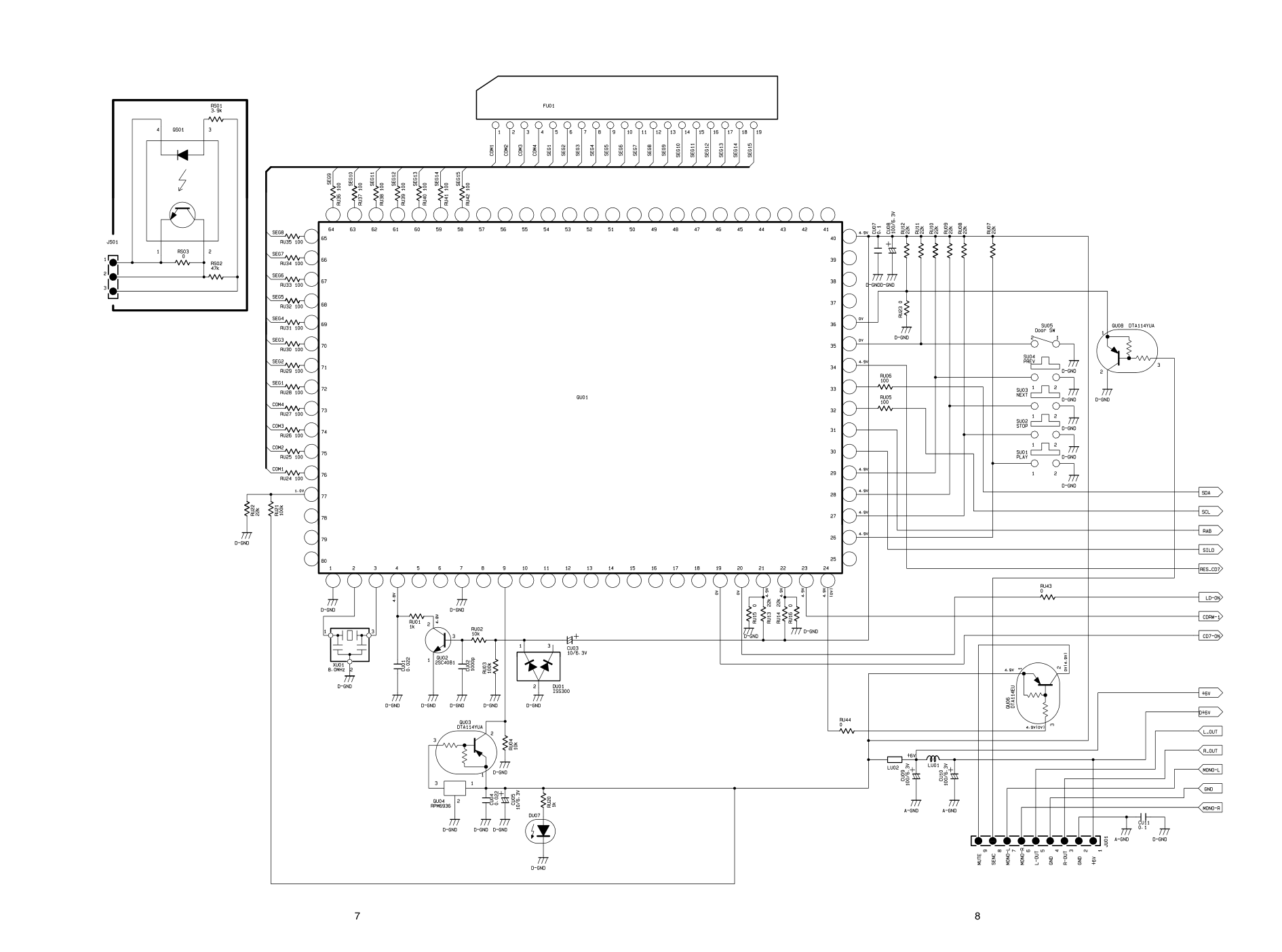

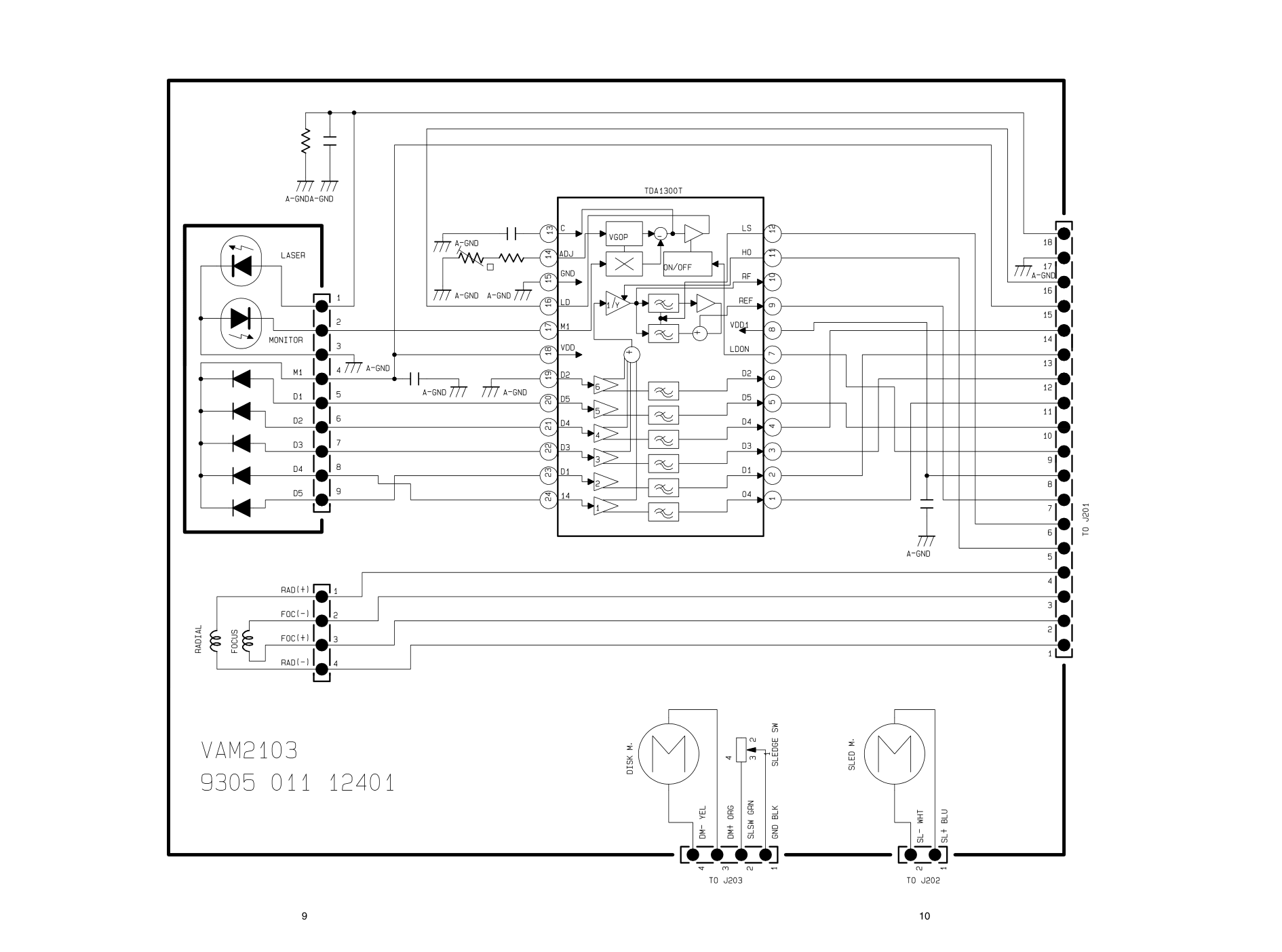

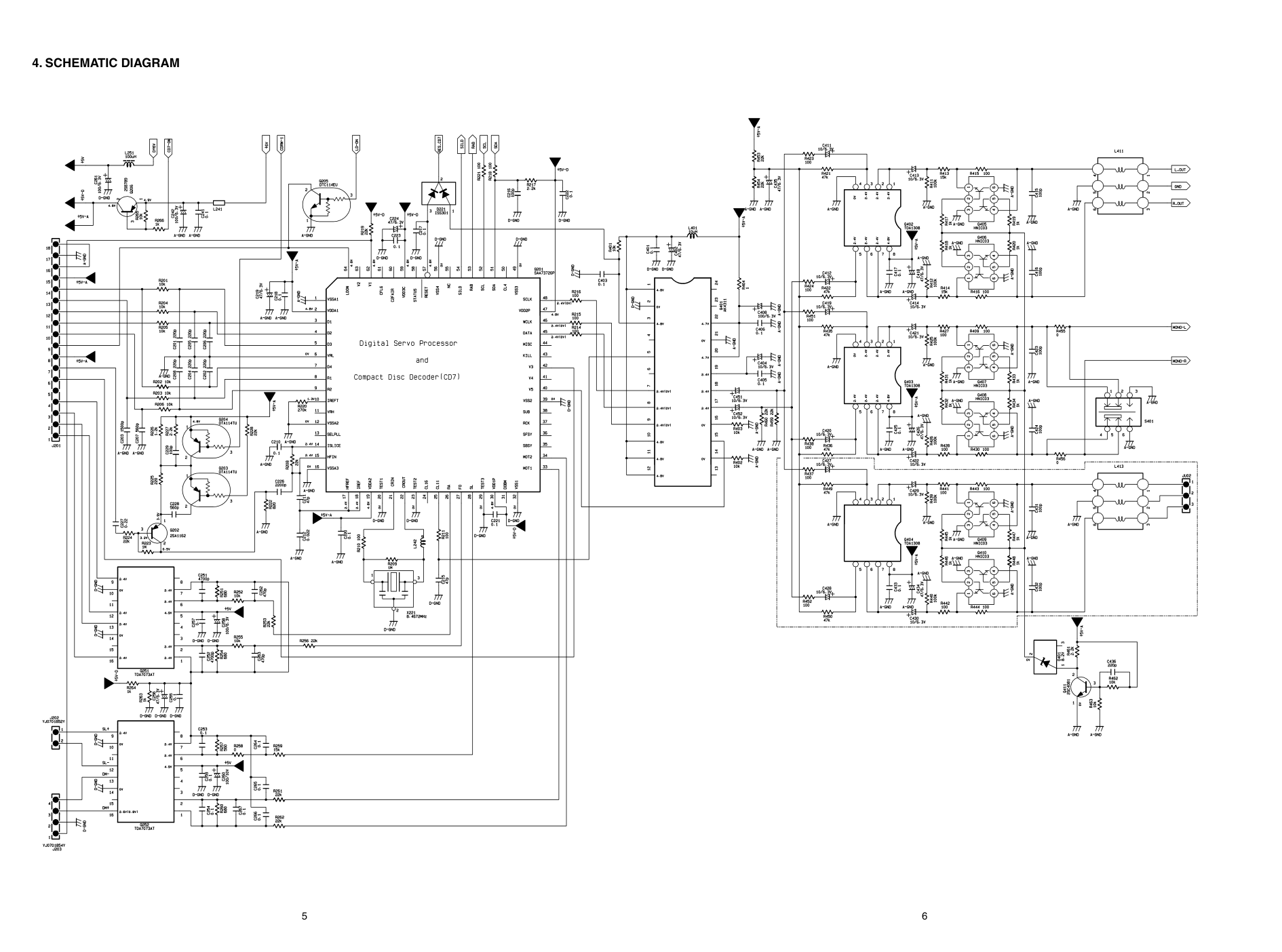

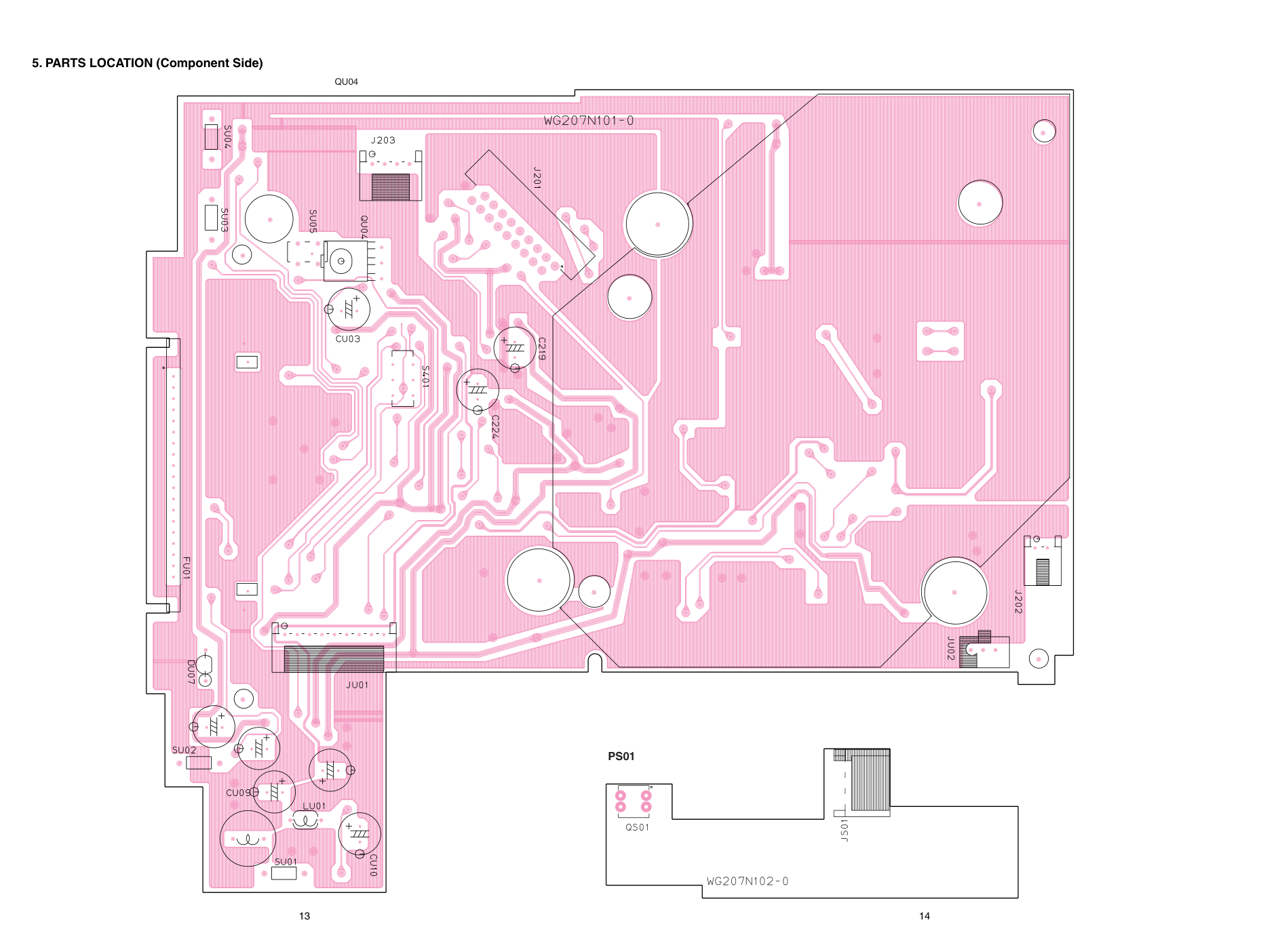

ED-5.1 05AW855010 MIT First Issue 2001.10 Service Manual R Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Printed in Japan ED-5.1F PW Stereo CD System TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ..............................................................................1 2. SERVICE MODE ......................................................................................................2 3. BLOCK DIAGRAM ....................................................................................................3 4. SCHEMATIC DIAGRAM ...........................................................................................5 5. PARTS LOCATION ................................................................................................13 6. IC DATA..................................................................................................................18 7. EXPLODED VIEW AND PARTS LIST ....................................................................25 8. ELECTRICAL PARTS LIST ....................................................................................28 Printed on 100% Recycled Paper ED-5.1 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. TECHNICAL SPECIFICATIONS CD Player Section D/A conversion ......................................................................................................................................... 1 bit DAC Wow & flutter .............................................................................................................................. Precision of quartz Horn Section Speaker .................................................................................................................................... 5.0 cm (8 ohms) x 2 Dynamic type Output jack .............................................................................................................................. 3.5 mm 4P mini-jack Dimensions (W x H x D) .................................................................................................... 172 x 290 x 170 mm x 2 Weight ...................................................................................................................................................... 0.9kg x 2 Amplifire Section Maximun output power ........................................................................................................................... 6 W (EIAJ) S/N ................................................................................................................................................................. 80 dB Power Consumption ........................................................................................................................................ 19 W Power Requirement .............................................................................................................. AC 100 V, 50 / 60 Hz Dimensions (W x H x D) ............................................................................................................ 172 x 90 x 172 mm Weight ............................................................................................................................................................ 1.9 kg Accessories 3.5 mm mini-plug audio cable ............................................................................................................................... 1 Specifications subject to change without prior notice. 2 2. SERVICE MODE Player Service Mode Service Mode b-0000 0000 Build Software Build LCD Test PLAY CD Test CD Test Laser Test Spindle Test Pickup Test Service Mode STOP Reset CD Test PLAY LCD Test CD Test Off Laser Test Pickup Test Spindle Test Laser Test NEXT Laser Test PREV On Off On Pickup Test PREV Off Off r Spindle Test PREV Clockwise Counte Clockwise Off Clockwise Stop No Disc NEXT PREV STOP PLAY 3 NEXT+PREV+ STOP Stop Stop NEXT Play Play Play RESET OFF ON LCD TEST CD TEST LASER PICKUP SPINDLE RESET NEXT NEXT PREV PREV PREV PREV PREV PREV PREV OUT IN OFF CW CCW 3 4 3. BLOCK DIAGRAM 5 6 4. SCHEMATIC DIAGRAM 7 8 9 10 11 12 GND +5.6V TDA7056A TDA7056A DTC114TS 12.4V GND 12.4V GND GND GND GND GNDGND GND GND GND GND GND GND GND GND GND GND GND NJM78M05 GND GND +5.0V +10.5V S4VB20 GND GND GND GND GND GND +12.4V GND EARTH GND GND 1/50v 1k 33k 3300p 10/16v 1k 3300p 33k 6.8 22000p 6.8 22000p 6.8 22000p 22000p 6.8 0.022 0.022 1 1/4w 2200/16v 100/6.3v 0.022 0.022 22000p 100/16v 0.01 J701 Q701 Q703 Q704 JJ31 C703 R701 R703 C705 C701 R702 C706 R704 J704 U029 U028 R715 C715 R714 C714 R711 C711 C713 R713 J707 J801 C811 C812 D811 D812 D814 D813 R811 C813 Q801 C814 J803 F001 J802 C801 D801 C802 C804 C815 C810 J804 JV01 J852 U852 U851 J851 U855 S851 U854 C851 U853 JJ11 N001 W001 JJ11 N001 RV01 L801 C702 JJ30 9 8 7 6 5 4 3 2 1 9 8 7 6 5 4 3 2 1 5 6 7 8 1 2 3 4 9 5 6 7 8 1 2 3 4 9 1 2 3 1 2 3 4 3 2 1 6 5 4 3 2 1 2 1 3 1 2 3 4 3 2 1 6 5 4 3 2 1 3 2 1 3 2 1 1 2 1 2 1 2 1 10 2 1 10 2 2 3 1 1 2 3 4 5 6 7 8 +5V (8 OHM) (8 OHM) + - JJ12 SP UNIT SP UNIT JJ12 - + PV01 P701 MUTE SENC RMCH LMCH L CH GND R CH GND +6V CD UNIT L CH R CH AUDIO OUT L CH AUDIO OUT R CH L CH AMP R CH AMP 0V 2.2V 0.6V 0V 5.8V 0V 5.9V 0V 0V 0.9V 0V 0.6V 5.8V 0V 5.9V 0V AC 8.8V AC 8.8V AC 10.3V N.C N.C RED RED WHITE GREEN WHITE U 120V /02 230V C802 F,U 3300UF/16V 2200UF/25V /02,K,KK 3.15A/125V F,U F001 /02,K,KK T2.5A/250V L801 PRI.WIRE COLOR WHITE F,U BLUE /02 K,KK BROWN RED RED BROWN 1 2 3 F 100V 13 14 5. PARTS LOCATION (Component Side) QU04 PS01 Q404 Q410 Q409 Q252 Q401 Q251 Q402 Q203 Q204 Q202 Q403 Q201 Q411 QU06 Q406 Q405 Q407 QU03 Q408 QU01 QU03 QU02 PS01 15 16 PARTS LOCATION (Solder Side) 17 18 P701 PV01 QU01 Q803 Q721 Q704 Q703 Q802 Q806 Q701 Q801 Q702 6. IC DATA Block Diagram Pinning Pin Configuration Q251/252:TDA7073A 19 Q301/303:TDA7506 Block Diagram Pinning 20 Q201:SAA7372 Block Diagram 21 22 Q402/403/404:TDA1308 Block Diagram Pinning Pin Configuration 23 24 QU01:TMP87CM21 No Name Function I/O Purpose 1 Vss GND - GND 2 XOUT Crystal O 8MHz 3 XIN Crystal I 8MHz 4 RESET Active (L) I Reset Mi-Com 5 P22/XTOUT I/O 6 P21/XTIN I/O 7 TEST TEST I GND 8 P20/INT5/STOP 3Bits I/O Port I/O 9 P40/INT3/TC3 8Bits I/O Port I/O IR-IN 10 P41/PWM/PDO 8Bits I/O Port I/O 11 P42/SCK1 8Bits I/O Port I/O 12 P43/SI1 8Bits I/O Port I/O 13 P44/SO1 8Bits I/O Port I/O 14 P45/SCK2 8Bits I/O Port I/O 15 P46/SI2 8Bits I/O Port I/O 16 P47/SO2 8Bits I/O Port I/O 17 P10/INT0 8Bits Programmable I/O Port I/O 18 P11/INT1 8Bits Programmable I/O Port I/O 19 P12/INT2/TC1 8Bits Programmable I/O Port O CD Module Power On/Off 20 P13/DVO 8Bits Programmable I/O Port O Laser On/Off 21 P14/PPG 8Bits Programmable I/O Port I Play Mode b1 22 P15/TC2 8Bits Programmable I/O Port I Play Mode b2 23 P16 8Bits Programmable I/O Port O CD-RW (L) 24 P17 8Bits Programmable I/O Port O MUTE Pin Function No Name Function I/O Purpose 25 P30 5Bits I/O Port I/O 26 P31 5Bits I/O Port I/O PLAY 27 P32 5Bits I/O Port I/O STOP 28 P33 5Bits I/O Port I/O NEXT 29 P34 5Bits I/O Port I/O PREV 30 P50/AIN0 8Bits Programmable I/O Port I/O CD Module SILD 31 P51/AIN1 8Bits Programmable I/O Port I/O CD Module RAB 32 P52/AIN2 8Bits Programmable I/O Port I/O CD Module SCL 33 P53/AIN3 8Bits Programmable I/O Port I/O CD Module SDA 34 P54/AIN4 8Bits Programmable I/O Port I/O CD Module RES. CD7 35 P55/AIN5 8Bits Programmable I/O Port I/O Door SW 36 P56/AIN6 8Bits Programmable I/O Port I/O SENC 37 P57/AIN7 8Bits Programmable I/O Port I/O 38 VASS Reference GND I 39 VAREF Reference Voltage for A/D Conversion I 40 VDD GND I 41 SEG31/P70 I/O 42 SEG30/P71 I/O 43 SEG29/P72 I/O 44 SEG28/P73 I/O 45 SEG27/P74 I/O 46 SEG26/P75 I/O 47 SEG25/P76 I/O 48 SEG24/P77 I/O 49 SEG23/P60 I/O 50 SEG22/P61 I/O 51 SEG21/P62 I/O 52 SEG20/P63 I/O 53 SEG19/P64 I/O 54 SEG18/P65 I/O 55 SEG17/P66 I/O 56 SEG16/P67 I/O 57 SEG15/P90 I/O 58 SEG14/P91 CAR, JAZZ, ROCK, Battery-B I/O 59 SEG13/P92 6a, 6b, 6c, Battery-A I/O 60 SEG12/P93 6d, 6e, 6f, 6g I/O 61 SEG11 5a, 5b, 5c, REPEAT O 62 SEG10 5d, 5e, 5f, 5g O 63 SEG9 4a, 4b, 4c, : O 64 SEG8 4d, 4e, 4f, 4g O 65 SEG7 3a, 3b, 3c, PROGRAM O 66 SEG6 3d, 3e, 3f, 3g O 67 SEG5 2a, 2b, 2c, RESUME O 68 SEG4 2d, 2e, 2f, 2g O 69 SEG3 1a, 1b, 1c, SHUFFLE O 70 SEG2 1d, 1e, 1f, 1g O 71 SEG1 L, R O 72 SEG0 VIDEO, PBC, KARAOKE O 73 COM3 O 74 COM2 O 75 COM1 O 76 COM0 O 77 VLC LCD Power O VDD-VLC=3V 78 N.C O 79 N.C O 80 N.C. O Pin Assignment 25 26 8. EXPLODED VIEW AND PARTS LIST 5 1 2 8 3 X 8 ( U ) x 4 5 1 2 8 2 X 6 ( U ) x 5 0 3 7 B 5 1 2 8 2 X 6 ( U ) x 2 5 1 2 8 3 X 8 ( U ) x 4 5 1 5 9 3 X 8 ( A ) x 2 5 1 2 8 3 X 8 ( U ) x 4 P 7 0 1 L 8 0 1 S 8 5 1 0 2 7 B 5 1 1 0 3 X 8 ( U ) x 3 ( 0 3 5 B ) 0 3 3 B C A S E S U B A S S Y . 0 4 5 B x 2 5 1 2 8 3 X 1 2 ( U ) x 4 0 6 2 B 5 1 1 0 3 X8 ( U) x 2 0 4 0 B 0 3 8 B ( 0 3 4 B) x 4 0 2 2 B 0 4 6 B PU0 1 0 2 8 B W0 0 1 PV0 1 0 2 5 B L ( 0 0 6 B ) 0 1 1 B ( 0 1 3 B ) x 2 ( 0 1 5 B ) 0 0 1 B 0 0 2 B 0 0 3 B 0 0 2 Mx 3 0 0 5 B ( 0 1 6 B ) ( 0 1 4 B ) ( 0 1 0 B ) x 4 ( 0 0 7 B ) ( 0 0 9 B ) 0 1 7 B 0 0 0 B T O P C A S E A A S S Y . 0 0 1 M 5 1 2 8 3 X 8 ( U ) 0 1 1 G ( 0 1 8 B) ( 0 0 8 B) ( 0 1 2 B) ( 0 2 3 B) ( 0 2 4 B) ( 0 2 1 B) MA R K MA T E R I A L / F I N I S H S T E E L / C O P P E R S T E E L / B L A C K ( A ) ( U ) P A R T S N A ME S T Y L E 5 1 1 0 + B . H . M. S C R E W + B . H . T A P T I T E S C R E W( B T Y P E ) 5 1 2 8 S Y MB OL 5 1 5 9 + B . H . T A P T I T E S C R E W( S T Y P E ) 0 0 2 D 0 0 4 D 0 0 5 D 0 1 1 D 0 1 1 D 0 0 3 D 0 1 4 D 0 2 0 D 0 1 2 D 0 1 9 Dx 4 0 2 1 D 5 1 2 8 3 X8 ( U) x 3 5 1 2 8 3 X8 ( U) x 4 5 1 2 8 3 X8 ( U) x 4 N0 0 1 0 2 2 Dx 4 0 0 1 D 0 1 0 D 0 1 3 D A 0 0 2 J J 1 1 F 0 0 1 0 0 2 D a n d 0 0 3 D m u s t b e a d h e r e d . 0 0 1 B - 0 0 3 B m u s t b e a d h e r e d . 27 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 000B CASE A SUB ASSY (P.WHITE) 207N064510 001B LID DIS (CLEAR) 332K257020 002B BUSH-UP (P.WHITE) 332K067330 003B BUSHING, -DOWN (P.WHITE CLEAR LID) 332K259310 005B ESCUTCHEON, SHEET (P.WHITE) 332K063350 006B CASE, TOP COVER (CD) P.WHITE nsp 007B TRAY (CD) nsp 008B WINDOW LCD nsp 009B SENSOR LENS nsp 010B LEG, BUFFER FOR LID nsp 011B VOLUME KNOB (WHITE) 332K154310 012B HINGE BUTTON (SKIP) nsp 013B SILVER FOR BUTTON SKIP nsp 014B HINGE BUTTON (PLAY/STOP) nsp 015B SILVER FOR 014B (STOP) nsp 016B SILVER FOR 014B (PLAY) nsp 017B LEAF BUTTON 332K270030 018B MASK nsp 021B LED LENS nsp 022B SPACER, (TOP CASE FRONT R SIDE) nsp 023B STICKER, ADHESIVE FOR WINDOW nsp 024B STICKER, ADHESIVE FOR LENS (2 TYPE) nsp 025B CASE, (CD) P.WHITE 332K064050 027B COIL SPRING 332K115010 028B 4822 532 60948 AC CORD BUSH (2271) 450H259010 033B CASE A2 SUB ASSY (P.WHITE) 332K064650 034B LEG (BUFFER) nsp 037B 4822 410 60343 BUTTON, POWER KNOB 058J270030 038B HEAT SINK nsp 040B BOTTOMWEIGHT T=1.6BLACK 207N008010 062B LCD HOLDER 323K271010 001D HORN RING (P.WHITE) 352K353110 002D HORN STAND L(P.WHITE) 352K128110 003D HORN STAND R(P.WHITE) 352K128120 004D COLLAR AIR (P.WHITE) 352K055110 005D STAND TABLE (WHITE) 352K004110 010D PUNCHING NET (WHITE) 352K202110 011D SPK BRACKET 352K160010 013D INSULATOR FOR PROTECTOR nsp 014D PROTECTOR, SILENCER nsp 019D LEG CUSHION 332K057010 020D NUT nsp 021D RUBBER RING nsp 022D INSULATOR, PEF SHEET 4X58 nsp 011G CONTACTOR nsp 001M CD MECHA(VAM2103) 452S304500 002M 4822 402 10897 BUFFER, DAMPER 359K056010 JJ11 3.5 MONO JACK HSJ1400-01-010 YJ01004530 L801 MAINSTRANS 100V/120V TS15750010 N001 SPEAKER, 5CM 8Ω 5W QK00502090 W001 A.C MAINS CORD YC01900270 PACKING 001T USER GUIDE 352K851110 A002 CONNECT CORD, MONO MINI JACK 4P ZD01505020 NOT STANDARD SPARE PARTS 001S PACKING CASE, ED-5 (1 COLOR) 352K801110 002S CUSHION, L&R 352K809010 28 8. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT 29 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) P701-POWER SUPPLY, AMP CIRCUIT BOARD P701-CAPACITORS C701 4822 124 80395 ELECT, 10µF/16V EA10601620 C702 4822 124 22776 ELECT, 1µF/50V EA10505020 C703 4822 124 22776 ELECT, 1µF/50V EA10505020 C711 4822 122 40588 CER., 0.022µF DA17223110 C715 C801 4822 122 30103 CER., 0.022µF +80%-20% 50V DK18223310 C802 4822 124 90388 ELECT., 3300µF 16V RA2 TYPE OA33801620 C803 4822 124 90388 ELECT., 3300µF 16V RA2 TYPE OA33801620 C804 4822 122 30103 CER., 0.022µF +80%-20% 50V DK18223310 C810 ELECT, 100µF/16V EA107016P0 C811 4822 122 30103 CER., 0.022µF +80%-20% 50V DK18223310 C812 4822 122 30103 CER., 0.022µF +80%-20% 50V DK18223310 C813 4822 124 40723 ELECT., 2200µF ±20% 16V OA22801620 C814 4822 126 10935 ELECT, 100µF 6.3V EJ10700610 C815 4822 122 40588 CER., 0.022µF DA17223110 C851 4822 122 33276 CER., SPERK KILLER 0.01µF DK17103840 P701-CAPACITORS (COMMON) FILM 0.001µF 50V : C705, C706 P701-RESISTORS R811 4822 116 60307 FUSIBLE CHIP, 1Ω ±5% 1/4W NH05010140 P701-RESISTORS (COMMON) RES. 1kΩ ±5% 1/6W : R701, R702 RES. 33kΩ ±5% 1/6W : R703, R704 RES. 15Ω ±5% 1/6W : R711, R713-R715 P701-SEMICONDUCTORS D801 4822 130 31007 DIODE, DIODE S4VB HE20015290 D811 4822 130 32508 DIODE, RL103E/DSF10C HD20003000 D814 Q701 IC, TDA7056A HC10157490 Q703 IC, TDA7056A HC10157490 Q801 4822 209 61847 IC, NJM78M05FA HC38505090 P701-MISCELLANEOUS F001 FUSE, 3.15A 125V UL,CSA,MITI TYPE FS10315360 J704 JACK, HSJ1637-010512 YJ01004520 S851 4822 276 13242 PUSH SW., SDDLB TV-3 FRAME TYPE C SP01011830 PU01-CD CIRCUIT BOARD PU01-CAPACITORS C201 4822 126 11682 CER.CHIP, 220pF (GR39) DK96221300 C202 4822 126 11682 CER.CHIP, 220pF (GR39) DK96221300 C203 4822 126 12495 CER.CHIP, 1500pF (GR39) DK96152300 C204 4822 126 11682 CER.CHIP, 220pF (GR39) DK96221300 C206 C207 4822 126 14249 CER.CHIP, W5R 560pF DK96561300 C208 4822 126 11682 CER.CHIP, 220pF (GR39) DK96221300 C210 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C211 4822 122 33777 CER.CHIP, 47pF ±5% 50V DD95470300 C212 4822 126 11567 CER.CHIP, 0.022µF ±10% 16V DK96223200 C215 4822 122 33777 CER.CHIP, 47pF ±5% 50V DD95470300 C216 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C217 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C218 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C219 4822 124 21901 ELECT, 47µF/6.3V EJ47600610 C220 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C223 C224 4822 124 21901 ELECT, 47µF/6.3V EJ47600610 C226 4822 126 12339 CER.CHIP, 2200pF ±10% DK96222300 C227 CER.CHIP, 0.22µF DK98224200 C228 4822 126 14249 CER.CHIP, W5R 560pF DK96561300 C229 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C241 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C242 4822 126 10935 ELECT, 100µF/6.3V EJ10700610 C251 4822 126 11685 CER.CHIP, 4700pF ±10% 50V DK96472300 C252 4822 126 11685 CER.CHIP, 4700pF ±10% 50V DK96472300 C253 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C255 C256 4822 124 11495 TANTL.CHIP, 47µF/6.3V EY47600650 C257 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C258 9965 000 03906 TANTL.CHIP, 100µF/6.3V EY10700670 C259 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C261 4822 126 10935 ELECT, 100µF/6.3V EJ10700610 C262 4822 126 11568 CER.CHIP, 470pF (GR39) DK96471300 C263 4822 126 11568 CER.CHIP, 470pF (GR39) DK96471300 C264 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C401 C402 4822 124 11495 TANTL.CHIP, 47µF/6.3V EY47600650 C403 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C404 4822 124 11383 TANTL.CHIP, 10µF/6.3V EY10600650 C405 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C406 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C408 9965 000 03906 TANTL.CHIP, 100µF/6.3V EY10700670 C411 4822 124 11383 TANTL.CHIP, 10µF/6.3V EY10600650 C414 C415 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C416 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C417 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C418 4822 124 11495 TANTL.CHIP, 47µF/6.3V EY47600650 C419 4822 124 11383 TANTL.CHIP, 10µF/6.3V EY10600650 C422 C423 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C424 4822 126 11759 CER.CHIP, 100pF ±5% 50V DD95101300 C425 4822 126 11687 CER.CHIP, 0.1µF DK98104200 C426 4822 124 11495 TANTL.CHIP, 47µF/6.3V EY47600650 C435 4822 124 11495 TANTL.CHIP, 47µF/6.3V EY47600650 C436 4822 126 11682 CER.CHIP, 220pF DK96221300 C451 4822 124 11383 TANTL.CHIP, 10µF/6.3V EY10600650 C452 4822 124 11383 TANTL.CHIP, 10µF/6.3V EY10600650 CU01 4822 126 11704 CER.CHIP, 0.022µF DK98223300 CU02 5322 126 11578 CER.CHIP, 1000pF ±10% 50V DK96102300 CU03 4822 124 21894 ELECT, 10µF/16V EJ10601610 CU07 4822 126 13837 CER.CHIP, 0.1µF ±10% 10V DK96104200 CU08 4822 124 21901 ELECT, 47µF/6.3V EJ47600610 CU09 4822 126 10935 ELECT, 100µF/6.3V EJ10700610 CU10 4822 126 10935 ELECT, 100µF/6.3V EJ10700610 CU11 4822 126 11687 CER.CHIP, 0.1µF DK98104200 PU01-RESISTORS R201 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R206 R208 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R209 4822 051 30105 CHIP RES., 1MΩ ±5% 1/16W NN05105610 30 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R210 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R216 R217 4822 051 30222 CHIP RES., 2.2kΩ ±5% 1/16W NN05222610 R218 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R219 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R220 4822 051 30274 CHIP RES., 270kΩ ±5% 1/16W NN05274610 R221 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R222 4822 117 12968 CHIP RES., 820Ω ±5% 1/16W NN05821610 R223 4822 051 30105 CHIP RES., 1MΩ ±5% 1/16W NN05105610 R224 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R225 4822 051 30221 CHIP RES., 220Ω ±5% 1/16W NN05221610 R226 4822 116 83207 CHIP RES., 1.2kΩ ±5% 1/16W NN05122610 R227 4822 051 30222 CHIP RES., 2.2kΩ ±5% 1/16W NN05222610 R228 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R251 4822 051 30681 CHIP RES., 68kΩ ±5% 1/16W NN05681610 R252 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R253 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R254 4822 051 30681 CHIP RES., 680Ω ±5% 1/16W NN05681610 R255 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R256 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R257 4822 051 30561 CHIP RES., 560Ω ±5% 1/16W NN05561610 R258 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 R259 4822 051 30153 CHIP RES., 15kΩ ±5% 1/16W NN05153610 R260 4822 051 30681 CHIP RES., 680Ω ±5% 1/16W NN05681610 R261 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R262 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R263 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 R264 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 R265 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R266 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 R401 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R403 R404 CHIP RES., 1Ω ±5% 1/16W NN05010610 R409 4822 051 30104 CHIP RES., 100kΩ ±5% 1/16W NN05104610 R412 R413 4822 051 30153 CHIP RES., 15kΩ ±5% 1/16W NN05153610 R414 4822 051 30153 CHIP RES., 15kΩ ±5% 1/16W NN05153610 R415 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R416 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R417 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 R420 R421 4822 051 30473 CHIP RES., 47kΩ ±5% 1/16W NN05473610 R422 4822 051 30473 CHIP RES., 47kΩ ±5% 1/16W NN05473610 R423 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R424 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R425 4822 051 30104 CHIP RES., 100kΩ ±5% 1/16W NN05104610 R426 4822 051 30104 CHIP RES., 100kΩ ±5% 1/16W NN05104610 R427 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R430 R431 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 R434 R435 4822 051 30473 CHIP RES., 47kΩ ±5% 1/16W NN05473610 R436 4822 051 30473 CHIP RES., 47kΩ ±5% 1/16W NN05473610 R438 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R451 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 R453 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R454 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R455 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 R456 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 R459 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R460 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 R461 4822 051 30222 CHIP RES., 2.2kΩ ±5% 1/16W NN05222610 R462 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 R463 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 RU01 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 RU02 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 RU03 4822 051 30104 CHIP RES., 100kΩ ±5% 1/16W NN05104610 RU04 4822 051 30103 CHIP RES., 10kΩ ±5% 1/16W NN05103610 RU05 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 RU06 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 RU07 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 RU14 RU20 4822 051 30102 CHIP RES., 1kΩ ±5% 1/16W NN05102610 RU21 4822 051 30104 CHIP RES., 100kΩ ±5% 1/16W NN05104610 RU22 4822 051 30223 CHIP RES., 22kΩ ±5% 1/16W NN05223610 RU23 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 RU24 4822 051 30101 CHIP RES., 100Ω ±5% 1/16W NN05101610 RU42 RU43 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 RU44 4822 116 82487 CHIP RES., 0Ω ±5% 1/16W NN05000610 PU01-SEMICONDUCTORS D221 4822 130 83715 CHIP DIODE, 1SS301, DAN202U UMT TYPE HZ21005000 D401 4822 130 80346 CHIP DIODE, 02CZ8.2-Y HZ30004050 DU01 4822 130 80522 CHIP DIODE, 1SS300, DAP202U UMT TYPE HZ21006000 DU07 4822 130 80326 L.E.D., LT3D8B RED 3O HI10062320 Q201 4822 209 91174 IC, SAA7372GP SERVO IC HC10132490 Q202 4822 130 61311 CHIP TR.(2SA), 2SA1162 0,Y HX111622A0 Q203 DIG.TRS., RN2311,DTA114TU BA12311000 Q204 DIG.TRS., RN2311,DTA114TU BA12311000 Q205 DIG.TRS., DTC114EU BA20035210 Q206 CHIP TR.(2SB), 2SB789 HX207893B0 Q251 4822 209 16372 IC, TDA7073AT SOP DUAL BTL DRIVER HC10165490 Q252 4822 209 16372 IC, TDA7073AT SOP DUAL BTL DRIVER HC10165490 Q401 4822 209 15591 IC, AK4311 1BIT DAC HC10020480 Q402 4822 209 33165 IC, TDA1308 POWER OP AMP HC10138490 Q403 4822 209 33165 IC, TDA1308 POWER OP AMP HC10138490 Q405 4822 130 63844 DIG.TRS., HN1C03F(B) BA20016050 Q408 Q411 CHIP TR.(2SC), 2SC4081 (Q,R) 2SC4116 (Y,GR) HX300012A0 QU01 CPU, TMP87CM21FQFP80 HU207NT000 QU02 CHIP TR.(2SC), 2SC4081 (Q,R) 2SC4116 (Y,GR) HX300012A0 QU06 DIG.TRS., DTA114EU BA10026210 PU01-MISCELLANEOUS FU01 LCD, LM-1606BX KZ03501860 J201 4822 267 51337 JACK, SLW18R-1C7 YJ06020480 J202 4822 265 20412 JACK, S2B-PH-K-S YJ06006420 J203 JACK, S5B-PH-K-S YJ06006440 JU01 JACK, S9B-PH-K-S YJ06006490 L241 4822 157 10313 HF50ACC453215 FN31020010 L242 4822 157 11808 FERRITE CORE, BLM11B601S CHIPFERRITE FC90020110 L251 CHOKE COIL, TSL0709 -101KR66 LC11044600 L401 4822 157 53872 CHIP INDUCTANCE, NL322522-100K LU12103010 L411 CM04RC08T 3LINE FILLTER FN21000050 LU01 9965 000 04696 CHOKE COIL, 33 UH EL0606 LC13333000 LU02 4822 157 10313 HF50ACC453215 FN31020010 31 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) SU01 PUSH SW., TACT SKHLAC SP01013420 SU02 PUSH SW., TACT SKHLAC SP01013420 SU03 PUSH SW., TACT SKHLAC SP01013420 SU04 PUSH SW., TACT SKHLAC SP01013420 SU05 4822 276 13679 PUSH SW., DETECT SW SPPB51 SP01012350 X221 9965 000 01893 CER.VIB., CSTCC8.46M GOH6TC 8.46MHz ±5% FQ08464020 XU01 4822 242 80349 CER.VIB., 8.0MHz TYPE(EF0 V) TAPING FQ08004030 PV01-VOLUME CIRCUIT BOARD PV01-RESISTORS RV01 VAR., 100kΩ RK01040750
