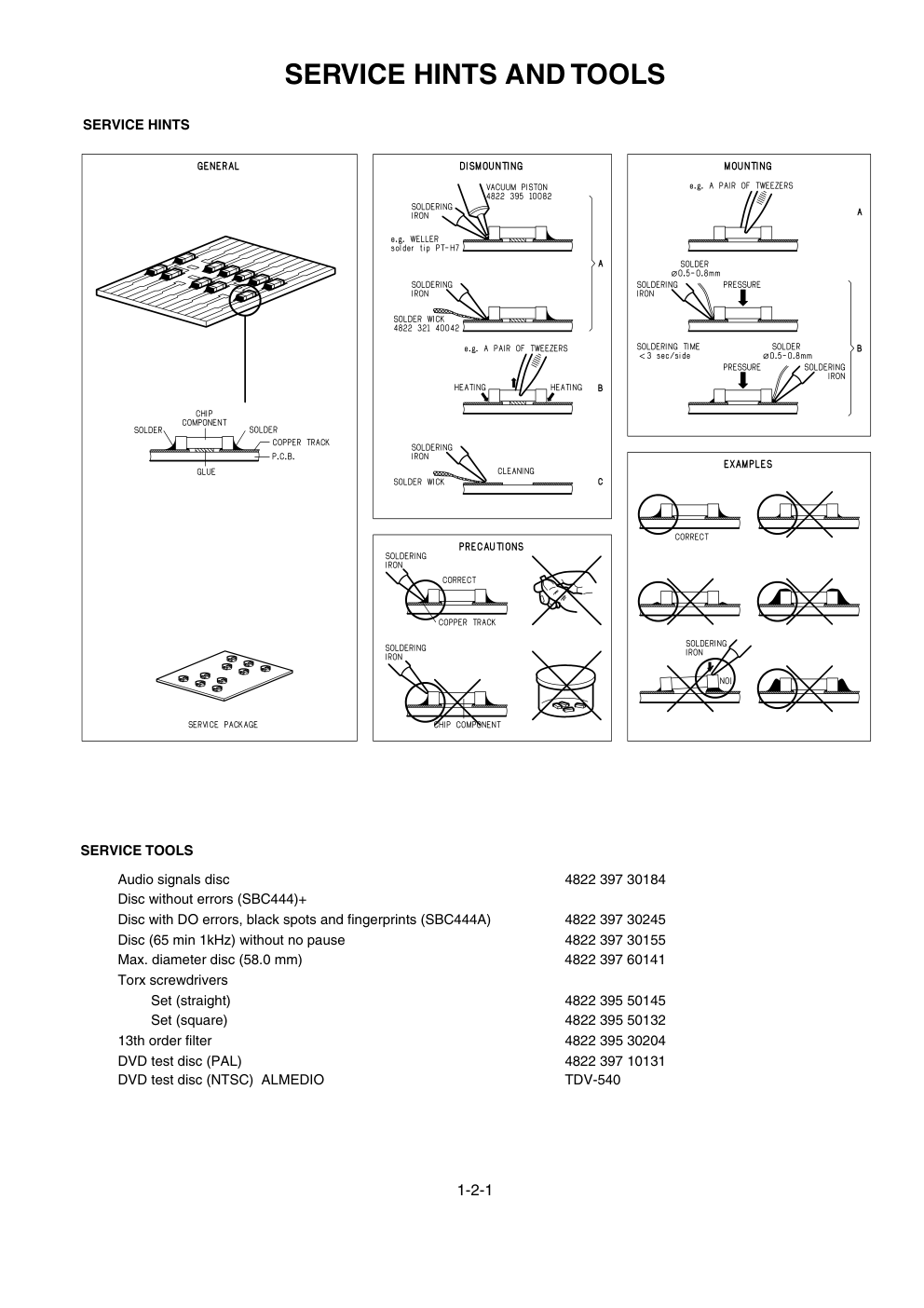

Super Audio CD / DVD Player DV4400 / DV6400 TABLE OF CONTENTS SECTION....................................................................................................................................PAGE TECHNICAL SPECIFICATIONS..................................................................................................1-1-1 SERVICE HINTS AND TOOLS ....................................................................................................1-2-1 WARNING AND LASER SAFETY INSTRUCTIONS ...................................................................1-2-2 LASER BEAM SAFETY PRECAUTIONS ....................................................................................1-2-3 IMPORTANT SAFETY PRECAUTIONS ......................................................................................1-3-1 STANDARD NOTES FOR SERVICING .......................................................................................1-4-1 CABINET DISASSEMBLY INSTRUCTIONS................................................................................1-5-1 TROUBLESHOOTING.................................................................................................................1-6-1 BLOCK DIAGRAMS.....................................................................................................................1-7-1 SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS..............................................................1-8-1 WAVEFORMS..............................................................................................................................1-9-1 WIRING DIAGRAMS .................................................................................................................1-10-1 FIRMWARE RENEWAL MODE .................................................................................................1-11-1 LEAD IDENTIFICATIONS..........................................................................................................1-12-1 EXPLODED VIEWS...................................................................................................................1-13-1 PARTS LIST [DV4400] ...............................................................................................................1-14-1 PARTS LIST [DV6400] ...............................................................................................................1-15-1 DV6400 /N1B/N1S DV4400 / DV6400 Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual Part no. 44AW855010 First Issue 2003.10 ecm DV4400 /N1B/N1S DVD Player DVD PLAYER DV4400 SUPER AUDIO CD / DVD PLAYER DV6400 SUPER AUDIO SUPER AUDIO CD CD AUDIO AUDIO EX. EX. DV6400 DV4400 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 030307MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. 2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 HONG KONG Jolly ProAudio Broadcast Engineering Ltd. UNIT 2, 10F, WAH HUNG CENTRE, 41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 TECHNICAL AUDIO GROUP PTY, LTD 43-53 Bridge Rd., STANMORE NSW 2048 AUSTRALIA PHONE : +61 - (0)2 - 9519 - 0900 FAX : +61 - (0)2 - 9519 - 0600 AUSTRALIA 1-1-1 TECHNICAL SPECIFICATIONS SIGNAL SYSTEM PAL color APPLICABLE DISCS (1) DVD-Video Discs 1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side) (2) DVD-R/DVD-RW (3) Compact discs (CD-DA) 12cm discs, 8cm discs (4) CD-R/CD-RW S-VIDEO OUTPUT Y output level: 1Vp-p (75�/ohms) C output level: 0.30Vp-p Output connectors: S connectors, 1 set VIDEO OUTPUT Output level: 1Vp-p (75�/ohms) Output connector: Pin jacks, 1 set COMPONENT OUTPUT Y output level: 1Vp-p (75�/ohms) CB output level: 0.7Vp-p (75�/ohms) CR output level: 0.7Vp-p (75�/ohms) Output connector: Pin jacks, 1 set AUDIO/VIDEO 21-pin scart jack AUDIO OUTPUT Output level: 2Vrms 2 channel (L, R) output connector: Pin jack, 1 set AUDIO OUTPUT PROPERTIES (1) Frequency response 1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling) : 4Hz to 44kHz (96 kHz sampling) 2 CDs : 4Hz to 20kHz (2) S/N ratio : 115dB (3) Total harmonic distortion : 1kHz CD: 0.003% (4) Dynamic range : DVD: 100dB CD: 98dB DIGITAL AUDIO OUTPUT Optical digital output: Optical connector, 1 set Coaxial digital output: Pin jack, 1 set POWER SUPPLY AC 230V, 50Hz POWER CONSUMPTION 15W (Standby: 1.0W) MAXIMUM EXTERNAL DIMENSIONS 440 (width) x 75 (height) x 211 (depth) mm MASS 2.1Kg (4.6 lbs) REMOTE CONTROL UNIT RC6400DV Infrared pulse type Supply: DC 3V, 2 R6P/AA batteries Contacts, signal levels and impedances Contact 1 Audio Output (Right): 2.0Vrms/01k� Contact 3 Audio Output (Left): 2.0Vrms/01k� Contact 4 Audio, Ground Contact 5 RGB, Ground (Blue) Contact 7 RGB Output (Blue): 0.7Vp-p/75� Contact 8 Function Select Switching Control L : 0.0~2.0V DC Power Off M: 4.5~7.0V DC Wide-Screen Mode (16:9) H: 9.5~12.0V DC Normal Mode (4:3) Contact 9 RGB, Ground (Green) Contact 11 RGB Output (Green): 0.7Vp-p/75� Contact 13 RGB, Ground (Red) Contact 14 RGB Switching Control, Ground Contact 15 RGB Output (Red): 0.7Vp-p/75� Contact 16 RGB Switching Control H: 3.3V DC RGB Mode Contact 17 Video Output Signal, Ground Contact 18 Video Input Signal, Ground Contact 19 Video Output (CVBS): 1.0Vp-p/75� Contact 21 Common Ground (shielding) 1 3 5 7 9 2 4 6 8 10 12 14 16 18 20 11 13 15 17 19 21 [ DV4400 ] 1-1-2 [ DV4400 ] Disc Types Playable Discs The following discs can be played back on this DVD player. CAUTION: ¡Use caution not to pinch your finger in the disc slot. ¡Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player. This player conforms to the PAL colour system. Also you can play discs recorded with the NTSC system via a PAL system TV set. ¡Some discs include region codes as shown below. ¡The number inside the symbol refers to a region of the world, and a disc encoded in a specific region for- mat can only be played back on DVD players with the same region code. The following discs cannot be played back on this DVD player. ¡DVD with region codes other than 2 or ALL. ¡DVD-ROM ¡DVD-RAM (Never play back, otherwise malfunc- tion may result.) ¡CD-ROM ¡VSD ¡CDV (Only plays back the audio part.) ¡CD-G (Only plays back the sound.) ¡CD-R/CD-RW (Only plays back the discs which audio CD/MP3/JPEG/WMA is recorded.) ¡CD-I (Never play back, otherwise malfunction may result.) ¡Photo CD (Never play back, otherwise malfunc- tion may result.) ¡SUPER AUDIO CD ¡DVD-Audio Any other discs without compatibility indications. [DVD-Video] Data on a DVD is divided into sections called "titles," and then into subsections called "chapters," each of which is given a title or chapter number. Playback conditions are preset on some DVD-Video discs, and these playback conditions take priority over user operations on this player. If a function you selected does not run as desired, refer to the manual accompanying the disc. [AUDIO CD, Video CD] Data on an AUDIO CD, or a Video CD is divided into sections called “tracks,” each of which is given a track number. [MP3, JPEG, WMA] Data on a MP3 is divided into sections called "groups," and then into subsections called "tracks," each of which is given an album or track number. Example Title 1 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Chapter 4 Example Track 1 Track 2 Track 3 Track 4 Track 5 Track 6 Example Group 1 Group 2 Track 1 Track 2 Track 1 Track 2 Track 3 Track 4 DVD-Video (NOTE 1) DVD-R DVD-RW (NOTE 2) CD CD-R CD-RW (NOTE 3) Picture CD Digital video (MPEG2) Digital audio MP3 WMA (NOTE 4) Digital picture (JPEG) JPEG Mark (logo) Usable discs Recorded signals Disc Size 12 cm 12 cm 12 cm 8 cm 8 cm NOTE 1: Some DVD-Video discs do not operate as described in this manual due to the intentions of the discs’ producers. NOTE 2: Playing DVD-R and DVD-RW discs DVD-R and DVD-RW discs on a DVD recorder can be played. Discs that have not be finalized cannot be played. Depending on the disc’s recording status, the disc may not be accepted or may not be played normally (the picture or sound may be not be smooth, etc.). NOTE 3: Some of CD-R/CD-RW discs may be incompartible because of “scratch and stain of disc”, “Recording condition”, and “Characteristic of Recorder”. NOTE 4: Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Sound and Pictures 12 cm 8 cm (Singles) Video CD DIGITAL VIDEO ABOUT THE PBC FUNCTION OF VIDEO CD This unit conforms to ver.1.1 and ver.2.0 of Video CD stan- dard, with PBC function. Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD. Ver.2.0 (with PBC function): While using a Video CD with PBC function, “PBC” appears on the screen and the display. NOTE: When playing Video CDs with PBC function, some operations (e.g., select and repeat tracks) cannot be performed unless the function is cancelled temporarily (refer to page 15). What is PBC? “PBC” stands for the Playback Control.You can play interactive software using menu screens. Refer to instructions in the Video CD. 1-1-3 TECHNICAL SPECIFICATIONS SIGNAL SYSTEM PAL color APPLICABLE DISCS (1) DVD-Audio/DVD-Video Discs 1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side) (2) Super Audio CD (3) DVD-R/DVD-RW (4) Compact discs (CD-DA) 12cm discs, 8cm discs (5) CD-R/CD-RW S-VIDEO OUTPUT Y output level: 1Vp-p (75�/ohms) C output level: 0.30Vp-p Output connectors: S connectors, 1 set VIDEO OUTPUT Output level: 1Vp-p (75�/ohms) Output connector: Pin jacks, 1 set COMPONENT OUTPUT Y output level: 1Vp-p (75�/ohms) CB output level: 0.7Vp-p (75�/ohms) CR output level: 0.7Vp-p (75�/ohms) Output connector: Pin jacks, 1 set AUDIO/VIDEO 21-pin scart jack AUDIO OUTPUT Output level: 2Vrms 2 channel (L, R) output connector: Pin jack, 1 set Multi channel (FL, FR, C, SW, SL, SR) output connector: Pinjack, 1 set AUDIO OUTPUT PROPERTIES (1) Frequency response 1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling) : 4Hz to 44kHz (96 kHz sampling) : 4Hz to 88kHz (192 kHz sampling) 2 CDs : 4Hz to 20kHz 3 Super Audio CD : 4Hz to 100kHz (2) S/N ratio : 115dB (3) Total harmonic distortion : 1kHz CD: 0.003% (4) Dynamic range : DVD: 100dB CD: 98dB DIGITAL AUDIO OUTPUT Optical digital output: Optical connector, 1 set Coaxial digital output: Pin jack, 1 set POWER SUPPLY AC 230V, 50Hz POWER CONSUMPTION 16W (Standby: 1.2W) MAXIMUM EXTERNAL DIMENSIONS 440 (width) x 75 (height) x 211 (depth) mm MASS 2.2Kg (4.9lbs) REMOTE CONTROL UNIT RC6400DV Infrared pulse type Supply: DC 3V, 2 R6P/AA batteries Contacts, signal levels and impedances Contact 1 Audio Output (Right): 2.0Vrms/01k� Contact 3 Audio Output (Left): 2.0Vrms/01k� Contact 4 Audio, Ground Contact 5 RGB, Ground (Blue) Contact 7 RGB Output (Blue): 0.7Vp-p/75� Contact 8 Function Select Switching Control L : 0.0~2.0V DC Power Off M: 4.5~7.0V DC Wide-Screen Mode (16:9) H: 9.5~12.0V DC Normal Mode (4:3) Contact 9 RGB, Ground (Green) Contact 11 RGB Output (Green): 0.7Vp-p/75� Contact 13 RGB, Ground (Red) Contact 14 RGB Switching Control, Ground Contact 15 RGB Output (Red): 0.7Vp-p/75� Contact 16 RGB Switching Control H: 3.3V DC RGB Mode Contact 17 Video Output Signal, Ground Contact 18 Video Input Signal, Ground Contact 19 Video Output (CVBS): 1.0Vp-p/75� Contact 21 Common Ground (shielding) 1 3 5 7 9 2 4 6 8 10 12 14 16 18 20 11 13 15 17 19 21 [ DV6400 ] 1-1-4 Disc Types Playable Discs The following discs can be played back on this DVD player. CAUTION: ¡Use caution not to pinch your finger in the disc slot. ¡Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player. This player conforms to the PAL colour system. Also you can play discs recorded with the NTSC system via a PAL system TV set. ¡Some discs include region codes as shown below. ¡The number inside the symbol refers to a region of the world, and a disc encoded in a specific region for- mat can only be played back on DVD players with the same region code. The following discs cannot be played back on this DVD player. ¡DVD with region codes other than 2 or ALL. ¡DVD-ROM ¡DVD-RAM (Never play back, otherwise malfunc- tion may result.) ¡CD-ROM ¡VSD ¡CDV (Only plays back the audio part.) ¡CD-G (Only plays back the sound.) ¡CD-R/CD-RW (Only plays back the discs which audio CD/MP3/JPEG/WMA is recorded.) ¡CD-I (Never play back, otherwise malfunction may result.) ¡Photo CD (Never play back, otherwise malfunc- tion may result.) Any other discs without compatibility indications. [DVD-Video] Data on a DVD is divided into sections called "titles," and then into subsections called "chapters," each of which is given a title or chapter number. Playback conditions are preset on some DVD-Video discs, and these playback conditions take priority over user operations on this player. If a function you selected does not run as desired, refer to the manual accompanying the disc. [AUDIO CD, Video CD, SUPER AUDIO CD] Data on an AUDIO CD, a SUPER AUDIO CD, or a Video CD is divided into sections called “tracks,” each of which is given a track number. [MP3, JPEG, WMA] Data on a MP3 is divided into sections called "groups," and then into subsections called "tracks," each of which is given an album or track number. Example Title 1 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Chapter 4 Example Track 1 Track 2 Track 3 Track 4 Track 5 Track 6 Example Group 1 Group 2 Track 1 Track 2 Track 1 Track 2 Track 3 Track 4 DVD-Video (NOTE 1) DVD-Audio DVD-R DVD-RW (NOTE 2) CD CD-R CD-RW (NOTE 3) Picture CD Digital video (MPEG2) Digital audio Digital audio MP3 WMA (NOTE 4) Digital picture (JPEG) JPEG Mark (logo) Usable discs Recorded signals Disc Size 12 cm 12 cm 12 cm 12 cm 8 cm 8 cm NOTE 1: Some DVD-Video discs do not operate as described in this manual due to the intentions of the discs’ producers. NOTE 2: Playing DVD-R and DVD-RW discs DVD-R and DVD-RW discs on a DVD recorder can be played. Discs that have not be finalized cannot be played. Depending on the disc’s recording status, the disc may not be accepted or may not be played normally (the picture or sound may be not be smooth, etc.). NOTE 3: Some of CD-R/CD-RW discs may be incompartible because of “scratch and stain of disc”, “Recording condition”, and “Characteristic of Recorder”. NOTE 4: Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Sound and Pictures 12 cm 8 cm (Singles) Video CD Super Audio CD DIGITAL VIDEO [DVD-Audio] DVD-Audios are divided into several large sections called “groups” and smaller sections called “tracks.” Numbers are alloted to these sections. These numbers are called “group numbers” and “track numbers.” Example Group 1 Group 2 Track 1 Track 2 Track 1 Track 2 Track 3 Track 4 ABOUT THE PBC FUNCTION OF VIDEO CD This unit conforms to ver.1.1 and ver.2.0 of Video CD stan- dard, with PBC function. Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD. Ver.2.0 (with PBC function): While using a Video CD with PBC function, “PBC” appears on the screen and the display. NOTE: When playing Video CDs with PBC function, some operations (e.g., select and repeat tracks) cannot be performed unless the function is cancelled temporarily (refer to page 16). What is PBC? “PBC” stands for the Playback Control.You can play interactive software using menu screens. Refer to instructions in the Video CD. [ DV6400 ] 1-2-1 SERVICE HINTS AND TOOLS DVD test disc (NTSC) ALMEDIO TDV-540 SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. diameter disc (58.0 mm) 4822 397 60141 Torx screwdrivers Set (straight) 4822 395 50145 Set (square) 4822 395 50132 13th order filter 4822 395 30204 DVD test disc (PAL) 4822 397 10131 SERVICE HINTS 1-2-2 WARNING AND LASER SAFETY INSTRUCTIONS F ATTENTION Tous les IC et beaucoup d’autres semi- conducteurs sont sensibles aux décharges statiques (ESD). Leur longévité pourrait être considérablement écourtée par le fait qu’aucune précaution n’est prise a leur manipulation. Lors de réparations, s’assurer de bien être relié au même potentiel que la masse de l’appareil et enfiler le bracelet serti d’une résistance de sécurité. Veiller a ce que les composants ainsi que les outils que l’on utilise soient également a ce potentiel. D WARNUNG Alle IC und viele andere Halbleiter sind empfindlich gegen elektrostatische Entladungen (ESD). Unsorgfältige Behandlung bei der Reparatur kann die Lebensdauer drastisch vermindern. Sorgen sie dafür, das Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig voor elektrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen verminderen. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevita potrebbe essere fortemente ridatta in caso di non osservazione della piu grande cauzione alla loro manipolazione. Durante le riparazioni occorre quindi essere collegato allo stesso potenziale che quello della massa dell’apparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential. WARNING Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke toestand wordt terug gebracht en dat onderdelen, identiek aan de gespecifieerde worden toegepast. Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten. Der Originalzustand des Gerats darf nicht verandert werden. Fur Reparaturen sind Original-Ersatzteile zu verwenden. Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli specificati. Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et que soient utilisées les pièces de rechange identiques à celles spécifiées. “Pour votre sécurité, ces documents doivent être utilisés par des spécialistes agrées, seuls habilités à réparer votre appareil en panne.” GB NL I D I F GB NL LASER SAFETY CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL Å PNES UNNGÅ EKSPONERING FOR STRÅLEN VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AVOID DIRECT EXPOSURE TO BEAM WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player WARNING LOCATION: INSIDE ON LASER COVERSHIELD This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. 030804ecm 1-2-3 E57E2LBS LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam. Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. Drive Mecha Assembly Laser Beam Radiation Laser Pickup Turntable 1-3-1 DVD_SFNP IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Some electrical and mechanical parts have special safety-related characteristics which are often not evi- dent from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review contin- uously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally impor- tant to implement the following precautions when a set is being serviced. Precautions during Servicing A. Parts identified by the ! symbol are critical for safety. Replace only with part number specified. B. In addition to safety, other parts and assemblies are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise block- ing capacitors, and noise blocking filters, etc. C. Use specified internal wiring. Note especially: 1)Wires covered with PVC tubing 2)Double insulated wires 3)High voltage leads D. Use specified insulating materials for hazardous live parts. Note especially: 1)Insulation tape 2)PVC tubing 3)Spacers 4)Insulators for transistors E. When replacing AC primary side components (transformers, power cord, etc.), wrap ends of wires securely about the terminals before solder- ing. F. Observe that the wires do not contact heat produc- ing parts (heatsinks, oxide metal film resistors, fus- ible resistors, etc.). G. Check that replaced wires do not contact sharp edges or pointed parts. H. When a power cord has been replaced, check that 5 - 6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder droplets, etc.) do not remain inside the set. K. Crimp type wire connector The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to pre- vent shock hazards. Replacement procedure 1)Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector. (Discard it.) 2)Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors. 3)Align the lengths of the wires to be connected. Insert the wires fully into the connector. 4)Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to the complete clo- sure of the tool. L. When connecting or disconnecting the internal con- nectors, first, disconnect the AC plug from the AC outlet. 1-3-2 DVD_SFNP Chassis or Secondary Conductor d d' Primary Circuit Terminals AC Voltmeter (High Impedance) Exposed Accessible Part B One side of Power Cord Plug Prongs Z Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original posi- tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1. Clearance Distance When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between sol- dered terminals, and between terminals and surround- ing metallic parts. (See Fig. 1) Table 1 : Ratings for selected area Note: This table is unofficial and for reference only. Be sure to confirm the precise values. 2. Leakage Current Test Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF termi- nals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below. Measuring Method (Power ON) : Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table. AC Line Voltage Clearance Distance (d) (d’) 230 V ≥ 3 mm(d) ≥ 6 mm(d’) Fig. 1 Fig. 2 Table 2: Leakage current ratings for selected areas Note: This table is unofficial and for reference only. Be sure to confirm the precise values. AC Line Voltage Load Z Leakage Current (i) One side of power cord plug prongs (B) to: 230 V 2kΩ RES. Connected in parallel i≤0.7mA AC Peak i≤2mA DC RF or Antenna terminals 50kΩ RES. Connected in parallel i≤0.7mA AC Peak i≤2mA DC A/V Input, Output 1-4-1 DVD_NOTE STANDARD NOTES FOR SERVICING Circuit Board Indications 1. The output pin of the 3 pin Regulator ICs is indi- cated as shown. 2. For other ICs, pin 1 and every fifth pin are indicated as shown. 3. The 1st pin of every male connector is indicated as shown. Instructions for Connectors 1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord. 2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle. How to Remove / Install Flat Pack-IC 1. Removal With Hot-Air Flat Pack-IC Desoldering Machine:. (1) Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1) (2) Remove the flat pack-IC with tweezers while apply- ing the hot air. (3) Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) (4) Release the flat pack-IC from the CBA using twee- zers. (Fig. S-1-6) Caution: 1. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2) 2. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it. Top View Out In Bottom View Input 5 10 Pin 1 Pin 1 FFC Cable Connector CBA * Be careful to avoid a short circuit. Fig. S-1-1 Hot-air Flat Pack-IC Desoldering Machine CBA Flat Pack-IC Tweezers Masking Tape Fig. S-1-2 1-4-2 DVD_NOTE With Soldering Iron: (1) Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) (2) Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4) (3) Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) (4) Release the flat pack-IC from the CBA using twee- zers. (Fig. S-1-6) With Iron Wire: (1) Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) (2) Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5. (3) While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5 (4) Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) (5) Release the flat pack-IC from the CBA using twee- zers. (Fig. S-1-6) Note: When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied. Flat Pack-IC Desoldering Braid Soldering Iron Fig. S-1-3 Fine Tip Soldering Iron Sharp Pin Fig. S-1-4 To Solid Mounting Point Soldering Iron Iron Wire or Hot Air Blower Fig. S-1-5 Fine Tip Soldering Iron CBA Flat Pack-IC Tweezers Fig. S-1-6 1-4-3 DVD_NOTE 2. Installation (1) Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily. (2) The “I” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.) (3) Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges. Instructions for Handling Semi-conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electro- static charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1MΩ) that is prop- erly grounded to remove any static electricity that may be charged on the body. 2. Ground for Workbench (1) Be sure to place a conductive sheet or copper plate with proper grounding (1MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body ground- ing band, be careful to avoid contacting semi-con- ductors with your clothing. Example : Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig. S-1-7 Presolder CBA Flat Pack-IC Fig. S-1-8 CBA < Incorrect > CBA Grounding Band Conductive Sheet or Copper Plate 1MΩ 1MΩ < Correct > 1-5-1 E57M2_M4DC CABINET DISASSEMBLY INSTRUCTIONS [ DV4400/N1B, DV4400/N1S ] 1. Disassembly Flowchart This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally. 2. Disassembly Method (1): Identification (location) No. of parts in the figures (2): Name of the part (3): Figure Number for reference (4): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2) (5): Refer to “Reference Notes.” Reference Notes CAUTION 1: Locking Tabs (L-1), (L-2) and (L-3) are fragile. Be careful not to break them. 1-1. Connect the wall plug to an AC outlet and press the OPEN/CLOSE button to open the Tray. 1-2. Remove the Tray Panel by releasing two Locking Tabs (L-1). 1-3. Press the OPEN/CLOSE button again to close the Tray. 1-4. Press the POWER button to turn the power off. 1-5. Unplug an AC cord. 1-6. Disconnect connector CN2002. 1-7. Release two Locking Tabs (L-2). Then, release five Locking Tabs (L-3) (to do this, first release two Locking Tabs (A) at the side, and then three Locking Tabs (B) at the bottom.) CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work. To avoid damage of pickup follow these procedures. 2-1. Disconnect connector (CN301). Remove three screws (S-5) and lift the DVD Mecha. (Fig. D5) ID/ LOC. No. PART REMOVAL Fig. No. REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER Note [1] Top Cover D1 5(S-1) - [2] Front Unit D2 *2(L-1), Tray Panel, *2(L-2), *5(L-3), *CN2002 1-1 1-2 1-3 1-4 1-5 1-6 1-7 [3] Function CBA D3 6(S-2), Insulation Sheet - [4] Front Assembly D3 ---------- - [5] Rear Panel D4 7(S-3), 3(S-4) - [6] DVD Mecha D5, D6 3(S-5), *CN201, *CN301 2 2-1 2-2 3 [7] DVD Main CBA Unit D5 2(S-6), *CN1001, *CN1601 - [8] DVD Main CBA Holder D5 (S-7) - [9] AV CBA D7 4(S-8), *CN6001 - [1] Top Cover [2] Front Unit [4] Front Assembly [6] DVD Mecha [5] Rear Panel [3] Function CBA [9] AV CBA [8] DVD Main CBA Holder [10] Switch CBA [11] LED CBA [12] LED CBA Holder [7] DVD Main CBA Unit [10] Switch CBA D7 (S-9), *2(L-4), Desolder - [11] LED CBA D7 (S-10), 3(L-5) - [12] LED CBA Holder D7 ---------- - ↓ (1) ↓ (2) ↓ (3) ↓ (4) ↓ (5) ID/ LOC. No. PART REMOVAL Fig. No. REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER Note 1-5-2 E57M2_M4DC 2-2. Short the three short lands of FPC cable with sol- der before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the laser diode of pickup will be destroyed. (Fig. D6) CAUTION 3: When reassembling, confirm the FFC cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. D6) (S-1) (S-1) (S-1) [1] Top Cover Fig. D1 [2] Front Unit Tray Panel (A) (A) (L-3) (L-2) CN2002 (L-1) (L-1) (B) Fig. D2 [3] Function CBA (S-2) (S-2) Insulation Sheet [4] Front Assembly Fig. D3 (S-4) (S-4) (S-4) (S-3) [5] Rear Panel Fig. D4 1-5-3 E57M2_M4DC (S-5) (S-7) (S-6) CN201 CN301 CN1601 CN1001 [6] DVD Mecha [7] DVD Main CBA Unit [8] DVD Main CBA Holder Fig. D5 A DVD Mecha View for B Pickup Unit C Short the three short lands by soldering Short the three short lands by soldering FPC Cable Connector Slide View for C View for A OR Fig. D6 1-5-4 E57M2_M4DC [9] AV CBA (S-8) (S-8) (S-8) (S-9) (S-10) CN6001 (L-4) (L-5) (L-5) [10] Switch CBA Desolder [11] LED CBA [12] LED CBA Holder Fig. D7 HOW TO MANUAL EJECT 1. Remove the Top Case. 2. Rotate the roulette in the direction of the arrow as shown below. Rotate this roulette in the direction of the arrow A View for A 1-5-5 E57M7_M9DC [ DV6400/N1B, DV6400/N1S ] 1. Disassembly Flowchart This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally. 2. Disassembly Method (1): Identification (location) No. of parts in the figures (2): Name of the part (3): Figure Number for reference (4): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2) (5): Refer to “Reference Notes.” Reference Notes CAUTION 1: Locking Tabs (L-6), (L-7) and (L-8) are fragile. Be careful not to break them. 1-1. Connect the wall plug to an AC outlet and press the OPEN/CLOSE button to open the Tray. 1-2. Remove the Tray Panel by releasing two Locking Tabs (L-6). 1-3. Press the OPEN/CLOSE button again to close the Tray. 1-4. Press the POWER button to turn the power off. 1-5. Unplug an AC cord. 1-6. Disconnect connector CN2002. 1-7. Release two Locking Tabs (L-7). Then, release five Locking Tabs (L-8) (to do this, first release two Locking Tabs (A) at the side, and then three Locking Tabs (B) at the bottom.) CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work. ID/ LOC. No. PART REMOVAL Fig. No. REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER Note [1] Top Cover D8 5(S-11) - [2] Front Unit D9 *2(L-6), Tray Panel, *2(L-7), *5(L-8), *CN2002 1-1 1-2 1-3 1-4 1-5 1-6 1-7 [3] Function CBA D10 6(S-12), Insulation Sheet - [4] Front Assembly D10 ---------- - [5] Rear Panel D11 9(S-13), 3(S-14) - [6] DVD Mecha D12, D13 3(S-15), *CN201, *CN301 2 2-1 2-2 3 [7] Shield Plate D12 (S-16), 2(S-17) - [8] SACD CBA D12 *5(L-9), *CN7101, *CN7102, *CN7151 - [9] DVD Main CBA Unit D12 2(S-18), *CN1001, *CN1601 - [1] Top Cover [2] Front Unit [4] Front Assembly [6] DVD Mecha [5] Rear Panel [3] Function CBA [8] SACD CBA [11] AV CBA [10] DVD Main CBA Holder [12] Switch CBA [13] LED CBA [14] LED CBA Holder [7] Shield Plate [9] DVD Main CBA Unit [10] DVD Main CBA Holder D12 (S-19) - [11] AV CBA D14 4(S-20), *CN6001 - [12] Switch CBA D14 (S-21), *2(L-10), Desolder - [13] LED CBA D14 (S-22), 3(L-11) - [14] LED CBA Holder D14 ---------- - ↓ (1) ↓ (2) ↓ (3) ↓ (4) ↓ (5) ID/ LOC. No. PART REMOVAL Fig. No. REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER Note 1-5-6 E57M7_M9DC To avoid damage of pickup follow these procedures. 2-1. Disconnect connector (CN301). Remove three screws (S-15) and lift the DVD Mecha. (Fig. D12) 2-2. Short the three short lands of FPC cable with sol- der before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the laser diode of pickup will be destroyed. (Fig. D13) CAUTION 3: When reassembling, confirm the FFC cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. D13) (S-11) (S-11) (S-11) [1] Top Cover Fig. D8 [2] Front Unit Tray Panel (A) (A) (L-8) (L-7) CN2002 (L-6) (L-6) (B) Fig. D9 [3] Function CBA (S-12) (S-12) Insulation Sheet [4] Front Assembly Fig. D10 (S-14) (S-14) (S-14) (S-13) (S-13) [5] Rear Panel Fig. D11 1-5-7 E57M7_M9DC (S-15) (S-16) (S-19) (L-9) (L-9) (L-9) (S-17) (S-18) CN201 CN7102 CN7151 CN301 CN1601 CN1001 CN7101 [6] DVD Mecha [9] DVD Main CBA Unit [10] DVD Main CBA Holder [7] Shield Plate [8] SACD CBA Fig. D12 A DVD Mecha View for B Pickup Unit C Short the three short lands by soldering Short the three short lands by soldering FPC Cable Connector Slide View for C View for A OR Fig. D13 1-5-8 E57M7_M9DC [11] AV CBA (S-20) (S-20) (S-20) (S-21) (S-22) CN6001 (L-10) (L-11) (L-11) [12] Switch CBA Desolder [13] LED CBA [14] LED CBA Holder Fig. D14 Rotate this roulette in the direction of the arrow A View for A HOW TO MANUAL EJECT 1. Remove the Top Case. 2. Rotate the roulette in the direction of the arrow as shown below. 1-6-1 E57M2TR FLOW CHART NO.2 The fuse blows out. After servicing, replace the fuse. Check the presence that the primary component is leaking or shorted and service it if defective. Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective. FLOW CHART NO.3 When the output voltage fluctuates. Yes No FLOW CHART NO.4 When buzz sound can be heard in the vicinity of power circuit. Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side, and service it if defective. (D1003, D1006, D1008, D1016, D1030, IC1002, Q1002, Q1004, Q1010, Q1011, Q1014) Does the photo coupler circuit on the secondary side operate normally? Check IC1001, D1012, D1024 and their periphery, and service it if defective. Check IC1001, IC1006, D1015, D1048 and their periphery, and service it if defective. FLOW CHART NO.5 -FL is not outputted. Is -24V voltage supplied to the anode of D1003? Check D1003 and periphery circuit, and service it if defective. Check if there is any leak or short-circuit on the loaded circuit, and service it if defective. Yes No FLOW CHART NO.1 The power cannot be turned on. Is the fuse normal? Is normal state restored when once unplugged power cord is plugged again after several seconds? Is the EV +9V line voltage normal? Is each voltage of the secondary side normal? See FLOW CHART No.2 Check if there is any leak or shor-circuiting on the primary circuit component, and service it if defective. (Q1001, Q1003, T1001, D1001, D1002, D1004, D1005, D1011, C1003, C1005) Check each rectifying circuit of the secondary circuit and service it if defective. Yes Yes Yes Is the voltage of 5V supplied to pin(1) of IC2002? Is the voltage of 3.3V outputted to pin(19) of CN1001? Yes When pressing POWER button (SW2001), is the voltage of 0V supplied to pin(8) of IC2002? Yes Yes Is the voltage of 0V supplied to pin(18) of IC2002? Replace IC2002. Yes Yes No No No No Check POWER button (SW2001) and their periphery, and service it if defective. No Check EV+5V line and service it if defective. No Replace DVD Main CBA unit. No Check Q2007 and their periphery, and service it if defective. No TROUBLESHOOTING 1-6-2 E57M2TR FLOW CHART NO.7 P-ON+5V is not outputted. (EV+9V is outputted normally.) Is the "H" pulse inputted into the base of Q1004? Replace Q1004. Check R1068 and D1046, and service it if defective. Yes No FLOW CHART NO.8 P-ON+3.3V is not outputted. (P-ON+12V is outputted normally.) Is 3.3V voltage supplied to the collector of Q1011? Replace Q1011 and R1067. Check D1008, D1015, C1007, C1038, L1007 and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.9 EV+5V is not outputted. (EV+9V is outputted normally.) Is the "H" pulse inputted into the base of Q1014? Replace Q1014. Check Q1014, D1047 and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.6 P-ON+12V is not outputted. Is 14V voltage supplied to the emitter of Q1002? Is the voltage of base on Q1002 lower than the voltage of emitter on Q1002 when turning the power on? Replace Q1002. Check D1030, D1048, D1053, C1035, C1048, L1009 and the periphery circuit, and service it if defective. Check Q1016 and PWRCON line and service it if defective. Yes Yes No No FLOW CHART NO.10 EV+1.5V is not outputted. Is 2.5V voltage supplied to Pin(1) of IC1002? Is 1.25V voltage supplied to Pin(4) of IC1002? Replace IC1002. Replace IC2002. Check the circuit between Pin(19) of IC2002 and Pin(4) of IC1002, and service it if defective. Check D1006, C1014, C1050, L1008 and the periphery circuit, and service it if defective. Is the "L" pulse outputted into Pin(19) of IC2002? Yes Yes Yes No No No FLOW CHART NO.11 EV+3.3V is not outputted. Is 3.3V voltage supplied to emitter of Q1010? Is the "L" pulse inputted to base of Q1012? Check Q1010, Q1012, R1087 and R1088, and service it if defective. Replace IC2002. Check the circuit between Pin(19) of IC2002 and base of Q1012, and service it if defective. Check D1008, D1015, C1007, C1038, L1007 and the periphery circuit, and service it if defective. Is the "L" pulse outputted into Pin(19) of IC2002? Yes Yes Yes No No No 1-6-3 E57M2TR Yes No FLOW CHART NO.13 The key operation is not functioning. Are the contact point and the installation state of the key switches (SW2001, 6401-6413) normal? When pressing each switches (SW6401-6403, 6405, 6407-6413), do the voltage of each pin of IC6001 (shown below) switch to 75mV from 6mV? SW6401-6403, 6405, 6407, 6409, 6413: IC6001 10PIN SW6408, 6410-6412: IC6001 11PIN When pressing each switches (SW2001, 6404, 6406), is the normal control voltage inputted to Pin(8) of IC2002? SW2001: 0 - 0.49V SW6406: 0.49 - 1.49V SW6404: 1.49 - 2.42V Check the switches (SW2001, 6401-6413) and their periphery, and service it if detective. No Re-install the switches (SW2001, 6401-6413) correctly or replace the poor switch. Replace IC2001. Yes Yes Yes Yes Yes No No No No FLOW CHART NO.12 The fluorescent display tube does not light up. Is 5V voltage supplied to Pin(13) and Pin(43) of IC6001? Is the voltage of approximately -24V to -28V supplied to Pin(30) of IC6001? Is there 500kHz oscillation at Pin(5) of IC6001? Are the filament voltage supplied between Pins(1, 2) and Pins(34, 35) of the fluorescent display tube? And the negative voltage applied between these pins and GND? Replace the fluorescent display tube. Check the P-ON+5V line and service it if detective. Check the -FL (-28V) line and service it if detective. Check R6001, IC6001 and their periphery, and service it if detective. Check PWRCON line, and service it if detective. Is the "H" signal inputted to base of Q1016? Check D1016, D1017, T1001, and their periphery, and service it if detective. Is -17V voltage supplied to collector of Q1005? No Yes Yes No Check Q1005, Q1015, Q1016, D1055, and their periphery, and service it if detective. 1-6-4 E57M2TR FLOW CHART NO.17 [No Disc] indicated. (When the focus error occurs.) Replace the DVD Main CBA. No improvement can be found. Original DVD Main CBA is poor. Replace the DVD Mecha. No Yes Yes FLOW CHART NO.16 The disc tray cannot be opened and closed. Replace the DVD Main CBA. Original DVD Main CBA is poor. Replace the DVD Mecha. No improvement can be found. No Yes FLOW CHART NO.15 The disc tray cannot be opened and closed. (It can be done using the remote control unit.) Is the normal control voltage inputted to Pin(8) of IC2002? Refer to "FLOW CHART NO.16" Replace the "OPEN/CLOSE" button (SW6406). No FLOW CHART NO.14 No operation is possible from the remote control unit. Operation is possible from the DVD, but no operation is possible from the remote control unit. Replace the infrared remote control receiver (RM2001). Or replace the remote control unit. Check the line between Pin(20) of IC2002 and Pin(22) of CN1001, and service it if detective. Is the "L" pulse sent out Pin(1) terminal of receiver (RM2001) when the infrared remote control is activated? Is the "L" pulse supplied to the Pin(22) of CN1001? Replace DVD Main CBA. Yes Yes Is 5V voltage supplied to the Pin(3) terminal of the infrared remote control receiver (RM2001)? Yes No Check EV+5V line and service it if detective. No No Yes Replace IC2002. Is the "L" pulse outputted to the Pin(20) of IC2002 when the infrared remote control is activated? Yes No 1-6-5 E57M2TR FLOW CHART NO.20 Both functions of picture and sound do not operate normally. Replace the DVD Main CBA. Replace the DVD Mecha. No Yes No improvement can be found. Original DVD Main CBA is poor. FLOW CHART NO.18 [No Disc] indicated. (When the focus servo is not functioning.) FLOW CHART NO.19 [No Disc] indicated. (When the laser beam does not light up.) Replace the DVD Main CBA. Replace the DVD Mecha. No Yes Replace the DVD Main CBA. Replace the DVD Mecha. No Yes No improvement can be found. Original DVD Main CBA is poor. No improvement can be found. Original DVD Main CBA is poor. 1-6-6 E57M2TR FLOW CHART NO.21 Picture does not appear normally. Set the disc on the disc tray, and playback. Are the video signals outputted to each pin of CN1601 on the AV CBA? Replace the DVD Main CBA or DVD Mecha. Check the line between each pin of CN1601 and each pin of IC6101 on the AV CBA, and service it if defective. Is 5V voltage applied to the pin(1, 34) of IC6101? Replace IC6101. Check P-ON+5V line and service it if defective. CN1601 1PIN → IC6101 6PIN S-Y CN1601 9PIN → IC6101 2PIN S-C CN1601 7PIN → IC6101 16PIN G CN1601 5PIN → IC6101 12PIN B/Cb CN1601 3PIN → IC6101 14PIN R/Cr Are the video signals shown above inputted into each pin of IC6101? Are the video signals outputted to each pin of IC6101? Yes Yes No Yes Yes No No No CN1601 1PIN S-Y CN1601 9PIN S-C CN1601 7PIN G CN1601 5PIN B/Cb CN1601 3PIN R/Cr IC6101 6PIN S-Y IC6101 2PIN S-C IC6101 16PIN G IC6101 12PIN B/Cb IC6101 14PIN R/Cr IC6101 31PIN CVBS IC6101 28PIN S-Y IC6101 33PIN S-C IC6101 19PIN G IC6101 25PIN B/Cb IC6101 22PIN R/Cr Check the periphery of JK6101 from Pins (19, 22, 25) of IC6101 and service it if defective. Check the periphery of JK6102 from Pin (22, 25, 28) of IC6101 and service it if defective. Check the periphery of JK1401 from Pin (28) of IC6101 and service it if defective. Check the periphery of JK1401 from Pin (33) of IC6101 and service it if defective. Are the video signals outputted to the specific output terminal? Are the component video signals(RGB) outputted to the VIDEO OUT terminal (JK6101)? Are the luminance signals outputted to the S-OUT terminal (JK1401)? Are the chroma signals outputted to the S-OUT terminal (JK1401)? No No No No No Are the component video signals(Y/Cb/Cr) outputted to the VIDEO OUT terminal (JK6102)? Check the periphery of JK6101 and JK6103 from Pin(31) of IC6101 and service it if defective. Are the composite video signals outputted to the VIDEO OUT terminal (JK6101, JK6103)? 1-6-7 E57M2TR FLOW CHART NO.22 Audio is not outputted to JK6103 normally. Set the disc on the disc tray, and playback. Are the analog audio signals outputted to each pin of CN1601 on AV CBA? Is the "H" level mute signal outputted to CN1601 on AV CBA ? CN1601 13PIN AUDIO-L CN1601 15PIN AUDIO-R CN1601 12PIN A-MUTE CN1601 16PIN A-R-MUTE CN1601 14PIN A-L-MUTE IC1201 7PIN AUDIO-L IC1201 1PIN AUDIO-R IC1201 6PIN AUDIO-L IC1201 2PIN AUDIO-R Replace the DVD Main CBA or DVD Mecha. Replace the DVD Main CBA or DVD Mecha. Replace IC1201. Check the periphery between Pins(1,7) of IC1201 and JK6103, and service it if detective. Check each line between each pin of CN1601 and each pin of IC1201 on AV CBA, and service it if detective. CN1601 13PIN → IC1201 6PIN AUDIO-L CN1601 15PIN → IC1201 2PIN AUDIO-R Are the analog audio signals inputted to each pin of IC1201. Are the analog audio signals inputted to each pin of IC1201? Are the audio signals outputted to the specific output terminal? Are the audio signals outputted to the audio terminal (JK6103)? Yes Yes Yes Yes No No No No No 1-6-8 E57M2TR Set the disc (with 5.1ch Audio) on the disc tray, and playback. FLOW CHART NO.23 (FOR DV6400/N1B, DV6400/N1S) Are the PCM data signals outputted to each pin of CN7102 on SACD CBA? Are the analog audio signals outputted to each pin of IC7201, IC7202 and IC7203? Are the PCM data signals inputted to each pin of IC7201, IC7202 and IC7203? CN7102 7PIN PCM-DATA0 CN7102 5PIN PCM-DATA1 CN7102 3PIN PCM-DATA2 IC7201 4PIN PCM-DATA0 IC7202 4PIN PCM-DATA1 IC7203 4PIN PCM-DATA2 IC7201 9,10PIN FRONT(L/R) IC7202 9,10PIN SORROUND(L/R) IC7203 9,10PIN CENTER/SUBWOOFER IC7301 2, 6PIN FRONT(L/R) IC7401 2, 6PIN SORROUND(L/R) IC7501 2, 6PIN CENTER/SUBWOOFER Replace the DVD Main CBA Unit or DVD Mecha. Is +5V voltage applied to the pin(8) of IC7201, IC7202 and IC7203? And is +3.3V voltage applied to the pin(7) of IC7201, IC7202 and IC7203? Check each line between each pin of CN7102 and each pin of IC7201, IC7202, IC7203 and service it if defective. CN7102 7PIN → IC7201 4PIN PCM-DATA0 CN7102 5PIN → IC7202 4PIN PCM-DATA1 CN7102 3PIN → IC7203 4PIN PCM-DATA2 Are the analog audio signals inputted to each pin of IC7301, IC7401 and IC7501? Are the analog audio signals outputted to each pin of IC7301, IC7401 and IC7501? IC7301 1,7PIN FRONT(L/R) IC7401 1,7PIN SORROUND(L/R) IC7501 1,7PIN CENTER/SUBWOOFER SORROUND(L) → CN7102 19PIN, IC7202 14PIN SORROUND(R) → CN7102 19PIN, IC7202 13PIN CENTER → CN7102 19PIN, IC7203 14PIN SUBWOOFER → CN7102 19PIN, IC7203 13PIN Do the mute signals of each line (as shown below) become to "H" level? FRONT(L) → CN7102 18PIN, IC7201 14PIN FRONT(R) → CN7102 18PIN, IC7201 13PIN Is the analog audio signal of each line outputted to each terminal of JK7101 (as shown below) ? IC7301 1PIN → JK7101 FRONT(L) IC7301 7PIN → JK7101 FRONT(R) IC7401 1PIN → JK7101 SORROUND(L) IC7401 7PIN → JK7101 SORROUND(R) IC7501 1PIN → JK7101 CENTER IC7501 7PIN → JK7101 SUBWOOFER Check each line between each pin of IC7201, IC7202, IC7203 and each pin of IC7301, IC7401 and IC7501, and service it if defective. IC7201 9,10PIN → IC7301 2,6PIN FRONT(L/R) IC7202 9,10PIN → IC7401 2,6PIN SORROUND(L/R) IC7203 9,10PIN → IC7501 2,6PIN CENTER/SUBWOOFER Yes Yes Yes Yes Yes Yes Yes No No No No No No No No No No Replace the DVD Main CBA Unit or IC7203. Check each line between each pins of ICs and JK7101, and service it if defective. Replace the DVD Main CBA Unit or IC7202. Replace the DVD Main CBA Unit or IC7201. Replace ICs (IC7201, IC7202 or IC7203). Replace ICs (IC7301, IC7401 or IC7501). Check P-ON+3.3V or P-ON+5V line and service it if defective. Audio is not outputted to JK7101 normally. (1) 1-6-9 E57M2TR Set the disc (with Super Audio) on the disc tray, and playback. Are the PCM data signals inputted to each pin of CN7102 on SACD CBA? Are the DSD data signals outputted to each pin of IC7251? CN7102 7PIN PCM-DATA0 CN7102 5PIN PCM-DATA1 CN7102 3PIN PCM-DATA2 CN7102 1PIN PCM-DATA3 Are the DSD data signals inputted to each pin of IC7201, IC7202 and IC7203? IC7251 170PIN PCM-DATA0 IC7251 171PIN PCM-DATA1 IC7251 172PIN PCM-DATA2 IC7251 173PIN PCM-DATA3 IC7251 64PIN DSD-L IC7251 66PIN DSD-R IC7251 74PIN DSD-LS IC7251 76PIN DSD-RS IC7251 69PIN DSD-C IC7251 71PIN DSD-SW IC7251 64PIN → IC7201 1PIN DSD-L IC7251 66PIN → IC7201 2PIN DSD-R IC7251 74PIN → IC7202 1PIN DSD-LS IC7251 76PIN → IC7202 2PIN DSD-RS IC7251 69PIN → IC7203 1PIN DSD-C IC7251 71PIN → IC7203 2PIN DSD-SW Are the PCM data signals inputted to each pin of IC7251? Is the power supply voltage applied to each pin of IC7251? Check each line between each pin of CN7102 on SACD CBA and each pin of IC7251, and service it if defective. Check each line between each pin of IC7251 and each pin of IC7201, IC7202, IC7203, and service it if defective. Replace IC7251. Check P-ON+2.5V or P-ON+3.3V line, and service it if defective. (continued to "A" on next page) Audio is not outputted to JK7101 normally. (2) FLOW CHART NO.24 (FOR DV6400/N1B, DV6400/N1S) IC7201 1PIN DSD-L IC7201 2PIN DSD-R IC7202 1PIN DSD-LS IC7202 2PIN DSD-RS IC7203 1PIN DSD-C IC7203 2PIN DSD-SW Replace the DVD Main CBA Unit or DVD Mecha. CN7102 7PIN → IC7251 170PIN PCM-DATA0 CN7102 5PIN → IC7251 171PIN PCM-DATA1 CN7102 3PIN → IC7251 172PIN PCM-DATA2 CN7102 1PIN → IC7251 173PIN PCM-DATA2 IC7251 5,35,54,83,99,121,124,125,153PIN: P-ON+2.5V IC7251 17,45,90,110,135,146,163PIN: P-ON+3.3V Yes Yes Yes Yes No No No No No Are the analog audio signals outputted to each pin of IC7201, IC7202 and IC7203? IC7201 9,10PIN FRONT(L/R) IC7202 9,10PIN SORROUND(L/R) IC7203 9,10PIN CENTER/SUBWOOFER IC7301 2, 6PIN FRONT(L/R) IC7401 2, 6PIN SORROUND(L/R) IC7501 2, 6PIN CENTER/SUBWOOFER Is +5V voltage applied to the pin(8) of IC7201, IC7202 and IC7203? And is +3.3V voltage applied to the pin(7) of IC7201, IC7202 and IC7203? Are the analog audio signals inputted to each pin of IC7301, IC7401 and IC7501? Check each line between each pin of IC7201, IC7202, IC7203 and each pin of IC7301, IC7401 and IC7501, and service it if defective. IC7201 9,10PIN → IC7301 2,6PIN FRONT(L/R) IC7202 9,10PIN → IC7401 2,6PIN SORROUND(L/R) IC7203 9,10PIN → IC7501 2,6PIN CENTER/SUBWOOFER Yes Yes Yes No No No Replace ICs (IC7201, IC7202 or IC7203). Check P-ON+3.3V or P-ON+5V line and service it if defective. 1-6-10 E57M2TR Are the analog audio signals outputted to each pin of IC7301, IC7401 and IC7501? IC7301 1,7PIN FRONT(L/R) IC7401 1,7PIN SORROUND(L/R) IC7501 1,7PIN CENTER/SUBWOOFER SORROUND(L) → CN7102 19PIN, IC7202 14PIN SORROUND(R) → CN7102 19PIN, IC7202 13PIN CENTER → CN7102 19PIN, IC7203 14PIN SUBWOOFER → CN7102 19PIN, IC7203 13PIN Do the mute signals of each line (as shown below) become to "H" level? FRONT(L) → CN7102 18PIN, IC7201 14PIN FRONT(R) → CN7102 18PIN, IC7201 13PIN Is the analog audio signal of each line outputted to each terminal of JK7101 (as shown below) ? IC7301 1PIN → JK7101 FRONT(L) IC7301 7PIN → JK7101 FRONT(R) IC7401 1PIN → JK7101 SORROUND(L) IC7401 7PIN → JK7101 SORROUND(R) IC7501 1PIN → JK7101 CENTER IC7501 7PIN → JK7101 SUBWOOFER Yes Yes No No No No No Replace the DVD Main CBA Unit or IC7203. Check each line between each pins of ICs and JK7101, and service it if defective. Replace the DVD Main CBA Unit or IC7202. Replace the DVD Main CBA Unit or IC7201. Replace ICs (IC7301, IC7401 or IC7501). Yes A System Control/Servo Block Diagram ( DV4400/N1B, DV4400/N1S ) 1-7-1 1-7-2 E57M2BLS BLOCK DIAGRAMS 27 7 8 3 15 10 14 26 1 2 3 4 6 23 5 17 18 12 11 14 13 15 16 25 24 DVD MAIN CBA DRIVE CBA IC301 (SERVO DRIVE) IC451 (CLOCK GENERATOR) IC202 (OP AMP) 12 14 CN301 FG CBA FG SENSOR M SLED MOTOR M SPINDLE MOTOR IC101 (MICRO CONTROLLER) +- +- +- +- +- +- +- SLED MOTOR DRIVE FOCUS ACTUATOR DRIVE 1/4 1/4 PLL2 X451 MULTI PLL X'TAL OSC 36.864MHz OSC SPINDLE MOTOR DRIVE TRACKING ACTUATOR DRIVE EXT CLOCK CLK33M BE CLOCK 172 170 150 TRAY-OUT TRAY-IN FG-IN 97 SLD 70 SPDL 71 TRACKING DRIVE 152 FOCUS DRIVE 60 66 TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM FS(+) FS(-) TS(+) TS(-) TO VIDEO/ AUDIO BLOCK DIAGRAM 51 ADAC-MD 50 ADAC-MC 96 ADAC-ML ADAC-MC ADAC-ML PCM-SCLK 95 A-MUTE ADAC-MD A-MUTE 17 92 FSEL RESET 68 RESET IC461 5 4 +3.3V TRAY-OUT TRAY-IN FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL SLED SERVO SIGNAL SPINDLE SERVO SIGNAL 3 SP(+) 4 SP(-) 5 TRAY-OUT 6 TRAY-IN 7 GND 8 SL(-) 9 SL(+) 1 FG-IN 64 ASPECT ASPECT FP-STB FP-DIN FP-DOUT REMOTE FP-CLK REMOTE SENSOR RM2001 K1 REMOTE-OUT FIP SEGMENT FL2001 IC6001 (FRONT PANEL CONTROL) IC2002 ENERGY STAR MICROCONTROLLER 20 REMOTE-IN 13 PWRCON PWRCON PWSW AD-KEY PWSW 18 8 19 KEY MATRIX CN2002 Q2007 CN6401 16 FP-STB 16 18 FP-DIN 18 20 FP-DOUT 20 21 FP-CLK 21 22 REMOTE 22 19 PWRCON 19 2 KEY-2 2 5 K2 5 8 K1 8 3 KEY-1 3 4 KEY-3 4 7 KEY-8 7 9 KEY-7 9 11 KEY-6 11 6 KEY-4 6 1 AD-KEY 1 59 54 55 53 63 PWRCON Q2005 61 CN401 CN1001 Q2006,Q2008 BUFFER BUFFER Q2004 BUFFER D2004 STANDBY JP6051 19 14 15 16 17 18 20 21 22 a/KEY-1 b/KEY-2 c/KEY-3 d/KEY-4 e/KEY-5 f/KEY-6 g/KEY-7 h/KEY-8 i 10 K2 11 1G 7G ~ 42 36 ~ GRID AD-KEY 1 1 STANDBY-LED 2 2 POWER SW2001 JP2050 9 7 6 8 FP-STB FP-DIN FP-DOUT FP-CLK 4 AUDIO-EX-LED CN6001 CN6050 AD-KEY 1 1 STANDBY-LED 2 2 D6003 AUDIO-EX. AUDIO-EX-LED 6 6 Q2002 EV+5V P-ON+5V TO POWER SUPPLY BLOCK DIAGRAM AV CBA FUNCTION CBA SWITCH CBA LED CBA Digital Signal Process Block Diagram ( DV4400/N1B, DV4400/N1S ) E57M2BLD 1-7-3 1-7-4 C 6 D 7 A 8 B 5 F 10 E 2 DVD-LD 14 CD-LD 12 PD-MONI 13 FS(+) 18 FS(-) 19 TS(+) 20 TS(-) 17 CN201 CN201 CN201 IC201 (SW) IC105 (LATCH) IC102 (SDRAM) IC101 (MICRO CONTROLLER) FS FS(+) CD/DVD FS(-) TS(+) TS(-) TS PICK-UP UNIT DETECTOR CD/DVD 9 Q251,Q252 CD DVD AMP Q253,Q254 AMP 4 1 3 6 GND(DVD-PD) 15 GND(CD-PD) 16 GND(LD) 11 FROM SYSTEM CONTROL/SERVO BLOCK DIAGRAM RF SIGNAL PROCESS CIRCUIT DVD/CD FORMATTER AUDIO I/F VIDEO I/F NTSC/PAL ENCODER DMA BCU INST. ROM 32BIT CPU DATA ROM INTERRUPT CONTROLLER WATCH DOG TIMER CPU I/F TIMER DECODER I/F CPU I/F READ MEMORY DATA ROM DSP DECODER PIXEL OPERATION I/O PROCESSOR INST. ROM DATA ROM INST. ROM DATA ROM INST. ROM SERIAL D/A GENERAL I/O INTERRUPT CONTROLLER TIMER WATCH DOG TIMER 32BIT CPU STREAM I/F EXTERNAL MEMORY I/F SDRAM ECC UMAC 124 125 122 123 128 129 126 127 131 130 135 133 132 134 78 DEBUG BCU INST CACHE D TYPE LATCH DATA CACHE D/A D/A D/A TO VIDEO /AUDIO BLOCK DIAGRAM 158 164 G C R/Cr B/Cb VIDEO-G VIDEO-C VIDEO-R/Cr VIDEO-B/Cb TO VIDEO /AUDIO BLOCK DIAGRAM 181 SPDIF 175 PCM-BCK 176 PCM-DATA0 174 PCM-LRCLK 161 160 EXADT (0-15), EXADR (16-19) EXADT (0-15), EXADR (16-19) EXADT (0-7) EXADT (8-15) EXADR (0-7) EXADR (0-15) EXADR (8-15) SDRAM DATA(0-31) SDRAM DATA(0-31) SDRAM ADDRESS(0-10) SDRAM ADDRESS(0-10) 2 9 ~ 12 19 ~ 210 235 ~ IC104 (LATCH) D TYPE LATCH 2 9 ~ 12 19 ~ 2 13 184 205 247 256 ~ ~ ~ 2 13 31 56 74 85 ~ ~ ~ IC103 (FLASH ROM) FLASH ROM 29 36 38 45 ~ ~ DVD MAIN CBA UNIT DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL 24 27 60 66 ~ ~ EXADT (0-15) EXADR (16-19) ~ 1 9 16 25 48 ~ D/A Y VIDEO-Y 163 Video / Audio Block Diagram ( DV4400/N1B, DV4400/N1S ) E57M2BLV 1-7-5 1-7-6 IC601 (AUDIO DAC) 7 8 12 11 DIGITAL AUDIO OUT JK1202 JK6103 AMP Q1351 IC1201 Q1203 Q1201 Q1202 +3.3V (AMP) CN601 CN1601 13 13 AUDIO-L 15 15 AUDIO-R 14 14 A-L-MUTE 16 16 A-R-MUTE 12 12 A-MUTE AUDIO-L OUT 1 2 3 13 14 15 16 FROM SYSTEM CONTROL /SERVO BLOCK DIAGRAM FROM DIGITAL SIGNAL PROCESS BLOCK DIAGRAM SERIAL PORT SERIAL CONTROL 4X/8X OVERSAMPLING DIGITAL FILTER /FUNCTION CONTROLLER ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR DAC LPF+AMP L-CH R-CH LPF+AMP DAC ZERO DETECT SYSTEM CLOCK 7 6 2 1 3 AUDIO-R OUT PCM-BCK SPDIF PCM-DATA0 PCM-LRCLK ADAC-MD ADAC-MC ADAC-ML PCM-SCLK AV CBA DVD MAIN CBA UNIT AUDIO SIGNAL DATA(AUDIO) SIGNAL 18 18 SPDIF A-MUTE +3.3V JK6102 Q1204 WF6 5 WF4 WF5 CN601 VIDEO-Y VIDEO-C FROM DIGITAL SIGNAL PROCESS BLOCK DIAGRAM VIDEO SIGNAL +5V JK6101 1 3 AUDIO-L OUT AUDIO-R OUT FIBER OPTIC TRANS MODULE IC1204 JK1401 S-VIDEO OUT COMPOSITE VIDEO OUT CN1601 1 1 VIDEO-Y 9 9 VIDEO-C 3 4 2 1 IC6101 (VIDEO DRIVER) 6 28 4dB AMP 2dB AMP LPF DRIVER Y C 2 33 4dB AMP 2dB AMP LPF DRIVER JK6103 31 22 4dB AMP 2dB AMP LPF DRIVER 19 4dB AMP 2dB AMP LPF DRIVER 16 14 3 3 VIDEO-R/Cr 7 7 VIDEO-G VIDEO- CVBS OUT VIDEO-R OUT VIDEO-Y OUT VIDEO-Cb OUT VIDEO-Cr OUT VIDEO-G OUT VIDEO-B OUT JK6101 19 15 11 7 5 5 VIDEO-B/Cb 25 4dB AMP 2dB AMP LPF DRIVER 12 2 2 ASPECT Q1601 Q1602 8 ASPECT +12V 2dB AMP DRIVER VIDEO-R/Cr VIDEO-G VIDEO-B/Cb ASPECT WF3 CN601 CN1601 FROM SYSTEM CONTROL/SERVO BLOCK DIAGRAM WF1 WF2 Power Supply Block Diagram ( DV4400/N1B, DV4400/N1S ) E57M2BLP 1-7-7 1-7-8 IC1006 (SHUNT REGULATOR) REG NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal. AC1001 AC CORD F1001 LINE FILTER L1001 D1001, D1002 D1004, D1005 Q1003 Q1001 2 4 7 3 4 IC1001 ERROR VOLTAGE DET T1001 11 12 13 15 14 16 17 18 SWITCHING SWITCHING CONTROL 1 2 6 BRIDGE RECTIFIER HOT AV CBA HOT CIRCUIT. BE CAREFUL. D1003 RECTIFIER D1030 RECTIFIER D1016 RECTIFIER Q1016 Q1005 Q1011 Q1012 Q1010 Q1015 Q1002 CN1001 Q1004 -FL EV+5V F2 F1 P-ON+12V EV+3.3V P-ON+5V P-ON+3.3V FROM/TO CN401 1,2,3 EV+1.5V 4,5 EV+3.3V 14,15 EV+9V 13 P-ON+5V 17 P-ON+3.3V +1.5V REG. IC1002 CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. Q1008 LATCH D1006 SCHOTTKY BARRIER SCHOTTKY BARRIER D1008 CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. T1.6A L 250V PWRCON PWSW FROM SYSTEM CONTROL/SERVO BLOCK DIAGRAM Q1014 E57M7BLS 1-7-9 1-7-10 27 7 8 3 10 14 26 1 2 3 4 6 23 5 17 18 12 11 14 13 15 16 25 24 FP-STB FP-DIN FP-DOUT REMOTE FP-CLK IC301 (SERVO DRIVE) IC451 (CLOCK GENERATOR) IC202 (OP AMP) 12 14 CN301 FG SENSOR M SLED MOTOR M SPINDLE MOTOR IC101 (MICRO CONTROLLER) +- +- +- +- +- +- +- SLED MOTOR DRIVE FOCUS ACTUATOR DRIVE 1/4 1/4 PLL2 X451 MULTI PLL X'TAL OSC 36.864MHz OSC SPINDLE MOTOR DRIVE TRACKING ACTUATOR DRIVE EXT CLOCK 2ch-L/6ch-H ADAC-ML1 M-MUTE ADAC-ML2 CLK33M BE CLOCK 172 170 150 TRAY-OUT TRAY-IN FG-IN 97 SLD 70 SPDL 71 TRACKING DRIVE 152 FOCUS DRIVE 60 66 FS(+) FS(-) TS(+) TS(-) ADAC-MD ADAC-MC ADAC-ML0 ADAC-MC ADAC-ML0 15 PCM-SCLK PCM-DATA0 PCM-DATA1 PCM-DATA2 PCM-DATA3 PCM-LRCLK PCM-BCK CN901 86 51 50 87 A-MUTE ADAC-MD A-MUTE 17 92 FSEL RESET 68 RESET IC461 5 4 +3.3V TRAY-OUT TRAY-IN FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL SLED SERVO SIGNAL SPINDLE SERVO SIGNAL 3 SP(+) 4 SP(-) 5 TRAY-OUT 6 TRAY-IN 7 GND 8 SL(-) 9 SL(+) 1 FG-IN 2ch-L/6ch-H 2 ADAC-MC 11 ADAC-MD 12 ADAC-ML0 13 ADAC-ML1 14 PCM-SCLK 16 PCM-DATA3 1 PCM-DATA2 3 PCM-DATA1 5 PCM-DATA0 7 PCM-BCK 9 PCM-LRCLK 10 A-MUTE2 18 M-MUTE 19 ADAC-ML2 20 88 89 84 REMOTE SENSOR RM2001 K1 REMOTE-OUT FIP SEGMENT FL2001 IC6001 (FRONT PANEL CONTROL) IC2002 ENERGY STAR MICROCONTROLLER 20 REMOTE-IN 13 PWRCON PWRCON PWSW AD-KEY PWSW 18 8 19 KEY SWITCH CN2002 Q2007 CN6401 16 FP-STB 16 18 FP-DIN 18 20 FP-DOUT 20 21 FP-CLK 21 22 REMOTE 22 19 PWRCON 19 2 KEY-2 2 5 K2 5 8 K1 8 3 KEY-1 3 4 KEY-3 4 7 KEY-8 7 9 KEY-7 9 11 KEY-6 11 6 KEY-4 6 1 AD-KEY 1 59 54 55 53 63 PWRCON DATA(AUDIO) SIGNAL Q2005 61 CN401 CN1001 Q2006,Q2008 BUFFER BUFFER Q2004 BUFFER D2004 STANDBY JP6051 19 14 15 16 17 18 20 21 22 a/KEY-1 b/KEY-2 c/KEY-3 d/KEY-4 e f/KEY-6 g/KEY-7 h/KEY-8 i 10 K2 11 1G 7G ~ 42 36 ~ GRID AD-KEY 1 1 STANDBY-LED 2 2 POWER SW2001 JP2050 9 7 6 8 FP-STB FP-DIN FP-DOUT FP-CLK 2 4 SACD-LED AUDIO-EX-LED CN6001 CN6050 AD-KEY 1 1 STANDBY-LED 2 2 D6003 AUDIO-EX. D6002 SACD AUDIO-EX-LED 6 6 SACD-LED 5 5 Q2002 EV+5V P-ON+5V 95 A-MUTE2 100 DVD/SACD 94 DVD/SACD DVD 4 1 3 IC903 (SW) 6 SACD ASPECT 64 ASPECT SDCK System Control/Servo Block Diagram ( DV6400/N1B, DV6400/N1S ) BLOCK DIAGRAMS TO POWER SUPPLY BLOCK DIAGRAM AV CBA FUNCTION CBA SWITCH CBA LED CBA DVD MAIN CBA UNIT DRIVE CBA FG CBA TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO VIDEO/ AUDIO BLOCK DIAGRAM TO SACD BLOCK DIAGRAM CN7102 TO VIDEO/ AUDIO BLOCK DIAGRAM ADAC-ML0 96 E57M7BLD 1-7-11 1-7-12 C 6 D 7 A 8 B 5 F 10 E 2 DVD-LD 14 CD-LD 12 PD-MONI 13 FS(+) 18 FS(-) 19 TS(+) 20 TS(-) 17 CN201 CN201 CN201 IC201 (SW) IC105 (LATCH) IC102 (SDRAM) IC101 (MICRO CONTROLLER) FS FS(+) CD/DVD FS(-) TS(+) TS(-) TS DETECTOR CD/DVD 9 Q251,Q252 CD DVD AMP Q253,Q254 AMP 4 1 3 6 GND(DVD-PD) 15 GND(CD-PD) 16 GND(LD) 11 RF SIGNAL PROCESS CIRCUIT DVD/CD FORMATTER AUDIO I/F VIDEO I/F NTSC/PAL ENCODER DMA BCU INST. ROM 32BIT CPU DATA ROM INTERRUPT CONTROLLER WATCH DOG TIMER CPU I/F TIMER DECODER I/F CPU I/F READ MEMORY DATA ROM DSP DECODER PIXEL OPERATION I/O PROCESSOR INST. ROM DATA ROM INST. ROM DATA ROM INST. ROM SERIAL D/A GENERAL I/O INTERRUPT CONTROLLER TIMER WATCH DOG TIMER 32BIT CPU STREAM I/F EXTERNAL MEMORY I/F SDRAM ECC UMAC 124 125 122 123 128 129 126 127 131 130 135 133 132 134 78 DEBUG BCU INST CACHE D TYPE LATCH DATA CACHE D/A D/A D/A 158 164 G C R/Cr B/Cb VIDEO-G VIDEO-C VIDEO-R/Cr VIDEO-B/Cb 181 SPDIF 175 PCM-BCK PCM-BCK 176 PCM-DATA3 PCM-DATA3 PCM-DATA2 PCM-DATA1 PCM-DATA0 174 178 179 180 PCM-LRCLK PCM-LRCLK 161 160 EXADT (0-15), EXADR (16-19) EXADT (0-15), EXADR (16-19) EXADT (0-7) EXADT (8-15) EXADR (0-7) EXADR (0-15) EXADR (8-15) SDRAM DATA(0-31) SDRAM DATA(0-31) SDRAM ADDRESS(0-10) SDRAM ADDRESS(0-10) 2 9 ~ 12 19 ~ 210 235 ~ IC104 (LATCH) D TYPE LATCH 2 9 ~ 12 19 ~ 2 13 184 205 247 256 ~ ~ ~ 2 13 31 56 74 85 ~ ~ ~ IC103 (FLASH ROM) FLASH ROM 29 36 38 45 ~ ~ DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL DATA(VIDEO) SIGNAL FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL 24 27 60 66 ~ ~ EXADT (0-15) EXADR (16-19) ~ 1 9 16 25 48 ~ 21 CN902 2 WCK 5 RF 7 SALAT 8 SAREADY 9 SADI 10 XSRQ 11 XSHD 12 SDCK 13 XSAK 14 SDEF 15 IECOUT 16 PHCOPMO 17 RESET(L) 62 173 102 65 103 47 52 49 48 90 RESET(L) SDEF XSAK XSHD XSRQ SADI SAREADY SALAT WCK IC901 (OP AMP) 1 4 3 109 113 109 ANALOG MONITOR V-REF(B) +3.3V SDCK Digital Signal Process Block Diagram ( DV6400/N1B, DV6400/N1S ) PICK-UP UNIT DVD MAIN CBA UNIT TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM TO VIDEO /AUDIO BLOCK DIAGRAM TO VIDEO /AUDIO BLOCK DIAGRAM TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO SACD BLOCK DIAGRAM CN7151 D/A Y VIDEO-Y 163 E57M7BLV 1-7-13 1-7-14 IC601 (AUDIO DAC) 7 4 8 12 11 DIGITAL AUDIO OUT JK1202 JK6103 AMP Q1351 IC1201 Q1203 Q1201 Q1202 +3.3V (AMP) CN601 CN1601 13 13 AUDIO-L 15 15 AUDIO-R 14 14 A-L-MUTE 16 16 A-R-MUTE 12 12 A-MUTE AUDIO-L OUT 1 2 3 13 14 15 16 SERIAL PORT SERIAL CONTROL 4X/8X OVERSAMPLING DIGITAL FILTER /FUNCTION CONTROLLER ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR DAC LPF+AMP L-CH R-CH LPF+AMP DAC ZERO DETECT SYSTEM CLOCK 7 6 2 1 3 AUDIO-R OUT PCM-BCK SPDIF PCM-DATA3 PCM-LRCLK ADAC-MD ADAC-MC ADAC-ML0 PCM-SCLK DVD/SACD AUDIO SIGNAL DATA(AUDIO) SIGNAL 18 18 SPDIF 2 2 ASPECT A-MUTE ASPECT +3.3V Q1204 WF6 5 WF4 WF5 JK1401 S-VIDEO OUT 3 4 2 1 Y C COMPOSITE VIDEO OUT VIDEO-Cb OUT VIDEO-Y OUT VIDEO-Cr OUT JK6103 VIDEO SIGNAL +5V WF3 FIBER OPTIC TRANS MODULE IC1204 JK6102 Q1601,Q1602 AMP (AND GATE) IC902 2 1 Video / Audio Block Diagram ( DV6400/N1B, DV6400/N1S ) TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM DVD MAIN CBA UNIT AV CBA CN601 9 9 VIDEO-C 3 3 VIDEO-R/Cr 7 7 VIDEO-G 5 5 VIDEO-B/Cb VIDEO-C VIDEO-R/Cr VIDEO-G VIDEO-B/Cb CN1601 IC6101 (VIDEO DRIVER) 6 28 4dB AMP 2dB AMP LPF DRIVER 2 33 4dB AMP 2dB AMP LPF DRIVER 31 22 4dB AMP 2dB AMP LPF DRIVER 19 4dB AMP 2dB AMP LPF DRIVER 16 14 25 4dB AMP 2dB AMP LPF DRIVER 12 2dB AMP DRIVER 1 1 VIDEO-Y VIDEO-Y WF1 WF2 VIDEO- CVBS OUT VIDEO-R OUT VIDEO-G OUT VIDEO-B OUT JK6101 19 15 11 7 8 ASPECT TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM +9V JK6101 1 3 AUDIO-L OUT AUDIO-R OUT E57M7BLSA 1-7-15 1-7-16 SACD Block Diagram ( DV6400/N1B, DV6400/N1S ) AUDIO SIGNAL DATA(AUDIO) SIGNAL IC7201 (AUDIO D/A CONVERTER) IC7301 (AMP) IC7251 (SACD MULTI CHANNEL SIGNAL PROCESS) IC7105 IC7252 (SD-RAM) MULTI-LEVEL DELTA-SIGMA MODULATOR DSD I/F 20 9 10 14 13 1 2 60 63 65 68 70 73 75 64 66 74 76 69 71 3 4 5 15 16 17 18 PCM I/F DSD FILTER MUX DAC PCM FILTER LPF L-CH R-CH L-CH R-CH L-CH R-CH LPF MODE CONTROL PCM SYSTEM CLOCK A-L-MUTE A-R-MUTE SURROUND-L-MUTE SURROUND-R-MUTE CENTER-MUTE SUB WOOFER-MUTE STREAM MANAGER XSHD XSRQ SDCK XSAK SDEF TEST RESET(L) RESET(L) RF WCK ADDRESS (0-11) DATA (0-7) SACD READY SACD DATA SACD LATCH ADAC-MD ADAC-MC CN7151 (AND GATE) (AND GATE) CN7102 DSD FADE L-MUTE R-MUTE C-MUTE SW-MUTE LS-MUTE RS-MUTE DSD SIGNAL PROCESS DSD OUTPUT I/F ADDRESS BUS DATA BUS DST DECODER IC7202 (AUDIO D/A CONVERTER) MULTI-LEVEL DELTA-SIGMA MODULATOR DSD I/F 20 9 10 14 13 1 2 3 4 5 15 16 17 18 PCM I/F DSD FILTER MUX DAC PCM FILTER LPF LPF MODE CONTROL PCM SYSTEM CLOCK IC7203 (AUDIO D/A CONVERTER) MULTI-LEVEL DELTA-SIGMA MODULATOR DSD I/F 20 9 10 14 13 1 2 3 4 5 15 16 17 18 PCM I/F DSD FILTER MUX DAC PCM FILTER LPF LPF MODE CONTROL PCM SYSTEM CLOCK 6 2 7 1 FRONT (R) OUT FRONT (L) OUT JK7101 SURROUND (R) OUT SURROUND (L) OUT CENTER OUT SUB WOOFER OUT 15 IECOUT 16 PHCOPMO 1 PCM-DATA3 3 PCM-DATA2 5 PCM-DATA1 7 PCM-DATA0 9 PCM-BCK 10 PCM-LRCLK 11 ADAC MC 12 ADAC MD 13 ADAC-ML0 16 PCM-SCLK 2 2ch-L/6ch-H 14 ADAC ML1 20 ADAC ML2 18 A-MUTE2 19 M-MUTE 9 SADI 8 SAREADY 2 WCK 5 RF 17 RESET(L) 11 XSHD 10 XSRQ 12 SDCK 13 XSAK 14 SDEF Q7307 MUTE-ON Q7308 Q7301 Q7302 Q7401 Q7402 Q7501 Q7502 MUTE-ON Q7403 MUTE-ON Q7451 MUTE-ON Q7452 MUTE-ON Q7404 MUTE-ON Q7503 MUTE-ON Q7504 MUTE-ON IC7401 (AMP) 6 2 7 1 IC7501 (AMP) 6 2 7 1 Q7551 MUTE-ON Q7552 MUTE-ON Q7351 MUTE-ON Q7352 MUTE-ON 3 4 6 7 SALAT 2 7 123 126 9 31 168 169 176 167 166 164 165 1 2 4 IC7111 1 2 4 IC7101 (SW) 1 3 6 4 11 PCM-SCLK 148,149,151,152, 154-157,159-162 131-134, 136-139 19-24, 27-32 2,3,5,6, 8,9,11,12 TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM CN902 TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM CN901 SACD CBA E57M7BLP 1-7-17 1-7-18 AC1001 AC CORD F1001 LINE FILTER L1001 D1001, D1002 D1004, D1005 Q1003 Q1008 Q1001 2 4 7 3 4 IC1001 ERROR VOLTAGE DET T1001 11 12 13 15 14 16 17 18 IC1006 (SHUNT REGULATOR) SWITCHING D1008 D1003 Q1002 Q1016 D1006 RECTIFIER D1030 RECTIFIER D1016 RECTIFIER SWITCHING CONTROL LATCH REG 1 2 6 BRIDGE RECTIFIER HOT CN1001 +1.5V REG. IC1002 HOT CIRCUIT. BE CAREFUL. 2 EV+1.5V 3 EV+1.5V 4 EV+3.3V 5 EV+3.3V 13 P-ON+5V 14 EV+9V 15 EV+9V 17 P-ON+3.3V 1 EV+1.5V P-ON+9V P-ON+5V Q1005 Q1015 Q1004 Q1010 Q1012 Q1014 Q1011 F1 F2 -FL EV+5V P-ON+3.3V PWRCON PWSW 3 P-ON+9V 6 P-ON+3.3V 7 P-ON+3.3V 1 P-ON+5V EV+3.3V CN1603 NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal. Power Supply Block Diagram ( DV6400/N1B, DV6400/N1S ) CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. AV CBA TO DVD MAIN CBA UNIT CN401 TO SACD CBA CN7101 TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM T1.6A L 250V CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. SCHOTTKY BARRIER SCHOTTKY BARRIER 1-8-1 E57E2SC SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replace- ment components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such fea- tures are identified by the mark " ! " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as speci- fied in the parts list may create shock, fire, or other hazards. Notes: 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared. 2. All resistance values are indicated in ohms (K=103, M=106). 3. Resistor wattages are 1/4W or 1/6W unless other- wise specified. 4. All capacitance values are indicated in µF (P=10-6 µF). 5. All voltages are DC voltages unless otherwise specified. 6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identified by four digits. The first two dig- its are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits. 1-8-2 E57E2SC LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defec- tive before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. 3. Note: (1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared. (2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual. 4. Wire Connectors (1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly). 5. Voltage indications for PLAY modes on the schematics are as shown below: 6. How to read converged lines 7. Test Point Information 2 3 1 5.0 (2.5) 5.0 The same voltage for both PLAY & STOP modes Indicates that the voltage is not consistent here. PLAY mode STOP mode (Unit: Volt) 1-D3 Distinction Area Line Number (1 to 3 digits) Examples: 1. "1-D3" means that line number "1" goes to area "D3". 2. "1-B1" means that line number "1" goes to area "B1". 3 2 1 A B C D 1-B1 1-D3 AREA D3 AREA B1 : Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin. DVD Main 1/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S ) 1-8-3 1-8-4 E57M2SCD1 DVD Main 2/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S ) 1-8-5 1-8-6 E57M2SCD2 1-8-7 1-8-8 IC101 VOLTAGE CHART ( DV4400/N1B, DV4400/N1S ) PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 1 3.3 3.3 33 2.2 2.9 65 0.1 0.1 97 3.4 3.4 2 ~ ~ 34 ~ ~ 66 1.2 2.5 98 1.6 1.6 3 ~ ~ 35 ~ ~ 67 1.6 1.6 99 0 0 4 0 0 36 ~ ~ 68 3.4 3.4 100 ----- ----- 5 ~ ~ 37 ~ ~ 69 0 0 101 ----- ----- 6 ~ ~ 38 0.3 0.5 70 1.7 1.7 102 ----- ----- 7 3.3 3.3 39 0.1 0.1 71 2.4 1.7 103 ----- ----- 8 ~ ~ 40 ~ ~ 72 ----- ----- 104 3.3 3.3 9 ~ ~ 41 ~ ~ 73 ----- ----- 105 0.9 0.9 10 ~ ~ 42 3.3 3.3 74 ----- ----- 106 0 0 11 0 0 43 0 0 75 3.4 3.4 107 0.8 0.8 12 ~ ~ 44 ~ ~ 76 ----- ----- 108 1.6 1.6 13 ~ ~ 45 ~ ~ 77 ----- ----- 109 2.1 2.1 14 3.3 3.3 46 2.0 2.6 78 0.1 0.1 110 2.6 2.6 15 1.5 1.5 47 ----- ----- 79 3.3 3.3 111 2.0 2.0 16 0 0 48 ----- ----- 80 0 0 112 0.7 0.9 17 3.4 3.4 49 ----- ----- 81 3.3 3.3 113 2.0 2.0 18 3.4 3.4 50 3.4 3.4 82 3.3 3.3 114 1.8 1.8 19 ~ ~ 51 3.4 3.4 83 3.4 3.4 115 1.4 1.4 20 ~ ~ 52 ----- ----- 84 ----- ----- 116 0.3 0.3 21 ~ ~ 53 3.4 3.4 85 ----- ----- 117 1.6 1.6 22 ~ ~ 54 3.4 3.4 86 ----- ----- 118 3.3 3.3 23 3.3 3.3 55 3.3 3.3 87 ----- ----- 119 0 0 24 0 0 56 3.3 3.3 88 ----- ----- 120 1.9 1.9 25 0.4 0.4 57 0 0 89 ----- ----- 121 1.9 1.9 26 0.9 0.6 58 0 0 90 ----- ----- 122 2.4 2.4 27 ~ ~ 59 3.3 3.3 91 3.3 3.3 123 2.4 2.4 28 ~ ~ 60 3.4 3.4 92 1.7 1.5 124 2.4 2.4 29 3.3 3.3 61 3.1 3.1 93 0 0 125 2.4 2.4 30 0 0 62 ----- ----- 94 ----- ----- 126 2.0 2.0 31 ~ ~ 63 3.4 3.4 95 3.4 0.1 127 2.0 2.0 32 ~ ~ 64 0.8 0.8 96 3.4 3.4 128 2.0 2.0 PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 129 2.0 2.0 161 0.5 0.5 193 ~ ~ 225 1.9 1.9 130 2.2 2.2 162 1.4 1.4 194 0 0 226 3.3 3.3 131 2.3 2.3 163 1.4 1.4 195 3.3 3.3 227 ~ ~ 132 0.4 0.1 164 0.9 0.9 196 ~ ~ 228 ~ ~ 133 1.2 0.4 165 3.3 3.3 197 ~ ~ 229 ~ ~ 134 0.4 0.1 166 1.5 1.5 198 0 0 230 0 0 135 0.2 0.2 167 0 0 199 ~ ~ 231 ~ ~ 136 2.3 2.3 168 2.1 2.1 200 ~ ~ 232 3.3 3.3 137 1.7 1.7 169 0 0 201 ~ ~ 233 3.3 3.3 138 0 0 170 0.8 0.8 202 3.3 3.3 234 1.6 1.6 139 1.7 1.7 171 3.3 3.3 203 ~ ~ 235 ~ ~ 140 1.7 1.7 172 1.6 1.6 204 ~ ~ 236 0 0 141 1.7 1.7 173 0.2 0.2 205 ~ ~ 237 1.7 1.7 142 1.7 1.7 174 1.8 1.8 206 0 0 238 3.0 3.0 143 0.5 0.5 175 1.7 1.7 207 2.4 3.5 239 3.3 3.3 144 1.6 1.6 176 1.4 0.1 208 2.4 2.1 240 3.3 3.3 145 3.3 3.3 177 0 0 209 3.3 3.3 241 0 0 146 0 0 178 0.9 0.1 210 ~ ~ 242 3.2 3.2 147 ----- ----- 179 1.4 0.1 211 0 0 243 2.4 2.1 148 ----- ----- 180 1.4 0.1 212 ~ ~ 244 1.5 1.5 149 3.3 3.3 181 1.7 1.7 213 1.5 1.5 245 0 0 150 1.7 1.7 182 3.3 3.3 214 ~ ~ 246 2.4 2.1 151 0 0 183 0 0 215 0 0 247 ~ ~ 152 1.7 1.7 184 ~ ~ 216 ~ ~ 248 0 0 153 3.3 3.3 185 ~ ~ 217 ~ ~ 249 ~ ~ 154 1.4 1.4 186 1.5 1.5 218 3.3 3.3 250 3.3 3.3 155 0 0 187 ~ ~ 219 ~ ~ 251 ~ ~ 156 2.2 2.2 188 ~ ~ 220 ~ ~ 252 ~ ~ 157 3.3 3.3 189 3.3 3.3 221 0 0 253 ~ ~ 158 0.7 0.7 190 ~ ~ 222 1.5 1.5 254 0 0 159 0 0 191 ~ ~ 223 1.9 1.9 255 ~ ~ 160 0.5 0.5 192 ~ ~ 224 0 0 256 ~ ~ DVD Main 3/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S ) 1-8-9 1-8-10 E57M2SCD3 AV 1/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S ) 1-8-11 1-8-12 E57M2SCAV1 CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE : THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING HOT GND AS A COMMON TERMINAL. CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. AV 2/3 Schematic Diagram ( DV4400/N1B, DV4400/N1S ) 1-8-13 1-8-14 E57M2SCAV2 7G 6G 5G 4G 3G 2G 1G a b c d e f g c d e f g c d e f g c d e f g c d e f g c d e f g h i a b a b a b a b a b FL2001 MATRIX CHART STANDBY TITLE CHP. TRK. CD V PBC DVD REPEAT A -B 1 3 2 4 5 1-8-15 1-8-16 7G 5G 3G 1G 4G 6G 2G a d g c b e f 1 3 2 4 5 DVD VCD PBC STANDBY A-B REPEAT TRK. CHP. TITLE E57M2SCAV3 AV 3/3,Function, Switch & LED Schematic Diagram ( DV4400/N1B, DV4400/N1S ) DVD Main 1/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) 1-8-17 1-8-18 E57M7SCD1 DVD Main 2/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) 1-8-19 1-8-20 E57M7SCD2 1-8-21 1-8-22 IC101 VOLTAGE CHART ( DV6400/N1B, DV6400/N1S ) PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 1 3.3 3.3 33 2.2 2.9 65 0.1 0.1 97 3.4 3.4 2 ~ ~ 34 ~ ~ 66 1.2 2.5 98 1.6 1.6 3 ~ ~ 35 ~ ~ 67 1.6 1.6 99 0 0 4 0 0 36 ~ ~ 68 3.4 3.4 100 3.4 3.4 5 ~ ~ 37 ~ ~ 69 0 0 101 0.2 0 6 ~ ~ 38 0.3 0.5 70 1.7 1.7 102 0.2 0 7 3.3 3.3 39 0.1 0.1 71 2.4 1.7 103 0.2 0 8 ~ ~ 40 ~ ~ 72 ----- ----- 104 3.3 3.3 9 ~ ~ 41 ~ ~ 73 ----- ----- 105 0.9 0.9 10 ~ ~ 42 3.3 3.3 74 ----- ----- 106 0 0 11 0 0 43 0 0 75 3.4 3.4 107 0.8 0.8 12 ~ ~ 44 ~ ~ 76 ----- ----- 108 1.6 1.6 13 ~ ~ 45 ~ ~ 77 ----- ----- 109 2.1 2.1 14 3.3 3.3 46 2.0 2.6 78 0.1 0.1 110 2.6 2.6 15 1.5 1.5 47 3.0 3.0 79 3.3 3.3 111 2.0 2.0 16 0 0 48 3.6 3.6 80 0 0 112 0.7 0.9 17 3.4 3.4 49 3.4 3.4 81 3.3 3.3 113 2.0 2.0 18 3.4 3.4 50 3.4 3.4 82 ----- ----- 114 1.8 1.8 19 ~ ~ 51 3.4 3.4 83 3.4 3.4 115 1.4 1.4 20 ~ ~ 52 3.4 3.4 84 2.4 2.4 116 0.3 0.3 21 ~ ~ 53 3.4 3.4 85 ----- ----- 117 1.6 1.6 22 ~ ~ 54 3.4 3.4 86 3.4 0.1 118 3.3 3.3 23 3.3 3.3 55 3.3 3.3 87 3.4 3.4 119 0 0 24 0 0 56 3.3 3.3 88 0.1 0.1 120 1.9 1.9 25 0.4 0.4 57 0 0 89 3.4 3.4 121 1.9 1.9 26 0.9 0.6 58 0 0 90 3.6 3.6 122 2.4 2.4 27 ~ ~ 59 3.3 3.3 91 3.3 3.3 123 2.4 2.4 28 ~ ~ 60 3.4 3.4 92 1.7 1.5 124 2.4 2.4 29 3.3 3.3 61 3.1 3.1 93 0 0 125 2.4 2.4 30 0 0 62 3.3 3.3 94 3.6 3.6 126 2.0 2.0 31 ~ ~ 63 3.4 3.4 95 3.4 0.1 127 2.0 2.0 32 ~ ~ 64 0.8 0.8 96 3.4 3.4 128 2.0 2.0 PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 129 2.0 2.0 161 0.5 0.5 193 ~ ~ 225 1.9 1.9 130 2.2 2.2 162 1.4 1.4 194 0 0 226 3.3 3.3 131 2.3 2.3 163 1.4 1.4 195 3.3 3.3 227 ~ ~ 132 0.4 0.1 164 0.9 0.9 196 ~ ~ 228 ~ ~ 133 1.2 0.4 165 3.3 3.3 197 ~ ~ 229 ~ ~ 134 0.4 0.1 166 1.5 1.5 198 0 0 230 0 0 135 0.2 0.2 167 0 0 199 ~ ~ 231 ~ ~ 136 2.3 2.3 168 2.1 2.1 200 ~ ~ 232 3.3 3.3 137 1.7 1.7 169 0 0 201 ~ ~ 233 3.3 3.3 138 0 0 170 0.8 0.8 202 3.3 3.3 234 1.6 1.6 139 1.7 1.7 171 3.3 3.3 203 ~ ~ 235 ~ ~ 140 1.7 1.7 172 1.6 1.6 204 ~ ~ 236 0 0 141 1.7 1.7 173 0.2 0.2 205 ~ ~ 237 1.7 1.7 142 1.7 1.7 174 1.8 1.8 206 0 0 238 3.0 3.0 143 0.5 0.5 175 1.7 1.7 207 2.4 3.5 239 3.3 3.3 144 1.6 1.6 176 1.4 0.1 208 2.4 2.1 240 3.3 3.3 145 3.3 3.3 177 0 0 209 3.3 3.3 241 0 0 146 0 0 178 0.9 0.1 210 ~ ~ 242 3.2 3.2 147 ----- ----- 179 1.4 0.1 211 0 0 243 2.4 2.1 148 ----- ----- 180 1.4 0.1 212 ~ ~ 244 1.5 1.5 149 3.3 3.3 181 1.7 1.7 213 1.5 1.5 245 0 0 150 1.7 1.7 182 3.3 3.3 214 ~ ~ 246 2.4 2.1 151 0 0 183 0 0 215 0 0 247 ~ ~ 152 1.7 1.7 184 ~ ~ 216 ~ ~ 248 0 0 153 3.3 3.3 185 ~ ~ 217 ~ ~ 249 ~ ~ 154 1.4 1.4 186 1.5 1.5 218 3.3 3.3 250 3.3 3.3 155 0 0 187 ~ ~ 219 ~ ~ 251 ~ ~ 156 2.2 2.2 188 ~ ~ 220 ~ ~ 252 ~ ~ 157 3.3 3.3 189 3.3 3.3 221 0 0 253 ~ ~ 158 0.7 0.7 190 ~ ~ 222 1.5 1.5 254 0 0 159 0 0 191 ~ ~ 223 1.9 1.9 255 ~ ~ 160 0.5 0.5 192 ~ ~ 224 0 0 256 ~ ~ 1-8-23 1-8-24 E57M7SCD3 DVD Main 3/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) 1-8-25 1-8-26 E57M7SCAV1 AV 1/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE : THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING HOT GND AS A COMMON TERMINAL. CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 1-8-27 1-8-28 E57M7SCAV2 AV 2/3 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) 1-8-29 1-8-30 E57M7SCAV3 AV 3/3,Function, Switch & LED Schematic Diagram ( DV6400/N1B, DV6400/N1S ) 7G 6G 5G 4G 3G 2G 1G a b c d e f g c d e f g c d e f g c d e f g c d e f g c d e f g h i a b a b a b a b a b FL2001 MATRIX CHART STANDBY TITLE CHP. TRK. CD V PBC DVD REPEAT A -B 1 3 2 4 5 7G 5G 3G 1G 4G 6G 2G a d g c b e f 1 3 2 4 5 DVD VCD PBC STANDBY A-B REPEAT TRK. CHP. TITLE 1-8-31 1-8-32 SACD 1/2 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) E57M7SCSA1 1-8-33 1-8-34 SACD 2/2 Schematic Diagram ( DV6400/N1B, DV6400/N1S ) E57M7SCSA2 1-8-35 1-8-36 AV CBA Top View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) BE57E2F01016-A NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal. CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. WF3 PIN 31 OF IC6101 WF2 PIN 9 OF CN1601 WF1 PIN 1 OF CN1601 WF4 PIN 13 OF CN1601 WF5 PIN 15 OF CN1601 WF6 PIN 18 OF CN1601 1-8-37 AV CBA Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) BE57E2F01016-A 1-8-38 NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal. CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. Switch CBA Top View Switch CBA Bottom View 1-8-39 BE57E2F01016-C 1-8-40 LED CBA Top View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) LED CBA Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) BE57E2F01016-B Switch CBA Top/Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) Function CBA Top View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) Function CBA Bottom View ( DV4400/N1B, DV4400/N1S, DV6400/N1B, DV6400/N1S ) 1-8-41 BE57M7F01011 1-8-42 SACD CBA Top View ( DV6400/N1B, DV6400/N1S ) 1-8-43 BE57D1F02011 1-8-44 SACD CBA Bottom View ( DV6400/N1B, DV6400/N1S ) BE57D1F02011 1-8-45 1-8-46 1-9-2 E57M2WF 1-9-1 NOTE: Input CD: 1kHz PLAY (WF4~WF6) DVD: POWER ON (STOP) MODE (WF1~WF3) WAVEFORMS WF6 SPDIF Pin 18 of CN1601 1V 0.1µsec WF1 Pin 1 of CN1601 WF3 Pin 31 of IC6101 WF4 AUDIO-L Pin 13 of CN1601 1V 0.5msec WF5 AUDIO-R Pin 15 of CN1601 1V 0.5msec WF2 Pin 9 of CN1601 VIDEO-Y 0.2V 20µsec VIDEO-C 0.2V 20µsec VIDEO-CVBS 0.5V 20µsec 1-10-1 1-10-2 WIRING DIAGRAM ( DV4400/N1B, DV4400/N1S ) E57M2WI DVD MECHA DVD MAIN CBA UNIT PICK UP UNIT CN201 CN702 (NO CONNECTION) CN301 1 2 3 4 TRAY-OUT TRAY-IN GND 5 6 SP(-) 7 SP(+) 8 SL(-) 9 SL(+) FG-IN P-ON+3.3V(D) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 TRAY-IN AV CBA EV+1.5V 1 1 EV+1.5V 2 2 EV+3.3V 4 4 EV+3.3V 5 5 GND 6 6 GND 7 7 GND 8 8 GND 9 9 GND 10 10 GND 11 11 GND 12 12 P-ON+5V 13 13 EV+9V 14 14 EV+9V 15 15 FP-STB 16 16 P-ON+3.3V 17 17 FP-DIN 18 18 PWRCON 19 19 FP-DOUT 20 20 FP-CLK 21 21 REMOTE 22 22 CN401 CN1001 VIDEO-R/Cr 3 3 GND 4 4 VIDEO-Y 1 1 ASPECT 2 2 VIDEO-B/Cb 5 5 A-MUTE 12 12 GND 11 11 GND 6 6 VIDEO-G 7 7 GND 8 8 VIDEO-C 9 9 GND 10 10 CN601 CN1601 AC CORD AUDIO-L OUT AUDIO-R OUT VIDEO OUT VIDEO-Y OUT VIDEO-Cb OUT VIDEO-Cr OUT DIGITAL AUDIO OUT S-VIDEO OUT EV+1.5V 3 3 DRIVE CBA 19 20 SPDIF 18 18 AUDIO-L 13 13 A-L-MUTE 14 14 AUDIO-R 15 15 A-R-MUTE 16 16 AUDIO+5V 17 17 1 GND 1 T-RESET 2 SDATA 3 EV+3.3V 4 EXTRG0 5 GND 6 SCLOCK VREF P-ON+5V F E C B D A PD-MONI DVD-LD GND(LD) GND(DVD-PD) TS(+) FS(-) FS(+) TS(-) GND(CD-PD) CD-LD CD/DVD FS TS DETECTOR 11 2 3 5 6 4 7 FG CBA FG SENSOR TRAY-OUT M SLED MOTOR M SPINDLE MOTOR W1001 W1601 SCART JACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 FUNCTION CBA CN2002 W2002 CN6401 AD-KEY 1 1 KEY-2 2 2 KEY-1 3 3 KEY-3 4 4 K2 5 5 KEY-4 6 6 KEY-8 7 7 K1 8 8 KEY-7 9 9 GND 10 10 KEY-6 11 11 KEY-5(NU) 12 12 JP2050 JP6051 AD-KEY 1 1 STANDBY-LED 2 2 GND 3 3 CN6001 CN6050 AD-KEY 1 1 STANDBY-LED 2 2 GND 3 3 NU 4 4 NU 5 5 AUDIO-EX-LED 6 6 W6001 SWITCH CBA LED CBA (BE57E2F01016-A) (BE57E2F01016-C) (BE57M7F01011) (BE57E2F01016-B) 1 1 2 2 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 3 3 CN7151 CN902 W7151 GND WCK GND GND RF GND SALAT SAREADY SADI XSRQ XSHD SDCK XSAK SDEF IECOUT PHCOPMO RESET(L) CN7101 CN1603 P-ON+5V 1 1 GND 2 2 P-ON+9V 3 3 GND 4 4 GND 5 5 P-ON+3.3V 6 6 P-ON+3.3V 7 7 PCM-DATA3 1 1 2ch-L/6ch-H 2 2 GND 4 4 PCM-DATA1 5 5 GND 6 6 PCM-DATA0 7 7 GND 8 8 PCM-BCK 9 9 PCM-LRCLK 10 10 ADAC-MC 11 11 ADAC-MD 12 12 ADAC-ML0 13 13 ADAC-ML1 14 14 GND 15 15 PCM-SCLK 16 16 GND 17 17 A-MUTE2 18 18 M-MUTE 19 19 ADAC-ML2 20 20 PCM-DATA2 3 3 CN7102 CN901 JP2050 JP6051 AD-KEY 1 1 STANDBY-LED 2 2 GND 3 3 CN6001 CN6050 AD-KEY 1 1 STANDBY-LED 2 2 GND 3 3 NU 4 4 SACD-LED 5 5 AUDIO-EX-LED 6 6 CN2002 CN6401 AD-KEY 1 1 KEY-2 2 2 KEY-1 3 3 KEY-3 4 4 K2 5 5 KEY-4 6 6 KEY-8 7 7 K1 8 8 KEY-7 9 9 GND 10 10 KEY-6 11 11 KEY-5(NU) 12 12 VIDEO-R/Cr 3 3 GND 4 4 VIDEO-B/Cb 5 5 A-MUTE 12 12 GND 11 11 GND 6 6 VIDEO-G 7 7 GND 8 8 VIDEO-C 9 9 GND 10 10 CN601 CN1601 SPDIF 18 18 AUDIO-L 13 13 A-L-MUTE 14 14 AUDIO-R 15 15 A-R-MUTE 16 16 AUDIO+5V 17 17 W1601 ASPECT 2 2 VIDEO-Y 1 1 1-10-3 1-10-4 CN201 CN301 1 2 3 4 TRAY-OUT TRAY-IN GND 5 6 SP(-) 7 SP(+) 8 SL(-) 9 SL(+) FG-IN P-ON+3.3V(D) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 TRAY-IN AC CORD AUDIO-L OUT AUDIO-R OUT VIDEO OUT DIGITAL AUDIO OUT S-VIDEO OUT OPTICAL AUDIO OUT 19 20 VIDEO-Y OUT VIDEO-Cb OUT VIDEO-Cr OUT GND VREF P-ON+5V F E C B D A PD-MONI DVD-LD GND(LD) GND(DVD-PD) TS(+) FS(-) FS(+) TS(-) GND(CD-PD) CD-LD CD/DVD FS TS DETECTOR 11 2 3 5 6 4 7 FG SENSOR TRAY-OUT M SLED MOTOR M SPINDLE MOTOR EV+1.5V 1 1 EV+1.5V 2 2 EV+3.3V 4 4 EV+3.3V 5 5 GND 6 6 GND 7 7 GND 8 8 GND 9 9 GND 10 10 GND 11 11 GND 12 12 P-ON+5V 13 13 EV+9V 14 14 EV+9V 15 15 FP-STB 16 16 P-ON+3.3V 17 17 FP-DIN 18 18 PWRCON 19 19 FP-DOUT 20 20 FP-CLK 21 21 REMOTE 22 22 CN401 CN1001 EV+1.5V 3 3 W1001 CN701 2 SDATA 1 T-RESET 4 NU 3 EV+3.3V 6 SCLOCK 5 GND E57M7WI W1603 W7102 W2002 W6001 AV CBA SWITCH CBA LED CBA FUNCTION CBA DVD MAIN CBA UNIT PICK UP UNIT DRIVE CBA FG CBA (NO CONNECTION) DVD MECHA SACD CBA SCART JACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 WIRING DIAGRAM ( DV6400/N1B, DV6400/N1S ) (BE57E2F01016-A) (BE57D1F02011) (BE57M7F01011) (BE57E2F01016-C) (BE57E2F01016-B) 1-11-1 E5700TEST FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 2. To put the DVD player into version up mode, press [9], [8], [7], [6], and [SEARCH MODE] buttons on the remote control unit in that order. The tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD. The DVD player can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open. 3. Load the disc for version up. 4. The DVD player enters the F/W version up mode automatically. Fig. c appears on the screen and Fig. d appears on the VFD. The appearance shown in (*2) of Fig. c is described as follows: 5. After programming is finished, the tray opens auto- matically. Fig. e appears on the screen and the checksum in (*3) of Fig. e appears on the VFD. (Fig. f) At this time, no buttons are available. 6. Unplug the AC cord from the AC outlet. Then plug it again. 7. Turn the power on by pressing the power button and the tray will close. 8. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. g appears on the screen. 9. Press [3] button on the remote control unit. Fig. h appears on the screen. 10.To exit this mode, press [POWER] button. F/W Version Up Mode Please insert a DISC for F/W Version Up. EXIT: POWER Fig. a Version Up Mode Screen Fig. b VFD in Version Up Mode Fig. c Programming Mode Screen F/W Version Up Mode VERSION : ******** Reading...(*2) EXIT: POWER Fig. d VFD in Programming Mode (Example) Appearance No. State Reading... Sending files into the memory Erasing... Erasing previous version data Programming... 1 2 3 Writing new version data Fig. e Completed Program Mode Screen F/W Version Up Mode VERSION : ******** Completed SUM : 7abc (*3) Fig. f VFD upon Finishing the Programming Mode (Example) Fig. g model: ****** Ver: **** Region: ** 1: VFD TEST 2: TT REPEAT PLAY 3: EEPROM CLEAR 4: MEASUREMENT SERVO 5: DISC READ CHECK 6: MECHA CHECK 7: DISC INFO 8: ERROR RATE EXIT: POWER RETURN: ----- Fig. h model: ****** Ver: **** Region: ** TEST 3: EEPROM CLEAR EEPROM CLEAR: OK EXIT: POWER RETURN: ----- 1-12-1 E57M2LE 1 4 8 5 NJM4558D KIA4558P NJM4580MTE1 E C B 2SA1015-Y (TPE2) KTA1266 (Y) KTC3198 (Y) 2SC2120-Y(TPE2) KTC3205 (Y) 2SC2236-Y-TPE6,C 2SA966(Y) E C B 2SC2785 (H) KTC3199 (GR) KRA110M KTA1267 (Y) BN1L3Z (P) A K C E LTV-817(B,C)-F KIA431-AT G D S 2SK3566 PQ070XF01SZ K A R 1 2 3 4 Note: A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate D: Drain S: Source 1: Vin 2: Vo 3: GND 4: Vc 34 18 17 MM1567AJ 1 GP1FA513TZ 1 2 3 20 11 10 1 M34506M4-506FP DSD1702E/2K 33 PT6315 12 22 23 11 1 44 34 132 CXD2753R 45 88 89 44 1 176 133 50 26 25 K4S161622D-TC80 1 2SC2412K T146S KRA105S-RTK KTC3875GR-RTK C B E 1 3 6 4 NC7SB3157P6X 1 3 5 4 NC7SZ08P5X 1 4 7 5 MIM1562FFBE LEAD IDENTIFICATIONS 1-13-1 E57M2EX See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. AV CBA W1601 W1001 W2002 A A' 2L071 2L071 2L071 2L041 JK1202 JK1401 JK6103 JK6102 IC1204 2L031 2B20 2L031 2L052 2L052 2L052 Function CBA A1X 2B36 JK6101 2B19 W6001 2B2 2L051 Switch CBA LED CBA 2B3 2L101 2L105 DVD Main CBA Unit 2B32 2L051 A17 A15 A13 A14 A14 A13 2B10 A16 1B1 A2 2L011 2L011 2L011 2L021 2L021 2L023 2L023 2L031 2L031 2B23 AC1001 F1001 2B33 EXPLODED VIEWS Cabinet [ DV4400/N1B, DV4400/N1S ] A17 A17 A15 A18 A17 1-13-2 E57M2EX AC1001 A17 2L071 2L041 2L071 2L071 A15 2L011 2L011 2L011 A16 See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. AV CBA A17 Switch CBA 2L031 W6001 W2002 1B1 2L021 A2 2L021 JK1202 JK1401 A13 A14 A14 A A' A13 JK6103 JK6102 IC1204 F1001 2L031 2L031 B' 2B2 2L051 2L023 2B10 2L023 2L041 W1601 W1603 W1001 2L105 2B12 2L104 B 2B32 2L051 LED CBA A17 2B8 2B19 2B20 2L031 2B23 DVD Main CBA Unit A15 SACD CBA A19 2L105 2L105 2B3 A17 2L101 W7102 W7151 JK6101 2B8 2B8 2B36 2L052 2L052 2L052 Function CBA A18 A1X [ DV6400/N1B, DV6400/N1S ] 1-13-3 E57M2EX X10 X2 X4 S2 S2 S4 Unit S1 X13 X1 X5 A22 Packing 2 1-14-1 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. PARTS LIST [DV4400] POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) EXPLODED VIEW PARTS A1X /F1N/S1G nsp 44AW248140 FRONT PANEL (GOLD) FRONT ASSY E57M1JD 0VM204448 A1X /N1B 44AW248010 44AW248010 FRONT PANEL (BLACK) FRONT ASSY E57M2ED 0VM204412 A1X /N1S 44AW248210 44AW248210 FRONT PANEL(SILVER) FRONT ASSY E57M4ED 0VM204413 A1X /U1B nsp 44AW248020 FRONT PANEL(BLACK) FRONT ASSY E57M0UD 0VM204463 A2 GOLD nsp 44AW063140 ESCUTCHEON TRAY PANEL E57M1JD 0VM416074 A2 BLACK 44AW063010 44AW063010 ESCUTCHEON TRAY PANEL E57M0UD 0VM204372 A2 SILVER 44AW063210 44AW063210 ESCUTCHEON TRAY PANEL E57M4ED 0VM416014 A13 44AW057020 44AW057020 LEG FOOT(REAR) E5710UD 0VM415007 A14 BLACK, GOLD 44AW057010 44AW057010 LEG LEG ASSY E57M0UD 0VM415913 A14 SILVER 44AW057210 44AW057210 LEG LEG ASSY E57M4ED 0VM416056 1B1 44AW304010 44AW304010 MACHA LOADER / MECHA TRAVERSE DVD MECHA 0838 VCDVM040 N79F0GVM A15 /N *ZZ002230R *ZZ002230R PCB ASSY DVD MAIN CBA UNIT N79B0GEP A15 /F nsp *ZZ002350R PCB ASSY DVD MAIN CBA UNIT N79B6GJP A15 /S nsp *ZZ002420R PCB ASSY DVD MAIN CBA UNIT N79B2GPP A15 /U nsp *ZZ002360R PCB ASSY DVD MAIN CBA UNIT N79B4GUP A17 /N *ZZ002240R *ZZ002240R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14603 A17 /F nsp *ZZ002330R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14685 A17 /S nsp *ZZ002430R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14776 A17 /U nsp *ZZ002340R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14682 A18 *ZZ002250R *ZZ002250R PCB ASSY FUNCTION CBA ASSY 0VSA14617 AC1001 /N/S *YC000820R *YC000820R MAINS CORD MAINS CORD PE8B2CG980A-057 WAE0172LW006 AC1001 /F nsp *YC000830R MAINS CORD MAINS CORD PP8B5PB110AA057 WAJ0172LW009 AC1001 /U nsp *YC000840R MAINS CORD MAINS CORD A0A0280-007 OR PB8K9F9110A-057 WAC0172LTE04 OR WAC0172LW008 W1001 *YU001380R *YU001380R FPC 22P FFC AV PCB TO MAIN WX1E5700-003 W1601 /F/N/U *YU001390R *YU001390R FPC 18P FFC DVD-A PCB TO MAIN WX1E5700-002 W1601 /S nsp *YU001450R FPC 16P FFC DVD-A PCB TO MAIN WX1E5700-005 W2002 *YU001400R *YU001400R FPC 12P FFC AV PCB TO FNT PCB WX1E5610-001 W6001 *YU001410R *YU001410R FPC 6P FFC OR AWG22#1007 AV PCB TO LED PCB WX1E57D1-003 OR WX3001A24405 PACKING X1 ZK44AW0010 ZK44AW0010 UNIT KIT REMOTE CONTROLLER RC6400DV NA638UD X10 /F nsp 44AW851110 USER GUIDE USER GUIDE E57M1JD 0VMN03857 X10 /N 44AW851310 44AW851310 USER GUIDE USER GUIDE E57M2ED 0VMN03871 X10 /S nsp 44AW851350 USER GUIDE USER GUIDE E57M3PD 0VMN03872 X10 /U nsp 44AW851250 USER GUIDE USER GUIDE E57M0UD 0VMN03859 NOT STANDARD SPARE PARTS A16 GOLD nsp 44AW257110 LID TOP COVER GOLD E57E2ED 0VM306454 A16 BLACK nsp 44AW257010 LID TOP COVER BLACK E5600UD 0VM101038 A16 SILVER nsp 44AW257210 LID TOP COVER SILVER E56A0UD 0VM305312C S1 /S nsp 44AW801020 CARTON BOX GIFT BOX CARTON E57M3PD 0VM306701 S1 /F/N/U nsp 44AW801010 CARTON BOX GIFT BOX CARTON E57M2ED 0VM306634 S2 nsp 44AW809010 CUSHION CUSHION E57M0UD 0VM101316 ELECTRICAL PARTS LIST AV CBA C1001 /F/U nsp *DF100390R FILM CAP. 0.01µF/250V K OR 0.01µF/275V K OR 0.01µF/250V M CT2E103DC011 OR CT2E103HJE05 OR CT2E103MS037 C1001 /N/S *DF100360R *DF100360R FILM CAP. 0.047µF/250V K OR M CT2E473DC011 OR CT2E473MS037 3 1-14-2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C1006 /F/U nsp *DK100860R CERAMIC CAP. 2200pF/250V OR 2200pF/125V CCD2EMA0E222 OR CCG2EMA0F222 OR CCG2BMA0E222 C1006 /N *DK100850R *DK100850R CERAMIC CAP. SAFETY CAP. 2200pF/250V CCN2EMA0E222 OR CA2E222MR049 F1001 /F/U nsp *FS001140R FUSE FUSE 1A/250V PAGA20CW3102 OR PAGG20CAG102 F1001 /N/S *FS001120R *FS001120R FUSE FUSE T1.6AL/250V PAGC20BW3162 OR 1790994 IC1204 *YJ002710R *YJ002710R OPT. CONNECTOR OPTIC TRANS.MODULE GP1FA513TZ JWHHA00SH005 JK1202 *YT003370R *YT003370R TERMINAL CINCH JACK(BLACK) MSP-251V-01 NI JXRL010LY070 JK1401 *YT003380R *YT003380R TERMINAL S TYPE JACK MDC-050V-2.4 JXEL040LY001 JK1405 /F nsp *YT003560R TERMINAL D TERMINAL 14P DT-0102*001 JBDTJ14JD002 JK6101 /N *YT003390R *YT003390R TERMINAL SCART CONNECTOR 21P RGB AJ-2050*040 JXGL210JD002 JK6102 /N/S/U *YT003400R *YT003400R TERMINAL CINCH JACK 3PIN MSD-243V-18 NI JXRL030LY073 JK6103 *YT003410R *YT003410R TERMINAL CINCH JACK 3PIN MSD-243V-15 NI JXRL030LY079 L1001 /F/U nsp *FN000200R FILTER LINE FILTER 20MH SA-00911 LLBG00ZSA003 L1001 /N/S *FN000190R *FN000190R FILTER 50mH LF-4Z-E503/LF-4D-E503/ TLF14CB5630R2 LLBG00ZKQ008 OR LLBG00ZKQ009 OR LLBG00ZTU022 SA1001 *HV000050R *HV000050R VARISTOR PVR-10D471KB/CNR-10D471K NVQZ10D471KB OR NVQZR10D471K T1001 /F/U nsp *TP000070R TRANSF. PULSE TRANS CSA-SW0215B LTT00CPSA132 T1001 /N *TS002050R *TS002050R TRANSF. MAINS TRANSFORMER CSA-SW0215C LTT00EPSA141 T1001 /S nsp *TS002070R TRANSF. MAINS TRANSFORMER CSA-SW0308A LTT00ZPSA144 PARTS LIST [DV4400] 4 1-15-1 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) EXPLODED VIEW PARTS A1X /F1N/S1G nsp 45AW248140 FRONT PANEL (GOLD) FRONT ASSY E57M6JD 0VM204450 A1X /N1B 45AW248010 45AW248010 FRONT PANEL (BLACK) FRONT ASSY E57M7ED 0VM204417 A1X /N1S 45AW248210 45AW248210 FRONT PANEL(SILVER) FRONT ASSY E57M9ED 0VM204418 A1X /U1B nsp 45AW248020 FRONT PANEL(BLACK) FRONT ASSY E57M5UD 0VM204465 A2 GOLD nsp 45AW063140 ESCUTCHEON TRAY PANEL E57M6JD 0VM416078 A2 BLACK 45AW063010 45AW063010 ESCUTCHEON TRAY PANEL E57M7ED 0VM416021 A2 SILVER 45AW063210 45AW063210 ESCUTCHEON TRAY PANEL E57M9ED 0VM416025 A13 44AW057020 44AW057020 LEG FOOT(REAR) E5710UD 0VM415007 A14 BLACK, GOLD 44AW057010 44AW057010 LEG LEG ASSY E57M0UD 0VM415913 A14 SILVER 44AW057210 44AW057210 LEG LEG ASSY E57M4ED 0VM416056 1B1 44AW304010 44AW304010 MACHA LOADER / MECHA TRAVERSE DVD MECHA 0838 VCDVM040 N79F0GVM A15 /F nsp *ZZ002390R PCB ASSY DVD MAIN CBA UNIT N79B7GJP A15 /N *ZZ002260R *ZZ002260R PCB ASSY DVD MAIN CBA UNIT N79B1GEP A15 /S nsp *ZZ002440R PCB ASSY DVD MAIN CBA UNIT N79B3GPP A15 /U nsp *ZZ002400R PCB ASSY DVD MAIN CBA UNIT N79B5GUP A17 /F nsp *ZZ002370R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14688 A17 /N *ZZ002270R *ZZ002270R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14676 A17 /S nsp *ZZ002450R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14647 A17 /U nsp *ZZ002380R PCB ASSY AV CBA ASSY / LED CBS ASSY / Switch CBA ASSY 0VSA14619 A18 *ZZ002250R *ZZ002250R PCB ASSY FUNCTION CBA ASSY 0VSA14617 A19 /N/S *ZZ002280R *ZZ002280R PCB ASSY SACD CBA ASSY 0VSA14446 A19 /F/U nsp *ZZ002410R PCB ASSY SACD CBA ASSY 0VSA14758 AC1001 /N/S *YC000820R *YC000820R MAINS CORD MAINS CORD PE8B2CG980A-057 WAE0172LW006 AC1001 /F nsp *YC000830R MAINS CORD MAINS CORD PP8B5PB110AA057 WAJ0172LW009 AC1001 /U nsp *YC000840R MAINS CORD MAINS CORD A0A0280-007 OR PB8K9F9110A-057 WAC0172LTE04 OR WAC0172LW008 W7102 *YU001360R *YU001360R FPC 20P FFC DVD-A PCB TO MAIN WX1E5732-004 W7151 *YU001370R *YU001370R FPC 17P FFC SACD PCB TO MAIN WX1E57D1-001 W1001 *YU001380R *YU001380R FPC 22P FFC AV PCB TO MAIN WX1E5700-003 W1601 /F/N/U *YU001390R *YU001390R FPC 18P FFC DVD-A PCB TO MAIN WX1E5700-002 W1601 /S nsp *YU001450R FPC 16P FFC DVD-A PCB TO MAIN WX1E5700-005 W2002 *YU001400R *YU001400R FPC 12P FFC AV PCB TO FNT PCB WX1E5610-001 W6001 *YU001410R *YU001410R FPC 6P FFC OR AWG22#1007 AV PCB TO LED PCB WX1E57D1-003 OR WX3001A24405 W1603 *YU001420R *YU001420R FPC 7P FFC AV PCB TO SACD PCB WX1E57D1-002 PACKING X1 ZK44AW0010 ZK44AW0010 UNIT KIT REMOTE CONTROLLER RC6400DV NA638UD X10 /F nsp 45AW851110 USER GUIDE USER GUIDE E57M6JD 0VMN03858 X10 /N 45AW851310 45AW851310 USER GUIDE USER GUIDE E57M7ED 0VMN03869 X10 /S nsp 45AW851350 USER GUIDE USER GUIDE E57M8PD 0VMN03873 X10 /U nsp 45AW851250 USER GUIDE USER GUIDE E57M5UD 0VMN03870 NOT STANDARD SPARE PARTS A16 GOLD nsp 44AW257110 LID TOP COVER GOLD E57E2ED 0VM306454 A16 BLACK nsp 44AW257010 LID TOP COVER BLACK E5600UD 0VM101038 A16 SILVER nsp 44AW257210 LID TOP COVER SILVER E56A0UD 0VM305312C S1 /F/N/U nsp 45AW801010 CARTON BOX GIFT BOX CARTON E57M7ED 0VM306632 S1 /S nsp 45AW801020 CARTON BOX GIFT BOX CARTON E57M8PD 0VM306702 S2 nsp 45AW809010 CUSHION CUSHION (UK) E57M5UD 0VM101327 PARTS LIST [DV6400] 5 1-15-2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) ELECTRICAL PARTS LIST AV CBA C1001 /F/U nsp *DF100390R FILM CAP. 0.01µF/250V K OR 0.01µF/275V K OR 0.01µF/250V M CT2E103DC011 OR CT2E103HJE05 OR CT2E103MS037 C1001 /N/S *DF100360R *DF100360R FILM CAP. 0.047µF/250V K OR M CT2E473DC011 OR CT2E473MS037 C1006 /F/U nsp *DK100860R CERAMIC CAP. 2200pF/250V OR 2200pF/125V CCD2EMA0E222 OR CCG2EMA0F222 OR CCG2BMA0E222 C1006 /N/S *DK100860R *DK100850R CERAMIC CAP. SAFETY CAP. 2200pF/250V CCN2EMA0E222 OR CA2E222MR049 F1001 /F/U nsp *FS001140R FUSE FUSE 1A/250V PAGA20CW3102 OR PAGG20CAG102 F1001 /N/S *FS001120R *FS001120R FUSE FUSE T1.6AL/250V PAGC20BW3162 OR 1790994 IC1204 *YJ002710R *YJ002710R OPT. CONNECTOR OPTIC TRANS.MODULE GP1FA513TZ JWHHA00SH005 JK1202 *YT003420R *YT003420R TERMINAL CINCH JACK(BLACK) MSP-251V-10 GILT JXRL010LY090 JK1401 *YT003380R *YT003380R TERMINAL S TYPE JACK MDC-050V-2.4 JXEL040LY001 JK1405 /F nsp *YT003560R TERMINAL D TERMINAL 14P DT-0102*001 JBDTJ14JD002 JK6101 /N *YT003390R *YT003390R TERMINAL CINCH JACK 21P RGB AJ-2050*040 JXGL210JD002 JK6102 /N/S/U *YT003430R *YT003430R TERMINAL CINCH JACK 3PIN MSD-243V-19 GILT JXRL030LY092 JK6103 *YT003440R *YT003440R TERMINAL CINCH JACK 3PIN MSD-243V-31 GILT JXRL030LY089 L1001 /F/U nsp *FN000200R FILTER LINE FILTER 20MH SA-00911 LLBG00ZSA003 L1001 /N/S *FN000190R *FN000190R FILTER 50MH LF-4Z-E503/LF-4D-E503/ TLF14CB5630R2 LLBG00ZKQ008 OR LLBG00ZKQ009 OR LLBG00ZTU022 SA1001 *HV000050R *HV000050R VARISTOR PVR-10D471KB/CNR-10D471K NVQZ10D471KB OR NVQZR10D471K T1001 /F/U nsp *TP000070R TRANSF. PULSE TRANS CSA-SW0215B LTT00CPSA132 T1001 /N *TS002050R *TS002050R TRANSF. MAINS TRANSFORMER CSA-SW0215C LTT00EPSA141 T1001 /S nsp *TS002070R TRANSF. MAINS TRANSFORMER CSA-SW0308A LTT00ZPSA144 SACD CBA JK7101 *YT003450R *YT003450R TERMINAL CINCH JACK 6PIN MSD-246V-38 GILT JXRL060LY091 PARTS LIST [DV6400]
