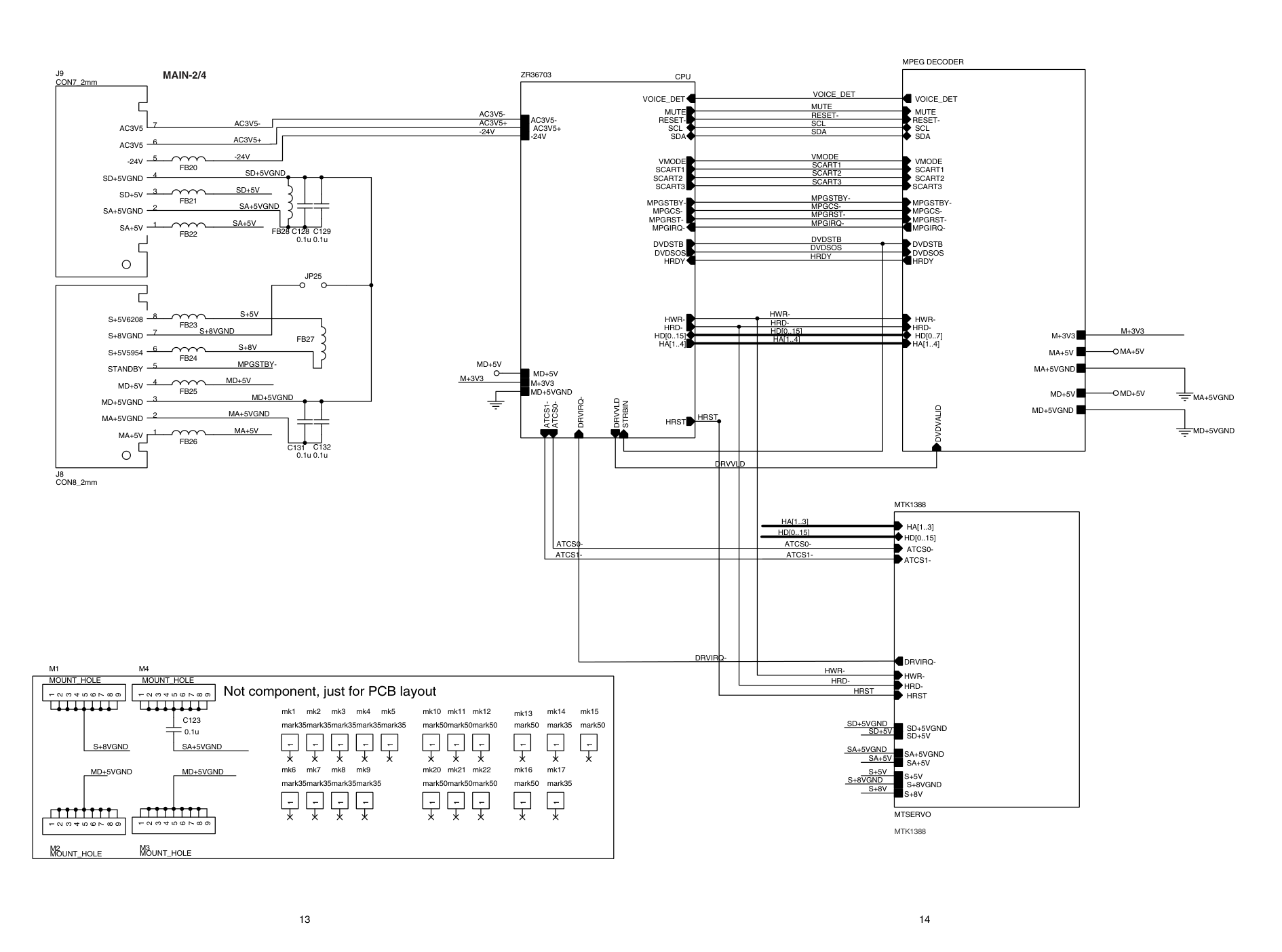

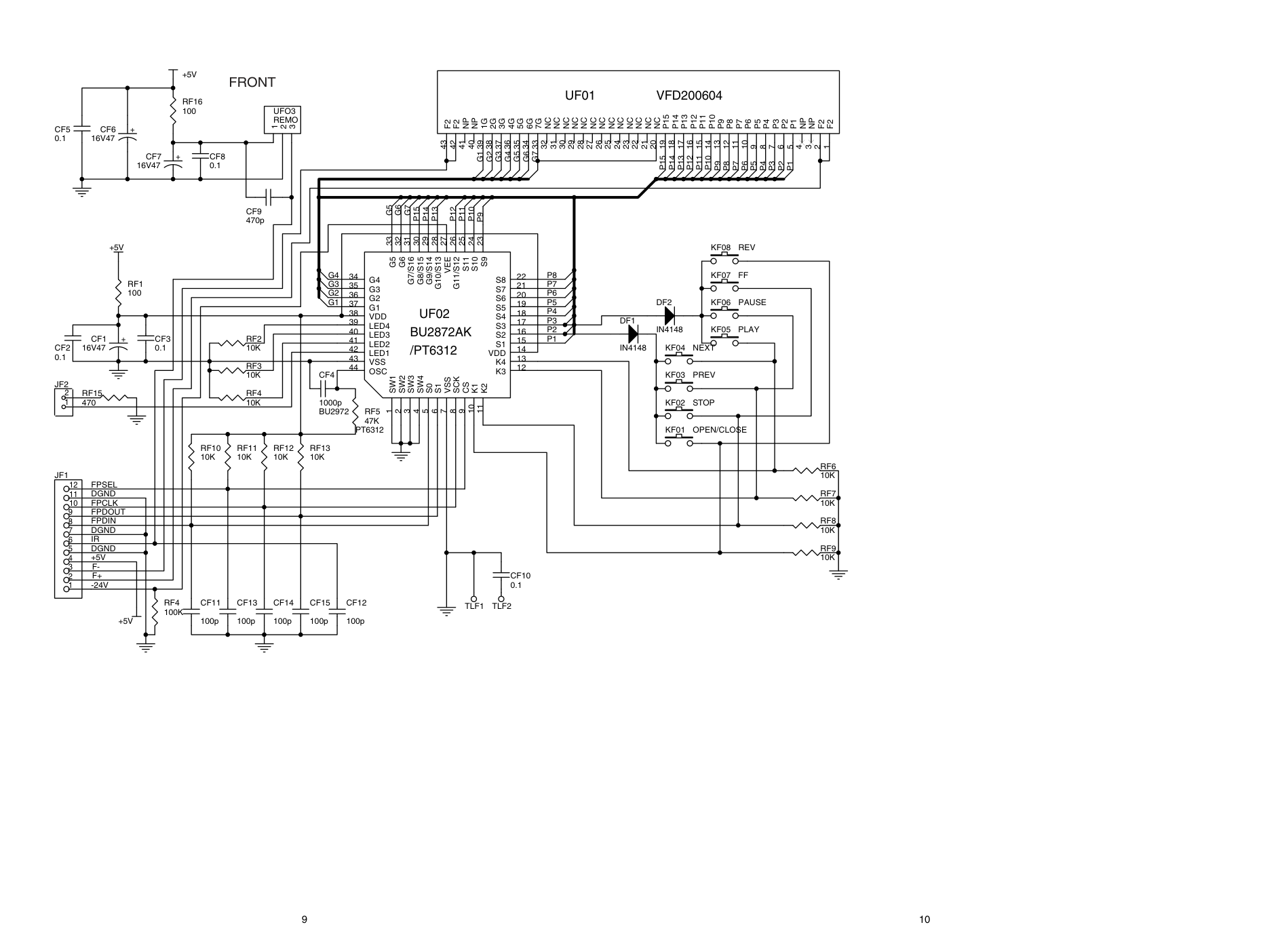

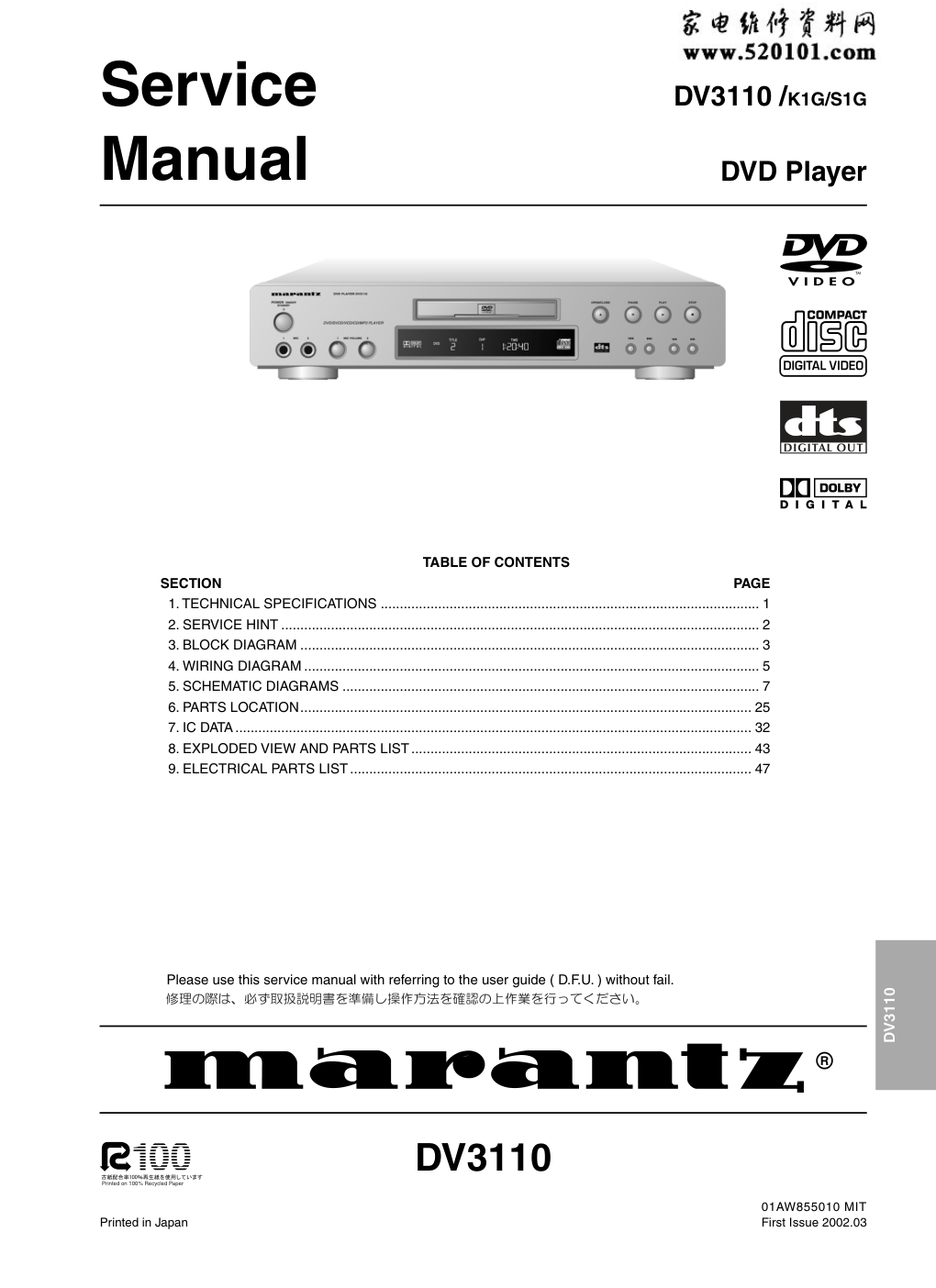

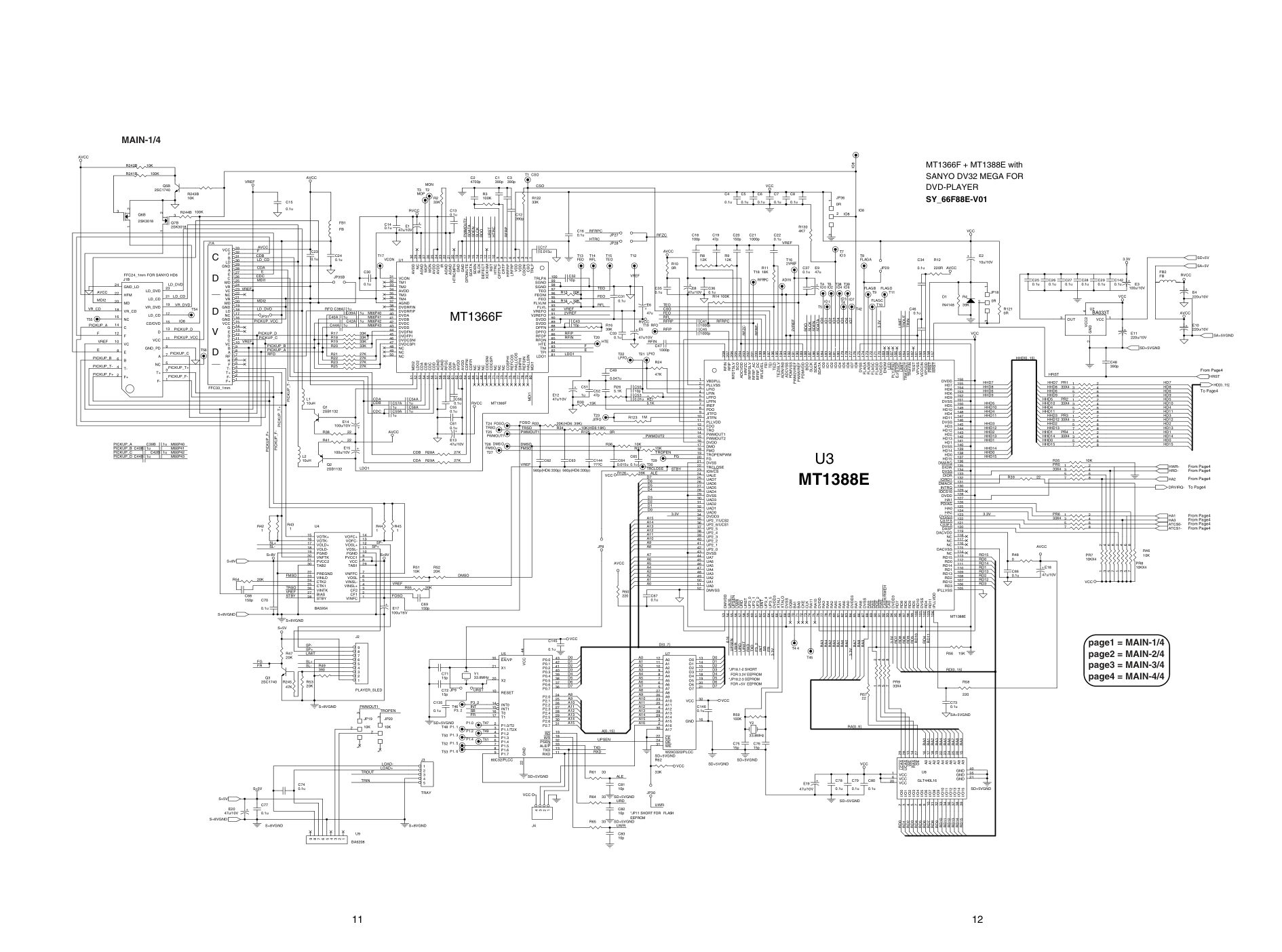

DVD Player DV3110 01AW855010 MIT First Issue 2002.03 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................................................................................................... 1 2. SERVICE HINT ............................................................................................................................. 2 3. BLOCK DIAGRAM ........................................................................................................................ 3 4. WIRING DIAGRAM ....................................................................................................................... 5 5. SCHEMATIC DIAGRAMS ............................................................................................................. 7 6. PARTS LOCATION...................................................................................................................... 25 7. IC DATA ....................................................................................................................................... 32 8. EXPLODED VIEW AND PARTS LIST......................................................................................... 43 9. ELECTRICAL PARTS LIST......................................................................................................... 47 DV3110 /K1G/S1G R DV3110 Printed in Japan Please use this service manual with referring to the user guide ( D.F.U. ) without fail. Service Manual Printed on 100% Recycled Paper MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 020307MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 (Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 21457677 FAX : +60 3 - 21458180 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 1 1. TECHNICAL SPECIFICATIONS Discs played DVD video disc........................................................12 cm single sided, single layer 12 cm single sided, double layer 12 cm double sided, single layer 12 cm double sinded, duoble layer (one layer per side) 8 cm single sided, single layer 8 cm single sided, double layer 8 cm double sided, single layer 8 cm double sided, double layer(one layer per side) Compact disc (CD-DA,Video CD) ..................................................12 cm, 8 cm Video system.............................................................PAL/ NTSC Audio system.............................................................Linear PCM audio MPEG 1/2 audio Dolby Digital(AC-3) DTS Digital OUTPUT CVBS output Line output level ......................................................1.0 ± 0.2 Vp-p / 75 ohms RCA pin Jack × 1 Line SYNC level ......................................................0.3 ± 0.05 Vp-p Defi nition .................................................................450(CVBS) 500(S-Video) Luminance frequency response..............................5.5 MHz(-6 dB) Chroma frequency response...................................1.5 MHz(-6 dB) Luminance nonlinear distortion...............................5 % Luminance waveform distortion .............................10 % Luminance S/N ratio................................................50 dB(no weighting) Chroma S/N ratio ....................................................AM: =60 dB PM: =50 dB Luminance and chroma time delay .........................100 ns Differential gain .......................................................5 % Differential phase ....................................................5 % S-VIDEO output S-Video signal level.................................................Y: 700 ± 140 mV C: chroma. 880 ± 176 mV chroma sync. 300 ± 60 mV S-Video frequency response...................................Y: =5.5 MHz(-6 dB) C: =1.5 MHz(-6 dB) S-Video S/N ratio ....................................................Y: =50(no weighting) C: =50 Audio output Level output.............................................................2.0 + 0V, - 1.0V Audio frequency response ......................................20 Hz 20 kHz ± 1 dB Audio THD +N .........................................................- 65 dB(1 kHz) Audio dynamic range ..............................................80 dB(1 kHz) Crosstalk(fundamental)...........................................80 dB 1kHz channel unbalance.........................................1.5 dB Intermodulation distortion........................................- 50 dB Frequency error.......................................................± 0.02 dB Level non-linearity ...................................................± 1 dB(0 dB - 60 dB) Digital audio output Optical output..........................................................Optical connector × 1 Coaxial output .........................................................RCA pin Jack × 1 Pickup .......................................................................Wavelength: 655 nm (DVD) Wavelength: 790 nm(CD) Others Power requirements: ..............................................AC 110--240V 50/60Hz Power consumption: ...............................................25W Weight: ...................................................................3.7kg Dimensions: ............................................................440mm(L) x 325mm(W) x 88mm(H) Supplied accessories Audio/Video cabel ...................................................× 1 Remote controller....................................................× 1 Batteries(R03).........................................................× 2 2 2. SERVICE HINT 2.1 Emargency Eject 1. Remove 7 screws on the top cover and remove the top cover. 2. Remove 2 screws of the Leg at the front. 3. Remove 3 screws from the bottom of the front panel. 4. Remove 2 screws from the earth plate from front panel. 5. Disconnect all the wires from PCB of front panel and remove the front panel. 6. Turn the gear to the direction shown with your fi nger and disc tray will opened. 2.2 The settlement of the region code (Connect the DVD player to a TV) 1.Open the player’s tray. 2.Press 0 →1 → 0 → 6 on the remote controller, check the front panel, If the Red and White Light are fl ashing, that means the player have accepted them, After, you can input the region code, For example, To set a region code 3, press "3" on the remote controller. Then the screen display’s "OK" The region code has been set. When a wrong region code is input, close the player’s tray then return to the process 1 2.3 How to know the fi rmware version? (Connect the DVD player to a TV) 1. Turn the player on 2. Remove the disc from the player. 3. Close the player’s tray. 4. Press PLAY button (Remote controller or front panel) slowly 8 times, The screen will display one string just like: "System : 111-Servo : 106". 111 is the version number of system control fi rmware and 106 is the version number of servo control fi rmware. (when it isn’t indicated on the screen, press PLAY button more times) 2.4 How to return to the default setting? 1. Remove the disc from the player. 2. Close the player’s tray. 3. Press STOP button (Remote controller or front panel) more than 8 times, The screen will display "Set to Default" (when it isn’t indicated on the screen , press STOP button more times) 4. Press POWER button (turn off the power) 5. Press POWER button (turn on the power) The setting is returned to the default setting. 2.5 How to update fi rmware with the update disc? 1. Put the update disc on the tray. 2. After identifi ed the disc, the player will show the background color and show the update information. The front panel will show the update status. If the player is updating servo fi rmware, the front panel will show 2-(0-7), If the player is updating system fi rmware, the front panel will show 1-(0-7). 3. After fi nishing the update process, the player will open the tray automatically. 3 4 3. BLOCK DIAGRAM DVD-DSP+ SERVO MCU SERVO DRIVE RF AMPLIRIER MT1366 BA6208 BA5954 MT1388 4MDRAM FLASH ROM SYSTEM CPU+ RAM AND ROM INSIDE ZR36703 SERVO SYSTEM AV3169 AV2188 VIDEO ENCODER AUDIO DAC MPEG DECOER ZR36710 VIDEO OUTPUT AUDIO OUTPUT YUV0-7 HSYNC VSYNC 27MHZ 16M SDRAM I2S HD0-HD7 VFD KEYBOARD AND REMOTE CONTROLLER CTRL AND COMM HD0-HD15 RESET AND CONTROLLING MPGRST AND CONTRLLING MAIN BOARD MIC-AMUTE 13 74HC04 5V 14 8 5V LPF A+5V CVBS/Cb C/Cr AMUTE Y/Y R-MAIN L-MAIN R-REAR CENT SUB SPDIF L-REAR MIC -12V +12V FROM MIC BOARD COAXIAL STEREO 5.1CHANNELS OPT. CVBS S-VIDEO Y/Cb/Cr AV OUTPUT BOARD Y Y Cr C Cb CVBS TO MIC BOARD TO MAIN BOARD -12V +12V SWITCHING TRANS RECTIFIER SMOOTHING CIRCUIT AC LINE FILTER RECTIFIER SMOOTHING SNUBBER CIRCUIT SWITCHING CIRCUIT POWER SUPPLY BOARD SAMPLE AND COMPARE DISC TRAY MOTOR DISC MOTOR SLED MOTOR OPT.PICKER TRACK FOCUS MIC1-OUT MIC1-IN MIC2-IN MIC2-OUT MIC1 MIC2 MIC PRE-AMPLIFY MIC BOARD MIX TO MIC-VOL BOARD AVCC VREF SPINDLE- SPINDLE+ LIM SLED+ SLED- LOAD- LOAD+ TROUT TRIN A-F LED GND FRONT BOARD -24V AC+ AC- D+5V IR FPDIN FPDOUT FPCLK FPSEL MIC1-IN MIC1-OUT MIC2-OUT MIC2-IN PT6312 VFD IR RECEIVER KEY SCAN P1-P15 G1-G7 AC- AC+ FROM MIC BOARD DVDLOARDER MIC-VOL AC- -24V AC+ S+5V STB +5V M+5V AC- -24V AC+ S+5V STB +5V M+5V FROM POWER BOARD MIC -12V +12V TO OUTPUT BOARD EEPROM AT24C02 I2C I2C 6 5 2 1 POWER SWITCH BOARD 1 2 3 4 1 2 8 1 2 3 4 5 6 7 9 10 11 8 1 2 3 4 5 6 7 9 8 1 2 3 4 5 6 7 9 1 3 4 5 2 AC- AC+ -24V -12V +12V AGND AGND GND S+5V GND S+5V S+5V GND +5V STB M+5V GND GND M+5V LOAD- ROUT LOAD+ RIN MSG SPINDLE- SPINDLE+ LIM GND SLED+ SLED- FG D5VGND PICK F- PICK F+ PICK T+ PICK T- NC PICK B F VREF PICK VCC E PICK D PICK A IO8 NC LC_CD VR_DVD MDI2 LD_CD AVCC LD_DVD GND_DVD PICK C VR_CD GND_PD 12 13 14 15 16 17 18 19 20 21 11 22 23 24 21 20 2 9 8 7 6 5 4 3 1 11 24 23 22 19 12 10 18 17 16 15 14 13 POWER SUPPLY BOARD MECHA UNIT MAIN BOARD (MPEG DECODER) 1 3 4 5 2 1 3 4 5 2 6 7 1 3 4 5 2 6 7 8 -24V DGND F- F+ D+5V FPCLK IR FPDIN DGND FPDOUT FPSEL DGND MA5 SM5 SBY S8 SM5G MD5 MA5G MD5G LOAD- ROUT LOAD+ RIN MSG AC- SD5 SA5G SA5 SD5G AC+ -24V 12 1 3 4 5 2 6 7 8 9 10 11 1 2 3 4 5 1 3 4 2 1 3 4 5 2 1 2 MIC1-OUT MIC1-IN AGND MIC2-OUT MIC2-IN LED GND LED GND -12V AGND +12V AGND -12V AGND AGND MIC +12V -24V DGND F- F+ D+5V FPCLK IR FPDIN DGND FPDOUT FPSEL DGND 1 3 4 5 2 6 7 9 10 11 8 12 MIC BOARD MIC-VOL BOARD FRONT BOARD MIC1-IN 1 3 4 5 2 MIC1-OUT AGND MIC2-IN MIC2-OUT 1 2 3 4 5 AGND MIC AGND +12V -12V AV OUTPUT BOARD 17 16 15 18 13 12 14 10 9 8 7 6 5 4 3 2 1 11 MIC_AD VOI_DECT MIC_MUTE R_MAIN AGND SUB AGND CENT AGND AMUTE SPDIF DGND L_REAR AGND AGND AGND R_REAR L_MIAN 6 8 9 10 7 3 4 5 1 2 12 13 11 15 16 17 18 14 6 8 9 10 7 3 4 5 1 2 12 13 11 15 16 17 18 14 CTRL1 A+5V MPGSTB- CTRL2 DGND B DGND C DGND Y DGND AGND RGB/CVBS G CVBS R DGND DGND 1 8 7 6 5 4 6 2 7 6 5 4 3 2 1 JP01 JP02 JP03 JA2 JA3 J9 J8 J3 J5 J1B J2 J10 J11 JF2 JF1 JM3 JM2 JM1 JL2 JL1 JL2 JP04 JK01 GND_LD LD_DVD AVCC LD_CD MDI2 VR_DVD LC_CD IO8 PICK A PICK D E PICK VCC VREF GND_PD F PICK B NC PICK T- PICK T+ PICK F+ PICK F- VR_CD PICK C NC SPINDLE- SPINDLE+ LIM GND SLED+ SLED- FG D5VGND JA1 CTRL1 A+5V MPGSTB- CTRL2 DGND B DGND C DGND Y DGND AGND RGB/CVBS G CVBS R DGND DGND VOI_DECT SPDIF DGND MIC_AD MIC_MUTE R_MAIN AGND SUB AGND CENT AGND AMUTE L_REAR AGND AGND AGND R_REAR L_MIAN 1 17 16 15 18 13 12 14 10 9 8 7 6 5 4 3 2 11 4. WIRING DIAGRAM 7 8 5. SCHEMATIC DIAGRAM MIC1-OUT MIC1-IN MIC2-IN MIC2-OUT -12V +12V GND MIC GND -12V +12V - + 1 2 3 4 5 + 1 2 3 4 + + - + 1 2 3 4 + + 1 2 3 4 5 + 1 2 3 4 + - + + - + + + JF1 -12V +12V -12V -12V +12V +12V +12V -12V 2 3 1 4 6 5 7 4 6 5 7 4 2 3 1 4 QM1A NJM4580E JM1 TO VOL PCB RM14 1K LRM3 FIL CM10 16V4.7 RM10 150K MIC2 CM2 16V4.7 CM6 100p RM12 470 RM4 3.3K CM8 50V10 RM2 6.8K RM6 2.2K RM8 2K QM1B NJM4580E CM4 0.01u LRM4 FIL CM5 100p CM19 0.01u CM14 1000p CM17 0.1u LRM1 FIL JM3 TO POWER PCB CM7 50V10 LRM5 FIL RM11 470 LRM6 FIL CM9 16V4.7 CM22 0.1u RM13 1K JM2 TO AVOUT PCB RM9 150K LRM8 FIL RM7 2K CM18 0.1u RM20 15K LRM7 FIL CM16 16V4.7 MIC1 RM23 1K RM22 47K RM21 100 R15 4.7K RM16 4.7K RM17 10K RM18 100 CM12 50V10 CM11 1000p RM19 4.7K QM2B NJM4580E CM15 50V10 LRM2 FIL CM3 0.01u RM1 6.8K QM2A NJM4580E CM21 0.01u CM20 0.01u RM3 3.3K CM1 16V4.7 RM5 2.2K CM13 16V4.7 MIC 10 9 P4 P5 P6 P14 P13 P12 P11 P10 G5 G6 G7 P10 P11 P12 G4 G3 G2 G2 G6 G5 G4 G3 P6 P4 P5 G1 G1 G7 FPCLK FPDOUT FPDIN -24V P13 P15 P14 +5V P8 P15 P8 P7 P7 P2 P2 P1 P1 P3 P3 DGND DGND DGND P9 P9 F- F+ IR FPSEL F2 F2 NP NP 7G 6G 5G 4G 3G 2G 1G NC NC NC NC NC NC NC NC NC NC NC NC NC P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 NP NP F2 F2 1 2 3 SW1 SW2 SW3 SW4 S0 S1 VSS SCK CS K1 K2 K3 K4 VDD S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 G11/S12 VEE G10/S13 G9/S14 G8/S15 G7/S16 G6 G5 G4 G3 G2 G1 VDD LED4 LED3 LED2 LED1 VSS OSC + + + 1 2 12 11 10 1 2 3 4 5 6 7 8 9 PT6312 BU2972 TLF1 TLF2 +5V +5V +5V 43 42 41 40 33 34 35 36 37 38 39 20 21 22 23 24 25 26 27 28 29 30 31 32 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 3 4 1 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 /PT6312 RF8 10K RF7 10K RF6 10K CF4 1000p RF5 47K RF1 100 RF2 10K CF14 100p DF2 IN4148 KF01 OPEN/CLOSE KF04 NEXT KF07 FF KF08 REV KF03 PREV KF06 PAUSE DF1 IN4148 RF4 10K RF11 10K RF12 10K RF13 10K CF15 100p CF12 100p CF10 0.1 KF05 PLAY KF02 STOP RF9 10K RF3 10K CF8 0.1 CF5 0.1 RF15 470 RF4 100K VFD200604 UF01 UFO3 REMO CF11 100p RF16 100 BU2872AK UF02 CF1 16V47 CF6 16V47 CF7 16V47 CF13 100p JF2 JF1 CF9 470p CF2 0.1 CF3 0.1 RF10 10K FRONT 11 12 RFIP RFIN RFRP M66P40 M66P41 M66P42 M66P43 UWR URST PWMOUT1 INT E PWMOUT2 SDATA SDEN URST HTRC FOSO SLCK MDI1 RFIP BDO LDO1 RFRP RFIN FMSO TRSO FOSO 2VREF STBY F SL- TRSO FMSO UPSEN SB P3_2 FR HHD[0..15] HHD5 RD12 D7 RD8 D6 D1 3.3V 3.3V P3_2 A8 A10 A5 RD13 PWMOUT2 D6 D3 A12 RD10 HHD0 HHD15 RFRPC URST D2 A3 HHD11 D6 FG 3.3V 2VREF A0 TRIN RXD A7 D2 A14 RD4 RD2 HHD10 RFZC URD RXD STBY CSO D0 A10 HHD12 A15 A13 RD11 RD6 RD0 A13 UWR HHD14 RFL A5 A4 A16 HHD8 RD4 RD3 ALE TROPEN A6 D4 SDEN A[0..15] A14 A14 HHD15 HHD2 A1 A15 HHD13 D1 HHD13 RD5 RD10 A11 A11 HHD10 HHD3 RD5 A16 D0 HHD11 TROUT D0 A0 D5 HHD7 URD HHD3 HHD12 A10 RD14 HHD7 HHD8 INT HHD0 A9 RD14 HHD1 A9 SDATA A4 RFL HHD6 RD[0..15] HHD6 HHD4 RD9 A2 HHD9 A15 A8 RD7 RD1 A2 A6 RD2 A11 A7 CSO HHD9 A1 IO8 HHD14 D7 RD8 RD0 TEO BDO SLCK A3 RD15 A8 D3 A9 D4 D1 RD1 ALE TXD HHD2 D5 UPSEN RD11 RD3 FEO SB 3.3V D[0..7] A12 D7 D5 HHD1 RD7 RD6 RD9 HHD4 RD15 RFRP LIMIT A12 A13 UWR TEO FEO RD12 HHD5 3.3V RD13 TXD FR D2 D3 D4 IO0 IO1 IO2 IO3 IO4 IO5 IO6 IO7 3.3V RFRPC RFZC LIMIT SP- SL+ SL- FG DMSO SP- SL+ FR TROPEN PWMOUT1 TROUT LOAD- LOAD+ TRIN RA8 RA1 RA[0..9] RA0 RA3 RA2 RA9 RA1 RA6 RA4 RA4 RA5 RA8 RA5 RA6 RA7 RA2 RA0 RA3 RA7 RA9 HTRC LDO1 HRST HD0 HD9 HD10 HD6 HD5 HD12 HD1 HD3 HD15 HD8 HD7 HD11 HD4 HD13 HD14 HD2 IO8 PICKUP_F- PICKUP_T+ PICKUP_D VR_DVD LD_DVD LD_CD PICKUP_F+ PICKUP_T- AVCC VR_CD M66P40 M66P41 M66P42 M66P43 PICKUP_A PICKUP_B PICKUP_C PICKUP_D IO8 MDI2 CDA CDA SP+ SP+ DMSO VREF VREF F PICKUP_C VREF PICKUP_C CDC PICKUP_D E CDB PICKUP_F+ CDC CDB VREF PICKUP_VCC F RFO AVCC CDA MDI1 PICKUP_VCC PICKUP_T- VREF LD_CD MDI2 PICKUP_B PICKUP_T+ PICKUP_F- VREF CDB VREF E PICKUP_A VREF RFO LD_DVD PICKUP_B PICKUP_A SD+5VGND SA+5VGND S+8VGND S+8VGND S+8VGND S+8VGND SD+5VGND SD+5VGND SD+5VGND SD+5VGND SD+5VGND SD+5VGND SD+5VGND SD+5VGND R21 27K T30 R48 0 C23 0.1u C43 10p R123 1M J1B FFC24_1mm FOR SANYO HD6 FB1 FB C69 150p E15 100u/10V T48 J1A FFC33_1mm T2 C144 ???C T50 C61 0.1u R22 27K T15 C55 0.1u R54 20K C64 0.015u E13 47u/10V R24 47K R35 10K T47 C56 0.1u E11 220u/10V R19 33K R33 20K(HD6: 39K) PR5 33X4 T49 R28A 27K R17 33K C46 0.1u C135 0.1u U3 MT1388E R39 22 T51 R29A 27K T3 U5 80C32/PLCC T52 C57A 1u C14 0.1u PR6 33X4 C58A 1u C50 10p T53 E6 47u C59A 1u T18 U8 GLT440L16 R43 1 C30 0.1u JP28 T22 C34 0.1u C54A 1u E9 47u E5 47u/10V C40A 1u E1 47u/10V C24 0.1u R2 33K R59 100K E19 47u/10V R245 47K R242B 10K C42A 1u C20 150p R58 220 C53 0.01u C79 0.1u JP9 T21 L2 10uH R15 33K R30 15K C80 0.1u C39A 1u R38 22 C62 560p(HD6:330p) C78 0.1u T54 U1 MT1366F C44A 1u E8 47u/10V C67 0.1u C73 0.1u Q6B 2SK3018 R243B 10K C41 1000p E12 47u/10V C82 10p C71 15p C19 47p U2 BA033T T19 R12 220R R62 33K E17 100u/16V R26 5.1K T55 Q7B 2SK3018 R65 33 T16 J4 PR3 33X4 R244B 100K PR9 33X4 C76 15p R241B 100K R64 33 R27 5.1K J2 PLAYER_SLED PR1 33X4 C13 0.1u T23 PR4 33X4 C2 4700p T46 C74 0.1u R34 10K(HD6:18K) R47 20K PR2 33X4 Y1 33.8MHz C3 390p C77 0.1u T14 T4 4 R51 10K C51 1u U9 BA6208 Q3 2SC1740 C38A 1u T45 R36 10K C32 10p JP29 E20 47u/10V T29 R14 100K R8 12K R52 20K R16 39K T4 J3 TRAY JP30 T1 C31 0.1u T5 JP19 10K R130 4K7 R45 1 E14 100u/10V C145 0.1u R41 22 T6 JP20 10K FB2 FB R25 27K C66 0.1u C16 0.1u C4 0.1u T7 E4 220u/10V C65 0.1u C47 1000p C1 390p C17 0.015u T38 E10 220u/10V C68 150p R37 15K R53 20K C72 15p T4 T12 C37 0.1u C6 0.1u C39B 1u T17 T39 T25 C36 0.1u U7 W29C020/PLCC R10 0R T42 R57 22 C45 1000p R49 390 C40B 1u C33 0.1u T9 R122 33K R11 18K C12 390p T10 T24 C5 0.1u C42B 1u JP31 R3 100K E3 100u/10V R18 33K Y2 33.8MHz C75 15p C70 0.1u C28 0.1u JP36 0R T26 R9 12K C7 0.1u C44B 1u C35 0.1u C29 0.1u R56 15K T56 R55 20K R13 20K PR7 10KX4 C142 0.1u R50 220 C49 0.047u PR8 10KX4 C83 10p Q1 2SB1132 T8 U4 BA5954 JP35B R61 33 C52 47p C25 0.1u R46 10K T11 R23 27K C26 0.1u JP27 R44 1 R125 0R T13 Q2 2SB1132 C146 0.1u R4 39K R42 1 R121 0R C27 0.1u C8 0.1u D1 IN4148 C18 100p C63 560p(HD6:330p) C81 10p E2 10u/10V Q5B 2SC1740 T27 C48 390p R126 39K JP18 0R T20 C21 1000p C15 0.1u R20 33K C22 0.1u JP8 L1 10uH E18 47u/10V LD_DVD LD_CD VR_DVD LD_CD CD/DVD D VCC GND_PD A NC T+ F- GND_LD HFM MD VR_CD NC C F VC E B T- F+ LD MD NC E F+ F- GND NC VR VC VR C H A B T+ T- G VCC D VC RF F GND MD C E A GND LD B F VCC VBDPLL PLLVSS LPIO LPIN LPFO LPFN IREF PDO PLLVDD DVDD UAD7 RFIN RFIP JITFN JITFO FOO TRO PWMOUT1 PWMOUT2 DMO UALE FMO TROPENPWM ENDM FG UA6 HD3 HD12 DVSS HD2 HD13 HD1 TRCLOSE UAD6 UAD5 UAD4 DVSS UAD3 UAD2 UAD1 UAD0 DVDD3 UP2_7/UCS2 UP2_6/UCS1 UP2_5 UP2_4 UP2_3 UP2_2 UP2_1 UP2_0 DVSS UA7 DMVDD UPSEN UWR XTALI XTALO DQM BA1 CKE CLK RA10 DVDD3 RA3 RA4 RA2 RA5 RA1 RA6 RA0 RA7 RA8 DVSS RA9 RAS ROE RWE CASH/RWEH CAS DVDD3 RD7 RD8 RD6 RD9 RD5 RD10 RD4 RD11 DVSS RD3 RD12 RD2 IPLLVDD DVSS HD5 HD10 HD4 HD11 HD14 HD0 HD15 DMARQ DIOW DIOR IORDY DMACK INTRQ IOCS16 DVDD HA1 PDIAG HA0 HA2 DVDD3 CS1FX CS3FX DASP DACVDD NC NC NC DACVSS NC RD15 RD0 RD14 RD1 RD13 IPLLVSS DVSS DVSS RFDTSLV SCO ADCVDD HRFZC RFRPSLV RFRP_AC RFLEVEL FEI TEI TEZI TEZISLV ADIN/IN0 ADCVSS PDMVSS PWM2VREF PWMVREF PDMVDD BDO SLCK SDEN SDATA IO0 IO1 IO2 IO3 DVSS FLAGA FLAGB FLAGC FLAGD DVDD3 VPVSS VCOCIN VPVDD PRST HRST HD7 HD8 HD6 HD9 DVDD BA0 RA11 UA5 UA4 UA3 UA2 UA1 UA0 UA16 DMVSS DVDD DVSS RFRP_DC LED PLY/PAU EJ/STOP LIMIT TRAYOUT TRAYIN TEST URD URST UP3_0 UP3_1 UP3_2 UINT UP3_4 UP3_5 IO4 IO5 IO6 IO7 IO8 IO9/CS DVSS DVDD3 EA/VP X1 X2 RESET INT0 INT1 T0 T1 P1.0/T2 P1.1/T2X P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7 RD WR PSEN ALE/P TXD RXD VCC GND UCAS OE WE I/O0 I/O1 I/O2 I/O3 VCC RAS I/O4 I/O5 I/O6 I/O7 LCAS VCC GND VCC I/O8 I/O9 I/O10 I/O11 I/O12 I/O13 I/O14 I/O15 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 GND GND TRLPA SGND SGND TEO CSONI CSO FEONI FEO FLVLNI FLVL SVDD DPFN DPFO RFOP RFON HTE TNI TPI LDO1 AVDD NC AGND MOP MON AVDD AVDD IR AGND AGND HTRCMPH GND GND DPDMUTE SDATA SDEN SLCK DEFECT XCK16M RST HTRC CRTPLP CRTP HRFRP LRFRP VDD V2REFO VREFO TRLP VCON TM1 TM2 AVDD TM3 TM4 AGND DVDRFIN DVDRFIP DVDA DVDB DVDC DVDD DVDFNI DVDFPI DVDCSNI DVDCSPI MDI2 NC NC LDO2 CDA CDB CDC CDD AGND AGND RFGC OSN OSP AVDD AVDD CDFNI CDFPI NC NC NC CDCSNI CDCSPI NC NC NC COSPHI REFCOS HALLCOS SINPHI REFSIN HALLSIN MDI1 NC VDD SVDD VCC OUT GND VCC2 1 2 3 4 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 O0 O1 O2 O3 O4 O5 O6 O7 GND VCC A15 A16 WE OE CE A17 VINFC PVCC1 PGND VOSL+ CF2 CF1 VOTK+ VNFFC VOFC+ VOFC- PVCC2 PGND VNFTK CTK2 BIAS VOSL VINSL+ VINSL- STBY VCC VOSL- VOLD+ VOLD- VOTK- VINLD PREGND CTK1 VINTK TAB1 TAB2 + D D V D C + + + + + + + + + + + + + + + + + MT1388E JITFO LPIO LPFO RFRPC VREF CSO RFL MT1366F FEO 2VREF RFO FOSO TRSO FMSO DMSO ADIN TRCLOSE P1. 1 P1. 3 HTE VCON MON MOP PWMOUT1 TEO P1.0 P1.2 P1.4 P1. 5 P1. 6 MT1366F + MT1388E with SANYO DV32 MEGA FOR DVD-PLAYER P3. 2 IO8 IO0 IO1 IO2 IO3 IO4 IO5 IO6 IO7 FLAGA FLAGB FLAGC FLAGD SY_66F88E-V01 To Page4 From Page4 From Page4 From Page4 From Page4 From Page4 From Page4 From Page4 From Page4 To Page4 AVCC AVCC RVCC S+8V AVCC RVCC VCC AVCC 3.3V VCC VCC AVCC RVCC VCC VCC VCC VCC VCC S+8V S+5V VCC VCC S+5V VREF RVCC AVCC VCC AVCC AVCC 23 21 19 17 15 13 11 9 7 5 3 1 24 22 20 18 16 14 12 10 8 6 4 2 18 20 17 13 1 2 19 22 24 23 21 11 6 8 9 3 4 14 15 12 10 7 5 16 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 11 16 25 208 207 10 9 12 13 14 15 17 24 18 19 169 20 45 145 144 146 143 142 141 22 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 53 55 56 66 67 69 70 72 73 75 84 77 78 79 80 81 82 83 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 102 103 68 106 107 108 104 151 150 149 148 147 139 138 137 136 135 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 105 140 134 206 205 204 203 202 201 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 175 174 173 172 171 170 161 160 159 158 157 155 154 153 152 156 71 74 46 47 48 49 50 51 54 52 76 101 200 168 167 166 165 164 163 162 57 58 59 60 61 62 63 64 180 179 178 177 176 23 21 65 35 21 20 10 14 15 16 17 2 3 4 5 6 7 8 9 43 42 41 40 39 38 37 36 24 25 26 27 28 29 30 31 19 18 32 33 13 11 44 22 1 2 3 4 5 6 7 8 28 27 13 2 3 4 5 1 14 7 8 9 10 29 20 35 6 31 32 33 34 36 37 38 39 16 17 18 19 22 23 24 25 26 15 40 21 100 99 98 97 3 2 96 95 94 93 90 88 87 86 85 84 83 82 81 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 91 92 1 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 51 48 50 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 49 4 89 3 1 2 1 3 2 4 3 1 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 2 1 3 2 1 3 12 11 10 9 8 7 6 5 27 26 23 25 4 28 29 13 14 15 17 18 19 20 21 16 32 3 2 31 24 22 30 2 1 3 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 9 10 12 3 2 15 7 14 13 21 19 20 24 27 6 4 5 28 8 11 17 18 16 23 22 25 26 29 30 2 1 3 S+5V S+8VGND SA+5V SA+5VGND SD+5VGND SD+5V HD[0..15] HRST S+8V S+8VGND HA2 HA1 HA3 HWR- HRD- ATCS0- ATCS1- DRVIRQ- *JP18.1-2 SHORT FOR 3.3V EEPROM *JP18.2-3 SEPROM FOR +5V EEPROM *JP11 SHORT FOR FLASH EEPROM MAIN-1/4 page1 = MAIN-1/4 page2 = MAIN-2/4 page3 = MAIN-3/4 page4 = MAIN-4/4 14 13 MTK1388 HRST M+3V3 S+5V S+8V S+8VGND SA+5V SA+5VGND SD+5V SD+5VGND ATCS1- HRST HA[1..3] SD+5V SA+5V S+5V MA+5V AC3V5+ AC3V5- SA+5VGND MPGSTBY- MD+5V S+8V S+8VGND S+8VGND -24V SDA M+3V3 MPGSTBY- SCART1 SCART2 SCART3 VOICE_DET RESET- MPGRST- MPGIRQ- SCL MUTE VMODE HRDY MPGCS- HD[0..15] MA+5VGND HD[0..15] HWR- HA[1..4] MD+5VGND DVDSOS SD+5VGND DVDSTB MD+5VGND MD+5VGND DRVVLD SA+5VGND ATCS1- ATCS0- ATCS0- DRVIRQ- HWR- HRD- HRD- AC3V5- AC3V5+ -24V MA+5VGND MD+5VGND ZR36703 CPU MTK1388 MTSERVO MPEG DECODER FB28 M4 MOUNT_HOLE M1 MOUNT_HOLE M3 MOUNT_HOLE M2 MOUNT_HOLE mk13 mark50 C123 0.1u mk14 mark35 mk15 mark50 mk16 mark50 mk17 mark35 FB26 mk1 mark35 FB25 mk2 mark35 FB24 mk3 mark35 FB23 mk4 mark35 FB22 mk5 mark35 FB21 mk6 mark35 FB20 mk7 mark35 FB27 mk8 mark35 C128 0.1u mk9 mark35 C129 0.1u mk10 mark50 C131 0.1u mk11 mark50 C132 0.1u mk12 mark50 J9 CON7_2mm mk20 mark50 J8 CON8_2mm mk21 mark50 JP25 mk22 mark50 RESET- MPGCS- MPGIRQ- HD[0..15] HRST MUTE MPGRST- SCL SDA HRDY DVDSTB MPGSTBY- ATCS0- ATCS1- HA[1..4] DVDSOS STRBIN DRVVLD HRD- HWR- MD+5VGND M+3V3 VOICE_DET MD+5V VMODE AC3V5- AC3V5+ -24V SCART1 SCART2 SCART3 DRVIRQ- S+8V S+8VGND S+5V SA+5V SA+5VGND SD+5VGND SD+5V HD[0..15] ATCS0- ATCS1- HRD- HWR- HRST HA[1..3] DRVIRQ- HRD- MPGIRQ- HA[1..4] MPGRST- DVDVALID DVDSOS DVDSTB MPGCS- HWR- HD[0..7] HRDY VOICE_DET SCL SDA MA+5V MD+5V MD+5VGND MA+5VGND M+3V3 VMODE RESET- MUTE MPGSTBY- SCART1 SCART2 SCART3 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 SA+5V SA+5VGND SD+5V SD+5VGND -24V AC3V5 AC3V5 1 MA+5V MA+5VGND MD+5VGND MD+5V STANDBY S+5V5954 S+8VGND S+5V6208 1 1 Not component, just for PCB layout MA+5V MD+5V MD+5V 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 MAIN-2/4 15 16 MCS0- UV1/TDO HRD- MPGIRQ- ALRCK MCAS- HA1 MPGSTBY- UV4 HA4 MPGCS- UV2/TDI HWR- UV0/TCK HA3 HA2 MPGRST- MWE- UV3/TMS HSYNC- VSYNC- DVDSTB DVDVALID ABCLK ALRCK0 ASDAT2 ASDAT1 CVBS C R B LFE CENT R_REAR R_MAIN L_MAIN L_REAR ABCLK0 AMCLK AIN VSYNC- SCL SDA HRDY MD[0..15] MA5 MD3 MD4 MPCLK MA3 MA10 MD15 MD0 MA9 MD7 MD1 MA2 MD14 MD6 MA5 MD2 MD13 MA7 MDQM MD0 MD11 MA8 MRAS- MD5 MD8 MA1 MD11 MD3 MA11 MD5 MD4 MA10 MA0 MD13 MD12 MD14 MA6 MD8 MA4 MA[0..11] MD9 MD6 MD[0..15] MA6 MD15 MD9 MD1 MD10 MA9 MA7 MA3 MA2 MA8 M+3V3RAM MD2 MA4 MA0 MD12 MD7 MDQM MA1 MA11 MD10 MPCLK YUV2 YUV3 YUV7 YUV3 YUV7 YUV0 YUV7 YUV4 YUV1 YUV3 YUV0 YUV4 YUV[0..7] YUV0 YUV5 YUV4 YUV5 YUV5 YUV2 YUV[0..7] YUV1 YUV6 YUV6 YUV6 YUV1 YUV2 HSYNC- HD7 HD4 HD0 HD5 HD1 HD2 HD2 HD6 HD5 HD4 HD3 HD1 HD0 HD3 HD7 HD6 M+3V3 AMCLK MA+5V1717D ALRCK0 ABCLK0 MA+5V2188D SPDIF SPDIF ASDAT1 ASDAT2 ABCLK0 ALRCK0 AMCLK RESET_DAC AIN MA+5V2188D SCL MA+5V2188A X_CVBS Y_C DVDSOS G Y Z_Y Y C G CVBS B CLK27 RESET_DAC ASDAT0 ASDAT0 CLK27 ASDAT0 CLK27 SDA VSYNC- HSYNC- M+3V3 M+3V3 VGND MD+3V3GND MD+5VGND MA+5VGND + + + + AV2188 + + + + E61 47u/10V C231 0.1u C121 0.1u R254 0 C217 0.01u E62 47u/10V C161 0.1u R248 0 E32 100u/6V3 TP14 C216 0.1u E35 100u/6V3 C98 22p C108 0.1u E65 10u/25V JP24 C107 0.1u C215 0.01u JP23 R92 4.7K E30 100u/6V3 R164 220R TP15 TP23 R165 220R C221 0.1u R251 0 FB30 R177 200K C109 0.1u TP4 TP16 R252 0 E40 22u/10V R178 200K TP33 C191 0.1u C97 0.1u R247 196R/1% FB43 NJM4053 U30 L46 U28 Y4 27MHz XTAL TP5 R246 1K C229 0.1u C137 0.1u TP17 E27 100u/10V C230 0.1u C177 15p C180 0.1u C106 0.1u R109 4.7K L48 2.7uH C228 0.1u C213 0.1u C141 0.1u R108 4.7K TP25 C140 0.1u R106 4.7K C139 0.1u R107 4.7K U17 ZR36710 C179 0.1u U16 BA033T C178 15p R166 1K FB38 C176 0.1u FB37 TP22 E43 47u/10V FB44 R162 33 TP12 TP31 R163 33 R255 4.7K R250 0 C222 0.1u R169 75/1% C223 0.1u J11 FFC18_1.25mmAUDIO R170 75/1% L45 R171 75/1% TP39 C226 0.1u D3 1N4148 R94 33R C227 0.1u E66 22u/10V R131 ? TP11 TP1 R91 2R2 C225 0.1u C218 0.1u R132 ? TP3 C234 33pF TP41 U29 AV3168 C119 0.1u C224 24p C99 0.1u C101 0.047u J7 FFC24_1.0mm FB19 E23 47u/6V3 C105 0.1u E26 100u/6V3 TP13 U27 PCM1717 TP40 C120 0.1u C214 0.1u R257 0 R105 4.7K C96 22p E64 10u/25V TP9 TP6 C104 0.1u J10 FFC18_1.25mmVIDEO L47 TP10 TP7 0R JP40 R189 0 C232 0.1u C220 0.1u C110 0.1u TP8 U20 KM416S1020BT R253 0 FB40 TP2 R256 0 C219 0.1u R249 0 C233 0.1u R93 33R J15 CON4\2mm . . Y1 Y0 Z1 Z Z0 Inhibit VEE VSS C B A X0 X1 X Y VDD SD1 SD2 SD3 SDOUT SBCLK SLRCK DGND DVDD DGND XCLK SCL SDA TST RST N/C LIN RIN AGND CM1 AVDD CM2 AGND AL1 AR1 AL2 AR2 AL3 AR3 GND GPAIO0 GPAIO1 VCLKX2 GND GCLK1 SCNENB XO GCLK STBY GND AMCLK V3.3 GNDA PLLCFG0 PLLCA PLLCFG1 V3.3A ICEMODE V3.3 RESET IDLE CODEERR CODESOS GND CODEVALID CODESTB CODEREQ CODE0 V3.3 CODE1 CODE2 CODE3 CODE4 V3.3 CODE5 CODE6 CODE7 GPSO GND GND MD0 TESTMODE VCLK VMASTER V3.3 VDEN CBLANK VSYNC HSYNC FIELD Y7 GND Y6 Y5 Y4 Y3 V3.3 Y2 Y1 Y0 UV7 V3.3 UV6 UV5 UV4 UV3 GND UV2 UV1 UV0 AIN V3.3 AOUT0 AOUT1 AOUT2 SPDIF ALRCLK ABCLK GND GND GND A5 GPSI A2 HD15 A6 HD14 A1 HD13 A7 HD12 A0 HD11 V3.3 V3.3 A8 HD10 A10 HD09 A9 HD08 A11 HD07 GND GND MCS0 HD06 MCS1 HD05 MRAS HD04 PCLK HD03 V3.3 V3.3 MCAS HD02 MWE HD01 MDQM HD00 MD8 HA3 V3.3 GND MD7 HA2 MD9 HA1 MD6 HA0 MD10 HWR GND V3.3 MD5 HCS MD11 HRD MD4 HRDY MD12 HACK V3.3 V3.3 MD3 HIRQ MD13 HWID MD2 HORD MD14 HTYPE MD1 A4 MD15 A3 GND GND VCC OUT GND VCC2 MIC_AD L_REAR L_MAIN R_MAIN R_REAR SUB CENT AMUTE DGND VOI_DECT MIC_MUTE AGND AGND AGND AGND AGND AGND SPDIF . XOUT XIN MSTR VSS VDD RST GCK VSS CK27 VDD PD0 PD1 PD2 PD3 PD4 PD5 VSS PD6 PD7 VSYN HSYN VDD SCD SCL ACK VSS CPNT PDEN VDDA VSS Y VDDA C VSS CVBS VDDA BIAS COMP IREF VREF VSS VSS GOUT0 GOUT1 GND VS D7 D6 D5 D4 D3 D2 D1 D0 SDA VGA/YPbPr LLC HS GND GND GND GND GND GND GND GND RESET SCL XTI DGND VDD LRCIN DIN BCKIN ZERO D/C_R VOUTR AGND VCC VOUTL D/C_L FORMAT RSTB DM0 DM1 MUTE CLKO XTO . . STANDBY RGB/CVBS DGND DGND DGND DGND DGND DGND A+5V TV/WS/AV CTRL 1 TV/WS/AV CTRL 2 B G R CVBS C Y AGND . . . VSS A4 A5 A6 A7 A8 A9 NC CKE CLK UDQM NC/VREF VCC DQ8 DQ9 VSS DQ10 DQ11 VCC DQ12 DQ13 VSS DQ14 DQ15 VSS VCC DQ0 DQ1 VSS DQ2 DQ3 VCC DQ4 DQ5 VSS DQ6 DQ7 VCC LDQM WE CAS RAS CS BS A10 A0 A1 A2 A3 VCC 1 2 3 4 TO-220 PS INTERFACE FOR NDSP Connect to AV2188 Pin14 From Page4 From Page4 From Page4 From Page4 From Page4 From Page4 To Page4 From Page4 From Page4 From Page4 From Page4 DRVVLD From Page4 From Page4 To Page4 From Page4 From Page4 From Page4 From Page4 From Page4 From Page4 To Page4 To Page4 MA+5V MD+5V3168A MD+5V3168D M+3V3 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 ZR36700 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 41 1 42 2 43 3 44 4 45 5 46 6 47 7 48 8 49 9 50 10 51 11 52 12 53 13 54 14 55 15 56 16 57 17 58 18 59 19 60 20 61 21 62 22 63 23 64 24 65 25 66 26 67 27 68 28 69 29 70 30 71 31 72 32 73 33 74 34 75 35 76 36 77 37 78 38 79 39 80 40 1 3 2 4 1 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2 1 1 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 23 21 19 17 15 13 11 9 7 5 3 1 24 22 20 18 16 14 12 10 8 6 4 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2 2 1 3 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 HRD- MPGIRQ- HA[1..4] MPGRST- MPGSTBY- MPGCS- HWR- MD+5V MD+5VGND HD[0..7] RESET- SCART2 MPGSTBY- MUTE VOICE_DET SCART1 M+3V3 DVDVALID DVDSOS DVDSTB SCL SDA SCART3 HRDY MD+5V MA+5VGND MA+5V VMODE MD+5V MA+5VGND page1 = MAIN-1/4 page2 = MAIN-2/4 page3 = MAIN-3/4 page4 = MAIN-4/4 MAIN-3/4 18 17 DATA BUS LABLES ARE BYTE SWAP TO MATCH LITTLE EN DIAN HWR- FPCLK X1 DRVIRQ- HD9 HWRH- X0 RESET- SCL HRST HD3 HD10 HD7 HD4 HD11 HD5 HD6 HD13 HD[0..15] HD0 HD12 HD15 HD1 HD2 HD14 HD8 HD7 HD3 HD5 HWR- HD0 HD1 HD[0..15] HD4 NMI HD6 HD2 IRIRQ- FPDOUT FPCLK FPSEL HA0 HA10 HA[1..4] HA0 HA15 HA16 HA4 HA13 HA11 HA12 HA10 HA6 HA18 HA12 HA9 HA5 HA4 HA3 HA14 HA7 HA[0..18] HA17 HA18 HA8 HA6 HA17 HA9 HA16 HA15 HA13 HA14 HA5 HA1 HA1 HA11 HA2 HA8 HA7 HA2 HA3 SDA HRD- SO1 SI1 CS0 RAMCS- RAMCS- HRD- GND GND GND SI2 GND SO2 IRIRQ- FPSEL S33 S33 S33 S33 MPGIRQ- FPDIN FPDIN FPDOUT MD+5VGND MD+5VGND R68 10K TP19 C207 0.1uF U11 KM68V4002BJ-15 TP30 C208 0.1uF R67 10K U12 ZR36703 TP29 D2 1N4148 C209 0.1uF TP34 R203 10K E21 10u/10V TP32 C210 0.22uF R66 330R R215 4.7K C211 22pF TP26 R199 1K R176 33 S1 SW PB R200 1K U10 AT24C01A PR11 4.7KX4 C92 0.1uF R204 1K Q4 2SC1740 R198 10K R216 4.7K J12 R175 33 TP21 R197 10K R207 4.7K TP20 R206 4.7K C136 47p R210 4.7K J5 FFC12_1mm TP38 TP28 Y3 12.5MHz TP27 TP37 C212 22pF TP35 C88 100p TP36 C86 100p C87 100p C84 0.1uF R202 10K FB3 J13 TP24 TP18 R201 10K R217 100R R214 1K A0 A2 A3 A4 A1 A5 A6 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 CS OE WE D0 D1 D2 D3 D4 D5 D6 D7 VCC GND A7 VCC GND PD3/AN3/INT5 SI0/PF0 SO0/PF1 SC0/PF2 SI1/PF3 SO1/PF4 SI2/PF5 SO2/PF6 PF7/INT4/ATG DACK1/PE7 DACK0/PE6 X1 X0 VCC INT1/PE1 INT0/PE0 RAS0/PB0 CSOL/PB1 CSOH/PB2 DWOX/PB3 P52/A10 P53/A11 P54/A12 P55/A13 P56/A14 P57/A15 A16/P60 A17/P61 A18/P62 A19/P63 A20/P64 A21/P65 VSS A22/P66 A23/P67 P70/A24/EOP0 AVSS/AVRL PD0/ANO/STRBIN PD1/AN1/DRVVLD PD2/AN2/DVDSOS P37/D31 P40/A00 VCC P84/WR0 P41/A01 P42/A02 P43/A03 HST P22/D18 P44/A04 P23/D19 P45/A05 P24/D20 P85/WR1 P25/D21 P30/D24 P20/D16 P31/D25 RST P33/D27 P21/D17 P34/D28 P46/A06 VSS P47/A07 P50/A08 P51/A09 VCC PA6/CLK PA5/CS5 PA4/CS4 PA1/CS1 PA0/CS0 NMI MD0 MD1 MD2 P80/RDY P81/BGRNT P83/RD DREQ2/PB5/CS1L DACK2/PB6/CS1H PB7/DW1 P82/BRQ PA2/CS2 EOP1/PA3/CS3 P26/D22 P27/D23 P32/D26 P35/D29 P36/D30 VSS AVCC AVRH PB4/EOP2 DREQ1/PE5 DREQ0/PE4 INT3/PE3/SC2 INT2/PE2/SC1 VSS . A0 A1 A2 GND SDA SCL WP VCC 1 2 3 4 FPSEL DGND FPCLK FPDOUT FPDIN DGND IR DGND D+5V AC3V5- AC3V5+ -24V 1 2 3 4 P20 AND P21 SHOULD BE GROUNDED FOR FLASH SERIAL PROGRAMMING 512KB SRAM FOR DEBUG ONLY MONITOR DEBUGGER I/F DEBBUG TERMINAL I/F To Page1 To Page 1 To Page1 Page3 To Page3 To Page3 To Page1 Page3 From Page1 To Page3 To Page2 To Page3 To Page3 To Page3 To Page3 To Page3 To Page3 To Page3 From Page3 To Page3 From Page3 To Page3 To Page3 From Page3 To Page3 DVDVALID To Page2 To Page4 S33 MD+5V MD+ 5V S33 MD+5V MD+5V S33 MD+5V +SRAM5V MD+5V +SRAM5V S33 1 3 4 5 2 14 15 17 18 20 21 22 23 24 32 33 34 35 6 31 13 7 8 11 12 25 26 29 30 9 10 16 27 28 75 76 77 78 79 80 81 82 83 84 85 91 92 93 94 95 96 97 98 99 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 71 72 73 74 41 42 43 23 44 45 46 13 27 47 28 48 29 24 30 33 25 34 14 36 26 37 49 15 50 51 52 4 5 6 7 10 11 12 16 17 18 19 20 22 1 2 3 21 9 8 31 32 35 38 39 40 69 70 100 86 87 88 89 90 1 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 MPGCS- HD[0..15] DRVIRQ- MUTE MPGRST- VOICE_DET SDA HRDY DVDSTB ATCS0- ATCS1- HA[1..4] DVDSOS SCL MPGSTBY- HRST MPGIRQ- RESET- HWR- M+3V3 AC3V5- -24V AC3V5+ VMODE SCART1 MD+5VGND SCART2 SCART3 DRVVLD HRD- MD+5V page1 = MAIN-1/4 page2 = MAIN-2/4 page3 = MAIN-3/4 page4 = MAIN-4/4 MAIN-4/4 19 20 A-12V A+12V A-12V A+12V A-12V A+12V A+12V A-12V A+5V A+5V A+5V A+5V A+12V A+5V A+5V A+5V MIC-THR A+5V DVD-A-L DVD-A-R DVD-CVBS A+5V A+5V A+5V DVD-R DVD-G DVD-B A-12V A+12V L_MAIN L_MAIN R_MAIN R_MAIN L_MAIN-OUT R_MAIN-OUT S/PDIF OPTICAL-OUT COAXIAL-OUT VOI-DETC MIC-IN MIC-MUTE MIC-AD Y-IN C-IN CVBS-IN R-IN G-IN B-IN Y-OUT C-OUT L_REAR R_REAR SUB CENT AMUTE L_REAR-OUT R_REAR-OUT SUB-OUT CENT-OUT A+5V A+12V From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 From Sheet4 To Sheet4 From Sheet4 To Sheet2 To Sheet2 To Sheet2 To Sheet2 To Sheet2 To Sheet2 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 To Sheet4 UA1A NJM4580E UA1B NJM4580E RA1 10k RA2 10k CA1 47uF 16V CA10 0.01uF CA19 200p RA36 22K RA44 3.9K RA3 10K CA27 2200p RA67 470 RA68 470 RA37 22K CA20 150p CA2 47uF 16V CA11 0.01uF RA76 680 RA77 680 CA43 22uF 16V CA44 22uF 16V RA84 100 RA85 100 RA95 100K RA96 100K QA1 2SC1740 QA2 2SC1740 RA45 3.9K RA46 2K RA47 2K UA2A NJM4580E UA2B NJM4580E RA4 10K RA5 10k CA3 47uF 16V CA12 0.01uF CA21 150p RA38 22K RA69 470 RA70 470 RA39 22K CA22 200p CA4 47uF 16V CA13 0.01uF RA78 680 RA79 680 CA45 22uF 16V CA46 22uF 16V RA86 100 RA87 100 RA97 100K RA98 100K QA3 2SC1740 QA4 2SC1740 RA48 3.9K RA6 10K CA28 2200p CA58 22uF 16V RA49 2K RA50 2K UA3A NJM4580E UA3B NJM4580E RA7 10k RA8 10k CA5 47uF 16V CA14 0.01uF CA23 200p RA40 22K RA51 3.9K RA9 10K CA29 2200p CA59 22uF 16V RA71 470 RA72 470 RA41 22K CA24 200p CA6 47uF 16V CA15 0.01uF RA80 680 RA81 680 CA47 22uF 16V CA48 22uF 16v RA88 100 RA89 100 RA99 100K RA100 100K QA5 2SC1740 QA6 2SC1740 RA52 3.9K RA10 10K CA30 2200p CA60 22uF 16V RA53 2K RA54 2K RA55 3.9K CA49 22uF 16V CA50 22uF 16V RA11 10K RA12 10K RA13 10K RA14 10K CA51 22uF 16V CA52 22uF 16V QA12 2SA933 QA7 2SC1740 RA15 2K RA16 18K RA105 68K RA106 68K RA109 3.3K RA110 3.3K RA113 2.7K RA114 33 RA101 100K RA102 100K CA63 0.1uF CA68 10uF 50V CA16 0.01uF CA69 1uF RA115 270 RA116 68 RA126 91 RA117 68 UA4A NJM4580E UA4B NJM4580E CA70 1000p RA107 47K CA71 470p RA17 10K CA53 4.7uF 16V RA56 1K DA1 1N4148 DA2 1N4148 CA72 10uF 16V RA127 100K CA7 47uF 16V RA18 10K CA64 0.1uF RA73 33 QA8 2SC1740 RA128 15k RA111 4.7k RA112 4.7K RA90 2K CA73 330uF 16V QA13 2SA933 DA3 1N4148 DA4 jumper FIL LRA1 (0ohm) RA57 1K RA129 2K RA58 0ohm RA59 1K QA9 2SC1740 RA60 1K CA54 22uF 16V CA55 22uF 16V RA19 10K CA31 2200p CA32 2200p CA74 270p CA80 330p LA1 1.8u CA75 270p CA81 330p CA86 22p LA2 1.8u CA76 270p CA82 330p CA87 22p LA3 1.8u CA88 22p DA5 1N4148 DA6 1N4148 DA7 1N4148 DA8 1N4148 DA9 1N4148 DA10 1N4148 RA108 47K RA20 (NC) RA21 (NC) CA91 100uF DA11 1N4148 RA131 10K CA77 270p CA83 330p LA4 1.8u CA78 270p CA84 330p CA89 22p LA5 1.8u CA79 270p CA85 330p CA90 22p LA6 1.8u CA92 22p DA12 1N4148 DA13 1N4148 DA14 1N4148 DA15 1N4148 DA16 1N4148 DA17 1N4148 UA5A NJM4580E UA5B NJM4580E RA22 10k RA23 10k CA8 47uF 16V CA17 0.01uF CA25 150p RA42 22K RA61 3.9K RA24 10K CA33 2200p CA61 22uF/16V RA74 470 RA75 470 RA43 22K CA26 150p CA9 47uF 16V CA93 0.01uF RA82 680 RA83 680 CA56 22uF 16V CA57 22uF 16v RA91 100 RA92 100 RA103 100K RA104 100K QA10 2SC1740 QA11 2SC1740 RA62 3.9K RA25 10K CA34 2200p CA62 22uF/16V RA63 2K RA64 2K RA34 (NC) RA35 (NC) CA128 470uF/16V CA129 0.1uF UA6 74HC04 QA15 2SA933 RA134 (NC) A1 1 Y1 2 A2 3 Y2 4 A3 5 /Y3 6 GND 7 /Y4 8 A4 9 Y5 10 A5 11 Y6 12 A6 13 VCC 14 3 2 1 8 4 5 6 7 3 2 1 8 4 5 6 7 3 2 1 8 4 5 6 7 3 2 1 8 4 5 6 7 3 2 1 8 4 5 6 7 AV OUTPUT-1/2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 7 6 3 2 1 5 4 DIN 1 VCC 2 GND 3 1 2 3 5 6 4 7 8 9 11 12 10 3 2 1 5 4 62ohm 62ohm 62ohm R_MAIN-OUT L_MAIN-OUT DVD-A-L DVD-A-R MIC-IN R_MAIN-OUT R_REAR-OUT CENT-OUT L_MAIN-OUT L_REAR-OUT SUB-OUT COAXIAL-OUT CVBS Y-OUT C-OUT OPTICAL-OUT STANDBY TV/WS/AV CTRL RGB/CVBS CTRL B-IN G-IN R-IN C-IN Y-IN CVBS-IN VOI-DETC MIC-AD MIC-MUTE L_REAR L_MAIN R_MAIN R_REAR SUB CENT AMUTE S/PDIF R G B To Sheet2 To Sheet2 To Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet2 From Sheet2 From Sheet2 From Sheet2 From Sheet1 From Sheet1 From Sheet1 All To Sheet1 All To Sheet1 All To Sheet1 FIL LRA5 FIL LRA6 FIL LRA7 FIL LRA8 FIL LRA9 FIL LRA10 VGND AGND CONA1 DOWNMIX&COAX FIL LRA12 FIL LRA13 FIL LRA14 FIL LRA16 62ohm FIL LRA18 FIL LRA19 UA7 GP1F32T CA109 47uF/16V CA18 0.01uF LA7 1.8u FIL LRA21 FIL LRA23 FIL LRA24 CA65 4700p CA66 0.1uF CA67 0.1uF CA110 (NC) CA111 (NC) CA112 (NC) CA35 2200p CA36 2200p CA37 2200p CA38 (NC) CA39 (NC) CA40 2200p CA41 2200p CA42 2200p CONA3 5.1CH JA1 8PIN FIL LRA4 (NC) FIL LRA35 (NC) CA94 (NC) CA95 (NC) JA2 FFC18/2.5 JA3 FFC18/2.5 VGND AGND CONA6 RGB FIL LRA2 FIL LRA3 FIL LRA15 CA132 (NC) CA133 (NC) CA134 (NC) CVBS C Y CGND YGND GND VGND CONA2 Composite&S_vide FROM MIC PCB FROM MAIN PCB FROM MAIN PCB 22 21 C 9 B 10 A 11 Z1 3 Z0 5 Y1 1 Y0 2 X0 12 X1 13 X 14 Y 15 Z 4 VDD 16 VEE 7 VSS 8 Inhibit 6 C 9 B 10 A 11 Z1 3 Z0 5 Y1 1 Y0 2 X0 12 X1 13 X 14 Y 15 Z 4 VDD 16 VEE 7 VSS 8 Inhibit 6 AOR 1 AIR 2 AOL 3 AGND 4 BGND 5 AIL 6 BOUT 7 TV/AV Sel 8 GGND 9 DATA2 10 GOUT 11 DATA1 12 RGND 13 DGND 14 ROUT/C 15 RGB/CVBS Sel 16 CVBSGND 17 RGBCtrlGND 18 CVBSOUT 19 CVBSIN/Y 20 SOCKET GND 21 AOR 1 AIR 2 AOL 3 AGND 4 BGND 5 AIL 6 BOUT 7 TV/AV Sel 8 GGND 9 DATA2 10 GOUT 11 DATA1 12 RGND 13 DGND 14 ROUT/C 15 RGB/CVBS Sel 16 CVBSGND 17 RGBCtrlGND 18 CVBSOUT 19 CVBSIN/Y 20 SOCKET GND 21 V+12V V+12V V+12V A-5V DVD-A-R VTR-A-R DVD-A-L VTR-A-L DVD-CVBS VTR-CVBS DVD-R VTR-R DVD-G VTR-G DVD-B VTR-B DVD/VTR Sel VTR-B VTR-G VTR-R VTR-A-R VTR-A-L DVD-PIN 8# DVD-PIN 16# VTR-CVBS VTR-PIN 8# VTR-PIN 16# B G R CVBS DVD/VTR Sel A+5V A+5V From Sheet1/4 From Sheet1/4 From Sheet1 From Sheet1 From Sheet1 From Sheet1 From Sheet3 From Sheet3 To Sheet4 To Sheet4 To Sheet4 To Sheet4 From Sheet3 From Sheet3 To Sheet3 To Sheet3 62ohm 62ohm 62ohm 62ohm UA8 NJU4053 UA10 NJU4053 CONA4 DVD-SCART CONA5 SCART RA135 330 RA143 180 RA137 330 RA145 180 RA138 330 RA146 180 RA139 330 RA147 180 RA121 330 RA123 330 RA124 330 RA125 330 CA113 470uF/16V CA115 470uF/16V CA116 470uF/16V CA117 470uF/16V CA11822u CA119 22u RA26 100K RA27 100K WA22 (NC) RA150(NC) RA151 (NC) RA152 (NC) RA153 (NC) RA154 (NC) RA93100 RA94100 CA120 1000pF CA121 1000pF CA122 (NC) CA124 (NC) CA125 (NC) CA126 (NC) FIL LRA26 FIL LRA28 FIL LRA29 FIL LRA30 FIL LRA31 FIL LRA32 CA97 470uF/16V CA98 470uF/16V CA104 470uF/16V RA133(NC) RA140(NC) RA141(NC) RA66 100 RA118100 RA119 100K RA132 100K CA105 22uF CA127 22uF QA17 2SA933 QA19 2SA933 QA20 2SA933 QA21 2SA933 RA122 (NC) CA114 470uF/16V RA29 750 RA33 750 RA144 750 RA157 750 RA161 1K RA162 1K RA163 1K RA164 1K AV OUTPUT-2/2 C 9 B 10 A 11 Z1 3 Z0 5 Y1 1 Y0 2 X0 12 X1 13 X 14 Y 15 Z 4 VDD 16 VEE 7 VSS 8 Inhibit 6 Vin Vin GND GND Vout Vout V+12V V+12V V+12V V+12V A+12V V+12V A-12V A-5V DVD-PIN 8# VTR-PIN 16# DVD/VTR Sel DVD-PIN 16# VTR-PIN 8# DVD/VTR Sel TV/WS/AV Ctrl STANDBY RGB/CVBS CTRL From Sheet4 From Sheet4 To Sheet2 To Sheet2 From Sheet2 From Sheet2 From Sheet4 To Sheet2 UA11 NJU4053 QA25 2SC1740 QA23 2SC1740 RA130 360K(NC) RA148 1K RA65 12K RA30 3.9K RA155 (NC) RA156 (NC) CA99 0.1uF CA100 0.1uF CA101 0.1uF CA102 0.1uF CA103 0.1uF CA106 47uF CA107 47uF RA31 1M(NC) RA32 2K FIL LRA33 FIL LRA34 FIL LRA25 (0ohm) RA136 1M(NC) RA158 12K(NC) QA14 2SC1740(NC) RA159 0(NC) RA160 0ohm UA9 79L05 CA130 0.1uF CA131 0.1uF CA108 47uF CA123 47uF RA28 47K RA165 NC RA166 NC 23 24 -12V +12V F+ F- -24V M+5V GND GND GND S+5V STB S+5V GND S+5V +5V GND GND M+5V GND RP21 2.2K CP21 470u 16V RP30 1K 1% RP22 2.4K CP25 100u 25V RP03 100 RP40 RP29 CP26 100u 25V RP23 22K CP18 220u 50V RP28 22K RP20 18K RP07 1K CP24 470u 16V CP17 100u 25V CP16 1000u 16V RP09 0.47 1/4W CP13 0.1u RP24 2.7K DP05 RGP15G DP06 RGP15G DP02 RU4Z DP04 RGP15G DP01 RU2Yx DZP1 4.3V QP05 2SC1740 QP09 DTC114TSA QP06 DTC114TSA QP03 2SB1913 QP10 2SC1740 QP04 2SC1240 QP07 2SA933 UP03 TL431CLP CP08 1u 50V CP11 1000p 250VAC CP07 47p 1KV DPP6 1N4148 UP02 PC123 QP01 2SB1913 RP25 1K CP20 100u 6.3V RP31 1K 1% CP23 470u 16V JP03 1 2 3 4 QP08 2SC1862 RP19 22K RP26 220 RP13 1K 1% DP03 RU4Z . . ... . . . . TP01 VTPCK9162 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 DPP5 UF4006 DZP1 P6KE200 CP09 0.1u RP02 20 CP10 47u 16V CP14 1000u 16V RP05 3.3K RP08 100K RP06 2.2K CP28 47u 25V RP32 330 UP04 LM324 O1 1 -I1 2 +I1 3 VCC 4 +I2 5 -I2 6 O2 7 O3 8 -I3 9 +I3 10 GND 11 +I4 12 -I4 13 O4 14 UP01 TOP223Y CONTROL 1 SOURCE 2 DRAIN 3 CP15 1000u 16V RP14 1K 1% QP02 2SB1913 RP10 100 1/2W RP11 4.7 RP28 100K CP19 220u 16V JP02 1 2 3 4 5 6 7 CP27 22u 50V RP01 2.2K 3W DPP2 1N4007 CP02 0.01u 250VAC LP01 20uH SK01 MAIN SWITCH POWER_PLUG AC CORD 1 2 DPP3 1N4007 CP04 470p 250VAC CP01 0.22u 250VAC DPP1 1N4007 LP02 20mH T1.6A/250VAC FUSE CP05 68u 400V DPP4 1N4007 RP17 1K 1% CP03 470p 250VAC RP15 1K 1% RP16 1K 1% RP12 1K 1% RP27 10K JP01 1 2 3 4 5 6 7 8 M+5V +12V POWER SUPPLY 26 25 QA10 QA11 QA25 QA23 QA14 UA9 QA20 QA21 QA19 QA17 QA8 QA9 QA1 QA2 QA3 QA4 QA5 QA6 QA13 QA12 QA15 QA7 AV OUTPUT MIC-VOL FRONT POWER SWITCH MIC 6. PARTS LOCATION 27 28 UA6 UA3 UA2 UA1 UA4 UA10 UA8 UA11 UA5 AV OUTPUT QM2 QM1 UF02 MIC-VOL FRONT POWER SWITCH MIC 30 29 Q4 Q2 Q1 Q5B Q7B Q6B MAIN QP09 QP10 QP02 QP05 QP06 QP04 QP07 QP08 QP01 UP03 UP04 QP03 UP02 UP01 POWER SUPPLY 31 32 MAIN U20 U27 U28 U17 U12 U29 U30 U1 U3 U7 U4 U9 U10 U2 U16 MT1388 MT1388E 1 2 3 4 5 6 7 8 11 16 25 208 207 10 9 12 13 14 15 17 24 18 19 169 20 45 145 144 146 143 142 141 22 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 53 55 56 66 67 69 70 72 73 75 84 77 78 79 80 81 82 83 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 102 103 68 106 107 108 104 151 150 149 148 147 139 138 137 136 135 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 105 140 134 206 205 204 203 202 201 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 175 174 173 172 171 170 161 160 159 158 157 155 154 153 152 156 71 74 46 47 48 49 50 51 54 52 76 101 200 168 167 166 165 164 163 162 57 58 59 60 61 62 63 64 180 179 178 177 176 23 21 65 VBDPLL PLLVSS LPIO LPIN LPFO LPFN IREF PDO PLLVDD DVDD UAD7 RFIN RFIP JITFN JITFO FOO TRO PWMOUT1 PWMOUT2 DMO UALE FMO TROPENPWM ENDM FG UA6 HD3 HD12 DVSS HD2 HD13 HD1 TRCLOSE UAD6 UAD5 UAD4 DVSS UAD3 UAD2 UAD1 UAD0 DVDD3 UP2_7/UCS2 UP2_6/UCS1 UP2_5 UP2_4 UP2_3 UP2_2 UP2_1 UP2_0 DVSS UA7 DMVDD UPSEN UWR XTALI XTALO DQM BA1 CKE CLK RA10 DVDD3 RA3 RA4 RA2 RA5 RA1 RA6 RA0 RA7 RA8 DVSS RA9 RAS ROE RWE CASH/RWEH CAS DVDD3 RD7 RD8 RD6 RD9 RD5 RD10 RD4 RD11 DVSS RD3 RD12 RD2 IPLLVDD DVSS HD5 HD10 HD4 HD11 HD14 HD0 HD15 DMARQ DIOW DIOR IORDY DMACK INTRQ IOCS16 DVDD HA1 PDIAG HA0 HA2 DVDD3 CS1FX CS3FX DASP DACVDD NC NC NC DACVSS NC RD15 RD0 RD14 RD1 RD13 IPLLVSS DVSS DVSS RFDTSLV SCO ADCVDD HRFZC RFRPSLV RFRP_AC RFLEVEL FEI TEI TEZI TEZISLV ADIN/IN0 ADCVSS PDMVSS PWM2VREF PWMVREF PDMVDD BDO SLCK SDEN SDATA IO0 IO1 IO2 IO3 DVSS FLAGA FLAGB FLAGC FLAGD DVDD3 VPVSS VCOCIN VPVDD PRST HRST HD7 HD8 HD6 HD9 DVDD BA0 RA11 UA5 UA4 UA3 UA2 UA1 UA0 UA16 DMVSS DVDD DVSS RFRP_DC LED PLY/PAU EJ/STOP LIMIT TRAYOUT TRAYIN TEST URD URST UP3_0 UP3_1 UP3_2 UINT UP3_4 UP3_5 IO4 IO5 IO6 IO7 IO8 IO9/CS DVSS DVDD3 MT1388E 7. IC DATA 34 33 96 Times Over-sampling Filters 5th Order Σ∆ Modulators D/A D/A SF SC SD3 80 I2C Serial Control Port Serial Audio I/F RST VOR3 VOR2 De-Emphasis 77 78 77 15 SD1 D/A VOL2 D/A 40KHz VOL3 40KHz 40KHz 40KHz D/A VOR1 40KHz D/A VOL1 40KHz Digital Volume 80 SD2 A/D AIN A/D BIN Decimation Filter High Pass Filter 80 SDOUT SCL SDA PLL XCK Format Detect'n AV2188 PIN DESCRIPTION Pin Name Pin # Type Description DIGITAL SD1 1 I Audio Serial Data Input 1, data can be 20bit/24bit, Right justified, or 24bit Left justified, or 24bit I2S, all in 2’s complement format. SD2 2 I Audio Serial Data Input 2, data can be 20bit/24bit, Right justified, or 24bit Left justified, or 24bit I2S, all in 2’s complement format. SD3 3 I Audio Serial Data Input 3, data can be 20bit/24bit, Right justified, or 24bit Left justified, or 24bit I2S, all in 2’s complement format. SDOUT 4 O Serial Audio Output pin, data can be in 24/20bit left justified or 24/20 bit I2S format. SC 5 I Audio Serial Data Clock pin. SF 6 I Left/Right Channel Clock pin. For Left justified or Right justified mode, a high in SF indicates Left Channel Data, a low in SF indicates Right Channel Data. For I2S mode, a low in SF indicates Left Channel Data, a high in SF indicates Right Channel Data. DVSS 7 GND Digital ground DVDD 8 +5V Digital power supply. DVSS 9 GND Digital ground XCK 10 I External Master Clock Input. SCL 11 I I2C clock input. SDA 12 I/O I2C DATA bus. Open drain output. Externally this pin should tie to a 680 ohm pull up resistor. TEST 11 O Test fs reference pin. For test vector verification. For normal operation this pin must be tied to ‘0’. RST 12 I Active low power down reset. When low, the chip is reset and all programmable registers are reset to default values. Analog VOL3 28 O Analog left channel output 3 VOR3 27 O Analog right channel output 3. VOL2 26 O Analog left channel output 2. VOR2 25 O Analog right channel output 2. VOL1 24 O Analog left channel output 1. VOR1 23 O Analog right channel output 1. AVSS 22 GND Analog circuits ground VCM2 21 Common voltage output pin for the DAC. AVDD 20 +5V Analog circuits power supply VCM1 19 Common voltage output pin for the ADC. AVSS 18 GND Analog circuits ground AINR 17 I ADC right channel input. 1 volt rms input. AINL 16 I ADC left channel input. 1 volt rms input. N/C 15 No connection, should be tied to AVSS PIN DESCRIPTION (Continued) Pin Name Pin # Type Description AV2188 MT1 3 6 6 DVDA DEFECT TEO FEO MDI 2 L DO2 CDFNI ATTENUATOR DPD REF a n d 2 VREF Vo l t a g e Ge n e r a t o r V2 REFO FL VL VGA ENVEL OP DETECTOR AGC DVDFPI L RFRP ATTENUATOR REF a n d 2 VREF Vo l t a g e Ge n e r a t o r V2 REFO VGA EQ ENVEL OP DETECTOR AGC CDA DVDB CDB DVDC CDC DVDD CDD DVDRFI N DVDRFI P TPI TNI RFOP SBAD 3 BEAM TE RF L EVEL FE DVD APC MDI 1 L DO1 CD APC VREFO SDATA SL CK SDEN SERI AL PORT DPFN DPFO I R DPDMUTE CRTP OSP OSN RFON CRTPL P FEONI CDFPI DVDFNI RFGC CENTRAL SERVO CDCSNI DVDCSPI CDCSPI DVDCSNI FL VL NI CSO CSONI HRFRP MT1366F U1 100 99 98 97 3 2 96 95 94 93 90 88 87 86 85 84 83 82 81 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 91 92 1 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 51 48 50 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 49 4 89 TRLPA SGND SGND TEO CSONI CSO FEONI FEO FLVLNI FLVL SVDD DPFN DPFO RFOP RFON HTE TNI TPI LDO1 AVDD NC AGND MOP MON AVDD AVDD IR AGND AGND HTRCMPH GND GND DPDMUTE SDATA SDEN SLCK DEFECT XCK16M RST HTRC CRTPLP CRTP HRFRP LRFRP VDD V2REFO VREFO TRLP VCON TM1 TM2 AVDD TM3 TM4 AGND DVDRFIN DVDRFIP DVDA DVDB DVDC DVDD DVDFNI DVDFPI DVDCSNI DVDCSPI MDI2 NC NC LDO2 CDA CDB CDC CDD AGND AGND RFGC OSN OSP AVDD AVDD CDFNI CDFPI NC NC NC CDCSNI CDCSPI NC NC NC COSPHI REFCOS HALLCOS SINPHI REFSIN HALLSIN MDI1 NC VDD SVDD MT1366 PT6312 35 PIN DESCRIPTIONS Pin Name Pin # Type Description DIGITAL VIDEO INPUT PD<7 -0> 11-16 18-19 I Multiplexed Cb, Y, and Cr digital video input bus. HSYN 21 I/O In Slave Mode (MSTR pin is low) Horizontal Synch input. In Master Mode (MSTR pin is high) Horizontal Synch output. VSYN 20 I/O In slave mode (MSTR pin is low) Vertical Sync input. In master mode Vertical Sync output. VIDEO CONTROL SIGNALS MSTR 3 I Master Mode; If this pin is high, the chip outputs horizontal and vertical sync signals. Otherwise it receives both horizontal and vertical sync signals. CPNT 27 I Select either component or composite video output. 0: Simultaneous Composite and S-Video output. 1: Component video output either RGB or YCbCr determined by the register CR0[5:4]. PDEN 28 1 Pedestal enable pins. When this pin is high 7.5 IRE is added for the NTSC composite analog output. VIDEO ANALOG OUTPUT, REFERENCE AND COMPENSATION CVBS 35 O Analog video output Determined by the state of CPNT pin and CR0[5:4] CPNT CR0[5] CR0 [4] --- 0 ---- X------ X: ---Composite video output --- 1----- X------ 0: --- Cr output in YCbCr component mode --- 1 ---0 0------X: --- 1111111111- :: --- 1------1------ 1: ----Blue color output in RGB mode Y 31 O Analog video output Determined by the state of CPNT pin and CR0[5:4] CPNT CR0[5] CR0 [4] --- 0 ----- X----- X: ---S-Video Y output. --i 1------ X---- - 0: ---Y output in YCbCr component mode --- 1 ---0 0------X: -- 1111111111- :: - i 1 ----- 1--- -- 1: - -R color output in RGB mode C 33 O Analog video output Determined by the state of CPNT pin and CR0[5:4] CPNT CR0[5] CR0 [4] --- 0 ------ X------X: --S-Video C output. ---- 1 ------ X-----0:---Cb output in YCbCr component mode --1 1 ------ 0 ---- X:1111111- :: --1 1 ------ 1------1:--Green color output in RGB mode VREF 40 I/O Voltage reference. It has an internal voltage reference circuit, but may be overridden by an external voltage reference input. A 0.1 uF ceramic capacitor is required between this pin and GND. IREF 39 I A resistor should be connected between this pin and GND to control the DAC output current. The recommended value is 198 (382) ohm 1% metal film resistor for double (single) end 75 ohm termination. COMP 38 I Compensation capacitor for the DAC internal reference amplifier. A 0.1 uF ceramic capacitor is required between this pin and VDDA. BIAS 37 I/O DAC bias voltage. A 0.1 uf ceramic capacitor must be used to de- couple this pin to VDDA. SERIALCONTRL BUS SCL 24 I Serial bus clock SDA 23 I/0 Serial bus address and data input and output pin. Open drain output. CLOCK SIGNALS GCK 7 O General Purpose Clock. Clock frequency is determined by the state of GOUT[1:0] when RST pin is low. 00 : 40.5 MHz clock output. 0 1: 54.0 MHz clock output. 1 0: 67.5 Mhz clock output. 1 1: 81.0 MHz CK27 9 O 27 MHz clock output pin. ACK 25 I/O 384*fs Audio clock output pin. Controlled by CR2[1:0] 0 0: 384 * 48.0 KHz (18.432MHz) clock output. 0 1: 384 * 44.1 KHz (16.934MHz) clock output. 1 0. 384 * 96.0 KHz (36.864MHz) clock output. 1 1: 384 * 88.2 KHz (33.868MHz) clock output. PIN DESCRIPTIONS (Continued) Pin Name Pin # Type Description XIN 2 I 27 Mhz oscillator input XOUT 1 O 27 Mhz oscillator output MISCELLANEOUS SIGNALS RST 6 I Active low chip reset input. Chip is in the power down mode when the RST is low. GOUT1 44 I/O Dual function pin. GCK frequency select pin when RST is low. General purpose output pin when RST is high GOUT0 43 I/O Dual function pin. GCK frequency select pin when RST is low. General purpose output pin when RST is high POWER AND GROUND VDD 10, 22, 5 +5V Digital power supply. VSS 8, 17, 26, 30, 34, 41, 42, 4 GND Digital ground VDDA 29, 32, 36. +5V Analog video power supply. PIN DESCRIPTIONS (Continued) Pin Name Pin # Type Description AV3168 VIDEO TIM'NG GEN f sc LPF LPF OFF SET z-n G G PD<7:0> CVBS, Cr, B HSYN VSYN SDA SCL I C SERIAL I/F RST Color Space Conv. ACK GCK PLL Macrovision Anti-tapping Y, Y, R C, Cb, G CK27 GOUT0 GOUT1 2 36 PIN CONFIGURATIONS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 DQ0 DQ1 DQ2 GND A7 A6 A5 A4 A3 A2 A1 A0 NC A16 A15 A12 V WE A14 A13 A8 A9 A11 OE A10 CE DQ7 DQ6 DQ5 DQ4 DQ3 DD NC 32-pin DIP 5 6 7 9 10 11 12 13 A7 A6 A5 A4 A3 A2 A1 A0 DQ0 29 28 27 26 25 24 23 22 21 30 31 32 1 2 3 4 8 20 19 18 17 16 15 14 D Q 1 D Q 2 G N D D Q 3 D Q 4 D Q 5 D Q 6 A14 A13 A8 A9 A11 OE A10 CE DQ7 A 1 2 A 1 6 N C V D D / W E A 1 5 32-pin PLCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A3 A2 A1 A0 DQ0 DQ1 DQ2 GND OE A10 CE DQ7 DQ6 DQ5 DQ4 DQ3 32-pin TSOP A15 A12 A7 A6 A5 A4 V WE A14 A13 A8 DD A11 A9 NC 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 A16 NC N C BLOCK DIAGRAM CONTROL OUTPUT BUFFER DECODER CORE ARRAY CE OE WE A0 . . A16 .. DQ0 DQ7 VDD VSS PIN DESCRIPTION SYMBOL PIN NAME A0- A16 Address Inputs DQ0- DQ7 Data Inputs/Outputs CE Chip Enable OE Output Enable WE Write Enable VDD Power Supply GND Ground NC No Connection FR CPU RAM (8Kbytes ) Bit search module Bus converter (32bits ---16bits ) Clock control unit (Watchdog timer ) Interrupt control unit UART (3ch) Reload timer (3ch) PortD ,E,F R-bus(16bits ) D-bus(32bits ) I-bus(16bits ) X0 X1 RSTX HST X INT 0 to INT 5 NMIX SI0 to SI2 SO0 to SO2 SC0 to SC2 Bus converter (Harvard ---Princeton ) Bus controller C-bus(32bits ) DMA controller (8ch.) DREQ0 to DREQ2 DACK 0 to DACK 2 EOP0 to EOP2 3 3 3 6 D16 to D31 A00 to A24 RDX WR0X,WR1X RDY CLK CS0X to CS5X BRQ BGRNT X 16 25 2 6 DRAM controller RAS0 RAS1 CS0L CS0H CS1L CS1H DW0X DW1X Port 0 to portB RAM (2Kbytes ) Flash memory (510KB ) AN 0 to AN 3 AVcc AVss/AVRL AVRH ATGX 4 10-bit A/D converter (4 ch.) 3 3 3 A/V I/F port STRBIN DVDSOS STREQ/ DRVVLD CPU W29EE11 ZR36703 37 Pin Number Pin Name I/O Circuit Format Function 25 26 27 28 29 30 31 32 D16/P20 D17/P21 D18/P22 D19/P23 D20/P24 D21/P25 D22/P26 D23/P27 E Bits 16 to 23 of external data bus. When the external bus width is set to 8 bits or in single-chip mode, these pins can be used as general-purpose I/O ports (P20 to P27). 33 34 35 36 37 38 39 41 D24/P30 D25/P31 D26/P32 D27/P33 D28/P34 D29/P35 D30/P36 D31/P37 E Bits 24 to 31 of external data bus. When these pins are not used for the data bus, they can be used as general-purpose I/O ports (P30 to P37). 42 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 A00/P40 A01/P41 A02/P42 A03/P43 A04/P44 A05/P45 A06/P46 A07/P47 A08/P50 A09/P51 A10/P52 A11/P53 A12/P54 A13/P55 A14/P56 A15/P57 F Bits 00 to 15 of external address bus. When these pins are not used for the address bus, they can be used as general-purpose I/O ports (P40 to P47 and P50 to P57). 59 60 61 62 63 64 66 67 A16/P60 A17/P61 A18/P62 A19/P63 A20/P64 A21/P65 A22/P66 A23/P67 F Bits 16 to 23 of external address bus. When these pins are not used for the address bus, they can be used as general-purpose I/O ports (P60 to P67). 68 A24/P70/EOP0 F Bit 24 of external address bus. [EOP0] DMAC EOP output (ch 0). This function is valid when DMAC EOP output is enabled. [P70] When this pin is not used as A24 and EOP0, the pin can be used as a general-purpose I/O port. 19 RDY/P80 E External Ready input. 0 is input when the bus cycle being executed is not completed. When the pin is not used for this purpose, it can be used as a general-purpose I/O port. 20 BGRNTX/P81 F Output of external bus release acceptance. L is output when the external bus has been released. When the pin is not used for this purpose, it can be used as a general-purpose I/O port. 21 BRQ/P82 E Input of external bus release request. 1 is input to request that the external bus be released. When the pin is not used for this purpose, it can be used as a general-purpose I/O port. 22 RDX/P83 F External bus read strobe. When this pin is not used for this purpose, it can be used as general-purpose I/O port. 23 24 WR0X/P84 WR1X/P85 F External bus write strobes. Individual control signals and data bus byte positions have the following relationships: For 16-bit bus width: WR0X strobes D15:D08 WR1X strobes D07:D00 For 8-bit bus width: WR0X strobes D15:D08 WR1X used as P85 For single-chip mode: Both used as P84, P85 Note: WR1X is Hi-Z while it is in reset state. When it is used as a 16-bit bus, attach a pull-up resistor to the outside. [P84 or P85] When WR0X or WR1X is not used, the pin can be used as a general-purpose I/O port. 11 10 9 CS0X/PA0 CS1X/PA1 CS2X/PA2 F Chip Select 0 output (active-low) Chip Select 1 output (active-low) Chip Select 2 output (active-low) [PA0,1,or 2] When the pin is not used for the above purpose, it can be used as a general-purpose I/O port. 8 CS3X/PA3/EOP1 F Chip Select 3 output (active-low) [EOP1] DMAC EOP1 output (ch 1). This function is valid when DMAC EOP output is enabled. [PA3] When CS3X and EOP1 are not used, the pin can be used as a general-purpose I/O port. 7 6 CS4X/PA4 CS5X/PA5 F Chip Select 4 output (active-low) Chip Select 5 output (active-low) [PA4 or 5] When the pin is not used for the above purpose, it can be used as a general-purpose I/O port. Pin Number Pin Name I/O Circuit Format Function ZR36703 38 5 CLK/PA6 F System clock output. The pin outputs the same clock frequency as the external bus operating frequency. [PA6] When the pin is not used for this purpose, it can be used as a general-purpose I/O port. 96 97 98 99 100 1 2 3 RAS0/PB0 CS0L/PB1 CS0H/PB2 DW0X/PB3 RAS1/PB4/EOP2 CS1L/PB5/DREQ2 CS1H/PB6/DACK2 DW1X/PB7 F RAS output of DRAM bank 0 CASL output of DRAM bank 0 CASH output of DRAM bank 0 WE output of DRAM bank 0 RAS output of DRAM bank 1 CASL output of DRAM bank 1 CASH output of DRAM bank 1 WE output of DRAM bank 1 See the description of the DRAM interface for more information. [EOP2] DMAC EOP output (ch 2). This function is valid when DMAC EOP output is enabled. [DREQ2] Input of DMA external transfer request. This input is used from time to time when this pin is selected for the DMAC transfer cause. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [DACK2] Output of DMAC external transfer reques acceptance (ch 2). This function is valid when the output of DMAC transfer request acceptance is enabled. [PB0-7] When each pin is not used for the corresponding purpose, the pin can be used as a general-purpose I/O port. 16 17 18 MD0 MD1 MD2 C Mode pins 0 to 2. Use these pins to setting the basic MCU operation Mode. Connect these pins directly to Vcc or Vss. 92 91 X0 X1 A Clock (Oscillator) input Clock (Oscillator) output 14 RSTX B External reset input. 13 HSTX B Hardware Standby input. 12 NMIX D Non-maskable interrupt (NMI) input (active-low). 95 94 INT0/PE0 INT1/PE1 F [INT0,1] Input of external interrupt request. This input is used from time to time while the corresponding external interrupt is enabled. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PE0,1] General-purpose I/O ports. Pin Number Pin Name I/O Circuit Format Function 89 INT2/SC1/PE2 F [INT2] Input of external interrupt request. This input is used from time to time while the corresponding external interrupt is enabled. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [SC1] UART1 clock I/O. Clock output can be used when UART1 clock output is enabled. [PE2] General-purpose I/O port. This function is valid when UART1 clock output is disabled. 88 INT3/SC2/PE3 F [INT3] Input of external interrupt request. This input is used from time to time while the corresponding external interrupt is enabled. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [SC2] UART1 clock I/O. Clock output can be used when UART1 clock output is enabled. [PE3] General-purpose I/O port. This function is valid when UART1 clock output is disabled. 87 86 DREQ0/PE4 DREQ1/PE5 F [DREQ0,1] Input of DMA external transfer request. This input is used from time to time when this pin is selected for the DMAC transfer cause. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PE4,5] General-purpose I/O ports. 85 DACK0/PE6 F [DACK0] Output of DMAC external transfer request acceptance (ch 0). This function is valid when the output of DMAC transfer request acceptance is enabled. [PE6] General-purpose I/O port. This function is valid when the output of DMAC transfer request acceptance or DACK0 output is disabled. 84 DACK1/PE7 F [DACK1] Output of DMAC external transfer request acceptance (ch 0). This function is valid when the output of DMAC transfer request acceptance is enabled. [PE7] General-purpose I/O port. This function is valid when the output of DMAC transfer request acceptance or DACK0 output is disabled. 76 SI0/PF0 F [SI0] UART0 data input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PF0] General-purpose I/O port. 77 SO0/PF1 F [SO0] UART0 data output. This function is valid when UART0 data output is enabled. [PF1] General-purpose I/O port. This function is valid when UART0 data output is disabled. Pin Number Pin Name I/O Circuit Format Function ZR36703 39 78 SC0/PF2 F [SC0] UART0 clock I/O. Clock output can be used when UART0 clock output is enabled. [PF2] General-purpose I/O port. This function is valid when UART0 clock output is disabled. 79 SI1/PF3 F [SI1] UART1 data input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PF3] General-purpose I/O port. 80 SO1/PF4 F [SO1] UART1 data output. This function is valid when UART1 data output is enabled. [PF4] General-purpose I/O port. This function is valid when UART1 data output is disabled. 81 SI2/PF5 F [SI2] UART2 data input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PF5] General-purpose I/O port. 82 SO2/PF6 F [SO2] UART2 data output. This function is valid when UART2 data output is enabled. [PF6] General-purpose I/O port. This function is valid when UART2 data output is disabled. 83 PF7/INT5/ATGX F [INT5] Input of external interrupt request. This input is used from time to time while the corresponding external interrupt is enabled. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [ATGX] External trigger input for A/D converter. This input is used from time to time when this pin is selected for the A/D start cause. Therefore, it is needed to stop output by other functions excep when such output is performed intentionally. [PF7]General-purpose I/O port. 72 AN0/STRBIN/PD0 G [AN0] A/D converter analog input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [STRBIN] The clock source input for DVDSOS logic. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PD0] General-purpose I/O port. Pin Number Pin Name I/O Circuit Format Function 73 AN1/STREQ/DRVV LD/PD1 G [AN1] A/D converter analog input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [STREQ] STREQ output. This function is valid when STREQ output is enabled. [PD1] General-purpose I/O port. This function is valid when STREQ output is disabled. [DRVVLD] DRVVLD input. This input isused from time to time while input operation is selected. Therefore, it is needed to stop output byother functions except when such output is performed intentionally. 74 AN2/DVDSOS/PD2 G [AN2] A/D converter analog input. This input is used from time to time while input operation is selected. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [DVDSOS] DVDSOS output. This function is valid when DVDSOS output is enabled. [PD2] General-purpose I/O port. This function is valid when DVDSOS output is disabled. 75 AN3/INT4/PD3 G [AN3] A/D converter analog input. This input isused from time to time while input operation is selected. Therefore, it is needed to stop output byother functions except when such output is performed intentionally. [INT4] Input of external interrupt request. This input is used from time to time while the corresponding external interrupt is enabled. Therefore, it is needed to stop output by other functions except when such output is performed intentionally. [PD3] General-purpose I/O port. 69 AVCC - VCC power supply for A/D converter. 70 AVRH - Reference voltage of A/D converter (high potential side). Always turn the pin on or off while the voltage equal to AVCC or higher is applied to VCC. 71 AVSS/AVRL - A/D converter VSS power supply and reference voltage (low potential side) . 4, 43, 93 VCC - Digital circuit power supply. Be sure to connect the power supply to every VCC pin. 15, 40, 65, 90 VSS - Digital circuit ground level. Pin Number Pin Name I/O Circuit Format Function ZR36703 40 Demux Video Sub-picture Audio Parse and Decode Parse and Decode Parse and Fixed scaling to Letterbox/ Pan-scan Blend Decode NAV data Internal synchronization DVP data Line 21 OSD NTSC <-> PAL Conversion CCIR601 Post-process audio output video output from host from host to host to host bitstream from host HLI from host NTSC <-> PAL & Decryption & audio input external OSD ZR36710 16- or 32-Mbit SYNCs SDRAM - 10 VCLKx2 4 8/16 5 16 7 12 RESET# 4 16/8 Host Address Host Data PLLCFG GCLK RAM DAT RAM ADD RAMCON ZR36710 XO Audio Data 8 DVD-DSP Data S/PDIF Audio Control YUV/OSD Host Control DVD-DSP Control GCLK 1 2 4 STNDBY# IDLE 41 42 Symbol Type Direction Description Host Interface and CD-DSP Interface (32 pins) RESET# I I Reset input (active low). Once de-asserted, the ZR36710 initialization process begins. STNDBY# I I Stand-by input (active low). When asserted together with RESET#, all outputs and bidi- rectional pins float, such that the ZR36710is electrically disconnected from its sur- roundings. All internal clocks are disabled, and the power consumption is minimized. IDLE 3-S O reset, init_pclk, init_display and Idle state indication output (active high). HWID I I Determines the width of the host interface data bus. It is allowed to be changed only during RESET. A low level (GND) configures the ZR36710 to 8-bit host interface, a high level (VDD) to 16-bit width. HORD I I Determines the order of bytes on the host interface data bus in the case of 16-bit width (HWID at VDD). It is allowed to be changed only during RESET. A low level (GND) con- figures the ZR36710 to input/output the m.s. byte on HD[15:8], a high level (VDD) to input/output the m.s. byte on HD[7:0]. If HWID is at GND level, connect to GND. HTYPE I I Determines the protocol of the host bus. Can be changed only during RESET. A low level (GND) sets the ZR36710 to Type Aa, a high level (VDD) to Type Ba. HD[7:0] 3-S I/O 8 l.s. data lines of host data bus. When the HWID input is connected to GND, only these 8 l.s. signals are defined as host data signals. When HWID is connected to VDD, these are the 8 l.s. lines of the 16-bit bus. HD[11:8] 3-S I/O When HWID is tied to VDD, these are data lines 11:8 of the 16-bit host data bus. When HWID is tied to GND, these are reserved pins. HD[15:12] CDCLK (HD[12]) CDDAT (HD[13]) CDFRM (HD[14]) 3-S I I I I/O I I I When HWID is tied to VDD, these are data lines 15:12 of the 16-bit host data bus. When HWID is tied to GND, these are the CD-DSP serial input port pins, defined as fol- lows: CD-DSP bit clock input CD-DSP data input CD-DSP left/right channel frame input Host Interface and CD-DSP Interface (32 pins)...continued. HA[3:0] I I Host address inputs. These input signals indicate the register accessed in every cycle on the host interface. HCS# I I Host chip-select input. Active low. HWR# (HR/W#) I I In host protocol Type Aa (HTYPE = GND): HR/W#. This input determines the direction of the host access. In host protocol Type Ba (HTYPE = VDD): HWR#. Host write input (active low). HRD# (HDS#) I I In host protocol Type Aa (HTYPE = GND): HDS#. Data strobe input (active low). In host protocol Type Ba (HTYPE = VDD): HRD#. Host read input (active low.) HRDY 3-S O Host ready output (active high). When this signal is high, up to CodBurstLenb bytes of bitstream can be written to the ZR36710 with no need to poll its condition in between. When HRDY is deactivated during a host access, the host may write up to two addi- tional bytes of bitstream without corrupting the data. When this signal is active, it is 3-stated (needs external pull-up resistor). HIRQ# 3-S O Interrupt request (active low). This output signal requests an interrupt from the host controller. It is de-asserted if the host reads the interrupt status register, disables the interrupt, or toggles the ZR36710 in and out of RESET. When this signal is not active, it is 3-stated (needs external pull-up resistor). HACK# 3-S O Host acknowledge output (active low). In protocol Type Aa, the ZR36710 indicates that a read or write cycle is completed by asserting this output. In protocol Type Ba, this sig- nal is used by the ZR36710 to indicate a “wait” state that may be used by “fast” hosts. In protocol Type B the host may ignore the HACK# signal. When this signal is not active, it is 3-stated (needs external pull-up resistor). GPI/O Signals (4 pins) GPAI/O[1:0] 3-S I/O General purpose input/output pins, monitored/controlled by the ADP microcode. After RESET, these pins are defined as inputs. Their definition can be configured through ADP commands. GPSI I I General purpose input, monitored by the DVP microcode. GPSO O O General purpose output, controlled by the DVP microcode. PLL Signals (6 pins) GCLK I I 27.000MHz clock or crystal input for main processing clock generation. GCLK1 I I 27.000MHz clock input for audio master clock generation. In normal operation must be connected to GCLK. XO O O Output to a crystal that is connected to GCLK. If a crystal is not used at GCLK, XO must be left not connected. PLLCA PLL Capacitor. In normal operation must be connected to PLLGND through a 47nF capacitor. PLLCFG[1:0] I I PLL configuration inputs. Allowed to be changed only during RESET. In normal opera- tion both pins must be connected to (digital) GND. Symbol Type Direction Description DVD-DSP Interface (12 pins) DVDREQ O O DVD-DSP data request output. Programmable polarity. DVDVALID I I DVD-DSP data valid input. Programmable polarity. DVDSOS I I DVD-DSP start of sector input. Programmable polarity. DVDDAT[7:0] I I DVD-DSP data input bus. DVDSTRB I I DVD-DSP data bit strobe (clock) input. Programmable polarity. SDRAM Interface (35 pins) RAMDAT[15:0] 3-S I/O SDRAM bidirectional data bus. RAMADD[11:0] O O SDRAM address bus output. RAMRAS# O O SDRAM row select (active low) output. RAMCAS# O O SDRAM column select (active low) output. PCLK O O SDRAM clock output (Same as internal processing clock). RAMDQM O O SDRAM data masking (active high) output. RAMCS0# O O SDRAM chip select (active low) output for the lower 2MByte device. RAMCS1# O O SDRAM chip select (active low) output for the upper 2MByte device. RAMWE# O O SDRAM write enable (active low) output. Test Signals (3 pins) SCNENBL I I In normal operation this pin must be connected directly to GND. TESTMODE I I In normal operation this pin must be connected directly to VDD. ICEMODE I I In normal operation this pin must be connected directly to VDD. Power Signals (35 pins) GND ground Digital ground. VDD power Digital power supply (3.3V). PLLGND ground Ground plane of internal PLL circuit. PLLVDD power Power supply for internal PLL circuit (3.3V). Symbol Type Direction Description a. See Section 4.3.2 gProtocol of Host Transfers - HTYPE h for an explanation on Type A and B host bus protocols. b. See Section 5.1 gGeneral Set-up Parameters and Microcode - Reg. 0x0 and 0x1 hfor an explanation on loading set-up parameters to the ZR36710. Pin assignment and signal status during RESET, STNDBY and after RESET are described in Section 13. "Annex B: Pin Assignment and Signal Status". Digital Video Port (24pins) Y[7:0] 3-S O In 16-bit video mode (Video8b = 0) these lines are the luminance outputs. In 8-bit mode (Video8 = 1) they are luminance/chrominance outputs, multiplexed in time according to the CCIR656 standard (with or without SAV and EAV sync codes). C[7:0] OSDPEL[3:0] (C[3:0]) OSDPLT (C[4]) 3-S I/O In 16-bit video mode (Video8b = 0) these lines are the chrominance outputs. In 8-bit mode (Video8 = 1) the 3 m.s. lines (C[7:5]) are not used, and the 5 l.s. lines (C[4:0]) are defined as possible inputs from an external OSD device: OSD pixel value inputs. These four signals are sampled and used as an entry to an on- chip OSD palette. On-chip OSD palette selector. A low level selects OSDPalette0b, a high level selects OSDPalette1b. VCLKx2 3-S I/O Main video clock input or output. 27.000MHz. VCLK 3-S I/O A division by two of the VCLKx2 signal. This signal is used as data and sync qualifier. HSYNC 3-S I/O Horizontal sync input/output. Polarity and duration are programmable. VSYNC 3-S I/O Vertical sync input/output. Polarity and duration are programmable. FI 3-S I/O Field indication input/output. Polarity is programmable. CBLANK O O Composite blank output. Waveform, including polarity, is programmable. VMASTER I I Video master/slave selection input. When this input is high, the ZR36710 is the video sync master (video SYNC signals and clocks are output). When it is low, the ZR36710 is a video Sync slave (video SYNC signals and clocks are input). This input may be changed only during RESET. VDEN# I I Video enable input (active low). When this input is active, the ZR36710 may output video data. When it is deasserted, the ZR36710 3-states the pixel outputs (although the sync signals and clocks are still active). This input may be changed at any time, taking effect at the next VCLKx2. Digital Audio Port (8 pins) AMCLK 3-S I/O Audio Master Clock input/output. 384, 256, 192 or 128 times the sampling frequency (programmable). S/PDIF (AOUT[3]) O O S/PDIF transmitter output for digital coded or reconstructed audio data. Alternately can be used as a fourth audio output. After RESET this pin outputs low level. AOUT[2:0] O O Audio serial data output lines, 2 channels per line. After RESET these pins output low level until audio playback is performed. AIN I I Serial input of digital stereo audio. ALRCLK O O Digital audio left/right select output for the audio port. Square wave, at the sampling frequency. Programmable polarity interpretation for input and output. ABCLK O O Digital audio bit-clock output. Data on AOUT and AIN is output or latched, respectively, with the rising or falling edge of this clock. Data on AOUT and AIN can be latched on different edges of ABCLK. Symbol Type Direction Description ZR36710 44 43 34x3 33 32x4 35 37 38x10 31x3 30x6 29x3 28 27 17x4 20x4 18x4 16x4 19 24 22x4 21x4 23 25 26 14 15x8 9 10 6x2 8 13x2 12 11x2 4 7x2 3x2 5x3 1 39 36 40 2 8. EXPLODED VIEW AND PARTS LIST 41 CHASSIS LIFTER CUSHION-FR PWB M04 M05 M06 M01 M02 M03 PLATE MAGNET M07 CUSHION M08 40 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) EXPLODED VIEW PART(MECHANISM) 1 01AW248500 FRONT PANEL A'SSY (FRONT PANEL, BUTTON, FL WINDOW, STANDBY LENS) FKV6.178.137GD02 2 nsp MARANTZ BADGE 344W251010 3 01AW154110 KNOB (MIC VOLUME1.2) FKV8.337.183GD02 4 01AW270150 BUTTON (POWER) FKV8.335.136GD02 5 nsp SCREW (FOR BOTTOM OF FRONT PANEL) S3X15PBTTHC 6 nsp (FOR MIC JACK BRACKET) SCREW S3X8BBTTHO 7 nsp MIC JACK STOPPER FKV8.667.020 8 nsp MIC JACK Bracket FKV8.038.074 9 nsp PLASTIC BUSH FKV8.085.011 10 nsp SCREW (FOR MIC JACK PCB EARTH PLATE) M3X6BMO 11 nsp SCREW (POWER SW +BRACKET) M3x6BMO 12 nsp SW BRACKET FKV8.038.082 13 nsp SCREW (FOR POWER SW BRACKET) S3X8BBTTHO 14 nsp INSULATOR FKV8.080.005 15 nsp SCREW (FOR FRONT PCB) S3X8BBTTHO 16 nsp PCB SUPPORT FKV8.078.052 17 nsp MECHANISM SUPPORT FKV8.078.086 18 nsp SCREW (POWER SUPPLY PCB) S3X15VWBTTHC 19 01AW063110 DVD LOADER FRONT ESCUTCHEON FKV8.082.104GD02 20 nsp SCREW (DVD LOADER) S3X15BBTTHO 21 nsp SCREW (LEG) S3X6BBTTHO 22 nsp LEG (FRONT/REAR) 3120 001 00230 23 nsp EARTH (FRONT PANEL/CHASSIS) FKV7.725.040 24 nsp CHASSIS FKV8.031.050 25 nsp SCREW (EARTH PLATE FOR CHASSIS) S3X6BBTTHO 26 nsp SCREW (EARTH PLATE FOR FRONT) S3X8BBTTHO 27 nsp FFC GUIDE FKV8.078.084 28 nsp PCB SUPPORT (MAIN PCB) FKV8.078.064 29 nsp SCREW (MAIN PCB) S3X15PBTTHC 30 nsp PCB SUPPORT FKV8.078.052 31 nsp SCREW (A/V OUT PCB) S3X15VWBTTHC 32 nsp SCREW (TOP COVER SIDE) S3X8PWBTTHCu@ 33 nsp TOP COVER GOLD FKV8.040.259GD02 34 nsp SCREW (TOP COVER BACK) S3X8BBTTHCu 35 nsp AC CORD BUSH FKV8.085.010 36 nsp MAGNET ERF550BH 37 /K nsp REAR PANEL FKV8.040.249K1G /S nsp REAR PANEL FKV8.040.249S1G 38 nsp SCREW (REAR PANEL) S3X8BBTTHO 39 /K *ZC000180R MAINS Cord RVVZ-2P(180) VJA18010012 /S *ZC000190R MAINS Cord VJA18030013 40 01AW304500 DVD MECHANISM LOADER A'SSY CD11FTVA4 41 01AW304600 PICK-UP DV33FS DVD MECHANISM LOADER (40) M01 01AW058010 GEAR DRIVE 1EA2511A21200 M02 01AW262010 PULLEY GEAR 1EA2524A02800 M03 01AW264010 BELT FRAME 1EA2563A03400 M04 01AW163010 TABLE LOADING 1EA2761A02500 M05 01AW051010 GEAR SLIDE 1EA2511A26100 M06 01AW262020 PULLEY MOTOR 1EA2523A02000 M07 01AW005010 HOLDER MAGNET 1EA2451A15700 M08 *MM002000R LOADING MOTOR 1EA4M10A07402 45 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) WIRE J5-JF1 nsp FLEXIBLE FLAT CORD 12P/1.0mm 160mm CC-1.00*12*160-4 VWJ12160301 JA3-J11 nsp FLEXIBLE FLAT CORD 18P/1.25mm 90mm CC-1.25*18*90-4 VWJ18090001 JA2-J10 nsp FLEXIBLE FLAT CORD 18P/1.25mm 160mm CC-1.25*18*160-4 VWJ18160001 J1B-DVD MECHANISM nsp FLEXIBLE FLAT CORD 24P/0.5-1.0mm 240mm VWJ24240901 JL1-JF2 nsp CONNECTIVE CORD 2P/2.0mm 50mm PH2Y05020 VJP02PH05001 JA1-JM2 nsp CONNECTIVE CORD 5P/2.0mm 260mm PH5Y26020P VJP05PH26001P JM1-JL2 nsp CONNECTIVE CORD 5P/2.0mm 110mm PH5Y11020 VJP05PH11001 JFS1-JF3 nsp CONNECTIVE CORD 3P/2.0mm 40mm PH3Y04020 VJP03PH04001 J2-DVD MECHANISM nsp CONNECTIVE CORD 9P/2.0mm 80mm PH9Y08020R VJP09PH08001R J8-JP01 nsp CONNECTIVE CORD 8P/2.0mm 400mm PH8P40020 VJP08PH40001T J9-JP03 nsp CONNECTIVE CORD 7P/2.0mm 400mm PH7P40020 VJP07PH40001T J3-DVD MECHANISM nsp CONNECTIVE CORD 5P/2.0mm 160mm PH5P16020 VJP05PH16001T JP02-JM3 nsp CONNECTIVE CORD 4P/2.0mm 180mm PH4P18020 VJP04PH18001T PACKING /K 01AW851350 USER GUIDE(K) FKV2.037.057SSA /S 01AW851350 USER GUIDE(S) FKV2.037.058SSA ZK01AW0010 REMOTE CONTROLLER (RC3110DV) VURRL3110DV NOT STANDARD SPEAR PARTS nsp BOX OUT CARTON FKV4.172.520 nsp PAD SNOW (R) FKV8.870.141 nsp PAD SNOW (L) FKV8.870.140 nsp PAD SNOW (FRONT) FKV8.870.142 nsp BAG FOR SET FKV8.865.038 /K nsp BATTERY R03P VSBR03P01 /S nsp BATTERY R03P VSBR03P02 46 9. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT 47 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POWER SUPPLY P.C.B CP01 nsp Capacitor 275VAC-0.22µF MKT61275VAC0.22µFK ECQHA3224KB CP02 *DK100710R Capacitor 250VAC-10nF CT7-250VAC-2F-103Z ECDA103BZAFHF CP03,CP04 *DK100720R Capacitor 400VAC-470pF CT7-400VAC-2B-471M ECDB471HMBDHF CP05 nsp Ele. Cap. 400V-68µF CD2942G680S10S2025 ECEP2GUJ680MR CP07 nsp Capacitor 1kV-47pF CC81-1KV-47pF-K-06a ECHB4703A06SKA CP08 nsp Ele. Cap. 50V-1uF CD1101H010T5S0511 ECEA1HAE010MB CP09,CP13 *DK100730R Capacitor 63V-0.1uF CT4-2F4-63V-104-S-A ECMB1J104BST CP10 nsp Ele. Cap. 16V-47µF CD1101C470T5S0511 ECEA1CAE470MB CP11 *DK100740R Capacitor 400VAC-1000p CT7-400VAC--2F-102Z ECDB102HZADHF CP14,CP15,CP16 nsp Ele. Cap. 16V-1000µF CD288H1C102T5S1220 ECEQ1CFU102MP CP17 nsp Ele. Cap. 25V-100uF CD288H1E101T5S0812 ECEQ1ECF101MB CP18 nsp Ele. Cap. 50V-220uF CD288H1H221S5S1220 ECEQ1HFU221MP CP19 nsp Ele. Cap. 25V-220µF CD288H1E221S5S1013 ECEQ1EDG221MP CP20 nsp Ele. Cap. 6.3V-100µF CD1100J101T2S0511 ECEA0JAE101MI CP21,CP23,CP24 nsp Ele. Cap. 16V-470µF CD1101C471S5S1013 ECEA1CDG471MP CP25,CP26 nsp Ele. Cap. 25V-100uF CD1101E101T5S0812 ECEA1ECF101MB CP27 nsp Ele. Cap. 50V-22uF CD1101H220T2S0612 ECEA1HQF220MI CP28 nsp Ele. Cap. 25V-47uF CD1101E470T2S0612 ECEA1EQF470MI DP01 *HD201670R Diode RU2Yx ODIRU2Yx DP02,DP03 *HD201680R Diode RU4Z ODIRU4Z DP04,DP05,DP06 nsp Diode RGP15G ODIRGP15G DPP1,DPP2,DPP3,DPP4 *HD201650R Diode 1N4007 ODI1N4007 DPP5 *HD201660R Diode UF4006 ODIUF4006 DPP6 HD20002000 Diode 1N4148 ODI1N4148 DZP1 *HD302060R ZenerDiode P6KE200 ODIP6KE200 DZP2 HD30431000 ZenerDiode 4.3V MTZJT-774.3B ODIMTZJ4R3BT77 FP01 *FS000920R Fuse 1.6A 50T-T1.6A-250V VSF1R625001A JP01 nsp CONN. WEFER 8P PH8A-20 VJS08PH01 JP02 nsp CONN. WEFER 4P PH4A-20 VJS04PH01 JP03 nsp CONN. WEFER 7P PH7A-20 VJS07PH01 JPP1,JPP2 nsp Fuse Holder H0460 VJFH0460 LP01 *FN000170R Filter 20uH T68-1 20uH ELFT68120uH LP02 *FN000180R Filter 20mH LQ0002A3(20mH) ELFLQ0002A3 LP04,LP05 nsp EMI Filter RH356008 ERFSRH356008 QP01,QP02,QP03 *HT900070R Transistor 2SD1913R OTR2SD1913R QP04 *HT200420R Transistor 2SB1240Q OR R OTR2SB1240Q QP05,QP10 HT317402F0 Transistor 2SC1740S OTR2SC1740S QP06,QP09 BA20017210 Transistor DTC114TSA OTRDTC114TSA QP07 HT109332B0 Transistor 2SA933AS OTR2SA933AS QP08 HT418622A0 Transistor 2SD1862Q OTR2SD1862Q RP01 nsp Resister 3W-2.2kΩ RY18-2.2KΩJ ERYC03J222B RP02 nsp Resister 1/4W-20Ω RT14-T26B-20ΩJ ERD14TJ200T RP03 nsp Resister 1/6W-100Ω RT13-T26B-100ΩJ ERD16TJ101T RP05 nsp Resister 1/6W-3.3kΩ RT13-T26B-3.3KΩJ ERD16TJ332T RP06,RP21 nsp Resister 1/6W-2.2kΩ RT13-T26B-2.2KΩJ ERD16TJ222T RP07,RP12,RP13,RP25 nsp Resister 1/6W-1kΩ RT13-T26B-1KΩJ ERD16TJ102T RP08,RP28 nsp Resister 1/6W-100kΩ RT13-T26B-100KΩJ ERD16TJ104T RP09 nsp Resister 1/4W- 0.47Ω RF10-1/4W-0.47ΩJ-T26 B ERQ14AJR47T RP10 nsp Resister 1/2W-100Ω MO-1/2W-100ΩJ ERYC12J101V RP100 nsp Resister 1/4W-6.8Ω RT14-T26B-6.8ΩJ ERD14TJ6R8T RP11 nsp Resister 1/4W-10Ω RT14-T26B-10ΩJ ERD14TJ100T RP14,RP15,RP16,RP17, RP30,RP31 nsp Resister 1/6W-1kΩ 1% MF-T26B-1KΩF ERX16BF102T RP18,RP19,RP23 nsp Resister 1/6W-22kΩ RT13-T26B-22KΩJ ERD16TJ223T RP20 nsp Resister 1/6W-18kΩ RT13-T26B-18KΩJ ERD16TJ183T RP22 nsp Resister 1/6W-2.4kΩ RT13-T26B-2.4KΩJ ERD16TJ242T RP24 nsp Resister 1/6W-2.7kΩ RT13-T26B-2.7KΩJ ERD16TJ272T RP26 nsp Resister 1/6W-220Ω RT13-T26B-220ΩJ ERD16TJ221T RP27 nsp Resister 1/6W-10kΩ RT13-T26B-10KΩJ ERD16TJ103T RP29 nsp Resister 1/6W-4.7kΩ RT13-T26B-4.7KΩJ ERD16TJ472T RP32 nsp Resister 1/6W-330Ω RT13-T26B-330ΩJ ERD16TJ331T SK01 nsp CONN. WEFER 2P TH2A-80 VJS02TH01 TP01 *TS001640R Transf. BCK2801-100/BCK2801 -148 VTPCK9161/VTPCK 9162 UP01 nsp Heat sink FKV7.308.051 48 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) UP01 *HC107910R IC TOP223Y OICTOP223Y UP01 nsp Screw S3*6BBTTHO UP02 *HW100560R IC PC817A OICPC817A UP03 HC33036590 IC TL431CLP/KA431AZ OICTL431CLP /OICKA431AZ UP04 HC10015270 IC LM324 OICLM324 WPX1,WPX2,WPX3 nsp earth lug FKV7.725.008 MAIN P.C.B C1,C3,C12,C48 nsp Capacitor 390pF50V C0603COG1H391JT ECUV1H391JCVW C53 nsp Capacitor 0.01µF50V CT41-0603F103Z500NT ECUV1H103ZFV C75,C76,C178 nsp Capacitor 15pF50V C0603COG1H150JT ECUV1H150JCVW PR11 nsp Res. Array 0603 4.7kΩ1/16W RCM-L08W-4.7KΩ-J-T ERPI3G472J08AT PR7,PR8 nsp Res. Array 0603 10kΩ1/16W RCM-L08W-10KΩ-J-T ERPI3G103J08AT R166,R246,R199,R200, R204,R214 nsp Resister 1kΩ1/16W RC03K102JT ERJ3GSKJ102V R217,R162,R163 nsp Resister 100Ω1/16W RC03K101JT ERJ3GSKJ101V R49 nsp Resister 750Ω1/16W RC03K751JT ERJ3GSKJ751V U17 *HC107900R IC QFP160 ZR36710TQC OICZR36710TQC U2,U16 HC36J3321F Regulator BA033T/RT9164-33CK OICBA033T /OICRT916433CK C17,C64 nsp Capacitor 0.015µF50V CT41-0603F153Z500NT ECUV1H153ZFV C18,C86,C87,C88 nsp Capacitor 100pF50V C0603COG1H101JT ECUV1H101JCVW C19,C52,C136 nsp Capacitor 47pF50V C0603COG1H470JT ECUV1H470JCVW C2 nsp Capacitor 4700pF50V CT41-0603B472K500NT ECUV1H472KBV C20,C68,C69 nsp Capacitor 150pF50V C0603COG1H151JT ECUV1H151JCVW C21,C41,C45,C47 nsp Capacitor 1000pF50V C0603B1H102KT ECUV1H102KBVW C210 nsp Capacitor 0.22µF 50V CT41-0603F224Z500NT ECUV1H224ZFV C32,C43,C50 nsp Capacitor 10pF50V C0603COG1H100JT ECUV1H100JCVW C39B,C40B,C42B,C44B,C51 nsp Capacitor 1µF10V CT41-0603F105Z100NT ECUV1A105ZFV C4,C5,C6,C7,C8,C13,C14, C15,C16,C22,C23,C24,C25, C26,C27,C28,C29,C30,C31, C33,C34,C35,C36,C37,C46, C55,C56,C61,C65,C66,C67, C70,C73,C74,C77,C78,C79, C80,C97,C99,C104,C105, C106,C107,C108,C109, C110,C119,C120,C121, C123,C128,C129,C131, C132,C137,C139,C140, C141,C142, nsp Capacitor 0.1µF 50V CT41-0603F104Z500NT ECUV1H104ZFV C49,C101 nsp Capacitor 0.047µF50V CT41-0603F473Z500NT ECUV1H473ZFV C62,C63,C143 nsp Capacitor 330pF50V C0603COG1H331JT ECUV1H331JCVW C96,C98,C211,C212,C224 nsp Capacitor 22pF50V C0603COG1H220JT ECUV1H220JCVW D2 HD20002000 Diode 1N4148 ODI1N4148 E1,E5,E6,E8,E9,E12,E13, E18,E19,E20,E43 ,E61,E62 nsp Ele. Cap. 16V-47µF CD11C1C470T2S0507 ECEG1CAB470MI E3,E14,E15,E17,E27 nsp Ele. Cap. 16V-100µF CD11C01C101T2S0607 ECEG1CQB101MI E21 nsp Ele. Cap. 16V-10µF CD11C1C100T2S0407 ECEG1CTB100MI E23 nsp Ele. Cap. 6.3V-47µF CD11C0J470T2S0407 ECEG0JTB470MI E26,E30,E32,E35 nsp Ele. Cap. 6.3V-100µF CD11C0J101T2S0507 ECEG0JAB101MI E4,E10,E11 nsp Ele. Cap. 10V-220µF CD11C1A221T2S0607 ECEG1AQB221MI E66,E40 nsp Ele. Cap. 16V-22µF CD11C1C220T2S0407 ECEG1CTB220MI FB1,FB2,FB3,FB19,FB20, FB27,FB28,FB30,FB38,FB44 nsp EMI Filter 2200Ω100MHz BLM21P222S ELVPB222T FB21,FB22,FB24,FB25,FB26 nsp EMI Filter 120Ω100MHz MBW3216-120T ELVMC121T FB37 /K nsp Resister 0Ω1/16W RC03K000JT ERJ3GSKJ000V FB43 /S nsp Resister 0Ω1/16W RC03K000JT ERJ3GSKJ000V FB43 nsp Resister 4.7Ω1/16W RC03K4R7JT ERJ3GSKJ4R7V J10,J11 nsp FFC connector 18PIN FAASD1862 VJS18FC01 J1B nsp FFC connector 24PIN FABSD2452 VJS24FB01 J2 nsp CONN. WEFER 9P PH9A-20 VJS09PH01 J3 nsp CONN. WEFER 5P PH5A-25 VJS05PH01 J5 nsp FFC connector 12PIN FABSD1252 VJS12FB01 J8 nsp CONN. WEFER 8P PH8A-20 VJS08PH01 J9 nsp CONN. WEFER 7P PH7A-20 VJS07PH01 49 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) JP8,R10,JP18,JP19,JP20, JP30,JP31,JP35B,R121, R125,JP25,JP27,R48,R189, R249,R252,R253,R256, R257,C225,C228,C231 nsp Resister 0Ω1/16W RC03K000JT ERJ3GSKJ000V L1,L2 nsp Inductor 10µH LGA0307-10µH-K-T26B ELEPS100K01 PR1,PR2,PR3,PR4,PR5, PR6,PR9 nsp Res. Array 0603 33Ω 1/16W RCM-L08W-33Ω-J-T ERPI3G330J08AT Q1,Q2 *HT200430R Transistor 2SB1132Q OTR2SB1132Q Q3,Q4,Q5B HX324122A0 Transistor 2SC2412K OTR2SC2412K Q6B,Q7B *HF200290R Transistor 2SK3019 OTR2SK3019 R11,R34 nsp Resister 18kΩ1/16W RC03K183JT ERJ3GSKJ183V R123 nsp Resister 1MΩ1/16W RC03K105JT ERJ3GSKJ105V R13,R47,R52,R53,R54,R55 nsp Resister 20kΩ1/16W RC03K203JT ERJ3GSKJ203V R169,R170,R171 nsp Resister 75Ω 1%1/16W RC03K750FT ERJ3GSKF750V R177,R178 nsp Resister 200kΩ1/16W RC03K204JT ERJ3GSKJ204V R2,R15,R17, R18,R19,R20, R62,R122 nsp Resister 33kΩ1/16W RC03K333JT ERJ3GSKJ333V R21,R22,R23,R25 nsp Resister 27kΩ1/16W RC03K273JT ERJ3GSKJ273V R24,R245 nsp Resister 47kΩ1/16W RC03K473JT ERJ3GSKJ473V R247 nsp Resister 196Ω 1%1/16W RC03K1960FT ERJ3GSKF1960V R27,R26 nsp Resister 5.1kΩ1/16W RC03K512JT ERJ3GSKJ512V R3,R14,R59,R241B,R244B nsp Resister 100kΩ1/16W RC03K104JT ERJ3GSKJ104V R30,R37,R56 nsp Resister 15kΩ1/16W RC03K153JT ERJ3GSKJ153V R35,R36,R46,R51,R67,R68, R197,R198,R201,R202, R203,R242B,R243B nsp Resister 10kΩ1/16W RC03K103JT ERJ3GSKJ103V R38,R39,R41,R57 nsp Resister 22Ω1/16W RC03K220JT ERJ3GSKJ220V R4,R16,R126,R33 nsp Resister 39kΩ1/16W RC03K393JT ERJ3GSKJ393V R42,R43,R44,R45 nsp Resister 1Ω1/16W RC03K1R0JT ERJ3GSKJ1R0V R50,R58,R12,R164,R165 nsp Resister 220Ω1/16W RC03K221JT ERJ3GSKJ221V R66 nsp Resister 330Ω1/16W RC03K331JT ERJ3GSKJ331V R8,R9 nsp Resister 12kΩ1/16W RC03K123JT ERJ3GSKJ123V R91 nsp Resister 2.2Ω1/16W RC03K2R2JT ERJ3GSKJ2R2V R92,R105,R106,R107,R108, R109,R206,R207,R210, R215,R216,R130,R255 nsp Resister 4.7kΩ1/16W RC03K472JT ERJ3GSKJ472V R94,R93,R175,R176 nsp Resister 33Ω1/16W RC03K330JT ERJ3GSKJ330V U1 *HC107790R IC MT1366F OICMT1366F U10 *HC107800R IC BR24C02F OICNM24C02M8 U12 *HC107810R IC ZR36703TQC OICZR36703TQC U20 *HC107820R IC GM72V161621ET8/M12 16161 OICGM72V161621E T8 /OICGM72V161621C 0 U28 *HC107830R IC AV2188E OICAV2188E U29 *HC107840R IC AV3168 OICAV3168 U3 *HC107850R IC MT1388E OICMT1388E U4 *HC107860R IC BA5954FPE2 OICBA5954FPE2 U7 *HC107870R IC SST39SF010A OICSST39SF010AP LCC U8 *HC107880R IC V53C16258LK50/GL448 BL16-50J4 OICV53C16258LK50 U9 *HC107890R IC BA6208 OICBA6208 Y2 *JX000910R Ceramic Resonator CSA33.86MXZ040/QZ33 R86M EFOCSA33R86MXZ 06 /EFOQZ33R86M Y3 *JX000920R X'tal HC-49/US12R5MHZ 18pF VSXEN1255A18B5S Y4 *JX000930R X'tal HC-49/US27MHZ 20pF VSXEN2705A20B5S /VSXEN2705A20B4B /VSXEN2705A20B5L 50 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) Audio/Video OUTPUT P.C.B LRA1,LRA5,LRA6,LRA7, LRA8,LRA9,LRA10,LRA12, LRA13,LRA14,LRA25, LRA18,LRA19,LRA26, RA58,RA149,RA151,RA152 RA153,RA154 nsp Resister 0Ω 1/ 16W RC03K000JT ERJ3GSKJ000V RA114,RA73, nsp Resister 33Ω 1/ 16W RC03K330JT ERJ3GSKJ330V RA117,RA116 nsp Resister 68Ω 1/ 16W RC03K680JT ERJ3GSKJ680V LRA16 nsp Resister 75Ω 1/ 16W RC03K750JT ERJ3GSKJ750V RA126 nsp Resister 91Ω 1/ 16W RC03K910JT ERJ3GSKJ910V RA84,RA85,RA86,RA87, RA88,RA89 nsp Resister 100Ω 1/ 16W RC03K101JT ERJ3GSKJ101V RA143 nsp Resister 180Ω 1/ 16W RC03K181JT ERJ3GSKJ181V RA115 nsp Resister 270Ω 1/ 16W RC03K271JT ERJ3GSKJ271V RA121,RA135 nsp Resister 330Ω 1/ 16W RC03K331JT ERJ3GSKJ331V RA67,RA68,RA69,RA70, RA71,RA72 nsp Resister 470Ω 1/ 16W RC03K471JT ERJ3GSKJ471V RA76,RA77,RA78,RA79, RA80,RA81 nsp Resister 680Ω 1/ 16W RC03K681JT ERJ3GSKJ681V RA56,RA57,RA59,RA60 nsp Resister 1kΩ 1/ 16W RC03K102JT ERJ3GSKJ102V RA15,RA129,RA47,RA49, RA50,RA53,RA54,RA90, RA46 nsp Resister 2kΩ 1/ 16W RC03K202JT ERJ3GSKJ202V RA113 nsp Resister 2.7kΩ 1/ 16W RC03K272JT ERJ3GSKJ272V RA110 nsp Resister 3.3kΩ 1/ 16W RC03K332JT ERJ3GSKJ332V RA44,RA45,RA48,RA51, RA52,RA55 nsp Resister 3.9kΩ 1/ 16W RC03K392JT ERJ3GSKJ392V RA112,RA111 nsp Resister 4.7kΩ 1/ 16W RC03K472JT ERJ3GSKJ472V RA1,RA2,RA3,RA4,RA5, RA6,RA7,RA8,RA9,RA10, RA11,RA14,RA18,RA131, RA12,RA13,RA19,RA17 nsp Resister 10kΩ 1/ 16W RC03K103JT ERJ3GSKJ103V RA109 nsp Resister 12kΩ 1/ 16W RC03K123JT ERJ3GSKJ123V RA128 nsp Resister 15kΩ 1/ 16W RC03K153JT ERJ3GSKJ153V RA16 nsp Resister 18kΩ 1/ 16W RC03K183JT ERJ3GSKJ183V RA36,RA37,RA38,RA39, RA40,RA41 nsp Resister 22kΩ 1/ 16W RC03K223JT ERJ3GSKJ223V RA105,RA106 nsp Resister 68k 1/16W RC03K683JT ERJ3GSKJ683V RA107,RA108 nsp Resister 47kΩ 1/ 16W RC03K473JT ERJ3GSKJ473V RA95,RA96,RA97,RA98, RA99,RA100,RA101,RA102, RA127 nsp Resister 100kΩ 1/ 16W RC03K104JT ERJ3GSKJ104V CA86,CA87,CA88 nsp Capacitor 22pF 50V C0603COG1H220JT ECUV1H220JCVW CA20,CA21 nsp Capacitor 150pF 50V C0603COG1H151JT ECUV1H151JCVW CA19,CA22,CA23,CA24 nsp Capacitor 200pF 50V C0603COG1H201JT ECUV1H201JCVW CA74,CA75,CA76 nsp Capacitor 270pF 50V C0603COG1H271JT ECUV1H271JCVW CA80,CA81,CA82 nsp Capacitor 330pF 50V C0603COG1H331JT ECUV1H331JCVW CA71 nsp Capacitor 470pF 50V C0603COG1H471JT ECUV1H471JCVW CA70,CA35,CA36,CA37, CA40,CA41,CA42 nsp Capacitor 1000pF 50V C0603B1H102KT ECUV1H102KBVW CA27,CA28,CA29,CA30, CA31,CA32 nsp Capacitor 2200PF 50V CT41-0603B222K500NT ECUV1H222KBV CA65 nsp Capacitor 4700pF 50V CT41-0603B472K500NT ECUV1H472KBV CA10,CA11,CA12,CA13, CA14,CA15,CA16,CA18 nsp Capacitor 0.01µF 50V CT41-0603F103Z500NT ECUV1H103ZFV CA63,CA64,CA66,CA67, CA101,CA102,CA129 nsp Capacitor 0.1µF 25V CD41-C0603F104Z250N T ECUV1E104ZFV CA69 nsp Capacitor 1µF 10V CD41-C0603F105Z100N T ECUV1A105ZFV CA91 nsp Ele. Cap. 16V-100µF CD11C1C101T2S0607 ECEG1CQB101MI CA53 nsp Ele. Cap. 16V-4.7µF CD1101C4R7T2S0511 ECEA1CAE4R7MI CA72,CA68 nsp Ele. Cap. 16V-10µF CD1101C100T2S0511 ECEA1CAE100MI CA1,CA2,CA3,CA4,CA5, CA6,CA7,CA106,CA107, CA109,CA200 nsp Ele. Cap. 16V-47µF CD1101C470T2S0511 ECEA1CAE470MI CA113,CA128 nsp Ele. Cap. 16V-470µF CD1101C471T5S0812 ECEA1CCF471MB CA73 nsp Ele. Cap. 16V-330µF CD1101C331T5S0812 ECEA1CCF331MI 51 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CA58,CA59,CA60,CA43, CA44,CA45,CA46,CA47, CA48,CA49,CA50,CA51, CA52,CA54,CA55 nsp Ele. Cap. 16V-22µF CD1101C220T2S0511 ECEA1CAE220MI CA135 nsp Ele. Cap. 50V-4.7uF CD1101H4R7T2S0511 ECEA1HAE4R7MI LA1,LA2,LA3,LA7 nsp Inductor 1.8µH LGA0307-1.8µH-K-T26B ELEPS1R8K01 LRA21,LRA23,LRA24 nsp EMI Filter 2500Ω 100MHz BLM11B252SD ELVPA252T DA1,DA2,DA3,DA5,DA6, DA7,DA8,DA9,DA10,DA11 HD20002000 Diode 1N4148 ODI1N4148 QA1,QA2,QA3,QA4,QA5, QA6,QA7,QA8,QA9 HT317402F0 Transistor 2SC1740S OTR2SC1740S QA12,QA13,QA15,QA17 HT109332B0 Transistor 2SA933AS OTR2SA933AS UA1,UA2,UA3,UA4 *HC400030R IC NJM4580M OICNJM4580M UA6 HC700400Z0 IC SOP TC74HCU04AF OICTC74HCU04AF UA7 YJ15000090 Optical terminal GP1F32T/TOTX178 OPTTGP1F32T /OPTTTOTX178 CONA3 nsp 6RCA Audio out terminal AV6-8.4-16 VJJ01609A CONA1 nsp 3RCA Audio out terminal AV3-8.4-13 VJJ01315A CONA2 nsp VIDEO, S-VIDEO terminal CS-01 VJJ12101A JA1 nsp CONN. WEFER 5P PH5A-20 VJS05PH01 JA2,JA3 nsp FFC connector 18PIN FAASD1862 VJS18FC01 GA1,GA2 nsp Earth lug FKV7.725.008 FRONT P.C.B CF1,CF6,CF7 nsp Ele. Cap. 16V-47µF 5.0mm CD1101C470T5S0511 ECEA1CAE470MB CF11,CF12,CF13,CF14, CF15 nsp Capacitor 100pF 50V C0805COG1H101JT ECUV1H101JCNW CF2,CF3,CF5,CF8 nsp Capacitor 0.1µF 50V CT41-0805F104Z500NT ECUV1H104ZFN CF9 nsp Capacitor 470pF 50V C0805COG1H471JT ECUV1H471JCNW DF1,DF2 HD20015210 Diode 1SS133T77 ODI1SS133T77 JF1 nsp FFC connector 12PIN 1.0mm FABSE1252 VJS12FB11 JF2 nsp CONN. WEFER 2P 2.0mm PH2A-20 VJS02PH01 KF01A,KF02A,KF03A, KF04A,KF05A,KF06A, KF07A,KF08A nsp Tact SW EVQ11505R EVQ11505R RF1,RF16 nsp Resister 100Ω 1/ 10W RC05K101JT ERJ6GEKJ101V RF15 nsp Resister 470Ω 1/ 10W RC05K471JT ERJ6GEKJ471V RF2,RF3,RF6,RF7,RF8,RF9, RF10,RF11,RF12,RF13, RF14 nsp Resister 10kΩ 1/ 10W RC05K103JT ERJ6GEKJ103V RF4 nsp Resister 100kΩ 1/ 10W RC05K104JT ERJ6GEKJ104V RF5 nsp Resister 47kΩ 1/ 10W RC05K473JT ERJ6GEKJ473V UF01 *HQ300550R FL Display VFD20-0604A VSLVFD200604A UF02 *HC107920R IC PT6312 OICPT6312 UF03 *HW100570R R/C Receiver GP1838-4 RPMPIC12042 MIC P.C.B CM1,CM2,CM9,CM10,CM13, CM16 nsp Ele. Cap. 16V-4.7µF 2.5mm CD1101C4R7T2S0511 ECEA1CAE4R7MI CM11,CM14 nsp Capacitor 1000pF 50V C0805B1H102KT ECUV1H102KBNW CM17,CM22 nsp Capacitor 0.1µF 50V CT41-0805F104Z500NT ECUV1H104ZFN CM3,CM4,CM18,CM19, CM20 nsp Capacitor 0.01µF 50V CT41-0805F103Z500NT ECUV1H103ZFN CM5,CM6 nsp Capacitor 100pF 50V C0805COG1H101JT ECUV1H101JCNW CM7,CM8,CM12,CM15 nsp Ele. Cap. 50V-10µF 2.5mm CD1101H100T2S0511 ECEA1HAE100MI JM1,JM2 nsp CONN. WEFER 5P 2.0mm PH5A-20 VJS05PH01 JM3 nsp CONN. WEFER 4P 2.0mm PH4A-20 VJS04PH01 LRM1,LRM2,LRM3,LRM4, LRM5,LRM6,LRM7,LRM8 nsp EMI Filter 2200Ω 100MHz BLM21P222S ELVPB222T MIC1,MIC2 nsp MIC jack CK3-6.25-19G VJJ02401 QM1,QM2 nsp IC NJM4580M OICNJM4580M RM1,RM2 nsp Resister 6.8kΩ 1/ 10W RC05K682JT ERJ6GEKJ682V RM11,RM12 nsp Resister 470Ω 1/ 10W RC05K471JT ERJ6GEKJ471V RM13,RM14,RM23 nsp Resister 1kΩ 1/ 10W RC05K102JT ERJ6GEKJ102V 52 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RM15,RM16,RM19 nsp Resister 4.7kΩ 1/ 10W RC05K472JT ERJ6GEKJ472V RM17 nsp Resister 10kΩ 1/ 10W RC05K103JT ERJ6GEKJ103V RM18,RM21 nsp Resister 100Ω 1/ 10W RC05K101JT ERJ6GEKJ101V RM20 nsp Resister 15kΩ 1/ 10W RC05K153JT ERJ6GEKJ153V RM22 nsp Resister 47kΩ 1/ 10W RC05K473JT ERJ6GEKJ473V RM3,RM4 nsp Resister 3.3kΩ 1/ 10W RC05K332JT ERJ6GEKJ332V RM5,RM6 nsp Resister 2.2kΩ 1/ 10W RC05K222JT ERJ6GEKJ222V RM7,RM8 nsp Resister 2kΩ 1/ 10W RC05K202JT ERJ6GEKJ202V RM9,RM10 nsp Resister 150kΩ 1/ 10W RC05K154JT ERJ6GEKJ154V MIC VOLUME P.C.B DL1 nsp L.E. Diode HFR203TP2 ODISLR342VCTB JL1 nsp CONN. WEFER 2P 2.0mm PH2A-20 VJS02PH01 JL2 nsp CONN. WEFER 5P 2.0mm PH5A-25W VJS05PH11 VRL1,VRL2 nsp Volume Res. 10kΩ RK09K11300103BJF15 EVN1BF15B103 POWER SWITCH P.C.B CFP1 *DK100710R Capacitor 250VAC-10nF 10mm CT7-250VAC-2F-103Z ECDA103BZAFHF SWP1 *SP001170R Power SW PS4E-B-039 ESBPS4EB03901 JFP1 nsp Lug 2P/8.0mm 280mm T-A02A280-01 VEV4B280JT05 53
