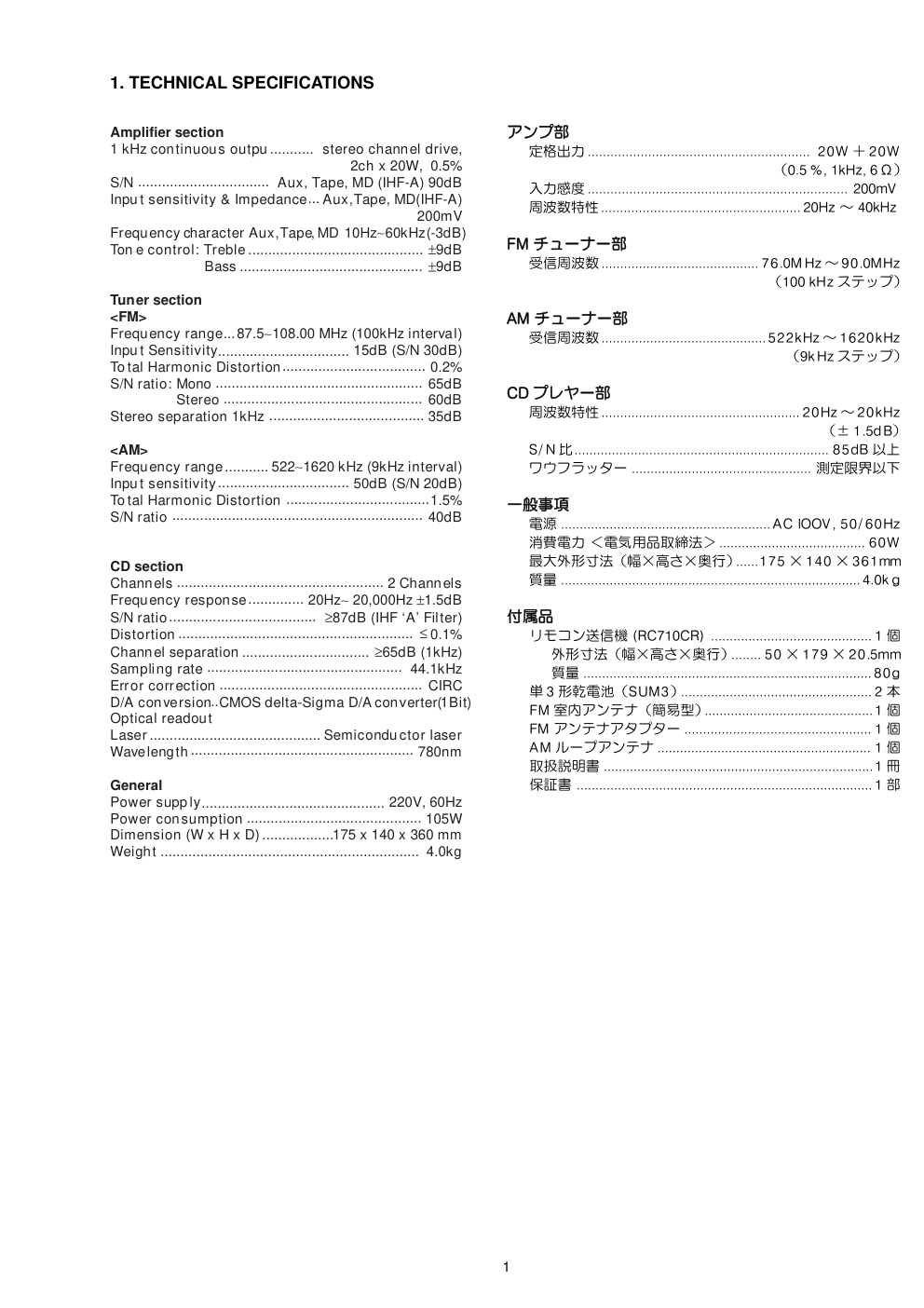

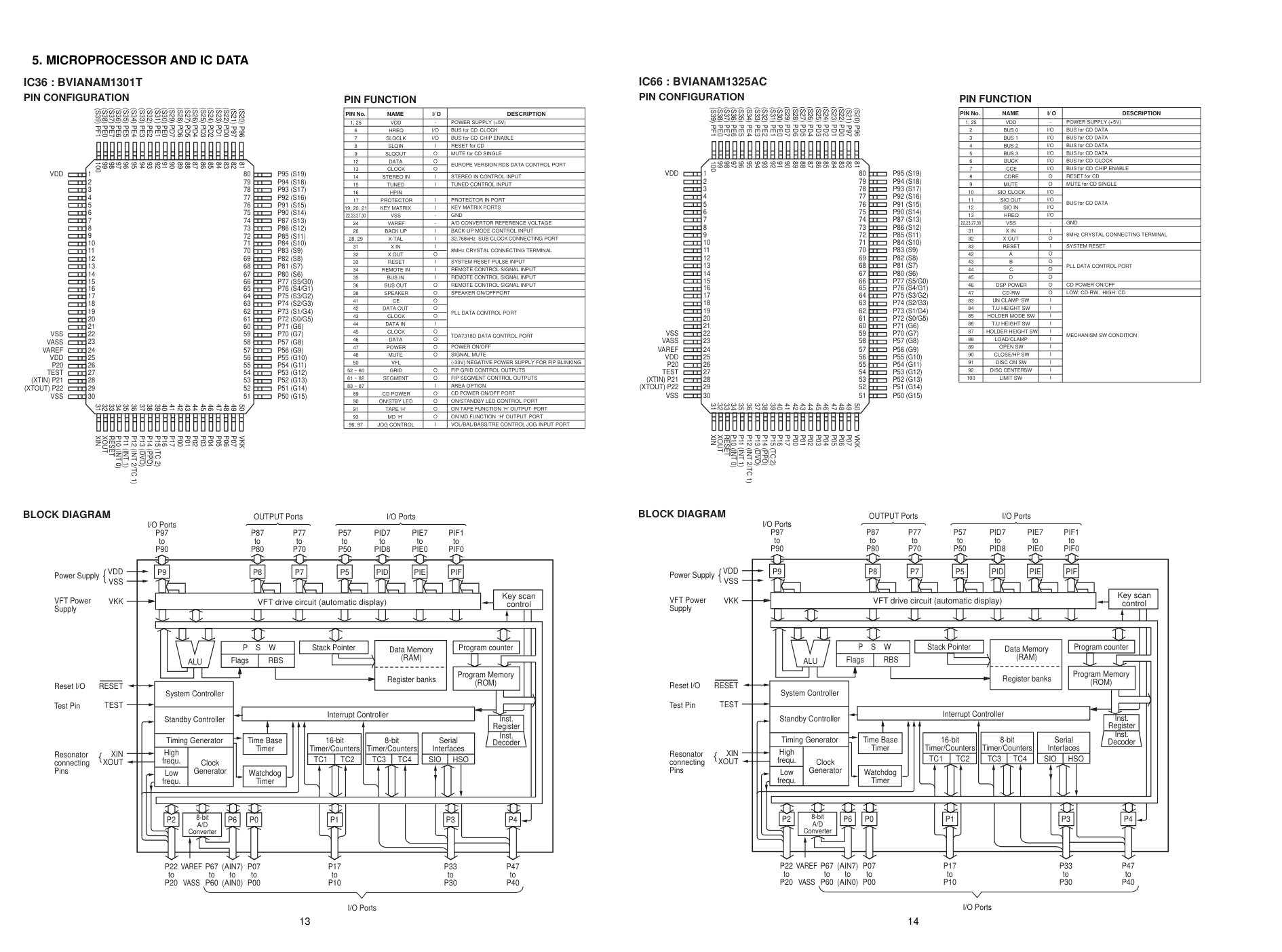

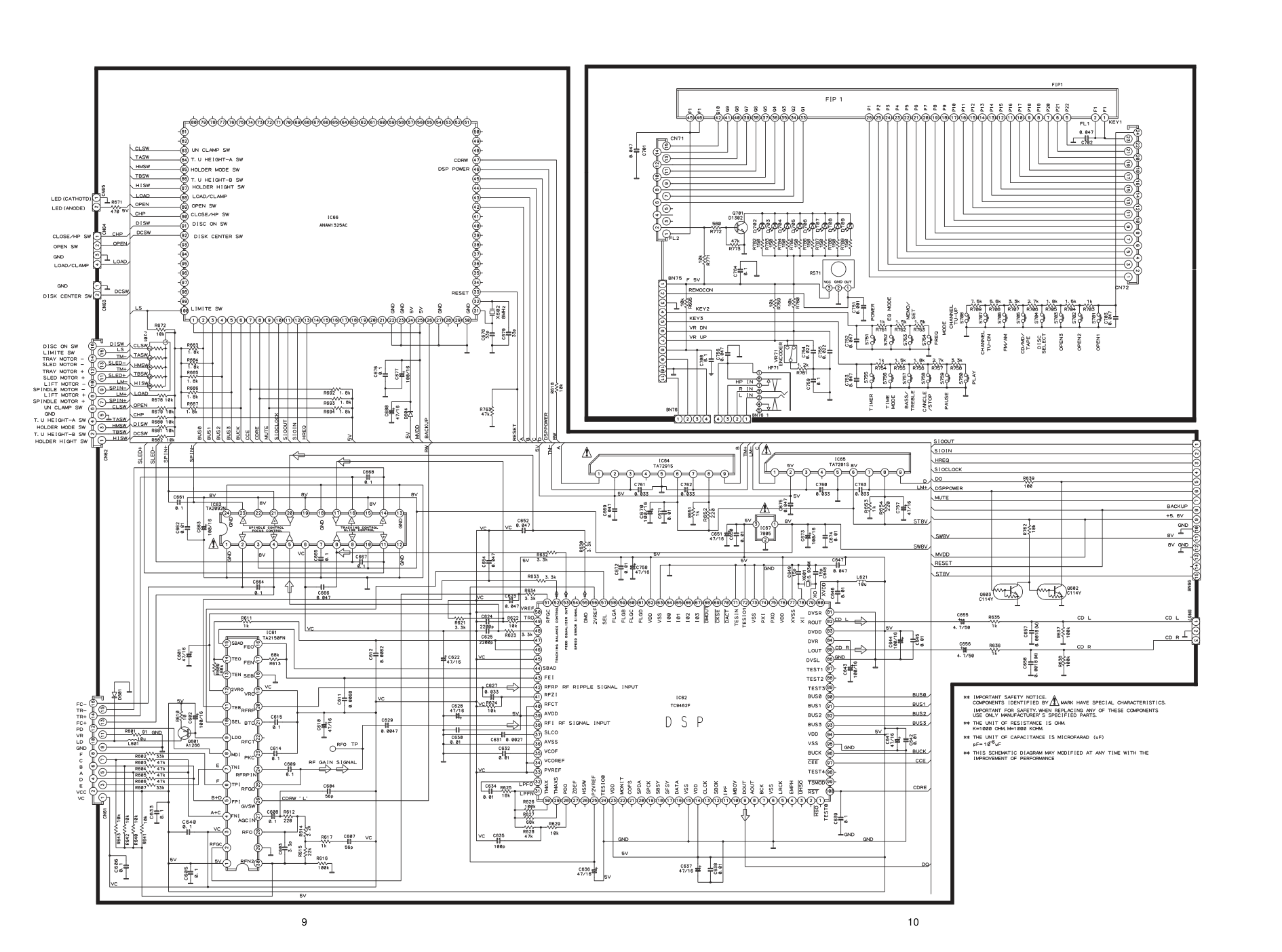

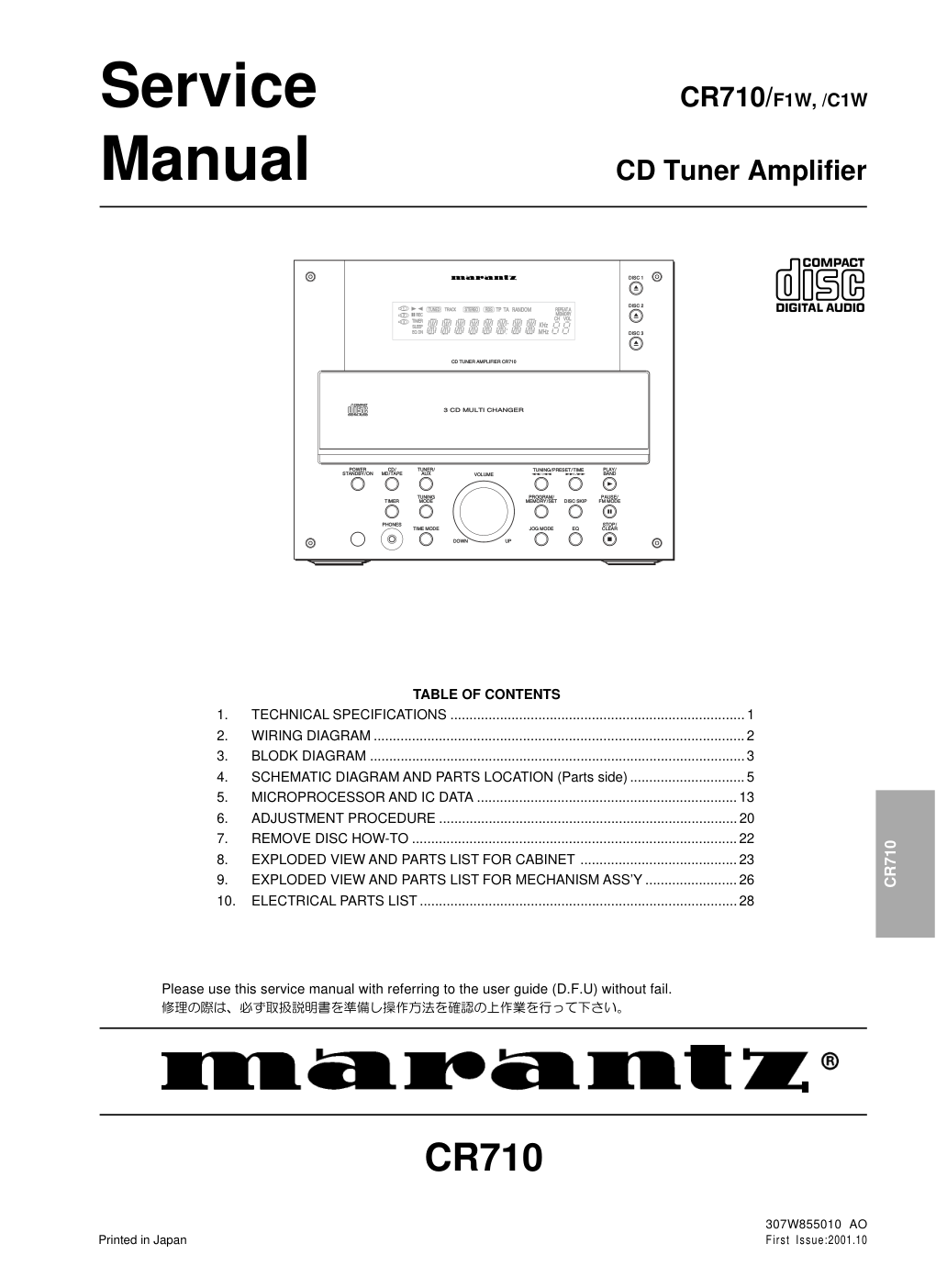

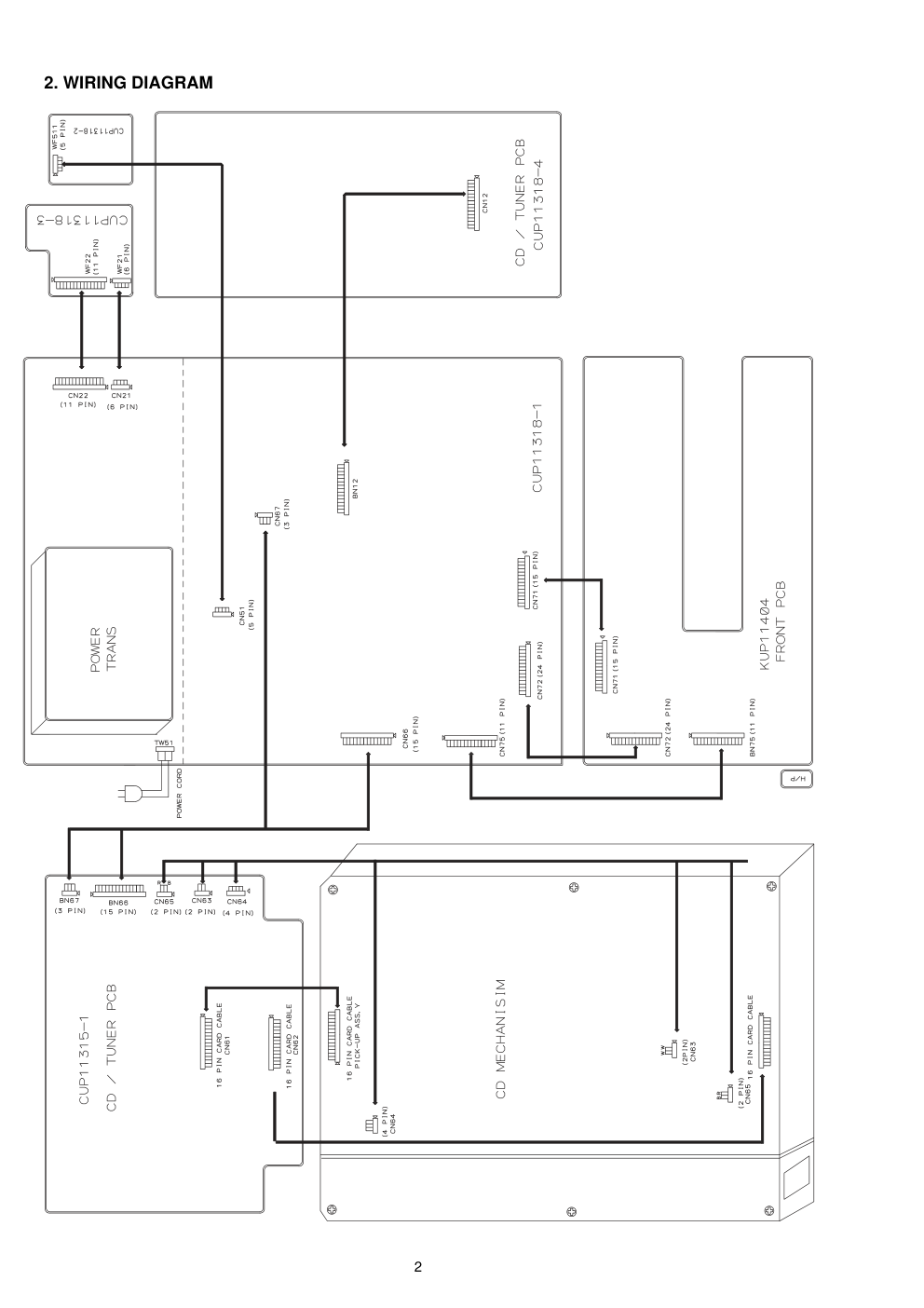

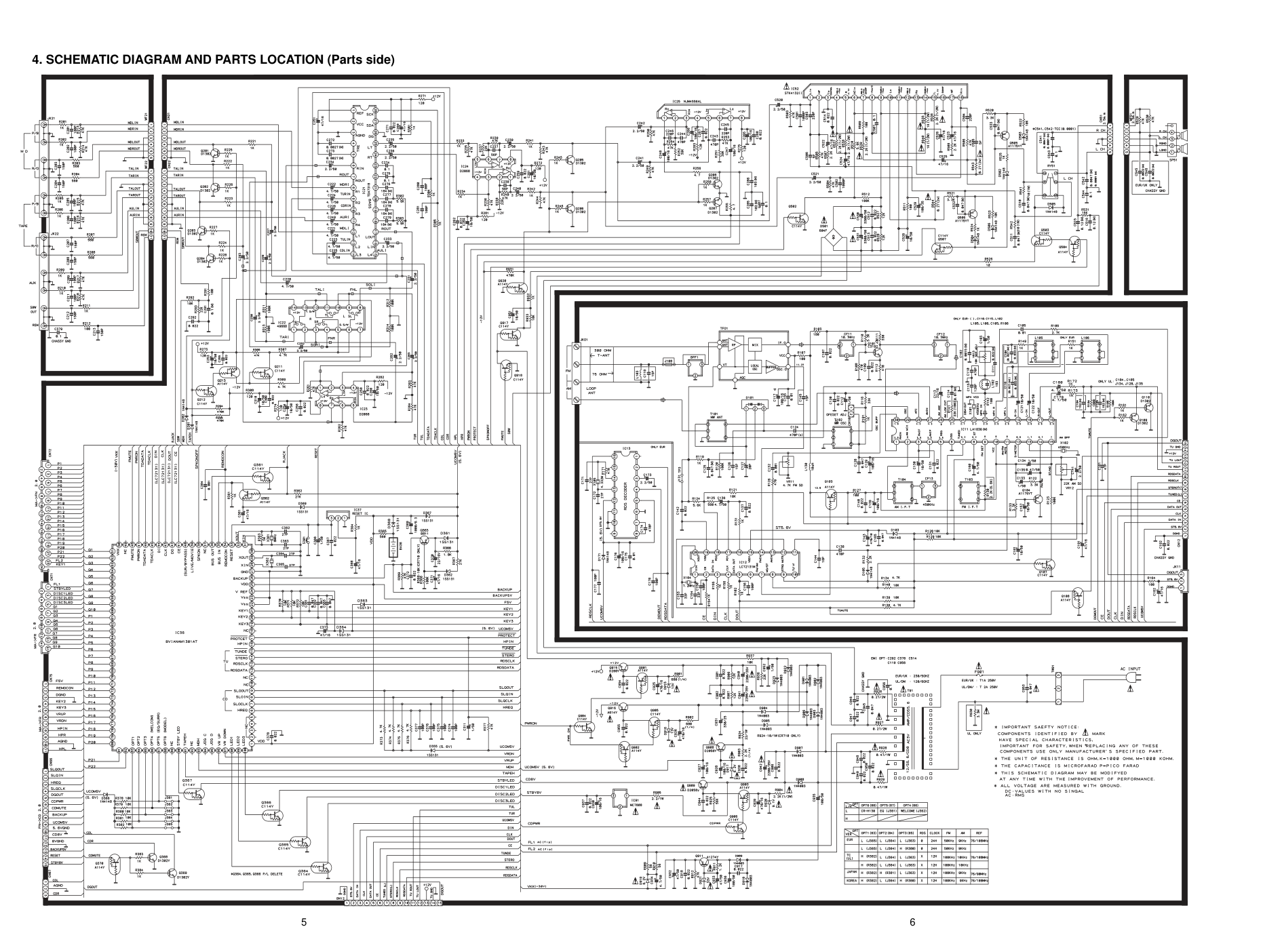

Service Manual Please use this service manual with referring to the user guide (D.F.U) without fail. 307W855010 AO First Issue:2001.10 CD Tuner Amplifier CR710 Printed in Japan TABLE OF CONTENTS 1. TECHNICAL SPECIFICATIONS ............................................................................. 1 2. WIRING DIAGRAM ................................................................................................. 2 3. BLODK DIAGRAM ..................................................................................................3 4. SCHEMATIC DIAGRAM AND PARTS LOCATION (Parts side) .............................. 5 5. MICROPROCESSOR AND IC DATA .................................................................... 13 6. ADJUSTMENT PROCEDURE ..............................................................................20 7. REMOVE DISC HOW-TO .....................................................................................22 8. EXPLODED VIEW AND PARTS LIST FOR CABINET .........................................23 9. EXPLODED VIEW AND PARTS LIST FOR MECHANISM ASS’Y ........................ 26 10. ELECTRICAL PARTS LIST ...................................................................................28 CR710/F1W, /C1W UP DOWN VOLUME PHONES TIMER STANDBY / ON POWER CD / MD / TAPE TUNER / AUX TUNING MODE TIME MODE TUNING / PRESET / TIME MEMORY / SET PROGRAM / PAUSE / DISC SKIP JOG MODE EQ CLEAR FM MODE PLAY / BAND STOP / DISC 2 DISC 3 DISC 1 CD TUNER AMPLIFIER CR710 3 CD MULTI CHANGER 1 2 3 CR710 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620 A.O USA USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN JAPAN Technical MARANTZ JAPAN, INC. MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING EUROPE / TRADING MARANTZ EUROPE B.V. MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA CANADA LENBROOK INDUSTRIES LIMITED LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA AUSTRALIA QualiFi Pty Ltd, QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND NEW ZEALAND WILDASH AUDIO SYSTEMS NZ WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND THAILAND MRZ STANDARD CO.,LTD MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN TAIWAN PAI- YUING CO., LTD. PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS AMERICAS SUPERSCOPE TECHNOLOGIES, INC. SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA AUSTRALIA KOREA KOREA MK ENTERPRISES LTD. MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1. TECHNICAL SPECIFICATIONS 1 Amplifier section 1 kHz continuous outpu stereo channel drive, 2ch x 20W, 0.5% S/N Aux, Tape, MD (IHF-A) 90dB Inpu t sensitivity & Impedance Aux, Tape, MD(IHF-A) 200mV Frequency character Aux, Tape, MD 10Hz 60kHz (-3dB) Ton e control: Treble 9dB Bass 9dB Tuner section Frequency range 87.5 108.00 MHz (100kHz interval) Inpu t Sensitivity 15dB (S/N 30dB) To tal Harmonic Distortion 0.2% S/N ratio: Mono 65dB Stereo 60dB Stereo separation 1kHz 35dB Frequency range 522 1620 kHz (9kHz interval) Inpu t sensitivity 50dB (S/N 20dB) To tal Harmonic Distortion 1.5% S/N ratio 40dB CD section Channels 2 Channels Frequency response 20Hz 20,000Hz 1.5dB S/N ratio 87dB (IHF ‘A’ Filter) Distortion 0.1% Channel separation 65dB (1kHz) Sampling rate 44.1kHz Error correction CIRC D/A conversion CMOS delta-Sigma D/A converter (1 Bit) Optical readout Laser Semicondu ctor laser Wavelength 780nm General Power supp ly 220V, 60Hz Power consumption 105W Dimension (W x H x D) 175 x 140 x 360 mm Weight 4.0kg ................................. ................................. .................................... .................................... ....................................... ........................................................... ................................ ........................................... ................................................. ................................................... ................................. .............. .................. ............................................ .............................................. ............................................................... ........................................................ ................................................................. ..................................... .............................................. ............................................ .................................................... .................................................. .................................................... ........... ........... ... ... .. 2. WIRING DIAGRAM 2 3. BLOCK DIAGRAM 3 4 4. SCHEMATIC DIAGRAM AND PARTS LOCATION (Parts side) 5 6 7 8 MAIN PCB SPK TERMINAL PCB INPUT PCB TUNER PCB Q205 IC25 Q701 Q206 Q207 Q306 Q208 Q305 Q917 IC37 Q363 IC36 Q918 Q361 Q362 Q212 Q915 Q916 Q920 Q911 Q307 Q901 IC91 Q368 Q369 Q905 Q370 Q211 Q213 Q902 Q904 Q906 IC22 Q201 IC21 Q203 Q204 Q504 Q503 Q507 Q202 Q505 Q502 Q506 Q903 IC13 Q109 Q104 Q107 Q103 Q108 IC12 Q110 IC11 Q101 Q908 Q909 IC52 9 10 11 12 FRONT PCB HEADPHONE PCB Q701 Q603 Q602 IC66 IC64 IC65 IC62 Q601 IC63 IC61 IC62 IC66 CD MECHANISM PCB 5. MICROPROCESSOR AND IC DATA 13 14 P95 (S19) P94 (S18) P93 (S17) P92 (S16) P91 (S15) P90 (S14) P87 (S13) P86 (S12) P85 (S11) P84 (S10) P83 (S9) P82 (S8) P81 (S7) P80 (S6) P77 (S5/G0) P76 (S4/G1) P75 (S3/G2) P74 (S2/G3) (S20) P96 (S21) P97 (S22) PD0 (S23) PD1 (S24) PD2 (S25) PD3 (S26) PD4 (S27) PD5 (S28) PD6 (S29) PD7 (S30) PE0 (S31) PE1 (S32) PE2 (S33) PE3 (S34) PE4 (S35) PE5 (S36) PE6 (S37) PE7 (S38) PE0 P73 (S1/G4) P72 (S0/G5) P71 (G6) P70 (G7) P57 (G8) P56 (G9) P55 (G10) P54 (G11) P53 (G12) P52 (G13) P51 (G14) P50 (G15) VDD VSS VASS VAREF VDD P20 TEST (XTIN) P21 (XTOUT) P22 VSS 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 (S39) PF1 100 VKK P07 P06 P05 P04 P03 P02 P01 P00 P17 P16 P15 (TC 2) P14 (PPO) P13 (DVO) P12 (INT 2/TC 1) P11 (INT 1) P10 (INT 0) RESET XOUT 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 XIN 31 VDD P9 VFT drive circuit (automatic display) Key scan control Program counter Register banks Stack Pointer P S W Interrupt Controller System Controller Standby Controller Timing Generator High frequ. Low frequ. Clock Generator Time Base Timer 16-bit Timer/Counters TC1 TC2 TC3 TC4 SIO HSO 8-bit Timer/Counters Serial Interfaces P4 P47 to P40 P3 P33 to P30 P1 P17 to P10 P0 P07 to P00 P67 to P60 VAREF VASS P6 (AIN7) to (AIN0) P2 P22 to P20 Inst. Register Inst. Decoder Watchdog Timer 8-bit A/D Converter Flags ALU RBS Program Memory (ROM) Data Memory (RAM) I/O Ports P97 to P90 P8 P87 to P80 P7 I/O Ports P77 to P70 P5 P57 to P50 PIE PIE7 to PIE0 PIF PIF1 to PIF0 PID PID7 to PID8 Power Supply VFT Power Supply Reset I/O Test Pin Resonator connecting Pins VSS VKK RESET TEST XIN XOUT OUTPUT Ports I/O Ports BLOCK DIAGRAM IC36 : BVIANAM1301T PIN CONFIGURATION PIN FUNCTION PIN No. NAME I/ O DESCRIPTION VDD HREQ SLQCLK SLQIN SLQOUT DATA CLOCK STEREO IN TUNED HPIN PROTECTOR KEY MATRIX VSS VAREF BACK UP X-TAL X IN X OUT RESET REMOTE IN BUS IN BUS OUT SPEAKER CE DATA OUT CLOCK DATA IN CLOCK DATA POWER MUTE VFL GRID SEGMENT CD POWER ON/STBY LED TAPE ‘H’ MD ‘H’ JOG CONTROL 1, 25 6 7 8 9 12 13 14 15 16 17 19, 20, 21 22,23,27,30 24 26 28, 29 31 32 33 34 35 36 38 41 42 43 44 45 46 47 48 50 52 ~ 60 61 ~ 82 83 ~ 87 89 90 91 93 96, 97 POWER SUPPLY (+5V) BUS for CD CLOCK BUS for CD CHIP ENABLE RESET for CD MUTE for CD SINGLE EUROPE VERSION RDS DATA CONTROL PORT STEREO IN CONTROL INPUT TUNED CONTROL INPUT PROTECTOR IN PORT KEY MATRIX PORTS GND A/D CONVERTOR REFERENCE VOLTAGE BACK-UP MODE CONTROL INPUT 32.768kHz SUB CLOCK CONNECTING PORT 8MHz CRYSTAL CONNECTING TERMINAL SYSTEM RESET PULSE INPUT REMOTE CONTROL SIGNAL INPUT REMOTE CONTROL SIGNAL INPUT REMOTE CONTROL SIGNAL INPUT SPEAKER ON/OFFPORT PLL DATA CONTROL PORT TDA7318D DATA CONTROL PORT POWER ON/OFF SIGNAL MUTE (-33V) NEGATIVE POWER SUPPLY FOR FIP BLINKING FIP GRID CONTROL OUTPUTS FIP SEGMENT CONTROL OUTPUTS AREA OPTION CD POWER ON/OFF PORT ON/STANDBY LED CONTROL PORT ON TAPE FUNCTION ‘H’ OUTPUT PORT ON MD FUNCTION ‘H’ OUTPUT PORT VOL/BAL/BASS/TRE CONTROL JOG INPUT PORT - I/O I/O I O O O I I I I - - I I I O I I I O O O O O I O O O O O O I O O O O I P95 (S19) P94 (S18) P93 (S17) P92 (S16) P91 (S15) P90 (S14) P87 (S13) P86 (S12) P85 (S11) P84 (S10) P83 (S9) P82 (S8) P81 (S7) P80 (S6) P77 (S5/G0) P76 (S4/G1) P75 (S3/G2) P74 (S2/G3) (S20) P96 (S21) P97 (S22) PD0 (S23) PD1 (S24) PD2 (S25) PD3 (S26) PD4 (S27) PD5 (S28) PD6 (S29) PD7 (S30) PE0 (S31) PE1 (S32) PE2 (S33) PE3 (S34) PE4 (S35) PE5 (S36) PE6 (S37) PE7 (S38) PE0 P73 (S1/G4) P72 (S0/G5) P71 (G6) P70 (G7) P57 (G8) P56 (G9) P55 (G10) P54 (G11) P53 (G12) P52 (G13) P51 (G14) P50 (G15) VDD VSS VASS VAREF VDD P20 TEST (XTIN) P21 (XTOUT) P22 VSS 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 (S39) PF1 100 VKK P07 P06 P05 P04 P03 P02 P01 P00 P17 P16 P15 (TC 2) P14 (PPO) P13 (DVO) P12 (INT 2/TC 1) P11 (INT 1) P10 (INT 0) RESET XOUT 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 XIN 31 VDD P9 VFT drive circuit (automatic display) Key scan control Program counter Register banks Stack Pointer P S W Interrupt Controller System Controller Standby Controller Timing Generator High frequ. Low frequ. Clock Generator Time Base Timer 16-bit Timer/Counters TC1 TC2 TC3 TC4 SIO HSO 8-bit Timer/Counters Serial Interfaces P4 P47 to P40 P3 P33 to P30 P1 P17 to P10 P0 P07 to P00 P67 to P60 VAREF VASS P6 (AIN7) to (AIN0) P2 P22 to P20 Inst. Register Inst. Decoder Watchdog Timer 8-bit A/D Converter Flags ALU RBS Program Memory (ROM) Data Memory (RAM) I/O Ports P97 to P90 P8 P87 to P80 P7 I/O Ports P77 to P70 P5 P57 to P50 PIE PIE7 to PIE0 PIF PIF1 to PIF0 PID PID7 to PID8 Power Supply VFT Power Supply Reset I/O Test Pin Resonator connecting Pins VSS VKK RESET TEST XIN XOUT OUTPUT Ports I/O Ports BLOCK DIAGRAM IC66 : BVIANAM1325AC PIN CONFIGURATION PIN FUNCTION PIN No. NAME I/ O DESCRIPTION VDD BUS 0 BUS 1 BUS 2 BUS 3 BUCK CCE CDRE MUTE SIO CLOCK SIO OUT SIO IN HREQ VSS X IN X OUT RESET A B C D DSP POWER CD-RW UN CLAMP SW T.U HEIGHT SW HOLDER MODE SW T.U HEIGHT SW HOLDER HEIGHT SW LOAD/CLAMP OPEN SW CLOSE/HP SW DISC ON SW DISC CENTERSW LIMIT SW 1, 25 2 3 4 5 6 7 8 9 10 11 12 13 22,23,27,30 31 32 33 42 43 44 45 46 47 83 84 85 86 87 88 89 90 91 92 100 POWER SUPPLY (+5V) BUS for CD DATA BUS for CD DATA BUS for CD DATA BUS for CD DATA BUS for CD CLOCK BUS for CD CHIP ENABLE RESET for CD MUTE for CD SINGLE BUS for CD DATA GND 8MHz CRYSTAL CONNECTING TERMINAL SYSTEM RESET PLL DATA CONTROL PORT CD POWER ON/OFF LOW: CD-RW, HIGH: CD MECHANISM SW CONDITION - I/O I/O I/O I/O I/O I/O O O I/O I/O I/O I/O - I O I O O O O O O I I I I I I I I I I I 15 IC61 : TA2150FN (RF/DIGITAL SERVO) BLOCK DIAGRAM PIN FUNCTION PIN No. NAME I/O DESCRIPTION REMARK VCC RFGC GMAD FNI FPI TPI TNI MDI LDO SEL TEN 2VRO TEN TEO SBAD FEO FEN SEB VRO RFRP BTC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Power supply input terminal RF amplitude adjustment control signal input terminal. Controlled by 3 PWM signal (PWM carrier = 88.2 kHz) Open loop gain adjustment terminal for AGC amp. Main beam l-V amp input terminal. Main beam l-V amp input terminal. Sub beam l-V amp input terminal. Sub beam l-V amp input terminal. Monitor photo diode amp input terminal. Laser diode amp input terminal. Laser diode control signal input terminal and APC circuit ON/OFF control signal terminal. Tracking error balance adjustment signal input terminal. Controlled by 3-PWM signal. (PWM carrier = 88.2 kHz) Reference voltage (2vro) output terminal. 2VRO=4.2V when Vcc=5V TE amp negative input terminal. TE error signal output terminal. Sub beam adder signal output terminal. Focus error signal output terminal. FE amp negative input terminal. RFRP output circuit switching terminal. Reference signal(VRO) output terminal. VRO = 2.1V when Vcc=5V Track count signal output terminal. Time constant adjustment terminal for bottom detection. - 3 signal input (2 VRO, VRO, GND) (Note1) Connected to pin diode output B+D (through resistor). Connected to pin diode output A+C (through resistor). Connected to pin diode output F. Connected to pin diode output E. Connected to monitor photo diode. Connected to laser diode control circuit. 3 signals input. (Vcc, HIZ,GND) 3 signals input. (2VRO, VRO, GND) - Connected to TEO through feedback resistor. - - - Connected to FEO through feedback resistor. Low(GND) is for nomal use. - - Adjusted by capacitance. - I I I I I I I O I I O I O O O I I O O I SEL GND HIZ Vcc RFRP Detct Frequency LOW LOW High LDC SW1 SW2 SW3 ON OFF OFF OFF ON ON OFF ON ON SEB GND HIZ Vcc Bottom Detect ON ON OFF Peak Detect ON ON ON PIN No. NAME I/O DESCRIPTION REMARK - Adjusted by capacitance. - - Low(GND) is for 5 times gain. Connected to RFO through capacitance. - - Connected to pin-diode output A+B+C+D (through resistor. 16 RFGC I.I I.I 40pF 15pF 3pF 36pF 20 k 20 k 20 k 20 k 11 k 11 k 90 k 238 k 238 k 13 k 83 k 2.26 k 1.4 k 2.9 k 48 k 10 k 10 k 10 k 50 k 15 k 15 k 10 k 30 k 20 k 1 k SW1 20 k 150 k 1 k 1 k 60 k 60 k 100 100 k 20 k 150 k 30 k 21.82 k 40pF 3pF 100 k 12 k 12 k 60 k 20pF AGC Amp. BOTTOM PEAK 15pF SW1 SW2 SW3 3 STATE DET. LDO SEL TEB 2VRO TEN TEO SBAD MDI TNI TPI FPI FNI GMAD RFGC VCC RFCT BTC RFRP VRO SEB FEN FEO PKC RFRPIN RFGO GVSW AGCIN RFO GND RFN2 + + + + + + + + + + + + + 17 18 19 20 21 22 23 24 25 26 27 28 29 30 15 14 13 10 11 12 9 8 7 6 5 4 3 2 1 + + RFCT PKC RFRPIN RFGO GVSW AGCIN RFO GND RFN2 22 23 24 25 26 27 28 29 30 RFRP signal center level output terminal. Time constant ajustment terminal for peak detection. Input terminal for track count signal output amp. Output terminal for RF signal amplitude adjustment amp. Amp(AGC, FE, TE) gain switching terminal. Input terminal for RF signal amplitude adjustment amp. Output terminal RF signal amp. Ground terminal. Input tetminal for RF signal amp. O I I O I I O - I GVSW GND HIZ Vcc Mode CD-RW Nomal 16 PIN No. NAME DESCRIPTION PW GND OUT (-) 1 PVCC1 OUT (+) 1 VIN1 VRI VCI VIN2 OUT (+) 2 PVCC2 OUT (-) 2 PW GND PW GND OUT (-) 3 PVCC3 OUT (+) 3 VIN3 S GND S VCC VIN4 OUT (+) 4 PVCC4 OUT (-) 4 PW GND IC63 : TA2092N (POWER DRIVER) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Power GND Connected to substrate. , , , pin are connected inside. Inverted output for CH1 Supply terminal of output stage for CH1 Supply terminal of output stage are not connected to other channel terminal. Non-inverted output for CH1 Input for CH1. Not biased inside Input reference voltage Under condition of VRI 1.8V, internal bias circuit is shut off. No signal input condition : V RI = VIN Output reference voltage. V OUT = VCI = (VCC-VF)/2 Input for CH2 Non-inverted output for CH2 Supply terminal of output stage for CH2 Inverted output for CH2 Power GND Power GND Inverted output for CH3 Supply terminal of output stage for CH3 Non-inverted output for CH3 Input for CH3 Supply terminal of small signal GND Small signal GND Input for CH4 Non-invered output for CH4 Supply terminal of output stage for CH4 Inverted output for CH4 Power GND BLOCK DIAGRAM PIN FUNCTION 12 1 11 2 10 6 5 4 9 8 7 3 13 24 14 23 15 19 20 21 16 17 18 22 PW GND PW GND PVCC4 PVCC3 SVCC1 SGND PW GND PW GND PVCC1 PVCC2 VCC 1 12 13 24 17 IC11 : LA1836M (TUNER) IC21 : TDA7318D IC64/IC65 : TA7291S (BRIDGE DRIVER) BLOCK DIAGRAM PIN FUNCTION 30 29 28 27 26 25 24 23 22 19 18 17 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 21 DECODER ANT1 BRIDIE STEREO SM STEREO DRIVE TRIQ FF FF PHASE DET FF FM AM S METER VCO PILOT DET Vcc MUTE AM/FM SW 20 IC23 : LC4966 (INPUT) 1 2 3 4 5 6 7 14 VCC CONTROL 1 CONTROL 2 CONTROL 3 CONTROL 4 SW2 SW4 VEE SW1 SW2 13 12 11 10 9 8 VCC 7 / 2 / 11 4 / 8 / 5 5 / 9 / 7 IN1 GND IN2 6 / 1 / 9 1 / 5 / 1 8 / 6 / 15 2 / 7 / 4 OUT2 VS 10 / 3 / 13 TA7291P / TA7291S / TA7291F REG PROTECTOR CIRCUIT (TSD) Vref M SYMBOL FUNCTIONAL DESCRIPTION 7 8 4 1 5 6 2 10 2 6 8 5 9 1 7 3 11 15 5 1 7 9 4 13 VCC VS Vref GND IN1 IN2 OUT1 OUT2 Supply voltage terminal for Logic Supply voltage terminal for motor drive Supply voltage terminal for control GND terminal Input terminal Input terminal Output terminal Output terminal PIN No. P S F P Type : PIN , : NC S Type : PIN 4 : NC F Type : PIN , , , , , , ,and : NC For F Type, We recommend FIN to be connected to the GND. 3 2 3 6 8 10 12 14 16 9 18 PIN No. NAME I/ O FUNCTIONAL DESCRIPTION REMARKS TEST0 HSO UHSO EMPH LRCK VSS BCK AOUT DOUT MBOV IPF SBOK CLCK VDD VSS DATA SFSY SBSY SPCK SPDA COFS MONIT VDD TESIO0 P2VREF HSSW ZDET PDO TMAXS TMAX With pull-up resistor. - - - - - - - - - - - - - - - - - - - - - - - 2-state output (PV REF,HiZ) - 3-state output (P2VREF,PVREF,VSS) - 3-state output (P2VREF,HiZ,VSS) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Test mode terminal. Normally, keep at open. Playback speed mode flag output terminal. Subcode Q data emphasis flag output terminal. Emphasis ON at “H” level and OFF at “L” level. The output polarity can invert by command. Channel clock output terminal. (44.1 kHz) L-ch at “L” level and R-ch at “H” level. The output polarity can invert by command. Digital GND terminal. Bit clock output terminal. (1.4112 MHz) Audio data output terminal. Digital data output terminal. Buffer memory over signal output terminal. Over at “H” level. Correction flag output terminal. At “H “ level, AOUT output is made to correction impossibility by C 2 correction processing. Subcode Q data CRCC check adjusting result output terminal. The adjusting result is OK at “H” level. Subcode P~W data readout clock input/output terminal. This terminal can select by command bit. Digital power supply voltage terminal. Digital GND terminal. Subcode P~W data output terminal. Playback frame sync signal output terminal. Subcode block sync signal output terminal. Processor status signal readout clock output terminal. Processor status signal output terminal. Correction frame clock output terminal. (7.35 kHz) Internal signal (DSP internal flag and PLL clock) output terminal. Selected by command. Digital power supply voltage terminal. Test input/output terminal. Normally, keep at “L” level. PLL double reference voltage supply terminal. 2/4 times speed at “VREF” voltage. 1 bit DA converter zero detect flag output terminal. Phase difference signal output terminal of EFM signal and PLCK signal. TMAX detection result output terminal. Selected by command bit (TMPS). TMAX detection result output terminal. Selected by command bit (TMPS). - O O O O - O O O O O O I/O - - O O O O O O O - I - O O O O O UHSO HSO PLAYBACK SPEED H H Normal H L 2 times L L H 4 times L - DIFFERENCE RESULT TMAX OUTPUT Longer than fixed ferq. “P2V REF” Shorter than fixed freq. “V SS” Within the fixed freq. “HiZ” PIN No. NAME I/ O FUNCTIONAL DESCRIPTION REMARKS LPFN LPFO PVREF VCOREF VCOF AVSS SLCO RFI AVDD RFCT RFZI RFRP FEI SBAD TSIN TEI TEZI FOO TRO VREF RFGC TEBC TEBC TEBC DMO 2VREF SEL FLGA FLGB FLGC FLGD VDD VSS IO0 IO1 IO2 IO3 Analog input. Analog output. - - Analog output. - Analog output. Analog input (Zin : selected by command) - Analog input (Zin : 50k ) Analog input. Analog input. Analog input. Analog input. Analog input. Analog input. Analog input (Zin : 10k ) Analog output (2V REF ~AVSS) - 3-state PWM signal output. (2VREF, VREF, VSS) (PWM carrier = 88.2 kHz) 3-state PWM signal output.(2VREF, VREF, VSS) - - - - - - - - - 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 LPF amplifier inverting input terminal for PLL. LPF amplifier output terminal for PLL. PLL reference voltage supply terminal. VCO center frequency reference level terminal. Normally, keep at “PV REF” level. VCO filter terminal. Analog GND terminal. Data slice level output terminal. RF signal input terminal. Analog power supply voltage terminal. RFRP signal center level input terminal. RFRP zero cross input terminal. RF ripple signal input terminal. Focus error signal input terminal. Sub-beam adder signal input terminal. Test input terminal. Normally, keep at “VREF” level. Tracking error signal input terminal. Track in at tracking servo on. Trcaking error zero cross input terminal. Focus servo equalizer output terminal. Tracking servo equalizer output terminal. Analog reference voltage supply terminal. RF amplitude adjustment control signal output terminal. Tracking balance control signal output terminal. Feed equalizer output terminal. Speed error signal or feed search equalizer output terminal. Disk equalizer output terminal. (PWM carrier = 88.2 kHz for DSP, Synchronize to PXO) Analog double reference voltage supply terminal. APC circuit ON/OFF indication signal output terminal. At the laser on time, UHF = L at “HiZ” level and UHF = H at “H” level. Extemal flag output terminal for internal signal. Can select signal from TEZC, FOON, FOK and RFZC by command. Extemal flag output terminal for internal signal. Can select signal from DECT, FOON, FMON and RFZC by command. Extemal flag output terminal for internal signal. Can select signal from TRON, TRSR, FOK and SRCH by command. Extemal flag output terminal for internal signal. Can select signal from TRON, DMON, HYS and SHC by command. Digital power supply voltage terminal. Digital GND terminal. General I/O terminal. Can change over input port or output port by command. At the input mode time can readout a state of terminal (H/L) by read command. At the output mode time can control a state of terminal (H/L/HiZ) by command. I O - I O - O I - I I I I I I I I O O - O O O O O - O O O O O - - I/O 1 100 99 Micom Interface LPF 1bit DAC Clock generator Correction circuit 16K RAM Address circuit Digital out Sub code decoder PLL TMAX Data slicer A / D VCO CLV servo RAM ROM Digital equalizer Servo control PWM D / A Automatic adjustment circuit Status Synchronous guarantee EFM decode Audio out circuit TEST 0 HSO UHSO EMPH LRCK VSS BCK AOUT DOUT MBOV IPF SBOK CLCK VDD VSS DATA SFSY SBSY SPCK SPDA COFS MONIT VDD TESIO 0 P2VREF HSSW ZDET PDO TMAXS TMAX XVDD XO XI XVSS VDD PXO PXI VSS TES I/N TES IO1 DACT CKSE DMOUT IO3 IO2 IO1 IO0 VSS VDD FLGD FLGC FLGB FLGA SEL 2VREF DM/O FVO FMO TEBC RFGC LPFN LPFO PVREF VCOREF VCOF AVSS SLCO RF1 AVDD RFCT RFZI RFRP EF1 SBAD TSIN TEI TEZI FOO TRO VREF RST TSMOD TEST4 CCE BUCK VSS VDD BUS3 BUS2 BUS1 BUS0 TEST3 TEST2 TEST1 DVSL LO DVR DVDD RO DVSR 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 2 3 4 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 23 24 22 26 27 25 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 28 IC62 : TC9462F (DIGITAL SIGNAL PROCESSOR) BLOCK DIAGRAM PIN FUNCTION 19 PIN No. NAME I/ O FUNCTIONAL DESCRIPTION REMARKS DMOUT CKSE DACT TESIN TESIO1 VSS PXI PXO VDD XVSS XI XO XVDD DVSR RO DVDD DVR LO DVSL TEST1 TEST2 TEST3 BUS0 BUS1 BUS2 BUS3 VDD VSS BUCK CCE TEST4 TSMOD RST With pull-up resistor. With pull-up resistor. With pull-up resistor. Analog input. Analog input. - - - - - - - - - - - - - With pull-up resistor. With pull-up resistor. With pull-up resistor. Schmit input. With pull-up resistor. - - Schmit input. Schmit input. With pull-up resistor. With pull-up resistor. With pull-up resistor. 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 This terminal controls IO0~IO3 terminal. At “L” level time, IO0, 1 out feed equalizer signal of 2-state PWM. IO2, 3 out disk equalizer signal of 2-state PWM. Normally, keep at open. DAC test mode terminal. Normally, keep at open. Test input terminal. Normally, keep at “L” level. Test input/output terminal. Normally, keep at “L” level. Digital GND terminal. Crystal oscillator connecting input terminal for DSP. Normally, keep at “L” level. Crystal oscillator connecting output terminal for DSP. Digital power supply voltage terminal. Oscillator GND terminal for system clock. Crystal oscillator connecting input terminal for system clock. Crystal oscillator connecting output terminal for system clock. Oscillator power supply voltage terminal for system clock. Analog GND terminal for DA converter. (R-ch) R channel data forward output terminal. Analog supply voltage terminal for DA converter. Reference voltage terminal for DA converter. L channel data forward output terminal. Analog GND terminal for DA converter. (L-ch) Test mode terminal. Normal, keep at open. Test mode terminal. Normal, keep at open. Test mode terminal. Normal, keep at open. Micom interface data input/output terminal. Digital Ppower supply voltage terminal. Digital GND terminal. Micom interface clock input terminal. Command and data sending/receiving chip enable signal input terminal. The bus line becomes active at “L” level. Test mode terminal. Normal, keep at open. Local test mode selection terminal. Reset signal input terminal. Reset at “L” level. I I I I I - I O - - I O - - O - - O - I I I I/O I/O I/O I/O - - I I I I I 20 6. ADJUSTMENT PROCEDURE ALIGNMENT INSTRUCTIONS EQUIPMENT NEEDED: AM Signal Generator FM Signal Generator Oscilloscope VTVM(AC, DC) Test loop antenna (AW Adjustment) Dummy antenna (FM Adjustment) Stereo signal modulator Frequency counter Distortion analyser IMPORTANT 1. Check power-source voltage. 2. Set the function switch to band aligned. 3. Keep the signal input as low as possible to adjust accurately. 4. Modulation and modulation frequency. Item Modulation Modulation frequency Band AM 30% 400Hz FM 100%(75KHz Dev.) 400Hz ADJUSTMENT POINT PACK1 L2 T101 L5 J131 VT L1 L3 L4 L6 L7 T1 AM ANT COIL CN12 T102 AM OPTICAL FM AM OSC C127 TRIMMER VR13 SEP ADJ T101 FM IFT VR12 AM TUNED ADJ VR11 FM TUNED ADJ T103 IC12 FM IFT T104 CN10 OFFSET ADJ AM IFT IC11 LC72131 CUP11318-4 21 MEASUREMENTS AND ADJUSTMENTS 1. FM, AM TRACKING VOLTAGE ADJUSTMENTS (FM, AM) DC VOLTMETER........................... CONNECT TO TEST POINT TP1 and GND NO. Band Frequency Adjust for Adjustment 1 FM 87.50MHz 1.5V L7 2 AM 530KHz 1V T102 2. AM RF ADJUSTMENT Signal Generator ........................ Connects to the AM ANT. Coil through the loop antenna. Adjust for the indication of VTVM of the wave form of scope to be maximum. BAND Step Frequency Adjust for Adjustment 1 610KHz Maximum sensitivity T101, L104 2 1510KHz Maximum sensitivity C127 3 Repeat steps 1 and 2 several times. AM 3. FM-RF ADJUSTMENT Signal Generator ........................ Connect to FM ANT JACK (FM IN) through the dummy. NO. Frequency Adjust for Adjustment 1 90.10MHz Maximum Sensitivity L2, L5, L6 2 Repeat step 1 several times. TP03 GND 22 7. REMOVE DISC HOW-TO To remove disc, follow the steps below to remove top cover of MECHANISM ASS'Y (refer to EXPLODED VIEW AND PART LIST FOR MECHANISM ASS'Y. pase 26 ). 1) Remove top cover. Then, remove Main PCB and Power PCB from MECHANISM ASS'Y. 2) Remove 6pcs screws from Holder(Top) . 3) Pull-up Holder (Top) . 4) Remove FFC from Holder (Load) Assy . 5) Remove Holder (Top) . 6) Remove BIND TAPPING SC 2.6 x 8(BL) from HOLDER (SHAFT) ASSY . 7) Pull-up TRAY , and remove HOLDER (SHAFT) ASSY . 8) Pull SHAFT(TRAY) abou t 1cm, and remobe TRAY with lifting. 9) Remove the Disc 120 7 7 76 120 7 7 7 76 116 116 6 6 116 116 6 7 84 6 77 77 71 71 84 4. FM MONO DISTORTION ADJUSTMENT DC VOLT METER........................Connect to TP1(-), TP2(+) Through the choke coll (100 H) Signal Generator ........................Connect to FM ANT Jack (FM IN) through the dummy. Distortion Meter .........................Connect to the output. NO. Frequency Adjust for Adjustment 1 100.10MHz DC Voltmeter 0V T103 2 100.10MHz Minimum T.H.D T103 3 Repeat steps 1 and 2 Several times. 5. 6. THE WAY TO RETURN TO THE INITIAL SETTING FM/AM AUTO STOP LEVEL ADJUSTMENT FM SIGNAL GENERATOR Push the key of DISC SKIP on front panel around 5 sec, and then return to the initial. ........................Connect to FM ANT Jack (FM IN) through the dummy AM SIGNAL GENERATOR .........................Connect to AM ANT, Coil through the Loop antenna BAND STEP SIGNAL GENERATOR Adjust for Adjustment 1 100.1MHz 30dB Display OFF VR12 2 100.1MHz 30dB Display ON VR12 1 1000KHz 80dB Display OFF VR11 2 1000KHz 80dB Display ON VR11 AM FM TUNED TUNED TUNED TUNED x2 x2 S13 S14 X4 S7 x8 S11 x2 x2 S1 x4 S13 S8 S5 x3 x4 S15 S6 x2 x2 S9 S11 x3 x6 S12 S3 x4 S12 x2 S15 x4 S2 S12 S10 x2 x9 S3 x4 X2 S1 S1 x3 S4 27 16 15 14 13 12 10 9 8 8 11 4 6 7 3 32 31 30 33 29 28 24 35 22 -1 26 25 18 22 23 17 19 34 21 20 5 2 1 8. EXPLODED VIEW AND PARTS LIST FOR CABINET 23 24 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) 1 KBN1A138M7K102 KNOB, TRACK 307W154010 2 KGU1A247Z WINDOW, FRONT 307W063010 3 KUS1A122 SPRING, DOOR 307W115010 4 KGR1A216M7ZK102 ORNAMENT, DOOR 307W162010 5 KGW1A301MLK102 PANEL, SUB nsp 6 KHG1A179 CUSHION, FOOT nsp 7 KKL1A062M7 FOOT (A) 307W057010 8 KBT1A747M7K102 KNOB, FUNCTION 308W270010 9 KBT1A748M7K102 KNOB, PLAY 308W270020 10 KBT2A748M7K102 KNOB, OPEN 308W270030 11 KHG1A178 CUSHION, RUBBER nsp 12 CR710/F1WSET KNOB, POWER 308 307W304500 W270050 13 KGL2A189 INDICATOR, DISPLAY nsp 15 KMH1A121 HOLDER, PCB nsp 16 KOP11404B FRONT PCB ASS’Y CR-710 nsp 17 KKC1B107S35 CABINET, TOP nsp 18 KHG1A104 SUPPORT, CUSHION A4-94-2139 nsp 19 KJDCR710 MECHANISM ASS’Y 20 KOP11381B CD PCB ASS’Y nsp 21 BMH1A104 SUPPORT, MECHA (A) nsp 22 BMH1A105 SUPPORT, MECHA (B) nsp 23 KMD1A405 BRACKET, PCB nsp 24 BUA1A180 CHASSIS, BOTTOM nsp 25 BMH1A088 LOCKER, TOP nsp 26 KKL2A062M7 FOOT (B) 307W057020 27 KHG1A165 CUSHION, FOOT nsp 28 KRE1A018 SUPPORT, PCB nsp 29 KOP11318B MAIN PCB ASS’Y MC-D90TCCC nsp 30 KKD1A033ML CABINET, REAR nsp 31 KHR1A028 BUSHING, AC CORD nsp 32 F BJA2J049Z CORD, POWER (F) JAPAN (100V 7A) *YC000520R 32 C KJA2D046Z CORD, POWER (C) KOREA nsp 34 KGX1A285 COVER, MECHA nsp 35 BMC1A166 PLATE, SHIELD nsp S1 KTS3+8J SCREW nsp S2 KTB3+10G SCREW nsp S3 KTB3+8G SCREW nsp S5 KTW3+6J SCREW nsp S6 KTB3+8J SCREW nsp S7 KTB3+10GFZ SCREW nsp S8 KTB4+8F SCREW nsp S9 KHD2A032 SCREW 3X10 nsp S10 KTB3+8GFZ SCREW nsp S11 KTB3+6J SCREW nsp S12 KTB3+12G SCREW nsp S13 KTB3+14J SCREW nsp S14 KHD1A028FC SCREW, SPECIAL 308W010010 S15 KTB3+10GFC SCREW nsp PACKING BARTCR-710 REMOTE CONTROLLER (RC710CR) ZK307W0010 F KQX1A651Z USER GUIDE (F) CR-710 JAPAN 307W851110 C KQF1A436Z USER GUIDE (C) CR-710 KOREA nsp NOT STANDARD SPARE PARTS KPG1A623Z BOX, OUT CARTON CR-710 nsp KPP1A087Z BAG, POLY (SET) nsp KPS1A506 PAD, SNOW (L) CR-710 nsp KPS1A507 PAD, SNOW (R) CR-710 nsp KABAAM1.5V BATTERY nsp KLR1T201 ANT ADAPTOR, 75-300 (NTSC) UMT-CO-007 nsp KSA267 ANT, FM T 2.2M nsp KSA3A012Z AM LOOP ANTENNA ASS’Y LUG WIRE nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 25 9. EXPLODED VIEW AND PARTS LIST FOR MECHANISM ASS’Y 26 PARTS LIST FOR CABINET POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) 1 E6A 3011 CHASSIS (MAIN) nsp 2 E6B 3032 SLIDER (LIFT-L) nsp 3 E6B 3038 SUB CHASSIS (L) nsp 6 E6B 3043 TRAY 307W163010 7 E6A 3033 HOLDER (TOP) nsp 8 E6B 3031 SLIDER (TU) nsp 9 E6C 3022 HOLDER (CLAMP) nsp 10 E6B 3021 FRAME (TU-A) nsp 11 E6B 3020 SUB CHASSIS (R) nsp 12 E6B 3044 BRACKET (M) nsp 13 E6C 3017 SLIDER (CLAMP) nsp 16 E6C 3034 LEVER (CLAMP) nsp 17 E6C 3036 LEVER (SW4) nsp 19 E6C 3041 CLAMPER 307W005010 20 E6C 3014 CAM (TU) nsp 22 E6D 3002 GEAR (LOAD-B) nsp 23 E6D 3004 GEAR (HELICAL) nsp 25 E6D 3007 GEAR (IDLER-B) nsp 27 E6D 3012 LEVER (SW5) nsp 28 E6D 3013 LEVER (SW6) nsp 29 E6D 3015 GEAR (TU) nsp 30 E6D 3016 GEAR (ZENEBA) nsp 37 E6D 3035 SLIDER (SW-8) nsp 38 E6D 3037 LEVER (SW-7) nsp 39 E6D 3040 ARM (TRAY LOCK) nsp 40 E6D 3042 GUIDE (DISC) nsp 41 E6D 3045 COLLAR (SPRING) nsp 46 E6D 3010 GEAR (CENTER-B) nsp 47 E6D 3003 GEAR (IDLER) nsp 48 E6D 3009 GEAR (CENTER-A) nsp 49 C3D 4003 INSULATOR 307W056010 50 E6D 4003 BELT (LIFT) 307W264010 51 E6D 4004 INSULATOR 307W056020 52 E6D 4005 BELT (TIMING) 307W264020 53 E6D 6001 COMPRESSION SP (GUIDE) nsp 54 E6D 6002 TORSION SPRING (LOCK) nsp 55 E6D 6003 TORSION SPRING (ZENEBA) nsp 56 E6D 6004 EXTENSION SP (SWITCH) nsp 57 E6D 6005 EXTENSION SPRING (CAM) nsp 59 E6D 6007 COMPRESSION SP (TU-A) nsp 60 E6D 6008 COMPRESSION SP (TU-B) nsp 61 E6D 6009 TORSION SP (ASSIST-A) nsp 62 E6D 6012 COMPRESSION SP (CAM) nsp 63 E1D 8002 SCREW (B) nsp 64 E1D 8003 SOFT TAPE nsp 66 E1D 8012 SCREW (A2) nsp 70 E6D 8004 SHAFT (LEVER) nsp 71 E6D 8005 SHAFT (TRAY) nsp 72 E6D 8006 SCREW (FRAME) nsp 74 E6B 9031 PCB (SUB-C) *ZZ001820R 75 E6D 8011 SCREW (SUB-L) nsp 76 8114512608 BIND TAPPING SCREW 2.6*8 nsp 77 8114522608 BIND TAPPING SC 2.6*8(BL) nsp 78 D40-1500 KCTB1H 307W304010 79 E6B 9021 PCB (MAIN-B) nsp 80 E6B 9022 PCB (SUB-B) nsp 81 E6D 9003 WIRING HARNESS (TU) nsp 83 E6D 9005 WIRING HARNESS (SW2) nsp 84 E6D 9006 4P FFC *YU000940R 85 E6D 9032 WIRING HARNESS (LED-C) nsp 86 E6D 9002 16P FFC *YU000950R 87 E6D 9018 WIRING HARNESS (JAM) nsp 88 T99-0544 MAGNET nsp 90 E6C 1001 LEVER (GUIDE) nsp 93 94081103 SWITCH MPU10252MLB1 *SM000350R 94 94081104 SWITCH MPU10184MLB1 *SM000360R 95 96901036 FILAMENT TAPE 15MM*45MM nsp 96 99054172 CONNECTOR S6B-PH nsp 97 99054177 CONNECTOR 04FM-1.0ST nsp 98 99054179 CONNECTOR S4B-PH-K-S nsp 99 99054180 CONNECTOR 16FE-ST nsp 100 99518074 PHOTO TRANSISTOR RPT-38PT3F nsp 101 99518207 LED SIR-33ST3 nsp 102 S40-1139 SWITCH SPPB62 *SM000370R 104 E6D 1006 FLAT SPRING (WORM) nsp 107 E1D 8007 CUSHION nsp 112 E6D 8014 SCREW (A3) nsp 114 E6D 9028 MOTOR ASSY *MM001140R 115 E6D 9027 MOTOR ASSY *MM001150R 116 E6D 3061 HOLDER (SHAFT) ASSY nsp 117 E6D 3050 GEAR (FRICTION) ASSY nsp 118 E6D 3048 WORM (A) ASSY nsp 119 E6D 3049 WORM (B) ASSY nsp 120 E6A 3060 HOLDER (LOAD) ASSY nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 27 PARTS LIST FOR MECHANISM ASS’Y 10. ELECTRICAL PARTS LIST 28 The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 140 RF25S J ( 5% 1/4W) NH05 120 RF50S J ( 5% 1/2W) NH85 110 RF73B2A J ( 5% 1/10W) NH95 140 RF73B2E J ( 5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 140 ERD-2FCJ ( 5% 1/4W) RF05 140 NF02 140 ERD-2FCG ( 2% 1/4W) RF02 140 Examples ; Resistance value 0.1 001 10 100 1 k 102 100 k 104 0.5 005 18 180 2.7 k 272 680 k 684 1 010 100 101 10 k 103 1 M 105 6.8 068 390 391 22 k 223 4.7 M 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 140, Carbon film fixed resistor, 5% 1/4W R : 2) GD05 160, Carbon film fixed resistor, 5% 1/6W Examples ; Resistance value 0.1 001 10 100 1 k 102 100 k 104 0.5 005 18 180 2.7 k 272 680 k 684 1 010 100 101 10 k 103 1 M 105 6.8 068 390 391 22 k 223 4.7 M 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) 0.25 pF 0 0.5 pF 1 5% 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF 0.25 pF 6 pF 10 pF 0.5 pF 12 pF 560 pF 5% Capacity value 0.5 pF 005 3 pF 030 100 pF 101 1 pF 010 10 pF 100 220 pF 221 1.5 pF 015 47 pF 470 560 pF 561 C : CERAMIC CAP. 4) DK16 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF 102 10000 pF 103 470 pF .... 471 2200 pF 222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA 10, Electrolytic capacitor One-way lead type, Tolerance 20% Examples ; Capacity value 0.1 F....104 4.7 F ....475 100 F ....107 0.33 F....334 10 F ....106 330 F ....337 1 F....105 22 F ....226 1100 F ....118 2200 F ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 350 Plastic film capacitor DF15 310 One-way type, Mylar 5% 50V DF16 310 Plastic film capacitor One-way type, Mylar 10% 50V Examples ; Capacity value 0.001 F(1000 pF) ....... 102 0.1 F....104 0.0018 F........................ 182 0.56 F....564 0.01 F........................ 103 1 F....105 0.015 F........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). Capacity value Tolerance Capacity value Resistance value Working voltage Capacity value Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 10 k ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE -PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728 A.O 1 1 2 2 3 3 4 4 5 6 5 6 7 7 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) FRONT CIRCUIT BOARD CAPACITORS C700 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C703 C751 KCBS1H102KBT CER. 1000pF 50V K nsp C752 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C753 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C754 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C755 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C756 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C759 KCBS1H104ZFT CER. 0.1 F 50V Z nsp RESISTORS R695 KRD20TJ103T 10k 1/5W J nsp R703 KRD20TJ102T 1k 1/5W J nsp R704 KRD20TJ152T 1.5k 1/5W J nsp R705 KRD20TJ182T 1.8k 1/5W J nsp R706 KRD20TJ272T 2.7k 1/5W J nsp R707 KRD20TJ332T 3.3k 1/5W J nsp R708 KRD20TJ562T 5.6k 1/5W J nsp R709 KRD20TJ752T 7.5k 1/5W J nsp R751 KRD20TJ102T 1k 1/5W J nsp R752 KRD20TJ152T 1.5k 1/5W J nsp R753 KRD20TJ182T 1.8k 1/5W J nsp R754 KRD20TJ102T 1k 1/5W J nsp R755 KRD20TJ152T 1.5k 1/5W J nsp R756 KRD20TJ182T 1.8k 1/5W J nsp R757 KRD20TJ272T 2.7k 1/5W J nsp R758 KRD20TJ332T 3.3k 1/5W J nsp R759 KRD20TJ103T 10k 1/5W J nsp R760 KRD20TJ103T 10k 1/5W J nsp R761 KRD20TJ122T 1.2k 1/5W J nsp R771 KRD20TJ103T 10k 1/5W J nsp R772 KRD20TJ561T 560 1/5W J nsp R773 KRD20TJ473T 47k 1/5W J nsp R782 KRD20TJ151T 150 1/5W J nsp R789 SEMICONDUCTORS D702 BVDLNJ401NT L.E.D LMJ401NPYJA *HI100960R D709 Q701 KVTKTD1302T TRS. KTD1302T *HT400400R MISCELLANEOUS HP71 BJJ2D006Z JACK MINI PHONE TC38-103-11 *YJ002430R RS71 KRVHIM602H32 SENSOR REMOCON *HW100510R S701 KST1A012ZT SW TACT SKHV10910G *SP000890R S708 S751 KST1A012ZT SW TACT SKHV10910G *SP000890R S760 VR71 BSR2A011Z VR ENCODER EC16B243040F *SR000150R CD MAIN CIRCUIT BOARD CAPACITORS C601 KCEA1CKS470T ELECT 47 F 16V nsp C602 KCEA1CKS101T ELECT 100 F 16V nsp C603 KCBS1H3R3KCT CER. 3.3pF 50V K nsp C604 KCBS1H560JT CER. 56pF 50V J nsp C605 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C606 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C607 KCBS1H560JT CER. 56pF 50V J nsp C608 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C609 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C610 KCEA1CKS470T ELECT 47 F 16V nsp C612 KCBS1C682MXT CER. 6800pF 16V M nsp C614 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C615 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C622 KCEA1CKS470T ELECT 47 F 16V nsp C623 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C624 KCBS1C222MXT CER. 2200pF 16V M nsp C625 KCBS1C222MXT CER. 2200pF 16V M nsp C627 KCFE1J333JBT FILM 0.033 F 63V J nsp C628 KCEA1CKS470T ELECT 47 F 16V nsp C629 KCBS1C472MXT CER. 4700pF 16V M nsp C630 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C631 KCBS1C272MXT CER. 2700pF 16V M nsp C632 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C633 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C634 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C635 KCBS1H101KBT CER. 100pF 50V K nsp C636 KCEA1CKS470T ELECT 47 F 16V nsp C637 KCEA1CKS470T ELECT 47 F 16V nsp C638 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C639 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C640 KCEA1CKS470T ELECT 47 F 16V nsp C641 KCEA1CKS470T ELECT 47 F 16V nsp C642 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C643 KCEA1CKS101T ELECT 100 F 16V nsp C644 KCEA1CKS101T ELECT 100 F 16V nsp C645 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C646 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C647 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C648 KCBS1H150JCT CER. 15pF 50V J nsp C649 KCBS1H150JCT CER. 15pF 50V J nsp C650 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C651 KCEA1CKS470T ELECT 47 F 16V nsp C652 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C654 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C655 KCEA1HKS4R7T ELECT 4.7 F 50V nsp C656 KCEA1HKS4R7T ELECT 4.7 F 50V nsp C657 KCFE1J182JBT FILM 1800pF nsp C658 KCFE1J182JBT FILM 1800pF nsp C661 KCFE1J104JBT FILM 0.1 F 63V J nsp C662 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C663 KCEA1CKS101T ELECT 100 F 16V nsp C664 KCFE1J104JBT FILM 0.1 F 63V J nsp C665 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C666 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C667 KCFE1J104JBT FILM 0.1 F 63V J nsp C668 KCFE1J104JBT FILM 0.1 F 63V J nsp C669 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C670 KCEA1CKS101T ELECT 100 F 16V nsp C671 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C672 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C673 KCEA1CKS101T ELECT 100 F 16V nsp C674 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C675 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C676 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C677 KCEA1CKS101T ELECT 100 F 16V nsp C678 KCBS1H330JT CER. 33pF 50V J nsp C679 KCBS1H330JT CER. 33pF 50V J nsp C680 KCEA1CKS470T ELECT 47 F 16V nsp C757 KCEA1CKS470T ELECT 47 F 16V nsp C758 KCEA1CKS470T ELECT 47 F 16V nsp C760 KCFE1J333JBT FILM 0.033 F 63V J nsp C763 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 29 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) RESISTORS R601 KRD20TJ910T 91 1/5W J nsp R602 KRD20TJ333T 33k 1/5W J nsp R603 KRD20TJ473T 47k 1/5W J nsp R606 R607 KRD20TJ333T 33k 1/5W J nsp R609 KRD20TJ683T 68k 1/5W J nsp R610 KRD20TJ100T 10 1/5W J nsp R611 KRD20TJ102T 1k 1/5W J nsp R612 KRD20TJ221T 220 1/5W J nsp R613 KRD20TJ683T 68k 1/5W J nsp R614 KRD20TJ222T 2.2k 1/5W J nsp R615 KRD20TJ183T 18k 1/5W J nsp R616 KRD20TJ104T 100k 1/5W J nsp R617 KRD20TJ102T 1k 1/5W J nsp R618 KRD20TJ103T 10k 1/5W J nsp R621 KRD20TJ332T 3.3k 1/5W J nsp R622 KRD20TJ103T 10k 1/5W J nsp R623 KRD20TJ332T 3.3k 1/5W J nsp R624 KRD20TJ103T 10k 1/5W J nsp R625 KRD20TJ183T 18k 1/5W J nsp R626 KRD20TJ104T 100k 1/5W J nsp R627 KRD20TJ683T 68k 1/5W J nsp R628 KRD20TJ473T 47k 1/5W J nsp R629 KRD20TJ103T 10k 1/5W J nsp R630 KRD20TJ332T 3.3k 1/5W J nsp R632 KRD20TJ332T 3.3k 1/5W J nsp R633 KRD20TJ332T 3.3k 1/5W J nsp R634 KRD20TJ332T 3.3k 1/5W J nsp R635 KRD20TJ102T 1k 1/5W J nsp R636 KRD20TJ102T 1k 1/5W J nsp R637 KRD20TJ104T 100k 1/5W J nsp R638 KRD20TJ104T 100k 1/5W J nsp R639 KRD20TJ101T 100 1/5W J nsp R640 KRD20TJ103T 10k 1/5W J nsp R643 R651 KRD20TJ471T 470 1/5W J nsp R652 KRD20TJ221T 220 1/5W J nsp R653 KRD20TJ102T 1k 1/5W J nsp R654 KRD20TJ221T 220 1/5W J nsp R671 KRD20TJ271T 270 1/5W J nsp R672 KRD20TJ103T 10k 1/5W J nsp R678 KRD20TJ103T 10k 1/5W J nsp R682 R683 KRD20TJ182T 1.8k 1/5W J nsp R687 R692 KRD20TJ182T 1.8k 1/5W J nsp R693 KRD20TJ182T 1.8k 1/5W J nsp R694 KRD20TJ182T 1.8k 1/5W J nsp R762 KRD20TJ103T 10k 1/5W J nsp R763 KRD20TJ473T 47k 1/5W J nsp SEMICONDUCTORS D601 KVD1N4148MT DIODE 1N4148 *HD201550R D604 KVD1N4148MT DIODE 1N4148 *HD201550R IC61 BVITA2150FN IC RF AMP DIGITAL SERVO TA2150FN *HC107120R IC62 BVITC9462F IC DIGITAL SERVO TC9462F *HC107140R IC63 BVITA2092N IC POWER DRIVER TA2092N *HC107110R IC64 BVITA7291S IC TA7291S *HC107130R IC65 BVITA7291S IC TA7291S *HC107130R IC66 BVIANAM1325AC IC CD MICOM TMP87CM78F *HC107070R IC67 KVIMC7805C IC KA7805-ABTU *HC300210R Q601 KVTKTA1266YT TRS. KTA1266Y *HT100580R Q602 KVTKTD1302T TRS. KTD1302T *HT400400R Q603 KVTKRC107MT TRS. KRC107M *BA001070R MISCELLANEOUS BN66 KWDB015150EW WIRE ASS’Y nsp BN67 KWZCR130BN67 WIRE ASS’Y nsp CN61 KJP16GA117ZG WAFER CARD CABLE (STRAIGHT) GF102-16S-TS nsp CN62 KJP16GB116ZG WAFERCARD CABLE (ANGLE) GF120-16S-LS nsp CN63 KJP02GA68ZG WAFER nsp CN64 KJP04GB46ZM WAFER MOLEX 53015 nsp CN65 KJP02GA68ZG WAFER nsp L601 KLQ02C100KT COIL AXAIL 10 H K nsp L621 KLQ02C100KT COIL AXAIL 10 H K nsp RZ01 KRGSN5X103J RES NETWORK nsp X601 KOX16934A120F CRYSTAL 16.934MHz *JX000740R X602 KOX08000E160C CRYSTAL 8MHz *JX000410R MAIN CIRCUIT BOARD CAPACITORS CF11 BVFE107MSHAT FILTER CER. JP SFE10.7MS8H-A-T nsp CF12 BVFE107MSHAT FILTER CER. JP SFE10.7MS8H-A-T nsp CF13 BVFpFB450JR3 FILTER CER. JP pFB450JR3 nsp C102 KCQI1H152JZT MYLAR 1500pF 50V J nsp C103 KCEA1HH1R0T ELECT 1.0 F 50V nsp C104 KCQI1H273JZT MYLAR 0.027 F 50V J nsp C107 KCKT1H223ZF CER. 0.022 F 50V Z nsp C109 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C111 KCQI1H223JZT MYLAR 0.022 F 50V J nsp C112 KCEA1HH1R0T ELECT 1.0 F 50V nsp C113 KCEA1CH220T ELECT 22 F 16V nsp C114 KCQI1H103JZT MYLAR 0.01 F 50V J nsp C116 KCQI1H273JZT MYLAR 0.027 F 50V J nsp C117 KCEA1CH101T ELECT 100 F 16V nsp C120 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C121 KCEA1HH100T ELECT 10 F 50V nsp C122 KCEA1HH100T ELECT 10 F 50V nsp C124 KCQS1H471JZ STYROLE 470pF *OF100210R C125 KCQI1H473JZT MYLAR 0.047 F 50V J nsp C126 KCCT1H150JC CER. 15pF 50V J nsp C127 KCRA020S12 VARIABLE 20pF *CT000110R C128 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C129 KCEA1CH101T ELECT 100 F 16V nsp C130 KCEA1HH100T ELECT 10 F 50V nsp C131 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C132 KCBS1H102KBT CER. 1000pF 50V K nsp C133 KCEA1HH1R0T ELECT 1.0 F 50V nsp C134 KCEA1HH1R0T ELECT 1.0 F 50V nsp C135 KCEA1HHR47T ELECT 0.47 F 50V nsp C136 KCEA1HH4R7T ELECT 4.7 F 50V nsp C137 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C138 KCKT1H471KB CER. 470pF 50V K nsp C139 KCEA1CH101T ELECT 100 F 16V nsp C140 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C141 KCEA1HH2R2T ELECT 2.2 F 50V nsp C142 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C143 KCEA1AH471T ELECT 470 F 10V nsp C144 KCCT1H180JC CER. 18pF 50V J nsp C145 KCBS1H150JCT CER. 15pF 50V J nsp C150 KCKT1H101KB CER. 100pF 50V K nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 30 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) C153 KCCT1H330JC CER. 33pF 50V J nsp C154 KCCT1H330JC CER. 33pF 50V J nsp C155 KCBS1H103ZFT CER. 0.01 F 50V Z nsp C156 KCKT1H101KB CER. 100pF 50V K nsp C157 KCEA1HH100T ELECT 10 F 50V nsp C160 KCEA1HH4R7T ELECT 4.7 F 50V nsp C161 KCCT1H470JC CER. 47pF 50V J nsp C162 KCEA1CH470T ELECT 47 F 16V nsp C165 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C179 KCEA1HH4R7T ELECT 4.7 F 50V nsp C180 KCEA1HH4R7T ELECT 4.7 F 50V nsp C181 KCEA1HH100T ELECT 10 F 50V nsp C184 KCQI1H152JZT MYLAR 1500pF 50V J nsp C185 KCQI1H152JZT MYLAR 1500pF 50V J nsp C191 KCEA1CH470T ELECT 47 F 16V nsp C192 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C201 KCKT1H101KB CER. 100pF 50V K nsp C206 C207 KCKT1H151KB CER. 150pF 50V K nsp C208 KCKT1H151KB CER. 150pF 50V K nsp C209 KCKT1H101KB CER. 100pF 50V K nsp C210 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C211 KCKT1H101KB CER. 100pF 50V K nsp C212 KCBS1H151KBT CER. 150pF 50V K nsp C213 KCBS1H151KBT CER. 150pF 50V K nsp C221 KCEA1HH4R7T ELECT 4.7 F 50V nsp C226 C227 KCEA1HH2R2T ELECT 2.2 F 50V nsp C235 C236 KCEA1HKS2R2T ELECT 2.2 F 50V nsp C237 KCBS1H560JT CER. 56pF 50V J nsp C238 KCBS1H560JT CER. 56pF 50V J nsp C239 KCEA1HKS2R2T ELECT 2.2 F 50V nsp C240 KCEA1HKS2R2T ELECT 2.2 F 50V nsp C241 KCEA1HH2R2T ELECT 2.2 F 50V nsp C242 KCEA1HH2R2T ELECT 2.2 F 50V nsp C243 KCBS1H471KBT CER. 470pF 50V K nsp C244 KCBS1H471KBT CER. 470pF 50V K nsp C245 KCBS1H221KBT CER. 220pF 50V K nsp C246 KCBS1H221KBT CER. 220pF 50V K nsp C247 KCEA1CH101T ELECT 100 F 16V nsp C248 KCEA1CH101T ELECT 100 F 16V nsp C249 KCEA1HH4R7T ELECT 4.7 F 50V nsp C251 KCEA1CH470T ELECT 47 F 16V nsp C253 KCEA1HH100T ELECT 10 F 50V nsp C254 KCEA1HH100T ELECT 10 F 50V nsp C255 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C256 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C258 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C259 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C260 KCEA1HH100T ELECT 10 F 50V nsp C261 KCEA1HH100T ELECT 10 F 50V nsp C262 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C264 KCEA1HH100T ELECT 10 F 50V nsp C265 KCEA1CH101T ELECT 100 F 16V nsp C266 KCEA1CH101T ELECT 100 F 16V nsp C267 KCKT1H223ZF CER. 0.022 F 50V Z nsp C268 KCKT1H223ZF CER. 0.022 F 50V Z nsp C269 KCEA1CH470T ELECT 47 F 16V nsp C271 KCKT1H223ZF CER. 0.022 F 50V Z nsp C272 KCQI1H272JZT MYLAR 2700pF 50V J nsp C273 KCQI1H272JZT MYLAR 2700pF 50V J nsp C274 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C275 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C276 KCFE1J184JBT FILM 0. 18 F nsp C277 KCFE1J184JBT FILM 0.18 F nsp C278 KCFE1J184JBT FILM 0.18 F nsp C279 KCFE1J184JBT FILM 0.18 F nsp C280 KCKT1H101KB CER. 100pF 50V K nsp C281 KCKT1H101KB CER. 100pF 50V K nsp C282 KCEA1HH2R2T ELECT 2.2 F 50V nsp C283 KCEA1HH2R2T ELECT 2.2 F 50V nsp C287 K3A206 WIRE COPPER nsp C291 KCQI1H104JZT MYLAR 0.1 F 50V J nsp C292 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C293 KCEA1HH2R2T ELECT 2.2 F 50V nsp C309 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C310 KCEA1HH100T ELECT 10 F 50V nsp C311 KCEA1HH1R0T ELECT 1.0 F 50V nsp C361 KCEA1CH470T ELECT 47 F 16V nsp C362 KCBS1H270JT CER. 27pF 50V J nsp C363 KCCT1H270JC CER. 27pF 50V J nsp C364 KCBS1H270JT CER. 27pF 50V J nsp C365 KCCT1H270JC CER. 27pF 50V J nsp C366 KCEA1HH1R0T ELECT 1.0 F 50V nsp C367 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C368 KCEA1CH470T ELECT 47 F 16V nsp C369 KCEA0JH102T ELECT 1000 F 6.3V nsp C370 KCEA1CH220T ELECT 22 F 16V nsp C371 KCEA1CH470T ELECT 47 F 16V nsp C372 KCKT1H223ZF CER. 0.022 F 50V Z nsp C373 KCEA1CH470T ELECT 47 F 16V nsp C374 KCKT1H101KB CER. 100pF 50V K nsp C377 C378 KCKT1H223ZF CER. 0.022 F 50V Z nsp C379 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C381 KCKT1H473ZF CER. 0.047 F 50V Z nsp C382 KCKT1H473ZF CER. 0.047 F 50V Z nsp C383 KCKT1H473ZF CER. 0.047 F 50V Z nsp C384 KCBS1H102KBT CER. 1000pF 50V K nsp C501 KCKT1H102KB CER. 1000pF 50V K nsp C502 KCKT1H102KB CER. 1000pF 50V K nsp C503 KCBS1H221KBT CER. 220pF 50V K nsp C504 KCBS1H221KBT CER. 220pF 50V K nsp C505 KCCT1H050CC CER. 5pF 50V C nsp C506 KCCT1H050CC CER. CER. 5pF 50V C nsp C507 KCFT1H104ZF 0.1 F 50V Z nsp C510 KCQI1H473JZT MYLAR 0.047 F 50V J nsp C511 KCQI1H473JZT MYLAR 0.047 F 50V J nsp C512 KCKT1H223ZF CER. 0.022 F 50V Z nsp C513 KCKT1H223ZF CER. 0.022 F 50V Z nsp C515 KCQE1J124KXT METAL 0.12 F 63V K *OF100180R C516 KCQE1J124KXT METAL 0.12 F 63V K *OF100180R C520 KCEA1HH2R2T ELECT 2.2 F 50V nsp C521 KCEA1HH2R2T ELECT 2.2 F 50V nsp C522 KCEA1CH470T ELECT 47 F 16V nsp C525 C526 KCEA1HH470T ELECT 47 F 50V nsp C528 KCEA1HH100T ELECT 10 F 50V nsp C529 KCEA1VH101T ELECT 100 F 35V nsp C530 KCEA1HH332E ELECT 3300 F 50V *EA001070R C531 KCEA1HH332E ELECT 3300 F 50V *EA001070R C532 KCQI1H473JZT MYLAR 0.047 F 50V J nsp C533 KCQI1H473JZT MYLAR 0.047 F 50V J nsp C541 KCQI1H102JZT MYLAR 1000pF 50V J nsp C542 KCQI1H102JZT MYLAR 1000pF 50V J nsp C543 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C544 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C545 KCQI1H222JZT MYLAR 2200pF 50V J nsp C546 KCQI1H222JZT MYLAR 2200pF 50V J nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 31 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) C901 KCKT1H223ZF CER. 0.022 F 50V Z nsp C902 KCKT1H223ZF CER. 0.022 F 50V Z nsp C906 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C917 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C918 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C925 KCEA1CH471T ELECT 470 F 16V nsp C926 KCEA1CH471T ELECT 470 F 16V nsp C927 KCEA1CH101T ELECT 100 F 16V nsp C928 KCEA1CH101T ELECT 100 F 16V nsp C929 KCEA1CH471T ELECT 470 F 16V nsp C930 KCEA1CH101T ELECT 100 F 16V nsp C931 KCEA1EH331T ELECT 330 F 25V nsp C932 KCEA1HH470T ELECT 47 F 50V nsp C933 KCEA1HH470T ELECT 47 F 50V nsp C934 KCEA1HH4R7T ELECT 4.7 F 50V nsp C935 KCEA1HH101T ELECT 100 F 50V nsp C936 KCEA1HH101T ELECT 100 F 50V nsp C937 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C938 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C940 KCEA1VH222E ELECT 2200 F 35V *EA000850R C941 KCEA1VH222E ELECT 2200 F 35V *EA000850R C942 KCEA1VH222E ELECT 2200 F 35V *EA000850R C944 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C945 KCBS1H473ZFT CER. 0.047 F 50V Z nsp C946 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C950 C951 KCEA1HH100T ELECT 10 F 50V nsp C952 KCEA1HH1R0T ELECT 1.0 F 50V nsp C953 BCKWKH472ME CER. (KH) DE1310-610E472M nsp C954 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C955 KCBS1H223ZFT CER. 0.022 F 50V Z nsp C956 KCBS1H104ZFT CER. 0.1 F 50V Z nsp C961 KCEA1HH100T ELECT 10 F 50V nsp RESISTORS R102 KRD20TJ102T 1k 1/5W J nsp R103 KRD20TJ181T 180 1/5W J nsp R107 KRD20TJ101T 100 1/5W J nsp R108 KRD20TJ471T 470 1/5W J nsp R110 KRD20TJ332T 3.3k 1/5W J nsp R111 KRD20TJ331T 330 1/5W J nsp R112 KRD20TJ471T 470 1/5W J nsp R118 KRD20TJ333T 33k 1/5W J nsp R119 KRD20TJ102T 1k 1/5W J nsp R120 KRD20TJ104T 100k 1/5W J nsp R121 KRD20TJ103T 10k 1/5W J nsp R122 KRD20TJ332T 3.3k 1/5W J nsp R123 KRD20TJ104T 100k 1/5W J nsp R124 KRD20TJ562T 5.6k 1/5W J nsp R125 KRD20TJ561T 560 1/5W J nsp R126 KRD20TJ471T 470 1/5W J nsp R127 KRD20TJ101T 100 1/5W J nsp R128 KRD20TJ103T 10k 1/5W J nsp R129 KRD20TJ103T 10k 1/5W J nsp R130 KRD20TJ222T 2.2k 1/5W J nsp R131 KRD20TJ102T 1k 1/5W J nsp R132 KRD20TJ222T 2.2k 1/5W J nsp R133 KRD20TJ332T 3.3k 1/5W J nsp R134 KRD20TJ472T 4.7k 1/5W J nsp R138 KRD20TJ472T 4.7k 1/5W J nsp R139 KRD20TJ103T 10k 1/5W J nsp R140 KRD20TJ103T 10k 1/5W J nsp R141 KRD20TJ333T 33k 1/5W J nsp R142 KRD20TJ101T 100 1/5W J nsp R149 KRD20TJ102T 1k 1/5W J nsp R151 KRD20TJ102T 1k 1/5W J nsp R154 KRD20TJ102T 1k 1/5W J nsp R155 KRD20TJ102T 1k 1/5W J nsp R156 KRD20TJ102T 1k 1/5W J nsp R161 KRD20TJ102T 1k 1/5W J nsp R162 KRD20TJ102T 1k 1/5W J nsp R164 KRD20TJ101T 100 1/5W J nsp R172 KRD20TJ102T 1k 1/5W J nsp R173 KRD20TJ102T 1k 1/5W J nsp R184 KRD20TJ104T 100k 1/5W J nsp R185 KRD20TJ104T 100k 1/5W J nsp R191 KRD20TJ102T 1k 1/5W J nsp R201 KRD20TJ102T 1k 1/5W J nsp R202 KRD20TJ102T 1k 1/5W J nsp R203 KRD20TJ561T 560 1/5W J nsp R204 KRD20TJ561T 560 1/5W J nsp R205 KRD20TJ102T 1k 1/5W J nsp R206 KRD20TJ102T 1k 1/5W J nsp R207 KRD20TJ561T 560 1/5W J nsp R208 KRD20TJ561T 560 1/5W J nsp R209 KRD20TJ102T 1k 1/5W J nsp R210 KRD20TJ102T 1k 1/5W J nsp R211 KRD20TJ102T 1k 1/5W J nsp R212 KRD20TJ101T 100 1/5W J nsp R213 KRD20TJ473T 47k 1/5W J nsp R218 R221 KRD20TJ102T 1k 1/5W J nsp R228 R233 KRD20TJ102T 1k 1/5W J nsp R234 KRD20TJ102T 1k 1/5W J nsp R235 KRD20TJ473T 47k 1/5W J nsp R236 KRD20TJ473T 47k 1/5W J nsp R237 KRD20TJ223T 22k 1/5W J nsp R238 KRD20TJ223T 22k 1/5W J nsp R239 KRD20TJ473T 47k 1/5W J nsp R240 KRD20TJ473T 47k 1/5W J nsp R241 KRD20TJ102T 1k 1/5W J nsp R242 KRD20TJ102T 1k 1/5W J nsp R243 KRD20TJ473T 47k 1/5W J nsp R244 KRD20TJ473T 47k 1/5W J nsp R245 KRD20TJ102T 1k 1/5W J nsp R246 KRD20TJ102T 1k 1/5W J nsp R249 KRD20TJ473T 47k 1/5W J nsp R250 KRD20TJ473T 47k 1/5W J nsp R251 KRD20TJ393T 39k 1/5W J nsp R252 KRD20TJ393T 39k 1/5W J nsp R253 KRD20TJ473T 47k 1/5W J nsp R254 KRD20TJ473T 47k 1/5W J nsp R255 KRD20TJ4R7T 4.7 1/5W J nsp R256 KRD20TJ4R7T 4.7 1/5W J nsp R257 KRD20TJ102T 1k 1/5W J nsp R258 KRD20TJ102T 1k 1/5W J nsp R261 KRD20TJ473T 47k 1/5W J nsp R264 R271 KRD20TJ121T 120 1/5W J nsp R275 R281 KRD20TJ121T 120 1/5W J nsp R282 KRD20TJ121T 120 1/5W J nsp R283 KRD20TJ560T 56 1/5W J nsp R291 KRD20TJ101T 100 1/5W J nsp R292 KRD20TJ103T 10k 1/5W J nsp R293 KRD20TJ223T 22k 1/5W J nsp R294 KRD20TJ474T 470k 1/5W J nsp R295 KRD20TJ474T 470k 1/5W J nsp R301 KRD20TJ102T 1k 1/5W J nsp R302 KRD20TJ562T 5.6k 1/5W J nsp NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 32 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) R303 KRD20TJ562T 5.6k 1/5W J nsp R304 KRD20TJ100T 10 1/5W J nsp R305 KRD20TJ100T 10 1/5W J nsp R306 KRD20TJ473T 47k 1/5W J nsp R307 KRD20TJ472T 4.7k 1/5W J nsp R308 KRD20TJ121T 120 1/5W J nsp R309 KRD20TJ472T 4.7k 1/5W J nsp R311 KRD20TJ104T 100k 1/5W J nsp R312 KRD20TJ104T 100k 1/5W J nsp R313 KRD25TJ104T 100k 1/4W J nsp R314 KRD25TJ104T 100k 1/4W J nsp R361 KRD20TJ102T 1k 1/5W J nsp R362 KRD20TJ273T 27k 1/5W J nsp R363 KRD20TJ105T 1M 1/5W J nsp R364 KRD20TJ102T 1k 1/5W J nsp R365 KRD20TJ561T 560 1/5W J nsp R366 KRD20TJ182T 1.8k 1/5W J nsp R367 KRD20TJ273T 27k 1/5W J nsp R368 KRD20TJ103T 10k 1/5W J nsp R369 KRD20TJ473T 47k 1/5W J nsp R370 KRD20TJ103T 10k 1/5W J nsp R371 KRD20TJ103T 10k 1/5W J nsp R372 KRD20TJ103T 10k 1/5W J nsp R373 KRD20TJ472T 4.7k 1/5W J nsp R376 R377 KRD20TJ473T 47k 1/5W J nsp R379 KRD20TJ103T 10k 1/5W J nsp R381 KRD20TJ103T 10k 1/5W J nsp R382 KRD20TJ103T 10k 1/5W J nsp R383 KRD20TJ102T 1k 1/5W J nsp R384 KRD20TJ102T 1k 1/5W J nsp R503 KRD20TJ473T 47k 1/5W J nsp R506 R507 KRD20TJ222T 2.2k 1/5W J nsp R508 KRD20TJ222T 2.2k 1/5W J nsp R509 KRD20TJ101T 100 1/5W J nsp R510 KRD20TJ562T 5.6k 1/5W J nsp R511 KRD20TJ101T 100 1/5W J nsp R512 KRD20TJ104T 100k 1/5W J nsp R520 KRD20TJ332T 3.3k 1/5W J nsp R521 KRD20TJ332T 3.3k 1/5W J nsp R522 KRD20TJ103T 10k 1/5W J nsp R523 KRD20TJ103T 10k 1/5W J nsp R524 KRD20TJ102T 1k 1/5W J nsp R525 KRD20TJ102T 1k 1/5W J nsp R526 KRD20TJ100T 10 1/5W J nsp R527 KRD20TJ123T 12k 1/5W J nsp R528 KRD20TJ123T 12k 1/5W J nsp R529 KRD20TJ473T 47k 1/5W J nsp R530 KRD20TJ473T 47k 1/5W J nsp R531 KRD20TJ153T 15k 1/5W J nsp R535 KRD50FJ102T 1k 1/2W J nsp R536 KRD50FJ222T 2.2k 1/2W J nsp R539 R540 KRD50FJ102T 1k 1/2W J nsp R541 KRG1ANJ100H METAL OXIDE FILM 10 1W J GA05100010 R542 KRG1ANJ100H METAL OXIDE FILM 10 1W J GA05100010 R543 KRF2CJR27H CEMENT 0.27 2W *GO000010R R544 KRF2CJR27H CEMENT 0.27 2W *GO000010R R901 KRD25TJ681T 680 1/4W J nsp R902 KRD25TJ681T 680 1/4W J nsp R903 KRD25TJ222T 2.2k 1/4W J nsp R904 KRD50FJ222T 2.2k 1/2W J nsp R905 KRG1ANJ2R2H METAL OXIDE FILM 2.2 1W J GA05022010 R906 KRD20TJ123T 12k 1/5W J nsp R907 KRD20TJ123T 12k 1/5W J nsp R909 KRD20TJ560T 56 1/5W J nsp R910 KRD20TJ560T 56 1/5W J nsp R911 KRD20TJ122T 1.2k 1/5W J nsp R912 KRD20TJ473T 47k 1/5W J nsp R924 KRG1ANJ100H METAL OXIDE FILM 10 1W J GA05100010 R925 KRD20TJ563T 56k 1/5W J nsp R926 KRF2CJR27H CEMENT 0.27 2W *GO000010R R927 KRF2CJR27H CEMENT 0.27 2W *GO000010R R928 KRQ1AJR47H FUSE 0.47 1W J *NH000080R R929 KRQ1AJR47H FUSE 0.47 1W J *NH000080R R931 KRD20TJ474T 470k 1/5W J nsp R932 KRD20TJ102T 1k 1/5W J nsp R933 KRD20TJ103T 10k 1/5W J nsp R936 KRD20TJ223T 22k 1/5W J nsp R937 KRD20TJ103T 10k 1/5W J nsp VR11 BVN1PA502B01T SEMI FIXED (5k ) MY EVNDJAA03B53 *RA001010R VR12 KVN1RA223B01T SEMI FIXED (22k ) RH0638C-223 *RA000950R VR13 KVN1RA103B01T SEMI FIXED (10k ) RH0638C-103 *RA001020R SEMICONDUCTORS D101 BVDSVC342LT DIODE VARICAP SVC342-L-AA *HD400160R D103 KVD1N4148MT DIODE 1N4148 *HD201550R D105 KVD1N4148MT DIODE 1N4148 *HD201550R D201 KVD1N4148MT DIODE 1N4148 *HD201550R D202 KVD1N4148MT DIODE 1N4148 *HD201550R D355 KVD1N4148MT DIODE 1N4148 *HD201550R D361 KVD1N4148MT DIODE 1N4148 *HD201550R D364 D366 KVD1N4148MT DIODE 1N4148 *HD201550R D367 KVD1N4148MT DIODE 1N4148 *HD201550R D368 KVD1N4148MT DIODE 1N4148 *HD201550R D369 KVD1N4148MT DIODE 1N4148 *HD201550R D501 BVDPBU604F DIODE BRIDGE PBU604F *HE200290R D502 KVD1N4148MT DIODE 1N4148 *HD201550R D506 D901 KVD1N4003ST DIODE 1N4003 HD200010AR D910 D915 KVDMTZJ13BT DIODE ZENER 13V 1/2W HD31301000 D916 KVDMTZJ13BT DIODE ZENER 13V 1/2W HD31301000 D917 KVDMTZJ6.2BT DIODE ZENER 6.2V 1/2W *HD301710R D919 KVDMTZJ6.2BT DIODE ZENER 6.2V 1/2W *HD301710R D920 KVDMTZJ9.1BT DIODE ZENER 9.1V 1/2W *HD301970R D921 KVDMTZJ33BT DIODE ZENER 33V 1/2W *HD301740R D922 KVD1N4003ST DIODE 1N4003 HD200010AR D923 KVD1N4003ST DIODE 1N4003 HD200010AR IC11 BVILA1836M IC IF+MPX LA1836M *HC107080R IC12 BVILC72131M IC PLL LC72131M *HC104820R IC21 BVITDA7318D IC VOLUME+FUNCTION TDA7318D *HC107150R IC22 BVILC4966 IC LC4966 HC10150030 IC23 BVINJM2068MDTE1 IC OP AMP NJM2068MD-TE1 *HC107090R IC24 BVINJM2068MDTE1 IC OP AMP NJM2068MD-TE1 *HC107090R IC25 BVINJM4556AL IC NJM4556AL HC10200090 IC36 BVIANAM1301AT IC MAIN MICOM TMP87CM78F-1G69 *HC107060R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 33 POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR DESCRIPTION PART NO. (MJI) IC37 BVIRE5VL30CARZ VOLTAGE DETECTOR JP RE5VL30CA-TZ (RR) *HC105150R IC52 BVISTK4132(2) IC AMP STK4132 (II) *HC107100R IC91 BVINJM7808FA IC NJM7808FA HC38908090 Q101 KVTKTC3192OT TRS. KTC3192O *HT300480R Q103 KVTKRA107MT TRS. KRA107M *BA001060R Q104 KVTKSA1175YT TRS. KSA1175Y *HT100390R Q107 KVTKRC107MT TRS. KRC107M *BA001070R Q108 KVTKRA107MT TRS. KRA107M *BA001060R Q109 KVTKTD1302T TRS. KTD1302T *HT400400R Q110 KVTKTD1302T TRS. KTD1302T *HT400400R Q201 KVTKTD1302T TRS. KTD1302T *HT400400R Q208 Q211 KVTKRC107MT TRS. KRC107M *BA001070R Q212 KVTKRC107MT TRS. KRC107M *BA001070R Q213 KVTKRA107MT TRS. KRA107M *BA001060R Q361 KVTKRC107MT TRS. KRC107M *BA001070R Q362 KVTKRA107MT TRS. KRA107M *BA001060R Q363 KVTKSB811YT TRS. KSB811Y *HT200340R Q367 KVTKRC107MT TRS. KRC107M *BA001070R Q368 KVTKTD1302T TRS. KTD1302T *HT400400R Q369 KVTKTD1302T TRS. KTD1302T *HT400400R Q370 KVTKRA107MT TRS. KRA107M *BA001060R Q502 KVTKRC107MT TRS. KRC107M *BA001070R Q503 KVTKRC107MT TRS. KRC107M *BA001070R Q504 KVTKRA107MT TRS. KRA107M *BA001060R Q505 KVTKSA1175YT TRS. KSA1175Y *HT100390R Q506 KVTKSA1175YT TRS. KSA1175Y *HT100390R Q507 KVTKRC107MT TRS. KRC107M *BA001070R Q901 KVTKRA107MT TRS. KRA107M *BA001060R Q902 KVTKRA107MT TRS. KRA107M *BA001060R Q903 KVTKRA107MT TRS. KRA107M *BA001060R Q904 KVTKRC107MT TRS. KRC107M *BA001070R Q905 KVTKRC107MT TRS. KRC107M *BA001070R Q906 KVTKRC107MT TRS. KRC107M *BA001070R Q908 KVTKTD2058Y TRS. KTD2058Y *HT400410R Q909 KVTKTD2058Y TRS. KTD2058Y *HT400410R Q911 KVTKTA1274YT TRS. KTA1274Y *HT100430R Q915 KVTKSD288Y TRS. KSD288Y *HT400350R Q916 KVTKSA614Y TRS. KSA614Y *HT100570R Q917 KVTKRC107MT TRS. KRC107M *BA001070R Q918 KVTKRC107MT TRS. KRC107M *BA001070R Q920 KVTKRA107MT TRS. KRA107M *BA001060R MISCELLANEOUS BA36 BABGP40BVH3A3H BATTERY RECHARGEABLE 3.6V /40mAh GP40BVH3A3H *ZB000020R BK01 KMC1A111 PLATE EARTH nsp BK02 KMC1A111 PLATE EARTH nsp BN12 KJP15TT122ZP TERMINAL CR-H130 nsp BN91 KWZAV7748 WIRE ASS’Y 2.5MM (3P) nsp BN92 KWZAV7748 WIRE ASS’Y 2.5MM (3P) nsp CN10 KJP02GA19ZM WAFER nsp CN12 KJP15HA37ZM HOUSING 42140 (15PIN) nsp CN21 KJP06GA98ZM WAFER MOLEX35336-0610 nsp CN22 KJP11GA98ZM WAFER nsp CN51 KJP05GA102ZM WAFER 53291 (5PIN) nsp CN66 KJP15GA19ZM WAFER nsp CN67 KJP03GA19ZM WAFER nsp CN71 KJP15GA115ZG WAFER CARD CABLE GF120-15S-TS nsp CN72 KJP24GA115ZG WAFER CARD CABLE GF120-24S-TS nsp CN75 KJP11GA19ZM WAFER MOLEX-53014 nsp CN91 KJP03GA01ZM WAFER MOLEX 5267-03A nsp CN92 KJP03GA01ZM WAFER MOLEX 5267-03A nsp F901 KJCFC5S HOLDER FUSE nsp F901 F KBA2C2000TLE FUSE (F) 250V *FS000850R F901 C KBA2C1000TL FUSE (C) nsp JK01 KJJ3G010Z TREMINAL ANT (USA 75 ) SC0210393N *YT001630R JK11 BJS9L001Z MODULE OPTICAL (TX) TX178A *YJ002440R JK21 KJJ4R012Z TERMINAL IN/OUT *YT001690R JK22 KJJ4R018Z JACK PIN BOARD JK060092JN *YJ002450R JW21 KWZAH300JW74 WIRE ASS’Y A-H300 nsp JW51 KWZAAV1100W801 WIRE ASSS’Y nsp JW52 KWZAH300JW74 WIRE ASSS’Y A-H300 nsp L130 KLQ02C100KT COIL AXAIL 10 H K nsp RY51 BSL4A008ZE RELAY G5Z-2A-DC12V *LY000220R SP51 KJJ5P017Z TERMINAL SPEAKER RB/RB *YT002450R S301 KST1A012ZT SW TACT SKHV10910G *SP000890R TF01 KNVKSTF401VJ PACK FRONT END (3GANG) KSTF401VJ-1 *AV000130R TW91 KJP02KA060ZY WAFER 7.92MM (YUNHO) nsp T101 KLA2C005 COIL AM ANT 2 *LA000090R T102 KLO2B008Z COIL AM OSC *LO000060R T103 KLI3B028Z I.F.T FM *LI000140R T104 KLI2B111Z I.F.T AM *LI000130R T901 F KLT5P037ZJ TRANS POWER (F) CR-H100DMCC *TS001480R T901 C KLT5P037Z TRANS POWER (C) KOREA nsp WF21 KJP06GB99ZM CONNECTOR MOLEX35237-0610 nsp WF22 KJP11GB99ZM CONNECTOR nsp WF51 KJP05GB103ZM WAFER 52419 (5PIN) nsp X101 BVFZTB456F11 RESONATOR CER. ZTB456F11 *FQ000390R X102 BVFLZU450C4N FILTER CER. LZU450C4N *FQ000520R X104 KOX07200A200C CRYSTAL 7.2MHz JX07001261 X361 KOX08000E160C CRYSTAL 8MHz *JX000410R X362 BOX00032A120C CRYSTAL 32.768KHz DT-38 *JX000730R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 34
