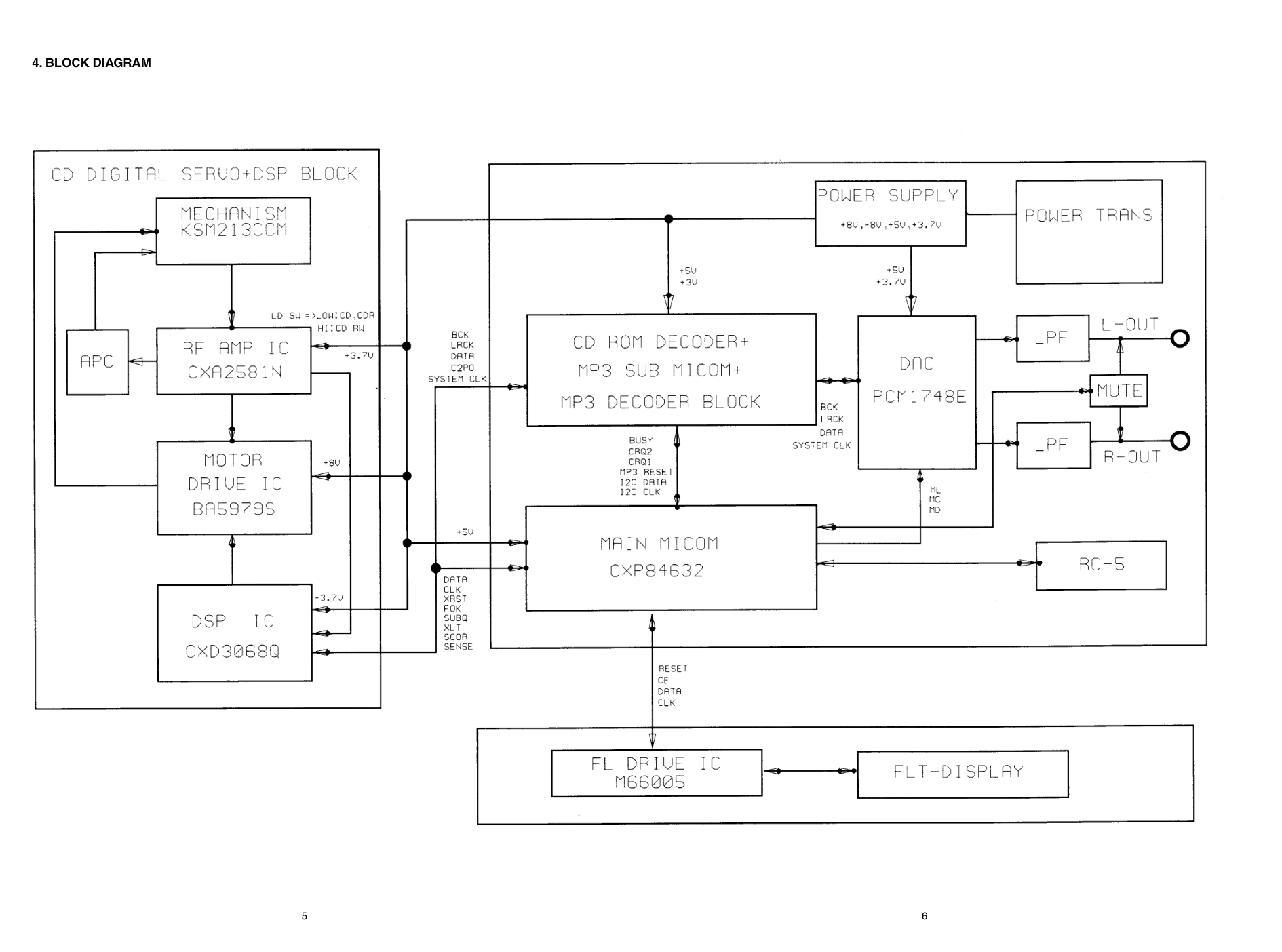

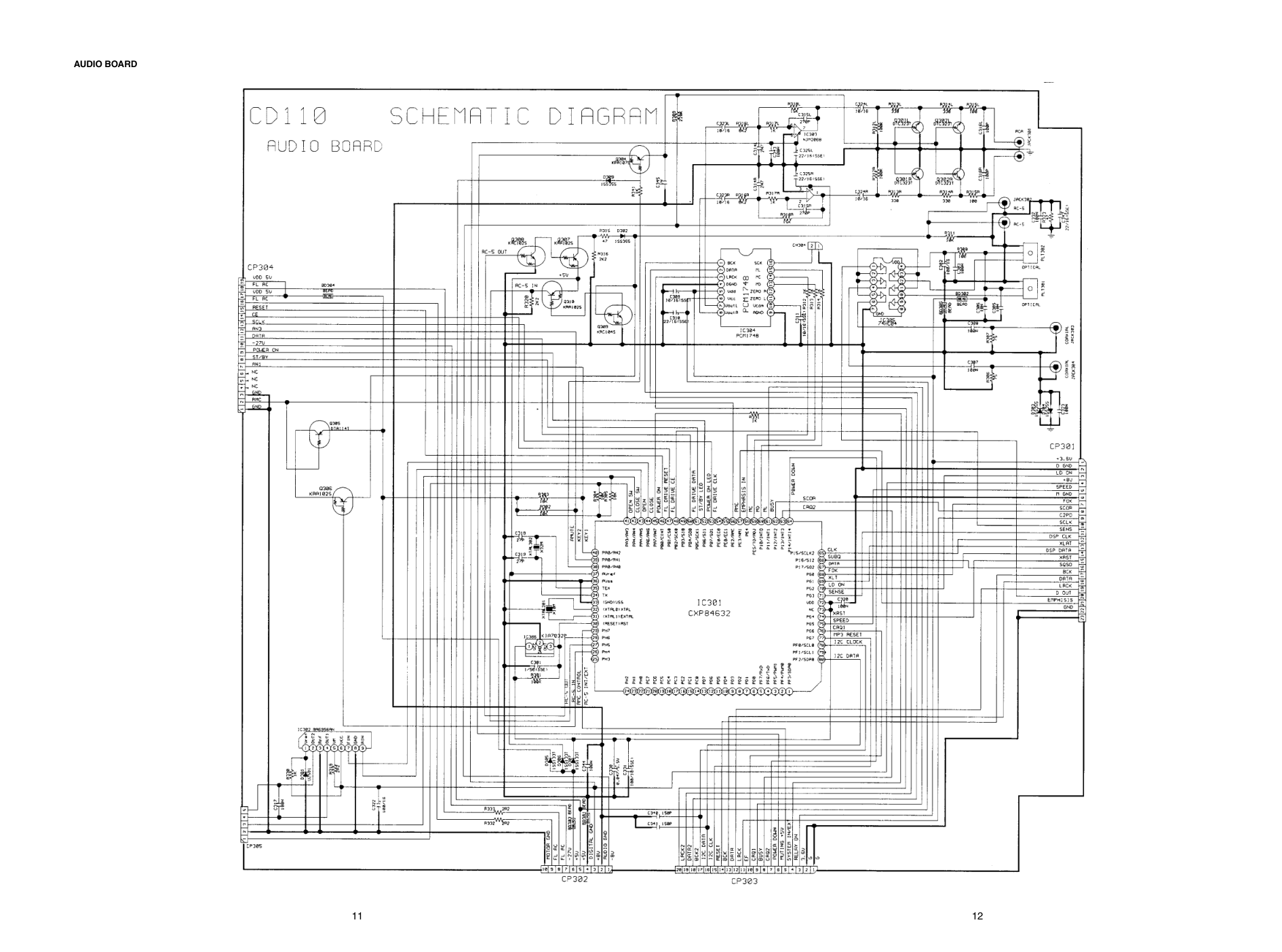

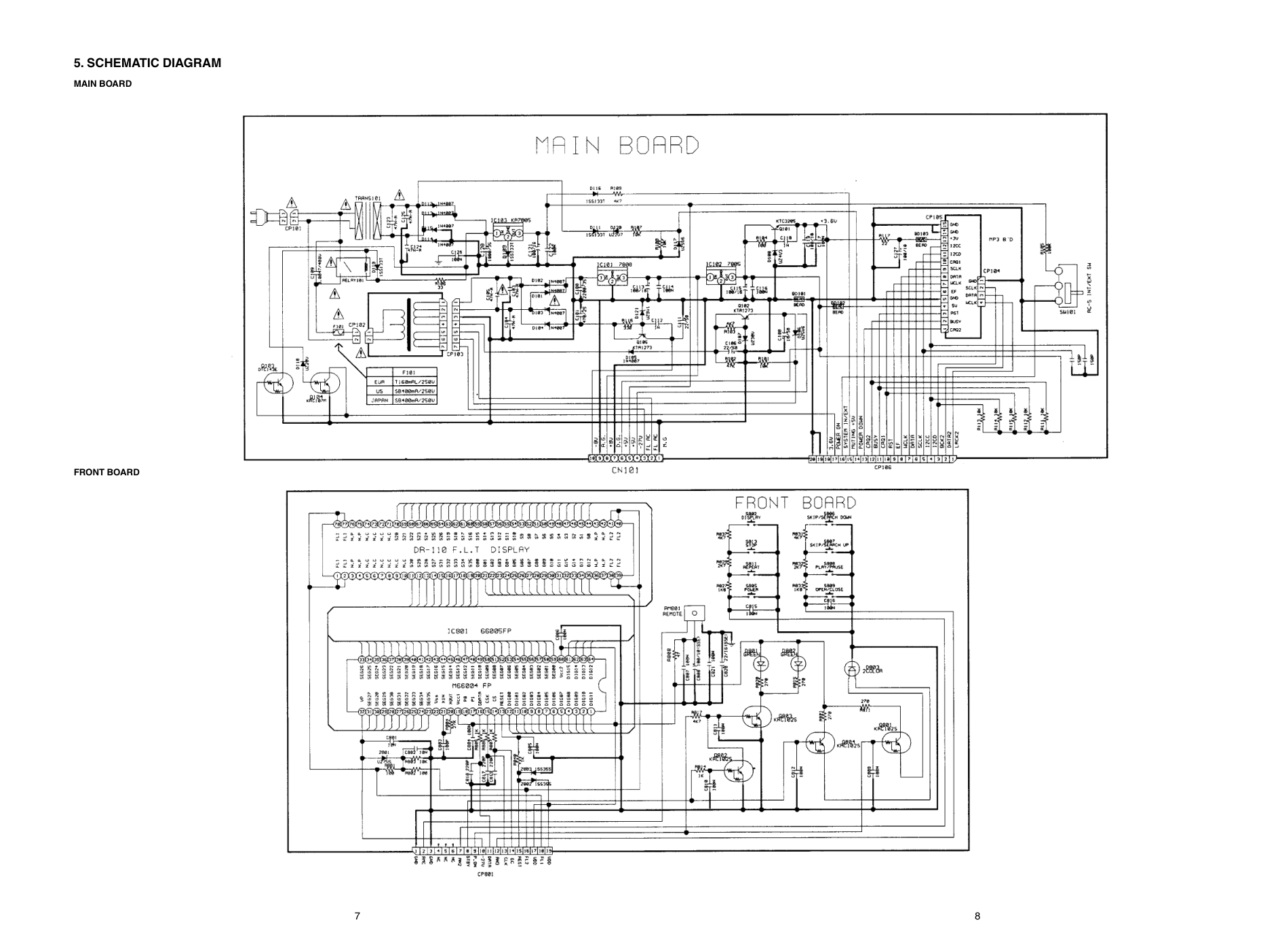

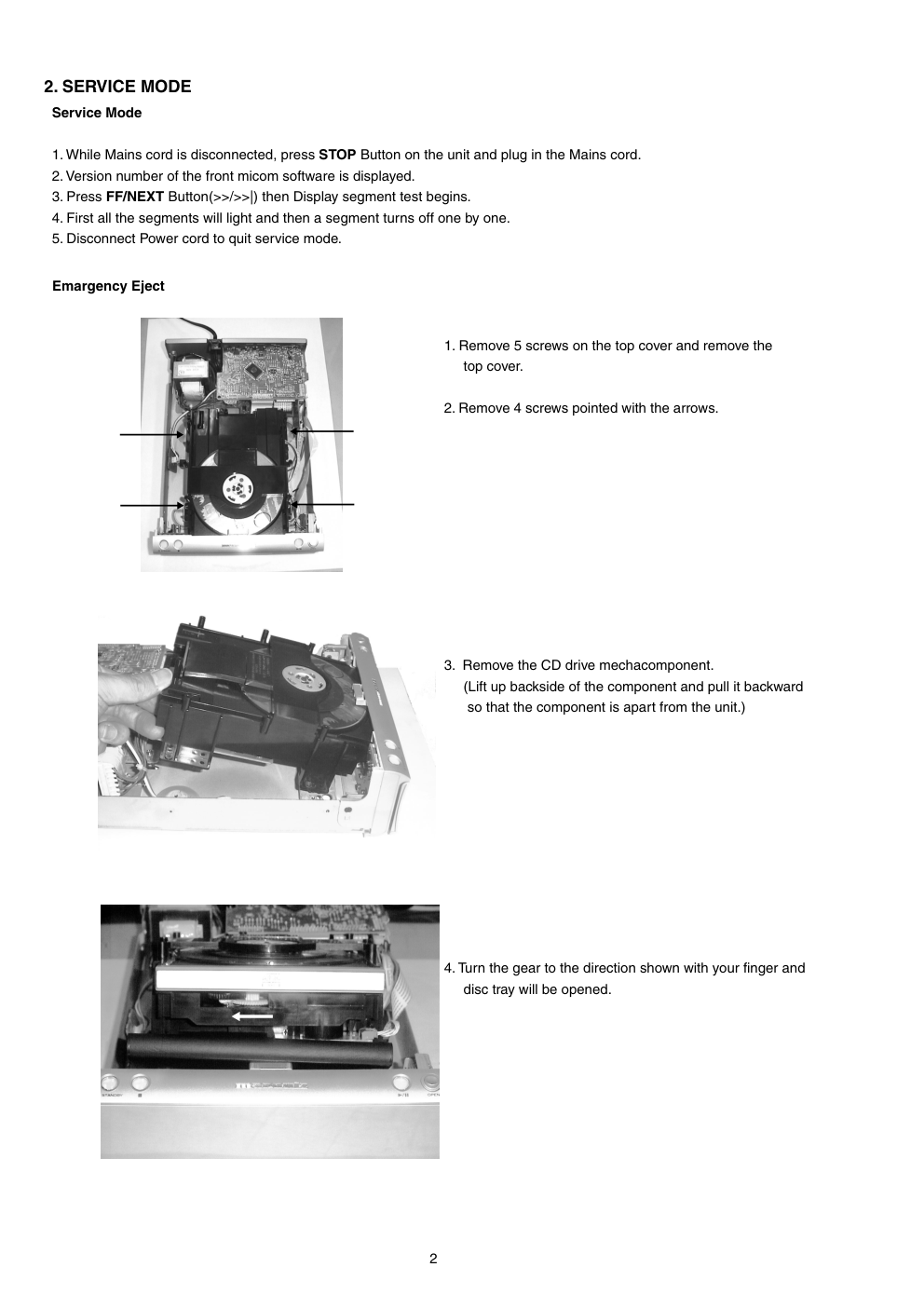

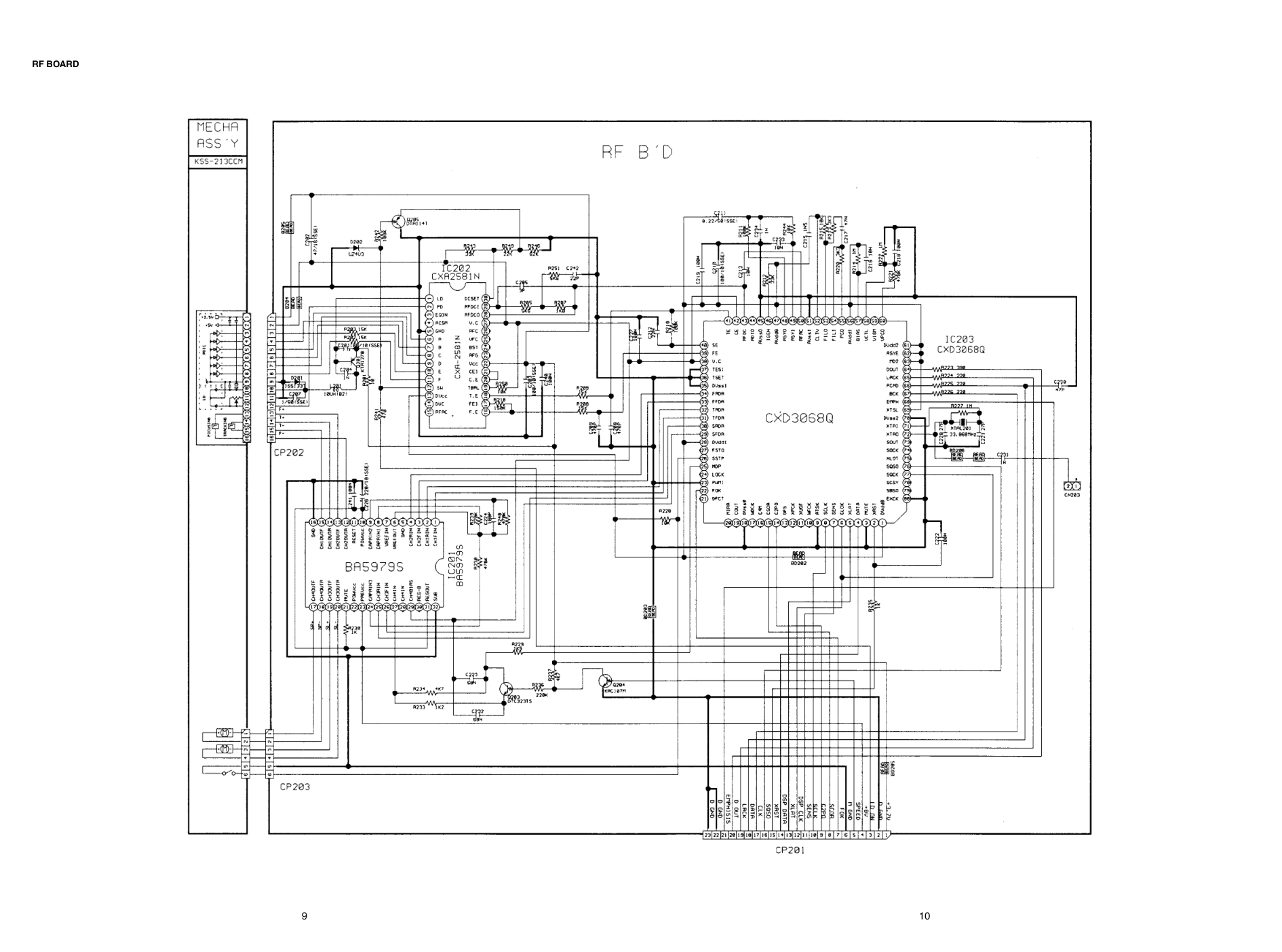

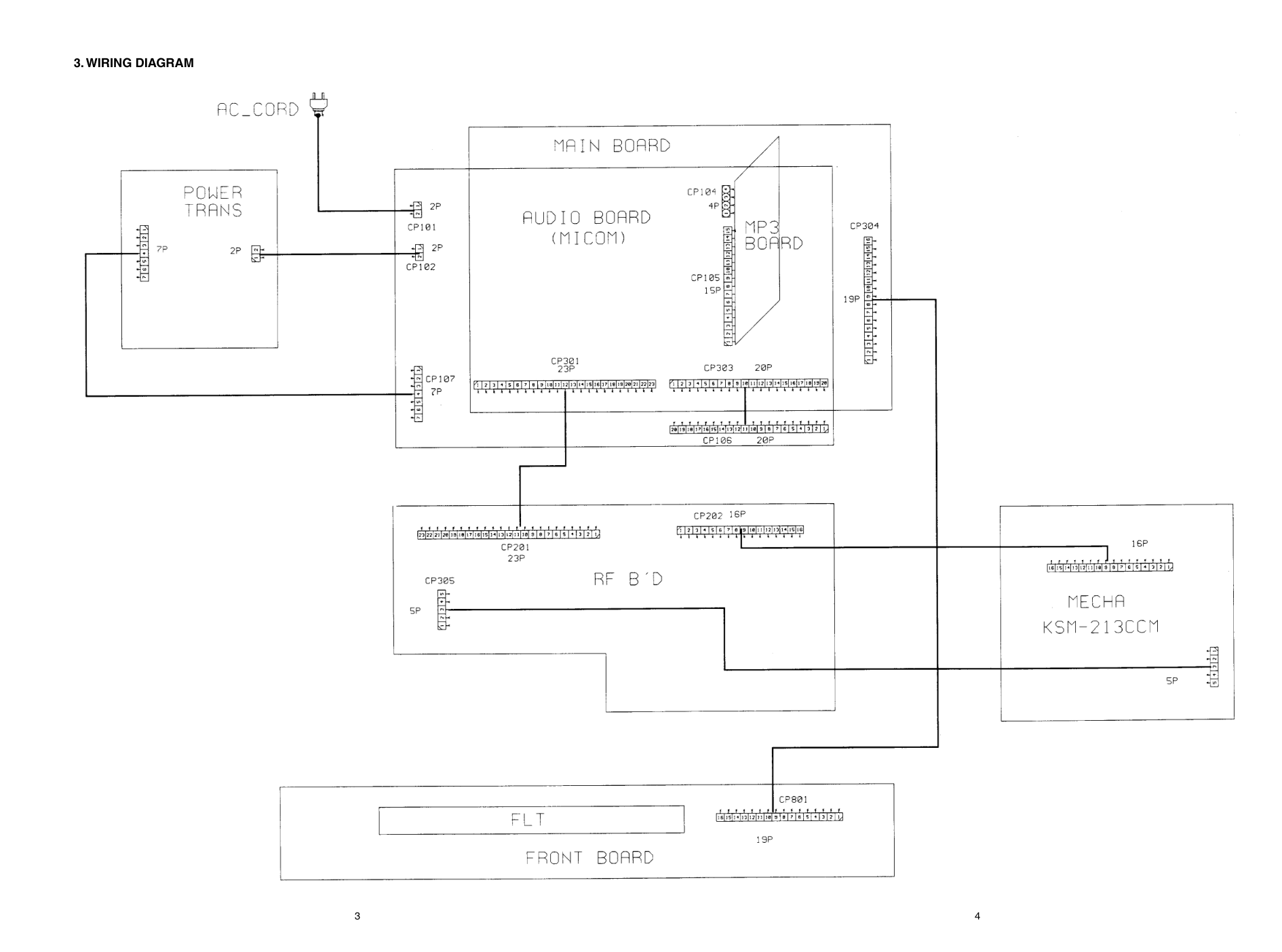

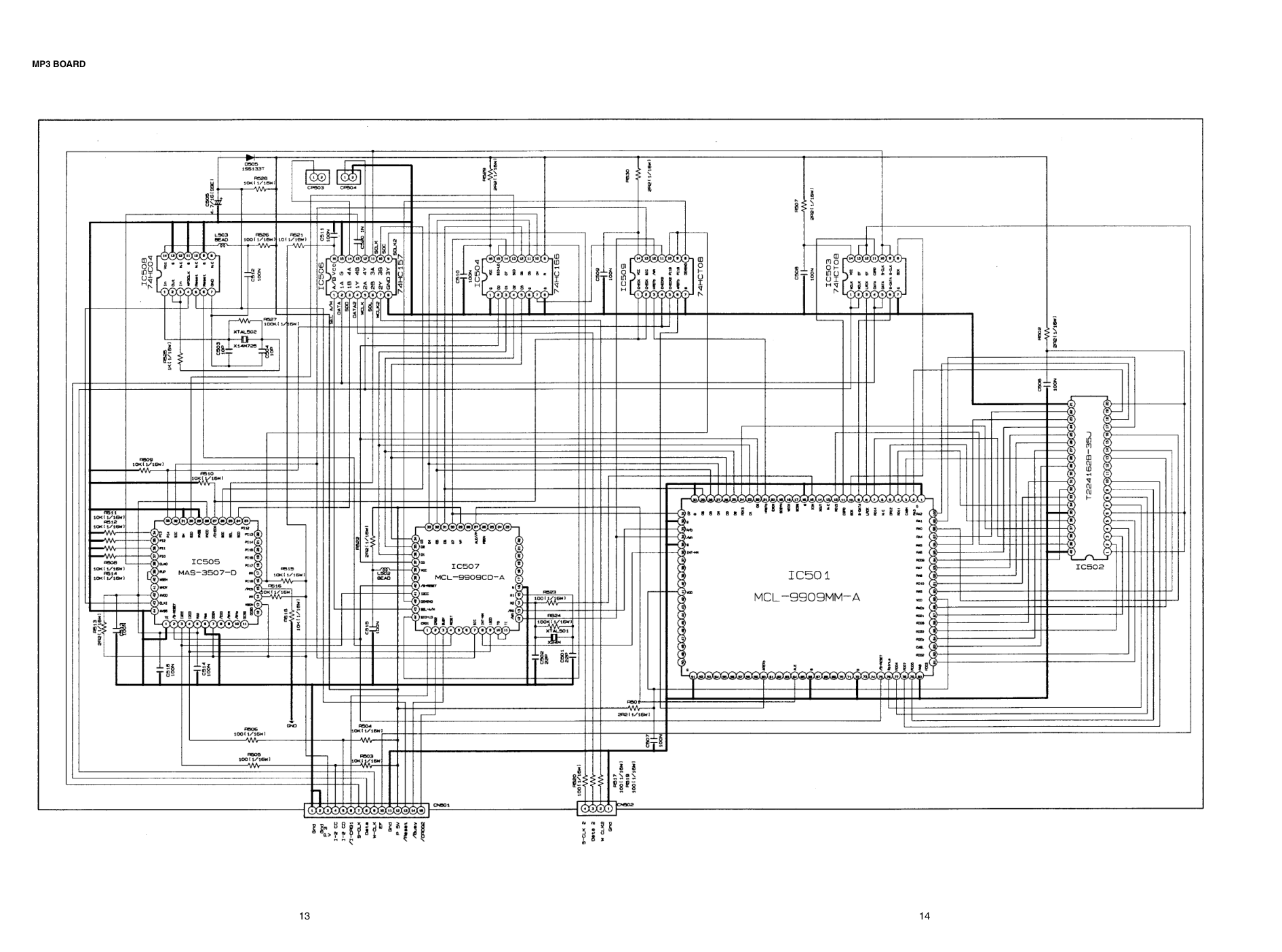

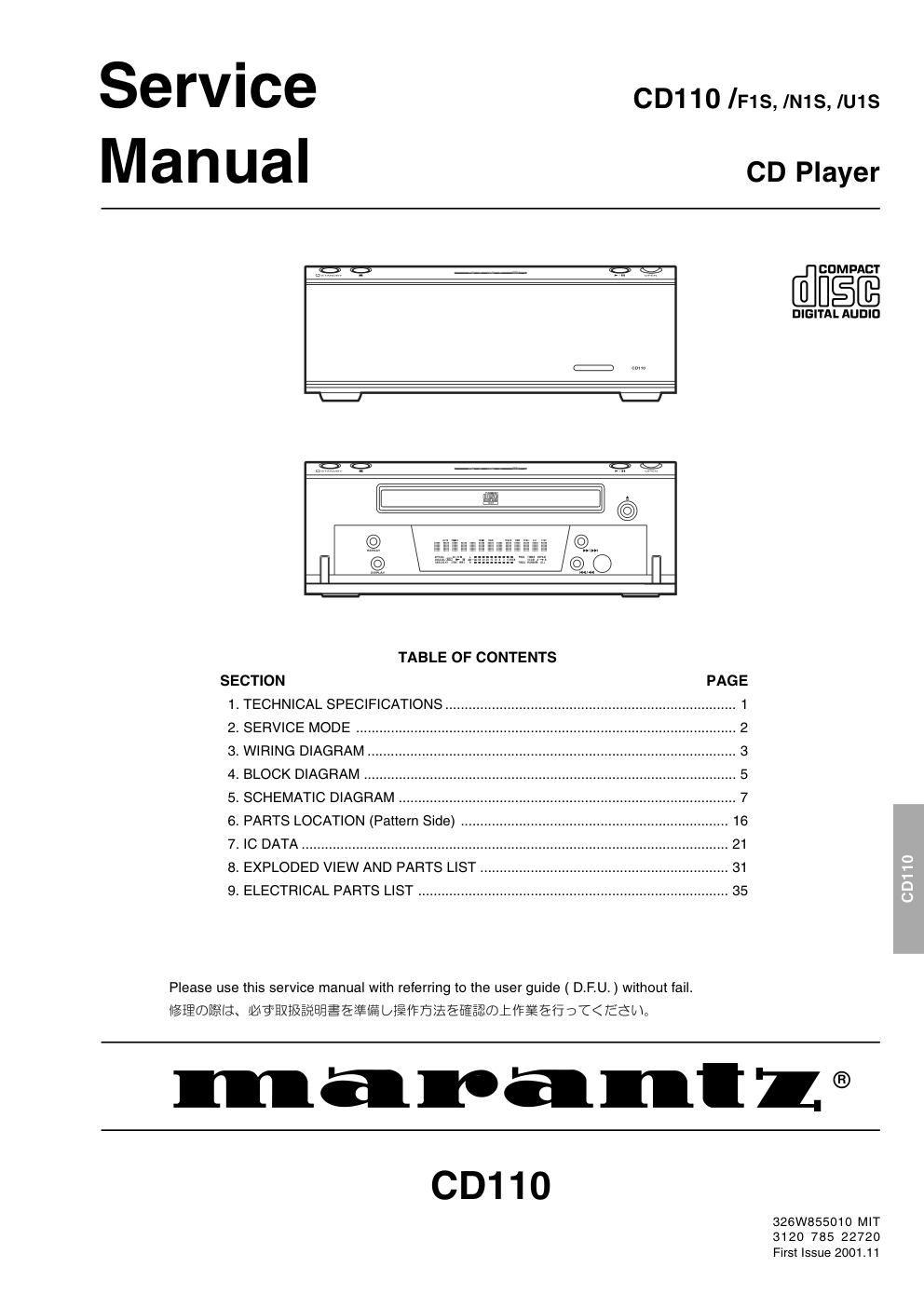

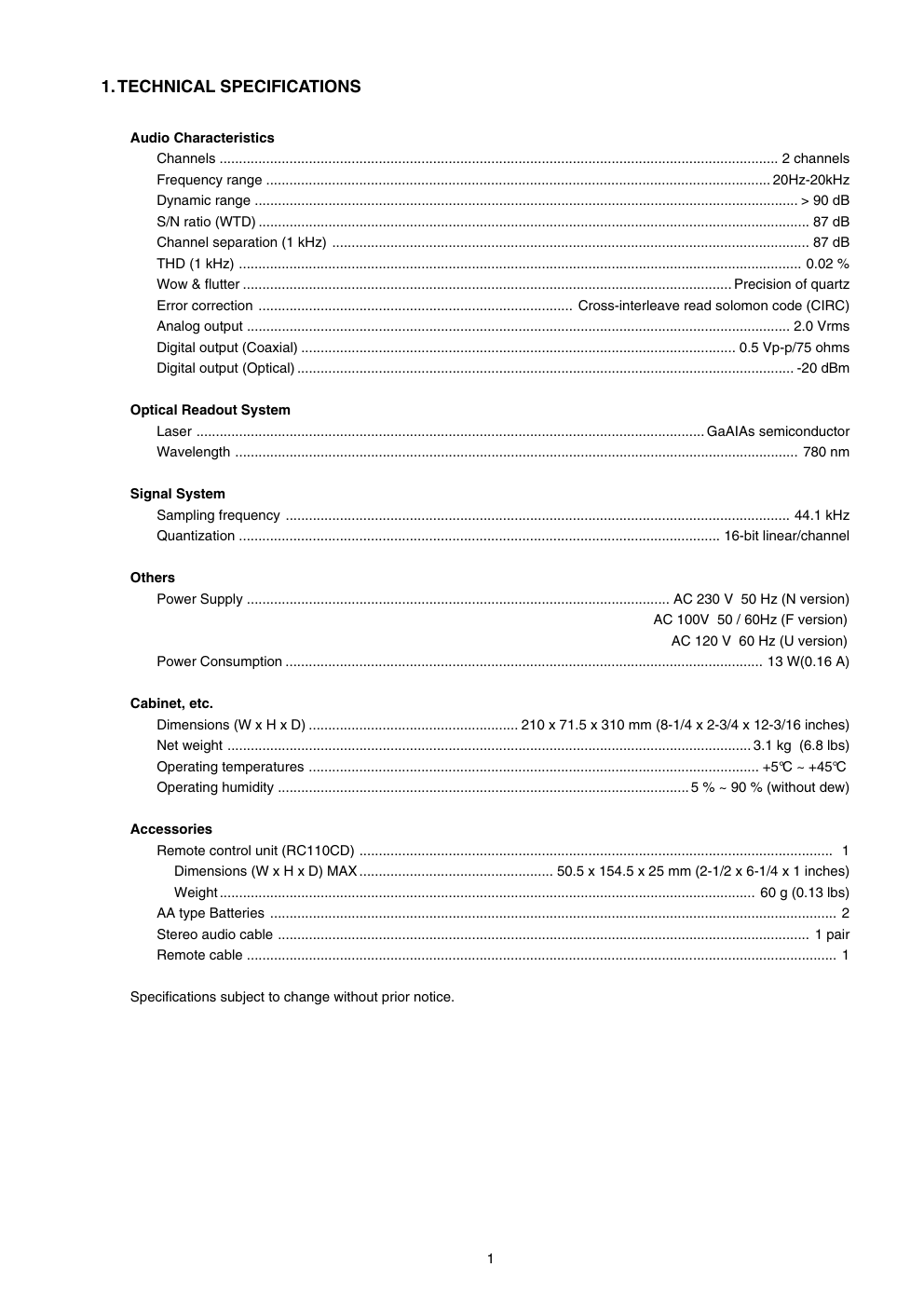

CD110 326W855010 MIT 3120 785 22720 First Issue 2001.11 Service Manual R Please use this service manual with referring to the user guide ( D.F.U. ) without fail. CD110 /F1S, /N1S, /U1S CD Player TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ........................................................................... 1 2. SERVICE MODE .................................................................................................. 2 3. WIRING DIAGRAM ............................................................................................... 3 4. BLOCK DIAGRAM ................................................................................................ 5 5. SCHEMATIC DIAGRAM ....................................................................................... 7 6. PARTS LOCATION (Pattern Side) ..................................................................... 16 7. IC DATA .............................................................................................................. 21 8. EXPLODED VIEW AND PARTS LIST ................................................................ 31 9. ELECTRICAL PARTS LIST ................................................................................ 35 CD110 STANDBY OPEN DISPLAY REPEAT STANDBY OPEN CD110 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 010620MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 1. TECHNICAL SPECIFICATIONS Audio Characteristics Channels ................................................................................................................................................ 2 channels Frequency range .................................................................................................................................. 20Hz-20kHz Dynamic range ............................................................................................................................................ > 90 dB S/N ratio (WTD) .............................................................................................................................................. 87 dB Channel separation (1 kHz) ........................................................................................................................... 87 dB THD (1 kHz) ................................................................................................................................................. 0.02 % Wow & flutter .............................................................................................................................. Precision of quartz Error correction ................................................................................. Cross-interleave read solomon code (CIRC) Analog output ............................................................................................................................................ 2.0 Vrms Digital output (Coaxial) ................................................................................................................ 0.5 Vp-p/75 ohms Digital output (Optical) ................................................................................................................................ -20 dBm Optical Readout System Laser ................................................................................................................................... GaAIAs semiconductor Wavelength ................................................................................................................................................. 780 nm Signal System Sampling frequency .................................................................................................................................. 44.1 kHz Quantization ............................................................................................................................ 16-bit linear/channel Others Power Supply ............................................................................................................. AC 230 V 50 Hz (N version) AC 100V 50 / 60Hz (F version) AC 120 V 60 Hz (U version) Power Consumption ........................................................................................................................... 13 W(0.16 A) Cabinet, etc. Dimensions (W x H x D) ...................................................... 210 x 71.5 x 310 mm (8-1/4 x 2-3/4 x 12-3/16 inches) Net weight ....................................................................................................................................... 3.1 kg (6.8 lbs) Operating temperatures .................................................................................................................... +5°C ~ +45°C Operating humidity ..........................................................................................................5 % ~ 90 % (without dew) Accessories Remote control unit (RC110CD) .......................................................................................................................... 1 Dimensions (W x H x D) MAX.................................................. 50.5 x 154.5 x 25 mm (2-1/2 x 6-1/4 x 1 inches) Weight.......................................................................................................................................... 60 g (0.13 lbs) AA type Batteries .................................................................................................................................................. 2 Stereo audio cable ......................................................................................................................................... 1 pair Remote cable ........................................................................................................................................................ 1 Specifications subject to change without prior notice. 2 Service Mode 1. While Mains cord is disconnected, press STOP Button on the unit and plug in the Mains cord. 2. Version number of the front micom software is displayed. 3. Press FF/NEXT Button(>>/>>|) then Display segment test begins. 4. First all the segments will light and then a segment turns off one by one. 5. Disconnect Power cord to quit service mode. 1. Remove 5 screws on the top cover and remove the top cover. 2. Remove 4 screws pointed with the arrows. 3. Remove the CD drive mechacomponent. (Lift up backside of the component and pull it backward so that the component is apart from the unit.) 4. Turn the gear to the direction shown with your finger and disc tray will be opened. Emargency Eject 2. SERVICE MODE 3 4 3. WIRING DIAGRAM 4. BLOCK DIAGRAM 5 6 7 8 5. SCHEMATIC DIAGRAM MAIN BOARD FRONT BOARD 9 10 RF BOARD 11 12 AUDIO BOARD 13 14 MP3 BOARD 15 16 IC801 Q802 Q803 Q804 Q801 FRONT BOARD 6. PARTS LOCATION 17 18 AUDIO BOARD IC309 IC305 IC301 IC304 Q309 Q310 Q307 Q308 Q306 Q301R Q302R Q302L Q301L IC303 Q305 Q304 Q204 Q203 IC201 Q205 Q201 Q206 RF BOARD IC202 IC203 19 MAIN BOARD Q104 Q103 IC103 IC102 Q101 Q102 Q105 20 MP3 BOARD IC502 IC503 IC501 IC509 IC504 IC506 IC507 IC505 IC508 MP3 TEST BOARD REGULATOR BOARD 21 7. IC DATA IC201:CXP2581 Pin Configuration 1 2 3 4 5 6 7 9 12 11 20 19 22 24 25 26 27 28 29 30 8 10 14 13 18 17 21 23 15 16 LD PD EQ_IN AC_SUM GND A B D SW F C E DVC DVCC RFAC DC_OFST RFDCI RFDCO VC RFC VFC BST VCC TE_BAL CE RFG CEI FEI TE FE Block Diagram DVCC AC SUM APC AC VCA EQ VC VC VC RW/ROM EQ_ON/OFF VOFST DVC DVCC RW/ROM VC RW/ROM RW/ROM RW/ROM DVC DVCC 25 15 30 29 28 17 16 26 24 23 3 4 6 7 8 9 10 19 18 DVC DVCC DVC VC VC VOFST DVC DVC VCC VOFST B C A D A B C D F E SW PD LD VCC GND VC DVC DVCC CE CEI TE TE_BAL FE FEI RFDCO RFDCI RFAC VFC RFC RFG BST EQ_IN AC_SUM DC_OFST VC RW/ROM 21 14 5 20 13 VC VCC APC-OFF (Hi-Z) RW/ROM (H/L) 27 22 1 2 12 11 gm gm RW/ROM VOFST Pin Description Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 LD PD EQ_IN AC_SUM GND A B C D E F SW DVCC DVC RFAC FE FEI TE TE_BAL CE CEI VCC RFG BST VFC RFC VC RFDCO RFDCI DC_OFST APC amplifier output. APC amplifier input. RFAC system VCA block and EQ block input. RFAC system RF SUM output. GND. A signal input. B signal input. C signal input. D signal input. E signal input. F signal input. Mode switching signal input. DVCC. DVC output. RFAC signal output. Focus error signal output. FE amplifier virtual ground. Tracking error signal output. TE balance adjustment. Center error signal output. CE amplifier virtual ground. VCC. RFAC system VCA block low frequency gain adjustment. EQ boost level adjustment. EQ cut-off frequency adjustment. EQ cut-off frequency adjustment. VC voltage output. RFDC signal output. RFDC amplifier virtual ground. RFDC signal output offset adjustment. O I I O I I I I I I I I I O O O I O I O I I I I I I O O I I Symbol I/O Description 22 IC203:CXD3068Q Block Diagram 23 IC303:NJM2068 IC502:T224162 Pin Configuration Pin Assignment Pin Description 24 BLOCK DIAGRAM System Clock Manager 8x Oversampling Digital Filter with Function Controller Enhanced Multi-level Delta-Sigma Modulator Serial Input I/F Function Control I/F System Clock BCK LRCK DATA Zero Detect Power Supply ML MC MDI SCK VOUTL VCOM VOUTR ZEROL ZEROR VDD DGND VCC AGND Output Amp and Low-pass Filter Output Amp and Low-pass Filter DAC DAC PIN CONFIGURATION PCM1748 8 7 6 5 4 3 2 1 BCK DATA LRCK DGND VDD VCC VOUTL VOUTR 9 10 11 12 13 14 15 16 SCK ML MC MD ZEROL ZEROR VCOM AGND PIN ASSIGNMENTS PIN NAME TYPE DESCRIPTIONS 1 BCK IN Audio data bit clock input. (1) 2 DATA IN Audio data digital input. (1) 3 LRCK IN Audio data latch enable input. (1) 4 DGND - Digital ground. 5 VDD - Digital power supply, + 3.3 V. 6 VCC - Analog power supply, + 5 V. 7 VOUTL OUT Analog output for L-channel. 8 VOUTR OUT Analog output for R-channel. 9 AGND - Analog ground. 10 VCOM - Common voltage decoupling. (1) 11 ZEROR OUT Zero flag output for R-channel. 12 ZEROL OUT Zero flag output for L-channel. 13 MD IN Mode control data Input. (2) 14 MC IN Mode control clock input. (2) 15 ML IN Mode control latch input. (2) 16 SCK IN System clock input. Note: (1) Schmitt trigger input, 5 V tolerant. (2) Schmitt trigger input with internal pull-down, 5 V tolerant. IC304:PCM1748 25 IC503/509:74HC08 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION 1, 4, 9, 12 1A to 4A data inputs 2, 5, 10, 13 1B to 4B data inputs 3, 6, 8, 11 1Y to 4Y data outputs 7 GND ground (0 V) 14 VCC positive supply voltage Fig.1 Pin configuration. Fig.2 Logic symbol. FUNCTION TABLE Note 1. H = HIGH voltage level L = LOW voltage level INPUTS OUTPUT nA nB nY L L H H L H L H L L L H IC504:74HC166 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION 1 s serial data input 2, 3, 4, 5, 10, 11, 12, 14 D0 to D7 parallel data inputs 6 CE clock enable input (active LOW) 7 CP clock input (LOW-to-HIGH edge-triggered) 8 GND ground (0 V) 9 MR asynchronous master reset (active LOW) 13 Q7 serial output from the last stage 15 PE parallel enable input (active LOW) 16 VCC positive supply voltage Fig.1 Pin configuration. Fig.4 Functional diagram. D 26 IC505:MAS3507 Pin Configuration 27 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION 1 S common data select input 2, 5, 11, 14 1I0 to 4I0 data inputs from source 0 3, 6, 10, 13 1I1 to 4I1 data inputs from source 1 4, 7, 9, 12 1Y to 4Y multiplexer outputs 8 GND ground (0 V) 15 E enable input (active LOW) 16 VCC positive supply voltage Fig.1 Pin configuration. Fig.4 Functional diagram. FUNCTION TABLE Notes 1. H = HIGH voltage level L = LOW voltage level X = don't care INPUTS OUTPUT E S nI0 nI1 nY H X X X L L L L L L L H H L H X X X X L H L H L H IC506:74HC157 28 IC801:M66004F 29 30 IC301:CXP84632 PIN NO PIN NAME Operation Description ASSIGN 1-25 N.C 26 RC-5 ON/OFF Output for RC-5 on/off O 27 RC-5 IN Input for RC-5 I 28 RC-5 OUT Output for RC-5 O 29 RC-5 int /ext Input for RC-5 int/ext I 30 RST or RESET Active "LOW" I 31 EXTAL Input for 10MHz crystal oscillator. I 32 XTAL Output for 10MHz crystal oscillator. O 33 VSS Ground I 34 TX Input f Input f or 38.768KHz sub crystal oscillator I 35 TEX Output for 38.768KHz sub crystal oscillator O 36 AVSS Ground 37 AVREF VDD +5V 38 MUTE Output for MUTE Active "LOW" O 39 KEY IN2 Data input key scan Check Port for AD Key Input I 40 KEY IN1 Data input key scan Check Port for AD Key Input I 41 OPEN SW Input for detecting "TRAY OPEN SW" condition I 42 CLOSE SW Input for detecting "TRAY CLOSE SW" condition I 43 OPEN Output for cd tray open Active "HIGH" O 44 CLOSE Output for cd tray close Active "HIGH" O 45 POWER ON Output for relay on Active "HIGH" O 46 FL_RESET Output for RESET of M66005 FLT DRIVE IC O 47 FL_CE Output for CE 66005 FLT DRIVE IC O 48 CD DSP SCLK Input for SCLK of CXD3068Q CD DSP I 49 NC 50 FL_DATA Output for DATA of M66005 FLT DRIVE IC O 51 ST/BY LED Output to drive SYBY LED(RED) O 52 POWER ON LED Output to drive POWER ON LED(GREEN) O 53 FL_ CLK Output for CLK of M66005 FLT DRIVE IC O 54,55 NC 56 RMC Input for remocon data I 57 EMPHASIS IN Input for CXD3068Q emphasis check Active "HIGH" I 58 MC Output for D/A mode control clock O 59 MD Output for D/A mode control data O 60 ML Output for D/A mode control latch O 61 BUSY Input for mp3 busy data "LOW" when BUSY I 62 SCOR Input for SCOR of CXD3068Q CD DSP I 63 CRQ2 Input for mp3 CRQ2 data (MP3 Unit request I2C BUS) I 64 POWER DOWN Input for power down I 65 DSP_CLK Output for CLOCK of CXD3068 CD DSP O 66 DSP_SUBQ Input for SUB-Q of CXD3068Q CD DSP I 67 DSP_DATA Output for DATA of CXD3068 CD DSP O 68 DSP_FOK Input for FOK of CXD3068Q CD DSP I 69 DSP_XLT Output for LATCH of CXD3068 CD DSP I 70 DSP_LD ON Output for LD on CD CDR:"LOW" , CD-RW:"HIGH" O 71 DSP_SENS Input for SENS of CXD3068Q CD DSP O 72 VDD VDD +5 VDD +5 V 73 VDD V 74 DSP XRST Output for RESET of CXD3068 CD DSP O 75 SPEED Output for cd speed Normal:"HIGH" , Double:"LOW" O 76 CRQ1 Output for mp3 CRQ1 data (MAIN CPU Request I2C data) O 77 MP3 RESET Output for mp3 RESET O 78 I2C CLOCK Clock for i2c bus I/O 79 NC 80 I2C DATA Data for i2c bus I/O PIN NO PIN NAME Operation Description ASSIGN Pin Assignment 31 32 8. EXPLODED VIEW AND PARTS LIST 24 TL 3 1 4 X2 17 H 5 7 6 X3 45 E X2 E X2 J X2 J X3 TA X2 26 25 H 18 28 29 31 37 G 36 35 38 PC K X2 32 39 K X2 F X2 8 9 21 22 K X7 10 40 11 A 33 X2 34 X2 D X4 23 C X9 A X3 41 42 A X4 E 43 12 13 X2 14 44 15 16 A X2 A B X2 A PF I 30 19 X2 20 X2 2 27 A1 33 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 1 9965 000 11102 PANEL DOOR 324W162010 2 9965 000 11103 BUTTON EJECT 325W270040 3 9965 000 10697 ARM DOOR L 323W002010 4 9965 000 10698 CUSHION DOOR 323W259010 A1 9965 000 11104 FRONT PANEL SUB ASSY 324W248500 5 nsp PANEL, BUTTON POWER B 324W248010 6 nsp BUTTON POWER B 323W270030 7 nsp BUTTON POWER A 323W270010 8 9965 000 10701 DAMPER GEAR DP802 323W130010 9 9965 000 10702 BRACKET DOOR C 323W160060 10 nsp P.C.B SUB ASSY, FRONT nsp 11 nsp CHASSIS MAIN nsp 12 N 9965 000 11105 TRANSF. MAINS FOR N *TS001280R 12 U nsp TRANSF. MAINS FOR U *TS001290R 12 F nsp TRANSF. MAINS FOR F *TS001300R 13 9965 000 11106 SUPPORTER 324W101010 14 N nsp REAR PANEL 324W250020 14 U nsp REAR PANEL 324W250040 14 F nsp REAR PANEL 324W250060 15 N, U 9965 000 11058 CORD HOLDER DACH-1 323W259030 15 F nsp CORD HOLDER DACH-2 323W259020 16 N 9965 000 11107 MAINS CORD ASSY FOR N *YC000610R 16 U nsp MAINS CORD ASSY FOR U *YC000600R 16 F nsp MAINS CORD ASSY FOR F *YC000590R 17 9965 000 11108 COVER TRAY CD 324W053010 18 9965 000 10708 BADGE MARANTZ 323W251010 19 9965 000 11109 BUTTON MENU 325W270010 20 9965 000 11110 BUTTON REC 325W270020 21 nsp WINDOW DISPLAY 325W158010 22 nsp SUPPORTER FLT nsp 23 nsp P.C.B ASSY, AUDIO nsp 24 9965 000 10709 WINDOW REMOTE 323W158030 25 9965 000 10713 ARM DOOR R 323W002020 26 9965 000 11111 PLATE EARTH A 323W123010 27 9965 000 10714 SPRING DOOR C 323W115010 28 9965 000 10715 KNOB OPEN 323W154020 29 nsp SUPPORTER EJECT 323W101010 30 nsp WINDOW REMOCON A 323W158020 31 9965 000 10716 BRACKET DOOR A 323W160010 32 9965 000 10717 SPRING DOOR A 323W115020 33 9965 000 10718 CUSHION FOOT FRONT 323W057010 34 9965 000 10719 CUSHION FOOT BACK 323W057020 35 9965 000 10720 HOLDER HINGE B 323W271020 36 9965 000 10721 HOLDER HINGE A 323W271010 37 9965 000 10703 SPRING DOOR B 323W115030 38 9965 000 10722 BRACKET DOOR B 323W160020 39 9965 000 10723 E-RING 323W353100 40 nsp BRACKET MECHA CD nsp 41 nsp P.C.B ASSY, P.C.B RF nsp 42 9965 000 11112 LOADER ASSY WITHOUT CD MECHA / ILU-06B 324W163010 43 nsp P.C.B ASSY, MP3 nsp 44 N nsp P.C.B ASSY, MAIN FOR N nsp 44 U nsp P.C.B ASSY, MAIN FOR U nsp 44 F nsp P.C.B ASSY, MAIN FOR F nsp 45 9965 000 11113 CABINET, TOP COVER 324W257010 PC nsp PLATE EARTH "C" nsp PF nsp PALTE EARTH "F" nsp TA nsp TAPE ARM nsp TL nsp TAPE LENS nsp TP nsp TAPE PROTECTOR nsp A nsp SCREW,TAP TITE, +2S 3x8 B-TYPE ZNY/BH nsp B nsp SCREW,TAP TITE, +2S 3x17 B-TYPE ZNY/BH nsp C nsp SCREW,TAP TITE, AVR3300(E3) +2S 3x10 B-TYPE(DOT) BK/BH nsp D nsp SCREW,TAP TITE ASSY, +3S 4x8 P+S-WASHER ZNY/BH nsp F nsp SCREW,TAP TITE, 3x8 B-TYPE CR/BH nsp F nsp SCREW,TAPPING, +2S 2x6 BK/PH nsp G nsp SCREW, +2S 3x8 PI9.5 B-TYPE ZNY nsp H nsp SCREW,TAP TITE, +2S 3x5 B-TYPE BK/FH nsp I nsp SCREW,TAP TITE, +3S 3x5 ZNY/BH nsp J nsp SCREW,TAP TITE, +2S 3x6 B-TYPE ZNY/BH nsp K nsp SCREW,TAP TITE, +#2PS 3x8Y nsp PACKING 001T N 9965 000 11100 USER GUIDE CD110/N1S 324W851310 001T U nsp USER GUIDE CD110/U1S 324W851250 001T F nsp USER GUIDE CD110/F1S 324W851110 001Z 9965 000 11101 REMOTE CONTROLLER RC110CD ZK324W0010 NOT STANDARD SPARE PARTS - N nsp CARD Important nsp - U nsp CARD Warranty(USA Ver.) nsp - F nsp CARD Post(JAPAN Ver.) nsp - U nsp CARD Warranty(CANADA Ver.) nsp - F nsp CARD Warranty(JAPAN Ver.) nsp 001S nsp BOX GIFT 324W801010 002S nsp CUSHION SNOW 323W809010 34 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. ILU-06 ILU-06 M001 42c 42e 42f 42d 42b 42a POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) M001 9965 000 11137 CD PICK UP MECHA. UNIT 324W304500 42a 9965 000 11112 LOADER TRAY 324W163010 42b 9965 000 11138 LOADING BELT 324W264010 42c 9965 000 11139 PLATE CLAMPER 324W005010 42d 9965 000 11140 CLAMPER 324W005020 42e 9965 000 11141 PULLEY 324W262010 42f 9965 000 11142 MOTOR LOADER *MM001160R 35 9. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT 36 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) MAIN CIRCUIT BOARD MAIN -CAPACITORS C100 nsp ELECT,3300µF-M/25V 16x25L. nsp C101 nsp ELECT,470µF-M/25V 10x12.5 nsp C103 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C104 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C105 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C106 nsp ELECT,22µF-M/50V 5x11-5RE nsp C108 nsp ELECT,10µF-M/50V 5x11-5RE nsp C109 9965 000 11120 CER. AC(SAFETY), DE7150-487F 472MVAI DK17472840 C111 nsp ELECT,22µF-M/50V 5x11-5RE nsp C112 nsp CER.,0.001µF-K/50V-52RE nsp C113 nsp ELECT,100µF-M/16V 6.3x11 nsp C114 nsp CER.,0.1µF-Z/50V-52RE nsp C115 nsp ELECT,100µF-M/16V 6.3x11 nsp C116 nsp CER.,0.1µF-Z/50V-52RE nsp C117 nsp CER.,0.1µF-Z/50V-52RE nsp C118 nsp CER.,0.001µF-K/50V-52RE nsp C119 nsp ELECT,100µF-M/10V 5x11-5RE nsp C120 nsp ELECT,1000µF-M/35V 12.5x25L. nsp C121 nsp ELECT,100µF-M/16V 6.3x11 nsp C122 nsp CER.,0.1µF-Z/50V-52RE nsp C123 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C124 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C125 nsp CER.,0.047µF-Z/50V-5RE PI10 nsp C126 nsp CER.,0.1µF-Z/50V-52RE nsp C127 nsp ELECT,100µF-M/10V 5x11-5RE nsp MAIN-RESISTORS R101 nsp 10K-J 1/5W-52RE-AX nsp R102 nsp 47K-J 1/5W-52RE-AX nsp R103 nsp 4.7K-J 1/5W-52RE-AX nsp R104 nsp 100-J 1/5W-52RE nsp R105 nsp 100K-J 1/5W-52RE-AX nsp R106 nsp 33-J 1/5W-52RE-AX nsp R107 nsp 10K-J 1/5W-52RE-AX nsp R108 nsp 10K-J 1/5W-52RE-AX nsp R109 nsp 4.7K-J 1/5W-52RE-AX nsp R111 nsp 10K-J 1/5W-52RE-AX nsp R115 nsp R116 nsp 330-J 1/5W-52RE-AX nsp R117 nsp 22-J 1/5W-52RE-AX nsp MAIN-SEMICONDUCTORS D101 9965 000 10728 DIODE,IN4007 52 1000V 1A *HD201570R D105 D109 4822 130 32778 DIODE,1SS133T-72 HD20015210 D111 4822 130 32778 DIODE,1SS133T-72 HD20015210 D112 9965 000 10728 DIODE,IN4007 52 1000V 1A *HD201570R D115 D116 4822 130 32778 DIODE,1SS133T-72 HD20015210 D119 4822 130 32778 DIODE,1SS133T-72 HD20015210 D106 4822 130 33948 D,ZENER,MTZJ5.6B-0.5W/5MA HD30561000 D107 4822 130 10624 D,ZENER,MTZJ27B-0.5W/5MA *HD301580R D108 4822 130 31554 D,ZENER,MTZJ4.3B-0.5W/5MA HD30431000 D117 4822 130 33948 D,ZENER,MTZJ5.6B-0.5W/5MA HD30561000 D118 9965 000 10586 D,ZENER,MTZJ20B-0.5W/5MA *HD301950R D120 9965 000 01374 D,ZENER,MTZJ2.7B-0.5W/5MA HD30271000 D121 4822 130 30862 D,ZENER,MTZJ9.1B-0.5W/5MA *HD301970R IC101 9965 000 11121 IC,KA7808 LINEAR-REGULATOR *HC300380R IC102 4822 209 31631 IC,KIA7805PI 20W-TO220IS LINEAR-REGULATOR HC3890509F IC103 4822 209 31631 IC,KIA7805PI 20W-TO220IS LINEAR-REGULATOR HC3890509F Q101 9965 000 11122 TRS.2SC, 1W/TO92L *BA001260R Q102 9965 000 11123 TRS.2SA, 1W/TO92L *BA001250R Q103 4822 130 50437 TRS.,DTC143ES 0.3W/TO92M *BA001300R Q104 9965 000 10444 TRS.,KRC107M 0.4W/TO92M *BA001070R Q105 9965 000 11123 TRS.2SA,KTA1273Y 1W/TO92L *BA001250R MAIN-MISCELLANEOUS CP101 nsp CN.WAFER 7.92MM, YW396-32V 2P nsp CP102 nsp CN.WAFER 3.96MM, 35328-0210 nsp CP103 nsp CN.WAFER 2.5MM,5267-07A7P nsp CP104 nsp CN.WAFER 2.0MM, 35336-0410 4P nsp CP105 nsp CN.WAFER 2.0MM, 35336-1510 15P nsp CP106 nsp CN.FPC 1.25MM, 52045-2045 20P ST nsp F101 N 4822 070 31601 FUSE (5.2x20), 250V-T160MA-S/V/B/R(YARN) *FS000450R F101 U, F nsp FUSE (5.2x20), 250V-S315MA-U/C(RESI) *FS000800R FCLIP101 nsp HOLDER,FUSE CLIP nsp FCLIP102 nsp HOLDER,FUSE CLIP nsp G101 nsp TERMINAL, ALL PBST/GND PLATE nsp J131 nsp CHIP,0-J 1/8W-3216 nsp SW101 9965 000 10732 SW,SLIDE,SSAF112NA011 *SS000700R RELAY 101 9965 000 10737 RELAY,G5PA-1-8 12V 5A *LY000260R TRANS 102 N 9965 000 11027 SUB TRANSF. FOR N *TS001540R TRANS 102 U nsp SUB TRANSF. FOR U *TS001360R TRANS 102 F nsp SUB TRANSF. FOR F *TS001370R RF CIRCUIT BOARD RF -CAPACITORS C201 nsp ELECT,100µF-M/10V 6.3x5-5RE nsp C202 nsp ELECT,47µF-M/16V 6.3x5-5RE nsp C203 nsp ELECT,100µF-M/10V 6.3x5-5RE nsp C204 nsp CER.CHIP,1000pF-K/50V nsp C205 nsp CER.CHIP,1000pF-K/50V nsp C206 nsp CER.,15pF-J/50V-52RE nsp C207 nsp ELECT,1µF-M/50V 3x5-5RE nsp C208 nsp CER.,220pF-K/50V-52RE nsp C209 nsp CER.,220pF-K/50V-52RE nsp C210 nsp ELECT,100µF-M/10V 6.3x5-5RE nsp C211 nsp ELECT,0.47µF-M/50V 3x5-5RE nsp C212 nsp CER.,0.022µF-Z/25V-52RE nsp C213 nsp CER.,0.01µF-M/16V-52RE nsp C214 nsp CER.,100pF-K/50V-52RE nsp C215 nsp CER.,0.0015µF-M/16V-52RE nsp C216 nsp CER.,0.01µF-M/16V-52RE nsp C217 nsp CER.CHIP,0.047µF-K/16V nsp C218 nsp CER.CHIP,0.1µF-K/50V nsp C219 nsp CER.CHIP,0.1µF-K/50V nsp C220 nsp CER.CHIP,27pF-J/50V nsp C221 nsp CER.CHIP,27pF-J/50V nsp C222 nsp CER.CHIP,0.01µF-K/50V nsp C223 nsp CER.CHIP,0.068µF-Z/50V nsp C224 nsp CER.CHIP,100pF-J/50V nsp C225 nsp CER.CHIP,68pF-J/50V nsp C226 nsp ELECT,220µF-M/10V 8x5 nsp C227 nsp CER.CHIP,0.1µF-K/50V nsp KTC3205Y KTA1273Y 37 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) C230 nsp CER.,47pF-J/50V-52RE nsp C231 nsp CER.CHIP,1000pF-K/50V nsp RF -RESISTORS R201 nsp 10-J 1/5W-52RE-AX nsp R202 nsp 15K-J 1/5W-52RE-AX nsp R203 nsp 15K-J 1/5W-52RE-AX nsp R204 nsp 1-J 1/5W-52RE-AX nsp R205 nsp CHIP,2.2K-J 1/16W nsp R206 nsp CHIP,1.2K-J 1/16W nsp R207 nsp CHIP,1.8K-J 1/16W nsp R208 nsp 15K-J 1/5W-52RE-AX nsp R209 nsp 15K-J 1/5W-52RE-AX nsp R210 nsp 100K-J 1/5W-52RE-AX nsp R211 nsp 100K-J 1/5W-52RE-AX nsp R212 nsp 33K-J 1/5W-52RE-AX nsp R213 nsp 3.3K-J 1/5W-52RE-AX nsp R214 nsp 1M-J 1/5W-52RE-AX nsp R215 nsp 10K-J 1/5W-52RE-AX nsp R217 nsp CHIP,10K-J 1/16W nsp R218 nsp CHIP,150K-J 1/16W nsp R219 nsp CHIP,100K-J 1/16W nsp R220 nsp CHIP,3.3K-J 1/16W nsp R221 nsp CHIP,470K-J 1/16W nsp R222 nsp CHIP,1M-J 1/16W nsp R223 nsp CHIP,390-J 1/16W nsp R224 nsp CHIP,220-J 1/16W nsp R225 nsp CHIP,220-J 1/16W nsp R226 nsp CHIP,220-J 1/16W nsp R227 nsp CHIP,1M-J 1/16W nsp R228 nsp CHIP,10K-J 1/16W nsp R229 nsp 1.5K-J 1/5W-52RE-AX nsp R230 nsp 470K-J 1/5W-52RE-AX nsp R233 nsp CHIP,1.2K-J 1/16W nsp R234 nsp CHIP,4.7K-J 1/16W nsp R235 nsp CHIP,1K-J 1/16W nsp R236 nsp CHIP,220K-J 1/16W nsp R237 nsp CHIP,4.7K-J 1/16W nsp R238 nsp CHIP,1K-J 1/16W nsp R239 nsp CHIP,220K-J 1/16W nsp R240 nsp CHIP,470K-J 1/16W nsp R241 nsp 470-J 1/5W-52RE-AX nsp R242 nsp CHIP,100K-J 1/16W nsp R243 nsp CHIP,15K-J 1/16W nsp R245 nsp CHIP,18K-J 1/16W nsp R246 nsp CHIP,15K-J 1/16W nsp RF -SEMICONDUCTORS D201 4822 130 32778 DIODE,1SS133T-72 HD20015210 IC201 9965 000 11133 IC,LINEAR-DRIVER, BA5979S DIP32 *HC107400R IC202 9965 000 11135 IC,OPTICAL-RF AMP, CXA2581N-24P *HC107340R IC203 9965 000 11136 IC,OPTICAL-RF SERVO, CXD3068Q QFP80 *HC107350R Q201 9965 000 11134 TRS.2SA,KTA1270Y0.5W/TO92 *BA001240R Q202 9965 000 10444 TRS.,KRC107M 0.4W/TO92M *BA001070R Q203 4822 130 61723 TRS.,DTC323TS 0.3W/TO92M *BA001310R Q204 9965 000 10444 TRS.,KRC107M 0.4W/TO92M *BA001070R RF -MISCELLANEOUS CP201 nsp CN.FPC 1.25MM, 52044-2345 23P ANGLE nsp CP202 nsp CN.FPC 1.0MM, 52807-1610 16P ANGLE nsp CP203 nsp CN.WAFER 2.0MM, GIL-S-6P-S2L2-EF nsp J207 nsp CHIP,0-J 1/8W-3216 nsp J230 nsp CHIP,0-J 1/8W-3216 nsp J231 nsp CHIP,0-J 1/8W-3216 nsp J233 nsp CHIP,0-J 1/8W-3216 nsp J244 nsp CHIP,0-J 1/8W-3216 nsp L201 nsp COIL,FILTER-INDUCTOR, 10UH-Q40/24M-R2.5-52RE02TB nsp XTAL201 9965 000 11132 CRYSTAL, 33.8688MHZ HC49/S CL=20pF *JX000840R AUDIO CIRCUIT BOARD AUDIO -CAPACITORS C301 nsp ELECT,1µF-M/50V 3*5-5RE nsp C302 nsp ELECT,100µF-M/16V 6.3*11 nsp C303 nsp CER.CHIP,0.1µF-K/50V nsp C305 nsp CER.CHIP,0.01µF-K/50V nsp C306 nsp CER.CHIP,0.01µF-K/50V nsp C307 nsp CER.CHIP,0.1µF-K/50V nsp C308 nsp CER.CHIP,0.1µF-K/50V nsp C309 nsp ELECT,10µF-M/16V 3*5-5RE nsp C310 nsp ELECT,22µF-M/16V 5*5-5RE nsp C311 nsp ELECT,10µF-M/16V 3*5-5RE nsp C314L nsp CER.CHIP,2700pF-K/50V nsp C314R nsp CER.CHIP,2700pF-K/50V nsp C315L nsp CER.CHIP,270pF-J/50V nsp C315R nsp CER.CHIP,270pF-J/50V nsp C316L nsp CER.CHIP,100pF-J/50V nsp C316R nsp CER.CHIP,100pF-J/50V nsp C317 nsp CER.CHIP,0.1µF-K/50V nsp C318 nsp CER.CHIP,27pF-J/50V nsp C319 nsp CER.CHIP,27pF-J/50V nsp C320 nsp CER.CHIP,0.1µF-K/50V nsp C322 nsp ELECT,100µF-M/16V 6.3*11 nsp C323 nsp CER.CHIP,0.1µF-K/50V nsp C323L nsp ELECT,10µF-M/16V 5*11 nsp C323R nsp ELECT,10µF-M/16V 5*11 nsp C324L nsp ELECT,10µF-M/16V 5*11 nsp C324R nsp ELECT,10µF-M/16V 5*11 nsp C325L nsp ELECT,22µF-M/16V 5*5-5RE nsp C325R nsp ELECT,22µF-M/16V 5*5-5RE nsp C330 9965 000 11128 DOUBLE LAYER(70), H0.047F-70UA/5.5V-5RE *EX000090R C331 nsp ELECT,47µF-M/16V 6.3*5-5RE nsp C332 nsp CER.CHIP,0.1µF-K/50V nsp AUDIO -RESISTORS R301 nsp CHIP,10K-J 1/16W nsp R302 nsp CHIP,10K-J 1/16W nsp R303 nsp 10K-J 1/5W-52RE-AX nsp R304 nsp CHIP,10K-J 1/16W nsp R305 nsp CHIP,10K-J 1/16W nsp R306 nsp CHIP,75-J 1/16W nsp R307 nsp CHIP,75-J 1/16W nsp R308 nsp CHIP,47-J 1/16W nsp R309 nsp CHIP,220K-J 1/16W nsp R311 nsp CHIP,10K-J 1/16W nsp R312 nsp CHIP,1K-J 1/16W nsp R312L nsp CHIP,100K-J 1/16W nsp R312R nsp CHIP,100K-J 1/16W nsp R313 nsp CHIP,1K-J 1/16W nsp R313L nsp CHIP,330-J 1/16W nsp R313R nsp CHIP,330-J 1/16W nsp R314 nsp CHIP,1K-J 1/16W nsp R314L nsp CHIP,330-J 1/16W nsp R314R nsp CHIP,330-J 1/16W nsp R315 nsp CHIP,47-J 1/16W nsp R315L nsp CHIP,100-J 1/16W nsp 38 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R315R nsp CHIP,100-J 1/16W nsp R316 nsp CHIP,2.2K-J 1/16W nsp R316L nsp CHIP,8.2K-J 1/16W nsp R316R nsp CHIP,8.2K-J 1/16W nsp R317L nsp CHIP,1K-J 1/16W nsp R317R nsp CHIP,1K-J 1/16W nsp R318L nsp CHIP,15K-J 1/16W nsp R318R nsp CHIP,15K-J 1/16W nsp R319 nsp 2.2-J 1/5W-52RE-AX nsp R320 nsp CHIP,2.2K-J 1/16W nsp R323 nsp CHIP,47-J 1/16W nsp AUDIO -SEMICONDUCTORS D301 4822 130 83142 D,ZENER,MTZJ6.2B-0.5W/5MA HD30621000 D302 9965 000 11119 DIODE CHIP,1SS355USM *HD201580R D303 9965 000 11119 DIODE CHIP,1SS355USM *HD201580R D304 9965 000 11119 DIODE CHIP,1SS355USM *HD201580R D305 4822 130 32778 DIODE,1SS133T-72 HD20015210 D306 4822 130 32778 DIODE,1SS133T-72 HD20015210 D307 4822 130 32778 DIODE,1SS133T-72 HD20015210 IC302 9965 000 03719 IC,MOTOR DRIVER, BA6956AN SIP9 *HC107410R IC303 5322 209 13406 IC,LINEAR OP, NJM2068MD SOP8 *HC107380R IC304 9965 000 11130 IC-D/A CONVER, PCM1748E SSOP16 *HC107360R IC305 9965 000 10992 IC,MC74HCU04AD SOP14 *HC700180R IC306 9965 000 11129 IC,LINEAR-RESET, KIA7032P 3.2V/TO92 *HC107390R Q301L 4822 130 63187 TRS.2SC,DTC323TK *BA001270R Q301R 4822 130 63187 TRS.2SC,DTC323TK *BA001270R Q302L 4822 130 63187 TRS.2SC,DTC323TK *BA001270R Q302R 4822 130 63187 TRS.2SC,DTC323TK *BA001270R Q303 9965 000 10763 TRS.2SC,KRC107S *BA001160R Q304 9965 000 10746 CHIP TRS.2SA,KRA107S *BA001170R Q305 4822 130 90326 CHIP TRS.2SA,DTA114TK *BA001280R Q306 9965 000 10745 CHIP TRS.2SA,KRA102S *BA001230R Q307 9965 000 10745 CHIP TRS.2SA,KRA102S *BA001230R Q308 9965 000 10753 CHIP.TRS. 2SC,KRC102S *BA001220R Q309 9965 000 11131 CHIP.TRS. 2SC,KRC104S *BA001290R Q310 9965 000 10745 CHIP TRS.2SA,KRA102S *BA001230R AUDIO -MISCELLANEOUS CP301 nsp CN.FPC 1.25MM, 52044-2345 23P ANGLE nsp CP302 nsp CN.WAFER 2.0MM, 53015-1010 10P ANGLE nsp CP303 nsp CN.FPC 1.25MM, 52044-2045 20P ANGLE nsp CP304 nsp CN.FPC 1.0MM, 52807-1910 19P ANGLE nsp CP305 nsp CN.WAFER 2.0MM,GIL-S-5P-S2L2-EF nsp J360 nsp CHIP,0-J 1/8W-3216 nsp J404 JACK301 9965 000 11125 TER,RCA 2PIN, JK020130DN(GND PLATE&PIN) *YJ002480R JACK302 9965 000 11126 TER,RCA 2PIN, JK020130LN(GND PLATE&PIN) *YJ002490R JACK303 9965 000 11127 TER,RCA 1PIN, JE010003PN(GND) BLACK *YT002670R JACK304 9965 000 11127 TER,RCA 1PIN, JE010003PN(GND) BLACK *YT002670R PLT301 4822 130 10845 MODULE,GP1F32T / OPTICAL TX YJ15000090 PLT302 4822 130 10845 MODULE,GP1F32T / OPTICAL TX YJ15000090 XTAL302 9965 000 11124 CRYSTAL, MX-38T(32.768KHZ) NDK *JX000830R XTAL301 9965 000 10739 RESONATOR,CERAMIC, CST10.0MTW-TF01 *FQ000350R MP3 CIRCUIT BOARD MP3 -CAPACITORS C501 nsp CER.CHIP,22pF-J/50V nsp C502 nsp CER.CHIP,22pF-J/50V nsp C503 nsp CER.CHIP,10pF-D/50V nsp C504 nsp CER.CHIP,10pF-D/50V nsp C505 nsp ELECT,4.7µF-M/16V 3x5 nsp C506 nsp CER.CHIP,0.1µF-K/50V nsp C516 C520 nsp CER.CHIP,1000pF-K/50V nsp MP3 -RESISTORS R501 nsp CHIP,2.2-J 1/16W nsp R502 nsp CHIP,2.2-J 1/16W nsp R503 nsp CHIP,10K-J 1/16W nsp R504 nsp CHIP,10K-J 1/16W nsp R505 nsp CHIP,100-J 1/16W nsp R506 nsp CHIP,100-J 1/16W nsp R507 nsp CHIP,2.2-J 1/16W nsp R508 nsp CHIP,10K-J 1/16W nsp R512 R513 nsp CHIP,2.2-J 1/16W nsp R514 nsp CHIP,10K-J 1/16W nsp R515 nsp CHIP,10K-J 1/16W nsp R516 nsp CHIP,10K-J 1/16W nsp R517 nsp CHIP,100-J 1/16W nsp R518 nsp CHIP,10K-J 1/16W nsp R519 nsp CHIP,100-J 1/16W nsp R520 nsp CHIP,100-J 1/16W nsp R521 nsp CHIP,2.2-J 1/16W nsp R522 nsp CHIP,2.2-J 1/16W nsp R523 nsp CHIP,100-J 1/16W nsp R524 nsp CHIP,100K-J 1/16W nsp R525 nsp CHIP,1K-J 1/16W nsp R526 nsp CHIP,2.2-J 1/16W nsp R527 nsp CHIP,100K-J 1/16W nsp R528 nsp CHIP,10K-J 1/16W nsp R529 nsp CHIP,2.2-J 1/16W nsp R530 nsp CHIP,2.2-J 1/16W nsp MP3 -SEMICONDUCTORS D505 9965 000 11119 DIODE CHIP,1SS355USM *HD201580R IC502 9965 000 11116 IC,MEMORY-RAM, T224162B-35J SOJ40 *HC106780R IC503 4822 209 17184 IC,74HCT08 SOP14 *HC700390R IC504 9965 000 11117 IC,ENCODER, 74HC166D SOP16 *HC700410R IC505 9965 000 06200 IC,DECODER, MAS3507D-QG-F10 PQFPF44 *HC107370R IC506 9965 000 11118 IC,PC74HC157D SOP16 *HC700400R IC508 9965 000 10992 IC,MC74HCU04AD SOP14 *HC700180R IC509 4822 209 17184 IC,74HCT08 SOP14 *HC700390R MP3 -MISCELLANEOUS CN501 nsp CN.WAFER 2.0MM, 35237-1510 15P nsp CN502 nsp CN.WAFER 2.0MM, 35237-0410 4P nsp CP503 nsp CN.WAFER 2.0MM, GIL-S-2P-S2T2-EF nsp 39 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CP504 nsp CN.WAFER 2.0MM, 53014-0210 2P nsp L501 nsp BEAD,COIL CHIP,HB-IT2012- 121JT(CERATEC)2012 nsp XTAL502 9965 000 11114 CRYSTAL, 14.7250MHZ CL=20pF HC49 *JX000810R XTAL501 9965 000 11115 CRYSTAL, 24.0000MHZ CL=18pF HC49 *JX000820R FRONT CIRCUIT BOARD FRONT -CAPACITORS C801 nsp CER.CHIP,0.01µF-K/50V nsp C802 nsp CER.CHIP,0.01µF-K/50V nsp C803 nsp CER.CHIP,100pF-J/50V nsp C804 nsp CER.CHIP,0.1µF-K/50V nsp C807 C808 nsp ELECT,100µF-M/10V nsp C809 nsp CER.CHIP,0.1µF-K/50V nsp C816 C817 nsp CER.CHIP,220pF-J/50V nsp C818 nsp CER.CHIP,220pF-J/50V nsp C819 nsp CER.CHIP,220pF-J/50V nsp FRONT -RESISTORS R801 nsp CHIP,100-J 1/16W nsp R802 nsp CHIP,100-J 1/16W nsp R803 nsp CHIP,10K-J 1/16W nsp R804 nsp CHIP,27K-J 1/16W nsp R805 nsp CHIP,1K-J 1/16W nsp R806 nsp CHIP,1K-J 1/16W nsp R807 nsp CHIP,1K-J 1/16W nsp R811 nsp CHIP,270-J 1/16W nsp R814 nsp CHIP,1K-J 1/16W nsp R815 nsp CHIP,270-J 1/16W nsp R817 nsp CHIP,4.7K-J 1/16W nsp R820 nsp CHIP,270-J 1/16W nsp R821 nsp CHIP,270-J 1/16W nsp R827 nsp CHIP,1.8K-J 1/16W nsp R829 nsp CHIP,2.7K-J 1/16W nsp R831 nsp CHIP,4.7K-J 1/16W nsp R832 nsp CHIP,2.7K-J 1/16W nsp R833 nsp CHIP,1.8K-J 1/16W nsp R837 nsp CHIP,4.7K-J 1/16W nsp R840 nsp CHIP,1K-J 1/16W nsp FRONT -SEMICONDUCTORS D801 9965 000 10757 LED,ROUND,HL-50CDG *HI100970R D802 9965 000 10757 LED,ROUND,HL-50CDG *HI100970R D803 9965 000 10758 LED,ROUND, PI5-RD GR / HLD50RG DUAL *HI100980R IC801 9965 000 10762 IC,FL DRIVER, M66005FP-SOP64P *HC107180R Q801 9965 000 10753 CHIP.TRS. 2SC,KRC102S *BA001220R Q804 Z801 9965 000 11028 D,ZENER,MTZJ7.5B *HD301980R FRONT -MISCELLANEOUS CN801 nsp CN.FPC 1.0MM,52806-1910 19P STRAIGHT nsp PLATE801 nsp BRACKET,SCREW nsp RM801 9965 000 10754 NJL64H380A / MODULE REMOTE *HW100520R S801 9965 000 10761 SW,TACT,SKHV10920A *SP001140R S812 S805 9965 000 10760 SW,TACT,THVH472GAA *SP001150R S808 9965 000 10760 SW,TACT,THVH472GAA *SP001150R S813 9965 000 10760 SW,TACT,THVH472GAA *SP001150R
