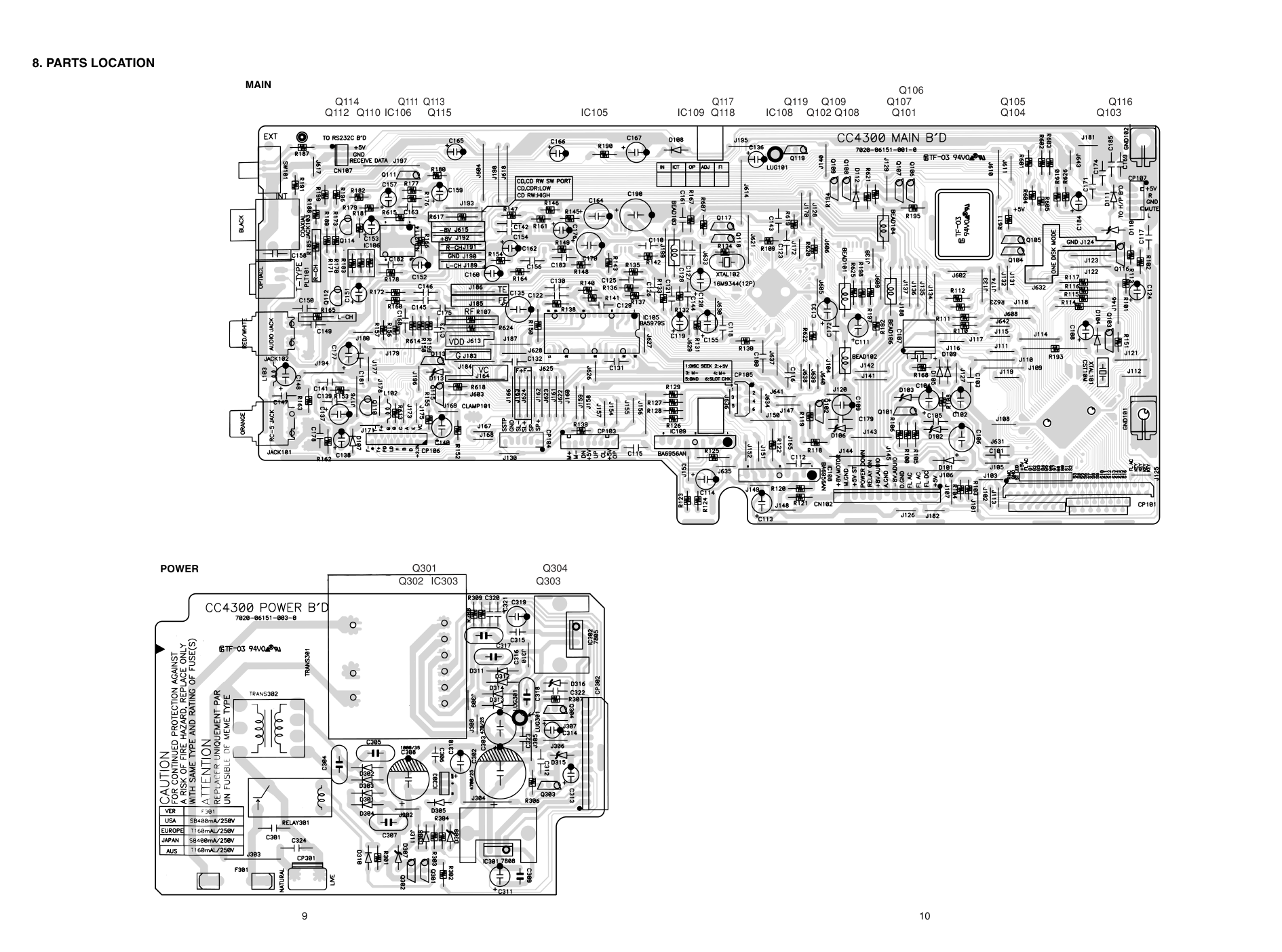

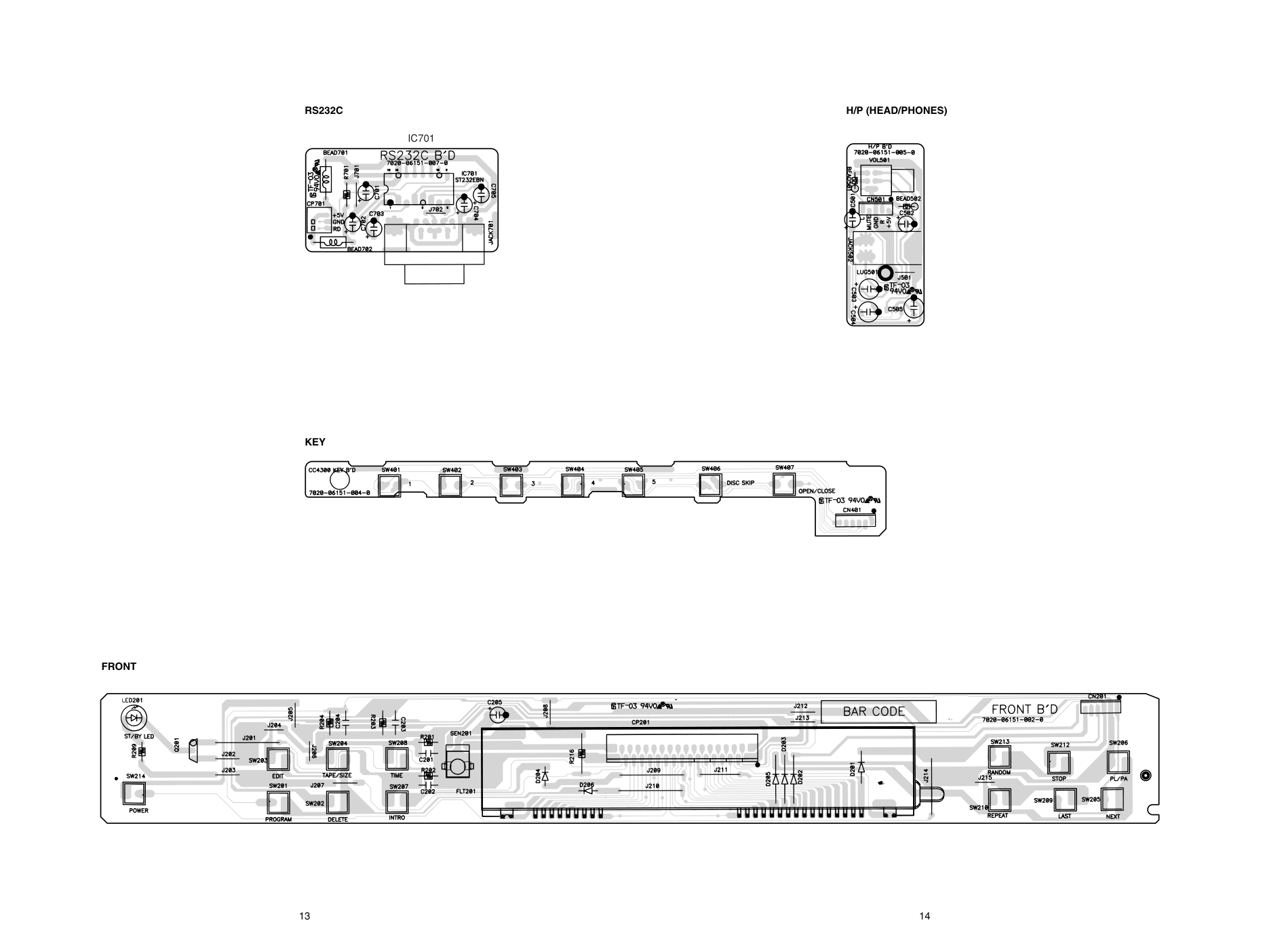

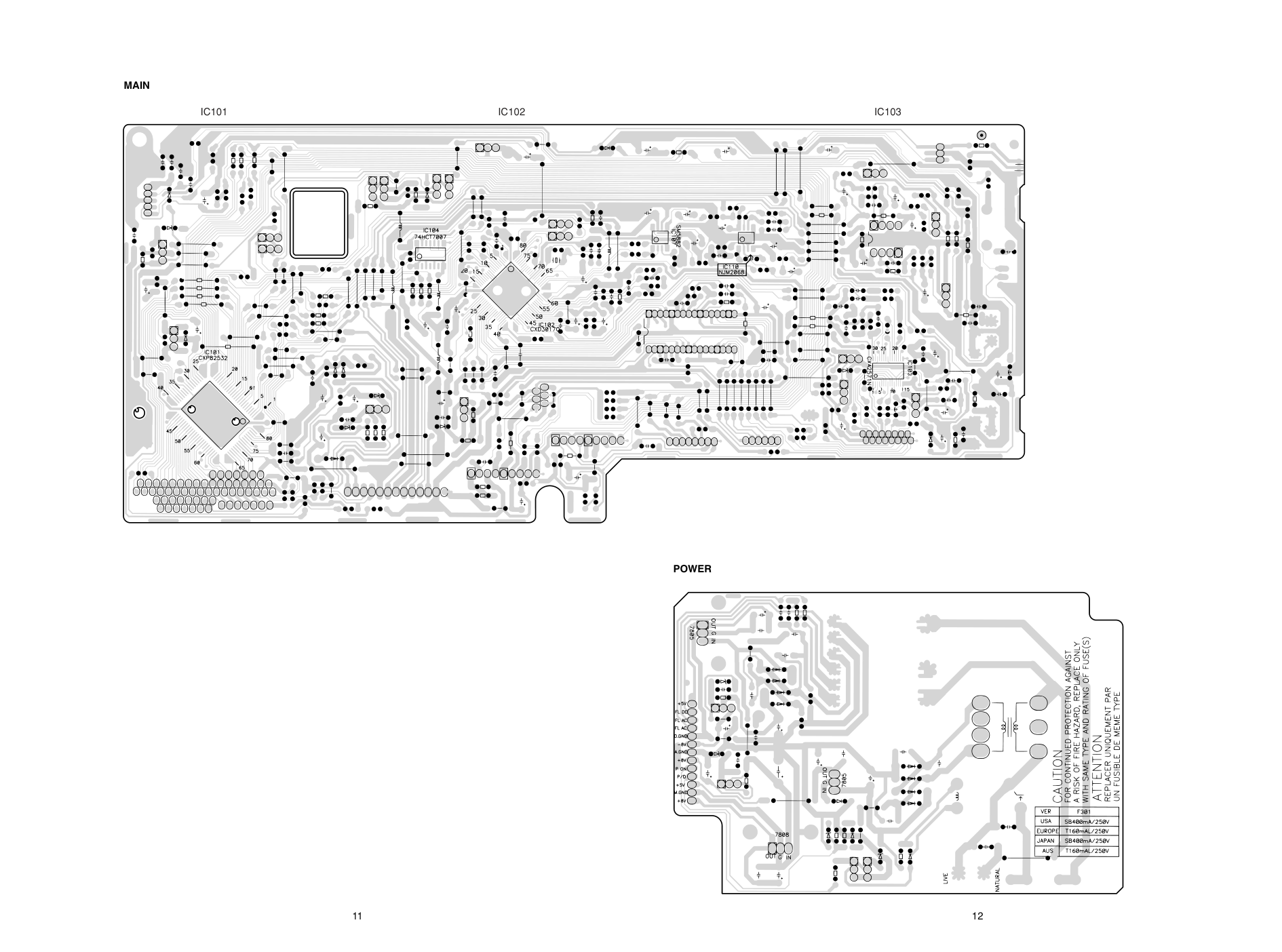

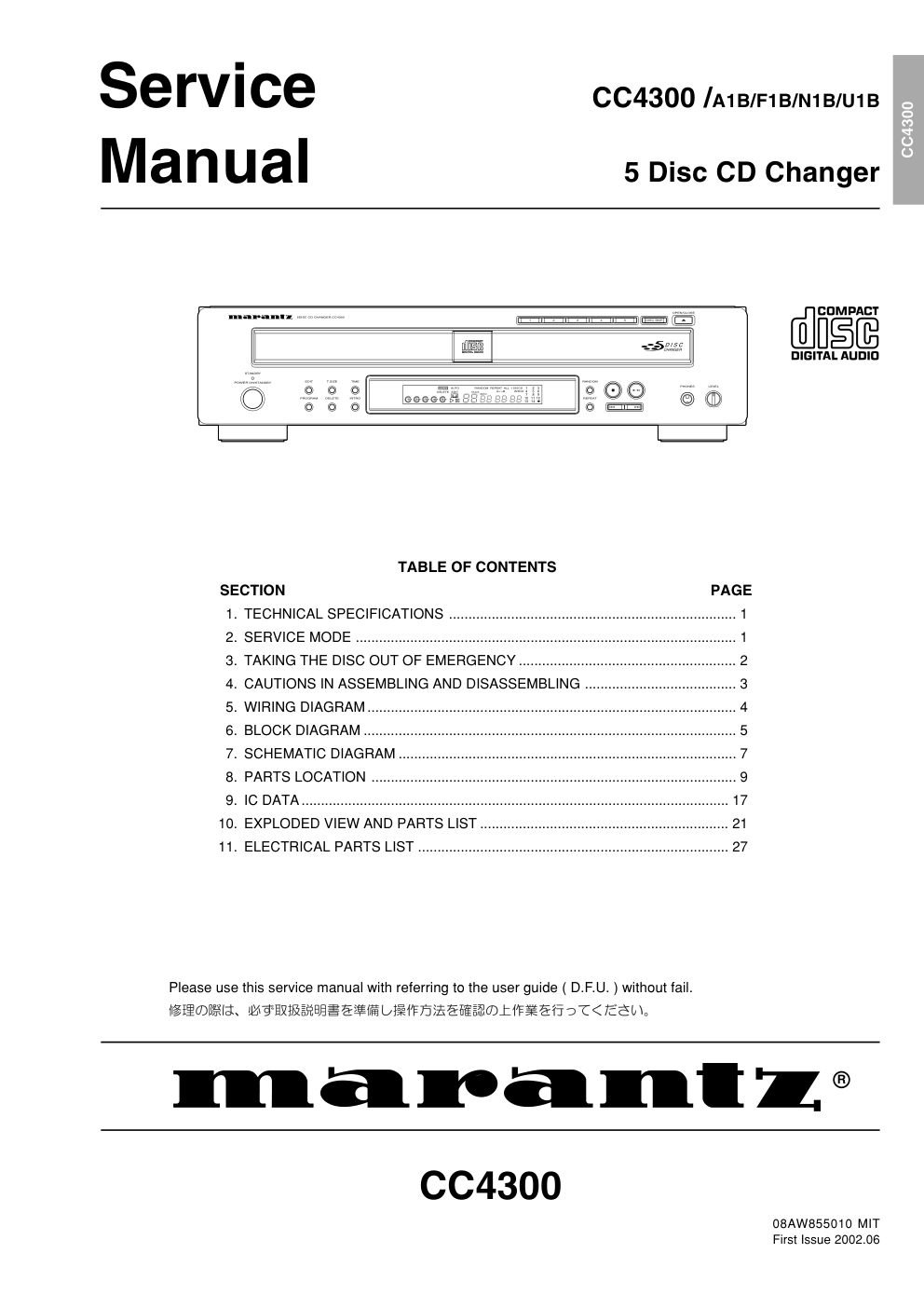

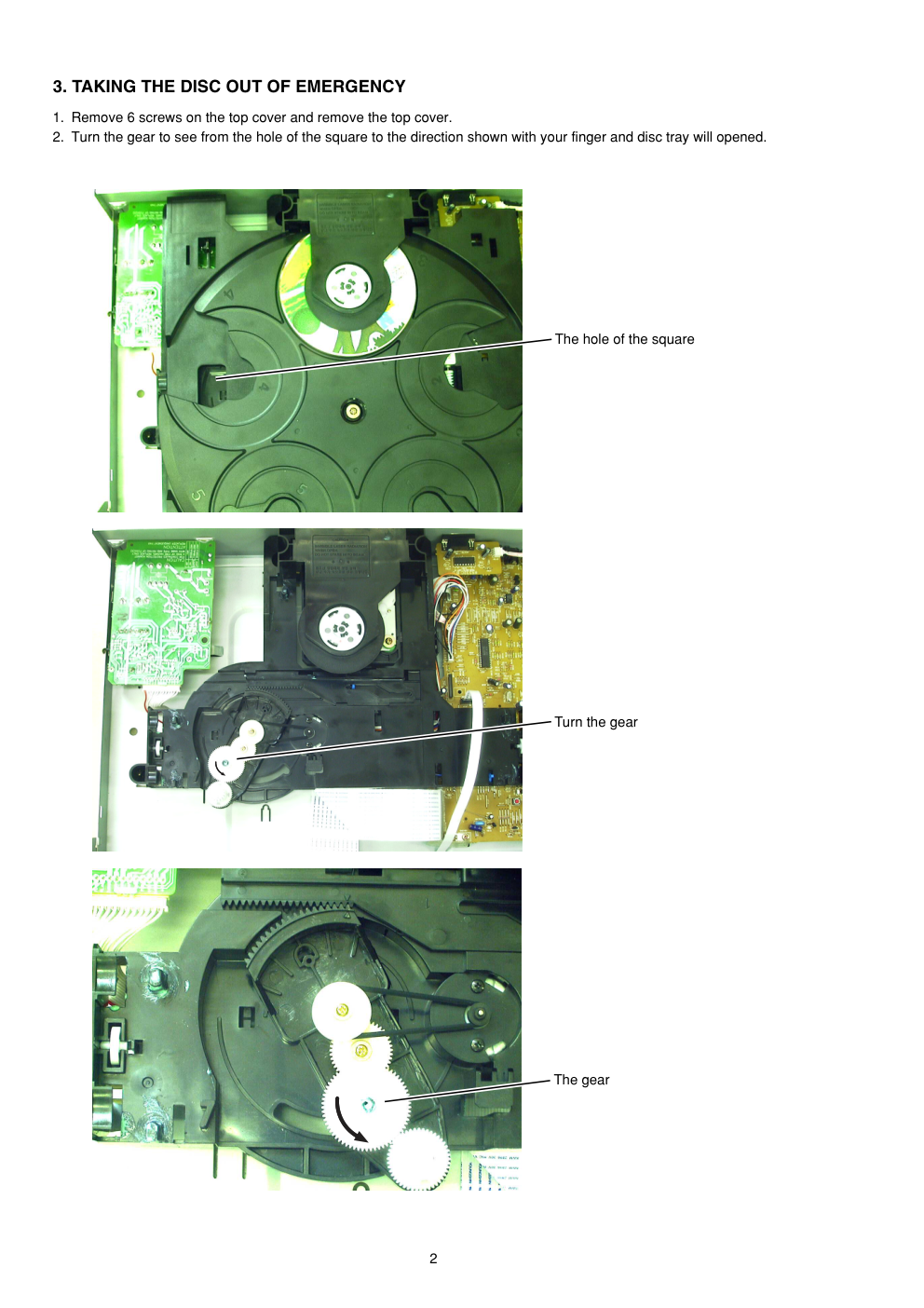

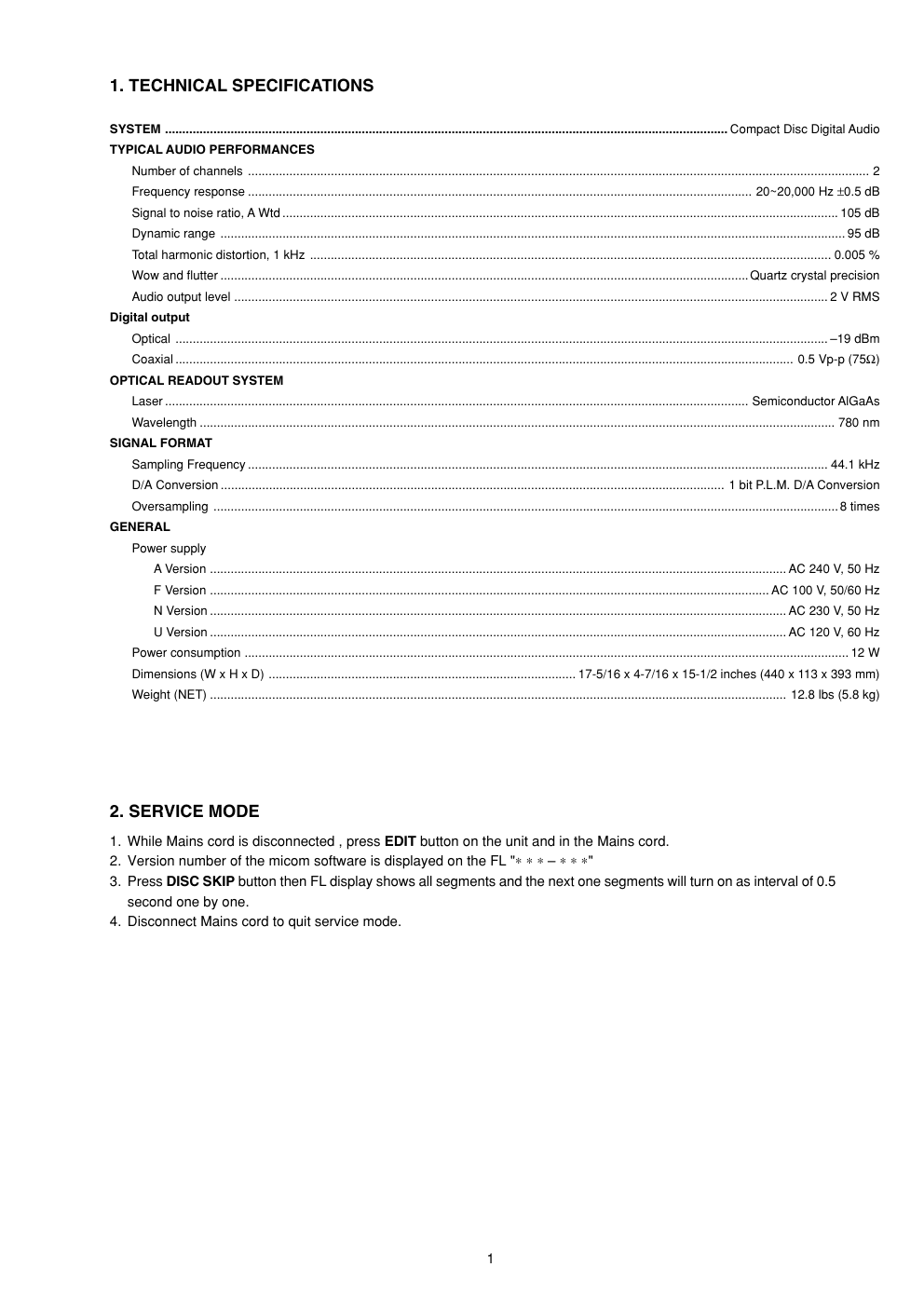

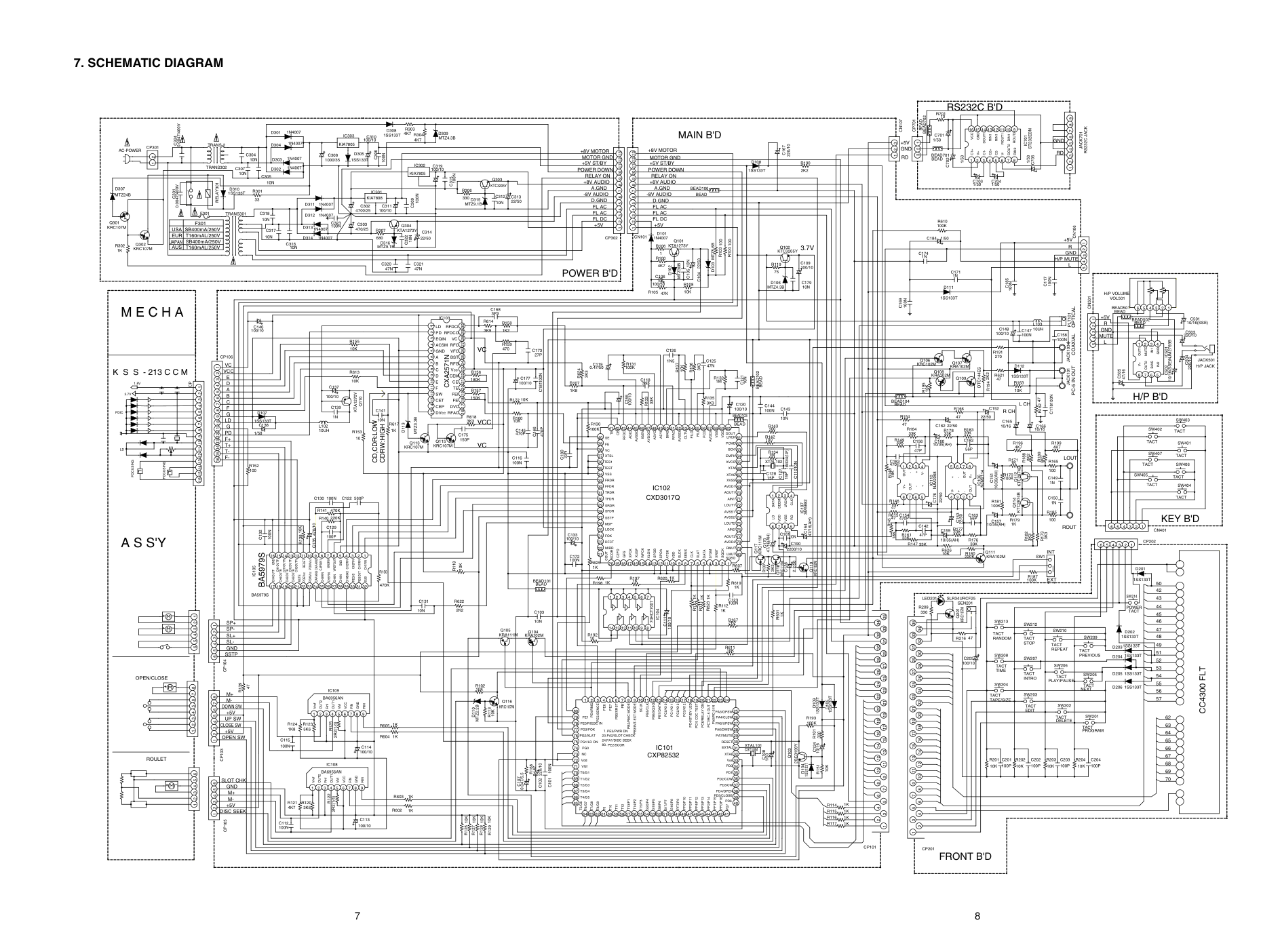

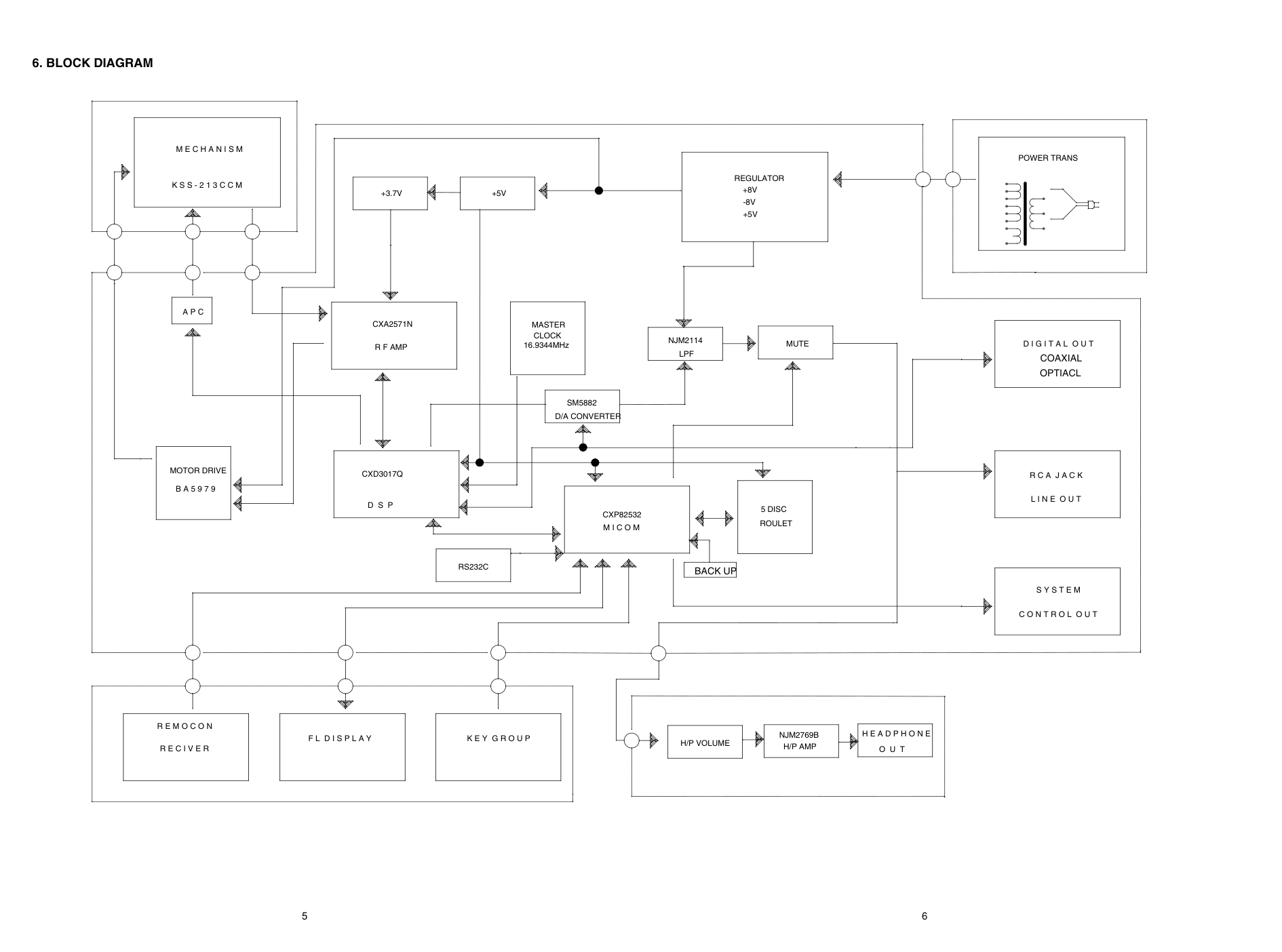

CC4300 08AW855010 MIT First Issue 2002.06 Service Manual R Please use this service manual with referring to the user guide ( D.F.U. ) without fail. CC4300 /A1B/F1B/N1B/U1B 5 Disc CD Changer TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS .......................................................................... 1 2. SERVICE MODE .................................................................................................. 1 3. TAKING THE DISC OUT OF EMERGENCY ........................................................ 2 4. CAUTIONS IN ASSEMBLING AND DISASSEMBLING ....................................... 3 5. WIRING DIAGRAM ............................................................................................... 4 6. BLOCK DIAGRAM ................................................................................................ 5 7. SCHEMATIC DIAGRAM ....................................................................................... 7 8. PARTS LOCATION .............................................................................................. 9 9. IC DATA .............................................................................................................. 17 10. EXPLODED VIEW AND PARTS LIST ................................................................ 21 11. ELECTRICAL PARTS LIST ................................................................................ 27 CC4300 / DISC SKIP 5 4 3 2 1 5DISC CD CHANGER CC4300 OPEN/CLOSE LEVEL PHONES POWER ON/STANDBY STANDBY RANDOM REPEAT INTRO DELETE PROGRAM TIME T.SIZE EDIT D I S C CHANGER 1 2 3 4 5 DELETE EDIT SCENE TRACK INDEX STEP A B PROG AUTO RANDOM REPEAT ALL 1 DISCS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 INTRO A< >B MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 020326MIT SUPERSCOPE TECHNOLOGIES, INC. USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 21457677 FAX : +60 3 - 21458180 AMERICAS MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078 HONG KONG Jolly ProAudio Broadcast Engineering Ltd. UNIT 2, 10F, WAH HUNG CENTRE, 41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 1 1. TECHNICAL SPECIFICATIONS SYSTEM ................................................................................................................................................................... Compact Disc Digital Audio TYPICAL AUDIO PERFORMANCES Number of channels .................................................................................................................................................................................... 2 Frequency response .................................................................................................................................................. 20~20,000 Hz ±0.5 dB Signal to noise ratio, A Wtd ................................................................................................................................................................. 105 dB Dynamic range ..................................................................................................................................................................................... 95 dB Total harmonic distortion, 1 kHz ....................................................................................................................................................... 0.005 % Wow and flutter .........................................................................................................................................................Quartz crystal precision Audio output level ............................................................................................................................................................................ 2 V RMS Digital output Optical ............................................................................................................................................................................................. –19 dBm Coaxial ................................................................................................................................................................................... 0.5 Vp-p (75Ω) OPTICAL READOUT SYSTEM Laser ......................................................................................................................................................................... Semiconductor AlGaAs Wavelength ........................................................................................................................................................................................ 780 nm SIGNAL FORMAT Sampling Frequency ........................................................................................................................................................................ 44.1 kHz D/A Conversion .................................................................................................................................................. 1 bit P.L.M. D/A Conversion Oversampling .....................................................................................................................................................................................8 times GENERAL Power supply A Version ....................................................................................................................................................................... AC 240 V, 50 Hz F Version .................................................................................................................................................................. AC 100 V, 50/60 Hz N Version ....................................................................................................................................................................... AC 230 V, 50 Hz U Version ....................................................................................................................................................................... AC 120 V, 60 Hz Power consumption ............................................................................................................................................................................... 12 W Dimensions (W x H x D) ......................................................................................... 17-5/16 x 4-7/16 x 15-1/2 inches (440 x 113 x 393 mm) Weight (NET) ....................................................................................................................................................................... 12.8 lbs (5.8 kg) 2. SERVICE MODE 1. While Mains cord is disconnected , press EDIT button on the unit and in the Mains cord. 2. Version number of the micom software is displayed on the FL "∗ ∗ ∗ – ∗ ∗ ∗" 3. Press DISC SKIP button then FL display shows all segments and the next one segments will turn on as interval of 0.5 second one by one. 4. Disconnect Mains cord to quit service mode. 2 The hole of the square Turn the gear The gear 3. TAKING THE DISC OUT OF EMERGENCY 1. Remove 6 screws on the top cover and remove the top cover. 2. Turn the gear to see from the hole of the square to the direction shown with your finger and disc tray will opened. 3 4 5. WIRING DIAGRAM ROULET B'D 35P FRONT BOARD FLT 35P CP201 AC_CORD 6P 8P KSM213CCM 16P 2P 13P POWER TRANS MECHA ASSY POWER B'D CP302 6P CP105 8P CP103 6P CP104 16P CP106 RS232C B'D MAIN BOARD CN107 3P CP701 3P KEY B'D 6P CN401 CN401 CP107 5P CN501 5P 35P CP101 CN201 6P 13P CN102 H/P B'D 1 2 3 4 5 6 CP 2 1 3 14 11 12 10 13 5 8 9 7 6 4 16 15 22 23 21 19 17 20 18 25 24 27 26 32 30 31 28 29 35 34 33 CP 1 2 3 4 5 6 CP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 2 1 8 3 4 5 6 7 1 2 4 3 1 2 6 5 7 8 9 10 11 12 13 CP 1 3 2 2 1 8 3 4 5 6 7 1 2 3 4 5 6 CP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 3 2 1 2 3 4 5 6 CP 4 3 1 2 6 5 7 8 9 10 11 12 13 CP 2 1 3 14 11 12 10 13 5 8 9 7 6 4 16 15 22 23 21 19 17 20 18 25 24 27 26 32 30 31 28 29 35 34 33 CP 1 2 3 4 5 6 CP 1 2 3 4 5 6 CP 1 2 3 5 4 1 2 3 5 4 The gear wires The position of the arrow is the same. Push the hook toward inside 4. CAUTIONS IN ASSEMBLING AND DISASSEMBLING REMOVE DISC TRAY 1. When removing the Disc tray, disconnect the wires at the rear side and a hook is bent in the arrow direction. can be removed when Tray is pulled to the front. 2. The arrow of gear is checked, and Tray is inserted. 6. BLOCK DIAGRAM 5 6 F L D I S P L A Y R E C I V E R R E M O C O N MOTOR DRIVE B A 5 9 7 9 RS232C D S P CXD3017Q CXP82532 M I C O M K E Y G R O U P A P C K S S - 2 1 3 C C M M E C H A N I S M +5V +3.7V CXA2571N R F AMP 16.9344MHz MASTER SM5882 D/A CONVERTER CLOCK LPF NJM2114 MUTE +5V -8V +8V REGULATOR POWER TRANS COAXIAL OPTIACL D I G I T A L O U T O U T H E A D P H O N E H/P AMP NJM2769B H/P VOLUME BACK UP ROULET 5 DISC C O N T R O L O U T S Y S T E M L I N E O U T R C A J A C K 7 8 7. SCHEMATIC DIAGRAM ROULET DISC SEEK SLOT CHK +5V M- GND M+ +5V OPEN SW CLOSE SW UP SW M- DOWN SW +5V OPEN/CLOSE FOCUSING FOCUSING BA5979S SSTP SP+ GND SL- SL+ SP- M+ 80. 1. 23. 24. LD K S S - 213 C C M PDIC 3.7V 1.8V M E C H A A S S'Y JAPAN SB400mA/250V T160mAL/250V AUS VC VCC F+ T+ T- F- PD G F G B D A E C LD F301 USA EUR SB400mA/250V T160mAL/250V +5V FL DC FL AC FL AC D.GND A.GND +8V AUDIO -8V AUDIO +5V ST/BY +8V MOTOR RELAY ON MOTOR GND POWER DOWN D.GND -8V AUDIO A.GND +8V AUDIO RELAY ON POWER DOWN +5V ST/BY MOTOR GND +8V MOTOR +5V FL DC FL AC FL AC MAIN B'D CD,CDR:LOW CDRW:HIGH VCC VC VC POWER B'D ASYO 3.7V R CH RS232C B'D GND +5V RD RD GND RS232C JACK +5V LOUT L CH PC-5 IN OUT H/P B'D OPTICAL COAXIAL GND L H/P MUTE R H/P VOLUME VOL501 1 5 4 3 2 6 R GND MUTE L +5V H/P JACK TAPE/SIZE FRONT B'D RANDOM TIME INTRO NEXT PLAY/PAUSE STOP REPEAT PREVIOUS 50 47 44 46 45 48 POWER 42 43 51 49 52 56 55 54 53 ROUT INT EXT KEY B'D EDIT PROGRAM DELETE 57 66 65 63 64 62 69 67 68 70 CC4300 FLT 1 2 3 4 5 6 7 4 5 6 2 3 1 8 7 4 5 6 2 3 1 8 CP103 100N C115 R125 2R2(1/4) 1 2 3 4 5 6 7 8 9 BA6956AN IC109 Vref OUT2 Rnf OUT1 VM VCC FIN GND RIN R123 5K6 R124 1K8 C114 100/10 1 2 3 4 5 6 7 8 9 BA6956AN IC108 Vref OUT2 Rnf OUT1 VM VCC FIN GND RIN R121 4K7 R122 2R2(1/4) 3K6 R120 C112 100N C113 100/10 1 2 3 4 5 6 CP105 1 2 3 4 5 6 2 3 7 6 4 5 9 8 1 13 12 10 11 16 15 14 CP C129 100P 470K R141 100N C130 560P C122 220K R140 C132 100N 470/10 C135 R152 100 R138 10K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 IC105 BA5979S GND CH2RIN CH2FIN CH1RIN VREFOUT CH1FIN REGOUT CH4BIAS CH4IN CH4IN CH3FIN VREFIN CH3RIN CAPAIN3 CAPAIN2 POWVcc POWVcc POEVcc CH4OUTF CH1OUTF CH1OUTR CH2OUTF CAPAIN1 CH2OUTR CH3OUTR CH3OUTR CH4OUTR MUTE REG-B SUB GND RESET 1 2 3 4 5 6 CP104 R139 47 R622 2K2 KRA102M Q104 C131 10N Q105 KRA111M 10K R102 470K R150 R118 10K R625 1K C133 100/10 R198 1K 100N C172 R620 1K R197 1K 8 SENS 9 SLCK 10 VDD 76 AIN2 74 AVSS2 73 AVSS1 72 LOUT1 78 AVDD2 6 XLAT 5 DATA 4 SYSM 3 XRST 2 SQCK 1 SQSO 70 AOUT1 69 AVDD1 68 XVSS 67 XTAO 66 XTAI 64 EMPH 63 BCK 62 PCMD 61 LRCK 60 DOUT 59 VDD 58 VSS 57 AVDD3 56 PCD 55 FILI 54 FILO 53 CLTV 52 AVSS3 51 RFAC 71 AIN1 40 SE 39 FE 38 VC 37 XTSL 36 TES1 35 TEST 34 VSS 50 BIAS 49 ASYI 48 47 AVDDO 46 IGEN 45 AVSSO 44 ADIO 43 RFDC 42 CE 41 TE 33 FRDR 31 TRDR 30 TFDR 21 COUT 20 SCOR 19 C2PO 18 GFS 13 SPOB 16 XUGF 15 WFCK 14 XLON 12 SPOA 11 ATSK 17 XPCK 22 MIRR 24 FOK 26 MDP 29 SRDR 28 SFDR 27 SSTP 25 LOCK 23 DFCT 65 XVCO 75 LOUT2 77 AOUT2 7 CLK 79 RMUT 80 LMUT 32 FFDR CXD3017Q IC102 BEAD BEAD101 R192 10 13 14 12 11 10 9 8 7 6 5 4 3 2 1 IC104 74HCT7007 C103 10N R110 1K C111 100/10 R128 10K 10K R129 R127 10K 10K R126 R168 47 C107 0.047/5.5 R602 1K D110 MTZ2.2B R603 1K R604 1K R605 1K 10K R113 KRC107M Q116 C102 220/10 100N C101 4 PE6 5 PE7 7 PB1 25 PA3/OPSW 26 PA4/CLSW 27 PA5/UPSW 28 PA6/DWSW 29 PA7/MUTE 30 RESET 31 EXTAL 32 XTAL 33 Vss 34 PD0 35 PD1 36 PD2/CCW 37 PD3/CW 38 PD4/OPEN 40 PD6 41 PD7 42 PF0/P16 43 PF1/P15 44 PF2/P14 45 PF3/P13 46 PF4/P12 47 PF5/P11 48 PF6/P10 49 PF7/P9 50 S16/P8 51 S17/P7 52 S8/P6 53 S19/P5 54 S20/P4 55 T15/P3 56 T14/P2 57 T13/P1 58 T12 59 T11 60 T10 61 T0 62 T8/G9 63 T7/G8 64 T6/G7 71 Vfdf 72 Vdd 73 NC 74 PG0 79 PE1 1 PE3/PWR DN 2 PE4/RMC 3 PE5/SENCE 6 PB0/XRST 12 PB6/SQSO 13 PB7/DATA 14 PC0/K10 15 PC1/K11 16 PC2/K12 17 PC3/K12 18 PC4/ST/BY LED 19 PC/5 CDC TEST 39 PD5/CLOSE 70 T0/G1 69 T1/G2 68 T2/G3 67 T3/G4 66 T4/G5 65 T5/G6 75 PG1/LD ON 76 PG2/XLAT 77 PG3/FOK 80 PE2/SCOR 11 PB5/CLK 10 SCLK 8 PB2/RMC MODE 9 PB3/INT-EXT MODE 78 PE0/RS23C IN 24 PA2/SLOT CHECK 23 PA1/DISC SEEK 21 PC7/RC-5 OUT 22 PA0/RC-5 IN 20 PC6/RELAY ON CXP82532 IC101 Q302 KRC107M R302 1K C140 100/10 TRANS301 C316 10N R155 10K 2 3 7 6 4 5 9 8 1 13 12 11 16 15 14 10 CP106 C138 1/50 1SS133T D107 C137 100/10 C139 1N Q110 KTA1270Y 10UH L102 R153 10 10K R613 TRANS-2 TRANS302 2 1 CP301 F301 KRC107M Q301 D307 MTZ24B AC-POWER C301 0.0047/400V C324 0.0047/400V RELAY301 R301 33 C317 10N D310 1SS133T C318 10N D301 1N4007 1N4007 D302 1N4007 D303 D304 1N4007 10N C304 10N C307 10N C305 D305 1SS133T 100/10 C310 1000/35 C308 KIA7805 IC303 1N4007 D311 1N4007 D313 D314 1N4007 1N4007 D312 100N C323 4700/25 C302 C303 470/25 KIA7808 IC301 C311 100/10 100N C309 C315 100N 680 R307 KTA1273Y Q304 C314 22/50 1SS133T D308 IC302 KIA7805 C319 100/10 4K7 R303 4K7 R304 D309 MTZ4.3B C306 100N 330 R306 C313 22/50 KTC3205Y Q303 MTZ9.1B D315 10N C312 4 3 1 2 6 5 7 8 9 10 11 12 13 CP302 4 3 1 2 6 5 7 8 9 10 11 12 13 CN101 1K R617 MTZ3.3B D113 KRC107M Q115 KRC107M Q113 C141 10N 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CXA2571N IC103 LD PD EQIN ACSM GND A B C D E F SW CET CEP DVcc RFAC DVC FE TE CE CEM Vcc RFG BST VFC RFDCO RFDCI VC RFC FEI R172 10K 150K R157 180K R156 100/10 C177 3K3 R618 C116 100N C175 150P R160 10K 470P C145 47N C320 C173 27P 470 R159 3P3 C168 MTZ9.1B D316 C322 10N C321 47N R614 3K9 1K2 R158 R106 1 1N4007 D101 Q101 KTA1273Y 10K R108 R105 47K 4K7 R100 C106 100/50 C105 10N D102 MTZ30B C180 22N 100K R130 C146 470P 3K3 R624 1K8 R107 100N C181 C119 0.47/50 1N5 C126 R136 3K3 10K R137 R133 33K 3N3 C118 100K R131 C155 100/10 R134 1M XTAL102 16M9344(12P) 100 R143 100 R142 BEAD103 BEAD C120 100/10 3K3 R135 BEAD BEAD102 100N C144 47N C125 R132 1M C121 10N C143 10N C104 22/50 D103 MTZ5.6B MTZ4.3B D106 KTC3205Y Q102 C179 10N 75 R119 C109 100/10 R103 100 100 R104 100/10 C148 100N C169 100N C185 1SS133T D111 1N C171 1N C174 C184 1/50 C183 470P C156 47P 47 R154 33K R164 33K R149 BEAD104 BEAD KRC102M Q106 10K R195 KRA102M Q108 R191 270 10K R163 1SS133T D112 DTC144ES Q109 KRA102M Q107 2K2 R194 R621 47 C165 10/16 56P C182 4K7 R196 22/50 C152 47 R166 10/35(AH) C160 R183 39K 22/50 C162 33K R178 1K R171 220/10 C167 2K2 R190 BEAD106 BEAD 1SS133T D108 10 R701 1 3 2 CP701 100K R610 C701 1/50 BEAD702 BEAD 1 3 2 CN107 BEAD BEAD701 C702 1/50 C703 1/50 C704 1/50 10 11 12 13 14 15 16 5 4 3 2 1 6 9 8 7 IC701 ST232EBN C1+ V+ C1- C2+ C2- V- DOUT2 RIN2 ROUT2 VCC GND DOUT1 RIN1 RIN1 ROUT1 DIN1 C705 1/50 1 2 3 4 5 6 8 7 9 JACK701 8K2 R188 R189 8K2 4K7 R199 10/16 C166 JACK103 JACK101 C178100N 47 R162 1 2 3 4 5 6 7 8 OUT1 MUTE IN1 GND V+ IN2 BIAS OUT2 NJM2769B IC501 C502 10/16(SSE) 47/16 C505 SW407 TACT TACT SW402 TACT SW403 100N C158 10UH L103 PLT101 1 2 3 5 4 CN501 100N C147 3 5 4 2 1 CN106 100N C117 BEAD502 BEAD BEAD501 BEAD C503 220/10 10/16(SSE) C501 TACT SW401 JACK501 220/10 C504 R115 1K R117 1K R116 1K C108 1/50 CST10M XTAL101 C124 10/16 1SS133T D109 D105 1SS133T 330 R101 100K R193 2SC3199Y Q103 10K R151 R114 1K D104 1SS133T 100P C201 10K R201 10K R202 2 1 3 14 11 12 10 13 5 8 9 7 6 4 16 15 22 23 21 19 17 20 18 25 24 27 26 32 30 31 28 29 35 34 33 CP101 2 1 3 14 11 12 10 13 5 8 9 7 6 4 16 15 22 23 21 19 17 20 18 25 24 27 26 32 30 31 28 29 35 34 33 CP201 10K R611 1K R619 C123 100N R112 1K 1K R623 R111 1K 2R2 R167 R601 1K R109 3K3 Q118 KRC111M Q117 KRC111M 1 2 3 4 5 6 7 8 IC107 SM5882 DATA DEEM LRCK CLK LO RO VDD VSS 47/16(AH) C170 R607 1K C128 15P 10N C110 15P C127 KRC102M Q119 C136 2.2/50 2200/10 C190 C16110N C164 47/16(AH) 47P C142 R147 33K R161 33K R145 18K C176 22/50 R615 47 470P C154 R146 47 R148 18K 1 2 3 4 5 6 7 8 OUT V- V+ - + OUT + - IC110 NJM2068 1 2 3 4 5 6 7 8 OUT V- V+ - + OUT + - IC106 NJM2114 22/50 C153 56P C163 10/35(AH) C151 R170 100K R179 1K KTC2874B Q114 R181 100K 10/35(AH) C157 Q111 KRA102M 33K R177 C159 10/35(AH) 220K R180 10K R626 R176 39K SLR34URCF25 LED201 R209 330 SW213 TACT SEN201 47 R216 KRC107M Q201 100/10 C205 SW208 TACT SW204 TACT TACT SW207 SW205 TACT SW206 TACT TACT SW209 TACT SW210 TACT SW212 1SS133T D202 SW214 TACT 1SS133T D203 D206 1SS133T D205 1SS133T D204 1SS133T 3K3 R182 R173 3K3 R187 100K SW1 KTC2874B Q112 C150 1N C149 1N R165 100 R185 100 SW406 TACT TACT SW405 1 2 3 4 5 6 CN401 1 2 3 4 5 6 CP202 D201 1SS133T TACT SW404 R204 10K 100P C202 10K R203 100P C203 C204 100P SW203 TACT SW201 TACT TACT SW202 9 10 8. PARTS LOCATION Q302 IC303 Q303 Q301 Q304 MAIN POWER Q112 Q110 Q115 IC105 IC109 Q118 IC108 Q102 Q108 IC106 Q114 Q111 Q113 Q117 Q119 Q109 Q101 Q104 Q107 Q105 Q103 Q116 Q106 IC101 IC102 IC103 MAIN POWER 11 12 IC701 RS232C H/P (HEAD/PHONES) KEY FRONT 13 14 IC501 RS232C H/P (HEAD/PHONES) KEY FRONT 15 16 9. IC DATA IC103 : CXA2571N IC101 : CXP82532 17 18 PIN OPERATION PIN NO PIN NAME operation description ASSIGN 1 POWER DOWN Input for power down I 2 RMC Input for remocon data I 3 SENSE Input for SENS of CXD3017Q CD DSP I 4 NC NO CONNECTION 5 NC NO CONNECTION 6 XRST Output for XRST of CXD3017Q CD DSP O 7 NC NO CONNECTION 8 RMC MODE(INT/EXT) Output for RC-5 on/off O 9 RC-5 int/ext Input for RC-5 int/ext I 10 SCLK Output for SCLK of CXD3017Q CD DSP O 11 CLK Output for CLK of CXD3017Q CD DSP O 12 SQSO Input for SQSO of CXD3017Q CD DSP I 13 DATA Output for DATA of CXD3017Q CD DSP O 14 KEY INPUT Data input key scan I 15 KEY INPUT Data input key scan I 16 KEY INPUT Data input key scan I 17 KEY INPUT Data input key scan I 18 ST/BY LED Output to drive SYBY LED(RED) ACTIVE "HIGH" O 19 ONE DISK MODE Input for ONE DISK MODE(TEST MODE) I 20 POWER ON Output for relay on ACTIVE "HIGH" O 21 RC-5 OUT Ouput for RC-5 O 22 RC-5 IN Input for RC-5 I 23 SLOT CHECK Input for SLOT CHECK of RULET. I 24 DISC SEEK Input for DISC SEEK of RULET. I 25 OPEN SW Input for detecting "TRAY OPEN SW" condtion I 26 CLOSE SW Input for detecting "TRAY CLOSE SW" condtion I 27 UP SW Input for detecting "UP SW" condtion I 28 DOWN SW Input for detecting "DOWN SW" condtion I 29 MUTE Output for MUTE ACTIVE "LOW" O 30 RESET Input for RESET I 31 EXTAL Input for 10MHz crystal oscillator. I 32 XTAL Output for 10MHz crystal oscillator. O 33 VSS Ground 34 NC NO CONNECTION 35 NC NO CONNECTION 36 ROLET CCW Output for ROULET CCW. O 37 ROLET CW Output for ROULET CW. O 38 TRAY CLOSE Output for TRAY CLOSE. O 39 TRAY OPEN Output for TRAY OPEN. O 40 NC NO CONNECTION 41 NC NO CONNECTION 42 SEG16 Out for FLT SEGMENT16. O 43 SEG15 Out for FLT SEGMENT15. O 44 SEG14 Out for FLT SEGMENT14. O 45 SEG13 Out for FLT SEGMENT13. O 46 SEG12 Out for FLT SEGMENT12. O 47 SEG11 Out for FLT SEGMENT11. O 48 SEG10 Out for FLT SEGMENT10. O 49 SEG9 Out for FLT SEGMENT9. O 50 SEG8 Out for FLT SEGMENT8. O 51 SEG7 Out for FLT SEGMENT7. O 52 SEG6 Out for FLT SEGMENT6. O 53 SEG5 Out for FLT SEGMENT5. O 54 SEG4 Out for FLT SEGMENT4. O 55 SEG3 Out for FLT SEGMENT3. O 56 SEG2 Out for FLT SEGMENT2. O 57 SEG1 Out for FLT SEGMENT1. O 58 NC NO CONNECTION 59 NC NO CONNECTION 60 NC NO CONNECTION 61 NC NO CONNECTION 62 GRID9 Out for FLT GRID9 O 63 GRID8 Out for FLT GRID8 O 64 GRID7 Out for FLT GRID7 O 65 GRID6 Out for FLT GRID6 O 66 GRID5 Out for FLT GRID5 O 67 GRID4 Out for FLT GRID4 O 68 GRID3 Out for FLT GRID3 O 69 GRID2 Out for FLT GRID2 O 70 GRID1 Out for FLT GRID1 O 71 VFDF VFDF -30V 72 VDD VDD +5V 73 VDD VDD +5V 74 NC NO CONNECTION 75 LD ON Ouput for LD on CD CDR:"LOW" , CD RW:"HIG O 76 XLAT Output for LATCH of CXD3017 CD DSP O 77 FOK Input for FOK of CXD3017Q CD DSP I 78 RS232C IN Input for RS232C DATA. I 79 VDD VDD +5V 80 SCOR Input for SCOR of CXD3017Q CD DSP I IC102 : CXD3017Q IC107 : SM5882 IC701 : ST232EBN 19 20 IC110 : NJM2068 IC501 : NJM2769B 21 22 10. EXPLODED VIEW AND PARTS LIST marantz 4 5 1 3 2 FLT 13 E F R U Q 12 1 10 A D 3 8 2 6 9 4 5 7 C B G N 14 11 15 M P O H I J L K 16 17 18 19 S T 16 16 20 21 S8(x2) S1 S5(x2) S3(x4) S1 S1 S4(x4) S1 S1 S8(x5) S1(x2) S1(x8) S1 S1 S1 S4(x2) S1(x2) S1(x2) S2(x4) S6(x2) S8(x4) S7(x2) S1(x2) S1(x2) STATION FRONT DISC KEY MAIN RS232C POWER H/PHONE 23 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) EXPLODED VIEW PART (MECHANISM) 1 08AW248010 08AW248010 PANEL CC4300/U1B ABS(AF303)BK/FRONT 3067210781020 2 08AW063010 08AW063010 COVER TRAY/ABS(AF303)BK 4317210351000 3 08AW158010 08AW158010 WINDOW DISPLAY/ACRYL WINE 5070210783000 4 08AW270020 08AW270020 BUTTON 6KEY-A/ABS(HF380) BK 5090211631000 5 08AW270030 08AW270030 BUTTON 6KEY-B/ABS(HF380) BK 5097211641000 6 08AW270010 08AW270010 BUTTON POWER/ABS(HF380) BK 5090211651000 7 08AW270040 08AW270040 BUTTON CC4300/U1B 7KEY/ABS(HF380) BK 5097211661000 8 168W251010 168W251010 BADGE BADGE(MARANTZ) 563704097802A 9 nsp nsp INDICATOR GUIDE LED AX9030 5160041003010 10 08AW154010 08AW154010 KNOB VOLUME/ABS(HF380) 5080210541000 11 nsp nsp CHASSIS MAIN 3200210206100Z 12 /A nsp nsp CHASSIS REAR PANEL BACK CHASSIS CC4300/A1B 3207042616250Z 12 /F nsp nsp CHASSIS REAR PANEL BACK CHASSIS CC4300/F1B 3207042616240Z 12 /N nsp nsp CHASSIS REAR PANEL BACK CHASSIS CC4300/N1B 3207042616230Z 12 /U nsp nsp CHASSIS REAR PANEL BACK CHASSIS CC4300/U1B 3207042616220Z 13 nsp nsp CABINET (TOP COVER) BLACK 3000044516000Z 14 322W057010 322W057010 FOOT FOOT (GOLD AM4736-615AL) HOT STAMPING 4007040241030 15 nsp nsp SUPPORTER HCD60M ABS/PCB 4070000980000 16 nsp nsp CUSHION D-XW33(J) EVA 30x15x12t /PCB 4050210415000 17 nsp nsp GUIDE CC4300/U1B MECHA/ABS(AF380)BK 4350210021000 18 nsp nsp BRACKET CDC5090R(DOM) ET.HD0.3t(A4)/VFD 4010210296000 19 nsp nsp BRACKET CC4300/U1B FRAME/FRONT 4010211256000 20 nsp nsp CUSHION AVC1500(N) RUBBER BK(PI18xPI10x3.5T)/RUBBER 4050210165000 21 nsp nsp CUSHION CC4300/U1B TOP COVER/CR60 4050210665000 A *RB000020R *RB000020R VR ROTARY 9MM RK0971220-2KBx2-M(ALPS) C451122200100 B *SP001140R *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 C *HQ300560R *HQ300560R DISPLAY FLT HNA-09SM13 49PIN(ANGLE) K530001270030 D nsp nsp JACK D6.5 HTJ064-11D(G)/WTJ06411D(G)WELLCO G402040161330 E /F nsp 323W259020 STOPPER CORD HOLDER DACH-2 4380040172010 E /U/N/A 323W259030 323W259030 STOPPER CORD HOLDER DACH-1 4380040162010 F /U nsp *YC000690R MAINS CORD ASSY SPT2 10A/125V L06802003008C F /F nsp *YC000700R MAINS CORD ASSY KP235 12A/125V L068000000080 G *HW100580R *HW100580R MODULE REMOCON NJL64H360A 36kHz E940643600000 H *YJ002490R *YJ002490R TER RCA 2PIN JK020130LN(GND PLATE&PIN)/ORINGE G601020130050 I *YT002800R *YT002800R TER RCA 2PIN JK020130PN(GND PLATE&PIN) G601020130020 J *YT002670R *YT002670R TER RCA 1PIN JE010003PN(GND) BLACK G600010003050 K *YT002580R *YT002580R MODULE GP1FA502TZ /OPTICAL TRANSMIT 96kHz E100150200030 L *SS000700R *SS000700R SW SLIDE SSAF112NA011 G060112011010 M /F nsp *TS001670R POWER TRANS CC4300(F1B) 100V/50Hz 48x25 8200480250090 M /N/A *TS001660R *TS001660R POWER TRANS CC4300(N1B) 230V/50Hz 48x25 8200480250100 M /U nsp *TS001650R POWER TRANS CC4300(U1B) 120V/60Hz 48x25 8200480250080 N *YU001020R *YU001020R CABLE FLAT CARD 1.25x35*320xD(5/5/10)x(0.1x0.8) L301321350010 O *YU001010R *YU001010R CABLE FLAT CARD 1.0x16x250xC(5/5/10)x(0.035x0.65) L301251160010 P nsp nsp CN WIRE 120MM/6P GIL-S-06=PHR-06 WH20080#28 L000121060020 Q nsp nsp MECHA ASSY ICM04B MECHA ASSY (LOADER AND TRAVERSE) 8038041479010Z R /N *YC000680R *YC000680R MAINS CORD ASSY(/N) HITACHI EHD477A L06804001102C S nsp nsp FASTENER BUTTON SUPPORT DABS-35R 4420210023010 T nsp nsp CN.WAFER INTERFACE 9P FEMAIL D-SUB (SH232CF) L103090090020 U /A nsp *YC000670R MAINS CORD ASSY 7.5A/250V 2M L06804023001C S1 nsp nsp SCREW TAP TITE +2S 3x8 B-TYPE ZNY/BH B020030081B10 S2 nsp nsp SCREW TAP TITE AVR3300(E3)(DENON) +2S 3x10 B-TYPE(DOT) BK/BH B020030103B11 S3 nsp nsp SCREW TAP TITE +3S 4x8 BK/BH B020940083B10 S4 nsp nsp SCREW TAP TITE +2S 3x17 B-TYPE ZNY/BH B020030171B10 24 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) S5 nsp nsp SCREW +2S 3x8 ZnY WASHER PI12 1500001456010 S6 nsp nsp SCREW TAP TITE +3S 4x8 S-TYPE ZNY/BH B020740081B10 S7 nsp nsp SUPPORT STUD NO4-4OUNC H=5.0 4120100177010 S8 nsp nsp SCREW TAP TITE +2S 3x8 B-TYPE BK/BH B020030083B10 M01 nsp nsp BODY MECHA 3410041401010 M02 08AW163010 08AW163010 TRAY LOADING 4600040241010 M03 08AW163020 08AW163020 ROULETTE TRAY 2720040061010 M04 08AW401020 08AW401020 BASE PU DRIVE 3400041391010 M05 08AW058020 08AW058020 GEAR CENTER (A) 2470040291010 M06 08AW058010 08AW058010 GEAR CENTER (B) 2470040211010 M07 08AW058030 08AW058030 GEAR TRAY 2470040683010 M08 08AW262010 08AW262010 GEAR PULLEY 2470040341010 M09 08AW360010 08AW360010 SLIDER FUNCTION 2640040031010 M10 08AW354010 08AW354010 ARM GEAR 2540041133010 M11 08AW262020 08AW262020 PULLEY MOTOR 2500000310000 M12 08AW116010 08AW116010 PLATE PRESSURE 4470043826010 M13 08AW264010 08AW264010 BELT LOADING 2490040595010 M14 08AW058050 08AW058050 GEAR W-WHEEL 2530041563010 M15 08AW058040 08AW058040 GEAR WORM 2470040693010 M16 08AW358010 08AW358010 ROLLER TRAY 2520040473010 M17 nsp nsp POLY WASHER 8x14x0.5t 1537040366010 M18 nsp nsp SPRING ROULETTE 3720044506010 M19 nsp nsp PLATE CLAMPER 4470004050000 M20 nsp nsp MAGNET 7800GZ3400L10 M21 08AW005010 08AW005010 CLAMP BASE 4330020041010 M22 nsp nsp CON'T L=70 MOTOR L000079550000 M23 nsp nsp CON'T L=350 LOADING L000079520000 M24 *YU001040R *YU001040R FLAT CABLE 25P(P=1L=230MM) L301700360010 M25 08AW056010 08AW056010 INSULATOR RED 1240020135020 M26 08AW056020 08AW056020 INSULATOR GREEN 1240020135010 M27 08AW051010 08AW051010 GUIDE TRAY 4350042061010 M28 nsp nsp PCB OF SENSOR 7020059830000 M29 nsp nsp HOUSING 6P 4428606965000 A 08AW304500 08AW304500 TRAVERSE(PICK UP UNIT KSN213CCM) 8030040622010 B *SM000400R *SM000400R SW LEVER SSCF21062A G140040220010 C *MM001240R *MM001240R MOTOR DC FF-130SH-14230 G700040400010 D *MM001250R *MM001250R MOTOR DC SM3220BT G700322000110 E *HW100610R *HW100610R PHOTO SENSOR SG-23F1 K611230000000 F *HW100620R *HW100620R PHOTO SENSOR ON2173-RS K611217300000 PACKING /F nsp 08AW851110 USER GUIDE (/F) 5707047250070 /N/A 08AW851310 08AW851310 USER GUIDE (/N/A) 5707047250060 /U nsp 08AW851250 USER GUIDE (/U) 5707047250050 nsp ZK08AW0010 REMOTE CONTROLLER RC4300CC 8300430000010 NOT STANDARD SPEAR PARTS 08AW801010 08AW801010 PACKING CASE 6017040940150 08AW809010 08AW809010 CUSHION SNOW L/R 6230210444000 nsp nsp BATTERY DRY G670001R50010 /F nsp nsp POST CARD(JAPAN) 5777200120030 /F nsp nsp CARD WARRANTY(JAPAN) 5777200120040 /N nsp nsp CARD IMPORTANT 5777200120050 /U nsp nsp CARD WARRANTY(USA) 5777200120010 /U nsp nsp CARD WARRANTY(CANADA) 5777200120020 25 26 5 1 2 3 4 4 5 1 3 2 S3.0x10 S2.6x8 2-M2.6x4 S2.6x8 2-S2.6x8 S2.6x8 S2.6x8 M01 M02 M03 M25 M04 M26 M16 M27 M24 D M13 M08 M10 M16 M07 M05 M06 M19 M20 M21 M16 M27 M23 M14 B M16 M16 M16 M22 M28 M29 F E C M15 M12 M09 B A M18 M17 M16 4-S3.0x10 27 28 11. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. NOTE ON FUSE : Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse. 010728MIT POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) MAIN P.C.B BEAD101 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 BEAD102 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 BEAD103 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 BEAD104 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 BEAD106 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 C101 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C102 nsp nsp C ELECT GE 85C 220UF-M/10V 6.3*11-5RE.SMS-SY D040221082050 C103 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C104 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C105 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C106 nsp nsp C ELECT GE 85C 100UF-M/50J 8*11.5 D040101087100 C107 *EA001100R *EA001100R C DOUBLE LAYER(70) 0.047F 5.5V VEND ESR45OHM D090473704010 C108 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C109 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C110 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C111 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C112 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C113 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C114 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C115 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C116 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C117 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C118 nsp nsp C CERAMIC HIK AXIAL X0.0033UF-M/16-52RE D005332773530 C119 nsp nsp C ELECT GE 85C 0.47UF-M/50V 5*11-5RE SY D040R47087050 C120 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C121 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C122 nsp nsp C CERAMIC HIK AXIAL B560PF-K/50V-52RE D005561277520 C123 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C124 nsp nsp C ELECT GE 85C 10UF-M/16V 5*11 D040100083100 C125 nsp nsp C CERAMIC HIK AXIAL F0.047UF-Z/50V-52RE D005473597520 C126 nsp nsp C CERAMIC HIK AXIAL X0.0015UF-M/16V-52RE D005152773530 C127 nsp nsp C CERAMIC T.C AXIAL SL15PF-J/50V-52RE D001150067520 C128 nsp nsp C CERAMIC T.C AXIAL SL15PF-J/50V-52RE D001150067520 C129 nsp nsp C CERAMIC HIK AXIAL B100PF-K/50V-52RE D005101177520 C130 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C131 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C132 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C133 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C135 nsp nsp C ELECT GE 85C 470UF-M/10V 6.3*11-5RE D040471082060 C136 nsp nsp C ELECT GE 85C 2.2UF-M/50V 5*11-5RE D0402R2087100 C137 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C138 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C139 nsp nsp C CERAMIC HIK AXIAL B0.001UF-K/50V-52RE D005102177530 C140 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C141 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C142 nsp nsp C CERAMIC T.C AXIAL SL47PF-J/50V-52RE D001470067520 C143 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C144 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C145 nsp nsp C CERAMIC HIK AXIAL B470PF-K/50V-52RE D005471277520 C146 nsp nsp C CERAMIC HIK AXIAL B470PF-K/50V-52RE D005471277520 C147 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C148 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C149 nsp nsp C CERAMIC HIK AXIAL B0.001UF-K/50V-52RE D005102177530 C150 nsp nsp C CERAMIC HIK AXIAL B0.001UF-K/50V-52RE D005102177530 C151 nsp nsp C ELECT AH 85C 10UF-M/35V 6.3*11 D046100085100 C152 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 29 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C153 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C154 nsp nsp C CERAMIC HIK AXIAL B470PF-K/50V-52RE D005471277520 C155 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C156 nsp nsp C CERAMIC T.C AXIAL SL47PF-J/50V-52Re D001470067520 C157 nsp nsp C ELECT AH 85C 10UF-M/35V 6.3*11 D046100085100 C158 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C159 nsp nsp C ELECT AH 85C 10UF-M/35V 6.3*11 D046100085100 C160 nsp nsp C ELECT AH 85C 10UF-M/35V 6.3*11 D046100085100 C161 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C162 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C163 nsp nsp C CERAMIC T.C AXIAL SL56PF-J/50V-52RE D001560067520 C164 nsp nsp C ELECT AH 85C 47UF-M/16V 8*11.5 D046470083100 C165 nsp nsp C ELECT GE 85C 10UF-M/16V 5*11 D040100083100 C166 nsp nsp C ELECT GE 85C 10UF-M/16V 5*11 D040100083100 C167 nsp nsp C ELECT GE 85C 220UF-M/10V 6.3*11-5RE.SMS-SY D040221082050 C168 nsp nsp C CERAMIC T.C AXIAL SL3.3PF-K/50V-52RE D0013R3077520 C169 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C170 nsp nsp C ELECT AH 85C 47UF-M/16V 8*11.5 D046470083100 C171 nsp nsp C CERAMIC HIK AXIAL B0.001UF-K/50V-52RE D005102177530 C172 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C173 nsp nsp C CERAMIC T.C AXIAL SL27PF-J/50V-52RE D001270067520 C174 nsp nsp C CERAMIC HIK AXIAL B0.001UF-K/50V-52RE D005102177530 C175 nsp nsp C CERAMIC HIK AXIAL B150PF-K/50V-52RE D005151177530 C176 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C177 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C178 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C179 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C180 nsp nsp C CERAMIC HIK AXIAL F0.022UF-Z/25V-52RE D005223594520 C181 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C182 nsp nsp C CERAMIC T.C AXIAL SL56PF-J/50V-52RE D001560067520 C183 nsp nsp C CERAMIC HIK AXIAL B470PF-K/50V-52RE D005471277520 C184 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C185 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C190 nsp nsp C ELECT GE 85C 2200UF-M/10V 12.5*20 D040222082100 CLAMP101 nsp nsp CLAMP HMX9800 DARA-2(W=2.6 L=50)/WIRE(SOLDER) 4330000120000 CN102 nsp nsp CN WIRE 320/13P 5264-13=5395-13 RD1007#26 L000321130010 CN107 nsp nsp CN WIRE 100MM/3P 9073-03=51004-03 RD1007#26 L000101030100 CP101 nsp nsp CN.FPC 1.25MM 6126 35P ST 1.25 1S L131621603500 CP103 nsp nsp CN.WAFER 2.0MM 53014-0810 8P L101530140810 CP104 nsp nsp CN.WAFER 2.0MM G1L-S-6P-S2T2-EF L101220060000 CP105 nsp nsp CN.FPC 1.25MM 8370-061 6P DIP ST L131837000600 CP106 nsp nsp CN.FPC 1.0MM 52806-1610 16P STRAIGHT L130528061610 CP107 nsp nsp CN.WAFER 2.0MM 53014-0510 5P L101530140510 D101 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D102 nsp *HD301670R D ZENER MTZJ30B-0.5W/5MA-52MM K06030R044520 D103 nsp HD30561000 D ZENER MTZJ5.6B-0.5W/5MA-52MM K06005R644520 D104 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D105 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D106 nsp HD30431000 D ZENER MTZJ4.3B-0.5W/5MA-52MM K06004R344520 D107 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D108 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D109 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D110 nsp *HD302070R D ZENER MTZJ2.2B-0.5W/5MA-52MM K06002R244520 D111 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D112 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D113 nsp *HD302080R D ZENER MTZJ3.3B-0.5W/5MA-52MM K06003R344520 GND101 nsp nsp TERMINAL ALL PBST/GND PLATE-REEL 3790040876010 30 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) GND102 nsp nsp TERMINAL ALL PBST/GND PLATE-REEL 3790040876010 IC101 *HU100590R *HU100590R IC CPU MICRO PROCESS CXP82532-306Q/QFP80 CC4300 DWP367 J020825323060 IC102 *HC108040R *HC108040R IC OPTICAL-DSP CXD3017Q QFP80 /P236V J031301700020 IC103 *HC108070R *HC108070R IC ANALOG CXA2571N-T4 RF MATRIX AMP /CDP J080257100010 IC104 *HC000060R *HC000060R IC LOGIC TC74HCT7007AF/MFP14P J040747007010 IC105 *HC107400R *HC107400R IC LINEAR-DRIVER BA5979S/DIP32P J127597900020 IC106 *HC108080R *HC108080R IC LINEAR OP NJM2114D-DIP8P J121211400010 IC107 *HC108050R *HC108050R IC LOGIC-D/A CONVER IC SM5882AS SOP 8P J042588200010 IC108 *HC107410R *HC107410R IC LINEAR-DRIVER BA6956AN SIP9 /MOTOR DRIVER J127695600010 IC109 *HC107410R *HC107410R IC LINEAR-DRIVER BA6956AN SIP9 /MOTOR DRIVER J127695600010 IC110 *HC107380R *HC107380R IC LINEAR OP NJM2068MD-SOP8P J121206800030 J101 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J102 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J103 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J104 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J105 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J106 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J107 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J108 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J109 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J110 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J111 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J112 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J113 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J114 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J115 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J116 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J117 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J118 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J119 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J120 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J121 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J122 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J123 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J124 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J125 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J126 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J127 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J128 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J129 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J130 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J131 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J132 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J133 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J134 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J135 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J136 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J137 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J139 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J140 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J141 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J142 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J143 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J144 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J145 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J146 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 31 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) J147 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J148 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J149 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J150 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J151 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J152 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 JACK101 *YJ002490R *YJ002490R TER CINCH 2PIN JK020130LN(GND PLATE&PIN)/ORINGE G601020130050 JACK102 *YT002800R *YT002800R TER CINCH 2PIN JK020130PN(GND PLATE&PIN) G601020130020 JACK103 *YT002670R *YT002670R TER CINCH 1PIN JE010003PN(GND) BLACK G600010003050 L102 nsp nsp COIL FILTER-INDUCTOR 10UH-Q40/24M-R2.5-52RE 02TB D330100700520 L103 nsp nsp COIL 10UH-Q40/24M-R2.5-52RE 02TB D330100700520 LUG101 nsp nsp RING TER WIRE 60MM/1P 61640BS-2(3.2) SIN-21T-1.8S BK1007#18 8410600180010 PLT101 *YT002580R *YT002580R MODULE GP1FA502TZ /OPTICAL TRANSMIT 96kHz SHUTTER E100150200030 Q101 *BA001250R *BA001250R SEMI TR/GE PNP 2SA KTA1273Y 1W/TO92L-REEL J5001273Y0050 Q102 *BA001260R *BA001260R SEMI TR/GE NPN 2SC KTC3205Y 1W/TO92L-REEL J5023205Y0020 Q103 *HT800010R *HT800010R SEMI TR/GE NPN 2SC TR NPN 2SC3199Y (BKTC3199 Y J5023199Y0050 Q104 *BA001210R *BA001210R SEMI BRT/PNP RA KRA102M 0.3W/TO92M-REEL J6002202M0010 Q105 *BA001200R *BA001200R SEMI BRT/PNP RA KRA111M 0.4W/TO92M-REEL J6000111M0010 Q106 *BA001180R *BA001180R SEMI BRT/NPN RC KRC102M 0.4W/TO92M-REEL J6020102M0010 Q107 *BA001210R *BA001210R SEMI BRT/PNP RA KRA102M 0.3W/TO92M-REEL J6002202M0010 Q108 *BA001210R *BA001210R SEMI BRT/PNP RA KRA102M 0.3W/TO92M-REEL J6002202M0010 Q109 *BA001390R *BA001390R SEMI BRT/NPN RC DTC144ES 0.3W/TO92M-REEL J6020144E0010 Q110 *BA001240R *BA001240R SEMI TR/GE PNP 2SA KTA1270Y 0.5W/TO92-REEL J5001270Y0050 Q111 *BA001210R *BA001210R SEMI BRT/PNP RA KRA102M 0.3W/TO92M-REEL J6002202M0010 Q112 *HT300880R *HT300880R SEMI TR/GE NPN 2SC KTC2874B TO92-REEL J502287400010 Q113 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 Q114 *HT300880R *HT300880R SEMI TR/GE NPN 2SC KTC2874B TO92-REEL J502287400010 Q115 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 Q116 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 Q117 *BA001410R *BA001410R SEMI BRT/NPN RC KRC111M 0.3W/TO92M-REEL J6020111M0010 Q118 *BA001410R *BA001410R SEMI BRT/NPN RC KRC111M 0.3W/TO92M-REEL J6020111M0010 Q119 *BA001180R *BA001180R SEMI BRT/NPN RC KRC102M 0.4W/TO92M-REEL J6020102M0010 R100 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 R101 nsp nsp R CARBON FILM 330-J 1/5W-52RE-AX C00003316P520 R102 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R103 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R104 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R105 nsp nsp R CARBON FILM 47K-J 1/5W-52RE-AX C00004736P520 R106 nsp nsp R CARBON FILM 1-J 1/5W-52RE-AX C00000106P520 R107 nsp nsp R CARBON FILM 1.8K-J 1/5W-52RE-AX C00001826P520 R108 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R109 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R110 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R111 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R112 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R113 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R114 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R115 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R116 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R117 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R118 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R119 nsp nsp R CARBON FILM 75-J 1/5W-52RE-AX C00007506P520 R120 nsp nsp R CARBON FILM 3.6K-J 1/5W-52RE-AX C00003626P520 R121 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 FILTER-INDUCTOR 32 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R122 nsp nsp R CARBON FILM 2.2-J 1/4W-52RE-AX C0002R2063520 R123 nsp nsp R CARBON FILM 5.6K-J 1/5W-52RE-AX C00005626P520 R124 nsp nsp R CARBON FILM 1.8K-J 1/5W-52RE-AX C00001826P520 R125 nsp nsp R CARBON FILM 2.2-J 1/4W-52RE-AX C0002R2063520 R126 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R127 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R128 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R129 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R130 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R131 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R132 nsp nsp R CARBON FILM 1M-J 1/5W-52RE-AX C00001056P520 R133 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R134 nsp nsp R CARBON FILM 1M-J 1/5W-52RE-AX C00001056P520 R135 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R136 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R137 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R138 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R139 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R140 nsp nsp R CARBON FILM 220K-J 1/5W-52RE-AX C00002246P520 R141 nsp nsp R CARBON FILM 470K-J 1/5W-52RE-AX C00004746P520 R142 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R143 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R145 nsp nsp R CARBON FILM 18K-J 1/5W-52RE-AX C00001836P520 R146 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R147 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R148 nsp nsp R CARBON FILM 18K-J 1/5W-52RE-AX C00001836P520 R149 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R150 nsp nsp R CARBON FILM 470K-J 1/5W-52RE-AX C00004746P520 R151 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R152 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R153 nsp nsp R CARBON FILM 10-J 1/5W-52RE-AX C00001006P520 R154 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R155 nsp nsp R CARBON FILM 15K-J 1/5W-52RE-AX C00001536P520 R156 nsp nsp R CARBON FILM 180K-J 1/5W-52RE-AX C00001846P520 R157 nsp nsp R CARBON FILM 150K-J 1/5W-52RE-AX C00001546P520 R158 nsp nsp R CARBON FILM 1.2K-J 1/5W-52RE-AX C00001226P520 R159 nsp nsp R CARBON FILM 470-J 1/5W-52RE-AX C00004716P520 R160 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R161 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R162 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R163 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R164 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R165 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R166 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R167 nsp nsp R CARBON FILM 2.2-J 1/5W-52RE-AX C0002R206P520 R168 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R170 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R171 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R172 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R173 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R176 nsp nsp R CARBON FILM 39K-J 1/5W-52RE-AX C00003936P520 R177 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R178 nsp nsp R CARBON FILM 33K-J 1/5W-52RE-AX C00003336P520 R179 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R180 nsp nsp R CARBON FILM 220K-J 1/5W-52RE-AX C00002246P520 R181 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R182 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 33 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) R183 nsp nsp R CARBON FILM 39K-J 1/5W-52RE-AX C00003936P520 R185 nsp nsp R CARBON FILM 100-J 1/5W-52RE C00001016P520 R187 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R188 nsp nsp R CARBON FILM 8.2K-J 1/5W-52RE-AX C00008226P520 R189 nsp nsp R CARBON FILM 8.2K-J 1/5W-52RE-AX C00008226P520 R190 nsp nsp R CARBON FILM 2.2K-J 1/5W-52RE-AX C00002226P520 R191 nsp nsp R CARBON FILM 270-J 1/5W-52RE-AX C00002716P520 R192 nsp nsp R CARBON FILM 10-J 1/5W-52RE-AX C00001006P520 R193 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R194 nsp nsp R CARBON FILM 2.2K-J 1/5W-52RE-AX C00002226P520 R195 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R196 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 R197 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R198 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R199 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 R601 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R602 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R603 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R604 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R605 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R607 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R610 nsp nsp R CARBON FILM 100K-J 1/5W-52RE-AX C00001046P520 R611 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R613 nsp nsp R CARBON FILM 15K-J 1/5W-52RE-AX C00001536P520 R614 nsp nsp R CARBON FILM 3.9K-J 1/5W-52RE-AX C00003926P520 R615 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R617 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R618 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R619 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R620 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R621 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 R622 nsp nsp R CARBON FILM 2.2K-J 1/5W-52RE-AX C00002226P520 R623 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R624 nsp nsp R CARBON FILM 3.3K-J 1/5W-52RE-AX C00003326P520 R625 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R626 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 SW101 *SS000700R *SS000700R SW SLIDE SSAF112NA011 G060112011010 XTAL101 *FQ000350R *FQ000350R RESONATOR CERAMIC CST10.0MTW-TF01/REEL CSTLA10M0T55-A0 E830100000050 XTAL102 *JX000960R *JX000960R CRYSTAL HC-49S 16.9344MHz CL=12PF 5REEL(CRIMPED) E800169344510 FRONT P.C.B. C201 nsp nsp C CERAMIC HIK AXIAL B100PF-K/50V-52RE D005101177520 C202 nsp nsp C CERAMIC HIK AXIAL B100PF-K/50V-52RE D005101177520 C203 nsp nsp C CERAMIC HIK AXIAL B100PF-K/50V-52RE D005101177520 C204 nsp nsp C CERAMIC HIK AXIAL B100PF-K/50V-52RE D005101177520 C205 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 CN201 nsp nsp CN WIRE 120/6P 9073-06=9073-06 RD#26 L000121060050 CP201 nsp nsp CN.FPC 1.25MM 52492-3520 35P BOTTOM ENTRY L131524923520 D201 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D202 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D203 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D204 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D205 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D206 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 FLT201 *HQ300560R *HQ300560R DISPLAY FLT HNA-09SM13 49PIN(ANGLE) K530001270030 GUIDE201 nsp nsp BRACKET CDC5090R(DOM) ET.HD0.3t(A4)/VFD 4010210296000 34 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) J201 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J202 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J203 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J204 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J205 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J206 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J207 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J208 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J209 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J210 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J211 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J212 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J213 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J214 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J215 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 LED201 *HI100710R *HI100710R LED ROUND LED SLR-34URCF25 K500032101120 Q201 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 R201 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R202 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R203 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R204 nsp nsp R CARBON FILM 10K-J 1/5W-52RE-AX C00001036P520 R209 nsp nsp R CARBON FILM 330-J 1/5W-52RE-AX C00003316P520 R216 nsp nsp R CARBON FILM 47-J 1/5W-52RE-AX C00004706P520 SEN201 *HW100580R *HW100580R MODULE REMOCON NJL64H360A 36kHz E940643600000 SW201 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW202 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW203 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW204 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW205 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW206 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW207 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW208 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW209 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW210 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW212 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW213 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW214 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 POWER P.C.B nsp nsp HEAT SINK HEAT SINK (24X30) 2120044288010 C301 nsp nsp C CERAMIC AC(SAFETY) DE2F3KH108MN4A(DE1310-469E472M) P10 25REEL D00847208K060 C302 nsp nsp C ELECT GE 85C 4700UF-M/25V 16*31.5 D040472084210 C303 nsp nsp C ELECT GE 85C 470UF-M/25V 10*12.5-5RE.SY D040471084060 C304 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 C305 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 C306 nsp nsp C CERAMIC SEMI DISC F0.1UF-Z/50V-5RE PI6 D006104597050 C307 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 C308 nsp nsp C ELECT GE 85C 1000UF-M/35V 12.5*25L.BLK SY D040102085030 C309 nsp nsp C CERAMIC SEMI DISC F0.1UF-Z/50V-5RE PI6 D006104597050 C310 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C311 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C312 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C313 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C314 nsp nsp C ELECT GE 85C 22UF-M/50V 5*11-5RE.SY D040220087060 C315 nsp nsp C CERAMIC SEMI DISC F0.1UF-Z/50V-5RE PI6 D006104597050 C316 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 35 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) C317 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 C318 nsp nsp C FILM POLYESTER ST-0.01UF-J/100V-5RE D02010306C060 C319 nsp nsp C ELECT GE 85C 100UF-M/10V 5*11-5RE D040101082060 C320 nsp nsp C CERAMIC HIK AXIAL F0.047UF-Z/50V-52RE D005473597520 C321 nsp nsp C CERAMIC HIK AXIAL F0.047UF-Z/50V-52RE D005473597520 C322 nsp nsp C CERAMIC HIK AXIAL Y0.01UF-M/16V-52RE D005103773530 C323 nsp nsp C CERAMIC HIK AXIAL F0.1UF-Z/50V-52RE D005104597530 C324 nsp nsp C CERAMIC AC(SAFETY) DE2F3KH108MN4A(DE1310-469E472M) P10 25REEL D00847208K060 CLIP301 nsp nsp HOLDER FUSE CLIP PI5.2-REEL G645000050010 CLIP302 nsp nsp HOLDER FUSE CLIP PI5.2-REEL G645000050010 CP301 nsp nsp CN.WAFER 7.92MM YW396V(03AV) L108039602010 CP302 nsp nsp CN.WAFER 2.5MM 5268-13A 13P ANGLE L102526813010 D301 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D302 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D303 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D304 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D305 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D307 nsp *HD302090R D ZENER MTZJ24B-0.5W/5MA-52MM K06024R044520 D308 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D309 nsp HD30431000 D ZENER MTZJ4.3B-0.5W/5MA-52MM K06004R344520 D310 nsp *HD400190R D SWITCHING 1N4148-52RE 75V 150MA DO-34 (MIC) K000414803520 D311 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D312 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D313 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D314 nsp *HD201570R D SWITCHING IN4007 52REEL 1000V 1A K000400700520 D315 nsp *HD301970R D ZENER MTZJ9.1B-0.5W/5MA-52MM K06009R144520 D316 nsp *HD301970R D ZENER MTZJ9.1B-0.5W/5MA-52MM K06009R144520 F301 /N/A *FS000790R *FS000790R FUSE (5.2*20) 250V-T160MA-S/V/B/R(YARN) G650161251160 F301 /U/F nsp *FS000930R FUSE (5.2*20) LF239.400 250V-400MA-SB G650401251050 IC301 *HC300460R *HC300460R IC LINEAR-REGULATOR KIA7808AP (KEC) J126780800130 IC302 *HC300450R *HC300450R IC LINEAR-REGULATOR KIA7805AP 20W TO220AB J126780500360 IC303 HC3890509F HC3890509F IC LINEAR-REGULATOR KIA7805API 20W-TO220IS MOLD J126780500110 J302 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J303 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J304 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J305 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J306 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J307 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J308 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J309 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J310 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J311 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J312 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J313 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 LUG301 nsp nsp CN WIRE 80MM 1P 6045BS-2XB1813TOP-2E BK1015#20 L000800010010 Q301 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 Q302 *BA001070R *BA001070R SEMI BRT/NPN RC KRC107M 0.4W/TO92M-REEL J6020107M0010 Q303 *BA001260R *BA001260R SEMI TR/GE NPN 2SC KTC3205Y 1W/TO92L-REEL J5023205Y0020 Q304 *BA001250R *BA001250R SEMI TR/GE PNP 2SA KTA1273Y 1W/TO92L-REEL J5001273Y0050 R301 nsp nsp R CARBON FILM 33-J 1/5W-52RE-AX C00003306P520 R302 nsp nsp R CARBON FILM 1K-J 1/5W-52RE-AX C00001026P520 R303 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 R304 nsp nsp R CARBON FILM 4.7K-J 1/5W-52RE-AX C00004726P520 R306 nsp nsp R CARBON FILM 330-J 1/5W-52RE-AX C00003316P520 R307 nsp nsp R CARBON FILM 680-J 1/5W-52RE-AX C00006816P520 RELAY301 *LY000260R *LY000260R RELAY G5PA-1-8 12V 5A G680120502010 36 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. POS. NO VERS. COLOR PART NO. (FOR EUR) DESCRIPTION PART NO. (MJI) TRANS301 /U nsp *TS001650R POWER TRANS CC4300(U1B) 120V/60Hz 48*25 8200480250080 TRANS301 /N/A *TS001660R *TS001660R POWER TRANS CC4300(N1B) 230V/50Hz 48*25 8200480250100 TRANS301 /F nsp *TS001670R POWER TRANS CC4300(F1B) 100V/50Hz 48*25 8200480250090 TRANS302 /U nsp *TS001530R POWER TRANS SR6200/7200 STAND-BY 120V/60Hz 28*15 8200280150060 TRANS302 /N/A *TS001540R *TS001540R TRANS ST/BY 230/50 RV5080R 28*25 Io=22MA 12.5V*0.1A(DC) 8201280000011 TRANS302 /F nsp *TS001370R POWER TRANS AVC5/STAND-BY 100V 50Hz 28*15 8200280150020 KEY P.C.B SW401 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW402 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW403 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW404 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW405 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW406 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 SW407 nsp *SP001140R SW TACT SKHV10920A 5MM/260G-REEL G180000270010 H/P (HEAD PHONES) P.C.B. BEAD501 nsp nsp BEAD COIL BRS3550T0 3.5PHI*5 R.REEL(5MM) 7610035500010 BEAD502 nsp nsp BEAD COIL BRS3550T0 3.5PHI*5 R.REEL(5MM) 7610035500010 C501 nsp nsp C ELECT GE 85C 10UF-M/16V 4*5-5RE D040100083110 C502 nsp nsp C ELECT GE 85C 10UF-M/16V 4*5-5RE D040100083110 C503 nsp nsp C ELECT GE 85C 220UF-M/10V 6.3*11-5RE.SMS-SY D040221082050 C504 nsp nsp C ELECT GE 85C 220UF-M/10V 6.3*11-5RE.SMS-SY D040221082050 C505 nsp nsp C ELECT GE 85C 47UF-M/16V 5*11-5RE.SY D040470083080 CN501 nsp nsp CN WIRE 120/5P 9073-05=51004-05 RD1007#26 L000121050040 IC501 *HC108090R *HC108090R IC LINEAR POWER NJM2769BM DMP-8P /HEADPHONE AMP J122276900010 J501 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 JACK502 nsp nsp JACK D6.5 HTJ064-11D(G)/WTJ06411D(G)WELLCO G402040161330 LUG501 nsp nsp CN WIRE 140MM/1P 61640BS-2XB1813TOP-2E BK1015#20 L000141010020 VOL501 *RB000020R *RB000020R VR ROTARY 9MM RK0971220-2KB*2-M(ALPS) C451122200100 RS232C P.C.B. BD701 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 BD702 nsp nsp BEAD COIL BAS3580T0 3.5PHI*8 52RE 7610035800020 C701 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C702 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C703 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C704 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 C705 nsp nsp C ELECT GE 85C 1UF-M/50V 5*11-5RE D040010087050 CP701 nsp nsp CN.WAFER 2.0MM 53015-0310 3P ANGLE L101530150310 IC701 *HC108060R *HC108060R IC LOGIC-INTERFACE ST232EBN RS232 TRANSCEIVER DIP16 .ST J046232000010 J701 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 J702 nsp nsp CN WIRE 1P JUMPER (0.6/52MM) L045084006040 JACK701 nsp nsp CN.WAFER INTERFACE 9P FEMAIL D-SUB (SH232CF) L103090090020 R701 nsp nsp R CARBON FILM 10-J 1/5W-52RE-AX C00001006P520
