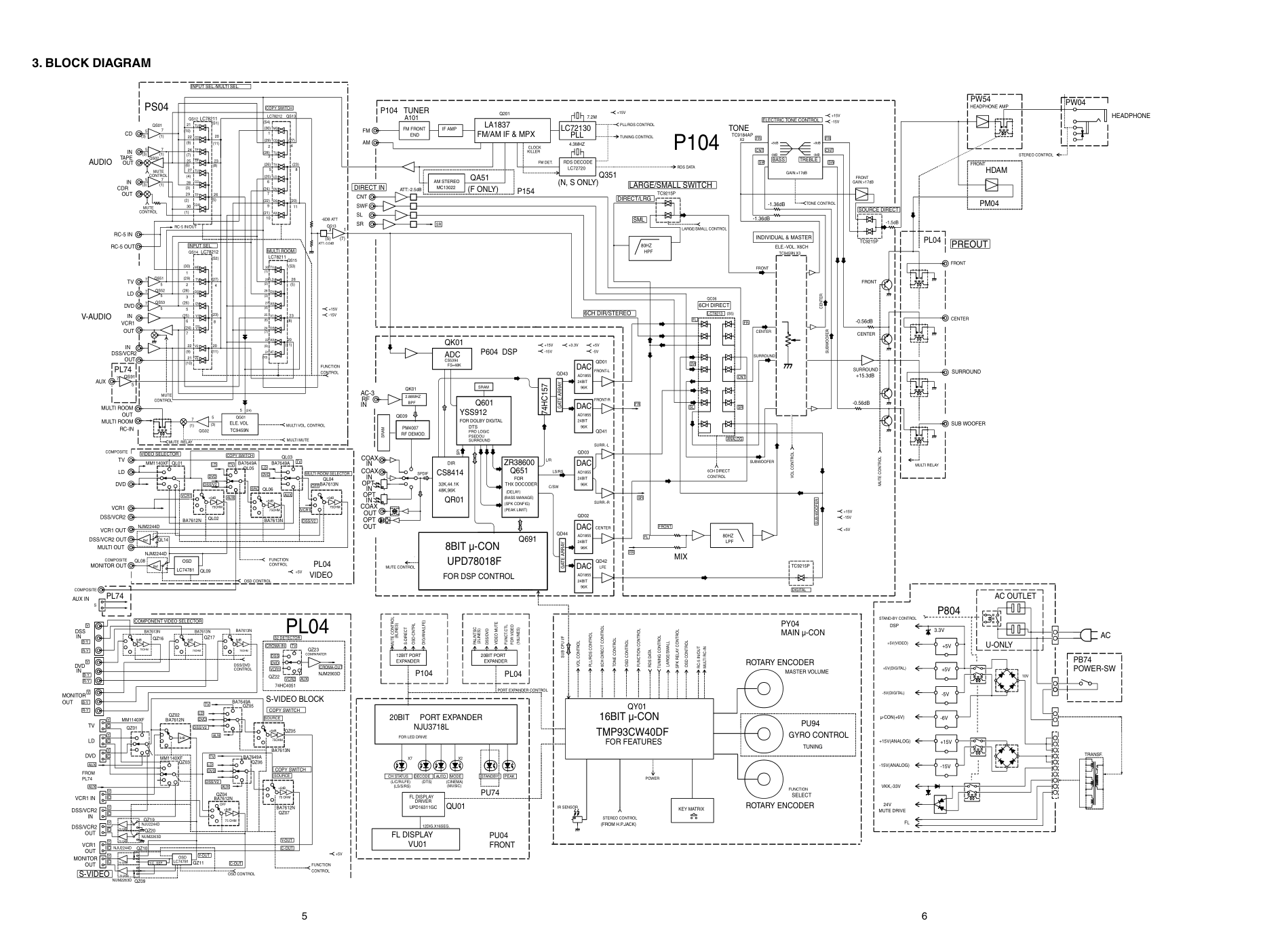

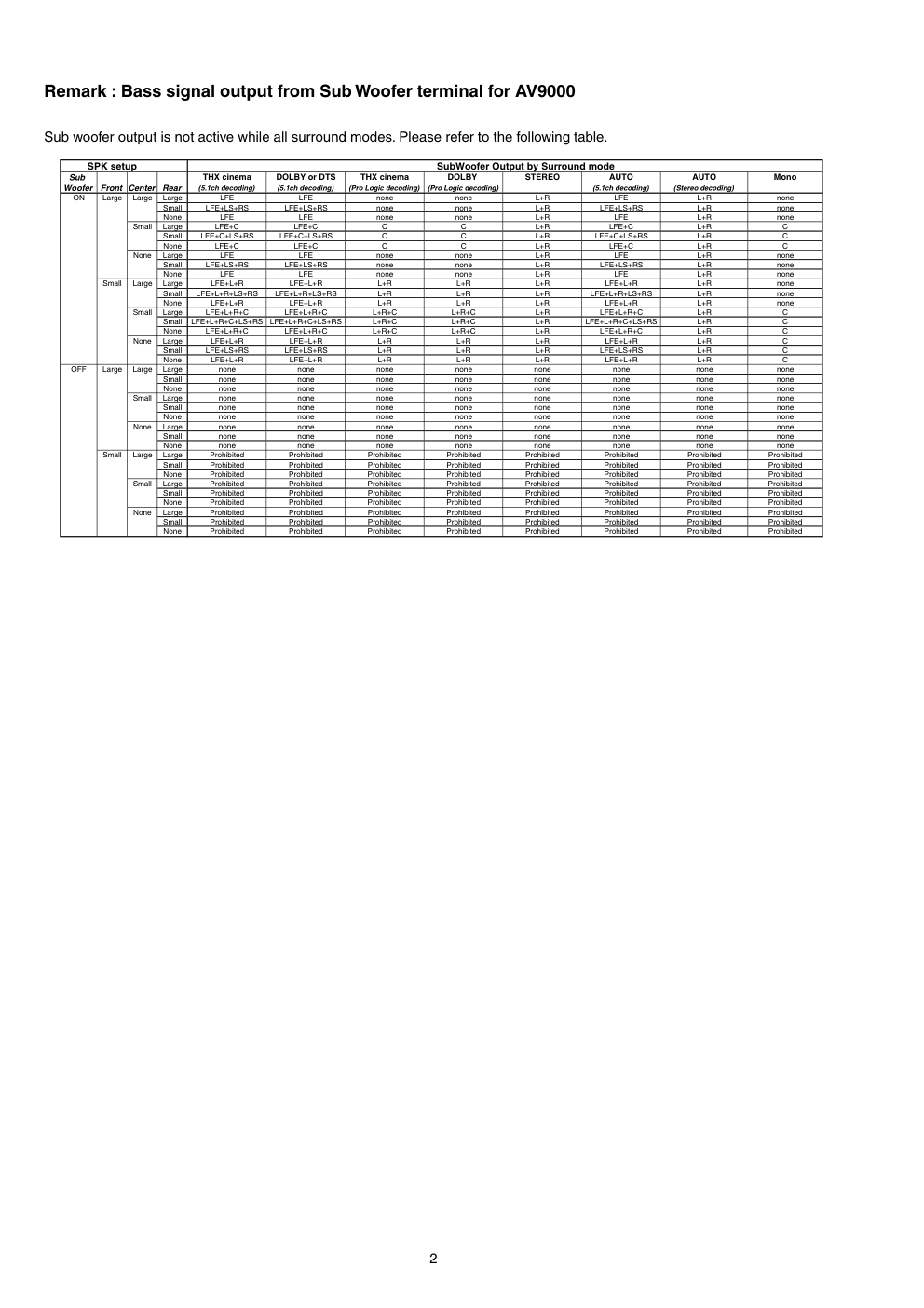

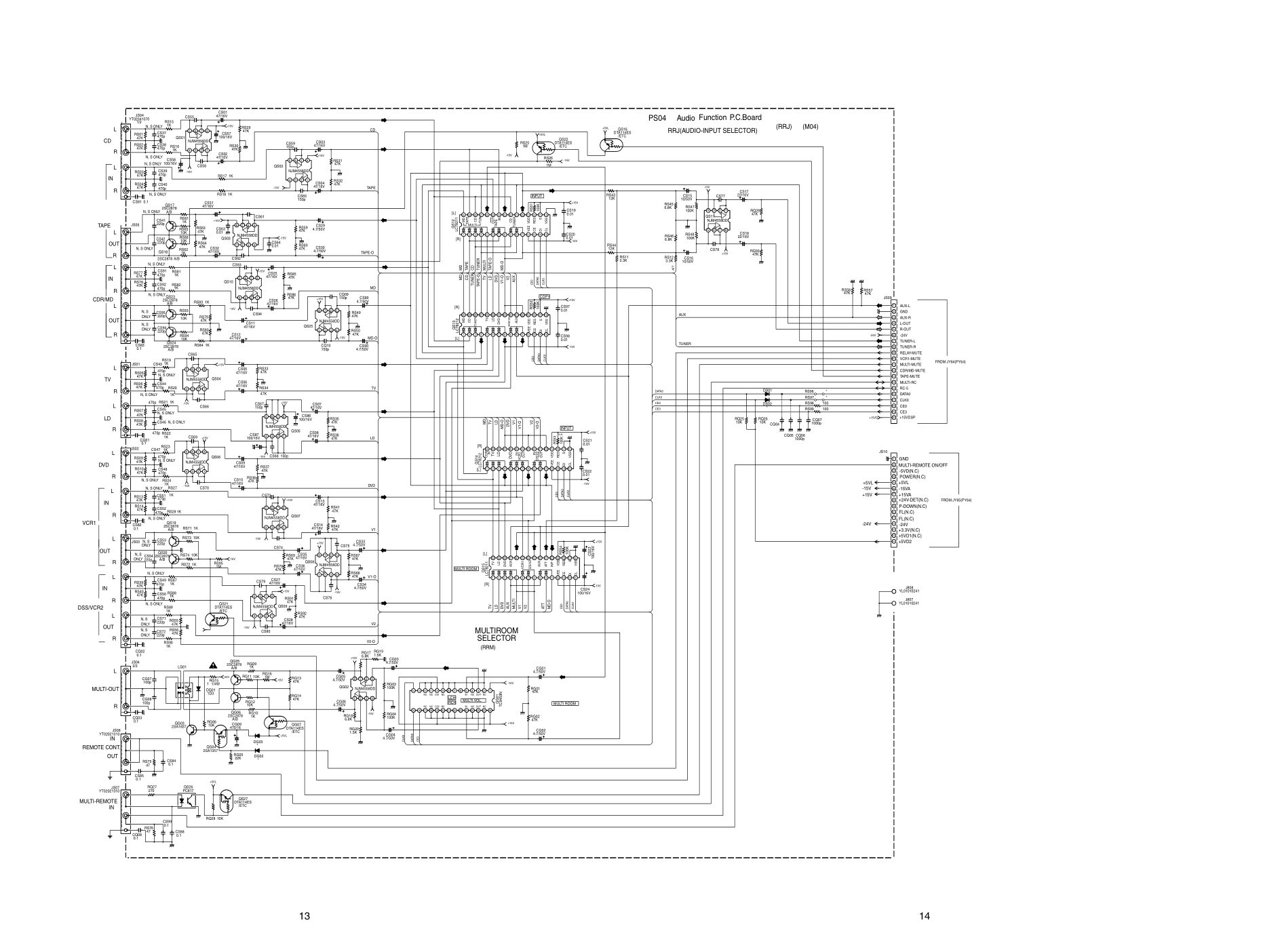

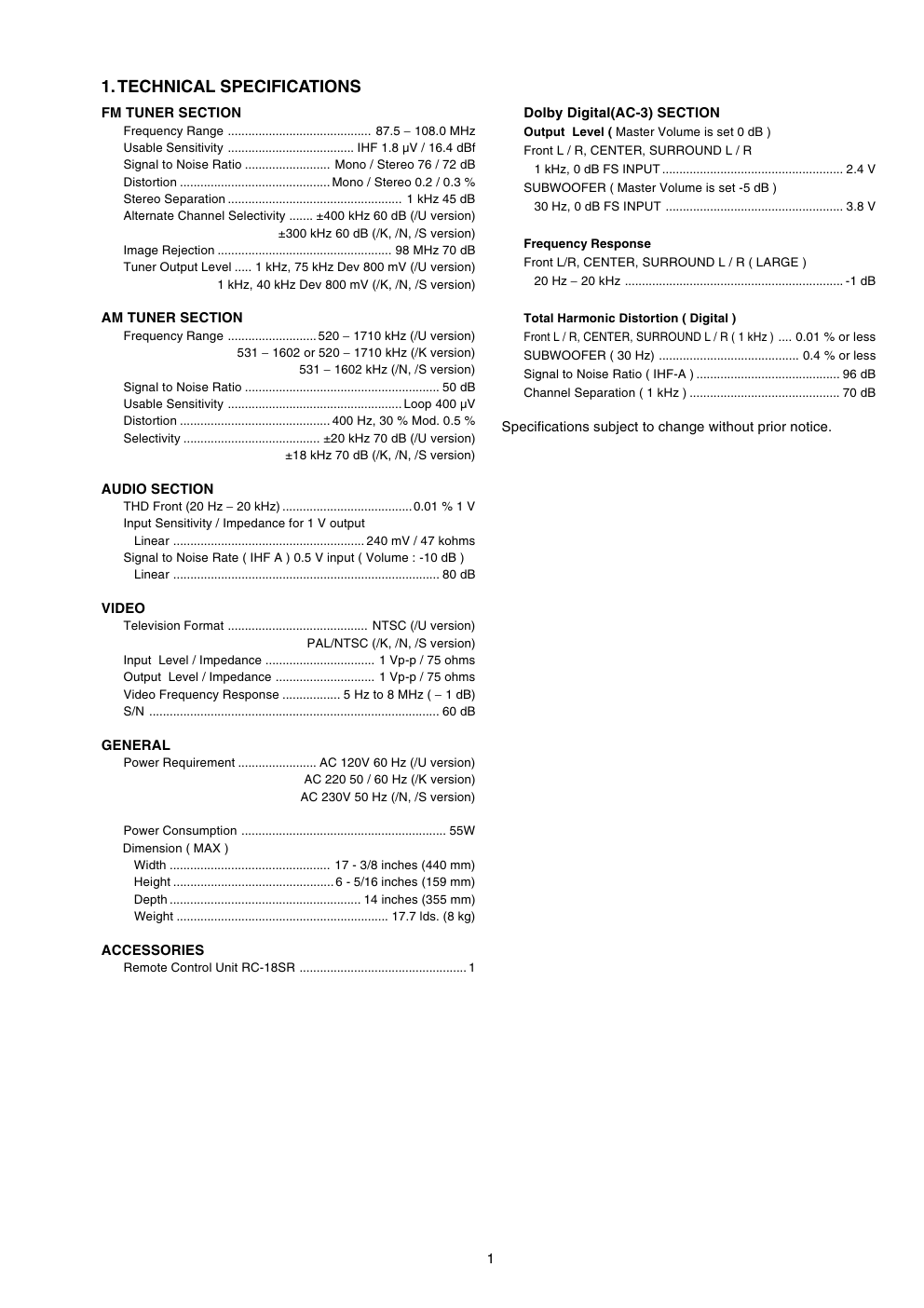

AV Pre Tuner - AV9000 - 312J855010 MIT 3120 785 22140 First Issue 1999.08 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................................................................................................................. 1 2. WIRING DIAGRAM ..................................................................................................................................... 3 3. BLOCK DIAGRAM....................................................................................................................................... 5 4. SCHEMATIC DIAGRAM AND PARTS LOCATION (Pattern Side) ............................................................. 7 5. IC DATA .................................................................................................................................................... 39 6. SERVICE PROGRAM ............................................................................................................................... 47 7. ALIGNMENT PROCEDURES ................................................................................................................... 49 8. TROUBLE SHOOTING ............................................................................................................................. 51 9. TECHNICAL DESCRIPTION FOR DECODER ......................................................................................... 54 10. EXPLODED VIEW AND PARTS LIST....................................................................................................... 57 11. ELECTRICAL PARTS LIST ....................................................................................................................... 60 Service Manual AV9000 /K1G, /N1G, /S1G, /U1B Please use this service manual with referring to the user guide (D.F.U) without fail. R POWER ON/OFF STANDBY PHONES A/D AUTO THX S2-VIDEO VIDEO L AUDIO R AUX INPUT INPUT SELECTOR AV PRE TUNER AV9000 CINEMA MUSIC 96 kHz GYRO TUNING PRESET AUTO TUNING MEMO CLEAR DOWN UP VOLUME L C R LFE LS S RS PEAK SURROUND MODE BASS TREBLE AUDIO TAPE VCR1 DIGITAL COPY ANALOG TONE CONTROL AV9000 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 990729MIT USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL MARANTZ BRAZIL CAIXA POSTAL 21462 CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 748 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA JAMO AUSTRALIA PTY LTD 1 EXPO COURT, P.O. BOX 350 MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - 3 - 9543 - 1522 FAX : +61 - 3 - 9543 - 3677 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. NO. 102 JALAN SS 21/35, DAMANSARA UTAMA, 47400 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 3 - 7184666 FAX : +60 3 - 7173828 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG (S) PTE LTD WO KEE HONG CENTRE NO.23, LORONG 8, TOA PAYOH SINGAPORE 319257 PHONE : +65 2544555 FAX : +65 2502213 1 1. TECHNICAL SPECIFICATIONS FM TUNER SECTION Frequency Range .......................................... 87.5 − 108.0 MHz Usable Sensitivity ..................................... IHF 1.8 µV / 16.4 dBf Signal to Noise Ratio ......................... Mono / Stereo 76 / 72 dB Distortion ............................................ Mono / Stereo 0.2 / 0.3 % Stereo Separation ................................................... 1 kHz 45 dB Alternate Channel Selectivity ....... ±400 kHz 60 dB (/U version) ±300 kHz 60 dB (/K, /N, /S version) Image Rejection ................................................... 98 MHz 70 dB Tuner Output Level ..... 1 kHz, 75 kHz Dev 800 mV (/U version) 1 kHz, 40 kHz Dev 800 mV (/K, /N, /S version) AM TUNER SECTION Frequency Range ..........................520 − 1710 kHz (/U version) 531 − 1602 or 520 − 1710 kHz (/K version) 531 − 1602 kHz (/N, /S version) Signal to Noise Ratio ......................................................... 50 dB Usable Sensitivity ................................................... Loop 400 µV Distortion ............................................ 400 Hz, 30 % Mod. 0.5 % Selectivity ........................................ ±20 kHz 70 dB (/U version) ±18 kHz 70 dB (/K, /N, /S version) AUDIO SECTION THD Front (20 Hz − 20 kHz) ......................................0.01 % 1 V Input Sensitivity / Impedance for 1 V output Linear ........................................................ 240 mV / 47 kohms Signal to Noise Rate ( IHF A ) 0.5 V input ( Volume : -10 dB ) Linear .............................................................................. 80 dB VIDEO Television Format ......................................... NTSC (/U version) PAL/NTSC (/K, /N, /S version) Input Level / Impedance ................................ 1 Vp-p / 75 ohms Output Level / Impedance ............................. 1 Vp-p / 75 ohms Video Frequency Response ................. 5 Hz to 8 MHz ( − 1 dB) S/N ..................................................................................... 60 dB GENERAL Power Requirement ....................... AC 120V 60 Hz (/U version) AC 220 50 / 60 Hz (/K version) AC 230V 50 Hz (/N, /S version) Power Consumption ............................................................ 55W Dimension ( MAX ) Width ............................................... 17 - 3/8 inches (440 mm) Height ............................................... 6 - 5/16 inches (159 mm) Depth ........................................................ 14 inches (355 mm) Weight .............................................................. 17.7 lds. (8 kg) ACCESSORIES Remote Control Unit RC-18SR .................................................1 Dolby Digital(AC-3) SECTION Output Level ( Master Volume is set 0 dB ) Front L / R, CENTER, SURROUND L / R 1 kHz, 0 dB FS INPUT ..................................................... 2.4 V SUBWOOFER ( Master Volume is set -5 dB ) 30 Hz, 0 dB FS INPUT .................................................... 3.8 V Frequency Response Front L/R, CENTER, SURROUND L / R ( LARGE ) 20 Hz − 20 kHz ................................................................ -1 dB Total Harmonic Distortion ( Digital ) Front L / R, CENTER, SURROUND L / R ( 1 kHz ) .... 0.01 % or less SUBWOOFER ( 30 Hz) ......................................... 0.4 % or less Signal to Noise Ratio ( IHF-A ) .......................................... 96 dB Channel Separation ( 1 kHz ) ............................................ 70 dB Specifications subject to change without prior notice. 2 Remark : Bass signal output from Sub Woofer terminal for AV9000 Sub woofer output is not active while all surround modes. Please refer to the following table. SPK setup SubWoofer Output by Surround mode Sub THX cinema DOLBY or DTS THX cinema DOLBY STEREO AUTO AUTO Mono Woofer Front Center Rear (5.1ch decoding) (5.1ch decoding) (Pro Logic decoding) (Pro Logic decoding) (5.1ch decoding) (Stereo decoding) ON Large Large Large LFE LFE none none L+R LFE L+R none Small LFE+LS+RS LFE+LS+RS none none L+R LFE+LS+RS L+R none None LFE LFE none none L+R LFE L+R none Small Large LFE+C LFE+C C C L+R LFE+C L+R C Small LFE+C+LS+RS LFE+C+LS+RS C C L+R LFE+C+LS+RS L+R C None LFE+C LFE+C C C L+R LFE+C L+R C None Large LFE LFE none none L+R LFE L+R none Small LFE+LS+RS LFE+LS+RS none none L+R LFE+LS+RS L+R none None LFE LFE none none L+R LFE L+R none Small Large Large LFE+L+R LFE+L+R L+R L+R L+R LFE+L+R L+R none Small LFE+L+R+LS+RS LFE+L+R+LS+RS L+R L+R L+R LFE+L+R+LS+RS L+R none None LFE+L+R LFE+L+R L+R L+R L+R LFE+L+R L+R none Small Large LFE+L+R+C LFE+L+R+C L+R+C L+R+C L+R LFE+L+R+C L+R C Small LFE+L+R+C+LS+RS LFE+L+R+C+LS+RS L+R+C L+R+C L+R LFE+L+R+C+LS+RS L+R C None LFE+L+R+C LFE+L+R+C L+R+C L+R+C L+R LFE+L+R+C L+R C None Large LFE+L+R LFE+L+R L+R L+R L+R LFE+L+R L+R C Small LFE+LS+RS LFE+LS+RS L+R L+R L+R LFE+LS+RS L+R C None LFE+L+R LFE+L+R L+R L+R L+R LFE+L+R L+R C OFF Large Large Large none none none none none none none none Small none none none none none none none none None none none none none none none none none Small Large none none none none none none none none Small none none none none none none none none None none none none none none none none none None Large none none none none none none none none Small none none none none none none none none None none none none none none none none none Small Large Large Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Small Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited None Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Small Large Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Small Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited None Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited None Large Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Small Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited None Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited Prohibited 3 4 2. WIRING DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 5 3 7 11 20 12 13 14 15 16 17 18 19 JW02 JC02 JL09 JZ07 JZ06 JZ08 JC04 JC01 JU91 JY63 JY62 JL10 JB71 JY67 J602 J601 JL07 JC03 JY69 JL77 JY05 JU02 JY03 JY70 JY02 JU01 JY04 J105 J691 J801 JY61 JY01 J103 JA51 JC07 JC08 JS09 JS10 JY65 JY64 J803 J802 JY72 JY71 JY88 JB01 JB02 L001 JB52 JB51 JB03 JL78 JU71 JU04 JW51 JW53 JW54 JW55 TRANSF. AUDIO_FUNCTION PS04 CVBS_FUNCTION S-VIDEO_FUNCTION COMPONENT_VIDEO PL04 PZ04 TUNER ELE_VR ELE_TONE P104 PU94 FRONT_DISPLAY µ-CON PU04 PW04 POWER_SW GYRO ENCODER AUX_INPUT PL74 DSP P604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 10 11 12 13 14 15 16 10 1 2 1 2 3 4 5 6 7 8 1 2 3 1 2 3 4 1 2 3 4 5 6 7 8 9 10 1 2 3 PY64 PB74 PH 10P PH 11P PY04 PH 12P PH 12P PH 9P PH 9P EH 3P PH 8P PH 4P PH 4P EH 3P PH 11P PH 10P PH 16P PH 16P PH 16P PH 16P PH 8P PH 10P PH 7P PH 10P PH 16P PH 16P EH 4P PH 7P PH 16P PH 16P 1 2 3 4 CLK0 DATA0 SYNC DET1 SYNC DET2 OSD-1 OSD-2 -24V OSD-INT CE1(OSD) CE2(OSD) CE7(P.EXP) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CE6(P.EXP) CDR/MD-MUTE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PH 11P PH 11P 1 2 3 4 1 2 3 4 5 6 7 8 9 10 VOL_UP VOL_DN DATA0 CLK0 CE5 CLR +5VL VKK 1 2 3 4 5 6 7 8 9 10 11 R OUT(RT) L OUT(LT) +15VD +3.3V -15VD -5VD 1 2 3 4 5 6 7 1 2 3 4 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 MUTE- RELAY 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9 10 11 STB DI-FL KEY1 KEY2 KEY3 KEY4 +5VB LEFT RIGHT UP DN 1 2 3 4 RELAY LS RS FL FR CNT SW C Y AUX-CVBS PAL VIDEO MUTE A B C (A) (B) INP.SEL COPY DSS:L/DVD:H AUX-CVBS 1 2 3 5 (B) 4 1 2 3 1 2 3 STANDBY LED PRE_OUT SUPPLY HDAM PM01 PU74 P804 AUX-L AUX-R L OUT R OUT -24V TUNER-L TUNER-R RELAY-MUTE MULTI-MUTE TAPE-MUTE MULTI-RC RC-5 DATA0 CLK0 CE0 CE3 MULTI-RC-OUT POWER TU-SD RC-5 CLK0 DATA0 OSD-1 OSD-2 SYNC DET1 SYNC DET2 TU-CLK TU-CE P-DOWN POWER +5VL LRG/SML CE1(OSD) CE2(OSD) CE7(P.EXP) VKK TU-DO RDS-DI CE6(P.EXP) CE0(ANA.SW) CE3(TONE) RELAY CTRL H.P.SW +15VA MULTI-RC +24V H.P.SW AUX-L AUX-R TU-DI 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16 16 17 17 18 18 19 19 20 20 15P 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 20P 1 2 3 4 5 6 7 8 9 9 8 7 6 5 4 3 2 1 P154 AM STEREO(F ONLY) 1 2 3 4 5 6 7 8 9 HEAD_PHONE LED-CONT 7P 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 6 7 -15VD -5VD +5VL -15VA +15VD GND(NC) GND(NC) TUNER-L TUNER-R MULTI-MUTE TAPE-MUTE CE0(ANA.SW) LRG/SML N.C N.C L OUT R OUT CE3(TONE) +5VL +5VV +15VA -15VA +24V +15VA VKK +5VL IR DSP-REQ DSP-RST DSP-CLK DSP-ACK DSP-MUT DSP-DO DSP-DI PH 4P +5VD +5VD +5VD +5VD +5VB VKK +5VL GND(NC) +5VL +5VD +5VB +5VA +5VC +5VL +5VIR GND(NC) GND(NC) GND(NC) +15VA -15VA GND(NC) GND(NC) +15VA -15VA +5VL +5VV -24V GND(NC) +15VA -15VA +5VL +5VV -24V(NC) +5VV +5VL -15VA +15VA -24V(NC) TU-SD PLL-DO RDS-DO TU-DI TU-CLK TU-CE N.C C FL FR LS RS ERMUTE SW TUNER GND ONLY R CH L CH IF-IN MONO/ST ST-IND +15VA +15VAM +15VAM +15VA -15VA NC NC FL IN FR OUT FR IN FL OUT +3.3V -5VD +15VD -15VD +15VA -15VA FL FL FL FL FL FL FL(F) FL(F) VCR1-MUTE RELAY-MUTE(M-RL) VCR1-MUTE CDR/MD-MUTE MULTI-RC-OUT +5VAD +5VAD GNDD GNDA GNDA -15VA +15VA +5VA +5VD 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 AC10V 0V AC10V AC15V AC15V AC5V AC5V AC22V 0V AC22V 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 11 12 13 P-DOWN +3.3V +5VD +5VA -5V +5VL POWER GND +15VA +15VD -24V -15VA -15VD 1 2 3 4 5 6 1 2 3 4 5 6 GND FIL FIL +24V VKK REL.MUT 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 11 12 13 1 2 3 4 5 6 1 2 3 4 5 6 TU-SD PLL-DO RDS-DO TU-DI TU-CLK TU-CE N.C 5VL 1 1 1 1 WHT/BLU RED/BRN 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 AC10V 0V AC10V AC15V AC15V AC5V AC5V AC22V 0V AC22V 1 1 1 1 WHT/BLU RED/BRN WHT/BLU RED/BRN PB54 POWER TRANSF. GND +5VA +5VD GND +5VA N.C N.C N.C N.C N.C N.C N.C GND GND PW54 HEADPHONE_AMP 1 1 2 3 4 5 6 7 8 9 10 2 3 4 5 6 7 8 9 10 GND -15V +15V GND -15V +15V FL_IN FR_IN FR_OUT FL_OUT GND -15V +15V GND -15V +15V FL_IN FR_IN FR_OUT FL_OUT FL GND FR H.P.SW 1 2 3 4 1 2 3 4 1 2 3 4 H.P.SW 5VL 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 1 2 3 4 5 +15VA +15VA -15VA +5VL +5VL -15VA +15VA CONNECT_PCB EH 13P EH 6P EH 6P EH 13P VH 2P VH 2P VH 2P EH 10P EH 10P VH 2P EH 4P PH 4P PH 5P PH 5P PH 5P PH 5P PH 10P PH 10P MUTE- RELAY FL GND FR H.P.SW 3. BLOCK DIAGRAM 5 6 FM AM FM FRONT END IF AMP FM/AM IF & MPX PLL RDS DECODE FM DET. 7.2M KEY MATRIX TV MONITOR OUT VIDEO SELECTOR OSD MUTE CONTROL OSD CONTROL POWER ROTARY ENCODER INDIVIDUAL & MASTER ELE.-VOL. X6CH MULTI ROOM VOL CONTROL MUTE CONTROL BASS TREBLE CENTER FRONT SUB-WOOFER RC-5 IN RC-5 OUT SUB WOOFER FRONT CENTER SURROUND -6DB ATT 2.88MHZ BPF SRAM ADC COAX OPT RF LFE FRONT CENTER SURROUND MIX SUB CPU I/F +15V -15V +5V +5V +5V +15V +15V -15V 30 (1) 29 (2) 27 (4) 25 (6) (7) 22 (9) 21 (10) 24 26 (5) (8) (11) 20 23 5 (1) (3) QS02 5 7 (1) (3) QS13 PS04 CD AUDIO QS01 7 1 3 (5) (7) INPUT SEL. FUNCTION CONTROL ELE. VOL AUX TV MULTI ROOM OUT V-AUDIO 22 21 (10) (9) QS51 QS52 QS53 7 5 5 5 7 7 20 (11) QS91 5 7 28 (3) MULTI MUTE LPF HPF -5V +5V +15V -15V PL04 VIDEO P104 TUNER P604 DSP PU04 FRONT FUNCTION CONTROL TONE TAPE DVD LC78211 OUT IN INPUT SEL./MULTI SEL. DVD DVD TV MONITOR OSD TV DVD COMPOSITE COMPOSITE DVD IN IN CONTROL LA1837 MULTI ROOM SELECTOR ELECTRIC TONE CONTROL TONE CONTROL TC9215P SML COPY SWITCH DVD COPY SWITCH TV AUX FUNCTION CONTROL CH STATUS DECODE (DTS) ROTARY ENCODER FUNCTION FRONT CENTER LC78213 FR CNT SW FR CNT SW FL FR CNT SW SELECT TC9184AP MULTI VOL. CONTROL MUTE CONTROL MUTE CONTROL OSD CONTROL MONITOR OUT 8BIT µ-CON MUTE CONTROL (S2) (S3) (S1) X2 CONTROL RC-IN RC-5 IN/OUT FOR FEATURES PORT EXPANDER PORT EXPANDER CONTROL FOR LED DRIVE 12DIG.X16SEG. (L/C/R/LFE) X7 4.3MHZ PLL/RDS CONTROL RDS DATA 20BIT NJU3718L CLOCK KILLER 6dB Baf Y B-Y R-Y Y Y B-Y B-Y R-Y R-Y MULTI OUT 1 2 3 10 9 7 6 5 (30) (29) (28) (26) (25) (24) (22) (21) 11 8 4 (27) (23) (20) PAL/NTSC DSS/DVD EXPANDER DSS/DVD BA7613N 75OHM +6dB AUX 75OHM +6dB OFF SRC BA7613N BA7649A BA7649A DVD 6dB 75OHM +6dB BA7613N BA7649A +6dB OUT OUT AUX AUX TV AUX DVD +6dB SOURCE SOURCE Y-OUT C-OUT Y-OUT C-OUT EXPANDER FUNCT.CTL FOR VIDEO AUX COMPOSITE S-VIDEO S-VIDEO BLOCK COPY SWITCH COPY SWITCH 20BIT PORT BA7649A 75OHM 6dB 75OHM 6dB 75OHM PL04 BA7613N STANDBY PEAK P104 COAX OPT COAX OPT OUT OUT IN IN IN THX DOCODER (BASS MANAGE) (SPK CONFIG) (DELAY) FOR ZR38600 SPI VIDEO MUTE SPDIF RF DEMOD. L/R LS/RS C/SW PSEDOU SURROUND PRO LOGIC PM4007 FS=48K DIRECT/LRG LARGE/SMALL SWITCH CNT SWF SL SR DIRECT IN SL SR (S5) SUBWOOFER FRONT CENTER SUBWOOFER SURROUND GAIN:+17dB +8dB +8dB -8dB -8dB IR SENSOR FOR DSP CONTROL VCR1 OUT OFF VCR1 VCR1 OUT VCR1 VCR1 TV Baf 75 OHM 75 OHM 75 OHM 75 OHM 75 OHM OUT MULTI ROOM IN IN VCR1 OUT (16LINES) GYRO CONTROL LC78212 (S4) 5 7 (1) (3) OUT IN TV DSS DVD VCR2 AUX VCR1 COMPARATER CROMA-IN CROMA-OUT S2 DETECTOR QS12 QS13 QS14 QS15 TC9459N LC72720 LC78211 LC78212 12BIT PORT (8LINES) TU CD TP TP TU CD TP MD TV DS DV V1 V1 V2 V2 MD CD TU TV DV AX TV DV AX V1 AX AT 6CH DIRECT 6CH DIR/STEREO SOURCE DIRECT 6CH DIRECT MUTE RELAY 80HZ 80HZ DIGITAL ANALOG DIR 48K,96K 32K,44.1K FOR DOLBY DIGITAL DTS (PEAK LIMIT) 74HC157 DAC AD1855 24BIT 96K DAC AD1855 24BIT 96K DAC AD1855 24BIT 96K DAC AD1855 24BIT 96K DAC AD1855 24BIT 96K FRONT-L FRONT-R SURR.-L SURR.-R GATE ARRAY GATE ARRAY AC-3 IN FR FL FR SR SR TC9215P LC74781 Y C Y-C SEP. LC74781 DSS/VCR2 LD DSS/VCR2 OUT DSS LD DSS/VCR2 DSS/VCR2 LD DSS/V2 LD DSS/V2 BA7612N BA7612N 75 OHM LD DSS/VCR2 CDR AUTO MODE X2 (CINEMA) (MUSIC) GAIN:+17dB TC9459N X3 CDR MUTE CONTROL DIG/ANA(LFE) LC72130 AM STEREO MC13022 16BIT µ-CON UPD16311GC YSS912 TMP93CW40DF S-DIRECT (2LINES) NUM2263D NUM2263D Y Y C C Y Y C C NJU2244D NJU2244D IN MM1140XF MM1140XF NJM2903D COMPONENT VIDEO SELECTOR S AUX IN NJM2244D NJM2244D MM1140XF DSS/V2 LD LD DSS/V2 75OHM +6dB TC9215P (LS/S/RS) CS8414 CS5394 ATT:-3.0dB +15.3dB LD DS (30) (29) (28) (26) (25) (24) 1 2 3 5 6 7 8 4 (27) (23) 30 29 28 27 25 24 22 21 20 23 26 (2) (1) (3) (4) (6) (7) (9) (11) (8) (5) (10) LD DS 5 (24) 5 (3) 7 (1) QG01 QG02 BA7612N BA7613N BA7613N 74HC4051 BA7612N QZ01 QZ02 QZ03 QZ04 QZ05 QZ05 QZ06 QZ07 QZ19 QZ20 QZ10 QZ09 QZ11 QZ22 QZ23 QZ16 QZ17 QL09 QL08 QL14 QL01 QL02 QL03 QL05 QL06 QL04 Q201 QC06 QK01 +15V -15V +3.3V QD43 QD01 QD41 QD03 QD02 QD42 QD44 Q691 QE09 QK01 Q601 SRAM Q651 A101 MULTI RELAY PL04 FL DISPLAY QY01 MASTER VOLUME STEREO CONTROL (FROM H.P.JACK) MAIN µ-CON PL04 P104 OSD CONTROL MULTI RC-IN RC-5 IN/OUT SPK RELAY CONTROL LARGE/SMALL TUNING CONTROL RDS DATA FUNCTION CONTROL OSD CONTROL TONE CONTROL PLL/RDS CONTROL VOL CONTROL FL DISPLAY DRIVER VCR1 IN Y Y Y C C C QR01 VU01 QU01 (F ONLY) TUNING CONTROL LARGE/SMALL CONTROL 6CH DIRECT CONTROL IN Q351 QA51 ATT:-2.5dB TRANSF. AC FL µ-CON(+6V) MUTE DRIVE STAND-BY CONTROL AC OUTLET POWER-SW +5V(VIDEO) P804 10V DSP +5V 3.3V +5V -6V -5V -5V(DIGITAL) +5V(DIGITAL) +15V -15V +15V(ANALOG) -15V(ANALOG) VKK,-33V 24V STEREO CONTROL FRONT PW04 HDAM PW54 HEADPHONE AMP PM04 -1.5dB UPD78018F (N, S ONLY) U-ONLY -0.56dB -0.56dB -1.36dB -1.36dB PB74 PU94 PU74 PL74 PL74 PY04 P154 OSD-CNTRL HEADPHONE FROM PL74 PREOUT TUNING 7 8 4. SCHEMATIC DIAGRAM AND PARTS LOCATION (Pattern Side) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 VCC GND FM IF REG AM OSC AM MIX AM RF AMP AGC AM/FM BUFF IF/DET AM COMP BUFF DECORDER MUTE STEREO SW PILOT DET FF FF FF VCO V-SM AM S-METER STEREO DRV. PHASE DET SD TUNING DRIVE FM DET S-CURVE FM S-METER L R L R C502 C501 R506 C511 R203 Q202 C201 RA02 CA03 CA05 CA04 LA02 CA01 L201 C208 C203 C202 DA06 DA05 LA01 DA01 C223 L504 L501 L503 C226 C233 D201 F202 J102 R205 CA02 R307 L301 R220 C220 R315 Q203 R313 R512 C504 C206 LA06 R213 R309 R310 R513 R209 D202 R207 R214 Q204 C318 C222 C210 C204 R316 D501 R504 C508 R210 R212 011K X501 R208 RA11 C234 LA05 C309 C310 C216 C218 RA01 F201 L302 C215 C235 C237 R308 J101 CA68 CA69 CA70 CA78 CA73 CA72 CA71 CA51 CA59 CA57 RA74 RA62 RA61 QA53 XA51 LA51 CA66 CA79 RA73 RA75 RA51 RA77 CA55 RA53 RA69 RA57 RA55 RA71 CA61 CA60 CA58 RA54 RA70 RA58 RA56 RA72 CA62 R302 R301 RA59 RA60 CA76 CA75 R314 C313 C314 C305 C306 C311 C312 Q501 CA09 RA06 CA11 CA12 LA04 CA08 LA03 DA03 RA08 RA07 QA02 QA03 RA09 DA04 CA13 CA14 QA01 CA06 RA03 S301 Q351 L355 L354 L353 L352 L350 L356 L359 C356 C351 Q352 Q353 D351 C365 JA51 CA77 CA80 QA52 R507 C315 CA07 R515 R509 R202 QA54 CA63 CA54 J104 R217 C219 C207 FA01 CA18 C213 C211 C212 C214 C209 R211 C303 C304 C503 J105 C236 RA78 R216 C367 C368 C372 C371 J106 C205 R206 DA02 R511 R516 R510 R505 C361 C362 C363 C364 CA56 CA64 CA65 CA67 C507 C505 R502 C225 Q301 R302 R301 C306 R304 R303 C305 C317 C316 C369 C370 RA04 DA02 U107 U104 D502 R221 Q209 QA04 QA05 QA06 QA07 QA08 QA51 R204 L502 RA10 D503 D503 CA53 RA99 A101 C217 C227 C301 C302 J103 R101 R201 R201 R215 R303 R304 U180 R508 C510 R355 C357 X351 R352 C358 C353 C354 C352 L351 Q201 C366 R354 R353 R356 Q201 R357 47p CH 47p CH 1k 0.01 2.2k 2SC1809SP 0.01 100k 15P CH 47P CH 390P/100V MW-OSC 20P 0.047 0.047 0.01 * * MW-ANT VCD 47µH 47µH 47µH 0.01 * YL01010140 330 0.047 220 100 2200P FMCF 2.7k DTA114ES /ETC 220 1/4W 270 1W 0.01 450kHz 47 47k 47k 10k 4.7k 9.1V 180 1/4W 47k DTC144ES 100p 1000p 0.01 0.047 2.7k 5.1V 3.3k 10k 260J123010 7.2MHz 2.7k 10k 39mH 0.015 50V 0.015 50V 0.01 10k 0.047 0.01 0.01 220 1/50V 22/16V 47/16V 100/16V 1000P 1000P 1000P 1000P 330P 330P 1K 2.2k 2.7k DTC144ES 3.6MHz 450kHZ 0.01 0.01 180k 100k 47k 10k 1000P 47k 6.8k 27k 47k 6.8k 680P 330P 330P 47k 6.8k 27k 47k 6.8k 680P 4.7k 4.7k 4.7k 4.7k 1/50V 1/50V 220 1/4W 47/16V 47/16V 4.7/50V 4.7/50V 4.7/50V 4.7/50V LC72130 15P CH 100k 68 CH 150P CH LW-OSC 20P LW-ANT VCD 150k 10k 2SC536 SP/ETC 2SD2144 S/U/V 2.2k 1SS135 0.01 0.01 2SC536 SP/ETC 0.01 10k LC72720 15p 0.01 DTC114ES /ETC DTA114ES /ETC 5.1V 47/16V 10/50V 10/50V NJM7808F +8V 68k 0.01 0.01 10k 22k 390 2SC536 SP/ETC 0.47/50V 10/50V YL01010140 180 1/4W 10/50V 100/10V SFZ450JL3 4.7/50V 0.47/50V 2.2/50V 1/50V 47/16V 10/50V F, U:10k K, N, S:22k 10/50V 10/50V 100/10V 0.01 10k 27k 100p 100p 100p 100p YL01010140 3.3/50V 6.8k * 8.2k * 10/50V 100/16V 4.7/50V 100/16V FMCF 4.7k 4.7k 1k 0.01 0.01 100p 100p 100p 100p 22000PF 10/50V 0.22 47P (CH) 0.01 2.2/50V 2.2k 0.01 NJM4558DD * * * * * * 100p 0.01 DAMMY DAMMY 150k 1SS135 F, K, S, U * N ONLY 10k N, S ONLY 2SC536 SP/ETC N, S ONLY DTA144ES N ONLY DTA144ES N ONLY DTC114ES /ETC LW ONLY DTC144ES F ONLY DTA144ES F ONLY MC13022 470 47µH 10k F, N ONLY F ONLY N ONLY 10/50V 47k F:AV00901010 K, N, S, U:AV00903010 F ONLY 10k 1/2W U ONLY 100 K, N, S ONLY F, U ONLY F:4.7k K, N, S:10k F:4.7k K, N, S :10k N, S ONLY 47k U, K ONLY 100p 15p 4.322MHz 100k 10/50V 330p 560p 10/50V LA1837 1/50V 10k 470k 470 1W LA1837 10k +15VA +15VA +15VA +15VA +15VA -15VA +15VA -15VA +15VA +15VA -15VA +15VA C373 0.01 C374 0.1 TU-CE TU-CLK TU-CLK TU-CE TU-DO TU-DI TU-DO RDS-DI TU-DO TU-CLK RDS-DI TU-CE TU-DI FM75 GND AM Ω FM FRONT-END ANT VT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 ANT TERMINAL 2 3 7 1 4 5 6 8 MONO/ST AM STOP SEP FM MUTE - - + + (0.0) [0] 0 5.8 (0) [0] 0 MONO DIST AM IF ST DIST P104 - 1/2 FM/AM IF MPX PLL-BLOCK FM AM IF/MPX 3.9V 3.1V 12.0V (0V) (0V) (0V) (3.9) 15.0 (1.3) [1.3] (15.0) [15.0] 14.9 [14.9] 14.9 (14.9) C227 R215 C301/302 68k 2200p C217 P104 1/2 Tuner P.C.Board 50µS 9kHz 75µS 10kHz DE-EMPHASIS K ONLY /SCAN STEP SW. 27k 0.027 0.015 0.047 0.033 K, N, S TU-SD 1.7 1 2 3 4 5 6 7 8 9 L OUT R OUT AM STEREO BLOCK STEREO:0V MONO:5V GND GND VCC OSC-O GND IF OUT K, N, S :FF11070620 F201 F, U :FF11070610 LCH RCH MONO/ST LCH RCH IF-IN PRE AMP F, K, N, S ONLY (0V) 0V (0V) 0V [4.3] [3.6] 0 (0) 0 0 (3.6V) [0V] 0 (4.3V) 13 14 15 16 17 18 19 20 21 22 23 24 1 2 3 4 5 6 7 8 9 10 11 12 RDS BLOCK +15V OSC-KIL LW MW LW TRACKING LW TRACKING (RDS) P154 ST-IND [0] 0 (15.0) 0 (0) [15.0] [0V] 1 2 3 4 5 6 7 [0.7] MW TRACKING MW TRACKING 170kHz 260kHz F U 0.027 27k 0.033 TU-CLK TU-CE TO JY70 (PY64) M06-CONNECT (RTU) (M03) (M03) N.C 3.6 9.2 3.6 3.6 5.0 5.2 9.0 9.1 0.1 0.3 0 3.9 8.0 8.0 4.3 4.3 4.3 4.3 3.3 3.3 2.9 2.1 0 0 5.1 5.0 3.6 3.6 2.1 7.2 2.9 2.9 1.3 0.9 0.2 1.8 1.2 1.2 1.2 1.2 1.2 1.2 1.8 0.1 2.9 2.9 2.9 2.9 6.4 5.2 0 0.4 3.6 8.0 2.9 8.0 7.3 (RAS) F ONLY N, S ONLY TU-DO TU-DI DO CLK DI CE FM STRQ MUTE VDD VSS 10kHZ ST-IND RDS-DI LW M/S (AM SEP.ADJ) 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 AM(LW)BLOCK LCH RCH LCH RCH LCH RCH STRQ/MUTE VREF VDDA VSSA MPXIN CIN T1 T2 T3 T4 T5 XOUT XIN VSSD T6 T7 SYNC DO CL DI CE SYR FL-OUT 1400/1404kHz 600/603kHz N ONLY F, K, N, S ONLY U ONLY 1 2 3 4 5 6 1 2 3 4 5 6 7 7 FM 108MHz AM 87.5MHz FM AM 531kHz 1602kHz TUNING VOLTAGE (F) 76.0MHz 1.7 90MHz 4.0V 1.1V 6.9V 2.1V 7.2V 1.1V 7.6V 520/531kHz 1710/1602kHZ TUNING VOLTAGE (K,N,S,U) TUNER-L TUNER-R P104 - 2/2 TO ELE.VOL./TONE BLOCK TUNED ON :L TUNED OFF:H FM:L AM:H SD VCC GND RDSDI VDDD 9 10 1 13 14 26 27 39 40 52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 46 47 48 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 50 51 100 1 25 26 75 76 5 10 15 20 30 35 40 45 55 60 65 70 80 85 90 95 VSS VSS VCC VCC VSS VCC RIGHT LEFT UP DN +5VB +5VB +5VB 1 2 3 4 UP DN GND +5VD +5VC +5VC +5VC +5VA +5VA +5VC +5VA +5VB +5VD +5VA 1 2 3 4 5 6 7 8 +5VA +5VA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +5VD 2 1 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 2 1 3 4 5 6 7 8 9 10 11 12 1 2 3 4 +5VL +5VL +5VL +5VL +5VL +5VD VKK +5VD +5VD +5VD +5VD 1 2 3 4 5 6 7 8 - + - + +5VL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 CU91 QU08 CY02 QY03 QY04 QY05 QY06 QY07 XY01 JY03 JY01 JY05 JU91 JY61 JY69 QY10 QY09 CY01 CY04 CY08 CY10 CY11 RY01 RY02 RY03 RY04 RY05 RY06 RY07 RY08 RY09 RY10 RY11 RY13 RY14 RY16 RY18 RY22 RY15 RY17 RY21 RY23 RY27 RY28 RY29 RY30 RY31 RY47 RY48 RY49 RY50 RY51 RY53 RY54 RY55 RY56 RY52 DY01 DY02 DY03 RU47 RY12 QY02 QU91 JU01 JY04 JU02 CY09 RL88 RL78 RL77 CL81 CL82 JL76 JL77 RL86 RL85 RL75 RL76 RL83 RL84 WL75 JL75 CL79 CL80 CL83 QL75 CL89 CL90 RY67 QY11 RY57 RY58 QY12 RY64 RY68 RY60 RY35 RY37 RY38 RY39 RY40 RY41 RY42 RY43 RY44 RY45 RY65 RY66 QY14 QY13 JY06 JY64 JY62 JY65 JY70 JY72 JY71 JY67 JY63 RU91 RU92 RU93 RU71 JU71 JU04 QU02 RU36 RU35 RU44 DU21 CU12 CU11 RU45 CU82 CU81 RU48 QU07 SU01 SU17 RU01 RU02 SU03 RU03 RU04 RU05 RU06 RU07 RU08 RU09 SU11 SU12 RU15 SU13 RU16 SU14 SU15 RU17 RU18 SU16 RU19 RU21 RU22 SU19 RU23 RU24 SU20 RU25 SU21 RU26 RU27 SU23 RU28 SU24 RU29 RU31 SU27 RU32 SU28 CU03 CU02 DU20 CU09 CU01 RU46 CU10 CU07 CU08 RU59 RU60 RU58 RU57 QU05 QU06 RU61 RU62 RU52 CU06 RU54 QU04 CU05 RU53 RU51 QU03 RU55 RU56 CY07 RY24 RY25 QY61 CY61 JY68 QU81 VU01 CU04 CU20 RY46 JY02 RU33 RU34 QY62 RU63 CU13 CU14 DY62 RY63 DY61 RY61 RY62 RY91 RY69 QY63 QY64 QY65 CY30 RY69 DY04 QY15 CY19 CY26 CY25 CY13 CL84 CL88 CL98 CL97 CL96 CL95 CL94 CL93 CL92 CL91 RY70 RY59 QY01 RU40 RU41 RU42 RU43 RU37 RU38 RU39 RY32 RY33 RY34 RY36 DU09 DU19 DU07 DU08 QU01 CL75 CL76 RL90 RL92 RL91 RL93 CL77 CL78 RL80 RL79 RL81 RL82 DU10 DU11 DU12 DU16 DU13 DU14 DU15 DU18 DU71 DU17 0.01 DTA114ES /ETC 47/10V DTA114ES /ETC DTC144ES /ETC DTA114ES /ETC DTA114ES /ETC DTC114ES /ETC 20MHZ DTA114ES /ETC DTC114ES /ETC 0.1 16V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 47 18K 47K 47K 47K 10K 10K 10K 10K 10K 10K 10K 47K 47K 47K 47K 0 0 0 0 4.7K 4.7K 4.7K 4.7K 4.7K 0 0 0 0 0 0 0 0 0 0 ISS300 ISS300 ISS301 56K 1M 2SC536 SP/ETC VKK 0.01 50V 75 47K 47K 10/50V 10/50V 75 75 1K 1K 47K 47K YB00152110 10/50V 10/50V 10UF/16V NJM4558DD 0.01 0.01 10K 2SC536 SP/ETC 47K 10K 2SC536 SP/ETC 27K 27K 10K 220 220 220 220 220 220 220 220 220 220 220 220 DTA114ES /ETC DTC114ES /ETC * +5VB +5VA +5VC +5VL 330 10K 10K SU33 SU32 680 NJU3718L 680 680 120 0.01 0.01 680 220/6.3V 22000p 100 DTA114TS/ETC 10K AUTO A/D 6.8K 470 THX 3.3K 330 2.2K 1.5K 1K 820 680 MEMO CLEAR 2.2K PRESET 1.5K AUTO TUNE TREBLE+ 1K 820 BASS+ 680 6.8K 470 COPY DIG 3.3K 330 COPY VCR1 2.2K COPY TAPE 1.5K 1K TREBLE- 820 BASS- 680 680 MODE+ 820 MODE- 0.01 0.01 0.01 0.01 10K 0.01 100p 100p 220K 220K 100K 100K 2SC536 SP/ETC 2SC536 SP/ETC 10K 10K 100K 100p 220K 2SC536 SP/ETC 100p 220K 100K 2SC536 SP/ETC 10K 10K 0.1 50V 4.7K 4.7K DTA144ES /ETC 47/16V -15V +15V HW10005020 HQ31201920 47/6.3V 47/6.3V 0 10K 1K 2SC536 SP/ETC 100 1000p 0.01 6.8K 3.0V 6.8K 220K 2.2K 10K DTA114ES 2SC536 DTC114ES 1F 5.5V DUMMY 1SS300 0.1 0.1 1000p 0.1 0 0 0 0 0 0 0 0 0 0 10K 68K TMP93CW40DF 680 680 680 680 680 680 680 HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED UPD16311GC-AB6 470p 470p DUMMY DUMMY DUMMY DUMMY 47P 47P 0 0 0 0 HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED HLMF-K2 RED LT3K44B/GRN -15V +5VA +5VA +5VA +15V +5VA +5VL +5VC G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 GYRO-DN(A) GYRO-UP(B) OSD-1 OSD-2 TUN-CE TU-CLK TU-DO TU-DI RDS-DI CE0 DSP-RST DSP-CLK DSP-ACK DSP-REQ KEY4 KEY2 KEY1 KEY3 VOL-DN(A) VOL-UP(B) DSP-MUT DSP-DO DSP-DI DSP-CLK DSP-ACK CE5 CLR STB INP-LT(A) INP-RT(B) INP-RT(B) INP-LT(A) DATA0 CLK0 CLK0 DATA0 P-DOWN S-DET1 S-DET2 RELAY POWER H.P STB CE5 CE1(OSD) CE2(OSD) CLR DI-FL DI-FL CE3 CE6 CE7 CE0 CE3 CE6 CE7 TU-SD LRG-SML CLK0 P-DET TU-CLK RELAY OSD-1 OSD-2 S-DET1 S-DET2 H.P DATA0 P-DOWN POWER TU-DI TU-DO GYRO-UP(B) GYRO-DN(A) VKK VKK KEY4 +24V RDS-DI DSP-DI DSP-DO KEY1 KEY2 KEY3 LEFT RIGHT KEY2 KEY4 DATA0 CE5 KEY3 KEY1 G12 G11 G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 DSP-MUT DSP-RST DSP-REQ VOL-DN(A) VOL-UP(B) P-DET +24V KEY1 KEY2 KEY3 KEY4 MLT-RC-OUT FL FL FL FL MLT-RC-OUT STB CLK0 DATA0 VOL_UP DATA0 CLK0 CE5 STB LEFT RIGHT VOL_UP VOL_DOWN VOL_DOWN CLK0 CE1(OSD) CE2(OSD) TU-SD TUN-CE LRG-SML Front P.C Board (RLC) 5.3 5.5 H.P MULTI TU-SD RC-5 0 0 RIGHT CLK0 DATA0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 P9 P10 P11 P12 P13 P14 VSS P15 P16 P17 P18 P19 P20 P8 P7 P6 P5 P4 P3 P2 P1 VSS CLR STB CLK DATA SO VDD NJU3718L DTS STBY INPUT SELECTOR (CONNECT PCB) PU94 GYRO ENCODER OSD-1 OSD-2 SYNC DET1 SYNC DET2 (RLF) LEFT 0 5 0 0 0 5 MASTER VOLUME SW0/1/2/3/4 MULTI-IN TU-CLK TU-CE RELAY GND P-DOWN POWER DSP-REQ DSP-RST DSP-CLK DSP-ACK GND KILL-IR RC5-IN Front P.C Board (RLE) +5VL CE1(OSD) CE2(OSD) CE7(P.EXP) VKK DSP-MUT GND RC5-OUT TU-DO PY04 PY64 +15V +24V-DET RDS-DI +24V-DET DSP-DO DSP-DI (RCO) PU04 PU74 MUSIC CINEMA FR CNT LFE FL PEAK SUR RS TO P104 TO P604 TO PS04 TO P804 IR IR +5VD HP GND TO JW54 LS (RLD) AUX IN Aux in P.C.Board VIDEO L R AUX-L AUX-R -15V +15V GND A-GND AUX-CVBS V-GND GND S-VIDEO C PL74 TO JZ08 C Y Y CL77,CL78 CL75,CL76 MLT-RC-OUT MLT-RC-OUT TUNER-L TUNER-R L(OUT) CLK0 DATA0 AUX-L AUX-R CE0 VCR-MUT CE3 RC-5 MLT-RC R(OUT) TAPE-MUT MULTI-MUT MUTE-RELAY +15V -24V GND CLK0 DATA0 GND(SUPL) COMMON BUS1 SYNC DET1 SYNC DET2 OSD-1 OSD-2 CE7(P.EXP) CE1(OSD) CE2(OSD) +5VL -24V -5VD P-DOWN POWER +5VL +3.3V +5VD2 +5VD1 +24V MLT-RC-OUT PLL-DO RDS-DO TU-CLK TU-CE TU-SD TU-DI +3.3V +5VA +5VL POWER GND +15VA -24V -15VA -15VD +15VD P-DOWN VKK +24V FL FL GND -15VA +15VA FL FL -24V +5VD -5VD LT GA RT GA GD 3.3V -15VD +15VD -5VD (WY61) (WY04) +15VA -15VA +5VA (WY01) (WY03) CE6(P.EXP) TUNER-L TUNER-R L(OUT) R(OUT) MULTI-MUTE TAPE-MUTE VCR-MUTE CE0(ANA.SW) GND(AUDIO) COMMON BUS2 MUTE-RELAY CE3(TONE/VOL) LRG/SML N.C N.C CE3(TONE/VOL) CE0(ANA.SW) CE6(P.EXP) CDR/MD-MUTE CDR/MD-MUTE GND MUTE-RELAY FL FL CLR FL FL 3 + 7 1 2 3 1 2 3 4 5 6 7 8 9 10 11 1 2 3 1 1 2 2 3 3 PZ04(S-VIDEO) DTS TO J691(P604) 1 2 3 4 5 6 7 8 9 OSD-INT OSD-INT WY62 (WU91) (WY61) (WL02) (WY62) (WW55) (WL71) (WZ01) +5VL 1 2 3 4 5 4 2 1 13 12 11 10 9 8 6 5 4 3 2 1 TU(PLL)-DI 6 M.REL. GND VDD OUT +5VD +5VA CE-CE0 CE-FL CE-OSD1 CE-OSD2 N.C N.C N.C N.C N.C N.C SW0 SW1 SW2 SW3 SW4 SIG.METER POW-DET KEY0 KEY1 KEY2 KEY3 KEY4 VREFH VREFL AVSS AVCC NMI POWER-OFF SPEAKER-OFF SYNC0 HEADPHONE N.C SURR-ACK SYNC1 POW-DOWN DO-0 DI-0 CLK-0 DO-1 DI-1 CLK-1 N.C N.C X1 X2 N.C REST N.C N.C TEST1 TEST2 OSD-1 OSD-2 CLR-LED MLTRC-OUT _LARGE/SMALL SMUTE _SURR-RESET N.C(ALE) _SURR-REQ TUN-CE TUN-CLK TUN-DO TUN-DI TUN-SD RDS-DI N.C N.C N.C N.C N.C N.C N.C N.C N.C N.C N.C FUNC-ENC-A FUNC-ENC-B VOL.ENC-A VOL.ENC-B GYRO-A GYRO-B N.C N.C CE-AUD CE-VID CE-VOL/TONE CE-MUTE F K S U N RY14 RY15 RY16 RY17 Y Y Y RY22 RY23 N N N N Y N Y Y N Y N N Y N N Y N Y Y Y N Y N N Y Y N RDS _AV9000 AV9000 (M07) 16BIT_MAIN_CPU (M06) (M05) (M07) (M05) (M05) FL_DRIVER LED_DRIVER 36_PULSE_ENCODER 16_PULSE_ENCODER_W/16CLIC AUX INPUT N, S ONLY 96k TUNING STEREO TUNED AUTO MEMO AUX VCR1 DVD LD TV DSS ATT NIGHT MULTI MOVIE PRO LOGIC STEREO PCM DTS HALL MATRIX SLEEP P-SCAN DISP d B k H z M H z AUTO DIGITAL VISUAL MONO THX CINEMA TEST COPY 11 12 + + + VU01 96KHZ IR WA312J501-0 45 40 35 30 25 20 15 10 5 1 C PEAK S RS R L LS BASS_+ TREBLE_+ D-COPY TREBLE_- T-COPY V-COPY MODE+ MODE- AUTO THX PU04 5VL DTS 1 CL MEMO MUSIC CINEMA LFE A-TUNING PRESET BASS_- D-OFF VOL-UP VOL-DW CE5 CLR GND F F VDD K-1 K-2 K-3 K-4 LEFT 5VL RIGHT 5VB VEE STB CLK0 DATA DO SU28 U704 U703 U702 U701 U603 U602 U601 U503 U502 U501 U312 U311 U310 U309 U308 U307 U306 U305 U304 U303 U302 U301 U206 U205 U204 U203 U202 U201 U107 U106 U105 U104 U103 U102 U101 SU27 RU63 CU13 CU12 CU11 CU03 CU02 CU01 SU33 SU32 SU24 SU23 SU21 SU20 SU19 SU17 SU15 SU14 SU13 SU12 SU11 SU01 SU03 JU04 DU19 DU18 DU17 DU16 DU15 DU14 DU13 DU12 DU11 DU10 DU09 DU08 DU07 CU10 CU09 CU82 CU81 RU48 RU34 RU33 RU32 RU31 RU21 RU22 RU23 RU24 RU25 RU26 RU27 RU28 RU29 RU19 RU18 RU17 RU16 RU15 RU09 RU08 RU07 RU06 RU05 RU04 RU03 RU02 RU01 RU62 RU61 RU56 RU55 RU60 RU59 RU54 RU53 RU58 RU57 RU52 RU51 CU08 CU07 CU06 CU05 RU36 RU40 RU37 RU38 RU39 RU44 RU43 RU41 RU42 RU47 RU46 CU20 CU04 QU04 SU16 QU07 QU03 QU05 QU06 DU20 RU35 RU45 DU21 QU81 JU02 JU01 QU02 QU02 QU04 QU03 QU01 QU81QU07 QU06 QU05 PU04 -15VD -15VA -24V +15VD +15VA RELAY OSD-INT LRG/SML +5VA +5VD 5VL JY71 PLL-DI RDS-DI 30 25 20 15 10 5 TU-DIK TU-CLK RDS-DO TU-CE TU-SD PLL-DO 1 33 7 1 10 5 1 10 5 1 WA312J502-0 GND -24V -24V GND P-DOWN POWER +5VA +5VD +5VL -5V +3.3V GND FIL FIL +24V VKK DSP+15V DSP-15V SYNC-DET2 AUX-R AUX-L MLT-RC-MT PY64 GND CE7 CE2 CE1 OSD-2 OSD-1 SYNC-DET1 +5VL +5VV -15V +15V DATA0 CLK0 TU-L TU-R GND L R T-M V-M M-M C-M CE6 CE0 CE3 M-RL 24V 15V VKK 24V AUX-L AUX-R L-OUT R-OUT TU-L TU-R R-M V1-M M-M CDR-M T-M M-RC RC-5 DATA0 CLK0 CE0 CE3 POWER -5V +5VL -15 +15 P-DOWN F F VKK +3.3V +5VA +5VB LT GA RT -15 GA +15 -5 G 3.3 GND HP-SW M-RY S-DET1 H.P GND +5VL TU-SIG TU-DO MULTI TU-CLK RELAY TU-CE POWER OSD2 S-DET2 OSD1 CLK0 DATA0 P-DOWN RC-5 LRG/SML CE2 CE1 TU-SD CE6 CE3 CE7 FL CE0 FL U403 U901 U902 U903 U319 U318 JY72 RY61 QY61 JY70 DY64 DY63 U212 U506 U914 U913 U912 U911 U910 U909 U908 U907 U906 U905 U904 U804 U803 U802 U801 U719 U718 U717 U716 U715 U714 U713 U712 U711 U710 U709 U708 U707 U706 U705 U618 U617 U616 U615 U614 U613 U612 U611 U610 U609 U608 U607 U606 U605 U604 U518 U517 U516 U515 U514 U513 U512 U511 U510 U401 U509 U508 U507 U505 U504 U407 U406 U405 U404 U402 U336 U335 U334 U333 U332 U331 U330 U329 U328 U327 U326 U325 U324 U323 U322 U321 U320 U317 U316 U315 U314 U313 U211 U210 U209 U208 U207 U112 U111 U110 U109 U108 RY69 QY65 QY64 QY63 DY62 DY61 QY62 RY91 RY63 RY62 CY61 JY65 JY69 JY61 JY63 JY64 JY68 JY67 JY62 QY62 QY61 QY64 QY65 QY63 PY64 STBY WA312J504-0 PU74 CU71 DU71 RU71 JU71 PU74 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +5VL -15V +15V -24V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 LCH RCH MULTI.VOL. NC OUT 28 NC NC OUT NC IN IN NC NC CS2 CS1 NC NC NC NC 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 JS06 JS08 JS09 JS10 JS01 JS02 JS03 RS27 RS28 RS72 RS23 RS21 RS22 RS24 CS09 CS10 CG05 RS07 RS08 RS13 RS09 RS14 RS10 CS08 CS14 CG06 RS36 RS38 RS37 RS35 RS42 RS41 RS71 CS07 CS13 RG13 RG14 QG05 QG06 RG11 RG12 RG09 RG10 QS14 RS53 CS21 QS15 CS23 CS24 RS34 RS33 RS19 RS20 RS05 RS06 CS05 CS06 CG03 CG04 RG01 RG02 RG04 RG03 CG01 CG02 CS86 CS87 CS02 CS01 RS01 RS02 RS04 RS03 RS61 RS62 CS31 CS32 CS03 CS04 RS30 RS29 RS32 RS31 RS15 RS16 RS17 RS18 RS59 RS60 CS81 QS12 QS13 RS51 CS20 RS48 RS47 CS29 CS30 CS57 CS58 CS82 LG01 RG15 CS60 CS59 CS67 CS68 CS53 CS54 CG07 CG08 CS35 CS36 RS70 RS69 QS19 QS20 RS73 RS74 RS67 RS68 CS33 CS34 QS17 QS18 RS65 RS66 CS64 CS63 RS63 RS64 RS75 CS85 CS84 CS22 CS19 RS76 CS88 CS99 RS87 RS88 RS39 RS40 CS28 RS92 RS91 CS27 RS89 RS90 RS55 RS56 CS71 CS72 CS97 CS98 CQ03 RS81 RS82 RS77 RS78 CS26 RS86 RS85 CS25 RS83 RS84 RS79 RS80 CS95 CS96 CS83 QS23 QS24 RS93 RS94 CQ01 CQ02 QG01 CQ05 CQ04 RG19 RG20 RS50 RS49 CS11 CS12 CS89 CS90 QG03 RG05 RG06 RG16 RS26 RS25 RS95 RG17 RG18 DG03 QS26 RQ27 RQ28 CQ08 CQ09 CQ10 RS96 RS97 RS54 RS52 RS44 RS43 QS21 QS16 QG07 QS22 QS03 QS08 QG02 QS11 QS01 QS02 QS10 QS04 QS05 QS06 QS07 QS09 RS11 RS12 QS25 DG02 QG04 QS27 DG01 RQ29 RQ30 RQ25 RQ26 RS58 RS57 JS07 JS04 JS04 DS01 DS02 CG09 RS45 RS46 CS17 CS18 CS15 CS16 CS77 CS78 CS55 CS56 CS61 CS62 CS93 CS94 CS65 CS66 CS69 CS70 CS73 CS74 CS75 CS76 CS79 CS80 RS99 RS98 CQ06 CQ07 J808 J807 CS37 CS38 CS39 CS40 CS41 CS42 CS91 CS92 CS43 CS44 CS45 CS46 CS47 CS48 CS51 CS52 CS49 CS50 YT02021310 1K 1K 1K 1K 1K 1K 1K 47/16V 47/16V 4.7/50V 47K 47K 47K 47K 47K 47K 47/16V 47/16V 4.7/50V 47K 47K 47K 47K 47K 47K 1K 47/16V 47/16V 47K 47K 2SC2878 A/B 2SC2878 A/B 10K 10K 1K 1K LC78212 100K 0.01 LC78211 100/16V 100/16V 47K 47K 1K 1K 47K 47K 47/16V 47/16V 4.7/50V 4.7/50V 47K 47K 100K 100K 4.7/50V 4.7/50V 100/16V 100/16V 47/16V 47/16V 47K 47K 47K 47K 1K 1K 47/16V 47/16V 47/16V 47/16V 47K 47K 47K 47K 1K 1K 1K 1K 47K 47K 0.1 LC78211 LC78212 100K 0.01 100K 100K 4.7/50V 4.7/50V 100/16V 100/16V 0.1 1 1/4W 150p 150p 150p 150p 220p 220p 100p 100p 47/16V 47/16V 47K 47K 2SC2878 A/B 2SC2878 A/B 10K 10K 47K 47K 4.7/50V 4.7/50V 2SC2878 A/B 2SC2878 A/B 10K 10K 0.01 0.01 47K 47K 47 0.1 0.1 0.01 0.01 47 0.1 0.1 1K 1K 47K 47K 47/16V 47K 47K 47/16V 1K 1K 47K 47K 220p 220p 0.01 0.01 0.1 1K 1K 47K 47K 47/16V 47K 47K 47/16V 1K 1K 47K 47K 220p 220p 0.1 2SC2878 A/B 2SC2878 A/B 10K 10K 0.1 0.1 TC9459N 1.5K 1.5K 47K 47K 47/16V 47/16V 4.7/50V 4.7/50V 2SA1837 22K 10K 1M 1M 1M 1M 6.8K 6.8K * PC817 270 10K 0.1 150p 150p * * 100K 100K 12K 12K DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD 3.3K 3.3K NJM4558DD * 2SA1357 DTA114ES /ETC 1D3 47K 47K 10K 10K 47K 47K YT02021310 2/2 YT02041070 1/2 +15V +15V -15V +15V +15V +15V -15V +15V +15V +15V -15V -24V +5VL +5VL -15V +15V +15V +15V -15V +15V +5VL +5VL -24V +15VD +15V +15V +15V * * 470/16 6.8K 6.8K 22/16V 22/16V 10/50V 10/50V 100 100 1000p 1000p YL01010241 YL01010241 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 220p N, S ONLY 220p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY 470p N, S ONLY -15V -15V -15V -15V +15V -15V -15V +15V -15V -15V -15V +15V -15V -15V -15V -15V -15V -15V -15V -15V CLK0 CE3 DATA0 MD-O MD-O MD-O TV TV TV TV LD LD LD LD DVD DVD DVD DVD V1 V1 V1 V1-O V1-O V2 V2 V2 V2-O CD CD CD TAPE TAPE TAPE-O TAPE-O TAPE-O MD MD MD MD CE0 DATA0 CLK0 CE0 DATA0 CLK0 CE0 DATA0 CLK0 V2-O CE0 DATA0 CLK0 V2 DATA0 CLK0 CE0 AUX AUX TUNER TUNER TUNER MULTI MULTI ATT ATT CE3 AUX V1-O MD-O L R L R L R IN OUT L R R L MULTI-OUT TV CD L R L R L R IN OUT PS04 (RRJ) L R P.C.Board DVD RRJ(AUDIO-INPUT SELECTOR) TAPE IN OUT REMOTE CONT. VCR1 IN OUT L R L R MULTI-REMOTE IN L R L R IN OUT CDR/MD LD DSS/VCR2 AUX-L GND AUX-R L-OUT R-OUT TUNER-L TUNER-R RELAY-MUTE VCR1-MUTE MULTI-MUTE CDR/MD-MUTE TAPE-MUTE MULTI-RC RC-5 CE0 DATA0 CLK0 CE3 MULTI-REMOTE ON/OFF +5VL +5VD2 FROM JY64(PY64) FROM JY65(PY64) VEE CE DI CL VSS S RES VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 14.8 VDD RES S VSS VEE CE DI CL 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 TV TV VEE CE DI CL VSS S RES VDD TUNER CD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CD VEE CE DI CL S VSS RES VDD Audio Function IN TAPE TAPE MULTI TUNER CD TV DVD AUX COPY OUT IN AUX ATT DVD DVD INPUT [L] [L] [L] [R] [R] [R] MULTIROOM SELECTOR MULTI ROOM TUN VCR1 OUT IN VCR1 MULTI ROOM INP IN MD MD OUT AUX [L] [R] LD DSS/V2 LD CDR DS/V2 LD DS/V2 (RRM) +15VDSP -24V -15VA +15VA -24V GND ONLY N, S ONLY N, S ONLY N, S ONLY N, S ONLY N, S ONLY N, S -5VD(N.C) POWER(N.C) +24V-DET(N.C) P-DOWN(N.C) FL(N.C) FL(N.C) +3.3V(N.C) +5VD1(N.C) (M04) INPUT 15 16 QS04 QS05 QS06 QS07 QS15 QS14 QS20 QS08 QS21 QS19 QS09 QG04 QG03 QG07 QG06 QG01 QG02 QG05 QS01 QS02 QS13 QS18 QS17 QS03 QS16 QS12 QS10 Q812 QS22 QS24 QS23 QS11 QS25 Q807 Q808 QS27 QS26 QS11 Q803 Q805 Q804 Q802 Q810 Q813 Q809 PS04 24V 24V(VKK) F F 5V GND 5V GND + + 8 1 + + + /GND +15VD +15VREF + + + +5VD2 +5VD1 -24V RCMIN RCMOUT +5VL -5V -15VA -15VD 1 1.+24V +15VA +15VREF -24V GND +12V + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + GND +24V RELAY VKK/-24 JS04 JS03 JS01 JS07 L801 1 JS06 LG01 NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD NJM4558DD -15VA +15VA +15VD -15VD +8V 7 REMOTE RC MULTI QS25 +8V WA300J401-0 +24V 20 1 15 1 1 +5VD2 +5VD1 PS04 + CDR/MD RC GND +3.3V +12V TU-R TU-L T-M M-M V1-M R-M CDR-M CE3 CLK0 DATA0 CE0 RC-5 AUX-R AUX-L R-OUT L-OUT GND P-DOWN -5V POWER +5VL F F +3.3V + QS15 LC78212 QS14 QG01 QS13 LC78212 QS12 TC9459N QG02 QS11 QS10 QS03 QS02 QS01 QS09 QS08 QS07 QS06 QS05 QS04 L L L L L L L L L L L L L R R R R R R R R R R R R R TV LC78211 LC78211 OUT OUT IN IN TAPE CD MULTI OUT IN DSS/VCR2 IN OUT VCR1 DVD LD CG09 RS99 RS98 RG15 R818 R811 Q809 D827 CS83 CS82 CS81 CQ03 CQ02 CQ01 C852 C851 QS20 QS19 R819 D828 D829 UQ99 UQ98 UQ02 QS25 UQ93 Q812 D826 UQ94 R817 D825 Q813 UQ95 CQ12 CQ11 CQ13 CQ14 UQ96 D814 US25 C850 C832 C823 J804 DS02 DS01 D824 Q811 UQ92 UQ91 UQ90 UQ89 UQ88 UQ87 UQ86 UQ85 UQ84 UQ83 UQ82 UQ81 UQ80 UQ79 UQ78 UQ77 UQ76 UQ75 UQ74 UQ73 UQ72 UQ71 UQ70 UQ69 UQ68 UQ67 UQ66 UQ65 UQ64 UQ63 UQ62 UQ61 UQ60 UQ59 UQ58 UQ57 UQ56 UQ55 UQ54 UQ53 UQ52 UQ51 UQ50 UQ49 UQ48 UQ47 UQ46 UQ45 UQ44 UQ43 UQ42 UQ41 UQ40 UQ39 UQ38 UQ37 UQ36 UQ35 UQ34 UQ33 UQ32 UQ31 UQ30 UQ29 UQ28 UQ27 UQ26 UQ25 UQ24 UQ23 UQ22 UQ21 UQ20 UQ19 UQ18 UQ17 UQ16 UQ15 UQ14 UQ13 UQ12 UQ11 UQ10 UQ09 UQ08 UQ07 UQ06 UQ05 UQ04 UQ03 UQ01 US99 US98 US97 US96 US95 US94 US93 US92 US91 US90 US89 US88 US87 US86 US85 US84 US83 US82 US81 US80 US79 US78 US77 US76 US75 US74 US73 US72 US71 US70 US69 US68 US67 US66 US65 US64 US63 US62 US61 US60 US59 US58 US57 US56 US55 US54 US53 US52 US51 US50 US49 US48 US47 US46 US45 US44 US43 US42 US41 US40 US39 US38 US37 US36 US35 US34 US33 US32 US31 US30 US29 US28 US27 US26 US24 US23 US22 US21 US20 US19 US18 US17 US16 US15 US14 US13 US12 US11 US10 US09 US08 US07 US06 US05 US04 US03 US02 US01 RS97 RS96 C849 R816 R815 R814 R812 RQ30 RQ29 QG03 Q808 Q807 D808 Q802 Q804 Q805 Q803 QS24 QS23 QS17 QS18 QG06 QG05 J803 CS99 CS90 CS89 CS88 CS87 CS86 CS85 CS84 CS58 CS57 CS36 CS35 CS34 CS33 CS32 CS31 CS30 CS29 CS28 CS27 CS25 CS26 CS24 CS23 CS17 CS18 CS16 CS15 CS14 CS13 CS12 CS11 CS10 CS09 CS08 CS07 CS06 CS05 CS04 CS03 CS02 CS01 CQ08 CG06 CG05 CG04 CG03 CG02 CG01 C843 C842 C840 C834 C833 C830 C825 C815 C813 C811 C809 C819 C820 JS04 JS07 J805 C821 J806 C812 J809 J808 J807 CS98 CS97 D817 R804 D820 D816 C828 C827 D810 D823 C847 C848 D806 C816 D804 R810 D822 D821 C810 D803 D805 C814 Q810 RS12 RS11 RG05 DG03 DG02 RG06 QG04 RG16 RS95 QS21 RS26 RS25 CQ10 CQ09 QS27 QS26 RQ28 RQ27 RS76 RS75 RS50 RS49 C824 D819 D818 R806 C826 C845 C844 C841 RQ26 RQ25 RG20 RG19 RG18 RG17 D812 D811 D815 CQ07 CQ06 CQ05 CQ04 CS91 CS92 CS39 CS40 CS37 CS38 CG07 CG08 CS71 CS72 CS49 CS50 CS51 CS52 CS47 CS48 CS45 CS46 CS43 CS44 L801 R809 R808 R807 D813 C836 C835 QG07 QG02 QG01 RG14 RG13 RG12 RG11 RG10 RG09 RG02 RG01 RG04 RG03 QS16 DG01 LG01 JS10 JS09 JS06 JS03 JS01 QS22 QS15 QS14 QS13 QS12 QS11 QS10 QS09 QS08 QS07 QS06 QS05 QS04 QS03 QS02 QS01 CS96 CS95 CS94 CS93 CS78 CS77 CS80 CS79 CS76 CS75 CS74 CS73 CS70 CS69 CS68 CS67 CS66 CS65 CS64 CS63 CS62 CS61 CS60 CS59 CS56 CS55 CS54 CS53 CS42 CS41 CS22 CS21 CS20 CS19 RS94 RS93 RS86 RS85 RS92 RS91 RS88 RS87 RS90 RS89 RS84 RS83 RS56 RS55 RS82 RS81 RS80 RS79 RS78 RS77 RS74 RS73 RS72 RS71 RS70 RS69 RS68 RS67 RS66 RS65 RS64 RS63 RS62 RS61 RS60 RS59 RS58 RS57 RS40 RS39 RS54 RS53 RS52 RS51 RS48 RS47 RS46 RS45 RS44 RS43 RS42 RS41 RS38 RS37 RS36 RS35 RS34 RS33 RS32 RS31 RS30 RS29 RS28 RS14 RS27 RS24 RS23 RS22 RS21 RS20 RS19 RS18 RS04 RS17 RS16 RS15 RS13 RS10 RS09 RS08 RS07 RS06 RS05 RS03 RS02 RS01 17 18 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 3 1 2 4 5 1 2 4 5 3 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 10 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 1 2 3 4 NJM2068DD 5 6 7 8 1 2 3 4 5 6 7 8 NJM4556 1 2 3 4 5 1 2 3 4 CC01 CC03 CC02 CC04 CC07 CC08 RC07 RC08 CC36 CC35 RC20 CC40 CC39 CC47 CC48 RC33 QC07 QC06 CC31 CC32 CC33 CC34 QF02 QF04 CF04 CF05 CF06 CF07 CF08 CF09 CF10 CF12 CF13 CF14 CF15 CF16 RF07 RF08 RF09 RF10 RF12 RF13 RF14 RF15 RF16 RF17 RF18 CF19 CF20 CF21 CF22 CF23 CF24 CF25 CF26 CF27 CF28 CF29 CF30 CF31 CF32 RF25 RF26 RF27 RF28 RF29 RF31 RF32 RF33 RF34 RF35 RF36 CF33 CF34 CF37 CF38 QV02 QV03 QV04 QV05 CV01 JC01 JC02 JC03 JC04 DV05 DV06 DV07 DV08 JC05 QM01 QM02 DM01 RM03 RM04 RM06 RM05 RM08 RM07 QM04 QM05 QM03 QM06 RM09 DM02 DM03 DM04 QV01 CV02 QF03 QF01 QC01 RC05 RC06 RC17 RC25 RC26 CC41 CC42 CG51 CG52 RC27 RC28 RC29 RC30 RC31 RC32 RF02 RF01 RF19 RF42 RF41 QC03 QC02 QC04 QC05 CG53 CG54 CG55 CG56 RV01 RV02 RV03 RV04 RV05 RV06 RV11 RC35 RC36 RC37 RC38 RM23 RM24 RM27 RM28 RM29 RM31 RM33 RM39 RM37 RM30 RM32 RM34 RM38 RM40 QM29 QM30 DM21 DM22 CM24 CM27 CM28 QM21 QM23 QM25 QM27 QM22 QM24 QM26 QM28 CM25 CM26 QV10 QV09 QV12 QV11 QV08 QV07 QV06 RF48 RF49 DF01 DF02 CM31 CM32 CM23 DV12 DV11 DV10 DV09 JC07 JC08 JM22 JM21 DM05 RM02 RM01 CF35 CF36 CF39 CF40 RF20 JM01 RC09 RC10 RC12 RC13 QG51 QG52 QG53 RC51 RC52 RC54 RC59 RC60 RC61 RC62 RF43 RC71 RC72 RC77 RC78 RC79 RC80 QC71 CC79 CC81 CC82 RG52 RG51 RG53 RG54 CG63 CG64 CG65 CG66 RC53 CC60 CC62 CC71 CC72 CC77 CC78 RF44 CC51 CC52 CC57 CC58 CC61 CM29 CM30 CC23 CC24 CC25 CC26 JC06 CC18 RV10 RV09 RV08 RV07 RF21 RF23 RF30 RF22 RF04 RF06 CC59 RC42 RC41 RC40 RC39 RC14 QC51 CC80 RF03 RF11 RF05 CF03 CF11 RF24 JW01 JW02 CW01 CW02 CW03 JW53 LW51 DW51 QW51 WW53 WW54 WW51 CW51 CW52 RW51 RW52 RW53 RW54 CW53 CW54 RW57 RW58 CW57 CW58 RW63 RW64 RW65 QW53 QW52 DW52 DW53 RW66 RW69 CW59 CW60 JW51 WW01 QC72 QW54 JW55 JW54 RW68 DW54 DW55 RW56 RW55 RC21 RC22 RC23 RC24 RC55 RC56 RC57 RC58 CC55 CC56 RM21 RM22 RM26 RM25 RC11 RV12 CV03 DV13 CM21 CM22 RF37 RF38 RG59 RG60 CG59 CG70 CG61 CG69 CG67 RG55 RG56 QG54 QG55 CC43 CC44 CC29 CC30 CC54 CC53 CC74 CC73 RC82 RC75 RC81 CC75 CC76 RC76 RC74 RC73 CG68 CG60 CG62 CW04 RW59 RW60 CC17 RC18RC19 CC16 CC14 CC15 RC15 RC16 RC03 RC04 RC01 RC02 CF17 CF18 RF46 RF45 RF39 RF40 CF01 CF02 DF03 DF04 CW55 CW56 CC27 CC28 CC89 CC90 CC91 CC92 WW52 0.1 0.1 0.1 0.1 10/50V 10/50V 100K 100K 0.01 0.01 100K 0.01 0.01 0.01 0.01 100K TC9215P LC78213 100/16V 100/16V 0.01 0.01 TC9184AP TC9184AP 27P CH 10/50V 10/50V 0.068 0.068 0.012 0.012 2700P 0.022 0.022 10/50V 10/50V 39K 39K 560K 560K 27K 5.6K 5.6K 1K 1K 82K 82K 27P CH 27P CH 10/50V 10/50V 0.068 0.068 0.012 0.012 2700P 2700P 0.022 0.022 10/50V 10/50V 39K 39K 560K 560K 27K 5.6K 5.6K 1K 1K 82K 82K 100/16V 100/16V 100/16V 100/16V DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC DTA114ES /ETC 0.01 * * * * 2SK369 BL 2SK369 BL * 100 560 33K 560 150 150 2SA970 2SA970 2SC2240 2SC2240 2.2K * * * NJU3713D 0.01 NJM2068DD NJM2068DD NJM2068DD 22K 22K 18K 1K 1K 0.01 0.01 10/50V 10/50V 3.3K 3.3K 1K 1K 3.3K 3.3K 100K 100K 3.3K 220 220 NJM2068DD NJM2068DD NJM2068DD NJM2068DD 10/50V 10/50V 10/50V 10/50V 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 1k 1K 1K 1K 1K 330 330 15K 15K 15K 22 22 470 27K 15K 22 22 27K 470 * * 0.01 22PF 500V 22PF 500V 2SA970 2SC2240 2SC2705 O/Y 2SA1145 O/Y 2SA970 2SC2240 2SC2705 O/Y 2SA1145 O/Y 330P 330P 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B 2SC2878 A/B DTC114ES /ETC 10K 10K 100/16V 100/16V 0.01 * 180 180 0.01 0.01 0.01 0.01 3.3K 10K 10K 10K 10K TC9459F TC9459F TC9459F 1K 1K 100K 47K 47K 470 470 470 100K 100K 47K 47K 220 220 NJM2068DD 100/16V 100/16V 0.01 100K 100K 100K 100K 10/50V 10/50V 10/50V 10/50V 100K 100/16V 0.01 10/50V 10/50V 10/50V 10/50V 470 10/50V 10/50V 10/50V 10/50V 0.01 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 1M 1M 1M 1M 470K 4.7K 27K 470K 470K 4.7K 100/16V 47 47 47 47 18K 0.01 470K 27K 4.7K 27P CH 2700P 4.7K 0.01 0.01 0.01 1/50V 1/50V 10K 10K 220K 220K 4.7/50V 4.7/50V 220K 220K 220/16V 220/16V 10 1/4W 10 1/4W 150 1/4W DTA114ES /ETC 2SA1837 * 1D3 68K 1/4W 22K 1/4W 47/16V 10/16V TC9215P DTA114ES /ETC 10K 47K 47K 47K 47K 47K 47K 5.6K 5.6K 27K 27K 82P CH 82P CH 560 560 4.7K 4.7K 12K 100 100p 22/16V 22/16V 0 0 0 0 100/ 16V 100/ 16V 0.01 100/16V 0.01 0 0 NJM2068M NJM2068M 2.7K 2.7K 2.7K 1000P 1000P 2.7K 220 220 0.1 100/16V 100/16V 68 68 0.18 18K 0 0.039 0.12 0.15 18K 0 22K 22K 0 0 22/16V 22/16V 47K 47K 560 560 22/16V 22/16V 220/16V 220/16V 47P N, S ONLY 47P N, S ONLY 470P 470P 470P 470P +15V -15V 15V -15V -15V -15V 15V -15V 15V 15V -15V +15V -15V +5VL -15V +15V TUN-R TUN-L +5VL +15V -15V -15V 15V -15V 15V +15V -15V +15V -15V -15V +15V -15V +15V CLK0 DATA0 CLK0 DATA0 CLK0 DATA0 CLK1 DATA0 CE0 CE0 CLK0 DATA0 CE4 DATA0 CLK0 CE4 CE4 CE4 CE7 CLK01 CE4 DATA0 CLK01 DATA0 CE3 * * * * 1 2 3 4 5 6 7 8 (RTO) 1 2 3 4 5 6 7 8 + - + - 1 2 3 4 5 6 7 8 + - + - FL FL FR C 2 1 3 4 5 6 7 8 9 10 (RCR) 1 2 3 4 5 6 7 8 + - + - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VSS GND VDD FL FR GND GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VEE CE DI CL VSS S RES VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 FRNT SW CNT SURR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 CS1 CS2 VDD VSS CLK DATA STB L R FRONT SURROUND STB STB DATA DATA CK CK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 STB DATA CK TAPE VCR MULTI VDD VSS FL GND FR GND CENT GND SL SR SWF PRE-OUT CNT +15V -15V +15V -15V -15V +15V TONE-IN-SWF TONE-IN-CNT SOURCE-OUT-R TONE-OUT-FR TONE-IN-FL TONE-IN-CNT SOURCE-OUT-R TONE-OUT-FL TONE-OUT-CNT TONE-OUT-SWF TONE-IN-SWF SOURCE-OUT-L FR SL SR C LFE SW FL SOURCE-OUT-L P104 TONE/CROSS OVER/VOLUME/MUTE CIRCUIT BLOCK TONE AMP(FRONT) TONE-AMP(CENT/SWF) CNT/SWF MUTE CONTROL COMMON BUS 5 6 7 8 9 10 12 13 14 15 16 11 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 MUTE FROM COMMON BUS2 9 10 12 13 14 15 16 11 GND SURR-L-OUT SUBWOOFER SURR.-L SURR.-R CENTER DIRECT-IN S-DIR S-DIR VOL-IN-SUBWFR VOL-IN-FR VOL-IN-SURR-R VOL-IN-SURR-L VOL-IN-CENT VOL-IN-FL TO JL07(PL04) +15V -15V CLK0 DATA0 +5V(LIVE) CE2 CE6(P.EXP) TUNER-L TUNER-R L(OUT) R(OUT) MULTI-MUTE TAPE-MUTE VCR-MUTE CE0(ANA.SW) GND(AUDIO) GND(SUPL) MUTE-RELAY SYNC DET1 SYNC DET2 CE1 OSD-1 OSD-2 CE7(P.EXP) 14.1 0 0 1 2 3 4 5 6 + - 14.1 0 0 1 2 3 4 5 6 + - + - 3 +B +OUT 4 -OUT 5 -B 6 2 1 HDAM HDAM HDAM P5 P6 P7 P8 P9 P10 P11P12 P1 P2 P3 P4 CLR 17 18 1 2 3 4 5 6 7 8 SOURCE (FRONT) DIRECT L R 1 2 3 4 6CH-D SURR-R-OUT ANA LFE HPF 80Hz L+R MIX LPF 80Hz FR 1 2 3 4 5 6 7 8 + - + - FL FR 1 2 3 4 5 6 7 8 + - + - FL FR 0dB 0dB SWF MASTER & CH.LEVEL SW/LFE (RVR) (RMT) CDR-MUT +15dB BUFFER 10 RELAY VOL-IN-FR CDR-MUT S-DIR ANA/DIG +5VV N.C SWF LS RS FROM J601(P604) PM04 (RHD) FRONT +17dB BUFFER L+R 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 CS1 CS2 VDD VSS CLK DATA STB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 CS1 CS2 VDD VSS CLK DATA STB 1 2 3 4 5 6 7 8 QM29 QM30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VSS GND VDD (RBF) TONE-IN-FR SURR SWF CNT FRONT SURR-L SURR-R FL FR -15V +15V GND FL FR -15V GND H.P. PW04 (RHP) (S) (S) (S) PW54 OSD-INT (WY62) (W601) (WL01) (WL02) (OUT) (IN) (OUT) (IN) 5VL RHA FROM JY68(PY04) WW55 MUTE _LRG/SML CE3(TONE/VOL) N.C N.C -1.5dB -1.5dB +17dB +17dB +17dB +17dB DIGITAL/_ANALOG HEADPHONE AMP CROSS OVER N, S ONLY N, S ONLY N, S ONLY N, S ONLY -0.56dB -1.36dB -0.56dB -1.36dB HEADPHONE DIRECT-IN / SOURCE 19 20 QC03 QC51 QF04 QC01 QC02 QC06 QF03 QC07 QG53 QC72 QV12 QV11 QV10 QV09 QV07 QV08 QF02 QG52 QC04 QC05 QG51 QF01 QV05 QV04 QV03 QV02 QA03 QA05 QC71 QA01 QA02 QA04 QA06 QV06 Q202 Q201 Q352 Q353 Q209 QA07 QV01 QA08 Q203 Q301 Q501 Q502 Q503 Q204 P104 9-5.NC CE2 CE1 WA300J301-2 P104 + MT G I O 10 1 LS RS OSD-INT 10.+5V 11.+5VL 12.GND 13.-15V 14.+15V 15.DT0 16.CLK0 +17DB AM TUNED ST DIST + 5 5 1 1 + CLK0 1 7 1 7 10 1 + 1 16 16 1 LRG/SML GND AM-IN FM-IN SURR-L SURR-R 6CH-DIRECT-IN SUBWOOFER CENTER TC9215P GND GND +15V J104 FRONTEND FM MPX DECODER FM/AM AMP MUTING CIRCUIT TONE AMP BLOCK SURR.BUFFER AMP. DIG/ANA DIRECT 6CH FILTER LOW PASS BLOCK ELE.VOLUME BLOCK PRE-AMP MUTE CONTROL BLOCK + + + + TC9459F TC9459F TC9459F SD AM-IF ST AM+B ST MONO IN SURROUND A101 SWF LS RS NJM2068DD NJM2068DD NJU3713D NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD NJM2068DD LC78213 CNT/SWF TC9215P TC9184AP TC9184AP + FR FL + + R-DO P-DO CE CLK DI CLK0 ST BLOCK RDS DECODER RC5 M-RL CE3 CE0 CE6 M-RC C-M M-M V-M T-M R L GND TU-R TU-L RLY SW G C G G FR FL MONO/ST LW MT RQ MO FM 9K IF SR + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + DATA0 CE3 -15V SIG SD LCH GND RCH R L DATA0 CLK0 DSP-MT CE SWF CE3 S-DIR G -B +B I O GND GND MT FL FR GND CNT SL SWF CNT FR FL FRONT SL CNT SWF FL FR CNT SR SL SR SL SWF CNT AM + LC72720 LC72130 G G G VT IF LA1837 + + + + + ANT OUT OSC OUT +B AM TUNER PLL FM/AM TUNER NJM4558DD 1 1 + + + + + + + + + + + + + + + 1 + + + + + J102 LPF LPF MW LW LW ANT MW ANT LW OSC MW OSC FM MUT AM IF FM DIST SEP 10KHZ 9KHZ 75US 50US JC03 QC04 QF01 DV13 JC11 U194 U234 U255 U257 DF04 DF03 U380 U331 U379 U374 J103 JC08 JC07 U282 RF24 U293 U269 U321 CV07 RV14 CV06 RV13 U345 U344 U129 RV12 U195 U192 U188 CG70 U214 R510 R101 CV05 JC04 QV12 QV11 QV10 JC02 CC83 C368 C369 C370 C371 C372 C367 CF37 RF40 CF18 CF29 U289 U376 CG55 CG56 CC51 U178 RF34 RF48 DF01 RF49 RF19 CF19 RF21 RF39 CF38 RF15 CF14 RF12 U310 RC33 CC47 QV09 QV07 RV10 RG59 CC12 LA02 LA04 CC79 RC72 CC74 RC82 RC76 CC78 RC78 CC80 RC74 CC76 CC71 RC80 CC82 RC77 RC73 RC81 CC77 RC71 CC75 CC73 RC75 U266 DV09 CV01 U356 Q209 U355 FA01 U104 R505 CC33 U275 CC31 DF02 JC09 U163 RF46 RF44 RC60 CC61 CC59 CC60 CC57 RC61 RC20 CC18 U185 RC19 RC18 CC16 CC40 RC16 CC14 CC17 CC39 RC17 CC15 RC15 RC14 RC13 RC12 RC25 RC32 CC48 RC11 RC09 RC10 U357 CC07 RC05 CC03 CC01 RC03 RC08 CC36 CC35 RC02 RC01 RC07 CC08 CG54 RC04 CC04 RC06 CC02 CG53 QC51 CC53 CC55 RC57 RC59 RC62 RC51 RC53 RC56 CC52 RC54 CC54 RC58 CC56 CF32 CC58 CF30 RF20 RF36 CF24 RF30 RF28 CF28 RF32 CF26 CF22 CF39 CF21 CF31 CF27 RF31 CF25 RF27 RF29 RF43 CF23 RF35 RF23 RF33 U274 U135 CC32 U351 U301 RV06 RV05 U127 U126 U343 RF41 U375 CF17 RF42 CF11 CF15 RF11 RF09 CF09 RF13 CF13 CF10 U378 CF16 RF16 CG68 RC52 RC31 CC26 RC30 RC29 CC25 RC26 RC28 RC27 CC42 CC24 RC39 CC43 CC23 CC27 CC44 CC09 RC35 RC21 RC22 CC28 RC41 RC40 CC29 U105 CC10 RC36 RC37 RC23 CC11 RC24 CC41 CG57 RG55 RC42 CC30 RG51 RC38 RG57 CG63 U393 CG61 CG59 RG56 CG65 CG67 RG58 U273 U226 RG53 RG61 RG54 RG62 RG60 CG69 U187 U227 CG66 CG62 CG60 CF12 RF18 CF08 RF08 RF10 RF14 CC72 CF33 RF38 CF02 CF06 RF06 RF02 RF04 CF04 CF35 CF36 CF05 RF17 RF05 CF07 RF07 CC81 RF37 CF03 RF03 CF01 RF01 CF34 RC79 U134 RV01 RV02 QV08 RV03 RV04 QV04 QV05 U335 RV09 RV08 QV03 QV02 RV07 DV06 U338 DV05 U264 QV06 CV03 RV11 C364 C363 C352 L356 R352 C354 Q353 R354 Q352 C353 RA10 R221 QA06 RA01 DA06 U284 U252 U352 R214 R511 R516 D503 R216 U265 U223 U212 QA07 R355 C362 C361 X351 C357 C359 L351 C355 R356 D351 C356 C351 C358 L350 C365 CV02 U169 U157 U225 R314 C313 C314 C316 U124 R302 R304 C318 U340 R308 C312 R310 R309 U224 C311 R307 C317 R303 U300 U276 QA08 C315 U123 R313 C306 U120 R301 U354 U353 D502 R515 R509 C501 X501 R217 U281 RG52 J106 QC71 C217 CF20 C234 C207 C214 C205 C508 C503 C216 C301 C302 RC55 CC62 RF45 QC72 JC06 J201 U292 J105 JC05 CG64 U271 CG52 CG51 U270 U334 C209 C366 C303 C304 C219 C206 CA18 CC34 U215 C212 C213 C211 U152 U131 U392 U391 U385 U377 U373 U372 U371 U330 U329 U328 U327 U326 U325 U324 U323 U322 U320 U319 U318 U317 U316 U315 U314 U312 U311 U309 U308 U307 U306 U305 U304 U303 U302 U299 U298 U297 U296 U295 U291 U290 U288 U287 U286 U285 U283 L359 RF22 CF40 RF26 RF25 DV10 DV12 DV07 DV08 DV11 C305 U342 U341 U263 U262 U261 U260 U259 U258 U256 U254 U253 U251 U250 U249 U248 U247 U246 U245 U244 U243 U242 U241 U240 U239 U238 U237 U236 U235 U233 U184 U232 U231 U230 U229 U222 U221 U220 U219 U218 U217 U216 U213 U211 U210 U209 U208 U207 U206 U205 U204 U203 U202 U201 U183 U182 U112 U103 U102 U101 U181 U180 U179 U177 U176 U175 U174 U173 U172 U171 U170 U168 U167 U166 U165 U164 U162 U161 U160 U159 U158 U156 U155 U154 U153 U151 U150 U149 U148 U147 U146 U145 U144 U143 U142 U141 U140 U139 U138 U136 U133 U132 U130 U128 U125 U122 U121 U119 U118 U117 U116 U115 U114 U113 U111 U110 U109 U108 U107 U106 LA06 C506 C505 R353 QV01 QF04 QF03 QF02 QC07 QC06 QC05 QC03 QC02 QC01 JC01 L355 L354 L353 L352 DA04 DA02 Q351 R201 C237 RA11 R208 R215 R206 R207 C236 R211 C222 C235 R202 C310 C309 CA07 CA08 L302 L301 R316 R315 R204 F201 R212 LA05 Q201 D203 D204 R220 LA01 C204 Q301 C233 DA01 R210 R219 R512 J101 C510 Q204 R209 C202 RA09 QA03 DA05 C218 C201 Q202 R205 R203 C223 C507 R504 C225 R506 Q503 R503 L501 L502 L503 R508 R507 R513 C502 D501 C504 Q502 R502 Q203 R501 C511 D201 C210 R213 C208 C215 D202 C203 C226 C227 C220 L504 C232 QA05 QA04 CA14 RA07 RA03 QA02 QA01 RA04 RA08 CA01 CA09 CA13 CA06 DA03 CA12 CA05 CA04 CA03 RA02 CA11 RA06 CA02 F202 S301 L201 Q501 LA03 P154 ( F ONLY ) QA54 QA53 QA51 + + + + + 7 AM STEREO AM+B ST IN WA300J302-0 P154 OUT IN + + RCH LCH GND MONO + + MC13022 1 + + CA69 U191 U346 QA53 RA53 U186 CA80 RA99 U268 QA54 CA77 U272 U267 CA53 CA56 CA66 CA78 CA63 CA79 CA70 RA74 JA51 CA68 CA64 CA76 CA75 CA54 RA78 RA51 QA52 RA77 RA75 RA73 RA72 RA71 RA70 RA69 RA62 RA61 RA60 RA59 RA58 RA57 RA56 RA55 RA54 CA73 CA72 CA71 CA67 CA65 CA62 CA61 CA60 CA59 CA58 CA57 CA55 CA51 XA51 LA51 QA51 + + + + + + + + + + FR WA312J604-0 10 10 5 FL PW54 1 1 JW54 U510 U312 U311 JW55 CW60 DW55 DW54 CW57 RW61 RW59 RW68 RW57 RW55 CW53 QW54 WW52 RW62 CW59 RW69 DW53 RW66 QW53 QW52 DW52 DW51 RW65 CW58 RW60 CW54 RW56 RW58 CW56 RW63 RW64 RW53 RW51 CW51 RW54 RW52 CW52 JW51 CW55 LW51 QW51 JW53 QW51 QW54 QW53 PW54 21 22 VDD1 VSS1 RST CNT3 CNT2 XIN XOUT CNT1 BRK SEPIN SEP-OOSC-I OSC-O SEPC S-IN CHARA CS SCLK DATA VDD2 CV-O N.C CVIN VDD1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 VDD1 VSS1 RST CNT3 CNT2 XIN XOUT CNT1 BRK SEPIN SEP-OOSC-I OSC-O SEPC S-IN CHARA CS SCLK DATA VDD2 CV-O N.C CVIN VDD1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 4 6 COM 7 5 INH VEE GND C B A 3 0 1 2 VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND VCC GND VCC GND VCC JL01 RL10 RL06 RL02 RL04 DL01 XL01 JL02 QL10 LL02 CL34 CL38 CL39 CL40 CL36 CL42 QL03 QL04 QL05 QL06 QL07 QL11 QL12 JZ01 JZ05 JZ02 RZ01 RZ02 RZ03 RZ16 RZ17 CZ01 CZ43 CZ45 CZ65 CZ67 CZ71 CZ72 CZ73 CZ75 QZ05 QZ06 QZ07 QZ12 QZ13 QZ14 XZ01 XZ02 CZ77 RZ30 RZ31 RZ32 RL11 QZ16 CL30 JL04 JL05 JZ04 JZ06 JZ07 JL07 JL09 JZ08 JZ09 QL01 QZ01 QZ03 JZ03 JZ02 RL19 XL02 QZ23 CZ46 CZ47 CZ48 CZ50 CX01 RX01 RX02 RX03 RX09 QX01 QX04 RX10 QX03 DZ02 DZ01 QL09 LL01 QZ11 CL49 CL50 CL53 LZ01 RZ20 QZ08 QZ04 RX08 CL20 DL02 DL03 DL04 DL05 DL06 RL08 CL60 CL62 RL13 RL14 RL15 RL18 JZ03 RZ04 RZ05 RZ34 RZ35 RZ18 RZ19 RZ42 RZ43 CZ06 CZ07 CZ08 CZ10 CZ26 CZ69 CZ70 CZ74 CZ76 CZ87 CZ91 CZ92 CZ94 CZ98 CZ79 RL12 JZ10 CX99 RZ54 CZ97 QZ21 RL20 RZ53 CL67 CL75 QZ09 CX98 QZ26 CL16 QL08 RZ51 QZ20 QZ19 QZ10 QL14 CL69 CL68 RZ67 DZ06 DZ11 DZ12 DZ17 CZ80 CZ81 CL15 RZ24 RZ25 RZ26 RZ27 RZ29 RZ28 RZ06 RZ07 RZ08 RZ09 RZ10 RZ11 RZ12 RZ13 RZ14 RZ15 RL01 RL03 RL05 RL09 RL07 CL41 CZ93 CZ95 CZ42 CZ85 CZ34 CZ61 CL59 RZ52 RZ50 RZ48 RX06 RX04 RX11 RL26 CX97 RZ59 RX07 RX05 QX02 CL64 CL56 QL16 RL23 RL22 CL32 QZ25 RZ57 RZ58 RZ56 CX05 DX01 CX07 CZ09 CX02 CX03 CZ62 CZ63 JL03 DZ19 QV52 DV03 DV02 DV01 DV51 QV51 RV53 RZ75 RZ72 RZ73 RZ76 RZ74 JL10 QZ24 QZ17 QZ18 QL02 QZ02 QL17 LZ02 QX05 RX24 RX27 RX25 CZ82 CZ90 DZ09 DZ15 DZ07 DZ13 DZ08 DZ14 DZ16 DZ10 RX19 RX20 RX21 RX22 RX28 CX24 RX16 CX15 RZ45 RZ47 RZ46 RZ44 RX15 CX14 RX14 CX13 RX13 CX11 RX12 CX09 CZ44 CX16 CX17 RL42 RL41 RL28 RL29 CL86 CL82 QL18 CL80 CX22 CX20 RX26 CX21 LL05 LL06 LL08 U479 CL77 RL39 CL76 RL40 CX92 RX29 CL54 CL35 CZ78 CZ51 CZ68 CZ66 LL07 RL33 RL34 RL35 RL36 RL38 RL37 QL19 QL18-1 QL18-2 LL03 LL04 CL72 CL73 CL71 LV01 LV02 LV03 CL48 CL84 CL46 U140 RL25 QL15 QZ28 QZ29 QX07 QZ27 CX23 U295 QZ29-1 QZ29-2 QZ29-3 QZ29-4 QZ28-1 QZ28-2 CX93 CX94 CX95 CL04 CL06 CL10 CX96 LZ03 CX84 DV52 DV53 RV51 RV52 CL01 CL02 CL03 CL05 CL07 CL08 CL09 CL11 CL12 CL13 CL14 CL17 CL18 CL19 CL21 CL22 CL23 CL24 CL25 CL26 CL27 CL28 CL29 CL31 CL33 CL37 CL43 CL44 CL52 CL51 CL55 CL57 CL58 CL61 CL63 CL65 CL70 CL79 CL83 DL07 RL21 RL24 RL31 RL32 RL43 CL78 U500 JL14 CX04 CX06 CX10 CX12 CX25 CZ02 CZ03 CZ04 CZ05 CZ11 CZ12 CZ13 CZ15 CZ14 CZ16 CZ17 CZ18 CZ19 CZ20 CZ24 CZ25 CZ21 CZ22 CZ23 CZ27 CZ28 CZ29 CZ30 CZ31 CZ32 CZ33 CZ35 CZ36 CZ38 CZ37 CZ39 CZ40 CZ41 CZ49 CZ52 CZ59 CZ60 CZ55 CZ56 CZ57 CZ58 CZ83 CZ84 CZ88 CZ86 CZ89 DZ03 DZ05 QZ22 RX17RX18 CX19 CX18 CX08 LX01 CL81 CL47 CL85 RL30 JL13 RZ60 CZ53 CZ54 RZ22 RZ23 RZ41 RZ36 RZ37 RZ38 RZ39 RZ40 CL87 CL88 CL91 CL92 CL96 CL97 U177 10 10 10 10 * 17.7MHz +5VV +5VV DTA114ES /ETC +5VV 0.01 0.01 0.01 0.01 0.01 0.01 BA7649A BA7613N BA7649A BA7613N NJU3718L DTC114TS /ETC DTC114TS /ETC 10 10 10 39 39 22p CH 22p CH 0.01 0.01 0.01 0.01 0.01 0.01 BA7649A BA7613N BA7649A DTA114ES /ETC DTC114TS DTC114TS 17.7MHz 0.01 39 39 39 39 BA7613N MM1140XF MM1140XF MM1140XF 10K NJM2903D 24P CH 1200p 0.1 10K 10K 470 1.5K 2SC536 SP/ETC 2SC536 SP/ETC 1.5K 2SC536 SP/ETC * * LC74781 33µH LC74781 24P CH 0.1 33µH 220 BA7612N BA7612N 12K 10/50V * * * * 10 0.01 68 39 220 1K 10 10 68 68 68 68 10K 10K 10/16V 10/16V 10/16V 10/16V 10/16V 0.01 0.01 0.01 0.01 10/50V 0.01 0.01 0.01 0.01 0.1 68 1M 100/10V DTC114ES /ETC 1M 10K 10/50V NJM2244D 10/50V 2SC536 SP/ETC 10/50V NJM2244D 10K NJM2263D NJM2244D NJM2263D NJM2244D 10/50V 1/50V 47K +5VV +5VV +5VV 10/50V 10/50V 10/50V 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 75 100/10V 100/10V 100/10V 10/50V 470/6V 470/6V 470/6V 470/6V 100K 10K 220 680 680 180 1/4W 100K 1/50V 100K 10K 1.5K 2SC536 SP/ETC 220/6.3V 10/50V 2SC536 SP/ETC 10K 10K 470/6V DTA114ES /ETC 10K 220 10K 0.01 10.0V 10/16V 68p 22p 470/6V 470/6V 2SA1837 1D3 1D3 1D3 1D3 DTA114ES /ETC 22k DTA114ES /ETC BA7613N BA7613N BA7612N BA7612N DTC114ES /ETC DTA114TS/ETC 10K 100 4.7K 470/6V 100K 100K 100K 100K 100K 100K 10/50V 3.3K 15K 10K 10K 100K 10/50V 100K 10/50V 100K 10/50V 100K 10/50V 10p/50V CH 0.01 0.01 10K 100 10K 10K 10/50V 10/50V 0.01 0.01 1/50V 10K 1000p 100 1000p 100 1000p 100 220/6.3V 220/6.3V 6.3V 220/6.3V 220/6.3V 220/6.3V 220/6.3V 47K 47K 47K 47K 47K 47K DTC114ES /ETC 74HC132 74HC132 DAMMY 4.7K DTC114ES /ETC 74HC32 74HC132 DTC114ES /ETC DTC114ES /ETC 20p CH 74HC132 74HC132 74HC132 74HC132 74HC32 74HC32 1D3 * 100 1/2W 10k 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 470/6V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 470/6V 100/10V 220/6.3V 0.1 1/50V 1/50V 10/50V 10/50V 100/10V 0.01 0.1 1/50V 10/50V * 100K 220 100K 100K 100K * 47/10V 100/10V 10/50V 220/6.3V 220/6.3V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 1/50V 1/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 10/50V 0.01 * * 74HC4051 100K 100K 0.01 22µH H 10/50V K/KS:15P DAMMY 100K * 4.7K * 10/50V 10p/50V 22p 50V 1200p 10/50V 22p/50V 0.01 * * * 4700p 20p 10/50V 10/50V 22p/50V 0.01 4700p 1/50V 470/16V * * * * 22p/50V 10/50V 22p/50V 10/16V 0.01 * * 0.022 * * * * * * 0.022 0.022 * * * 14.31818MHz 14.31818 MHz * * * * * * * * * * 220p N, S ONLY 220p N, S ONLY 220p N, S ONLY 220p N, S ONLY 220p N, S ONLY 220p N, S ONLY +5VV +5VV +5VV +5VV +5VL +5VL +5VV +5VV +5VL +5VV +5VV +5VV +5VL +5VV +5VV +5VV +5VL +5VL +5VL +5VV +5VV +5VV +15V -15V +15V -15V +5VV +5VV +5VV +5VV +5VV +5VL +5VV +5VV +5VL +15V +5VV +5VL +5VL +15V +5VV +5VV +5VL +5VL +5VV +5VV +15V 5VL -24V -24V +5VL +5VL +5VL +5VV +5VV +5VL +5VL +5VV +5VL +5VL +5VL DATA0 DATA0 CLK0 DATA0 CLK0 CLK0 CE2 CE7 CE1 OSD-1 OSD-1 CE2 CE1 CLK0 DATA0 CLK0 DATA0 CLK0 DATA0 S2TV S2LD S2DVD S2VCR1 S2DSS C-A C-B C-C C-B C-A C-A C-B C-C C-AA C-BB C-BB C-AA C-AA C-C IN1 IN2 IN3 IN4 IN5 IN1 IN2 IN3 IN4 IN5 IN1 IN2 IN3 IN4 IN5 IN1 IN3 S2DVD S2VCR1 S2TV S2LD S2DSS IN2 IN5 CE7 C-BB * TV-MONI IN OUT TV CVBS-INPUT 2 3 7 1 4 5 6 8 CLK0 DATA0 2 3 7 1 4 5 6 8 IN IN OUT D TV-MONI. OUT Y C C C Y Y Y C C Y Y C Y Y C Y C 1 2 3 4 5 +5VL DVD MUTE CTA CTB G VCC BAF MULTI-OUT PAL FRONT L FRONT R FRONT L FRONT R SURR. L SURR. R REAR L REAR R CENTER SUBWOOFER OUT TV C Y Y C PAL Y Y (COMPONENT) (COMPONENT) Y 1 2 3 4 5 6 7 8 9 10 11 12 13 14 CTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 BA7649A CTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 BA7649A BA7613N 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC BA7613N DSS IN DVD IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 P9 P10 P11 P12 P13 P14 VSS P15 P16 P17 P18 P19 P20 P8 P7 P6 P5 P4 P3 P2 P1 VSS CLR STB CLK DATA SO VDD NJU3718L CTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 BA7649A 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC BA7613N CTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 BA7649A 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC 2 3 7 1 4 5 6 8 BAF 2 3 7 1 4 5 6 8 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC C C Y A B C (A) (B) A B C (A) (B) INP.SEL COPY PAL A B C (A) (B) INP.SEL COPY 1 2 3 4 5 6 7 8 9 10 11 12 13 14 INPUT COPY Y C C C C Y Y INPUT Y C INPUT MULTI COPY 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC BA7613N 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC MUTE MUTE MUTE MUTE DVD INP B L H INPUT TV DVD AUX STANDBY L L L L L L L L L L L H H H INPUT TV DVD A B C (A) (B) BA7649 L L L L L L L L L L L L L L L H H H H H H H H H H H H H H INPUT TV DVD AUX A B C (A) (B) BA7649 L L L L L L L L L L L H H H H H H H H H H H AUX SOURCE MULTI-OFF 15 6 COMPONENT MONITOR OUT PORT EXPANDER GND C Y COMMON BUS L L H L MUTE(A) PZ04 OSD SWITCH GND GND GND 16 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 OTHERS 6 GND +15V -15V SYNC DET1 SYNC DET2 AUX-CVBS AUX-CVBS GND AUX-CVBS OSD-1 OSD-2 CLK0 DATA0 SYNC DET1 SYNC DET2 OSD-1 OSD-2 7 8 L L L L MM1140XD VCR1 SOURCE(VCR1) H L H L L L H H VCR1 H H L L L L L L L L L L L H H H 1 2 3 4 5 1 2 3 5 VCR1 IN OUT MM1140XF 1 2 5 2 3 7 1 4 5 6 8 BAF SRC VCR1 C Y Y C IN DVD IN IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 MM1140XF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 MM1140XF 1 2 3 5 2 3 7 1 4 5 6 8 BAF 2 3 7 1 4 5 6 8 BAF OUT C Y 1/3 VCR1 1 2 3 4 5 L L L L L (B) (B) (B) (B) (B) (B) H H H H H H L H A B C (A) (B) L H H L 1 2 3 4 5 6 7 8 MULTI ROOM SELECTOR INPUT SELECTOR COPY SWITCH INPUT SELECTOR AND COPY SWITCH :SAME DATA BETWEEN CVBS VIDEO AND S-VIDEO. C Y Y-C SEPARATE BAF BA7612N BA7612N LD DSS/VCR2 DSS/VCR2 LD DSS/VCR2 LD DSS/VCR2 DSS/VCR2 LD LD DSS/V2 OTHERS:TV/VCR1/LD/AUX DSS/V2 2/2 1/3 2/3 4 4 +5VV RELAY +5VV Cb Cr Cb Cr Cb Cr PL04 INT EXT TURU INT EXT THRU 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC 2 3 7 1 4 5 6 8 MUTE CTA CTB G VCC LS RS MUTE RELAY (RMT) S-VIDEO SELECTOR (RVS) (RVC) L H :WITH CLAMP IC'S 7613 7613 7613 :SAME DATA BETWEEN BA7612N AND BA7613N BA7612N/BA7613N 1 2 3 4 5 6 7 8 9 10 CVBS VIDEO SELECTOR MAIN IN MAIN IN OSD-INT -24V OSD-INT 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1/4 2/4 INT:L EXT:H(INPUT) L(NO INPUT) INT:L OSD-OFF:L OTHRS:H OSDOFF:H EXT:H(INPUT),L(NO INPUT) BA7612N BA7613N BA7613N BA7612N 74HC132 THRU OSD(INT) OSD(EXT) 2 4 L H L L H 1 2 3 4 5 6 1 2 3 4 5 6 13 12 11 8 9 10 1 2 3 4 5 6 K.KS KS ONLY QZ10-12 K.KS DAMMYRZ72-76 KS ONLY QL10-12 GND GND +5VL COMMON BUS -24V (M02) PZ04 (M02) COMMON BUS TO JY62 (PY64) M06-CONNECT TO JL10 (PL04) M02-VIDEO TO JZ06 (PZ04) M02-S-VIDEO TO JC04 (P104) M03-TONE CE7(P.EXP) CE7P.EXP) TO JL76 (PL74) M07-AUX +15VA -15VA +15VA -15VA FL FR CNT SW TO JC03 (P104) M03-TONE GND GND TO JL09 (PL04) M02-VIDEO TO JZ07 (PZ04) M02-S-VIDEO 8.3 8.3 1.2 0 1.8 0 5 0 5 0 5.6 2.0 1.4 3 4 2 1 A B C A B C 5.6 0 COMP.V MUTE COMP.V MUTE DVD/_DSS DVD/_DSS _CE1(OSD) _CE2(OSD) _CE1(OSD) _CE2(OSD) OSD SWITCH H/L (NJM2244D&NJM2263D) 5.0V 5.0V PICTURE NO PICTURE 5.0V 5.0V PICTURE NO PICTURE AUDIO PRE-OUTPUT 23 24 PZ04 QX07 QX27 QZ16 QZ17 QZ18 QZ29 QX01 QX05 QX04 QZ25 QZ24 QX02 QX03 QZ23 QZ28 QZ12 QZ13 QZ14 QZ09 QZ22 QZ10 QZ11 QZ19 QZ26 QZ20 QZ06 QZ05 QZ21 QZ02 QZ08 QZ07 QZ04 NJM2244 74HC32 74HC132 74HC4051 74HC4051 74HC32 QZ28 QZ29 + + + + + + + + + + + + + + + + + + QZ22 74HC132 1 8 1 16 1 16 NJM2263 NJM2263 NJM2903 NJM2244 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 17.7MHZ 14.3MHZ MONI CR CB CR OUT OUT OUT V2 OUT IN DSS/ INT OSD- -24V WA300J202-0 S-VIDEO PZ04 Y CB Y OUT VCR1 IN DVD LD TV GND PAL Y GND C AX-CV GND -15 GND +15 CE1 CE2 CE7 5VV OSD-2 OSD-1 S-D2 S-D1 5VL GND -15 +15 DAO CL0 AUX-CV DVD V-MUT B A C B A B 5 4 3 2 1 1 4 5 3 2 LC74781 COPY-Y COPY-C COPY-Y COPY-C INPUT-C INPUT-Y Y Y Y Y Y Y Y C C C C C C C Y C CR CB Y DVD DVD DSS DSS DVD DSS CZ80 XZ01 QZ29 QZ28 CX22 CX10 CZ68 CZ66 RZ41 RZ40 RZ39 RZ36 RZ37 RZ38 CX08 CZ51 CX95 CX93 CZ78 CX94 CX96 U483 U482 RX29 U295 RZ48 RZ51 RZ50 RZ47 RZ45 U472 QZ22 CX19 CX18 QX07 CX25 LZ03 RX28 CX24 CX23 CZ43 CZ45 CX99 U403 U468 U287 U451 U471 U470 U469 CX21 RX27 RX26 RX25 CX20 RX24 U399 U467 U466 U465 U400 U348 U347 U404 U410 U398 U464 U352 RX22 RX21 RX20 RX19 RX18 RX17 U395 U449 U298 U283 U359 U361 RZ23 CZ54 CX17 CX16 RX16 CX15 RX15 U394 CX14 RX14 U448 CX13 CX12 U282 U350 U351 RX13 CX11 RX12 CX09 CZ32 U392 U389 U390 U314 RZ76 RZ75 RZ74 RZ73 RZ72 JZ09 U406 U407 CZ44 U384 CZ73 CZ70 RZ53 U277 QZ21 CZ29 U299 JZ03 JZ02 JZ01 U304 QX05 U337 U336 U335 U334 U333 U332 U331 U330 U329 U328 U327 U326 U305 U275 U274 U273 U427 U426 U425 U447 U446 U325 U324 U323 U322 U272 U271 U381 U453 U383 U382 CZ75 U365 U321 CZ41 CZ39 CZ40 CZ42 U423 U424 U445 U306 U276 CZ28 CZ27 CZ37 U315 CZ25 CZ21 CZ72 U422 U444 U443 U442 U441 U380 CZ38 CZ23 CZ35 U452 JZ10 U375 U374 U373 U270 U269 CZ36 CZ24 CZ18 U292 U356 U355 U402 CZ91 CZ88 CZ26 CZ31 U386 U409 U429 U338 U362 U349 CZ86 U278 CZ30 CZ34 U385 U279 CZ33 U280 U281 U428 U339 U411 U340 U341 U342 U343 RZ58 CZ98 U345 LZ02 U288 RZ56 CZ81 CZ50 U450 RZ59 U346 U344 U286 U285 U284 CX97 RZ57 QZ26 RZ20 CZ52 CZ49 CZ48 U462 U463 DZ02 DZ01 U354 CZ46 CZ47 RX11 CX02 DX01 CX05 CX98 U358 U408 CX03 CX92 U401 U291 U290 RZ67 QZ27 XZ02 RZ54 LZ01 QZ14 QZ13 QZ12 RX10 RX09 QX04 LX01 QX02 QX01 RX05 RX08 RX07 RX06 RX04 RX03 RX02 RX01 CX06 CX04 CX01 QX03 CX07 U357 RZ60 CZ65 U397 U353 U396 CZ67 DZ03 CZ90 QZ24 RZ46 U294 U293 U303 RZ52 DZ19 QZ25 RZ44 CZ97 CZ89 CZ76 RZ43 CZ74 RZ42 CZ15 U430 CZ84 CZ93 CZ94 CZ85 RZ18 CZ87 CZ92 CZ83 U393 RZ35 RZ34 RZ19 CZ82 U320 U263 U262 U260 CZ04 U266 CZ05 U421 U378 U377 U376 U259 CZ13 CZ11 CZ20 CZ69 U461 U388 U387 U379 U318 U317 U316 U264 CZ14 CZ12 U391 CZ22 U319 U258 RZ12 CZ09 U431 U265 U261 RZ17 RZ16 RZ13 RZ04 CZ10 U268 U267 RZ15 RZ14 RZ05 CZ95 CZ71 U371 U313 U312 U257 U256 RZ11 RZ10 RZ09 RZ08 RZ03 RZ02 CZ08 CZ07 CZ03 CZ02 U311 CZ19 U253 U251 U372 U255 U254 U252 RZ07 RZ06 RZ01 CZ17 CZ16 CZ01 CZ06 CZ63 RZ30 CZ61 RZ31 CZ62 RZ32 DZ08 DZ14 U300 DZ06 DZ07 DZ13 DZ12 CZ77 U405 U302 U301 DZ09 DZ16 DZ17 DZ11 DZ10 CZ60 RZ22 CZ53 CZ55 RZ24 CZ58 RZ27 CZ79 DZ15 CZ57 RZ29 RZ26 RZ25 RZ28 CZ59 CZ56 DZ05 QZ23 QZ20 QZ19 QZ11 QZ10 QZ09 QZ02 QZ06 QZ05 QZ08 QZ07 QZ04 QZ18 QZ17 QZ16 JZ08 JZ07 JZ06 JZ05 JZ04 PM04 QM28 QM24 QM26 QM22 QM30 QM29 H-DAM BLOCK + + + + WA300J302-0 PM04 + + FR FL G -B +B I O G -B +B I O -B -O +O +B - + -B -O +O +B - + QM28 QM24 CM28 U193 RM32 RM30 QM26 RM34 RM28 CM30 CM26 QM22 DM22 CM22 RM24 RM36 RM38 RM22 RM40 CM24 CM32 CM23 CM31 U189 CM25 RM35 CM21 RM39 RM21 RM23 RM37 CM29 QM27 RM29 RM31 RM33 RM27 QM25 QM21 DM21 U190 QM23 CM27 QM30 QM29 JM22 JM21 WA312J602-0 PU94 6 5 4 3 2 1 4 1 GND +5VD DOWN UP CU91 CU92 RU93 RU92 RU91 QU91 JU91 QU91 PU94 25 26 QV52 QV51 QL18 QL04 QL03 QL14 QL19 QL07 QL06 QL05 QL11 QL12 QL10 QL08 QL09 QL15 QL17 QL02 QL16 PL04 QL09 + + + + + + + + QL18 74HC132 1 16 1 16 LS RS NJM2244 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 14.3MHZ 17.7MHZ JL12 SL SR FR FL MM1140XF INPUT NJM2244 5 3 1 1 ONLY ONLY ONLY SR-18 SR-18 SR-18 BA7613N -24V OSD CVBS PL04 WA300J201-0 LS RS RS LS GND AUX GND 5VV 5VL OSD-2 OSD-1 S-D2 S-D1 -15 +15 DAO CL0 CE7 CE2 CE1 PAL DVD V-MUT B A C B B A 5 4 3 2 1 BA7649A BA7613N BA7613N BA7649A LC74781 NJU3718L + FL SWF CNT SL SR FR FL CNT SWF FL FR SR SR SL SL SWF CNT CNT FR CNT FR GND GND GND FL GND GND RLY SWF CNT FR GND FL COPY MULTI INPUT MULTI COPY SWF CNT SURR FRONT IN MAIN IN MAIN OUT OUT PRE PRE IN MAIN OUT PRE OUT MLT OUT MON DSS OUT IN VCR1 OUT IN DVD LD TV QV52 JL14 CX84 LL08 LL07 LL06 LL05 LL04 LL03 CL78 JL08 CL71 CL72 CL73 CL65 CL35 CL53 JL11 CL44 CL49 CL74 CL10 CL04 CL54 CL66 U167 U222 U197 U100 U489 U488 U487 U166 U485 QL05 CL97 CL96 CL95 CL94 CL93 CL92 CL91 CL90 CL89 CL88 CL87 CL86 RL43 QL19 RL28 RL41 RL42 CL85 CL64 QL18 CL46 CL47 U214 U484 U140 CL83 RL40 RL39 U231 RL38 RL37 RL36 RL35 RL34 RL33 RL32 U480 RL30 CL81 RL31 CL84 U174 CL82 U143 U479 U478 CL80 U477 CL79 RL29 U476 U475 U474 U473 U224 U223 U204 JL07 U184 U110 LL02 U111 CL77 U145 U144 U196 DV03 JL03 QL14 JL02 CL01 CL24 CL21 CL37 RL14 RL13 CL61 CL59 U160 CL33 U178 U177 U152 U116 U156 U155 U209 U154 U176 RL18 CL76 U153 U206 U207 U205 U175 U115 U113 QL16 RL22 DL07 CL68 CL63 JL13 RL23 RL24 RL15 CL52 CL55 CL51 U203 XL01 RL20 CL67 XL02 LL01 CL50 U112 QL11 QL10 QL12 CL48 QL15 CL70 QL17 CL69 CL36 RL19 U102 U198 CL75 CL42 CL43 RL26 U202 U201 U147 RL21 CL16 CL41 CL40 CL31 U225 DL13 DL06 CL39 CL29 U157 U158 U159 U179 CL57 U121 U122 U123 CL17 CL22 CL23 CL38 U161 U180 U232 U164 U163 U208 U119 U210 U211 U212 U118 DV51 DV52 RV52 RV53 QV51 DV53 U165 U234 U233 U137 U136 U135 U139 U195 U194 U193 U192 U191 U190 U189 U134 U133 U132 U131 U130 U129 U128 U127 U126 U188 U187 DV02 U186 U185 DV01 CL19 CL06 CL62 RL12 U183 U182 U181 U125 U124 DL12 DL05 RL08 RL07 RL11 CL32 CL27 CL18 U120 CL56 CL28 U148 U105 U104 DL10 DL04 RL05 U149 U138 CL58 RL10 RL09 CL26 U221 DL11 CL60 CL05 U108 U107 U106 U103 RL06 CL13 CL03 U173 U151 U150 U109 CL30 CL25 CL11 U172 CL34 U142 U141 U171 U101 DL09 DL08 JL01 DL03 DL02 DL01 RL04 RL03 RL02 RL01 CL09 CL08 CL07 CL02 RL25 CL12 CL14 CL20 JL10 CL15 RV51 LV03 LV02 LV01 JL09 JL06 JL05 JL04 QL09 QL08 QL07 QL06 QL04 QL03 QL02 27 28 QK05 QK03 QK01 QK06 QK04 QJ01 QJ02 QD03 QH53 QJ71 QD42 QH52 QH51 QD02 QH06 QH03 QJ51 QD41 QH04 QH05 QH02 QH01 QD01 QR07 QE08 QE01 QE04 - QE07 QE01 - QR03 QR02 QE10 QE09 QR05 QR04 QR01 Q604 Q694 QR06 Q601 Q603 Q602 Q652 QD04 Q651 QD43 Q691 Q693 Q692 Q605 Q966 QR08 P604 29 30 30 31 50 51 80 81 100 1 DB0 VDD GND PDO MUTO DAOUT DAIN C2F1 C2F0 C1F1 C1F0 MUTI VDD GND C9M GND WINGT SYST0 SYST1 ADST0 OSCON IDST IDCK IDO GND VDD RESET DATA MCK MLTB TMO ECCK DEN DRY MSYC TM1 A0 A1 A2 A3 A4 A5 TM2 TM3 XOUT XIN XEXT GND VDD A6 A7 GND VDD A12 A14 WEB A13 A8 A9 GND A11 OEB A10 DB7 DB6 DB5 DB4 DB3 DB2 DB1 TI1 VIN VOUT TI2 TI3 TLDB TCK TRP TDO TI4 PDDIS TI5 VLDY DASYO DASEL TI8 AVDD CPIN CMIN AGND TM4 VDD DIN DOUT DOUTB ADST1 TM5 BUNRI AGND AVDD 33 32 16 17 64 1 49 48 VSS ISEL1 ISEL2 CSEL1 CSEL2 KILLC ATRF RFSEL SMUTE FS96 BYPASS VSS ERF VDD X2 X1 ICC XT2 XT1 AVSS KEY1 KEY2 KEY3 KEY4 SW1 SW2 SW3 AVDD AVREF SI2 SO2 SCK2 SI1 SO1 SCK1 C0_E0 CA_E1 CB_E2 CC_F0 CD_F1 CE_F2 N.C. DIG_ANA _UMUTE _CS_DSP1 _CSB_DSP1 _SS_DSP2 C_EF_DIR _RSTRF ADCAL _RSTDSP2 _ATT3 _RSTDA1 _RSTDA2 _IC RSTDIR _RFDET PDAD _ACK _REQ OVFB N.C. DEEMP/TEST _RSTC 30 31 50 51 80 81 100 1 VDD1 RAMCEN RAMA16 RAMA15 SDIB0 SDIB1 SDIB2 XI XO VSS AVDD TEST TEST OVFB CPO AVSS VDD2 SDOA2 SDOA1 SDOA0 RAMA14 RAMA13 RAMA12 RAMA11 RAMA10 VSS VDD1 OPORT0 OPORT1 OPORT2 OPORT3 OPORT4 OPORT5 OPORT6 OPORT7 VSS VDD2 RAMA9 RAMA8 RAMA7 SDOB2 SDOB1 SDOB0 SDBCK1 SDWCK1 VSS VDD2 NONPCM CRC MUTE KARAOKE SURENC RAMA6 RAMA5 VSS RAMA4 IC TEST RAMA3 CSB CS SO SI SCK RAMA2 VDD1 RAMD0 RAMD1 RAMD2 RAMD3 RAMD4 RAMD5 RAMD6 RAMD7 VSS VDD2 SDWCK0 SDBCK0 SDIA0 SDIA1 RAMA1 RAMA0 RAMWEN RAMOEN VSS VDD2 IPORT7 IPORT6 IPORT5 IPORT4 IPORT3 IPORT2 IPORT1 IPORT0 VSS YSS912 SDBCK0 DTSDATA AC3DATA SDOB3 SDIB3 AC-3,DTS,PRO-LOGIC DECODER 30 31 50 51 80 81 100 1 ZR38600 A0 GND SS TMS INT VCC D14 GND A1 A2 A3 VCC D13 GPIO5 D12 A4 VCC GPIO4 GND A5 A6 D11 GPIO3 A7 A8 D10 A9 A10 GND VCC A11 D9 D8 SO VCC GND GND A12 TDO A13 D7 D6 A14 GND VCC A15 D5 D4 A16 RD WR CS GND SDD VCC GPIO2 GPIO1 GPIO0 VCC GND SPFRX PM XTO XT1 GND SCKIN VCC GNDA FLTCAP VCCA GND CLKOUT D19 D18 A17 A18 A19 GND SDC SDB VCC RESET SDA VCC SDE TCK SCK TDI SI GND SCKA WSA VCC SDF WSB D17 SCKB D16 SPFTX D15 THX PROCESSING RE-EQ,TIMBRE-MATCH,DE-CORRELATION BASS-MANAGEMENT,SPK-DISTANCE-SYNCRONAZATION BASS-PEAK-LIMITER D3 D2 D1 D0 Y W ST GND VCC D4 D5 D6 D7 A B C D3 D2 D1 D0 Y W ST GND VCC D4 D5 D6 D7 A B C NC IN GND VCC OUT SEL1 1A 1B 1Y 2A 2B 2Y GND 3Y 3B 3A 4Y 4B 4A ST VCC GND VCC G A1 Y2 A2 Y1 G VCC WE A13 A8 A9 A11 OE A10 CS D8 D7 D6 D5 D4 VSS D3 D2 D1 A0 A1 A2 A3 A4 A5 A6 A7 A12 A14 NC A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 DQ1 DQ2 DQ3 GND DQ4 DQ5 DQ6 DQ7 DQ8 S1 A14 OE A15 A16 A0 A1 W S2 A2 VCC NC NC OUT VDD GND OUT VDD GND VCC PR CLR Q D CK GND Q C CD CC CB CA C0 VD+ DGND RXP RXN FSYNC SCK U CBL SEL M3 M2 MCK FILT AGND VA+ M0 M1 ERF SDATA CE VREF 2 3 2 3 2 3 CR01 CR03 CR05 RR08 RR01 RR02 RR07 CR13 CR14 CR18 CR16 RR15 RR14 RR12 X601 C614 J691 CR22 CR23 CR24 CR25 C610 C613 C615 C618 C621 RR17 RR19 RR27 JR01 JR05 RR09 DR01 DR02 RR03 RR04 RR05 RR06 QR04-1 R602 R605 R604 R603 R652 R659 R651 R654 R657 R656 R653 C668 C654 C655 C656 C658 C659 R601 C624 RR21 RR22 RR23 RR24 LR01 Q694 Q601 C695 R691 Q693 R694 Q652 QR04-3 QR04-2 QR04-4 X691 R695 RR18 RR13 QR05-4 QR05-3 QR05-2 QR05-1 QR07-5 QR07-1 QR07-2 QR08 QR01 NC01 NC02 NC03 NC04 NC05 NC06 NC07 NC08 NC09 NC10 NC11 NC12 NC13 NC14 NC15 NC16 Q691 Q692 JR04 JR03 JR02 QR07 QR05 QR04 CR11 CR12 CR08 CR30 CR09 CR10 CR07 RR16 D692 D693 R697 RR20 C696 C697 C609 C608 R673 Q651 R655 DR03 LR02 L651 L602 L601 L691 L692 L693 L694 L695 L696 L697 CR02 CR04 CR06 CR15 CR28 CR17 CR27 CR26 CR29 C601 C604 C603 C606 C651 C652 C653 C622 C619 C611 C657 C694 JR06 RR10 RR25 CR19 R662 R684 R685 R686 R683 RR81 RR82 RR83 RR84 RR95 RR96 RR97 R687 RF01 D03 D04 PD01 DC01 DG02 Q602 Q603 C625 R663 GP03 GP04 NC17 NC18 NC19 JE01 CE01 RE01 RE02 CE02 CE03 CE04 CE05 RE03 RE04 RE05 QE02 RE06 RE07 RE08 RE69 RE10 RE11 CE11 RE12 CE13 QE04 CE19 RE21 CE18 RE20 RE22 LE02 RE14 LE01 CE14 CE15 RE13 RE15 RE16 RE17 QE06 RE25 QE05 RE24 RE23 QE07 CE59 RE63 RE64 RE62 CE58 CE57 RE35 RE36 RE34 CE32 RE33 RE32 CE31 QE08 RE46 RE45 RE42 CE39 RE43 RE44 CE41 RE41 RE65 RE67 QE10 CE42 RE47 DE01 RE49 CE43 XE01 RE50 CE46 CE54 CE53 LE03 CE66 CE65 CE51 CE60 CE61 LE04 CE62 CE63 QE09 RE70 RE71 RE68 RE72 QE03 CE06 QE01 RE19 CE35 CE37 CE36 RE31 RE48 RE18 QR06 C691 C616 C669 CE52 J654 CR20 CE44 C617 RR11 CR21 QR07-3 QR07-4 CE45 CE56 CE33 CE34 QR02 QR03 C602 C605 C670 R660 C661 C660 R658 R672 R671 C667 C666 C664 C662 C663 C612 C620 C623 C607 R607 R681 R682 Q699 C693 C692 Q604 R692 RE61 R606 R661 0.1 16V 0.1 16V 0.1 16V 33 75 75 33 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0 0 0 12.288MHz 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0 0 10K 75 1SS302 1SS302 100K 100K 4.7K 4.7K 10k 0 0 0 10k 4.7k 10k 4.7k 0 0 0 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 1M 0.1 16V 10K 10K 1K 1K S-807 3.0V 0.1 16V 10k S-807 4.5V 10k TC7SH04F 10MHz 10k 0 0 TC7W74FU CS8414 TC7WT126FU 74HCU04F 74HC00F 74HC00F 0.1 50V 0.1 50V 0.1 16V 1000p 50V DAMMY 470P 50V 0.1 50V 10K ISS301 ISS301 10k 0 0.01 50V 0.01 50V 22p 50V 22p 50V DAMMY 0 1SS300 0.022 0.022 0.022 0.022 BLm11 BLm11 BLm11 BLm11 BLm11 BLm11 BLm11 100/10V 100/10V 100/10V 100/10V 100/10V 100/10V 0.01 50V 0.01 50V 0.1 16V 0.01 50V 0.01 50V 100/10V 100/10V 0.01 50V 0.01 50V 100/10V 100/10V 100/10V 100/10V 100/10V 100/10V 390 75 0.068 47k 47 47 47 47k 10K 10K 10K 10K DAMMY DAMMY DAMMY 470k TC7WT241FU TC7WT126FU 0.1 16V 0 0.022UF 16V 560 100 100/10V 0.1 16V 100/10V 0.1 16V 1K 1.8K 10K 2SC4081(Q,R) 10K 4.7K 0 DAMMY 1K 4.7K 0.1 16V 1K 0.1 16V MC14577C 0.01 50V 1K 0.1 50V 1K 4.7K 2.88M-BPF 2.2K 68UH 150P 50V 150P 50V 150 1K 1K 1K 2SA1586 8.2K 2SC4081(Q,R) 3.3K 1K 2SA1586 0.1 16V 10K 10K 1K 0.1 16V 0.1 16V 10K DAMMY 22K 1 16V 100K 4.7K 1 16V NJM4560 10K 10K 68K 47/16V 120 47K 0.1 50V 22K 0 0 S-RAM 8X32K 0.01 50V 47K KV1851-TL00 KV1851-TL 47K 0.01 50V 18.432MHz 22 18P 50V 0.1 16V 0.1 16V 0.022 0.01 50V 0.01 50V 0.1 16V 0.1 16V 100/10V 0.022 100/10V 0.1 16V PM4007A DAMMY DAMMY 0 DAMMY 2SC4081(Q,R) 1000P 50V 2SC4081(Q,R) 10K 100/10V 0.1 16V 0.1 16V 3.9K 47K 1K TC74HC157AF 0.01 50V 0.01 50V 0.01 50V 1000P 50V DAMMY 0.01 50V 15P 50V 0.1 DAMMY 0.01 0.1 16V 0.1 16V 100/10V 0.1 16V 74HC151 74HC151 0.01 0.01 0.1 DAMMY 0.1 0.1 DAMMY DAMMY DAMMY 100/10V 0.1 0.1 0.1 0.047 470p 100/10V 0.1 0.1 DAMMY DAMMY DAMMY DAMMY 0.1 0.1 SRAM(1M) 100k 100K 22k 22k 5M DSPMUTE SMUTE FS96 CWDA SRDA ERMUTE MCLK ZMUTE -5VD CAL SDWCK SDBCK PDAD AMCLK AWCLK ABCLK ADDATA FLRDA _ATT3 DEEMP +5VD +5VD +5VD +5VD +5VD 3.3D 5DP 3.3D 3.3D 5DP 3.3D 3.3D 5DP 3.3D 3.3D 5DP 5DP +5VD 3.3D 3.3V 5DP +5VD 5DR 5DR 5DR 5DR +5VD 5DR 5DR +5VD +5VD 5M 5M 5M -5VD -5VD 5M 5M 5M 5M +5VD 5M 5M +5VD 5M 5M 5M 5M +5VD +5VD +5VD +5VD 3.3T 3.3T 3.3T 3.3T 5DP 3.3T 3.3T 3.3T 3.3T 3.3V 3.3T 3.3T 3.3T 3.3T 3.3T 3.3T 3.3T 5DP 5DP +5VD +5VD +5VD +5VD -5VD +5VD 3.3D 5DP +5VD +5VD _RSTDA1 _RSTDA2 3.3T 3.3T A00 A01 A02 A03 A04 A05 A06 A00 A01 A02 A03 A04 A05 A06 A07 A08 A09 A10 A11 A12 A13 A14 DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 WEB OEB ISEL1 ISEL2 CSEL1 CSEL2 RA0 RA1 RA7 RA8 RA9 RA10 RA11 RA12 RA13 RA14 RA15 RA16 RWEN ROEN SDLR SDSR SDIDR SDBCK SDWCK SDLR SDSR FS96 SMUTE SCK2 SI2 SO2 SCKR SI SO ERMUTE MCLK SDIDR SDBCK SDWCK SDBCK SDWCK ERMUTE MCLK SDCW SO RA0 RA1 RA2 RA3 RA4 RA5 RA6 RA7 RA8 RA9 RA10 RA11 RA12 RA13 RA14 RA15 RA16 RWEN ROEN RD0 RD1 RD2 RD3 RD4 RD5 RD6 ZMUTE SCK2 SO2 SI2 SI SCKR ISEL1 ISEL2 CSEL1 CSEL2 KILLC ATRF RFSEL SMUTE FS96 BYPASS SI SCKR KILLC AMCLK CE AWCLK ABCLK CD CC CB CA CO ERF RFDET CO CA CB CC CD CE SDWCK SDBCK RFDET ERF SO ADDATA BYPASS SDIDR AMCLK AWCLK ABCLK PDAD PDAD SDCW ADDATA RSTDIR RSTDIR D_A D_A D_A _UMUTE _UMUTE C_EF C_EF _ATT3 _ATT3 ZMUTE DEEMP DEEMP ERMUTE RD7 ZCWDA ZSRDA ZLRDA ZCWDA ZSRDA ZLRDA OVFB OVFB DB0 DB1 DB2 DB3 DB4 DB5 DB6 DB7 A07 A08 A09 A10 A11 A12 A13 A14 WEB OEB RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 RA2 RA3 RA4 RA5 RA6 AMCLK AMCLK RFSEL ATRF _RSTDA1 _RSTDA2 _RSTDA2 _RSTDA1 _RSTRF _SS _CSB _CS _RSTD2 _IC _RESETC _REQ _RESETC _ACK _REQ _ACK _RSTRF _IC _CSB _CS _SS _RSTD2 1 2 3 4 5 6 7 8 AC3RF-DEMODURATOR PM4007A 1 2 3 4 5 6 7 8 OPT GND VCC RF IN 8X32K FAST SRAM OPT GND VCC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC 1 2 3 4 5 6 7 8 9 DSPMUTE 1 1 1 DIGITAL OUTPUT OPT DIGITAL OUTPUT COAX COAX D GND VCC 1 2 3 4 5 6 7 8 9 10 11 SUB-CPU µPD78018F 1 2 3 4 5 6 8 9 10 11 12 13 1 2 3 4 5 6 8 9 10 11 12 13 5 6 1 2 3 4 10 11 12 13 GND VCC FOR SPI DIGITAL DIGITAL DIGITAL DIGITAL INPUT-3 INPUT-4 INPUT-2 INPUT-1 DIG1 DIG2 DIG3 DIG4 ISEL1 ISEL2 CSEL1 CSEL2 L L L L L L H H H H H H L L H H AUTO RF FIXED RF ANALOG ATRF RFSEL DIG1-4 H H H L H H L H H H L L D-A 1/2-12.288MHz L H L FS96 BYPASS INPUT RF PCM AC-3/DTS 96K-PCM L L L L H RDM RDR RDP GND VCC GND GND DECODE BLOCK DEMODURATOR BLOCK SDWCK=FS SDBCK=64FS MCLK=256FS AWCLK=48K ABCLK=3.07M RR95=STANDALONE RR96=NO-THX RR97=CODEC P604 (M08) DSP-CLK DSP-DO DSP-DI DSP-REQ DSP-ACK DSP-RST DSP-MUT TO JY02 (PY04) M07-SUB-CPU TO ADC&DAC BLOCK TO ADC&DAC BLOCK AMCLK=12.288M PDO 5V 2.5V GND DUTY=30-70% DIG INPUT SEL DIG OUT SEL DIR DIR BLOCK _ACK _REQ SCK2 SI2 & SO2 31 32 1 11 12 22 23 33 34 44 VSS BCLKI VDD VSS VDD VSS SEL24-32 SONY/IIS DINV MOD1 MOD2 VDD VSS DOL BCLKO1 VSS VDD WCLKO1 VSS VSS DIN VDD VSS DOR BCLKO2 VDD WCLKO2 VSS VDD CKOUT1 CKOUT2 CKOUT3 VSS VSS VDD XIN XOUT VSS VDD VSS VSS WCLKI VDD VSS 1 11 12 22 23 33 34 44 VSS BCLKI VDD VSS VDD VSS SEL24-32 SONY/IIS DINV MOD1 MOD2 VDD VSS DOL BCLKO1 VSS VDD WCLKO1 VSS VSS DIN VDD VSS DOR BCLKO2 VDD WCLKO2 VSS VDD CKOUT1 CKOUT2 CKOUT3 VSS VSS VDD XIN XOUT VSS VDD VSS VSS WCLKI VDD VSS DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 + - + - DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 + - + - DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 + - + - + - + - DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 + - + - DGND MCLK CLATCH CCLK CDATA X2MCK DEMP F48/96 AGND OUTR+ OUTR- FILTR ZEROR AGND OUTL- OUTL+ AVDD FILTB IDPM1 IDPM0 ZELOL MUTE RST LRCLK BCLK SDATA DVDD F256 + - + - + - + - + - + - + - + - + - + - + - + - + - + - VREF AGND VCOM AINR+ AGND AINL+ AINR- AGND VA VL LGND AINL- ADCTL MCLKA TSTO1 TSTO2 DACTL MCLKD CAL PDN VD DFS DGND S/M LRCLK SDATA SCLK DGND RH01 RH03 RH07 RH11 RH09 RH05 RH08 RH04 RH12 RH02 RH10 RH06 RH24 RH25 RH51 RH52 RH53 RH54 RH55 RH56 RH57 RH58 RH59 RH60 RH61 RH62 RJ01 RJ02 RJ03 RJ04 RJ05 RJ06 RJ07 RJ08 RJ09 RJ10 RJ11 RJ12 RJ51 RJ52 RJ53 RJ54 RJ55 RJ56 RJ57 RJ58 RJ59 RJ60 RJ61 RJ62 RJ71 RJ72 RJ74 RJ73 RJ75 RJ76 RJ77 RJ78 RJ79 RJ80 RJ81 RJ82 RD01 RD05 CD02 CD14 CD26 CD41 CD47 CD53 CD63 CD64 CD65 CD66 CD67 CD68 CD69 CD70 CD71 CD72 CD73 CD74 QD43 QD44 RD61 RD62 RD63 RD64 RD65 RD66 RK05 RK06 RK07 RK08 RK09 RK10 RK11 RK12 RK13 RK14 RK15 RK16 RK17 RK18 RK23 RK24 RK32 CK06 CK05 CK07 CK08 CK35 CK36 CK41 CK42 J601 J602 QH01-1 QH01-2 QH02-1 QH02-2 QH03-1 QH03-2 QH51-1 QH51-2 QH52-1 QH52-2 QH53-1 QH53-2 QJ01-1 QJ01-2 QJ02-1 QJ02-2 QJ51-1 QJ51-2 QJ71-1 QJ71-2 CH01 CH02 CH03 CH04 CH05 CH06 CH07 CH08 CH55 CH56 CH57 CH58 CH53 CH51 CH54 CH52 CH65 CH66 CH77 CH78 CJ01 CJ02 CJ03 CJ04 CJ05 CJ06 CJ07 CJ08 CJ51 CJ52 CJ53 CJ54 CJ55 CJ56 CJ57 CJ58 CJ59 CJ60 CJ71 CJ72 CJ73 CJ74 CJ75 CJ76 CJ77 CJ78 CJ79 CJ80 QK03-2 QK03-1 QK05-1 QK05-2 QK04-2 QK04-1 QK06-1 QK06-2 R689 RD92 RD94 CH33 CH34 Q605 LD03 LD07 LJ01 LJ02 RJ13 RJ14 RJ15 RJ16 RJ18 RJ21 RJ23 RJ22 RJ24 CJ09 CJ10 RK36 RK37 RK35 LK01 CK09 CK10 RK34 RK21 RK19 RK20 RK22 RH14 RH18 RH15 RH16 RH13 RH19 RH22 CH13 RH41 RH42 LH01 LH02 CD17 CD09 CD49 CD45 LD05 LD45 LD01 LD41 LD06 LD02 LD46 LD42 CD46 CD50 CD10 CD18 RD41 RH27 RH26 RH31 RH30 CH24 RH32 CH25 RH35 RH37 RH38 LH51 LH52 RH66 RH64 RH63 RH67 RH68 RH65 RH69 CH63 RH72 RH74 RH75 RH79 RH77 RH76 RH81 RH80 RH78 CH75 RH82 RH86 RH85 RH87 RH88 LD81 LD82 LD83 LD84 LD85 LD86 QH05 QH06 QH04 CD81 CD82 CD83 CD84 CD85 CD86 CD87 CD88 CD89 CD90 CD91 CD92 CD93 CD94 CD95 CD96 CD97 CD98 CK33 CK34 CK02 CK04 CK01 CK03 CK26 CK25 CK43 CK44 RK31 CJ11 CJ12 CJ21 CJ22 CD61 CD62 CD05 CD21 CH14 CD43 CD51 CH26 CD06 CD22 CH64 CH76 CD44 CD52 RH17 RH29 RH28 CH31 CH32 CH81 CH82 QK01 RH93 RH39 RH40 R688 RD81 RD82 RD83 RD84 RD85 RD86 CJ17 CJ18 CK24 RK01 RK03 CK45 CK46 RK02 RK04 CD29 CD55 CD30 CD56 RH21 RH34 CH35 CH36 CJ61 CJ62 CH85 CH86 CJ81 CJ82 D698 D699 QD01 QD41 QD02 QD42 QD03 RH23 RH36 RH73 RJ25 RJ26 RJ20 A5 A5 A5 A5 A5 A5 A5 A5 A5 A5 A5 D D D D D D C680 A5 A5 A5 A5 A5 A5 CJ15 CJ13 CJ19 RJ19 RJ17 CJ14 CJ16 CD03 CD07 RD07 RD03 CD31 CD23 CD27 CD11 CD15 CD19 CJ23 CJ24 CJ20 D D D D D D CK23 CK28 CK27 CK30 CK31 CK21 CK19 CK22 CK20 CK15 CK17 CK39 CK37 CK11 CK13 CK12 CK14 CK40 CK16 CK18 CK38 D D D D D D D D D D D D D D D D CD42 CD48 CD54 RD93 RD02 CH23 CH38 CH21 CH22 CH40 CH37 CH10 CH09 CH11 CH12 CH39 RD91 CD01 CD25 CD13 CH15 CH16 CH17 CH18 CH27 CH28 CH83 CH84 CH67 CH68 CH89 RH33 RH20 RJ91 RH70 CH87 CH60 CH59 CH62 CH61 RJ92 CH74 CH88 CH72 CH71 CH73 RH83 CH90 RD42 A A1 A2 A3 A4 A5 D 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 100 100K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 1.8K 10K 10K 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V 0.1 16V GATEARRAY GATEARRAY 0 0 0 0 0 0 56 56 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 10K 10K 4.7K 470p 470p 470p 470p 0.1 16V 0.1 16V 10/16V 10/16V NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M 1000p 1000p 1000p 1000p 220p 220p 220p 220p 220p 220p 220p 220p 1000p 1000p 1000p 1000p 0.1 16V 0.1 16V 0.1 16V 0.1 16V 1000p 1000p 1000p 1000p 220p 220p 220p 220p 1000p 1000p 1000p 1000p 220p 220p 220p 220p 0.1 16V 0.1 16V 1000p 1000p 1000p 1000p 220p 220p 220p 220p 0.1 16V 0.1 16V NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M NJM2114M 10k 0 0 0.1 16V 0.1 16V TC7W32FU * * * * 2.2K 2.2K 2.2K 2.2K 4.7K 100 100K 100 100K 1500p 1500p * * * * 3900 3900 100 39 39 39 39 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 1000p 10K 1M * * 10/16V 10/16V 10/16V 10/16V * * * * * * * * 10/16V 10/16V 10/16V 10/16V DAMMY 2.2K 2.2K 2.2K 2.2K DAMMY 2.2K 1000p 2.2K 100 100K * * 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 1000p 2.2K 100 100K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2200p 2.2K 2.2K 4.7K 100 100K 0.022 0.022 0.022 0.022 0.022 0.022 2SC2878 A/B 2SC2878 A/B DTA114ES /ETC 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 0.01 50V 220/10V 220/10V 220/10V 220/10V 100/25V 100/25V 100/25V 100/25V 10/16V 10/16V 10/16V 10/16V 100/10V 100/10V 47/16V 47/16V 100 47/16V 47/16V 100/25V 100/25V 100/10V 100/10V 100/10V 100/10V 47/16V 100/10V 100/10V 47/16V 100/10V 100/10V 47/16V 47/16V 100/10V 100/10V 2.2K 2.2K 2.2K 100/25V 100/25V 100/25V 100/25V CS5394 ADC DAMMY 2.2K 2.2K DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY 22p CH 22p CH 0.01 50V 10K 10K 22p CH 22p CH 10K 10K 1000p 50V 1000p 50V 1000p 50V 1000p 50V 1.5K 1.5K 22p CH 22p CH 22p CH 22p CH 22p CH 22p CH 22p CH 22p CH DAMMY DAMMY AD1855 DAC AD1855 DAC AD1855 DAC AD1855 DAC AD1855 DAC 12K 12K 12K 10K 10K 5.6K 0.1 0.1 0.1 DAMMY 5.6K 4.7K 0.1 0.1 0.1 100/10V 10K DAMMY 1000p 50V 100/10V 0.1 10/16V 0.1 10/16V 0.1 0.1 DAMMY 0.1 0.1 0.1 0.1 0.1 100/10V 0.1 10/16V 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY DAMMY 3.3V DSPMUTE SMUTE ERMUTE FS96 ADDATA CWDA SRDA MCLK ZMUTE ABCLK AWCLK AMCLK CAL SDWCK SDBCK PDAD FLRDA _ATT3 DEEMP 3.3V -5VD 5VD -15VA +15VA +5VA -15VAA +15VAA +15VAA -15VAA +15VAA -15VAA +15VA -15VA +5VA +5VD +15VAA -15VAA +15VAA -15VAA +15VA -15VA +5VA +5VD +5VD +5VD +5VA +5VD +15VAB -15VAB +15VAB -15VAB +15VA -15VA +15VAB -15VAB -15VAB +5VA +15VAB -15VAB +15VAB -15VAB +15VA -15VA +15VAC -15VAC +15VAC -15VAC +15VAC -15VAC +5VA +5VD +5VD +5VA +5VA +5VD +15VAC -15VAC +15VAC -15VAC +5VD +5VD -5VD 5VD _RSTDA2 _RSTDA1 FS96 FS96 FS96 RSTDA1 RSTDA1 MCLK CWDA MCLK SFMT SFMT LRDA SRDA MCLK SFMT RSTDA1 SFMT RSTDA1 ZLMT ZRMT ZCMT ZWMT FS96 FS96 ZLSMT ZRSMT SFMT ZLMT ZRMT ZCMT ZWMT ZLSMT ZRSMT DSPMUTE SMUTE SFMT ERMUTE DSPMUTE SMUTE FS96 ADDATA MCLK LRDA SRDA CWDA ADDATA ERMUTE ABCLK AMCLK ABCLK AWCLK AMCLK SDBCK SDWCK SDBCK SDWCK SDWCK SDBCK SDWCK SDBCK AWCLK _ATT3 _ATT3 DEEMP DEEMP DEEMP _RSTDA2 _RSTDA1 _RSTDA2 RDA RDD 6 1 2 3 4 5 6 7 8 9 10 ERMUTE C SW LS RS GNDA GNDA GNDA GNDA GNDA A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A3 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 A6 D D D D D D D D D D D D D D D D D D D D D A A A 1 2 3 6 5 7 2 3 4 1 8 8 7 4 5 6 2 3 8 4 1 6 5 7 2 3 1 6 8 7 4 5 3 2 5 6 7 3 2 1 5 6 7 5 6 7 3 4 8 1 2 1 4 8 3 2 7 5 6 6 5 7 4 8 2 3 1 1 8 2 3 4 6 5 7 1 8 4 3 2 1 8 4 2 3 3 7 6 5 7 6 5 1 4 8 2 3 5 6 7 5 6 7 8 4 1 A6 A6 A6 1 2 3 4 5 7 8 9 10 11 1 2 3 GND VCC SUBWOOFER CENTER RIGHT LEFT SURR. LEFT / RIGHT +5VD +5VA A DAC BLOCK ADC BLOCK TO JY67 (PY64) M06-CONNECT P604-2/2 (M08) +15VD L OUT(LT) R OUT(RT) +3.3V -15VD -5VD GNDD FL FR TO JC02 (P104) TO DSP BLOCK FROM DSP BLOCK FROM SURR CPU M03-VOLUME TO DSP BLOCK SDWCK=FS SDBCK=64FS MCLK=256FS AWCLK=48K ABCLK=3.07M AMCLK=12.288M 8 4 8 4 A A FRONT CENT / SUBW. SOURCE LEFT / RIGHT 33 34 5 3 7 11 20 12 13 14 15 16 17 18 19 SWITCHED UN SWITCHED 2 3 1 NJM7805FA +5V 2 3 1 NJM7805FA +5V 2 3 1 NJM7905FA -5V 2 3 1 NJM7915FA -15V 2 3 1 NJM7915FA -15V 2 1 3 S-806D 1 2 1 2 1 2 3 4 5 6 7 8 9 10 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 1 2 3 4 5 +3.3V +5VD +5VA -5V +5VL POWER GND +15VA -24V -15VA -15VD +15VD P-DOWN 1 2 3 4 5 6 7 8 9 10 11 12 13 2 3 1 NJM7806FA +6V JB07 RB01 CB01 SB71 CB71 L001 DB01 W001 WB01 JB71 J801 C801 C802 C803 C804 C807 C808 C809 C810 C811 C829 D803 D809 R803 L801 L802 L803 C812 JB01 JB02 JB06 JB05 LB02 LB01 JB04 C822 C823 C827 C826 D813 D814 D815 Q812 C842 C838 C840 C845 C844 D817 D819 D821 D822 D820 D823 D824 C850 J802 J803 D804 C821 C820 C813 C819 C816 C817 D828 Q808 Q807 C828 C830 D810 C831 D825 C832 C833 D826 D827 C836 C837 C834 C835 D812 D811 R809 J804 JB52 JB51 WB03 WB02 Q809 D802 C847 Q815 R807 R816 Q805 Q806 R819 R820 R821 JB03 JB08 JB09 J807 J808 J809 Q871 Q881 Q891 J871 D871 J881 D881 J891 D891 C853 R813 R814 R815 R818 R804 R805 R806 R817 C818 C805 D830 D831 C848 C849 D829 C856 D808 C854 C855 Q811 Q810 Q814 Q813 C815 R825 R824 R823 R822 Q816 Q817 D833 FB52 FB51 C806 C824 C825 C839 C843 R811 R812 Q804 R801 R802 C814 C841 C846 C851 C857 C858 D801 D832 D834 J001 R810 FB55 FB56 FB53 FB54 FB02 D818 D816 2.2M 1/2W 0.01 0.01 TRANSF. 1D3 0.01 0.01 0.01 0.01 0.01 0.01 0.01 100/16V 100/16V 0.01 3.9V 1D3 100 1/4W 10/50V * * VS24MB-NR 0.01 0.01 0.01 0.01 1D3 1D3 1D3 2SC3419 0.01 0.01 0.01 0.01 0.01 1D3 1D3 1D3 1D3 1D3 33V 8.2V 47/35V 1D3 100/16V 100/16V 0.01 0.01 0.01 0.01 1D3 10/50V 10/50V 1D3 0.01 1D3 0.01 10/50V 1D3 1D3 10/50V 0.01 10/50V 0.01 1D3 1D3 1 1/4W 2SC4793 D3SB-20 470/35V 10k 10k 2SD1415 2SD1415 1k 1k 10k 1D3 1D3 1D3 0.1 47 1/4W 6.8k 6.8k 6.8k 68k 68k 68k 68k 47/16V 13000/16V 1D3 1D3 470/63V 10/50V 1D3 220/35V 0.01 0.01 2SC3419 2SC3419 L780S15 2SC536 SP/ETC 2.2/50V U:150 K, N, S: 180 1/2W 1/2W 1/2W 150 1/2W DTA114ES DTC114ES 1D3 T2.0A 250V T2.0A 250V 2200/25V 4700/35V 4700/35V 10/50V 10/50V 100 1/4W 100 1/4W 0 0 47/16V 10/50V 100/50V 0.1 0.01 0.01 D5SB-20 ISS133/ETC 1D3 1.2k/1W T500MA U:125V K, N, S:250V T500MA U:125V K, N, S:250V T1.6A U:125V K, N, S:250V T1.6A U:125V K, N, S:250V U:800MA,250V K, N, S: T400MA,250V U:150 K, N, S:180 U:150 K, N, S:180 U ONLY U ONLY K, N, S K, N, S +5VL (RBU) PRIMARY BLOCK PB74 (RSW) (RPS) 15V-AC 15V-AC 22V-AC 10V-AC 10V-AC 5V-AC 5V-AC AC.OUTLETS 22V-AC 0 0 PB54 U ONLY U: AC120V 60Hz S: AC230V 50Hz K: AC220V 50Hz P804 TO PY64(JY72) W801 W802 P874 P884 P894 1 2 3 4 5 6 REL.MUT +24V FIL FIL VKK GND 1 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 +10V (RFT) -14.0V +10.8V +21.5V -24.0 +25.0V 0V 0V 0V 16.5V 16.5V 16.5V 25.0V -25.0V -43.0V 6.0V -33.0V -23.5V -23.5V 25.0V N: AC230V 50Hz (M06) (M05) (M05) (M05) (M05) (M05) U-ONLY POWER SW. 35 36 + + + + + + POWER + GND +15VA REL + + + + + + + + + + + + + + + + + + + + + + + + + + + FB02 T800mA 250V -24V P804 WA312J601-0 D801 4 2 1 3 5 +3.3V +5VA +5VD -5V +5VL P-DOWN +15VD E B C -15VD -15VA VKK +24V F F GND E C B - + JB04 D827 D826 U101 C814 C817 R807 U314 U107 U106 D823 C856 U602 U601 U509 U508 U507 U506 U505 U504 U503 U502 U501 U401 U310 U309 U308 U307 U306 U305 U304 U303 U302 U301 U205 U204 U203 U202 U201 U105 U104 U103 U102 D833 C830 C828 R811 R812 C847 C846 D829 D832 D808 R825 R824 R823 R822 Q810 R804 C838 R815 C841 R805 C840 R818 D834 C858 C857 C855 C854 L801 R814 C833 C809 C813 C811 C821 R816 C804 C803 C808 R813 R820 R819 R817 C832 R806 C842 C839 C843 C818 R809 R803 Q813 Q804 J804 J803 J802 D825 D824 D822 D821 D820 D819 D818 D817 D816 D815 D814 D813 D812 D811 D810 D809 C829 D804 D803 C850 C849 C845 C844 Q812 C836 C837 C835 C834 C831 C827 C826 C820 C819 C812 C810 J808 J809 J807 C807 DB01 C805 C853 R821 C815 Q817 Q816 C816 Q815 Q811 D831 D830 C823 C822 C802 C801 L803 L802 Q814 R810 C848 C825 C824 D828 C806 Q809 Q808 Q807 Q806 Q805 D802 J801 JB09 JB08 JB07 LB02 JB05 JB06 LB01 JB03 JB02 JB01 RB01 CB01 Q817 Q816 Q807 Q805 Q809 Q808 Q806 Q804 Q815 Q811 Q810 Q813 Q812 Q814 P804 P874 WA312J6050 D871 J871 Q871 P874 WA312J6060 P884 D881 J881 Q881 P884 WA312J6070 P894 D891 J891 Q891 P894 WA312J603-0 T2A 250V T1.6A 125V T500mA 125V 20 19 3 5 7 11 17 16 15 14 13 12 18 L001 PB54 U313 FB55 FB56 FB54 FB53 FB52 FB51 JB52 JB51 PB54 WA312J503-0 PB74 JB71 SU71 CB71 PB74 37 38 CY02 QY01 JY01 JY02 JY03 JY04 JY05 JY06 DY02 DY01 DY03 QY09 QY10 QY06 QY07 QY08 QY05 QY04 QY03 QY02 XY01 QY13 QY14 DY04 QY15 QY12 RY60 QY11 CY30 RY39 RY65 RY40 RY51 RY50 RY49 RY56 RY55 RY53 CY12 CY13 CY14 CY15 CY16 RY48 RY47 RY37 RY36 RY54 RY35 RY34 RY33 RY32 RY24 RY25 CY09 RY52 RY14 RY15 RY66 RY17 RY19 RY21 RY23 RY22 RY20 RY16 RY18 RY27 RY28 RY29 RY30 RY31 CY10 CY11 RY07 RY08 RY38 RY58 RY64 RY57 RY59 RY68 RY05 RY04 RY02 RY03 RY06 RY09 RY10 CY04 CY05 CY06 RY12 RY11 CY07 RY42 CY08 RY13 RY41 RY69 RY46 CY01 RY01 RY43 RY44 RY45 CY25 CY26 CY27 CY28 CY24 CY23 CY22 CY21 CY20 CY19 CY18 CY17 RY70 RY67 FL FL +5VD STB DI-FL KEY1 KEY2 KEY3 KEY4 +5VB LEFT RIGHT 1 11 IR VOL-UP VOL-DOWN DATA0 CLK0 CE5 CLR GND GND +5VL VKK 1 9 GND GND DO DI RST CLK REQ ACK MUT GND UP DOWN FL CE0 CE7 CE3 RDS-DI CE6 TU-DI TU-SD CE2 LRG/SML RC-5 P-DOWN DATA0 S-DET2 CLK0 H.P. S-DET1 OSD2 POWER TU-CE RELAY TU-CLK MULTI TU-DO POW-DET +5VL GND 1 12 + PY04 +5VD 24V-DET 1 4 RST G 5VB K4 K3 K2 K1 G G 5VC 5VC G 5VA 5VA 5VC 5VA 5VA 5VD 1 2 5 15 20 25 30 33 5VA G CE1 10 5VL 5VB 5VL 5VL 5VD VKK 5VA 5VC 5 MLT-RC-OUT WG312J1010 OSD1 FL + QY12 QY11 QY03 - QY06 QY07 QY08 QY01 QY13 - QY15 QY09 QY10 PY04 CL80 CL79 CL82 CL81 CL88 CL84 JL76 CL83 JL77 QL75 JL75 CL91 CL92 CL93 CL94 CL95 CL96 CL97 CL98 RL94 RL85 RL86 RL87 RL93 RL92 RL89 RL88 RL91 RL90 RL75 RL77 CL75 CL76 RL76 CL78 RL80 RL82 CL77 RL79 RL81 CL89 RL83 RL84 CL90 RL78 L R PL74 WL75 GND C Y GND CV -15V GND 1 + + + + + + WG312J102-0 GND VB +15 + QL75 PL74 JW01 JW02 CW01 CW02 CW03 CW04 GND R 4 9 3 8 2 7 1 L WW01 MODE PW04 WG312J5030 PW04 Pin Description No Port Name I/O USE Sig. Name Act. Description 1 VREFL I - - - A/D VREFL. 2 AVSS I - - - A/D VSS 3 AVCC I - - - A/D VCC 4 NMI I NMI - - Pull Up 5 P70/TI0 I/O O POWER OFF L 6 P71/TO1 I/O O KILL IR H 7 P72/TO2 I/O O RC-5 OUT H 8 P73/TO3 I/O O SPEAKER OFF H SPK RELAY 9 P80/INT4/ I/O I RC-5 IN H Both Edge 10 P81/INT5/ I/O I SYNC0 H Rising Edge 11 P82/TO4 I/O I HEAD PHONE L 12 P83/TO5 I/O I - - 13 P84/INT6/ I/O I SURR. ACK L Both Edge 14 P85/INT7/ I/O I SYNC1 H Rising Edge 15 P86/TO6 I/O I MULTI RC-5 IN L 16 P87/INT0 I/O I POWER DOWN L 17 P90/TXD0 I/O TXD DO0 - I/F to SURR. uP 18 P91/RXD0 I/O RXD DI0 - I/F to SURR. uP 19 P92/SCLK0 I/O SCLK CLK0 - I/F to SURR. uP 20 P93/TXD1 I/O TXD DO1 - I/F to ICs 21 P94/RXD1 I/O RXD DI1 - I/F to ICs 22 P95/SCLK1 I/O SCLK CLK1 - I/F to ICs 23 AM8/_16 I - - - Pull Up 24 CLK O - - - Pull Up 25 VCC I - - - Pull Up 26 VSS I - - - to VSS 27 X1 I - - - 20MHz 28 X2 O - - - 20MHz 29 EA I - - - Pull Up 30 RESET I - - - 31 P96/XT1 I/O I - - to VSS 32 P97/XT2 I/O I - - to VSS 33 TEST1 I - - - to TEST2 34 TEST2 I - - - to TEST1 35 PA0 I/O O OSD ON0 H 36 PA1 I/O O OSD ON1 H 37 PA2 I/O O CLR LED L NJU3718 CLR 38 PA3 I/O O MULTI RC-5 OUT H 39 PA4 I/O O LARGE/SMALL L LARGE = L 40 PA5 I/O O SMUTE H Act.: Active level Fixed No Port Name I/O USE Sig. Name Act. Description 41 PA6 I/O O SURR. RESET L 42 PA7/SCOUT I/O O SURR. REQ. L I/F to SURR. uP 43 ALE O - - - Pull Up 44 VCC I - - - to VCC 45 P00 I/O O CE(TUNER) H 46 P01 I/O O CLK(TUNER) - 47 P02 I/O O DO(TUNER) - 48 P03 I/O I DI(TUNER) - 49 P04 I/O I SD(TUNER) L 50 P05 I/O I DI(RDS) - 51 P06 I/O O - - 52 P07 I/O O - - 53 P10 I/O O - - 54 P11 I/O O - - 55 P12 I/O O - - 56 P13 I/O O - - 57 P14 I/O O - - 58 P15 I/O O - - 59 P16 I/O O - - 60 P17 I/O O - - 61 WDTOUT O - - - N.C 62 VSS I - - - to VSS 63 VCC I - - - to VCC 64 P20 I/O I FUNC. ENC. A - 65 P21 I/O I FUNC. ENC. B - 66 P22 I/O I VOL. ENC. A - 67 P23 I/O I VOL. ENC. B - 68 P24 I/O I GYRO A - 69 P25 I/O I GYRO B - 70 P26 I/O I - - to VSS 71 P27 I/O I - - to VSS 72 P30 I/O O CE0(AUDIO) H 73 P31 I/O O CE1(VIDEO) L 74 P32 I/O O CE2(VOLUME) H 75 P33 I/O O CE3(MUTE) L 76 P34 I/O O CE4(LED) L 77 P35 I/O O CE5(FL) L 78 P36 I/O O CE6(OSD) L 79 P37 I/O O CE7(OSD2) L 80 P40 I/O O (RESERVED) - 18 AIN1 6 REFERENCE DIVIDER PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4blt 1 24 15 14 3 4 5 16 X IN XOUT FM IN 1 2 AM IN CE DI CL DO 12blt PROGRAMMABLE DIVIDER DATA SHIFT REGISTER LATCH 7 8 9 10 2 11 13 BO1 BO2 BO3 BO4 BO5 IO1 IO2 UNIVERSAL COUNTER 12 17 20 19 23 VSS AOUT1 PD2 PD1 LC72130 IFIN 21 AIN2 22 AOUT2 UNLOCK DETECTOR CCB I/F VDD POWER ON RESET 39 40 QY01:TMP93CW40DF Q501:LC72130 Q691:µµµµµPD78018 Pin Description No Port Name I/O USE Sig. Name Act. Description 1 P30/TO0 I/O I C0_E0 - DIR Status 2 P31/TO1 I/O I Ca_E1 - DIR Status 3 P32/TO2 I/O I Cb_E2 - DIR Status 4 P33/TI1 I/O I Cc_F0 - DIR Status 5 P34/TI2 I/O I Cd_F1 - DIR Status 6 P35/PCL I/O I Ce_F2 - DIR Status 7 P36/BUZ I/O O TEST_COM H For Check SIO0 Interface 8 P37 I/O I OLD_OVFB H keep in port for SR880MK2 9 Vss I - GND - GND 10 P40 I/O O ISEL1 - SPDIF input select 11 P41 I/O O ISEL2 - SPDIF input select 12 P42 I/O O CSEL1 - SPDIF output select 13 P43 I/O O CSEL2 - SPDIF output select 14 P44 I/O O KILLC H Kill SPDIF output 15 P45 I/O O ATRF H Auto RF select 16 P46 I/O O RFSEL H RF select 17 P47 I/O O DIG_ANA - Digital/ Analog select 18 P50 I/O O SMUTE H Soft mute by DAC 19 P51 I/O O _UMUTE L Hard mute by Tr. 20 P52 I/O O FS96 H Fs=96k set 21 P53 I/O O BYPASS H Bypass DSP 22 P54 I/O O _CS_DSP1 L I/F Q601 (main DSP) 23 P55 I/O O _CSB_DSP1 L I/F Q601 (sub DSP) 24 Vss I - GND - GND 25 P56 I/O O _SS_DSP2 L I/F Q651 26 P57 I/O O C_EF_DIR - DIR Status Out Select 27 P60 I/O O _RSTRF L Reset to PM4007 28 P61 I/O O ADCAL H Cal. to ADC 29 P62 I/O O _RSTDSP2 L Reset to Q651 30 P63 I/O O _ATT3 L Attenuate to Bypass 31 P64 I/O O _RSTDA1 L Reset to DAC 32 P65 I/O O _RSTDA2 L Reset to DAC Act. : Active level , OPT : Option No Port Name I/O USE Sig. Name Act. Description 33 P66/WAIT I/O O _IC L Reset to Q601 34 P67/ASTB I/O O RSTDIR H DIR Ch. Status Select 35 RESET I I RSTC L I/F Master CPU 36 P00/INTP0 I I OVFB - Over load to DSP 37 P01/INTP1 I/O I _REQ L I/F Master CPU 38 P02/INTP2 I/O I ERF H SPDIF Error status 39 P03/INTP3 I/O I _RFNODET L RF input status 40 Vdd I - +5V - +5v 41 X2 O - - 10MHz 42 X1 I - - 10MHz 43 IC I - - - to GND 44 XT2 O - n.c. - Open 45 P04/XT1 I - n.c. - Vdd 46 Avss I - GND - GND 47 P10/ANI0 I/O ANI KEY1 - Optional 8 key input 48 P11/ANI1 I/O ANI KEY2 - Optional 8 key input 49 P12/ANI2 I/O ANI KEY3 - Optional 8 key input 50 P13/AMI3 I/O ANI KEY4 - Optional 8 key input 51 P14/ANI4 I/O I SWITCH1 - Link Host or Stand alone 52 P15/ANI5 I/O I SWITCH2 - THX or Not 53 P16/ANI6 I/O I SWITCH3 - ADC or CODEC 54 P17/ANI7 I/O O PDAD - ADC Power Down 55 AVdd I - +5v - +5v 56 AVref I - +5v - +5v 57 P20/SI1 I/O I SI1 - I/F Master CPU 58 P21/SO1 I/O O SO1 - I/F Master CPU 59 P22/SCK1 I/O I SCK1 - I/F Master CPU 60 P23/STB I/O O _ACK L I/F Master CPU 61 P24/BUSY I/O O DEEMP - Pull Up 62 P25/SI0 I/O I SI0 - I/F Q601&Q651 63 P26/SO0 I/O O SO0 - I/F Q601&Q651 64 P27/SCK0 I/O O SCK0 - I/F Q601&Q651 VA+ FILT AGND MCK SDATA 11 SCK FSYNC 12 26 De-Multiplexer Audio Serial Port Confidence Flag CRC check RXP RXN VD+ DGND R e g i s t e r s Parity Check Frequency Comparator Error Encoder Channel Status Latch Ca/ E1 C0/ E0 Ce/ F2 Cd/ F1 Cc/ F0 Cb/ E2 Multiplexer Bi-phase Decoder and Frame Sync Timing M0 M1 M2 M3 C U VERF CBL ERF SEL CS12/ FCK 22 20 21 19 9 10 7 8 13 16 6 5 4 3 2 27 25 15 28 14 1 17 18 24 23 Clock & Data Recovery 3 3 6 6 1 2 3 4 5 6 7 8 9 10 11 12 28 27 26 25 24 23 22 21 20 19 18 17 13 14 16 15 C VERF Cd/F1 Ce/F2 CS d/FREQ REPORT 1 CS e/FREQ REPORT 2 Cc/F0 SDATA CS c/FREQ REPORT 0 SERIAL OUTPUT DATA Cb/E2 ERF CS b/ERROR CONDITION 2 ERROR FLAG Ca/E1 M1 CS a/ERROR CONDITION 1 SERIAL PORT MODE SELECT 1 C0/E0 M0 CS 0/ERROR CONDITION 0 SERIAL PORT MODE SELECT 0 VD+ VA+ DIGITAL POWER ANALOG POWER DGND AGND DIGITAL GROUND ANALOG GROUND RXP FILT RECEIVE POSITIVE FILTER RXN MCK RECEIVE NEGATIVE MASTER CLOCK FSYNC M2 FRAME SYNC SERIAL PORT MODE SELECT 2 SCK M3 SERIAL DATA CLOCK SERIAL PORT MODE SELECT 3 CS12/FCK SEL CHANNEL SELECT/FCLOCK FREQ/CS SELECT U CBL QR01:CS8414 5. IC DATA QD01/QD03/QD41/QD43:AD1855 QL07/QU02:NJU3718 CPIN CMIN DOUT DOUTB PDDIS 46.08MHz Phase comparator 1/2048 divider 1/2 46.08MHz oscillator 9KHz 9.216KHz PDO VI VO RESET OSCON C9M MUTI DAIN DAOUT Serial data stream output MUTO C1F0 C1F1 C2F0 C2F1 WEB OEB DB(7:0) A (14:0) SRAM Address S/P Error correction SW DAI control Timing Demoduration SYNC Detection- Safeguard 32K x 8 VCXO 18.432 MHz LPF QPSK input QM09:PM4007A No. Name I/O Function 51 DB0 B RAM D0 52 VDD - +5VD 53 GND - GND 54 TI1 I TEST 55 VIN I VCXO input 56 VOUT O VCXO output 57 TI2 I TEST 58 TI3 I TEST 59 TLDB I TEST 60 TCK I TEST 61 TRP O TEST 62 TDO O TEST 63 PDO O Phase comparator output (3-state) 64 TI4 I TEST 65 PDDIS I Control input for PDO out At “L” Output ON 66 MUTO O Muting output. Mutes at “H”. Sets to “H” when MUTI = H or the AC-3 period cnanot be received. 67 TI5 I TEST 68 VLDY O TEST 69 DASYO O TEST 70 DAOUT O Digital OUT (serial data stream output) 71 DAIN I Digital external input : Sets to DAOUT when DASEL is at “H” 72 DASEL I Selects digital OUT 73 TI8 I TEST 74 C2F1 O N.C. 75 C2F0 O N.C. 76 C1F1 O N.C. 77 C1F0 O Displays C1 correction error status. Outputs error count at C1. 78 MUTI I Muting input. Mutes at “H”. 79 VDD - +5VD 80 GND - GND 81 AVDD 1 +5VD 82 CPIN I Analog converter inverted input 83 CMIN I Analog converter inverted input 84 AGND - GND 85 TM4 I TEST 86 VDD - +5VD 87 DIN I TEST 88 DOUT O Analog converter inverted output 89 DOUTB O Analog converter inverted reverse output 90 C9M O N.C. 91 GND - GND 92 WINGT O TEST 93 SYST0 O TEST 94 SYST1 O TEST 95 ADST0 O TEST 96 ADST1 O TEST 97 TM5 I TEST 98 BUNRI I TEST 99 AGND - GND 100 AVDD - +5VD No. Name I/O Function 1 GND - GND 2 VDD - +5VD 3 RESET I System Reset At “L” reset 4 OSCON I Oscillator control At”H” during normal operation At “L” during standby 5 DATA I TEST 6 MCK I TEST 7 MLTB I TEST 8 IDST O TEST 9 IDCK O TEST 10 IDO O TEST 11 TM0 I TEST 12 ECCK O TEST 13 DEN O TEST 14 DRY O TEST 15 MSYC O TEST 16 TM1 I TEST 17 A0 O RAM A0 18 A1 O RAM A1 19 A2 O RAM A2 20 A3 O RAM A3 21 A4 O RAM A4 22 A5 O RAM A5 23 TM2 I TEST 24 TM3 I TEST 25 XOUT O TEST 26 XIN I TEST 27 XEXT I TEST 28 GND - GND 29 VDD - +5VD 30 A6 O RAM A6 31 A7 O RAM A7 32 GND - GND 33 VDD - +5VD 34 A12 O RAM A12 35 A14 O RAM A14 36 WEB O RAM WEB 37 A13 O RAM A13 38 A8 O RAM A8 39 A9 O RAM A9 40 GND - GND 41 A11 O RAM A11 42 OEB O RAM OE 43 A10 O RAM A10 44 DB7 B RAM D7 45 DB6 B RAM D6 46 DB5 B RAM D5 47 DB4 B RAM D4 48 DB3 B RAM D3 49 DB2 B RAM D2 50 DB1 B RAM D1 41 42 Pin Input/Output Pin Name Description 1 I DGND Digital Ground. 2 I MCLK Master Clock Input. Connect to an external clock source at either 256, 384 or 512 FS . 3 I CLATCH Latch input for control data. This input is rising-edge sensitive. 4 I CCLK Control clock input for control data. Control input data must be valid on the rising edge of CCLK. CCLK may be continuous or gated. 5 I CDATA Serial control input, MSB first, containing 16 bits of unsigned data per channel. Used for specifying channel specific attenuation and mute. 6 I 384/256 Selects the master clock mode as either 384 times the intended sample fre- quency (HI) or 256 times the intended sample frequency (LO). The state of this input should be hardwired to logic HI or logic LO, or may be changed while the AD1855 is in power-down/reset. It must not be changed while the AD1855 is operational. 7 I X2MCLK Selects internal clock doubler (LO) or internal clock = MCLK (HI). 8 O ZEROR Right Channel Zero Flag Output. This pin goes HI when Right Channel has no signal input for more than 1024 LR Clock Cycles. 9 I DEEMP De-Emphasis. Digital de-emphasis is enabled when this input signal is HI. This is used to impose a 50 ms/15 ms response characteristic on the output audio spectrum at an assumed 44.1 kHz sample rate. 10 I 96/48 Selects 48 kHz (LO) or 96 kHz Sample Frequency Control. 11, 15 I AGND Analog Ground. 12 O OUTR+ Right Channel Positive line level analog output. 13 O OUTRÐ Right Channel Negative line level analog output. 14 O FILTR Voltage Reference Filter Capacitor Connection. Bypass and decouple the voltage reference with parallel 10 m F and 0.1 mF capacitors to the AGND. 16 O OUTLÐ Left Channel Negative line level analog output. 17 O OUTL+ Left Channel Positive line level analog output. 18 I AVDD Analog Power Supply. Connect to analog +5 V supply. 19 O FILTB Filter Capacitor connection, connect 10 mF capacitor to AGND. 20 I IDPM1 Input serial data port mode control one. With IDPM0, defines one of four serial modes. 21 I IDPM0 Input serial data port mode control zero. With IDPM1, defines one of four serial modes. 22 O ZEROL Left Channel Zero Flag output. This pin goes HI when Left Channel has no signal input for more than 1024 LR Clock Cycles. 23 I MUTE Mute. Assert HI to mute both stereo analog outputs. Deassert LO for nor- mal operation. 24 I PD/RST Power-Down/Reset. The AD1855 is placed in a low power consumption mode when this pin is held LO. The AD1855 is reset on the rising edge of this signal. The serial control port registers are reset to the default values. Connect HI for normal operation. 25 I L/RCLK Left/Right clock input for input data. Must run continuously. 26 I BCLK Bit clock input for input data. Need not run continuously; may be gated or used in a burst fashion. 27 I SDATA Serial input, MSB first, containing two channels of 16, 18, 20, and 24 bits of twos complement data per channel. 28 I DVDD Digital Power Supply Connect to digital +5 V supply. TOP VIEW (Not to Scale) 28 27 26 25 24 23 22 21 20 19 18 17 16 15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 AD1855 FILTR OUTRÐ OUTR+ AGND 96/48 DEEMP ZEROR DGND MCLK CLATCH CCLK X2MCLK 384/256 CDATA AGND OUTLÐ OUTL+ AVDD FILTB IDPM1 IDPM0 DVDD SDATA BCLK L/RCLK ZEROL MUTE PD/RST P9 P10 P11 P12 6 7 8 9 14 P1 DATA CLK VSS VDD STB CLR P2 P3 P4 P5 P6 P7 P8 18 12 13 15 16 17 1 2 3 4 10 11 5 CONTROL CIRCUIT SHIFT REGISTER LATCH CIRCUIT NJU3713 19 P1 DATA CLK VSS VDD STB CLR P2 P3 P4 P5 P6 P19 P20 28 17 18 20 22 23 24 25 26 P7 P8 P9 P10 P11 P12 27 1 P13 P14 P15 P16 5 6 8 9 10 P17 P18 11 2 3 4 12 13 SO 14 15 16 21 CONTROL CIRCUIT SHIFT REGISTER LATCH CIRCUIT NJU3718 QA51:MC13022 QV01:NJU3713 Q351:LC72720 ATTEN/ MUTE ATTEN/ MUTE SERIAL DATA INTERFACE 83 INTERPOLATOR MULTIBIT SIGMA- DELTA MODULATOR SERIAL CONTROL INTERFACE CLOCK CIRCUIT OUTPUT BUFFER OUTPUT BUFFER DAC DAC MULTIBIT SIGMA- DELTA MODULATOR VOLTAGE REFERENCE VOLUME MUTE CONTROL DATA INPUT 3 2 DIGITAL SUPPLY CLOCK IN 96/48FS CLOCK ANALOG OUTPUTS 2 2 ZERO FLAG ANALOG SUPPLY DE-EMPHASIS MUTE PD/RST 2 SERIAL MODE 16-/18-/20-/24-BIT DIGITAL DATA INPUT AD1855 83 INTERPOLATOR 3 384/256 X2MCLK QL21,QL74:LC74781 Q601:YSS912 CPO XO XI SDOB0 SDOB1 SDOB2 SDWCK1 SDBCK1 OPORT0 7 IPORT0 7 SO SI SCK /CS OVFB RAMA0 16 RAMOEN RAMWEN RAMCEN RAMD0 7 SDIB2 SDIB1 SDIB0 SDOA2 SDOA1 SDOA0 Delay RAM SDIASEL SDIA1 SDIA0 SDWCK0 SDBCK0 /SDBCK0 /CSB SCK SI SDOACKSEL SDIBCKSEL SDOBCKSEL Operating clock (30MHz) CRC ERAMUSE SDOB Interface 24 * 16 Sub DSP SDIB Interface SDOA Interface SDIBSEL SDIA Interface 24 * 24 Main DSP AC-3/Pro Logic/DTS Data RAM ExternalRAM Interface Coefficient / Program RAM STREAM 0 7 PLL L, R LS, RS C, LFE SDOB3 SDIB3 SURENC KARAOKE MUTE CRC AC3DATA DTSDATA NONPCM Input Buffer Decoder Microprocessor Interface Control Registers Control signals Control signals No. NAME I/O FUNCTION 1 VDD1 - +5V power supply (for I/Os) 2 RAMCEN O External SRAM Interface /CE 3 RAMA16 O External SRAM Interface address 16 4 RAMA15 O External SRAM Interface address 15 5 SDIB0 I+ PCM input 0 to Sub DSP 6 SDIB1 I+ PCM input 1 to Sub DSP 7 SDIB2 I+ PCM input 2 to Sub DSP 8 XI I Crystal oscillator connection or input external clock (12.288 MHz) 9 XO o Crystal oscillator connection 10 VSS - Ground 11 AVDD - +3.3V power supply (for PLL circuit) 12 SDIB3 I+ PCM input 3 to Sub DSP 13 TEST Test terminal (to be open in normal use) 14 TEST Test terminal (to be open in normal use) 15 OVFB O Detection of overflow at Sub DSP 16 DTSDATA O DTS data detection (Refer to "Status Register".) 17 AC3DATA O AC-3 data detection (Refer to "Status Register" .) 18 SDOB3 O PCM output from Sub DSP 19 CPO A Output terminal for PLL, to be connected to ground through the external analog filter circuit. (Refer to "External Circuit for PLL" .) 20 AVSS - Ground (for PLL circuit) 21 VDD2 - +3.3V power supply (for core logic) 22 SDOA2 o PCM output from Main DSP (C, LFE) 23 SDOA1 O PCM output from Main DSP (LS, RS) 24 SDOA0 O PCM output from Main DSP (L, R) 25 RAMA14 O External SRAM Interface address 14 26 RAMA13 O External SRAM Interface address 13 27 RAMA12 O External SRAM Interface address 12 28 RAMA11 O External SRAM Interface address 11 29 RAMA10 O External SRAM Interface address 10 30 VSS - Ground 31 VDD1 - +5V power supply (for I/Os) 32 OPORT0 O Output port for general purpose. (Refer to " OPORT Register") 33 OPORT1 O Output port for general purpose. (Refer to " OPORT Register") 34 OPORT2 O Output port for general purpose. (Refer to " OPORT Register") 35 OPORT3 O Output port for general purpose. (Refer to " OPORT Register") 36 OPORT4 O Output port for general purpose. (Refer to " OPORT Register") 37 OPORT5 O Output port for general purpose. (Refer to " OPORT Register") 38 OPORT6 O Output port for general purpose. (Refer to " OPORT Register") 39 OPORT7 O Output port for general purpose. (Refer to " OPORT Register") 40 VSS - Ground 41 VDD2 - +3.3V power supply (for core logic) 42 RAMA9 O External SRAM interface address 9 43 RAMA8 O External SRAM interface address 8 44 RAMA7 O External SRAM interface address 7 45 SDOB2 O PCM output from Sub DSP 46 SDOB1 O PCM output from Sub DSP 47 SDOB0 O PCM output from Sub DSP 48 SDBCK1 I+ Bit clock input for SDOA, SDIB, SDOB. (Refer to " SDOA, SDIB, SDOB Register") 49 SDWCK1 I+ Word clock input for SDOA, SDIB, SDOB. (Refer to " SDOA, SDIB, SDOB Register") 50 VSS - Ground No. NAME I/O FUNCTION 51 VDD2 - +3.3V power supply (for core logic) 52 NONPCM O Detection of non PCM data. (Refer to " Status Register") 53 CRC O Detection of AC-3 CRC error. (Refer to " Status Register") 54 MUTE O Detection of auto-mute. (Refer to " Status Register") 55 KARAOKE O Detection of AC-3 karaoke data. (Refer to " Status Register") 56 SURENC O Detection of AC-3 2/0 mode Dolby surround encoded input (Refer to " Status Register") 57 /SDBCK0 O Inverted SDBCKO clock output (refer to " Block diagram") 58 RAMA6 O External SRAM Interface address 6 59 RAMA5 O External SRAM Interface address 5 60 VSS - Ground 61 RAMA4 O External SRAM Interface address 4 62 /lC Is Initial clear 63 TEST Test terminal (to be open in normal use) 64 RAMA3 O External SRAM Interface address 3 65 /CSB Is+ Sub DSP Chip select 66 /CS Is Microprocessor interface Chip select 67 SO Ot Microprocessor interface Serial data output 68 SI Is Microprocessor interface/Sub DSP Serial data input 69 SCK Is Microprocessor interface/Sub DSP clock input 70 RAMA2 O External SRAM Interface address 2 71 VDD1 - +5V power supply (for I/Os) 72 RAMD0 I+/O External SRAM Interface data (STREAM 0 output when External SRAM is not in use) 73 RAMD1 I+/O External SRAM Interface data (STREAM 1 output when External SRAM is not in use) 74 RAMD2 I+/O External SRAM Interface data (STREAM 2 output when External SRAM is not in use) 75 RAMD3 I+/O External SRAM Interface data (STREAM 3 output when External SRAM is not in use) 76 RAMD4 I+/O External SRAM Interface data (STREAM 4 output when External SRAM is not in use) 77 RAMD5 I+/O External SRAM Interface data (STREAM 5 output when External SRAM is not in use) 78 RAMD6 I+/O External SRAM Interface data (STREAM 6 output when External SRAM is not in use) 79 RAMD7 I+/O External SRAM Interface data (STREAM 7 output when External SRAM is not in use) 80 VSS - Ground 81 VDD2 - +3.3V power supply (for core logic) 82 SDWCK0 I Word clock input for SDIA, SDOA, SDIB, SDOB (Refer to " SDIA, SDOA, SDIB, SDOB Register") 83 SDBCK0 I Bit clock input for SDIA SDOA SDIB SDOB (Refer to " SDIA, SDOA, SDIB, SDOB Register") 84 SDIA0 I AC-3/DTS bitstream (or PCM) data input for Main DSP (Refer to " SDIA Register") 85 SDIA1 I AC-3/DTS bitstream (or PCM) data input for Main DSP (Refer to " SDIA Register") 86 RAMA1 O External SRAM Interface address 1 87 RAMA0 O External SRAM Interface address 0 88 RAMWEN O External SRAM Interface /WE 89 RAMOEN O External SRAM Interface /OE 90 VSS - Ground 91 VDD2 - +3.3V power supply (for core logic) 92 IPORT7 I+ Input port for general purpose (Refer to " IPORT Register") 93 IPORT6 I+ Input port for general purpose (Refer to " IPORT Register") 94 IPORT5 I+ Input port for general purpose (Refer to " IPORT Register") 95 IPORT4 I+ Input port for general purpose (Refer to " IPORT Register") 96 IPORT3 I+ Input port for general purpose (Refer to " IPORT Register") 97 IPORT2 I+ Input port for general purpose (Refer to " IPORT Register") 98 IPORT1 I+ Input port for general purpose (Refer to " IPORT Register") 99 IPORT0 I+ Input port for general purpose (Refer to " IPORT Register") 100 VSS Ground Note ) Is : Schmidt trigger input terminal I+ : Input terminal with a pull-up resistor O : Digital output terminal Ot : Tri-state digital output terminal A : Analog terminal 43 44 Functional Block Diagram Left/Right Left Surround/ Right Surround Xtal Center/ Subwoofer S/PDIF Input Data A E F Address Test Control General Purpose I/O Ports Host Parallel Port Serial Output Ports Serial Input Ports G B C D 4 16 20 Serial Host Interface Internal Program/ Data ROM 16k x 32 Internal Program RAM 1k x 32 Internal Data RAM 9k x 20 4 Serial Audio Inputs S/PDIF Receiver Parallel Host Interface Input FIFO 8 x 9 S/PDIF Transmitter Serial Audio Outputs Memory Interface ICE Interface System Oscillator & DSP PLL Audio PLL GPIO ZR38001 DSP Core 6 Left/Right (S/PDIF) 4 A0 GND SS TMS INT VDD D14/RDY GND A1 A2 A3 VDD D13/ C/D MUTE/GPIO5 D12/ERR A4 VDD GPIO4 GND A5 A6 D11/PP7 GPIO3 A7 A8 D10/PP6 A9 A10 GND VDD A11 D9/PP5 D8/PP4 SO VDD GND A12 TDO A13 D7/PP3 D6/PP2 A14 GND VDD A15 D5/PP1 D4/PP0 A16 RD GND SDB SDC GND A19 A18 A17 D18 D19 CLKOUT GND VDDA FLTCAP GNDA VDD SCKIN GND XTI XTO P/M SPFRX BYPASS VDD DREQ/GPIO0 ERROR/GPIO1 GPIO2 VDD SDD GND CS WR D15 SDG/SPFTX D16 SCKB D17 WSB/FSB SDF VDD WSA/FSA SCKA GND SI TDI SCK TCK SDE VDD SDA RESET VDD Pin 1 index mark, notched corner, or both ZR38600 (TOP VIEW) 1 30 51 80 100 31 50 81 20 A0-7, I0-7, M0-7, SP Address Register File 3 x 8 x 20 1 x 20 AALU 20 20 20 A I M 20 20 Data Bus 32 Program Data Bus DBX 12 20 Mux 20 Data Address Bus 14 Program Address Bus 20 Mux Loop Start Stack Program Counter Increment 32 Mode Register Z Register Clock PLLs & Oscillators Reset External Interrupt Xtal RESET INT 2 D0-D1 D2-D7 Data Register File 2 x 48 6 x 20 Multiplier 20 x 20 Shifter Mux DS 48 2 Data Shifter 20 MS 1 48 20 48 Status ALU Barrel Shifter 48 Mux 2 x 48 SD 1 48 48 Input Control Output Control 2 3 20 Mux Instruction Unit Program Sequence Unit Address Generation Unit Memory System Interfaces Arithmetic Unit Input/Output Ports Detailed Block Diagram 20 20 Demux 32 14 10 Mux ICE I/F 4 Test Serial Host I/F 4 Host GPIOC[5:0] 15 32 Data Control 4 Parallel Port Interrupt Mask 12 Mux 42 48 Adder 48 20 Instruction Register Repeat Count Loop Count Stack Compare Loop End Stack SDE SRG GPIO[5:0] E Input F Input G Output/ Serial Ports A Input B Output C Output D Output GPIO[5:0] SDA SDB SDC General Purpose Ports 16 Data 20 Addr Program/Data ROM 16k x 32 Data RAM 9k x 20 Program/Data RAM 1k x 32 S/PDIF Receiver S/PDIF Input SDD SRA SRB SRC SRD SRE SRF SDF SDG Memory Control Interface Port Control Parallel Data FIFO 8 x 9 9 2 S/PDIF Transmitter S/PDIF Output CRC Logic 18 Control 3 Clocks & Control Voltage Reference Serial Output Interface Digital Filter High Pass Filter High Pass Filter Decimation Digital Filter Decimation LP Filter DAC - + - + S/H LP Filter DAC - + - + S/H AINR+ VA SCLK SDATA MCLKD PDN 14 16 20 19 24 27 VCOM 2 MCLKA 7 LRCK 13 ADCTL 6 LGND 22 TSTO1 8 AINR- 26 Comparator Comparator AINL+ 4 AINL- 5 VREF 1 DFS 18 S/M 17 AGND 3 AGND 25 AGND 28 23 VL TSTO2 21 VD 11 DGND 12 Calibration Microcontroller CAL 10 DACTL 9 DGND 15 45 46 QK01:CS5394 Q651:ZR38600 Power Supply Connections VA - Analog Power, Pin 24. Positive analog supply. Nominally +5 volts. VL - Logic Power, Pin 23. Positive logic supply for the analog section. Nominally +5 volts. AGND - Analog Ground, Pins 3, 25, and 28. Analog ground reference. LGND - Logic Ground, Pin 22. Ground reference for the logic portions of the analog section. VD - Digital Power, Pin 11. Positive supply for the digital section. Nominally +5 volts. DGND - Digital Ground, Pins 12 and 15. Digital ground reference for the digital section. Analog Inputs AINR-, AINR+ - Differential Right Channel Analog Inputs, Pins 26 and 27. Analog input connections for the right channel differential inputs. Nominally 4.0 Vpp differential for full-scale digital output. AINL-, AINL+ - Differential Left Channel Analog Inputs, Pins 4 and 5. Analog input connections for the left channel differential inputs. Nominally 4.0 Vpp differential for full-scale digital output. Analog Outputs VCOM - Common Mode Voltage Output, Pin 2. Nominally +2.5 volts. Requires a 10 mF electrolytic capacitor in parallel with 0.1 mF ceramic capacitor for decoupling to AGND. Caution is required if this output be used to bias the analog input buffer circuits. Refer to the CDB5394 as an example. VREF - Voltage Reference Output, Pin 1. Nominally +4 volts. Requires a 100 mF electrolytic capacitor in parallel with 0.1 mF ceramic capacitor for decoupling to AGND. Digital Inputs ADCTL - Analog Control Input, Pin 6. Must be connected to DACTL. This signal enables communication between the analog and digital circuits. DFS - Digital Format Select, Pin 18. The relationship between LRCK, SCLK and SDATA is controlled by the DFS pin. When high, the serial output data format is I 2 S compatible. The serial data format is left-justified when low. CAL - Calibration, Pin 10. Activates the calibration of the tri-level delta-sigma modulator on the rising edge of the CAL input. MCLKA - Analog Section Input Clock, Pin 7. This clock is internally divided and controls the delta-sigma modulators. An MCLKA frequency of 12.288 MHz sets a modulator sampling rate of 3.072 MHz and a output sample rate of 48 kHz. MCLKA must be connected to MCLKD. MCLKD - Digital Section Input Clock, Pin 20. MCLKD clocks the digital filter and must be connected to MCLKA. The required MCLKD frequency is determined by the desired sample rate. A MCLKD of 12.288MHz corresponds to Fs equal to 48 kHz. MCLKA must be connected to MCLKD. PDN - Power Down, Pin 19. When high, the device enters power down. Upon returning low, the device enters normal operation and issues commands to initialize the voltage reference and synchronize the analog and digital sections of the device. S/M - Slave or Master Mode, Pin 17. When high, the device is configured for Slave mode where LRCK and SCLK are inputs. The device is configured for Master mode where LRCK and SCLK are outputs when S/M is low. Digital Outputs DACTL- Digital to Analog Control Output, Pin 9. Must be connected to ADCTL. This signal enables communication between the digital and analog circuits. SDATA - Digital Audio Data Output, Pin 16. The 24-bit audio data is presented MSB first, in 2’s complement format. This pin has a internal pull-down resistor and must remain low during the power-up sequence to avoid accessing a test mode. Digital Inputs or Outputs LRCK - Left/Right Clock, Pin 13. LRCK determines which channel, left or right, is to be output on SDATA. The relationship between LRCK, SCLK and SDATA is controlled by the Digital Format Select (DFS) pin. Although the outputs for each channel are transmitted at different times, Left/Right pairs represent simultaneously sampled analog inputs. In master mode, LRCK is an output whose frequency is equal to Fs. In Slave Mode, LRCK is an input whose frequency must be equal to Fs. SCLK - Serial Data Clock, Pin 14. Clocks the individual bits of the serial data from SDATA. The relationship between LRCK, SCLK and SDATA is controlled by the Digital Format Select (DFS) pin. In master mode, SCLK is an output clock at 64•L Fs. In slave mode, SCLK is an input which requires a continuously supplied clock at any frequency from 48•L to 128•L Fs (64•L is recommended). Miscellaneous TSTO1, TSTO2 - Test Outputs, Pins 8 and 21. These pins are intended for factory test outputs. They must not be connected to any external component or any length of circuit trace. 1 2 3 4 5 6 7 8 21 22 23 24 25 26 27 28 AGND AINR+ AINR- AGND VA VL LGND TSTO2 TSTO1 MCLKA ADCTL AINL- AINL+ AGND VCOM VREF 9 10 11 12 17 18 19 20 MCLKD PDN DFS S/M DGND VD CAL DACTL 13 14 15 16 SDATA DGND SCLK LRCK TEST OUTPUT ANALOG SECTION CLOCK INPUT ANALOG CONTROL DATA INPUT LEFT CHANNEL ANALOG INPUT- LEFT CHANNEL ANALOG INPUT+ ANALOG GROUND COMMON MODE VOLTAGE OUTPUT VOLTAGE REFERENCE DIGITAL GROUND DIGITAL SECTION POWER CALIBRATION CONTROL DATA OUTPUT SERIAL CLOCK LEFT/RIGHT CLOCK ANALOG GROUND RIGHT CHANNEL ANALOG INPUT+ RIGHT CHANNEL ANALOG INPUT- ANALOG GROUND POSITIVE ANALOG POWER ANALOG SECTION LOGIC POWER ANALOG SECTION LOGIC GROUND TEST OUTPUT DIGITAL SECTION CLOCK INPUT POWER DOWN SERIAL DATA FORMAT SELECT SLAVE/MASTER MODE SERIAL DATA OUTPUT DIGITAL GROUND 47 48 6. SERVICE PROGRAM REMARK If these service programs are set, All user preset memories will be cleared. 1. FACTORY mode (Tracking point memory) This FACTORY mode can be use for measurement of the tuner circuit. When the product is POWER ON, press both [ MEMO ] and [ MODE M ] buttons simultaneously over 3 seconds. FLD shows "FACTORY" for 3 seconds. Press [ PRESET ] button, FLD shows "PRESET SEL". The tuning frequencies are memorized as follows. Band VERSION P1 P2 P3 P4 K, N, S, U 90.0 98.0 106.0 87.5 FM AUTO [MHz] F 78.0 83.0 88.0 76.0 Band SCAN STEP P5 P6 P7 P8 P9 P10 P11 P12 10 kHz(U) 600 1000 1400 520 9 kHz(F, K, S) 603 999 1404 531 AM [kHz] MW/LW(N) 603 999 1404 171 207 270 152 531 2. FLD segment check mode This mode is available to check all luminous segments by the following steps. 1. When the product is FACTORY mode ( Refer to above mentioned "1. FACTORY mode"), press [ DISPLAY OFF ] button on remote control unit. FLD shows "SERVICE" for 2 seconds. 2. All segments and all LED light up for 5 seconds. 3. Each segment lights up step by step. 4. Press [ DISPLAY OFF ] button again, then this mode will be stopped and the product will be FACTORY mode. 3. Version of microprocessor (CPU) This program is available to confirm the version of each CPU by the following steps. QY01 (main) : When the product is POWER ON, press both [ CL ] and [ TREBLE M ] buttons simultaneously over 3 seconds. FLD shows the version of program code for QY01. Q691 (DSP) : When the product is POWER ON, press both [ CL ] and [ BASS M ] buttons simultaneously over 3 seconds. FLD shows the version of program code for Q691. 4. Input and output test mode This mode is available for the functions as shown in Fig 1 by the following steps. 1. When the product is FACTORY mode ( Refer to above mentioned "1. FACTORY mode"), press both [ MEMO ] and [ TREBLE M ] buttons simultaneously. 2. FLD shows "AUTO D1". By pressing both [ MEMO ] and [ TREBLE M ] buttons simultaneously each time, the mode is changed in the following order. Fig 1 Input and output test mode ORDER INDICATION for FLD MODE FUNCTION 1 AUTO D1 Input selection mode (without using system setup menu) 2 ALL CH D1 5 or 6 channels output mode (This mode is available for 2 channels input) 3 INPULSE -- This mode is development use only 4 CD/DIG1 This mode is the same status as FACTORY mode 4.1. Input selection mode (without setting to system setup menu) This mode is available to select the input without setting to system setup menu by the following steps. 1. When FLD shows “AUTO D1” ( Refer to "4. Input and output test mode"), the input can be shifted by pressing [ MODE ] button for the remote commander only each time as shown in Fig 2. ( [ MODE ] button is in page4 of AMP function for RC-18SR) Fig 2. Input selection order by pressing [ MODE] button each time ORDER INDICATION for FLD INPUT STATUS 1 AUTO D1 DIG. 1 IN 2 AUTO D2 DIG. 2 IN 3 AUTO D3 DIG. 3 IN 4 AUTO D4 DIG. 4 IN 5 AUTO RF RF IN 6 AUTO CD CD IN (Analog) Note: Surround mode is fixed “AUTO” mode automatically. 4.2. 5.1 channels output mode This mode is available to output the same signal from 5 channels, even though 2 channels audio signal comes in. As the result, all channels output can be confirmed by using analog stereo signal or PCM audio signal. AC-3 or DTS source is not necessary to output from any channel in this mode. 1. When FLD shows “ALL CH D1” (Refer to "4. Input and output test mode"), the input can be shifted by pressing [ MODE ] button for the remote commander only each time as shown in Fig 3. ( [ MODE ] button is in page4 of AMP function for RC-18SR) 2. Supply to 2 channels PCM signal for digital input or 2 channels analog signal for analog input. But, Left channel and Right channel of input signal should be equal. 3. Then each output from the product is the same as the input signal. (Subwoofer channel is respond to lower than 80Hz signal) Fig 3. Input selection order by pressing [ MODE] button each time ORDER INDICATION for FLD INPUT STATUS 1 ALL CH D1 DIG. 1 IN 2 ALL CH D2 DIG. 2 IN 3 ALL CH D3 DIG. 3 IN 4 ALL CH D4 DIG. 4 IN 5 ALL CH RF RF IN 6 ALL CH CD CD IN (Analog) 5. Transistor MUTE mode In mute situation on the product, output signal is muted by Volume control IC and muting transistor. But, this mode is available to work the muting transistor only by the following steps. 1. When the product is FACTORY mode ( Refer to "1. FACTORY mode"), press [ MUTE ] button for remote commander only. 2. FLD shows “TrMUTE ON”, then muting transistor circuit is active only. 6. How to reset the product When the product is POWER ON, press both [ CL ] and [ MODE M ] buttons simultaneously. FLD shows "DEFAULT" for 3 seconds, then all memories are cleared. 49 50 7. ALIGNMENT PROCEDURES 1. AM IF Adjustment REMARK: For receiving antenna, the adapted one is available. This adjustment is not necessary normally, because the coil LA06 is preset by the original supplier. It is necessary when the incorrect usable sense and frequency response. 2. AM Tracking Adjustment (MW) [For N only] 4. AM auto stop Adjustment 5. FM MONO. Distortion Adjustment 3. AM Tracking Adjustment (LW) (ONLY N VERSION) Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to transmission *loop antenna. (*:Standard required loop) 999 kHz (F, K, N, S) 1000 kHz (U) Level 300 µV/m (50dB/m) Mod. 400 Hz 30% Tuning point LA06 Output level (L or R) Maximum at TAPE-OUT Step **Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to transmission *loop antenna. (*:Standard required loop) 603 kHz (F, K, N, S) 600 kHz (U) Level 300 - 400 µV/m Mod. 400 Hz 30% LA01 Output level (L or R) Maximum at TAPE-OUT 2 3 Output level (L or R) Maximum at TAPE-OUT CA01 603 kHz (F, K, N, S) 600 kHz (U) 1404 kHz (F, K, N, S) 1400 kHz (U) Level 300 - 400 µV/m Mod. 400 Hz 30% 1404 kHz (F, K, N, S) 1400 kHz (U) Repeat step 1 and 2 until sensitivity be maximized. Step **Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to transmission *loop antenna. (*:Standard required loop) 171 kHz Level 300 - 400 µV/m Mod. 400 Hz 30% LA03 Output level (L or R) Maximum at TAPE-OUT 2 3 Output level (L or R) Maximum at TAPE-OUT CA08 171 kHz 270 kHz Level 300 - 400 µV/m Mod. 400 Hz 30% 270 kHz Repeat step 1 and 2 until sensitivity be maximized. Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to transmission *loop antenna. (*:Standard required loop) 999 kHz (F, K, N, S) 1000 kHz (U) 500 µV/m (54 dB/m) RA11 "TUNED" indicate on FLD 2 Only Confirm 999 kHz (F, K, N, S) 1000 kHz (U) AUTO SCAN "TUNED" indicate on FLD 1000 µV/m (60 dB/m) Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 500 µV (54 dB) MONO 1 kHz / Dev.40kHz 53.3% (K, N, S) MONO 1 kHz / Dev. 75 kHz 100% (U, F) Distortion level Minimum at TAPE-OUT 1 Signal generator output to FM antenna terminal. (75 Ω) 98 MHz (K, N, S, U) 83 MHz (F) 98 MHz (P2) L201 6. FM Muting Level Adjustment Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to FM antenna terminal. (75 Ω) 10 µV (20 dB) MONO 1 kHz / Dev.40 kHz 53.3% (K, N, S) MONO 1 kHz / Dev. 75 kHz 100% (U,F) R212 Turn the variable resistor R212 to no indication ("TUNED") point. And return that valuable resistor in opposite to the "TUNED" indicate point. "TUNED" indicate on FLD "TUNED" indicate on FLD 2 Only Confirm AUTO SCAN Over mentioned level +3 dB 7. FM STEREO Distortion Adjustment Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 Signal generator output to FM antenna terminal. (75 Ω) 500 µV (54 dB) L or R 1 kHz / Dev. 40 kHz 53.3% PILOT 19 kHz / Dev. 6 kHz 8% (K, N, S) L or R 1 kHz / Dev. 67.5 kHz 90% PILOT 19 kHz / Dev. 6.75 kHz 9% (U, F) IF COIL in FRONT END Adjust the L channel with the RF signal modulated only L channel first and confirm the R channel with the RF signal modulated only R channel. 2 Distortion level Minimum at TAPE-OUT Distortion level Simimlar as L ch. at TAPE-OUT R ch. 8. FM STEREO Separation Adjustment Step Input Signal Source Connection Signal Frequency Source Signal Output Level and Modulation Reception Frequency Adjustment Point Adjustment Value 1 R211 2 R211 Output level Similar as Rch at TAPE-OUT channel L Signal generator output to FM antenna terminal. (75 Ω) same specification as FM STEREO distortion adjustment. Input only L channel. same specification as FM STEREO distortion adjustment. Input only R channel. Output level Minimum at TAPE-OUT channel R 98 MHz (K, N, S, U) 83 MHz (F) 98 MHz (K, N, S, U) 83 MHz (F) 98 MHz (P2) 83 MHz (P2) 98 MHz (P2) 83 MHz (P2) 98 MHz (P2) 83 MHz (P2) 98 MHz (P2) 83 MHz (P2) 98 MHz (K, N, S, U) 83 MHz (F) 98 MHz (K, N, S, U) 83 MHz (F) Only Confirm LA01 CA01 LA03 R211 R212 L201 LA06 RA11 CA08 LW OSC MW OSC LPF LPF MW 600 / 603 kHz LW 171 kHz LW 270 kHz AM IF FM DIST ST DIST AM TUNED SEP FM MUT A101 MW 1400 / 1404 kHz FRONT REAR WA300J301-2 P104 51 52 8. TROUBLE SHOOTING no yes no yes no yes no no yes yes no yes no yes yes No Power Standby LED Lights up on standby mode? FLD shows "ERROR PWR1" ? Supply +15VA to PY04? PY04 has problem. QY01(92p or 93p) lnput level is too low. Can P804 supply +24V ? Connection has problem (J803) Relay(L802) control is OK ? P804 or Connection has problem P804 or Main Transf(L001) or Fuse has problem Vkk or FIL is not supplied to PU04 Power supply circuit has problem. Check +5VL or PDOWN signal. Supply +24V to PY04? Can P804 supply +15VA ? no yes no yes No sound from PRE out on Analog STEREO mode Volume or HDAM or QC06 or Relay for Preout has any problem Test tone out is OK ? Analog audio input sel. (PS04)has problem Source Direct is OK ? (Volume, HDAM are OK) Tone Control (P104) has problem (Volume, HDAM are OK) no DIR circuite(P604) has any trouble yes no no DAC circuite(P604) yes has any trouble (DIR is no problem) yes Volume, Tone, or HDAM (on P104) has any trouble. Pre out relay has any trouble. no DSP (Q601 or Q651) has any trouble (DAC is no problem) yes DSP(Q601) input stage has any trouble. to be check QR06 No sound from PRE out on PCM STEREO(Digital In) Analog Stereo and 6-direct are OK ? Test tone is OK ? Encode status LED shows ? Source Direct is OK ? Volume,Tone, HDAM or no Pre out relay has any trouble. To be check P104 yes DIR(QR01) or Q601 no no has trouble yes yes no DIR(QR01) or QR06 no L/R DAC has trouble has any trouble. to be check signal(SDIDR) yes yes Error Mute circuite has Q601 or Q651 has trouble. trouble. To be check QR04 or QR05 No sound from PRE out on AC-3/DTS decode 6ch Direct is OK ? Test tone is OK ? DD, DTS, PCM are shown? DD, DTS, PCM are shown? DAC & DSP are no problem Decoding is no problem P604 has trouble PCM S-Dirct is OK? L/R DAC is no problem DIR & Q601 input is no problem 53 54 Volume, Tone, HDAM or no Pre out relay has any trouble. To be check P104 yes Q601 or Q651 or DAC no no has trouble yes yes no DIR(QR01) or QR06 has any trouble. to be check signal(SDIDR) yes ADC(QK01) has any trouble. Clock outputs from QK01 are QK01 can not output data any trouble To be check QK01 or LT/RT input( J602 ) on P604 No sound from PRE out on analog Dolby 6ch Direct is OK ? Test tone is OK ? DAC & DSP-out are no problem Decoding is no problem P604 has trouble Q601 & DAC are no problem Digital PCM ProLogic is OK ? Digital PCM ProLogic is OK ? OSD IC (QL09, QZ11) have no any trouble. Video Driver(QL08, QZ09, QZ10) have trouble yes no no yes yes Video input detection has Video Driver( QL08, QZ09, any trouble. QZ10) has trouble To be ckeck Sync DET1 or To be check these control DET2 or Input to OSD IC No picture from Monitor output OSD menu is shown ? Video Input select circutes have problem Monitor out is OK on OSD-off mode ? VCR2 out is OK ? Video output stage are no problem OSD ICs control is no problem or input. 9. TECHNICAL DESCRIPTION This product has two DSP ICs, one is for Dolby Digital (AC-3) decoding or DTS (Digital Theater System) decoding, another is for THX processing. Multi channel sound is reproduced by connecting with DVD player or LD player. Also Dolby Pro Logic decode is available to analog audio and PCM digital audio. Additionally, 96kHz PCM stereo audio playback is possible. Decoding circuit is consist of 13 ICs (DIR, two DSP, ADC, five DAC, AC-3 RF demodulator, two data separator and CPU). DOLBY DIGITAL (AC-3) Dolby Digital delivers six totally separate (discrete) channels of sound. Like Dolby Surround Pro Logic, it includes Left, Center and Right channels across the front of the room. Dolby Surround Pro Logic provides a single limited-bandwidth (100 Hz to 7,000 Hz) surround channel which is typically played back in the home through two channels of amplification and two speakers. In comparison, Dolby Digital provides separate (discrete) left surround and right surround channels, for more precise localiza- tion of sounds and a more convincing, realistic ambience. And, with Dolby Digital, all five main channels are full range (3 Hz to 20,000 Hz). A subwoofer could be added to each channel, if desired. The sixth channel, the Low Frequency Effects Channel, will, at times, contain additional bass information to maximize the impact of scenes such as explosions, crashes, etc. Because this channel has only a limited frequency response (3 Hz to 120 Hz), it is sometimes referred to as the “.1” channel. When added to the 5 full range channels, the Dolby Digital system is sometimes referred to as having “5.1” channels. DTS An amazing new technology for surround-sound entertainment, DTS Digital Surround is an encode/decode system that deliv- ers six channels (5.1) of master-quality, 20-bit audio. In the encoding process, the DTS algorithm encrypts six channels of 20- bit digital audio information in the space previously allotted for only two channels of 16-bit linear PCM. Then during playback, the DTS decoder reconstructs the original six channels of 20-bit digital audio. Each of these six channels is audibly superior to the 16-bit linear PCM audio found on conventional compact discs. THX ULTRA Home THX Controller Technologies : Dubbing stages (where soundtracks are created) and movie theatres do not change their acoustics, equipment, or system equalization when mixing or playing back 5.1 channel sound tracks. They merely divide the surround array of speakers into two symmetrical arrays (hence the term “split surround”). All of the remaining system equaliza- tion and setup remains the same. The Home THX Technologies of Re-Equalization, Timbre Matching, and Decorrelation, as well as the Home THX Crossover are still necessary for 5.1 channel formats. Because of the nature of the split surround soundtrack, Home THX Timbre Matching and Decorrelation technologies have been altered to provide correct surround sound balance and spaciousness. Here is a representation of how Home THX Controller Technologies work with the various surround sound formats. DIR (Digital audio Interface Receiver : QR01 / CS8414) This circuit extract synchronized clock signals and data from SPDIF signal input. QR01(CS8414) generates these signals, this chip supports 96kHz sample rate. 1st DSP (Digital Signal Processor for Dolby Digital, Pro Logic, DTS : Q601 / YSS912) Q601(YSS912) decodes 6 channels audio from encoded data signal input. Some effects are processed in addition to multi channel decoding on HALL, MATRIX, and MOVIE mode. 55 56 2nd DSP (Digital Signal Processor for THX processing : Q651 / ZR38600) Q651(ZR38600) has the THX 5.1 processing functions. These functions include Re-equalization, Surround Timbre-Match- ing, Adaptive Decorrelation, Bass Management, Bass Peak Level Manager, and Loudspeaker Position Time Synchroni- zation. Re-equalization takes the edginess or “brightness” out of your home cinema sound, compensating for the fact that sound mixed for theatres will sound too bright when played back through flat response speakers in your home. Timbre Matching matches the tone of your front speakers to your surrounds to compensate for the fact that only two surround speakers are used in a typical Home Theatre system instead of a full array as in a movie theatre. Adaptive Decorrelation gives a stereo “feel” when your surrounds are playing mono and automatically switches off when they are playing stereo. Bass Management Electronic Crossover allows you to use more compact, easier-to-place speakers, while sending bass to a subwoofer system, improving frequency response, lowering distortion and increasing dynamic range. Bass Peak Level Manager protects your subwoofer from overloading due to the great amount of bass a 5.1 soundtrack delivers. Loudspeaker Position Time Synchronization lets you easily set up your system for an optimum listening position, which is difficult to achieve within the space constraints of most homes. ADC (Analog to Digital Converter : QK01 / CS5394) CS5394 is a complete analog-to-digital converter for stereo digital audio systems. it performs sampling, analog-to-digital con- version and anti-alias filtering, generating 24 bit values for both left and right inputs in serial form. DAC (Digital to Analog Converter : QD01, QD02, QD03 : QD41, QD42 / AD1855) The AD1855 is a high performance, single-chip stereo,audio DAC. There are five AD1855 chips on the board. Four chips are used for L, R, C, and Sub woofer channel individually. Another chip is used for Surround Left & Right. CPU (Q691 / µµµµµPD78018) This chip controls some ICs in P604 and communicates with QU01. Connect to QU01 with serial interface lines. 10. EXPLODED VIEW AND PARTS LIST 57 58 0 2 3 B PW0 4 PL 7 4 AUX I NPUT 0 2 4 Bx 2 0 0 8 B 0 0 5 B PB7 4 PM0 4 PU7 4 0 2 0 B PU0 4 PY0 4 0 1 9 B 0 1 1 Bx 2 HDAM 0 2 5 B U- CON POWER SW. ST ANDBY F RONT F L 0 5 1 B 0 5 0 B HEADPHONE 0 1 0 Kx 2 0 7 5 Bx 3 0 2 9 B 0 0 7 B VU0 1 0 1 2 B x 2 0 1 3 B 0 0 4 Bx 7 0 1 0 B 0 0 6 B 0 0 8 B CONNECT 0 2 0 G 0 2 0 G 0 0 6 G 5 1 2 8 3 X8 ( M) 0 6 0 G 0 2 1 Gx 2 0 6 1 G 0 0 1 G PW5 4 0 6 5 G 0 6 9 G 0 6 8 G 0 1 3 G PY6 4 0 0 5 L 0 8 0 Gx 2 0 0 5 L HEA DPHONE AMP 0 7 0 Gx 2 5 1 1 0 3 X8 ( A) 0 0 9 C 5 1 2 8 3 X8 ( M) 5 1 2 6 3 X8 ( U) 0 0 1 C 0 0 2 C 0 0 4 C 0 0 1 C 0 0 3 C 0 0 6 C 0 1 4 C 0 0 7 C 0 3 5 B 0 0 2 B 041B 0 4 5 B 0 3 6 B 0 1 5 Cx 2 0 0 8 C PU9 4 5 1 2 8 3 X8 ( M) 0 6 0 Bx 3 0 4 0 B GOLD ONLY 0 0 1 B 0 0 1 D 0 0 2 L 0 0 1 L L 0 0 1 0 0 8 G P8 0 4 P RI MARY PB5 4 0 0 2 K 0 0 1 Kx 6 P8 7 4 P8 8 4 P8 9 4 0 1 0 G SYMBOL 5 1 1 0 5 1 2 6 5 1 2 8 + B. H. M. SCREW + B. H. T AP T I T E SCREW W/ WASHER + B. H. T AP T I T E SCREW( B T YPE) 5 1 2 8 3 X8 ( M) 5 1 2 8 3 X8 ( M) 5 1 2 8 3 X8 ( M) SEL ECTOR 5 1 1 0 3 X6 ( M) CVBS VI DEO AV FUNC. / PRE 5 1 1 0 3 X6 ( M) PS0 4 5 1 2 8 3 X8 ( M) 5 1 2 8 3 X8 ( M) P6 0 4 PZ0 4 0 4 2 G PL 0 4 5 1 2 8 3 X8 ( M) 0 4 4 Gx 2 P1 0 4 5 1 2 8 3 X8 ( M) S- VI DEO G9 6 G G9 7 Gx 3 Z 0 0 7 9 0 0 G T UNER 0 1 8 K Z 0 0 1 59 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) 001B GOLD 9965 000 01384 FRONT PANEL ALMI GOLD K 312J248110 001B BLACK FRONT PANEL ALMI BLACK U 312J248010 002B 4822 459 11172 BADGE MARANTZ 185J251010 004B 9965 000 01385 REFLECTOR LED 312J274010 005B GOLD 9965 000 01386 CHASSIS FRONT MOLD 312J105110 005B BLACK CHASSIS FRONT MOLD 312J105010 006B MASK WINDOW L 312J303040 007B MASK WINDOW R 312J303050 008B GOLD 9965 000 01387 WINDOW 312J158010 008B BLACK WINDOW 312J158010 009B MASK DTS 312J303010 010B MASK L R C LFE LS S RS PEAK 312J303020 011B GOLD 9965 000 01388 BUTTON MEMO PRESET 312J270110 011B BLACK BUTTON MEMO PRESET 312J270010 012B GOLD 9965 000 01389 BUTTON SURROUND GOLD 312J270120 012B BLACK BUTTON SURROUND BLACK 312J270020 013B GOLD 9965 000 01390 BUTTON MODE TONE GOLD 312J270130 013B BLACK BUTTON MODE TONE BLACK 312J270030 019B 4822 256 92097 HOLDER FL HOLDER 183J271020 020B 4822 459 11158 STICKER ADHESIVE FOR FL 056J122010 035B GOLD 9965 000 01391 KNOB MANI VOL KNOB GOLD 312J154020 035B BLACK KNOB MAIN VOL KNOB BLACK 312J154010 036B GOLD 9965 000 01391 KNOB INPUT SELECTOR 312J154020 036B BLACK KNOB INPUT SELECTOR 312J154010 040B GOLD 9965 000 01392 LENS IR LENS GOLD 275W355110 040B BLACK LENS IR LENS BLACK 275W355010 045B 9965 000 01393 LENS STANDBY LENS 312J355010 050B 9965 000 01394 JOINT POWER JOINT 312J125010 051B GOLD 9965 000 01395 BUTTON POWER SW GOLD 255W270110 051B BLACK BUTTON POWER SW BLACK 255W270010 001C GOLD 4822 410 11676 ESCUTCHEON GYRO UP & DOWN 290J063110 001C BLACK 4822 410 11675 ESCUTCHEON GYRO UP & DOWN 290J063010 002C GOLD 9965 000 01396 RUBBER RING GYRO GL 290J066110 002C BLACK RUBBER RING GYRO BL 290J066010 003C 9965 000 01397 FLYWHEEL GYRO BASE 290J273110 006C 9965 000 01398 SHAFT GYRO MAIN 290J112010 009C RETAINER GYRO UPPER 290J104050 014C SHAFT GYRO SUSTAINER UNDER 300J112020 015C WASHER FOR UNDER SIDE 59071102G0 020G 4822 462 42045 LEG GLD HOT STAMP FRONT 183J057010 021G 4822 462 42048 LEG GLD HOT STAMP REAR 183J057110 CV09 4822 124 90353 ELECT. 100µF M 10V OA10701020 L001 /K POWER TRANSF. 220V 50Hz TS16675020 L001 /N,/S 9965 000 01314 POWER TRANSF. 230V 50Hz TS16675030 L001 /U POWER TRANSF. 120V 60Hz TS16675010 L004 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 L005 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 L006 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030 PACKING 001T /K,/S USER MANUAL 312J851350 001T /N 9965 000 01400 USER MANUAL 312J851310 001T /U USER MANUAL 312J851250 Z001 REMOTE COMMANDER RC-18SR ZK300J0010 Z007 /K MAINS CORD CCEE 2.5A 250V ZC01803090 Z007 /N,/S 4822 321 11439 MAINS CORD 2P 10A 250V CLASS2 ZC01803080 Z007 /U MAINS CORD UL CSA 10A 125V ZC01803100 Z009 /N,/S 9965 000 01383 MAINS CORD 10A 250V HONG KONG ZC01804070 NOT STANDARD SPARE PARTS 001S /U PACKING CASE 312J801010 002S /U CUSHION LEFT 312J809010 003S /U CUSHION RIGHT 312J809020 Z003 /K,/N,/S FM ANTENNA 931222R ZA02800020 Z003 /U 4822 303 30314 FM EXT.ANTENNA ZA02000070 Z004 4822 157 63083 LOOP ANTENNA LA-700HB LA00055010 Z005 /U 4822 264 30265 PLUG ANT. ADAPTOR YP90000310 Z006 /K 4822 265 10092 JACK AC ADAPTER S-I6116 YJ04001240 Z008 4822 321 21438 CONNECTIVE CORD RCA ST 1M ZD01000330 60 11. ELECTRICAL PARTS LIST The suppliers and their type numbers of fusible resistors are as follows; 1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ (±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ (±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ (±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ (±5% 1/4W) 2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140 ERD-2FCG × × × (±2% 1/4W) RF02 × × × 140 Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W Examples ; Resistance value 0.1 Ω .... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104 0.5 Ω .... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684 1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105 6.8 Ω .... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 × × × × 370, Ceramic capacitor Disc type Temp.coeff.P350 N1000, 50V Examples ; Tolerance (Capacity deviation) ±0.25 pF .... 0 ±0.5 pF .... 1 ±5% .... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF 5 pF .... ±0.25 pF 6 pF 10 pF .... ±0.5 pF 12 pF 560 pF .... ±5% Capacity value 0.5 pF .... 005 3 pF .... 030 100 pF .... 101 1 pF .... 010 10 pF .... 100 220 pF .... 221 1.5 pF .... 015 47 pF .... 470 560 pF .... 561 C : CERAMIC CAP. 4) DK16 × × × 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V Examples ; Capacity value 100 pF .... 101 1000 pF ....102 10000 pF .... 103 470 pF .... 471 2200 pF ....222 C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( ) 5) EA × × × × × × 10, Electrolytic capacitor One-way lead type, Tolerance ±20% Examples ; Capacity value 0.1 µF....104 4.7 µF ....475 100 µF ....107 0.33 µF....334 10 µF ....106 330 µF ....337 1 µF....105 22 µF ....226 1100 µF ....118 2200 µF ....228 Working voltage 6.3V....006 25V ....025 10V....010 35V ....035 16V....016 50V ....050 6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor One-way type, Mylar ±10% 50V Examples ; Capacity value 0.001 µF(1000 pF) ....... 102 0.1 µF....104 0.0018 µF........................ 182 0.56 µF....564 0.01 µF........................ 103 1 µF....105 0.015 µF........................ 153 : 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4). ➀ ➁ Capacity value Tolerance ➃ Capacity value Resistance value ➄ Working voltage Capacity value ➆ Capacity value NOTE NOTE ON SAFETY FOR FUSIBLE RESISTOR : Resistance value Resistance value (0.1 Ω − 10 kΩ) Resistance value Resistance value ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRAMSISTOR VAR. : VARIABLE X’TAL : CRYSTAL ABBREVIATION AND MARKS { { { { { { { { { { ➂ ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➅ NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard. 61 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) P104-FM AM TUNER TONE VOL CIRCUIT BOARD P104-CAPACITORS CA01 4822 125 50384 TRIM. 20pF VCT51E CT12000200 CA02 4822 122 40306 CER. 0.047µF +80%-20% 50V DK18473310 CA03 4822 122 31823 CER. 15pF 5% CH 50V BLK DD15150300 CA04 4822 121 42466 FILM 390pF 100V ECQ-P DF15391550 CA05 4822 122 31205 CER. 47pF 5% CH 50V BLK DD15470300 CA06 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CA07 /N 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CA08 /N 4822 125 50384 TRIM. 20pF VCT51E CT12000200 CA09 /N 4822 122 31823 CER. 15pF 5% CH 50 V DD15150300 CA11 /N 4822 122 31349 CER. 68pF 5% CH 50V DD15680300 CA12 /N 4822 122 10367 CER. 150pF 5% 50V DD15151300 CA13 /N 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CA14 /N 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CA18 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CC07 4822 124 22571 ELECT. 10µF 50V OA10605020 CC08 4822 124 22571 ELECT. 10µF 50V OA10605020 CC18 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC23 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC26 CC27 /S,/N 4822 122 31205 CER. 47pF 5% CG 50V BLK DD15470300 CC28 /S,/N 4822 122 31205 CER. 47pF 5% CH 50V BLK DD15470300 CC31 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CC32 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CC33 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CC34 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CC35 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC36 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC39 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC42 CC43 JUMPER 75060501P0 CC44 JUMPER 75060501P0 CC47 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC48 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC51 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC52 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC55 4822 122 31237 CER. 82pF 5% 50V DD15820300 CC56 4822 122 31237 CER. 82pF 5% 50V DD15820300 CC57 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC58 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC59 4822 124 90354 ELECT. 100µF 16V OA10701620 CC60 4822 124 90354 ELECT. 100µF 16V OA10701620 CC61 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC62 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CC71 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC72 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CC77 4822 124 90358 ELECT. 22µF M 16V OA22601620 CC78 4822 124 90358 ELECT. 22µF M 16V OA22601620 CC79 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CC80 4822 122 30043 CER. 10pF D CH 50 DK18103310 CC81 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CC82 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CF01 4822 124 90358 ELECT. 22µF M 16V OA22601620 CF02 4822 124 90358 ELECT. 22µF M 16V OA22601620 CF03 4822 122 31237 CER. 82pF 5% 50V DD15820300 CF04 4822 122 31237 CER. 82pF 5% 50V DD15820300 CF05 4822 124 22571 ELECT. 10µF 50V OA10605020 CF06 4822 124 22571 ELECT. 10µF 50V OA10605020 CF15 4822 124 22571 ELECT. 10µF 50V OA10605020 CF16 4822 124 22571 ELECT. 10µF 50V OA10605020 CF17 4822 124 90358 ELECT. 22µF M 16V OA22601620 CF18 4822 124 90358 ELECT. 22µF M 16V OA22601620 CF19 4822 126 10364 CER. 100pF 10% DA16101110 CF20 4822 126 10364 CER. 100pF 10% DA16101110 CF21 4822 124 22571 ELECT. 10µF 50V OA10605020 CF22 4822 124 22571 ELECT. 10µF 50V OA10605020 CF31 4822 124 22571 ELECT. 10µF 50V OA10605020 CF32 4822 124 22571 ELECT. 10µF 50V OA10605020 CF33 4822 124 90354 ELECT. 100µF 16V OA10701620 CF34 4822 124 90354 ELECT. 100µF 16V OA10701620 CF35 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CF36 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CF37 4822 124 90354 ELECT. 100µF 16V OA10701620 CF38 4822 124 90354 ELECT. 100µF 16V OA10701620 CF39 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CF40 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CG51 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CG52 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CG53 4822 124 22571 ELECT. 10µF 50V OA10605020 CG56 CG57 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CG59 4822 124 90354 ELECT. 100µF 16V OA10701620 CG60 4822 124 90354 ELECT. 100µF 16V OA10701620 CG61 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CG62 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CG63 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CG66 CG67 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CG68 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CG69 4822 124 90354 ELECT. 100µF M 16V OA10701620 CG70 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CV01 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CV02 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CV08 4822 124 90353 ELECT. 100µF M 10V OA10701020 C201 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C202 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C203 4822 122 40306 CER. 0.047µF +80%-20% 50V DK18473310 C204 4822 122 40306 CER. 0.047µF +80%-20% 50V DK18473310 C205 4822 124 42182 ELECT. 3.3µF M 50V RA-2 OA33505020 C206 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C207 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C208 4822 122 40306 CER. 0.047µF +80%-20% 50V DK18473310 C209 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C210 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C211 4822 124 90357 ELECT. 2.2µF M 50V RA-2 OA22505020 C212 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C213 4822 124 22273 ELECT. 0.47µF M 50V RA-2 OA47405020 C214 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 C215 4822 122 40306 CER. 0.047µF +80%-20% 50V DK18473310 C216 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C218 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C219 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C223 4822 122 40586 CER. 10000pF 10% DA17103110 C225 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C226 4822 122 40586 CER. 10000pF 10% DA17103110 C233 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C234 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 C235 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C236 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C237 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C303 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C304 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C305 /K,/N,/S 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 C305 /U JUMPER 75060501P0 C306 /K,/N,/S 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 C306 /U JUMPER 75060501P0 C311 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 C312 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 62 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) C313 /K,/N,/S 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 C314 /K,/N,/S 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 C315 /K,/N,/S 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C316 /K,/N,/S 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C351 /S,/N 4822 122 40586 CER. 10000p ±10% DA17103110 C352 /S,/N 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C356 /S,/N 4822 126 11553 CER. 15pF ±5% 50V DA15150120 C357 /S,/N 4822 126 11553 CER. 15pF ±5% 50V DA15150120 C358 /S,/N 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C361 /S,/N 4822 126 10364 CER. 100pF ±10% DA16101110 C362 /S,/N 4822 126 10364 CER. 100pF ±10% DA16101110 C363 /S,/N 4822 126 10364 CER. 100pF ±10% DA16101110 C364 /S,/N 4822 126 10364 CER. 100pF ±10% DA16101110 C365 /S,/N 4822 124 41539 ELECT. 47µF M 16V OA47601620 C366 /S,/N 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 C373 /S,/N 4822 122 30043 CER. 10000p +80%-20% DK18103310 C374 /S,/N 4822 122 40617 CER. 0.1µF +80%-20% 50V DD38104010 C501 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 C502 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 C503 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C504 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C505 4822 124 90357 ELECT. 2.2µF M 50V RA-2 OA22505020 C507 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C508 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C511 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 P104-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : C220 C222 C227[/U] (C317 C318[/K,/N,/S]) (C353 C354[/N,/S]) C367 C368 C371 C372 C510 CC83 (CC89-CC92[/N,/S]) CV03 CV05-CV07 PLASTIC FILM CAPACITOR ±5% 50V : C217 C301 C302 (C309 C310[K1]) CC01-CC04 CC14-CC17 CC75 CC76 CF07-CF14 CF23-CF30 P104-RESISTORS RA11 4822 100 11351 TRIM. 10kΩ RH0638CJ4R RA01030780 RC01 JUMPER 75060501P0 RC02 JUMPER 75060501P0 RC16 JUMPER 75060501P0 RC19 JUMPER 75060501P0 RC51 JUMPER 75060501P0 RC52 JUMPER 75060501P0 RF37 JUMPER 75060501P0 RF38 JUMPER 75060501P0 RG55 JUMPER 75060501P0 RG56 JUMPER 75060501P0 RG59 JUMPER 75060501P0 RG60 JUMPER 75060501P0 R101 /U 4822 050 21003 10kΩ ±5% 1/2W GG05103120 R201 /U JUMPER 75060501P0 R207 4822 050 21801 180Ω ±5% 1/4W GG05181140 R211 /K 4822 100 11352 TRIM. 22kΩ RH0638CJ4R RA02230780 R211 /S 4822 100 11352 TRIM. 22kΩ RH0638CJ4R RA02230780 R211 /N 4822 100 11352 TRIM. 22kΩ RH0638CJ4R RA02230780 R211 /U 4822 100 11351 TRIM. 10kΩ RH0638CS3R RA01030780 R212 4822 100 11351 TRIM. 10kΩ RH0638CS3R RA01030780 R217 4822 050 21801 180Ω ±5% 1/4W GG05181140 R301 /U JUMPER 75060501P0 R304 R313 /K 4822 116 83929 220Ω ±5% 1/4W GG05221140 R314 /K,/N,/S 4822 116 83929 220Ω ±5% 1/4W GG05221140 R356 /S,/N 4822 053 10471 470Ω ±5% 1W GA05471010 R512 4822 053 10271 270Ω ±5% 1W GA05271010 R516 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 P104-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R201[/K,/N,/S] R202-R206 R208-R210 R213-R216 R220 R221[/N,/S] (R301-304[/K,/N,/S]) R307-R310 R315 R316 (R352-354[/K,/N,/S]) R502 R504-R507 R508[/K/U] R509-R511 R513 R515 RA01 RA02 (RA03 RA04 RA06 RA06- RA10[/N]) RC03-RC15 RC17 RC18 RC20-RC33 RC33 RC35-RC42 RC53-RC62 RC71-RC82 RF01-RF36 RF39-RF46 RF48 RF49 RG51-RG54 RV01-RV14 P104-SEMICONDUCTORS DA01 4822 125 50416 DIODE VARISVC342-L HD40009030 DA02 /K,/S,/U JUMPER 75060501P0 DA02 /N 4822 130 33697 DIODE 1SS135 HD20017210 DA03 /N 4822 125 50416 DIODE VARISVC342-L HD40009030 DA04 /N 4822 130 33697 DIODE 1SS135 HD20017210 DA05 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DA06 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DF01 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DF02 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DF03 9965 000 01363 DIODE 1SS201 HE10201050 DF04 9965 000 01363 DIODE 1SS201 HE10201050 DV05 4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000 DV13 30V 0.1A D201 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D202 4822 130 80319 ZENER DIODE 9.1V RD9.1JB2 MTZJ9.1C 04AZ9.1-Z HD30911000 D351 /S,/N 4822 130 80317 ZENER DIODE 5.1V RD5.1JB2 MTZJ5.1B 04AZ5.1-Y HD30511000 D501 4822 130 80317 ZENER DIODE 5.1V RD5.1JB2 MTZJ5.1B 04AZ5.1-Y HD30511000 D502 /N 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 D503 /N 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QA01 /N 4822 130 41947 TRS. 2SC536SP 2SC2458 2SC1740S 2SC3199 2SC3311A HT30001000 QA02 /N 4822 130 41947 TRS. 2SC536SP 2SC2458 2SC1740S 2SC3199 2SC3311A HT30001000 QA03 /N 4822 130 61892 TRS. 2SD2144 HT421442A0 QA04 /N 4822 130 42682 DIG.TRS. DTA144ES UN4113 47k 47k BA10002000 QA05 /N 4822 130 42682 DIG.TRS. DTA144ES UN4113 47k 47k BA10002000 QA06 /N 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 63 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QC01 4822 209 73064 IC NJM2068DD HC10053090 QC05 QC06 4822 209 32554 IC LC78213 HC10310030 QC07 4822 209 62784 IC TC9215P HC10262050 QC51 4822 209 73064 IC NJM2068DD HC10053090 QC71 4822 209 73064 IC NJM-2068-DD HC10053090 QC72 4822 209 62784 IC TC9215P ANALOGUE SW HC10262050 QF01 4822 209 73064 IC NJM2068DD HC10053090 QF02 9965 000 01365 IC TC9184AP ELE TONE HC10444050 QF03 4822 209 73064 IC NJM2068DD HC10053090 QF04 9965 000 01365 IC TC9184AP ELE TONE HC10444050 QG51 9965 0000 1373 IC TC9459F ELE-VOLUME HC10449050 QG52 9965 0000 1373 IC TC9459F ELE-VOLUME HC10449050 QG53 9965 0000 1373 IC TC9459F ELE-VOLUME HC10449050 QG54 4822 209 17155 IC NJM2068M HC10102090 QG55 4822 209 17155 IC NJM2068M HC10102090 QV01 4822 209 90532 IC NJU3713D HC10161090 QV02 4822 130 61227 DIG.TRS. BA10001000 QV05 DTA114ES UN4111 10K 10K QV06 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QV07 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QV12 Q201 9965 000 01369 IC LA1837 FM AM IF MPX IC HC10384030 Q202 4822 130 62294 TRS. 2SC1809S P 150mW HT318091P0 Q203 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 Q204 4822 130 42594 DIG.TRS. DTC144ES UN4213 47K 47K BA20002000 Q209 /S 4822 130 41947 TRS. 2SC2458 2SC1740 2SC3199 HT30001000 Q209 /N 4822 130 41947 TRS. 2SC2458 2SC1740 2SC3199 HT30001000 Q301 /K 4822 209 83631 IC NJM4558D-D HC10008090 Q301 /S 4822 209 83631 IC NJM4558D-D HC10008090 Q301 /N 4822 209 83631 IC NJM4558D-D HC10008090 Q351 /S 4822 209 16175 IC LC72720 RDS DECODER HC10385030 Q351 /N 4822 209 16175 IC LC72720 RDS DECODER HC10385030 Q352 /S 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 Q352 /N 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 Q353 /S 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 Q353 /N 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 Q501 9965 000 01370 IC LC72130 HC10394030 P104-MISCELLANEOUS A101 9965 000 01368 VHF TUNER TFFJ4E AV00903010 FA01 CER. FILTER SFZ450JL3 451K FF10045410 F201 4822 242 70665 CER. FILTER SFE10.7MS3-A FF11070620 F202 4822 242 70665 CER. FILTER SFE10.7MS3-A FF11070620 JC05 9965 000 01315 TERMINAL RCA 2P DIRECT IN YT02021550 JC06 9965 000 01316 TERMINAL RCA SURR IN L R YT02021500 J101 4822 290 81632 TERMINAL FM AM ANT PAL YT03030020 LA01 4822 157 63084 MW ANT COIL 280µH LA10295170 LA02 4822 157 70779 MW OSC COIL LO70013010 LA03 /N 4822 157 52714 LW-ANT COIL LA10295160 LA04 /N 4822 157 70781 LW-OSC COIL LO70013020 LA05 4822 157 53589 CHOKE COIL 39mH J LC23960710 LA06 4822 148 81095 I.F.T. COIL AM IFT K7-H5 LI70033510 L201 4822 157 63904 I.F.T. COIL FM DET LI70376010 L301 4822 157 71731 M.P.X. COIL 19 38kHz LS10293020 L302 4822 157 71731 M.P.X. COIL 19 38kHz LS10293020 L350 /N,/S 4822 157 62911 CHOKE LC13323800 L356 LAL02TA3R3J 3.3µH L359 /N,/S 4822 157 62911 CHOKE COIL LAL02TA3R3J 3.3µH LC13323800 L501 4822 157 70813 CHOKE COIL LC14733800 L504 LAL02TA470J 47µH S301 /K 4822 277 21712 SLIDE SWITCH ALPS SSSS92 SS02021470 X351 /S 4822 242 10857 CRYSTAL 4.332MHz JX04003260 X351 /N 4822 242 10857 CRYSTAL 4.332MHz JX04003260 X501 4822 242 72333 CRYSTAL AD0618CTB 7.2MHz JX07001260 P604-AC-3 DTS & THX DECODE CIRCUIT BOARD P604-CAPACITORS CD01 4822 126 11687 CER. 0.1µF +80%-20% DK98104200 CD02 4822 126 11687 CER. 0.1µF +80%-20% DK98104200 CD03 4822 126 11687 CER. 0.1µF +80%-20% DK98104200 CD05 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD06 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD07 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD09 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD10 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD11 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD14 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD15 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD17 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD18 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD19 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD21 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD22 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD23 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD25 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD26 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD27 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD29 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CD30 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CD31 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CD41 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD42 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD43 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD44 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD45 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD46 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD47 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD48 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD49 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD50 4822 124 21894 ELECT. 10µF 16V EJ10601610 CD51 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD52 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD53 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD54 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD55 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CD56 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CD61 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD62 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CD63 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CD74 CD81 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 CD92 64 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CD93 4822 124 90363 ELECT. 220µF M 10V RA-2 OA22701020 CD96 CD97 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CD98 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CE01 4822 126 11567 CER. 0.022µF 10% 16V CHIP DK96223200 CE02 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE03 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE04 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE05 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE06 5322 126 11578 CER. 1000pF 10% B 50V CHIP DK96102300 CE11 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE14 4822 122 33753 CER. 150pF 5% CG 50V CHIP DD95151300 CE15 4822 122 33753 CER. 150pF 5% CG 50V CHIP DD95151300 CE18 4822 126 13837 CER. 0.1µF 10% B 10V CHIP DK96104200 CE19 4822 126 14417 CER. 0.01µF 10% 50V CHIP DK96103300 CE33 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE34 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE35 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE36 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE37 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE39 4822 124 12389 ELECT. 47µF 16V BP EQ47601630 CE42 4822 126 14417 CER. 0.01µF 10% 50V CHIP DK96103300 CE43 4822 126 14417 CER. 0.01µF 10% 50V CHIP DK96103300 CE44 4822 122 33752 CER. 18pF 50V 5% CHIP DD95150300 CE45 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE46 4822 122 33757 CER. 18pF CHIP DD95180300 CE51 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE52 5322 126 11578 CER. 1000pF B 50V CHIP DK96102300 CE53 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE54 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE56 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE60 CE61 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE62 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CE63 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CE65 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 CE66 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 CH05 4822 121 10792 FILM 220pF 5% 100VPP OF15221540 CH08 CH14 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CH15 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH18 CH26 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CH27 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH28 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH31 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CH32 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CH33 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH34 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH35 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CH36 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CH55 4822 121 10792 FILM 220pF 5% 100VPP OF15221540 CH58 CH64 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CH65 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH68 CH76 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CH77 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH78 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH81 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CH82 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CH83 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH84 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CH85 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CH86 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ05 4822 121 10792 FILM 220pF 5% 100VPP OF15221540 CJ08 CJ11 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CJ12 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CJ13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ16 CJ17 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ18 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ21 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CJ22 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CJ23 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ24 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ55 4822 121 10792 FILM 220pF 5% 100VPP OF15221540 CJ58 CJ59 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ60 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ61 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ62 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ75 4822 121 10792 FILM 220pF 5% 100VPP OF15221540 CJ78 CJ79 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ80 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CJ81 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CJ82 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CK01 4822 124 90352 ELECT. 10µF M 16V RA-2 OA10601620 CK04 CK05 4822 126 11696 CER. 470pF 5% J SL CHIP DD95471370 CK08 CK11 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK20 CK21 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CK22 4822 124 21894 ELECT. 10µF 16V EJ10601610 CK23 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK24 5322 126 11583 CER. 0.01µF 10% B 25V CHIP DK96103200 CK25 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CK26 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CK27 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK28 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK30 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK31 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK33 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CK34 4822 124 41535 ELECT. 100µF M 25V RA-2 OA10702520 CK35 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CK40 CK41 4822 124 21894 ELECT. 10µF 16V EJ10601610 CK42 4822 124 21894 ELECT. 10µF 16V EJ10601610 CK43 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CK44 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CK45 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CK46 4822 122 33761 CER. 22pF 5% CG50V CHIP DD95220300 CR01 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR02 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CR03 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR04 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 65 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) CR05 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR06 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CR07 4822 126 13837 CER. 0.1µF ±10% B 10V CHIP DK96104200 CR08 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR10 4822 126 11568 CER. 470pF CHIP DK96471300 CR11 4822 126 13837 CER. 0.1µF ±10% B 10V CHIP DK96104200 CR12 4822 126 13837 CER. 0.1µF ±10% B 10V CHIP DK96104200 CR13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR14 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR15 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CR16 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR17 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CR18 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR20 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CR21 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CR22 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR25 CR26 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 CR27 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 CR28 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CR29 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CR30 5322 126 11578 CER. 1000pF ±10% B 50V CHIP DK96102300 C601 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C602 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C603 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C604 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C605 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C606 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C607 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C608 4822 122 33761 CER. 22pF ±5% CG 50V CHIP DD95220300 C609 4822 122 33761 CER. 22pF ±5% CG 50V CHIP DD95220300 C610 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C611 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C612 4822 126 11568 CER. 470pF ±10% CHIP DK96471300 C613 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C614 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C615 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C616 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 C617 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C618 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C619 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C620 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C621 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C622 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C623 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C624 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C625 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C651 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C652 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300 C653 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C654 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C655 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C656 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C657 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C658 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C662 C663 4822 126 13396 CER. 0.047µF ±10% 16V CHIP DK96473200 C664 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C666 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C667 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C668 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C669 4822 126 14417 CER. 0.01µF B 50V CHIP DK96103300 C670 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C680 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C691 4822 126 14417 CER. 0.01µF B 50V CHIP DK96103300 C692 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C693 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C694 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 C695 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 C696 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 C697 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 P604-CAPACITORS (COMMON) PLASTIC FILM CAPACITOR ±5% 50V : CE31 CE32 CE41 CH01-CH04 CH13 CH25 CH51-CH54 CH63 CH75 CJ01-CJ04 CJ09 CJ10 CJ51-CJ54 CJ71-CJ74 CK09 CK10 CR19 P604-RESISTORS RD01 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RD05 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RD07 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RD61 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RD66 RD92 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RD94 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RE01 4822 051 30561 CHIP 560Ω ±5% 1/16W NN05561610 RE02 4822 051 30101 CHIP 100Ω ±5% 1/16W NN05101610 RE03 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE04 4822 116 83211 CHIP 1.8kΩ ±5% 1/16W NN05182610 RE05 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE06 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE07 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RE08 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RE10 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE11 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RE12 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE13 4822 051 30151 CHIP 150Ω ±5% 1/16W NN05151610 RE14 4822 051 30222 CHIP 2.2kΩ ±5% 1/16W NN05222610 RE15 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE18 RE19 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE20 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE21 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE22 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RE23 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE24 4822 051 30332 CHIP 3.3kΩ ±5% 1/16W NN05332610 RE25 4822 051 30822 CHIP 8.2kΩ ±5% 1/16W NN05822610 RE31 4822 051 30392 CHIP 3.9kΩ ±5% 1/16W NN05392610 RE32 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RE33 4822 051 30104 CHIP 100kΩ ±5% 1/16W NN05104610 RE34 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RE35 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE41 4822 051 30223 CHIP 22kΩ ±5% 1/16W NN05223610 RE42 4822 051 30683 CHIP 68kΩ ±5% 1/16W NN05683610 RE43 4822 116 83206 CHIP 120Ω ±5% 1/16W NN05121610 RE44 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RE45 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE46 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE47 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RE48 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RE49 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RE50 4822 117 12139 CHIP 22Ω ±5% 1/16W NN05220610 RE61 4822 051 30104 CHIP 100kΩ ±5% 1/16W NN05104610 RE62 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RE63 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE64 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RE65 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 66 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RE67 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 RE68 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 RH01 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RH12 RH13 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH19 RH21 4822 051 30152 CHIP 1.5kΩ 5% 1/16W NN05152610 RH22 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH23 4822 116 83208 CHIP 12kΩ 5% 1/16W NN05123610 RH24 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RH25 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RH26 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH32 RH34 4822 051 30152 CHIP 1.5kΩ 5% 1/16W NN05152610 RH35 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH36 4822 116 83208 CHIP 12kΩ 5% 1/16W NN05123610 RH37 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RH38 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RH39 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH40 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH41 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RH42 4822 051 30105 CHIP 1MΩ 5% 1/16W NN05105610 RH51 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RH52 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RH53 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RH62 RH63 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH69 RH72 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH73 4822 116 83208 CHIP 12kΩ 5% 1/16W NN05123610 RH74 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RH75 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RH76 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH82 RH85 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RH86 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RH87 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RH88 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RJ01 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RJ12 RJ13 4822 051 30222 CHIP 2.2kΩ 5% 1/16W NN05222610 RJ16 RJ17 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RJ18 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RJ19 4822 116 83215 CHIP 5.6kΩ 5% 1/16W NN05562610 RJ20 4822 116 83215 CHIP 5.6kΩ 5% 1/16W NN05562610 RJ21 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RJ22 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RJ23 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RJ24 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RJ25 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RJ26 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RJ51 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RJ62 RJ71 4822 116 83211 CHIP 1.8kΩ 5% 1/16W NN05182610 RJ82 RK01 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RK04 RK05 4822 116 83339 CHIP 56Ω 5% 1/16W NN05560610 RK06 4822 116 83339 CHIP 56Ω 5% 1/16W NN05560610 RK07 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RK18 RK19 4822 051 30399 CHIP 39Ω 5% 1/16W NN05390610 RK22 RK23 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RK24 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RK31 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RK32 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RK34 4822 051 30101 CHIP 100Ω 5% 1/16W NN05101610 RK35 4822 526 10584 FERRITE CORE FC90090010 RK37 ZBF503D-00TA RR01 4822 051 30759 CHIP 75Ω 5% 1/16W NN05750610 RR02 4822 051 30759 CHIP 75Ω 5% 1/16W NN05750610 RR03 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RR04 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 RR05 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RR06 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 RR07 4822 051 30339 CHIP 33Ω 5% 1/16W NN05330610 RR08 4822 051 30339 CHIP 33Ω 5% 1/16W NN05330610 RR09 4822 051 30759 CHIP 75Ω 5% 1/16W NN05750610 RR10 4822 051 30391 CHIP 390Ω 5% 1/16W NN05391610 RR12 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 RR15 RR16 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RR17 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 RR20 RR21 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RR22 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RR23 4822 051 30102 CHIP 1kΩ 5% 1/16W NN05102610 RR24 4822 051 30102 CHIP 1kΩ 5% 1/16W NN05102610 RR25 4822 051 30759 CHIP 75Ω 5% 1/16W NN05750610 RR27 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 RR84 R601 4822 051 30105 CHIP 1MΩ 5% 1/16W NN05105610 R602 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R603 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R604 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R605 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R606 4822 051 30223 CHIP 22kΩ 5% 1/16W NN05223610 R651 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R652 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R653 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R654 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 R655 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R656 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R657 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R659 4822 051 30472 CHIP 4.7kΩ 5% 1/16W NN05472610 R661 4822 051 30223 CHIP 22kΩ 5% 1/16W NN05223610 R662 4822 051 30473 CHIP 47kΩ 5% 1/16W NN05473610 R663 4822 116 82487 CHIP 0Ω 5% 1/16W NN05000610 R683 4822 051 30473 CHIP 47kΩ 5% 1/16W NN05473610 R684 4822 051 30479 CHIP 47Ω 5% 1/16W NN05470610 R685 4822 051 30479 CHIP 47Ω 5% 1/16W NN05470610 R686 4822 051 30479 CHIP 47Ω 5% 1/16W NN05470610 R687 4822 051 30474 CHIP 470kΩ 5% 1/16W NN05474610 R689 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 67 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) R691 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R692 4822 051 30104 CHIP 100kΩ 5% 1/16W NN05104610 R694 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R695 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 R697 4822 051 30103 CHIP 10kΩ 5% 1/16W NN05103610 P604-SEMICONDUCTORS DE01 4822 130 10683 CHIP DIODE KV1851-TL00 HZ40003420 DR01 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DR02 4822 130 81324 CHIP DIODE 1SS302 HZ20018050 DR03 4822 130 80522 CHIP DIODE 1SS300 DAP202U HZ21006000 D692 4822 130 83715 CHIP DIODE 1SS301 DAN202U HZ21005000 D693 4822 130 83715 CHIP DIODE 1SS301 DAN202U HZ21005000 QD01 9965 000 01319 IC AD1855 DAC 24BIT 96kHz HC10013840 QD02 9965 000 01319 IC AD1855 DAC 24BIT 96kHz HC10013840 QD03 9965 000 01319 IC AD1855 DAC 24BIT 96kHz HC10013840 QD41 9965 000 01319 IC AD1855 DAC 24BIT 96kHz HC10013840 QD42 9965 000 01319 IC AD1855 DAC 24BIT 96kHz HC10013840 QD43 4822 209 17526 IC TC160G11A/U305 312020050070 HC10438050 QD44 4822 209 17526 IC TC160G11A/U305 312020050070 HC10438050 QE01 4822 130 60669 CHIP TR. 2SC4081 Q R 2SC4116 Y GR HX300012A0 QE02 4822 130 60669 CHIP TR. 2SC4081 Q R 2SC4116 Y GR HX300012A0 QE03 4822 130 60669 CHIP TR. 2SC4081 Q R 2SC4116 Y GR HX300012A0 QE04 4822 209 14876 IC MC14577C HC10065170 QE05 4822 130 60669 CHIP TR. 2SC4081 Q R 2SC4116 Y GR HX300012A0 QE06 4822 130 10698 CHIP TR. 2SA1586 Y GR 2SA1576A Q R HX100012A0 QE07 4822 130 10698 CHIP TR. 2SA1586 Y GR 2SA1576A Q R HX100012A0 QE08 4822 209 83357 IC NJM4560M HC10029090 QE09 4822 209 17162 IC PM4007A AC-3 RF DEMODURATOR HC10016660 QE10 4822 209 14864 IC 8X32K SRAM <35NS HC10076000 QH01 4822 209 91175 IC NJM2114M OP AMP HC10175090 QH02 4822 209 91175 IC NJM2114M OP AMP HC10175090 QH03 4822 209 91175 IC NJM2114M OP AMP HC10175090 QH04 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QH05 4822 130 43818 TRS. 2SC2878 A B HT328782A0 QH06 4822 130 43818 TRS. 2SC2878 A B HT328782A0 QH51 4822 209 91175 IC NJM2114M OP AMP HC10175090 QH52 4822 209 91175 IC NJM2114M OP AMP HC10175090 QH53 4822 209 91175 IC NJM2114M OP AMP HC10175090 QJ01 4822 209 91175 IC NJM2114M OP AMP HC10175090 QJ02 4822 209 91175 IC NJM2114M OP AMP HC10175090 QJ51 4822 209 91175 IC NJM2114M OP AMP HC10175090 QJ71 4822 209 91175 IC NJM2114M OP AMP HC10175090 QK01 9965 000 01317 IC CS5394 2CH ADC 24BIT HC10003880 QK03 4822 209 91175 IC NJM2114M OP AMP HC10175090 QK04 4822 209 91175 IC NJM2114M OP AMP HC10175090 QK05 4822 209 91175 IC NJM2114M OP AMP HC10175090 QK06 4822 209 91175 IC NJM2114M OP AMP HC10175090 QR01 9965 000 01341 IC CS8414 SPDIF RECEIVER HC10004880 QR02 9965 000 01342 IC TC74HC151AF HC715100Z0 QR03 9965 000 01342 IC TC74HC151AF HC715100Z0 QR04 4822 209 30426 IC 74HC00 CMOS HC700000Z0 QR05 4822 209 30426 IC 74HC01 CMOS HC700000Z0 QR06 4822 209 32879 IC TC74HC157A HC715705Z0 QR07 4822 209 31568 IC 74HCU04 CMOS HC700400Z0 QR08 4822 209 90909 IC TC7W74FU D-F F HC10400050 Q601 9965 000 01321 IC YSS912 DTS AC-3 DECODER HC10014640 Q602 9965 000 01322 IC TC7WT241FU HC007405K0 Q603 9965 000 01323 IC TC7WT126FU HC007305K0 Q604 9965 000 01324 IC 1M SRAM 8X128K 15NS HC10088000 Q605 9965 000 01326 IC TCW32FU HC10419050 Q651 4822 209 17013 IC ZR38600 AC-3 THX5.1 DECODER HC10051990 Q652 9965 000 01338 IC TC7SET04F HC007205K0 Q691 9965 000 01339 MICROPROCESSOR SUB CPU THX µPD78018F HU300JN50F Q692 9965 000 01323 IC TC7WT126FU HC007305K0 Q693 4822 209 32921 IC S-80745AN HC10048530 Q694 4822 209 12845 IC S-80730SN-DT-X RESET HC10054530 P604-MISCELLANEOUS JE01 4822 267 10603 TERMINAL YKC21-3707 YT02011030 JR01 9965 000 01340 TERMINAL RCA 2P YT02021540 JR02 4822 218 11487 OPTICAL RECIVER GP1F32R YJ15000150 JR03 4822 218 11487 OPTICAL RECIVER GP1F32R YJ15000150 JR04 4822 267 31369 OPTICAL OUTPUT GP1F32T YJ15000090 JR05 4822 290 81638 TERMINAL 14X14 RA 1L1P YT02010790 LD01 4822 526 10584 FERRITE CORE FC90090010 LD07 ZBF503D-00TA LD41 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LD42 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LD45 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LD46 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LD81 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LD82 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LD83 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LD84 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LD85 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LD86 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LE01 4822 157 70681 CHIP INDUCTANCE 68µH NL322522-680K L/U2683010 LE02 4822 242 10582 L.C. FILTER SBP-4930 2.88MHz B.P.F FF30288010 LE03 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LE04 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LH01 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LH02 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LH51 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LH52 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LJ01 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LJ02 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LK01 4822 526 10584 FERRITE CORE ZBF503D-00TA FC90090010 LR01 4822 142 60422 PULSE TRANSF. TPS247MN-0386AN TP41042030 LR02 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 L601 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 L602 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 L651 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 L691 4822 157 10884 EMI FILTER BLM11A221S FN31000010 L692 4822 157 10884 EMI FILTER BLM11A221S FN31000010 L693 4822 157 10884 EMI FILTER BLM11A221S FN31000010 L694 4822 157 10884 EMI FILTER BLM11A221S FN31000010 L695 4822 157 10884 EMI FILTER BLM11A221S FN31000010 L696 4822 157 10884 EMI FILTER BLM11A221S FN31000010 68 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) L697 4822 157 10884 EMI FILTER BLM11A221S FN31000010 XE01 9965 000 01320 CRYSTAL 18.432MHz AT-49 JX18001260 X601 4822 242 10851 CRYSTAL 12.288MHz AT-49 JX12013260 X691 4822 242 81727 SERAMIC VIB. CST10.0MTW-TF01 10.0MHz FQ01005010 P804-PRIMARY SUPPLY CIRCUIT BOARD P804-CAPACITORS CB01 /U 4822 122 33276 CER. 0.01µF ±20% DK17103840 C801 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C804 C805 9965 000 01351 ELECT. 13000µF M 16V RE3 EA13901670 C806 4822 124 80707 ELECT. 2200µF 25V RA-2 EA22802570 C807 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C808 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C809 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C810 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C811 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C812 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C813 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C814 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 C815 4822 124 90357 ELECT. 2.2µF M 50V RA-2 OA22505020 C816 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C817 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C818 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 C819 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C820 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C821 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 C822 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C823 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C824 4822 124 80396 ELECT. 4700µF 35V RA-2 EA47803510 C825 4822 124 80396 ELECT. 4700µF 35V RA-2 EA47803510 C826 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C827 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C828 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C829 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C830 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C831 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C832 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C833 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C834 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C835 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C836 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C837 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C838 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C839 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C840 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C841 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C842 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C843 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C844 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C845 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C846 4822 124 90355 ELECT. 100µF M 50V RA-2 OA10705020 C848 9965 000 01352 ELECT. 470µF 63V EA47706310 C849 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 C850 4822 124 80772 ELECT. 47µF M 35V RA-2 OA47603520 C853 4822 122 40617 CER. 50V DC 0.1µF +80%-20% DD38104010 C854 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C855 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C856 4822 124 41538 ELECT. 220µF 35V OA22703520 C857 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 C858 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 P804-CAPACITOR (COMMON) ELECTROLYTIC CAPACITOR ±20% : C847 P804-RESISTORS RB01 /U 2.2MΩ ±10% 1/2W FOR UL RC10225820 R803 4822 050 21021 100Ω ±5% 1/4W GG05101140 R809 4822 117 10158 1Ω ±5% 1/4W GG05010140 R810 4822 116 60335 1.2kΩ ±5% 1W GA05122010 R811 4822 115 90167 FUSE 100Ω ±2% 1/4W NF02101140 R812 4822 115 90167 FUSE 100Ω ±2% 1/4W NF02101140 R813 4822 111 90731 FUSE 47Ω ±2% 1/4W NF02470140 R822 /U 4822 050 21501 150Ω ±5% 1/2W GG05151120 R823 /K,/N,/S 4822 050 21801 180Ω ±5% 1/2W GG05181120 R823 /U 4822 050 21501 150Ω ±5 1/2W GG05151120 R824 /K,/N,/S 4822 050 21801 180Ω ±5% 1/2W GG05181120 R824 /U 4822 050 21501 150Ω ±5% 1/2W GG05151120 R825 /K,/N,/S 4822 050 21801 180Ω ±5% 1/2W GG05181120 R825 /U 4822 050 21501 150Ω ±5% 1/2W GG05151120 P804-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : R804-R807 R814-R821 P804-SEMICONDUCTORS DB01 /U 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D801 4822 130 83438 DIODE D5SB-20 I=5.0A V=200V HE20016290 D802 4822 130 83067 DIODE D3SB-20 V=200V I=3.0A HE20020290 D803 4822 130 80132 ZENER DIODE 3.9V RD3.9ES B1 MTZJ3.9A 04AZ3.9 HD30391000 D804 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D808 JUMPER 75060501P0 D809 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D815 D816 /K,/N,/S JUMPER 75060501P0 D816 /U 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D817 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D818 /K,/N,/S JUMPER 75060501P0 D818 /U 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D819 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D822 D823 4822 130 81287 ZENER DIODE RD33F-T8 B2 HD30080060 D824 4822 130 80273 ZENER DIODE 8.2V RD8.2ES MTZJ8.2C 04AZ8.2-Z HD30821000 D825 4822 130 82421 DIODE DIODE 1D3 HD20002710 D826 4822 130 82421 DIODE DIODE 1D3 HD20002710 D827 4822 130 82421 DIODE DIODE 1D3 HD20002710 D828 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D831 D832 4822 130 32362 DIODE 1S133 HD20002000 D833 4822 130 82421 DIODE 1D3 1A 200V HD20002710 D834 4822 130 82421 DIODE 1D3 1A 200V HD20002710 Q804 4822 209 61533 IC NJM7806FA +6V 1A HC38906090 Q805 4822 130 11605 TRS. 2SD1415 HT41415100 Q806 4822 130 11605 TRS. 2SD1415 HT41415100 Q807 4822 209 31864 IC NJM7915FA -15V 1A HC39915090 Q808 4822 209 31864 IC NJM7915FA -15V 1A HC39915090 Q809 4822 130 63635 TRS. 2SC4793 O Y HT347932A0 Q810 4822 130 61666 TRS. 2SC3419 O Y 40V 0.8A PC=1.2W 5W HT334192A0 Q811 4822 130 61666 TRS. 2SC3419 O Y 40V 0.8A PC=1.2W 5W HT334192A0 Q812 4822 130 61666 TRS. 2SC3419 O Y 40V 0.8A PC=1.2W 5W HT334192A0 69 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) Q813 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 Q814 9965 000 01354 IC L780S15 +15V 1A HC38915030 Q815 4822 209 15921 IC RESET S-806D-Z SEIKO HC10077530 Q816 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 Q817 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 P804-MISCELLANEOUS FB02 /K,/N,/S 4822 253 30354 FUSE T400mA 250V BS LISTED FS10040850 FB02 /U FUSE 800mA 250V UL CSA MITI FS10080350 JB04 /U JACK 2P AC OUTLET YJ04002040 LB01 /U 4822 280 20517 RELAY VS24MB UL CSA SEM. LY10240190 LB02 4822 157 70419 EMI NOISE FILTER LF-4D-102 FN01020020 L801 9965 000 01353 RELAY FTR-F1AA024T LY20240460 L802 9965 000 01353 RELAY FTR-F1AA024T LY20240460 L803 9965 000 01353 RELAY FTR-F1AA024T LY20240460 P874- +5VD CIRCUIT BOARD D871 4822 130 82421 DIODE 1D3 1A 200V HD20002710 Q871 4822 209 31631 IC NJM7805FA +5V 1A HC38905090 P884- +5VA CIRCUIT BOARD D881 4822 130 82421 DIODE 1D3 1A 200V HD20002710 Q881 4822 209 31631 IC NJM7805FA +5V 1A HC38905090 P894- -5V CIRCUIT BOARD D891 4822 130 82421 DIODE 1D3 1A 200V HD20002710 Q891 4822 209 63179 IC NJM7905FA -5V 1A HC39905090 PB54-PRIMARY CONNECT CIRCUIT BOARD PB54-MISCELLANEOUS FB51 /K,/N,/S 4822 071 52002 FUSE T2.0A 250V TR5 IEC127-3 FS20200200 FB51 /U FUSE T2A 250V TR5 FS20200210 FB52 /K,/N,/S 4822 071 52002 FUSE T2.0A 250V TR5 IEC127-3 FS20200200 FB52 /U FUSE T2A 250V TR5 FS20200210 FB53 /K,/N,/S 4822 071 51602 FUSE T1.6A 250V FS20160200 FB53 /U FUSE 1.6A 125V FS20160220 FB54 /K,/N,/S 4822 071 51602 FUSE T1.6A 250V FS20160200 FB54 /U FUSE 1.6A 125V FS20160220 FB55 /K,/N,/S 4822 071 55001 FUSE T500mA 250V TR5 IEC127-3 FS20050200 FB55 /U FUSE 0.5A 125V FS20050220 FB56 /K,/N,/S 4822 071 55001 FUSE T500mA 250V TR5 IEC127-3 FS20050200 FB56 /U FUSE 0.5A 125V FS20050220 PB74-POWER SW. CIRCUIT BOARD CB71 4822 122 33276 CER. 0.01µF ±20% DK17103840 SB71 9965 000 01361 PUSH SW. POWER TV-5 SP01012470 PL04-CVBS VIDEO SELECTOR CIRCUIT BOARD PL04-CAPACITORS CL01 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL02 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL03 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL04 JUMPER 75060501P0 CL05 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL07 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL08 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL09 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL10 JUMPER 75060501P0 CL11 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL23 CL24 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CL25 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL31 CL32 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CL33 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CL34 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL35 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CL36 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL37 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CL38 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL39 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL40 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL41 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CL42 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL43 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CL44 4822 122 40617 CER. 0.1µF 50V DD38104010 CL46 /K,/N,/S 4822 126 10362 CER. 22PF DA15220110 CL47 /K,/N,/S 4822 126 11553 CER. 15PF DA15150120 CL48 /U 4822 122 33792 CER. 10PF DA15100120 CL49 4822 126 11591 CER. 24pF ±5% CH 50V BLK DD15240300 CL50 4822 126 10362 CER. 22PF DA15220110 CL52 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CL53 4822 122 40617 CER. 0.1µF 50V DD38104010 CL54 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CL55 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CL56 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL57 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL58 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL59 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CL60 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL61 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CL62 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL63 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL64 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CL65 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CL66 JUMPER 75060501P0 CL67 /U 4822 126 10362 CER. 22PF DA15220110 CL68 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CL69 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL70 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL71 JUMPER 75060501P0 CL74 CL75 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL79 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CL80 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CL81 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL82 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL83 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL84 4822 125 50384 TRIM. 20pF VCT51E CT12000200 CL86 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX84 4822 124 22277 ELECT. 470µF M 10V OA47701620 PL04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CL51 CL76 CL77 (CL87 CL88 CL91 CL92 CL96 CL97[/N,/S]) PLASTIC FILM CAPACITOR ±5% 50V : CL78 PL04-RESISTORS RL01 4822 111 41355 75Ω ±5% 1/6W GD05750160 RL03 4822 111 41355 75Ω ±5% 1/6W GD05750160 RL05 4822 111 41355 75Ω ±5% 1/6W GD05750160 70 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) RL07 4822 111 41355 75Ω ±5% 1/6W GD05750160 RL09 4822 111 41355 75Ω ±5% 1/6W GD05750160 RV51 4822 050 21021 100Ω ±5% 1/2W GG05101120 PL04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RL02 RL04 RL06 RL08 RL10-RL15 RL18-RL26 RL28-RL43 RV52 RV53 PL04-SEMICONDUCTORS DL07 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DV01 4822 130 82421 DIODE DIODE 1D3 HD20002710 DV02 4822 130 82421 DIODE DIODE 1D3 HD20002710 DV03 4822 130 82421 DIODE DIODE 1D3 HD20002710 DV51 4822 130 82421 DIODE 1D3 HD20002710 DV52 4822 130 82421 DIODE 1D3 HD20002710 DV53 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QL01 9965 000 01371 IC MM1140XF HC10083550 QL02 4822 209 32928 IC BA7612N VIDEO SELECTOR HC10201210 QL03 9965 000 01372 IC BA7649A G-1 VIDEO SW HC10179210 QL04 4822 209 31527 IC BA7613N HC10202210 QL05 9965 000 01372 IC BA7649A G-1 VIDEO SW HC10179210 QL06 4822 209 31527 IC BA7613N HC10202210 QL07 4822 209 16846 IC NJU3718L HC10171090 QL08 4822 209 32246 IC NJM2244 3IN SW 75Ω DRIVER HC10119090 QL09 4822 209 15524 IC OSD LC74781 HC10377030 QL10 /K,/N,/S 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QL11 /K,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QL12 /K,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QL14 4822 209 32246 IC NJM2244 3IN SW 75Ω DRIVER HC10119090 QL15 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QL16 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QL17 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QL18 5322 209 71773 IC 74HC132 HC713205D0 QL19 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QV51 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QV52 4822 130 63634 TRS. 2SA1837 Q Y HT118372A0 PL04-MISCELLANEOUS JL01 4822 265 31299 TERMINAL 3P RCA YELLOW YT02030340 JL02 4822 265 31299 TERMINAL 3P RCA YELLOW YT02030340 JL03 4822 265 31299 TERMINAL 3P RCA YELLOW YT02030340 JL04 4822 265 31045 TERMINAL YKC21-3081 YT02021080 JL05 4822 290 81598 TERMINAL 2P RCA GOLD YT02021130 JL12 4822 265 31045 TERMINAL YKC21-3081 YT02021080 LL01 4822 157 62922 CHOKE COIL 33µH J LC13333800 LL02 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LL03 JUMPER 75060501P0 LL08 LV01 4822 280 20501 RELAY MR62-24SR 24V LY20240410 LV02 4822 280 20501 RELAY MR62-24SR 24V LY20240410 LV03 4822 280 20501 RELAY MR62-24SR 24V LY20240410 XL01 /K 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XL01 /S 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XL01 /N 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XL02 4822 242 80288 CRYSTAL AT49 14.31818MHz JX14001260 PL74-AUX INPUT CIRCUIT BOARD PL74-CAPACITORS CL75 /N,/S 4822 126 11568 CER. 470pF CHIP DK96471300 CL76 /N,/S 4822 126 11568 CER. 470pF CHIP DK96471300 CL77 /N,/S 4822 122 33777 CER. 47PF CHIP DD95470300 CL78 /N,/S 4822 122 33777 CER. 47PF CHIP DD95470300 CL79 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CL82 CL83 4822 124 23112 ELECT. 10µF 16V EQ10601630 CL84 4822 111 41305 0Ω ±5% 1/4W GD05000140 CL88 4822 111 41305 0Ω ±5% 1/4W GD05000140 CL89 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CL90 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CL91 4822 111 41305 0Ω ±5% 1/4W GD05000140 CL98 PL74-RESISTORS RL75 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RL76 4822 051 30102 CHIP 1kΩ ±5% 1/16W NN05102610 RL77 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RL78 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RL79 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RL82 RL83 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RL84 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RL85 4822 051 30759 CHIP 75Ω ±5% 1/16W NN05750610 RL86 4822 051 30759 CHIP 75Ω ±5% 1/16W NN05750610 RL88 4822 051 30759 CHIP 75Ω ±5% 1/16W NN05750610 PL74-SEMICONDUCTOR QL75 4822 209 71451 IC NJM4558M Y HC10011090 PL74-MISCELLANEOU JL75 9965 000 01347 TERMINAL RCA JACK 3P & S-TERMINAL AUX BY04040030 PM04-HDAM CIRCUIT BOARD PM04-CAPACITORS CM21 4822 124 90358 ELECT. 22µF M 16V OA22601620 CM22 4822 124 90358 ELECT. 22µF M 16V OA22601620 CM23 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CM24 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CM25 4822 126 14166 FILM 330pF 100V ECQ-P OF15331540 CM26 4822 126 14166 FILM 330pF 100V ECQ-P OF15331540 CM27 4822 121 70543 FILM 100pF 100V ECQ-P1101J OF15101540 CM28 4822 121 70543 FILM 100pF 100V ECQ-P1101J OF15101540 CM29 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CM30 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CM31 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CM32 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 PM04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RM21-RM24 RM27-RM40 PM04-SEMICONDUCTORS DM21 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DM22 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 71 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QM21 4822 130 42949 TRS. 2SA970 HT109702A0 QM22 4822 130 42949 TRS. 2SA970 HT109702A0 QM23 4822 130 43233 TRS. 2SC2240 HT322402A0 QM24 4822 130 43233 TRS. 2SC2240 HT322402A0 QM25 4822 130 43283 TRS. 2SC2705 O Y HT327052A0 QM26 4822 130 43283 TRS. 2SC2705 O Y HT327052A0 QM27 4822 130 42999 TRS. 2SA1145 O Y HT111452A0 QM28 4822 130 42999 TRS. 2SA1145 O Y HT111452A0 QM29 UNIT & H-IC NEW HDAM KH269J1010 QM30 UNIT & H-IC NEW HDAM KH269J1010 PS04-A-FUNC PRE SUPPLY CIRCUIT BOARD KIT PS04-CAPACITORS CG01 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CG06 CG09 4822 124 22277 ELECT. 470µF M 16V OA47701620 CQ01 JUMPER 75060501P0 CQ02 JUMPER 75060501P0 CQ03 JUMPER 75060501P0 CQ08 4822 122 40617 CER. 0.1µF 50V DD38104010 CQ09 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CQ10 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS01 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS14 CS15 4822 124 22571 ELECT. 10µF M 16V RA-2 OA10605020 CS16 4822 124 22571 ELECT. 10µF M 16V RA-2 OA10605020 CS17 4822 124 90358 ELECT. 22µF M 16V RA-2 OA22601620 CS18 4822 124 90358 ELECT. 22µF M 16V RA-2 OA22601620 CS19 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CS22 CS23 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS24 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS25 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS28 CS29 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS30 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS31 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS32 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS33 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS34 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS35 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS36 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CS55 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS56 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS57 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS58 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS59 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS62 CS63 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CS64 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CS65 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS70 CS73 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS75 CS79 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS80 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS81 JUMPER 75060501P0 CS82 JUMPER 75060501P0 CS83 JUMPER 75060501P0 CS84 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CS85 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CS86 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS87 4822 124 90354 ELECT. 100µF M 16V RA-2 OA10701620 CS88 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CS89 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS90 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CS93 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS94 /N,/S 4822 122 31205 CER. 47pF ±5% CH 50V BLK DD15470300 CS97 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CS98 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CS99 4822 122 40617 CER. 0.1µF 50V DD38104010 PS04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : (CG07 CG08[/N,/S]) CQ06 CQ07 (CS37-CS54 CS71 CS72 CS91 CS92 CS95 CS96[/N,/S]) PS04-RESISTORS RG15 4822 115 90166 FUSE 10Ω ±2% 1/4W NF02100140 RG96 JUMPER RG67 JUMPER PS04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RG01-RG14 RG16-RG20 RQ25-RQ30 RS01-RS95 RS98 RS99 PS04-SEMICONDUCTORS DG01 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DG02 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DG03 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DS01 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DS02 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QG01 9965 000 01359 IC ELE VOL TC9459N HC10443050 QG02 4822 209 83631 IC NJM4558D-D HC10008090 QG03 4822 130 63634 TRS. 2SA1837 Q Y HT118372A0 QG04 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QG05 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QG06 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QG07 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QS01 4822 209 83631 IC NJM4558D-D HC10008090 QS11 QS12 4822 209 32552 IC LC78211 HC10308030 QS13 4822 209 32553 IC LC78212 HC10309030 QS14 4822 209 32553 IC LC78212 HC10309030 QS15 4822 209 32552 IC LC78211 HC10308030 QS16 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QS17 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QS18 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QS19 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QS20 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QS21 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QS22 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QS23 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 QS24 4822 130 43818 TRS. 2SC2878 A OR BRANK HT328782A0 72 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QS25 4822 209 83631 IC NJM4558D-D HC10008090 QS26 4822 130 90347 PHOTO UNIT PC-817 PHOTO CUPLER 1PAIR HW10006320 QS27 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 PS04-MISCELLANEOUS JS01 4822 265 10729 TERMINAL 8P RCA PIN YT02080130 JS03 4822 290 61244 TERMINAL 6P RCA PIN YT02060490 JS04 4822 290 61244 TERMINAL 6P RCA PIN YT02060490 JS06 4822 290 61244 TERMINAL 6P RCA PIN YT02060490 JS07 TERMINAL 4P RCA RC-5 MULT YT02041260 LG01 4822 280 20501 RELAY MR62-24SR 24V LY20240410 PU04-FRONT FL DISPLAY SWITCH CIRCUIT BOARD PU04-CAPACITORS CU01 4822 126 11558 CER. 0.1µF +80%-20% 50V DA17104110 CU02 4822 126 11558 CER. 0.1µF +80%-20% 50V DA17104110 CU03 4822 126 11558 CER. 0.1µF +80%-20% 50V DA17104110 CU04 4822 124 21901 ELECT. 47µF 6.3V EJ47600610 CU05 4822 126 10364 CER. 100pF ±10% DA16101110 CU08 CU09 4822 126 11558 CER. 0.1µF +80%-20% 50V DA17104110 CU12 CU13 CER. 1000pF ±10% DK16102300 CU20 4822 124 21901 ELECT. 47µF 6.3V EJ47600610 CU81 4822 122 40588 CER. 0.022µF TP050F223Z DA17223110 CU82 4822 124 80087 ELECT. 220µF 6.3V EJ22700610 PU04-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RU01-RU09 RU15-RU19 RU21-RU29 RU31-RU48 RU51-RU63 PU04-SEMICONDUCTORS DU07 4822 130 11569 L.E.D. HLMF-K200 #2UL RED HI10005340 DU16 DU17 4822 130 11363 L.E.D. LT3K44B GREEN 30mA HI10095320 DU18 4822 130 11569 L.E.D. HLMF-K200 #2UL RED HI10005340 DU19 4822 130 11569 L.E.D. HLMF-K200 #2UL RED HI10005340 DU20 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DU21 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QU01 4822 209 90244 IC UPD16311GC-AB6 FTD DRIVER HC10283060 QU02 4822 209 16846 IC NJU3718L HC10171090 QU03 4822 130 41947 TRS. HT30001000 QU06 2SC2458 2SC1740S 2SC3199 QU07 4822 130 63211 DIG.TRS. DTA114TS UN4115 10K BA10004000 QU81 /K,/N,/S 4822 209 16735 PHOTO UNIT PNA4655M00HB HW10006020 QU81 /U 4822 209 16157 PHOTO UNIT PNA4655M00XB HW10005020 PU04-MISCELLANEOUS SU01 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU03 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU01 9965 000 00373 PUSH SWITCH SP01013370 SU17 EVQ11L05R H 5MM 160GF SU19 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU20 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU21 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU23 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU24 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU27 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU28 9965 000 00373 PUSH SWITCH EVQ11L05R SP01013370 SU32 9965 000 01348 ROTARY ENCODER MASTER SR02010070 SU33 9965 000 01349 ROTARY ENCODER INP. SEL. SR02010080 VU01 9965 000 01350 FL DISPLAY SVA-12MM20 HQ31201920 PU74-STANDBY LED CIRCUIT BOARD CU71 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 RU71 RES. 680Ω ±5% 1/6W GD05681160 DU71 4822 130 11569 L.E.D. HLMF-K200 #2UL RED HI10005340 PU94-GYRO ENCODER CIRCUIT BOARD CU91 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 RU91 RES. 330Ω ±5% 1/6W GD05331160 RU92 RES. 10kΩ ±5% 1/6W GD05103160 RU93 RES. 10kΩ ±5% 1/6W GD05103160 QU91 4822 130 11143 PHOTO UNIT GP1A06 2PHASE PHOTO INTERRUPTER HW10033320 PW04-HEADPHONE CIRCUIT BOARD CW01 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CW02 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CW03 4822 122 40617 CER. 0.1µF +80%-20% 50V DD38104010 CW04 4822 122 40617 CER. 0.1µF +80%-20% 50V DD38104010 PW54-HEADPHONE AMP CIRCUIT BOARD PW54-CAPACITORS CW51 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CW52 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CW53 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CW54 4822 124 22274 ELECT. 4.7µF M 50V RA-2 OA47505020 CW55 4822 124 90364 ELECT. 220µF M 16V RA-2 OA22701620 CW58 CW59 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 CW60 4822 124 23112 ELECT. 10µF 16V EQ10601630 PW54-RESISTORS RW63 4822 116 60314 FUSIBLE 10Ω ±5% 1/4W NH05100140 RW64 4822 116 60314 FUSIBLE 10Ω ±5% 1/4W NH05100140 RW65 4822 050 21501 150Ω ±5% 1/4W GG05151140 PW54-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RW51-RE62 RW66 RW68 RW69 PW54-SEMICONDUCTORS DW51 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DW52 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DW53 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DW54 4822 130 82421 DIODE 1D3 1A 200V HD20002710 DW55 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QW51 4822 209 82362 IC NJM-4556 HC10016090 QW52 4822 130 63634 TRS. 2SA1837 O Y HT118372A0 QW53 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QW54 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 73 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) PW54-MISCELLANEOU LW51 9965 000 01343 RELAY MR62-12SR LY20120510 PY04-U-COM CIRCUIT BOARD PY04-CAPACITORS CY01 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY02 4822 124 23056 ELECT. 47µF 10V EJ47601010 CY04 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CY07 4822 126 13303 CER. 1µF 10V F CHIP DK98105200 CY08 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CY09 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CY10 5322 126 11583 CER. 0.01µF ±10% B 25V CHIP DK96103200 CY11 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY12 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY19 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY25 5322 126 11578 CER. 1000pF ±10% B 50V CHIP DK96102300 CY26 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200 CY30 4822 124 11879 BIG ELECT. 1F 5.5V DB-5R5D105 EX10500530 PY04-RESISTORS RY01 4822 051 30479 CHIP 47Ω ±5% 1/16W NN05470610 RY02 4822 116 83819 CHIP 18kΩ ±5% 1/16W NN05183610 RY03 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY04 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY05 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY06 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY11 RY12 4822 051 30105 CHIP 1MΩ ±5% 1/16W NN05105610 RY13 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY14 /K,/S 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY15 /N,/U 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY16 /K,/S 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY17 /N,/U 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY18 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY21 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY22 /N,/S 4822 051 30473 CHIP 47kΩ ±5% 1/6W NN05473610 RY23 /K,/U 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY24 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RY25 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RY27 4822 051 30472 CHIP 4.7kΩ ±5% 1/16W NN05472610 RY31 RY32 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY33 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY34 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY35 4822 051 30221 CHIP 220Ω ±5% 1/16W NN05221610 RY36 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY37 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY38 4822 051 30221 CHIP 220Ω ±5% 1/16W NN05221610 RY45 RY46 4822 116 82487 CHIP 0Ω ±5% 1/16W NN05000610 RY56 RY57 4822 051 30473 CHIP 47kΩ ±5% 1/16W NN05473610 RY58 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY59 4822 051 30683 CHIP 68kΩ ±5% 1/16W NN05683610 RY60 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY64 4822 051 30273 CHIP 27kΩ ±5% 1/16W NN05273610 RY65 4822 051 30221 CHIP 220Ω ±5% 1/16W NN05221610 RY66 4822 051 30221 CHIP 220Ω ±5% 1/16W NN05221610 RY67 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY68 4822 051 30273 CHIP 27kΩ ±5% 1/16W NN05273610 RY70 /S 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 RY70 /N 4822 051 30103 CHIP 10kΩ ±5% 1/16W NN05103610 PY04-SEMICONDUCTORS DY01 4822 130 80522 CHIP DIODE 1SS300 DAP202U HZ21006000 DY04 QY01 9965 000 01345 MICROPROCESSOR MAIN TMP93CW40DF HU300JT00F QY02 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QY03 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY04 4822 130 42594 DIG.TRS. DTC144ES UN4213 47K 47K BA20002000 QY05 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY06 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY07 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QY08 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY09 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QY10 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY11 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QY12 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QY13 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QY14 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY15 4822 209 12845 IC S-80730SN-DT-X RESET HC10054530 PY04-MISCELLANEOUS JY01 4822 265 61202 JACK HLEM33S-1 33PIN FFC YJ06011030 XY01 9965 000 01346 SERAMIC VIB. CST20.00MXW0H1 20MHz FQ02005030 PY64-CONNECT CIRCUIT BOARD PY64-CAPACITOR CY61 4822 124 41539 ELECT. 47µF M 16V RA-2 OA47601620 PY64-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RY61-RY63 RY69 RU91 PY64-SEMICONDUCTORS DY61 4822 130 81157 ZENER DIODE MTZJ3.0B HD30301000 DY62 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 QY61 4822 130 42682 DIG.TRS. DTA144ES UN4113 47K 47K BA10002000 QY62 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QY63 4822 130 61227 DIG.TRS. DTA114ES UN4111 10K 10K BA10001000 QY64 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QY65 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 PY64-MISCELLANEOUS JY61 4822 265 61202 JACK HLEM33S-1 33PIN FFC YJ06011030 WY61 4822 321 62312 JUMPER LEAD 33P-200 P1.25 SMCD-33X200 YU33200510 74 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) PZ04-S-VIDEO SELECTOR CIRCUIT BOARD PZ04-CAPACITORS CX01 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX02 4822 122 31349 CER. 68pF ±5% 50V DD15680300 CX03 /K,/N,/S 5322 122 32143 CER. 22pF ±5% 50V DD15220300 CX04 4822 124 22275 ELECT. 47µF M 10V RA-2 OA47601020 CX05 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CX06 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CX07 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX08 /U 4822 126 10362 CER. 22pF ±5% 50V DA15220110 CX09 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX10 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX11 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX12 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CX13 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX14 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX15 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX16 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CX19 CX20 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CX22 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CX23 4822 125 50384 TRIM. VCT51E 20pF CT12000200 CX24 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CX25 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CX93 JUMPER 75060501P0 CX96 CX97 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CX98 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CX99 /U 4822 126 10362 CER. 22PF DA15220110 CZ01 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ05 CZ06 4822 124 23112 ELECT. 10µF 16V EQ10601630 CZ10 CZ11 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ25 CZ26 4822 124 23112 ELECT. 10µF 16V EQ10601630 CZ27 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ33 CZ34 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ35 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ42 CZ43 /K,/N,/S 4822 126 10362 CER. 22PF ±5% DA15220110 CZ44 /U 4822 122 33792 CER. 10PF ±5% DA15100120 CZ45 /K,/N,/S 4822 126 11553 CER. 15PF ±5% DA15150120 CZ46 4822 126 11591 CER. 24pF ±5% CH 50V BLK DD15240300 CZ47 4822 126 10362 CER. 22PF ±5% DA15220110 CZ49 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CZ50 4822 122 40617 CER. 0.1µF +80%-20% 50V DD38104010 CZ51 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CZ52 4822 124 41543 ELECT. 1µF M 50V RA-2 OA10505020 CZ53 JUMPER 75060501P0 CZ54 JUMPER 75060501P0 CZ55 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ60 CZ61 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ62 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ63 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ65 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CZ66 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CZ67 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CZ68 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CZ69 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CZ77 CZ78 4822 124 41537 ELECT. 220µF M 6.3V RA-2 OA22700620 CZ79 4822 122 40617 CER. 0.1µF +80%-20% 50V DC DD38104010 CZ80 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ81 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ82 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ83 4822 124 23112 ELECT. 10µF 16V EQ10601630 CZ84 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ85 4822 124 41544 ELECT. 470µF M 6.3V RA-2 OA47700620 CZ86 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ87 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ88 4822 124 22571 ELECT. 10µF M 50V RA-2 OA10605020 CZ89 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CZ92 CZ93 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CZ94 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 CZ95 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CZ97 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020 CZ98 4822 122 30043 CER. 0.01µF +80%-20% 50V DK18103310 PV04-CAPACITORS (COMMON) HIGH DIELECTRIC CONSTANT CER. CAPACITOR ±10% 50V : CX92 CZ48 PLASTIC FILM CAPACITOR ±5% 50V : CX21 PZ04-RESISTORS RX11 4822 050 21801 180Ω ±5% 1/4W GG05181140 RZ06 4822 111 41355 75Ω ±5% 1/6W GD05750160 RZ15 RZ22 JUMPER 75060501P0 RZ23 JUMPER 75060501P0 RZ24 4822 111 41355 75Ω ±5% 1/6W GD05750160 RZ29 RZ36 JUMPER 75060501P0 RZ41 PY64-RESISTORS (COMMON) CARBON FILM FIXED RES. ±5% 1/6W : RX01-RX10 RX12-RX29 RZ01-RZ05 RZ16-RZ20 RZ30-RZ32 RZ34 RZ35 RZ42-RZ48 RZ50-RZ54 RZ56-RZ60 RZ67 PZ04-SEMICONDUCTORS DX01 4822 130 80321 ZENER DIODE 10V RD10ESB2 MTZJ10C 04AZ10-Y HD31001000 DZ01 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DZ02 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DZ03 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DZ05 4822 130 32362 DIODE 1SS176 MA165 1SS254 30V 0.1A HD20002000 DZ19 9965 000 01374 ZENER DIODE 2.7V MTZ2.7B HD30271000 QX01 4822 130 41947 TRS. 2SC536SP ETC HT30001000 75 POS. NO VERS. COLOR PART NO. (FOR PCS) DESCRIPTION PART NO. (MJI) QX04 QX05 /K,/N,/S 4822 130 63211 DIG.TRS. DTA114TS UN4115 10K BA10004000 QX07 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QZ01 9965 000 01371 IC MM1140XF HC10083550 QZ02 4822 209 32928 IC BA7612N VIDEO SELECTOR HC10201210 QZ03 9965 000 01371 IC MM1140XF HC10083550 QZ04 4822 209 32928 IC BA7612N HC10201210 QZ05 9965 000 01372 IC BA7649A G-1 VIDEO SW HC10179210 QZ06 4822 209 31527 IC BA7613N HC10202210 QZ07 9965 000 01372 IC BA7649A G-1 VIDEO SW HC10179210 QZ08 4822 209 32928 IC BA7612N HC10201210 QZ09 4822 209 32246 IC NJM2244 3IN SW 75 DRIVER HC10119090 QZ10 9965 000 01379 IC NJM2263D HC10198090 QZ11 4822 209 15524 IC OSD LC74781 HC10377030 QZ12 /K,/N,/S 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QZ13 /K,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QZ14 /K,/N,/S 4822 130 61189 DIG.TRS. DTC114TS UN4215 10K BA20004000 QZ16 4822 209 31527 IC BA7613N HC10202210 QZ17 4822 209 31527 IC BA7613N VIDEO SELECTOR HC10202210 QZ18 4822 209 31527 IC BA7613N VIDEO SELECTOR HC10202210 QZ19 4822 209 32246 IC NJM2244 3IN SW 75 DRIVER HC10119090 QZ20 9965 000 01379 IC NJM2263D HC10198090 QZ21 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QZ22 9965 000 01379 IC 74HC4051 C-MOS HC705100B0 QZ23 4822 209 83088 IC NJM2903D DUAL COMPARATOR HC10022090 QZ24 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QZ25 4822 130 61227 DIG.TRS. DTA114ES ETC BA10001000 QZ26 4822 130 41947 TRS. 2SC2458 2SC1740S 2SC3199 HT30001000 QZ27 4822 130 60588 DIG.TRS. DTC114ES UN4211 10K 10K BA20001000 QZ28 9965 000 01381 IC 74HC32A QUAD 2-INPUT OR GATE HC703200B0 QZ29 5322 209 71773 IC 74HC132 HC713205D0 PZ04-MISCELLANEOUS JZ01 9965 000 01375 TERMINAL 3P S-TERM GOLD YT02030550 JZ02 9965 000 01376 TERMINAL 2P S-TERM GOLD YT02021520 JZ03 9965 000 01375 TERMINAL 3P S-TERM GOLD YT02030550 JZ04 9965 000 01377 TERMINAL 6P RCA COMP VIDEO GOLD G B R YT02060640 JZ05 9965 000 01378 TERMINAL 3P RCA COMP VIDEO GOLD G B R YT02030540 LX01 4822 157 62909 CHOKE COIL 22µH LC12233800 LZ01 4822 157 62922 CHOKE COIL 33µH J LC13333800 LZ02 4822 242 73843 EMI FILTER DSS306-91-F-223Z FM12223010 LZ03 4822 242 73843 EMI FILTER DSS306-91-F-233Z FM12223010 XZ01 /K,/N,/S 4822 242 73903 CRYSTAL AT49 17.7MHz JX17001260 XZ02 4822 242 80288 CRYSTAL AT49 14.31818MHz JX14001260
