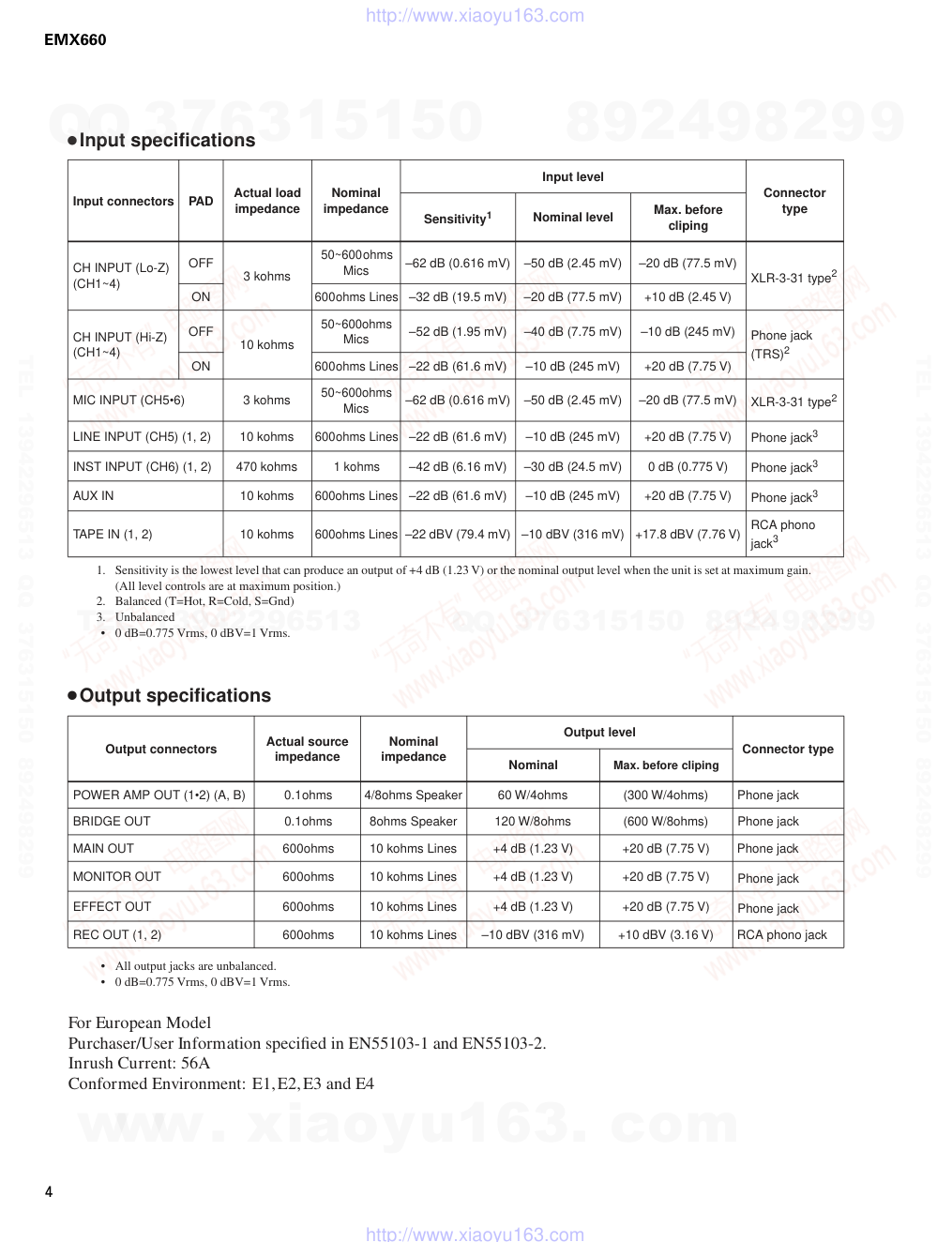

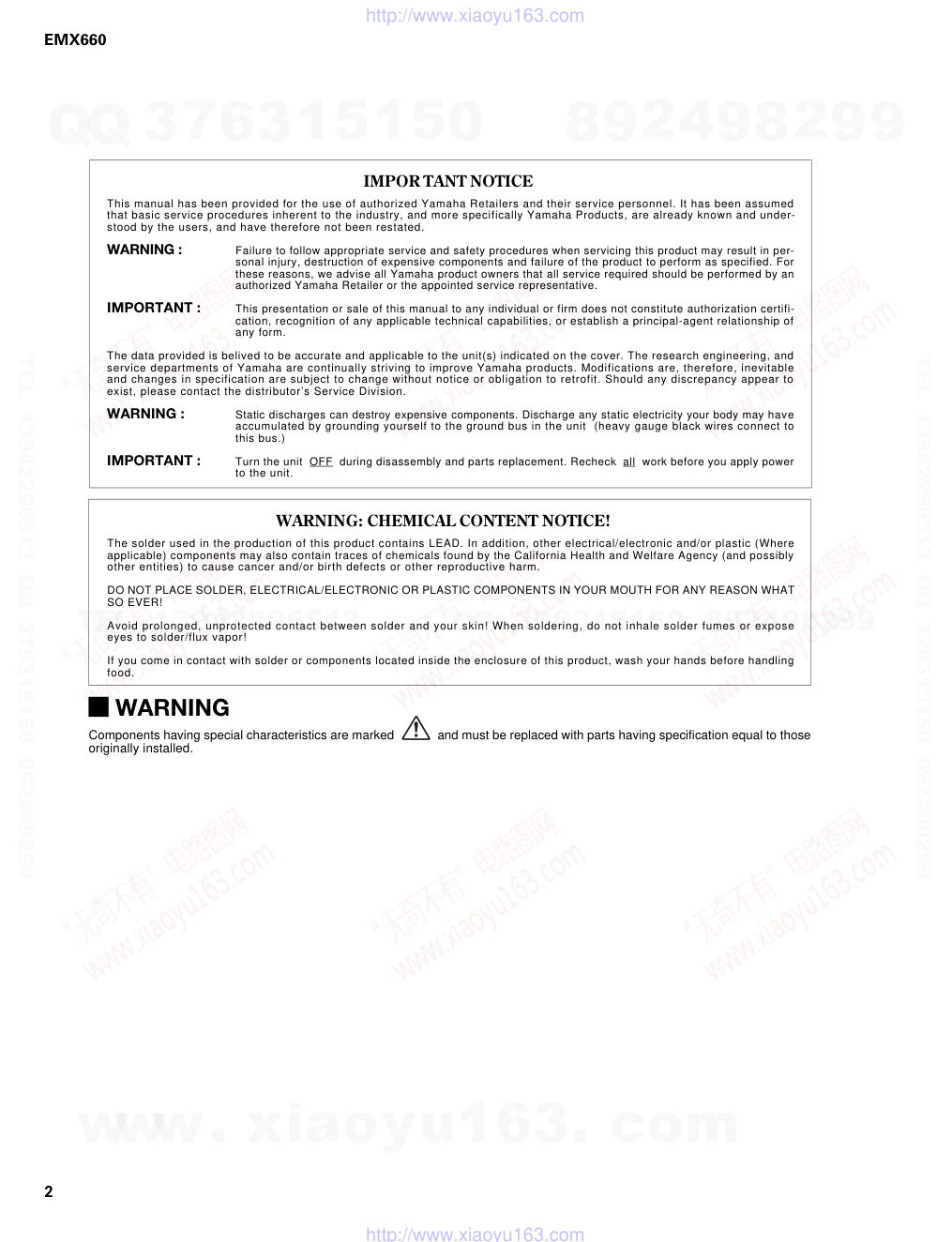

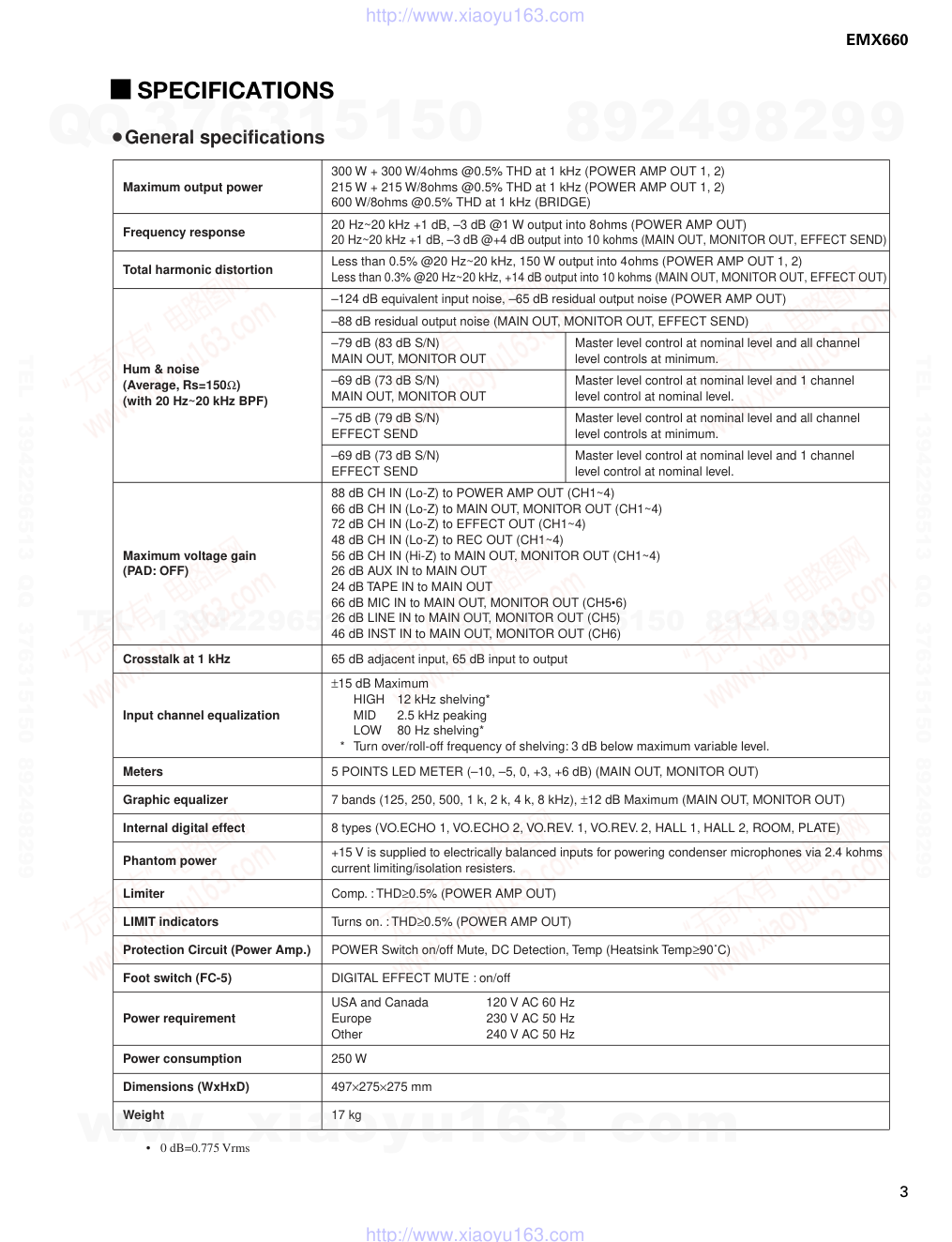

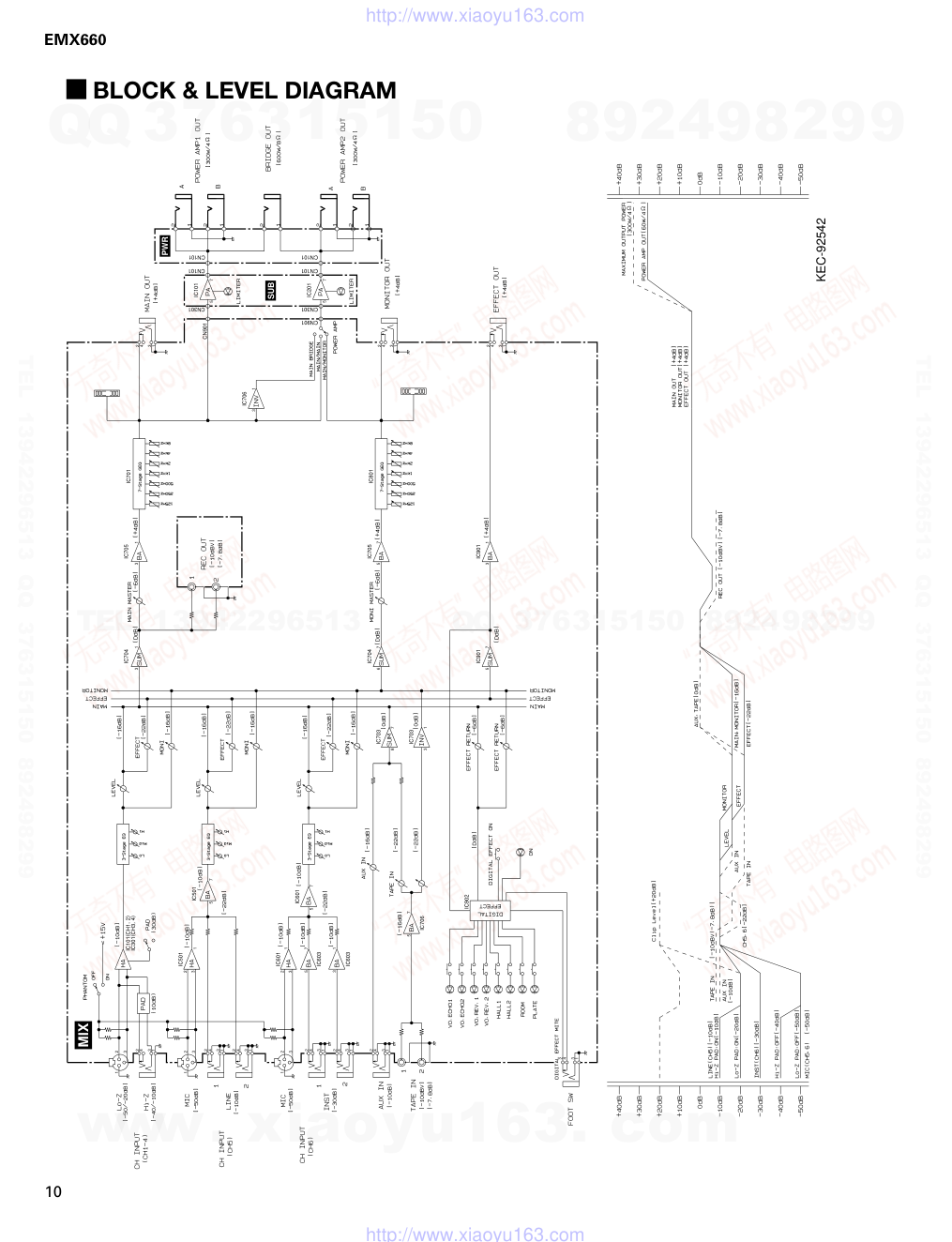

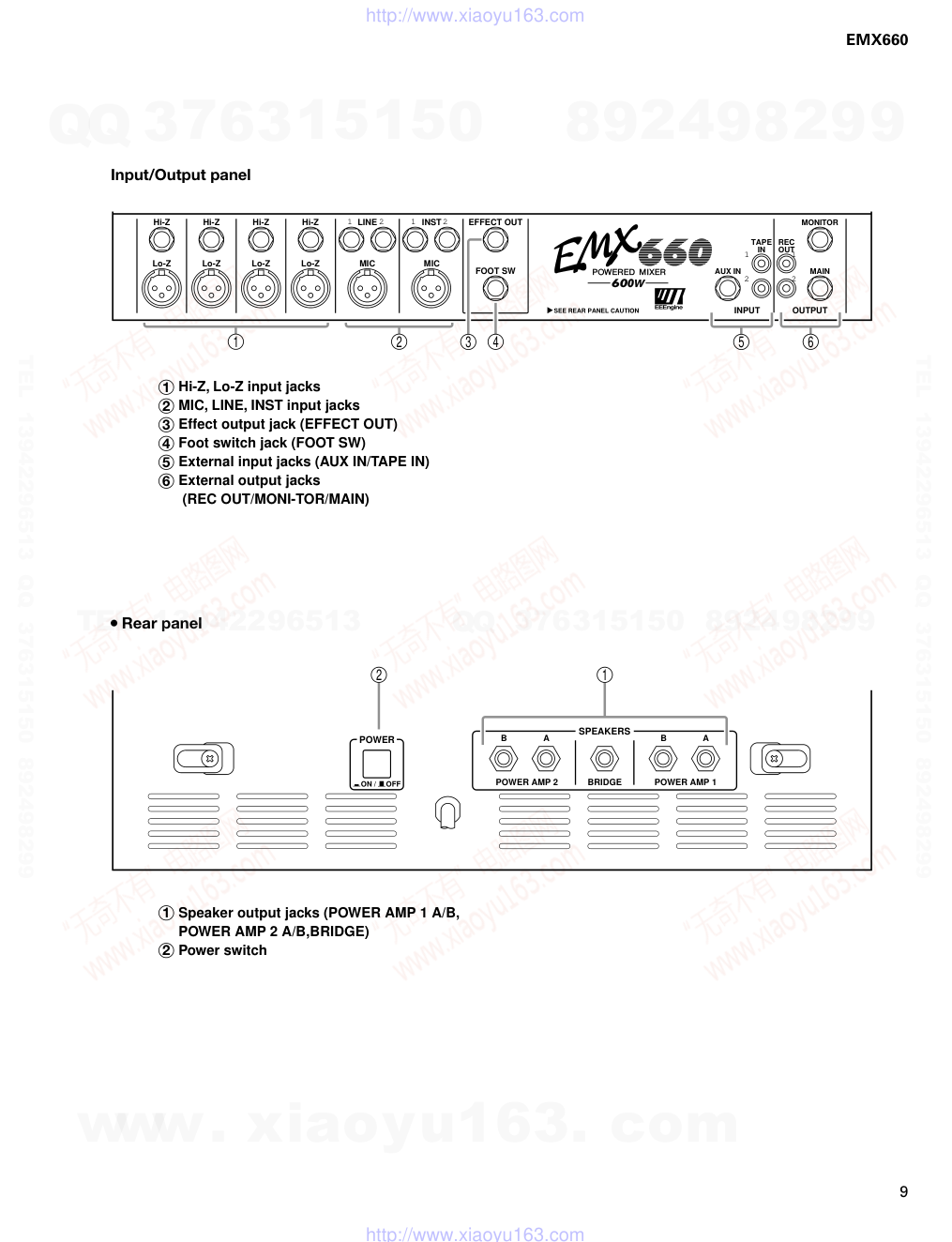

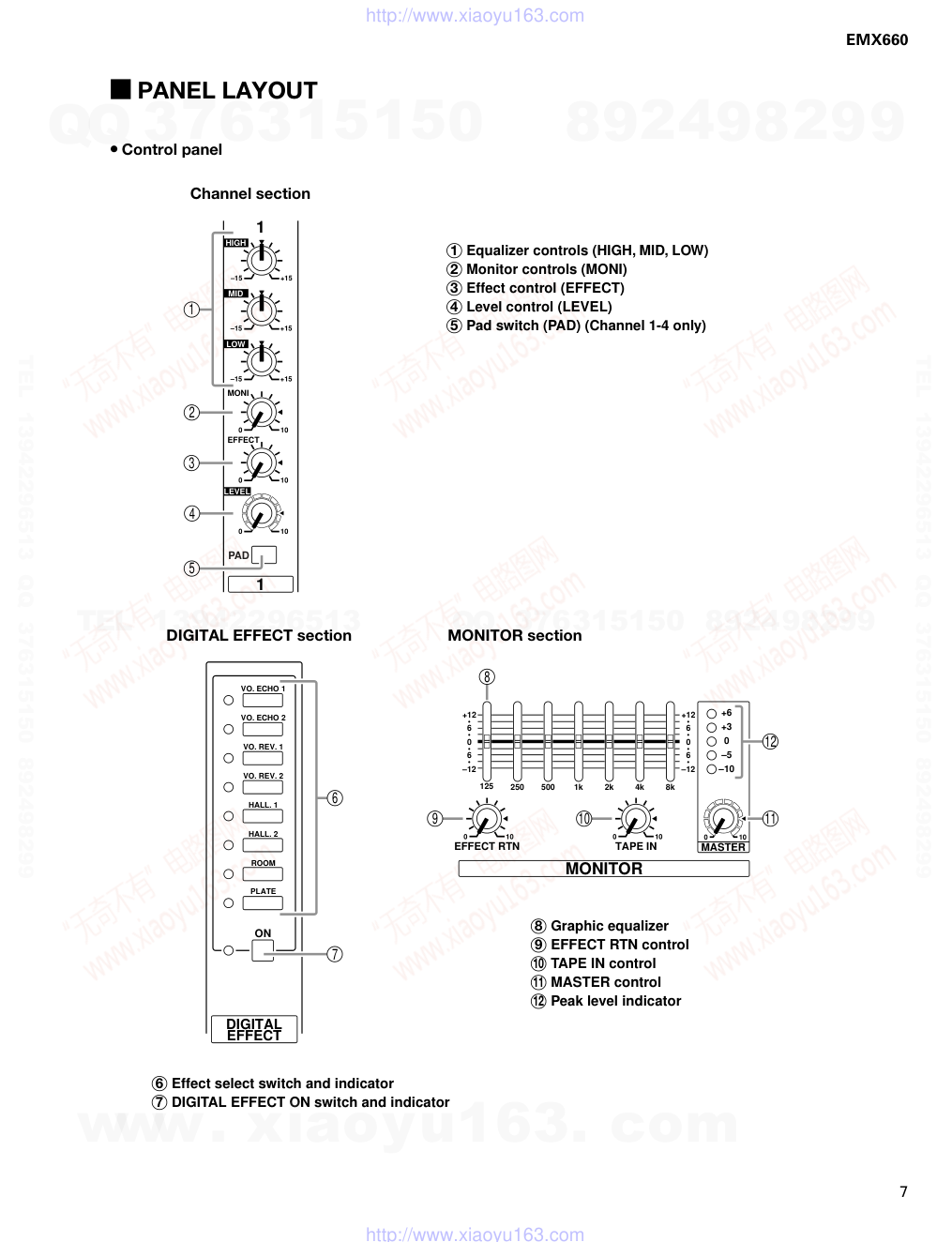

1 EMX660 SERVICE MANUAL PA 011519 20000608-74800 1.45K-479 Printed in Japan 2000.06 HAMAMATSU, JAPAN CONTENTS SPECIFICATIONS ................................................ 3/5 DIMENSIONS ............................................................ 6 PANEL LAYOUT .................................... 7 BLOCK & LEVEL DIAGRAM ......................................... 10 CIRCUIT BOARD LAYOUT ............... 11 DISASSEMBLY PROCEDURE ............................ 12 LSI PIN DESCRIPTION .............................. 15 IC BLOCK DIAGRAM ................................. 17 INSPECTIONS ....................................................... 18/23 TROUBLE SHOOTING ............... 28 PARTS LIST OVERALL CIRCUIT DIAGRAM CIRCUIT BOARDS POWERED MIXER This document is printed on chlorine free (ECF) paper with soy ink. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 2 IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 EMX660 SPECIFICATIONS General specifications • 0 dB=0.775 Vrms Maximum output power 300 W + 300 W/4ohms @0.5% THD at 1 kHz (POWER AMP OUT 1, 2) 215 W + 215 W/8ohms @0.5% THD at 1 kHz (POWER AMP OUT 1, 2) 600 W/8ohms @0.5% THD at 1 kHz (BRIDGE) Frequency response 20 Hz~20 kHz +1 dB, –3 dB @1 W output into 8ohms (POWER AMP OUT) 20 Hz~20 kHz +1 dB, –3 dB @+4 dB output into 10 kohms (MAIN OUT, MONITOR OUT, EFFECT SEND) Total harmonic distortion Less than 0.5% @20 Hz~20 kHz, 150 W output into 4ohms (POWER AMP OUT 1, 2) Less than 0.3% @20 Hz~20 kHz, +14 dB output into 10 kohms (MAIN OUT, MONITOR OUT, EFFECT OUT) Hum & noise (Average, Rs=150Ω) (with 20 Hz~20 kHz BPF) –124 dB equivalent input noise, –65 dB residual output noise (POWER AMP OUT) –88 dB residual output noise (MAIN OUT, MONITOR OUT, EFFECT SEND) –79 dB (83 dB S/N) MAIN OUT, MONITOR OUT Master level control at nominal level and all channel level controls at minimum. –69 dB (73 dB S/N) MAIN OUT, MONITOR OUT Master level control at nominal level and 1 channel level control at nominal level. –75 dB (79 dB S/N) EFFECT SEND Master level control at nominal level and all channel level controls at minimum. –69 dB (73 dB S/N) EFFECT SEND Master level control at nominal level and 1 channel level control at nominal level. Maximum voltage gain (PAD: OFF) 88 dB CH IN (Lo-Z) to POWER AMP OUT (CH1~4) 66 dB CH IN (Lo-Z) to MAIN OUT, MONITOR OUT (CH1~4) 72 dB CH IN (Lo-Z) to EFFECT OUT (CH1~4) 48 dB CH IN (Lo-Z) to REC OUT (CH1~4) 56 dB CH IN (Hi-Z) to MAIN OUT, MONITOR OUT (CH1~4) 26 dB AUX IN to MAIN OUT 24 dB TAPE IN to MAIN OUT 66 dB MIC IN to MAIN OUT, MONITOR OUT (CH5•6) 26 dB LINE IN to MAIN OUT, MONITOR OUT (CH5) 46 dB INST IN to MAIN OUT, MONITOR OUT (CH6) Crosstalk at 1 kHz 65 dB adjacent input, 65 dB input to output Input channel equalization ±15 dB Maximum HIGH 12 kHz shelving* MID 2.5 kHz peaking LOW 80 Hz shelving* * Turn over/roll-off frequency of shelving: 3 dB below maximum variable level. Meters 5 POINTS LED METER (–10, –5, 0, +3, +6 dB) (MAIN OUT, MONITOR OUT) Graphic equalizer 7 bands (125, 250, 500, 1 k, 2 k, 4 k, 8 kHz), ±12 dB Maximum (MAIN OUT, MONITOR OUT) Internal digital effect 8 types (VO.ECHO 1, VO.ECHO 2, VO.REV. 1, VO.REV. 2, HALL 1, HALL 2, ROOM, PLATE) Phantom power +15 V is supplied to electrically balanced inputs for powering condenser microphones via 2.4 kohms current limiting/isolation resisters. Limiter Comp. : THD≥0.5% (POWER AMP OUT) LIMIT indicators Turns on. : THD≥0.5% (POWER AMP OUT) Protection Circuit (Power Amp.) POWER Switch on/off Mute, DC Detection, Temp (Heatsink Temp≥90˚C) Foot switch (FC-5) DIGITAL EFFECT MUTE : on/off Power requirement USA and Canada 120 V AC 60 Hz Europe 230 V AC 50 Hz Other 240 V AC 50 Hz Power consumption 250 W Dimensions (WxHxD) 497×275×275 mm Weight 17 kg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 4 Input specifications Output specifications • All output jacks are unbalanced. • 0 dB=0.775 Vrms, 0 dBV=1 Vrms. For European Model Purchaser/User Information specified in EN55103-1 and EN55103-2. Inrush Current: 56A Conformed Environment: E1, E2, E3 and E4 Input connectors PAD Actual load impedance Nominal impedance Input level Connector type Sensitivity1 1. Sensitivity is the lowest level that can produce an output of +4 dB (1.23 V) or the nominal output level when the unit is set at maximum gain. (All level controls are at maximum position.) 2. Balanced (T=Hot, R=Cold, S=Gnd) 3. Unbalanced • 0 dB=0.775 Vrms, 0 dBV=1 Vrms. Nominal level Max. before cliping CH INPUT (Lo-Z) (CH1~4) OFF 3 kohms 50~600ohms Mics –62 dB (0.616 mV) –50 dB (2.45 mV) –20 dB (77.5 mV) XLR-3-31 type2 ON 600ohms Lines –32 dB (19.5 mV) –20 dB (77.5 mV) +10 dB (2.45 V) CH INPUT (Hi-Z) (CH1~4) OFF 10 kohms 50~600ohms Mics –52 dB (1.95 mV) –40 dB (7.75 mV) –10 dB (245 mV) Phone jack (TRS)2 ON 600ohms Lines –22 dB (61.6 mV) –10 dB (245 mV) +20 dB (7.75 V) MIC INPUT (CH5•6) 3 kohms 50~600ohms Mics –62 dB (0.616 mV) –50 dB (2.45 mV) –20 dB (77.5 mV) XLR-3-31 type2 LINE INPUT (CH5) (1, 2) 10 kohms 600ohms Lines –22 dB (61.6 mV) –10 dB (245 mV) +20 dB (7.75 V) Phone jack3 INST INPUT (CH6) (1, 2) 470 kohms 1 kohms –42 dB (6.16 mV) –30 dB (24.5 mV) 0 dB (0.775 V) Phone jack3 AUX IN 10 kohms 600ohms Lines –22 dB (61.6 mV) –10 dB (245 mV) +20 dB (7.75 V) Phone jack3 TAPE IN (1, 2) 10 kohms 600ohms Lines –22 dBV (79.4 mV) –10 dBV (316 mV) +17.8 dBV (7.76 V) RCA phono jack3 Output connectors Actual source impedance Nominal impedance Output level Connector type Nominal Max. before cliping POWER AMP OUT (1•2) (A, B) 0.1ohms 4/8ohms Speaker 60 W/4ohms (300 W/4ohms) Phone jack BRIDGE OUT 0.1ohms 8ohms Speaker 120 W/8ohms (600 W/8ohms) Phone jack MAIN OUT 600ohms 10 kohms Lines +4 dB (1.23 V) +20 dB (7.75 V) Phone jack MONITOR OUT 600ohms 10 kohms Lines +4 dB (1.23 V) +20 dB (7.75 V) Phone jack EFFECT OUT 600ohms 10 kohms Lines +4 dB (1.23 V) +20 dB (7.75 V) Phone jack REC OUT (1, 2) 600ohms 10 kohms Lines –10 dBV (316 mV) +10 dBV (3.16 V) RCA phono jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 EMX660 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 6 H:275 D:275 259 W:497 487 45.5 380 45.5 16 (45.5) (45.5) 168 (67.5) 150 57.5 DIMENSIONS Units: mm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 EMX660 1 2 3 4 5 Equalizer controls (HIGH, MID, LOW) Monitor controls (MONI) Effect control (EFFECT) Level control (LEVEL) Pad switch (PAD) (Channel 1-4 only) Control panel PANEL LAYOUT PAD HIGH MID LOW MONI EFFECT LEVEL 1 1 –15 +15 –15 +15 –15 +15 0 10 0 10 0 10 1 2 3 4 5 Channel section DIGITAL EFFECT ON VO. ECHO 1 VO. ECHO 2 VO. REV. 1 VO. REV. 2 HALL. 1 HALL. 2 ROOM PLATE MONITOR MASTER EFFECT RTN +6 +3 0 –5 –10 +12 • 6 • 0 • 6 • –12 +12 • 6 • 0 • 6 • –12 125 250 500 1k 2k 4k 8k 0 10 TAPE IN 0 10 0 10 6 7 9 10 8 12 11 6 7 Effect select switch and indicator DIGITAL EFFECT ON switch and indicator DIGITAL EFFECT section MONITOR section 8 9 10 11 12 Graphic equalizer EFFECT RTN control TAPE IN control MASTER control Peak level indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 8 13 14 15 16 17 18 Graphic equalizer EFFECT RTN control AUX IN control TAPE IN MASTER control Peak level indicator MAIN MASTER TAPE IN AUX IN EFFECT RTN +6 +3 0 –5 –10 +12 • 6 • 0 • 6 • –12 +12 • 6 • 0 • 6 • –12 125 250 500 1k 2k 4k 8k 0 10 0 10 0 10 0 10 13 18 17 16 15 14 POWER AMP 1 2 LIMITER MAIN BRIDGE MAIN MONITOR MAIN MAIN 2AMPs 300W 300W 19 20 POWER ON OFF PHANTOM 21 22 MAIN section POWER AMP section POWER indicator & PHANTOM section 19 20 LIMITER indicator Power amp select switch 21 22 POWER indicator PHANTOM switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 EMX660 1 2 3 4 5 6 Hi-Z, Lo-Z input jacks MIC, LINE, INST input jacks Effect output jack (EFFECT OUT) Foot switch jack (FOOT SW) External input jacks (AUX IN/TAPE IN) External output jacks (REC OUT/MONI-TOR/MAIN) Rear panel Input/Output panel INPUT OUTPUT MONITOR MAIN AUX IN REC OUT TAPE IN EFFECT OUT FOOT SW 1 2 1 1 2 2 1 2 LINE Hi-Z INST MIC MIC Lo-Z Hi-Z Lo-Z Hi-Z Lo-Z Hi-Z Lo-Z SEE REAR PANEL CAUTION EEEngine 1 2 3 4 5 6 1 2 Speaker output jacks (POWER AMP 1 A/B, POWER AMP 2 A/B,BRIDGE) Power switch SPEAKERS POWER B A B A POWER AMP 1 BRIDGE POWER AMP 2 ON / OFF 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 10 BLOCK & LEVEL DIAGRAM 2 1 3 4 IC703 IC703 IC601 IC603 IC603 1 4 4 3 1 2 3 1 2 2 4 3 1 2 3 5 3 2 3 IC902 IC706 3 5 7 5 7 1 1 7 IC601 8 IC501 1 2 1 2 4 3 1 2 4 3 1 3 3 1 2 3 2 4 3 2 1 7 5 IC501 IC301(CH3, 4) IC101(CH1, 2) 7 5 1 IC901 3 1 IC901 7 6 7 IC704 5 7 IC705 2 4 3 1 IC801 2 4 3 1 CN901 CN301 IC704 3 1 IC705 3 1 IC701 CN301 IC706 3 1 CN901 1 2 4 3 KEC-92542 CN101 CN101 IC201 5 7 CN101 CN101 IC101 5 7 MIX SUB PWR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 EMX660 CIRCUIT BOARD LAYOUT transformer Power PWR 1/3 PWR 1/3 PWR 2/3 MIX MIX SUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 12 DISASSEMBLY PROCEDURE Fig.1 Power Power transformer transformer Power transformer [50] [P130] [P130] [P130] [P40] [P130] [P110] [P110] [P110] [P40] [30] [P90] [P90] Hexagonal nut [P90] [30] [70] [70] [R180] [R180] MIX SUB 2 SUB circuit board 2-1 Remove the panel assembly. (See Procedure 1.) 2-2 Remove the shield case. (See Procedure 1.) 2-3 Remove the SUB circuit board from the seven(7) spacer supports marked [P110]. (Fig. 1) 1 MIX circuit board 1-1 Remove the six (6) screws marked [30]. The panel assembly can then be removed. (Fig. 1) 1-2 Remove the four (4) screws marked [P130]. The shield case can then be removed. (Fig. 1) 1-3 Remove the forty-three (43) knobs, the thirteen (13) special hexagonal nuts and the thirteen (13) screws marked [P90]. (Fig. 1) 1-4 Remove the twelve (12) screws marked [P40]. The MIX circuit board can then be removed. (Fig. 1) Right side view Front panel Left side view Rear panel [30]: Bind Head Screw 4.0X8 MFZN2BL (EG340360) [50]: Bind Head Screw SP 5.0X10 MFZN2BL (VU688100) [70]: Bind Head Screw 4.0X8 MFZN2BL (EG340360) [P40]: Hexagonal Button Screw-P 3X25 MFZNBL (V3289800) [P90]: Bonding Tapping Screw-B 3.0X8 MFZN2BL (VN413300) [P130]: Bonding Tapping Screw-B 3.0X8 MFZN2BL (VN413300) [R180]: Bind Head Tapping Screw-B 4.0X8 MFZN2BL (EG340190) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 EMX660 Fig.2 3 PWR 1/3 circuit board 3-1 Remove the panel assembly. (See Procedure 1.) 3-2 Remove the two (2) connectors from the power transformer and the six (6) screws marked [70]. The rear assembly can then be removed. (Fig. 1) 3-3 Remove the six (6) screws marked [R180]. The power unit can then be removed. (Fig. 1) 3-4 Remove the sixteen (16) screws marked [R90]. TR support angle A/B can then be removed. (Fig. 2) 3-5 Remove the six (6) screws marked [R40]. The PWR circuit board 1/3 can then be removed. (Fig. 2) [R90] [R40] [R90] [R40] [R90] [R90] PWR 1/3 4 PWR 2/3 circuit board 4-1 Remove the panel assembly. (See Procedure 1.) 4-2 Remove the rear assembly. (See Procedure 3.) 4-3 Remove the screw marked [R210] and the five (5) “special screws b”. The PWR 2/3 circuit board can then be removed. (Fig. 3) 5 PWR 3/3 circuit board 5-1 Remove the panel assembly. (See Procedure 1.) 5-2 Remove the rear assembly. (See Procedure 3.) 5-3 Remove the two (2) screws marked [R150] and then remove the PWR 3/3 circuit board with the switch bracket. (Fig. 3) 5-4 Remove the two (2) screws marked [R140] and the screw marked [R150a] from the switch bracket. The PWR 3/3 circuit board can then be removed. (Fig. 3) [R40]: Bind Head Screw SP 3.0X8 MFZN2Y (EG330290) [R90]: Bind Head Tapping Screw-B 3.0X12 MFZN2BL (VQ074600) Power unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 14 Fig.3 [R210] [R120] Motor Motor fan fan Hexagonal nut [R120] [R150] Motor fan [R140] [R150a] [R150] Power unit PWR 3/3 PWR 2/3 7 Power transformer 7-1 Remove the panel assembly. (See Procedure 1.) 7-2 Remove the rear assembly. (See Procedure 3.) 7-3 Remove the four (4) screws marked [50]. The power transformer can then be removed. (Fig. 1) 6 Motor fan 6-1 Remove the panel assembly. (See Procedure 1.) 6-2 Remove the rear assembly. (See Procedure 3.) 6-3 Remove the power unit. (See Procedure 3.) 6-4 Remove the two (2) screws marked [R120]. The motor fan can then be removed. (Fig. 3) Front panel [R120]: Bind Head Screw 3.0X30 ZMC2BL (VT520200) [R140]: Bind Head Screw 3.0X8 MFZN2BL (VB659000) [R150a]: Bonding Tapping Screw-B 3.0X8 MFZN2BL (VN413300) [R150]: Bonding Tapping Screw-B 3.0X8 MFZN2BL (VN413300) [R210]: Bonding Tapping Screw-B 3.0X8 MFZN2BL (VN413300) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 EMX660 LSI PIN DESCRIPTION 1 ED2 I/O 51 HX/SDA I/O/Z Host Interface Data Output/I2C Bus Data 2 ED3 I/O External Memory and I/O Data Bus 52 /EMPTY O/Z CMEM Update Buffer and HR Resistor Empty Flag Output 3 ED4 I/O 53 AXLR2 I Audio Data Transmitt Unit 2/3 Left and Right Channel Frame Frequency Signal 4 ED5 I/O 54 AR1 I Audio Data Receive Unit 1 Data Input 5 ED6 I/O 55 AR2 I Audio Data Receive Unit 2 Data Input 6 ED7 I/O 56 HRBCK/SA0 I Host Interface Receive Clock / I2C Bus Address 0 7 VSS - Ground 57 HR/SA1 I Host Interface Data Input/ I2C Bus Address 1 8 VDD - Power Supply 58 HRS/SA2 I Host Interface Receive Data Frame Frequency Signal/ I2C Bus Address 2 9 CLKM0 I Clock Mode 59 VSS - Ground 60 VDD - Power Supply 10 CLKM1 I 61 HXBCK/SCL I Host Interface Transmitt Clock/ I2C Bus Clock 11 TMS I TAP(Test Access Port) Mode Select 62 HXS/SA3 I Host Interface Transmitt Data Frame Frequency Signal/ I2C Bus Address 3 12 TDI I TAP Data Input 63 /CS/SA4 I Host Interface Chip Select/ I2C Bus Address 4 13 TCK I TAP Clock 64 HBCKS/SA5 I HRBCK/HXBCK Active Edge Select/ I2C Bus Address 5 14 CLKIN I Master Clock 65 I2CSEL I Host Interface Mode Select 15 VSS - Ground 66 VSS - Ground 16 VDD - Power Supply 67 VDD - Power Supply 17 CLKO O Machine Clock Output 68 AXBC1 I Audio Data Transmitt Unit 1 bit Clock 18 EA12/ED8 I/O 69 AXBC2 I Audio Data Transmitt Unit 2/3 bit Click 19 EA13/ED9 I/O External SRAM and ROM Address Bus/ External DRAM and I/O Data Bus 70 AXLR1 I Audio Data Transmitt Unit 1 Left and Right Channel Frame Frequency Signal 20 EA14/ED10 I/O 71 DIV8 O Machine Clock Output then 8 min. 21 EA15/ED11 I/O 72 /LAV O Ruch ALU Overflow Frag Output 22 VSS - Ground 73 /LMV O Ruch MAC Overflow Frag Output 23 VDD - Power Supply 74 /DRDY O/Z Host Interface Transmitt Data Ready Frag Output 24 EA16/ED12 I/O 75 EMU0 I/O/Z Emurator Interrupt 0 25 EA17/ED13 I/O External SRAM and ROM Address Bus/ External DRAM and I/O Data Bus 76 EMU1 I/O/Z Emurator Interrupt 1 26 EA18/ED14 I/O 77 TDO O/Z TAP(Test Access Port) Data Output 27 EA19/ED15 I/O 78 DIV512 O Machine Clock then512 min. 28 EA4/ED16 I/O 79 ARLR1 I Audio Data Receive Unit 1 Left and Right Channel Frame Frequency Signal 29 EA5/ED17 I/O External Memory Address Bus/ External I/O Data Bus 80 ARLR2 I Audio Data Receive Unit 2 Left and Right Channel Frame Frequency Signal 30 EA6/ED18 I/O 81 HDIR/SA6 I Host Interface Data Format Select/ I2C Bus Address 6 31 EA7/ED19 I/O 82 SEL5V3V I Input Level Control 32 VSS - Ground 83 /MUTE I Mute Control 33 VDD - Power Supply 84 /TRST I TAP(Test Access Port) Reset 34 EA8/ED20 I/O 85 /RS I Hardware Reset 35 EA9/ED21 I/O External Memory Address Bus/ External I/O Data Bus 86 VSS - Ground 36 EA10/ED22 I/O 87 VDD - Power Supply 37 EA11/ED23 I/O 88 /IOE O External I/O Enable 38 TEST0 I 89 /RAS/SRCS O External DRAM Low Address Strove/External SRAM Chip Select 39 TEST1 I Test Mode Control 90 /CAS/SROE O External DRAM Culumn Address Strove/External SRAM Output Enable 40 TEST2 I 91 /ROME O External ROM Enable 41 TEST3 I 92 /WE O External Memory and I/O Wright Enable 42 /BIO I Separate Control Input 93 EA0 O 43 /INT1 I Interrupt 1 94 EA1 O External Memory and I/O Address Bus 44 ARBC1 I Audio Data Receive Unit 1 bit Clock 95 EA2 O 45 ARBC2 I Audio Data Receive Unit 2 bit Clock 96 EA3 O 46 AX1 O Audio Data Transmitt Unit 1 Data Output 97 VSS - Ground 47 AX2 O Audio Data Transmitt Unit 2 Data Output 98 VDD - Power Supply 48 AX3 O Audio Data Transmitt Unit 3 Data Output 99 ED0 I/O External Memory and I/O Data Bus 49 VSS - Ground 100 ED1 I/O 50 VDD - Power Supply PIN NAME I/O FUNCTION NO. PIN NAME I/O FUNCTION NO.             ZFX-2 (XY297A00) DSP                SUB: IC306                                   1 min. 3fold 5fold PLL BYPASS CLKM0 0 1 0 1 CLKM1 0 0 1 1 Z: High inpedance www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 16 1 VINL I ADC Analog input, L ch 15 VOUTL O DAC Analog Output, L ch 2 Vcc1 - ADC Analog Power Supply 16 LRCIN I Sampling Clock Input (fs) 3 AGND1 - ADC Analog Ground 17 BCKIN I Bit Clock Input 4 VREFL - ADC Reference decuple, L ch 18 DIN I Audio Data Input 5 VREFR - ADC Reference Decuple, R ch 19 DOUT O Audio Data Output 6 VINR I ADC Analog input, R ch 20 XTI I Crystal Oscillator Input, External System Clock Input 7 CINPR - ADC Unch areasing Filter Capacitor (+), R ch 21 XTO O Crystal Oscillator Output 8 CINNR - ADC Unch areasing Filter Capacitor (-), R ch 22 CLKIO I/O Crystal Oscillator Buffer Output, Externak System Clock Input 9 CINNL - ADC Unch areasing Filter Capacitor (-), L ch 23 VDD - Digital Power Supply 10 CINPL - ADC Unch areasing Filter Capacitor (+), L ch 24 DGND - Digital Ground 11 VCOM - DAC Center Power Supply Decuple 25 FMT2 I Audio Data Format 2 (1) 12 VOUTR O DAC Analog Output, R ch 26 FMT1 I Audio Data Format 1 (1) 13 AGND2 DAC Analog Ground 27 FMT0 I Audio Data Format 0 (1) 14 VCC2 - DAC Analog Power Supply 28 RSTB I Reset Input, Active ”L” PIN NAME I/O FUNCTION NO. PIN NAME I/O FUNCTION NO. PCM3001E (XY282A00) ADA SUB: IC305 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 EMX660 IC BLOCK DIAGRAM NJM2068L-D(XM356A00) NJM4558L-D(XQ212A00) N5238AP(XM085A00) MIX: IC101, IC102, IC301, IC302, IC501, IC502, IC601, IC603, IC703, IC704, IC705, IC706, IC901 SUB: IC101, IC201, IC304 OP AMP M5229P(XG203A00) MIX: IC701, IC801 7Seg Grafic TC74HCU04AP(IG142200) SUB: IC302 Inverter BA6137(XA534A00) MIX: IC702, IC802 LED Driver TC74HC138AP(IR013800) MIX: IC902 DECO-8 1 2 3 4 5 6 7 A B Select Enable Output B C C G2A G2A G2B G2B G1 G1 Y7 Y7 16 15 14 13 12 11 10 Vcc Y0 Y0 Y1 Y1 Y2 Y2 Y3 Output Y3 Y4 Y4 Y5 Y5 8 GND 9 Y6 A Y6 D1 + + + + + + Constant Current Circuit 1 D2 2 D3 3 D4 4 GND 5 D5 6 Amp Output 7 IN 8 VCC 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 IN1 IN2 IN3 IN4 IN5 NF1 NF2 NF3 NF4 NF5 -Vcc GND +Vcc OUTPUT INVERTED INPUT NON-INVERTED INPUT NF7 NF6 IN7 IN6 - + - + - + - + - + - + - + - + 47k 560 47k 560 47k 560 47k 560 47k 47k 47k 47k 560 10k 10k 1 A 2 3 4 5 6 7 8 IN —V +IN OUT A A A +V IN +IN OUT B B B + B + 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y Vss 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 18 INSPECTIONS 1. Measuring Instruments Low Frequency Oscillator: Balance Output, Output Impedance = 150 ohms Oscilloscope: Input Impedance 100 kohms Level Meter: Input Impedance 100 kohms Note: Use a balance input measuring instrument : Signal level 0 dBs = 0.775V 2. Mixer Part 2-1 Setting Conditions Setting conditions are as follows unless otherwise specified. 2-2 Input and Output Load Input Signal: 1 kHz, sine wave (Rs = 150 ohms) Load: All output terminals have a 10 k ohms load 2-3 Control Panel Setting Channel Input (CH1-CH4) Section EQ (HIGH, MID, LOW) level controls: Center MONITOR level control: Maximum EFFECT level control: Maximum LEVEL: Maximum PAD: OFF Channel Input (CH5-CH6) Section EQ (HIGH, MID, LOW) level controls: Center MONITOR level control: Maximum EFFECT level control: Maximum LEVEL: Maximum EFFECT Section DIGITAL EFFECT ON switch OFF MAIN Section GRAPHIC EQUALIZER (7 band) Fader: Center EFFECT RTN level control: Maximum AUX IN: Maximum TAPE IN: Maximum MASTER (MAIN): Maximum MONITOR Section GRAPHIC EQUALIZER (7 band) Fader: Center EFFECT RTN level control: Maximum TAPE IN Level control: Maxmum MASTER (MAIN) level control: Maximum Others PHANTOM ON/OFF switch OFF POWER AMP switch MAIN/MONITOR >= >= www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 EMX660 2-4 Gain Each output gain should be as shown in the table below. 2-5 Frequency Response When the input signal frequency is set to 20 Hz and 20 kHz in Tables 1, each output terminal level should fall within the range of +1 and -3 dB, using 1 kHz as the reference. 2-6 Equalizer Characteristics When LOW, MID, HIGH GAIN VR's of CH1-6 are moved, the output level in each frequency obtained at MAIN OUT and MONITOR OUT should be in the range shown in the table below, using the output level at the center click position as reference. If the output level is not within the range as shown in the table, vary the specified frequency of the input signal within ±20% range and check that the output level as shown in the table below can be obtained. Table 2 [Units: dBs] EQ Controls GAIN Frequency Response LOW Maximum 80 Hz +12 ± 2 Minimum +12 ± 2 MID Maximum 2.5 kHz +14 ± 2 Minimum HIGH Maximum 12 kHz +12 ± 2 Minimum +12 ± 2 2-7 Graphic Equalizer Characteristics When setting of the fader of the graphic equalizer is varied to the maximum and minimum positions, the output response for each frequency obtained at MAIN OUT and MONITOR OUT should be in the range shown in the table below using the output level at the center click position as a standard. If the output level is not within the range as shown in the table, vary the specified frequency of the input signal within ±20% range and check that the output level as shown in the table below can be obtained. Table 3 [Units: dBs] Input signal frequency and Fader name 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz Response Maximum +12 ± ± 2 Minimum -12 2 Table 1 [Units: dBs] Input Terminal Input Level Lo-z MIC Hi-Z LINE INST AUX TAPE +4± 2 +4± 2 +4± 2 +4± 2 +4± 2 +4± 2 REC OUT MAIN OUT -32 -32(PAD ON) -52 -22 -42 -22 -22 +4± 2 - - - - - +4± 2 - - - - - +13.8± 2 - - - - - MONITOR OUT EFFECT OUT - 14 ± 2 2-8 Meter LED When the MAIN OUT and MONITOR OUT output levels are as shown in the table below, each corresponding METER LED light should light up. Table 4 LED Name Lighting Level +6 +10 ± 2 +3 +7 ± 2 0 +4± 2 -5 -1 ± 2 -10 -6 ± 2.5 [Units: dBs] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 20 2-9 Distortion Set each volume control of the INPUT section and MASTER section to Nominal in Tables 1. When each output except the REC OUT level reaches +14 dBs, the distortion ratio should be less than 0.3 %. 2-10 Maximum Output Level In the states of 2-9, the maximum output levels of MAIN OUT, MONITOR OUT and EFFECT OUT should be +20 dBs with a distortion of less than 1%. 2-11 Equivalent Input Noise With the level volume of the channel being measured only set to the maximum position and those of other channels set to the minimum position and the input terminals of Lo-z and MIC shorted with 150ohms, check that the noise level at MAIN OUT is -58dBs or less (but -56dBs or less for CH6). If the noise level exceeds the specified value, check the converted input noise level at each channel. The acceptable level is -124dBs or less for CH1 to CH5 and -122 dBs or less for CH6. (Use DIN AUDIO FILTER.) 2-12 Residual Noise Set all the input level controls at minimum in the states of 2-3. When the MASTER and EFFECT OUT level controls in the MAIN and MONITOR section are changed to maximum or minimum, the residual noise should be as shown in the table below. Table 5 [Unit: dBs] MASTER VOLUME MAIN OUTPUT MONITOR OUT EFFECT OUT Maximum -71 Minimum -88 2-13 Phantom Power Connect a load resistance of 2.7 K ohm (more than 1W) between pins 1 and 2 of both the Lo-z IN and the MIC IN input terminals, then short between pins 2 and 3 of the Lo-z IN and the MIC IN input terminal. When the PHANTOM switch is turned on, +10 ± 1.5 V should be obtained between both ends of the load resistance. 2-14 Digital Effect Turn on the power while pressing VO.ECHO1 and ON switches simultaneously and check that the ON LED light flashes. Input a -42dBs/1KHz signal to the CH6 INST, set the EFFECT level control and LEVEL control to the maximum position, and also set MASTER and EFFECT volumes of the MONITOR to the maximum position. Then check the signal level at the MONITOR OUT by selecting the PGM switch as described in Table 6 below. Check that the LED light lights up when each PGM switch is selected. Also, check that the EFFECT is applied when the music source (vocal, etc.) is input. 2-15 Stability When a capacitor of 10 µF to 0.1 uF is connected in parallel to the loading resistor at each SPEAKER OUT terminal, or when all VR and EQ control volumes are set to MAX , there should be no abnormality; for example, there should be no oscillation. Especially, check that no oscillation occurs even if the EQ HIGH is at maximum. -73 -71 -88 Table 6 [Unit: dBs] Operation Press ON SW. Set LEVEL control to min. position. - - Depress FOOT SW. - - - Check for: (at MONITOR OUT) No output (-53dBs or less) [DIN AUDIO] -53dBs or less [DINdBsDIO] Output obtained Output not obtained (-53dBs or less) [DIN AUDIO] -30dBs or less [DIN AUDIO] and full output are repeated every time FOOT SW is depressed. Output not obtained (-53dBs or less) [DIN AUDIO] 4.2 ±1dB attenuated from full output +10 ±3dBs of full output PGM Switch VO. ECHO1 VO. ECHO2 VO.REV.1 VO.REV.2 HALL1 HALL2 ROOM PLATE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 EMX660 3. Power Amplifier Part 3-1 Setting Conditions Setting conditions are as follows unless otherwise specified. 3-2 Power ON Muting The muting relay should be released 2.5 +/- 1 seconds after the power switch is turned on. 3-3 Speaker Terminal DC Voltage When input terminals are grounded, confirm that each output terminal voltage is 0 +/- 100 mV. 3-4 Gain Check that +22 ± 2.0dBs output voltage is obtained when a -26dBs signal is input to the input terminal. Perform the same check under the setting conditions of POWER AMP switch at MAIN-MAIN and the output terminals at POWER AMP 1G and POWER AMP 2B. 3-5 Frequency Response Apply a -26dBs signal to the input terminal and check that the output voltage when the signal frequency is 20Hz and 20kHz is within +1 and -3dB ranges respectively, using the output voltage at 1kHz as reference. 3-6 Harmonic Distortion Apply a 1 kHz sine wave signal to the input; the output level should be 300 W/4 ohms (33.0 dBs/ch); the distortion ratio should be less than 0.5 %. Apply a sine wave signal of 20 Hz, 1 kHz and 20 kHz separately to the input; the output level should be 150 W/4 ohms (30.0 dBs); the distortion ratio should be less than 0.5 %. Do this inspection within 30 seconds. 3-7 Residual Noise Set the MASTER level controls (MONITOR and MAIN) at minimum; the residual noise at the output terminal should be less than -65 dBs. Note: Use DIN-AUDIO filter. 3-8 Stability Apply a 10 kHz -26 dBs rectangular signal to the input and connect a capacitor (10 pF to 0.47 µF) parallel to the 4 ohm load resistor, or connect an inductor (10 µH to 0.47 H) serial to the 4 ohms load resistor. Confirm that the output signal is as illustrated below. Overshoot: Vp/Vo 1.8 Ringing: 5 waves and less than 5 waves Vp Vo Next, only connect a capacitor (10 pF to 0.47µF) to the SPEAKERS terminal as a load, and confirm that the output is as follows: Overshoot: Vp/Vo 2.5 Ringing: It should end within 7 waves; there is no oscillation. INPUT CH5 LINE1 MAIN-MONITOR POWER AMP 1A, POWER AMP 2A 4 ohm (more than 300W) Connect the load resistor of SPEAKER OUT only when inspecting the power amplifier section unless otherwise specified. Minimum Input terminal: POWER AMP switch: Output terminal: Output Load: INPUT CH1 - 4, CH6 LEVEL control: <= <= www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 22 3-9 Protection Apply a 10 Hz sine wave signal to the input; increase the input signal so that the output signal is clipped. Confirm that the protection function operates and that the speaker relay does not open. When a 1 Hz, 6 Vp-p (8.7 dBs) sine wave signal is applied to the input, confirm that the protection function operates within 2 seconds and the speaker relay is turned off. When the input signal is turned off, confirm that the protection function stops and the speaker relay automatically turns on within 5 seconds. 3-10 PC Limiter and Limiter Apply a 1 kHz -20 dBs sine wave signal to the input and then connect a 1 ohm ( +/- 5% 100 W) resistor; confirm that the output signal is Vp-p 25V and that the signal is not rectangular. 3-11 LIMITER Indicator When a 1 kHz -10.8 dBs sine wave signal is applied to the input, the LIMITER indicator should light up. 3-12 Efficiency When the output of POEWR AMP1 and 2 is adjuster to 12.2V (24.0 dBs), confirm that the primary power is 180 +/- 50W. 4. Main Bridge 4-1 Setting Conditions Input Terminal: INPUT CH 5 LINE 1 POWER AMP switch: MAIN BRIDGE Measuring Output Terminal: BRIDGE Output Load: 8 ohm (more than 600 W) INPUT CH 1- 4, CH 6 LEVEL level control: Minimum Note: Other control settings are the same as those for the mixer in section 2-3. 4-2 Connection Tip Measuring instruments input 4 ohms Phone Plug Measuring instruments ground 4 ohms Sleeve 4-3 Gain Apply a 1 kHz -26.0 dBs sine wave signal to the input; confirm that the output levels is are +22.0 ± 2 dBs. 4-4 Frequency Response Apply a -26dBs signal to the input terminal and check that the output voltage when the signal frequency is 20Hz and 20kHz is within +1 and -6dB ranges respectively, using the output voltage at 1kHz as reference. 5. Power Supply Fluctuation There should be no operational problems when the power voltage is varied within +/- 10% of the nominal voltage. <= www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 EMX660 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 EMX660 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 EMX660 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 28 TROUBLE SHOOTING Problem Cause Action Sound is no longer out- put from the speakers. The POWER indicator is dark. The load on this device was too great, and the protection circuit for the inter- nal transformer has operated. Possi- ble reasons for the excessive load are an excessive input to the device, or inap- propriate ventilation. Please wait. When the device cools off, normal operation will resume automatically. However, please check the following two points to prevent the problem from recurring. If the input to this device is greater than the nominal level, lower the input to the nominal level. If the device is not ventilated sufficiently, refer to the cau- tions given at the beginning of this manual and take appropriate measures to insure adequate ventila- tion. The POWER indicator is lit. The load on the amplifier of this device was too great, and the protection cir- cuit for the amplifier has operated. Possible reasons for the excessive load are an excessive level setting in the channel control section or main section, insufficient ventilation, or insufficient load impedance of the connected speak- ers. Please wait. When the device cools off, normal operation will resume automatically. However, please check the following three points to prevent the problem from recurring. If the level setting is excessive, lower it to the nomi- nal level. You can refer to the peak level indicators of the main section when doing so. If the device is not ventilated sufficiently, refer to the cautions given at the beginning of this manual and take appropriate measures to insure adequate ven- tilation. If the load impedance (including a short) is too low, and change the connections so that the impedance is correct. Other Connections between devices have come loose. Inspect the connections, and correct any faulty con- nections. Other The device may have malfunctioned. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. Notes : DESTINATION ABBREVIATIONS The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. This mark “ } ” in the REMARKS column means these parts are interchangeable. The second letter of the shaded ( ) part number is O, not zero. The second letter of the shaded ( ) part number is I, not one. M: South African model O : Chinese model Q : South-east Asia model T : Taiwan model U : U.S.A. model V : General export model (110V) W: General export model (220) N,X : General export model Y : Export model A : Australian model B : British model C : Canadian model D : German model E : European model F : French model H : North European model I : Indonesian model J : Japanese model PARTS LIST CONTENTS OVERALL ASSEMBLY .............................................. 2 ELECTRICAL PARTS ............................................. 5 POWERED MIXER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 2 OVERALL ASSEMBLY 60 110 70 100 90 10 20 30 40 50 R90 R20 R80 R60 R140 R190 R90 R70 R50 R130 R150 R200 B10 B80 B40 B60 B50 B120 B100 B90 B110 B30 B70 B20 R150 R220 R230 R160 R170 R210 R110 R120 R100 R180 R10 R230 R220 R30 1/3 3/3 R90 R30 2/3 R30 R40 P100 P140 P110 P120 P20 P10 P180 P30 P40 P50 P60 P70 P70 P90 P60 P80 P80 P90 P130 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 3 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * OVERALL ASSEMBLY EMX660 (V521540) Overall Assembly J (V521700) Overall Assembly U,V (V521720) Overall Assembly H,W (V521740) Overall Assembly B (V521760) Overall Assembly A (V521780) 10 Body Assembly 20 Panel Assembly (V528870) 30 Bind Head Screw 4.0X8 MFZN2BL 6 01 40 Power Transformer J 40 Power Transforme U,V 40 Power Transforme H,W,B 40 Power Transforme A 50 Bind Head Screw SP 5.0X10 MFZN2BL 4 01 60 Rear Assembly J (V528880) 60 Rear Assembly U,V (V528960) 60 Rear Assembly H,W (V528970) 60 Rear Assembly B (V528980) 60 Rear Assembly A (V528990) 70 Bind Head Screw 4.0X8 MFZN2BL 6 01 90 Cord Binder TS-0708 KSS 02 100 Cord, Front 1430 #24 14P 500L (V522900) 110 Label UV 03 Body Assembly B10 Body (V520960) B20 Carpet C968 (VZ52800) B30 Shield Sheet (VV43470) 2 B40 Side Plate (L) 06 B50 Side Plate (R) (V520970) B60 Bind Head Screw 4.0X18 MFZN2BL 10 01 B70 Glip Assembly 04 B80 Oval Head Screw 5.0X35 MFZN2BL 2 01 B90 Corner Protector 8 03 B100 Truss Head Tapping Screw-1 4.0X12 MFZN2BL 16 B110 Leg 8 01 B120 Truss Head Tapping Screw-1 4.0X20 MFZN2BL 8 01 Panel Assembly (V528870) P10 Front Panel P20 Circuit Board MIX P30 PCB Support NEW NIFCO 12 01 P40 Hexagonal Button Screw-P 3X25 MFZNBL 12 01 P50 Knob MX-GREEN/D-GRAY CH1-6(HIGH,MID,LOW) 18 01 P60 Knob N-GRAY/D-GRAY CH1-6(MONI), 10 01 MONI.(TAPE IN,MASTER), MAIN(AUX IN,TAPE IN) P70 Knob MX-BLUE/D-GRAY CH1-6(EFFECT), 8 01 MONI.(EFFECT RTN), MAIN(EFFECT RTN) P80 Knob ORANGE/D-GRAY CH1-6(LEVEL), 7 01 MAIN(MASTER) P90 Bonding Tapping Screw-B 3.0X8 MFZN2BL 13 01 P100 Circuit Board SUB P110 Spacer Support KCA-14 PIN GOO 7 01 P120 Shield Case (V520990) P130 Bonding Tapping Screw-B 3.0X8 MFZN2BL 4 01 P140 DSP Select Button DIGITAL EFFECT P180 Cable, FFC BNCDP=1.25K-35-90 (V430430) Rear Assembly J (V528880) Rear Assembly U,V (V528960) Rear Assembly H,W (V528970) Rear Assembly B (V528980) Rear Assembly A (V528990) R10 Rear Panel J R10 Rear Panel U,V R10 Rear Panel H,W,B R10 Rear Panel A R20 Heat Sink (V521290) -- -- -- -- -- V5288600 -- EG340360 XY325B00 XY326A00 XY327B00 XY328A00 VU688100 -- -- -- -- -- EG340360 VZ765100 -- VA039300 V5288600 -- -- -- VV102700 -- EG340330 VV085400 VV435200 VV085500 03747270 VV085600 03747290 -- V5209800 V5110900 V3291600 V3289800 VU860200 VU859700 VU860300 VV625800 VN413300 V5111000 V3224800 -- VN413300 V5210000 -- -- -- -- -- -- V5210400 V5210700 V5211700 V5212300 -- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 4 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * R30 Circuit Board PWR J R30 Circuit Board PWR U,V R30 Circuit Board PWR H,W,B,A R40 Bind Head Screw SP 3.0X8 MFZN2Y 6 01 R50 Support H=7.4 B=5.5 6 01 R60 Angle A (V521320) R70 Angle B (V521330) R80 Insulation Sheet 2 R90 Bind Head Tapping Screw-B 3.0X12 MFZN2BL 16 01 R100 Fan 3110KL05WB50L34 08 R110 Angle Bracket, Fan 03 R120 Bind Head Screw 4.0X30 ZMC2BL 2 01 R130 Switch Bracket (V319280) R140 Bind Head Screw 3.0X8 MFZN2BL 2 01 R150 Bonding Tapping Screw-B 3.0X8 MFZN2BL 3 01 R160 AC Cord J VCTF 2X0.75 7A J 05 R160 AC Cord UC SJT 3X#18 10A U,V 06 R160 AC Cord E H05VV-F3X0.7510A H,W,A 06 R160 AC Cord BS H05VV-F3X0.75 B 08 R170 Cord Strain Relief SR-6P1 01 R180 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 6 01 R190 Power Switch Knob MX12/4 POWER ON/OFF 01 R200 Bind Head Screw A4.0X8 MFZN2BL U,V,H,W,B,A 01 R210 Bonding Tapping Screw-B 3.0X8 MFZN2BL 01 R220 Holder, Cord 2 R230 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 2 01 V5227100 V5227200 V5227300 EG330290 VV086500 -- -- V5214900 VQ074600 V2955500 V2951400 VT229100 -- VB659000 VN413300 V3277000 VV205600 V3277100 VV058300 VV103100 EG340190 VU859000 VP156800 VN413300 V4773400 EG340190 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 5 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * ELECTRICAL PARTS ELECTRICAL PARTS EMX660 Circuit Board MIX (XY280A00) Circuit Board SUB (XY281A00) Circuit Board PWR J (XY324A00) Circuit Board PWR U,V (XY324A00) Circuit Board PWR H,W,B,A (XY324A00) Circuit Board MIX (XY280A00) LED Spacer MX12/4 22 01 Button NO.947 CD-GRAY PAD 4 01 Jumper Wire 0.6 200 01 C101 Electrolytic Cap. 47.00 63.0V C102 Electrolytic Cap.-LLM 10.00 50.0V 01 C103 Electrolytic Cap.-LLM 10.00 50.0V 01 C104 Ceramic Cap.-B 470P 50V K 01 -106 Ceramic Cap.-B 470P 50V K 01 C107 Ceramic Cap.-B 470P 50V K 01 C108 Electrolytic Cap. 470.00 10.0V 01 C109 Ceramic Capacitor-SL 100P 50V J 01 C111 Ceramic Capacitor-SL 100P 50V J 01 -112 Electrolytic Cap. 10.00 63.0V 01 C113 Mylar Capacitor 0.027 50V J 01 C114 Mylar Capacitor 5600P 50V J 01 C115 Mylar Capacitor 8200P 50V J C116 Mylar Capacitor 2200P 50V J 01 C117 Ceramic Capacitor-SL 100P 50V J 01 C118 Ceramic Capacitor-SL 27P 50V J 01 C119 Electrolytic Cap. 47.00 35.0V 01 C120 Electrolytic Cap. 10.00 63.0V 01 C121 Electrolytic Cap. 10.00 63.0V 01 C122 Ceramic Capacitor-F 0.01 50V Z 01 -125 Ceramic Capacitor-F 0.01 50V Z 01 C126 Ceramic Cap.-B 1000P 50V K 01 C201 Electrolytic Cap. 47.00 63.0V C202 Electrolytic Cap.-LLM 10.00 50.0V 01 C203 Electrolytic Cap.-LLM 10.00 50.0V 01 C204 Ceramic Cap.-B 470P 50V K 01 -207 Ceramic Cap.-B 470P 50V K 01 C208 Electrolytic Cap. 470.00 10.0V 01 C209 Ceramic Capacitor-SL 100P 50V J 01 -211 Ceramic Capacitor-SL 100P 50V J 01 C212 Electrolytic Cap. 10.00 63.0V 01 C213 Mylar Capacitor 0.027 50V J 01 C214 Mylar Capacitor 5600P 50V J 01 C215 Mylar Capacitor 8200P 50V J C216 Mylar Capacitor 2200P 50V J 01 C217 Ceramic Capacitor-SL 100P 50V J 01 C218 Ceramic Capacitor-SL 27P 50V J 01 C219 Electrolytic Cap. 47.00 35.0V 01 C220 Electrolytic Cap. 10.00 63.0V 01 C221 Electrolytic Cap. 10.00 63.0V 01 C301 Electrolytic Cap. 47.00 63.0V C302 Electrolytic Cap.-LLM 10.00 50.0V 01 C303 Electrolytic Cap.-LLM 10.00 50.0V 01 C304 Ceramic Cap.-B 470P 50V K 01 C305 Ceramic Cap.-B 470P 50V K 01 -307 Ceramic Cap.-B 470P 50V K 01 C308 Electrolytic Cap. 470.00 10.0V 01 C309 Ceramic Capacitor-SL 100P 50V J 01 -311 Ceramic Capacitor-SL 100P 50V J 01 C312 Electrolytic Cap. 10.00 63.0V 01 C313 Mylar Capacitor 0.027 50V J 01 C314 Mylar Capacitor 5600P 50V J 01 C315 Mylar Capacitor 8200P 50V J C316 Mylar Capacitor 2200P 50V J 01 C317 Ceramic Capacitor-SL 100P 50V J 01 C318 Ceramic Capacitor-SL 27P 50V J 01 C319 Electrolytic Cap. 47.00 35.0V 01 C320 Electrolytic Cap. 10.00 63.0V 01 C321 Electrolytic Cap. 10.00 63.0V 01 V5110900 V5111000 V5227100 V5227200 V5227300 V5110900 VV307300 VZ968500 VV291400 UR877470 VV488800 VV488800 VZ353800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 UR877100 UR877100 VZ354000 VZ354000 VZ353900 UR877470 VV488800 VV488800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 UR877100 UR877100 UR877470 VV488800 VV488800 VZ353800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 UR877100 UR877100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 6 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C322 Ceramic Capacitor-F 0.01 50V Z 01 -325 Ceramic Capacitor-F 0.01 50V Z 01 C326 Ceramic Cap.-B 1000P 50V K 01 C401 Electrolytic Cap. 47.00 63.0V C402 Electrolytic Cap.-LLM 10.00 50.0V 01 C403 Electrolytic Cap.-LLM 10.00 50.0V 01 C404 Ceramic Cap.-B 470P 50V K 01 -407 Ceramic Cap.-B 470P 50V K 01 C408 Electrolytic Cap. 470.00 10.0V 01 C409 Ceramic Capacitor-SL 100P 50V J 01 -411 Ceramic Capacitor-SL 100P 50V J 01 C412 Electrolytic Cap. 10.00 63.0V 01 C413 Mylar Capacitor 0.027 50V J 01 C414 Mylar Capacitor 5600P 50V J 01 C415 Mylar Capacitor 8200P 50V J C416 Mylar Capacitor 2200P 50V J 01 C417 Ceramic Capacitor-SL 100P 50V J 01 C418 Ceramic Capacitor-SL 27P 50V J 01 C419 Electrolytic Cap. 47.00 35.0V 01 C420 Electrolytic Cap. 10.00 63.0V 01 C421 Electrolytic Cap. 10.00 63.0V 01 C501 Electrolytic Cap. 47.00 63.0V C502 Electrolytic Cap.-LLM 10.00 50.0V 01 C503 Electrolytic Cap.-LLM 10.00 50.0V 01 C504 Ceramic Cap.-B 470P 50V K 01 -507 Ceramic Cap.-B 470P 50V K 01 C508 Electrolytic Cap. 470.00 10.0V 01 C509 Ceramic Capacitor-SL 100P 50V J 01 -511 Ceramic Capacitor-SL 100P 50V J 01 C512 Electrolytic Cap. 10.00 63.0V 01 C513 Mylar Capacitor 0.027 50V J 01 C514 Mylar Capacitor 5600P 50V J 01 C515 Mylar Capacitor 8200P 50V J C516 Mylar Capacitor 2200P 50V J 01 C517 Ceramic Capacitor-SL 100P 50V J 01 C518 Ceramic Capacitor-SL 27P 50V J 01 C519 Electrolytic Cap. 47.00 35.0V 01 C520 Electrolytic Cap. 10.00 63.0V 01 C521 Electrolytic Cap. 10.00 63.0V 01 C522 Ceramic Capacitor-SL 100P 50V J 01 C523 Ceramic Capacitor-SL 47P 50V J 01 C524 Electrolytic Cap. 10.00 63.0V 01 C526 Ceramic Cap.-B 1000P 50V K 01 C527 Ceramic Capacitor-F 0.01 50V Z 01 -530 Ceramic Capacitor-F 0.01 50V Z 01 C601 Electrolytic Cap. 47.00 63.0V C602 Electrolytic Cap.-LLM 10.00 50.0V 01 C603 Electrolytic Cap.-LLM 10.00 50.0V 01 C604 Ceramic Cap.-B 470P 50V K 01 -607 Ceramic Cap.-B 470P 50V K 01 C608 Electrolytic Cap. 470.00 10.0V 01 C609 Ceramic Capacitor-SL 100P 50V J 01 -611 Ceramic Capacitor-SL 100P 50V J 01 C612 Electrolytic Cap. 10.00 63.0V 01 C613 Mylar Capacitor 0.027 50V J 01 C614 Mylar Capacitor 5600P 50V J 01 C615 Mylar Capacitor 8200P 50V J C616 Mylar Capacitor 2200P 50V J 01 C617 Ceramic Capacitor-SL 100P 50V J 01 C618 Ceramic Capacitor-SL 27P 50V J 01 C619 Electrolytic Cap. 47.00 35.0V 01 C622 Ceramic Capacitor-SL 100P 50V J 01 C623 Ceramic Capacitor-SL 47P 50V J 01 C624 Electrolytic Cap. 10.00 63.0V 01 C626 Ceramic Cap.-B 1000P 50V K 01 C627 Ceramic Capacitor-F 0.01 50V Z 01 -630 Ceramic Capacitor-F 0.01 50V Z 01 C631 Electrolytic Cap. 10.00 63.0V 01 C632 Electrolytic Cap. 10.00 63.0V 01 C633 Ceramic Capacitor-SL 47P 50V J 01 VZ354000 VZ354000 VZ353900 UR877470 VV488800 VV488800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 UR877100 UR877100 UR877470 VV488800 VV488800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 UR877100 UR877100 VZ353500 VZ353200 UR877100 VZ353900 VZ354000 VZ354000 UR877470 VV488800 VV488800 VZ353800 VZ353800 UR828470 VZ353500 VZ353500 UR877100 UA954270 UA953560 UA953820 UA953220 VZ353500 VZ352900 UR857470 VZ353500 VZ353200 UR877100 VZ353900 VZ354000 VZ354000 UR877100 UR877100 VZ353200 * * * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 7 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C634 Ceramic Capacitor-SL 47P 50V J 01 C635 Ceramic Capacitor-SL 100P 50V J 01 C636 Ceramic Capacitor-SL 100P 50V J 01 C637 Ceramic Capacitor-SL 22P 50V J 01 C638 Ceramic Capacitor-SL 22P 50V J 01 C639 Electrolytic Cap. 10.00 63.0V 01 C640 Electrolytic Cap. 10.00 63.0V 01 C702 Electrolytic Cap. 100.00 16.0V 01 C703 Ceramic Cap.-B 220P 50V K 01 C704 Ceramic Capacitor-SL 6P 50V J 01 C705 Electrolytic Cap. 10.00 63.0V 01 C706 Ceramic Cap.-B 1000P 50V K 01 C708 Ceramic Cap.-B 220P 50V K 01 C709 Ceramic Capacitor-SL 10P 50V J 01 C710 Electrolytic Cap. 47.00 35.0V 01 C711 Electrolytic Cap. 10.00 63.0V 01 C712 Ceramic Cap.-B 220P 50V K 01 C713 Ceramic Capacitor-SL 68P 50V J 01 C714 Ceramic Cap.-B 1000P 50V K 01 C716 Mylar Capacitor 0.82 50V J 01 C717 Mylar Capacitor 0.082 50V J 01 C718 Mylar Capacitor 0.47 50V J 01 C719 Mylar Capacitor 0.039 50V J 01 C720 Mylar Capacitor 0.22 50V J 01 C721 Mylar Capacitor 0.018 50V J 01 C722 Mylar Capacitor 0.1 50V J 01 C723 Mylar Capacitor 0.01 50V J 01 C724 Mylar Capacitor 0.047 50V J 01 C725 Mylar Capacitor 4700P 50V J 01 C726 Mylar Capacitor 0.027 50V J 01 C727 Mylar Capacitor 2200P 50V J 01 C728 Mylar Capacitor 0.012 50V J C729 Mylar Capacitor 1200P 50V J 01 C730 Ceramic Capacitor-F 0.01 50V Z 01 C731 Ceramic Capacitor-F 0.01 50V Z 01 C732 Ceramic Cap.-B 470P 50V K 01 C733 Electrolytic Cap. 47.00 35.0V 01 C734 Electrolytic Cap. 10.00 63.0V 01 C736 Ceramic Cap.-B 220P 50V K 01 C737 Ceramic Capacitor-SL 68P 50V J 01 C738 Electrolytic Cap. 47.00 35.0V 01 C741 Ceramic Capacitor-F 0.01 50V Z 01 -748 Ceramic Capacitor-F 0.01 50V Z 01 C751 Electrolytic Cap. 10.00 63.0V 01 C752 Ceramic Capacitor-SL 100P 50V J 01 C753 Ceramic Capacitor-SL 100P 50V J 01 C754 Electrolytic Cap. 10.00 63.0V 01 C802 Electrolytic Cap. 100.00 16.0V 01 C803 Ceramic Cap.-B 220P 50V K 01 C804 Ceramic Capacitor-SL 6P 50V J 01 C805 Electrolytic Cap. 10.00 63.0V 01 C806 Ceramic Cap.-B 1000P 50V K 01 C808 Ceramic Cap.-B 220P 50V K 01 C809 Ceramic Capacitor-SL 10P 50V J 01 C810 Electrolytic Cap. 10.00 63.0V 01 C811 Electrolytic Cap. 10.00 63.0V 01 C812 Ceramic Cap.-B 220P 50V K 01 C813 Ceramic Capacitor-SL 68P 50V J 01 C814 Ceramic Cap.-B 1000P 50V K 01 C816 Mylar Capacitor 0.82 50V J 01 C817 Mylar Capacitor 0.082 50V J 01 C818 Mylar Capacitor 0.47 50V J 01 C819 Mylar Capacitor 0.039 50V J 01 C820 Mylar Capacitor 0.22 50V J 01 C821 Mylar Capacitor 0.018 50V J 01 C822 Mylar Capacitor 0.1 50V J 01 C823 Mylar Capacitor 0.01 50V J 01 C824 Mylar Capacitor 0.047 50V J 01 C825 Mylar Capacitor 4700P 50V J 01 C826 Mylar Capacitor 0.027 50V J 01 VZ353200 VZ353500 VZ353500 VZ352800 VZ352800 UR877100 UR877100 UR838100 VZ353600 VZ352600 UR877100 VZ353900 VZ353600 VZ352700 UR857470 UR877100 VZ353600 VZ353400 VZ353900 UA655820 UA954820 UA655470 UA954390 UA655220 UA954180 UA655100 UA954100 UA954470 UA953470 UA954270 UA953220 UA954120 UA953120 VZ354000 VZ354000 VZ353800 UR857470 UR877100 VZ353600 VZ353400 UR857470 VZ354000 VZ354000 UR877100 VZ353500 VZ353500 UR877100 UR838100 VZ353600 VZ352600 UR877100 VZ353900 VZ353600 VZ352700 UR877100 UR877100 VZ353600 VZ353400 VZ353900 UA655820 UA954820 UA655470 UA954390 UA655220 UA954180 UA655100 UA954100 UA954470 UA953470 UA954270 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 8 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C827 Mylar Capacitor 2200P 50V J 01 C828 Mylar Capacitor 0.012 50V J C829 Mylar Capacitor 1200P 50V J 01 C830 Ceramic Capacitor-F 0.01 50V Z 01 C831 Ceramic Capacitor-F 0.01 50V Z 01 C832 Ceramic Cap.-B 470P 50V K 01 C833 Electrolytic Cap. 47.00 35.0V 01 C834 Electrolytic Cap. 10.00 63.0V 01 C901 Ceramic Cap.-B 220P 50V K 01 C902 Ceramic Capacitor-SL 6P 50V J 01 C903 Electrolytic Cap. 10.00 63.0V 01 C904 Electrolytic Cap. 10.00 63.0V 01 C905 Ceramic Cap.-B 220P 50V K 01 C906 Ceramic Capacitor-SL 68P 50V J 01 C907 Electrolytic Cap. 47.00 35.0V 01 C908 Ceramic Capacitor-F 0.01 50V Z 01 C909 Ceramic Capacitor-F 0.01 50V Z 01 C910 Electrolytic Cap. 100.00 35.0V 01 C911 Monolithic Ceramic Cap. 0.1 50V Z 01 C912 Monolithic Ceramic Cap. 0.1 50V Z 01 CN901 Connector, FFC 52045series 35P TE 01 D601 Diode 1SS133,176,HSS104 01 -604 Diode 1SS133,176,HSS104 01 D901 Diode 1SS133,176,HSS104 01 D902 Diode 1SS133,176,HSS104 01 EM901 Filter, EMI ZJSR5101-223TA 01 IC101 IC NJM2068L-D OP AMP 02 IC102 IC NJM4558L-D OP AMP 03 IC301 IC NJM2068L-D OP AMP 02 IC302 IC NJM4558L-D OP AMP 03 IC501 IC NJM2068L-D OP AMP 02 IC502 IC NJM4558L-D OP AMP 03 IC601 IC NJM2068L-D OP AMP 02 IC603 IC M5238AP OP AMP 03 IC701 IC M5229P 7Seg Grafic 04 IC702 IC BA6137 LED Driver 03 IC703 IC NJM2068L-D OP AMP 02 IC704 IC NJM2068L-D OP AMP 02 IC705 IC NJM2068L-D OP AMP 02 IC706 IC NJM2068L-D OP AMP 02 IC801 IC M5229P 7Seg Grafic 04 IC802 IC BA6137 LED Driver 03 IC901 IC NJM2068L-D OP AMP 02 IC902 IC TC74HC138AP DECO-8 02 J1 Jumper Wire 0.6 22 01 JK101 XLM Connector XLR-Jack NC3FAV1-0 CH1(Lo-Z) 04 JK102 Phone Jack LJ-0695-4R-A CH1(Hi-Z) 02 JK201 XLM Connector XLR-Jack NC3FAV1-0 CH2(Lo-Z) 04 JK202 Phone Jack LJ-0695-4R-A CH2(Hi-Z) 02 JK301 XLM Connector XLR-Jack NC3FAV1-0 CH3(Lo-Z) 04 JK302 Phone Jack LJ-0695-4R-A CH3(Hi-Z) 02 JK401 XLM Connector XLR-Jack NC3FAV1-0 CH4(Lo-Z) 04 JK402 Phone Jack LJ-0695-4R-A CH4(Hi-Z) 02 JK501 XLM Connector XLR-Jack NC3FAV1-0 CH5(MIC) 04 JK502 Phone Jack LJ-0695-4R-A CH5(LINq) 02 JK503 Phone Jack LJ-0695-4R-A CH5(LINEw) 02 JK601 XLM Connector XLR-Jack NC3FAV1-0 CH6(MIC) 04 JK602 Phone Jack LJ-0695-4R-A CH6(LINq) 02 JK603 Phone Jack LJ-0695-4R-A CH6(LINw) 02 JK701 Phone Jack LJ-0695-4R-A OUTPUT(MAIN) 02 JK702 Pin Connector RJ-1130A-01-0320A TAPE IN,REC OUT(q,w) JK703 Phone Jack LJ-0695-4R-A INPUT(AUX IN) 02 JK801 Phone Jack LJ-0695-4R-A OUTPUT(MONITOR) 02 JK901 Phone Jack LJ-0695-4R-A EFFECT OUT 02 JK902 Phone Jack LJ-0695-4R-A FOOT SW 02 LD701 LED LT331-41-C13 (YE) MAIN(+6,+3,0) 01 -703 LED LT331-41-C13 (YE) 01 LD704 LED LT321-41-C13 (GR) MAIN(-5) 01 LD705 LED LT321-41-C13 (GR) MAIN(-10) 01 LD801 LED LT331-41-C13 (YE) MONITOR(+6,+3,0) 01 UA953220 UA954120 UA953120 VZ354000 VZ354000 VZ353800 UR857470 UR877100 VZ353600 VZ352600 UR877100 UR877100 VZ353600 VZ353400 UR857470 VZ354000 VZ354000 UR858100 VZ354600 VZ354600 VQ048400 VD631600 VD631600 VD631600 VD631600 VV056900 XM356A00 XQ212A00 XM356A00 XQ212A00 XM356A00 XQ212A00 XM356A00 XM085A00 XG203A00 XA534A00 XM356A00 XM356A00 XM356A00 XM356A00 XG203A00 XA534A00 XM356A00 IR013800 VV291400 VU805200 V2954500 VU805200 V2954500 VU805200 V2954500 VU805200 V2954500 VU805200 V2954500 V2954500 VU805200 V2954500 V2954500 V2954500 V4807600 V2954500 V2954500 V2954500 V2954500 VV938100 VV938100 VV621000 VV621000 VV938100 * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 9 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only -803 LED LT331-41-C13 (YE) 01 LD804 LED LT321-41-C13 (GR) MONITOR(-5) 01 LD805 LED LT321-41-C13 (GR) MONITOR(-10) 01 LD901 LED LT321-41-C13 (GR) D.EFFECT(VO.ECHO1,2, 01 -908 LED LT321-41-C13 (GR) VO.REV1,2, HALL1,2, 01 HALL,PLATE) LD909 LED LT331-41-C13 (YE) D.EFFECT ON 01 LD910 LED LT321-41-C13 (GR) POWER 01 LD911 LED LT311G-41-C13(RE) LIMITER 1 01 LD912 LED LT311G-41-C13(RE) LIMITER 2 01 Q101 Transistor 2SC2240 GR,BL 01 Q102 Transistor 2SC2240 GR,BL 01 Q201 Transistor 2SC2240 GR,BL 01 Q202 Transistor 2SC2240 GR,BL 01 Q301 Transistor 2SC2240 GR,BL 01 Q302 Transistor 2SC2240 GR,BL 01 Q401 Transistor 2SC2240 GR,BL 01 Q402 Transistor 2SC2240 GR,BL 01 Q501 Transistor 2SC2240 GR,BL 01 Q502 Transistor 2SC2240 GR,BL 01 Q601 Transistor 2SC2240 GR,BL 01 Q602 Transistor 2SC2240 GR,BL 01 Q901 Transistor 2SA1015 O,Y 01 R101 Carbon Resistor 100.0K 1/4 J 01 R102 Metal Film Resistor 2.4K 1/4 F 01 R103 Metal Film Resistor 2.4K 1/4 F 01 R104 Flame Proof C. Resistor 390.0 1/4 J 01 R105 Carbon Resistor 15.0K 1/4 J 01 R106 Carbon Resistor 10.0 1/4 J 01 R107 Carbon Resistor 10.0 1/4 J 01 R108 Metal Film Resistor 47K 1/4 F 01 R109 Metal Film Resistor 47K 1/4 F 01 R110 Carbon Resistor 10.0 1/4 J 01 R111 Carbon Resistor 10.0 1/4 J 01 R112 Carbon Resistor 150.0 1/4 J 01 R113 Carbon Resistor 8.2K 1/4 J 01 R114 Metal Film Resistor 8.2K 1/4 F 01 R115 Metal Film Resistor 8.2K 1/4 F 01 R116 Metal Film Resistor 2.2K 1/4 F 01 R117 Metal Film Resistor 2.2K 1/4 F 01 R118 Metal Film Resistor 10K 1/4 F 01 R119 Metal Film Resistor 10K 1/4 F 01 R120 Carbon Resistor 10.0K 1/4 J 01 R121 Carbon Resistor 10.0K 1/4 J 01 R122 Carbon Resistor 1.2K 1/4 J 01 R123 Carbon Resistor 1.2K 1/4 J 01 R124 Carbon Resistor 3.3K 1/4 J 01 R125 Carbon Resistor 3.3K 1/4 J 01 R126 Carbon Resistor 10.0K 1/4 J 01 R127 Carbon Resistor 3.9K 1/4 J 01 R128 Carbon Resistor 10.0 1/4 J 01 R129 Carbon Resistor 18.0K 1/4 J 01 -131 Carbon Resistor 18.0K 1/4 J 01 R132 Metal Film Resistor 3.9K 1/4 F 01 R133 Metal Film Resistor 3.9K 1/4 F 01 R134 Carbon Resistor 100.0K 1/4 J 01 R135 Carbon Resistor 100.0K 1/4 J 01 R201 Carbon Resistor 100.0K 1/4 J 01 R202 Metal Film Resistor 2.4K 1/4 F 01 R203 Metal Film Resistor 2.4K 1/4 F 01 R204 Flame Proof C. Resistor 390.0 1/4 J 01 R205 Carbon Resistor 15.0K 1/4 J 01 R206 Carbon Resistor 10.0 1/4 J 01 R207 Carbon Resistor 10.0 1/4 J 01 R208 Metal Film Resistor 47K 1/4 F 01 R209 Metal Film Resistor 47K 1/4 F 01 R210 Carbon Resistor 10.0 1/4 J 01 R211 Carbon Resistor 10.0 1/4 J 01 R212 Carbon Resistor 150.0 1/4 J 01 R213 Carbon Resistor 8.2K 1/4 J 01 VV938100 VV621000 VV621000 VV621000 VV621000 VV938100 VV621000 VV620800 VV620800 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IC224030 IA101590 HF458100 V2440200 V2440200 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF456820 VV065400 VV065400 VV065100 VV065100 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 VV312400 VV312400 HF458100 HF458100 HF458100 V2440200 V2440200 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF456820 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 10 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R214 Metal Film Resistor 8.2K 1/4 F 01 R215 Metal Film Resistor 8.2K 1/4 F 01 R216 Metal Film Resistor 2.2K 1/4 F 01 R217 Metal Film Resistor 2.2K 1/4 F 01 R218 Metal Film Resistor 10K 1/4 F 01 R219 Metal Film Resistor 10K 1/4 F 01 R220 Carbon Resistor 10.0K 1/4 J 01 R221 Carbon Resistor 10.0K 1/4 J 01 R222 Carbon Resistor 1.2K 1/4 J 01 R223 Carbon Resistor 1.2K 1/4 J 01 R224 Carbon Resistor 3.3K 1/4 J 01 R225 Carbon Resistor 3.3K 1/4 J 01 R226 Carbon Resistor 10.0K 1/4 J 01 R227 Carbon Resistor 3.9K 1/4 J 01 R228 Carbon Resistor 10.0 1/4 J 01 R229 Carbon Resistor 18.0K 1/4 J 01 -231 Carbon Resistor 18.0K 1/4 J 01 R232 Metal Film Resistor 3.9K 1/4 F 01 R233 Metal Film Resistor 3.9K 1/4 F 01 R234 Carbon Resistor 100.0K 1/4 J 01 R235 Carbon Resistor 100.0K 1/4 J 01 R301 Carbon Resistor 100.0K 1/4 J 01 R302 Metal Film Resistor 2.4K 1/4 F 01 R303 Metal Film Resistor 2.4K 1/4 F 01 R304 Flame Proof C. Resistor 390.0 1/4 J 01 R305 Carbon Resistor 15.0K 1/4 J 01 R306 Carbon Resistor 10.0 1/4 J 01 R307 Carbon Resistor 10.0 1/4 J 01 R308 Metal Film Resistor 47K 1/4 F 01 R309 Metal Film Resistor 47K 1/4 F 01 R310 Carbon Resistor 10.0 1/4 J 01 R311 Carbon Resistor 10.0 1/4 J 01 R312 Carbon Resistor 150.0 1/4 J 01 R313 Carbon Resistor 8.2K 1/4 J 01 R314 Metal Film Resistor 8.2K 1/4 F 01 R315 Metal Film Resistor 8.2K 1/4 F 01 R316 Metal Film Resistor 2.2K 1/4 F 01 R317 Metal Film Resistor 2.2K 1/4 F 01 R318 Metal Film Resistor 10K 1/4 F 01 R319 Metal Film Resistor 10K 1/4 F 01 R320 Carbon Resistor 10.0K 1/4 J 01 R321 Carbon Resistor 10.0K 1/4 J 01 R322 Carbon Resistor 1.2K 1/4 J 01 R323 Carbon Resistor 1.2K 1/4 J 01 R324 Carbon Resistor 3.3K 1/4 J 01 R325 Carbon Resistor 3.3K 1/4 J 01 R326 Carbon Resistor 10.0K 1/4 J 01 R327 Carbon Resistor 3.9K 1/4 J 01 R328 Carbon Resistor 10.0 1/4 J 01 R329 Carbon Resistor 18.0K 1/4 J 01 -331 Carbon Resistor 18.0K 1/4 J 01 R332 Metal Film Resistor 3.9K 1/4 F 01 R333 Metal Film Resistor 3.9K 1/4 F 01 R334 Carbon Resistor 100.0K 1/4 J 01 R335 Carbon Resistor 100.0K 1/4 J 01 R401 Carbon Resistor 100.0K 1/4 J 01 R402 Metal Film Resistor 6.8K 1/4 F 01 R403 Metal Film Resistor 6.8K 1/4 F 01 R404 Flame Proof C. Resistor 390.0 1/4 J 01 R405 Carbon Resistor 15.0K 1/4 J 01 R406 Carbon Resistor 10.0 1/4 J 01 R407 Carbon Resistor 10.0 1/4 J 01 R408 Metal Film Resistor 47K 1/4 F 01 R409 Metal Film Resistor 47K 1/4 F 01 R410 Carbon Resistor 10.0 1/4 J 01 R411 Carbon Resistor 10.0 1/4 J 01 R412 Carbon Resistor 150.0 1/4 J 01 R413 Carbon Resistor 8.2K 1/4 J 01 R414 Metal Film Resistor 8.2K 1/4 F 01 R415 Metal Film Resistor 8.2K 1/4 F 01 VV065400 VV065400 VV065100 VV065100 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 VV312400 VV312400 HF458100 HF458100 HF458100 V2440200 V2440200 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF456820 VV065400 VV065400 VV065100 VV065100 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 VV312400 VV312400 HF458100 HF458100 HF458100 VV065300 VV065300 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF456820 VV065400 VV065400 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 11 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R416 Metal Film Resistor 2.2K 1/4 F 01 R417 Metal Film Resistor 2.2K 1/4 F 01 R418 Metal Film Resistor 10K 1/4 F 01 R419 Metal Film Resistor 10K 1/4 F 01 R420 Carbon Resistor 10.0K 1/4 J 01 R421 Carbon Resistor 10.0K 1/4 J 01 R422 Carbon Resistor 1.2K 1/4 J 01 R423 Carbon Resistor 1.2K 1/4 J 01 R424 Carbon Resistor 3.3K 1/4 J 01 R425 Carbon Resistor 3.3K 1/4 J 01 R426 Carbon Resistor 10.0K 1/4 J 01 R427 Carbon Resistor 3.9K 1/4 J 01 R428 Carbon Resistor 10.0 1/4 J 01 R429 Carbon Resistor 18.0K 1/4 J 01 -431 Carbon Resistor 18.0K 1/4 J 01 R432 Metal Film Resistor 3.9K 1/4 F 01 R433 Metal Film Resistor 3.9K 1/4 F 01 R434 Carbon Resistor 100.0K 1/4 J 01 R435 Carbon Resistor 100.0K 1/4 J 01 R501 Carbon Resistor 100.0K 1/4 J 01 R502 Metal Film Resistor 2.4K 1/4 F 01 R503 Metal Film Resistor 2.4K 1/4 F 01 R504 Flame Proof C. Resistor 390.0 1/4 J 01 R505 Carbon Resistor 15.0K 1/4 J 01 R506 Carbon Resistor 10.0 1/4 J 01 R507 Carbon Resistor 10.0 1/4 J 01 R508 Metal Film Resistor 47K 1/4 F 01 R509 Metal Film Resistor 47K 1/4 F 01 R510 Carbon Resistor 10.0 1/4 J 01 R511 Carbon Resistor 10.0 1/4 J 01 R512 Carbon Resistor 150.0 1/4 J 01 R513 Carbon Resistor 18.0K 1/4 J 01 R514 Metal Film Resistor 8.2K 1/4 F 01 R515 Metal Film Resistor 8.2K 1/4 F 01 R516 Metal Film Resistor 2.2K 1/4 F 01 R517 Metal Film Resistor 2.2K 1/4 F 01 R518 Metal Film Resistor 10K 1/4 F 01 R519 Metal Film Resistor 10K 1/4 F 01 R520 Carbon Resistor 10.0K 1/4 J 01 R521 Carbon Resistor 10.0K 1/4 J 01 R522 Carbon Resistor 1.2K 1/4 J 01 R523 Carbon Resistor 1.2K 1/4 J 01 R524 Carbon Resistor 3.3K 1/4 J 01 R525 Carbon Resistor 3.3K 1/4 J 01 R526 Carbon Resistor 10.0K 1/4 J 01 R527 Carbon Resistor 3.9K 1/4 J 01 R528 Carbon Resistor 10.0 1/4 J 01 R529 Carbon Resistor 18.0K 1/4 J 01 -533 Carbon Resistor 18.0K 1/4 J 01 R534 Carbon Resistor 100.0K 1/4 J 01 -536 Carbon Resistor 100.0K 1/4 J 01 R537 Carbon Resistor 4.7K 1/4 J 01 R538 Carbon Resistor 10.0K 1/4 J 01 R601 Carbon Resistor 100.0K 1/4 J 01 R602 Metal Film Resistor 2.4K 1/4 F 01 R603 Metal Film Resistor 2.4K 1/4 F 01 R604 Flame Proof C. Resistor 390.0 1/4 J 01 R605 Carbon Resistor 15.0K 1/4 J 01 R606 Carbon Resistor 10.0 1/4 J 01 R607 Carbon Resistor 10.0 1/4 J 01 R608 Metal Film Resistor 47K 1/4 F 01 R609 Metal Film Resistor 47K 1/4 F 01 R610 Carbon Resistor 10.0 1/4 J 01 R611 Carbon Resistor 10.0 1/4 J 01 R612 Carbon Resistor 150.0 1/4 J 01 R613 Carbon Resistor 18.0K 1/4 J 01 R614 Metal Film Resistor 8.2K 1/4 F 01 R615 Metal Film Resistor 8.2K 1/4 F 01 R616 Metal Film Resistor 2.2K 1/4 F 01 R617 Metal Film Resistor 2.2K 1/4 F 01 VV065100 VV065100 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 VV312400 VV312400 HF458100 HF458100 HF458100 V2440200 V2440200 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF457180 VV065400 VV065400 VV065100 VV065100 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 HF458100 HF458100 HF456470 HF457100 HF458100 V2440200 V2440200 VV058400 HF457150 HF454100 HF454100 VV066100 VV066100 HF454100 HF454100 HF455150 HF457180 VV065400 VV065400 VV065100 VV065100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 12 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R618 Metal Film Resistor 10K 1/4 F 01 R619 Metal Film Resistor 10K 1/4 F 01 R620 Carbon Resistor 10.0K 1/4 J 01 R621 Carbon Resistor 10.0K 1/4 J 01 R622 Carbon Resistor 1.2K 1/4 J 01 R623 Carbon Resistor 1.2K 1/4 J 01 R624 Carbon Resistor 3.3K 1/4 J 01 R625 Carbon Resistor 3.3K 1/4 J 01 R626 Carbon Resistor 10.0K 1/4 J 01 R627 Carbon Resistor 3.9K 1/4 J 01 R628 Carbon Resistor 10.0 1/4 J 01 R629 Carbon Resistor 18.0K 1/4 J 01 -633 Carbon Resistor 18.0K 1/4 J 01 R636 Carbon Resistor 100.0K 1/4 J 01 R637 Carbon Resistor 4.7K 1/4 J 01 R638 Carbon Resistor 10.0K 1/4 J 01 R639 Carbon Resistor 1.0K 1/4 J 01 R640 Carbon Resistor 1.0K 1/4 J 01 R641 Carbon Resistor 470.0K 1/4 J 01 R642 Carbon Resistor 470.0K 1/4 J 01 R643 Carbon Resistor 4.7K 1/4 J 01 R644 Carbon Resistor 4.7K 1/4 J 01 R645 Carbon Resistor 47.0K 1/4 J 01 R646 Carbon Resistor 47.0K 1/4 J 01 R701 Carbon Resistor 8.2K 1/4 J 01 R702 Carbon Resistor 8.2K 1/4 J 01 R703 Carbon Resistor 1.5K 1/4 J 01 R704 Carbon Resistor 1.5K 1/4 J 01 R705 Carbon Resistor 1.2K 1/4 J 01 R706 Carbon Resistor 1.2K 1/4 J 01 R710 Carbon Resistor 18.0K 1/4 J 01 R711 Carbon Resistor 36.0K 1/4 J 01 R712 Carbon Resistor 36.0K 1/4 J 01 R713 Carbon Resistor 220.0K 1/4 J 01 R714 Carbon Resistor 100.0K 1/4 J 01 R716 Carbon Resistor 120.0K 1/4 J 01 R717 Carbon Resistor 120.0K 1/4 J 01 R718 Carbon Resistor 18.0K 1/4 J 01 R719 Carbon Resistor 220.0 1/4 J 01 R720 Carbon Resistor 4.3K 1/4 J 01 R721 Carbon Resistor 10.0K 1/4 J 01 R724 Carbon Resistor 3.3K 1/4 J 01 R725 Carbon Resistor 100.0K 1/4 J 01 R726 Carbon Resistor 3.3K 1/4 J 01 R727 Carbon Resistor 10.0K 1/4 J 01 R728 Carbon Resistor 4.7K 1/4 J 01 R729 Carbon Resistor 750.0 1/4 J 01 R730 Carbon Resistor 10.0K 1/4 J 01 R731 Carbon Resistor 680.0 1/4 J 01 -733 Carbon Resistor 680.0 1/4 J 01 R734 Carbon Resistor 560.0 1/4 J 01 R735 Carbon Resistor 560.0 1/4 J 01 R737 Metal Film Resistor 10K 1/4 F 01 R738 Metal Film Resistor 10K 1/4 F 01 R739 Carbon Resistor 100.0K 1/4 J 01 R741 Carbon Resistor 9.1K 1/4 J 01 R742 Carbon Resistor 100.0 1/4 J 01 R812 Carbon Resistor 18.0K 1/4 J 01 R813 Carbon Resistor 220.0K 1/4 J 01 R814 Carbon Resistor 100.0K 1/4 J 01 R816 Carbon Resistor 120.0K 1/4 J 01 R817 Carbon Resistor 120.0K 1/4 J 01 R818 Carbon Resistor 18.0K 1/4 J 01 R819 Carbon Resistor 220.0 1/4 J 01 R820 Carbon Resistor 4.3K 1/4 J 01 R821 Carbon Resistor 10.0K 1/4 J 01 R824 Carbon Resistor 3.3K 1/4 J 01 R825 Carbon Resistor 100.0K 1/4 J 01 R826 Carbon Resistor 3.3K 1/4 J 01 R827 Carbon Resistor 10.0K 1/4 J 01 VV065500 VV065500 HF457100 HF457100 HF456120 HF456120 HF456330 HF456330 HF457100 HF456390 HF454100 HF457180 HF457180 HF458100 HF456470 HF457100 HF456100 HF456100 HF458470 HF458470 HF456470 HF456470 HF457470 HF457470 HF456820 HF456820 HF456150 HF456150 HF456120 HF456120 HF457180 HF457360 HF457360 HF458220 HF458100 HF458120 HF458120 HF457180 HF455220 HF456430 HF457100 HF456330 HF458100 HF456330 HF457100 HF456470 HF455750 HF457100 HF455680 HF455680 HF455560 HF455560 VV065500 VV065500 HF458100 HF456910 HF455100 HF457180 HF458220 HF458100 HF458120 HF458120 HF457180 HF455220 HF456430 HF457100 HF456330 HF458100 HF456330 HF457100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 13 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * R828 Carbon Resistor 4.7K 1/4 J 01 R829 Carbon Resistor 750.0 1/4 J 01 R830 Carbon Resistor 10.0K 1/4 J 01 R831 Carbon Resistor 680.0 1/4 J 01 -833 Carbon Resistor 680.0 1/4 J 01 R834 Carbon Resistor 560.0 1/4 J 01 R835 Carbon Resistor 560.0 1/4 J 01 R900 Carbon Resistor 10.0 1/4 J 01 R901 Carbon Resistor 220.0K 1/4 J 01 R902 Carbon Resistor 22.0K 1/4 J 01 R903 Carbon Resistor 18.0K 1/4 J 01 R904 Carbon Resistor 220.0 1/4 J 01 R905 Carbon Resistor 15.0K 1/4 J 01 R906 Carbon Resistor 10.0K 1/4 J 01 R907 Carbon Resistor 100.0K 1/4 J 01 R908 Carbon Resistor 560.0 1/4 J 01 R909 Carbon Resistor 560.0 1/4 J 01 R910 Carbon Resistor 470.0K 1/4 J 01 R911 Carbon Resistor 4.7K 1/4 J 01 R912 Carbon Resistor 27.0K 1/4 J 01 R913 Carbon Resistor 27.0K 1/4 J 01 R914 Carbon Resistor 68.0K 1/4 J 01 R915 Carbon Resistor 68.0K 1/4 J 01 R916 Carbon Resistor 2.7K 1/4 J 01 R917 Carbon Resistor 330.0 1/4 J 01 -925 Carbon Resistor 330.0 1/4 J 01 SW101 Push Switch 2C-2S ROCK CH1(PAD) 01 SW201 Push Switch 2C-2S ROCK CH2(PAD) 01 SW301 Push Switch 2C-2S ROCK CH3(PAD) 01 SW401 Push Switch 2C-2S ROCK CH4(PAD) 01 SW701 Slide Switch SSSU013NB1-YL MAIN BRIDGE 02 SW702 Slide Switch SSSU012NB1-YL PHAMTOM 02 SW901 Tact Switch SKQNAE025A D.EFFECT(VO.ECHO1,2, 01 -909 Tact Switch SKQNAE025A VO.REV1,2, HALL1,2, 01 HALL,PLATE) VR101 Rotary Variable Resistor B 50.0K RD09F113 CH1(LOW, MID,HIGH) -103 Rotary Variable Resistor B 50.0K RD09F113 VR104 Rotary Variable Resistor A 20.0K RK09D113 CHI(MONI,EFFECT,LEVEL) -106 Rotary Variable Resistor A 20.0K RK09D113 VR201 Rotary Variable Resistor B 50.0K RD09F113 CH2(LOW, MID,HIGH) -203 Rotary Variable Resistor B 50.0K RD09F113 VR204 Rotary Variable Resistor A 20.0K RK09D113 CH2(MONI,EFFECT,LEVEL) -206 Rotary Variable Resistor A 20.0K RK09D113 VR301 Rotary Variable Resistor B 50.0K RD09F113 CH3(LOW, MID,HIGH) -303 Rotary Variable Resistor B 50.0K RD09F113 VR304 Rotary Variable Resistor A 20.0K RK09D113 CH3(MONI,EFFECT,LEVEL) -306 Rotary Variable Resistor A 20.0K RK09D113 VR401 Rotary Variable Resistor B 50.0K RD09F113 CH4(LOW, MID,HIGH) -403 Rotary Variable Resistor B 50.0K RD09F113 VR404 Rotary Variable Resistor A 20.0K RK09D113 CH4(MONI,EFFECT,LEVEL) -406 Rotary Variable Resistor A 20.0K RK09D113 VR501 Rotary Variable Resistor B 50.0K RD09F113 CH5(LOW, MID,HIGH) -503 Rotary Variable Resistor B 50.0K RD09F113 VR504 Rotary Variable Resistor A 20.0K RK09D113 CH5(MONI,EFFECT,LEVEL) -506 Rotary Variable Resistor A 20.0K RK09D113 VR601 Rotary Variable Resistor B 50.0K RD09F113 CH6(LOW, MID,HIGH) -603 Rotary Variable Resistor B 50.0K RD09F113 VR604 Rotary Variable Resistor A 20.0K RK09D113 CH6(MONI,EFFECT,LEVEL) -606 Rotary Variable Resistor A 20.0K RK09D113 VR701 Rotary Variable Resistor A 20.0K RK09D113 MAIN(AUX IN,TAPE IN, -703 Rotary Variable Resistor A 20.0K RK09D113 MASTER) VR704 Slide Variable Resistor RS20H11KD017-YL MAIN(125,250,500,1k,2k, 03 -710 Slide Variable Resistor RS20H11KD017-YL 4k,8k) 03 VR802 Rotary Variable Resistor A 20.0K RK09D113 MONITOR(TAPE IN) VR803 Rotary Variable Resistor A 20.0K RK09D113 MONITOR(MASTER) VR804 Slide Variable Resistor RS20H11KD017-YL MONITOR(125,250,500,1k, 03 -810 Slide Variable Resistor RS20H11KD017-YL 2k,4k,8k) 03 VR901 Rotary Variable Resistor A 20.0K RK09D113 MONITOR(EFFECT RTN) VR902 Rotary Variable Resistor A 20.0K RK09D113 MAIN(EFFECT RTN) HF456470 HF455750 HF457100 HF455680 HF455680 HF455560 HF455560 HF454100 HF458220 HF457220 HF457180 HF455220 HF457150 HF457100 HF458100 HF455560 HF455560 HF458470 HF456470 HF457270 HF457270 HF457680 HF457680 HF456270 HF455330 HF455330 VZ587700 VZ587700 VZ587700 VZ587700 VV044700 VV051500 VV056000 VV056000 V5521600 V5521600 V5521500 V5521500 V5521600 V5521600 V5521500 V5521500 V5521600 V5521600 V5521500 V5521500 V5521600 V5521600 V5521500 V5521500 V5521600 V5521600 V5521500 V5521500 V5521600 V5521600 V5521500 V5521500 V5521500 V5521500 VV044600 VV044600 V5521500 V5521500 VV044600 VV044600 V5521500 V5521500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 14 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * Circuit Board SUB (XY281A00) Jumper Wire 0.6 01 C101 Ceramic Capacitor-SL 100P 50V J 01 C102 Ceramic Capacitor-SL 56P 50V J 01 C103 Electrolytic Cap. 100.00 16.0V 01 C104 Ceramic Cap.-B 1000P 50V K 01 C105 Ceramic Cap.-B 470P 50V K 01 C106 Electrolytic Cap. 47.00 35.0V 01 C107 Electrolytic Cap. 47.00 35.0V 01 C108 Electrolytic Cap. 10.00 63.0V 01 C109 Electrolytic Cap. 10.00 63.0V 01 C110 Electrolytic Cap. 10.0 100.0V 01 C111 Electrolytic Cap. 10.0 100.0V 01 C112 Mica Capacitor 68P 500V J 01 C113 Mica Capacitor 82P 500V J 01 C114 Ceramic Capacitor-F 0.01 50V Z 01 C115 Ceramic Capacitor-F 0.01 50V Z 01 C201 Ceramic Capacitor-SL 100P 50V J 01 C202 Ceramic Capacitor-SL 56P 50V J 01 C203 Electrolytic Cap. 100.00 16.0V 01 C204 Ceramic Cap.-B 1000P 50V K 01 C205 Ceramic Cap.-B 470P 50V K 01 C206 Electrolytic Cap. 47.00 35.0V 01 C207 Electrolytic Cap. 47.00 35.0V 01 C208 Electrolytic Cap. 10.00 63.0V 01 C209 Electrolytic Cap. 10.00 63.0V 01 C210 Electrolytic Cap. 10.0 100.0V 01 C211 Electrolytic Cap. 10.0 100.0V 01 C212 Mica Capacitor 68P 500V J 01 C213 Mica Capacitor 82P 500V J 01 C214 Ceramic Capacitor-F 0.01 50V Z 01 C215 Ceramic Capacitor-F 0.01 50V Z 01 C301 Monolithic Ceramic Cap. 0.1 50V Z 01 C302 Electrolytic Cap. 10.00 63.0V 01 C303 Monolithic Ceramic Cap. 0.1 50V Z 01 C304 Monolithic Ceramic Cap. 0.1 50V Z 01 C305 Electrolytic Cap. 10.00 63.0V 01 C306 Electrolytic Cap. 10.00 63.0V 01 C307 Mylar Capacitor 2700P 50V J 01 C308 Electrolytic Cap. 47.00 35.0V 01 C309 Ceramic Capacitor-SL 100P 50V J 01 C310 Mylar Capacitor 820P 50V J 01 C311 Monolithic Ceramic Cap. 0.1 50V Z 01 C312 Monolithic Ceramic Cap. 0.1 50V Z 01 C313 Electrolytic Cap. 10.00 63.0V 01 C314 Mylar Capacitor 8200P 50V J C315 Electrolytic Cap. 10.00 63.0V 01 -317 Electrolytic Cap. 10.00 63.0V 01 C318 Monolithic Ceramic Cap. 0.1 50V Z 01 C319 Electrolytic Cap. 10.00 63.0V 01 C320 Electrolytic Cap. 10.00 63.0V 01 C321 Ceramic Cap.-B 470P 50V K 01 C322 Ceramic Cap.-B 470P 50V K 01 C323 Electrolytic Cap. 10.00 63.0V 01 C324 Electrolytic Cap. 10.00 63.0V 01 C325 Monolithic Ceramic Cap. 0.1 50V Z 01 C326 Monolithic Ceramic Cap. 0.1 50V Z 01 C327 Electrolytic Cap. 10.00 63.0V 01 C328 Monolithic Ceramic Cap. 0.1 50V Z 01 -331 Monolithic Ceramic Cap. 0.1 50V Z 01 C332 Electrolytic Cap. 10.00 63.0V 01 C333 Monolithic Ceramic Cap. 0.1 50V Z 01 C334 Electrolytic Cap. 100.00 16.0V 01 C335 Electrolytic Cap. 100.00 16.0V 01 C336 Electrolytic Cap. 47.00 35.0V 01 C337 Electrolytic Cap. 10.00 63.0V 01 C338 Monolithic Ceramic Cap. 0.1 50V Z 01 C339 Monolithic Ceramic Cap. 0.1 50V Z 01 CN101 Connector Base Post M2426XX 14P TE (VV06740) CN301 Connector , FFC 52044series 35P SE 01 V5111000 VV291400 VZ353500 VZ353300 UR838100 VZ353900 VZ353800 UR857470 UR857470 UR877100 UR877100 UR897100 UR897100 FU451680 FU451820 VZ354000 VZ354000 VZ353500 VZ353300 UR838100 VZ353900 VZ353800 UR857470 UR857470 UR877100 UR877100 UR897100 UR897100 FU451680 FU451820 VZ354000 VZ354000 VZ354600 UR877100 VZ354600 VZ354600 UR877100 UR877100 UA953270 UR857470 VZ353500 VV190000 VZ354600 VZ354600 UR877100 UA953820 UR877100 UR877100 VZ354600 UR877100 UR877100 VZ353800 VZ353800 UR877100 UR877100 VZ354600 VZ354600 UR877100 VZ354600 VZ354600 UR877100 VZ354600 UR838100 UR838100 UR857470 UR877100 VZ354600 VZ354600 -- VQ046400 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 15 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * D101 Diode 1SS133,176,HSS104 01 -103 Diode 1SS133,176,HSS104 01 D201 Diode 1SS133,176,HSS104 01 -203 Diode 1SS133,176,HSS104 01 D301 Diode 1SS133,176,HSS104 01 EM301 Ferrite Bead BL02RN2-R62T4 02 EM302 Ferrite Bead BL02RN2-R62T4 02 EM303 Filter, EMI ZJSR5101-223TA 01 -307 Filter, EMI ZJSR5101-223TA 01 EM308 Ferrite Bead BL02RN2-R62T4 02 -312 Ferrite Bead BL02RN2-R62T4 02 IC101 IC NJM4558L-D OP AMP 03 IC201 IC NJM4558L-D OP AMP 03 IC301 IC 93LC46B-I/P DRAM 1K 02 IC302 IC TC74HCU04AP INVERTER 02 IC303 IC UPD78082GB-XXX MSK 05 IC304 IC NJM4558L-D OP AMP 03 IC305 IC PCM3001E ADA 07 IC306 IC ZFX-2 DSP 13 IC307 IC MSM514260C-60TS-K DRAM 4M 16 IC308 IC NJM7805FA 5V REGULATOR 02 J301 Jumper Wire 0.6 01 -303 Jumper Wire 0.6 01 Q101 Transistor 2SA970 GR,BL 01 Q102 Transistor 2SA970 GR,BL 01 Q103 Transistor 2SC2240 GR,BL 01 Q104 Transistor 2SC2240 GR,BL 01 Q105 Digital Transistor DTA114ES 01 Q106 Digital Transistor DTC114ES 01 Q107 Digital Transistor DTA114ES 01 Q108 Transistor 2SA970 GR,BL 01 -110 Transistor 2SA970 GR,BL 01 Q111 Transistor 2SC2240 GR,BL 01 Q112 Transistor 2SC1815 Y,GR 01 Q113 Transistor 2SC1815 Y,GR 01 Q114 Transistor 2SA1371 D,E 01 Q115 Transistor 2SC3468 D,E 01 Q201 Transistor 2SA970 GR,BL 01 Q202 Transistor 2SA970 GR,BL 01 Q203 Transistor 2SC2240 GR,BL 01 Q204 Transistor 2SC2240 GR,BL 01 Q205 Digital Transistor DTA114ES 01 Q206 Digital Transistor DTC114ES 01 Q207 Digital Transistor DTA114ES 01 Q208 Transistor 2SA970 GR,BL 01 -210 Transistor 2SA970 GR,BL 01 Q211 Transistor 2SC2240 GR,BL 01 Q212 Transistor 2SC1815 Y,GR 01 Q213 Transistor 2SC1815 Y,GR 01 Q214 Transistor 2SA1371 D,E 01 Q215 Transistor 2SC3468 D,E 01 Q301 Digital Transistor DTC114ES 01 Q302 Transistor 2SC1815 Y,GR 01 Q303 Transistor 2SC1815 Y,GR 01 Q304 Digital Transistor DTA114ES 01 Q305 Digital Transistor DTC114ES 01 Q306 Transistor 2SC1815 Y,GR 01 R101 Metal Film Resistor 220K 1/4 F 01 R102 Metal Film Resistor 220K 1/4 F 01 R103 Carbon Resistor 68.0 1/4 J 01 R104 Metal Film Resistor 75.0K 1/5 F 01 -107 Metal Film Resistor 75.0K 1/5 F 01 R108 Metal Film Resistor 33K 1/4 F 01 R109 Carbon Resistor 68.0 1/4 J 01 R110 Metal Film Resistor 33K 1/4 F 01 R111 Carbon Resistor 27.0K 1/4 J 01 R112 Metal Film Resistor 510.0 1/4 F 01 R113 Carbon Resistor 1.5K 1/4 J 01 R114 Carbon Resistor 220.0 1/4 J 01 R115 Carbon Resistor 330.0K 1/4 J 01 VD631600 VD631600 VD631600 VD631600 VD631600 GE300670 GE300670 VV056900 VV056900 GE300670 GE300670 XQ212A00 XQ212A00 XY298A00 IG142200 XY296A00 XQ212A00 XY282A00 XY297A00 XT810A00 XJ607A00 VV291400 VV291400 IA097030 IA097030 IC224030 IC224030 VD678500 VD678700 VD678500 IA097030 IA097030 IC224030 IC1815M0 IC1815M0 VU418400 VU418600 IA097030 IA097030 IC224030 IC224030 VD678500 VD678700 VD678500 IA097030 IA097030 IC224030 IC1815M0 IC1815M0 VU418400 VU418600 VD678700 IC1815M0 IC1815M0 VD678500 VD678700 IC1815M0 VV313500 VV313500 HF454680 V0030400 V0030400 VV066000 HF454680 VV066000 HF457270 VZ598300 HF456150 HF455220 HF458330 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 16 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R116 Carbon Resistor 2.2K 1/4 J 01 R117 Carbon Resistor 2.2K 1/4 J 01 R118 Carbon Resistor 47.0K 1/4 J 01 R119 Carbon Resistor 330.0 1/4 J 01 R120 Carbon Resistor 390.0K 1/4 J 01 R121 Carbon Resistor 390.0K 1/4 J 01 R122 Carbon Resistor 330.0K 1/4 J 01 R123 Carbon Resistor 22.0K 1/4 J 01 R124 Carbon Resistor 22.0K 1/4 J 01 R125 Carbon Resistor 560.0 1/4 J 01 R126 Carbon Resistor 100.0 1/4 J 01 R127 Carbon Resistor 100.0 1/4 J 01 R128 Carbon Resistor 560.0 1/4 J 01 R129 Carbon Resistor 560.0 1/4 J 01 R130 Metal Film Resistor 22.0K 1/5 F 01 R131 Carbon Resistor 47.0K 1/4 J 01 R132 Carbon Resistor 47.0K 1/4 J 01 R133 Carbon Resistor 330.0 1/4 J 01 R134 Carbon Resistor 330.0 1/4 J 01 R201 Metal Film Resistor 220K 1/4 F 01 R202 Metal Film Resistor 220K 1/4 F 01 R203 Carbon Resistor 68.0 1/4 J 01 R204 Metal Film Resistor 75.0K 1/5 F 01 -207 Metal Film Resistor 75.0K 1/5 F 01 R208 Metal Film Resistor 33K 1/4 F 01 R209 Carbon Resistor 68.0 1/4 J 01 R210 Metal Film Resistor 33K 1/4 F 01 R211 Carbon Resistor 27.0K 1/4 J 01 R212 Metal Film Resistor 510.0 1/4 F 01 R213 Carbon Resistor 1.5K 1/4 J 01 R214 Carbon Resistor 220.0 1/4 J 01 R215 Carbon Resistor 330.0K 1/4 J 01 R216 Carbon Resistor 2.2K 1/4 J 01 R217 Carbon Resistor 2.2K 1/4 J 01 R218 Carbon Resistor 47.0K 1/4 J 01 R219 Carbon Resistor 330.0 1/4 J 01 R220 Carbon Resistor 390.0K 1/4 J 01 R221 Carbon Resistor 390.0K 1/4 J 01 R222 Carbon Resistor 330.0K 1/4 J 01 R223 Carbon Resistor 22.0K 1/4 J 01 R224 Carbon Resistor 22.0K 1/4 J 01 R225 Carbon Resistor 560.0 1/4 J 01 R226 Carbon Resistor 100.0 1/4 J 01 R227 Carbon Resistor 100.0 1/4 J 01 R228 Carbon Resistor 560.0 1/4 J 01 R229 Carbon Resistor 560.0 1/4 J 01 R230 Metal Film Resistor 22.0K 1/5 F 01 R231 Carbon Resistor 47.0K 1/4 J 01 R232 Carbon Resistor 47.0K 1/4 J 01 R233 Carbon Resistor 330.0 1/4 J 01 R234 Carbon Resistor 330.0 1/4 J 01 R301 Carbon Resistor 100.0 1/4 J 01 -315 Carbon Resistor 100.0 1/4 J 01 R316 Carbon Resistor 10.0K 1/4 J 01 R317 Carbon Resistor 22.0K 1/4 J 01 R318 Carbon Resistor 10.0K 1/4 J 01 R319 Carbon Resistor 22.0K 1/4 J 01 R320 Carbon Resistor 10.0K 1/4 J 01 R321 Carbon Resistor 22.0K 1/4 J 01 -330 Carbon Resistor 22.0K 1/4 J 01 R331 Carbon Resistor 10.0K 1/4 J 01 R332 Carbon Resistor 22.0K 1/4 J 01 R333 Carbon Resistor 1.0K 1/4 J 01 R334 Carbon Resistor 1.0M 1/4 J 01 R335 Carbon Resistor 1.0M 1/4 J 01 R336 Carbon Resistor 22.0K 1/4 J 01 R337 Carbon Resistor 10.0K 1/4 J 01 R338 Carbon Resistor 22.0K 1/4 J 01 -342 Carbon Resistor 22.0K 1/4 J 01 R343 Carbon Resistor 1.0K 1/4 J 01 HF456220 HF456220 HF457470 HF455330 HF458390 HF458390 HF458330 HF457220 HF457220 HF455560 HF455100 HF455100 HF455560 HF455560 VB068100 HF457470 HF457470 HF455330 HF455330 VV313500 VV313500 HF454680 V0030400 V0030400 VV066000 HF454680 VV066000 HF457270 VZ598300 HF456150 HF455220 HF458330 HF456220 HF456220 HF457470 HF455330 HF458390 HF458390 HF458330 HF457220 HF457220 HF455560 HF455100 HF455100 HF455560 HF455560 VB068100 HF457470 HF457470 HF455330 HF455330 HF455100 HF455100 HF457100 HF457220 HF457100 HF457220 HF457100 HF457220 HF457220 HF457100 HF457220 HF456100 HF459100 HF459100 HF457220 HF457100 HF457220 HF457220 HF456100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 17 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * R344 Carbon Resistor 27.0K 1/4 J 01 R345 Carbon Resistor 3.0K 1/4 J 01 R346 Carbon Resistor 30.0K 1/4 J 01 R347 Carbon Resistor 1.0M 1/4 J 01 R348 Carbon Resistor 10.0K 1/4 J 01 R349 Carbon Resistor 100.0K 1/4 J 01 R350 Carbon Resistor 100.0K 1/4 J 01 R351 Carbon Resistor 1.0K 1/4 J 01 R352 Carbon Resistor 22.0K 1/4 J 01 R353 Carbon Resistor 68.0K 1/4 J 01 R354 Carbon Resistor 9.1K 1/4 J 01 R355 Carbon Resistor 1.3K 1/4 J 01 R356 Carbon Resistor 22.0K 1/4 J 01 R357 Carbon Resistor 2.2 1/4 J 01 -359 Carbon Resistor 2.2 1/4 J 01 R360 Meta Oxide Film Resistor 47 2W J R361 Carbon Resistor 22.0K 1/4 J 01 -363 Carbon Resistor 22.0K 1/4 J 01 X301 Ceramic Resonator 0.1% 4.0MHZ 02 Circuit Board PWR J (XY324A00) Circuit Board PWR U,V (XY324A00) Circuit Board PWR H,W,B,A (XY324A00) Ferrite Core FR25/15/12-D40 03 Fuse Holder CQ-05CT 6 01 Jumper Wire 0.6 100 01 C103 Electrolytic Cap. 10.00 63.0V 01 C104 Electrolytic Cap. 10.00 63.0V 01 C105 Ceramic Capacitor-F 0.01 50V Z 01 C106 Ceramic Capacitor-F 0.01 50V Z 01 C107 Mylar Capacitor 2200P 50V J 01 C108 Ceramic Capacitor-SL 10P 500V K C109 Ceramic Capacitor-SL 10P 500V K C112 Electrolytic Cap. 10.00 63.0V 01 C113 Electrolytic Cap. 10.00 63.0V 01 C114 Ceramic Capacitor-SL 10P 500V K C115 Ceramic Capacitor-SL 10P 500V K C116 Ceramic Capacitor-F 0.01 50V Z 01 C117 Ceramic Capacitor-F 0.01 50V Z 01 C118 Mylar Capacitor 2200P 50V J 01 C119 Electrolytic Cap. 10.0 100.0V 01 C120 Electrolytic Cap. 10.0 100.0V 01 C121 Ceramic Capacitor-B 100P 500 K 01 C122 Ceramic Capacitor-B 100P 500 K 01 C123 Mylar Capacitor 3.3 100V M 03 C124 Mylar Capacitor 3.3 100V M 03 C125 Electrolytic Cap. 10.0 100.0V 01 C126 Electrolytic Cap. 10.0 100.0V 01 C127 Ceramic Capacitor-B 0.0022 500V K 01 C128 Ceramic Capacitor-B 0.0022 500V K 01 C129 Electrolytic Cap. 100 100.0V C130 Electrolytic Cap. 100 100.0V C131 Electrolytic Cap. 470.00 10.0V 01 C132 Electrolytic Cap. 47.00 35.0V 01 C133 Electrolytic Cap. 10.00 63.0V 01 -135 Electrolytic Cap. 10.00 63.0V 01 C136 Electrolytic Cap. 1000 35.0V -139 Electrolytic Cap. 1000 35.0V C140 Electrolytic Cap. 10.00 63.0V 01 C141 Electrolytic Cap. 10.00 63.0V 01 C142 Electrolytic Cap. 6800 100V 08 C143 Electrolytic Cap. 6800 100V 08 C144 Mylar Capacitor 0.1 250V M 01 C145 Mylar Capacitor 0.1 250V M 01 C146 Ceramic Capacitor-F 0.01 50V Z 01 C147 Monolithic Ceramic Cap. 0.1 50V Z 01 C148 Monolithic Ceramic Cap. 0.1 50V Z 01 C149 Electrolytic Cap. 4.7 100.0V C150 Ceramic Capacitor-B 100P 500 K 01 C151 Capacitor 4700P 400V J.U.C.S U,V,H,W,B,A 01 HF457270 HF456300 HF457300 HF459100 HF457100 HF458100 HF458100 HF456100 HF457220 HF457680 HF456910 HF456130 HF457220 HF453220 HF453220 V4566800 HF457220 HF457220 VD827600 V5227100 V5227200 V5227300 V3225000 VV319600 VV291400 UR877100 UR877100 VZ354000 VZ354000 UA953220 V4567500 V4567500 UR877100 UR877100 V4567500 V4567500 VZ354000 VZ354000 UA953220 UR897100 UR897100 V3280500 V3280500 VV082200 VV082200 UR897100 UR897100 VV314600 VV314600 V5307900 V5307900 VV330700 UR857470 UR877100 UR877100 V5482000 V5482000 UR877100 UR877100 VY897000 VY897000 VV082300 VV082300 VZ354000 VZ354600 VZ354600 UR896470 V3280500 VY704000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 18 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C152 Ceramic Capacitor-SL 100P 50V J 01 C153 Monolithic Ceramic Cap. 0.1 50V Z 01 C154 Monolithic Ceramic Cap. 0.1 50V Z 01 C155 Ceramic Capacitor-SL 100P 50V J 01 C156 Capacitor 1000P 400V J.U.C.S 01 C157 Capacitor 0.01 400V J.U.C.S 02 C158 Capacitor 4700P 400V J.U.C.S U,V,H,W,B,A 01 C159 Ceramic Capacitor-F 0.01 50V Z 01 C160 Ceramic Capacitor-F 0.01 50V Z 01 CN101 Connector Base Post M2426XX 14P TE (VV06740) CN102 Base Post Connector VH- 4P SE 01 CN103 Base Post Connector VH- 6P TE 01 CN104 Connector Base Post M2426XX 2P TE 01 CN105 Base Post Connector VH- 3P SE 01 CN106 Base Post Connector VH- 3P SE 01 D101 Diode 1SS133,176,HSS104 01 -104 Diode 1SS133,176,HSS104 01 D105 Zener Diode MTZ J 5.6B 5.6V 01 D106 Diode 1SS133,176,HSS104 01 D107 Diode 1SS82TD 01 D108 Diode 1SS82TD 01 D109 Diode 1SS133,176,HSS104 01 D110 Zener Diode MTZ J 5.6B 5.6V 01 D111 Diode 1SS82TD 01 D112 Diode 1SS82TD 01 D113 Diode D1NL20U 01 D114 Diode D1NL20U 01 D115 Diode 1N4004L 26 01 D116 Diode 1N4004L 26 01 D117 Diode 1SS133,176,HSS104 01 -120 Diode 1SS133,176,HSS104 01 D121 Zener Diode MTZ J 5.6B 5.6V 01 D122 Diode D1NL20U 01 D123 Diode 1SS82TD 01 D124 Diode 1SS133,176,HSS104 01 D125 Diode 1SS82TD 01 D126 Diode 1SS82TD 01 D127 Diode 1SS133,176,HSS104 01 D128 Diode 1SS82TD 01 D129 Zener Diode MTZ J 5.6B 5.6V 01 D130 Diode D1NL20U 01 D131 Diode 1N4004L 26 01 D132 Diode 1N4004L 26 01 D133 D8LD40 8.0A 400V 04 D134 Diode 1N4004L 26 01 D135 FMX-22S 10.0A 200V 03 D136 D8LD40 8.0A 400V 04 D137 Diode 1N4004L 26 01 D138 FMX-22S 10.0A 200V 03 D139 Diode 1N4004L 26 01 D140 Diode 1SS133,176,HSS104 01 D141 Diode 1N4004L 26 01 D142 Diode 1N4004L 26 01 D143 Zener Diode MTZ J 8.2B 8.2V 01 D144 Diode Stack RBV-1306 13.0A 600 04 D145 Diode 1N4004L 26 01 -149 Diode 1N4004L 26 01 E101 Terminal Plate 01 E102 Terminal Plate 01 F101 Fuse TDS 2A 250V J/U/C J,U,V 01 F101 Fuse TSD 2A 250V SEMKO H,W,B,A 01 F102 Fuse TDS 2A 250V J/U/C J,U,V 01 F102 Fuse TSD 2A 250V SEMKO H,W,B,A 01 F103 Fuse 15.00A U J 04 F103 Fuse 12.00A UL U,V 04 F103 Fuse 6.30A S H,W,B,A 02 IC101 IC NJM7815FA REGULATOR +15V 03 IC102 IC NJM7915FA REGULATOR -15V 03 JK101 Phone Jack H30280072N SPEAKERS(POWER AMP1-A,B, 02 -105 Phone Jack H30280072N BRIDGE,POWER AMP2-A,B) 02 VZ353500 VZ354600 VZ354600 VZ353500 VV314800 VV520600 VY704000 VZ354000 VZ354000 -- LB933040 LB932060 VV066200 LB933030 LB933030 VD631600 VD631600 VG437700 VD631600 IF005560 IF005560 VD631600 VG437700 IF005560 IF005560 VN478200 VN478200 VU801600 VU801600 VD631600 VD631600 VG437700 VN478200 IF005560 VD631600 IF005560 IF005560 VD631600 IF005560 VG437700 VN478200 VU801600 VU801600 VR149700 VU801600 VS135800 VR149700 VU801600 VS135800 VU801600 VD631600 VU801600 VU801600 VG438900 V2261600 VU801600 VU801600 VV075700 VV075700 VV070600 VV071500 VV070600 VV071500 KB001380 KB001540 KB003360 XD853A00 XD854A00 VV089300 VV089300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 19 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * L101 Coil OH-20 100UH L102 Coil OH-20 100UH L103 Ferrite Bead BL02RN2-R62T4 02 L104 Ferrite Bead BL02RN2-R62T4 02 L105 Coil RZ-001 21MM 02 L106 Coil RZ-001 21MM 02 PR101 Positive Thermistor PTH9M04BH222TS2 04 PR102 Positive Thermistor PTH9M04BE222TS2 04 Q101 Transistor 2SA1371 D,E 01 Q102 Transistor 2SC3468 D,E 01 Q103 Transistor 2SC5395 E,F 01 Q104 Transistor 2SA1993 E,F 01 Q105 Transistor 2SC3468 D,E 01 Q106 Transistor 2SA1371 D,E 01 Q107N Transistor A1859A/C4883A 04 Q107P Transistor A1859A/C4883A 04 Q108N Pair Transistor A1386A/C3519A 05 Q108P Pair Transistor A1386A/C3519A 05 Q109N Pair Transistor A1386A/C3519A 05 Q109P Pair Transistor A1386A/C3519A 05 Q110 Transistor 2SA1371 D,E 01 Q111 Transistor 2SC3468 D,E 01 Q112 Transistor 2SC5395 E,F 01 Q113 Transistor 2SA1993 E,F 01 Q114 Transistor 2SC3468 D,E 01 Q115 Transistor 2SA1371 D,E 01 Q116N Transistor A1859A/C4883A 04 Q116P Transistor A1859A/C4883A 04 Q117N Pair Transistor A1386A/C3519A 05 Q117P Pair Transistor A1386A/C3519A 05 Q118N Pair Transistor A1386A/C3519A 05 Q118P Pair Transistor A1386A/C3519A 05 Q119 Transistor 2SC3468 D,E 01 Q120 Transistor 2SA1371 D,E 01 Q121N Transistor A1859A/C4883A 04 Q121P Transistor A1859A/C4883A 04 Q122N Pair Transistor A1386A/C3519A 05 Q122P Pair Transistor A1386A/C3519A 05 Q123N Pair Transistor A1386A/C3519A 05 Q123P Pair Transistor A1386A/C3519A 05 Q124N Transistor A1859A/C4883A 04 Q124P Transistor A1859A/C4883A 04 Q125N Pair Transistor A1386A/C3519A 05 Q125P Pair Transistor A1386A/C3519A 05 Q126N Pair Transistor A1386A/C3519A 05 Q126P Pair Transistor A1386A/C3519A 05 Q127N Pair Transistor A1386A/C3519A 05 Q127P Pair Transistor A1386A/C3519A 05 Q128 Transistor 2SC5395 E,F 01 Q129 Transistor 2SC5395 E,F 01 Q130 Transistor 2SA1993 E,F 01 Q131 Transistor 2SC5395 E,F 01 Q132 Transistor 2SD2394 E,F 02 Q133 Transistor 2SC1815 Y,GR 01 R101 Carbon Resistor 220.0 1/4 J 01 R102 Carbon Resistor 220.0 1/4 J 01 R103 Carbon Resistor 47.0K 1/4 J 01 -106 Carbon Resistor 47.0K 1/4 J 01 R107 Carbon Resistor 12.0K 1/4 J 01 R108 Carbon Resistor 12.0K 1/4 J 01 R109 Flame Proof C. Resistor 220.0 1/4 J 01 R110 Flame Proof C. Resistor 220.0 1/4 J 01 R111 Flame Proof C. Resistor 330.0 1/4 J 01 R112 Flame Proof C. Resistor 330.0 1/4 J 01 R113 Flame Proof C. Resistor 100 1/4 J 01 -116 Flame Proof C. Resistor 100 1/4 J 01 R117 Flame Proof C. Resistor 33.0 1/4 J 01 R118 Flame Proof C. Resistor 33.0 1/4 J 01 R119 Flame Proof C. Resistor 22.0 1/4 J 01 R120 Flame Proof C. Resistor 22.0 1/4 J 01 V4668300 V4668300 GE300670 GE300670 VR150900 VR150900 VL964800 VL965100 VU418400 VU418600 V2797700 V2797600 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 VU418400 VU418600 V2797700 V2797600 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 V5611000 V5611000 V2797700 V2797700 V2797600 V2797700 VS883400 IC1815M0 HF455220 HF455220 HF457470 HF457470 HF457120 HF457120 VV313800 VV313800 VZ009300 VZ009300 VV276800 VV276800 VZ009100 VZ009100 VZ008800 VZ008800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 20 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R121 Wire Wound Resistor 0.22 5W K -124 Wire Wound Resistor 0.22 5W K R125 Flame Proof C. Resistor 22.0 1/4 J 01 R126 Flame Proof C. Resistor 22.0 1/4 J 01 R127 Flame Proof C. Resistor 33.0 1/4 J 01 R128 Flame Proof C. Resistor 33.0 1/4 J 01 R129 Carbon Resistor 220.0 1/4 J 01 R130 Carbon Resistor 220.0 1/4 J 01 R131 Carbon Resistor 47.0K 1/4 J 01 -134 Carbon Resistor 47.0K 1/4 J 01 R135 Carbon Resistor 12.0K 1/4 J 01 R136 Carbon Resistor 12.0K 1/4 J 01 R137 Flame Proof C. Resistor 220.0 1/4 J 01 R138 Flame Proof C. Resistor 220.0 1/4 J 01 R139 Flame Proof C. Resistor 330.0 1/4 J 01 R140 Flame Proof C. Resistor 330.0 1/4 J 01 R141 Flame Proof C. Resistor 100 1/4 J 01 R142 Flame Proof C. Resistor 100 1/4 J 01 R143 Flame Proof C. Resistor 100 1/4 J 01 R144 Flame Proof C. Resistor 100 1/4 J 01 R145 Flame Proof C. Resistor 33.0 1/4 J 01 R146 Flame Proof C. Resistor 33.0 1/4 J 01 R147 Flame Proof C. Resistor 22.0 1/4 J 01 R148 Flame Proof C. Resistor 22.0 1/4 J 01 R149 Wire Wound Resistor 0.22 5W K -152 Wire Wound Resistor 0.22 5W K R153 Flame Proof C. Resistor 22.0 1/4 J 01 R154 Flame Proof C. Resistor 22.0 1/4 J 01 R155 Flame Proof C. Resistor 33.0 1/4 J 01 R156 Flame Proof C. Resistor 33.0 1/4 J 01 R157 Carbon Resistor 5.6K 1/4 J 01 R158 Flame Proof C. Resistor 22.0 1/4 J 01 R159 Flame Proof C. Resistor 2.2K 1/4 J 01 R160 Flame Proof C. Resistor 150.0 1/4 J 01 R161 Flame Proof C. Resistor 2.2 1/4 J 05 R162 Flame Proof C. Resistor 2.2 1/4 J 05 R163 Wire Wound Resistor 0.1 5W K 01 R164 Wire Wound Resistor 0.1 5W K 01 R165 Flame Proof C. Resistor 2.2 1/4 J 05 R166 Flame Proof C. Resistor 4.7 1/4 J 01 R167 Flame Proof C. Resistor 4.7 1/4 J 01 R168 Flame Proof C. Resistor 2.2 1/4 J 05 -171 Flame Proof C. Resistor 680.0 1/4 J 01 R172 Carbon Resistor 5.6K 1/4 J 01 R173 Flame Proof C. Resistor 22.0 1/4 J 01 R174 Flame Proof C. Resistor 2.2K 1/4 J 01 R175 Flame Proof C. Resistor 150.0 1/4 J 01 R176 Flame Proof C. Resistor 2.2 1/4 J 05 R177 Flame Proof C. Resistor 2.2 1/4 J 05 R178 Wire Wound Resistor 0.1 5W K 01 R179 Wire Wound Resistor 0.1 5W K 01 R180 Flame Proof C. Resistor 2.2 1/4 J 05 R181 Flame Proof C. Resistor 4.7 1/4 J 01 R182 Flame Proof C. Resistor 4.7 1/4 J 01 R183 Flame Proof C. Resistor 2.2 1/4 J 05 -185 Flame Proof C. Resistor 2.2 1/4 J 05 R186 Flame Proof C. Resistor 680.0 1/4 J 01 R187 Carbon Resistor 150.0K 1/4 J 01 R188 Carbon Resistor 150.0K 1/4 J 01 R189 Carbon Resistor 4.7K 1/4 J 01 R190 Carbon Resistor 56.0K 1/4 J 01 R191 Carbon Resistor 10.0K 1/4 J 01 R192 Carbon Resistor 10.0K 1/4 J 01 R193 Carbon Resistor 2.2K 1/4 J 01 R194 Carbon Resistor 12.0K 1/4 J 01 R195 Flame Proof C. Resistor 220.0 1/4 J 01 R196 Flame Proof C. Resistor 220.0 1/4 J 01 R197 Carbon Resistor 100.0 1/4 J 01 R198 Carbon Resistor 2.2K 1/4 J 01 R199 Carbon Resistor 12.0K 1/4 J 01 V4833200 V4833200 VZ008800 VZ008800 VZ009100 VZ009100 HF455220 HF455220 HF457470 HF457470 HF457120 HF457120 VV313800 VV313800 VZ009300 VZ009300 VV276800 VV276800 VV276800 VV276800 VZ009100 VZ009100 VZ008800 VZ008800 V4833200 V4833200 VZ008800 VZ008800 VZ009100 VZ009100 HF456560 VZ008800 VZ008700 VZ008600 VV313600 VV313600 VZ370200 VZ370200 VV313600 VV276700 VV276700 VV313600 VV313900 HF456560 VZ008800 VZ008700 VZ008600 VV313600 VV313600 VZ370200 VZ370200 VV313600 VV276700 VV276700 VV313600 VV313600 VV313900 HF458150 HF458150 HF456470 HF457560 HF457100 HF457100 HF456220 HF457120 VV313800 VV313800 HF455100 HF456220 HF457120 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX660 21 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * R200 Carbon Resistor 56.0K 1/4 J 01 R201 Flame Proof C. Resistor 10.0 1/4 J 01 -204 Flame Proof C. Resistor 10.0 1/4 J 01 R205 Carbon Resistor 560.0 1/4 J 01 -208 Carbon Resistor 560.0 1/4 J 01 RY101 Relay DC OSA-SH-224DM3M 06 RY102 Relay DC OSA-SH-224DM3M 06 SW101 Push Switch SDDFA3107U-YL UCS POWER ON/OFF 05 W101 Connector Assembly B&C #18 4P (V522750) Power Transformer J Power Transforme U,V Power Transforme H,W,B Power Transforme A Fan 3110KL05WB50L34 08 AC Cord J VCTF 2X0.75 7A J 05 AC Cord UC SJT 3X#18 10A U,V 06 AC Cord E H05VV-F3X0.7510A H,W,A 06 AC Cord BS H05VV-F3X0.75 B 08 HF457560 VV058500 VV058500 HF455560 HF455560 VV315400 VV315400 VY898100 -- XY325B00 XY326A00 XY327B00 XY328A00 V2955500 V3277000 VV205600 V3277100 VV058300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Component side Component side Component side Component side Component side MIX Circuit Board SUB Circuit Board PWR 1/3 Circuit Board PWR 2/3 Circuit Board PWR 3/3 Circuit Board DM: 2NA-V466260 3 SUB: 3NA-V511100 1 PWR1/3: 3NA-V522710 1 PWR2/3: 3NA-V522710 1 PWR3/3: 3NA-V522710 1 A POWER AMP1 CN101 CN101 CN103: to Power Trans. to DC Fan POWER AMP2 to PWR 1/3- W101RE W101WH W101BL W101BE POWER ON/OFF to AC INLET BRIDGE SPEAKERS B A B CN901 CN301 POWER Transformer Fan EMX660 EMX660 EMX660 EMX660 EMX660 CIRCUIT BOARDS & WIRING HIGH HIGH HIGH HIGH HIGH HIGH VO. ECHO1 125 250 500 1K 2K 4K 8K ON/ OFF 125 250 500 1K 2K 4K 8K EFFECT RTN EFFECT RTN AUX IN TAPE IN MASTER MONITOR AUX IN MAIN 1 1 2 2 MAIN BRIDGE POWER AMP MAIN MAIN MAIN MONITOR TAPE IN MASTER VO. ECHO2 VO. REV.1 VO. REV.2 HALL.1 HALL.2 ROOM PLATE ON MID MID MID MID MID MID LOW LOW LOW LOW LOW LOW MONI MONI MONI MONI MONI MONI EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT LEVEL Hi-Z Lo-Z Lo-Z Lo-Z Lo-Z MIC MIC EFFECT OUT FOOT SW Hi-Z Hi-Z Hi-Z LINE 1 2 1 2 LINE INST INST PAD PAD PAD PAD LEVEL LEVEL LEVEL LEVEL LEVEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
