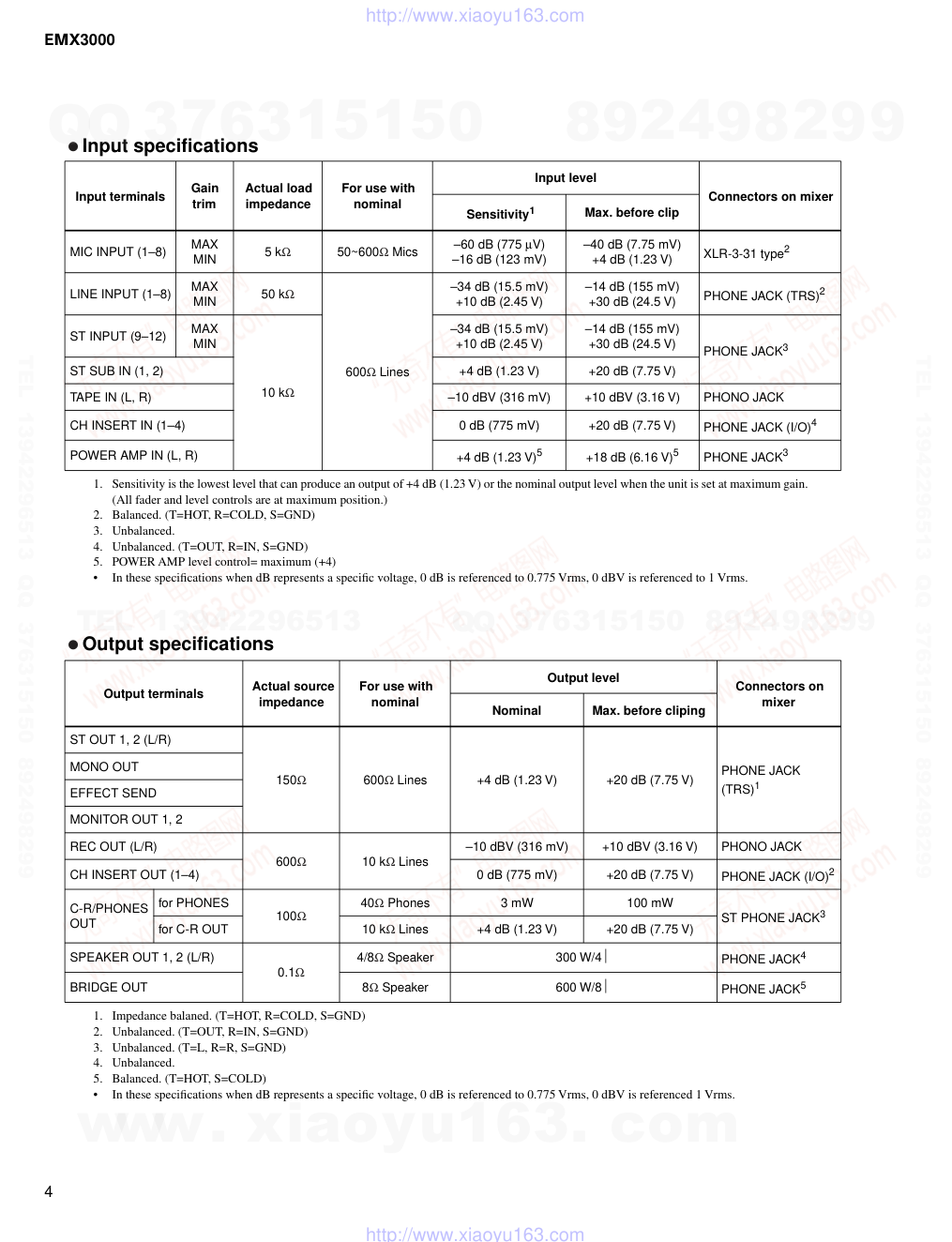

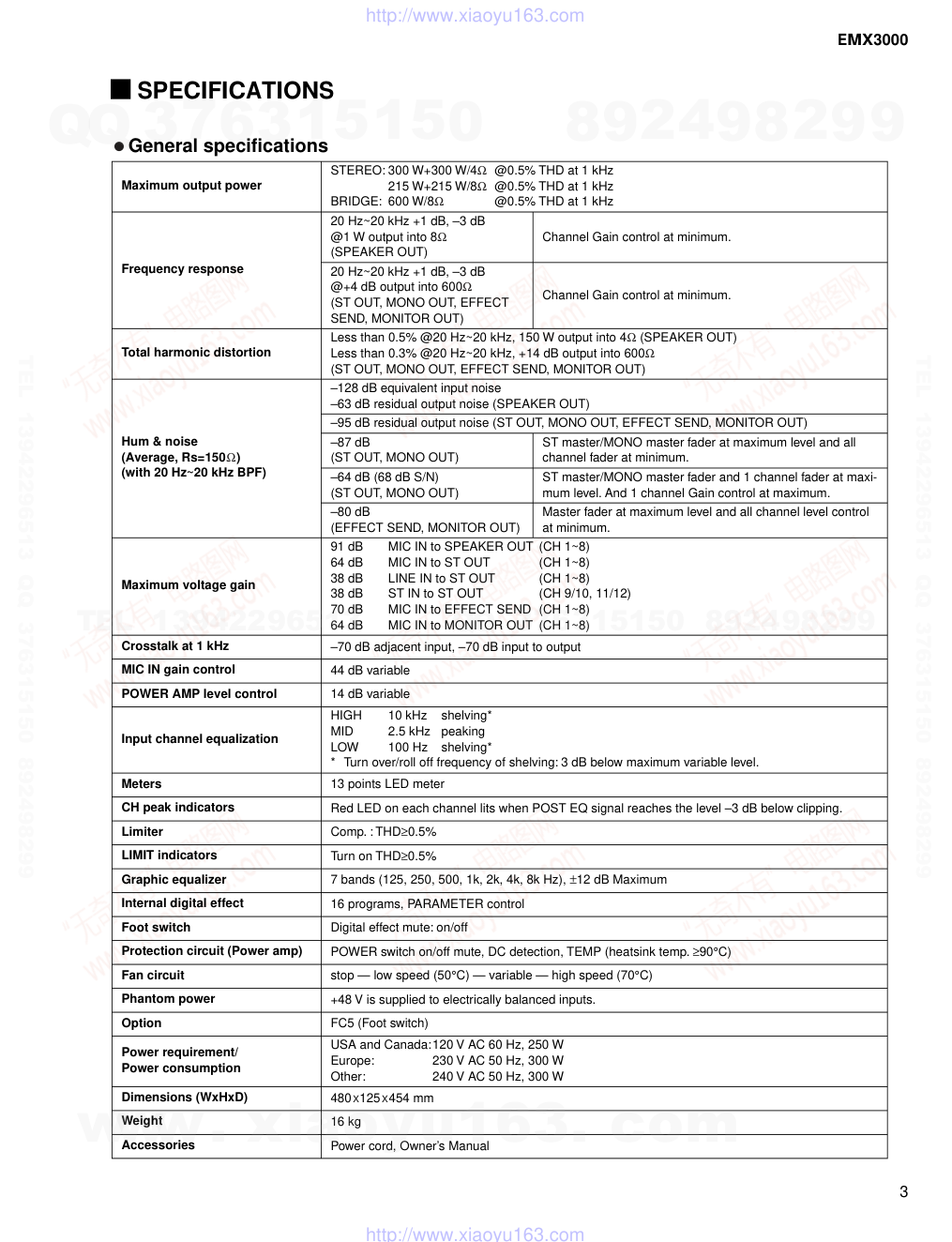

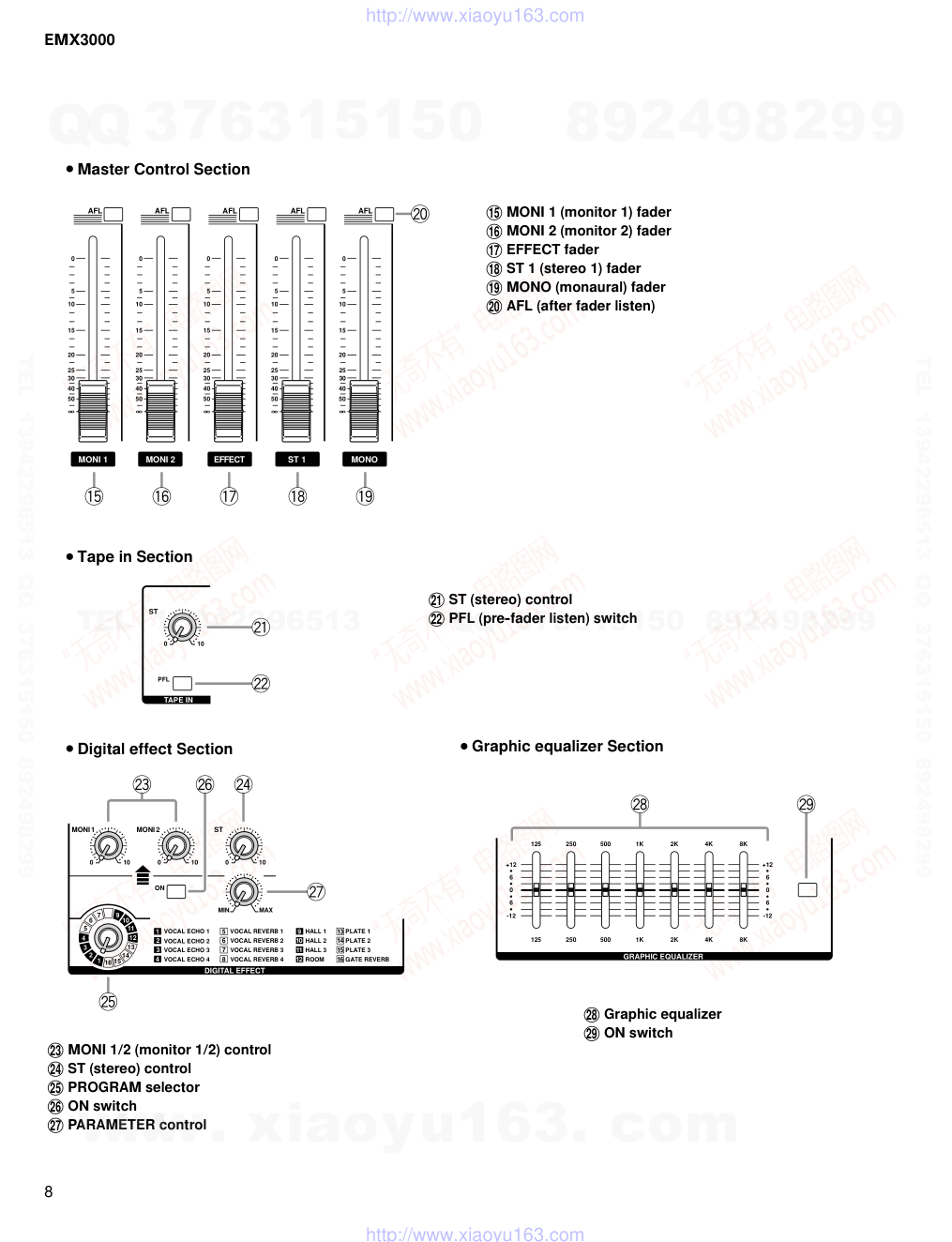

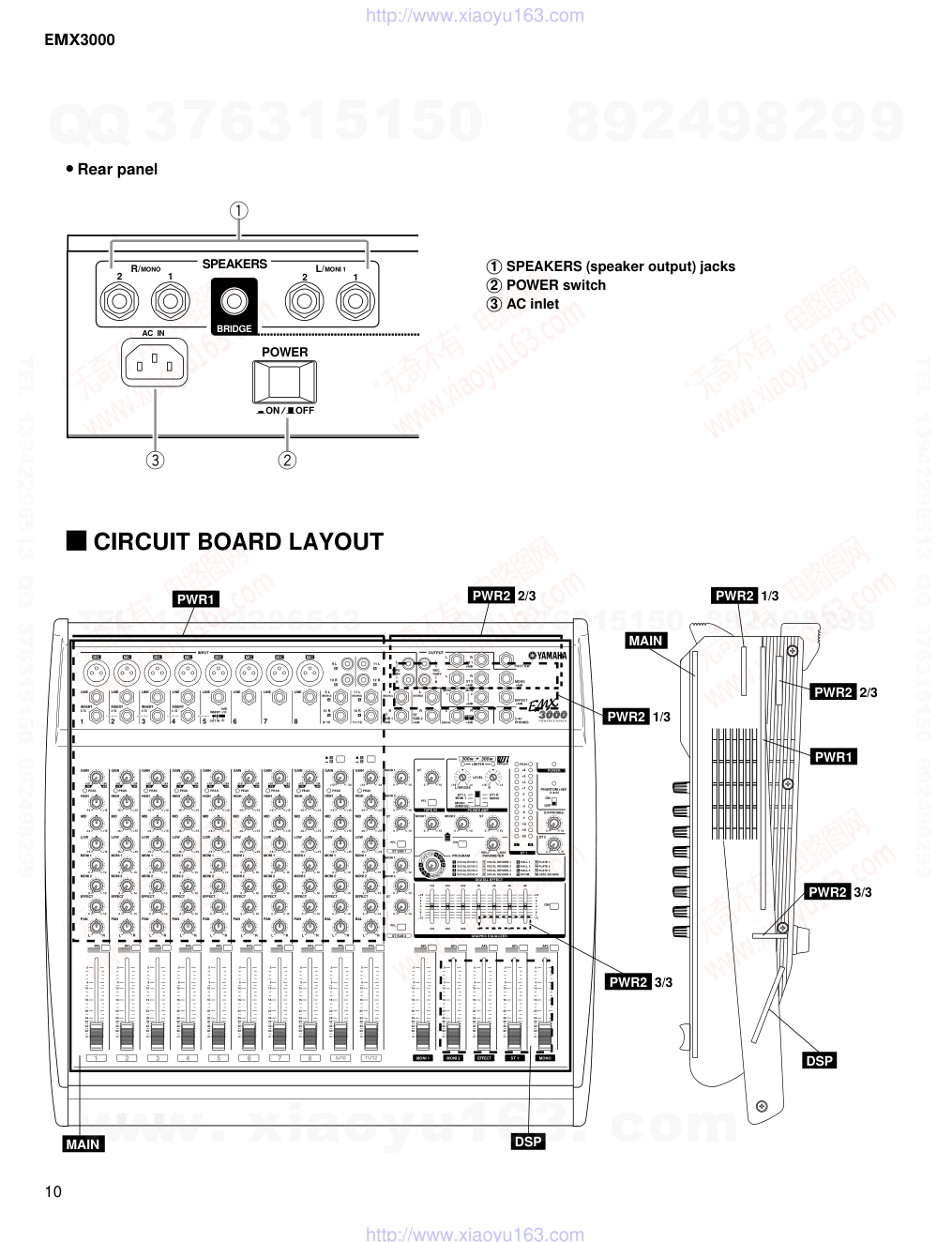

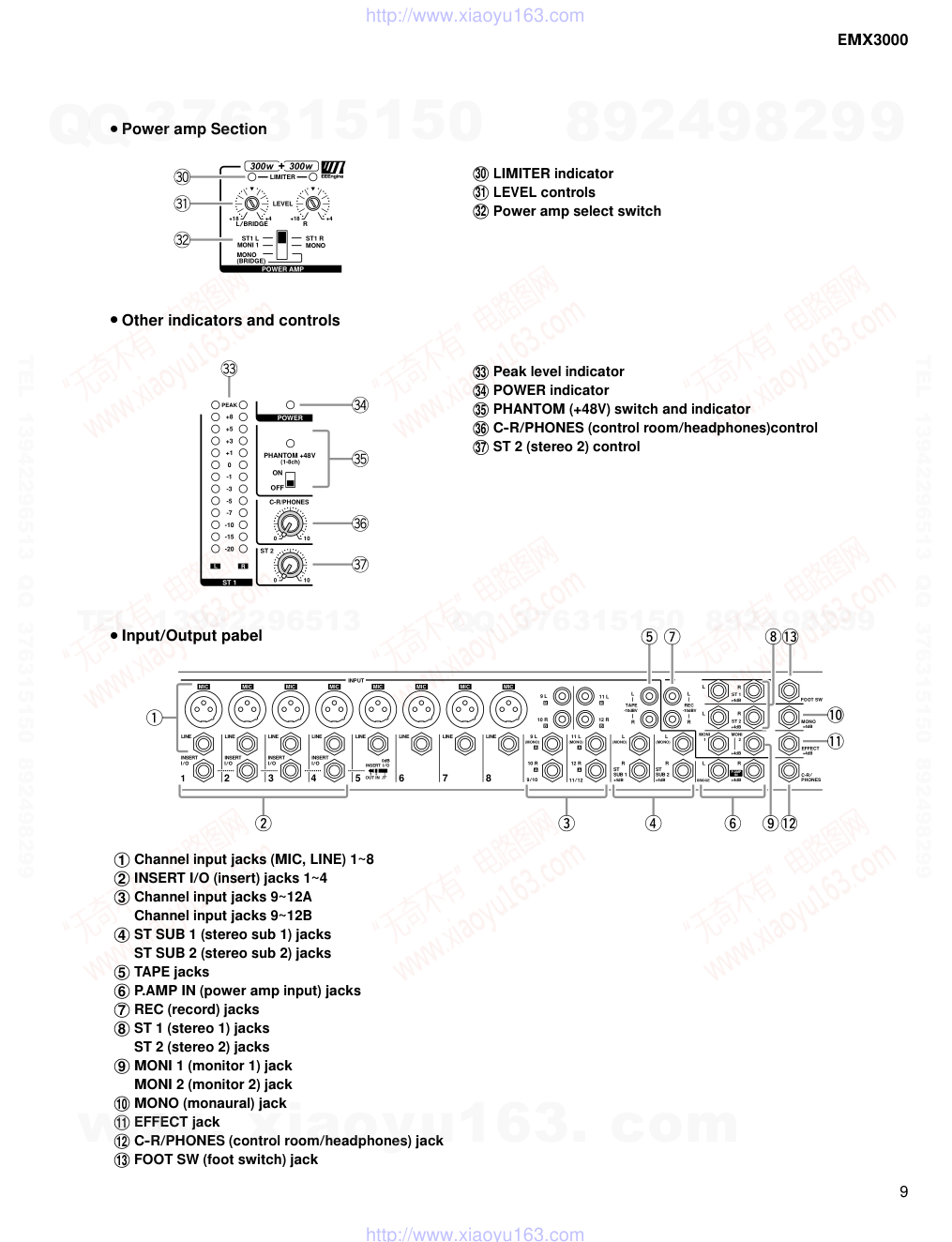

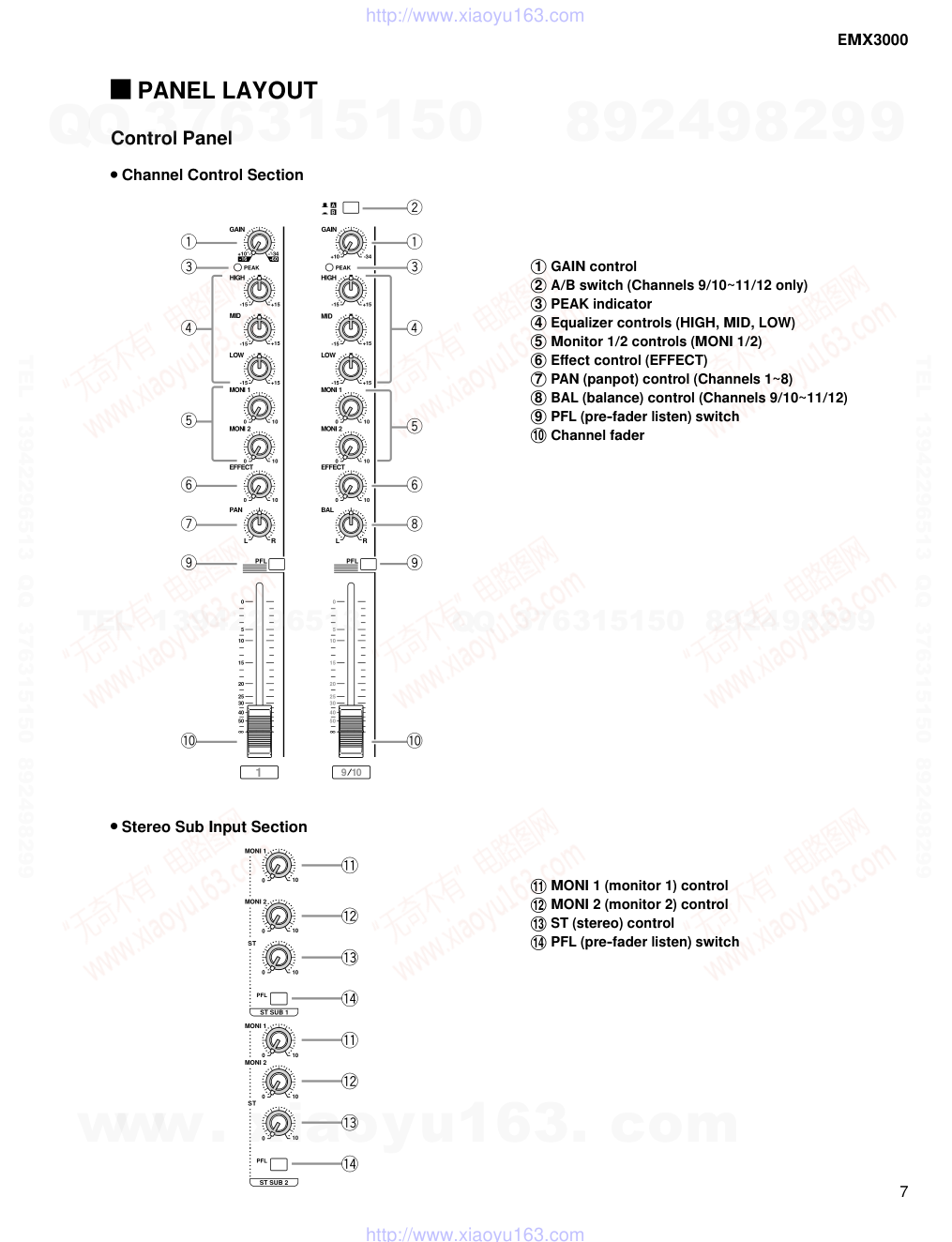

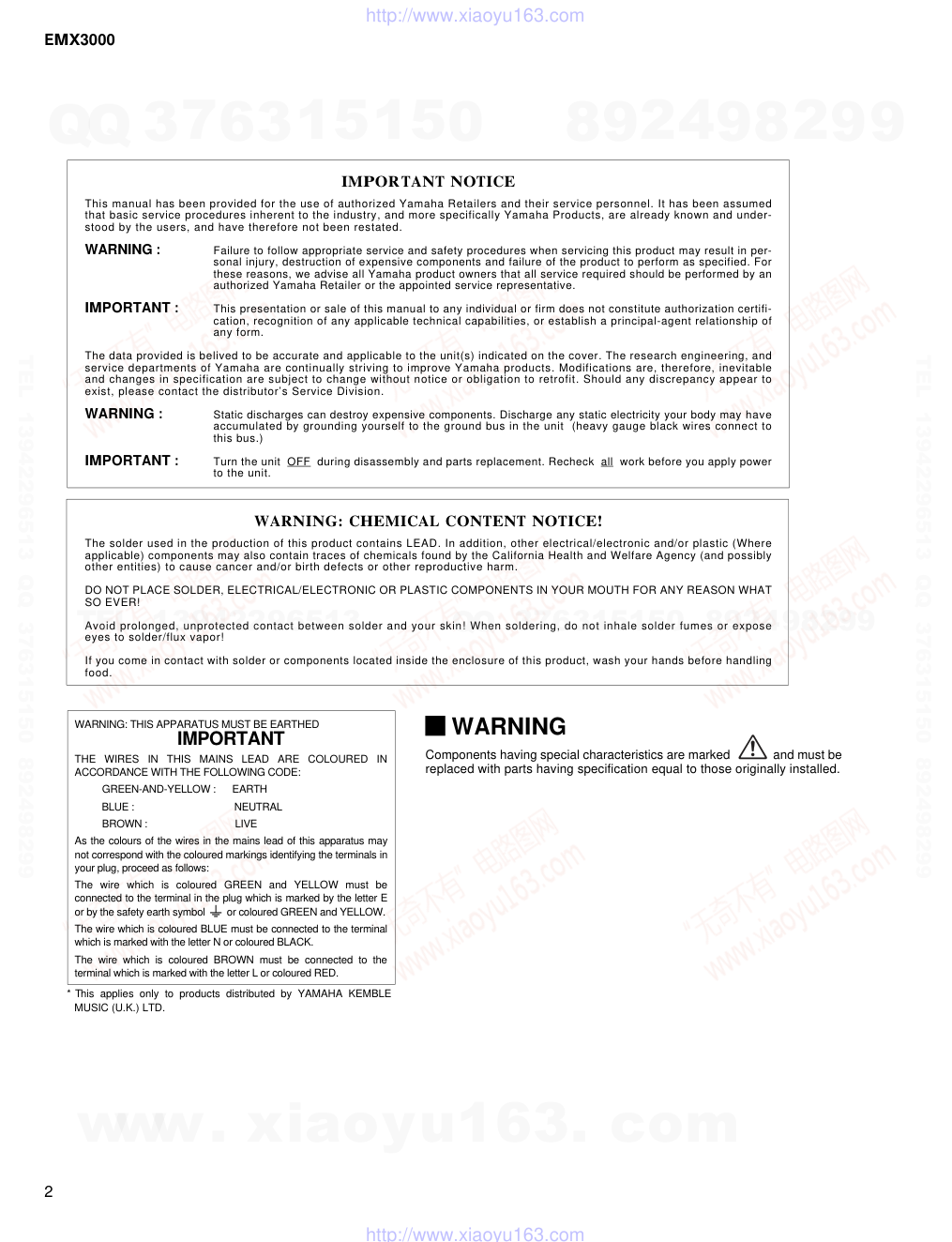

EMX3000 1 SERVICE MANUAL PA 011569 20010501-135000 1.389K-0221 Printed in Japan 2001.4 HAMAMATSU, JAPAN CONTENTS This document is printed on chlorine free (ECF) paper with soy ink. SPECIFICATIONS ................................................ 3/5 PANEL LAYOUT .................................... 7 CIRCUIT BOARD LAYOUT ............... 10 WIRING ................................................................... 11 DIMENSIONS .......................................................... 11 BLOCK & LEVEL DIAGRAM ....................................................... 12 DISASSEMBLY PROCEDURE ............................ 14 LSI PIN DESCRIPTION .............................. 17 IC BLOCK DIAGRAM ................................. 19 CIRCUIT BOARDS ....................................... 20 INSPECTIONS ...................................................... 27/33 CIRCUIT DIAGRAMS ............................................. C1 PARTS LIST POWERED MIXER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 2 WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 3 SPECIFICATIONS General specifications Maximum output power STEREO: 300 W+300 W/4Ω @0.5% THD at 1 kHz 215 W+215 W/8Ω @0.5% THD at 1 kHz BRIDGE: 600 W/8Ω @0.5% THD at 1 kHz Frequency response 20 Hz~20 kHz +1 dB, –3 dB @1 W output into 8Ω (SPEAKER OUT) Channel Gain control at minimum. 20 Hz~20 kHz +1 dB, –3 dB @+4 dB output into 600Ω (ST OUT, MONO OUT, EFFECT SEND, MONITOR OUT) Channel Gain control at minimum. Total harmonic distortion Less than 0.5% @20 Hz~20 kHz, 150 W output into 4Ω (SPEAKER OUT) Less than 0.3% @20 Hz~20 kHz, +14 dB output into 600Ω (ST OUT, MONO OUT, EFFECT SEND, MONITOR OUT) Hum & noise (Average, Rs=150Ω ) (with 20 Hz~20 kHz BPF) –128 dB equivalent input noise –63 dB residual output noise (SPEAKER OUT) –95 dB residual output noise (ST OUT, MONO OUT, EFFECT SEND, MONITOR OUT) –87 dB (ST OUT, MONO OUT) ST master/MONO master fader at maximum level and all channel fader at minimum. –64 dB (68 dB S/N) (ST OUT, MONO OUT) ST master/MONO master fader and 1 channel fader at maxi- mum level. And 1 channel Gain control at maximum. –80 dB (EFFECT SEND, MONITOR OUT) Master fader at maximum level and all channel level control at minimum. Maximum voltage gain 91 dB MIC IN to SPEAKER OUT (CH 1~8) 64 dB MIC IN to ST OUT (CH 1~8) 38 dB LINE IN to ST OUT (CH 1~8) 38 dB ST IN to ST OUT (CH 9/10, 11/12) 70 dB MIC IN to EFFECT SEND (CH 1~8) 64 dB MIC IN to MONITOR OUT (CH 1~8) Crosstalk at 1 kHz –70 dB adjacent input, –70 dB input to output MIC IN gain control 44 dB variable POWER AMP level control 14 dB variable Input channel equalization HIGH 10 kHz shelving* MID 2.5 kHz peaking LOW 100 Hz shelving* * Turn over/roll off frequency of shelving: 3 dB below maximum variable level. Meters 13 points LED meter CH peak indicators Red LED on each channel lits when POST EQ signal reaches the level –3 dB below clipping. Limiter Comp. : THD≥0.5% LIMIT indicators Turn on THD≥0.5% Graphic equalizer 7 bands (125, 250, 500, 1k, 2k, 4k, 8k Hz), ±12 dB Maximum Internal digital effect 16 programs, PARAMETER control Foot switch Digital effect mute: on/off Protection circuit (Power amp) POWER switch on/off mute, DC detection, TEMP (heatsink temp. ≥90°C) Fan circuit stop — low speed (50°C) — variable — high speed (70°C) Phantom power +48 V is supplied to electrically balanced inputs. Option FC5 (Foot switch) Power requirement/ Power consumption USA and Canada:120 V AC 60 Hz, 250 W Europe: 230 V AC 50 Hz, 300 W Other: 240 V AC 50 Hz, 300 W Dimensions (WxHxD) 480 X X 125 454 mm Weight 16 kg Accessories Power cord, Owner’s Manual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 4 Input terminals Gain trim Actual load impedance For use with nominal Input level Connectors on mixer Sensitivity1 1. Sensitivity is the lowest level that can produce an output of +4 dB (1.23 V) or the nominal output level when the unit is set at maximum gain. (All fader and level controls are at maximum position.) Max. before clip MIC INPUT (1–8) MAX MIN 5 kΩ 50~600Ω Mics –60 dB (775 µV) –16 dB (123 mV) –40 dB (7.75 mV) +4 dB (1.23 V) XLR-3-31 type2 2. Balanced. (T=HOT, R=COLD, S=GND) LINE INPUT (1–8) MAX MIN 50 kΩ 600Ω Lines –34 dB (15.5 mV) +10 dB (2.45 V) –14 dB (155 mV) +30 dB (24.5 V) PHONE JACK (TRS)2 ST INPUT (9–12) MAX MIN 10 kΩ –34 dB (15.5 mV) +10 dB (2.45 V) –14 dB (155 mV) +30 dB (24.5 V) PHONE JACK3 3. Unbalanced. ST SUB IN (1, 2) +4 dB (1.23 V) +20 dB (7.75 V) TAPE IN (L, R) –10 dBV (316 mV) +10 dBV (3.16 V) PHONO JACK CH INSERT IN (1–4) 0 dB (775 mV) +20 dB (7.75 V) PHONE JACK (I/O)4 4. Unbalanced. (T=OUT, R=IN, S=GND) POWER AMP IN (L, R) +4 dB (1.23 V)5 5. POWER AMP level control= maximum (+4) • In these specifications when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms, 0 dBV is referenced to 1 Vrms. +18 dB (6.16 V)5 PHONE JACK3 Output terminals Actual source impedance For use with nominal Output level Connectors on mixer Nominal Max. before cliping ST OUT 1, 2 (L/R) 150Ω 600Ω Lines +4 dB (1.23 V) +20 dB (7.75 V) PHONE JACK (TRS)1 1. Impedance balaned. (T=HOT, R=COLD, S=GND) MONO OUT EFFECT SEND MONITOR OUT 1, 2 REC OUT (L/R) 600Ω 10 kΩ Lines –10 dBV (316 mV) +10 dBV (3.16 V) PHONO JACK CH INSERT OUT (1–4) 0 dB (775 mV) +20 dB (7.75 V) PHONE JACK (I/O)2 2. Unbalanced. (T=OUT, R=IN, S=GND) C-R/PHONES OUT for PHONES 100Ω 40Ω Phones 3 mW 100 mW ST PHONE JACK3 3. Unbalanced. (T=L, R=R, S=GND) for C-R OUT 10 kΩ Lines +4 dB (1.23 V) +20 dB (7.75 V) SPEAKER OUT 1, 2 (L/R) 0.1Ω 4/8Ω Speaker 300 W/4 PHONE JACK4 4. Unbalanced. BRIDGE OUT 8Ω Speaker 600 W/8 PHONE JACK5 5. Balanced. (T=HOT, S=COLD) • In these specifications when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms, 0 dBV is referenced 1 Vrms. Input specifications Output specifications www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 7 PANEL LAYOUT Control Panel Channel Control Section PFL PFL A B 10 0 10 0 10 0 R L +15 -15 GAIN GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 -34 +10 PEAK 10 0 10 0 10 0 R L +15 -15 MONI 1 MONI 2 EFFECT BAL HIGH MID LOW +15 -15 +15 -15 PEAK 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 1 9 10 1 2 3 4 5 6 7 8 9 10 GAIN control A/B switch (Channels 9/10~11/12 only) PEAK indicator Equalizer controls (HIGH, MID, LOW) Monitor 1/2 controls (MONI 1/2) Effect control (EFFECT) PAN (panpot) control (Channels 1~8) BAL (balance) control (Channels 9/10~11/12) PFL (pre-fader listen) switch Channel fader Stereo Sub Input Section PFL 10 0 10 0 10 0 10 0 10 0 10 0 MONI 1 MONI 2 ST MONI 1 MONI 2 ST ST SUB 2 PFL ST SUB 1 11 12 13 14 MONI 1 (monitor 1) control MONI 2 (monitor 2) control ST (stereo) control PFL (pre-fader listen) switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 8 15 16 17 18 19 20 Master Control Section AFL AFL AFL AFL AFL 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 MONO MONI 2 MONI 1 ST 1 EFFECT Tape in Section TAPE IN 10 0 ST PFL Digital effect Section DIGITAL EFFECT PARAMETER PROGRAM 8 9 10 3 1 4 2 12 11 1 2 3 4 9 10 11 12 13 14 15 16 5 6 7 8 14 7 16 6 15 13 5 MONI 1 MONI 2 ON MAX MIN 10 0 ST VOCAL ECHO 1 VOCAL REVERB 1 HALL 1 PLATE 1 PLATE 2 PLATE 3 GATE REVERB HALL 2 HALL 3 ROOM VOCAL REVERB 2 VOCAL REVERB 3 VOCAL REVERB 4 VOCAL ECHO 2 VOCAL ECHO 3 VOCAL ECHO 4 10 0 10 0 Graphic equalizer Section GRAPHIC EQUALIZER ON 8K 4K 2K 1K 500 250 125 8K 4K 2K 1K 500 250 125 6 0 6 +12 -12 6 0 6 +12 -12 MONI 1 (monitor 1) fader MONI 2 (monitor 2) fader EFFECT fader ST 1 (stereo 1) fader MONO (monaural) fader AFL (after fader listen) 21 22 ST (stereo) control PFL (pre-fader listen) switch 23 24 25 26 27 MONI 1/2 (monitor 1/2) control ST (stereo) control PROGRAM selector ON switch PARAMETER control 28 29 Graphic equalizer ON switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 9 1 2 3 4 5 6 7 8 9 10 11 12 13 Power amp Section POWER AMP ST1 L MONI 1 MONO (BRIDGE) ST1 R MONO LIMITER LEVEL BRIDGE +4 +18 +4 +18 L R Other indicators and controls POWER ST 1 L R PHANTOM +48V ON OFF C-R/PHONES ST 2 (1-8ch) +8 +5 +3 +1 0 -1 -3 -5 -7 -10 -15 -20 10 0 10 0 PEAK Input/Output pabel I O I O I O I O A A A A B B B B ST SUB 1 ST SUB 2 +4dB +4dB TAPE REC ST 1 -10dBV -10dBV +4dB ST 2 +4dB +4dB +4dB +4dB +4dB MONI MONI MONO EFFECT FOOT SW 1 2 BRIDGE P.AMP IN C-R PHONES 9 L 11 L L L L R L R R L 9 L 10 R 12 R R R 10 R 11 L 12 R (MONO) (MONO) (MONO) (MONO) 9 10 11 12 INPUT OUTPUT L R L R 1 2 3 4 5 6 7 8 INSERT LINE INSERT LINE INSERT LINE INSERT LINE LINE LINE LINE LINE MIC MIC MIC MIC MIC MIC MIC MIC INSERT OUT IN 0dB I O 30 31 32 LIMITER indicator LEVEL controls Power amp select switch 33 34 35 36 37 Peak level indicator POWER indicator PHANTOM (+48V) switch and indicator C-R/PHONES (control room/headphones)control ST 2 (stereo 2) control Channel input jacks (MIC, LINE) 1~8 INSERT I/O (insert) jacks 1~4 Channel input jacks 9~12A Channel input jacks 9~12B ST SUB 1 (stereo sub 1) jacks ST SUB 2 (stereo sub 2) jacks TAPE jacks P.AMP IN (power amp input) jacks REC (record) jacks ST 1 (stereo 1) jacks ST 2 (stereo 2) jacks MONI 1 (monitor 1) jack MONI 2 (monitor 2) jack MONO (monaural) jack EFFECT jack C-R/PHONES (control room/headphones) jack FOOT SW (foot switch) jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 10 Rear panel AC IN 2 1 2 1 BRIDGE ON OFF R/MONO L/MONI 1 SPEAKERS POWER 1 2 3 CIRCUIT BOARD LAYOUT PFL 10 0 10 0 10 0 10 0 10 0 10 0 MONI 1 MONI 2 ST MONI 1 MONI 2 ST ST SUB 2 PFL ST SUB 1 AFL AFL AFL AFL AFL 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 0 5 10 15 20 40 50 25 30 MONO MONI 2 MONI 1 ST 1 EFFECT TAPE IN 10 0 ST PFL DIGITAL EFFECT PARAMETER PROGRAM 8 9 10 3 1 4 2 12 11 1 2 3 4 9 10 11 12 13 14 15 16 5 6 7 8 14 7 16 6 15 13 5 MONI 1 MONI 2 ON MAX MIN 10 0 ST VOCAL ECHO 1 VOCAL REVERB 1 HALL 1 PLATE 1 PLATE 2 PLATE 3 GATE REVERB HALL 2 HALL 3 ROOM VOCAL REVERB 2 VOCAL REVERB 3 VOCAL REVERB 4 VOCAL ECHO 2 VOCAL ECHO 3 VOCAL ECHO 4 10 0 10 0 GRAPHIC EQUALIZER ON 8K 4K 2K 1K 500 250 125 8K 4K 2K 1K 500 250 125 6 0 6 +12 -12 6 0 6 +12 -12 POWER AMP ST1 L MONI 1 MONO (BRIDGE) ST1 R MONO LIMITER LEVEL BRIDGE +4 +18 +4 +18 L R POWER ST 1 L R PHANTOM +48V ON OFF C-R/PHONES ST 2 (1-8ch) +8 +5 +3 +1 0 -1 -3 -5 -7 -10 -15 -20 10 0 10 0 PEAK PFL A B GAIN -34 +10 10 0 10 0 10 0 R L +15 -15 MONI 1 MONI 2 EFFECT BAL HIGH MID LOW +15 -15 +15 -15 PEAK 0 5 10 15 20 40 50 25 30 PFL A B GAIN -34 +10 10 0 10 0 10 0 R L +15 -15 MONI 1 MONI 2 EFFECT BAL HIGH MID LOW +15 -15 +15 -15 PEAK 0 5 10 15 20 40 50 25 30 11 12 9 10 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 PFL 10 0 10 0 10 0 R L +15 -15 GAIN MONI 1 MONI 2 EFFECT PAN HIGH MID LOW +15 -15 +15 -15 -34 -16 -60 +10 PEAK 0 5 10 15 20 40 50 25 30 1 2 3 4 5 6 7 8 I O I O I O I O A A A A B B B B ST SUB 1 ST SUB 2 +4dB +4dB TAPE REC ST 1 -10dBV -10dBV +4dB ST 2 +4dB +4dB +4dB +4dB +4dB MONI MONI MONO EFFECT FOOT SW 1 2 BRIDGE P.AMP IN C-R PHONES 9 L 11 L L L L R L R R L 9 L 10 R 12 R R R 10 R 11 L 12 R (MONO) (MONO) (MONO) (MONO) 9 10 11 12 INPUT OUTPUT L R L R 1 2 3 4 5 6 7 8 INSERT LINE INSERT LINE INSERT LINE INSERT LINE LINE LINE LINE LINE MIC MIC MIC MIC MIC MIC MIC MIC INSERT OUT IN 0dB I O MAIN MAIN DSP DSP 2/3 PWR2 2/3 PWR2 1/3 PWR2 1/3 PWR2 3/3 PWR2 3/3 PWR2 PWR1 PWR1 SPEAKERS (speaker output) jacks POWER switch AC inlet www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 11 Units: mm DIMENSIONS 168 W: 480 D: 454 H: 125 286 CNM01 12pin 13pin 2pin 4pin 6pin 13pin 3pin 3pin 3pin 3pin 12pin CNM04 CN103 CN105 CN106 CN104 CN101 CN102 CN102 CN301 CN101 MAIN DSP PWR1 PWR2 3/3 PWR2 2/3 PWR2 1/3 Power transformer AC INLET DC fan Location 1 2 3 4 5 DSP-PWR1 MAIN-PWR1 MAIN-DSP PWR1-PWR2 2/3 PWR1-PWR2 3/3 2426&2426 3P 210L 2426&2426 12P 2426&2426 13P B&C #18 4P B&C #18 3P (V705810) (V705820) (V705830) (V702070) (V702080) Connector Assembly Remarks Parts No. 2 2 3 3 1 4 4 5 5 1 WIRING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 12 IC101,201,301,401IC102, IC302 IC502,IC702 IC104,304 IC103,303 1 2 2 6 5 5 IC501,601,701,801 6 5 7 (3) (1) 7 IC504,704 IC504, IC704 9ch: IC901, IC902 11ch: IC801, IC802 10ch: IC901, IC902 12ch: IC801, IC802 9ch: IC903 11ch: IC803 10ch: IC903 12ch: IC803 9ch: IC904 11ch: IC804 10ch: IC904 12ch: IC804 6 (2) (1) 7 6 (2) (1) 7 5 7 5 7 ST SUB1: ICD01 ST SUB2: ICD02 3 1 5 7 ST SUB1: ICD01 ST SUB2: ICD02 3 1 ICD03 5 7 ICD03 3 1 3 1 5 7 ICE01 ICE02 6 7 2 1 ICH01 6 7 ICH01 2 1 ICJ01 2 1 ICK01 6 7 ICK01 2 1 ICF01 6 7 2 1 7 2 4 4 3 3 1 1 2 4 3 1 2 4 3 1 2 4 3 1 2 4 3 1 2 4 3 1 3 1 2 3 MAIN CN101-1 CNM04-1 CN101 CN101-2 CN101-4~8 CN101-9~11 CNM04 A A CNM04-1 CNM04-9~11 CNM04-4~8 BLOCK & LEVEL DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 13 1 ICE02 ICF02 ICE04 5 7 ICE03 5 7 ICE03 3 1 ICJ01 CNM01-8 CNM01-10 CN102-10 RY102 RY101 CN102-8 CN103-1 CN103-3 1+ 2+ 7 6 ICG01 6 7 ICG01 2 1 ICH02 6 7 ICH02 2 1 ICJ02 6 7 ICK02 2 1 ICK02 6 7 ICE04 3 1 ICM01 3 ICM02 3 1 1 2/3 PWR2 PWR1 DSP CN101-1 CNM04-1 CN101-12 CNM04-12 CN101-13 CNM04-13 CN101-3 CN101-2 CN101-4~8 CN101-9~11 CNM04-2 A A CNM04-1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 14 DISASSEMBLY PROCEDURE Fig.1 [90]: Bind Head Tapping Screw-B 3.0 X 6 MFZN2BL (EP600230) [100]: Bind Head Tapping Screw-B 3.0 X 6 MFZN2BL (EG340190) 1. Panel Assembly and Bottom Assembly (Manhour requirement: 5 min.) 1-1. After removing the six (6) screws marked [90] and six (6) screws marked [100], lift the rear side of the assembly and remove it from claws on the front. (Fig. 1) 2. MAIN Circuit Board (Manhour requirement: 30 min.) 2-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 2-2. Remove the three (3) screws marked [P70] from each side (front and rear). The shield plate can then be removed. (Fig. 2) 2-3. Remove all the knobs from the front panel and all the special hexagon nuts from the jacks. 2-4. Remove the fourteen (14) screws marked [P40] and eighteen (18) screws marked [P50] (cannon connector, pin jack). The MAIN circuit board can then be removed. (Fig. 2) [100] [90] [90] [100] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 15 Fig.2 [P40]: Flat Head Tapping Screw-B 3.0 X 25 MFZN2BL (VV095300) [P50]: Bonding Screw-B 3.0 X 8 MFZN2BL (VN413300) [P70]: Bind Head Tapping Screw-B 3.0 X 6 MFZN2BL (EP600230) 3. PWR1 Circuit Board (Manhour requirement: 30 min.) 3-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 3-2. Remove the four (4) screws marked [B130] and remove the PWR1 circuit board together with the isolation sheet. (Fig. 3) 3-3. Remove the twenty-eight (28) screws marked [B60]and four (4) screws marked [B50]. The PWR1 circuit board can then be separated from the isolation sheet. (Fig. 3) 4. DSP Circuit Board (Manhour requirement: 10 min.) 4-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 4-2. Remove each PCB support at four (4) locations. The DSP circuit board can then be removed. (Fig. 3) 5. PWR2 3/3 Circuit Board (Manhour requirement: 10 min.) 5-1 Remove the panel assembly and the bottom assembly. (See Procedure 1.) 5-2. Remove the one (1) screw marked [B75] and the electrolytic capacitor holder. The PWR2 3/3 circuit board can then be removed. (Fig. 3) 6. DC fan (Manhour requirement: 10 min.) 6-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 6-2. Remove the two (2) screws marked [B100]. The DC fan can then be removed. (Fig. 3) [P40] [P70] [P70] [P70] [P70] [P40] MAIN [P40] [P40] [P40] [P70] [P50] [P40] [P70] [P70] [P50] [P50] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 16 8. PWR2 2/3 Circuit Board (Manhour requirement: 15 min.) 8-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 8-2. Remove the five (5) special hexagonal nuts and one (1) screw marked [R30] from the rear panel. The PWR2 2/3 circuit board can then be remove. (Fig. 4) 9. PWR2 1/3 Circuit Board (Manhour requirement: 15 min.) 9-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 9-2. Remove the two (2) screws marked [R60], PSW knob, PSW escussion and the 2 screws marked [R20]. The PWR2 1/3 circuit board can then be removed. Fig.3 [B50]:Bind Head Screw SP 3.0 X 8 MFZN2Y (FG330290) [B60]:Pan Head Screw SPK 3.0 X 12 MFZN2Y (VJ470900) [B75]:Bind Head Tapping Screw-B 3.0 X 6 MFZN2BL (EP600230) [B100]:Bind Head Tapping Screw-B 4.0 X 8 MFZN2BL (EG340190) [B130]:Bind Head Tapping Screw-B 4.0 X 8 MFZN2BL (EG340190) 7. Power transformer (Manhour requirement: 10 min.) 7-1. Remove the panel assembly and the bottom assembly. (See Procedure 1.) 7-2. Remove the hexagonal bolt. The power transformer can then be removed. (Fig. 3) (See Fig.3 for drawing direction of wiring assembly.) Fig.4 [R20]:Bind Head Screw 3.0 X 8 MFZN2BL (VB659000) [R30]:Bonding Screw-B 3.0 X 8 MFZN2BL (EG413300) [R60]:Bind Head Tapping Screw-B 4.0 X 8 MFZN2BL (EG340190) PSW1 DSP PWR2 3/3 [B50] [B130] [B130] [B130] [B75] [B130] [B60] [B60] [B60] [B50] [B100] [B60] [B60] Power transformer DC fan PCB support PWR2 2/3 PWR2 1/3 [R60] [R30] [R20] PSW knob [R20] PSW escussion Hexagonal nut www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 17 LSI PIN DESCRIPTION PIN No. NAME I/O FUNCTION PIN No. NAME I/O FUNCTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 ED2 ED3 ED4 ED5 ED6 ED7 VSS VDD CLKM0 CLKM1 TMS TDI TCK CLKIN VSS VDD CLKO EA12/ED8 EA13/ED9 EA14/ED10 EA15/ED11 VSS VDD EA16/ED12 EA17/ED13 EA18/ES14 EA19/ED15 EA4/ED16 EA5/ED17 EA6/ED18 EA7/ED19 VSS VDD EA8/ED20 EA9/ED21 EA10/ED22 EA11/ED23 TEST0 TEST1 TEST2 TEST3 /BIO /INT1 ARBC1 ARBC2 AX1 AX2 AX3 VSS VDD HX/SDA /EMPTY AXLR2 AR1 AR2 HRBCK/SA0 HR/SA1 HRS/SA2 VSS VDD HXBCK/SCL HXS/SA3 /CS/SA4 HBCKS/SA5 I2CSEL VSS VDD AXBC1 AXBC2 AXLR1 DIVS /LAV /LMV /DRDY EMU0 EMU1 TDO DIV512 ARLR1 ARLR2 HDIR/SA6 SEL5V3V /MUTE /TRST /RS VSS VDD /IOE /RAS/SRCS /CAS/SROE /ROME /WE EA0 EA1 EA2 EA3 VSS VDD ED0 ED1 I/O I/O I/O I/O I/O I/O S S I I I I I I S S O I/O I/O I/O I/O S S I/O I/O I/O I/O I/O I/O I/O I/O S S I/O I/O I/O I/O I I I I I I I I O O O S S I/O/Z O/Z I I I I I I S S I I I I I S S I I I O O O O/Z I/O/Z I/O/Z O/Z O I I I I I I I S S O O O O O O O O O S S I/O I/O ZFX-2 (XY297A00)CPU DSP: IC105 External Memory and I/O Data Bus Ground Power Supply Clock Mode TAP(Test Access Port) Mode Select TAP Data Input TAP Clock Master Clock Ground Power Supply Machine Clock Output External SRAM and ROM Address Bus/ External DRAM and I/O Data Bus Ground Power Supply External SRAM and ROM Address Bus/ External DRAM and I/O Data Bus External Memory Address Bus/ External I/O Data Bus Ground Power Supply External Memory Address Bus/ External I/O Data Bus Test Mode Control Separate Control Input Interrupt 1 Audio Data Receive Unit 1 bit Clock Audio Data Receive Unit 2 bit Clock Audio Data Transmitt Unit 1 Data Output Audio Data Transmitt Unit 2 Data Output Audio Data Transmitt Unit 3 Data Output Ground Power Supply Host Interface Data Output/I2C Bus Data CMEM Update Buffer and HR Resistor Empty Flag Output Audio Data Transmitt Unit 2/3 Left and Right Channel Frame Frequency Signal Audio Data Receive Unit 1 Data Input Audio Data Receive Unit 2 Data Input Host Interface Receive Clock / I2C Bus Address 0 Host Interface Data Input/ I2C Bus Address 1 Host Interface Receive Data Frame Frequency Signal/ I2C Bus Address 2 Ground Power Supply Host Interface Transmitt Clock/ I2C Bus Clock Host Interface Transmitt Data Frame Frequency Signal/ I2C Bus Address 3 Host Interface Chip Select/ I2C Bus Address 4 HRBCK/HXBCK Active Edge Select/ I2C Bus Address 5 Host Interface Mode Select Ground Power Supply Audio Data Transmitt Unit 1 bit Clock Audio Data Transmitt Unit 2/3 bit Click Audio Data Transmitt Unit 1 Left and Right Channel Frame Frequency Signal Machine Clock Output then 8 min. Ruch ALU Overflow Frag Output Ruch MAC Overflow Frag Output Host Interface Transmitt Data Ready Frag Output Emurator Interrupt 0 Emurator Interrupt 1 TAP(Test Access Port) Data Output Machine Clock then512 min. Audio Data Receive Unit 1 Left and Right Channel Frame Frequency Signal Audio Data Receive Unit 2 Left and Right Channel Frame Frequency Signal Host Interface Data Format Select/ I2C Bus Address 6 Input Level Control Mute Control TAP(Test Access Port) Reset Hardware Reset Ground Power Supply External I/O Enable External DRAM Low Address Strove/External SRAM Chip Select External DRAM Culumn Address Strove/External SRAM Output Enable External ROM Enable External Memory and I/O Wright Enable External Memory and I/O Address Bus Ground Power Supply External Memory and I/O Data Bus CLKM0 CLKM1 1 0 0 3 1 0 6 0 1 PLL BYPASS 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 18 PIN No. NAME I/O FUNCTION PIN No. NAME I/O FUNCTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 VINL Vcc1 AGND1 VREFL VREFR VINR CINPR CINNR CINNL CINPL VCOM VOUTR AGND2 Vcc2 VOUTL LRCIN BCKIN DIN DOUT XTI XTO CLKIO VDD DGND FMT2 FMT1 FMT0 RSTB I I O O I I I O I O I/O I I I I PCM3001E/2K (X0053A00) ADA DSP: IC104 ADC Analog Input, Lch ADC Analog Power Supply ADC Analog GND ADC Reference decouple, Lch ADC Reference Decouple, Rch ADC Analog Input, Rch ADC Anti-areasing Filter Capacitor (+), Rch ADC Anti-areasing Filter Capacitor (-), Rch ADC Anti-areasing Filter Capacitior (-), Lch ADC Anti-areasing Filter Capacitor (+), Rch DAC Center Voltage Decouple DAC Analog Output, Rch DAC Analog GND DAC Analog Power Supply DAC Analog Output, Lch Sampling Clock Input (fs) Bit Clock Input Audio Data Input Audio Data Output Crystal Oscillator Input, External System Clock Input Crystal Oscillator Output Crystal Oscillator Buffer Output, External System Clock Input Digital Power Supply Digital GND Audio Data Format 2 (Pull up to 70k ohm typical) Audio Data Format 1 (Pull up to 70k ohm typical) Audio Data Format 0 (Pull up to 70k ohm typical) Reset Input, Active "L" (Pull up to 70k ohm typical) PIN No. NAME I/O FUNCTION PIN No. NAME I/O FUNCTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 P12/ANI2 P13/ANI3 P14/ANI4 P15/ANI5 P16/ANI6 P17/ANI7 P72/SCK2/ASCK P71/SO2/TXD P70/SI2/RXD P101/T16/T06 P100/T15/T05 P50 P51 P52 P53 P54 VSS P55 P56 P57 P30 P31 NC P32 P33 P34 P35/PCL P36/BUZ P37 P00 P01/INTP1 P02/INTP2 P03/INTP3 NC RESET IC(VPP) X2 X1 VDD AVDD AVREF AVSS P10/ANI0 P11/ANI1 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O - I/O I/O I/O I/O I/O I/O I I/O I/O I/O - I - - I - - I - I/O I/O 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. Port 7. 3 bits input/output port./Serial clock input/output of serial interface./Serial clock input for asynchronus serial interface. Port 7. 3 bits input/output port./Serial data output for serial interface./Serial data output for asynchronus serial interface. Port 7. 3 bits input/output port./Serial data input of serial interface./Serial data input for asynchronus serial interface Port 10. 2 bits input/output port./External count clock input to 8 bits timer(TM6)./8 bits timer output. Port 10. 2 bits input/output port./External count clock input to 8 bits timer(TM5)./8 bits timer output. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 5. 8 bits input/output port. Port 3. 8 bits input/output port. Port 3. 8 bits input/output port. Not connect. Port 3. 8 bits input/output port. Port 3. 8 bits input/output port. Port 3. 8 bits input/output port. Port 3. 8 bits input/output port./Clock output. Port 3. 8 bits input/output port./Buzzer output. Port 3. 8 bits input/output port. Input only 4 bits input/output port./Effective edge (Rising edge, falling edge, both rising and falling edges) specifiable external interrupt input. 4 bits input/output port./Effective edge (Rising edge, falling edge, both rising and falling edges) specifiable external interrupt input. 4 bits input/output port./Effective edge (Rising edge, falling edge, both rising and falling edges) specifiable external interrupt input. Not connect System reset input Internal connect Main system clock oscillator X'tal Main system clock oscillator X'tal Power Supply A/D Converter Analog Power Supply A/D Converter Power Supply Input A/D Converter ground 8 bits input/output port./A/D converter analog input. 8 bits input/output port./A/D converter analog input. UPD78082 (XZ312A00) MCU DSP: IC102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 19 IC BLOCK DIAGRAM 74HCU04DT (XZ110A00) INVERTER 1 1A 2 3 4 5 6 7 1Y 2A 2Y 3A 3Y VSS 8 9 10 11 12 13 14 VDD 6A 6Y 5A 5Y 4A 4Y M5229P (XG203A00) 7-SEG. GRAPHIC MAIN: ICE02, ICF02 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 IN1 IN2 IN3 IN4 IN5 NF1 NF2 NF3 NF4 NF5 -Vcc GND +Vcc OUTPUT INVERTED INPUT NON-INVERTED INPUT NF7 NF6 IN7 IN6 - + - + - + - + - + - + - + - + 47k 560 47k 560 47k 560 47k 560 47k 47k 47k 47k 560 10k 10k BA682A (XS046A00) LED LEVEL METER MAIN: ICM01, ICM02 NJM4558MT-1 (IG103520) OP AMP DSP: IC103 NJM2068L-D(XM356A00) OP AMP MAIN: IC101–104, IC201, IC301–IC304, IC401, IC501–IC504, IC601, IC701–704, IC801, IC901–904, ICB01–04, ICD01–03, ICE01, ICH01, ICJ01,ICK01 NJM4558L-D(XQ212A00) OP AMP PWR1: IC101, IC201 NJM4580L(XF195A00) OP AMP MAIN: ICE03, ICE04, ICG01, ICH02, ICJ02 NJM4556AL(XP844A00) OP AMP MAIN: ICK02 1 A 2 3 4 5 6 7 8 IN V +IN OUT A A A +V IN +IN OUT B B B + B + BA682A 2 2 2 2 1 17 16 15 14 13 12 11 10 8 7 6 5 Vreg reg V Vcc Vc1 Vc2 Vc3 Vc4 Vc5 Vc6 Vc7 Vc8 Vc9 Vc10 Vc11 Vc12 3 4 9 18 2 to R : Set I LED GND GND INPUT 1 to R 3, C2 : Discharge Constant Output A Inverting Input A Non-Inverting Input A DC Voltage Supply DC Voltage Supply Output B Inverting Input B Non-Inverting Input B 1 2 3 4 8 7 6 5 V DSP: IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 20 A INPUT A MIC LINE INSERT GAIN GAIN GAIN HIGH HIGH HIGH MID MID MID LOW LOW LOW MONI 1 MONI 1 MONI 1 MONI 2 MONI 2 MONI 2 EFFECT EFFECT PAN PAN PAN PFL PFL PFL PFL PFL PFL PFL PFL PFL PFL PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN PAN BAL BAL BAL BAL BAL BAL EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW LOW MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID MID HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH HIGH GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN I/O 1 INSERT I/O 2 INSERT I/O 3 INSERT I/O 4 5 6 7 8 LINE LINE LINE LINE LINE LINE LINE MIC MIC MIC MIC MIC MIC MIC 9L 10R 11L 12R 9L 10R 9/10 11/12 11L 12R GAIN GAIN GAIN HIGH HIGH HIGH CIRCUIT BOARDS MAIN Circuit Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 EMX3000 CNM01: to PWR1-CN102 A OUTPUT A CNM04: to DSP-CN101 PHANTOM ON/OFF PFL PFL PFL AFL AFL GRAPHIC EQUALIZER AFL AFL AFL ON PFL ST SUB2 PFL ON PARAMETER PARAMETER ST SUB1 PROGRAM PAN PAN PAN BAL BAL BAL BAL BAL BAL ST ST ST ST ST ST PEAK -30 -15 -10 -7 -5 -3 -1 -0 +1 +3 +8 +5 ST ST ST EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT EFFECT MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 2 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 1 MONI 2 MONI 2 MONI 2 MONI 1 MONI 1 MONI 1 TAPE IN ST TAPE IN ST TAPE IN ST L/MONO R LEVEL LOW LOW LOW LOW LOW LOW LOW LOW LOW MID MID MID MID MID MID MID MID MID HIGH HIGH HIGH HIGH HIGH HIGH GAIN GAIN GAIN GAIN GAIN GAIN 8 LINE MIC 9L L TAPE R R L R FOOTSW L L R MONO L R C-R/PHONES C-R/PHONES C-R/PHONES C-R/PHONES ST2 ST2 ST2 POWER R ST-SUB2 R ST-SUB1 MONI1 MONI2 EFFECT L(MONO) L REC 10R 11L 12R 9L C-R/PHONES 10R 9/10 11/12 11L 12R GAIN GAIN GAIN HIGH HIGH HIGH Component side 3NA-V698310 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 22 A A MAIN Circuit Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 EMX3000 Pattern side A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 24 CN101: to MAIN-CNM04 CN102: to PWR1-CN101 DSP Circuit Board Component side Pattern side 3NA-V698320 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 EMX3000 PWR1 Circuit Board Component side 3NA-V698330 2 CN103: to PWR2 2/3 W301RE CN104: to FAN CN101: to DSP-CN102 CN102: to MAIN-CNM01 1 W301WH 2 W301BE 3 W301BL 4 CN105: to Transformer CN106: to PWR2 3/3 W302RE 1 W302BL 2 W302BE 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 26 to PWR1-CN106 1 to PWR1 -CN103 4 to PWR1 -CN103 3 to PWR1 -CN103 2 to PWR1 -CN103 1 to PWR1-CN106 2 to PWR1-CN106 POWER ON/OFF AC IN 2 1 BRIDGE SPEAKERS R/MONO L/MONO 2 1 to Transformer 3 PWR2 1/3 Circuit Board Component side 3NA-V698350 1 Component side PWR2 2/3 Circuit Board PWR2 3/3 Circuit Board Component side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 EMX3000 INSPECTIONS A. INSPECTION OF MIXER SECTION 1. PREPARATIONS • Unless otherwise specified, the signal to be applied should be 1kHz, -70dBs sine wave and the signal source impedance should be 150 ohm. Also, the load resistance at each output terminal should be of the following values. CH INSERT OUT, REC OUT 10k ohm ST1,ST2,MONO,MONO1,MONO2,EFFECT 600 ohm C-R/PHONES 40 ohm • The signal level used in this specification is 0 dBs=0.775V • Unless otherwise specified, set the controls as specified in 1-1 to 1-8 below. 1-1 CH INPUT (CH1~8) GAIN trim Minimum EQ(HIGH, MID, LOW) gain control CENTER MNITOR(1, 2)level control Maximum EFFECT level control Maximum PAN control CENTER Fader Maximum PFL switch OFF 1-2 Stereo INPUT (9/10, 11/12) A/B switch A GAIN trim Minimum EQ(HIGH, MID, LOW) gain control CENTER MONITOR(1, 2) level control Maximum EFFECT level control Maximum PAN control CENTER Fader Maximum PFL switch OFF 1-3 ST SUB IN (1,2) ST level control Maximum MONITOR(1,2) level control Maximum PFL switch OFF 1-4 TAPE IN ST level control Maximum PFL switch OFF 1-5 DIGITAL EFFECT ON/OFF switch OFF PROGRSM select switch 1 PARAMETER control Maximum ST level control Maximum MONITOR (1,2) level control Maximum 1-6 MASTER ST GRAPHIC EQUALIZER control CENTER GRAPHIC EQUALIZER ON switch OFF ST1, MONO, MONITOR (1, 2), EFFECT fader Maximum ST2, C-R/PHONES level control Maximum ST1, MONO, MONITOR (1, 2), EFFECT AFL switch OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 28 *1: Measure the display output only. *2: Measure CH1 to CH4 only. *3: Turn on the PFL switch of the channel to which the signal was input. *1: Measure the display output only. *2: Turn on the PFL switch of the channel to which the signal was input. Input Input GAIN INSERT ST1,2 MONO MONI 1,2 EFFECT REC C-R/PHONES level Trim OUT *2 OUT(L,R) OUT OUT OUT OUT (L,R) OUT *3 MIC -60 MAX 0 +/- 2 +1 +/- 2 +4 +/- 2 +4 +/- 2 +10 +/- 2 -10.8 +/- 2 +8.5 +/- 2 -16 MIN — +1 +/- 2 ST1(L) *1 — — — — — LINE -34 MAX — +1 +/- 2 ST1(L) *1 — — — — — +10 MIN — +1 +/- 2 ST1(L) *1 — — — — — INSERT *2 0 — — +1 +/- 2 ST1(L) *1 — — — — — [Table 2-1] Input terminal CH1 to CH8 [Unit: dBs] Input Input A/B GAIN ST1 MONI 1,2 EFFECT C-R/PHONES level Switch Trim OUT ( L,R ) OUT OUT OUT *2 A-L/MONO -34 MAX +1 +/- 2 +7 +/- 2 +13 +/- 2 +8.5 +/- 2 A-R A +1 +/- 2 ST1( R ) *1 +1 +/- 2 MONI 1 *1 +7 +/- 2 +8.5 +/- 2 A-L/MONO +10 MIN +1 +/- 2 ST1( L ) *1 — — — A-R +1 +/- 2 ST1( R ) *1 — — — B-L -34 B MAX +1 +/- 2 ST1( L ) *1 — — — B-R +10 MIN +1 +/- 2 ST1( R ) *1 — — — [Table 2-2] Input terminal CH9/10, 11/12 [Unit: dBs] *1: Turn on the PFL switch of the SUB IN to which the signal is input. *2: The input level should be -6dBs. Input Input level ST1 OUT ( L ) ST1 OUT ( R ) MONI 1,2 OUT C-R/PHONES OUT *1 L/MONO +4 +4 +/- 2 +4 +/- 2 +7 +/- 2 +3.5 +/- 2 *2 R — +4 +/- 2 +1 +/- 2 +3.5 +/- 2 *2 [Table 2-3] Input terminal ST SUB IN [Unit: dBs] Input Input level ST1 OUT ( L ) ST1 OUT ( R ) C-R/PHONES OUT *1 L -7.8 +4 +/- 2 — +3.5 +/- 2 *2 R — +4 +/- 2 +3.5 +/- 2 *2 [Table 2-4] Input terminal TAPE IN [Unit: dBs] *1: Turn on the PFL switch. *2: The input level should be -17.8dBs. 1-7 POWER AMP POWER AMP switch ST1L-ST1R POWER AMP (L/BRIDGE, R) level control Minimum 1-8 PHANTOM PHANTOM switch OFF 1-9 Measuring equipment • The oscillator connected to the balanced type input terminal should be balanced output type with 150 ohm output impedance. • The input impedance of the oscilloscope, level meter, etc. should be 100k ohms or more. • The DIN audio filer should be used to measure the noise level. 2. GAIN In the state as described in 1 above, check that the output level within the range specified in Tables 2-1 to 2-7 can be obtained at each output terminal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 EMX3000 • In the state as described in 1 above, input the signal of the following level to MIC IN of CH1 and turn on each AFL switch. Then check that the output as described in [Table 2-5] is obtained at C-R/PHONES OUT (L, R). 3. FREQUENCY RESPONSE • In the state as described in 2, input a signal at the frequency of 20Hz and 20kHz and check that the output level at each output terminal is within the range of +1.0/-3.0dB with 1kHz used as a reference frequency. At 20Hz with GAIN trim at the maximum position only, however, the output level should be within the range of +1dB/-4.5dB. Also, check the output level at SUB IN for C-R/PHONES. 4. EQUALIZER CHARACTERISTICS • In the state as described in 1, move each of LOW, MID and HIGH of INPUT controls and check that the output level of the frequency obtained at ST1 OUT (L, R)falls within the range given in [Table 4-1] with the output level obtained at the center click position used as a reference. • If the output level at a specified frequency does not fall within the range given in [Table 4-1], vary the frequency of the input signal within the range of specified frequency +/- 20% and check that the output level within the range of [Table 4-1] is obtained. Control GAIN Input signal frequency Variation width HIGH MAX 10kHz +12 +/- 2 MIN -12 +/- 2 MID MAX 2.5kHz +14 +/- 2 MIN -14 +/- 2 LOW MAX 100Hz +12 +/- 2 MIN -12 +/- 2 [Table 4-1] EQ characteristics [Unit: dBs] Fader name 125 250 500 1K 2K 4K 8K Input signal frequency 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz FADER MAX +12 +/- 2 FADER MIN -12 +/- 2 [Table 5-1] GRAPHIC EQUALIZER characteristics [Unit: dBs] Input channel CH1~8 (MIC IN) CH9/10, 11/12 (L/MONO) Input signal level -43 +/- 2 -17 +/- 2 [Table 6-1] PEAK LED lighting level [Unit: dBs] LED name PEAK +8 +5 +3 +1 0 -1 Lighting start level +17 +/- 2 +12 +/- 2 +9 +/- 2 +7 +/- 2 +5 +/- 2 +4 +/- 2 +3 +/- 2 LED name -3 -5 -7 -10 -15 -20 — Lighting start level +1 +/- 2 -1 +/- 2 -3 +/- 2 -6 +/- 2 -11 +/- 3 -16 +/- 5 — [Table 7-1] METER lighting level [Unit: dBs] 5. GRAPHIC EQUALIZER CHARACTERISTICS • In the state as described in 1, move the fader of GEQ and check that the output level of the frequency obtained at ST1 OUT (L, R) falls within the range given in [Table 5-1] with the output level obtained at the center click position used as a reference. If the output level at a specified frequency does not fall within the range given in [Table 5-1], vary the frequency of the input signal within the range of specified frequency +/- 20% and check that the output level within the range of [Table 5-1] is obtained. 6. PEAK LED LIGHTING LEVEL • In the state as described in 1, input a signal to MIC IN or L/MONO IN and check that the PEAK LED lights up at the input signal level as in [Table 6-1]. 7. METER LIGHTING LEVEL Check that when the output level of ST1 OUT (L, R) is as in[Table 7-1], each corresponding METER LED lights up. Input level GAIN Trim ST1 OUT ( L,R ) MONO OUT MONITOR 1,2 OUT EFFECT OUT -40 MIN -7.0 +/- 2 -4.0 +/- 2 -4.0 +/- 2 +2.0 +/- 2 [Table 2-5] AFL switch [Unit: dBs] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 30 8. DISTORTION FACTOR • In the state as described in 1, check that the distortion factor when +14dBs output is obtained at each output terminal is 0.1% or less (except for REC OUT and INSERT OUT). • In the case of C-R/PHONES OUT, set the 12 o’clock point of the level control to the Norminal position and the master fader control to 5 on the scale. In this state, check that the distortion factor when +3dBs output is obtained is 0.2% or less. • When taking measurements in [Table 2-1] and [Table 2-2], set the GAIN trim of the channel being measured only to the maximum position but the GAIN trim of other channels to the minimum position. • When taking measurements in [Table 2-3] and [Table 2-4], set the GAIN trim of the channels to the minimum position. 9. MAXIMUM OUTPUT • In the state as described in 8 above, check that +20dBs output with 1% or less distortion factor is obtained at ST1 OUT (L, R), ST2 OUT (L, R), MONO OUT, MONI 1 OUT, MONI 2 OUT and EFFECT OUT. Also, check that +8dBs output with 1% or less distortion factor is obtained at C-R/PHONES (L, R) OUT. 10. EIN • In the state as described in 1, set only the fader and GAIN trim of the input channel to be measured to the maximum position and the fader of all the other input channels to the minimum position and short MIC IN with 150 ohm. Then check the noise level obtained at ST1 OUT (L). It should be -65.5dBs or less. If it exceeds -65.5dBs, calculate the input converted noise level and check that the result is 126.5dBs or less. (Use the DIN audio filter.) 11. RESIDUAL NOISE • In the state as described in 1., set all Fader/Level controls in the input section to the minimum position. Then set the Fader/ Level controls in the MASTER section in [Table 11-1]to the maximum or minimum position and check that the noise level is at the level indicated in [Table 11-1] or less. Fader or Level control ST1,2 OUT (L,R) MONO OUT MONI 1,2 OUT EFFECT OUT C-R/PHONES OUT Maximum -87 -87 -87 -83 -78 Minimum -95.5 -95 -95 -95 -97 [Table 11-1] Residual noise [Unit: dBs] 12. PHANTOM POWER SUPPLY (+48V) • Connect a 10k ohms load resistance between pins 1 and 2 of MIC IN to short-circuit between signals 2 and 3. Then check that +35 +/- 3 V voltage is obtained at both ends of the load resistance when the PHANTOM switch is turned on. 13. DIGITAL EFFECT • In the state as described in 1, input -16 dBs/1kHz signal to MIC IN of channel 1, set MONI 1, 2 level controls of channel 1 to the minimum position and check that -30dBs or more signal is obtained at MONI 1, 2 OUT when the DIGITAL EFFECT switch is turned on. Also, check that a signal in the same range is obtained when the PARAMETER control is set to the minimum position. Change the PROGRAM select switch to 2 to 16 and perform the same check. • Check that the EFFECT function works when the signal from the music source is input. • Check that the DIGITAL EFFECT function can be turned on and off using the foot switch. • In the state as described in 1, change all the channel fader settings to the minimum position. Then turn on the DSP switch and check that the noise level at ST1 OUT (L, R) is -61dBs or less. (Use the DIN audio filter.) 14. STABILITY • Connect 10pF to 0.1µF capacitance in parallel with the load resistance at each output terminal and check that no abnormality such as oscillation occurs. • Set all the VR and EQ controls to the maximum position and check that no abnormality such as oscillation occurs. Be sure to connect a load resistance to the power amplifier for this check. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 EMX3000 POWER AMP switch ST1L-ST1R MONI 1-MONO SPEAKER L (1,2) +20.0 +/- 2.0 +23.0 +/- 2.0 SPEAKER R (1,2) +20.0 +/- 2.0 +23.0 +/- 2.0 [Table 5-1] Gain [Unit: dBs] B. INSPECTION OF POWER AMPLIFIER INSPECTION AT ST1L-ST1R 1 PREPARATIONS • Input terminal: ST SUB IN 1 L/MONO • POWER AMP Switch : ST1L-ST1R • POWER AMP (L/BRIDGE, R) level control:MAX • Output terminal: SPEAKER L (1), SPEAKER R (1) • Load resistance: 40 ohm (300W or more) Unless otherwise specified, the load resistance of the speaker should be connected only when checking the power amplifier. • Set all the Fader/Level controls of channels1 to 10, SUB IN 2 and TAPE IN to the minimum position. • Other than the above, use the same setting as described under PREPARATIONS for inspection. 2 Muting function at power ON • Check that the muting function is cancelled and the relay turns on at 2.5 +/- 1 seconds after the POWER switch is turned on. 3 Fan • Short-circuit the 2 jumper wires within the frame (between C141 and Q139) marked FAN-C in the PWR circuit board and check that the fan runs at a low speed. 4 DC voltage at output terminal • Ground the input terminal and check that the DC voltage at the output terminal is 0 +/- 100mV. 5 GAIN • Input a -9.0 dBs signal to the input terminal and check that the output level of measured gain is as specified in Table 5-1 when the POWER AMP switch setting is changed. 6 FREQUENCY RESPONSE • Input 20Hz, 1kHz, 20kHz/-9.0dBs sine wave signals to the input signal and check that the frequency response at 20Hz and 20kHz is within the range of +1.0/-3.0dB with 1kHz used as a reference. 7 TOTAL HARMONIC DISTORTION • Input a 1kHz signal to the input terminal and check that the total harmonic distortion is 0.5% or less when 300W + 300W/4 ohm (33.0dBs) output is obtained. • Also, input 20Hz, 2kHz and 20kHz signals to the input terminal and check that the total harmonic distortion is 0.5% or less when 150W + 150W/4 ohm (30.0dBs) signal is obtained at the output terminal. 8 RESIDUAL NOISE • Set the POWER AMP L/BRIDGE, POWER AMP R level controls to the minimum position and check that the noise level at the output terminal is -62dBs. Use care so that the measurement is not affected by the induction noise. (Use the DIN audio filter.) 9 STABILITY • With 10kHz • -3.2dBs rectangular signal input, connect 10pF to 0.47 µ F capacitance in p parallel with 4 ohm load resistance or 10 µ H to 0.47H inductance and check that the following items are satisfied. • Disconnect 4 ohm load resistance to make the load consisting of 10pF to 0.47 µ F capacitance only, check that ringing is within 7 waves at Vp/Vo 2.5 and no oscillation or the like occurs. Vo Vp Overshoot: Vp/Vo 1.8 Ringing: Within 5 waves www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 32 2 GAIN • Input a -12.0dBs signal to the input terminal and check that +20.0 +/- 2 dBs output is obtained. 3 FREQUENCY RESPONSE • Input 20Hz, 1kHz, 20kHz/-12.0dBs signals to the input terminal and check that the frequency response at 20Hz and 20kHz is within the range of +1.0/-3.0dB with 1kHz used as a reference. C. OTHER INSPECTIONS 1 POWER VOLTAGE VARIATION • Check that no abnormality occurs with operation even when the power voltage is varied by +/- 10%. D. FACTORY SETTINGS • EQ GAIN, GEQ GAIN CENTER • All VR and fader controls other than above Minimum • All push switches OFF • PHANTOM switch OFF • POWER AMP switch ST1L-ST1R • POWER AMP LEVEL VR Maximum • POWER switch OFF • PROGRAM switch 1 10 PROTECTION CIRCUIT • With a signal input to POWER AMP IN (L), clip the output waveform of the 10Hz signal and check that the protection circuit functions to prevent the relay from opening. • Check that the protection circuit functions within 2 seconds to shut off the output when a 1Hz, Vp-p=10V(13.2dBs) signal is input and the output is restored automatically within 5 seconds when the input signal is stopped. 11 PC LIMITER CIRCUIT, LIMITER CIRCUIT, LIMITER INDICATOR • With 1 ohm load resistance (+/- 5%, 100W) connected to the output terminal, input a 0dBs signal to the input terminal and observe the output terminal using an oscilloscope. Then the protection circuit should function to shut off the output and the output is restored automatically within 5 seconds when the input signal is stopped. 12 EFFICIENCY • Input a -5.6dBs signal and check that the primary voltage is 190 +/- 50W. 12.2V (24.0dBs) output should be obtained at SPEAKER OUT 1 and 2 at this time. INSPECTION OF MAIN BRIDGE 1 PREPARATIONS • Input terminal: ST BUS IN 1 L/MONO • POWER AMP Switch : MONO BRIDGE • POWER AMP (L/BRIDGE, R) level control : Maximum • Output terminal: BRIDGE • Load resistance: 8 ohm (600W or more) Unless otherwise specified, the load resistance of the speaker should be connected only when performing inspection. • Set all the Fader/Level controls of channels 1 to 10, SUB IN 2 and TAPE IN to the minimum position. • Other than the above, use the same settings as described under “Inspection 1” for inspection. • Connection of measuring equipment 4Ω T 4Ω S Measuring equipment input Measuring equipment GND Horn plug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 EMX3000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 EMX3000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 36 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 EMX3000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 38 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 EMX3000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 40 CIRCUIT DIAGRAMS Note : See parts list for details of circuit board component parts. : Metal Film Resister : Flame Proof Carbon Resistor : Mylar Capacitor : Ceramic Capacitor : Capacitor CIRCUIT DIAGRAM 1/9 (MAIN 1/5) ....................... C1 CIRCUIT DIAGRAM 2/9 (MAIN 2/5) ....................... C2 CIRCUIT DIAGRAM 3/9 (MAIN 3/5) ....................... C3 CIRCUIT DIAGRAM 4/9 (MAIN 4/5) ....................... C4 CIRCUIT DIAGRAM 5/9 (MAIN 5/5) ....................... C5 CIRCUIT DIAGRAM 6/9 (DSP) ............................... C6 CIRCUIT DIAGRAM 7/9 (PWR1 1/2)...................... C7 CIRCUIT DIAGRAM 8/9 (PWR1 2/2)...................... C8 CIRCUIT DIAGRAM 9/9 (PWR1/3, 2/3, 3/3)........... C9 CONTENTS NJM7805FA (XJ607A00) REGULATOR +5V 1: OUTPUT 2: COMMON 3: INPUT 1 2 3 1 2 3 NJM7812FA (XJ608A00) REGULATOR +12V 1: INPUT 2: GND 3: OUTPUT NJM7815FA (XD853A00) REGULATOR +15V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 H F G E D C B A A H G F E D C B 1 2 C1 EMX3000 CIRCUIT DIAGRAM 1/9 (MAIN 1/5) EMX3000 EMX3000 EMX3000 2 38CC1-8818802 NJM2068L-D 470P NJM2068L-D OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP NJM2068L-D NJM2068L-D 470P OP AMP NJM2068L-D 470P NJM2068L-D OP AMP OP AMP OP AMP OP AMP NJM2068L-D 470P OP AMP NJM2068L-D OP AMP OP AMP OP AMP OP AMP NJM2068L-D NJM2068L-D NJM2068L-D NJM2068L-D (from P.C5-F6) (to P.C2-H1) MAIN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 1 2 C2 H A B G F C D E A H G B C F E D EMX3000 EMX3000 EMX3000 EMX3000 CIRCUIT DIAGRAM 2/9 (MAIN 2/5) 2 38CC1-8818802 NJM2068L-D 470P NJM2068L-D OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP NJM2068L-D NJM2068L-D 470P OP AMP NJM2068L-D 470P NJM2068L-D OP AMP OP AMP OP AMP OP AMP NJM2068L-D 470P OP AMP NJM2068L-D OP AMP OP AMP OP AMP OP AMP NJM2068L-D NJM2068L-D NJM2068L-D NJM2068L-D (from P.C1-H6) (to P.C3-H1) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 H F G E D C B A A H G F E D C B 1 2 C3 EMX3000 CIRCUIT DIAGRAM 3/9 (MAIN 3/5) EMX3000 EMX3000 EMX3000 38CC1-8818802 OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP (from P.C2-H6) (to P.C4-A1) OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP OP AMP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 1 2 C4 H A B G F C D E A H G B C F E D EMX3000 EMX3000 EMX3000 EMX3000 CIRCUIT DIAGRAM 4/9 (MAIN 4/5) 3 38CC1-8818802 (from P.C5-C1) (from P.C5-C1) (from P.C5-A1) SWM01 (from P.C5-G5) REGULATOR OP AMP OP AMP OP AMP OP AMP (from P.C3-H6) (from P.C5-E1) (P.C7-B3) (P.C6-B2) to PWR1-CN102 to DSP-CN101 (to P.C5-A6, C5-D1) (from P.C5-A1) LED LEVEL METER LED LEVEL METER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 H F G E D C B A A H G F E D C B 1 2 C5 EMX3000 CIRCUIT DIAGRAM 5/9 (MAIN 5/5) EMX3000 EMX3000 EMX3000 1 38CC1-8818802 (to P.C1-H1) (to P.C4-F5) 10P OP AMP (from P.C4-E1) (to P.C4-C5) OP AMP OP AMP OP AMP (to P.C4-H1) 7-SEG. GRAPHIC 7-SEG. GRAPHIC OP AMP OP AMP OP AMP OP AMP OP AMP 180K 10P 180K OP AMP OP AMP (to P.C4-F1) OP AMP (from P.C4-E1) (to P.C4-H5) (to P.C4-D5) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 1 2 C6 H A B G F C D E A H G B C F E D EMX3000 EMX3000 EMX3000 EMX3000 CIRCUIT DIAGRAM 6/9 (DSP) 38CC1-8818803 DRAM OP AMP OP AMP ADA ZFX-2 MCU INVERTER INVERTER REGULATOR +5V to MAIN-CNM04 (to P.C4-G1) to PWR1-CN101 (P.C7-B3) N.C. DSP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 H F G E D C B A A H G F E D C B 1 2 C7 EMX3000 CIRCUIT DIAGRAM 7/9 (PWR1 1/2) EMX3000 EMX3000 EMX3000 2 38CC1-8818804 (to P.C8-A2) to DSP-CN102 (P.C6-G2) OP AMP OP AMP OP AMP OP AMP (P.C4-F1) to MAIN-CNM01 1/2 (to P.C8-A2) (to P.C8-A3) (to P.C8-C2) (to P.C8-C2) (to P.C8-C3) (from P.C8-F4) (from P.C8-F4) (from P.C8-C4) (from P.C8-E5) (from P.C8-E3) PWR1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 1 2 C8 H A B G F C D E A H G B C F E D EMX3000 EMX3000 EMX3000 EMX3000 CIRCUIT DIAGRAM 8/9 (PWR1 2/2) common 2 38CC1-8818804 (from P.C7-F2) (from P.C7-F2) (from P.C7-F3) (to P.C7-F3) (to P.C7-F3) (from P.C7-F4) (P.C9-E2) -3Pin: 2+ C138 1/50 FG REGULATOR REGULATOR -15 REGULATOR +15 (to P.C7-F3) -2Pin: 1- -4Pin: 2- -1Pin: 1+ to PWR2 2/3 (P.C9-B2) -3Pin: -B -2Pin: G -1Pin: +B CN106: to PWR2 3/3 (from P.C7-F4) P.C7-F4) (from (to P.C7-F3) (to P.C7-F3) (TO FAN) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 5 4 3 H F G E D C B A A H G F E D C B 1 2 C9 EMX3000 CIRCUIT DIAGRAM 9/9 (PWR2 1/3, 2/3, 3/3) EMX3000 EMX3000 EMX3000 common transformer 38CC1-8818805 3/3 to PWR1-CN106-1Pin (P.C8-G4) to PWR1-CN106-2Pin (P.C8-G4) to PWR1-CN106-3Pin (P.C8-G4) 1/3 POWER ON/OFF 2/3 to PWR1-CN103-1Pin (P.C8-C5) L/MONI1 1 2 1 2 R/MONO SPEAKERS to PWR1-CN103-2Pin (P.C8-C5) to PWR1-CN103-3Pin (P.C8-C5) to PWR1-CN103-4Pin (P.C8-C5) AC CORD AC INLET PWR2 PWR2 PWR2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PARTS LIST CONTENTS OVERALL ASSEMBLY .............................................. 2 ELECTRICAL PARTS ............................................. 5 WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. Notes : DESTINATION ABBREVIATIONS The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. This mark “ } ” in the REMARKS column means these parts are interchangeable. The second letter of the shaded ( ) part number is O, not zero. The second letter of the shaded ( ) part number is I, not one. M: South African model O : Chinese model Q : South-east Asia model T : Taiwan model U : U.S.A. model V : General export model (110V) W: General export model (220) N,X: General export model Y : Export model A : Australian model B : British model C : Canadian model D : German model E : European model F : French model H : North European model I : Indonesian model J : Japanese model POWERED MIXER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 2 OVERALL ASSEMBLY P110 P80 P100 P90 P80 P80 R40 R60 R10 R100 R90 R80 B30b B30c B30a R50 R20 R30 P80 P120 P130 P40 P70 P140 P110 P150 P30 P20 P10 P60 P240 P250 P190 B60 B50 B20 B40 B35 B35 B130 B75 B70 B72 B65 B120 B220 B210 P220 P230 P180 P100 P50 P110 P100 P110 100 120 130 30 20 10 80 90 60 50 30 140 190 170 170 170 180 110 160 150 170 B100 B110 B10 B80 B90 B170 B170 B140 B160 B150 B155 B155 B180 B190 B230 B200 P70 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 3 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * * * OVERALL ASSEMBLY EMX3000 Overall Assembly J J (V699180) Overall Assembly U U (V699190) Overall Assembly H H (V699200) Overall Assembly A A (V699210) 10 Bottom Assembly J J (V699230) 10 Bottom Assembly U U (V699350) 10 Bottom Assembly H H (V699360) 10 Bottom Assembly A A (V699370) 20 Side Pad L 30 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 6 01 50 Side Pad R 60 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 6 01 80 Panel Assembly J COM (V699220) 90 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 6 01 100 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 6 01 110 Rear Assembly J J (V699380) 110 Rear Assembly U U (V699390) 110 Rear Assembly H H (V699400) 110 Rear Assembly A A (V699410) 120 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 5 01 130 Connector Guard Upper R 02 140 Connector Guard Upper L 02 150 Connector Guard Lower R 01 160 Connector Guard Lower L 01 170 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 6 01 180 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 2 01 190 Cord Label U (VA03930) 03 Bottom Assembly J J (V699230) Bottom Assembly U U (V699350) Bottom Assembly H H (V699360) Bottom Assembly A A (V699370) Connector Assembly 2426&2426 3P 210L (V705810) Cord Holder 4 01 B10 Heat Sink B20 Circuit Board PWR1 J,U J,U B20 Circuit Board PWR1 H H B30a Circuit Board PWR2 1/3 J (V698350) B30a Circuit Board PWR2 1/3 U (V698360) B30a Circuit Board PWR2 1/3 H,A (V698370) B30b Circuit Board PWR2 2/3 (V698350) B30c Circuit Board PWR2 3/3 (V698350) B35 Isolation Sheet 2 B40 Angle H=7.4 B=5.5 4 01 B50 Bind Head Screw SP 3.0X8 MFZN2Y 4 01 B60 Pan Head Screw SPK 3.0X12 MFZN2Y 28 B65 Power Transformer J J B65 Power Transformer U U B65 Power Transformer H H B65 Power Transformer A A B70 Electrolytic Cap. Holder (V703370) B72 Cushion (V739410) B75 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 2 01 B80 DC Fan 3110GL-B5W-B50-H01 08 B90 Fan Shield (V699610) B100 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 2 01 B110 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 4 01 B120 Bottom Chassis B130 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 4 01 B140 Plate R 04 B150 Plate L 04 B155 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 4 01 B160 Handle B170 Bind Head Tapping Screw-B 3.0X12 MFZN2BL 4 01 B180 Leg 2 01 B190 Bind Head Tapping Screw-B 4.0X12 MFZN2BL 2 01 B200 Cord Holder TS-0708 KSS 02 B210 Screw Cover 35X20 2 B220 Circuit Board DSP EMX3K J (XZ633B0) -- -- -- -- -- -- -- -- V6996900 EG340190 V6997000 EG340190 -- EP600230 EG340190 -- -- -- -- EP600230 VZ700500 VZ700600 VZ700700 VZ700800 EP600230 EP600230 -- -- -- -- -- -- VV104600 V6786600 V6983300 V6983400 AAX24850 AAX24860 AAX24870 AAX24880 AAX24890 V6995900 VV086500 EG330290 VJ470900 XZ505A00 XZ506A00 XZ507A00 XZ508A00 -- -- EP600230 V6024100 -- EG340190 EP600230 V6996200 EG340190 VZ523600 VZ523700 EP600230 V6996300 VQ074600 VV085600 VR138400 VZ765100 V7394400 V6983200 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 4 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * B230 PCB Support SCC-12 BL PINGOOD (V764330) 4 Panel Assembly J COM (V699220) Connector Assembly 2426&2426 12P (V705820) Connector Assembly 2426&2426 13P (V705830) P10 Control Panel P20 Circuit Board MAIN J (XT783H0) P30 PCB Support NEW NIFCO 14 01 P40 Pan Head Tapping Screw-B 3.0X25 MFZN2BL 14 01 P50 Bonding Screw-B 3.0X8 MFZN2BL 18 01 P60 Shield Plate (V699560) P70 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 6 01 P80 Knob L-GRAY/M-GRAY CH1-12(GAIN,EFFECT), 22 01 PARAMETER,C-R/PHONES P90 Knob GREEN/M-GRAY CH1-12(HIGH,MID,LOW) 30 01 P100 Knob BLUE/M-GRAY MONI1,2(CH1-12,ST SUB 1, 26 01 ST SUB 2,D. EFFECT) P110 Knob RED/M-GRAY PAN(CH1-8),BAL(CH9-12), 15 01 ST(ST SUB1,2),TAPE IN ST, D. EFFECT ST,ST2 P120 Knob L-GRAY/D-GRAY PROGRAM 01 P130 Knob BLACK/N-GRAY Fader(CH1-12) 10 01 P140 Knob D-RED/CD-GRAY Fader(MONI1,MONI2,EFFECT) 3 01 P150 Knob N-GRAY/D-RED ST1 Fader 01 P180 Knob N-GRAY/BLACK MONO Fader P190 Cord Binder TS-0708 KSS 02 P220 Cover P230 Filament Tape 12X25 (V263830) P240 Caution Label (V385110) P250 Transformer Cover (V765040) Rear Assembly J J (V699380) Rear Assembly U U (V699390) Rear Assembly H H (V699400) Rear Assembly A A (V699410) R10 Rear Panel J R10 Rear Panel U R10 Rear Panel H R10 Rear Panel A R20 Bind Head Screw 3.0X8 MFZN2BL 2 01 R30 Bonding Screw-B 3.0X8 MFZN2BL 01 R40 PSW Escutcheon 02 R50 PSW Knob POWER Switch 01 R60 Bind Head Tapping Screw-B 4.0X8 MFZN2BL 2 01 R80 Bind Head Screw 4.0X8 MFZN2BL 01 R90 Clip FIB84 TIFCO R100 Cord Holder 01 ACCESSORIES AC Cord BS H05VV-F3X0.75 B AC Cord UC SJT#18X3 U,V AC Cord E H05VV-FX3 0.75 H,W,A AC Cord J VCTF 0.75X3 J -- -- -- -- V6995500 V6983100 VV069200 VV095300 VN413300 -- EP600230 V6225600 V6225300 V6225400 V6225500 V6225700 V2947000 V6623300 V6623400 V7369500 VZ765100 V7393800 -- -- -- -- -- -- -- V6996400 V6996500 V6996600 V6996700 VB659000 VN413300 VU859100 VU859000 EG340190 VP156800 V7646900 VV104600 V6283900 V6284300 V6284400 V7240300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 5 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * ELECTRICAL PARTS ELECTRICAL PARTS EMX3000 Circuit Board PWR1 EMX3K J,U J,U (XZ656C0) Circuit Board PWR1 EMX3K H H (XZ656C0) Circuit Board PWR2 1/3 J (V698350)(XZ657B0) Circuit Board PWR2 1/3 U (V698360)(XZ657B0) Circuit Board PWR2 1/3 H,A (V698370)(XZ657B0) Circuit Board PWR2 2/3 (V698350)(XZ657B0) Circuit Board PWR2 3/3 (V698350)(XZ657B0) Circuit Board DSP J (XZ633B0) Circuit Board MAIN J (XT783H0) Circuit Board PWR1 EMX3K J,U J,U (XZ656C0) Circuit Board PWR1 EMX3K H H (XZ656C0) Jumper Wire 0.60 (VV29140) 01 Fuse Holder CQ-05CT 01 C101 Electrolytic Cap. 470.00 10.0V 01 C102 Ceramic Capacitor-SL 100P 50V J 01 C103 Ceramic Capacitor-F 0.0100 50V Z 01 C104 Ceramic Capacitor-B 220P 50V K 01 C105 Ceramic Capacitor-B 1000P 50V K 01 C106 Ceramic Capacitor-B 470P 50V K 01 C107 Electrolytic Cap. 10.00 25.0V 01 C108 Electrolytic Cap. 100.00 16.0V 01 C109 Electrolytic Cap. 1.00 50.0V 01 C110 Electrolytic Cap. 4.7 100.0V C111 Electrolytic Cap. 4.7 100.0V C112 Mica Capacitor 68P 500V J 01 C113 Mica Capacitor 82P 500V J 01 C114 Ceramic Capacitor-F 0.0100 50V Z 01 C115 Ceramic Capacitor-F 0.0100 50V Z 01 C116 Electrolytic Cap. 10.00 63.0V 01 C117 Electrolytic Cap. 10.00 63.0V 01 C118 Ceramic Capacitor-F 0.0100 50V Z 01 C119 Ceramic Capacitor-B 1000P 50V K 01 C120 Ceramic Capacitor-B 1000P 50V K 01 C121 Mylar Capacitor 2200P 50V J 01 C122 Ceramic Capacitor-SL 10P 500V K C123 Ceramic Capacitor-SL 10P 500V K C124 Electrolytic Cap. 10.0 100.0V 01 C125 Electrolytic Cap. 10.0 100.0V 01 C126 Ceramic Capacitor-B 100P 500 K 01 C127 Film Capacitor 3.3000 100V M 03 C128 Electrolytic Cap. 10.0 100.0V 01 C129 Ceramic Capacitor-E 0.0022 500 M 01 C130 Electrolytic Cap. 100 100.0V C131 Ceramic Capacitor-B 100P 500 K 01 C132 Film Capacitor 3.3000 100V M 03 C133 Electrolytic Cap. 10.0 100.0V 01 C134 Ceramic Capacitor-E 0.0022 500 M 01 C135 Electrolytic Cap. 100 100.0V C136 Film Capacitor 0.33 250V M 01 C137 Film Capacitor 0.33 250V M 01 C138 Electrolytic Cap. 1.00 50.0V 01 C139 Electrolytic Cap. 1000 35.0V -142 Electrolytic Cap. 1000 35.0V C143 Electrolytic Cap. 10.00 63.0V 01 -145 Electrolytic Cap. 10.00 63.0V 01 C146 Electrolytic Cap. 47.00 35.0V 01 C147 Electrolytic Cap. 470.00 10.0V 01 C148 Ceramic Capacitor-F 0.0100 50V Z 01 C149 Electrolytic Cap. 10.00 63.0V 01 C150 Electrolytic Cap. 4.7 100.0V C151 Electrolytic Cap. 470 100.0V 02 C152 Electrolytic Cap. 470 100.0V 02 C153 Electrolytic Cap. 4.7 100.0V C154 Electrolytic Cap. 4.7 100.0V C155 Electrolytic Cap. 1000 35.0V C156 Electrolytic Cap. 10.00 63.0V 01 C201 Electrolytic Cap. 470.00 10.0V 01 C202 Ceramic Capacitor-SL 100P 50V J 01 V6983300 V6983400 AAX24850 AAX24860 AAX24870 AAX24880 AAX24890 V6983200 V6983100 V6983300 V6983400 -- VV319600 UR828470 VZ353500 VZ354000 VZ353600 VZ353900 VZ353800 UR847100 UR838100 UR866100 UR896470 UR896470 FU451680 FU451820 VZ354000 VZ354000 UR877100 UR877100 VZ354000 VZ353900 VZ353900 UA953220 V4567500 V4567500 UR897100 UR897100 V3280500 VV082200 UR897100 VZ354300 V5307900 V3280500 VV082200 UR897100 VZ354300 V5307900 V3148500 V3148500 UR866100 V5482000 V5482000 UR877100 UR877100 UR857470 UR828470 VZ354000 UR877100 UR896470 V3158100 V3158100 UR896470 UR896470 V5482000 UR877100 UR828470 VZ353500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 6 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C203 Ceramic Capacitor-F 0.0100 50V Z 01 C204 Ceramic Capacitor-B 220P 50V K 01 C205 Ceramic Capacitor-B 1000P 50V K 01 C206 Ceramic Capacitor-B 470P 50V K 01 C207 Electrolytic Cap. 10.00 25.0V 01 C208 Electrolytic Cap. 100.00 16.0V 01 C209 Electrolytic Cap. 1.00 50.0V 01 C210 Electrolytic Cap. 4.7 100.0V C211 Electrolytic Cap. 4.7 100.0V C212 Mica Capacitor 68P 500V J 01 C213 Mica Capacitor 82P 500V J 01 C214 Ceramic Capacitor-F 0.0100 50V Z 01 C215 Ceramic Capacitor-F 0.0100 50V Z 01 C216 Electrolytic Cap. 10.00 63.0V 01 C217 Electrolytic Cap. 10.00 63.0V 01 C218 Ceramic Capacitor-F 0.0100 50V Z 01 C219 Ceramic Capacitor-B 1000P 50V K 01 C220 Ceramic Capacitor-B 1000P 50V K 01 C221 Mylar Capacitor 2200P 50V J 01 C222 Ceramic Capacitor-SL 10P 500V K C223 Ceramic Capacitor-SL 10P 500V K CN101 Base Post 3P TE 01 CN102 Base Post 12P TE 01 CN103 Base Post 4P TE 01 CN104 Base Post 2P TE 01 CN105 Base Post 6P TE 01 CN106 Base Post 3P TE 01 D101 Diode 1SS133,176,HSS104 01 -107 Diode 1SS133,176,HSS104 01 D108 Zener Diode MTZ J 5.6B 5.6V 01 D109 Zener Diode MTZ J 5.6B 5.6V 01 D110 Diode 1SS133,176,HSS104 01 D111 Diode 1SS133,176,HSS104 01 D112 Diode 1SS82TD 01 -115 Diode 1SS82TD 01 D116 Diode D1NL20U 01 D117 Diode D1NL20U 01 D118 Diode 1N4004L 01 D119 Diode 1N4004L 01 D120 Twin Diode D8LD40 8.0A 400V 04 D121 Diode 1N4004L 01 D122 Twin Diode FMX-22S 10.0A 200V 03 D123 Twin Diode D8LD40 8.0A 400V 04 D124 Diode 1N4004L 01 D125 Twin Diode FMX-22S 10.0A 200V 03 D126 Diode RBV-1306 13.0A 600 04 -134 Diode 1N4004L 01 D135 Zener Diode MTZ J 15.0B 15.0V 01 D136 Diode 1SS133,176,HSS104 01 D137 Zener Diode MTZ J 8.2B 8.2V 01 D138 Diode 1N4004L 01 -140 Diode 1N4004L 01 D141 Zener Diode MTZ J 15.0B 15.0V 01 D142 Zener Diode MTZ J 43 43.0V 01 -144 Zener Diode MTZ J 43 43.0V 01 D145 Zener Diode MTZ J 8.2B 8.2V 01 D146 Diode HSS82 01 D147 Diode HSS82 01 D148 Diode 1SS133,176,HSS104 01 D201 Diode 1SS133,176,HSS104 01 -207 Diode 1SS133,176,HSS104 01 D208 Zener Diode MTZ J 5.6B 5.6V 01 D209 Zener Diode MTZ J 5.6B 5.6V 01 D210 Diode 1SS133,176,HSS104 01 D211 Diode 1SS133,176,HSS104 01 D212 Diode 1SS82TD 01 -215 Diode 1SS82TD 01 D216 Diode D1NL20U 01 D217 Diode D1NL20U 01 D218 Diode 1N4004L 01 VZ354000 VZ353600 VZ353900 VZ353800 UR847100 UR838100 UR866100 UR896470 UR896470 FU451680 FU451820 VZ354000 VZ354000 UR877100 UR877100 VZ354000 VZ353900 VZ353900 UA953220 V4567500 V4567500 VV066300 VV067200 LB932040 VV066200 LB932060 LB932030 VD631600 VD631600 VG437700 VG437700 VD631600 VD631600 IF005560 IF005560 VN478200 VN478200 VU801600 VU801600 VR149700 VU801600 VS135800 VR149700 VU801600 VS135800 V2261600 VU801600 VG440800 VD631600 VG438900 VU801600 VU801600 VG440800 VV335500 VV335500 VG438900 VQ469600 VQ469600 VD631600 VD631600 VD631600 VG437700 VG437700 VD631600 VD631600 IF005560 IF005560 VN478200 VN478200 VU801600 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 7 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only D219 Diode 1N4004L 01 F101 Fuse TDS 2A 250V J/U/C J,U 01 F101 Fuse TSD 2A 250V SEMKO H 01 F102 Fuse TDS 2A 250V J/U/C J,U 01 F102 Fuse TSD 2A 250V SEMKO H 01 IC101 IC NJM4558L-D OP AMP 03 IC102 IC NJM7815FA REGULATOR 03 IC103 IC NJM7915FA REGULATOR 03 IC104 IC NJM7805FA REGULATOR 5V 02 IC201 IC NJM4558L-D OP AMP 03 L101 Coil OH-20 100UH 08 L102 Coil OH-20 100UH 08 L103 Ferrite Bead BL02RN2-R62T4 02 L104 Ferrite Bead BL02RN2-R62T4 02 L105 Coil RZ-001 21mm 02 L106 Coil RZ-001 21mm 02 PR101 Polyphonic Resistor PTH9M04BH222TS2 04 PR102 Polyphonic Resistor PTH9M04BE222TS2 04 Q101 Transistor 2SA1015 O,Y 01 Q102 Transistor 2SA1015 O,Y 01 Q103 Transistor 2SC1815 Y,GR 01 Q104 Transistor 2SC1815 Y,GR 01 Q105 Digital Transistor DTC114ES 01 Q106 Digital Transistor DTC114ES 01 Q107 Digital Transistor DTA114ES 01 Q108 Transistor 2SA970 GR,BL 01 Q109 Transistor 2SA970 GR,BL 01 Q110 Transistor 2SC2240 GR,BL 01 Q111 Transistor 2SC1815 Y,GR 01 Q112 Transistor 2SC1815 Y,GR 01 Q113 Transistor 2SA970 GR,BL 01 Q114 Transistor 2SA1371 D,E 01 Q115 Transistor 2SC3468 D,E 01 Q116 Transistor 2SA1371 D,E 01 Q117 Transistor 2SC3468 D,E 01 Q118 Transistor 2SC5395 E,F 01 Q119 Transistor 2SA1993 E,F 01 Q120 Transistor 2SC3468 D,E 01 Q121 Transistor 2SA1371 D,E 01 Q122N Pair Transistor A1859A/C4883A 04 Q122P Pair Transistor A1859A/C4883A 04 Q123N Pair Transistor A1386A/C3519A 05 Q123P Pair Transistor A1386A/C3519A 05 Q124N Pair Transistor A1386A/C3519A 05 Q124P Pair Transistor A1386A/C3519A 05 Q125 Transistor 2SC3468 D,E 01 Q126 Transistor 2SA1371 D,E 01 Q127N Pair Transistor A1859A/C4883A 04 Q127P Pair Transistor A1859A/C4883A 04 Q128N Pair Transistor A1386A/C3519A 05 Q128P Pair Transistor A1386A/C3519A 05 Q129N Pair Transistor A1386A/C3519A 05 Q129P Pair Transistor A1386A/C3519A 05 Q130N Pair Transistor A1859A/C4883A 04 Q130P Pair Transistor A1859A/C4883A 04 Q131N Pair Transistor A1386A/C3519A 05 Q131P Pair Transistor A1386A/C3519A 05 Q132N Pair Transistor A1386A/C3519A 05 Q132P Pair Transistor A1386A/C3519A 05 Q133N Pair Transistor A1386A/C3519A 05 Q133P Pair Transistor A1386A/C3519A 05 Q134 Transistor 2SC5395 E,F 01 Q135 Transistor 2SA1993 E,F 01 Q136 Transistor 2SC5395 E,F 01 -138 Transistor 2SC5395 E,F 01 Q139 Transistor 2SA1993 E,F 01 Q140 Transistor 2SC5395 E,F 01 Q141 Transistor 2SC5395 E,F 01 Q142 Transistor 2SD2394 E,F 02 Q143 Transistor 2SD2394 E,F 02 VU801600 VV070600 VV071500 VV070600 VV071500 XQ212A00 XD853A00 XD854A00 XJ607A00 XQ212A00 V4668300 V4668300 GE300670 GE300670 VR150900 VR150900 VL964800 VL965100 IA101590 IA101590 IC1815M0 IC1815M0 VD678700 VD678700 VD678500 IA097030 IA097030 IC224030 IC1815M0 IC1815M0 IA097030 VU418400 VU418600 VU418400 VU418600 V2797700 V2797600 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 V5611000 V5611000 V2797700 V2797600 V2797700 V2797700 V2797600 V2797700 V2797700 VS883400 VS883400 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 8 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only Q144 Digital Transistor DTA114ES 01 Q201 Transistor 2SA1015 O,Y 01 Q202 Transistor 2SA1015 O,Y 01 Q203 Transistor 2SC1815 Y,GR 01 Q204 Transistor 2SC1815 Y,GR 01 Q205 Digital Transistor DTC114ES 01 Q206 Digital Transistor DTC114ES 01 Q207 Digital Transistor DTA114ES 01 Q208 Transistor 2SA970 GR,BL 01 Q209 Transistor 2SA970 GR,BL 01 Q210 Transistor 2SC2240 GR,BL 01 Q211 Transistor 2SC1815 Y,GR 01 Q212 Transistor 2SC1815 Y,GR 01 Q213 Transistor 2SA970 GR,BL 01 Q214 Transistor 2SA1371 D,E 01 Q215 Transistor 2SC3468 D,E 01 Q216 Transistor 2SA1371 D,E 01 Q217 Transistor 2SC3468 D,E 01 Q218 Transistor 2SC5395 E,F 01 Q219 Transistor 2SA1993 E,F 01 Q220 Transistor 2SC3468 D,E 01 Q221 Transistor 2SA1371 D,E 01 Q222N Pair Transistor A1859A/C4883A 04 Q222P Pair Transistor A1859A/C4883A 04 Q223N Pair Transistor A1386A/C3519A 05 Q223P Pair Transistor A1386A/C3519A 05 Q224N Pair Transistor A1386A/C3519A 05 Q224P Pair Transistor A1386A/C3519A 05 R101 Metal Film Resistor 16K 1/4 F R102 Carbon Resistor 15.0K 1/4 J 01 R103 Metal Film Resistor 15K 1/4 F 01 R104 Carbon Resistor 56.0K 1/4 J 01 R105 Carbon Resistor 12.0K 1/4 J 01 R106 Carbon Resistor 68.0 1/4 J 01 R107 Carbon Resistor 12.0K 1/4 J 01 R108 Carbon Resistor 56.0K 1/4 J 01 R109 Carbon Resistor 68.0 1/4 J 01 R110 Carbon Resistor 1.5K 1/4 J 01 R111 Carbon Resistor 27.0K 1/4 J 01 R112 Carbon Resistor 330.0 1/4 J 01 R113 Carbon Resistor 47.0K 1/4 J 01 R114 Metal Film Resistor 680.0 1/4 F 01 R115 Carbon Resistor 22.0K 1/4 J 01 R116 Carbon Resistor 390.0K 1/4 J 01 R117 Carbon Resistor 390.0K 1/4 J 01 R118 Carbon Resistor 82.0K 1/4 J 01 R119 Carbon Resistor 220.0 1/4 J 01 R120 Carbon Resistor 22.0K 1/4 J 01 R121 Carbon Resistor 330.0K 1/4 J 01 R122 Carbon Resistor 560.0 1/4 J 01 -124 Carbon Resistor 560.0 1/4 J 01 R125 Carbon Resistor 47.0K 1/4 J 01 R126 Carbon Resistor 330.0 1/4 J 01 R127 Metal Film Resistor 22K 1/4 F 01 R128 Carbon Resistor 330.0 1/4 J 01 R129 Carbon Resistor 220.0 1/4 J 01 R130 Carbon Resistor 220.0 1/4 J 01 R131 Carbon Resistor 47.0K 1/4 J 01 -134 Carbon Resistor 47.0K 1/4 J 01 R135 Carbon Resistor 560.0 1/4 J 01 R136 Carbon Resistor 560.0 1/4 J 01 R137 Carbon Resistor 12.0K 1/4 J 01 R138 Carbon Resistor 12.0K 1/4 J 01 R139 Flame Proof C. Resistor 220.0 1/4 J 01 R140 Flame Proof C. Resistor 220.0 1/4 J 01 R141 Flame Proof C. Resistor 330.0 1/4 J 01 R142 Flame Proof C. Resistor 330.0 1/4 J 01 R143 Flame Proof C. Resistor 100 1/4 J 01 -146 Flame Proof C. Resistor 100 1/4 J 01 R147 Flame Proof C. Resistor 33.0 1/4 J 01 VD678500 IA101590 IA101590 IC1815M0 IC1815M0 VD678700 VD678700 VD678500 IA097030 IA097030 IC224030 IC1815M0 IC1815M0 IA097030 VU418400 VU418600 VU418400 VU418600 V2797700 V2797600 VU418600 VU418400 VR732800 VR732800 V5611000 V5611000 V5611000 V5611000 V2961300 HF457150 VZ009900 HF457560 HF457120 HF454680 HF457120 HF457560 HF454680 HF456150 HF457270 HF455330 HF457470 VV312800 HF457220 HF458390 HF458390 HF457820 HF455220 HF457220 HF458330 HF455560 HF455560 HF457470 HF455330 VV312900 HF455330 HF455220 HF455220 HF457470 HF457470 HF455560 HF455560 HF457120 HF457120 VV313800 VV313800 VZ009300 VZ009300 VV276800 VV276800 VZ009100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 9 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R148 Flame Proof C. Resistor 33.0 1/4 J 01 R149 Flame Proof C. Resistor 22.0 1/4 J 01 R150 Flame Proof C. Resistor 22.0 1/4 J 01 R151 Cement Resistor 0.22 5W K 01 R152 Cement Resistor 0.22 5W K 01 R153 Flame Proof C. Resistor 33.0 1/4 J 01 R154 Flame Proof C. Resistor 33.0 1/4 J 01 R155 Flame Proof C. Resistor 22.0 1/4 J 01 R156 Flame Proof C. Resistor 22.0 1/4 J 01 R157 Cement Resistor 0.22 5W K 01 R158 Cement Resistor 0.22 5W K 01 R159 Flame Proof C. Resistor 10.0 1/4 J 01 R160 Carbon Resistor 150.0K 1/4 J 01 R161 Carbon Resistor 5.6K 1/4 J 01 R162 Flame Proof C. Resistor 22.0 1/4 J 01 R163 Flame Proof C. Resistor 2.2K 1/4 J 01 R164 Flame Proof C. Resistor 150.0 1/4 J 01 R165 Flame Proof C. Resistor 2.2 1/4 J 01 R166 Cement Resistor 0.1 5W K 01 R167 Flame Proof C. Resistor 2.2 1/4 J 01 R168 Flame Proof C. Resistor 2.2 1/4 J 01 R169 Cement Resistor 0.1 5W K 01 R170 Flame Proof C. Resistor 4.7 1/4 J 01 R171 Flame Proof C. Resistor 4.7 1/4 J 01 R172 Flame Proof C. Resistor 2.2 1/4 J 01 -174 Flame Proof C. Resistor 2.2 1/4 J 01 R175 Flame Proof C. Resistor 680.0 1/4 J 01 R176 Carbon Resistor 5.6K 1/4 J 01 R177 Flame Proof C. Resistor 22.0 1/4 J 01 R178 Flame Proof C. Resistor 2.2K 1/4 J 01 R179 Flame Proof C. Resistor 150.0 1/4 J 01 R180 Flame Proof C. Resistor 2.2 1/4 J 01 R181 Flame Proof C. Resistor 2.2 1/4 J 01 R182 Cement Resistor 0.1 5W K 01 R183 Flame Proof C. Resistor 2.2 1/4 J 01 R184 Cement Resistor 0.1 5W K 01 R185 Flame Proof C. Resistor 4.7 1/4 J 01 R186 Flame Proof C. Resistor 4.7 1/4 J 01 R187 Flame Proof C. Resistor 2.2 1/4 J 01 -189 Flame Proof C. Resistor 2.2 1/4 J 01 R190 Flame Proof C. Resistor 680.0 1/4 J 01 R191 Flame Proof C. Resistor 220.0 1/4 J 01 R192 Flame Proof C. Resistor 220.0 1/4 J 01 R193 Carbon Resistor 100.0 1/4 J 01 R194 Carbon Resistor 100.0 1/4 J 01 R195 Carbon Resistor 47.0K 1/4 J 01 R201 Metal Film Resistor 16K 1/4 F R202 Carbon Resistor 15.0K 1/4 J 01 R203 Metal Film Resistor 15K 1/4 F 01 R204 Carbon Resistor 56.0K 1/4 J 01 R205 Carbon Resistor 12.0K 1/4 J 01 R206 Carbon Resistor 68.0 1/4 J 01 R207 Carbon Resistor 12.0K 1/4 J 01 R208 Carbon Resistor 56.0K 1/4 J 01 R209 Carbon Resistor 68.0 1/4 J 01 R210 Carbon Resistor 1.5K 1/4 J 01 R211 Carbon Resistor 27.0K 1/4 J 01 R212 Carbon Resistor 330.0 1/4 J 01 R213 Carbon Resistor 47.0K 1/4 J 01 R214 Metal Film Resistor 680.0 1/4 F 01 R215 Carbon Resistor 22.0K 1/4 J 01 R216 Carbon Resistor 390.0K 1/4 J 01 R217 Carbon Resistor 390.0K 1/4 J 01 R218 Carbon Resistor 82.0K 1/4 J 01 R219 Carbon Resistor 220.0 1/4 J 01 R220 Carbon Resistor 22.0K 1/4 J 01 R221 Carbon Resistor 330.0K 1/4 J 01 R222 Carbon Resistor 560.0 1/4 J 01 -224 Carbon Resistor 560.0 1/4 J 01 R225 Carbon Resistor 47.0K 1/4 J 01 VZ009100 VZ008800 VZ008800 V4833200 V4833200 VZ009100 VZ009100 VZ008800 VZ008800 V4833200 V4833200 VV058500 HF458150 HF456560 VZ008800 VZ008700 VZ008600 VV313600 VZ370200 VV313600 VV313600 VZ370200 VV276700 VV276700 VV313600 VV313600 VV313900 HF456560 VZ008800 VZ008700 VZ008600 VV313600 VV313600 VZ370200 VV313600 VZ370200 VV276700 VV276700 VV313600 VV313600 VV313900 VV313800 VV313800 HF455100 HF455100 HF457470 V2961300 HF457150 VZ009900 HF457560 HF457120 HF454680 HF457120 HF457560 HF454680 HF456150 HF457270 HF455330 HF457470 VV312800 HF457220 HF458390 HF458390 HF457820 HF455220 HF457220 HF458330 HF455560 HF455560 HF457470 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 10 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only R226 Carbon Resistor 330.0 1/4 J 01 R227 Metal Film Resistor 22K 1/4 F 01 R228 Carbon Resistor 330.0 1/4 J 01 R229 Carbon Resistor 220.0 1/4 J 01 R230 Carbon Resistor 220.0 1/4 J 01 R231 Carbon Resistor 47.0K 1/4 J 01 -234 Carbon Resistor 47.0K 1/4 J 01 R235 Carbon Resistor 560.0 1/4 J 01 R236 Carbon Resistor 560.0 1/4 J 01 R237 Carbon Resistor 12.0K 1/4 J 01 R238 Carbon Resistor 12.0K 1/4 J 01 R239 Flame Proof C. Resistor 220.0 1/4 J 01 R240 Flame Proof C. Resistor 220.0 1/4 J 01 R241 Flame Proof C. Resistor 330.0 1/4 J 01 R242 Flame Proof C. Resistor 330.0 1/4 J 01 R243 Flame Proof C. Resistor 100 1/4 J 01 -246 Flame Proof C. Resistor 100 1/4 J 01 R247 Flame Proof C. Resistor 33.0 1/4 J 01 R248 Flame Proof C. Resistor 33.0 1/4 J 01 R249 Flame Proof C. Resistor 22.0 1/4 J 01 R250 Flame Proof C. Resistor 22.0 1/4 J 01 R251 Cement Resistor 0.22 5W K 01 R252 Cement Resistor 0.22 5W K 01 R253 Flame Proof C. Resistor 33.0 1/4 J 01 R254 Flame Proof C. Resistor 33.0 1/4 J 01 R255 Flame Proof C. Resistor 22.0 1/4 J 01 R256 Flame Proof C. Resistor 22.0 1/4 J 01 R257 Cement Resistor 0.22 5W K 01 R258 Cement Resistor 0.22 5W K 01 R259 Flame Proof C. Resistor 10.0 1/4 J 01 R260 Carbon Resistor 150.0K 1/4 J 01 R261 Carbon Resistor 10.0K 1/4 J 01 R262 Carbon Resistor 10.0K 1/4 J 01 R263 Carbon Resistor 2.2K 1/4 J 01 R264 Carbon Resistor 12.0K 1/4 J 01 R265 Carbon Resistor 56.0K 1/4 J 01 R266 Carbon Resistor 10.0K 1/4 J 01 R267 Carbon Resistor 8.2K 1/4 J 01 R268 Carbon Resistor 5.6K 1/4 J 01 R269 Carbon Resistor 330.0 1/4 J 01 R270 Carbon Resistor 8.2K 1/4 J 01 R271 Carbon Resistor 8.2K 1/4 J 01 R272 Carbon Resistor 100.0 1/4 J 01 R273 Carbon Resistor 56.0K 1/4 J 01 R274 Carbon Resistor 10.0K 1/4 J 01 R275 Carbon Resistor 22.0K 1/4 J 01 R276 Carbon Resistor 15.0K 1/4 J 01 R293 Carbon Resistor 100.0 1/4 J 01 R294 Carbon Resistor 100.0 1/4 J 01 R295 Carbon Resistor 47.0K 1/4 J 01 R296 Carbon Resistor 10.0K 1/4 J 01 RY101 Relay DC OSA-SH-224DM3M 06 RY102 Relay DC OSA-SH-224DM3M 06 Circuit Board PWR2 1/3 J (V698350)(XZ657B0) Circuit Board PWR2 1/3 U (V698360)(XZ657B0) Circuit Board PWR2 1/3 H,A (V698370)(XZ657B0) Circuit Board PWR2 2/3 (V698350)(XZ657B0) Circuit Board PWR2 3/3 (V698350)(XZ657B0) Jumper Wire 0.60 (VV29140) 01 Fuse Holder CQ-05CT 01 Ferrite Core FR25/15/12-D40 03 Connector Assembly SGND (V676790) C301 Capacitor 0.1 275V UCS J C302 Capacitor 1000P 400V J.U.C.S J C303 Capacitor 3300P 400V J.U.C.S U C303 Capacitor 4700P 400V J.U.C.S H 01 C304 Capacitor 3300P 400V J.U.C.S U C304 Capacitor 4700P 400V J.U.C.S H 01 C305 Monolithic Capacitor 0.10 50V Z 01 HF455330 VV312900 HF455330 HF455220 HF455220 HF457470 HF457470 HF455560 HF455560 HF457120 HF457120 VV313800 VV313800 VZ009300 VZ009300 VV276800 VV276800 VZ009100 VZ009100 VZ008800 VZ008800 V4833200 V4833200 VZ009100 VZ009100 VZ008800 VZ008800 V4833200 V4833200 VV058500 HF458150 HF457100 HF457100 HF456220 HF457120 HF457560 HF457100 HF456820 HF456560 HF455330 HF456820 HF456820 HF455100 HF457560 HF457100 HF457220 HF457150 HF455100 HF455100 HF457470 HF457100 VV315400 VV315400 AAX24850 AAX24860 AAX24870 AAX24880 AAX24890 -- VV319600 V3225000 -- V0039700 V6113500 V6185400 VY704000 V6185400 VY704000 VZ354600 * * * * * * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 11 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only -308 Monolithic Capacitor 0.10 50V Z 01 C309 Ceramic Capacitor-B 100P 500 K 01 C310 Ceramic Capacitor-SL 100P 50V J 01 C311 Ceramic Capacitor-SL 100P 50V J 01 C312 Electrolytic Cap. 6800 100V 08 C313 Electrolytic Cap. 6800 100V 08 CN301 Base Post 3P SE 01 CN302 AC Inlet HF-301L E301 Terminal Plate 01 F301 Fuse 15.00A U J 04 F301 Fuse 12.00A UL U 04 F301 Fuse T 6.30A S H 02 J301 Jumper Wire 0.60 (VV29140) 01 J302 Jumper Wire 0.60 (VV29140) 01 JK301 Phone Connector H30280072N SPEAKERS(R/MONO1,2, 02 -305 Phone Connector H30280072N BRIDGE,L/MONO1.2) 02 R301 Flame Proof C. Resistor 10.0 1/4 J 01 R302 Flame Proof C. Resistor 10.0 1/4 J 01 R303 Carbon Resistor 150.0K 1/4 J 01 R304 Carbon Resistor 150.0K 1/4 J 01 SW301 Push Switch SDDFA3107U-YL UCS POWER Switch 05 W301 Connector Assembly B&C #18 4P (V702070) W302 Connector Assembly B&C #18 3P (V702080) Circuit Board DSP J (XZ633B0) C101 Ceramic Capacitor (chip) 0.0100 50V K -110 Ceramic Capacitor (chip) 0.0100 50V K C111 Ceramic Capacitor (chip) 0.1000 50V Z C112 Electrolytic Cap. 10.00 63.0V 01 C113 Ceramic Capacitor (chip) 0.1000 50V Z C114 Ceramic Capacitor (chip) 0.1000 50V Z C115 Electrolytic Cap. 10.00 63.0V 01 C116 Electrolytic Cap. 47.00 35.0V 01 C117 Electrolytic Cap. 47.00 35.0V 01 C118 Mylar Capacitor 820P 50V J 01 C119 Mylar Capacitor 820P 50V J 01 C120 Ceramic Capacitor (chip) 100P 50V J C121 Ceramic Capacitor (chip) 100P 50V J C122 Electrolytic Cap. 10.00 63.0V 01 -124 Electrolytic Cap. 10.00 63.0V 01 C125 Mylar Capacitor 8200P 50V J C126 Mylar Capacitor 8200P 50V J C127 Mylar Capacitor 2700P 50V J 01 C128 Electrolytic Cap. 10.00 63.0V 01 C129 Electrolytic Cap. 10.00 63.0V 01 C130 Ceramic Capacitor (chip) 0.1000 50V Z -132 Ceramic Capacitor (chip) 0.1000 50V Z C133 Electrolytic Cap. 10.00 63.0V 01 -136 Electrolytic Cap. 10.00 63.0V 01 C137 Ceramic Capacitor (chip) 470P 50V J C138 Ceramic Capacitor (chip) 470P 50V J C139 Electrolytic Cap. 10.00 63.0V 01 C140 Ceramic Capacitor (chip) 0.1000 50V Z C141 Ceramic Capacitor (chip) 0.1000 50V Z C142 Electrolytic Cap. 10.00 63.0V 01 C143 Ceramic Capacitor (chip) 0.1000 50V Z -146 Ceramic Capacitor (chip) 0.1000 50V Z C147 Electrolytic Cap. 10.00 63.0V 01 C148 Ceramic Capacitor (chip) 0.1000 50V Z C149 Electrolytic Cap. 100.00 16.0V 01 C150 Electrolytic Cap. 22.00 25.0V 01 C151 Ceramic Capacitor (chip) 0.1000 50V Z C152 Ceramic Capacitor (chip) 0.1000 50V Z C153 Electrolytic Cap. 47.00 35.0V 01 C154 Electrolytic Cap. 10.00 63.0V 01 CN101 Base Post 13P TE CN102 Base Post 3P TE 01 D101 Diode 1SS355 TE-17 01 EM101 Ferrite Bead BL02RN2-R62T4 02 -107 Ferrite Bead BL02RN2-R62T4 02 VZ354600 V3280500 VZ353500 VZ353500 VY897000 VY897000 LB933030 V5817000 VV075700 KB001380 KB001540 KB003360 -- -- VV089300 VV089300 VV058500 VV058500 HF458150 HF458150 VY898100 -- -- V6983200 UX064100 UX064100 UY065100 UR877100 UY065100 UY065100 UR877100 UR857470 UR857470 VV190000 VV190000 UX062100 UX062100 UR877100 UR877100 UA953820 UA953820 UA953270 UR877100 UR877100 UY065100 UY065100 UR877100 UR877100 UX062470 UX062470 UR877100 UY065100 UY065100 UR877100 UY065100 UY065100 UR877100 UY065100 UR838100 UR847220 UY065100 UY065100 UR857470 UR877100 VV067300 VV066300 VT332900 GE300670 GE300670 * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 12 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only EM108 Noise Filter ZJSR5101-223TA 01 -111 Noise Filter ZJSR5101-223TA 01 IC101 IC 74HCU04DT INVERTER 01 IC102 IC UPD78082 MCU 05 IC103 IC NJM4558MT-1 OP AMP 03 IC104 IC PCM3001E/2K ADA IC105 IC ZFX-2 ZFX-2 13 IC106 IC SDM4260CLTM-6S 4M DRAM 08 IC107 IC NJM7805FA REGULATOR 5V 02 Q101 Transistor 2SC2412K Q,R,S 01 Q102 Digital Transistor DTC114EKA TP 01 Q103 Transistor 2SC2412K Q,R,S 01 Q104 Digital Transistor DTA114EKA TP 01 Q105 Digital Transistor DTA114EKA TP 01 Q106 Digital Transistor DTC114EKA TP 01 Q107 Transistor 2SC2412K Q,R,S 01 Q108 Transistor 2SC2412K Q,R,S 01 R101 Carbon Resistor (chip) 100 0.1 J -105 Carbon Resistor (chip) 100 0.1 J R106 Carbon Resistor (chip) 10 0.1 J -108 Carbon Resistor (chip) 10 0.1 J R109 Carbon Resistor (chip) 100 0.1 J R110 Carbon Resistor (chip) 100 0.1 J R111 Carbon Resistor (chip) 10K 0.1 J -113 Carbon Resistor (chip) 10K 0.1 J R114 Carbon Resistor (chip) 100 0.1 J -116 Carbon Resistor (chip) 100 0.1 J R117 Carbon Resistor (chip) 1.0M 0.1 J R118 Carbon Resistor (chip) 10K 0.1 J R119 Carbon Resistor (chip) 1.0K 0.1 J R120 Carbon Resistor (chip) 220 0.1 J R121 Carbon Resistor (chip) 100 0.1 J R122 Carbon Resistor (chip) 22K 0.1 J R123 Carbon Resistor (chip) 1.0M 0.1 J R124 Carbon Resistor (chip) 1.0K 0.1 J R125 Carbon Resistor (chip) 27K 0.1 J R126 Carbon Resistor (chip) 10K 0.1 J R127 Carbon Resistor (chip) 10K 0.1 J R128 Carbon Resistor (chip) 100K 0.1 J -131 Carbon Resistor (chip) 100K 0.1 J R132 Carbon Resistor (chip) 1.0K 0.1 J R133 Carbon Resistor (chip) 1.0K 0.1 J R134 Carbon Resistor (chip) 68K 0.1 J R135 Carbon Resistor (chip) 68K 0.1 J R136 Carbon Resistor (chip) 22K 0.1 J R137 Carbon Resistor (chip) 22K 0.1 J R138 Carbon Resistor (chip) 9.1K 0.1 J R139 Carbon Resistor (chip) 9.1K 0.1 J R140 Carbon Resistor (chip) 3.0K 0.1 J R141 Carbon Resistor (chip) 30K 0.1 J R142 Carbon Resistor (chip) 1.3K 0.1 J R143 Carbon Resistor (chip) 1.3K 0.1 J R144 Carbon Resistor (chip) 1.0M 0.1 J R145 Flame Proof C. Resistor 2.2 1/4 J 01 R146 Carbon Resistor (chip) 1.0K 0.1 J R147 Flame Proof C. Resistor 2.2 1/4 J 01 R148 Flame Proof C. Resistor 2.2 1/4 J 01 RA101 Resistor Array RA1/8 9A 223J RA102 Resistor Array RA1/8 7A 223J TP101 Base Post 2P TE 01 X101 Ceramic Resonator 0.1% 4.0MHZ 02 Circuit Board MAIN J (XT783H0) LED Spacer 01 Push Switch CD-GRAY/WHITE PFL(CH1-12,ST SUB1,2, 01 TAPE IN ST),AFL(MONI1,2, EFFECT,ST1,MONO),G.EQ ON, PROGRAM ON,CH9-12(A,B) Style Pin IMSA-6024 01 C101 Electrolytic Cap. 47.00 50.0V 01 VV056900 VV056900 XZ110A00 XZ312A00 IG103520 X0053A00 XY297A00 XW125A00 XJ607A00 VV556400 VV655400 VV556400 VV655000 VV655000 VV655400 VV556400 VV556400 RG005100 RG005100 RG004100 RG004100 RG005100 RG005100 RG007100 RG007100 RG005100 RG005100 RG009100 RG007100 RG006100 RG005220 RG005100 RG007220 RG009100 RG006100 RG007270 RG007100 RG007100 RG008100 RG008100 RG006100 RG006100 RG007680 RG007680 RG007220 RG007220 RG006910 RG006910 RG006300 RG007300 RG006130 RG006130 RG009100 VV313600 RG006100 VV313600 VV313600 V6338000 V6338100 VV066200 VD827600 V6983100 VV307300 V4467500 VB966900 UR867470 * * * * * * * * * * * * * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 13 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C102 Electrolytic Cap.-LLM 10.00 50.0V 01 C103 Electrolytic Cap.-LLM 10.00 50.0V 01 C104 Electrolytic Cap. 10.00 63.0V 01 C105 Electrolytic Cap. 10.00 63.0V 01 C106 Ceramic Capacitor-B 470P 50V K 01 C107 Ceramic Capacitor-B 470P 50V K 01 C108 Ceramic Capacitor-B 220P 50V K 01 C109 Ceramic Capacitor-B 220P 50V K 01 C110 Electrolytic Cap. 470.00 10.0V 01 C111 Ceramic Capacitor-SL 10P 50V J 01 C112 Ceramic Capacitor-SL 10P 50V J 01 C113 Ceramic Capacitor-B 470P 50V K 01 C114 Ceramic Capacitor-SL 33P 50V J 01 C115 Electrolytic Cap. 10.00 63.0V 01 C116 Mylar Capacitor 0.0150 50V J 01 C117 Mylar Capacitor 0.010 50V J 01 C118 Mylar Capacitor 0.012 50V J 01 C119 Mylar Capacitor 3900P 50V J 01 C120 Ceramic Capacitor-SL 100P 50V J 01 C121 Ceramic Capacitor-SL 27P 50V J 01 C122 Electrolytic Cap. 47.00 35.0V 01 C123 Electrolytic Cap. 10.00 63.0V 01 C124 Ceramic Capacitor-SL 100P 50V J 01 C125 Ceramic Capacitor-SL 100P 50V J 01 C126 Electrolytic Cap. 47.00 35.0V 01 C127 Electrolytic Cap. 4.70 50.0V 01 C128 Mylar Capacitor 0.0470 50V J 01 C129 Ceramic Capacitor-F 0.0100 50V Z 01 -132 Ceramic Capacitor-F 0.0100 50V Z 01 C133 Ceramic Capacitor-B 1000P 50V K 01 C134 Ceramic Capacitor-F 0.0100 50V Z 01 C135 Ceramic Capacitor-F 0.0100 50V Z 01 C136 Electrolytic Cap. 10.00 63.0V 01 C137 Ceramic Capacitor-SL 100P 50V J 01 -139 Ceramic Capacitor-SL 100P 50V J 01 C140 Electrolytic Cap. 47.00 35.0V 01 C141 Ceramic Capacitor-F 0.0100 50V Z 01 C142 Ceramic Capacitor-F 0.0100 50V Z 01 C201 Electrolytic Cap. 47.00 50.0V 01 C202 Electrolytic Cap.-LLM 10.00 50.0V 01 C203 Electrolytic Cap.-LLM 10.00 50.0V 01 C204 Electrolytic Cap. 10.00 63.0V 01 C205 Electrolytic Cap. 10.00 63.0V 01 C206 Ceramic Capacitor-B 470P 50V K 01 C207 Ceramic Capacitor-B 470P 50V K 01 C208 Ceramic Capacitor-B 220P 50V K 01 C209 Ceramic Capacitor-B 220P 50V K 01 C210 Electrolytic Cap. 470.00 10.0V 01 C211 Ceramic Capacitor-SL 10P 50V J 01 C212 Ceramic Capacitor-SL 10P 50V J 01 C213 Ceramic Capacitor-B 470P 50V K 01 C214 Ceramic Capacitor-SL 33P 50V J 01 C215 Electrolytic Cap. 10.00 63.0V 01 C216 Mylar Capacitor 0.0150 50V J 01 C217 Mylar Capacitor 0.010 50V J 01 C218 Mylar Capacitor 0.012 50V J 01 C219 Mylar Capacitor 3900P 50V J 01 C220 Ceramic Capacitor-SL 100P 50V J 01 C221 Ceramic Capacitor-SL 27P 50V J 01 C222 Electrolytic Cap. 47.00 35.0V 01 C223 Electrolytic Cap. 10.00 63.0V 01 C224 Ceramic Capacitor-SL 100P 50V J 01 C225 Ceramic Capacitor-SL 100P 50V J 01 C226 Electrolytic Cap. 47.00 35.0V 01 C227 Electrolytic Cap. 4.70 50.0V 01 C228 Mylar Capacitor 0.0470 50V J 01 C229 Ceramic Capacitor-F 0.0100 50V Z 01 C230 Ceramic Capacitor-F 0.0100 50V Z 01 C231 Electrolytic Cap. 10.00 63.0V 01 C232 Ceramic Capacitor-SL 100P 50V J 01 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 UR877100 VZ353500 VZ353500 UR857470 VZ354000 VZ354000 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 VZ354000 UR877100 VZ353500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 14 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only -234 Ceramic Capacitor-SL 100P 50V J 01 C235 Electrolytic Cap. 47.00 35.0V 01 C301 Electrolytic Cap. 47.00 50.0V 01 C302 Electrolytic Cap.-LLM 10.00 50.0V 01 C303 Electrolytic Cap.-LLM 10.00 50.0V 01 C304 Electrolytic Cap. 10.00 63.0V 01 C305 Electrolytic Cap. 10.00 63.0V 01 C306 Ceramic Capacitor-B 470P 50V K 01 C307 Ceramic Capacitor-B 470P 50V K 01 C308 Ceramic Capacitor-B 220P 50V K 01 C309 Ceramic Capacitor-B 220P 50V K 01 C310 Electrolytic Cap. 470.00 10.0V 01 C311 Ceramic Capacitor-SL 10P 50V J 01 C312 Ceramic Capacitor-SL 10P 50V J 01 C313 Ceramic Capacitor-B 470P 50V K 01 C314 Ceramic Capacitor-SL 33P 50V J 01 C315 Electrolytic Cap. 10.00 63.0V 01 C316 Mylar Capacitor 0.0150 50V J 01 C317 Mylar Capacitor 0.010 50V J 01 C318 Mylar Capacitor 0.012 50V J 01 C319 Mylar Capacitor 3900P 50V J 01 C320 Ceramic Capacitor-SL 100P 50V J 01 C321 Ceramic Capacitor-SL 27P 50V J 01 C322 Electrolytic Cap. 47.00 35.0V 01 C323 Electrolytic Cap. 10.00 63.0V 01 C324 Ceramic Capacitor-SL 100P 50V J 01 C325 Ceramic Capacitor-SL 100P 50V J 01 C326 Electrolytic Cap. 47.00 35.0V 01 C327 Electrolytic Cap. 4.70 50.0V 01 C328 Mylar Capacitor 0.0470 50V J 01 C329 Ceramic Capacitor-F 0.0100 50V Z 01 -332 Ceramic Capacitor-F 0.0100 50V Z 01 C333 Ceramic Capacitor-B 1000P 50V K 01 C334 Ceramic Capacitor-F 0.0100 50V Z 01 C335 Ceramic Capacitor-F 0.0100 50V Z 01 C336 Electrolytic Cap. 10.00 63.0V 01 C337 Ceramic Capacitor-SL 100P 50V J 01 -339 Ceramic Capacitor-SL 100P 50V J 01 C340 Electrolytic Cap. 47.00 35.0V 01 C341 Ceramic Capacitor-F 0.0100 50V Z 01 C342 Ceramic Capacitor-F 0.0100 50V Z 01 C401 Electrolytic Cap. 47.00 50.0V 01 C402 Electrolytic Cap.-LLM 10.00 50.0V 01 C403 Electrolytic Cap.-LLM 10.00 50.0V 01 C404 Electrolytic Cap. 10.00 63.0V 01 C405 Electrolytic Cap. 10.00 63.0V 01 C406 Ceramic Capacitor-B 470P 50V K 01 C407 Ceramic Capacitor-B 470P 50V K 01 C408 Ceramic Capacitor-B 220P 50V K 01 C409 Ceramic Capacitor-B 220P 50V K 01 C410 Electrolytic Cap. 470.00 10.0V 01 C411 Ceramic Capacitor-SL 10P 50V J 01 C412 Ceramic Capacitor-SL 10P 50V J 01 C413 Ceramic Capacitor-B 470P 50V K 01 C414 Ceramic Capacitor-SL 33P 50V J 01 C415 Electrolytic Cap. 10.00 63.0V 01 C416 Mylar Capacitor 0.0150 50V J 01 C417 Mylar Capacitor 0.010 50V J 01 C418 Mylar Capacitor 0.012 50V J 01 C419 Mylar Capacitor 3900P 50V J 01 C420 Ceramic Capacitor-SL 100P 50V J 01 C421 Ceramic Capacitor-SL 27P 50V J 01 C422 Electrolytic Cap. 47.00 35.0V 01 C423 Electrolytic Cap. 10.00 63.0V 01 C424 Ceramic Capacitor-SL 100P 50V J 01 C425 Ceramic Capacitor-SL 100P 50V J 01 C426 Electrolytic Cap. 47.00 35.0V 01 C427 Electrolytic Cap. 4.70 50.0V 01 C428 Mylar Capacitor 0.0470 50V J 01 C429 Ceramic Capacitor-F 0.0100 50V Z 01 VZ353500 UR857470 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 UR877100 VZ353500 VZ353500 UR857470 VZ354000 VZ354000 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 15 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C430 Ceramic Capacitor-F 0.0100 50V Z 01 C431 Electrolytic Cap. 10.00 63.0V 01 C432 Ceramic Capacitor-SL 100P 50V J 01 -434 Ceramic Capacitor-SL 100P 50V J 01 C435 Electrolytic Cap. 47.00 35.0V 01 C501 Electrolytic Cap. 47.00 50.0V 01 C502 Electrolytic Cap.-LLM 10.00 50.0V 01 C503 Electrolytic Cap.-LLM 10.00 50.0V 01 C504 Electrolytic Cap. 10.00 63.0V 01 C505 Electrolytic Cap. 10.00 63.0V 01 C506 Ceramic Capacitor-B 470P 50V K 01 C507 Ceramic Capacitor-B 470P 50V K 01 C508 Ceramic Capacitor-B 220P 50V K 01 C509 Ceramic Capacitor-B 220P 50V K 01 C510 Electrolytic Cap. 470.00 10.0V 01 C511 Ceramic Capacitor-SL 10P 50V J 01 C512 Ceramic Capacitor-SL 10P 50V J 01 C513 Ceramic Capacitor-B 470P 50V K 01 C514 Ceramic Capacitor-SL 33P 50V J 01 C515 Electrolytic Cap. 10.00 63.0V 01 C516 Mylar Capacitor 0.0150 50V J 01 C517 Mylar Capacitor 0.010 50V J 01 C518 Mylar Capacitor 0.012 50V J 01 C519 Mylar Capacitor 3900P 50V J 01 C520 Ceramic Capacitor-SL 100P 50V J 01 C521 Ceramic Capacitor-SL 27P 50V J 01 C522 Electrolytic Cap. 47.00 35.0V 01 C523 Electrolytic Cap. 10.00 63.0V 01 C524 Ceramic Capacitor-SL 100P 50V J 01 C525 Ceramic Capacitor-SL 100P 50V J 01 C526 Electrolytic Cap. 47.00 35.0V 01 C527 Electrolytic Cap. 4.70 50.0V 01 C528 Mylar Capacitor 0.0470 50V J 01 C529 Ceramic Capacitor-F 0.0100 50V Z 01 -532 Ceramic Capacitor-F 0.0100 50V Z 01 C533 Ceramic Capacitor-B 1000P 50V K 01 C534 Ceramic Capacitor-F 0.0100 50V Z 01 C535 Ceramic Capacitor-F 0.0100 50V Z 01 C537 Ceramic Capacitor-SL 100P 50V J 01 -539 Ceramic Capacitor-SL 100P 50V J 01 C540 Electrolytic Cap. 47.00 35.0V 01 C541 Ceramic Capacitor-F 0.0100 50V Z 01 C542 Ceramic Capacitor-F 0.0100 50V Z 01 C601 Electrolytic Cap. 47.00 50.0V 01 C602 Electrolytic Cap.-LLM 10.00 50.0V 01 C603 Electrolytic Cap.-LLM 10.00 50.0V 01 C604 Electrolytic Cap. 10.00 63.0V 01 C605 Electrolytic Cap. 10.00 63.0V 01 C606 Ceramic Capacitor-B 470P 50V K 01 C607 Ceramic Capacitor-B 470P 50V K 01 C608 Ceramic Capacitor-B 220P 50V K 01 C609 Ceramic Capacitor-B 220P 50V K 01 C610 Electrolytic Cap. 470.00 10.0V 01 C611 Ceramic Capacitor-SL 10P 50V J 01 C612 Ceramic Capacitor-SL 10P 50V J 01 C613 Ceramic Capacitor-B 470P 50V K 01 C614 Ceramic Capacitor-SL 33P 50V J 01 C615 Electrolytic Cap. 10.00 63.0V 01 C616 Mylar Capacitor 0.0150 50V J 01 C617 Mylar Capacitor 0.010 50V J 01 C618 Mylar Capacitor 0.012 50V J 01 C619 Mylar Capacitor 3900P 50V J 01 C620 Ceramic Capacitor-SL 100P 50V J 01 C621 Ceramic Capacitor-SL 27P 50V J 01 C622 Electrolytic Cap. 47.00 35.0V 01 C623 Electrolytic Cap. 10.00 63.0V 01 C624 Ceramic Capacitor-SL 100P 50V J 01 C625 Ceramic Capacitor-SL 100P 50V J 01 C626 Electrolytic Cap. 47.00 35.0V 01 C627 Electrolytic Cap. 4.70 50.0V 01 VZ354000 UR877100 VZ353500 VZ353500 UR857470 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 VZ353500 VZ353500 UR857470 VZ354000 VZ354000 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 16 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C628 Mylar Capacitor 0.0470 50V J 01 C629 Ceramic Capacitor-F 0.0100 50V Z 01 C630 Ceramic Capacitor-F 0.0100 50V Z 01 C632 Ceramic Capacitor-SL 100P 50V J 01 -634 Ceramic Capacitor-SL 100P 50V J 01 C635 Electrolytic Cap. 47.00 35.0V 01 C701 Electrolytic Cap. 47.00 50.0V 01 C702 Electrolytic Cap.-LLM 10.00 50.0V 01 C703 Electrolytic Cap.-LLM 10.00 50.0V 01 C704 Electrolytic Cap. 10.00 63.0V 01 C705 Electrolytic Cap. 10.00 63.0V 01 C706 Ceramic Capacitor-B 470P 50V K 01 C707 Ceramic Capacitor-B 470P 50V K 01 C708 Ceramic Capacitor-B 220P 50V K 01 C709 Ceramic Capacitor-B 220P 50V K 01 C710 Electrolytic Cap. 470.00 10.0V 01 C711 Ceramic Capacitor-SL 10P 50V J 01 C712 Ceramic Capacitor-SL 10P 50V J 01 C713 Ceramic Capacitor-B 470P 50V K 01 C714 Ceramic Capacitor-SL 33P 50V J 01 C715 Electrolytic Cap. 10.00 63.0V 01 C716 Mylar Capacitor 0.0150 50V J 01 C717 Mylar Capacitor 0.010 50V J 01 C718 Mylar Capacitor 0.012 50V J 01 C719 Mylar Capacitor 3900P 50V J 01 C720 Ceramic Capacitor-SL 100P 50V J 01 C721 Ceramic Capacitor-SL 27P 50V J 01 C722 Electrolytic Cap. 47.00 35.0V 01 C723 Electrolytic Cap. 10.00 63.0V 01 C724 Ceramic Capacitor-SL 100P 50V J 01 C725 Ceramic Capacitor-SL 100P 50V J 01 C726 Electrolytic Cap. 47.00 35.0V 01 C727 Electrolytic Cap. 4.70 50.0V 01 C728 Mylar Capacitor 0.0470 50V J 01 C729 Ceramic Capacitor-F 0.0100 50V Z 01 -732 Ceramic Capacitor-F 0.0100 50V Z 01 C733 Ceramic Capacitor-B 1000P 50V K 01 C734 Ceramic Capacitor-F 0.0100 50V Z 01 C735 Ceramic Capacitor-F 0.0100 50V Z 01 C737 Ceramic Capacitor-SL 100P 50V J 01 -739 Ceramic Capacitor-SL 100P 50V J 01 C740 Electrolytic Cap. 47.00 35.0V 01 C741 Ceramic Capacitor-F 0.0100 50V Z 01 C742 Ceramic Capacitor-F 0.0100 50V Z 01 C801 Electrolytic Cap. 47.00 50.0V 01 C802 Electrolytic Cap.-LLM 10.00 50.0V 01 C803 Electrolytic Cap.-LLM 10.00 50.0V 01 C804 Electrolytic Cap. 10.00 63.0V 01 C805 Electrolytic Cap. 10.00 63.0V 01 C806 Ceramic Capacitor-B 470P 50V K 01 C807 Ceramic Capacitor-B 470P 50V K 01 C808 Ceramic Capacitor-B 220P 50V K 01 C809 Ceramic Capacitor-B 220P 50V K 01 C810 Electrolytic Cap. 470.00 10.0V 01 C811 Ceramic Capacitor-SL 10P 50V J 01 C812 Ceramic Capacitor-SL 10P 50V J 01 C813 Ceramic Capacitor-B 470P 50V K 01 C814 Ceramic Capacitor-SL 33P 50V J 01 C815 Electrolytic Cap. 10.00 63.0V 01 C816 Mylar Capacitor 0.0150 50V J 01 C817 Mylar Capacitor 0.010 50V J 01 C818 Mylar Capacitor 0.012 50V J 01 C819 Mylar Capacitor 3900P 50V J 01 C820 Ceramic Capacitor-SL 100P 50V J 01 C821 Ceramic Capacitor-SL 27P 50V J 01 C822 Electrolytic Cap. 47.00 35.0V 01 C823 Electrolytic Cap. 10.00 63.0V 01 C824 Ceramic Capacitor-SL 100P 50V J 01 C825 Ceramic Capacitor-SL 100P 50V J 01 C826 Electrolytic Cap. 47.00 35.0V 01 UA954470 VZ354000 VZ354000 VZ353500 VZ353500 UR857470 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR866470 UA954470 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 VZ353500 VZ353500 UR857470 VZ354000 VZ354000 UR867470 VV488800 VV488800 UR877100 UR877100 VZ353800 VZ353800 VZ353600 VZ353600 UR828470 VZ352700 VZ352700 VZ353800 VZ353000 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 17 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only C827 Electrolytic Cap. 4.70 50.0V 01 C828 Mylar Capacitor 0.0470 50V J 01 C829 Ceramic Capacitor-F 0.0100 50V Z 01 C830 Ceramic Capacitor-F 0.0100 50V Z 01 C832 Ceramic Capacitor-SL 100P 50V J 01 -834 Ceramic Capacitor-SL 100P 50V J 01 C835 Electrolytic Cap. 47.00 35.0V 01 C901 Electrolytic Cap. 10.00 63.0V 01 C902 Ceramic Capacitor-B 330P 50V K 01 C903 Ceramic Capacitor-SL 100P 50V J 01 C904 Electrolytic Cap. 470.00 10.0V 01 C905 Ceramic Capacitor-B 330P 50V K 01 C906 Ceramic Capacitor-SL 47P 50V J 01 C907 Electrolytic Cap. 10.00 63.0V 01 C908 Mylar Capacitor 0.0150 50V J 01 C909 Mylar Capacitor 0.010 50V J 01 C910 Mylar Capacitor 0.012 50V J 01 C911 Mylar Capacitor 3900P 50V J 01 C912 Ceramic Capacitor-SL 100P 50V J 01 C913 Ceramic Capacitor-SL 27P 50V J 01 C914 Electrolytic Cap. 47.00 35.0V 01 C915 Electrolytic Cap. 10.00 63.0V 01 C916 Ceramic Capacitor-SL 100P 50V J 01 C917 Ceramic Capacitor-SL 100P 50V J 01 C918 Electrolytic Cap. 47.00 35.0V 01 C920 Mylar Capacitor 0.0470 50V J 01 C921 Ceramic Capacitor-F 0.0100 50V Z 01 -926 Ceramic Capacitor-F 0.0100 50V Z 01 C927 Ceramic Capacitor-B 1000P 50V K 01 C928 Ceramic Capacitor-F 0.0100 50V Z 01 C929 Ceramic Capacitor-F 0.0100 50V Z 01 CA01 Electrolytic Cap. 10.00 63.0V 01 CA02 Ceramic Capacitor-B 330P 50V K 01 CA03 Ceramic Capacitor-SL 100P 50V J 01 CA04 Electrolytic Cap. 470.00 10.0V 01 CA05 Ceramic Capacitor-B 330P 50V K 01 CA06 Ceramic Capacitor-SL 47P 50V J 01 CA07 Electrolytic Cap. 10.00 63.0V 01 CA08 Mylar Capacitor 0.0150 50V J 01 CA09 Mylar Capacitor 0.010 50V J 01 CA10 Mylar Capacitor 0.012 50V J 01 CA11 Mylar Capacitor 3900P 50V J 01 CA12 Ceramic Capacitor-SL 100P 50V J 01 CA13 Ceramic Capacitor-SL 27P 50V J 01 CA14 Electrolytic Cap. 47.00 35.0V 01 CA15 Electrolytic Cap. 10.00 63.0V 01 CA16 Ceramic Capacitor-SL 100P 50V J 01 CA17 Ceramic Capacitor-SL 100P 50V J 01 CA18 Electrolytic Cap. 47.00 35.0V 01 CB01 Electrolytic Cap. 10.00 63.0V 01 CB02 Ceramic Capacitor-B 330P 50V K 01 CB03 Ceramic Capacitor-SL 100P 50V J 01 CB04 Electrolytic Cap. 470.00 10.0V 01 CB05 Ceramic Capacitor-B 330P 50V K 01 CB06 Ceramic Capacitor-SL 47P 50V J 01 CB07 Electrolytic Cap. 10.00 63.0V 01 CB08 Mylar Capacitor 0.0150 50V J 01 CB09 Mylar Capacitor 0.010 50V J 01 CB10 Mylar Capacitor 0.012 50V J 01 CB11 Mylar Capacitor 3900P 50V J 01 CB12 Ceramic Capacitor-SL 100P 50V J 01 CB13 Ceramic Capacitor-SL 27P 50V J 01 CB14 Electrolytic Cap. 47.00 35.0V 01 CB15 Electrolytic Cap. 10.00 63.0V 01 CB16 Ceramic Capacitor-SL 100P 50V J 01 CB17 Ceramic Capacitor-SL 100P 50V J 01 CB18 Electrolytic Cap. 47.00 35.0V 01 CB20 Mylar Capacitor 0.0470 50V J 01 CB21 Ceramic Capacitor-F 0.0100 50V Z 01 -26 Ceramic Capacitor-F 0.0100 50V Z 01 UR866470 UA954470 VZ354000 VZ354000 VZ353500 VZ353500 UR857470 UR877100 VZ353700 VZ353500 UR828470 VZ353700 VZ353200 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UA954470 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 UR877100 VZ353700 VZ353500 UR828470 VZ353700 VZ353200 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR877100 VZ353700 VZ353500 UR828470 VZ353700 VZ353200 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UA954470 VZ354000 VZ354000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 18 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only CB27 Ceramic Capacitor-B 1000P 50V K 01 CB28 Ceramic Capacitor-F 0.0100 50V Z 01 CB29 Ceramic Capacitor-F 0.0100 50V Z 01 CC01 Electrolytic Cap. 10.00 63.0V 01 CC02 Ceramic Capacitor-B 330P 50V K 01 CC03 Ceramic Capacitor-SL 100P 50V J 01 CC04 Electrolytic Cap. 470.00 10.0V 01 CC05 Ceramic Capacitor-B 330P 50V K 01 CC06 Ceramic Capacitor-SL 47P 50V J 01 CC07 Electrolytic Cap. 10.00 63.0V 01 CC08 Mylar Capacitor 0.0150 50V J 01 CC09 Mylar Capacitor 0.010 50V J 01 CC10 Mylar Capacitor 0.012 50V J 01 CC11 Mylar Capacitor 3900P 50V J 01 CC12 Ceramic Capacitor-SL 100P 50V J 01 CC13 Ceramic Capacitor-SL 27P 50V J 01 CC14 Electrolytic Cap. 47.00 35.0V 01 CC15 Electrolytic Cap. 10.00 63.0V 01 CC16 Ceramic Capacitor-SL 100P 50V J 01 CC17 Ceramic Capacitor-SL 100P 50V J 01 CC18 Electrolytic Cap. 47.00 35.0V 01 CD01 Electrolytic Cap. 10.00 63.0V 01 -04 Electrolytic Cap. 10.00 63.0V 01 CD05 Ceramic Capacitor-SL 100P 50V J 01 -12 Ceramic Capacitor-SL 100P 50V J 01 CD13 Electrolytic Cap. 47.00 35.0V 01 -16 Electrolytic Cap. 47.00 35.0V 01 CD17 Ceramic Capacitor-F 0.0100 50V Z 01 -20 Ceramic Capacitor-F 0.0100 50V Z 01 CD23 Electrolytic Cap. 10.00 63.0V 01 CD24 Electrolytic Cap. 10.00 63.0V 01 CD25 Ceramic Capacitor-SL 100P 50V J 01 -28 Ceramic Capacitor-SL 100P 50V J 01 CD29 Ceramic Capacitor-SL 68P 50V J 01 CD30 Ceramic Capacitor-SL 68P 50V J 01 CD31 Electrolytic Cap. 10.00 63.0V 01 CD32 Electrolytic Cap. 10.00 63.0V 01 CD33 Ceramic Capacitor-F 0.0100 50V Z 01 CD34 Ceramic Capacitor-F 0.0100 50V Z 01 CE01 Ceramic Capacitor-B 220P 50V K 01 CE02 Ceramic Capacitor-SL 47P 50V J 01 CE03 Ceramic Capacitor-SL 100P 50V J 01 CE04 Ceramic Capacitor-SL 68P 50V J 01 CE05 Electrolytic Cap. 47.00 35.0V 01 CE06 Mylar Capacitor 0.8200 50V J 01 CE07 Mylar Capacitor 0.0820 50V J 01 CE08 Mylar Capacitor 0.4700 50V J 01 CE09 Mylar Capacitor 0.0390 50V J 01 CE10 Mylar Capacitor 0.2200 50V J 01 CE11 Mylar Capacitor 0.0180 50V J 01 CE12 Mylar Capacitor 0.1 50V J CE13 Mylar Capacitor 0.010 50V J 01 CE14 Mylar Capacitor 0.0470 50V J 01 CE15 Mylar Capacitor 4700P 50V J 01 CE16 Mylar Capacitor 0.0270 50V J 01 CE17 Mylar Capacitor 2200P 50V J 01 CE18 Mylar Capacitor 0.012 50V J 01 CE19 Mylar Capacitor 1200P 50V J 01 CE20 Ceramic Capacitor-B 220P 50V K 01 CE21 Electrolytic Cap. 47.00 35.0V 01 CE22 Electrolytic Cap. 10.00 63.0V 01 CE23 Ceramic Capacitor-SL 100P 50V J 01 CE24 Ceramic Capacitor-SL 100P 50V J 01 CE25 Ceramic Capacitor-SL 68P 50V J 01 CE26 Electrolytic Cap. 100.00 16.0V 01 CE27 Electrolytic Cap. 10.00 63.0V 01 CE28 Ceramic Capacitor-SL 100P 50V J 01 CE29 Ceramic Capacitor-SL 100P 50V J 01 CE30 Ceramic Capacitor-SL 68P 50V J 01 CE31 Electrolytic Cap. 100.00 16.0V 01 VZ353900 VZ354000 VZ354000 UR877100 VZ353700 VZ353500 UR828470 VZ353700 VZ353200 UR877100 UA954150 VV061400 VV061500 UA953390 VZ353500 VZ352900 UR857470 UR877100 VZ353500 VZ353500 UR857470 UR877100 UR877100 VZ353500 VZ353500 UR857470 UR857470 VZ354000 VZ354000 UR877100 UR877100 VZ353500 VZ353500 VZ353400 VZ353400 UR877100 UR877100 VZ354000 VZ354000 VZ353600 VZ353200 VZ353500 VZ353400 UR857470 UA655820 UA954820 UA655470 UA954390 UA655220 UA954180 V5868900 VV061400 UA954470 UA953470 UA954270 UA953220 VV061500 UA953120 VZ353600 UR857470 UR877100 VZ353500 VZ353500 VZ353400 UR838100 UR877100 VZ353500 VZ353500 VZ353400 UR838100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 19 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only CE32 Ceramic Capacitor-F 0.0100 50V Z 01 -35 Ceramic Capacitor-F 0.0100 50V Z 01 CE36 Ceramic Capacitor-B 1000P 50V K 01 CE37 Electrolytic Cap. 100.00 16.0V 01 -40 Electrolytic Cap. 100.00 16.0V 01 CE41 Electrolytic Cap. 10.00 63.0V 01 CF01 Ceramic Capacitor-B 220P 50V K 01 CF02 Ceramic Capacitor-SL 47P 50V J 01 CF03 Ceramic Capacitor-SL 100P 50V J 01 CF04 Ceramic Capacitor-SL 68P 50V J 01 CF05 Electrolytic Cap. 47.00 35.0V 01 CF06 Mylar Capacitor 0.8200 50V J 01 CF07 Mylar Capacitor 0.0820 50V J 01 CF08 Mylar Capacitor 0.4700 50V J 01 CF09 Mylar Capacitor 0.0390 50V J 01 CF10 Mylar Capacitor 0.2200 50V J 01 CF11 Mylar Capacitor 0.0180 50V J 01 CF12 Mylar Capacitor 0.1 50V J CF13 Mylar Capacitor 0.010 50V J 01 CF14 Mylar Capacitor 0.0470 50V J 01 CF15 Mylar Capacitor 4700P 50V J 01 CF16 Mylar Capacitor 0.0270 50V J 01 CF17 Mylar Capacitor 2200P 50V J 01 CF18 Mylar Capacitor 0.012 50V J 01 CF19 Mylar Capacitor 1200P 50V J 01 CF20 Ceramic Capacitor-B 220P 50V K 01 CF21 Electrolytic Cap. 47.00 35.0V 01 CF22 Electrolytic Cap. 10.00 63.0V 01 CF23 Ceramic Capacitor-SL 100P 50V J 01 CF24 Ceramic Capacitor-SL 100P 50V J 01 CF25 Ceramic Capacitor-SL 68P 50V J 01 CF26 Electrolytic Cap. 100.00 16.0V 01 CF27 Electrolytic Cap. 10.00 63.0V 01 CF28 Ceramic Capacitor-SL 100P 50V J 01 CF29 Ceramic Capacitor-SL 100P 50V J 01 CF30 Ceramic Capacitor-SL 68P 50V J 01 CF31 Electrolytic Cap. 100.00 16.0V 01 CF32 Ceramic Capacitor-F 0.0100 50V Z 01 -35 Ceramic Capacitor-F 0.0100 50V Z 01 CF36 Ceramic Capacitor-B 1000P 50V K 01 CF37 Electrolytic Cap. 10.00 63.0V 01 CG01 Electrolytic Cap. 10.00 63.0V 01 CG02 Ceramic Capacitor-SL 100P 50V J 01 CG03 Ceramic Capacitor-SL 47P 50V J 01 CG04 Electrolytic Cap. 10.00 63.0V 01 CG05 Electrolytic Cap. 10.00 63.0V 01 CG06 Ceramic Capacitor-SL 100P 50V J 01 CG07 Ceramic Capacitor-SL 22P 50V J 01 CG08 Electrolytic Cap. 100.00 16.0V 01 CG09 Ceramic Capacitor-F 0.0100 50V Z 01 CG10 Ceramic Capacitor-F 0.0100 50V Z 01 CG11 Electrolytic Cap. 10.00 63.0V 01 CG12 Ceramic Capacitor-SL 100P 50V J 01 CG13 Ceramic Capacitor-SL 68P 50V J 01 CG14 Electrolytic Cap. 10.00 63.0V 01 CG15 Electrolytic Cap. 47.00 35.0V 01 CG16 Electrolytic Cap. 47.00 35.0V 01 CH01 Ceramic Capacitor-B 220P 50V K 01 CH02 Ceramic Capacitor-SL 47P 50V J 01 CH03 Electrolytic Cap. 10.00 63.0V 01 CH04 Electrolytic Cap. 10.00 63.0V 01 CH05 Ceramic Capacitor-SL 100P 50V J 01 CH06 Ceramic Capacitor-SL 22P 50V J 01 CH07 Electrolytic Cap. 100.00 16.0V 01 CH08 Ceramic Capacitor-B 1000P 50V K 01 CH09 Ceramic Capacitor-F 0.0100 50V Z 01 -12 Ceramic Capacitor-F 0.0100 50V Z 01 CI01 Ceramic Capacitor-B 220P 50V K 01 CI02 Ceramic Capacitor-SL 47P 50V J 01 CI03 Electrolytic Cap. 10.00 63.0V 01 VZ354000 VZ354000 VZ353900 UR838100 UR838100 UR877100 VZ353600 VZ353200 VZ353500 VZ353400 UR857470 UA655820 UA954820 UA655470 UA954390 UA655220 UA954180 V5868900 VV061400 UA954470 UA953470 UA954270 UA953220 VV061500 UA953120 VZ353600 UR857470 UR877100 VZ353500 VZ353500 VZ353400 UR838100 UR877100 VZ353500 VZ353500 VZ353400 UR838100 VZ354000 VZ354000 VZ353900 UR877100 UR877100 VZ353500 VZ353200 UR877100 UR877100 VZ353500 VZ352800 UR838100 VZ354000 VZ354000 UR877100 VZ353500 VZ353400 UR877100 UR857470 UR857470 VZ353600 VZ353200 UR877100 UR877100 VZ353500 VZ352800 UR838100 VZ353900 VZ354000 VZ354000 VZ353600 VZ353200 UR877100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 20 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only CI04 Electrolytic Cap. 10.00 63.0V 01 CI05 Ceramic Capacitor-SL 100P 50V J 01 CI06 Ceramic Capacitor-SL 22P 50V J 01 CI07 Electrolytic Cap. 100.00 16.0V 01 CJ01 Ceramic Capacitor-B 220P 50V K 01 CJ02 Ceramic Capacitor-SL 22P 50V J 01 CJ03 Electrolytic Cap. 10.00 63.0V 01 CJ04 Electrolytic Cap. 10.00 63.0V 01 CJ05 Ceramic Capacitor-SL 100P 50V J 01 CJ06 Ceramic Capacitor-SL 22P 50V J 01 CJ07 Electrolytic Cap. 100.00 16.0V 01 CJ08 Ceramic Capacitor-F 0.0100 50V Z 01 CJ09 Ceramic Capacitor-F 0.0100 50V Z 01 CJ10 Ceramic Capacitor-B 1000P 50V K 01 CJ11 Ceramic Capacitor-F 0.0100 50V Z 01 CJ12 Ceramic Capacitor-F 0.0100 50V Z 01 CK01 Ceramic Capacitor-B 220P 50V K 01 CK02 Ceramic Capacitor-SL 22P 50V J 01 CK03 Electrolytic Cap. 10.00 63.0V 01 CK04 Electrolytic Cap. 10.00 63.0V 01 CK06 Ceramic Capacitor-SL 10P 50V J 01 CK07 Electrolytic Cap. 100.00 16.0V 01 CK08 Ceramic Capacitor-B 1000P 50V K 01 CK09 Ceramic Capacitor-B 1000P 50V K 01 CK10 Ceramic Capacitor-F 0.0100 50V Z 01 CK11 Ceramic Capacitor-F 0.0100 50V Z 01 CK12 Electrolytic Cap. 100.00 16.0V 01 CK13 Electrolytic Cap. 100.00 16.0V 01 CL01 Ceramic Capacitor-B 220P 50V K 01 CL02 Ceramic Capacitor-SL 22P 50V J 01 CL03 Electrolytic Cap. 10.00 63.0V 01 CL04 Electrolytic Cap. 10.00 63.0V 01 CL06 Ceramic Capacitor-SL 10P 50V J 01 CL07 Electrolytic Cap. 100.00 16.0V 01 CL08 Ceramic Capacitor-B 1000P 50V K 01 CM01 Electrolytic Cap. 4.70 50.0V 01 CM02 Electrolytic Cap. 4.70 50.0V 01 CM03 Mylar Capacitor 0.0470 50V J 01 CM04 Mylar Capacitor 0.0470 50V J 01 CM05 Electrolytic Cap. 10.00 63.0V 01 CM06 Electrolytic Cap. 10.00 63.0V 01 CM07 Electrolytic Cap. 4.70 50.0V 01 CM08 Electrolytic Cap. 4.70 50.0V 01 CM09 Electrolytic Cap. 10.00 63.0V 01 -12 Electrolytic Cap. 10.00 63.0V 01 CNM01 Base Post 12P TE 01 CNM04 Base Post 13P TE D901 Diode 1SS133,176,HSS104 01 DA01 Diode 1SS133,176,HSS104 01 DB01 Diode 1SS133,176,HSS104 01 DC01 Diode 1SS133,176,HSS104 01 EMK01 Noise Filter ZJSR5101-223TA 01 EML01 Noise Filter ZJSR5101-223TA 01 EMM01 Noise Filter ZJSR5101-223TA 01 ENM01 Rotary Encoder SDB161PVB 06 IC101 IC NJM2068L-D OP AMP 02 -104 IC NJM2068L-D OP AMP 02 IC201 IC NJM2068L-D OP AMP 02 IC301 IC NJM2068L-D OP AMP 02 -304 IC NJM2068L-D OP AMP 02 IC401 IC NJM2068L-D OP AMP 02 IC501 IC NJM2068L-D OP AMP 02 -504 IC NJM2068L-D OP AMP 02 IC601 IC NJM2068L-D OP AMP 02 IC701 IC NJM2068L-D OP AMP 02 -704 IC NJM2068L-D OP AMP 02 IC801 IC NJM2068L-D OP AMP 02 IC901 IC NJM2068L-D OP AMP 02 -904 IC NJM2068L-D OP AMP 02 ICB01 IC NJM2068L-D OP AMP 02 UR877100 VZ353500 VZ352800 UR838100 VZ353600 VZ352800 UR877100 UR877100 VZ353500 VZ352800 UR838100 VZ354000 VZ354000 VZ353900 VZ354000 VZ354000 VZ353600 VZ352800 UR877100 UR877100 VZ352700 UR838100 VZ353900 VZ353900 VZ354000 VZ354000 UR838100 UR838100 VZ353600 VZ352800 UR877100 UR877100 VZ352700 UR838100 VZ353900 UR866470 UR866470 UA954470 UA954470 UR877100 UR877100 UR866470 UR866470 UR877100 UR877100 VV067200 VV067300 VD631600 VD631600 VD631600 VD631600 VV056900 VV056900 VV056900 VZ303900 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 XM356A00 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 21 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only -04 IC NJM2068L-D OP AMP 02 ICD01 IC NJM2068L-D OP AMP 02 -03 IC NJM2068L-D OP AMP 02 ICE01 IC NJM2068L-D OP AMP 02 ICE02 IC M5229P 7-SEG. GRAPHIC 04 ICE03 IC NJM4580L OP AMP 04 ICE04 IC NJM4580L OP AMP 04 ICF01 IC NJM2068L-D OP AMP 02 ICF02 IC M5229P 7-SEG. GRAPHIC 04 ICG01 IC NJM4580L OP AMP 04 ICH01 IC NJM2068L-D OP AMP 02 ICH02 IC NJM4580L OP AMP 04 ICJ01 IC NJM2068L-D OP AMP 02 ICJ02 IC NJM4580L OP AMP 04 ICK01 IC NJM2068L-D OP AMP 02 ICK02 IC NJM4556AL OP AMP 02 ICM01 IC BA682A LED LEVEL METER 06 ICM02 IC BA682A LED LEVEL METER 06 ICM03 IC NJM7812FA REGULATOR 12V 02 JK101 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH1) 04 JK102 Phone Connector LJ-0695-4R-A INPUT/LINE(CH1) 02 JK103 Phone Connector LJ-0695-4R-A INPUT/INSERT I/O(CH1) 02 JK201 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH2) 04 JK202 Phone Connector LJ-0695-4R-A INPUT/LINE(CH2) 02 JK203 Phone Connector LJ-0695-4R-A INPUT/INSERT I/O(CH2) 02 JK301 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH3) 04 JK302 Phone Connector LJ-0695-4R-A INPUT/LINE(CH3) 02 JK303 Phone Connector LJ-0695-4R-A INPUT/INSERT I/O(CH3) 02 JK401 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH4) 04 JK402 Phone Connector LJ-0695-4R-A INPUT/LINE(CH4) 02 JK403 Phone Connector LJ-0695-4R-A INPUT/INSERT I/O(CH4) 02 JK501 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH5) 04 JK502 Phone Connector LJ-0695-4R-A INPUT/LINE(CH5) 02 JK601 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH6) 04 JK602 Phone Connector LJ-0695-4R-A INPUT/LINE(CH6 02 JK701 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH7) 04 JK702 Phone Connector LJ-0695-4R-A INPUT/LINE(CH7) 02 JK801 Cannon Connector XLR NC3FAV1-0 INPUT/MIC(CH8) 04 JK802 Phone Connector LJ-0695-4R-A INPUT/LINE(CH8) 02 JK901 Phone Connector LJ-0695-4R-A INPUT/9L(MONO) 02 JK902 Pin Connector RJ-1130A-09-0320A INPUT/9L,10R,11L,12R 03 JKA01 Phone Connector LJ-0695-4R-A INPUT/10R 02 JKB01 Phone Connector LJ-0695-4R-A INPUT/11L(MONO) 02 JKC01 Phone Connector LJ-0695-4R-A INPUT/12R 02 JKD01 Phone Connector LJ-0695-4R-A INPUT/ST SUB1(L(MONO),R), 02 -04 Phone Connector LJ-0695-4R-A ST SUB2((L(MONO),R) 02 JKD05 Pin Connector RJ-1130A-09-0320A INPUT/TAPE(L,R), 03 OUTPUT/REC(L,R) JKE01 Phone Connector LJ-0695-4R-A OUTPUT/L(ST1) 02 JKE02 Phone Connector LJ-0695-4R-A OUTPUT/L(ST2) 02 JKF01 Phone Connector LJ-0695-4R-A OUTPUT/R(ST1) 02 JKF02 Phone Connector LJ-0695-4R-A OUTPUT/R(ST2) 02 JKG01 Phone Connector LJ-0695-4R-A INPUT/BRIDGE L,P.AMP IN R 02 -03 Phone Connector LJ-0695-4R-A OUTPUT/MONO 02 JKH01 Phone Connector LJ-0695-4R-A OUTPUT/MONI 1 02 JKI01 Phone Connector LJ-0695-4R-A OUTPUT/MONI 2 02 JKJ01 Phone Connector LJ-0695-4R-A EFFECT 02 JKK01 Phone Connector LJ-0695-4R-A C-R/PHONES 02 JKM01 Phone Connector LJ-0695-4R-A FOOT SW 02 LD101 LED Red LT311G-41-C13 PEAK(CH1) 01 LD201 LED Red LT311G-41-C13 PEAK(CH2) 01 LD301 LED Red LT311G-41-C13 PEAK(CH3) 01 LD401 LED Red LT311G-41-C13 PEAK(CH4) 01 LD501 LED Red LT311G-41-C13 PEAK(CH5) 01 LD601 LED Red LT311G-41-C13 PEAK(CH6) 01 LD701 LED Red LT311G-41-C13 PEAK(CH7) 01 LD801 LED Red LT311G-41-C13 PEAK(CH8) 01 LD901 LED Red LT311G-41-C13 PEAK(CH9/10) 01 LDB01 LED Red LT311G-41-C13 PEAK(CH11/12) 01 LDM01 LED Red LT311G-41-C13 ST1 L,R(PEAK),LIMITER(L/ 01 XM356A00 XM356A00 XM356A00 XM356A00 XG203A00 XF195A00 XF195A00 XM356A00 XG203A00 XF195A00 XM356A00 XF195A00 XM356A00 XF195A00 XM356A00 XP844A00 XS046A00 XS046A00 XJ608A00 VU805200 V2954500 V2954500 VU805200 V2954500 V2954500 VU805200 V2954500 V2954500 VU805200 V2954500 V2954500 VU805200 V2954500 VU805200 V2954500 VU805200 V2954500 VU805200 V2954500 V2954500 V4807700 V2954500 V2954500 V2954500 V2954500 V2954500 V4807700 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 V2954500 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 VV620800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 22 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK -04 LED Red LT311G-41-C13 BRIDGE,R) 01 LDM05 LED Green LT321-41-C13 ST1 L,R(-1,-3,-5,-7,-10, 01 -19 LED Green LT321-41-C13 -15,-20),POWER 01 LDM20 LED Yellow LT331-41-C13 ST1 L,R(+8,+5,+3,+1,0) 01 -30 LED Yellow LT331-41-C13 PHANTOM 01 Q101 Transistor 2SC2240 GR,BL 01 Q102 Transistor 2SC2240 GR,BL 01 Q103 Transistor 2SC1815 Y,GR 01 Q104 Transistor 2SA1015 O,Y 01 Q201 Transistor 2SC2240 GR,BL 01 Q202 Transistor 2SC2240 GR,BL 01 Q203 Transistor 2SC1815 Y,GR 01 Q204 Transistor 2SA1015 O,Y 01 Q301 Transistor 2SC2240 GR,BL 01 Q302 Transistor 2SC2240 GR,BL 01 Q303 Transistor 2SC1815 Y,GR 01 Q304 Transistor 2SA1015 O,Y 01 Q401 Transistor 2SC2240 GR,BL 01 Q402 Transistor 2SC2240 GR,BL 01 Q403 Transistor 2SC1815 Y,GR 01 Q404 Transistor 2SA1015 O,Y 01 Q501 Transistor 2SC2240 GR,BL 01 Q502 Transistor 2SC2240 GR,BL 01 Q503 Transistor 2SC1815 Y,GR 01 Q504 Transistor 2SA1015 O,Y 01 Q601 Transistor 2SC2240 GR,BL 01 Q602 Transistor 2SC2240 GR,BL 01 Q603 Transistor 2SC1815 Y,GR 01 Q604 Transistor 2SA1015 O,Y 01 Q701 Transistor 2SC2240 GR,BL 01 Q702 Transistor 2SC2240 GR,BL 01 Q703 Transistor 2SC1815 Y,GR 01 Q704 Transistor 2SA1015 O,Y 01 Q801 Transistor 2SC2240 GR,BL 01 Q802 Transistor 2SC2240 GR,BL 01 Q803 Transistor 2SC1815 Y,GR 01 Q804 Transistor 2SA1015 O,Y 01 Q901 Transistor 2SC1815 Y,GR 01 Q902 Transistor 2SA1015 O,Y 01 QB01 Transistor 2SC1815 Y,GR 01 QB02 Transistor 2SA1015 O,Y 01 QM01 Transistor 2SC1815 Y,GR 01 QM02 Transistor 2SC1815 Y,GR 01 QM03 Transistor 2SA1015 O,Y 01 QM04 Transistor 2SA1015 O,Y 01 R101 Carbon Resistor 100.0K 1/4 J 01 R102 Flame Proof C. Resistor 390.0 1/4 J 01 R103 Metal Film Resistor 6.8K 1/4 F 01 R104 Metal Film Resistor 6.8K 1/4 F 01 R105 Carbon Resistor 100.0K 1/4 J 01 R106 Carbon Resistor 100.0K 1/4 J 01 R107 Metal Film Resistor 33K 1/4 F 01 R108 Metal Film Resistor 33K 1/4 F 01 R109 Metal Film Resistor 4.7K 1/4 F 05 R110 Carbon Resistor 10.0 1/4 J 01 -113 Carbon Resistor 10.0 1/4 J 01 R114 Metal Film Resistor 47K 1/4 F 01 R115 Metal Film Resistor 47K 1/4 F 01 R116 Metal Film Resistor 20.0 1/4 F 01 R117 Metal Film Resistor 2.2K 1/4 F 01 R118 Metal Film Resistor 2.2K 1/4 F 01 R119 Metal Film Resistor 8.2K 1/4 F 01 R120 Metal Film Resistor 8.2K 1/4 F 01 R121 Metal Film Resistor 24K 1/4 F 01 R122 Metal Film Resistor 24K 1/4 F 01 R123 Metal Film Resistor 4.7K 1/4 F 05 R124 Metal Film Resistor 4.7K 1/4 F 05 R125 Carbon Resistor 10.0K 1/4 J 01 -127 Carbon Resistor 10.0K 1/4 J 01 R128 Carbon Resistor 680.0 1/4 J 01 VV620800 VV621000 VV621000 VV938100 VV938100 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC224030 IC224030 IC1815M0 IA101590 IC1815M0 IA101590 IC1815M0 IA101590 IC1815M0 IC1815M0 IA101590 IA101590 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 23 REF NO. PART NO. DESCRIPTION REMARKS QTY RANK : New Parts RANK: Japan only R129 Carbon Resistor 680.0 1/4 J 01 R130 Carbon Resistor 2.7K 1/4 J 01 -132 Carbon Resistor 2.7K 1/4 J 01 R133 Carbon Resistor 10.0 1/4 J 01 R134 Carbon Resistor 100.0K 1/4 J 01 R135 Carbon Resistor 220.0 1/4 J 01 R136 Carbon Resistor 220.0 1/4 J 01 R137 Carbon Resistor 18.0K 1/4 J 01 R138 Carbon Resistor 10.0 1/4 J 01 R139 Carbon Resistor 100.0K 1/4 J 01 R140 Carbon Resistor 8.2K 1/4 J 01 R141 Carbon Resistor 100.0K 1/4 J 01 R142 Carbon Resistor 4.7K 1/4 J 01 R143 Carbon Resistor 100.0K 1/4 J 01 R144 Carbon Resistor 3.3K 1/4 J 01 R145 Carbon Resistor 18.0K 1/4 J 01 -149 Carbon Resistor 18.0K 1/4 J 01 R150 Carbon Resistor 68.0K 1/4 J 01 R151 Carbon Resistor 68.0K 1/4 J 01 R152 Carbon Resistor 180.0 1/4 J 01 R153 Carbon Resistor 5.6K 1/4 J 01 -156 Carbon Resistor 5.6K 1/4 J 01 R201 Carbon Resistor 100.0K 1/4 J 01 R202 Flame Proof C. Resistor 390.0 1/4 J 01 R203 Metal Film Resistor 6.8K 1/4 F 01 R204 Metal Film Resistor 6.8K 1/4 F 01 R205 Carbon Resistor 100.0K 1/4 J 01 R206 Carbon Resistor 100.0K 1/4 J 01 R207 Metal Film Resistor 33K 1/4 F 01 R208 Metal Film Resistor 33K 1/4 F 01 R209 Metal Film Resistor 4.7K 1/4 F 05 R210 Carbon Resistor 10.0 1/4 J 01 -213 Carbon Resistor 10.0 1/4 J 01 R214 Metal Film Resistor 47K 1/4 F 01 R215 Metal Film Resistor 47K 1/4 F 01 R216 Metal Film Resistor 20.0 1/4 F 01 R217 Metal Film Resistor 2.2K 1/4 F 01 R218 Metal Film Resistor 2.2K 1/4 F 01 R219 Metal Film Resistor 8.2K 1/4 F 01 R220 Metal Film Resistor 8.2K 1/4 F 01 R221 Metal Film Resistor 24K 1/4 F 01 R222 Metal Film Resistor 24K 1/4 F 01 R223 Metal Film Resistor 4.7K 1/4 F 05 R224 Metal Film Resistor 4.7K 1/4 F 05 R225 Carbon Resistor 10.0K 1/4 J 01 -227 Carbon Resistor 10.0K 1/4 J 01 R228 Carbon Resistor 680.0 1/4 J 01 R229 Carbon Resistor 680.0 1/4 J 01 R230 Carbon Resistor 2.7K 1/4 J 01 -232 Carbon Resistor 2.7K 1/4 J 01 R233 Carbon Resistor 10.0 1/4 J 01 R234 Carbon Resistor 100.0K 1/4 J 01 R235 Carbon Resistor 220.0 1/4 J 01 R236 Carbon Resistor 220.0 1/4 J 01 R237 Carbon Resistor 18.0K 1/4 J 01 R238 Carbon Resistor 10.0 1/4 J 01 R239 Carbon Resistor 100.0K 1/4 J 01 R240 Carbon Resistor 8.2K 1/4 J 01 R241 Carbon Resistor 100.0K 1/4 J 01 R242 Carbon Resistor 4.7K 1/4 J 01 R243 Carbon Resistor 100.0K 1/4 J 01 R244 Carbon Resistor 3.3K 1/4 J 01 R245 Carbon Resistor 18.0K 1/4 J 01 -249 Carbon Resistor 18.0K 1/4 J 01 R250 Carbon Resistor 68.0K 1/4 J 01 R251 Carbon Resistor 68.0K 1/4 J 01 R252 Carbon Resistor 180.0 1/4 J 01 R253 Carbon Resistor 5.6K 1/4 J 01 -256 Carbon Resistor 5.6K 1/4 J 01 R301 Carbon Resistor 100.0K 1/4 J 01 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF455180 HF456560 HF456560 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF455180 HF456560 HF456560 HF458100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 24 R302 Flame Proof C. Resistor 390.0 1/4 J 01 R303 Metal Film Resistor 6.8K 1/4 F 01 R304 Metal Film Resistor 6.8K 1/4 F 01 R305 Carbon Resistor 100.0K 1/4 J 01 R306 Carbon Resistor 100.0K 1/4 J 01 R307 Metal Film Resistor 33K 1/4 F 01 R308 Metal Film Resistor 33K 1/4 F 01 R309 Metal Film Resistor 4.7K 1/4 F 05 R310 Carbon Resistor 10.0 1/4 J 01 -313 Carbon Resistor 10.0 1/4 J 01 R314 Metal Film Resistor 47K 1/4 F 01 R315 Metal Film Resistor 47K 1/4 F 01 R316 Metal Film Resistor 20.0 1/4 F 01 R317 Metal Film Resistor 2.2K 1/4 F 01 R318 Metal Film Resistor 2.2K 1/4 F 01 R319 Metal Film Resistor 8.2K 1/4 F 01 R320 Metal Film Resistor 8.2K 1/4 F 01 R321 Metal Film Resistor 24K 1/4 F 01 R322 Metal Film Resistor 24K 1/4 F 01 R323 Metal Film Resistor 4.7K 1/4 F 05 R324 Metal Film Resistor 4.7K 1/4 F 05 R325 Carbon Resistor 10.0K 1/4 J 01 -327 Carbon Resistor 10.0K 1/4 J 01 R328 Carbon Resistor 680.0 1/4 J 01 R329 Carbon Resistor 680.0 1/4 J 01 R330 Carbon Resistor 2.7K 1/4 J 01 -332 Carbon Resistor 2.7K 1/4 J 01 R333 Carbon Resistor 10.0 1/4 J 01 R334 Carbon Resistor 100.0K 1/4 J 01 R335 Carbon Resistor 220.0 1/4 J 01 R336 Carbon Resistor 220.0 1/4 J 01 R337 Carbon Resistor 18.0K 1/4 J 01 R338 Carbon Resistor 10.0 1/4 J 01 R339 Carbon Resistor 100.0K 1/4 J 01 R340 Carbon Resistor 8.2K 1/4 J 01 R341 Carbon Resistor 100.0K 1/4 J 01 R342 Carbon Resistor 4.7K 1/4 J 01 R343 Carbon Resistor 100.0K 1/4 J 01 R344 Carbon Resistor 3.3K 1/4 J 01 R345 Carbon Resistor 18.0K 1/4 J 01 -349 Carbon Resistor 18.0K 1/4 J 01 R350 Carbon Resistor 68.0K 1/4 J 01 R351 Carbon Resistor 68.0K 1/4 J 01 R352 Carbon Resistor 180.0 1/4 J 01 R353 Carbon Resistor 5.6K 1/4 J 01 -356 Carbon Resistor 5.6K 1/4 J 01 R401 Carbon Resistor 100.0K 1/4 J 01 R402 Flame Proof C. Resistor 390.0 1/4 J 01 R403 Metal Film Resistor 6.8K 1/4 F 01 R404 Metal Film Resistor 6.8K 1/4 F 01 R405 Carbon Resistor 100.0K 1/4 J 01 R406 Carbon Resistor 100.0K 1/4 J 01 R407 Metal Film Resistor 33K 1/4 F 01 R408 Metal Film Resistor 33K 1/4 F 01 R409 Metal Film Resistor 4.7K 1/4 F 05 R410 Carbon Resistor 10.0 1/4 J 01 -413 Carbon Resistor 10.0 1/4 J 01 R414 Metal Film Resistor 47K 1/4 F 01 R415 Metal Film Resistor 47K 1/4 F 01 R416 Metal Film Resistor 20.0 1/4 F 01 R417 Metal Film Resistor 2.2K 1/4 F 01 R418 Metal Film Resistor 2.2K 1/4 F 01 R419 Metal Film Resistor 8.2K 1/4 F 01 R420 Metal Film Resistor 8.2K 1/4 F 01 R421 Metal Film Resistor 24K 1/4 F 01 R422 Metal Film Resistor 24K 1/4 F 01 R423 Metal Film Resistor 4.7K 1/4 F 05 R424 Metal Film Resistor 4.7K 1/4 F 05 R425 Carbon Resistor 10.0K 1/4 J 01 -427 Carbon Resistor 10.0K 1/4 J 01 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF455180 HF456560 HF456560 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 25 R428 Carbon Resistor 680.0 1/4 J 01 R429 Carbon Resistor 680.0 1/4 J 01 R430 Carbon Resistor 2.7K 1/4 J 01 -432 Carbon Resistor 2.7K 1/4 J 01 R433 Carbon Resistor 10.0 1/4 J 01 R434 Carbon Resistor 100.0K 1/4 J 01 R435 Carbon Resistor 220.0 1/4 J 01 R436 Carbon Resistor 220.0 1/4 J 01 R437 Carbon Resistor 18.0K 1/4 J 01 R438 Carbon Resistor 10.0 1/4 J 01 R439 Carbon Resistor 100.0K 1/4 J 01 R440 Carbon Resistor 8.2K 1/4 J 01 R441 Carbon Resistor 100.0K 1/4 J 01 R442 Carbon Resistor 4.7K 1/4 J 01 R443 Carbon Resistor 100.0K 1/4 J 01 R444 Carbon Resistor 3.3K 1/4 J 01 R445 Carbon Resistor 18.0K 1/4 J 01 -449 Carbon Resistor 18.0K 1/4 J 01 R450 Carbon Resistor 68.0K 1/4 J 01 R451 Carbon Resistor 68.0K 1/4 J 01 R452 Carbon Resistor 180.0 1/4 J 01 R453 Carbon Resistor 5.6K 1/4 J 01 -456 Carbon Resistor 5.6K 1/4 J 01 R501 Carbon Resistor 100.0K 1/4 J 01 R502 Flame Proof C. Resistor 390.0 1/4 J 01 R503 Metal Film Resistor 6.8K 1/4 F 01 R504 Metal Film Resistor 6.8K 1/4 F 01 R505 Carbon Resistor 100.0K 1/4 J 01 R506 Carbon Resistor 100.0K 1/4 J 01 R507 Metal Film Resistor 33K 1/4 F 01 R508 Metal Film Resistor 33K 1/4 F 01 R509 Metal Film Resistor 4.7K 1/4 F 05 R510 Carbon Resistor 10.0 1/4 J 01 -513 Carbon Resistor 10.0 1/4 J 01 R514 Metal Film Resistor 47K 1/4 F 01 R515 Metal Film Resistor 47K 1/4 F 01 R516 Metal Film Resistor 20.0 1/4 F 01 R517 Metal Film Resistor 2.2K 1/4 F 01 R518 Metal Film Resistor 2.2K 1/4 F 01 R519 Metal Film Resistor 8.2K 1/4 F 01 R520 Metal Film Resistor 8.2K 1/4 F 01 R521 Metal Film Resistor 24K 1/4 F 01 R522 Metal Film Resistor 24K 1/4 F 01 R523 Metal Film Resistor 4.7K 1/4 F 05 R524 Metal Film Resistor 4.7K 1/4 F 05 R525 Carbon Resistor 10.0K 1/4 J 01 -527 Carbon Resistor 10.0K 1/4 J 01 R528 Carbon Resistor 680.0 1/4 J 01 R529 Carbon Resistor 680.0 1/4 J 01 R530 Carbon Resistor 2.7K 1/4 J 01 -532 Carbon Resistor 2.7K 1/4 J 01 R533 Carbon Resistor 180.0 1/4 J 01 R535 Carbon Resistor 220.0 1/4 J 01 R536 Carbon Resistor 220.0 1/4 J 01 R537 Carbon Resistor 18.0K 1/4 J 01 R538 Carbon Resistor 10.0 1/4 J 01 R539 Carbon Resistor 100.0K 1/4 J 01 R540 Carbon Resistor 8.2K 1/4 J 01 R541 Carbon Resistor 100.0K 1/4 J 01 R542 Carbon Resistor 4.7K 1/4 J 01 R543 Carbon Resistor 100.0K 1/4 J 01 R544 Carbon Resistor 3.3K 1/4 J 01 R545 Carbon Resistor 18.0K 1/4 J 01 -549 Carbon Resistor 18.0K 1/4 J 01 R550 Carbon Resistor 68.0K 1/4 J 01 R551 Carbon Resistor 68.0K 1/4 J 01 R552 Carbon Resistor 5.6K 1/4 J 01 -555 Carbon Resistor 5.6K 1/4 J 01 R601 Carbon Resistor 100.0K 1/4 J 01 R602 Flame Proof C. Resistor 390.0 1/4 J 01 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF455180 HF456560 HF456560 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF455180 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF456560 HF456560 HF458100 VV058400 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 26 R603 Metal Film Resistor 6.8K 1/4 F 01 R604 Metal Film Resistor 6.8K 1/4 F 01 R605 Carbon Resistor 100.0K 1/4 J 01 R606 Carbon Resistor 100.0K 1/4 J 01 R607 Metal Film Resistor 33K 1/4 F 01 R608 Metal Film Resistor 33K 1/4 F 01 R609 Metal Film Resistor 4.7K 1/4 F 05 R610 Carbon Resistor 10.0 1/4 J 01 -613 Carbon Resistor 10.0 1/4 J 01 R614 Metal Film Resistor 47K 1/4 F 01 R615 Metal Film Resistor 47K 1/4 F 01 R616 Metal Film Resistor 20.0 1/4 F 01 R617 Metal Film Resistor 2.2K 1/4 F 01 R618 Metal Film Resistor 2.2K 1/4 F 01 R619 Metal Film Resistor 8.2K 1/4 F 01 R620 Metal Film Resistor 8.2K 1/4 F 01 R621 Metal Film Resistor 24K 1/4 F 01 R622 Metal Film Resistor 24K 1/4 F 01 R623 Metal Film Resistor 4.7K 1/4 F 05 R624 Metal Film Resistor 4.7K 1/4 F 05 R625 Carbon Resistor 10.0K 1/4 J 01 -627 Carbon Resistor 10.0K 1/4 J 01 R628 Carbon Resistor 680.0 1/4 J 01 R629 Carbon Resistor 680.0 1/4 J 01 R630 Carbon Resistor 2.7K 1/4 J 01 -632 Carbon Resistor 2.7K 1/4 J 01 R633 Carbon Resistor 180.0 1/4 J 01 R635 Carbon Resistor 220.0 1/4 J 01 R636 Carbon Resistor 220.0 1/4 J 01 R637 Carbon Resistor 18.0K 1/4 J 01 R638 Carbon Resistor 10.0 1/4 J 01 R639 Carbon Resistor 100.0K 1/4 J 01 R640 Carbon Resistor 8.2K 1/4 J 01 R641 Carbon Resistor 100.0K 1/4 J 01 R642 Carbon Resistor 4.7K 1/4 J 01 R643 Carbon Resistor 100.0K 1/4 J 01 R644 Carbon Resistor 3.3K 1/4 J 01 R645 Carbon Resistor 18.0K 1/4 J 01 R646 Carbon Resistor 18.0K 1/4 J 01 -649 Carbon Resistor 18.0K 1/4 J 01 R650 Carbon Resistor 68.0K 1/4 J 01 R651 Carbon Resistor 68.0K 1/4 J 01 R652 Carbon Resistor 5.6K 1/4 J 01 -655 Carbon Resistor 5.6K 1/4 J 01 R701 Carbon Resistor 100.0K 1/4 J 01 R702 Flame Proof C. Resistor 390.0 1/4 J 01 R703 Metal Film Resistor 6.8K 1/4 F 01 R704 Metal Film Resistor 6.8K 1/4 F 01 R705 Carbon Resistor 100.0K 1/4 J 01 R706 Carbon Resistor 100.0K 1/4 J 01 R707 Metal Film Resistor 33K 1/4 F 01 R708 Metal Film Resistor 33K 1/4 F 01 R709 Metal Film Resistor 4.7K 1/4 F 05 R710 Carbon Resistor 10.0 1/4 J 01 -713 Carbon Resistor 10.0 1/4 J 01 R714 Metal Film Resistor 47K 1/4 F 01 R715 Metal Film Resistor 47K 1/4 F 01 R716 Metal Film Resistor 20.0 1/4 F 01 R717 Metal Film Resistor 2.2K 1/4 F 01 R718 Metal Film Resistor 2.2K 1/4 F 01 R719 Metal Film Resistor 8.2K 1/4 F 01 R720 Metal Film Resistor 8.2K 1/4 F 01 R721 Metal Film Resistor 24K 1/4 F 01 R722 Metal Film Resistor 24K 1/4 F 01 R723 Metal Film Resistor 4.7K 1/4 F 05 R724 Metal Film Resistor 4.7K 1/4 F 05 R725 Carbon Resistor 10.0K 1/4 J 01 -727 Carbon Resistor 10.0K 1/4 J 01 R728 Carbon Resistor 680.0 1/4 J 01 R729 Carbon Resistor 680.0 1/4 J 01 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VV065100 VV065100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF455180 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457180 HF457680 HF457680 HF456560 HF456560 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 27 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only R730 Carbon Resistor 2.7K 1/4 J 01 -732 Carbon Resistor 2.7K 1/4 J 01 R733 Carbon Resistor 180.0 1/4 J 01 R735 Carbon Resistor 220.0 1/4 J 01 R736 Carbon Resistor 220.0 1/4 J 01 R737 Carbon Resistor 18.0K 1/4 J 01 R738 Carbon Resistor 10.0 1/4 J 01 R739 Carbon Resistor 100.0K 1/4 J 01 R740 Carbon Resistor 8.2K 1/4 J 01 R741 Carbon Resistor 100.0K 1/4 J 01 R742 Carbon Resistor 4.7K 1/4 J 01 R743 Carbon Resistor 100.0K 1/4 J 01 R744 Carbon Resistor 3.3K 1/4 J 01 R745 Carbon Resistor 18.0K 1/4 J 01 -749 Carbon Resistor 18.0K 1/4 J 01 R750 Carbon Resistor 68.0K 1/4 J 01 R751 Carbon Resistor 68.0K 1/4 J 01 R752 Carbon Resistor 5.6K 1/4 J 01 -755 Carbon Resistor 5.6K 1/4 J 01 R801 Carbon Resistor 100.0K 1/4 J 01 R802 Flame Proof C. Resistor 390.0 1/4 J 01 R803 Metal Film Resistor 6.8K 1/4 F 01 R804 Metal Film Resistor 6.8K 1/4 F 01 R805 Carbon Resistor 100.0K 1/4 J 01 R806 Carbon Resistor 100.0K 1/4 J 01 R807 Metal Film Resistor 33K 1/4 F 01 R808 Metal Film Resistor 33K 1/4 F 01 R809 Metal Film Resistor 4.7K 1/4 F 05 R810 Carbon Resistor 10.0 1/4 J 01 -813 Carbon Resistor 10.0 1/4 J 01 R814 Metal Film Resistor 47K 1/4 F 01 R815 Metal Film Resistor 47K 1/4 F 01 R816 Metal Film Resistor 20.0 1/4 F 01 R817 Metal Film Resistor 2.2K 1/4 F 01 R818 Metal Film Resistor 2.2K 1/4 F 01 R819 Metal Film Resistor 8.2K 1/4 F 01 R820 Metal Film Resistor 8.2K 1/4 F 01 R821 Metal Film Resistor 24K 1/4 F 01 R822 Metal Film Resistor 24K 1/4 F 01 R823 Metal Film Resistor 4.7K 1/4 F 05 R824 Metal Film Resistor 4.7K 1/4 F 05 R825 Carbon Resistor 10.0K 1/4 J 01 -827 Carbon Resistor 10.0K 1/4 J 01 R828 Carbon Resistor 680.0 1/4 J 01 R829 Carbon Resistor 680.0 1/4 J 01 R830 Carbon Resistor 2.7K 1/4 J 01 -832 Carbon Resistor 2.7K 1/4 J 01 R833 Carbon Resistor 180.0 1/4 J 01 R835 Carbon Resistor 220.0 1/4 J 01 R836 Carbon Resistor 220.0 1/4 J 01 R837 Carbon Resistor 18.0K 1/4 J 01 R838 Carbon Resistor 10.0 1/4 J 01 R839 Carbon Resistor 100.0K 1/4 J 01 R840 Carbon Resistor 8.2K 1/4 J 01 R841 Carbon Resistor 100.0K 1/4 J 01 R842 Carbon Resistor 4.7K 1/4 J 01 R843 Carbon Resistor 100.0K 1/4 J 01 R844 Carbon Resistor 3.3K 1/4 J 01 R845 Carbon Resistor 18.0K 1/4 J 01 -849 Carbon Resistor 18.0K 1/4 J 01 R850 Carbon Resistor 68.0K 1/4 J 01 R851 Carbon Resistor 68.0K 1/4 J 01 R852 Carbon Resistor 5.6K 1/4 J 01 -855 Carbon Resistor 5.6K 1/4 J 01 R901 Carbon Resistor 240.0K 1/4 J 01 R902 Carbon Resistor 10.0K 1/4 J 01 R903 Carbon Resistor 4.7K 1/4 J 01 R904 Carbon Resistor 220.0 1/4 J 01 R905 Carbon Resistor 120.0 1/4 J 01 R906 Carbon Resistor 20.0K 1/4 J 01 HF456270 HF456270 HF455180 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF456560 HF456560 HF458100 VV058400 VV065300 VV065300 HF458100 HF458100 VV066000 VV066000 VV065200 HF454100 HF454100 VV066100 VV066100 VV064900 VF459100 VF459100 VV065400 VV065400 VV065900 VV065900 VV065200 VV065200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF455180 HF455220 HF455220 HF457180 HF454100 HF458100 HF456820 HF458100 HF456470 HF458100 HF456330 HF457180 HF457180 HF457680 HF457680 HF456560 HF456560 HF458240 HF457100 HF456470 HF455220 HF455120 HF457200 RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 28 R907 Carbon Resistor 10.0K 1/4 J 01 -909 Carbon Resistor 10.0K 1/4 J 01 R910 Carbon Resistor 680.0 1/4 J 01 R911 Carbon Resistor 680.0 1/4 J 01 R912 Carbon Resistor 2.7K 1/4 J 01 -914 Carbon Resistor 2.7K 1/4 J 01 R915 Carbon Resistor 10.0 1/4 J 01 R916 Carbon Resistor 100.0K 1/4 J 01 R917 Carbon Resistor 220.0 1/4 J 01 R918 Carbon Resistor 220.0 1/4 J 01 R919 Carbon Resistor 18.0K 1/4 J 01 R920 Carbon Resistor 10.0 1/4 J 01 R921 Carbon Resistor 18.0K 1/4 J 01 R922 Carbon Resistor 27.0K 1/4 J 01 -924 Carbon Resistor 27.0K 1/4 J 01 R925 Carbon Resistor 68.0K 1/4 J 01 R926 Carbon Resistor 100.0K 1/4 J 01 R927 Carbon Resistor 10.0K 1/4 J 01 R928 Carbon Resistor 100.0K 1/4 J 01 R929 Carbon Resistor 4.7K 1/4 J 01 R930 Carbon Resistor 100.0K 1/4 J 01 R931 Carbon Resistor 3.3K 1/4 J 01 R932 Carbon Resistor 100.0K 1/4 J 01 RA01 Carbon Resistor 240.0K 1/4 J 01 RA02 Carbon Resistor 10.0K 1/4 J 01 RA03 Carbon Resistor 4.7K 1/4 J 01 RA04 Carbon Resistor 220.0 1/4 J 01 RA05 Carbon Resistor 120.0 1/4 J 01 RA06 Carbon Resistor 20.0K 1/4 J 01 RA07 Carbon Resistor 10.0K 1/4 J 01 -09 Carbon Resistor 10.0K 1/4 J 01 RA10 Carbon Resistor 680.0 1/4 J 01 RA11 Carbon Resistor 680.0 1/4 J 01 RA12 Carbon Resistor 2.7K 1/4 J 01 -14 Carbon Resistor 2.7K 1/4 J 01 RA15 Carbon Resistor 10.0 1/4 J 01 RA16 Carbon Resistor 100.0K 1/4 J 01 RA17 Carbon Resistor 220.0 1/4 J 01 RA18 Carbon Resistor 220.0 1/4 J 01 RA19 Carbon Resistor 18.0K 1/4 J 01 RA20 Carbon Resistor 10.0 1/4 J 01 RA21 Carbon Resistor 18.0K 1/4 J 01 RA22 Carbon Resistor 27.0K 1/4 J 01 -24 Carbon Resistor 27.0K 1/4 J 01 RA25 Carbon Resistor 68.0K 1/4 J 01 RA26 Carbon Resistor 100.0K 1/4 J 01 RB01 Carbon Resistor 240.0K 1/4 J 01 RB02 Carbon Resistor 10.0K 1/4 J 01 RB03 Carbon Resistor 4.7K 1/4 J 01 RB04 Carbon Resistor 220.0 1/4 J 01 RB05 Carbon Resistor 120.0 1/4 J 01 RB06 Carbon Resistor 20.0K 1/4 J 01 RB07 Carbon Resistor 10.0K 1/4 J 01 -09 Carbon Resistor 10.0K 1/4 J 01 RB10 Carbon Resistor 680.0 1/4 J 01 RB11 Carbon Resistor 680.0 1/4 J 01 RB12 Carbon Resistor 2.7K 1/4 J 01 -14 Carbon Resistor 2.7K 1/4 J 01 RB15 Carbon Resistor 10.0 1/4 J 01 RB16 Carbon Resistor 100.0K 1/4 J 01 RB17 Carbon Resistor 220.0 1/4 J 01 RB18 Carbon Resistor 220.0 1/4 J 01 RB19 Carbon Resistor 18.0K 1/4 J 01 RB20 Carbon Resistor 10.0 1/4 J 01 RB21 Carbon Resistor 18.0K 1/4 J 01 RB22 Carbon Resistor 27.0K 1/4 J 01 -24 Carbon Resistor 27.0K 1/4 J 01 RB25 Carbon Resistor 68.0K 1/4 J 01 RB26 Carbon Resistor 100.0K 1/4 J 01 RB27 Carbon Resistor 10.0K 1/4 J 01 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF457180 HF457270 HF457270 HF457680 HF458100 HF457100 HF458100 HF456470 HF458100 HF456330 HF458100 HF458240 HF457100 HF456470 HF455220 HF455120 HF457200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF457180 HF457270 HF457270 HF457680 HF458100 HF458240 HF457100 HF456470 HF455220 HF455120 HF457200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF457180 HF457270 HF457270 HF457680 HF458100 HF457100 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 29 RB28 Carbon Resistor 100.0K 1/4 J 01 RB29 Carbon Resistor 4.7K 1/4 J 01 RB30 Carbon Resistor 100.0K 1/4 J 01 RB31 Carbon Resistor 3.3K 1/4 J 01 RB32 Carbon Resistor 100.0K 1/4 J 01 RC01 Carbon Resistor 240.0K 1/4 J 01 RC02 Carbon Resistor 10.0K 1/4 J 01 RC03 Carbon Resistor 4.7K 1/4 J 01 RC04 Carbon Resistor 220.0 1/4 J 01 RC05 Carbon Resistor 120.0 1/4 J 01 RC06 Carbon Resistor 20.0K 1/4 J 01 RC07 Carbon Resistor 10.0K 1/4 J 01 -09 Carbon Resistor 10.0K 1/4 J 01 RC10 Carbon Resistor 680.0 1/4 J 01 RC11 Carbon Resistor 680.0 1/4 J 01 RC12 Carbon Resistor 2.7K 1/4 J 01 -14 Carbon Resistor 2.7K 1/4 J 01 RC15 Carbon Resistor 10.0 1/4 J 01 RC16 Carbon Resistor 100.0K 1/4 J 01 RC17 Carbon Resistor 220.0 1/4 J 01 RC18 Carbon Resistor 220.0 1/4 J 01 RC19 Carbon Resistor 18.0K 1/4 J 01 RC20 Carbon Resistor 10.0 1/4 J 01 RC21 Carbon Resistor 18.0K 1/4 J 01 RC22 Carbon Resistor 27.0K 1/4 J 01 -24 Carbon Resistor 27.0K 1/4 J 01 RC25 Carbon Resistor 68.0K 1/4 J 01 RC26 Carbon Resistor 100.0K 1/4 J 01 RD01 Carbon Resistor 3.9K 1/4 J 01 -04 Carbon Resistor 3.9K 1/4 J 01 RD05 Carbon Resistor 6.8K 1/4 J 01 -08 Carbon Resistor 6.8K 1/4 J 01 RD09 Carbon Resistor 220.0 1/4 J 01 -12 Carbon Resistor 220.0 1/4 J 01 RD13 Carbon Resistor 10.0 1/4 J 01 -16 Carbon Resistor 10.0 1/4 J 01 RD17 Carbon Resistor 18.0K 1/4 J 01 RD18 Carbon Resistor 18.0K 1/4 J 01 RD19 Carbon Resistor 27.0K 1/4 J 01 -22 Carbon Resistor 27.0K 1/4 J 01 RD23 Carbon Resistor 36.0K 1/4 J 01 RD24 Carbon Resistor 36.0K 1/4 J 01 RD25 Carbon Resistor 18.0K 1/4 J 01 RD26 Carbon Resistor 18.0K 1/4 J 01 RD27 Carbon Resistor 27.0K 1/4 J 01 -30 Carbon Resistor 27.0K 1/4 J 01 RD31 Carbon Resistor 36.0K 1/4 J 01 RD32 Carbon Resistor 36.0K 1/4 J 01 RD33 Carbon Resistor 120.0K 1/4 J 01 RD34 Carbon Resistor 120.0K 1/4 J 01 RD35 Carbon Resistor 220.0 1/4 J 01 RD36 Carbon Resistor 220.0 1/4 J 01 RD37 Carbon Resistor 12.0K 1/4 J 01 RD38 Carbon Resistor 12.0K 1/4 J 01 RD39 Carbon Resistor 220.0 1/4 J 01 RD40 Carbon Resistor 220.0 1/4 J 01 RD41 Carbon Resistor 6.8K 1/4 J 01 RD42 Carbon Resistor 6.8K 1/4 J 01 RD43 Carbon Resistor 10.0K 1/4 J 01 RD44 Carbon Resistor 10.0K 1/4 J 01 RD45 Carbon Resistor 10.0 1/4 J 01 RD46 Carbon Resistor 10.0 1/4 J 01 RD47 Carbon Resistor 18.0K 1/4 J 01 RD48 Carbon Resistor 18.0K 1/4 J 01 RD49 Carbon Resistor 36.0K 1/4 J 01 RD50 Carbon Resistor 36.0K 1/4 J 01 RD51 Carbon Resistor 18.0K 1/4 J 01 RD52 Carbon Resistor 18.0K 1/4 J 01 RD53 Carbon Resistor 27.0K 1/4 J 01 -56 Carbon Resistor 27.0K 1/4 J 01 HF458100 HF456470 HF458100 HF456330 HF458100 HF458240 HF457100 HF456470 HF455220 HF455120 HF457200 HF457100 HF457100 HF455680 HF455680 HF456270 HF456270 HF454100 HF458100 HF455220 HF455220 HF457180 HF454100 HF457180 HF457270 HF457270 HF457680 HF458100 HF456390 HF456390 HF456680 HF456680 HF455220 HF455220 HF454100 HF454100 HF457180 HF457180 HF457270 HF457270 HF457360 HF457360 HF457180 HF457180 HF457270 HF457270 HF457360 HF457360 HF458120 HF458120 HF455220 HF455220 HF457120 HF457120 HF455220 HF455220 HF456680 HF456680 HF457100 HF457100 HF454100 HF454100 HF457180 HF457180 HF457360 HF457360 HF457180 HF457180 HF457270 HF457270 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 30 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RE01 Carbon Resistor 18.0K 1/4 J 01 RE02 Carbon Resistor 10.0K 1/4 J 01 RE03 Carbon Resistor 10.0K 1/4 J 01 RE04 Carbon Resistor 3.3K 1/4 J 01 RE05 Carbon Resistor 3.3K 1/4 J 01 RE06 Carbon Resistor 100.0K 1/4 J 01 RE07 Carbon Resistor 12.0K 1/4 J 01 RE08 Carbon Resistor 220.0 1/4 J 01 RE09 Carbon Resistor 5.6K 1/4 J 01 RE10 Carbon Resistor 2.2K 1/4 J 01 RE11 Carbon Resistor 10.0K 1/4 J 01 RE12 Carbon Resistor 10.0K 1/4 J 01 RE13 Carbon Resistor 75.0 1/4 J 01 RE14 Carbon Resistor 12.0K 1/4 J 01 RE15 Carbon Resistor 220.0 1/4 J 01 RE16 Carbon Resistor 5.6K 1/4 J 01 RE17 Carbon Resistor 2.2K 1/4 J 01 RE18 Carbon Resistor 10.0K 1/4 J 01 RE19 Carbon Resistor 10.0K 1/4 J 01 RE20 Carbon Resistor 75.0 1/4 J 01 RE21 Carbon Resistor 1.5K 1/4 J 01 RE22 Carbon Resistor 1.2K 1/4 J 01 RE23 Carbon Resistor 33.0K 1/4 J 01 RE24 Carbon Resistor 75.0 1/4 J 01 RE25 Carbon Resistor 75.0 1/4 J 01 RF01 Carbon Resistor 18.0K 1/4 J 01 RF02 Carbon Resistor 10.0K 1/4 J 01 RF03 Carbon Resistor 10.0K 1/4 J 01 RF04 Carbon Resistor 3.3K 1/4 J 01 RF05 Carbon Resistor 3.3K 1/4 J 01 RF06 Carbon Resistor 100.0K 1/4 J 01 RF07 Carbon Resistor 12.0K 1/4 J 01 RF08 Carbon Resistor 220.0 1/4 J 01 RF09 Carbon Resistor 5.6K 1/4 J 01 RF10 Carbon Resistor 2.2K 1/4 J 01 RF11 Carbon Resistor 10.0K 1/4 J 01 RF12 Carbon Resistor 10.0K 1/4 J 01 RF13 Carbon Resistor 75.0 1/4 J 01 RF14 Carbon Resistor 12.0K 1/4 J 01 RF15 Carbon Resistor 220.0 1/4 J 01 RF16 Carbon Resistor 5.6K 1/4 J 01 RF17 Carbon Resistor 2.2K 1/4 J 01 RF18 Carbon Resistor 10.0K 1/4 J 01 RF19 Carbon Resistor 10.0K 1/4 J 01 RF20 Carbon Resistor 75.0 1/4 J 01 RF21 Carbon Resistor 1.5K 1/4 J 01 RF22 Carbon Resistor 1.2K 1/4 J 01 RF23 Carbon Resistor 33.0K 1/4 J 01 RF24 Carbon Resistor 75.0 1/4 J 01 RF25 Carbon Resistor 75.0 1/4 J 01 RG01 Carbon Resistor 27.0K 1/4 J 01 RG02 Carbon Resistor 27.0K 1/4 J 01 RG03 Carbon Resistor 18.0K 1/4 J 01 RG04 Carbon Resistor 18.0K 1/4 J 01 RG05 Carbon Resistor 33.0K 1/4 J 01 RG06 Carbon Resistor 10.0K 1/4 J 01 RG07 Carbon Resistor 75.0 1/4 J 01 RG08 Metal Film Resistor 11K 1/4 F 05 RG09 Metal Film Resistor 11K 1/4 F 05 RG10 Carbon Resistor 100.0K 1/4 J 01 RG11 Carbon Resistor 33.0K 1/4 J 01 RG12 Carbon Resistor 33.0K 1/4 J 01 RG13 Carbon Resistor 10.0K 1/4 J 01 RG14 Carbon Resistor 10.0K 1/4 J 01 RG15 Metal Film Resistor 11K 1/4 F 05 RG16 Carbon Resistor 75.0 1/4 J 01 RH01 Carbon Resistor 18.0K 1/4 J 01 RH02 Carbon Resistor 18.0K 1/4 J 01 RH03 Carbon Resistor 33.0K 1/4 J 01 RH04 Carbon Resistor 10.0K 1/4 J 01 HF457180 HF457100 HF457100 HF456330 HF456330 HF458100 HF457120 HF455220 HF456560 HF456220 HF457100 HF457100 HF454750 HF457120 HF455220 HF456560 HF456220 HF457100 HF457100 HF454750 HF456150 HF456120 HF457330 HF454750 HF454750 HF457180 HF457100 HF457100 HF456330 HF456330 HF458100 HF457120 HF455220 HF456560 HF456220 HF457100 HF457100 HF454750 HF457120 HF455220 HF456560 HF456220 HF457100 HF457100 HF454750 HF456150 HF456120 HF457330 HF454750 HF454750 HF457270 HF457270 HF457180 HF457180 HF457330 HF457100 HF454750 VV065600 VV065600 HF458100 HF457330 HF457330 HF457100 HF457100 VV065600 HF454750 HF457180 HF457180 HF457330 HF457100 RANK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 31 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK HF454750 HF457330 HF457330 HF454750 HF457180 HF457180 HF457330 HF457100 HF454750 HF457330 HF457330 HF454750 HF457360 HF454100 HF457180 HF457330 HF457100 HF454750 HF457330 HF457330 HF454750 HF457680 HF457180 HF458180 HF455220 HF455220 HF458100 VV058500 VV058500 HF457680 HF457180 HF458180 HF455220 HF455220 HF458100 HF458100 HF458100 HF456820 HF456820 HF458100 HF458100 HF456470 HF456470 HF458100 HF458100 HF456330 HF456330 HF458240 HF458240 HF455330 HF455330 HF457470 HF457470 HF457100 HF457100 HF458100 HF458100 HF456330 HF456560 HF457470 HF457470 HF457100 HF457100 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 RH05 Carbon Resistor 75.0 1/4 J 01 RH06 Carbon Resistor 33.0K 1/4 J 01 RH07 Carbon Resistor 33.0K 1/4 J 01 RH08 Carbon Resistor 75.0 1/4 J 01 RI01 Carbon Resistor 18.0K 1/4 J 01 RI02 Carbon Resistor 18.0K 1/4 J 01 RI03 Carbon Resistor 33.0K 1/4 J 01 RI04 Carbon Resistor 10.0K 1/4 J 01 RI05 Carbon Resistor 75.0 1/4 J 01 RI06 Carbon Resistor 33.0K 1/4 J 01 RI07 Carbon Resistor 33.0K 1/4 J 01 RI08 Carbon Resistor 75.0 1/4 J 01 RJ01 Carbon Resistor 36.0K 1/4 J 01 RJ02 Carbon Resistor 10.0 1/4 J 01 RJ03 Carbon Resistor 18.0K 1/4 J 01 RJ04 Carbon Resistor 33.0K 1/4 J 01 RJ05 Carbon Resistor 10.0K 1/4 J 01 RJ06 Carbon Resistor 75.0 1/4 J 01 RJ07 Carbon Resistor 33.0K 1/4 J 01 RJ08 Carbon Resistor 33.0K 1/4 J 01 RJ09 Carbon Resistor 75.0 1/4 J 01 RK01 Carbon Resistor 68.0K 1/4 J 01 RK02 Carbon Resistor 18.0K 1/4 J 01 RK03 Carbon Resistor 180.0K 1/4 J 01 RK04 Carbon Resistor 220.0 1/4 J 01 RK05 Carbon Resistor 220.0 1/4 J 01 RK06 Carbon Resistor 100.0K 1/4 J 01 RK07 Flame Proof C. Resistor 10.0 1/4 J 01 RK08 Flame Proof C. Resistor 10.0 1/4 J 01 RL01 Carbon Resistor 68.0K 1/4 J 01 RL02 Carbon Resistor 18.0K 1/4 J 01 RL03 Carbon Resistor 180.0K 1/4 J 01 RL04 Carbon Resistor 220.0 1/4 J 01 RL05 Carbon Resistor 220.0 1/4 J 01 RL06 Carbon Resistor 100.0K 1/4 J 01 RM01 Carbon Resistor 100.0K 1/4 J 01 RM02 Carbon Resistor 100.0K 1/4 J 01 RM03 Carbon Resistor 8.2K 1/4 J 01 RM04 Carbon Resistor 8.2K 1/4 J 01 RM05 Carbon Resistor 100.0K 1/4 J 01 RM06 Carbon Resistor 100.0K 1/4 J 01 RM07 Carbon Resistor 4.7K 1/4 J 01 RM08 Carbon Resistor 4.7K 1/4 J 01 RM09 Carbon Resistor 100.0K 1/4 J 01 RM10 Carbon Resistor 100.0K 1/4 J 01 RM11 Carbon Resistor 3.3K 1/4 J 01 RM12 Carbon Resistor 3.3K 1/4 J 01 RM13 Carbon Resistor 240.0K 1/4 J 01 RM14 Carbon Resistor 240.0K 1/4 J 01 RM15 Carbon Resistor 330.0 1/4 J 01 RM16 Carbon Resistor 330.0 1/4 J 01 RM17 Carbon Resistor 47.0K 1/4 J 01 RM18 Carbon Resistor 47.0K 1/4 J 01 RM19 Carbon Resistor 10.0K 1/4 J 01 RM20 Carbon Resistor 10.0K 1/4 J 01 RM21 Carbon Resistor 100.0K 1/4 J 01 RM22 Carbon Resistor 100.0K 1/4 J 01 RM23 Carbon Resistor 3.3K 1/4 J 01 RM24 Carbon Resistor 5.6K 1/4 J 01 RM25 Carbon Resistor 47.0K 1/4 J 01 RM26 Carbon Resistor 47.0K 1/4 J 01 RM27 Carbon Resistor 10.0K 1/4 J 01 RM28 Carbon Resistor 10.0K 1/4 J 01 SW101 Push Switch ESB31L402 PFL(CH1) 02 SW201 Push Switch ESB31L402 PFL(CH2) 02 SW301 Push Switch ESB31L402 PFL(CH3) 02 SW401 Push Switch ESB31L402 PFL(CH4) 02 SW501 Push Switch ESB31L402 PFL(CH5) 02 SW601 Push Switch ESB31L402 PFL(CH6) 02 SW701 Push Switch ESB31L402 PFL(CH7) 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 32 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 V2947300 VZ253800 V2947300 V2947300 V2947300 VV051500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 V5521500 V6159600 V5521600 V5521600 VU804100 VZ610800 V5521500 SW801 Push Switch ESB31L402 PFL(CH8) 02 SW901 Push Switch ESB31L402 A,B(CH9/10) 02 SW902 Push Switch ESB31L402 PFL(CH9/10) 02 SWB01 Push Switch ESB31L402 A,B(CH11/12) 02 SWB02 Push Switch ESB31L402 PFL(CH11/12) 02 SWD01 Push Switch ESB31L402 PFL(ST SUB1,2,TAPE IN, 02 -04 Push Switch ESB31L402 D.EFFECT ON) 02 SWE01 Push Switch ESB31L402 G.EQ ON 02 SWE02 Push Switch ESB31L402 AFL(ST1) 02 SWG01 Push Switch ESB31L402 AFL(MONO) 02 SWG02 Slide Switch SS008-P2430BB-PA6 POWER AMP Select Switch 03 SWH01 Push Switch ESB31L402 AFL(MONI1) 02 SWI01 Push Switch ESB31L402 AFL(MONI2 02 SWJ01 Push Switch ESB31L402 AFL(EFFECT) 02 SWM01 Slide Switch SSSU012NB1-YL PHANTOM ON/OFF 02 VR101 Rotary Variable Resistor RD 5K RK09D113 CH1(GAIN) 01 VR102 Rotary Variable Resistor B 50.0K RD09F113 CH1(HIGH,MID,LOW) 01 -104 Rotary Variable Resistor B 50.0K RD09F113 01 VR105 Slide Variable Resistor RS6011YG6036-10KA CH1(Fader) 04 VR106 Rotary Variable Resistor AC 20K RK12L123 CH1(PAN) 03 VR107 Rotary Variable Resistor A 20.0K RK09D113 CH1(EFFECT,MONI1,2) 01 -109 Rotary Variable Resistor A 20.0K RK09D113 01 VR201 Rotary Variable Resistor RD 5K RK09D113 CH2(GAIN) 01 VR202 Rotary Variable Resistor B 50.0K RD09F113 CH2(HIGH,MID,LOW) 01 -204 Rotary Variable Resistor B 50.0K RD09F113 01 VR205 Slide Variable Resistor RS6011YG6036-10KA CH2(Fader) 04 VR206 Rotary Variable Resistor AC 20K RK12L123 CH2(PAN) 03 VR207 Rotary Variable Resistor A 20.0K RK09D113 CH2(EFFECT,MONI1,2) 01 -209 Rotary Variable Resistor A 20.0K RK09D113 01 VR301 Rotary Variable Resistor RD 5K RK09D113 CH3(GAIN) 01 VR302 Rotary Variable Resistor B 50.0K RD09F113 CH3(HIGH,MID,LOW) 01 -304 Rotary Variable Resistor B 50.0K RD09F113 01 VR305 Slide Variable Resistor RS6011YG6036-10KA CH3(Fader) 04 VR306 Rotary Variable Resistor AC 20K RK12L123 CH3(PAN) 03 VR307 Rotary Variable Resistor A 20.0K RK09D113 CH3(EFFECT,MONI1,2) 01 -309 Rotary Variable Resistor A 20.0K RK09D113 01 VR401 Rotary Variable Resistor RD 5K RK09D113 CH4(GAIN) 01 VR402 Rotary Variable Resistor B 50.0K RD09F113 CH4(HIGH,MID,LOW) 01 -404 Rotary Variable Resistor B 50.0K RD09F113 01 VR405 Slide Variable Resistor RS6011YG6036-10KA CH4(Fader) 04 VR406 Rotary Variable Resistor AC 20K RK12L123 CH4(PAN) 03 VR407 Rotary Variable Resistor A 20.0K RK09D113 CH4(EFFECT,MONI1,2) 01 -409 Rotary Variable Resistor A 20.0K RK09D113 01 VR501 Rotary Variable Resistor RD 5K RK09D113 CH5(GAIN) 01 VR502 Rotary Variable Resistor B 50.0K RD09F113 CH5(HIGH,MID,LOW) 01 -504 Rotary Variable Resistor B 50.0K RD09F113 01 VR505 Slide Variable Resistor RS6011YG6036-10KA CH5(Fader) 04 VR506 Rotary Variable Resistor AC 20K RK12L123 CH5(PAN) 03 VR507 Rotary Variable Resistor A 20.0K RK09D113 CH5(EFFECT,MONI1,2) 01 -509 Rotary Variable Resistor A 20.0K RK09D113 01 VR601 Rotary Variable Resistor RD 5K RK09D113 CH6(GAIN) 01 VR602 Rotary Variable Resistor B 50.0K RD09F113 CH6(HIGH,MID,LOW) 01 -604 Rotary Variable Resistor B 50.0K RD09F113 01 VR605 Slide Variable Resistor RS6011YG6036-10KA CH6(Fader) 04 VR606 Rotary Variable Resistor AC 20K RK12L123 CH6(PAN) 03 VR607 Rotary Variable Resistor A 20.0K RK09D113 CH6(EFFECT,MONI1,2) 01 -609 Rotary Variable Resistor A 20.0K RK09D113 01 VR701 Rotary Variable Resistor RD 5K RK09D113 CH7(GAIN) 01 VR702 Rotary Variable Resistor B 50.0K RD09F113 CH7(HIGH,MID,LOW) 01 -704 Rotary Variable Resistor B 50.0K RD09F113 01 VR705 Slide Variable Resistor RS6011YG6036-10KA CH7(Fader) 04 VR706 Rotary Variable Resistor AC 20K RK12L123 CH7(PAN) 03 VR707 Rotary Variable Resistor A 20.0K RK09D113 CH7(EFFECT,MONI1,2) 01 -709 Rotary Variable Resistor A 20.0K RK09D113 01 VR801 Rotary Variable Resistor RD 5K RK09D113 CH8(GAIN) 01 VR802 Rotary Variable Resistor B 50.0K RD09F113 CH8(HIGH,MID,LOW) 01 -804 Rotary Variable Resistor B 50.0K RD09F113 01 VR805 Slide Variable Resistor RS6011YG6036-10KA CH8(Fader) 04 VR806 Rotary Variable Resistor AC 20K RK12L123 CH8(PAN) 03 VR807 Rotary Variable Resistor A 20.0K RK09D113 CH8(EFFECT,MONI1,2) 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EMX3000 33 REF NO. PART NO. DESCRIPTION REMARKS QTY : New Parts RANK: Japan only RANK * * * * * V5521500 VZ611000 VU806400 VU806400 VZ610800 VZ610900 VZ610900 VU804200 VZ611000 VU806400 VU806400 VZ610800 VZ610900 VZ610900 VU804200 VZ610900 VZ610900 VU804300 VU804300 VU804200 VZ610900 VU804100 VZ531900 VZ531900 VU804100 VU804100 VU804100 VZ610900 V6159700 VG443700 XZ505A00 XZ506A00 XZ507A00 XZ508A00 V6786600 V6024100 -809 Rotary Variable Resistor A 20.0K RK09D113 01 VR901 Rotary Variable Resistor C 20K RK12L123 CH9/10(GAIN) 05 VR902 Rotary Variable Resistor B50K EVJYAEF03B54 CH9/10(HIGH,MID,LOW) 03 -904 Rotary Variable Resistor B50K EVJYAEF03B54 03 VR905 Rotary Variable Resistor AC 20K RK12L123 CH9/10(PAN) 03 VR906 Rotary Variable Resistor A 20K RK12L12C CH9/10(EFFECT,MONI1,2) 02 -908 Rotary Variable Resistor A 20K RK12L12C 02 VR909 Slide Variable Resistor RS60112G6039-10KA2 CH11/12(Fader) 04 VRB01 Rotary Variable Resistor C 20K RK12L123 CH11/12(GAIN) 05 VRB02 Rotary Variable Resistor B50K EVJYAEF03B54 CH11/12(HIGH,MID,LOW) 03 -04 Rotary Variable Resistor B50K EVJYAEF03B54 03 VRB05 Rotary Variable Resistor AC 20K RK12L123 CH11/12(PAN) 03 VRB06 Rotary Variable Resistor A 20K RK12L12C CH11/12(EFFECT,MONI1,2) 02 -08 Rotary Variable Resistor A 20K RK12L12C 02 VRB09 Slide Variable Resistor RS60112G6039-10KA2 CH11/12(Fader) 04 VRD01 Rotary Variable Resistor A 20K RK12L12C ST SUB1(MONI1,MONI2,ST), 02 -10 Rotary Variable Resistor A 20K RK12L12C ST SUB2(MONI1,MONI2,ST), 02 TAPE IN(ST),D.EFFECT(ST, MONI1,MONI2) VRE01 Slide Variable Resistor W 20.0K RS20H12 G,EQ(125,250,500,1K,2K, 03 -07 Slide Variable Resistor W 20.0K RS20H12 4K,8K) 03 VRE08 Slide Variable Resistor RS60112G6039-10KA2 ST1(Fader) 04 VRE09 Rotary Variable Resistor A 20K RK12L12C ST2 02 VRG01 Slide Variable Resistor RS6011YG6036-10KA MONO(Fader) 04 VRG02 Rotary Variable Resistor RV122NB20KC-15KQ LIMITER(L/BRIDGE) 03 VRG03 Rotary Variable Resistor RV122NB20KC-15KQ LIMITER(R) 03 VRH01 Slide Variable Resistor RS6011YG6036-10KA MONI1(Fader) 04 VRI01 Slide Variable Resistor RS6011YG6036-10KA MONI2(Fader) 04 VRJ01 Slide Variable Resistor RS6011YG6036-10KA EFFECT(Fader) 04 VRK01 Rotary Variable Resistor A 20K RK12L12C C-R/PHONES 02 VRM01 Rotary Variable Resistor B 10.0K RK09D113 PARAMETER 01 ZDM01 Zener Diode MTZ J 33.0B 33.0V 01 Power Transformer J J Power Transformer U U Power Transformer H H Power Transformer A A Heat sink DC Fun 3110GL-B5W-B50-H01 08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
