CDR1000电路原理图

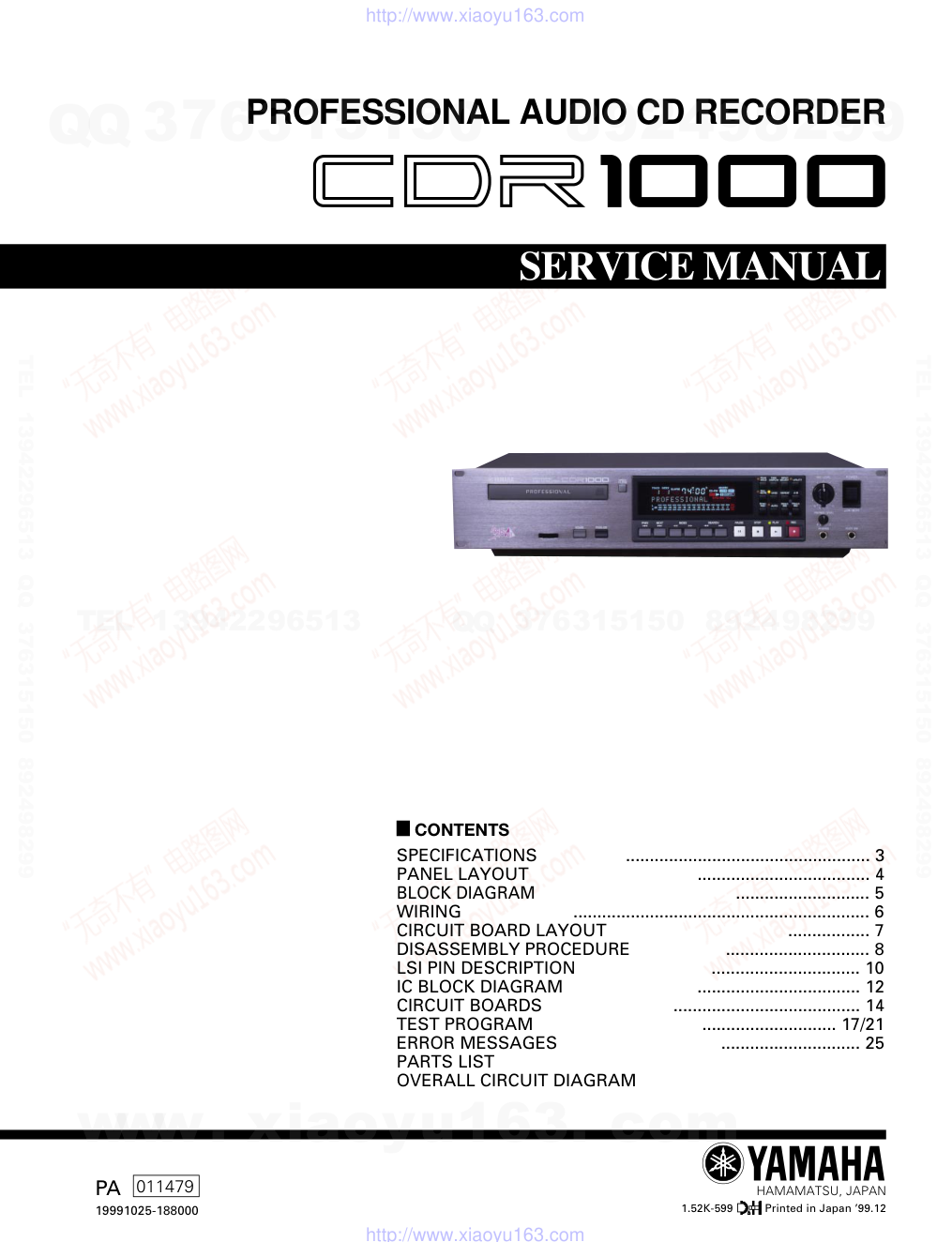

SERVICE MANUAL PA 011479 19991025-188000 1.52K-599 Printed in Japan ’99.12 HAMAMATSU, JAPAN PROFESSIONAL AUDIO CD RECORDER CONTENTS SPECIFICATIONS ................................................... 3 PANEL LAYOUT .................................... 4 BLOCK DIAGRAM ............................ 5 WIRING .............................................................. 6 CIRCUIT BOARD LAYOUT ................. 7 DISASSEMBLY PROCEDURE .............................. 8 LSI PIN DESCRIPTION ............................... 10 IC BLOCK DIAGRAM .................................. 12 CIRCUIT BOARDS ....................................... 14 TEST PROGRAM ............................ 17/21 ERROR MESSAGES ............................. 25 PARTS LIST OVERALL CIRCUIT DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WARNING: LASER SAFETY This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precaution must be used during servicing of the unit. 1) When testing and / or repairing any component within the product, keep your eyes and skin more than 30cm away from the laser pick-up unit at all time. Do not stare the laser beam at any time. 2) Do not attempt readjustment,disassemble and repair of the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION - Use of controls or readjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING Laser Diode Properties * Material : GaAlAs * Wavelength : 783–789 nm * Emission Duration : Continuous * Laser Output Power : Less than 44.6 µW Laser output is measured at a distance of 20cm from the object lens on the optical pick-up head. (Note) When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com • This label is located on the interior. • Varningsanvisning för laserstrålning. Placerad i apparaten. CAUTION VARNING VARO! VARNING VORSICHT! : INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPEND. STRÅLEN ÄR FARLIG. : NÄKYMÄTÖNTÄ AVATTAESSA OLET ALTTIINA LESERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN. : UNSICHTBARE LESERSTRAHLUNG WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN. On USA or Canadian models do not have this label. This label is located on the exterior. CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT Klassmärkning för Finland. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 CDR1000 SPECIFICATIONS Recording media CD-R, CD-RW Playback media CD, CD-R, CD-RW Sampling rate 44.1 kHz Recording resolution 16-bit linear Converters A/D 20-bit 64-times oversampling D/A 20-bit 128-times oversampling Frequency response 20 Hz–20 kHz Track Up to 99 tracks Index Up to 99 indexes SRC (Sampling Rate Converter) 30 kHz to 50 kHz UV22 16-bit encoding S/N 97 dB Input delay 0–4,950 ms Fade in/out time 0–10 second Synchronized recording CD, MD, DAT Repeat playback One track, All track, A–B Locate PREV, NEXT, INDEX, SEARCH, direct select Display Type VFD (Vacuum Fluorescent Display) Characters 12-character line Time counter Minutes and seconds Display mode Elapse, Remain, Total Track counter 0–99 Index counter 0–99 Level meters 16 segment with CLIP indicator x2 Power requirements U.S.A. & Canada 120 V AC, 60 Hz Europe 230 V AC, 50 Hz Power consumption 33 W Dimensions (W H D) 480 × × × 101 × 389 mm (18.9 x 4 x 15.3 inches) Weight 8 kg (17.6 lbs) Free-air operating temperature range 5˚ C to 35˚ C (41˚ F to 95˚ F) Relative humidity 10%–95% Accessories Power cord, remote controller, batteries (size AA, R6, UM-3 x2), transportation pad, Owner’s Manual Options Yamaha FC5 footswitch w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 PANEL LAYOUT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Disc tray OPEN/CLOSE button Display Functions buttons REC LEVEL control POWER switch Remote controller sensor ERASE button FINALIZE button PREV & NEXT buttons INDEX buttons SEARCH buttons PAUSE button STOP button PLAY button & indicator REC button & indicator PHONES LEVEL control PHONES jack FOOT SW jack 1 2 3 4 5 6 7 8 9 10 11 Cooling fan AC IN connector ANALOG OUT connectors ANALOG IN connectors ANALOG IN level switch PARALLEL port DIGITAL COAXIAL OUT connector DIGITAL COAXIAL IN connector WORD CLOCK IN connector DIGITAL AES/EBU OUT connector DIGITAL AES/EBU IN connector 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 OPEN/CLOSE button REC MUTE button INPUT SELECT button AUTO button Number keypad PREV & NEXT buttons SEARCH buttons PAUSE button STOP button PEAK HOLD button TIME DISPLAY button REPEAT button A-B button TRACK INC button INDEX INC button INDEX buttons SYNC REC button REC button PLAY button PROFESSIONAL AUDIO CD RECORDER OPEN/ CLOSE ERASE FINALIZE POWER FOOT SW PHONES PHONES LEVEL 0 10 ON / OFF REC UTILITY UV22 AUTO REPEAT A-B PEAK HOLD REC MUTE TIME DISPLAY SYNC REC INPUT SELECT INDEX INC TRACK INC PLAY STOP PAUSE SEARCH INDEX NEXT PREV REC LEVEL L 0 10 R 1 2 3 4 5 6 19 18 17 16 15 14 13 12 11 10 9 8 7 ANALOG OUT AC IN R L R L –10dBV +4dB ANALOG IN PARALLEL OUT IN OUT IN DIGITAL(COAXIAL) DIGITAL(AES/EBU) WORD CLOCK IN 1 2 3 4 5 6 7 8 9 10 11 OPEN / CLOSE REC MUTE AUTO 1 2 3 4 5 6 +10 PAUSE STOP PLAY << INDEX >> PREV NEXT SEARCH REC SYNC REC 7 8 9 0 INPUT SELECT INDEX INC TRACK INC REPEAT A-B PEAK HOLD TIME DISPLAY V349650 1 10 11 12 13 14 15 16 17 18 19 2 3 4 5 6 7 8 9 Front panel Rear panel Remote Controller 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 CDR1000 BLOCK DIAGRAM IC44,45 IC44,45 IC30 IC33 3 1 5 7 IC39 IC31 IC19 IC13 IC9 IC1 IC19 IC43 IC46 IC47 5 7 (2) (1) 5 (2) 7 (1) IC32 IC30 IC41 IC41 KEC-92378 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 CDR1000 WIRING CN5 CN6 ST1 CN1 CN2 FL CN1 CN3 CN4 CN104 CN105 CN6 CN7 CN8 CN9 Front Panel Power Transformer J: XV755 U, C: XV756 H, B: XV757 CN5 (CD-R/W Drive) CN4 CN3 CN2 CN12 CN11 CN10 CN7 CN102 CN106 CN103 CN101 CN23 CN9 V456760 FAN CN21 CN22 MAIN PS FP 3/7 FP 1/7 FP 2/7 FP 4/7 FP 5/7 FP 6/7 FP 7/7 C & C MAIN-CN1 MAIN-CN2 MAIN-CN3 MAIN-CN4 MAIN-CN11 MAIN-CN12 MAIN-CN7 FP1/7-CN1 FP7/7-CN9 FP4/7-CN6 PS-CN103 MAIN-CN5 MAIN-CN9 MAIN-CN6 FP3/7-CN5 FP2/7-CN3 FP2/7-CN4 FP1/7-CN2 FP5/7-CN7 FP6/7-CN8 PS-CN104 PS-CN105 PS-CN21 MAIN-CN10 CD-R/W Drive CD-R/W Drive CD-R/W Drive CD-R/W Drive 8P/L200 FRONT 250 FRONT 260 FRONT 270 FP CN2 OVERALL 450 OVERALL 440 OVERALL 420 OVERALL 350 OVERALL 360 OVERALL 370 OVERALL 390 OVERALL 380 OVERALL 400 OVERALL 410 C & C 7P/L250 C & C 5P/L250 B & C 10P/L200 C & C C & C 8P/L250 C & C 9P/L350 3P/L250 C & C 6P/L160 PSW 2P/L340 VR 6P/L220 CDRW 4P/L600 DO 2P/L180 AO 4P/L230 MAIN to CDR 40P/L120 Connector Assembly Destination Pin/Lenght Parts List No. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 7 CIRCUIT BOARD LAYOUT FP 3/7 FP 1/7 FP 2/7 FP 4/7 FP 7/7 FP 5/7 FP 6/7 CRW Unit Transformer Power MAIN PS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 8 DISASSEMBLY PROCEDURE 2. Circuit Boards and Units After removing the top cover, remove the following screw. Each circuit board and unit can then be removed. (Fig.1) 130 100 110 120 150 160 190 530 280 260 300 3 12 2 1 4 2 2 4 4 4 9 MAIN Rear Panel PS AC-IN Fun Trans. CRW Unit Front Panel Assembly Circuit Board Ref. No. Parts No. Description Q'ty EP600190 EP630220 VT362500 VP156600 EP600190 VP157000 EP630220 VR116500 VC688800 VP157000 VP157000 Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Bind Head Tapping Screw-P 3.0 X MFZN2BL Jack Socket 17L-003A3 Bind Head Screw A3.0 X 6 MFZN2BL Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Bind Head Tapping Screw-B A3.0 X 8 MFZN2BL Bind Head Tapping Screw-P 3.0 X 8 MFZN2BL Pan Head Screw SP4.0 X 25 MFZN2BL Bind Head Tapping Screw-B A4.0 X 8 MFZN2BL Bind Head Tapping Screw-B A3.0 X 8 MFZN2BL Bind Head Tapping Screw-B A3.0 X 8 MFZN2BL 3. Circuit Board in Front Panel Assembly 3-1 Remove the top cover.(See procedure 1.) 3-2 After removing the front panel assembly, remove the following screw. Each circuit board in the front panel assembly can then be removed. (Fig. 2) Bind Head Tapping Screw-B A3.0 X 8 MFZN2BL Knob Knob Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Hexagonal Nut 9.0 Hexagonal Nut 9.0 Hexagonal Nut 9.0 Bind Head Screw A3.0 X 6 MFZN2BL Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Bind Head Tapping Screw-B 3.0 X 8 MFZN2BL Front Panel FP3/7 FP4/7 FP5-7 FP6/7 FP7/7 Window FP1/7 FP2/7 160 190 200 90 40 60 50 30 120 80 70 4 1 1 2 1 2 1 2 4 2 2 Circuit Board Ref. No. Parts No. Description Q'ty VP157000 VF888400 VF888500 EP600190 V2431400 V2431400 V2431400 VP156600 EP600190 EP600190 EP600190 [320]:Bind Head Tapping Screw-B A3.0x8 MFZN2BL+BindB Tight (VP157000) 1. Top Cover Remove the seven (7) screws marked [320] and remove the top cover by sliding it rearward. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 CDR1000 [160] [120] [160] [30] [50] [40] [60] [160] [90] [90] [80] [120] [120] [120] [80] [160] [120] [70] [200] [190] FP 7/7 FP 6/7 FP 4/7 FP 6/7 FP 3/7 FP 1/7 FP 2/7 FP 5/7 FP 6/7 FP 4/7 FP 7/7 [320] [160] [320] [300] [320] [320] [300] [130] [260] [300] [260] [320] [260] [130] [130] [280] [300] [320] [300] CRW Unit Transformer Power [150] [160] [160] [150] [120] [320] [180] [530] [530] [190] [100] [100] [100] [110] [100] [100] [60] MAIN PS Fig.1 〈TOP VIEW〉 〈FRONT VIEW〉 〈A VIEW〉 〈B VIEW〉 4. CRW Unit 4-1. Remove the four (4) screws marked [250], and the angle can be removed. 4-2. Remove the two (2) screws marked [A] and push in the four (4) hooks on both side. Then the cover can be removed. 4-3. Remove the front panel marked [220a] of the unit and then the tray marked [220b]. Push up the stopper located on the left side of the tray a little, and the tray can be removed. Fig.2 Tray panel [230] Tray [220b] [250] [A] CDR angle [240] Front panel [220a] Stopper pin Cover Fig.3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 CDR1000 LSI PIN DESCRIPTION PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O I I O I O I I I I I I O I/O I I I I I I I I I I I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O O I I I I I I I I O O O O O O O O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O VSS XI XO VDD /SYNCI /SYNCO CKI CKO CKSL VSS MCKS /SSYNC /IC /TEST BTYP /IRQ TRIG VDD VSS /CS /DS R/W CA7 CA6 CA5 CA4 CA3 CA2 CA1 CA0/CD15 CD14 CD13 CD12 CD11 CD10 CD09 CD08 CD07 CD06 VSS VDD CD05 CD04 CD03 CD02 CD01 CD00 /DTACK SI0 SI1 SI2 SI3 SI4 SI5 SI6 SI7 VSS VDD SO0 SO1 SO2 SO3 SO4 SO5 SO6 SO7 DB00 DB01 DB02 DB03 DB04 DB05 DB06 DB07 DB08 DB09 DB10 DB11 DB12 VDD NAME Ground System master clock input (60 M or30 MHz) System master clock input (60 M or30 MHz) Power supply System synch. input System synch. output System clock input (30 MHz) System clock output (30 MHz) System master clock select (0:60 M,1:30 MHz) Ground Master clock for serial I/O(128 xFs) Synch. signal for serial I/O Initial clear Test mode setting CPU data bus 8/16 bit select(0:8,1:16) Interrupt request Trigger signal Power supply Ground Chip select Data strobe Read/Write select CPU address bus CPU address/data bus CPU data bus Ground Power supply CPU data bus DTACK signal output Serial data input Ground Power supply Serial data output Parallel data bus Power supply FUNCTION YSS228E-F (XQ962D00) DSP3 (Digital Signal Processor) IC1 PIN NO. 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O O O O O O O O O O O O O O O O O O O O O VSS DB13 DB14 DB15 DB16 DB17 DB18 DB19 DB20 DB21 DB22 DB23 DB24 DB25 DB26 DB27 DB28 DB29 DB30 DB31 TIMO/DBOE VSS VDD DA00 DA01 DA02 DA03 DA04 DA05 DA06 DA07 DA08 DA09 DA10 DA11 DA12 DA13 DA14 DA15 VSS VDD DA16 DA17 DA18 DA19 DA20 DA21 DA22 DA23 DA24 DA25 DA26 DA27 DA28 DA29 DA30 DA31 VDD VSS A00 A01 A02 A03 A04 A05 A06 A07 A08 A09 A10 A11 A12 A13 A14 A15/RAS A16/CAS A17/CE /WE /OE VDD NAME Ground Parallel data bus Timing signal/Parallel data bus control Ground Power supply External memory data bus Ground Power supply External memory data bus Power supply Ground External memory address bus External memory address bus/Row address strobe External memory address bus/Column address strobe External memory address bus/Chip enable External memory write enable External memory output enable Power supply FUNCTION AK4520A-VF-E2 (XT802A00) DAC&ADC PIN NO. NAME I/O FUNCTION PIN NO. NAME I/O FUNCTION 1 VREFH I Positive Voltage Reference Input, VA 15 MCLK I Master Clock Input 2 VREFL I Negative Voltage Reference Input, AGND 16 DEM0 I De-emphasis Frequency Select 3 AINR+ I Rch Analog Positive Input 17 DEM1 I De-emphasis Frequency Select 4 AINR- I Rch Analog Negative Input 18 TST3 I/O 5 AINL+ I Lch Analog Positive Input 19 TST2 I/O Test Pins (Pull Down Pins) 6 AINL- I Lch Analog Negative Input 20 TST1 I 7 VA - Analog Power Supply 21 VD - Digital Power Supply 8 AGND - Analog Ground 22 DGND - Digital Ground 9 DIF0 I Audio Data Interface Format 23 /PWDA I DAC Power-Down Mode 10 DIF1 I Audio Data Interface Format 24 /PWAD I ADC Power-Down Mode 11 LRCK I Input/Output Channel Clock 25 CMODE I Master Clock Select (“H”:384fs,“L”:256fs) 12 SCLK I Audio Serial Data Clock 26 AOUTL O Lch Analog Output 13 SDTI I Audio Serial Data Input 27 AOUTR O Rch Analog Output 14 SDTO O Audio Serial Data Output 28 VCOM O Common Voltage Output, VA/2 YM3436 (XG948A00) DIR2 (Digital Format Interface) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 DAUX HDLT DOUT VFL OPT SYNC MCC WC MCB MCA SKSY XI XO P256 LOCK Vss TC DIM1 DIM0 DOM1 DOM0 KM1 I O O O O O O O O O I I O O O O I I I I I Auxiliary input for audio data Asynchronous buffer operation flag Audio data output Parity flag output Fs 1 Synchronous output signal for DAC Fs 1 Synchronous output signal for DSP Fs 64 Bit clock output Fs 1 Word clock output Fs 128 Bit clock output Fs 256 Bit clock output Clock Synchronous control input Crystal oscillator connection or external clock input Crystal oscillator connector VCO oscillating clock connection PLL lock flag Logic section power PLL time constant switching output Data input mode selection Data input mode selection Data output mode selection Data output mode selection Clock mode switching input 1 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 RSTN Vdda CTLN PCO ( NC ) CTLP Vssa TSTN KM2 KMO FS1 FS0 CSM EXTW DDIN LR Vdd ERR EMP CD0 CCK CLD I I O I I I I O O I I I O O O O I I System reset input VCO section power (+5V) VCO control input N PLL phase comparison output VCO control input P VCO section power (GND) Test terminal. Open for normal use Clock mode switching input 2 Clock mode switching input 0 Channel status sampling frequency display output 1 Channel status sampling frequency display output 0 Channel status output method selection External synchronous auxiliary input word clock EIAJ (AES/EBU) data input PLL word clock output Logic section power (+5V) Data error flag output Channel status emphasis control code output 3-wire type microcomputer interface data output 3-wire type microcomputer interface clock input 3-wire type microcomputer interface load input PIN No. NAME I/O FUNCTION PIN No. NAME I/O FUNCTION IC BLOCK DIAGRAM TC4053BF (XB738A00) IC43 MULTIPLEXER SN75124NS (XN976A00) IC31 LINE RECEIVER NJM5532M (XC011A00) IC46, IC47 OP AMP 1 Switches IN/OUT Y1 2 3 4 5 6 7 8 do Y0 do Z1 Commons IN/OUT 7 Z Switches IN/OUT Z0 Control Inhibit DC Voltage Supply do VDD Y X X1 X0 A B C 9 10 11 12 13 14 15 16 +DC Voltage Supply Commonsl OUT/IN Y do X Switches IN/OUT X1 do X0 Control Input A do B do C Y1 Y0 Z1 Z Z0 INH VEE VSS 1 2 3 4 5 6 7 1A 1B 2R 2S 2A 2B 2Y 8 GND 16 10 11 12 14 15 3R 9 3Y 3S 3A 1Y 1R 1S 13 Vcc 1 2 3 4 8 7 6 5 A OUT A+IN V+ B OUT B+IN A IN V B IN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 PIN NO. NAME I/O FUNCTION PIN NO. NAME I/O FUNCTION 1 DI I Input data 23 OW20N I Output format setting*1 2 DI I 24 OW20N I 3 BCKI I Input side bit clock 25 IISN I IIS output mode select 4 BCKI I 26 IISN I H: normal L: IILS 5 LRCI I Input side word clock 27 STATE O Output which shows internal operation 6 ICLK I Input side system clock input 28 TST1N I Diza ON/OFF select 7 ICKSL I Input side system clock select 29 TST2N I Test 8 IFM1 I Input format setting 30 RSTN I Reset 9 IFM1 I 31 RSTN I 10 IFM2 I 32 VSS - Ground 11 IFM2 I 33 VSS - 12 VDD - Power supply 34 SLAVE I Mode select of BCKO and LRCO 13 VDD - 35 SLAVE I H: input L: output 14 DMUTE I Mute 36 THRUN I Slue mode setting of DOUT 15 DMUTE I 37 THRUN I 16 MCOM I 17 to 20 pin control select 38 OCKSL I Output side system clock select 17 MDT/FSI1 I MCDM H: data input L: de-emphasis clock select 39 OCLK I Output side system clock input 18 MCK/FSI2 I MCDM H: Bit clock of data input L: de-emphasis clock select 40 LRCO I/O Output side word clock input/output 19 MLEN/DEEM I MCDM H: data word latch clock 41 BCKO I/O Output side Bit clock input/output 20 MLEN/DEEM I L: de-emphasis on/off control 42 BCKO I/O 21 OW18N I Output format setting*1 43 DOUT O Data Out 22 OW18N I 44 DOUT O *1 IISN: H Output format OW20N OW18N 16 bit H H 18 bit H L Stuffs back L H 20 bit Stuffs ahead L L IISN: L Output format OW20N OW18N 16 bit H H 18 bit H L L H 20 bit IIS MODE Stuffs ahead L L IMF1 IMF2 Word length Data sequence Data position L L 16 Bit MBS first Stuffs back L H 20 Bit MSB first Stuffs back H L 20 Bit MSB first Stuffs ahead H H 20 Bit LSB first Stuffs back SM5844AF (XW097A00) Sample Converter PIN NO. NAME I/O FUNCTION PIN NO. NAME I/O FUNCTION 1 TIOCA3 I/O 41 A18/P52 O Address bus 2 TIOCB3 I/O 42 A19/P53 O 3 TIOCA4 I/O Input capture/output compare 43 P60//WAIT I Wait 4 TIOCB4 I/O 44 MD0 I Mode control 5 TOCXA4 I/O 45 MD1 I 6 TOCXB4 I/O 46 φ O System clock 7 MD2 I Mode control 47 /STBY I Standby 8 /ADTRG/TP15/PB7 AD conversion external trigger input 48 /RES I Reset 9 TXD0/P90 O Transmit data 49 NMI Non-maskable interrupt 10 RXD0/P92 I Receive data 50 VSS Ground 11 /IRQ4/SCK0/P94 I Interrupt request 51 EXTAL I Crystal oscillator 12 VSS - Ground 52 XTAL I 13 D0/P30 I/O 53 VCC Power supply 14 D1/P31 I/O 54 P63/AS O Address strobe 15 D2/P32 I/O 55 P64/RD O Read 16 D3/P33 I/O Data bus 56 P65/WR O Write 17 D4/P34 I/O 57 /RESO/FWE I/O Reset output/write enable signal 18 D5/P35 I/O 58 AVSS - Ground 19 D6/P36 I/O 59 P70/AN0 I 20 D7/P37 I/O 60 P71/AN1 I 21 VCC - Power supply 61 P72/AN2 I 22 A0/P10 O 62 P73/AN3 I Analog input 23 A1/P11 O 63 P74/AN4 I 24 A2/P12 O 64 P75/AN5 I 25 A3/P13 O Address bus 65 P76/AN6 I 26 A4/P14 O 66 P77/AN7 I 27 A5/P15 O 67 AVCC - Power supply 28 A6/P16 O 68 P80//IRQ0 I Interrupt request 29 A7/P17 O 69 P81//IRQ1 I 30 VSS - Ground 70 P91/TXD1 O Transmit data 31 A8/P20 O 71 P93/RXD1 I Receive data 32 A9/P21 O 72 P95/SCK1/IRQ5 I Interrupt request 33 A10/P22 O 73 PA0/TP0/TCLKA I 34 A11/P23 O 74 PA1/TP1/TCLKB I Clock input 35 A12/P24 O Address bus 75 PA2/TP2/TIOCA0/TCLKC I 36 A13/P25 O 76 PA3/TP3/TIOCB0/TCLKD I 37 A14/P26 O 77 A23 O 38 A15/P27 O 78 A22 O Address bus 39 A16/P50 O 79 A21 O 40 A17/P51 O 80 A20 O HD64F3039F18 (XW700A00) CPU w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 CDR1000 HD74HC00FPEL (XP250A00) IC29, IC50, IC66 NAND 1 2 3 4 5 6 7 13 12 11 10 9 8 14 1A 1B 1Y 2A 2B 2Y VDD 4B 4A 4Y 3B 3A 3Y Vss TC74HC04AF (XS993A00) TC74HCU04AF-TP1(XD660A00) IC6, IC52, IC65 Hex Inverter 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y Vss 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y 1 1A 2 3 4 5 6 7 1Y 2A 2Y 3A 3Y GND 8 9 10 11 12 13 14 VDD 6A 6Y 5A 5Y 4A 4Y TC74HC14AF-TP1(XD657A00) IC4, IC7, IC24 Hex Inverter SN74HC157NSR(XW110A00) IC16, IC34 Quad 2 to 1 Multiplexer TC74HC20AF(XW092A00) IC5, IC8, IC63 NAND 1 2 3 4 5 6 7 SELECT 1A 1A 1B 1B 1Y 1Y 2A 2A 2B 2B 2Y 2Y 16 15 14 13 12 11 10 Vcc STROBE G 4A S 3Y 4A 4B 4B 4Y 4Y 3A 3A 3B 3B 8 GND 9 3Y VCC NC 2B 1D 1Y NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2Y 1C 1B 1A 2C 2D 2A GND 1 D1R 2 3 4 5 6 7 8 9 10 A1 A2 A3 A4 A5 A6 A7 A8 GND 11 12 13 14 15 16 17 18 19 20 VCC G B1 B2 B3 B4 B5 B6 B7 B8 TC74HC245AF(XS720A00) IC14, IC15 Octal 3-State Bus Transceiver 1 1A 2 3 4 5 6 7 1B 1Y 2A 2B 2Y GND 8 9 10 11 12 13 14 VCC 4B 4A 4Y 3B 3A 3Y TC74HC32AF(XN241A00) IC10, IC23, IC51, IC55 Quad 2 Input OR TC74HC393AF-TP1(XE052A00) IC56 BINARY COUNTER TC74HC4002AF(XW138A00) IC61, IC62 NOR Vcc 2CLR 2Q Vss (GND) 1QD 1QB 1A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2PR 1QC 1QA 1CLEAR 2D 2CK 2Q QD QB QC QA CL QD QB CL QA QC A< >A 1 2 3 1Y 1B 4 1C 5 1D 6 NC 7 GND 1A 14 13 12 Vcc 2A 11 2B 10 2C 9 2D 8 NC 2Y TC74HC4024AF(XT546A00) IC25 COUNTER TC74HC74AF(XP003A00) IC54, IC57, IC64, IC67 Dual D-Type Flip-Flop TC74HC573AF(XH224A00) IC2 T-LATCCHES SN74HC595NSR(XW108A00) IC11, IC58, IC59, IC60 SHIFT REGIST 1 CLOCK 2 3 4 5 6 7 CLEAR Q7 Q6 Q5 Q4 GND 8 9 10 11 12 13 14 VCC NC Q1 Q2 NC Q3 NC R D Q CK D R CK Q D R CK Q D R CK Q D R CK Q R D Q CK R D Q CK 1 OUT PUT CONTROL 2 3 4 5 6 7 8 9 10 D0 D1 D2 D3 D4 D5 D6 D7 GND 11 12 13 14 15 16 17 18 19 20 VCC Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 G D G D G D G D G D G D G D G D G Q OE Q OE Q OE Q OE Q OE Q OE Q OE Q OE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 OB OB OC OC OD OD OE OE OF OF OG OG OH OH GND VCC OA OA SER SER G SCK SCK SCLR OH' O'H RCK RCK SCLR G Vcc 2CLR 2Q GND 1Q 1PR 1CRL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2PR 1Q 1CK 1D 2D 2CK 2Q Q PR Q CK D Q PR D CK Q CLR CLR INPUTS OUTPUTS L L H H H H PR H L L H H H CLR X X X L CLK X X X H L X D H H L H L Q Q L H H L H Q Q TC4W53FU (XR769A00) 2-Channel IC53 Multiplexer/Demultiplexer NJM4556AMT1 (XQ138A00) NJM2068MD-T1 (XJ553A00) IC40, IC41, IC42, IC44, IC45 Dual Operation Amplifier 1 2 3 4 8 7 6 5 COMMON VEE VSS VDD ch 0 ch 1 A INH 1 2 3 4 8 7 6 5 Output A Non-Inverting Input A Ground +DC Voltage Supply Output B Inverting Input B Non-Inverting Input B Inverting Input A + - + - HD74LS06FPEL(XH610A00) IC37 Hex Inverter DS26C32ATMX(XU815A00) IC33 LINE RECEIVER AM26LS31M (XN919A00) IC32 LINE DRIVER 1 2 3 4 5 6 7 1A 1Y 2A 2Y 3A 3Y Vss 14 13 12 11 10 9 8 VDD 6A 6Y 5A 5Y 4A 4Y Vcc INPUTS B OUTPUT B INPUTS D GND INPUTS C OUTPUT C ENABLE OUTPUT A INPUTS A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ENABLE OUTPUT D + - + - + - + - +5.0V INPUT D D OUTPUTS COUTPUTS INPUT C GND INPUT B B OUTPUTS ENABLE A OUTPUTS INPUT A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ENABLE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 M66004FP (XT828A00) FL DRIVER CS SCK SDATA 14 15 16 13 21 20 12 1 64 61 DIG00 DIG11 DIG12 DIG15 SEG00 SEG26 SEG27 SEG35 P0 P1 59 33 31 23 18 17 RESET XIN XOUT RECEIVE DISPKAY CODE (35BIT x 160) SEGMENT OUTPUT (35BIT x 16) COMMAND CONTROL REGISTER GENERATOR CONTROLLER DIGITAL OUTPUT CIRCUIT DECODER DECODER SERIAL CIRCUIT REGISTER (8BIT x 16) CGROM OUTPUT CIRCUIT CGRAM PORT (2BIT) CORD/ CONTROL CIRCUIT DISPLAY CLOCK DISPLAY Vss 3A 2Y VDD 1 2 3 4 5 6 7 8 1A 3Y 2Y 1Y TC7W04FU(XQ805A00) INVERTER NJM2115M-T1(XS511A00) OP AMP 1 2 3 4 8 7 6 5 Output A Non-Inverting Input A Ground +DC Voltage Supply Output B Inverting Input B Non-Inverting Input B Inverting Input A + - + - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN6: to CD-R/W IN IN DIGITAL (AES/EBU) WORD CLOCK DIGITAL (COAXIAL) PARALLEL +4dB -10dBV ANALOG IN L R ANALOG OUT CN9: to CD-R/W DRIVE UNIT CN7: to PS-CN104 CN10: to FP 4/7-CN6 CN11: to FP 5/7-CN7 CN1: to FP 3/7-CN5 CN4: to FP 1/7-CN2 CN3: to FP 2/7-CN4 CN2: to FP 2/7-CN3 CN12: to FP 6/7-CN8 L R OUT IN OUT CN5: to CD-R/W DRIVE UNIT 12 CDR1000 CIRCUIT BOARDS MAIN Circuit Board Component side MAIN: 3NA-V354050 2 Note : See parts list for details of circuit board component parts. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 CDR1000 Pattern side w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN2: to MAIN-CN4 REC PLAY STOP PAUSE PREV NEXT INDEX SEARCH T Y R E MM MM CN5: to MAIN-CN1 OPEN/ CLOSE FINAL IZE ERASE 14 CDR1000 FP Circuit Board Component side Component side FP: 3NA-V354040-2 2 CN3: to MAIN-CN2 CN4: to MAIN-CN3 CN9: to PS-CN21 POWER ON/OFF CN8: to MAIN-CN12 CN6: to MAIN-CN10 FOOT SW REC LEVEL CN7: to MAIN-CN11 PHONES PHONES LEVEL FP 1/7 Component side Component side Component side Component side FP 3/7 FP 5/7 FP 7/7 FP 6/7 FP 2/7 FP 4/7 SWITCH TABLE SW20 SW18 SW16 SW11 PEAK TIME INPUT UTILITY HOLD DISPLAY SELECT SW22 SW17 SW15 SW13 SYNC AUTO INDEX TRACK REC INC INC SW21 SW19 SW14 SW12 REC UV22 REPEAT A-B MUTE Component side w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 CDR1000 FP 1/7 FP 3/7 FP 5/7 FP 7/7 FP 6/7 FP 2/7 FP 4/7 Pattern side Pattern side Pattern side Pattern side Pattern side Pattern side Pattern side FP Circuit Board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN22: to AC IN CN104: to DM-CN7 CN105: to FP 1/7-CN1 CN21: to FP 7/7-CN9 CN23: to Transformer CN101: to Transformer CN103: to FAN CN102: to Transformer CN103: to CD-R/W DRIVE UNIT Component side PS Circuit Board PS: 3NA-V354060 2 FZ21 FZ101 FZ102 FZ103 FZ104 KB00357 2A 250V KB00360 3.15A 250V KB00360 3.15A 250V KB00356 1.6A 250V KB00356 1.6A 250V KB00304 T1AL 250V KB00308 T2.5AL 250V KB00308 T2.5AL 250V KB00306 T1.6AL 250V KB00306 T1.6AL 250V J,U H,B 16 CDR1000 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 17 TEST PROGRAM 1. Unless otherwise specified, use the following volume and switch settings. REC LEVEL: Max. PHONES LEVEL: Max. GAIN SW: +4dB Connect the following load resistance to each output terminal. ANALOG OUT (L, R): 600 ohm PHONES OUT: 40 ohm Measuring instruments Low frequency oscillator, AC voltmeter, Distortion meter, Oscilloscope, CD filter, FOOT SW, A/D converter unit, D/A converter unit N.B.: Unless otherwise specified, use 44.1 kHz sampling frequency for the A/D and D/A converter units. Disk in use Any music CD Test CD: ALMEDIO TCD-78 CDRW: TDK CD-RW XA74 2. How to enter the Test Program While pressing the [UTILITY] and [SYNC REC] buttons, turn on the power switch. The display will appear as shown below. DIAG VER0.16 When the display changes as shown below, the test mode will be set. D0: DIAG IN 3. Proceeding through the Test Program To select the test program number, use the [NEXT] and [PREV] buttons. To start the test, press the [STOP] button. There are 12 TEST programs, as listed below. D1 Fluorescent Display and LED Selecting this program will cause the fluorescent display and LED to light up. Check that the fluorescent display and all LEDs light up. Test No. Description D1 Fluorescent Display, LED D2 Key Switch D3 Remote Control D4 PARALLEL I/O D5 EEPROM Initialize D6 ANALOG Input D7 COAXIAL Input D8 AES/EBU Input D9 WORD CLOCK D10 AES/EBU THRU D11 DSP, DRAM D12 SEARCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 18 D2 Key Switch Connect the FOOT SW to the FOOT SW jack and select this test program. The display will appear as shown below. D2: FOOT SW Turn on the FOOT SW. If the check result is OK, move to the next switch check. The switches are tested in the following order. FOOT SW -> OPEN/CLOSE -> ERASE -> FINALIZE -> PEAK HOLD -> TIME DISPLAY -> INPUT SELECT-> UTILITY -> REC MUTE -> UV22 -> REPEAT -> A-B -> SYNC REC -> AUTO -> INDEX INC ->TRACK INC -> PREV -> NEXT -> INDEX<< ->INDEX>> -> SEARCH<< -> SEARCH>> ->PAUSE ->STOP-> PLAY ->REC D3 Remote Control When this program is selected, the display will appear as shown below. D3: OPEN/C Press the OPEN/CLOSE button on the remote control unit. When the check result is OK, the display will appear as shown below. D3: RM END D4 Parallel I/O Short the terminal as shown below and check that the main unit operates properly as commanded. D5 EEPROM Initialize Execute testing, and the EEPROM will be initialized. D6 ANALOG Input Input a 1 kHz, -10 dBm signal into the ANALOG IN L and R, check that the output level at ANALOG OUT L and R is 0 dBm ± 1 dB. Also, check that a full-scale, -18.5 dBm ± 1 dB signal is output from COAXIAL OUT and AES/EBS OUT. Set the GAIN switch to -10 dBV, check that the output level at ANALOG OUT L and R is +11.8 dBm ± 1 dB. D7 COAXIAL Input Input a 1 kHz, full-scale signal into the COAXIAL IN, check that the output level at ANALOG OUT L and R is +18.5 dBm ± 1 dB. Also, check that a 1 kHz, full-scale signal is output from COAXIAL OUT, AES/EBS OUT. D8 AES/EBU Input Input a 1 kHz, full-scale signal into the AES/EBS IN, check that the output level at ANALOG OUT, L and R is +18.5 dBm ± 1 dB. Also, check that a 1 kHz, full-scale signal is output from COAXIAL OUT, AES/EBS OUT. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 19 INSPECTION Load a test CD (ALMEDIO TCD-784) into the drive unit. 1. Playback Level & Frequency Response Playback the second trac (1 kHz), the third trac (20 Hz) and the sixth trac (20 kHz) on the test CD, and check that the output level at ANALOG OUT L and R is within the range of +18.5 dBm +1/-2 dB. Also check that a 1 kHz, full-scale signal is output from COAXIAL OUT, AES/EBS OUT respectively. 2. Playback Distortion Factor Playback the second trac (1 kHz) on the test CD, and check that the distortion factor measured at ANALOG OUT L and R is less than 0.03%. 3. Playback Residual Noise Play back the seventh trac (no sound) on the test CD, and check that the residual noise measured at ANALOG OUT L and R is less than -77 dBm. 4. Emphasis Using the output level obtained at ANALOG OUT L and R when the second trac (1 kHz EMP:OFF) on the test CD is played back at 0 dB, check that the level obtained when the twelfth trac (5 kHz EMP:ON) is played back is -4.53 dB ± 1 dB. Load a CD-RW disk (TDK CD-RW XA74) into the drive unit to inspect the following items. 5. Recording Playback Level & Frequency Response Select ANALOG from the INPUT SELECT switch and press the REC key. (REC stand-by state)Input the signals of the frequencies and levels in the following table into ANALOG IN and check that the output of the specified level is obtained at ANALOG OUT L and R as well as COAXIAL OUT, AES/EBS OUT. D9 WORD CLOCK Input a 1 kHz, full-scale signal into the AES/EBS IN, and a 44.1 kHz word clock intothe WORD CLOCK terminal, check that a 1 kHz, full-scale signal is output from AES/EBS OUT. D10 AES/EBU THRU Input a 1 kHz, full-scale signal into AES/EBS IN, check that a 1 kHz, full-scale signal is output from AES/EBS OUT. D11 DSP and DRAM Input a 1 kHz, full-scale signal into AES/EBS IN, check that a signal is output from AES/EBS OUT about 2 seconds later. D12 SEARCH Load a music CD into the drive unit. Check that the sound of the CD being fast forwarded is output from ANALOG OUT L and R and that the meter responds correctly. After the above check, press the [NEXT] key; the display will appear as shown below and testing will end. DIAG END Exit the TEST mode Turn off the power switch then turn on again. Pressing the SW1 on the MAIN circuit board will set to regular mode. INPUT FREQ LEVEL 20 Hz 0 dBm +10 dBm +1/-2dB FULL-SCALE,-8.5 +/- 1dB 1 kHz ↓ ↓ ↓ 1 kHz ↓ ↓ ↓ ANALOG OUT COAXIAL OUT OUT L,R AES/EBS OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 20 6. Recording Playback Distortion Factor Select ANALOG from the INPUT SELECT switch and press the REC key (REC stand-by state). Input a 1 kHz, +8 dB signal into ANALOG IN L and R and check that the distortion factor at ANALOG OUT L and R is less than 0.03%. 7. Recording Playback Residual Noise Select ANALOG from the INPUT SELECT switch and press the REC key (REC stand-by state). Connect a 150 ohm resistor to the 2-3 pins of ANALOG IN L and R and check that the residual noise at ANALOG OUT L and R is less than -73 dBm. 8. Headphone Output Level, Distortion Factor Select ANALOG from the INPUT SELECT switch and press the REC key (REC stand-by state). Input a 1 kHz, 0 dB signal into ANALOG IN L and R and check that the output level at PHONES OUT, L and R is +3 dBm ± 2 dB. Also, vary the input level of ANALOG IN L and R so as to obtain the +8 dBm ± 1 dB (100W output power) at PHONES OUT L and R and check that the distortion factor is less than 5%. 9. Digital Input Level Select COAXIAL from the INPUT SELECT switch and press the REC key (REC stand-by state). Input a 1 kHz, full-scale signal into COAXIAL IN and check that +18.5 dBm ± 1 dB signal is output from ANALOG OUT L and R. Also, input a 1 kHz, full-scale signal into AES/EBS IN and check that a +18.5 dBm ± 1 dB signal is output from ANALOG OUT L and R. 10. Recording check Select ANALOG from the INPUT SELECT switch. Press the AUTO button, and then press the REC button (AUTO REC START mode). Input 1 kHz, 0 dBm signals into the ANALOG IN L and R to record them on the CD-RW disk. Playback the recorded signals to check that the recording has been made properly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 25 If the CDR1000 displays an error message, follow the instructions below. Error Number Remarks 062900 1 1. If the error cannot be fixed by opening or closing the disc tray, and the error remains even after powering off and on, change the CDR unit. 062800 020401 023A02 023A03 052000 052400 020408 030C0A 052100 0409XX Change media or failure 2. If the error remains even after powering off and on, repare the Circuit board. 056400 1 2 056401 053008 Change media 053100 Change media 023005 Change media (PMA error) 057301 Change media (PMA FULL) 037300 Change media (TNO FULL) 031100 Change media 037303 1 2XXXXX 2 300001 400001 500051 500053 500054 500055 500056 ERROR MESSAGES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PROFESSIONAL AUDIO CD RECORDER PARTS LIST CONTENTS OVERALL ASSEMBLY .............................................. 2 FRONT ASSEMBLY ..................................... 4 ELECTRICAL PARTS ............................................. 6 WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. Notes : DESTINATION ABBREVIATIONS The numbers “QTY” show quantities for each unit. The parts with “--” in “PART NO.” are not available as spare parts. This mark “ } ” in the REMARKS column means these parts are interchangeable. The second letter of the shaded ( ) part number is O, not zero. The second letter of the shaded ( ) part number is I, not one. M: South African model O : Chinese model Q : South-east Asia model T : Taiwan model U : U.S.A. model V : General export model (110V) W: General export model (220) N,X : General export model Y : Export model A : Australian model B : British model C : Canadian model D : German model E : European model F : French model H : North European model I : Indonesian model J : Japanese model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 2 OVERALL ASSEMBLY Front assembly (See page 4) 320 60 80 60 310 320 320 210 130 320 90 380 150 350 140 390 260 400 370 220 230 240 250 280 270 300 290 300 300 300 180 180a 180b 100 100 100 190 510 530 500 520 70 200 160 20 30 40 80 110 120 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 3 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * * OVERALL ASSEMBLY CDR1000 J,U,V,H,W,B Overall Assembly J (V4570900) Overall Assembly U,V (V4571000) Overall Assembly H,W (V4571100) Overall Assembly B (V4571200) 3 Earth Film (V521920) 2 10 Rear Panel J J 10 Rear Panel U C U,C 10 Rear Panel H B H,W,B 20 Bottom Cover (V405770) 30 Foot TL-014 4 02 40 Bind Head Tapping Screw-B 3.0X16 MFZN2BL 4 01 60 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 6 01 70 Stay (V405760) 80 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 4 01 90 Circuit Board MAIN 100 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 13 01 110 Jack Socket 17L-003A3 2 01 120 Bind Head Screw A3.0X6 MFZN2BL 01 130 Bind Head Tapping Screw-B 3.0X6 MFZN2BL 3 01 140 Circuit Board PS J J 140 Circuit Board PS U U,V 140 Circuit Board PS H,B H,W,B 150 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 4 01 160 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 2 01 180 AC-INLET Assembly ACIN 250L (V456760) 180a Ferrite Core FR25/15/12-1400L 04 180b AC-IN Connector AC-P01CR02 03 190 Bind Head Tapping Screw-P 3.0X12 MFZN2BL 2 01 200 Bind Head Screw 4.0X8 MFZN2BL 01 210 Cord Holder BK-1 01 220 CRW Unit ACRW100 220a Front Panel ABS 220b Tray PPE X251V BLC1x133 230 Tray Panel 240 CDR Angle (V405980) 250 Bind Head Screw A3.0X6 MFZN2BL 4 01 260 Bind Head Tapping Screw-B A3.0X6 MFZN2BL 4 01 270 Power Transformer J 270 Power Transformer UL CSA U,V 270 Power Transformer CEE H,W,B 280 Bind Head Tapping Screw-B A4.0X8 MFZN2BL 4 01 285 Spacer (V413330) 2 290 Front Panel Assembly (V457240) 300 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 8 01 305 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 2 01 310 Top Cover 320 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 7 01 350 Wiring Assembly PSW 340L (V456770) 360 Witing Assembly VR 6P-6P220L (V456800) 370 Witing Assembly CDRW (V456810) 380 Witing Assembly AO 230L (V456820) 390 Witing Assembly DO 180L (V456830) 400 Witing Assembly MAIN TO CDR (V456840) 410 Connector Assembly 8 250mm C&C (VR79090) 420 Connector Assembly 3 250mm C&C (VR78240) 440 Connector Assembly 9 350mm C&C (VR79280) 450 Connector Assembly 6 160mm C&C (VR78720) 490 Cord Holder BK-1 2 01 500 Fan MMS-06E12DL 08 510 Finger Guard FG-06ULB (V506250) 520 Holder, Fan 09 530 Pan Head Screw SP 4.0X25 MFZN2BL 4 01 Accessoreis Battery SUM-3N(4S)NE.AB (VH21490) AC Cord DC-015-J01 J 06 AC Cord CSA U,V 08 AC Cord VDE H,W 08 AC Cord BS B 10 Remort Controller RC -- -- -- -- -- -- V4056900 V4057000 V4057100 -- CB651110 EP600380 VP157000 -- VP157000 V3540500 EP630190 VT362500 VP156600 EP600230 V5076400 V3540600 V3540700 EP600190 VP157000 -- VC362700 VL785200 VC161100 EG340360 CB069250 V4580100 V2427600 V3725000 V4572500 -- VP156600 VP157900 XV755A00 XV756A00 XV757A00 VC688800 -- -- VP157000 EP600190 V4742200 VP157000 -- -- -- -- -- -- -- -- -- -- CB069250 V4755300 -- VM964700 VR116500 -- VN391100 VB927800 VB928000 VP204400 V3496500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 4 FRONT ASSEMBLY 10 20d 20e 20g 20b 20a 20c 90 80 160 120 110 120 100 150 140 160 130 20f 30 70 40 180 200 190 50 60 170 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 5 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * FRONT ASSEMBLY CDR1000 Front Assembly (V457240) 10 Sub Chassis (V405790) 20a Circuit Board FP 1/7 20b Circuit Board FP 2/7 20c Circuit Board FP 3/7 20d Circuit Board FP 4/7 20e Circuit Board FP 5/7 20f Circuit Board FP 6/7 20g Circuit Board FP 7/7 30 Bind Head Screw A3.0X6 MFZN2BL 2 01 40 Hexagonal Nut 9.0 01 50 Hexagonal Nut 9.0 01 60 Hexagonal Nut 9.0 2 01 70 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 2 01 80 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 3 01 90 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 2 01 100 Sub Panel 110 Window 120 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 4 01 130 Front Panel 140 Escutcheon, Power Switch 03 150 Filter (V405910) 160 Bind Head Tapping Screw-B A3.0X8 MFZN2BL 4 01 170 Power Switch Knob POWER ON/OFF 03 180 Knob PHONES LEVEL 02 190 Knob IN REC LEVEL L 02 200 Knob OUT REC LEVEL R 02 250 Connector Assembly 8 200mm C&C 2mm (VR79080) 260 Connector Assembly 7 250mm C&C 2mm (VR78920) 270 Connector Assembly 5 250mm C&C 2mm (VR78580) -- AAX08680 AAX08690 AAX08700 AAX08710 AAX08720 AAX08730 AAX08740 VP156600 V2431400 V2431400 V2431400 EP600190 EP600190 EP600190 V4058500 V4058900 EP600190 V4059500 VL813000 -- VP157000 VL812900 VA029300 VF888400 VF888500 -- -- -- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 6 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * * * * * * * * * * ELECTRICAL PARTS ELECTRICAL PARTS Circuit Board MAIN (XV958B0) Circuit Board FP 1/7 (XV959C0) Circuit Board FP 2/7 (XV959C0) Circuit Board FP 3/7 (XV959C0) Circuit Board FP 4/7 (XV959C0) Circuit Board FP 5/7 (XV959C0) Circuit Board FP 6/7 (XV959C0) Circuit Board FP 7/7 (XV959C0) Circuit Board PS J (XV960B0) Circuit Board PS U,V (XV960B0) Circuit Board PS H,W,B (XV960B0) Circuit Board FP 1/7 (XV959C0) Circuit Board FP 2/7 (XV959C0) Circuit Board FP 3/7 (XV959C0) Circuit Board FP 4/7 (XV959C0) Circuit Board FP 5/7 (XV959C0) Circuit Board FP 6/7 (XV959C0) Circuit Board FP 7/7 (XV959C0) FL Holder (V405990) Push Button FINALIZE 03 Push Button PREV,NEXT,INDEX(<<,>>), 7 03 SEARCH(<<,>>),ERASE Button OPEN/CLOSE 02 Button PEAK HOLD,TIME DISPLAY, 12 02 INPUT SELECT,UTILITY, REC MUTE,UV22,REPEAT,A-B, SYNC REC,AUTO,INDEX INC, TRACK INC Button REC Button PLAY Button STOP Button PAUSE LED Spacer BL (V511560) CN1 Connector Base Post PH- 6P TE 01 CN2 Connector Assembly 10 200mm B&C 2mm (VY91980) CN3 Connector Base Post PH- 7P TE 01 CN4 Connector Base Post PH- 5P TE 01 CN5 Connector Base Post PH- 8P TE 01 CN6 Connector Base Post PH- 6P SE 01 CN7 Connector Base Post PH- 8P TE 01 CN8 Connector Base Post PH- 3P TE 01 CN9 Base Post Connector VA- 2P SE (V459160) IC1 IC M66004FP FL DRIVER 07 J1 Carbon Resistor(chip) 0.0 0.0J 01 J2 Monolithic Ceramic Cap. F0.1 16V Z 01 J4 Monolithic Celamic Cap. F0.1 16V Z 01 JK2 Phone Jack STEREO HLJ0544 PHONES LEVEL 03 JK3 Phone Jack MONO HLJ0544 FOOT SW 03 L1 Coil FL5R200QNT 01 -3 Coil FL5R200QNT 01 LD1 LED SLZ-135B RE REC 01 LD2 LED SLZ-235B GR PLAY 01 LD3 Fluorescent Display CM1800D LD4 LED SLZ-435B-08-T1(YE) PEAK HOLD,UTILITY, 01 -8 LED SLZ-435B-08-T1(YE) REC MUTE,UV22,AUTO 01 Q1 Digital Transistor DTC114EKA TP 01 Q2 Digital Transistor DTC114EKA TP 01 Q3 Transistor 2SC4081T106 01 Q4 Transistor 2SA1576AT106 01 Q5 Transistor 2SC4081T106 01 Q6 Transistor 2SA1576AT106 01 Q7 Transistor 2SC4081T106 01 Q8 Transistor 2SA1576AT106 01 Q9 Digital Transistor DTC114EKA TP 01 -13 Digital Transistor DTC114EKA TP 01 REM1 Remote Signal Sensor NJL62H380A SW1 Light Touch Switch EVQ 22C 05B PREV,NEXT,INDEX(<<,>>), 01 -6 Light Touch Switch EVQ 22C 05B SEARCH(<<,>>) 01 V3540500 AAX08680 AAX08690 AAX08700 AAX08710 AAX08720 AAX08730 AAX08740 V5076400 V3540600 V3540700 AAX08680 AAX08690 AAX08700 AAX08710 AAX08720 AAX08730 AAX08740 -- VT810300 VT839000 V3117400 V3259500 V4060100 V4060300 V4060400 V4060500 -- VB390200 -- VB390300 VB390100 VB390400 VB858500 VB390400 VB389900 -- XT828A00 RD250000 UB445100 UB445100 LB302070 LB301800 VB835000 VB835000 VT942200 V5295900 V3744000 V4845500 V4845500 VV655400 VV655400 VQ986700 VR936300 VQ986700 VR936300 VQ986700 VR936300 VV655400 VV655400 V4579700 VT513600 VT513600 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 7 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * SW7 Push Switch SKECAF PAUSE,STOP,PLAY,REC, 02 -22 Push Switch SKECAF PEAK HOLD,TIME DISPLAY, 02 INPUT SELECT,UTILITY, REC MUTE,UV22,REPEAT,A-B, SYNC REC,AUTO,INDEX INC, TRACK INC SW23 Light Touch Switch EVQ 22C 05B ERASE 01 SW24 Push Switch SKECAF FINALIZE 02 SW25 Light Touch Switch EVQ 22C 05B OPEN/CLOSE 01 SW26 Push Switch ESB92S23B J.U.C.S POWER ON/OFF 02 VR1 Rotary Pot. A 10.0K RK09722 REC LEVEL VR2 Rotary Variable Resistor RK09L12B0 A10K X 2 PHONE LEVEL 03 Monolithic Ceramic Cap. F 0.01 50V Z C:9 01 Monolithic Ceramic Cap. F 0.1 16V Z C:1,2,8,12-15,17 01 Monolithic Ceramic Cap. SL 47P 50V J C:3-5 01 Monolithic Ceramic Cap. SL 100P 50V J C:6,7 01 Electrolytic Cap.-KS 100.00 6.3V C:10,16 01 Electrolytic Cap.-KS 10.00 50V 01 Capacitor 0.01 250V J.U.C.S C:18 01 Ceramic Capacitor-F (chip) F 1.0 16V Z C:19 01 Carbon Resistor (chip) 1.0K 0.1 J R:2,4,22,27,33,36-38,59 01 Carbon Resistor (chip) 2.7K 0.1 J R:5,6,42-44,60 01 Carbon Resistor (chip) 3.9K 0.1 J R:7,8,45-47 01 Carbon Resistor (chip) 4.7K 0.1 J R:21,26,32 01 Carbon Resistor (chip) 8.2K 0.1 J R:9,10,53-55 01 Carbon Resistor (chip) 10.0K 0.1 J R:1,3,16,39-41,58 01 Carbon Resistor (chip) 22.0K 0.1 J R:11,12,23,28,34 01 Carbon Resistor (chip) 27.0K 0.1 J R:29 01 Carbon Resistor (chip) 47.0K 0.1 J R:24,30,35 01 Carbon Resistor (chip) 100.0 0.1 J R:62 01 Carbon Resistor (chip) 100.0K 0.1 J R:20,25,31 01 Metal Oxide Film Resistor 150.0 1W J R:56,57 01 Carbon Resistor (chip) 390.0 0.1 J R:48-52 01 Carbon Resistor (chip) 470.0 0.1 J R:13,17-19 01 Carbon Resistor (chip) 560.0 0.1 J R:14,15 01 Circuit Board MAIN (XV958B00) CN1 Connector Base Post 8P TE 01 CN2 Connector Base Post 7P TE 01 CN3 Connector Base Post 5P TE 01 CN4 Connector Base Post 10P TE 01 CN5 Connector Base Post 2P TE 01 CN6 Strate Header HIF3FC40PA-2.54DSA 05 CN7 Connector Base Post 9P TE 03 CN8 Connector 9P SE 03 CN9 Connector Base Post 4P TE 01 CN10 Connector Base Post 6P TE 01 CN11 Connector Base Post 8P TE 01 CN12 Connector Base Post 3P TE 01 CN13 Connector Base Post 4P TE 01 D1 Diode 1SS355 TE-17 01 D2 Diode 1SS355 TE-17 D3 Diode 1SS355 TE-17 D4 Diode 1SS355 TE-17 D5 Diode 1SS355 TE-17 D6 Diode 1SS355 TE-17 D17 Diode 1SS355 TE-17 D18 Diode 1SS355 TE-17 D19 Diode 1SR154-400 01 D20 Diode 1SR154-400 01 DA300 Diode HVM17 EM4 LC Filter LS MT B271KB 01 EM7 LC Filter LS MT Y223NB 02 -10 LC Filter LS MT Y223NB 02 EM11 LC Filter LS MT B271KB 01 -18 LC Filter LS MT B271KB 01 EM300 EMI Filter Y223NB IC1 IC YSS228E-F DSP3 20 IC2 IC TC74HC573AF T-LATCCHES 04 IC3 IC 93LC56T-I/SN EEPROM 2K 03 V3123600 V3123600 VT513600 V3123600 VT513600 V3127000 V4441400 V3123000 UB044100 UB445100 UB051470 UB052100 UM388100 UM417100 VY675000 UB446100 RD256100 RD256270 RD256390 RD256470 RD256820 RD257100 RD257220 RD257270 RD257470 RD255100 RD258100 VC731800 RD255390 RD255470 RD255560 V3540500 VB390400 VB390300 VB390100 VB390600 VB389800 VK270300 VB390500 V3584100 VB390000 VB390200 VB390400 VB389900 VB390000 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 VT332900 VT532500 VT532500 VU384000 FZ006920 FZ006970 FZ006970 FZ006920 FZ006920 FZ006970 XQ962D00 XH224A00 XT160A00 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 8 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * * * * * * * * * * IC4 IC TC74HC14AF-TP1 INVERTER 02 IC5 IC TC74HC20AF NAND IC6 IC HD74HC00FPEL NAND 01 IC7 IC TC74HC14AF-TP1 INVERTER 02 IC8 IC TC74HC20AF NAND IC9 IC SRM2B256SLMX70 SRAM 256K 07 IC10 IC TC74HC32AF OR 01 IC11 IC SN74HC595NSR SHIFT REGISTER IC12 IC KM416C1200CJ-6 DRAM 16M 12 IC13 IC CPU CPU IC14 IC TC74HC245AF TRANSCEIVER 03 IC15 IC TC74HC245AF TRANSCEIVER 03 IC16 IC SN74HC157NSR DATA SELECTOR IC17 IC IC-PST591DMT RESET 03 IC18 IC SM5844AF SAMPLE CONVERTER IC19 IC FH1B31-70A ACDR IC20 IC SM5844AF SAMPLE CONVERTER IC21 IC M5M51008BFP-70LLT SRAM 1M 11 IC22 IC M5M51008BFP-70LLT SRAM 1M 11 IC23 IC TC74HC32AF OR 01 IC24 IC TC74HC14AF-TP1 INVERTER 02 IC25 IC TC74HC4024AF COUNTER IC26 IC YM3436DK DIR2 11 -28 IC YM3436DK DIR2 11 IC29 IC HD74HC00FPEL NAND 01 IC31 IC SN75124NSR LINE RECEIVER 05 IC32 IC AM26LS31MCNSR LINE DRIVER 05 IC33 IC DS26C32ATMX LINE RECEIVER 06 IC34 IC SN74HC157NSR DATA SELECTOR IC37 IC HD74LS06FPEL INVERTER 02 IC39 IC AK4520A-VF-E2 ADC & DAC 07 IC40 IC NJM2068MD-T1 OP AMP 02 IC41 IC NJM4556AMT1 OP AMP 03 IC42 IC NJM2068MD-T1 OP AMP 02 IC43 IC TC4053BF MULTIPLEXER 02 IC44 IC NJM2068MD-T1 OP AMP 02 IC45 IC NJM2068MD-T1 OP AMP 02 IC46 IC NJM5532M OP AMP IC47 IC NJM5532M OP AMP IC48 IC NJM2115M-T1 OP AMP 02 IC49 IC NJM2115M-T1 OP AMP 02 IC50 IC HD74HC00FPEL NAND 01 IC51 IC TC74HC32AF OR 01 IC52 IC TC74HC04AF INVERTER 01 IC53 IC TC4W53FU MULTIPLEXER 02 IC54 IC TC74HC74AF D-FF 01 IC55 IC TC74HC32AF OR 01 IC56 IC TC74HC393AF-TP1 BINARY COUNTER 03 IC57 IC TC74HC74AF D-FF 01 IC58 IC SN74HC595NSR SHIFT REGISTER -60 IC SN74HC595NSR SHIFT REGISTER IC61 IC TC74HC4002AF NOR IC62 IC TC74HC4002AF NOR IC63 IC TC74HC20AF NAND IC64 IC TC74HC74AF D-FF 01 IC65 IC TC74HCU04AF-TP1 INVERTER 01 IC66 IC HD74HC00FPEL NAND 01 IC67 IC TC74HC74AF D-FF 01 IC300 IC NJM78M05DLA REGULATOR IC301 IC TC7WU04FU IC302 IC FPGA PLL FPGA PLL IC400 IC SN74HC595NSR SHIFT REGISTER IC401 IC YM6067 PSC4 10 JK1 XLM Connector NC3FAH1-0 DIGITAL IN 04 JK2 XLM Connector NC3MAH DIGITAL(AES/EBU) OUT 04 JK3 Pin Jack DIGITAL(COAXIAL)(IN,OUT) 04 JK4 BNC Connector YKS11-0 WORD CLOCK IN 05 JK5 XLM Connector NC3FAH1-0 ANALOG IN L 04 JK6 XLM Connector NC3FAH1-0 ANALOG IN R 04 JK8 XLM Connector NC3MAH ANALOG OUT L 04 XD657A00 XW092A00 XP250A00 XD657A00 XW092A00 XT090A00 XN241A00 XW108A00 XV145A00 XW700A00 XS720A00 XS720A00 XW110A00 XP226A00 XW097A00 XV903A00 XW097A00 XS681A00 XS681A00 XN241A00 XD657A00 XT546A00 XG948E00 XG948E00 XP250A00 XV930A00 XU996A00 XU815A00 XW110A00 XH610A00 XT802A00 XJ553A00 XQ138A00 XJ553A00 XB738A00 XJ553A00 XJ553A00 XC011A00 XC011A00 XS511A00 XS511A00 XP250A00 XN241A00 XS993A00 XR769A00 XP003A00 XN241A00 XE052A00 XP003A00 XW108A00 XW108A00 XW138A00 XW138A00 XW092A00 XP003A00 XD660A00 XP250A00 XP003A00 XS534A00 XQ805A00 XY116A00 XW110A00 XH494A00 VS133800 VS133700 V5345400 VI552200 VS133800 VS133800 VS133700 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 9 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * JK9 XLM Connector NC3MAH ANALOG OUT R 04 JK10 Holder, Cannon Connector 04 L1 Chip Inductance BK2125HM601-T 01 -4 Chip Inductance BK2125HM601-T 01 L5 Chip Inductance BLM21B751S 03 L6 Chip Inductance BK2125HM601-T 01 L7 Chip Inductance BLM21B751S 03 -18 Chip Inductance BLM21B751S 03 L19 Chip Inductance BK2125HM601-T 01 -21 Chip Inductance BK2125HM601-T 01 L24 Chip Inductance BLM21B751S 03 -55 Chip Inductance BLM21B751S 03 L56 Coil FL5R200QNT 01 -63 Coil FL5R200QNT 01 L64 Chip Inductance ELJFA100 KF2 01 -71 Chip Inductance ELJFA100 KF2 01 L73 Noise Filter ZJY51R5-2P 04 L74 Noise Filter ZJY51R5-2P 04 L300 Coil 20U L301 Inductor (chip) ELJFA2R2-KF2 L302 Noise Filter ZJY51R5-2P L303 Noise Filter ZJY51R5-2P L400 Coil FL5R200QNT 01 L401 Coil FL5R200QNT 01 Q1 Transistor 2SC4081T106 01 Q2 Transistor 2SA1576AT106 01 Q3 Digital Transistor DTC114EKA TP 01 Q4 Transistor 2SD1979 S,T Q5 Transistor 2SD1979 S,T Q6 Digital Transistor DTC114EKA TP 01 Q7 Transistor 2SC4081T106 01 Q8 Transistor 2SA1576AT106 01 Q9 Transistor 2SD1979 S,T Q10 Transistor 2SD1979 S,T Q11 Transistor 2SC4081T106 01 Q12 Transistor 2SC4081T106 01 Monolithic Ceramic Cap. B470P 50V K C:92-95,110,113,164-167 Monolithic Ceramic Cap. B 1000P 50V K C:23,24,199,200,206,208 01 Monolithic Ceramic Cap. B 1500P 50V K C:90,91 01 Monolithic Ceramic Cap. B 2200P 50V K C:207,209 01 Monolithic Ceramic Cap. B 4700P 50V K C:55 01 Monolithic Ceramic Cap. F 0.1 50V Z C:140,180 01 Monolithic Ceramic Cap. SL 10P 50V D C:116,117 01 Monolithic Ceramic Cap. SL 22P 50V J C:45,47 01 Monolithic Ceramic Cap. SL 33P 50V J C:65,121,122,148-151, 01 154-157,178,179 01 Monolithic Ceramic Cap. SL 68P 50V J C:135,136,141,142 01 Monolithic Ceramic Cap. SL 100P 50V J C:11,174-177,210-212 01 Monolithic Ceramic Cap. B 0.047 25V K C:41,42,46,56,57 01 Monolithic Ceramic Cap. F 0.1 16V Z C:5-8,12-14,18-21,26,32, 34,40,43,44,48,49,51, 53,71-74,82,96,97, 99-101,103,109,120,134, 137,139,143,170,171, 181-196,201,202,205, 213-216,300,302,303,307, 308,310-315,400-402,450 Ceramic Capacitor-F (chip) F 1.0 16V Z C:4,9,10,15,17,22,27,30, 01 31,36-39 Electrolytic Cap. (chip) 22 6.3V C:3,16,33,35,162,163,172 01 173 01 Electrolytic Cap. (chip) 47 16V C:50,52,54,84-87,104,301 01 Electrolytic Cap. (chip) 10 16V C:25,102,105-108,111,112, 01 123,128-133,138,168,169 Electrolytic Cap. (chip) 22 16V C:144-147 01 Electrolytic Cap. (chip) 3.3 50V C:114,115 01 Electrolytic Cap. (chip) 220 16V UUR1C2 C:118,119,158-161 01 Electrolytic Cap. (chip) 47 50V C:124-127 01 Monolithic Ceramic Cap. CH 5P 50V C C:29 01 Monolithic Ceramic Cap. CH 8P 50V D C:28 01 VS133700 VT696400 VQ724900 VQ724900 VS740100 VQ724900 VS740100 VS740100 VQ724900 VQ724900 VS740100 VS740100 VB835000 VB835000 VU374100 VU374100 VP246300 VP246300 VB835000 VU374000 VP246300 VP246300 VB835000 VB835000 VQ986700 VR936300 VV655400 V2993500 V2993500 VV655400 VQ986700 VR936300 V2993500 V2993500 VQ986700 VQ986700 UB012470 UB013100 UB013150 UB013220 UB013470 UB045100 UB051100 UB051220 UB051330 UB051680 UB052100 UB214470 UB445100 UB446100 UF017220 UF037470 UF037100 UF037220 UF066330 UF138220 UF167470 VJ899000 VJ899300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 10 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only Monolithic Ceramic Cap. 27P C:304 Mylar Cap. (chip) 0.022 C:309 Mylar Cap. (chip) 0.001 C:305,306 Electrolytic Cap. 2200 35.0V C:203,204 04 Electrolytic Cap.(chip) 47.00 16V C:98,197,198 Carbon Resistor (chip) 0.0 0.0 J R:46,178,181,185,186,310, 01 363 Carbon Resistor (chip) 1.0K 0.1 J R:8,12,13,63-67,86,89, 01 100,101,300,301,305, 350,360,361 Carbon Resistor (chip) 1.8K 0.1 J R:136,137 01 Carbon Resistor (chip) 2.2K 0.1 J R:189 01 Carbon Resistor (chip) 3.3K 0.1 J R:22-24 01 Carbon Resistor (chip) 4.7K 0.1 J R:69,165,167,168,170, 01 174-177 Carbon Resistor (chip) 5.1K 0.1 J R:142,143 01 Carbon Resistor (chip) 6.8K 0.1 J R:172,173 01 Carbon Resistor (chip) 7.5K 0.1 J R:122-125 01 Carbon Resistor (chip) 39 R:314 Carbon Resistor (chip) 43 R:315 Carbon Resistor (chip) 1.0M 0.1 J R:1,17,18,20,21,302 01 Carbon Resistor (chip) 10.0 0.1 J R:74,198,199 01 Carbon Resistor (chip) 10.0K 0.1 J R:3-7,9-11,14,15,45,57-60 01 62,68,75,78,88,90,91,98 99,102-105,116,117,129 131,134,135,138-141, 158-164,171,179,180,182 183,188,195,196,362 Carbon Resistor (chip) 16.0K 0.1 J R:114,115 01 Carbon Resistor (chip) 20.0K 0.1 J R:110,111,118-121 01 Carbon Resistor (chip) 22.0K 0.1 J R:81,82,144-147 01 Carbon Resistor (chip) 220 R:316 Carbon Resistor (chip) 24.0K 0.1 J R:154-157 01 Carbon Resistor (chip) 27.0K 0.1 J R:112,113 01 Carbon Resistor (chip) 33.0 0.1 J R:166,169 01 Carbon Resistor (chip) 47.0 0.1 J R:31 01 Carbon Resistor (chip) 47.0K 0.1 J R:84,85,132,133,190,191 01 Carbon Resistor (chip) 56.0K 0.1 J R:94,95 01 Carbon Resistor (chip) 68.0K 0.1 J R:96,97 01 Carbon Resistor (chip) 75.0 0.1 J R:30,150-153,313 01 Carbon Resistor (chip) 100.0 0.1 J R:2,25,79,80,126,127,148, 01 149 01 Carbon Resistor (chip) 100.0K 0.1 J R:76,77,83,87,92,93,106, 01 107 01 Carbon Resistor (chip) 110.0 0.1 J R:197 01 Carbon Resistor (chip) 330.0 0.1 J R:70-73 01 Carbon Resistor (chip) 470.0 0.1 J R:26,27 01 Carbon Resistor (chip) 470.0K 0.1 J R:16 01 Carbon Resistor (chip) 560.0 0.1 J R:19 01 Carbon Resistor (chip) 680.0 0.1 J R:128,130 01 Carbon Resistor (chip) 33.0K 0.1J R:108,109 01 Oxide Film Resistor(chip) 3.3K R:303 Oxide Film Resistor(chip) 100K R:308,309 Oxide Film Resistor(chip) 15K R:306,307 Oxide Film Resistor(chip) 33K R:304 RY1 Relay DC RY12W 07 RY2 Relay DC RY12W 07 ST1 Style Pin IMSA-6024 01 SW1 Light Touch Switch EVQ 22C 05B repair use 01 SW2 Slide Switch SSSF12341A -10dBV/4dB 02 SW3 Slide Switch SSSS2-12-01 BOOT/NORM 01 SW300 Slide Switch SSSS2-12-01 WORD CLOCK IN(ON/OFF) T1 Palus Transformer P17H 07 T2 Palus Transformer P17H 07 T300 Palus Transformer P17HTS20-1AA T301 Palus Transformer P17HTS20-1AA X1 Ceramic Resonator 30.00M CSTCV30MX X2 Quartz Crystal Unit 16M SMD-49 04 X3 Quartz Crystal Unit 11.2896M SMD-49 04 ZD1 Zener Diode UDZS5.1BTE-17 5.1V 01 VJ900500 VR326600 VR329100 VT896800 VY671200 RD250000 RD256100 RD256180 RD256220 RD256330 RD256470 RD256510 RD256680 RD256750 RD254390 RD254430 RD259100 RD254100 RD257100 RD257160 RD257200 RD257220 RD255220 RD257240 RD257270 RD254330 RD254470 RD257470 RD257560 RD257680 RD254750 RD255100 RD258100 RD255110 RD255330 RD255470 RD258470 RD255560 RD255680 RD257330 VI196100 VI200000 VI197800 VI198600 KC001900 KC001900 VB966900 VT513600 VP799800 VP804700 VP804700 VP246100 VP246100 VP246100 VP246100 V3743900 VP864900 VP864800 VU171900 * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 11 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * * * ZD2 Zener Diode UDZS5.1BTE-17 5.1V 01 Circuit Board PS J (XV960B00) Circuit Board PS U,V (XV960B00) Circuit Board PS H,W,B (XV960B00) Jumper Wire 0.55 Bind Head Tapping Screw-B 3.0X8 MFZN2BL 01 Bind Head Tapping Screw-B 3.0X12 MFZN2Y 01 Transistor Holder (V459140) Insulation Plate (V405960) Insulation Sheet CN21 Base Post Connector 4P TE 01 CN22 Base Post Connector 2P TE 01 CN23 Base Post Connector 2P TE 01 CN101 Base Post Connector 5P TE 01 CN102 Base Post Connector 7P TE 01 CN103 Base Post Connector 4P TE 01 CN104 Connector Base Post 9P TE 03 CN105 Connector Base Post 6P TE 01 CN106 Connector Base Post 2P TE 01 D101 Diode 1SR139-400 T-31 01 D102 Diode 1SS133,1SS176 01 -104 Diode 1SS133,1SS176 01 D105 Diode 1SR139-400 T-31 01 D106 Diode 1SR139-400 T-31 01 D107 Diode 1SS133,1SS176 01 -110 Diode 1SS133,1SS176 01 DB101 Diode Stack D3SBA20 4.0A 200V 03 DB102 Diode Stack D3SBA20 4.0A 200V 03 DB103 Diode Stack RBV-602 LF-B 6.0A 03 EM101 LC Filter LS MT Y223NB 02 -105 LC Filter LS MT Y223NB 02 FZ21 Fuse 2.00A JU J,U,V 01 FZ21 Fuse Holder EYF-52BC 01 FZ21 Fuse 1.00A S H,W,B 01 FZ101 Fuse 3.15A JU J,U,V 01 FZ101 Fuse 2.50A S H,W,B 01 FZ101 Fuse Holder EYF-52BC 01 FZ102 Fuse 3.15A JU J,U,V 01 FZ102 Fuse 2.50A S H,W,B 01 FZ102 Fuse Holder EYF-52BC 01 FZ103 Fuse 1.60A JU J,U,V 01 FZ103 Fuse Holder EYF-52BC 01 FZ103 Fuse 1.60A S H,W,B 01 FZ104 Fuse 1.60A JU J,U,V 01 FZ104 Fuse Holder EYF-52BC 01 FZ104 Fuse 1.60A S H,W,B 01 IC101 IC PQ12RF2 REGULATOR +12V IC102 IC STR9005 REGULATOR +5V 07 IC103 IC NJM7812FA REGULATOR +12V 02 IC104 IC NJM7912FA REGULATOR -12V 02 IC105 IC NJM78M05FA REGULATOR +5V 02 L21 Line Filter PLH11A1811R2P01B1 J,U,V 03 LA1 Angle A-8 Q101 Transistor 2SC1740S R,S 01 Q102 Digital Transistor DTA114ES 01 Q103 Transistor 2SA1533 01 ZD101 Zener Diode MA2056-A 5.6V 01 ZD102 Zener Diode MTZJ36C 36.0V 01 Electrolytic Cap. 10.00 50.0V C:101,125 01 Electrolytic Cap. 220.00 50.0V C:102 Ceramic Capacitor-F 0.01 50V Z C:103-112 01 Electrolytic Cap. 4.7 50.0V C:113 01 Electrolytic Cap. 6800 25.0V C:114,115 03 Electrolytic Cap. 10000 25.0V C:116 05 Electrolytic Cap. 22000 16.0V C:117 Electrolytic Cap. 220.00 10.0V C:118 01 Electrolytic Cap. 47.00 35.0V C:119 01 Electrolytic Cap. 100.00 16.0V C:120-124 01 Electrolytic Cap. 4700 16.0V C:126 03 VU171900 V5076400 V3540600 V3540700 VA078900 EP600190 VQ074600 -- -- V4572600 LB932040 VG879900 VG879900 LB932050 LB932070 LB932040 VB390500 VB390200 VB389800 VU652800 VB941200 VB941200 VU652800 VU652800 VB941200 VB941200 VT359600 VT359600 VL834300 FZ006970 FZ006970 KB003570 VP206500 KB003040 KB003600 KB003080 VP206500 KB003600 KB003080 VP206500 KB003560 VP206500 KB003060 KB003560 VP206500 KB003060 XW098A00 XM482A00 XJ608A00 XC721A00 XJ604A00 VZ677000 BB069510 IC174070 VD678500 VZ580200 V2909500 VQ558900 UR867100 UR868220 FG644100 UR866470 UR749680 VR261400 V3124800 UR828220 UR857470 UR838100 UR839470 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CDR1000 12 : New Parts REF NO. PART NO. DESCRIPTION REMARKS QTY RANK RANK: Japan only * * * * * * Capacitor 0.1 250VAC C:21 03 Capacitor 2200P 250V C:127,128 U,H,B,W,V Capacitor 4700P 400V C:129,130 U,H,B,W,V Capacitor 0.1U JUCS C;22 J Flame Proof C. Resistor 68.0 1/4 J R:102 01 Metal Oxide Film Resistor 33.0 2W J R:109 01 Carbon Resistor 1.0K 1/4 J R:108 01 Carbon Resistor 3.3K 1/4 J R:105,106 01 Carbon Resistor 33.0K 1/4 J R:101 01 Carbon Resistor 47.0K 1/4 J R:104 01 Carbon Resistor 100.0K 1/4 J R:107 01 Carbon Resistor 680.0 1/4 J R:103 01 AC Cord DC-015-J01 J 06 AC Cord CSA U,V 08 AC Cord VDE H,W 08 AC Cord BS B 10 Remote Controller RC Power Transformer J Power Transformer UL CSA U,V Power Transformer CEE H,W,B Ferrite Core FR25/15/12-1400L 04 AC-IN Connector AC-P01CR02 03 CRW Unit ACRW100 Fan MMS-06E12DL VR796000 V5090300 FI383470 FR203100 HV754680 VC757500 HF756100 HF756330 HF757330 HF757470 HF758100 HF755680 VN391100 VB927800 VB928000 VP204400 V3496500 XV755A00 XV756A00 XV757A00 VC362700 VL785200 V4580100 V4755300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 CDR1000 M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 Q P O N M L K J I H G F E D C B A CDR1000 CDR1000 CDR1000 CIRCUIT DIAGRAM 1/3 (MAIN1/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L K J I H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 12 CDR1000 M N O P Q 1 2 3 4 5 6 7 8 9 10 11 12 Q P O N M L K J I H G F E D C B A CDR1000 CDR1000 CDR1000 CIRCUIT DIAGRAM 2/3 (MAIN2/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H I J K L M N O P Q 12 11 10 9 8 7 6 5 4 3 2 1 A B C D E F G H I J K L M N O P Q CDR1000 CDR1000 CDR1000 CDR1000 CIRCUIT DIAGRAM 3/3 (MAIN3/3, FP-1/3, 2/3, 3/3, PS) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
