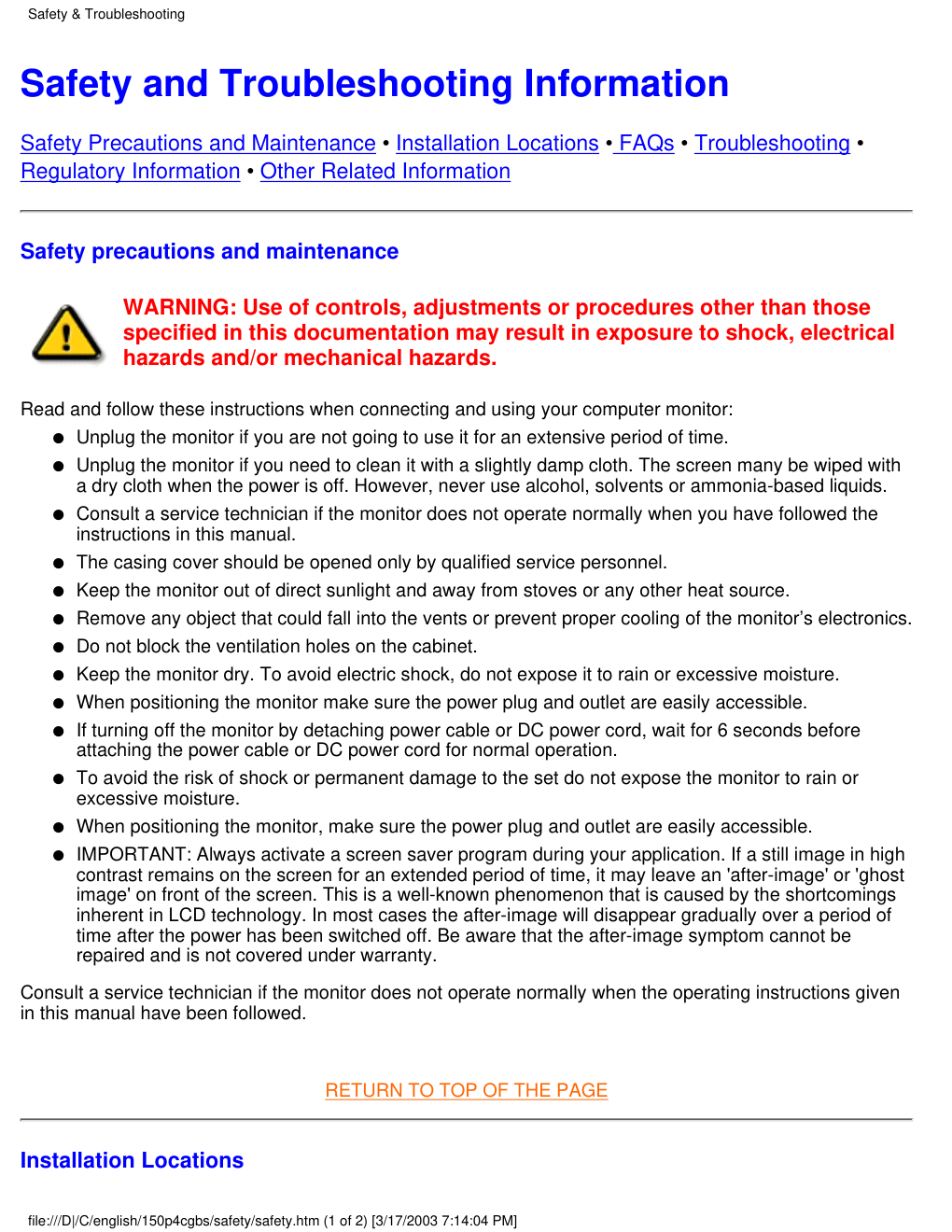

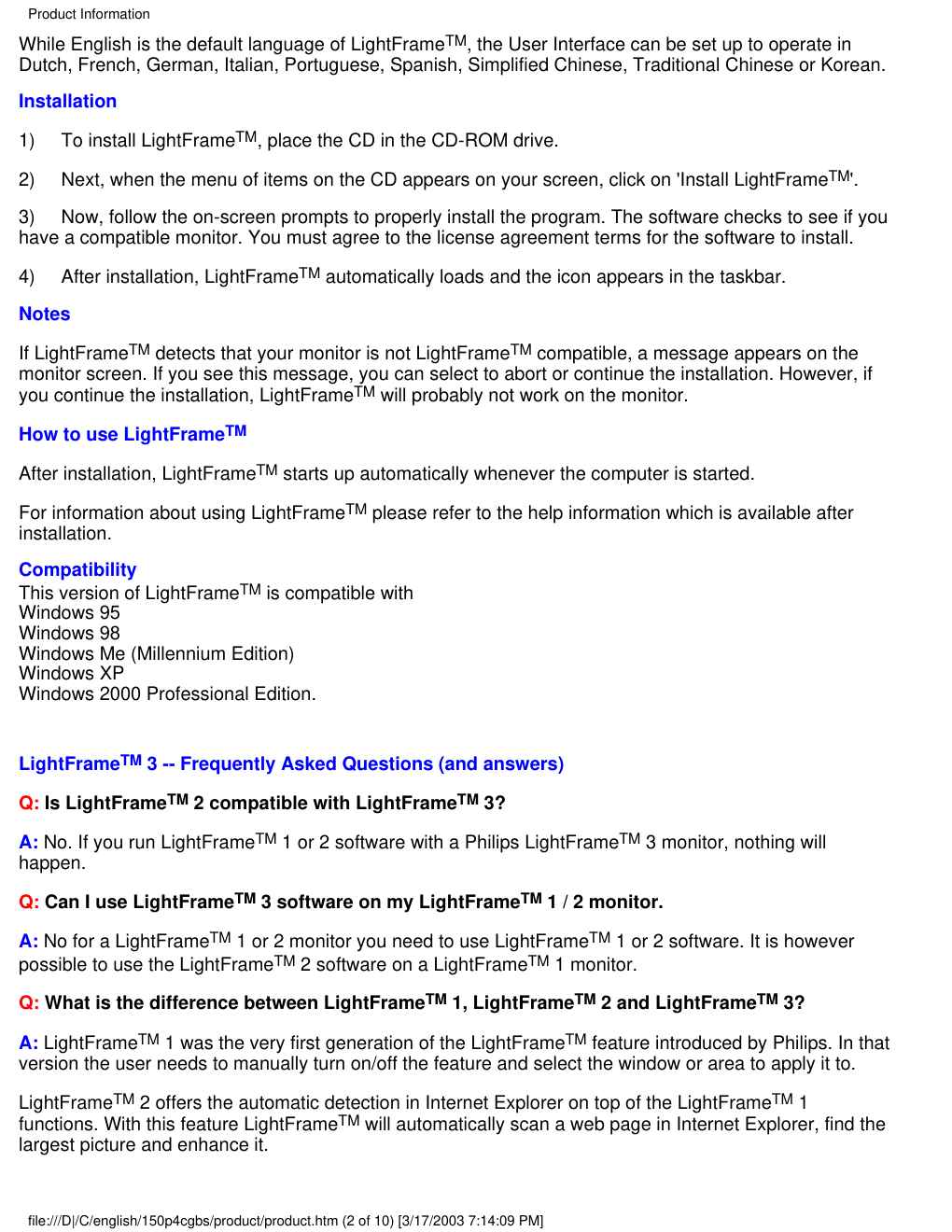

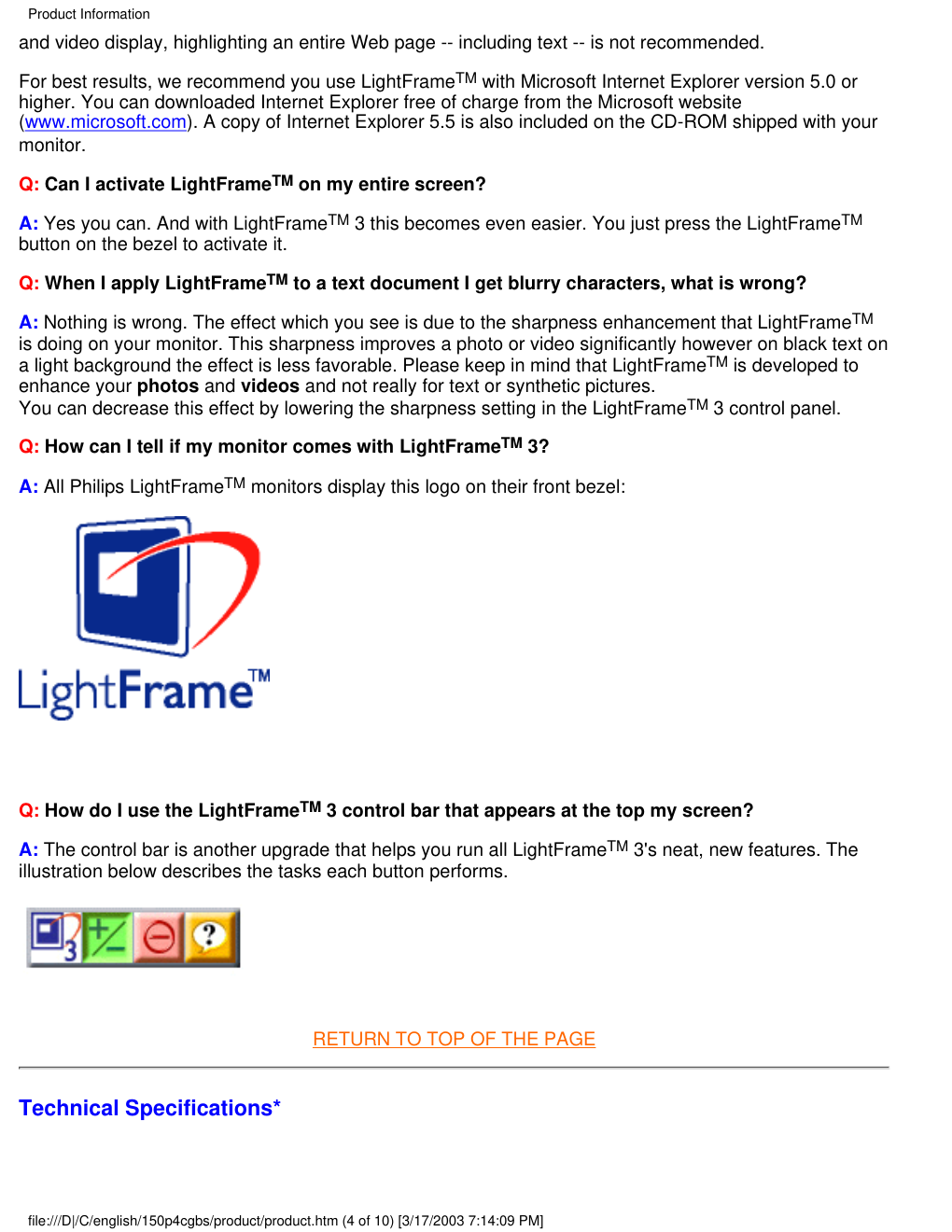

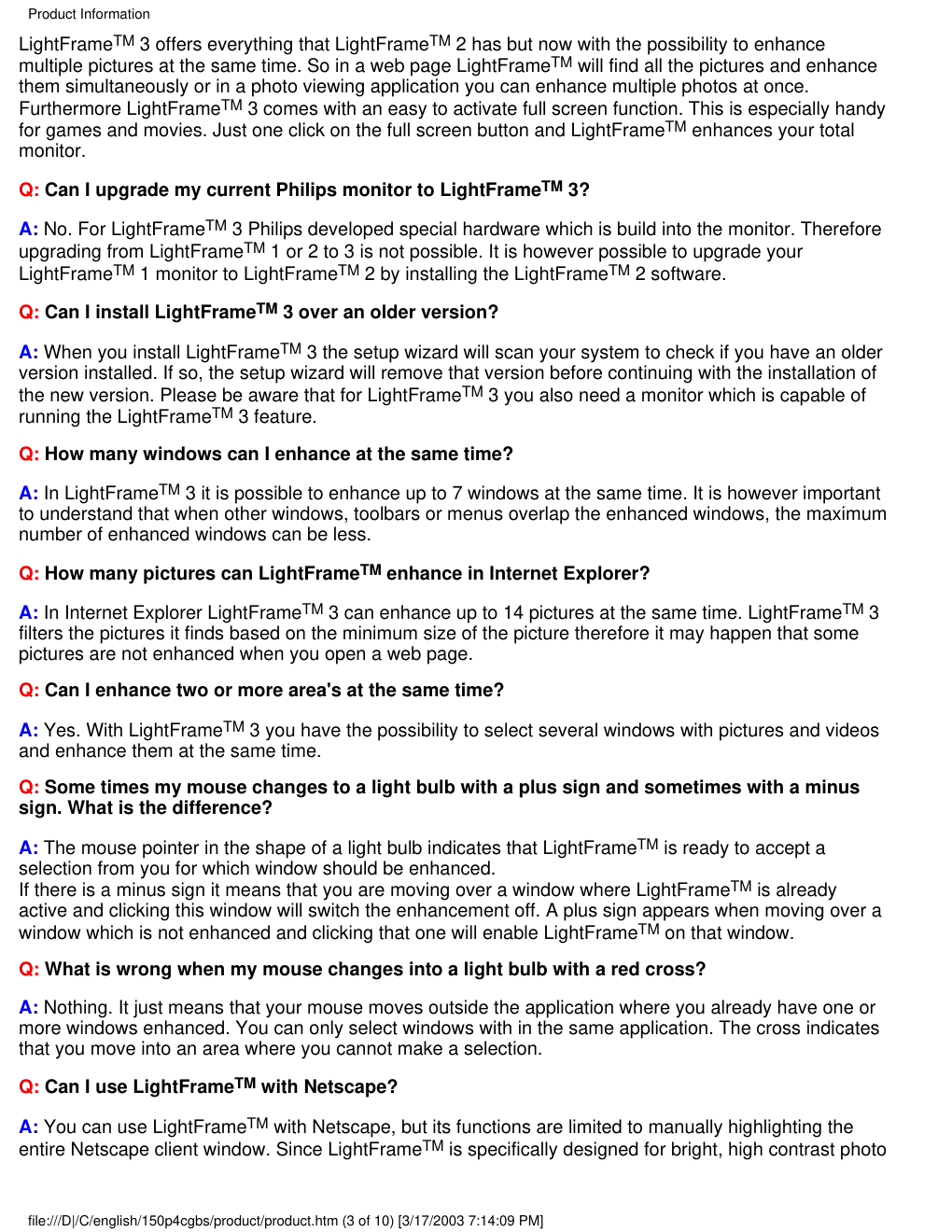

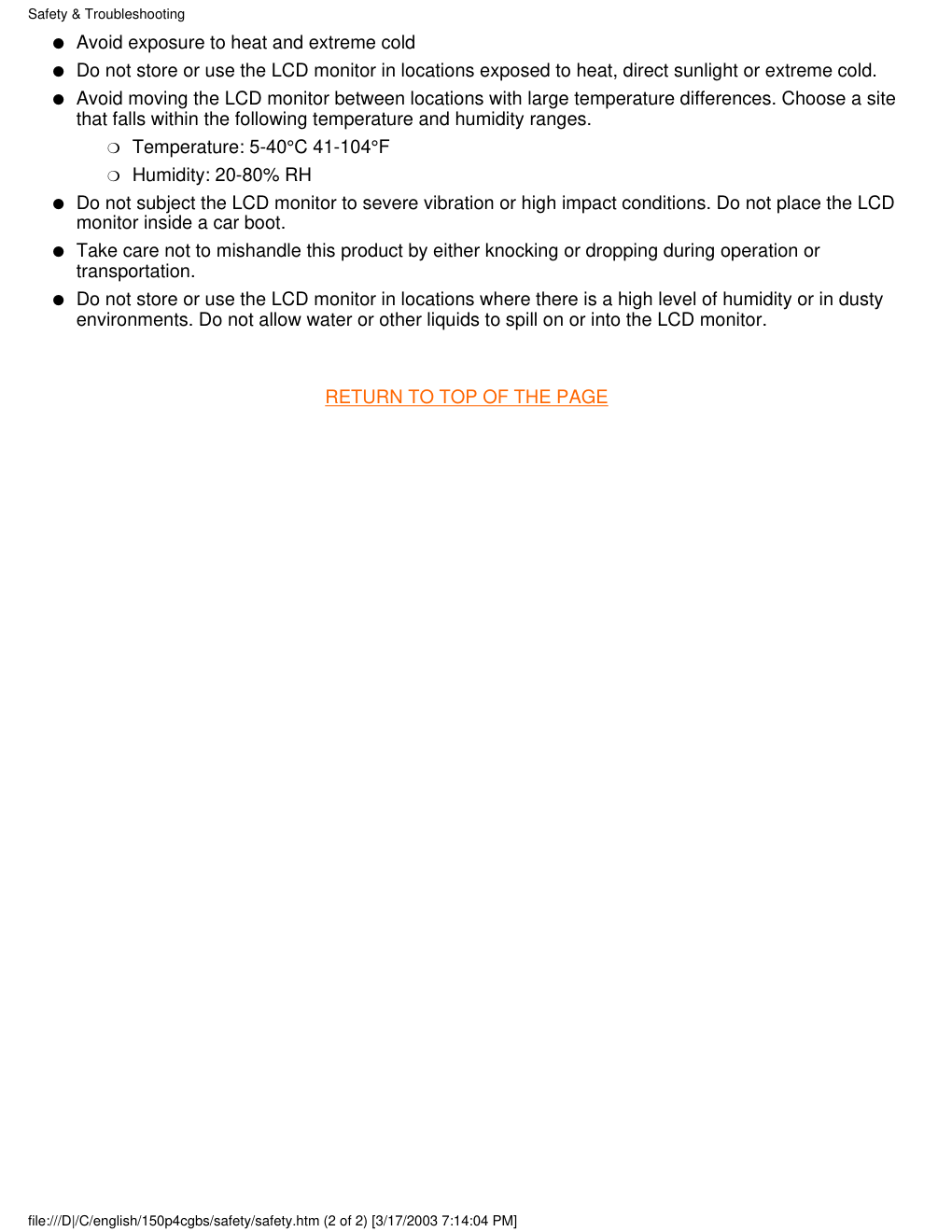

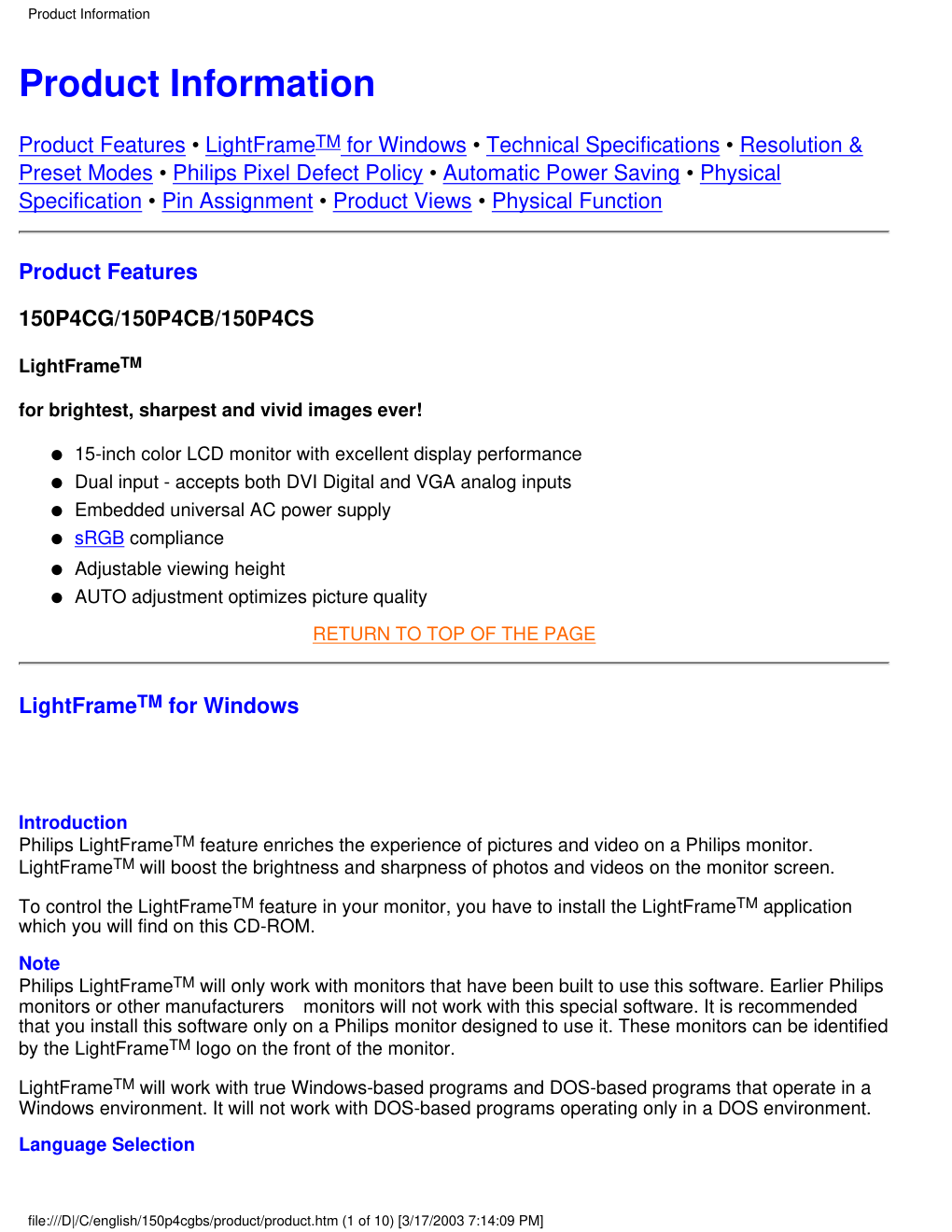

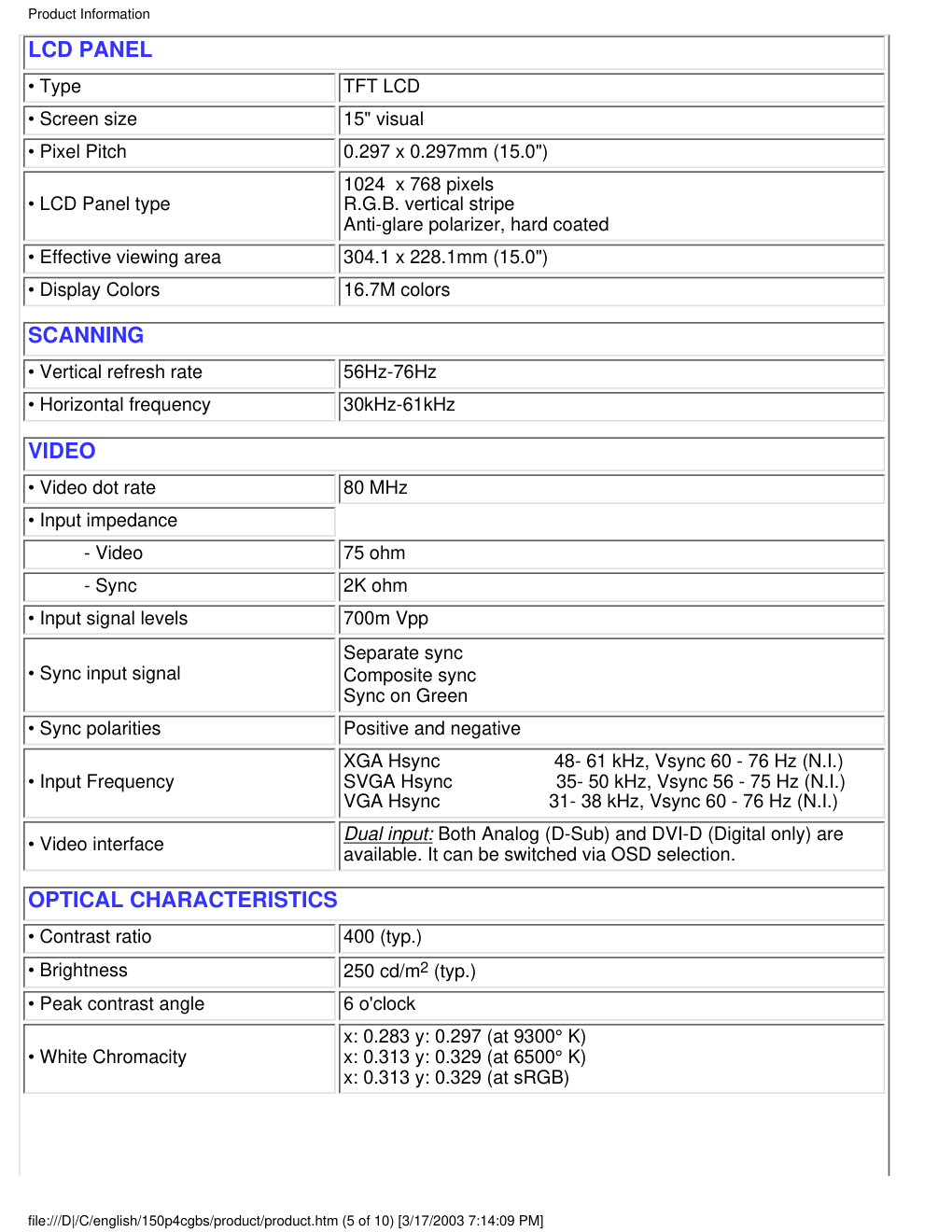

Philips 150P4CG/150P4CB/150P4CS Electronic User's Manual file:///D|/C/english/150p4cgbs/index.htm [3/17/2003 7:14:03 PM] Safety and Troubleshooting Information Safety Precautions and Maintenance • Installation Locations • FAQs • Troubleshooting • Regulatory Information • Other Related Information Safety precautions and maintenance WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards. Read and follow these instructions when connecting and using your computer monitor: Unplug the monitor if you are not going to use it for an extensive period of time. G Unplug the monitor if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. G Consult a service technician if the monitor does not operate normally when you have followed the instructions in this manual. G The casing cover should be opened only by qualified service personnel. G Keep the monitor out of direct sunlight and away from stoves or any other heat source. G Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics. G Do not block the ventilation holes on the cabinet. G Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture. G When positioning the monitor make sure the power plug and outlet are easily accessible. G If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation. G To avoid the risk of shock or permanent damage to the set do not expose the monitor to rain or excessive moisture. G When positioning the monitor, make sure the power plug and outlet are easily accessible. G IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases the after-image will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptom cannot be repaired and is not covered under warranty. G Consult a service technician if the monitor does not operate normally when the operating instructions given in this manual have been followed. RETURN TO TOP OF THE PAGE Installation Locations Safety & Troubleshooting file:///D|/C/english/150p4cgbs/safety/safety.htm (1 of 2) [3/17/2003 7:14:04 PM] Avoid exposure to heat and extreme cold G Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme cold. G Avoid moving the LCD monitor between locations with large temperature differences. Choose a site that falls within the following temperature and humidity ranges. Temperature: 5-40°C 41-104°F H Humidity: 20-80% RH H G Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD monitor inside a car boot. G Take care not to mishandle this product by either knocking or dropping during operation or transportation. G Do not store or use the LCD monitor in locations where there is a high level of humidity or in dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor. G RETURN TO TOP OF THE PAGE Safety & Troubleshooting file:///D|/C/english/150p4cgbs/safety/safety.htm (2 of 2) [3/17/2003 7:14:04 PM] About This Manual About This Guide • Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version. It includes the following sections: Safety and Troubleshooting Information provides tips and solutions for common problems as well as other related information you may need. G About This Electronic User's Manual gives an overview of information included, along with notation icon descriptions and other documentation for your reference. G Product Information gives an overview of the monitor's features as well as the technical specifications for this monitor. G Installing Your Monitor describes the initial setup process and gives an overview of how to use the monitor. G On-Screen Display provides information on adjusting the settings on your monitor. G Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along with help desk phone numbers and information on the warranty applicable to your product. G Glossary defines technical terms. G Download and Print Option transfers this entire manual to your hard drive for easy reference. G RETURN TO TOP OF THE PAGE Notational Descriptions The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows: NOTE: This icon indicates important information and tips that help you make better use of your computer system. About This Electronic User's Manual file:///D|/C/english/150p4cgbs/about/about.htm (1 of 2) [3/17/2003 7:14:06 PM] CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data. WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority. RETURN TO TOP OF THE PAGE ©2003 Koninklijke Philips Electronics NV All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV About This Electronic User's Manual file:///D|/C/english/150p4cgbs/about/about.htm (2 of 2) [3/17/2003 7:14:06 PM] Product Information Product Features • LightFrameTM for Windows • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150P4CG/150P4CB/150P4CS LightFrameTM for brightest, sharpest and vivid images ever! 15-inch color LCD monitor with excellent display performance G Dual input - accepts both DVI Digital and VGA analog inputs G Embedded universal AC power supply G sRGB compliance G Adjustable viewing height G AUTO adjustment optimizes picture quality G RETURN TO TOP OF THE PAGE LightFrameTM for Windows Introduction Philips LightFrameTM feature enriches the experience of pictures and video on a Philips monitor. LightFrameTM will boost the brightness and sharpness of photos and videos on the monitor screen. To control the LightFrameTM feature in your monitor, you have to install the LightFrameTM application which you will find on this CD-ROM. Note Philips LightFrameTM will only work with monitors that have been built to use this software. Earlier Philips monitors or other manufacturers� monitors will not work with this special software. It is recommended that you install this software only on a Philips monitor designed to use it. These monitors can be identified by the LightFrameTM logo on the front of the monitor. LightFrameTM will work with true Windows-based programs and DOS-based programs that operate in a Windows environment. It will not work with DOS-based programs operating only in a DOS environment. Language Selection Product Information file:///D|/C/english/150p4cgbs/product/product.htm (1 of 10) [3/17/2003 7:14:09 PM] While English is the default language of LightFrameTM, the User Interface can be set up to operate in Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese or Korean. Installation 1) To install LightFrameTM, place the CD in the CD-ROM drive. 2) Next, when the menu of items on the CD appears on your screen, click on 'Install LightFrameTM'. 3) Now, follow the on-screen prompts to properly install the program. The software checks to see if you have a compatible monitor. You must agree to the license agreement terms for the software to install. 4) After installation, LightFrameTM automatically loads and the icon appears in the taskbar. Notes If LightFrameTM detects that your monitor is not LightFrameTM compatible, a message appears on the monitor screen. If you see this message, you can select to abort or continue the installation. However, if you continue the installation, LightFrameTM will probably not work on the monitor. How to use LightFrameTM After installation, LightFrameTM starts up automatically whenever the computer is started. For information about using LightFrameTM please refer to the help information which is available after installation. Compatibility This version of LightFrameTM is compatible with Windows 95 Windows 98 Windows Me (Millennium Edition) Windows XP Windows 2000 Professional Edition. LightFrameTM 3 -- Frequently Asked Questions (and answers) Q: Is LightFrameTM 2 compatible with LightFrameTM 3? A: No. If you run LightFrameTM 1 or 2 software with a Philips LightFrameTM 3 monitor, nothing will happen. Q: Can I use LightFrameTM 3 software on my LightFrameTM 1 / 2 monitor. A: No for a LightFrameTM 1 or 2 monitor you need to use LightFrameTM 1 or 2 software. It is however possible to use the LightFrameTM 2 software on a LightFrameTM 1 monitor. Q: What is the difference between LightFrameTM 1, LightFrameTM 2 and LightFrameTM 3? A: LightFrameTM 1 was the very first generation of the LightFrameTM feature introduced by Philips. In that version the user needs to manually turn on/off the feature and select the window or area to apply it to. LightFrameTM 2 offers the automatic detection in Internet Explorer on top of the LightFrameTM 1 functions. With this feature LightFrameTM will automatically scan a web page in Internet Explorer, find the largest picture and enhance it. Product Information file:///D|/C/english/150p4cgbs/product/product.htm (2 of 10) [3/17/2003 7:14:09 PM] LightFrameTM 3 offers everything that LightFrameTM 2 has but now with the possibility to enhance multiple pictures at the same time. So in a web page LightFrameTM will find all the pictures and enhance them simultaneously or in a photo viewing application you can enhance multiple photos at once. Furthermore LightFrameTM 3 comes with an easy to activate full screen function. This is especially handy for games and movies. Just one click on the full screen button and LightFrameTM enhances your total monitor. Q: Can I upgrade my current Philips monitor to LightFrameTM 3? A: No. For LightFrameTM 3 Philips developed special hardware which is build into the monitor. Therefore upgrading from LightFrameTM 1 or 2 to 3 is not possible. It is however possible to upgrade your LightFrameTM 1 monitor to LightFrameTM 2 by installing the LightFrameTM 2 software. Q: Can I install LightFrameTM 3 over an older version? A: When you install LightFrameTM 3 the setup wizard will scan your system to check if you have an older version installed. If so, the setup wizard will remove that version before continuing with the installation of the new version. Please be aware that for LightFrameTM 3 you also need a monitor which is capable of running the LightFrameTM 3 feature. Q: How many windows can I enhance at the same time? A: In LightFrameTM 3 it is possible to enhance up to 7 windows at the same time. It is however important to understand that when other windows, toolbars or menus overlap the enhanced windows, the maximum number of enhanced windows can be less. Q: How many pictures can LightFrameTM enhance in Internet Explorer? A: In Internet Explorer LightFrameTM 3 can enhance up to 14 pictures at the same time. LightFrameTM 3 filters the pictures it finds based on the minimum size of the picture therefore it may happen that some pictures are not enhanced when you open a web page. Q: Can I enhance two or more area's at the same time? A: Yes. With LightFrameTM 3 you have the possibility to select several windows with pictures and videos and enhance them at the same time. Q: Some times my mouse changes to a light bulb with a plus sign and sometimes with a minus sign. What is the difference? A: The mouse pointer in the shape of a light bulb indicates that LightFrameTM is ready to accept a selection from you for which window should be enhanced. If there is a minus sign it means that you are moving over a window where LightFrameTM is already active and clicking this window will switch the enhancement off. A plus sign appears when moving over a window which is not enhanced and clicking that one will enable LightFrameTM on that window. Q: What is wrong when my mouse changes into a light bulb with a red cross? A: Nothing. It just means that your mouse moves outside the application where you already have one or more windows enhanced. You can only select windows with in the same application. The cross indicates that you move into an area where you cannot make a selection. Q: Can I use LightFrameTM with Netscape? A: You can use LightFrameTM with Netscape, but its functions are limited to manually highlighting the entire Netscape client window. Since LightFrameTM is specifically designed for bright, high contrast photo Product Information file:///D|/C/english/150p4cgbs/product/product.htm (3 of 10) [3/17/2003 7:14:09 PM] and video display, highlighting an entire Web page -- including text -- is not recommended. For best results, we recommend you use LightFrameTM with Microsoft Internet Explorer version 5.0 or higher. You can downloaded Internet Explorer free of charge from the Microsoft website (www.microsoft.com). A copy of Internet Explorer 5.5 is also included on the CD-ROM shipped with your monitor. Q: Can I activate LightFrameTM on my entire screen? A: Yes you can. And with LightFrameTM 3 this becomes even easier. You just press the LightFrameTM button on the bezel to activate it. Q: When I apply LightFrameTM to a text document I get blurry characters, what is wrong? A: Nothing is wrong. The effect which you see is due to the sharpness enhancement that LightFrameTM is doing on your monitor. This sharpness improves a photo or video significantly however on black text on a light background the effect is less favorable. Please keep in mind that LightFrameTM is developed to enhance your photos and videos and not really for text or synthetic pictures. You can decrease this effect by lowering the sharpness setting in the LightFrameTM 3 control panel. Q: How can I tell if my monitor comes with LightFrameTM 3? A: All Philips LightFrameTM monitors display this logo on their front bezel: Q: How do I use the LightFrameTM 3 control bar that appears at the top my screen? A: The control bar is another upgrade that helps you run all LightFrameTM 3's neat, new features. The illustration below describes the tasks each button performs. RETURN TO TOP OF THE PAGE Technical Specifications* Product Information file:///D|/C/english/150p4cgbs/product/product.htm (4 of 10) [3/17/2003 7:14:09 PM] LCD PANEL • Type TFT LCD • Screen size 15" visual • Pixel Pitch 0.297 x 0.297mm (15.0") • LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 304.1 x 228.1mm (15.0") • Display Colors 16.7M colors SCANNING • Vertical refresh rate 56Hz-76Hz • Horizontal frequency 30kHz-61kHz VIDEO • Video dot rate 80 MHz • Input impedance - Video 75 ohm - Sync 2K ohm • Input signal levels 700m Vpp • Sync input signal Separate sync Composite sync Sync on Green • Sync polarities Positive and negative • Input Frequency XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.) • Video interface Dual input: Both Analog (D-Sub) and DVI-D (Digital only) are available. It can be switched via OSD selection. OPTICAL CHARACTERISTICS • Contrast ratio 400 (typ.) • Brightness 250 cd/m2 (typ.) • Peak contrast angle 6 o'clock • White Chromacity x: 0.283 y: 0.297 (at 9300° K) x: 0.313 y: 0.329 (at 6500° K) x: 0.313 y: 0.329 (at sRGB) Product Information file:///D|/C/english/150p4cgbs/product/product.htm (5 of 10) [3/17/2003 7:14:09 PM] • Viewing Angle (C/R >5) Upper >50° (typ.) Lower >60° (typ.) Left >75 ° (typ.) Right >75 ° (typ.) • Response time <=25ms (typ.) sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com Note: sRGB mode is not available while 'LightFrameTM' function is activated. * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Maximum 1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz 14 user definable modes 14 factory preset modes: Product Information file:///D|/C/english/150p4cgbs/product/product.htm (6 of 10) [3/17/2003 7:14:09 PM] H. freq (kHz) Resolution V. freq (Hz) 31.469 640*350 70.086 31.469 720*400 70.087 31.469 640*480 59.940 35.000 640*480 67.000 37.861 640*480 72.809 37.500 640*480 75.000 35.156 800*600 56.250 37.879 800*600 60.317 48.077 800*600 72.188 46.875 800*600 75.000 49.700 832*624 75.000 48.363 1024*768 60.004 56.476 1024*768 70.069 60.023 1024*768 75.029 RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 30W Green OFF Blanked No No < 1W Amber Product Information file:///D|/C/english/150p4cgbs/product/product.htm (7 of 10) [3/17/2003 7:14:09 PM] This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR®guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Physical Specifications • Dimension incl. Pedestal (WxHxD) * 343 x 297 x 218 mm (in lowest position) • Weight * 3.6 kg • Height adjustment rang 70 mm • Tilt (Forward / Backward) - 5° / 25° • Power supply 100 — 240 VAC, 50/60 Hz • Power consumption 20 W (typ.) • Temperature (operating) 5° C to 40° C • Relative humidity 20% to 80% • System MTBF 50K hrs (CCFL 40Khrs) • Cabinet color 150P4CG: Light Gray 150P4CB: Black 150P4CS: Black and silver * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the table: Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment 1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- 2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ 3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield 4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+ Product Information file:///D|/C/english/150p4cgbs/product/product.htm (8 of 10) [3/17/2003 7:14:09 PM] 8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock- 2. The 15-pin D-sub connector (male) of the signal cable: Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground 3 Blue video input 11 Identical output - connected to pin 10 4 Identical output - connected to pin 10 12 Serial data line (SDA) 5 Cable detect 13 H. Sync / H+V 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Product Information file:///D|/C/english/150p4cgbs/product/product.htm (9 of 10) [3/17/2003 7:14:09 PM] 1) Tilt 2) Height adjustment RETURN TO TOP OF THE PAGE Product Information file:///D|/C/english/150p4cgbs/product/product.htm (10 of 10) [3/17/2003 7:14:09 PM] Installing your LCD Monitor Your LCD Monitor : Front View Product Description • Connecting to Your PC • The Base • Getting Started • Optimizing Performance Front View Product Description UP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up. OK button which when pressed will take you to the OSD controls POWER button switches your monitor on Installing your LCD Monitor file:///D|/C/english/150p4cgbs/install/install.htm (1 of 2) [3/17/2003 7:14:12 PM] Automatically adjust the horizontal position, vertical position, phase and clock setting. LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode. RETURN TO TOP OF THE PAGE Optimizing Performance For best performance, ensure that your display settings are set at 1024x768@60Hz (for14"/15") or 1280x1024, 60Hz (for17"/18"). G Note: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION. You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe G RETURN TO TOP OF THE PAGE Installing your LCD Monitor file:///D|/C/english/150p4cgbs/install/install.htm (2 of 2) [3/17/2003 7:14:12 PM] On-Screen Display Description of the On-Screen Display • The OSD Tree Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly though an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when the user is operating the monitor. Basic and simple instruction on the control keys. When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the or the keys to make your adjustments. RETURN TO TOP OF THE PAGE The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. Analog signal input: On-Screen Display file:///D|/C/english/150p4cgbs/osd/osddesc.htm (1 of 3) [3/17/2003 7:14:14 PM] On-Screen Display file:///D|/C/english/150p4cgbs/osd/osddesc.htm (2 of 3) [3/17/2003 7:14:14 PM] Digital signal input: RETURN TO TOP OF THE PAGE On-Screen Display file:///D|/C/english/150p4cgbs/osd/osddesc.htm (3 of 3) [3/17/2003 7:14:14 PM] Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru • Uruguay • Venezuela NORTH AMERICA: Canada • USA PACIFIC: Australia • New Zealand ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia • Pakistan • Philippines • Singapore • Taiwan • Thailand AFRICA: Morocco • South Africa MIDDLE EAST: Dubai • Egypt Customer Care and Warranty file:///D|/C/english/warranty/warranty.htm [3/17/2003 7:14:16 PM] Glossary A B C D E F G H I J K L M N O P Q R S T U V W X Y Z C Color temperature A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source. Most Philips monitors offer the possibility of setting the color temperature to any desired value. RETURN TO TOP OF THE PAGE D D-SUB Your monitor comes with a D-Sub cable. Digital Visual Interface (DVI) The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent. The interface is primarily focused at providing a connection between a computer and its display device. The DVI specification meets the needs of all segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different segments to unite around one monitor interface specification. The DVI interface enables: Content to remain in the lossless digital domain from creation to consumption. 1. Display technology independence. 2. Plug and play through hot plug detection, EDID and DDC2B. 3. Digital and Analog support in a single connector. 4. RETURN TO TOP OF THE PAGE Glossary file:///D|/C/english/150p4cgbs/glossary/glossary.htm (1 of 4) [3/17/2003 7:14:18 PM] E Energy Star Computers Programme An energy conservation programme launched by the US Environmental Protection Agency (EPA) with the primary aim of promoting the manufacture and marketing of energy-efficient office automation equipment. Companies joining this programme must be willing to commit themselves to manufacturing one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity or after a predetermined time selected by the user. RETURN TO TOP OF THE PAGE L LCD Liquid Crystal Display An alphanumeric display using the unique properties of liquid crystal to form characters. The latest flat-panel displays comprise a matrix of hundreds or thousands of individual LCD cells that generate text and colorful graphics on a screen. They consume little power though they do require external lighting to make them legible to the user. RETURN TO TOP OF THE PAGE U USB or Universal Serial Bus A smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. USB eliminates "case angst" -- the fear of removing the computer case to install add-on peripherals. And USB also eliminates adjustment of complicated IRQ settings when installing new peripherals. G USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick. More and more peripherals for multimedia computers arrive on the market every day. With USB, up to 127 devices can run simultaneously on a computer. G USB permits "hot plug-in." There's no need to shut down, plug in, reboot and run set-up to install peripherals. And no need to go through the reverse process to unplug a device. G In short, USB transforms today's "Plug-and-Pray" into true Plug-and-Play! Hub Glossary file:///D|/C/english/150p4cgbs/glossary/glossary.htm (2 of 4) [3/17/2003 7:14:18 PM] A Universal Serial Bus device that provides additional connections to the Universal Serial Bus. Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs serve to simplify USB connectivity from the user's perspective and provide robustness at low cost and complexity. Hubs are wiring concentrators and enable the multiple attachment characteristics of USB. Attachment points are referred to as ports. Each hub converts a single attachment point into multiple attachment points. The architecture supports concatenation of multiple hubs. The upstream port of a hub connects the hub towards the host. Each of the other downstream ports of a hub allows connection to another hub or function. Hubs can detect, attach and detach at each downstream port and enable the distribution of power to downstream devices. Each downstream port can be individually enabled and configured at either full or low speed. The hub isolates low speed ports from full speed signaling. A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlled switch between the upstream port and downstream ports. It also has hardware support for reset and suspend/resume signaling. The controller provides the interface registers to allow communication to/from the host. Hub specific status and control commands permit the host to configure a hub and to monitor and control its ports. Device A logical or physical entity that performs a function. The actual entity described depends on the context of the reference. At the lowest level, device may refer to a single hardware component, as in a memory device. At a higher level, it may refer to a collection of hardware components that perform a particular function, such as a Universal Serial Bus interface device. At an even higher level, device may refer to the function performed by an entity attached to the Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream The direction of data flow from the host or away from the host. A downstream port is the port on a hub electrically farthest from the host that generates downstream data traffic from the hub. Downstream ports receive upstream data traffic. Glossary file:///D|/C/english/150p4cgbs/glossary/glossary.htm (3 of 4) [3/17/2003 7:14:18 PM] Upstream The direction of data flow towards the host. An upstream port is the port on a device electrically closest to the host that generates upstream data traffic from the hub. Upstream ports receive downstream data traffic. RETURN TO TOP OF THE PAGE V Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. RETURN TO TOP OF THE PAGE Glossary file:///D|/C/english/150p4cgbs/glossary/glossary.htm (4 of 4) [3/17/2003 7:14:18 PM] Download and Print Installing your LCD monitor driver • Download and Printing Instructions • Installing FPadjust Program Installing Your LCD monitor driver System requirements: PC running Windows 95, Windows 98, Windows 2000 , Windows Me, Windows XP or later G Find your driver ".inf/.icm/.cat" at : /PC/drivers/ G Read the "Driver_install02.txt" file before installing. This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser. If you do not have Adobe® Acrobat Reader installed, click on the link to install the application. Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Mac. Download instructions: To download the file: 1. Click-and-hold your mouse over the icon below. (Win95/98/2000/Me/XP users right-click) Download 150P4AB.pdf Download 150P4AG.pdf Download 150P4CB.pdf Download 150P4CG.pdf Download 150P4CS.pdf Download and Print file:///D|/C/english/download/download.htm (1 of 2) [3/17/2003 7:14:20 PM] 2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'. 3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). Printing instructions: To print the manual: 1. With the manual file open, follow your printer's instructions and print the pages you need. RETURN TO TOP OF THE PAGE Installing FPadjust Program The FP Adjust program generates alignment patterns which will help you adjust monitor settings such as CONTRAST, BRIGHTNESS, HORIZONTAL & VERTICAL POSITION, PHASE and CLOCK. System requirements: PC running Windows 95, Windows 98, Windows 2000, Winodws Me, Windows XP or later G To install FPadjust Program: Click on the link or icon to install FPadjustment Program. or G Click-and-hold your mouse over the icon. (Win95/98/2000/Me/XP users right-click) G Download FP_setup04.exe From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'. G Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). G Exit your browser and install the FPadjust Program. G Read the "FP_Readme04.txt" file before installing. RETURN TO TOP OF THE PAGE Download and Print file:///D|/C/english/download/download.htm (2 of 2) [3/17/2003 7:14:20 PM] FAQs (Frequently Asked Questions) Safety and Troubleshooting • General FAQs • Screen Adjustments • Compatibility with Other Peripherals • LCD Panel Technology • Ergonomics, Ecology and Safety Standards • Troubleshooting • Regulatory Information • Other Related Information General FAQs Q: When I install my monitor what should I do if the screen shows 'Cannot display this video mode'? A: Recommended video mode for Philips 14"/15": 1024x768 @60Hz for Philips 17"/18" 1280x1024@60Hz. Unplug all cables, then connect your PC to the monitor you used previously which displayed correctly. 1. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel Window, select the Display icon. Inside the Display Control Panel, select the 'Settings' tab. Under the settings tab, in a box labelled 'desktop area', move the slide bar to 1024x768 pixels (14"/15") / 1280x1024 pixels (17"/18"). 2. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK. 3. Restart your computer and repeat step 2 and 3 to verify that your PC is set at 1024x768@60Hz (14"/15") / 1280x1024@60Hz (17"/18"). 4. Shut down your computer, disconnect your old monitor and reconnect your Philips LCD monitor. 5. Turn on your monitor and then turn on your PC 6. Q: What should I do when screen shows: THIS IS 85HZ OVERSCAN, CHANGE COMPUTER DISPLAY INPUT TO 1024 x 768 @60HZ or THIS IS 85HZ OVERDRIVE, CHANGE COMPUTER DISPLAY INPUT TO 1280 x 1024 @60HZ? A: It means the signal input from your PC is 85Hz -- outside the range that the monitor can display. New Generation LCD intelligent monitor capabilities temporarily override the overscan, providing you with 10 minutes to reset timing to recommended settings. Here's how: Go to your Windows Start menu. Select Settings, then Control Panel. Select Display. Move to Settings and click on the Advanced button. Under Adaptor, change the refresh rate to 56~75. You have 10 minutes to complete the operation; if you do not complete within 10 minutes, power off and re-power on monitor to enter changes. FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (1 of 8) [3/17/2003 7:14:34 PM] Q: What does 'refresh rate' mean in connection with an LCD monitor? A: The refresh rate is of much less relevance for LCD monitors. LCD monitors display a stable, flicker-free image at 60Hz. There is no visible difference between 85Hz and 60Hz. Q: What are the .inf and .icm files on the set-up disk & CD-ROM? How do I install the drivers (.inf and .icm)? A: These are the driver files for your monitor. Follow the instructions in your user manual to install the drivers. You computer may ask you for monitor drivers (.inf and Icm files) or a driver disk when you first install your monitor. Follow the instructions to insert the driver disk (either floppy or CD-ROM) included in this package. Monitor drivers (.inf and Icm files) will be installed automatically. Q: How do I adjust the resolution? A: Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows 95/98 with the 'Display properties/Settings' control panel. Q: What if I get lost when I am making monitor adjustments? A: Simply press the OSD button, then select 'Reset' to recall all of the original factory settings. Q: What is the Auto function? A: The AUTO adjustment key restores the optimal screen position, phase and clock settings at the press of a single button – without the need to navigate through OSD menus and control keys. Q: My Monitor has no power (Power LED does not light up). What should I do? A: Make sure the AC power cord is connected to the Monitor. Q: Will the LCD monitor accept an Interlace signal? A: No If an Interlace signal is used, the screen displays both odd and even horizontal scanning lines at the same time, thus distorting the picture. FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (2 of 8) [3/17/2003 7:14:34 PM] Q: What does the Refresh Rate mean for LCD? A: Unlike CRT display technology, in which the speed at which the electron beam is swept from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology. Q: Will the LCD screen be resistant to scratches? A: A protective coating is applied to the surface of the LCD, which is durable to a certain extent (approximately up to the hardness of a 2H pencil). In general, it is recommended that the panel surface is not subjected to any excessive shocks or scratches. An optional protective cover with greater scratch resistance is also available. Q: How should I clean the LCD surface? A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone, hexane, etc. Q: Can the Philips LCD Monitor be mounted on the wall or used as a touch panel? A: Yes, Philips LCD monitors have this optional feature. The standard VESA mount holes on the back cover allow the user to mount the Philips monitor on any VESA standard ARM or accessories. Touch panels are being developed for future applications. Check with your Philips sales representative for more information. RETURN TO TOP OF THE PAGE Screen Adjustments Q: What is the FPadjust program on the set-up disk and CD-ROM? A: The FPadjust program generates alignment patterns that help you adjust monitor settings such as Contrast, Brightness, Horizontal Position, Vertical Position, Phase, and Clock for optimal performance. FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (3 of 8) [3/17/2003 7:14:34 PM] Q: When I install my monitor, how do I get the best performance from the monitor? A: For best performance, make sure your display settings are set at 1024x768@60Hz for 14"/15", 1280x1024@60Hz for 17"/18". Note: You can check the current display settings by pressing the OSD OK button once. The current display mode is shown in the product information in the OSD main controls. 1. To install the Flat Panel Adjust (FPadjust) program located on the monitor setup CD-ROM, open the CD-ROM and double click the FP_setup04.exe icon. This will install FP Adjust automatically and place a shortcut on your desktop. 2. Run FPadjust by double clicking the shortcut. Follow the instructions step by step to optimize image performance with your system's video controller. 3. Q: How do LCDs compare with CRTs in terms of radiation? A: Because LCDs do not use an electron gun they do not generate the same amount of radiation at the screen surface. RETURN TO TOP OF THE PAGE Compatibility with other Peripherals Q: Can I connect my LCD monitor to any PC, workstation or Mac? A: Yes, all Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system. Please contact your dealer/retailer for more information. Q: Are Philips LCD monitors Plug-and-Play? A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, ME, XP and the PC98/99 platforms. Q: What is USB (Universal Serial Bus)? A: Think of USB as a smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. There are three main benefits of USB. USB eliminates 'case FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (4 of 8) [3/17/2003 7:14:34 PM] angst,' the fear of removing the computer case to install circuit board cards -- that often require adjustment of complicated IRQ settings -- for add-on peripherals. USB does away with 'port gridlock.' Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example), and a joystick. More and more peripherals for multimedia computers come on the market every day. With USB, up to 127 devices can run simultaneously on one computer. USB permits 'hot plug-in.' No need to shut down, plug in, reboot and run set up to install peripherals. No need to go through the reverse process to unplug a device. Bottom line: USB transforms today's 'Plug-and-Pray' into true Plug-and-Play! Q: What is a USB hub ? A: A USB hub provides additional connections to the Universal Serial Bus. A hub's upstream port connects a hub to the host, usually a PC. Multiple downstream ports in a hub allows connection to another hub or device, such as a USB keyboard, camera or printer. RETURN TO TOP OF THE PAGE LCD Panel Technology Q: What is a Liquid Crystal Display? A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc. LCD is the technology used for displays in notebooks and other small computers. Like light-emitting diode and gas-plasma technologies, LCD allows displays to be much thinner than cathode ray tube (CRT) technology. LCD consumes much less power than LED and gas-display displays because it works on the principle of blocking light rather than emitting it. Q: How are LCDs made? A: LCDs are created from two glass plates separated from each other at a distance of a few microns. The plates are filled with liquid crystal and then sealed together. The top plate is coloured with an RGB pattern to make the colour filter. Polarizers are then glued to both plates. This combination is sometimes called 'glass' or 'cell.' The LCD cell is assembled into a 'module' by adding the backlight, driver electronics and frame. Q: What is polarization ? A: Polarization is basically directing light to shine in one direction. Light is electromagnetic waves. Electric and magnetic fields oscillate in a direction perpendicular to the propagation of the light beam. The direction of these fields is called the 'polarization direction'. Normal or non-polarized light FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (5 of 8) [3/17/2003 7:14:34 PM] has fields in several directions; polarized light has a field in only one direction. Q: What differentiates passive matrix LCDs from active matrix LCDs? A: An LCD is made with either a passive matrix or an active matrix display grid. An active matrix has a transistor located at each pixel intersection, requiring less current to control the luminance of a pixel. For this reason, the current in an active matrix display can be switched on and off more frequently, improving the screen refresh time (your mouse pointer will appear to move more smoothly across the screen, for example). The passive matrix LCD has a grid of conductors with pixels located at each intersection in the grid. Q: How does a TFT LCD Panel work? A: On each column and row of the TFT LCD panel a data source drive and a gate drive and attached, respectively. The TFT drain of each cell is connected to the electrode. The molecular arrangement of liquid crystal elements differs according to whether it is impressed with voltage or not. It varies the direction of polarized light and the amount of light by letting it through different arrays of liquid crystal elements. When two polarized filters are arranged vertically on a polarized light pole, the light that passes through the upper polarized panel is turned 90 degrees along with the spiral structure of the liquid crystal molecules and goes through the polarized filter at the bottom. When impressed with voltage, liquid crystal molecules are arranged vertically from the original spiral structure and the direction of the light is not turned through 90 degrees. In this case, light that comes through the top polarized panel may not go through the polarized panel at the bottom. Q: What are the advantages of TFT LCD compared with CRT? A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on fluorescent glass. Therefore, CRT monitors basically operate with an analog RGB signal. A TFT LCD monitor is a device that displays an input image by operating a liquid crystal panel. The TFT has a fundamentally different structure than a CRT: Each cell has an active matrix structure and independent active elements. A TFT LCD has two glass panels and the space between them is filled in with liquid crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure of the liquid crystal is altered and controls the amount of inlet lighting to display images. A TFT LCD has several advantages over a CRT, since it can be very thin and no flickering occurs because it does not use the scanning method. Q: Why is vertical frequency of 60Hz optimal for an LCD monitor? A: Unlike a CDT monitor, the TFT LCD panel has a fixed resolution. For example, an XGA monitor has 1024x3 (R, G, B) x 768 pixels and a higher resolution may not be available without additional software processing. The panel is designed to optimize the display for a 65MHz dot clock, one of the standards for XGA displays. Since the vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency for this monitor is 60Hz. FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (6 of 8) [3/17/2003 7:14:34 PM] Q: What kind of wide-angle technology is available? How does it work? A: The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much narrower than that of a CDT. Usually, the viewing angle refers to the point where the contrast ration is 10. Many ways to widen the viewing angle are currently being developed and the most common approach is to use a wide viewing angle film, which widens the viewing angle by varying the refraction ratio. IPS (In Plane Switching) or MVA (Multi Vertical Aligned) is also used to give a wider viewing angle. Q: Why is there no flicker on an LCD Monitor? A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is different from that of CRT monitor -- and it has no impact of the ease of viewing. Flickering in an LCD monitor relates to usually undetectable luminance caused by the difference between positive and negative voltage. On the other hand, CRT flickering that can irritate the human eye occurs when the on/off action of the fluorescent object becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much slower, this troublesome form of flickering is not present in an LCD display. Q: Why is an LCD monitor virtually free of Electro Magnetic Interference? A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro Magnetic Interference, especially magnetic fields. Also, since an LCD display utilizes relatively low power, its power supply is extremely quiet. RETURN TO TOP OF THE PAGE Ergonomics, Ecology and Safety Standards Q: What is the CE mark? A: The CE (Conformité Européenne) mark is required to be displayed on all regulated products offered for sale on the European market. This 'CE' mark means that a product complies with the relevant European Directive. A European Directive is a European 'Law' that relates to health, safety, environment and consumer protection, much the same as the U.S. National Electrical Code and UL Standards. Q: Does the LCD monitor conform to general safety standards? FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (7 of 8) [3/17/2003 7:14:34 PM] A: Yes. Philips LCD monitors conform to the guidelines of MPR-II and TCO 95/99/03 standards for the control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment and recyclability. The specification page provides detailed data on safety standards. More information is provided in the Regulatory Information section. RETURN TO TOP OF THE PAGE FAQs (Frequently Asked Questions) file:///D|/C/english/150p4cgbs/safety/saf_faq.htm (8 of 8) [3/17/2003 7:14:34 PM] Troubleshooting Safety and Troubleshooting • FAQs • Common Problems • Imaging Problems • Regulatory Information • Other Related Information This page deals with problems that can be corrected by the user. If the problem still persists after you have tried these solutions, contact your nearest Philips dealer. Common Problems Having this problem? Check these items No Picture (Power LED not lit) Make sure the Power cable is plugged to the wall and the back of the monitor. G Firstly, ensure that the power button in front of the monitor is in the OFF position, then press it to ON position again. G No Picture (Power LED is amber or yellow) Make sure the computer is turned on. G Make sure the signal cable is properly connected to your computer. G Check to see if the monitor cable has bent pins. G The Energy Saving feature may be activated G Screen says Make sure the monitor cable is properly connected to your computer. (Also refer to the Quick Set-Up Guide). G Check to see if the monitor cable has bent pins. G Make sure the computer is turned on. G Screen says Make sure the vertical sync of input signal is within the range of 56 ~ 75 Hz. G Change the refresh rate to 56~75Hz within 10 minutes. G Re-power on monitor to start over again if you failed to change the refresh rate within 10 minutes. G AUTO button not working properly The Auto Function is designed for use on standard Macintosh or IBM-compatible PCs running Microsoft Windows. G It may not work properly if you are using non-standard PC or video card. G Imaging Problems Troubleshooting file:///D|/C/english/150p4cgbs/safety/saf_troub.htm (1 of 3) [3/17/2003 7:14:34 PM] Display position is incorrect Press the Auto button. G Adjust the image position using the Horizontal Position &/or Vertical Position in OSD Main Controls. G Image vibrates on the screen Check that the signal cable is properly connected to the graphics board or PC. G Vertical flicker appears Press the Auto button. G Eliminate the vertical bars using the Clock Adjustment of VIDEO NOISE in OSD Main Controls. G Horizontal flicker appears Press the Auto button. G Eliminate the horizontal bars using the Phase Adjustment of VIDEO NOISE in OSD Main Controls. G The screen is too bright or too dark Adjust the contrast and brightness in OSD Main Controls. (The backlight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer. G An after-image appears If an image remains on the screen for an extended period of time, it may be imprinted in the screen and leave an after-image. This usually disappears after a few hours G An after-image remains after the power has been turned off. This is characteristic of liquid crystal and is not caused by a malfunction or deterioration of the liquid crystal. The after-image will disappear after a given amount of time G Green, red, blue, dark and white dots remain The remaining dots are normal characteristic of the liquid crystal used in today’s technology. G LightFrameTM doesn't work Press the Auto button. G Activate the LightFrameTM software again. G Troubleshooting file:///D|/C/english/150p4cgbs/safety/saf_troub.htm (2 of 3) [3/17/2003 7:14:34 PM] For further assistance, refer to the Consumer Information Centers list and contact your local Philips distributor. RETURN TO TOP OF THE PAGE Troubleshooting file:///D|/C/english/150p4cgbs/safety/saf_troub.htm (3 of 3) [3/17/2003 7:14:34 PM] Regulatory Information TCO'95/99 Information • TCO'95/99 Environmental Requirements • TCO'03 Information • Recycling Information for Customers • CE Declaration of Conformity • Energy Star Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North Europe (Nordic Countries) Information • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal • Information for UK only Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Asked Questions (FAQs) TCO'95/99 Information Congratulations! You have just purchased a TCO'95 or TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labeling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (1 of 14) [3/17/2003 7:14:36 PM] electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy. What does labelling involve? This product meets the requirements for the TCO'95/TCO'99 scheme which provides for international and environmental labeling of personal computers. The labeling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labeled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from: TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'95/TCO'99 approved and labeled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (2 of 14) [3/17/2003 7:14:37 PM] RETURN TO TOP OF THE PAGE Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in fetus development may occur. The relevant TCO'95/TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available. Cadmium** Cadmium is present in rechargeable batteries and in the color-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO' 95/TCO'99 requirement states that batteries, the color-generating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury** Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'95/TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labeled unit. CFCs (freons) The relevant TCO'95/TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with increased risks e.g. skin cancer (malignant melanoma) as a consequence. Lead** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'95/TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed. * Bio-accumulative is defined as substances which accumulate within living organisms. ** Lead, Cadmium and Mercury are heavy metals which are bio-accumulative. Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (3 of 14) [3/17/2003 7:14:37 PM] RETURN TO TOP OF THE PAGE TCO'03 Information (Option, only available for TCO'03 version) Congratulations! The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment. Some of the features of the TCO'03 Display requirements. Ergonomics Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resoluction, reflectance, colour rendition and image stability. G Energy Energy-saving mode after a certain time-beneficial both for the user and the environment G Electrical safety G Emissions Electromagnetic fields G Noise emissions G Ecology The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 000 G Restrictions on chlorinated and brominated flame retardants and polymers H heavy metals such as cadmium, mercury and lead. H G The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (4 of 14) [3/17/2003 7:14:37 PM] been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com RETURN TO TOP OF THE PAGE Recycling Information for Customers Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors. There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden and Denmark. In U.S.A., Philips Consumer Electronics North America has contributed funds for the Electronic Industries Alliance (EIA) Electronics Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to implement a recycling program. In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw For help and service, please contact Consumers Information Center or F1rst Choice Contact Information Center in each country or the following team of Environmental specialist can help. Mr. Job Chiu - Environment manager Philips Electronics Industries (Taiwan) Ltd, Monitor Business Unit E-mail: job.chiu@philips.com Tel: +886 (0) 3 454 9839 Mr. Maarten ten Houten - Senior Environmental Consultant Philips Consumer Electronics E-mail: marten.ten.houten@philips.com Tel: +31 (0) 40 27 33402 Ms. Patricia A. Franco Philips Electronics North America E-mail: patricia.franco@Philips.com Tel: +1 202 962 8550 RETURN TO TOP OF THE PAGE CE Declaration of Conformity Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (5 of 14) [3/17/2003 7:14:37 PM] Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950:1992+A1+A2+A3+A4+A11 (Safety requirement of Information Technology Equipment) - EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment) - EN55024:1998 (Immunity requirement of Information Technology Equipment) - EN61000-3-2:1995 (Limits for Harmonic Current Emission) - EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable - 73/23/EEC (Low Voltage Directive) - 89/336/EEC (EMC Directive) - 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level. The product also comply with the following standards - ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display) - ISO13406-2 (Ergonomic requirement for Flat panels) - GS EK1-2000 (GS specification) - prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display) - MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields) - TCO'95, TCO'99, TCO'03 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions RETURN TO TOP OF THE PAGE Energy Star Declaration PHILIPS 150P4CG/150P4CB/150P4CS This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software. NUTEK VESA State LED Indicator Power Consumption Normal operation ON Green < 30 W Power Saving Alternative 2 One step OFF Amber < 1W As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (6 of 14) [3/17/2003 7:14:37 PM] We recommend you switch off the monitor when it is not in use for quite a long time. RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. G Increase the separation between the equipment and receiver. G Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. G Consult the dealer or an experienced radio/TV technician for help. G Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (7 of 14) [3/17/2003 7:14:37 PM] Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Réorienter ou déplacer l'antenne de réception. G Augmenter la distance entre l'équipement et le récepteur. G Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. G Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision. G Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE VCCI Notice (Japan Only) This is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI) for Information technology equipment. If this equipment is used near a radio or television receiver in a domestic Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (8 of 14) [3/17/2003 7:14:37 PM] environment, it may cause radio Interference. Install and use the equipment according to the instruction manual. Class B ITE RETURN TO TOP OF THE PAGE MIC Notice (South Korea Only) Class B Device Please note that this device has been approved for non-business purposes and may be used in any environment, including residential areas. Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (9 of 14) [3/17/2003 7:14:37 PM] RETURN TO TOP OF THE PAGE Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source. The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251. RETURN TO TOP OF THE PAGE North Europe (Nordic Countries) Information Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (10 of 14) [3/17/2003 7:14:37 PM] Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. RETURN TO TOP OF THE PAGE BSMI Notice (Taiwan Only) RETURN TO TOP OF THE PAGE Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (11 of 14) [3/17/2003 7:14:37 PM] Ergonomie Hinweis (nur Deutschland) Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch Röntgenstrahlen" festgelegten Vorschriften. Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Inbetriebnahme hinweist, da die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind. Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß Reparaturen nur durch Fachpersonal durchgeführt werden. 1. nur original-Ersatzteile verwendet werden. 2. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird. 3. Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem Zeichenkontrast wären die Folge). Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND. RETURN TO TOP OF THE PAGE End-of-Life Disposal Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. RETURN TO TOP OF THE PAGE Information for UK only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (12 of 14) [3/17/2003 7:14:37 PM] of plug proceed as follows: 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere. How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - "NEUTRAL" ("N") BROWN - "LIVE" ("L") GREEN & YELLOW - "EARTH" ("E") 1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured GREEN or GREEN AND YELLOW. 2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK. 3. The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (13 of 14) [3/17/2003 7:14:37 PM] the lead - not simply over the three wires. RETURN TO TOP OF THE PAGE Regulatory Information file:///D|/C/english/150p4cgbs/safety/regs/regulat.htm (14 of 14) [3/17/2003 7:14:37 PM] Other Related Information Safety and Troubleshooting • FAQs • Troubleshooting • Regulatory Information • Information for Users in the U. S. • Information for Users Outside the U.S Information for Users in the U. S. For units set at 115 V : Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V. For units set at 230 V: Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V. Information for Users outside the U.S. For units set at 230 V: Use a Cord Set consisting of a minimum 18 AWG cord and grounding type attachment plug rated 15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR. RETURN TO TOP OF THE PAGE Other Related Information file:///D|/C/english/150p4cgbs/safety/saf_other.htm [3/17/2003 7:14:37 PM] Philips Pixel Defect Policy Product Features • Technical Specifications • Resolution & Preset Modes • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Philips' Flat Panel Monitors Pixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practise stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others. This policy is valid worldwide. Pixels and Sub pixels A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of other colors. Types of Pixel Defects Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel defects and several types of sub pixel defects within each category. Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. These are the types of bright dot defects: Philips Pixel Defect Policy file:///D|/C/english/150p4cgbs/product/pixel.htm (1 of 3) [3/17/2003 7:14:45 PM] One lit red, green or blue sub pixel Two adjacent lit sub pixels: - Red + Blue = Purple - Red + Green = Yellow - Green + Blue = Cyan (Light Blue) Three adjacent lit sub pixels (one white pixel) Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. These are the types of black dot defects: One dark sub pixel Two or three adjacent dark sub pixels Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables. BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P4 150B4 150S4 1 lit sub pixel 0 0 8 or fewer 2 adjacent lit sub pixels 0 0 3 or fewer 3 adjacent lit sub pixels (one white pixel) 0 0 1 or fewer Distance between two bright dot defects* 0 0 15 mm or more Philips Pixel Defect Policy file:///D|/C/english/150p4cgbs/product/pixel.htm (2 of 3) [3/17/2003 7:14:45 PM] Bright dot defects within 20 mm circle 0 0 3 or fewer Total bright dot defects of all types 0 0 8 or fewer BLACK DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P4 150B4 150S4 1 dark sub pixel 4 or fewer 4 or fewer 8 or fewer 2 adjacent dark sub pixels 1 or fewer 1 or fewer 3 or fewer 3 adjacent dark sub pixels 0 0 1 or fewer Distance between two black dot defects* 15 mm or more 15 mm or more 15 mm or more Black dot defects within 20 mm circle* 3 or fewer 3 or fewer 3 or fewer Total black dot defects of all types 4 or fewer 4 or fewer 8 or fewer TOTAL DOT DEFECTS ACCEPTABLE LEVEL MODEL 150P4 150B4 150S4 Total bright or black dot defects of all types 4 or fewer 4 or fewer 10 or fewer * Note: 1 or 2 adjacent sub pixel defects = 1 dot defect RETURN TO TOP OF THE PAGE Philips Pixel Defect Policy file:///D|/C/english/150p4cgbs/product/pixel.htm (3 of 3) [3/17/2003 7:14:45 PM] Connecting to Your PC Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • The Base • Getting Started • Optimizing Performance Accessory Pack Unpack all the parts. Item Description 1) Audio in Cable (Option only available for Multimedia version)(color lime) 2) Microphone out Cable (Option only available for Multimedia version)(color pink) 3) Power Cable (socket may differ for different countries) 4) Macintosh Adapter (optional) 5) VGA Signal Cable Connecting to Your PC file:///D|/C/english/150p4cgbs/install/connect.htm (1 of 4) [3/17/2003 7:14:56 PM] 6) E-DFU package with Quick Setup Guide, Using Your Monitor Manual, and CD-ROM. 7) Pivot CD-ROM (optional) RETURN TO TOP OF THE PAGE Connecting to Your PC 1) Plug the power cord into monitor firmly. Connecting to Your PC file:///D|/C/english/150p4cgbs/install/connect.htm (2 of 4) [3/17/2003 7:14:56 PM] Note: If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable Cable management a) Remove the top cover of the arm box b) Put the cables inside the arm box c) Put the top cover back Connecting to Your PC file:///D|/C/english/150p4cgbs/install/connect.htm (3 of 4) [3/17/2003 7:14:56 PM] 2) Connect to PC (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet. (d) Turn on your computer and monitor. If the monitor displays an image, installation is complete. RETURN TO TOP OF THE PAGE Connecting to Your PC file:///D|/C/english/150p4cgbs/install/connect.htm (4 of 4) [3/17/2003 7:14:56 PM] The Base Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • Getting Started • Optimizing Performance Unfold and Fold the Base : Unfold the base • Fold the base Remove the Base : Remove the base Unfold and Fold the Base Unfold the Base 1) Put monitor face down on the safe surface 2) Pull up the base Fold the Base The base file:///D|/C/english/150p4cgbs/install/base.htm (1 of 3) [3/17/2003 7:14:56 PM] 1) Push down the head of monitor RETURN TO TOP OF THE PAGE Remove the Base Condition: for VESA standard mounting applications G 1) Remove the top cover 2) Remove the three screws and then remove the base from the LCD monitor. The base file:///D|/C/english/150p4cgbs/install/base.htm (2 of 3) [3/17/2003 7:14:56 PM] 3) Remove the back cover Note: This monitor accepts a 100mmx100mm VESA-Compliant mounting interface. RETURN TO TOP OF THE PAGE The base file:///D|/C/english/150p4cgbs/install/base.htm (3 of 3) [3/17/2003 7:14:56 PM] Getting Started Your LCD Monitor : Front View Product Description • Connecting to Your PC • The Base • Getting Started • Optimizing Performance Getting Started Use the information file ( .inf) for Windows 95/98/2000/Me/XP or later The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows 95/98/2000/Me/XP. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows 95/98/2000/Me/XP and the Plug & Play application can be activated. The installation procedure based on Windows '95 OEM Release 2 , 98 , Me, XP and 2000 is specified as follows. For Windows 95 Start Windows '95 1. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 2. Double click on the 'Display' Icon. 3. Select the 'Settings' tab then click on 'Advanced...'. 4. Select the 'Monitor' button, point to 'Change...' then click on 'Have Disk...'. 5. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button. 6. Click on the 'OK' button then select your monitor model and click on the 'OK'. 7. Click on the 'Close' button. 8. For Windows 98 Start Windows 98 1. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 2. Double click on the 'Display' Icon. 3. Select the 'Settings' tab then click on 'Advanced...'. 4. Select the 'Monitor' button, point to 'Change...' then click on 'Next' 5. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want.' then click on 'Next' and then click on 'Have Disk...'. 6. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button. 7. Click on the 'OK' button then select your monitor model and click on the 'Next' button. 8. Click on the 'Finish' button then the 'Close' button. 9. For Windows Me Start Windows Me 1. Getting Started file:///D|/C/english/150p4cgbs/install/gt_start.htm (1 of 3) [3/17/2003 7:14:57 PM] Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 2. Double click on the 'Display' Icon. 3. Select the 'Settings' tab then click on 'Advanced...'. 4. Select 'Monitor' button, then click on 'Change...' button. 5. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button. 6. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'. 7. Click on 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button. 8. Click on the 'OK' button, select your monitor model and click on the 'Next' button. 9. Click on 'Finish' button then the 'Close' button. 10. For Windows 2000 Start Windows 2000 1. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 2. Double click on the 'Display' Icon. 3. Select the 'Settings' tab then click on 'Advanced...'. 4. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below. 5. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button. 6. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'. 7. Click on 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive). 8. Click on the 'Open' button, then click on the 'OK' button. 9. Select your monitor model and click on the 'Next' button. 10. Click on the 'Finish' button then the 'Close' button. If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button. 11. For Windows XP Start Windows XP 1. Click on the 'Start' button and then click on 'Control Panel'. 2. Select and click on the category 'Printers and Other Hardware' 3. Click on the 'Display' Item. 4. Select the 'Settings' tab then click on the 'Advanced' button. 5. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below. 6. Click on the 'Driver' tab and then click on 'Update Driver...' button. 7. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 8. Getting Started file:///D|/C/english/150p4cgbs/install/gt_start.htm (2 of 3) [3/17/2003 7:14:57 PM] Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 9. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive). 10. Click on the 'Open' button, then click the 'OK' button. 11. Select your monitor model and click on the 'Next' button. - If you can see the 'has not passed Windows Logo testing to verify its compatibility with Windows XP' message please click on the 'Continue Anyway' button. 12. Click on the 'Finish' button then the 'Close' button. 13. Click on the 'OK' button and then the 'OK' button again to close the Display_Properties dialog box. 14. If your Windows 95/98/2000/Me/XP version is different or you need more detailed installation information, please refer to Windows 95/98/2000/Me/XP user's manual. RETURN TO TOP OF THE PAGE Getting Started file:///D|/C/english/150p4cgbs/install/gt_start.htm (3 of 3) [3/17/2003 7:14:57 PM] Your International Philips F1rst Choice Warranty Thank you for purchasing this Philips monitor. All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received. An extended warranty called Philips F1rst Choice Premium is available in addition to your Philips F1rst Choice warranty. For more details contact your Philips dealer. Before contacting Philips, please prepare the following details so we can solve your problem quickly. Philips type number G Philips serial number G Purchase date (copy of purchase may be required) G PC environment Processor: 286/386/486/Pentium Pro/Internal memory H Operating system (Windows, DOS, OS/2, MAC) H Fax/Modem/Internet program? H G Other cards installed G Having the following information available will also help speed up the process: Your proof of purchase indicating: date of purchase, dealer name, model and product serial number. G The full address to which the swap model should be delivered. G Just a phone call away Philips’ customer help desks are located worldwide. You can contact Philips Monday - Friday from 08.00 - 20.00 hrs Central European Time (CET) and on Saturdays and Sundays from 10.00 to 18.00 hrs CET by using one of the toll-free numbers. Click here to access the F1rst Choice Contact Information. Or you can reach us via: Website: http://www.philips.com F1rst Choice Warranty file:///D|/C/english/warranty/war_1st.htm [3/17/2003 7:15:04 PM] Your International Guarantee Dear Customer, Thank you for purchasing this Philips product which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts irrespective of the country where it is repaired during a period of 12 months from date of purchase. This international Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of purchase and does not affect your statutory rights as a customer. The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer's name and model and production number of the product. The Philips guarantee may not apply if: the documents have been altered in any way or made illegible; G the model or production number on the product has been altered, deleted, removed or made illegible; G repairs or product modifications and alterations have been executed by unauthorized service organizations or persons; G damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect. G Please note that the product is not defective under this guarantee in the case where modifications become necessary in order for the product to comply with local or national technical standards which apply in countries for which the product was not originally designed and/or manufactured. Therefore always check whether a product can be used in a specific country. In case your Philips product is not working correctly or is defective, please contact your Philips dealer. In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet. In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting your dealer. If you have questions which your dealer cannot answer or any related question please contact the Philips Consumer Information Centers or via: Website: http://www.philips.com International Guarantee file:///D|/C/english/warranty/war_intl.htm [3/17/2003 7:15:04 PM] LIMITED WARRANTY (Computer Monitor) Click here to access the Warranty Registration Card. Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange* *Product will be exchanged with a new or renewed to original specifications unit within two business days for the first year. This product must be shipped in at your expense for service during years two and three. WHO IS COVERED? You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby. WHAT IS COVERED? Warranty coverage begins the day you buy your product. For three years thereafter, all parts will be repaired or replaced, and labor is free. After three years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges. All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the original product expires, the warranty on all replaced and repaired products and parts also expires. WHAT IS EXCLUDED? Your warranty does not cover: labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product. G product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics. G reception problems caused by signal conditions or cable or antenna systems outside the unit. G a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications. G incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.) G a product used for commercial or institutional purposes. G Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local United States Guarantee file:///D|/C/english/warranty/war_usa.htm (1 of 3) [3/17/2003 7:15:05 PM] Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available). Where CAN I GET MORE INFORMATION? For more information, contact the Philips Customer Care Center by calling (877) 835-1838 (U.S.A. customers only) or (903) 242-4804. Before Requesting Service... Please check your owner's manual before requesting service. Adjustments of the controls discussed there may save you a service call. TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS... Contact the Philips Customer Care Center phone number listed below for product assistance and procedures for servicing: Philips Customer Care Center (877) 835-1838 or (903) 242-4804 (In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.) TO GET WARRANTY SERVICE IN CANADA... Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.) REMEMBER... Please record the model and serial numbers found on the product below. MODEL # ________________________________________________ SERIAL # ________________________________________________ This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province. United States Guarantee file:///D|/C/english/warranty/war_usa.htm (2 of 3) [3/17/2003 7:15:05 PM] Philips Customer Care Center, P. O. Box 2976, Longview, TX 75601 Your International Philips F1rst Choice Warranty Thank you for purchasing this Philips monitor. All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase. If you have any problems with your monitor within the second or third year of purchase, we will repair it after it has been sent to the service provider at your expense and returned to you within five working days, free of charge. An extended warranty called Philips F1rst Choice Premium is available in addition to your Philips F1rst Choice warranty. For more details contact your Philips dealer. Before contacting Philips, please prepare the following details so we can solve your problem quickly. Philips type number G Philips serial number G Purchase date (copy of purchase may be required) G PC environment Processor: G 286/386/486/Pentium Pro/Internal memory H Operating system (Windows, DOS, OS/2, MAC) H Fax/Modem/Internet program? H Other cards installed G Having the following information available will also help speed up the process: Your proof of purchase indicating: date of purchase, dealer name, model and product serial number. G The full address to which the swap model should be delivered. G Just a phone call away Philips’ customer help desks are located worldwide. You can contact Philips Monday - Friday from 08.00 - 20.00 hrs Central European Time (CET) and on Saturdays and Sundays from 10.00 to 18.00 hrs CET by using one of the toll-free numbers. Click here to access the F1rst Choice Contact Information. Or you can reach us via: Website: http://www.philips.com United States Guarantee file:///D|/C/english/warranty/war_usa.htm (3 of 3) [3/17/2003 7:15:05 PM] F1rst Choice Contact Information Telephone numbers: Austria 01 546 575 603 Luxembourg 408 443 5501 Belgium 02 275 0701 Netherlands 053 482 9800 Cyprus (Greek) 800 92256 Norway 22 70 82 50 Denmark 35 25 87 61 Portugal 0800 831 363 France 03 8717 0033 Sweden 08 632 0016 Germany 0696 698 4712 Switzerland 02 23 10 21 16 Greece 00800 3122 1223 Spain 09 17 45 62 46 Finland 09 2290 1908 United Kingdom 0207 949 0069 Ireland 01 601 1161 U.S.A. 877 835 1838 Italy 02 48 27 11 53 F1rst Choice Contact Information file:///D|/C/english/warranty/warfirst.htm [3/17/2003 7:15:10 PM] Consumer Information Centers Antilles • Argentina • Australia• Bangladesh • Brasil • Canada • Chile• China • Colombia • Czech Republic • Dubai • Egypt • Hong Kong • Hungary • India • Indonesia • Korea • Malaysia • Mexico • Morocco • New Zealand • Pakistan • Paraguay • Peru • Philippines • Poland • Russia • Singapore • South Africa • Taiwan • Thailand • Turkey • Uruguay • Venezuela Eastern Europe CZECH REPUBLIC Philips Service V Mezihorí 2180 00 Prague Phone: (02)-6831581 Fax : (02)-66310852 HUNGARY Philips Markaszerviz. Kinizsi U 30-36Budapest 1092 Phone: (01)-2164428 Fax : (01)-2187885 POLAND Philips Polska CE UL.Marszalkowska 45/49 00-648 Warszawa Phone: (02)-6286070 Fax : (02)-6288228 RUSSIA Philips Representation Office Ul. Usacheva 35a 119048 Moscow Phone: 095-937 9300 Fax : 095-755 6923 TURKEY Türk Philips Ticaret A.S. Talatpasa Caddesi No 5. 80640-Gültepe/Istanbul Phone: (0800)-211 40 36 Fax : (0212)-281 1809 Latin America Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (1 of 8) [3/17/2003 7:15:18 PM] ANTILLES Philips Antillana N.V. Kaminda A.J.E. Kusters 4 Zeelandia, P.O. box 3523-3051 Willemstad, Curacao Phone: (09)-4612799 Fax : (09)-4612772 ARGENTINA Philips Antillana N.V. Vedia 3892 Capital Federal CP: 1430 Buenos Aires Phone: (011)-4544 2047 BRASIL Philips da Amazônia Ind. Elet. Ltda. Av. Luis Carlos Berrini, 1400 - Sao Paulo -SP Phone: 0800-701-0203 CHILE Philips Chilena S.A. Avenida Santa Maria 0760 P.O. box 2687Santiago de Chile Phone: (02)-730 2000 Fax : (02)-777 6730 COLOMBIA Industrias Philips de Colombia S.A.-Division de Servicio CARRERA 15 Nr. 104-33 Bogota, Colombia Phone:(01)-8000 111001 (toll free) Fax : (01)-619-4300/619-4104 MEXICO Consumer Information Centre Norte 45 No.669 Col. Industrial Vallejo C.P.02300, -Mexico, D.F. Phone: (05)-3687788 / 9180050462 Fax : (05)-7284272 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (2 of 8) [3/17/2003 7:15:18 PM] PARAGUAY Philips del Paraguay S.A. Avenida Artigas 1513 Casilla de Correos 605 Asuncion Phone: (021)-211666 Fax : (021)-213007 PERU Philips Peruana S.A. Customer Desk Comandante Espinar 719 Casilla 1841 Limab18 Phone: (01)-2136200 Fax : (01)-2136276 URUGUAY Ind.Philips del Uruguay S.A. Luis Alberto de Herrera 1248 Customer Help Desk 11300 Montevideo Phone: (02)-6281111 Fax : (02)-6287777 VENEZUELA Industrias Venezolanas Philips S.A. Apartado Postal 1167 Caracas 1010-A Phone: (02) 2377575 Fax : (02) 2376420 Canada CANADA Philips Electronics Ltd. 281 Hillmount Road Markham, Ontario L6C 2S3 Phone: (800) 479-6696 Pacific AUSTRALIA Philips Consumer Service. Customer Information Centre. 3 Figtree Drive Homebush Bay NSW 2140 Phone: CIC: 1300-363 391 PCE Service: 1300-361 392 (toll free) Fax : +61 2 9947 0063 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (3 of 8) [3/17/2003 7:15:18 PM] NEW ZEALAND Philips New Zealand Ltd. Consumer Help Desk 2 Wagener Place, Mt.Albert P.O. box 1041 Auckland Phone: 0800 477 999 (toll free) Fax : 0800 288 588 (toll free) Asia BANGLADESH Philips Service Centre 100 Kazi Nazrul Islam Avenue Kawran Bazar C/A Dhaka-1215 Phone: (02)-812909 Fax : (02)-813062 CHINA BEIJING Beijing Authorized Service Centre. Consumer Information Centre Building 6, West Street Chong Wen Men, Beijing, Jin Bang Co. Led. 100051 BEIJING GUANGZHOU Philips Authorized Service Centre 801 Dong Feng Road East Guangzhou 510080 SHANGHAI Philips Service Logistic Centre Consumer Information Centre P.O.Box 002-027, Nextage Department Store Puding New District 200002 SHANGHAI Philips Authorized Service Centre Consumer Information Centre 148 Fu Jian Road M 200001 Shanghai Phone: 800 820 5128 (toll free) Fax: 21-656 10647 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (4 of 8) [3/17/2003 7:15:18 PM] HONG KONG Philips Hong Kong Limited Consumer Information Centre 16/F Hopewell Centre 17 Kennedy Road, WANCHAI Phone: 2619 9663 Fax : 2481 5847 INDIA Phone: 91-20-712 2048 ext: 2765 Fax: 91-20-712 1558 BOMBAY Philips India Customer Relation Centre Bandbox House 254-D Dr. A Besant Road, Worli Bombay 400 025 CALCUTTA Customer Relation Centre 7 justice Chandra Madhab Road Calcutta 700 020 MADRAS Customer Relation Centre 3, Haddows Road Madras 600 006 NEW DELHI Customer Relation Centre 68, Shivaji Marg New Dehli 110 015 INDONESIA Philips Group of Companies in Indonesia Consumer Information Centre Jl.Buncit Raya Kav. 99-100 12510 Jakarta Phone: (021)-794 0040 / 798 4255 ext: 1612 Fax : (021)-794 7511 / 794 7539 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (5 of 8) [3/17/2003 7:15:18 PM] KOREA Philips Korea Ltd. Philips House C.P.O. box 3680 260-199, Itaewon-Dong. Yongsan-Ku, Seoul 140-202 Phone:080-600-6600 (Local toll free) Fax : (02)-709-1245 MALAYSIA Philips Malaysia Sdn. Berhad Service Dept. No.51,sect.13 Jalan University. 46200 Petaling Jaya, Selagor. P.O.box 12163 50768 Kuala Lumpur. Phone: (03)-7950 5501/02 Fax : (03)-7954 8504 PAKISTAN KARACHI Philips Electrical Ind. of Pakistan Consumer Information Centre F-54, S.I.T.E, P.O.Box 7101 75730 KARACHI Philips Consumer Service Centre 168-F, Adamjee Road Rawalpindi Cantt Phone: (021)-7731927 Fax : (021)-7721167 PHILIPPINES Philips Electronics and Lighting Inc. 106 Valero St., Salcedo Village Makati, Metro Manilla. Phone: (02)-888 05 72 Domestic toll free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax : (02)-888 05 71 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (6 of 8) [3/17/2003 7:15:18 PM] SINGAPORE Philips Singapore Private Ltd. Consumer Service Dept. Lorong 1,Toa Payoh., P.O. box 340 Singapore 1231 Phone: 6882 3999 Fax : 6250 8037 TAIWAN Philips Taiwan Ltd. Consumer Information Centre 26F, 66, Chung-Hsiao W. Road Sec. 1 TAIPEI Phone: 0800-231-099 or (02)-2382-4567 Fax : (02)-2382-3027 THAILAND Philips Electronics (Thailand) Ltd. Philips Service Centre 209/2 Sanpavut Road, Bangna, Bangkok 10260 Phone : (02)-652 8652 Fax : (02)-614 3531 Africa MOROCCO Philips Electronique Maroc 304,BD Mohamed V Casablanca Phone: (02)-302992 Fax : (02)-303446 SOUTH AFRICA South African Philips. S.V. Div. 195 Main R.D. Martindale., Johannesburg P.O.box 58088 Newville 2114 Phone: +27 11 471 5000 Fax : +27 11 471 5020 Middle East Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (7 of 8) [3/17/2003 7:15:18 PM] DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 EGYPT Philips Egypt Consumer Information Centre 10, Abdel Rahman El Rafei Mohandessin - Cairo, P.O.Box 242 DOKKI Phone: (02)-3313993 Fax : (02)-3492142 Consumer Information Centers file:///D|/C/english/warranty/warcic.htm (8 of 8) [3/17/2003 7:15:18 PM] 家电维修资料网    www.520101.com                    免费下载各类电器说明书  www.520101.com
