马兰士MARANTZ DV4100N1B音响电路图

分类：电子电工 日期： 点击：0
马兰士MARANTZ DV4100N1B音响电路图-0 马兰士MARANTZ DV4100N1B音响电路图-1 马兰士MARANTZ DV4100N1B音响电路图-2 马兰士MARANTZ DV4100N1B音响电路图-3 马兰士MARANTZ DV4100N1B音响电路图-4 马兰士MARANTZ DV4100N1B音响电路图-5 马兰士MARANTZ DV4100N1B音响电路图-6 马兰士MARANTZ DV4100N1B音响电路图-7 马兰士MARANTZ DV4100N1B音响电路图-8 马兰士MARANTZ DV4100N1B音响电路图-9

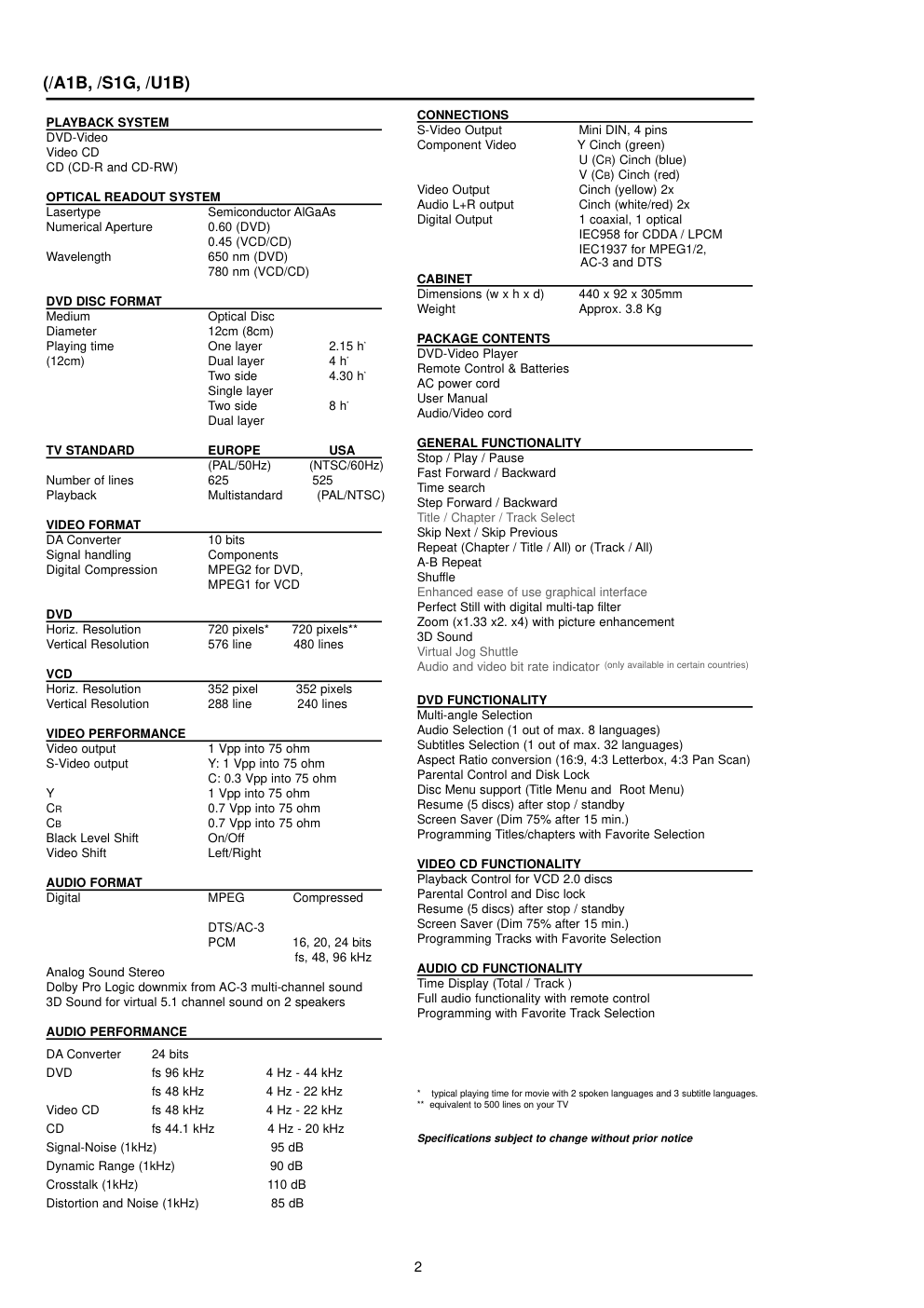

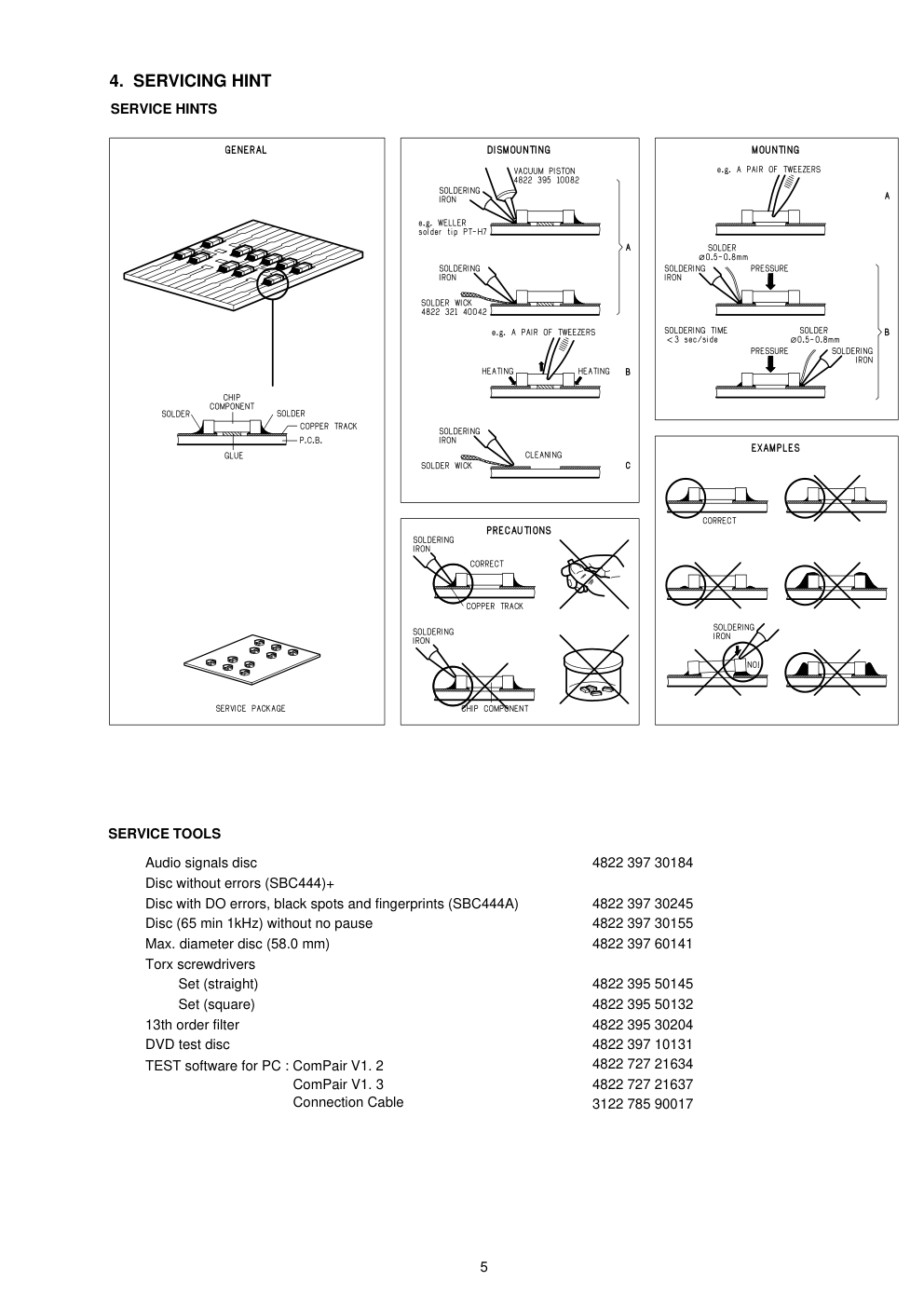

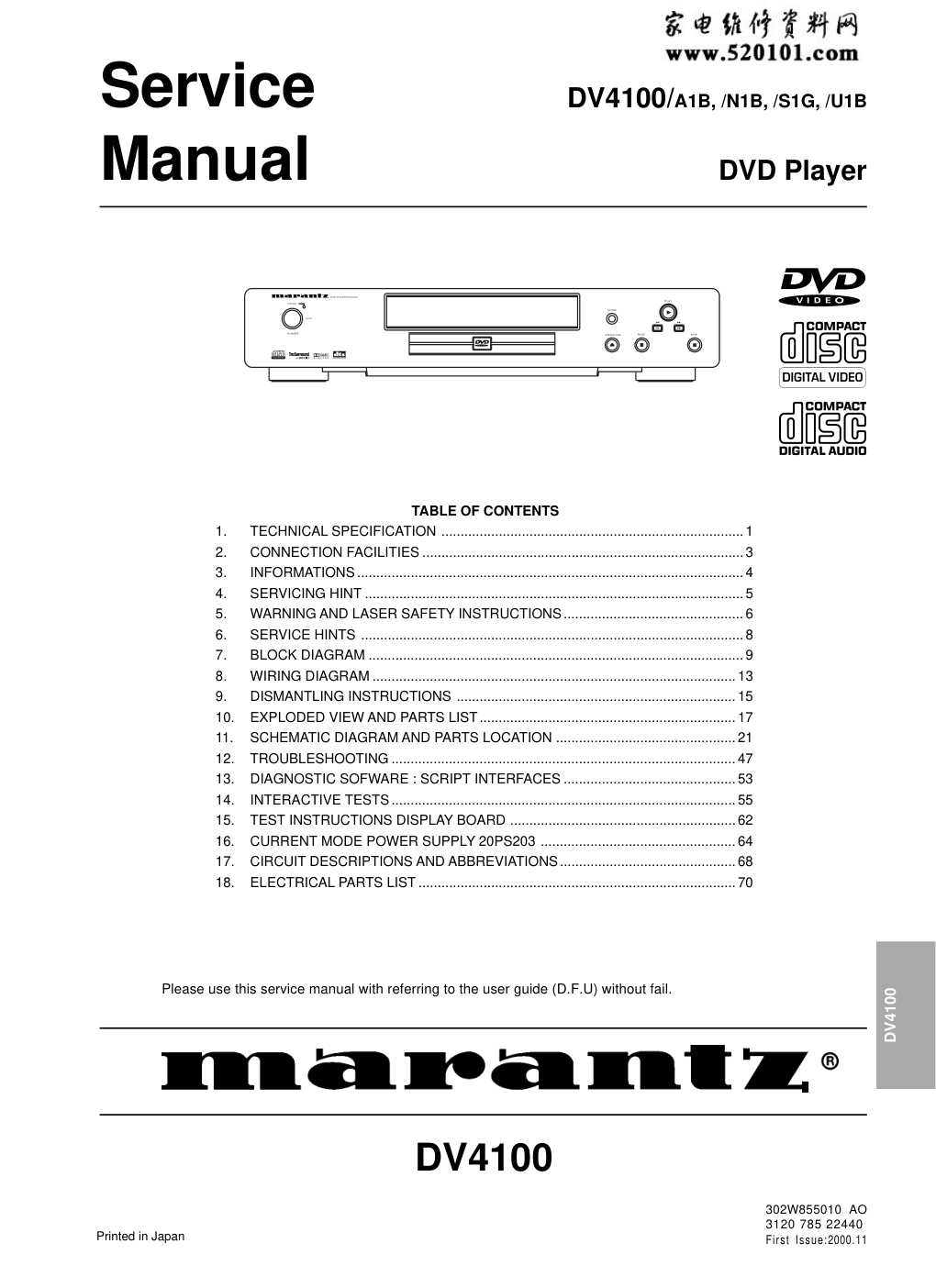

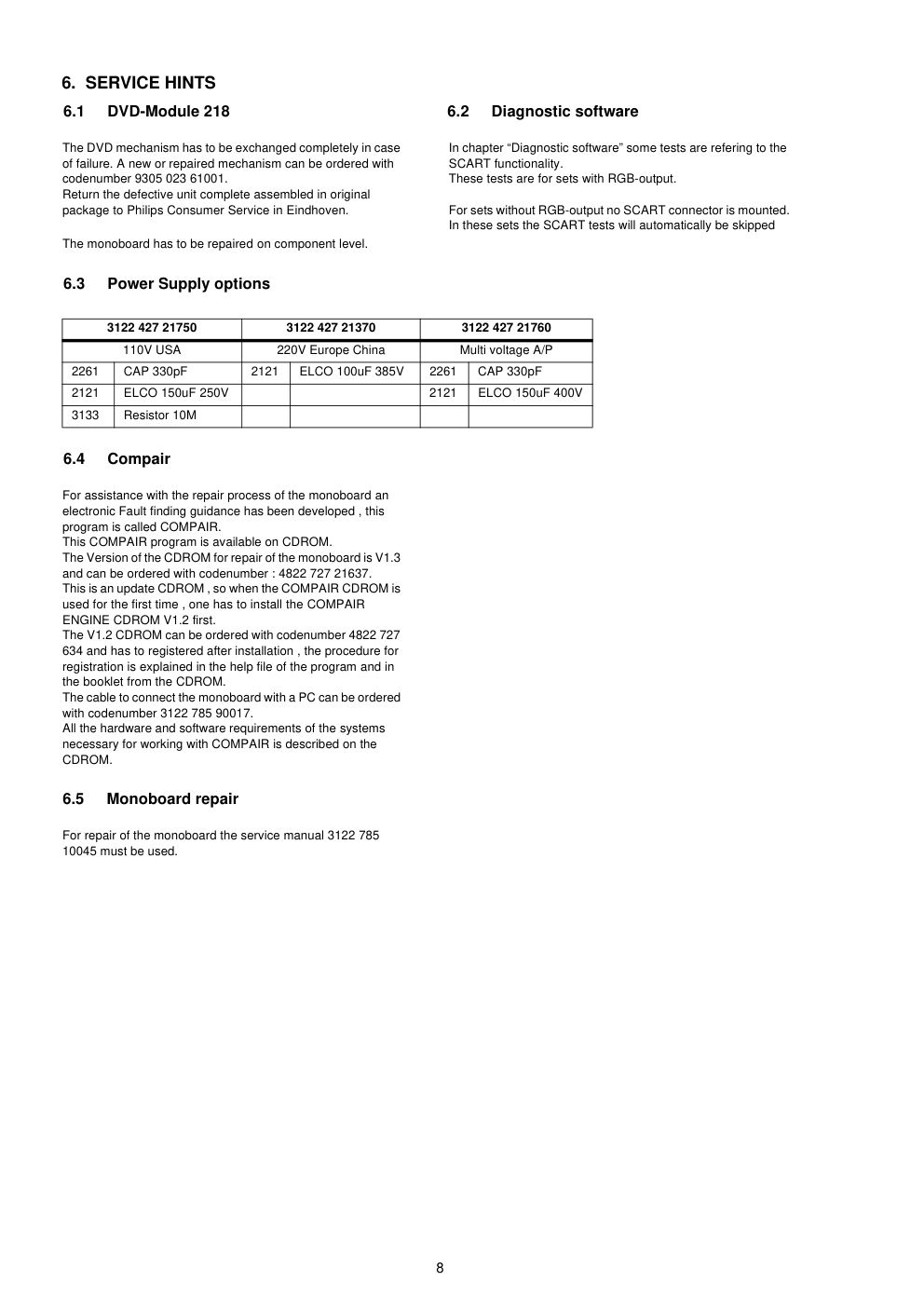

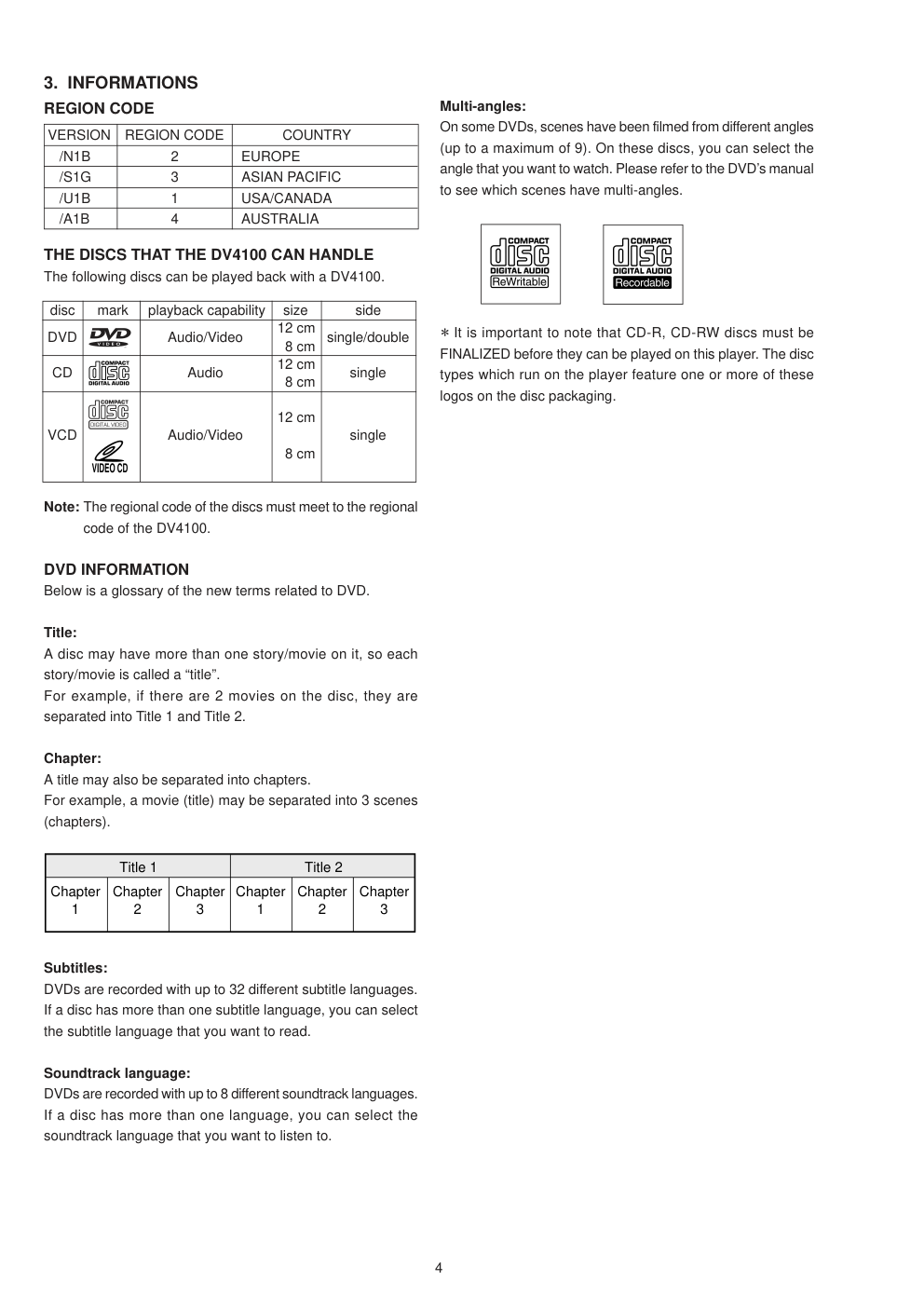

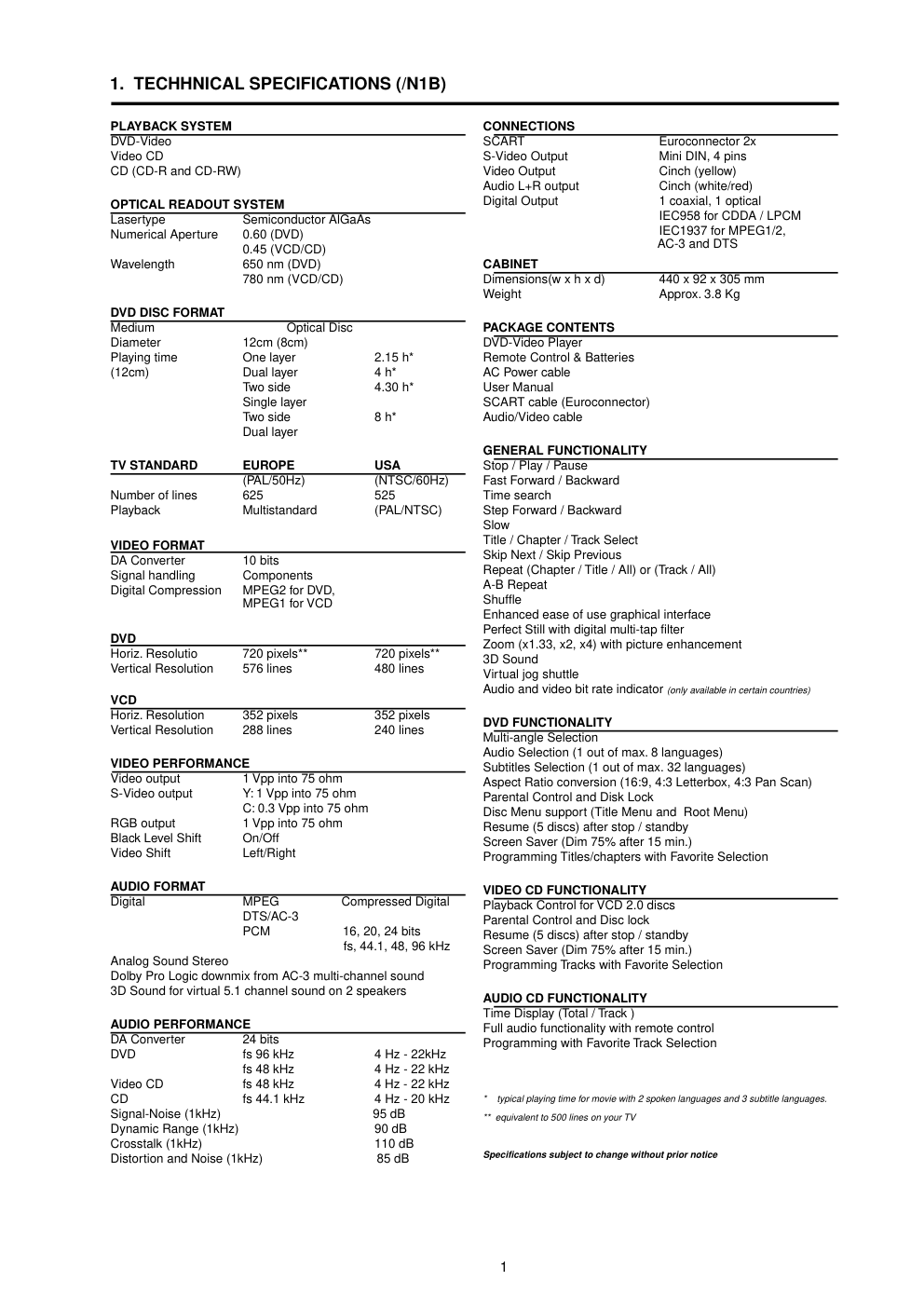

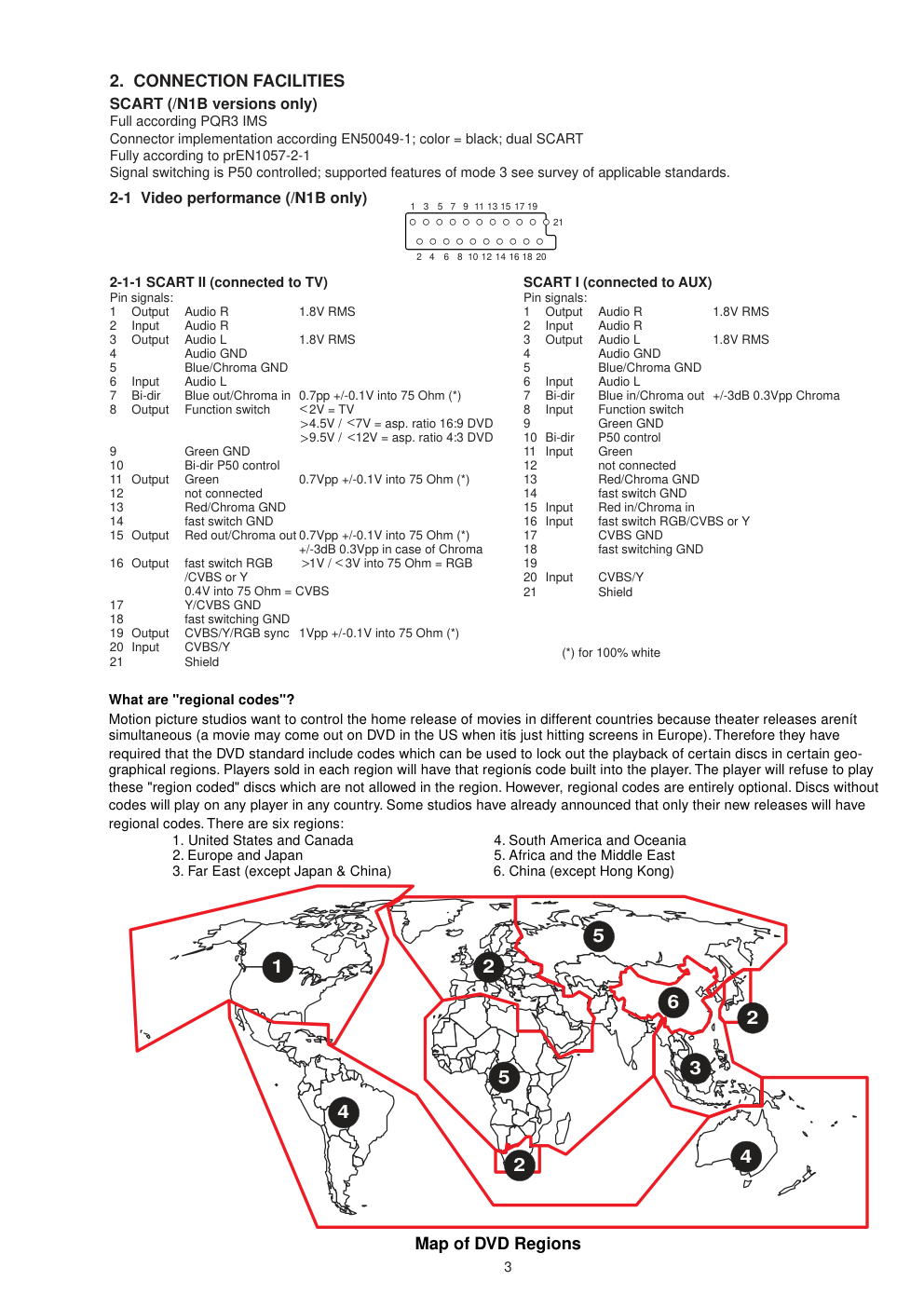

Service Manual Please use this service manual with referring to the user guide (D.F.U) without fail. 302W855010 AO 3120 785 22440 First Issue:2000.11 DV4100/A1B, /N1B, /S1G, /U1B DVD Player DV4100 TABLE OF CONTENTS 1. TECHNICAL SPECIFICATION ...............................................................................1 2. CONNECTION FACILITIES ....................................................................................3 3. INFORMATIONS ..................................................................................................... 4 4. SERVICING HINT ...................................................................................................5 5. WARNING AND LASER SAFETY INSTRUCTIONS............................................... 6 6. SERVICE HINTS ....................................................................................................8 7. BLOCK DIAGRAM .................................................................................................. 9 8. WIRING DIAGRAM ............................................................................................... 13 9. DISMANTLING INSTRUCTIONS .........................................................................15 10. EXPLODED VIEW AND PARTS LIST...................................................................17 11. SCHEMATIC DIAGRAM AND PARTS LOCATION ...............................................21 12. TROUBLESHOOTING .......................................................................................... 47 13. DIAGNOSTIC SOFWARE : SCRIPT INTERFACES ............................................. 53 14. INTERACTIVE TESTS .......................................................................................... 55 15. TEST INSTRUCTIONS DISPLAY BOARD ...........................................................62 16. CURRENT MODE POWER SUPPLY 20PS203 ................................................... 64 17. CIRCUIT DESCRIPTIONS AND ABBREVIATIONS..............................................68 18. ELECTRICAL PARTS LIST ...................................................................................70 STOP SOUND PAUSE OPEN/CLOSE ON/OFF STANDBY POWER DVD PLAYER DV4100 PLAY Printed in Japan DV4100 MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492. In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address. 001120 A.O USA MARANTZ AMERICA, INC MARANTZ AMERICA, INC. 440 MEDINAH ROAD ROSELLE, ILLINOIS 60172 USA PHONE : 630 - 307 - 3100 FAX : 630 - 307 - 2687 BRAZIL PHILIPS DA AMAZONIA IND. ELET. ITDA CENTRO DE INFORMACOES AO CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123(Discagem Direta Gratuita) FAX : +55 11 534. 8988 JAPAN Technical MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578 TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355 CANADA LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936 AUSTRALIA QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALAND WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554 THAILAND MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180 AMERICAS SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103 AUSTRALIA KOREA MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078 1 PLAYBACK SYSTEM DVD-Video Video CD CD (CD-R and CD-RW) OPTICAL READOUT SYSTEM Lasertype Semiconductor AlGaAs Numerical Aperture 0.60 (DVD) 0.45 (VCD/CD) Wavelength 650 nm (DVD) 780 nm (VCD/CD) DVD DISC FORMAT Medium Optical Disc Diameter 12cm (8cm) Playing time One layer 2.15 h* (12cm) Dual layer 4 h* Two side 4.30 h* Single layer Two side 8 h* Dual layer TV STANDARD EUROPE USA (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) VIDEO FORMAT DA Converter 10 bits Signal handling Components Digital Compression MPEG2 for DVD, MPEG1 for VCD DVD Horiz. Resolutio 720 pixels** 720 pixels** Vertical Resolution 576 lines 480 lines VCD Horiz. Resolution 352 pixels 352 pixels Vertical Resolution 288 lines 240 lines VIDEO PERFORMANCE Video output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm C: 0.3 Vpp into 75 ohm RGB output 1 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT Digital MPEG Compressed Digital DTS/AC-3 PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz Analog Sound Stereo Dolby Pro Logic downmix from AC-3 multi-channel sound 3D Sound for virtual 5.1 channel sound on 2 speakers AUDIO PERFORMANCE DA Converter 24 bits DVD fs 96 kHz 4 Hz - 22kHz fs 48 kHz 4 Hz - 22 kHz Video CD fs 48 kHz 4 Hz - 22 kHz CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 95 dB Dynamic Range (1kHz) 90 dB Crosstalk (1kHz) 110 dB Distortion and Noise (1kHz) 85 dB CONNECTIONS SCART Euroconnector 2x S-Video Output Mini DIN, 4 pins Video Output Cinch (yellow) Audio L+R output Cinch (white/red) Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, AC-3 and DTS CABINET Dimensions(w x h x d) 440 x 92 x 305 mm Weight Approx. 3.8 Kg PACKAGE CONTENTS DVD-Video Player Remote Control & Batteries AC Power cable User Manual SCART cable (Euroconnector) Audio/Video cable GENERAL FUNCTIONALITY Stop / Play / Pause Fast Forward / Backward Time search Step Forward / Backward Slow Title / Chapter / Track Select Skip Next / Skip Previous Repeat (Chapter / Title / All) or (Track / All) A-B Repeat Shuffle Enhanced ease of use graphical interface Perfect Still with digital multi-tap filter Zoom (x1.33, x2, x4) with picture enhancement 3D Sound Virtual jog shuttle Audio and video bit rate indicator (only available in certain countries) DVD FUNCTIONALITY Multi-angle Selection Audio Selection (1 out of max. 8 languages) Subtitles Selection (1 out of max. 32 languages) Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan) Parental Control and Disk Lock Disc Menu support (Title Menu and Root Menu) Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming Titles/chapters with Favorite Selection VIDEO CD FUNCTIONALITY Playback Control for VCD 2.0 discs Parental Control and Disc lock Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming Tracks with Favorite Selection AUDIO CD FUNCTIONALITY Time Display (Total / Track ) Full audio functionality with remote control Programming with Favorite Track Selection * typical playing time for movie with 2 spoken languages and 3 subtitle languages. ** equivalent to 500 lines on your TV Specifications subject to change without prior notice 1. TECHHNICAL SPECIFICATIONS (/N1B) PLAYBACK SYSTEM DVD-Video Video CD CD (CD-R and CD-RW) OPTICAL READOUT SYSTEM Lasertype Semiconductor AlGaAs Numerical Aperture 0.60 (DVD) 0.45 (VCD/CD) Wavelength 650 nm (DVD) 780 nm (VCD/CD) DVD DISC FORMAT Medium Optical Disc Diameter 12cm (8cm) Playing time One layer 2.15 h* (12cm) Dual layer 4 h* Two side 4.30 h* Single layer Two side 8 h* Dual layer TV STANDARD EUROPE USA (PAL/50Hz) (NTSC/60Hz) Number of lines 625 525 Playback Multistandard (PAL/NTSC) VIDEO FORMAT DA Converter 10 bits Signal handling Components Digital Compression MPEG2 for DVD, MPEG1 for VCD DVD Horiz. Resolution 720 pixels* 720 pixels** Vertical Resolution 576 line 480 lines VCD Horiz. Resolution 352 pixel 352 pixels Vertical Resolution 288 line 240 lines VIDEO PERFORMANCE Video output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm C: 0.3 Vpp into 75 ohm Y 1 Vpp into 75 ohm CR 0.7 Vpp into 75 ohm CB 0.7 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right AUDIO FORMAT Digital MPEG Compressed DTS/AC-3 PCM 16, 20, 24 bits fs, 48, 96 kHz Analog Sound Stereo Dolby Pro Logic downmix from AC-3 multi-channel sound 3D Sound for virtual 5.1 channel sound on 2 speakers AUDIO PERFORMANCE DA Converter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz fs 48 kHz 4 Hz - 22 kHz Video CD fs 48 kHz 4 Hz - 22 kHz CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 95 dB Dynamic Range (1kHz) 90 dB Crosstalk (1kHz) 110 dB Distortion and Noise (1kHz) 85 dB CONNECTIONS S-Video Output Mini DIN, 4 pins Component Video Y Cinch (green) U (CR) Cinch (blue) V (CB) Cinch (red) Video Output Cinch (yellow) 2x Audio L+R output Cinch (white/red) 2x Digital Output 1 coaxial, 1 optical IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, AC-3 and DTS CABINET Dimensions (w x h x d) 440 x 92 x 305mm Weight Approx. 3.8 Kg PACKAGE CONTENTS DVD-Video Player Remote Control & Batteries AC power cord User Manual Audio/Video cord GENERAL FUNCTIONALITY Stop / Play / Pause Fast Forward / Backward Time search Step Forward / Backward Title / Chapter / Track Select Skip Next / Skip Previous Repeat (Chapter / Title / All) or (Track / All) A-B Repeat Shuffle Enhanced ease of use graphical interface Perfect Still with digital multi-tap filter Zoom (x1.33 x2. x4) with picture enhancement 3D Sound Virtual Jog Shuttle Audio and video bit rate indicator (only available in certain countries) DVD FUNCTIONALITY Multi-angle Selection Audio Selection (1 out of max. 8 languages) Subtitles Selection (1 out of max. 32 languages) Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan) Parental Control and Disk Lock Disc Menu support (Title Menu and Root Menu) Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming Titles/chapters with Favorite Selection VIDEO CD FUNCTIONALITY Playback Control for VCD 2.0 discs Parental Control and Disc lock Resume (5 discs) after stop / standby Screen Saver (Dim 75% after 15 min.) Programming Tracks with Favorite Selection AUDIO CD FUNCTIONALITY Time Display (Total / Track ) Full audio functionality with remote control Programming with Favorite Track Selection * typical playing time for movie with 2 spoken languages and 3 subtitle languages. ** equivalent to 500 lines on your TV Specifications subject to change without prior notice 2 (/A1B, /S1G, /U1B) 1 2 2 2 5 5 4 4 3 6 Map of DVD Regions What are "regional codes"? Motion picture studios want to control the home release of movies in different countries because theater releases arenít simultaneous (a movie may come out on DVD in the US when itís just hitting screens in Europe). Therefore they have required that the DVD standard include codes which can be used to lock out the playback of certain discs in certain geo- graphical regions. Players sold in each region will have that regionís code built into the player. The player will refuse to play these "region coded" discs which are not allowed in the region. However, regional codes are entirely optional. Discs without codes will play on any player in any country. Some studios have already announced that only their new releases will have regional codes. There are six regions: 1. United States and Canada 2. Europe and Japan 3. Far East (except Japan & China) 4. South America and Oceania 5. Africa and the Middle East 6. China (except Hong Kong) 3 2. CONNECTION FACILITIES 1 3 5 7 9 11 13 15 17 19 21 2 4 6 8 10 12 14 16 18 20 2-1 Video performance (/N1B only) SCART (/N1B versions only) Full according PQR3 IMS Connector implementation according EN50049-1; color = black; dual SCART Fully according to prEN1057-2-1 Signal switching is P50 controlled; supported features of mode 3 see survey of applicable standards. 2-1-1 SCART II (connected to TV) Pin signals: 1 Output Audio R 1.8V RMS 2 Input Audio R 3 Output Audio L 1.8V RMS 4 Audio GND 5 Blue/Chroma GND 6 Input Audio L 7 Bi-dir Blue out/Chroma in 0.7pp +/-0.1V into 75 Ohm (*) 8 Output Function switch 2V = TV 4.5V / 7V = asp. ratio 16:9 DVD 9.5V / 12V = asp. ratio 4:3 DVD 9 Green GND 10 Bi-dir P50 control 11 Output Green 0.7Vpp +/-0.1V into 75 Ohm (*) 12 not connected 13 Red/Chroma GND 14 fast switch GND 15 Output Red out/Chroma out 0.7Vpp +/-0.1V into 75 Ohm (*) +/-3dB 0.3Vpp in case of Chroma 16 Output fast switch RGB 1V / 3V into 75 Ohm = RGB /CVBS or Y 0.4V into 75 Ohm = CVBS 17 Y/CVBS GND 18 fast switching GND 19 Output CVBS/Y/RGB sync 1Vpp +/-0.1V into 75 Ohm (*) 20 Input CVBS/Y 21 Shield SCART I (connected to AUX) Pin signals: 1 Output Audio R 1.8V RMS 2 Input Audio R 3 Output Audio L 1.8V RMS 4 Audio GND 5 Blue/Chroma GND 6 Input Audio L 7 Bi-dir Blue in/Chroma out +/-3dB 0.3Vpp Chroma 8 Input Function switch 9 Green GND 10 Bi-dir P50 control 11 Input Green 12 not connected 13 Red/Chroma GND 14 fast switch GND 15 Input Red in/Chroma in 16 Input fast switch RGB/CVBS or Y 17 CVBS GND 18 fast switching GND 19 20 Input CVBS/Y 21 Shield (*) for 100% white 4 3. INFORMATIONS REGION CODE THE DISCS THAT THE DV4100 CAN HANDLE The following discs can be played back with a DV4100. Note: The regional code of the discs must meet to the regional code of the DV4100. DVD INFORMATION Below is a glossary of the new terms related to DVD. Title: A disc may have more than one story/movie on it, so each story/movie is called a “title”. For example, if there are 2 movies on the disc, they are separated into Title 1 and Title 2. Chapter: A title may also be separated into chapters. For example, a movie (title) may be separated into 3 scenes (chapters). Subtitles: DVDs are recorded with up to 32 different subtitle languages. If a disc has more than one subtitle language, you can select the subtitle language that you want to read. Soundtrack language: DVDs are recorded with up to 8 different soundtrack languages. If a disc has more than one language, you can select the soundtrack language that you want to listen to. disc mark playback capability size side DVD Audio/Video 12 cm single/double 8 cm CD Audio 12 cm single 8 cm 12 cm VCD Audio/Video single 8 cm VERSION REGION CODE COUNTRY /N1B 2 EUROPE /S1G 3 ASIAN PACIFIC /U1B 1 USA/CANADA /A1B 4 AUSTRALIA Multi-angles: On some DVDs, scenes have been filmed from different angles (up to a maximum of 9). On these discs, you can select the angle that you want to watch. Please refer to the DVD’s manual to see which scenes have multi-angles. Title 1 Title 2 Chapter 3 Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 It is important to note that CD-R, CD-RW discs must be FINALIZED before they can be played on this player. The disc types which run on the player feature one or more of these logos on the disc packaging. 5 4. SERVICING HINT SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. diameter disc (58.0 mm) 4822 397 60141 Torx screwdrivers Set (straight) 4822 395 50145 Set (square) 4822 395 50132 13th order filter 4822 395 30204 DVD test disc TEST software for PC : ComPair V1. 2 ComPair V1. 3 Connection Cable 4822 397 10131 4822 727 21634 4822 727 21637 3122 785 90017 SERVICE HINTS 6 5. WARNING AND LASER SAFETY INSTRUCTIONS SHOCK, FIRE HAZARD SERVICE TEST: CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the face or Front Panel of product and controls and chassis bottom, Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before return to user/customer. Ref.UL Standard NO.1492. NOTE ON SAFETY: Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard. F ATTENTION Tous les IC et beaucoup d’autres semi- conducteurs sont sensibles aux décharges statiques (ESD). Leur longévité pourrait être considérablement écourtée par le fait qu’aucune précaution n’est prise a leur manipulation. Lors de réparations, s’assurer de bien être relié au même potentiel que la masse de l’appareil et enfiler le bracelet serti d’une résistance de sécurité. Veiller a ce que les composants ainsi que les outils que l’on utilise soient également a ce potentiel. D WARNUNG Alle IC und viele andere Halbleiter sind empfindlich gegen elektrostatische Entladungen (ESD). Unsorgfältige Behandlung bei der Reparatur kann die Lebensdauer drastisch vermindern. Sorgen sie dafür, das Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig voor elektrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen verminderen. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevita potrebbe essere fortemente ridatta in caso di non osservazione della piu grande cauzione alla loro manipolazione. Durante le riparazioni occorre quindi essere collegato allo stesso potenziale che quello della massa dell’apparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential. WARNING Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke toestand wordt terug gebracht en dat onderdelen, identiek aan de gespecifieerde worden toegepast. Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten. Der Originalzustand des Gerats darf nicht verandert werden. Fur Reparaturen sind Original-Ersatzteile zu verwenden. Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli specificati. Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et que soient utilisées les pièces de rechange identiques à celles spécifiées. GB NL I D I F GB NL 7 LASER SAFETY This t his unit employs a laser. Only a qualified service person should remove the cover or attempt to service device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 780 nm (VCD/CD) Output Power: 7 mW (DVD) 10 mW (VCD/CD) Beam divergence: 60 degree USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSESPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AVOID DIRECT EXPOSURE TO BEAM WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player WARNING LOCATION: INSIDE ON LASER COVERSHIELD CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM ATTENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU Warning for powersupply on position 1005 The primary side of the powersupply including the heatsink carries live mains voltage when the player is connected to the mains even when the player is swiched off ! This primary area is not shielded so it is possible to touc h copper tracks and/or components when servicing the player. Service personnel have to take precautions to prevent touching this area or components in this area . The primary side of the powersupply has been indicated with a lightning stroke and a stripe-marked printed on the printed wiring board Note: The screws on the basic Engine (position 218 in on the exploded view drawing) may never be touched removed or re-adjusted. Handle the Basic engine with care when the unit has to be exchanged! The mechanism of the basic engine is very sensative for droping or shocks ! 6. SERVICE HINTS 8 6.1 DVD-Module 218 The DVD mechanism has to be exchanged completely in case of failure. A new or repaired mechanism can be ordered with codenumber 9305 023 61001. Return the defective unit complete assembled in original package to Philips Consumer Service in Eindhoven. The monoboard has to be repaired on component level. 6.2 Diagnostic software In chapter “Diagnostic software” some tests are refering to the SCART functionality. These tests are for sets with RGB-output. For sets without RGB-output no SCART connector is mounted. In these sets the SCART tests will automatically be skipped 6.3 Power Supply options 6.4 Compair For assistance with the repair process of the monoboard an electronic Fault finding guidance has been developed , this program is called COMPAIR. This COMPAIR program is available on CDROM. The Version of the CDROM for repair of the monoboard is V1.3 and can be ordered with codenumber : 4822 727 21637. This is an update CDROM , so when the COMPAIR CDROM is used for the first time , one has to install the COMPAIR ENGINE CDROM V1.2 first. The V1.2 CDROM can be ordered with codenumber 4822 727 634 and has to registered after installation , the procedure for registration is explained in the help file of the program and in the booklet from the CDROM. The cable to connect the monoboard with a PC can be ordered with codenumber 3122 785 90017. All the hardware and software requirements of the systems necessary for working with COMPAIR is described on the CDROM. 6.5 Monoboard repair For repair of the monoboard the service manual 3122 785 10045 must be used. 3122 427 21750 3122 427 21370 3122 427 21760 110V USA 220V Europe China Multi voltage A/P 2261 CAP 330pF 2121 ELCO 100uF 385V 2261 CAP 330pF 2121 ELCO 150uF 250V 2121 ELCO 150uF 400V 3133 Resistor 10M 9 10 7. BLOCK DIAGRAM (/N1B) SLAVE PROCESSOR KEYBOARD SPMS St_by AUDIO/VIDEO BACKEND BOARD JBE (servo) RAM ROM HOST Sti5505 I2S S2B MONO BOARD A/V signals I2C SCART SWITCHING AUX TV Y/C CVBS(/YC not on SCART) CVBS CVBS 0/6/12V RGB UDA1328T 3 Kill 8Vstab 3V3stab +12Vstby Video IC's and audio buffers DAC RGB/CVBS RGB/CVBS CVBS AUDIO AUDIO AUDIO L + R DAC SCART SCART DISPLAY BOARD RGB/CVBS L+R I2C DIG_OUT I2S Audio -5Vstab -8Vstby Switches OPTICAL OUTPUT DIGITAL OUTPUT RC 7104 1113 TEA6420 AUDIO SCART SWITCHING 7917 7401 7403 7900-7905 +12V stby +5V stby -8V stby -40V +5V +3V3 11 12 (/A1B, /S1G, /U1B) SLAVE PROCESSOR KEYBOARD SPMS St_by AUDIO/VIDEO BACKEND BOARD JBE (servo) RAM ROM HOST Sti5505 I2S S2B MONO BOARD A/V signals I2C Y/C Y UDA1328T 3 KILL 8Vstab 3V3stab +12Vstby Video IC's and audio buffers DAC Headphone out L + R (ONLY DVD751) 2x DAC DISPLAY BOARD DIG_OUT I2S Audio MICRO -5Vstab -8Vstby Switches -8V -5V -8V OPTICAL OUTPUT DIGITAL OUTPUT RC 7104 1113 7400 7405 # # DVD732 ONLY 7403 # 7008 7002 CVBS1 CVBS RGB Y C CVBS2 7020 : 7023 +12V stby +5V stby -8V stby -40V +5V +3V3 CB CR TDA 4780 KOK TC9409 -5V 13 14 8. WIRING DIAGRAM Non Euro model only EH 1 2 20 1 2 STBKEY+ STBKEY- 105MM -----> 105MM -----> 400MM -----> 3139 110 38371 -----> 100MM 3139 110 37201 -----> 400MM Non Euro model only 5 ADJA_OUT ADJA_IN ADJB_OUT 1 2 3 4 5 6 7 HP_L MIC GND HP_R +12V MIC_A EH GND +12V GND +5VSTBY STBKEY- EH EH EH PH * 4 1 1205 1 2 3 4 +5VSTBY STBLED STBKEY+ STBKEY- STANDBY BOARD 4 1115 1 5 1116 1 2 4 GND C GND Y ADJB_IN MIC GND DISPLAY BOARD 1 4 1117 1 2 3 4 +12V GND +5VSTBY -40V 1 2 3 4 +5V +5VSTBY +6VSTBY GND GND GND -8VSTBY 2 +12VSTBY CENTER_ON STEREO_MUTE DIG_OUT GND 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 0207 3V3 3V3 PCM_OUT2 GND PCM_OUT1 -8VSTBY SCL +12VSTBY SDA STBCONTROL 3V3A 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 3V3 3V3 +5V +5VSTBY +6VSTBY GND GND +5VD +5WD KILL GND PCM_OUT0 LRCLK SCLK FFC PCM_CLK MIC GND 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND H_SYNC GND MONO BOARD 1 2 3 4 5 6 +6VSTBY 8 CVBS GND 0|6|12 -8V 13 14 15 16 17 18 19 20 21 22 P50 B G GND R CVBS GND 0|6|12 -8V 1 2 3 4 5 ADJA_OUT ADJA_IN GND ADJB_IN 8 1 16 1 4 5 1 5 1 16 1 22 1 12 1501 1604 1603 1600 SCL GND SCA STBCONTROL P50 GND C GND Y P50 B G 7 R 280MM GND -8V 8 +5VD +5WD KILL GND PCM_OUT0 LRCLK SCLK GND PCM_CLK CENTER_ON STEREO_MUTE DIG_OUT GND A/V BOARD EH EH FFC FFC * 15 16 17 18 19 20 21 ADJB_OUT 1 22 1 5 1002 1000 1001 1003 GND H_SYNC GND PCM_OUT2 GND PCM_OUT1 -8VSTBY SCL +12VSTBY SDA +6VSTBY 3V3A 1 2 3 4 5 6 7 GND <----- 1 GND -8VSTBY STBCONTROL KILL 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 22 PH 5 SCL GND SCA STBCONTROL P50 1 3 4 +5VSTBY STBLED -40V POWER SUPPLY BOARD EH HR 4 1 0205 12 1 3 FFC PH GND +12VSTBY 1 5 1118 <----- 280MM <----- 400MM -----> 100MM 3139 110 38831 3139 110 34221 3139 110 34321 3103 308 91150 3139 110 38631 3139 110 38681 3139 110 34251 STBKEY+ 1 2 STBKEY+ STBKEY - EH 1 2 CN4 15 16 9. DISMANTLING INSTRUCTIONS Cover 151 Remove 7 screws 233 Lift cover at rearside to remove Front assy 1 remove 2 screws 212 (front 1 frame 213) unlock front from frame by releasing successively 3 snaps (on the left, in the middle and on the right) put front assy in front of the set(service position) DVD MODULE 218 Remove connections to Mono board remove 4 screws 217 (loader bracket 2 frame 213) demount module DVD MONO Board 7 See also exploded view of DVD module Remove flex connections to turntable motor and sledge motor. remove 4 screws 10 13(mono board 7 loader bracket 2) remove carefully flex connection to OPU and wire connection to tray motor. demount board. LOADER VAL3000 1 Remove 2 screws 8,9 Remove 4 suspensions 3 6 from loader bracket Standby board 1003 and switch assy Remove 2 screws 25 26(board front) demount board Remove 1 screw 207 Take out switch assy Display board 1002 Remove 7 screws 203(board front), pay attention to earth spring 300. demount board AV board 1002 remove flex connections to Mono board remove 7 screws 227 release snaps of 2 spacers 221 demount board Power supply unit 1005 remove connections remove 2 screws 222 (board frame) remove screw 225 (mains inled backplate) release snaps of spacers 226 (board frame) demount board mounting demounting 17 18 10. EXPLODED VIEW AND PARTS LIST (/N1B) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) 0200 3139 247 51280 FRONT PANEL (BLACK) QT24751280 0201 3120 001 00051 BADGE MARANTZ QZ00100051 0202 3139 247 51310 BADGE DVD QT24751310 0204 3139 244 00550 WINDOW QT24400550 0205 3139 244 00560 BUTTON STANDBY QT24400560 0219 3139 244 00590 DOOR QT24400590 0220 3139 241 20110 SPRING DOOR QT24120110 0240 3139 247 51410 BUTTON CONTROL QT24751410 0244 3139 247 51461 FOOT QT24751461 0245 3139 247 51461 FOOT QT24751461 1005 3122 427 22300 PSU PCB ASSY DVD2B+ 20PS223 1014 3104 157 11190 CWAS FLEX DVD 22 130 32S QW15711190 1018 3104 157 11200 CWAS FLEX DVD 16 130 32S QW15711200 0385 4822 321 10249 MAINS CORD QP32110249 0384 3139 228 85500 REMOTE CONTROL QT22885500 0387 3139 246 10340 USER GUIDE (/N1B) QT24610340 19 20 (/A1B, /S1G, /U1B) For /A1B, /S1G and /U1B new For /U1B old POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) 0200 /A1B,/U1B 3139 247 51290 FRONT PANEL (BLACK) QT24751290 0200 /S1G 3139 247 51302 FRONT PANEL (GOLD) QT24751302 0201 4822 454 11825 BADGE MARANTZ QP45411825 0202 /A1B,/U1B 3139 247 51310 BADGE DVD (BLACK) QT24751310 0202 /S1G 3139 247 51321 BADGE DVD (GOLD) QT24751321 0204 3139 244 00550 WINDOW QT24400550 0205 /A1B,/U1B 3139 244 00570 BUTTON POWER (BLACK) QT24400570 0205 /S1G 3139 247 51331 BUTTON POWER (GOLD) QT24751331 0219 /A1B,/U1B 3139 244 00590 DOOR (BLACK) QT24400590 0219 /S1G 3139 247 51341 DOOR (GOLD) QT24751341 0220 3139 241 20110 SPRING DOOR QT24120110 0240 /A1B,/U1B 3139 247 51410 BUTTON CONTROL (BLACK) QT24751410 0240 /S1G 3139 247 51421 BUTTON CONTROL (GOLD) QT24751421 0244 3139 247 51451 FOOT QT24751451 0245 3139 247 51271 FOOT QT24751271 1005 /A1B,/S1G 3139 248 80390 PSU PCB ASSY DVD2000 (OVS) QT24880390 1005 /U1B 3139 248 80380 PSU PCB ASSY DVD2000 (USS) QT24880380 1014 3139 110 34220 FFC FOIL 22P/105/22P BD B QT11034220 1018 3139 110 34230 FFC FOIL 16P/105/16P BD B QT11034230 0384 3139 228 85500 REMOTE CONTROL QT22885500 0385 /A1B 3139 118 73040 MAINS CORD (/A1B) QT11873040 0385 /S1G 4822 321 10249 MAINS CORD (/S1G) QP32110249 0385 /U1B 4822 321 11466 MAINS CORD (/U1B) QP32111466 0387 /U1B 3139 246 10350 USER GUIDE (/U1B) QT24610350 0387 /A1B,/U1B 3139 246 10521 USER GUIDE (/A1B,/S1G) QT24610521 21 22 12. SCHEMATIC DIAGRAM AND PARTS LOCATION 1111 D1 1205 D2 3150 C1 6204 D1 T134 C1 T135 D1 T136 D1 T137 D2 T138 D2 1 2 3 4 GEEN SYMBOOL CQW10 STANDBY D1: Standby PCB (N1B) To Con 1117 of Display PCB 1 2 1 2 A B C D A B C D SKQNAB 1111 1205 EH-S T134 LTL-1CHPE 6204 3150 100R T137 T138 T136 T135 Volume / Standby PWB 23 24 Display 8-Bit A/D Converter Counter VFT driver circuit (automatic display) 80k pull down 8-Bit h.break. v. out w. latch P8 8-Bit high breakdown voltage output part ewith latch P7 8-Bit high breakdown v. output port with latch P6 4-Bit In/Output sink open drain out. port w. latch P9 5-Bit h. breakd. v. out w. latch PD 8-Bit Input/Output (tri-state) P0 3-Bit In/Output with latch P2 8-Bit Input/Output (tri-state) P0 3-B. I/O P3 sink o.drain RAM ROM Program CPU V24 V25 V26 V27 V28 V29 V30 V31 V32 V33 80k pull down 80k pull down P6-P9 source open drain 80k pull down source open drain 80k p.d. VDD VAREF VASS AIN13 AIN12 AIN11 AIN10 AIN7 AIN6 AIN5 AIN4 AIN3 AIN2 AIN1 AIN0 SCK0 V7 V6 V5 V4 V3 V2 V1 V0 SO1 P03 (tri-state) P5 8-Bit Input/Output (tri-state) P4 8-Bit h. breakdown v. XIN -RESET XTOUT XTIN TEST -STOP -INT0 -INT1 TC2 -DV0 TC4 TC1 INT2 INT4 SCL SCA P04 P05 P06 P07 VSS XOUT V34 V35 V36 VKK -SCK1 SI1 V23 V22 V21 V20 V19 V18 V17 V16 V15 V14 V13 V12 V11 V10 V9 V8 VCD D SHUFFLE CHAPTER TRACK SCAN A-B FTS TOTAL TRACK TRACK TITLE TIME CHAPTER VD TITLE W REPEAT L DIGITAL SURROUND L R C R S S S A1 : FRONT DISPLAY PCB TMP87CH74 7104 11 12 19 VFD GRID14 PLAY 65 PAUSE to scart 54 46 53 MICRO- P50 50 56 49 17 TO 1205 F127 For DVD732 only scart PIN 10 INFO : FIL2-FIL1=4.8Vac-RMS MICRO+ 38 30 29 28 27 26 25 42 F126 41 F128 STOP F116 +5V stb F117 OPEN / CLOSE 3D SOUND OPTION 4 PREV NEXT 8 9 22 16 21 39 80 79 STBY - LEDCONTROL 37 36 35 OPTION 7 -40V 1 STBY control 10 VFD GRID 12 34 2 3 13 51 52 63 62 61 70 69 71 72 73 55 75 P50 interface 68 67 (-40V) 33 32 31 10 11 12 13 14 1 2 3 4 5 6 45 44 43 48 47 40 OPTION F118 +12V GND 20 SCL SCA 64 66 For DVD 751 only 76 77 5 6 14 15 59 60 24 78 23 VFD GRID 13 18 P50 74 58 1 2 3 4 5 6 7 8 9 7 8 9 10 11 12 13 14 A B For models with P50 only D E F G H I 57 C 6 7 8 9 33 34 35 36 37 38 39 40 41 42 43 44 45 48 49 5 21 22 23 24 25 26 27 28 29 30 31 32 1113 1 10 11 12 13 14 15 16 17 18 19 2 20 F204 14-MT-26GNK F165 F166 2107 33n F217 F168 3134 330R 27K 3101 F120 3118 10K F129 F161 F216 F119 F181 2211 BAS216 6100 3107 0R 100p F121 10K 3140 2128 1n 22u 2130 3100 22K 2119 22p 3145 10K F153 VKK 2114 22p 3109 SKQNAB 1101 4K7 3126 10R 10R 3128 F164 3138 470R 3105 0R 2131 1n +5Vstb 2202 1n +5Vstb 22p 2121 F202 10R 3133 F212 1110 VKK 6101 BZX284-C8V2 3114 10R 3120 470R 2110 33n F211 F149 VKK F229 F147 F228 1115 EH-B 1 2 3 4 F232 F187 SKQNAB 1109 22p 2118 F141 33n 2108 SKQNAB 3104 1100 3131 4R7 100K F104 F137 2201 F179 3113 4K7 33n 2125 22p 10K 3143 4K7 3139 BC847B 7108 F203 2105 33n 1108 SKQNAB 1107 SKQNAB 220p 2100 3106 220R 2101 220p F178 F107 F177 7112 MC79L24 GND 3 IN 2 OUT 1 F219 3119 10K 3144 100K 2111 33n 6104 BAS216 VFIL_DC VFIL_DC 2106 10u 1102 SKQNAB F201 F180 F150 F244 F245 F183 +5Vstb VKK 82K 3108 4K7 3110 F241 F243 10R F242 F200 3122 7109 BC857B F109 F108 BAS216 6105 3150 4K7 F176 F227 F175 F167 F230 F138 F139 3130 10R F171 BC327-25 7106 F170 F173 F102 F103 F234 F223 F235 F213 F124 F210 F209 F133 F208 82K 3103 7102 BC847B 10K 3123 7100 BC847B VKK +5Vstb +5Vstby +12V F105 1202 1207 3147 10K 10K 3146 SKQNAB 1106 2116 33n 10u 2117 2109 VKK F130 33n GND 1 OUT 3 VS 2 2115 22p 4K7 3115 7110 TSOP1736 F163 3102 47K F159 F157 F160 F155 F152 F169 +5Vstb 2 3 100R 3148 100R 3149 1 2 3 4 5 EH-B 1119 1 3121 4K7 EH-B 1116 F123 F122 F132 2129 7107 BC847B 2123 10u 22u F101 4R7 3117 F100 22u 10R 3127 2124 BC337-25 7105 3112 4K7 F106 3111 4K7 F113 F135 +5Vstby F114 F221 22p 2120 F222 3132 330R +12V F214 PKM13EPY 1112 3136 F218 33n 2122 1K PH-B 1118 1 2 3 4 5 10R 3129 7101 BC847B F231 100p 2103 F131 330R F186 10K 3137 3142 BC847B BZX284-C10 6102 F151 7103 F154 4 3135 220R F184 F205 1117 EH-B 1 2 3 F206 F207 F172 F158 F156 3116 82K 10u 2126 3125 10R F142 F140 F162 F233 F226 1122 SKQNAB 2102 100p SKQNAB 1121 7202 F125 STBKEY+ STBKEY- +5Vstb V15 G14 G13 G12 OUT_P50 IN_P50 V13 V14 V15 V14 IN_P50 OUT_P50 STBKEY+ STBKEY- K_DATA K_RESET K_CLK K_STROBE FIL1 FIL2 FIL1 FIL2 V13 25 26 Display PWB 27 28 Supply and video switching (/N1B) F276 E4 F277 F2 F278 F2 F279 F3 F280 F2 F281 G1 F401 C14 F500 G11 F501 G12 F502 H11 F503 I12 U182 B6 U183 B8 U185 D13 U228 H2 U229 G3 U230 H2 U275 I2 7901-B G8 7901-C H8 7902-A F10 7902-B G10 7904-A B8 7904-B C8 7904-C D8 7905-A B10 7943 I2 7945 F11 7946 H11 F109 A2 F110 A2 F112 B2 F113 B2 F120 B13 F121 B14 F130 D2 F135 E2 F138 D2 F142 D2 F144 D2 3624 F2 3625 G1 3626 B3 3627 E3 F150 E2 F211 B11 F260 B2 F269 B3 3723 I2 3762 D13 3769 G12 3770 G11 F270 B4 F271 B3 F272 C3 3774 H11 3804 G11 3805 G12 F273 C2 F274 C2 F275 E3 7304 B13 7331 B3 7332 C3 7333 F3 7334 F3 7335 G2 7400 C13 7900-A F6 7900-B G6 7900-C H6 7901-A F8 RGB switching D E F 7902-C H10 7903-A B6 7903-B C6 7903-C D6 B C D E 7905-B C10 7905-C D10 7935 H3 I 1300-1 A1 1300-2 A1 7947 I12 7949 G12 F106 A2 1300-8 B1 1300-9 B1 1301-10 D1 1301-13 D1 1301-14 D1 1301-15 E1 1301-16 E1 1301-2 D1 1301-8 D1 1301-9 E1 2354 B13 VIDEO SWITCHING 1 2 3 3695 H2 3696 G3 3720 H2 3722 H2 8 9 10 11 3771 H11 3772 I11 3773 I12 1 2 3 6302 C2 6403 C1 6404 D13 7 8 9 10 11 12 13 14 A B C BLANKING CVBS SWITCHING supply 2384 B11 G H I A 2412 B14 2452 C13 2453 C14 2524 B6 F G H 2525 B9 2527 A6 2528 A8 1300-3 A1 1300-5 A1 1300-6 B1 2529 A10 2530 C6 2531 C8 2532 F6 2533 G6 2534 C10 2535 F8 2536 F10 2537 G8 2541 B14 2545 C4 3433 B14 3615 B3 3616 B3 3617 C2 3618 C3 3619 C2 3620 E3 3621 F2 3622 F2 3623 F3 4 5 6 7 SUPPLY & 12 13 14 4 5 6 F113 E 6 S 10 Vdd 16 Vee 7 Vss 8 Y0 2 Y1 1 Z 15 F276 HEF4053BT 7903-B +6V -5V 10 3695 10K 1301-10 1301-16 16 L78L33 7400 2 1 3 +6V F272 3626 0R Vdd 16 Vee 7 Vss 8 Y0 12 Y1 13 Z 14 F271 +6V HEF4053BT 7902-A E 6 S 11 U228 U229 7902-B HEF4053BT 6 E 10 S 16 Vdd 7 Vee 8 Vss 2 Y0 1 Y1 15 Z 1301-2 2 7943 BC847B 10K 3622 F260 +8VAud 3773 10K 6 E 10 S 16 Vdd 7 Vee 8 Vss 2 Y0 1 Y1 15 Z BAS216 6302 7904-B HEF4053BT 7332 BC857B F278 F279 F121 56K 3720 2 GND 1 IN 3 OUT +12Vstby 7905-A HEF4053BT 6 E 11 S 16 Vdd 7 Vee 8 Vss 12 Y0 13 Y1 14 Z LF80C 7304 1300-9 9 1300-6 6 1300-8 8 1300-3 3 1300-5 5 100n 1301-9 9 3433 0R 2541 U182 F138 22n 2528 2527 22n 22n 2536 47K 3770 47u +12Vstby 2453 F273 F503 F274 F269 F270 3V3 -8Vstby 4R7 3615 +12Vstby 3618 1K 10K 3619 10K 3617 2534 22n 7331 BC547B +6V 220n 2384 E 6 S 10 Vdd 16 Vee 7 Vss 8 Y0 2 Y1 1 Z 15 F281 HEF4053BT 7905-B 22n 2530 BC847B 7935 F130 1300-2 2 6404 BZX284-C5V1 270R 3762 E 6 S 9 Vdd 16 Vee 7 Vss 8 Y0 5 Y1 3 Z 4 U185 HEF4053BT 7905-C 14 U183 HEF4053BT 7904-A E 6 S 11 Vdd 16 Vee 7 Vss 8 Y0 12 Y1 13 Z 3805 10K F502 BC847B 7334 14 F501 F500 1301-14 +12Vstby 4K7 3616 BC327-25 F135 F275 7333 3696 10K +6V 3627 0R Vdd 16 Vee 7 Vss 8 Y0 5 Y1 3 Z 4 +6V HEF4053BT 7902-C E 6 S 9 F280 3621 4K7 F142 E 6 S 9 Vdd 16 Vee 7 Vss 8 Y0 5 Y1 3 Z 4 +8VAud HEF4053BT 7903-C 220n 2524 3769 47K +12Vstby +8Vstby 1K 3625 1301-15 15 +12Vstby BC847B 7949 F120 56K 2531 22n +6V 3723 10K 3624 U275 +6V F401 Z 4 7900-C HEF4053BT E 6 S 9 Vdd 16 Vee 7 Vss 8 Y0 5 Y1 3 7946 BC857B BC847B 7947 3772 47K 3774 47K 47K 3771 BC857B 7945 +12V 7900-A HEF4053BT E 6 S 11 Vdd 16 Vee 7 Vss 8 Y0 12 Y1 13 Z 14 Vdd 7 Vee 8 Vss 12 Y0 13 Y1 14 Z 1300-1 1 7903-A HEF4053BT 6 E 11 S 16 3623 4K7 7335 BC847B +6V -8Vstby +12Vstby 22n 2533 22n 2535 22n 2532 47K 3804 +12Vstby U230 8 1301-8 S 16 Vdd 7 Vee 8 Vss 5 Y0 3 Y1 4 Z 2452 220n Vee 7 Vss 8 Y0 2 Y1 1 Z 15 HEF4053BT 7901-C 6 E 9 7 Vee 8 Vss 12 Y0 13 Y1 14 Z 7901-B HEF4053BT E 6 S 10 Vdd 16 HEF4053BT 7901-A 6 E 11 S 16 Vdd 47u 2412 2545 47u +6V 2525 220n 7904-C HEF4053BT 6 E 9 S 16 Vdd 7 Vee 8 Vss 5 Y0 3 Y1 4 Z 220n 2354 4R7 3620 +6V +6V BAS216 +6V +6V +6V 6403 13 F211 2529 22n 1301-13 56K 3722 F277 +5V 7900-B 6 E 10 S 16 Vdd 7 Vee 8 Vss 2 Y0 1 Y1 15 Z HEF4053BT +6V 22n 2537 DC_OFF YCVBSOUT_AUX -5V -5V -5V -5V -5V -5V YCVBSIN_TV CVBS SELECT YCVBSIN_AUX YCVBSOUT_TV CVBS SELECT 0|6|12 FBIN_AUX SLB_AUX B G R CVBS 0|6|12 RCOUT_TV -5V -5V -5V -5V -5V -5V -5V -5V -5V SELECT_HIGH SELECT_HIGH G SELECT GOUT_TV GIN_AUX B SELECT BC_TV BC_AUX SELECT SDA SCL R Y_ENC DC_OFF SELECT C_ENC FBOUT_TV SLB_TV 0|6|12 RCIN_AUX -9.5V -9.2V -8.6V -0.6V 0V -1.2V 0V +11.5V +11.2V +10.8V 0V 0.7V 0V +6V 0V 0.7V 0.7V 0V 11.4V 8V 8V 3.3V -5.2V SELECT: 0V DURING PLAYER SCRIPT: "SCART DVD" 6V DURING PLAYER SCRIPT: "SCART LOOP" SELECT HIGH: 0V DURING PLAYER SCRIPT: "SCART DVD" 12V DURING PLAYER SCRIPT: "SCART LOOP" ALL DC VOLTAGES MEASURED IN STOP MODE. TP1 TP2 TP3 TP4 TP5 TP6 29 30 Audio A/V MUX (/N1B) NC NC DECODER BUS SUPPLY DRIVER CONTROL INTERFACE DAC’S VOL/MUTE/DEEMPH INTERPOL FILTER NOISE SHAPER NC DIGITAL INTERFACE U191 E3 U226 C12 U227 D7 F267 H8 F268 G7 F400 A9 F406 B8 F408 B5 F410 B7 F414 A2 F415 D5 F416 D8 F421 D6 F422 B1 F423 D7 F424 E8 F425 B1 F432 C1 F437 D3 F448 G1 F455 G1 F478 I1 F486 H11 F487 H11 F488 H12 F489 H13 3765 H6 3766 C3 3767 C4 F490 H12 F497 E1 F504 E1 5400 H11 6400 H14 6401 C11 F505 G2 U186 C12 U187 B7 7402 A4 7403-A B6 7403-B D6 U188 C3 U189 C3 U190 E3 7405 E8 7406 C8 7407 B8 7917 B12 7944 G7 7948 C4 F139 C13 F141 C13 F176 D12 F177 B12 F180 A12 F181 D12 F265 G8 F266 H7 3445 D9 3446 D7 3447 E7 F403 B5 F404 B6 F405 B8 3454 A5 3455 B5 3456 B7 F411 C8 F412 A4 F413 E9 3462 B7 3463 C8 3464 B6 F417 D8 F418 D5 F419 B1 3511 C1 3512 C2 3517 C7 3519 A3 3610 F8 3611 G7 3612 H7 3613 G7 3614 H8 3631 D7 3632 C6 3634 A4 3635 B11 3764 H6 2373 A12 2450 C6 2455 D4 3768 G7 3802 E1 3803 G2 2459 A5 2460 A2 2461 E6 7329 G8 7330 H8 7401 B2 2469 D2 2471 D3 2472 D3 7403-C A9 7403-D E9 7404 D8 2497 C11 2498 C11 2519 I13 2542 H7 2543 H10 2544 H11 3321 C14 3322 C14 3338 E13 3339 E12 3340 A12 3341 A13 3442 D8 3444 D4 AUDIO SCART SWITCHING Option L/R 1300-10 G1 3448 D5 3451 E5 3453 E6 1300-14 G1 1300-15 H1 1300-16 H1 3457 B8 3459 B5 3461 B9 1300-20 I1 1300-21 I1 1300-22 I1 3505 H10 3507 H10 3508 H12 1301-11 E1 1301-12 F1 1301-3 D1 1301-4 D1 1301-5 E1 1301-6 E1 1301-7 E1 1402-B D10 1402-C C10 1405 I14 1410 D14 2360 C14 2361 C13 2372 D12 1 2 3 2456 D6 2457 D9 2458 D6 7 8 9 2462 B6 2463 B9 2464 C6 13 14 1 2488 H14 2495 I13 2496 C11 4 5 6 7 8 9 10 11 12 13 14 A B C D E F 1300-11 G1 1300-12 G1 1300-13 G1 G H I 1300-17 H1 1300-18 H1 1300-19 I1 A B C 1300-4 F1 1300-7 F1 1301-1 D1 D E F G H I 4 5 6 10 11 12 AUDIO 2 3 U227 F176 U187 3632 100R 3634 2K2 3519 5K6 100R 3631 10K 100U 2456 3444 10K 3451 3453 F432 10K F422 F425 F412 F419 12 13 14 4 11 F414 3613 2K7 MC33079 7403-D BC817-25 7402 3611 4K7 F423 F415 F418 -8Vstby F411 F405 F410 F406 F400 F408 F404 F478 2463 10K 3461 2457 3445 10K 1n 1n 3511 10K 10K 3512 BC817-40 7404 7406 2472 47u BC817-40 100n 2471 100R 3457 2K7 3463 3447 2K7 100R 3517 6 5 STEREO_R STEREO_L YKC21-3930 1402-B 4 3 YKC21-3930 1402-C +5V 12 F177 BC847B 7329 F141 52030 1300-12 F139 F416 F437 F424 F417 F413 F421 2360 50 2373 4u7 47p 100R 3322 47p 2361 1K 3339 3321 100R F403 2372 50 4u7 3767 22K 3V3 22K 3766 U191 7948 BC857B U189 U190 F505 -8Vstby 4R7 3803 F448 F455 2464 +5V 100p 2461 100p 100p 2455 100p 2459 7405 BC817-40 BC817-40 7407 2496 22n 3635 220R 6401 BZX284-C9V1 100u 2498 100R 3442 2497 22u 23 R4 20 R5 19 RO1 12 RO2 14 RO3 16 RO4 18 SCL 27 SDA 28 VS 3 L1 4 L2 5 L3 6 L4 9 L5 10 LO1 11 LO2 13 LO3 15 LO4 17 7 8 21 22 R1 25 R2 24 R3 1300-15 52030 15 TEA6420 7917 ADDR 26 C 2 GND 1 1300-13 52030 13 52030 1300-14 14 1300-11 52030 11 52030 1300-18 18 7 52030 1300-10 10 F504 52030 1300-7 1300-4 52030 4 F180 100n 2488 2 3 4 6 7 8 3505 100R +5V 5400 7CHA 1 100n 2495 68R 3508 6400 GP1F32T 3 1 2 F489 F490 2519 100n 2u2 2542 7 47K 3768 1410 EH-B 1 2 3 4 5 6 +8VAud 7330 BC847B +12V F488 52030 1300-22 22 2543 47p 2544 10u 3765 10K 21 10K 3764 BC847B 7944 52030 1300-20 20 1300-21 52030 17 1300-19 52030 19 52030 1300-16 16 1300-17 52030 U186 U226 3341 47K 3338 47K 3340 +8VAud F181 1K F497 1301-6 52030 6 1301-7 52030 7 52030 1301-5 5 F265 100R 3507 F266 F268 F267 +6V 3455 10K 3610 4K7 3614 22K 52030 1301-3 3 3612 47K 52030 1301-12 12 1301-1 52030 1 1301-11 52030 11 +6V 4R7 3802 2K7 3446 3V3 3448 10K 3V3 2469 22n +12Vstby 2460 22n 1 3 2 F486 YKC21-3416 1405 VO1P 31 VO2N 32 VO2P 1 VO3 2 VO4 4 VO5 5 VO6 30 VREFA 3 VSSA 20 VSSD 11 WS 3V3 DS 18 L3CLK 19 L3DATA 17 L3MODE 23 MUTE 7 8 15 9 STATIC 16 SYSCLK 27 TST1 22 TST2 6 VDDA 21 VDDD 29 VO1N 28 7 4 11 7401 UDA1328T 10 BCK 25 DEEM0 24 DEEM1 12 DI12 13 DI34 14 DI56 26 2458 7403-B MC33079 5 6 22n +8VAud 22n 2450 11 7403-C MC33079 10 9 8 4 11 +8VAud MC33079 7403-A 3 2 1 4 -8Vstby +8VAud 1301-4 52030 4 3456 -8Vstby -8Vstby 2462 100U 100R 10K 3459 10K 3464 3462 3454 10K F487 2K7 HP_L HP_L HP_R HP_R {PCM_OUT0,PCM_OUT1,PCM_OUT2,SCLK,LRCLK,PCM_CLK,DEEM0,DEEM1} DIG_OUT STANDBY KILL STANDBY DIG_OUT HP_L HP_R SCL LIN_TV LOUT_TV LIN_AUX LOUT_AUX ROUT_TV ROUT_AUX RIN_AUX RIN_TV SDA DC_OFF KILL KILL KILL KILL KILL KILL TP7 TP8 TP9 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 KILL: -8V DURING PLAY +4.8V DURING STOP, NEXT, PREVIOUS +1.6V 0V 6V 0.6V 0.7V 0V 9.2V 4.6V TP12 TP12 TP12 TP13 TP14 TP15 TP15 TP15 31 32 Scart panel (N1B) 2383 B3 2385 C3 2395 C5 2402 F5 2404 E5 2408 F5 2409 I5 C 2509 C8 2511 H8 2521 B12 2522 A5 2523 B5 TV-SCART AUX-SCART 1 10 11 12 13 1 2 3349 A5 3351 B4 3359 B5 3363 B4 3366 B5 3394 C4 3397 C5 4 3 11 12 13 A B C D 3638 D9 3639 E9 3640 E8 3641 F8 3642 C8 1304-1 C13 1304-2 C6 1304-3 G13 E F G H I A B SCART 3675 C11 3676 G10 3677 H11 3678 G3 3679 G3 3680 D10 3681 D10 2499 G5 D E F G H I 2507 D9 2508 F8 3692 D4 3693 E4 3694 I4 3697 G4 3698 E11 3313 D12 3314 A11 3315 A11 2 3 4 5 6 7 8 9 3725 F9 3726 E9 3727 G3 3731 C9 3732 I9 3733 H9 3734 F8 3407 E5 5 6 7 8 9 10 3636 G2 3637 G2 3756 D9 3757 F8 3758 H8 3800 G9 3801 G10 3643 D8 3646 H8 3647 I8 2353 A10 2355 A10 2357 B10 2358 A12 2359 B10 2371 I11 2378 A3 2382 A3 7929 C10 7930 C8 7931 G9 7933 H10 7934 H9 7936 G3 7937 D10 3682 F9 2500 E12 2501 F11 2502 C11 2503 G11 2504 H11 2506 G2 3690 I11 3691 C4 F134 C13 F137 C13 F140 C13 F145 D13 F148 D12 3699 F10 3700 C10 3701 G10 3316 A12 3318 B11 3319 B11 3320 B12 3323 B11 3325 B11 3343 I11 3348 A4 F234 D6 F247 E6 F259 F6 U131 G3 U132 E10 U133 F10 U134 C9 3735 F9 3408 F4 3409 D4 3413 D4 3425 F5 3432 I4 3629 C5 3748 C8 3749 G2 U145 D10 U146 D9 U147 E9 U148 E13 U149 F11 7918 I10 7919 C3 7920 D3 3648 G2 3649 D9 3650 E8 3651 C8 3653 H9 3672 G5 3673 E11 3674 F11 U161 C8 U162 G10 U163 G9 U167 H11 U168 H10 U169 H9 U170 H9 7938 F10 3683 F10 3684 C9 3685 C10 3687 G9 3688 H9 3689 H10 F127 B11 F133 B11 U201 E4 U202 E2 U203 F2 U204 E6 U205 G2 F149 D13 F183 F13 F193 A4 3702 I10 3703 I10 3704 D3 3705 E3 3706 F3 3707 I3 3721 G10 3724 H9 U213 F8 U214 F8 U215 D9 U216 D8 U217 C8 U218 C8 U219 B8 U136 F6 3736 E9 3737 E10 3738 H2 3739 G3 3744 D8 3747 C9 U143 E11 U144 D11 U222 G2 U223 A8 U225 D6 U278 G8 U279 G9 U150 F10 U151 F9 U152 F9 7921 E3 7922 I3 7923 G4 7924 G2 7925 D11 7926 D9 7927 F10 7928 F9 U159 C9 U160 C9 U184 H8 U193 A2 U194 B2 U195 B2 U196 C2 U197 C2 7939 C9 7941 H9 7942 G10 F103 H10 F114 A11 F115 A11 U199 D4 U200 C4 U198 D2 U206 I4 U207 I2 U208 I8 U209 I10 U210 H8 U211 H8 U212 G10 F195 B4 F205 B4 F212 C4 F216 C6 F218 D6 F219 C6 F222 C6 F229 D6 330R +8Vstby U137 G4 U138 G4 U139 G3 U140 G2 U141 G2 U142 D13 U220 B8 U221 A8 U153 F8 U154 D13 U155 E13 U156 F13 U157 C10 U158 C10 100R 3689 3653 100R 3688 7941 BC857B BC847B 7934 2509 2u2 3677 75R BC847B 7933 3702 1K U162 U163 U155 U193 2503 220p 100K 3647 U225 100K 3641 100K 3643 100K 3639 7928 BC847B 100K 3646 BC857B 7938 3638 100K 3640 100K 3642 100K 3721 150R 2501 220p 2523 +8Vstby +8Vstby 220p 100R 330R 3650 3682 100R 3683 U136 1K 3699 75R 3674 +8Vstby 7927 BC847B +8Vstby 330R 3732 2507 2u2 U223 U220 U221 +8Vstby U219 U216 U214 U215 U212 U213 U210 U211 +8Vstby U209 3673 75R BC847B 7925 3698 1K 3704 6K8 +8Vstby 7919 BC847B U159 U160 U161 U134 U157 U158 U154 330R 3736 22R 3726 330R 3735 3725 22R 100K 3636 100K 3637 100K 3758 100K 3749 3756 100K 3757 100K 3748 100K 330R 3739 U141 3727 22R U140 U131 U139 F137 U137 U138 F115 +8Vstby +8Vstby 220p 2499 330R 3648 3678 100R 3679 100R 7924 BC847B BC857B 7936 U218 U217 U279 4K7 3800 U278 +6V 4K7 3801 3705 7920 BC847B 6K8 1K 3692 75R 3432 1K 3691 3409 220R 6K8 3703 3690 7918 BC847B 75R 1K 7942 BC857B 3629 U206 470R 3701 U205 U204 U222 U202 U203 U200 U201 U199 3731 22R U198 3744 330R F149 3737 330R F145 F148 F133 50 2357 F140 F127 1K 3319 4u7 F114 F134 220p 220p 2409 3738 330R 2408 220p 330R 3747 +8Vstby 2521 U184 2511 2u2 U169 U170 U168 F103 U167 3733 330R 3734 330R 22R 3724 75R 3425 3413 47K 75R 3408 75R 3407 50 2385 47K 3397 3394 470R 4u7 U208 3676 150R +8Vstby U207 BC847B 7931 2u2 2508 +8Vstby U153 U133 U151 U152 U196 U197 U195 3325 47K U194 2359 4u7 50 3323 470R 47K 3320 2522 220p U145 U144 U132 U142 U143 +8Vstby 2500 220p 3649 330R +8Vstby U156 47K +8Vstby 2504 220p 4u7 2383 50 3366 3318 47K 470R 3315 4u7 2355 50 47K 3316 3314 1K 4u7 2353 50 16B 17B 18B 19B 2B 20B 21B 3B 4B 5B 6B 7B 8B 9B 1304-2 1B 10B 11B 12B 13B 14B 15B 15A 16A 17A 18A 19A 2A 20A 21A 3A 4A 5A 6A 7A 8A 9A 1304-1 1A 10A 11A 12A 13A 14A 4K7 3687 3685 3651 330R +8Vstby 100R 3684 100R BC847B 7930 +8Vstby 7939 BC857B 3675 75R U150 3700 1K U148 U149 2402 220p 220R 3313 U146 U147 75R 3672 1K 3697 7923 BC847B 7922 BC847B 6K8 3707 1K 3694 100R 3681 100R 3680 7937 BC857B BC847B 7926 3363 1K 2382 4u7 50 47K 3359 470R 3351 50 4u7 2378 47K 3349 1K 3348 F193 F219 F183 F216 +8Vstby 2502 220p 1304-3 0350808190 MT1 MT2 F247 F259 F212 F229 F234 F218 F205 F195 F222 +8Vstby BC847B 7929 2u2 2506 220p +8Vstby 2395 220p 2404 2371 220p 220p 2358 6K8 3343 75R 7921 3706 3693 1K BC847B -8Vstby SLB_TV +8Vstby -8Vstby +8Vstby -8Vstby +8Vstby -8Vstby +8Vstby -8Vstby +8Vstby {ROUT_AUX,RIN_AUX,LOUT_AUX,LIN_AUX,BC_AUX,SLB_AUX,GIN_AUX,RCIN_AUX,FBIN_AUX,YCVBSOUT_AUX,YCVBSIN_AUX} 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V -0.6V -0.6V -0.6V -0.6V -0.6V 33 34 CVBS / YC panel (/N1B) I221 H6 I241 D7 I242 D6 I245 D7 I246 D8 I247 D8 I251 D6 U130 B7 U192 G9 U224 G9 U276 B6 U277 D6 3750 B6 3751 A6 3752 B6 3759 H6 3760 G6 3761 G6 7006 F6 7007 F6 7010 H6 7011 H8 7012 D7 7013 D6 7014 D8 7300 B7 7301 B6 7310 B8 F100 B6 F101 B7 F104 B8 F107 B6 F108 B9 F600 H6 I189 F7 I191 F6 I196 F6 2538 B5 2539 D6 2540 H6 I200 G5 I208 F9 I210 G7 3040 F5 3041 F7 3043 G6 I211 G6 I214 H7 3046 H7 3049 G9 I215 H8 I219 H8 3058 D6 3059 D7 3062 D9 3063 E8 3300 B6 3301 B6 3345 B8 3347 B8 3728 D6 3729 H6 3730 B6 3740 E6 3741 D7 3742 H6 3743 H7 3745 B7 3746 B6 Y/C OUT 9 3753 D6 3754 E6 3755 D6 13 14 A 3763 B7 3999 I1 D E 7008 F6 7009 G7 H I A B C D E F G H I 1303 F10 1402-A B9 2032 H8 2377 B9 2505 G9 2520 G9 1 2 3 3036 F7 3038 F6 3039 F5 4 5 6 3044 F5 3045 G6 7 8 3050 H8 3056 D6 9 10 11 12 13 14 1 2 3 4 5 6 7 8 10 11 12 CVBS & YC B C F G I208 75R 3049 470n 2032 +5V +5V I245 3041 8K2 3036 2K2 -5V 22K 7006 BC847B +8Vstby 3038 +8Vstby I246 I251 U130 F101 I219 I221 1402-A 2 1 YKC21-3930 +8Vstby +8Vstby I196 3301 100R 330R 3300 7301 BC847B BC857B 7300 1K 3347 75R 3345 7310 BC847B 2505 220p 330R 3743 I241 I211 3742 330R I242 3760 100K +8Vstby 220R 3050 I210 I247 I215 +8Vstby +8Vstby I214 330R 3043 100R 3045 I189 +8Vstby 1K 3063 100R BC847B 7014 +8Vstby +8Vstby 3059 7013 BC857B 7012 100R 3058 BC847B 3056 330R 1303 TCS79 5 6 7 1 3 4 2 7007 BC847B 3729 22R 3039 F600 47K 3040 27K 3759 100K F107 F100 F104 2540 2u2 F108 220p 2377 330R 3740 100K 3754 +8Vstby 100K 3753 3763 2u2 2539 3745 330R 100R 3746 22R 3730 3752 100K 330R U276 +8Vstby 3751 100K 3750 100K 3761 100K 2538 2u2 3044 22K BC847B 7008 2520 BC847B 7011 220p 3046 100R BC857B 7009 3741 330R 7010 BC847B 22R 3728 100K 3755 3062 75R CVBS 0|6|12 U277 Y_ENC C_ENC TP19 TP20 TP21 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 2.2V 7.4V 7.4V 1.6V 2.6V 2.6V 2V 0.6V 0.6V 35 36 A/V Mux panel (/N1B) _Z _A 37 38 A/V board (A1B, /S1G, /U1B) DRAM MICOM uF DSP IN DIGITAL OUT IN MIC IN TIMING GENE. OUT ANALOG ANALOG DIGITAL CONTROL INTERFACE DAC’S VOL/MUTE/DEEMPH INTERPOL FILTER NOISE SHAPER NC DIGITAL INTERFACE EN G1 1 MUX 1~ DRIVER 7007 BC817-25 C1: AV PCB 1 0 7404-A A7 7404-B C9 7405 E2 7406 H13 F500 E5 F501 E5 F502 E5 3435 C3 Y 3 * I407 D5 I406 B8 Y1 3432 I3 3433 I3 7402-B D5 7403 G7 (3 n 9 ) FOR DVD 741, FOR DVD732 Y4 Y3 Y2 3436 G7 3437 G7 F547 A13 F548 A13 F549 A13 F550 B13 F551 B13 F552 B13 4418 G3 4440 I2 7 4 H CT1 5 7 D 5 3 1 3 I408 D5 I409 D6 DVD 751 G 1 6 1 4 H 3592 C4 ** L/R No Swap * Reserved Parts * 3412 B7 3413 B7 5400 H11 6411 C4 7000 A3 7001 B7 7002 B8 7003 F10 F503 F5 F504 F5 3452 E11 3453 H12 3434 I3 FOR DVD732 OPTION 3430 G3 3431 I2 Y 4 L/R/Swap # 2 O N L Y F OR DV D 7 32 2424 F6 4400 A2 4401 D2 4402 A7 4403 B8 4414 B3 4415 B3 4416 G3 4417 G3 2436 G12 2437 G13 3438 G8 3439 D7 3440 D9 3441 F10 3442 D7 3443 D9 I400 B2 I401 B4 I402 A6 I403 B4 I404 B6 I405 B12 F545 A13 F546 A13 3402 C1 3403 C1 12 13 1 2 3 4 Y 1 Y 2 3404 A4 3405 B4 3406 B4 3407 B5 3408 B6 3411 B6 13 A 3414 A10 3415 A10 3416 D4 3417 D4 3418 E4 3419 E5 7004 F11 7005 D8 7006 E9 7007 G10 7008 G12 7039 C3 7400 B2 7402-A B5 G H 2407 A7 2408 A7 2409 D4 2410 E5 2411 C5 2412 D6 2425 F7 2426 F7 2428 G5 2429 H3 2430 H4 2431 I2 2434 D12 2435 D13 2422 F2 2423 F6 2438 I10 2439 H10 2440 I13 2441 I12 2442 H13 2445 D5 3444 F11 3445 G10 3446 G11 3447 G12 3448 G13 3449 H10 3450 H10 3451 E10 10 11 I432 H12 I433 I12 I434 H4 I435 I4 I436 I4 I437 I4 5 6 7 8 9 10 11 12 I532 D2 I533 D3 B C D E F G 3420 F10 3423 F11 3424 C12 3425 C12 3426 D12 3427 D12 3428 F2 3429 F2 2405 C5 2406 B6 I410 C6 I411 B5 I412 F10 I413 B12 I414 E11 I418 F10 2413 B13 2415 C12 2416 C13 2417 A13 2418 A13 2419 A13 2420 B13 2421 B13 I430 H10 I431 H11 L 1 2447 I3 2448 I3 2449 I4 2450 G4 2507 C5 2508 C6 3400 A3 3401 A3 LEFT RIGHT 1 1 I 1002 A13 1003 E4 1400 I13 I442 G7 I443 H7 I444 H8 I446 D13 I447 D13 I450 C13 I529 D13 I530 F13 1401-B B13 1401-C F13 1405 D13 2400 A2 2401 A4 2402 D2 2403 D2 2404 D3 H I A B C D E F I532 I419 G10 I421 D8 I422 D8 I423 F13 I424 D9 I425 F12 I426 G11 I429 H10 2 3 4 5 6 7 8 9 I418 +5VD I529 2411 22n 22K 3434 F550 2437 220p 3441 100R I431 220p 2436 -5VA 100p BC817-25 7003 6 7 8 4 +5V 2401 2420 1n LM833D 7404-B 5 +5VA I533 3424 10K 4u7 2430 100R 3412 1n 2424 2K7 3446 F500 I422 F502 2418 1n 2416 1n 2 YKC21-3416 1400 1 3 I437 I403 I429 I434 3405 10K 3436 47R I411 3416 10K 68R 3453 100u 2406 -5VA 3419 10K 2407 100R 3451 F548 F549 22n I424 3425 10K 2434 470p EH-B 1003 1 2 3 4 5 3414 I413 100n 2442 3420 2K7 100R I407 I401 2429 4u7 2K7 3435 2409 100p 3452 100R 100R 3411 18 31 SDI SDO 28 TEST 41 VDA1 1 VDA2 17 VDD1 24 VDD2 42 VDL 43 20 VDX VR2 15 VRA1 4 VRA2 7 XI 21 XO 22 IFL 38 37 IFS LI 11 LPFO1 3 LPFO2 6 LPFO3 9 LRCKI 33 30 LRCKO LZ 12 27 26 MIC1 2 RESN 35 RI 19 RZ 5 AIR 8 AOL 14 AOR 16 BCKI 32 BCKO 29 25 CKS EMP 39 EXTO 40 10 GNDA1 GNDA2 13 34 GNDD GNDL 44 GNDX 23 IFD 36 TC9409BF 7403 AIL 2435 470p +5VA +5V BC817-25 4403 2422 7005 2K2 3592 3V3A 22n +5VA LM833D 7402-B 5 6 7 8 4 10u 2439 8 4 3433 10K LM833D 7404-A 3 2 1 2449 82p I421 1n 2404 47u 2K7 2417 2419 1n 3413 7001 BC817-25 100R 3426 2448 4n7 3404 10K 3407 10K 10K 3406 4400 4416 +5VD VO4 4 VO5 5 VO6 30 VREFA 3 VSSA 20 VSSD 11 WS F503 7 8 15 9 STATIC 16 SYSCLK 27 TST1 22 TST2 6 VDDA 21 VDDD 29 VO1N 28 VO1P 31 VO2N 32 VO2P 1 VO3 2 7400 10 BCK 25 DEEM0 24 DEEM1 12 DI12 13 DI34 14 DI56 26 DS 18 L3CLK 19 L3DATA 17 L3MODE 23 MUTE 3427 100R UDA1328T I450 2415 1n I406 47R 3428 3429 47R I444 3408 2K7 I402 15 GND 8 1 16 VCC +5V 74HCT157D 7405 2 3 4 5 6 7 11 10 9 14 13 12 I419 I446 3V3 4401 4418 2410 100p +5V 4402 4440 3V3A 7 8 5K6 3401 5400 7CHA 1 2 3 4 6 GP1F32T 3 1 2 YKC21-4040 1401-C 9 7 8 LM833D 7402-A 3 2 1 8 4 7406 7039 BC817-25 100n 2403 1n YKC21-3337 1405 1 2 3 -5VA 2423 3415 3423 2K7 3448 10K 100R I530 2428 22n 22n 2408 3449 100R -5VA 22n I423 2447 2400 470n 2431 3n3 3432 10K 3431 10K I405 2K7 3445 3442 2K7 2405 3430 47R 4415 100p F546 I443 7006 F545 100R 3440 BC817-25 3403 10K 2425 1n 2507 100u 10K 3447 4414 3439 100R BC817-25 7004 F504 I425 6411 BAS216 47p 2441 100n 2440 3444 100R 2K7 3443 5 6 7 8 F501 1002 EH-B 1 2 3 4 I430 2413 1n I410 BC817-25 7002 I435 1n 2421 I408 10K 3418 I426 3400 -8VHP YKC21-4040 1401-B 6 4 5 2K2 100R 3450 100u 2508 I433 3402 10K I432 3417 10K I409 3V3 I442 +8VHP I412 I414 4417 47p 2438 BC817-25 7000 22n 2402 +5VA 2412 100u +5VD 2445 22n 3438 47R 2450 22n F552 F547 I447 F551 I400 I404 I436 2426 22n BC817-25 7008 Kill KILL ST_L ST_L HP_R 3437 47R PCM_CLK STEREO_MUTE MICRO PCM_OUT0 SCLK HP_L LRCLK DIG_OUT KILL KILL KILL KILL KILL PCM_OUT2 PCM_OUT1 KILL KILL MICRO P50 39 40 I2C B G R BUFFER OUTPUT OUTPUT BUFFER OUTPUT BUFFER ADJUST LIMITING PEAK DRIVE LIMITING PEAK BEAM GAMMA BRIGHTNESS ADJUST CONTRAST ADJUST SATURATION LEAKAGE AND CUT-OFF CONTROL BLACK ADAPTIVE SYNC INPUT SOURCE SWITCH Y- MATRIX Y-CD/ 4441 C2: AV PCB * * F E D C 2457 C10 2456 D9 3454 A1 2506 D10 2485 E9 2484 B11 2483 B11 2482 I13 2481 G13 2480 F11 2479 F11 2478 H7 2477 H7 2476 G7 1403-A D14 1402 B14 * * * * * I H G 2471 F4 2470 F4 11 10 9 8 7 6 3462 B2 3461 B2 3460 A4 3459 A4 3458 A3 3457 A2 3456 A1 3455 A1 3486 C8 3485 C8 3484 D8 3483 D7 3482 D7 3481 A7 2469 H2 2468 H3 2467 H3 2466 H2 7 G * * * (BC 8 4 8 B ) * * 13 12 11 10 9 8 3501 D11 3500 D11 3499 C11 3498 D10 3497 D9 3496 D9 3495 E9 3494 E9 3493 E8 3492 E8 3491 E8 3490 C8 3489 D8 3488 C8 2475 I6 2474 I5 B A * 4441 D10 * 4 3 2 1 12 2453 D3 2452 C3 2451 B4 1404 A14 1403-C H14 1403-B F14 3505 D12 3504 E12 3503 E11 3534 G10 3533 F10 3532 F10 3531 F10 3530 F10 3529 I8 3528 H8 3527 G8 3526 H7 3525 G7 3524 F7 3480 C5 3479 C6 5 6 5 4 3 2 1 14 13 14 2463 G2 2462 G2 2461 G2 2460 E13 2459 E12 2458 C11 3542 H10 3541 H10 3540 H10 3539 F13 3538 G13 3537 F12 3536 G11 3535 G10 4424 G9 4423 F9 4422 F9 4421 H8 4420 G8 4419 G8 3487 C8 3518 F3 F E D C B A I H 2455 D8 2454 C5 3468 C4 3467 B4 3466 C3 3465 C3 3464 B3 3463 B3 5004 I14 5003 G14 5002 E14 4431 D14 4430 H14 4429 F14 4428 H13 4427 I12 4426 F13 4425 F12 7023 D13 7022 D12 7021 D11 7020 D7 3523 I6 3522 I5 (BC 8 4 8 B ) 1% 1% O PTIO N 470R (BC 8 4 8 B ) (BC 8 4 8 B ) 0R 2465 G3 2464 G2 3475 D4 3474 D2 3473 D2 3472 D2 3471 C2 3502 D12 6413 C6 I456 B3 I455 C2 I454 B2 I453 A2 I452 B1 I451 A2 7409-C C9 7409-B F11 7409-A H11 7408 F3 7029 H13 7028 F13 7027 I8 3594 C10 3593 C12 1% 1% 1% (39R) 1% 1% 2473 I4 2472 F6 3470 C2 3469 C5 3511 H2 3510 I1 3509 I1 3508 H1 3507 E13 3506 E12 I464 C5 I463 C5 I462 B4 I461 B4 I460 A5 I459 B3 I458 D4 I457 B3 I488 I14 I487 H14 I486 F14 I485 F14 I484 G10 I483 F10 7019 D5 7018 C5 1% (BC 8 4 8 B ) (BC 8 4 8 B ) (BC 8 4 8 B ) (BC 8 4 8 B ) (BC 8 4 8 B ) 1% 3478 E6 3477 D5 3476 E5 3548 I13 3547 H12 3546 I11 3545 I10 3544 I10 3543 H10 * I507 B2 I502 I5 I501 I5 I500 H12 I499 F12 I498 E5 I497 D5 I496 A3 I495 C4 I494 C3 I493 C3 I492 D2 I491 D2 7026 H8 7025 F8 ONLY FOR DVD751 * * * 3517 H2 3516 H2 3515 H2 3514 H2 3513 G2 3512 G2 6412 C6 6404 I13 6403 G13 6402 E13 6401 E5 6400 D4 I466 A11 I465 A11 * * * * * * I480 G3 I479 G3 I478 E14 I477 D14 I476 E13 I475 D12 I482 F10 I481 G3 (BC 8 4 8 B ) (BC 8 4 8 B ) 1% ONLY FOR DVD751 (BC 8 4 8 B ) 3521 I5 3520 F5 3519 F3 3550 E3 3549 H13 7014 B4 7013 B3 7012 B2 7011 A2 7010 A3 7009 B2 470R 7 5 0 R 560R (BC8 5 8 B ) (BC8 5 8 B ) BC8 4 8 B BC8 4 8 B 7024 I2 I472 D10 I471 C8 I470 A14 I469 B11 I468 B10 I467 B13 I490 C2 I489 C1 * * 3591 H8 3590 H8 3589 G7 3588 G8 3587 G8 3586 D4 3552 C3 3551 D2 I474 D11 I473 D10 * * * * (BC 8 4 8 B ) * Reserved Parts 7017 C4 7016 C2 7015 C1 10K 3590 I463 BC857B 2478 220n 820R 3473 7016 7029 7010 BC847B 220p 2482 15K 3455 I454 +5VVID 680R 6K8 3463 3469 100R 3466 220p BZX284-C15 6413 BC847B 7011 2457 -5V 3501 6K8 3456 22K -5V I498 5 6 7 1 3 4 2 TCS79 1404 10K 3454 I490 I451 I492 I493 I489 2K2 1K 3588 6404 BZX284-C15 3587 270R 3470 100R 3471 75R 3549 220p 2483 I456 4430 I462 0|6|12 4423 6412 BZX284-C15 3480 3460 8K2 75R BZX284-C15 6401 3478 3497 2K2 3476 -5V I457 1K DSS306 2 1 3 3548 330R 100R 3547 5004 470n 2454 BZX284-C15 6403 7028 -5V 330R 3538 3543 100R 3537 3541 1K 3545 5K6 1K2 2467 10n BC847B I472 47p 2456 7021 7009 3481 75R BC847B 7018 BC847B 2484 220p I497 2K2 3494 +5VVID +5VVID 33R 3492 3586 2K2 +5VVID 2 1 3475 100R BC847B 7019 4431 YKC21-3930 1403-A 1K 3489 I480 I479 7024 BC847B 3591 10K 3496 750R 75R 3516 I461 22K 3511 100u 25 2452 +5VVID +5VVID I470 3495 1K 3493 1K 3458 470R 4K7 3510 I455 I491 220p 2481 I494 I495 8K2 3459 2451 470n +5VVID I468 1K2 +5VVID 3484 3487 2K2 3498 100R 430R 3485 RGB2 1 RO 24 SC 14 SCL 28 SDA 27 VCC 5 8 Y y|HUE 26 4 BCL 15 BO 20 CLAMP1 25 CLAMP2 23 CLAMP3 21 16 CPDL CPDST 18 G1 11 G2 3 GND 9 GO 22 R-Y 7 R1 10 R2 2 RGB1 13 7408 TDA4780 17 19 B-Y 6 B1 12 B2 7017 BC847B I477 +5VVID I464 75R 3479 3474 4K7 -5V 220p I474 6402 BZX284-C15 2458 3539 75R I507 -5V 3550 100R 5003 2 1 3 22K 3457 DSS306 820R 3464 7013 BC857B I460 3488 I465 3486 33R 470R 3520 10K 2471 100n 2470 100n 3527 BC847B 7026 I502 2K2 7025 BC847B 2453 100u 25 3461 270R 75R 3477 I458 2460 220p 7015 BC847B 3468 I467 I469 100R 3482 3499 270R 2K2 3483 I484 100R 3552 I482 I481 10n 2465 470n 5K6 3518 3531 2463 4429 1403-B YKC21-3930 4 3 1K +5VVID I478 7012 BC847B 680R 3551 12 13 14 4 11 I471 3506 2K2 AD8073 7409-C 3467 3504 680R 7 9 10 -5V 100R YKF51 1402 6 1 8 3 4 2 5 I466 I496 2477 220n 10n 2466 100n 2472 1K 3536 2480 22n 3519 1K 2479 470n 2506 1K 1K5 3533 22n +5VVID 3530 4427 2K2 3529 470n 2462 100R 3462 BC857B 7022 7409-B 10 9 8 4 11 I501 6400 BZX284-C15 AD8073 I499 5002 DSS306 2 1 3 I486 7023 BC847B +5VVID 7014 BC847B 75R 3507 47p -5V I500 2455 I483 3534 3535 2K2 AD8073 7409-A 5 6 7 4 11 4425 3594 470K 3593 47R 5 I487 I485 1403-C YKC21-3930 6 3526 100R 4424 I459 4422 2475 I473 2473 47p 470n 3472 6K8 10n 2469 220n 2476 3503 100u 2459 1K 3490 4K7 100R 3505 I453 3502 820R 3524 100R 3509 4K7 10R 3532 4428 4426 3525 100R 3528 2K2 10K 3589 3513 75R 3517 3512 430R 3491 22K I476 22K 2464 10n 7027 BC847B BC847B 7020 100R 2461 470n 3544 3522 4K7 3508 4419 I488 2485 47p 3542 -5V -5V +5VVID 3465 4K7 4420 3500 100R 82K 3523 4421 47p 100R 3521 I475 2474 1K 1K 3540 10n 75R 3515 3546 22K 3514 2468 I452 C Y SCL Vout -5V +5VVID -5V -5V +5VVID +5VVID Bo Go Ro +5VVID B G R -5V +5VVID Y +8V_VID SDA Uout H_SYNC +8V_VID G B R +8V_VID -5V -5V -5V +5VVID R G B -5V +5VVID Bo Go Ro +6Vstby +6Vstby A/V board (A1B, /S1G, /U1B) 41 42 C3 : AV PCB 100u 7401 E2 7411 C6 7412 B6 7413 A4 F508 A1 F509 A1 F510 A1 F511 A1 F512 A1 F513 B1 F514 A2 F515 B1 F516 C2 F517 B1 F525 E1 F526 E1 F527 F1 F528 F1 3582 H8 3583 H9 3584 B5 4411 B6 4434 C4 4435 G10 4436 H10 4437 C6 4438 C7 4439 A5 5000 G10 5001 H10 6405 B2 6406 B3 F529 F1 F530 F1 F532 F1 F533 F1 F534 G1 F535 G1 F536 G1 F537 G1 F538 G1 F539 G1 F540 G1 F542 H1 F543 H1 F544 H1 I503 B3 I504 B3 I505 A4 7038 H8 2503 B6 2504 C7 2505 B8 3553 A3 3554 A3 3555 B3 3556 B4 3557 A5 3558 A8 3559 A8 3560 B8 3561 E2 3562 D2 3563 D3 F518 B1 F519 C1 F520 C1 F521 C1 F522 C1 F523 E1 * (BC 8 4 8 B ) (BC 8 4 8 B ) FOR KOK ONLY (BC8 5 8 B ) * FOR * F524 E1 3581 G8 4 5 6 7 8 9 10 11 1 2 3 4 5 6 6407 A5 6408 H8 6409 D2 6410 H8 6414 D4 7030 A4 COLOR SETTING (BC 8 4 8 B ) 7031 B4 7032 A9 7033 D4 7034 E3 7035 G5 7036 G6 7037 G7 2502 B5 A B C D E F G H 1000 A1 1001 E1 1401-A G11 2486 A5 2487 A6 2488 D4 3566 E1 3567 F1 3568 F2 3569 G2 3572 G5 3573 G5 (BC 8 4 8 B ) (BC3 3 7 - 4 0 ) * * 3574 G6 3575 G6 3576 H6 3577 H6 3578 G7 3579 H7 3580 G7 3 I510 A9 I511 E2 I512 D4 I514 D5 I515 C6 I516 G5 I517 G6 I518 G5 I519 G6 I520 H6 I521 G7 I522 G7 I523 G8 I524 H8 7 8 9 10 11 2494 F2 * # # # (BC 8 4 8 B ) 2495 G2 2496 G2 2499 H6 2500 H11 2501 H11 H I531 B6 # FOR DVD 732 * Reserved Parts * A B C D E F G I506 A4 2489 D5 2490 D6 2491 D7 2492 E2 2493 E3 * # * * * * * (BC8 5 8 B ) * 1 2 I509 A8 LF33CV 7401 GND IN OUT 0R I525 H9 I526 G11 I527 H11 I528 G11 3553 I509 10K 3567 4R7 I506 4434 I505 270R 3572 I504 F508 47u F542 F533 2493 F530 F532 I531 I526 0|6|12 I519 4439 I527 4K7 3556 3554 4K7 F544 I515 F539 3579 100R 220p 2500 F526 F527 F519 100u +5VVID 3569 4R7 2496 I522 I520 I521 3576 4K7 680R 3577 10u 2492 I517 I518 -5VA BC847B 7036 BC857B F511 F535 7037 I514 2501 I528 75R 3583 220p BZX284-C15 6410 3 1 2 4435 F525 F534 YKC21-4040 1401-A +5VVID I524 -5V I516 I523 F523 7412 GND IN OUT 2505 100u 25 4R7 4411 MC79M05 100u 2504 3584 10u 2503 25 10u 22u 2502 2490 4K7 3562 1 3 DSS306 5001 2 1 3 DSS306 5000 2 3563 4K7 3561 +6Vstby 2K2 7032 BC847B 7034 100u 2494 BC847B 6K8 3574 BC847B F522 100R 3573 7035 3581 2487 100u 25 6408 BZX284-C15 75R +6Vstby -5V 47u 2491 F509 10u 2489 GND IN OUT F536 7411 LF80CV -5V 4K7 3559 F537 100R 4436 3578 7033 BC547B I525 4R7 3557 6409 BAS216 BAS216 6407 4437 3568 6405 BAS216 47u 2486 9 2K2 3582 1 10 11 12 13 14 15 16 2 3 4 5 6 7 8 7031 52030 1000 25 100u 2499 -5V BC857B BC547B 7413 F520 F521 F517 F518 F515 2K2 3580 F513 F543 F512 2K7 3560 3558 4K7 F529 F538 F528 +8VHP F524 F516 I510 -8VHP I511 2495 7038 BC847B 4R7 3566 I512 5 6 7 8 9 +8V_VID F514 11 12 13 14 15 16 17 18 19 2 20 21 22 3 4 1001 1 10 6406 3575 820R 7030 BC817-25 BAS216 I503 3555 4K7 2488 470n 4438 6414 BZX284-C9V1 F540 F510 CVBS CVBS_2 CVBS_1 3V3 +5VD +5V +5VVID P50 KILL PCM_OUT0 LRCLK SCLK PCM_CLK B STEREO_MUTE DIG_OUT G R CVBS +5VA H_SYNC PCM_OUT2 PCM_OUT1 SCL SDA +6Vstby C Y DC_OFF +5V +6Vstby DC_OFF DC_OFF CL06532021_008.eps 230200 A/V board (A1B, /S1G, /U1B) 43 44 A/V Pwb (A1B, /S1G, /U1B) 45 46 A/V Pwb (A1B, /S1G, /U1B) 47 48 12. TROUBLESHOOTING DISPLAY PCB OK. NO DISC POWER ON DISPLAY? Check presence of high pulses at pin 23 of IC7104 while pressing a key on remote control. Check IR receiver 6610. Check safety resistor R3131. Diagnostic software “Player script” : Remote control test. Check if voltage at connector 1117-1 is 4.9V when power on (no light) Check if voltage at base of Tr 7109 is 4.9V when power on (no light). Check if voltage at connector 1117-1 is 3.33V during standby (light). Diagnostic software “Player script” : LED test. Check matrix scanning at pin 36 and 37: see test instructions. Check matrix scanning at pin 26,27,28,29,30,31,32,33. Diagnostic software “Player script” : Keyboard test. Check supply voltages The display pcb uses a 24V stabiliser(7112) in combination with a 10V zenerdiode(6102). Check input voltage: at connector 1115-4: -40V 5% Check output voltage at anode of Diode 6102: -10V 5% Check stabilizer 7112 output (VKK): -34V 7% Check +5Vstb voltage at connector 1115-3: +5V 5% Check safety resistor R3117 Check +12V at connector 1115-1: +12V 10% Check filament voltage AC voltage is created via uP output pin 19 generating a 42kHz (duty cycle 45/55) square signal. Check frequency : 42kHz 10% Check buffered square output at emitter of transistor 7105; low level: 800mV, high level: 10.7V Check DC decoupling: check RMS voltage between FIL1 and FIL2 lines: 3.9Vrms + Connect to mains. During the test, the following display is shown: the counter counts down from the number of nuclei to be run before the test finishes. Example: SET O.K.? YES NO To exit DEALER SCRIPT ,disconnect from mains. 54 13.2 PLAYER SCRIPT 13.2.1 Purpose of Player Script The Player script will give the opportunity to perform a test that will determine which of the DVD player's modules are faulty, to read the error log and error bits and to perform an endurance loop test. To successfully perform the tests, the DVD player must be connected to a tv set to check the output of a number of nuclei. For DVDv2b a multi-channel amplifier, a set of 6 boxes and an external video source are necessary to test. To be able to check results of certain nuclei, the player script expects some interaction of the user (i.e. to approve a test picture or a test sound). Some nuclei (e.g. nuclei that test functionality of the Basic Engine module) require that the DVD player itself is opened, to enable the user to observe moving parts and approve their movement visually. Only tests within the scope of the diagnostic software will be executed hence only faults within this scope can be detected. 13.2.2 Contents of Player Script The player script contains all nuclei that are useful on a DVD player that is connected to a tv-set and help to determine which module of the DVD player is faulty, as well as to read out the contents of the error logs. 13.2.3 Structure of Player Script The player script consists of a set of nuclei testing the three hardware modules in the DVD player: the Display PWB, the Digital PWB and the Basic Engine. Nuclei run by the player test need some user interaction; in the next paragraph this interaction is described. The player test is done in two phases: 1. Interactive tests: this part of the player test depends strongly on user interaction and input to determine nucleus results and to progress through the full test. Reading the error log and error bits information can be useful to determine any errors that occurred recently during normal operation of the DVD player. 2. The loop test will perform the same nuclei as the dealer test, but it will loop through the list of nuclei indefinitely. 13.2.4 Survey Figure 13-3 SLEDGE TEST BeSledgeOut/In(41ab) FOCUS TEST BeFocusOn(38a) DISC MOTOR TEST BeDiscMotorOn(39a) RADIAL TEST BeRadialOn(40a) JUMP TEST BeGroovesIn/Mid/Out(42abc) Press 2 keys simultaneously + Connect to mains To exit player test, disconnect from mains INTERACTIVE TESTS DISPLAY TEST DispDisplay(30) LED TEST DispLed(29) KEYBOARD TEST DispKeyb(27) SCART LOOP TEST AudioPinkNoiseOn(20a) VideoScartSwDvd(54a) VideoColDencOn(23a) PICTURE TEST DISPLAY PCB MONO PCB(SERVO) & BASIC ENGINE MONO PCB DIGITAL PART TRAY TEST BeTrayOut/In(43ab) VERSION NUMBER BeVer(37) REMOTE CONTROL DispRc(28) TRAY TEST BeTrayOut/In(43ab) ERROR LOG & BITS LogReadErr(31) LogReadbits(32) LOOP TEST = Dealer script exclusive of test2 AudioSineOn(21a) SOUND 1 TEST SCART DVD TEST SOUND 2 TEST VideoScartSwPass(54b) 55 14. INTERACTIVE TESTS 14.1 DISPLAY PCB 14.1.1 DISPLAY TEST The display test is performed by nucleus DispDisplay. By putting a series of test patterns on the local display, the local display is tested. To step through all different patterns, the user must either press PLAY (pattern is ok) or PAUSE (pattern was incorrect) to proceed to the next pattern. The display of patterns is continued in a cyclic manner until the user presses NEXT. If the user presses NEXT before all display patterns are tested, the DispDisplay nucleus will return TRUE (display test successful). 14.1.2 LED TEST The LED(s) on the DVD player is (are) tested by nucleus DispLed. The user must check if the LED(s) is (are) lighted; if it is, press PLAY, if it is not, press PAUSE. By pressing NEXT the script will proceed to the next test. If the user presses NEXT before PLAY or PAUSE, the DispLed nucleus will return TRUE (LED test successful). Figure 14-1 14.1.3 KEYBOARD TEST The keyboard of the DVD player is tested by nucleus DispKeyb. The user is expected to press all keys on the local keyboard once. The code of the key pressed is shown on the local display (1 hexadecimal digit) immediately followed by a (hexadecimal) number indicating how many times that key has been pressed. Example of the local display during this test: Figure 14-2 The key-codes displayed on the local display will scroll from right to left when the display gets full, the text "tb-" will remain on display. Figure14-3 If any keys are detected more than once (due to hardware error), the key-code is displayed twice (or more), with the second digit increased by 1. If the user does not press all keys minimally once (in any order), the DispKeys nucleus will return FALSE and cause an error in the overall result of the player script. The user can leave the keyboard test by pressing the NEXT key on the local display of the DVD player for at least one full second. The result of the keyboard test is shown on local display as follows: Figure 14-4 Or Figure 14-5 Pressing NEXT on the local keyboard again will proceed to the next text. 14.1.4 REMOTE CONTROL TEST The remote control of the DVD player is tested by nucleus DispRc. The user must press any key on the remote control just once. The codes of the key pressed will be shown on the local display in hexadecimal format. Example: Figure 14-6 If OK, press PLAY If NOK, press PAUSE If OK, press PLAY If NOK, press PAUSE If OK, press PLAY If NOK, press PAUSE press NEXT to continue key id. key 0 PLAY 1 NEXT 2 PREVIOUS 3 PAUSE 4 STOP 5 SOUND 6 OPEN / CLOSE 56 In this example 23 is the hexidecimal code of the pressed RC key. The user can leave the remote-control test by pressing NEXT on the local keyboard of the DVD player. The remote control test is successful if a code was received before the user pressed the NEXT key; pressing the NEXT key before pressing a key on the remote control gives an error in the remote control test (note that the remote control test will also fail if a key on the remote control was pressed but no code was received). The remote control test does not check upon the contents of the received code, that is it will not be checked if the received code matches the key pressed. If desired, the user can manually check this code by using a code-table for the remote control key-codes. Figure 14-7 After pressing NEXT, the result of the remote control test is displayed on the local display of the DVD player as follows: Figure 14-8 Or Figure 14-9 Pressing NEXT on the local keyboard again will proceed to the next test. 14.2 MONO PCB DIGITAL PART 14.2.1 PICTURE TEST The picture test is performed by putting a predefined picture (colour bar) on the display (nucleus VideoColDencOn) and asking the user for confirmation. The display will show the following message: Figure 14-10 By pressing PLAY the user confirms the test, pressing PAUSE will indicate the picture was invisible or incorrect. Pressing NEXT will proceed to the next test 14.2.2 SOUND 1 & SCART DVD TEST The first soundtest is performed by starting a pink noise sound that needs confirmation from the user (nucleus AudioPinkNoiseOn); the display will show the following message very shortly: Figure 14-11 This sound will only be audible from version cut3.1 of Sti5505(item7503 on mono board) onwards. After starting up sound 1, SCART loop-trough will be simultaneously active during this test. SCART loop-trough will be measured with the aid of an external video source. When entering the SCART loop-trough, the local display indicates: RC Key id Hexadecimal code STANDBY C STOP 31 PLAY 2C PAUSE 30 NEXT 20 PREVIOUS 21 CURSOR UP 58 CURSOR DOWN 59 CURSOR LEFT 5A CURSOR RIGHT 5B OK 5C 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 ANGLE 85 AUDIO 4E SUBTITLES 4B ROOT MENU 54 OSD ON/OFF F RETURN 83 SHUFFLE 1C REPEAT 1D A/B REPEAT 3D 57 Figure 14-12 On the TV screen a colour bar (generated by nucleus VideoColDencOn) is visual and the internally generated pinknoise is audible. By pressing PLAY the user confirms the test, pressing PAUSE will indicate the sound was inaudible or incorrect. Pressing NEXT will proceed to the next test; if the user presses NEXT without pressing PLAY or PAUSE first, the result of this test will be TRUE (sound ok). By pressing the NEXT button there will be switched over to the external source, this must become now visible on the TV screen (using the SCART). The local display indicates: Figure 14-13 The internally generated colour bar is still available on the CVBS and Y/C outputs. And the pinknoise-signal is still available on the cinch audio outputs. By pressing the PREV button, the internal generated colour bar becomes visual again. The test can be left by pressing the NEXT key for more than one second. 14.2.3 SOUND 2 TEST The second soundtest is performed by producing a sine sound (nucleus AudioSineOn). The signal can be stopped by pressing the STOP-key. The display will show the following message: Figure 14-14 By pressing PLAY the user confirms the test, pressing PAUSE will indicate that something went wrong. Pressing NEXT will proceed to the next; if the user presses NEXT without pressing PLAY or PAUSE first, the result of this test will be TRUE (sound ok). 14.3 BASIC ENGINE 14.3.1 VERSION NUMBER In the basic engine tests, the version number of the Basic Engine will be shown first, as the following example: Figure 14-15 By pressing the NEXT key, the Basic Engine tests are started. 14.3.2 TRAY TEST First, the tray is tested. The purpose of this test is also to give the user the opportunity to put a disc in the tray of the DVD player. Some tests on the Basic Engine require that a disc(e.g. DVD MPTD test disc) is present in the player. At the end of the Basic Engine tests this tray test will be repeated solely to enable the user to remove the disc in the tray. The local display will look as follows: Figure 14-16 By pressing PLAY or PAUSE the user can toggle the position of the tray. Note that this test will not contribute to the test result of the Basic Engine. Pressing NEXT will proceed to the next test, after the tray has been closed (by the software) if it was open. 14.3.3 SLEDGE TEST(visual test) The second Basic Engine test tests the sledge; the user can move the sledge as many times as desired by using PLAY (nucleus BeSledgeOut) and PAUSE (nucleus BeSledgeIn). Pressing NEXT on the local keyboard proceeds to the next test. Note that this test will not contribute to the test result of the Basic Engine. The local display will look as follows during the sledge test: Figure 14-17 14.3.4 DISC MOTOR TEST(visual test) The third Basic Engine test tests the disc motor (nucleus BeDiscMotorOn); the local display looks as follows: 58 Figure 14-18 By pressing PLAY the user confirms that the disc motor is running; pressing PAUSE indicates the disc motor does not work. Pressing NEXT proceeds to the next test, after a reset of the disc motor (nucleus BeDiscMotorOff). If the user presses NEXT before pressing PLAY or PAUSE, the result of this test will be TRUE (disc motor is running). 14.3.5 FOCUS TEST(visual test) The fourth Basic Engine test tests the focussing; first focussing is turned on by calling nucleus BeFocusOn. The display will look as follows: Figure 14-19 By pressing PLAY the user confirms that the focussing was succesful; pressing PAUSE indicates a focussing failure. Pressing NEXT proceeds to the next test after a reset of the focussing (nucleus BeFocusOff); if NEXT is pressed before PLAY or PAUSE, the result of this test will be TRUE (focus successful). 14.3.6 RADIAL TEST(visual & listening test) The fifth Basic Engine test tests the radial functionality (nucleus BeRadialOn); the local display looks as follows: Figure 14-20 By pressing PLAY the user confirms that the radial function worked; pressing PAUSE indicates the function does not work. Pressing NEXT proceeds to the next test, after a reset of the radial (nucleus BeRadialOff). If the user presses NEXT before pressing PLAY or PAUSE, the result of this test will be TRUE (radial successful). 14.3.7 JUMP TEST(listening test) The sixth and last Basic Engine test tests the jumping by calling nuclei BeGroovesIn, BeGroovesMid and BeGroovesOut. During this test, the local display looks as follows: Figure 14-21 The user can switch between the three different types of groove settings by pressing PLAY (forward to next nucleus in the list In-Mid-Out) or PAUSE (backward in the list In-Mid-Out). This is done in a cyclic manner; note that this test will not contribute to the test result of the Basic Engine. Pressing NEXT proceeds to the next test, after the disc motor has been shut off with a call to nucleus BeDiscMotorOff. 14.3.8 TRAY TEST As a last action for the Basic Engine tests, the tray test is repeated. The local display will look as follows: Figure 14-22 This test is meant to give the user the opportunity to remove the disc in the tray. The tray position can be toggled using the PLAY and PAUSE key. The tray will be closed (by the software, if it is open) before proceeding to the next test when the user presses the NEXT key. 59 14.3.9 ERROR LOG Reading the error log and error bits information can be useful to determine any errors that occurred recently during normal operation of the DVD player. Reading the error log is done by nucleus LogReadErr. The display during the errorlog readout looks as follows : Figure 14-23 By pressing PLAY or PAUSE the user can move forward or backward (respectively) through the logged error codes. The highlighted number indicates which errorcode is currently on display (in the example above, errorcode number 4 is displayed). If "0000" is displayed at all positions, the error log is empty. Display of the logged errors is done in a cyclic manner. The errorcode with the lowest highlighted number is the most recent. By pressing NEXT on the local keyboard, the user can proceed to the next test. 14.3.10 ERROR BITS Reading the error bits is done by nucleus LogReadBits. The display during the errorbits readout looks as follows: Figure 14-24 Only the set errorbits will be shown by their (decimal) number. Refer to the appropriate documentation for the explanation of each bit number. If the display only shows "EB-0", no error bits were set. By pressing NEXT the user can continue to the next test. See table below: Error log / bits table Read ERROR LOG in player script Read ERROR BITS in player script Basic engine errors Value: Value: Command to the Basic Engine not allowed in this state or unknown command 150101 8 Parameter(s) from the command to the Basic Engine is not valid 150102 7 Sledge could not be moved to the inner home position 150103 6 Focus failure 150104 5 Turntable motor speed could not be reached within timeout 150105 4 Radial servo could not get on track on the disc 150106 3 PLL could not lock in the accessing or tracking state 150107 2 Subcode or sector information could not be read 150108 1 requested subcode could not be found 150109 16 Tray could not be closed or opened completely 15010A 15 TOC could not be read within timeout 15010B 14 The requested seek on the disc could not be executed 15010C 13 A requested lead-in is not on the disc 15010D 12 A non existing burst cutting area is requested 15010E 11 S2b communication error 1501F0 10 S2b communication error 1501F1 9 S2b communication error 1501F3 24 S2b communication error 1501F4 23 S2b communication error 1501F5 22 Digital PWB errors Communication error with the Sti 5505 90000 32 Communication error with the Sti 5505 90001 31 Disply processor errors Communication error with the display processor 190000 40 60 14.4 LOOP TEST At the start of the loop test, the display will show the result of the interactive player test: Figure 14-25 The left side of the display contains a 3-digit code, which can have a value between 000 and 111. These values are to be interpreted as follows: Figure 14-26 The loop test will perform the same nuclei as the dealer test, but it will loop through the list of nuclei indefinitely. The display of the DVD player will display not only the three digits indicating correct/faulty modules and the last found error code (as mentioned, faults are detected as far as they can be within the scope of the diagnostic software), but also a loop counter indicating how many times the loop has been gone through. Example: Figure 14-27 The number after the hyphen indicates the number of times the loop test has been performed; the 4 digits at the right side of the display show the last error that was found when running the loop test: the leftmost two digits of this code indicate which nucleus resulted in a fault; the rightmost two digits refer to the faultcode within that nucleus. For further explanation of this error code, see list of error codes below. Figure 14-28 Displayed Value Indication for each module Basic Engine Mono PCB Display PCB 000 ok ok ok 001 ok ok faulty 010 ok faulty ok 011 ok faulty faulty 100 faulty ok ok 101 faulty ok faulty 110 faulty faulty ok 111 faulty faulty faulty FAULTY MODULE(S) LOOP COUNTER NUCLEUS ERROR ERROR CODES LOOP TEST ERROR CODE NUCLEUS NUMBER ERROR DESCRIPTION 0601 6 Calculated checksum of FLASH is not correct 0901 9 The DVD DRAM is faulty 1104 11 I2C bus busy before start 1102 NVRAM access time-out 1103 No NVRAM Acknowledge 1104 NVRAM reply time-out 1201 12 I2C bus busy 1202 I2C bus not working 1203 Slave controller not responding 1204 Slave response is not correct 1301 13 Parity error from basic engine to serial 1302 Parity error from serial to basic engine 1303 No communication between serial and basic engine 1304 Communication time-out error 1601 16 The SDRAM is faulty 61 14.5 Servicing DVD module and MONO board The DVD module(Basic Engine and the mono board) has to be exchanged completely in case of failure. A new module for DV4100 can be ordered with codenumber 3104 129 51980. 14.5.1 Reprogramming of new mono boards. Figure 14-29 14.5.2 Reset of Virgin Mode After the player has been powered up for test by the dealer, it would have gone through the Virgin Mode. It is possible to reset the settings made during that mode before the delivery of player to the customer. This can be done as shown in the following diagram: Figure 14-30 Figure 14-31 Caution This information is confidential and may not be distributed. Only a qualified service person should reprogram the mono board. After replacement of the mono board, all the customer settings and also the region code will be lost. Reprogramming of the mono board will put the player back in the state in which it has left the factory, i.e. with the default settings and the allowed region code. Reprogramming will be done by way of the remote control. Put the player in stop mode, no disc loaded. Reprogramming is limited to 25 times When the counter reaches 25, reprogramming is not possible anymore Press the following keys on the remote control: followed by numerical keys <2> <7> <4> The display shows: “- - - - - - - - - - -” Press now successively the following keys : for DV4100/A1B : <0><1><5> <0><0><0><0><0><0><0><0><0> PAL / NTSC for DV4100/N1B : <0><1><2> <0><0><0><0><0><0><0><0><0> PAL / NTSC for DV4100/S1G : <0><1><3> <0><0><0><0><0><0><0><0><0> PAL / NTSC for DV4100/U1B : <0><1><0> <0><0><0><0><0><0><0><0><0> PAL / NTSC Press again. The TV screen will become BLUE during a short time to confirm that the mono board has been reprogrammed, then the set goes to standby mode. DISCONNECT FROM MAINS PRESS 2 KEYS SIMULTANEOUSLY + CONNECT TO MAINS VIRGIN MODE IS RESET TV SCREEN SHOWS VIRGIN MODE MENU DISCONNECT FROM MAINS IF TRADE MODE OFF PRESS 2 KEYS SIMULTANEOUSLY + CONNECT TO MAINS DISCONNECT FROM MAINS IF TRADE MODE ON PLAYER IS IN NORMAL MODE WHEN PRESSING FRONT KEYS, THE PLAYER WILL RESPOND PRESS 2 KEYS SIMULTANEOUSLY + CONNECT TO MAINS PLAYER IS IN TRADE MODE WHEN PRESSING FRONT KEYS, THE PLAYER DOESN'T RESPOND TRADE MODE When the player is in Trade Mode, the player cannot be controlled by means of the front key buttons, but only by means of the remote control. For /U1B with old DVD module "VAE3000". (Production WEEK36 or earlier) For other DV4100 Please refer the DVD Module ADS-1 Service Manual (3122 785 10840) attached with this Service Manual. For servicing DVD Module ADS-1, the service application softwear "ComPair" is necessary. 62 15. TEST INSTRUCTIONS DISPLAY BOARD 15.1 Display board 15.1.1 Introduction These test instructions are written for all versions of the display PCB 3104 123 42230. The contents of the PCB can be split up into next blocks: Figure 15-1 15.1.2 Functionality description: The essential component of the display PCB is the P (slave). This slave works on an 8MHz resonator and has a reset circuit that is triggered by the +5Vstby. After the reset pulse, the standby control line will release the reset of the host P. This host P will then initialise the slave. In addition, when going to stand-by, the slave will put the host P in reset. When the slave receives the right IR or key code to leave the standby mode, the reset of the host P will be released. Other slave functions are: Square signal generator to generate the filament voltage, which is required for an AC FTD. Generates the grid and segment scanning for the FTD. Generates a scanning grid for the keys (separated from display scanning). Has inputs for RC (RC5 and RC6) and P50 (P50 controller is built in). 15.1.3 General Oscilloscope measurements have been carried out using a Philips PM3392A. Impedance of measuring-equipment should be > 1M . To do correct measurements we recommend to use supply 3122 427 21370, which is used in all "second generation B" DVD-players. Make sure that the main 3.3V has a 0.7A load. 15.1.4 Reset Check next reset timing with an oscilloscope at pin 10 of the microprocessor. Figure 15-2 Timing: 400msec < T1 > 700msec. CH1: +5Vstby voltage at power on. CH2: Voltage at pin 10. 15.1.5 Display steerign Check next timing and level for all grid-lines (G1 r G14). Figure 15-3 1. Check level A: +4V5 +/-10% for grid lines 1 => 11 2. Check level A: +4V0 +/-10% for grid lines 12 => 14 3. Check level B: -33V +/-10% 4. Check timing and levels of segment-lines P1 => P10: Figure 15-4 Processor I2C Display Key-matrix RC-Eye V filament V filament Buffer P50 I/O Supply: +5Vstby +12V -40V PM3392A ch1 ch2 CH1 2. 00 V= CH2 2 V= BW L MTB 100 ms- 1.04d v ch2+ 1 2 T T1 PM3392A ch1 ch1: low =-34.2 V ch1: high= 3.98 V STOP CH1 10.0 V= MTB 200us 2324us ch1+ 1 T A B PM3392A ch1 CH1 10. 0 V= BWL MTB 500u s- 1.04 dv ch1 + 1 T A B 63 Level A:+4V5 +/-10% Level B:-33V +/-10% The data on these segment lines depend on the characters that are displayed. The characters can be set by sending I2C commands to the display. See the Slave URS how to send a display command. 15.1.6 Key-matrix Connect a extra 10k pull-up to pin 36 en 37 of the P and check next matrix scanning at these pins. Figure 15-5 Level A: 5.0V +/-7% Level B: 0V +/-200mV Check matrix scanning from pin 26 until 33 of the P. The results should be the same as the diagram above. 15.1.7 I.R. receiver Check at pin 23 of the P if this line switches from low (< 0.3V) to high (> 4.5V), while pressing a key on a Philips RC5 or RC6 remote control. 15.1.8 P50 interface P50 is a bi-directional serial interface, which is used for communication between video equipment. For European sets, this communication goes via pin 10 of the scart-bus. In other regions, it can be a cinch bus at the back of the set. 1. Keep the P in reset by short-circuiting emitter and collector of transistor 7108, via resistor 3100 and 3104 transistor 7101 is switched on. 2. Check the voltage at the P50 output connector 1118-5: < 200mV. When the reset is released the P output-pin becomes low and transistor 7101 is switched off. 1. Check the voltage at the P50 output connector 1118-5: 4V9 +/-5%. 2. Check also the P P50 input ( P pin 20): 5V +/-5%. 3. Connect the P50 line (connector 1118-5) to ground. 4. Check again the P P50 input ( P pin 20): <0V3. PM3392A ch1 ch1: low =-46.9mV ch1: high= 5.09 V STOP CH1 2.00 V= MTB10.0ms ch1- 1 B A 64 16. CURRENT MODE POWER SUPPLY 20PS203 16.1 Blockdiagram Figure 16-1 16.1.1 Function description of the current mode power supply MOSFET 7125 is used as a power switch controlled by the controller IC 7110. When the switch is closed, energy is transferred from the mains into the transformer. This energy is then supplied to the load when the switch is opened. By control of the switched-on time, the energy transferred in each cycle is regulated so that the output voltages are independent of load or input voltage variations. The controlling device MC44603P is an integrated pulse width modulator. A clock signal initiates power pulses at a fixed frequency. The termination of each output pulse occurs when an analogue of the inductor current reaches a threshold established by the error signal. In this way the error signal actually controls the peak inductor current on cycle-by-cycle basis. 16.2 General description of MC44603 The MC44603 is an enhanced high performance controller that is specifically designed for Off-line and dc-to dc converter applications. This device has the unique ability of automatically changing operating modes if the converter output is overloaded., unloaded, or shorted. The MC44603 has several distinguishing features when compared to conventional SMPS controllers. These features consist of a foldback facility for overload protection, a standby mode when the converter output is slightly loaded, a demagnetisation detection for reduced switching stresses on transistor and diodes, and a high current totem pole output ideally suited for driving a power MOSFET. It can also be used for driving a bipolar transistor in low power converters. It is optimised to operate in discontinuous mode but can also operate in continuous mode. Its advanced design allows use in current mode or voltage mode control applications. 16.3 Pin connections Figure 16-2 +6V Stand By GNDs Feedback Voltage Rsense 7201 7200 6230 6260 6250 6240 5131 7125 2121 REGULATION EMI FILTER MAINS +12V -8V Stand By R Q S OSC. + + - - 2.5V Error Amplifier latch Lightning Protection Rectifier 1 5 7 9 Soft-Start Control Overvoltage Mgmt Mgmt Demagnet. Output Sense Current Sense Input Buffer Supply Init Out Gnd 7110 6129 6132 Vc +5V 2240 2260 Stand By +5V Stand By -40V +3V3 GND 7233 2250 7236 2230 6210 2210 6220 Rref R Frequency Standb Voltage feedback In Error Amp Output R Power Standby Sof-Start/Dmax/ Voltage Mode Sync Input Overvoltage Protection(OVP) Current Sense Input Demag. Detection Foldback Input 10 7 CT 8 9 6 5 11 12 Output Gnd VC VCC 3 4 2 14 13 15 1 16 65 16.4 Blockdiagram of MC44603 Figure 16-3 16.5 Pin function description Figure 16-4 VS8 OUT CONTROL Dmax & SOFT-START Vref Voc GND OUT VC PROTECT VOLTAGE OVER MANAGEMENT OVER VOLTAGE DEMAGNETISATION MANAGEMENT OSCILLATOR STANDBY (REDUCED FREQUENCY) ERROR AMP CURRENT SENSE DEMAGNETISATION DETECT SYNC INPUT CT RF STANDBY Iref REFERENCE BLOCK SUPPLY INITIALISATION BLOCK Vref Iref Vref enable UVL01 VOSC VOSC PROT =1 LATCH THERMAL SHUTDOWN BUFFER VOLTAGE FEEDBACK 2.5V RP STANDBY Iref UVL01 Vref FOLDBACK FOLDBACK INPUT CURRENT SENSE INPUT SOFT-START & DMAX 1 2 3 4 6 5 7 11 8 9 10 15 12 14 13 E/A OUT 16 C 1Set 1Reset Vstby MC44603P Pin function description Pin Name Description 1 VCC This pin is the positive supply of the IC. The operating voltage range after start-up is 9.0 to 14.5 V. 2 VC The output high state (VOH) is set by the voltage applied to this pin. 3 Output Peak currents up to 750 mA can be sourced or sunk, suitable for driving either MOSFET or Bipolar transistors. 4 Gnd The groundpin is a single return, typically connected back to the power source. 5 Foldback Input The foldback function provides overload protection. 6 Overvoltage Protection When the overvoltage protection pin receives a voltage greater than 2.5V, the device is disabled and requires a complete restart sequence. 7 Current Sense Input A voltage proportional to the current flowing into the power switch is connected to this input. 8 Demagnetisation Detection A voltage delivered by an auxiliary transformer winding provides to the demagnetisation pin an indication of the magnetisation state of the flyback transformer. A zero voltage detection corresponds to complete core saturation. 9 Synchronisation Input The synchronisation input pin can be activated with either a negative pulse going from a level between 0.7V and 3.7V to Gnd or a positive pulse going from a level between 0.7V and 3.7V up to a level higher than 3.7V. The oscillator runs free when Pin 9 is connected to Gnd. 10 CT The normal mode oscillator frequency is programmed by the capacitor CT choice together with the Rref resistance value. CT, connected between Pin 10 and Gnd, generates the oscillator sawtooth. 11 Soft- Start/Dmax/Volta ge-Mode A capacitor, resistor or a voltage source connected to this pin limits the switching duty-cycle. This pin can be used as a voltage mode control input. By connecting Pin 11 to Ground, the MC44603 can be shut down. 12 RP Standby A voltage level applied to the RP Standby pin determines the output power level at which the oscillator will turn into the reduced frequency mode of operation(i.e. standby mode). An internal hysteresis comparator allows to return in the normal mode at a higher output power level. 13 E/A Out The error amplifier output is made available for loop compensation. 14 Voltage Feedback This is the inverting input of the Error Amplifier. It can be connected to the switching power supply output through an optical (or other) feedback loop. 15 RF Standby The reduced frequency or standby frequency programming is made by the RF Standby resistance choice. 16 Rref Rref sets the internal reference current. The internal reference current ranges from 100 A to 500 A. This requires that 5.0k Rref 25k . 66 16.6 Operating description The input voltage Vcc(pin 1) is monitored by a comparator with hysteresis, enabling the circuit at 14.5V and disabling the circuit below 7.5V. The error amplifier compares a voltage Vfb(pin 14) related to the output voltage of the power supply, with an internal 2.5V reference. The current sense comparator compares the output of the error amplifier with the switch current Isense(pin 7) of the power supply. The output of the current sense comparator resets a latch, which is set every cycle by the oscillator. The output stage is a totem pole, capable of driving a MOSFET directly. 16.6.1 Start-up sequence t1: Charging the capacitor at Vcc C2129 will be charged via R3123 and R3134, C2133 and C2111 via R3129. The output is switched off during t1. t2: Charging of output capacitors When the input voltage of the IC exceeds 14.5V, the circuit is enabled and starts to produce output pulses. The current consumption of the circuit increases to about 17mA, depending on the external loads of the IC. At first, the capacitor at the Vcc pin will discharge because the primary auxiliary voltage, coming from winding 7-9 is below the Vcc voltage. At some moment during t2, the primary auxiliary voltage reaches the same level as Vcc. The Vcc voltage is now determinated by this primary auxiliary voltage. t3: regulation The output voltage of the power supply is in regulation t4: overload When the output is shortened, the supply voltage of the circuit will decrease and after some time drop below the lower threshold voltage. At that moment, the output will be disabled and the process of charging the Vcc capacitor starts again. If the output is still shorted at the next t2 phase, the complete start-and stop sequence will repeat. The power supply comes in a hiccup mode Figure 16-5 Start-up sequence 16.7 Regulation Figure 16-6 shows the most relevant signals during the regulation phase of the power supply. The oscillator voltage ramps up and down between V1 and V2. The voltage at the current sense terminal is compared every cycle with the output of the error amplifier Vcomp. The output is switched off when the current sense level exceeds the level at the output of the error amplifier. 1. TimeON phase : A drain current will flow from the positive supply at pin 1 of the transformer through the transformer's primary winding, the MOSFET and Rsense to ground. As the positive voltage at pin 1 of the transformer is constant, the current will increase linearly and create a ramp dependent on the mains voltage and the inductance of the primary winding. A certain amount of energy is stored in the transformer in the form of a magnetic field. The polarity of the voltages at the secundary windings is such that the diodes are non-conducting. 2. TimeDIODE phase : When the MOSFET is switched off, energy is no longer supplied to the tranformer. The inductance of the tranformer now tries to maintain the current which has been flowing through it at a constant level. The polarity of the voltage from the transformer therefore becomes reversed. This results in a current flow through the tranformer's secondary winding via the diodes, electrolytic capacitors and the load. This current is also ramp shaped but decreasing. 3. TimeDEAD phase : when the stored energy has been supplied to the load, the current in the secondary windings stops flowing. At this point the drain voltage of the MOSFET will drop to the voltage of C2121 with a ringing caused by the Drain-Source capacitance with the primary inductance. The oscillator will start a next cyclus which consists of the described three phases. The time of the different phases depends on the mains voltage and the load. TimeDEAD is maximum at an input of 400VDC and minimum load, it will be zero at an input of 100VDC and overload. Figure 16-6 Regulation 1mA Vo 0 OUTPUT t4 short Icc 0V 17mA 14.5V 7.5V t1 Vcc p.a.v. t2 t3 10V Vosc Idiodes Vgate Vdrain Idrain Vsense Vcomp 0 V2 V1 Ton Tdiode Tdead 67 16.8 Oscillograms Figure 16-7 PM3394B ch2 ch3 ch1 CH1 2 CH2 CH3 2 V~ ALT MTB5.00us- 0.90dv ch1- 1 2 3 T ch1 : Drain voltage ch2 : Drain current ch3 : Gate voltage PM3394B ch3 ch1 CH1 1 CH3 50mV~ ALT MTB5.00us- 0.90dv ch1- 1 3 T ch1 : Drain voltage ch2 : Oscillator voltage PM3394B ch3 ch1 CH1 1 CH3 20mV~ ALT MTB5.00us- 0.90dv ch1- 1 3 T ch1 : Drain voltage ch3 : Sense voltage 68 17. CIRCUIT DESCRIPTIONS AND ABBREVIATIONS 17.1 Input circuit The input circuit consists of a lightning protection circuit and an EMI filter. The lightning protection comprises R3120, gasarrestor 1125 and R3124. The EMI filter is formed by C2120, L5120, C2125 and C2126. It prevents inflow of noises into the mains. 17.2 Primary rectifier/smoothing circuit The AC input is rectified by rectifier bridge 6120 and smoothed into C2121. The voltage over C2121 is approximately 300V. It can vary from 100V to 390V. 17.3 Start circuit and Vcc supply This circuit is formed by R3123, R3134, C2129, D6129, R3129, R3111, C2133 and C2111. When the power plug is connected to the mains voltage, the stabilised voltage over D6129(24V) will charge C2133 via R3129. When the voltage reaches 14.5V across C2111, the control circuit of IC7110 is turned on and the regulation starts. During regulation, Vcc of IC7110 will be supplied by the rectified voltage from winding 7-9 via R3135, D6132 and C2133. 17.4 Control circuit The control circuit exists of IC7110, C2102, 2104, 2107, 2109, 2110, R3102, 3103, 3104, 3107, 3108, 3109 and 3110. The frequency of the oscillator is defined by C2102 and R3110. Power switch circuit This circuit comprises MOSFET 7125, Rsense 3126, 3127 and 3128, R3125 , C2127, L5125, R3112 and R3113. R3125 is a pull-down resistor to remove static charges from the gate of the MOSFET. 17.5 Regulation circuit The regulation circuit comprises opto-coupler 7200 which isolates the error signal from the control IC on the primary side and a reference component 7201. The TL431(7201) can be represented by two components: a very stable and accurate reference diode a high gain amplifier Figure 17-1 TL431 will conduct from cathode to anode when the reference is higher than the internal reference voltage of about 2.5V. If the reference voltage is lower, the cathode current is almost zero. The cathode current flows through the LED of the opto-coupler. The collector current of the opto-coupler flows through R3106, producing an error voltage, connected to voltage feedback pin 14 of IC7110. 17.6 Demagnetisation The auxiliary winding (7-9) voltage is used to detect magnetic saturation of the transformer core and connected via R3101 to pin 8 of IC7110. During the demagnetisation phase, the output will be disabled. 17.7 Overvoltage protection circuit This circuit consist of D6114, C2114, R3115 and R3116. When the regulation circuit is interrupted due to an error in the control loop, the regulated output voltage will increase (overvoltage). This overvoltage is sensed on the primary winding 7-9. When an overvoltage longer than 2.0 (s is detected, the output is disabled until VCC is removed and then re-applied. The power supply will come in a hiccup mode as long as the error in the control loop is present. 17.8 Secondary rectifier/smoothing circuit There are 5 rectifier/smoothing circuits on the secondary side. Each voltage depends on the number of windings of the transformer. The +5Vstby power supply is derived from the +12Vstby by voltage regulator 7233, C2233 and L5233. The -5V voltage is regulated by voltage regulator 7259 and will be switched off via D6256, T7256 and T7255 during standby (control signal STAND BY is high). When jumper 4250 is mounted instead of this circuit, a supply voltage -8Vstby will be present at pin 9 of connector 0205. -5V is used in DVD730 MK II, DVD 930 MK II and DVD710. -8Vstby is used in DVD750 and DVD950. The +5V power supply is derived from +6Vstby by the loader- up circuit formed by MOSFET 7236, reference component 7237, R3236, R3237 and C2239. This voltage will be switched off during STAND BY via T7235. The 3V3 power supply is regulated by the control loop (7201, 7200, 7110) of the switched mode PSU. A 2.5V R K 69 17.9 List of abbreviations B Buffered Video input Blue from DVD monoboard BC_AUX Blue or Chroma input from AUX-scart BC_TV Blue or Chroma output to TV-scart C_ENC Buffered Chroma input from DVD monoboard CVBS Buffered Composite video input from DVD monoboard DC_OFF Control signal to switch off 8Vstby and +12Vstby during standby DIG_OUT Digital out FBIN_AUX Fast blanking input from AUX-scart FBOUT_TV Fast blanking output to TV-scart G Buffered Video input Green from DVD monoboard GIN_AUX Video input Green from AUX-scart GOUT_TV Video output Green to TV-scart HP_L Audio output left to headphone and audio scart switch TEA6420 HP_R Audio output right to headphone and audio scart switch TEA6420 KILL Kill control signal for audio outputs and for soft mute of DAC LIN_AUX Audio input left from AUX-scart LIN_TV Audio input left from TV-scart LOUT_AUX Audio output left to AUX-scart LOUT_TV Audio output left to TV-scart LRCLK Left/Right clock PCM_CLK Audio system clock for DAC PCM_OUT0 Audio serial output data R Buffered Video input Red from DVD monoboard RCIN_TV Red or Chroma input from TV-scart RCOUT_TV Red or Chroma output to TV-scart RIN_AUX Audio input right from AUX-scart RIN_TV Audio input right from TV-scart ROUT_AUX Audio output right to AUX-scart ROUT_TV Audio output right to TV-scart SCL I2C bus clock SCLK Audio serial bit clock SDA I2C bus data SELECT Control signal for video scart switches; high = TV ,low = AUX SELECT_HIGH Control signal for switching fast blanking and slow blanking signals; high = TV,.low = AUX SLB_AUX Slow blanking control signal from AUX-scart SLB_TV Slow blanking control signal to TV- scart STANDBY Control signal from STI5505 used to swith off 8Vstby and +12Vstby during standby. STEREO_L Audio cinch output left STEREO_R Audio cinch output right Y_ENC Buffered Luma input from DVD monoboard YCVBSIN_AUX Luma or CVBS input from AUX-scart YCVBSIN_TV Luma or CVBS input from TV-scart YCVBSOUT_AUX Luma or CVBS output to AUX-scart YCVBSOUT_TV Luma or CVBS output to TV-scart 0/6/12 Scart switch control signal A/V board. 0V : loop through (AUX to TV), 6V : play 16:9 format, 12V : play 4:3 format ASSIGNMENT OF COMMON PARTS CODES. RESISTORS R 1) GD05 x x x 140, Carbon film fixed resistor, 5% 1/4W R 2) GD05 x x x 160, Carbon film fixed resistor, 5% 1/6W 1 Resistance value Examples 1 Resistance value 0.1 ..... 001 10 ......100 1k ......102 100k ...... 104 0.5 ..... 005 18 ......180 2.7k ......272 680k ...... 684 1 ..... 010 100 ......101 10k ......103 1M ...... 105 6.8 ..... 068 390 ......391 22k ......223 4.7M ...... 475 Note : Please distinguish 1/4W from 1/6W by the shape of parts used actually. CAPACITORS C : CERAMIC CAP. 3) DD1 x x x x 370, Ceramic capacitor Disc type Temp.coeff. P350~N1000, 50V 3 Capacity value 2 Tolerance Examples 2 Tolerance (Capacity deviation) 0.25 pF ....... 0 0.5 pF ....... 1 5 % ....... 5 Tolerance of COMMON PARTS handled here are as follows : 0.5 pF - 5 pF ....... 0.25 pF 6 pF - 10 pF ..... 0.5 pF 12 pF - 560 pF ... 5 % 3 Capacity value 0.5 pF .... 005 3 pF ..... 030 100 pF ..... 101 1 pF .... 010 10 pF ..... 100 220 pF ..... 221 1.5 pF .... 015 47 pF ..... 470 560 pF ..... 561 C : CERAMIC CAP. 4) DK16 x x x 300, High dielectric constant ceramic capacitor Disc type Temp.chara. 2B4, 50V 4 Capacity value Examples 4 Capacity value 100 pF .....101 1000 pF .... 102 10000 pF .... 103 470 pF .....471 2200 pF .... 222 C : 5) ELECTROLY CAP.( ), 6)FILM CAP ( ) 5) EA x x x x x x 10, Electrolytic capacitor One-way lead type,Tolerance 20% 6 Working voltage 5 Capacity value Examples 5 Capacity value 0.1 F .... 104 4.7 F .... 475 100 F ..... 107 0.33 F .... 334 10 F .... 106 330 F ..... 337 1 F .... 105 22 F .... 226 1100 F ..... 118 2200 F .... 228 6 Working voltage 6.3 V ...... 006 25 V ..... 025 10 V ...... 010 35 V ..... 035 16 V ...... 016 50 V ..... 050 6) DF15 x x x 350 Plastic film capacitor DF15 x x x 310 One-way type, Mylar 5% 50V DF16 x x x 310 Plastic film capacitor One-way type, Mylar 10% 50V 7 Capacity value Examples 7 Capacity value 0.001 F (1000 pF) ...... 102 0.1 F......104 0.0018 F........................ 182 0.56 F......564 0.01 F........................ 103 1 F......105 0.015 F........................ 153 1) The above CODES(R ,R ,C ,C and C ) are omitted on the schematic diagram in some case. 2) On the occasion, be confirmed the common parts on the parts list. 3) Refer to “Common Parts List” for the other common parts(Rl05, DD4, DK4). NOTE NOTE ON SAFETY: Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol Any other component substitution ( other than original type), may increase risk of fire or electrical shock hazard. 990521 A.O NOTE ON SAFETY FOR FUSIBLE RESIST OR : The suppliers and their type numbers of fusible resistors are as follows ; 1 . KOA Corporation Part No.(MJI) Type No.(KOA) Description NH05 x x x 140 RF25S x x x x J J J J 5% (1/4W) NH05 x x x 120 RF50S x x x x 5% (1/2W) NH85 x x x 110 RF73B2A x x x x 5% (1/10W) NH95 x x x 140 RF73B2E x x x x 5% (1/4W) Resistance value Resistance value(0.1 - 10k ) 2. Matsushita Electronic Components Co., Ltd Part No.(MJI) Type No.(MEC) Description NF05 x x x 140 ERD-2FCJ x x x ( 5% 1/4W) RF05 x x x 140 NF02 x x x 140 ERD-2FCG x x x ( 2% 1/4W) RF02 x x x 140 Resistance value Examples Resistance value 0.1 ..... 001 10 ..... 100 1k ..... 102 100k ..... 104 0.5 ..... 005 18 ..... 180 2.7k ..... 272 680k ..... 684 1 ..... 010 100 ..... 101 10k ..... 103 1M ..... 105 6.8 ..... 068 390 ..... 391 22k ..... 223 4.7M ..... 475 ABBREVIATION AND MARKS ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE -PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’ TAL : CRYSTAL : : 70 18. ELECTRICAL PARTS LIST 71 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) AV CIRCUIT BOARD (/A1B,/S1G,/U1B) CAPACITORS 2000 3198 028 41090 ELECT 10 F 20% 35V QT02841090 2001 4822 126 13838 CER. 100NF 50V QP12613838 2002 4822 126 13692 CER. 47pF 1% 63V QP12613692 2004 4822 126 13692 CER. 47pF 1% 63V QP12613692 2006 4822 124 41796 ELECT 22 F 20% 16V QP12441796 2007 4822 124 23432 ELECT 100 F 20% 10V QP12423432 2029 4822 124 81286 ELECT 47 F 20% 16V QP12481286 2030 4822 126 13482 CER. 470NF +80 -20% 16V QP12613482 2032 4822 126 13482 CER. 470NF +80 -20% 16V QP12613482 2033 4822 122 33575 CER. 220pF 5% 63V QP12233575 2036 4822 124 41643 ELECT 100 F 20% 16V QP12441643 2038 4822 124 41584 ELECT 100 F 20% 10V QP12441584 2039 4822 124 40181 ELECT 220 F 20% 10V QP12440181 2040 4822 124 41643 ELECT 100 F 20% 16V QP12441643 2041 4822 124 41643 ELECT 100 F 20% 16V QP12441643 2100 5322 122 32654 CER. 22N 63V QQ12232654 2101 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2104 5322 122 31647 CER. 1NF 10% 63V QQ12231647 2106 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2107 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2108 5322 122 32654 CER. 22N 63V QQ12232654 2109 4822 126 13838 CER. 100NF 50V QP12613838 2110 4822 124 81286 ELECT 47 F 20% 16V QP12481286 2113 5322 122 31647 CER. 1NF 10% 63V QQ12231647 2115 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2119 5322 122 31647 CER. 1NF 10% 63V QQ12231647 2121 5322 122 31647 CER. 1NF 10% 63V QQ12231647 2123 4822 122 33575 CER. 220pF 5% 63V QP12233575 2124 4822 126 14585 CER. 100NF 10% 50V QP12614585 2125 5322 122 32654 CER. 22N 3V QQ12232654 2126 5322 122 32654 CER. 22N 63V QQ12232654 2130 5322 122 32654 CER. 22N 63V QQ12232654 2131 5322 122 32654 CER. 22N 63V QQ12232654 2132 4822 124 22339 ELECT 100 E 16V QP12422339 2133 4822 124 22339 ELECT 100 E 16V QP12422339 2134 4822 124 11947 ELECT 10 F 20% 16V QP12411947 DIODES 6001 4822 130 11087 DIODE BZX284-C15 QP13011087 6006 6007 4822 130 83757 DIODE BAS216 QP13083757 6008 4822 130 83757 DIODE BAS216 QP13083757 6009 4822 130 83757 DIODE BAS216 QP13083757 6010 4822 130 11087 DIODE BZX284-C15 QP13011087 SEMICONDUCTORS 7103 4822 209 17423 IC ANA UAD1328T QP20917423 7110 4822 209 16978 IC ANA LF33CV QP20916978 7115 4822 209 30095 IC ANA LM833D QP20930095 7116 9322 141 80668 IC ANA AD8073 7117 4822 209 72684 IC ANA L7905CV QP20972684 7000 5322 130 60159 TRS. BC846B QQ13060159 7001 4822 130 42804 TRS. BC817-25 QP13042804 7002 4822 130 60373 TRS. BC856B QP13060373 7004 4822 130 42804 TRS. BC817-25 QP13042804 7005 4822 130 42804 TRS. BC817-25 QP13042804 7006 5322 130 60159 TRS. BC846B QQ13060159 7007 5322 130 60159 TRS. BC846B QQ13060159 7008 5322 130 60159 TRS. BC846B QQ13060159 7009 4822 130 60373 TRS. BC856B QP13060373 7010 5322 130 60159 TRS. BC846B QQ13060159 7011 5322 130 60159 TRS. BC846B QQ13060159 7012 4822 130 60373 TRS. BC856B QP13060373 7013 5322 130 60159 TRS. BC846B QQ13060159 7014 5322 130 60159 TRS. BC846B QQ13060159 7015 4822 130 60373 TRS. BC856B QP13060373 7016 5322 130 60159 TRS. BC846B QQ13060159 7017 5322 130 60159 TRS. BC846B QQ13060159 7018 5322 130 60159 TRS. BC846B QQ13060159 7019 5322 130 60159 TRS. BC846B QQ13060159 7104 4822 130 42804 TRS. BC817-25 QP13042804 7105 4822 130 42804 TRS. BC817-25 QP13042804 7108 4822 130 42804 TRS. BC817-25 QP13042804 7109 4822 130 42804 TRS. BC817-25 QP13042804 7112 4822 130 42804 TRS. BC817-25 QP13042804 7114 4822 130 42804 TRS. BC817-25 QP13042804 RESISTORS 3000 4822 051 20101 100R00 5% 0.1W QP05120101 3001 4822 117 12521 68R 1% 0.1W QP11712521 3005 4822 051 20472 4K70 5% 0.1W QP05120472 3006 4822 051 20472 4K70 5% 0.1W QP05120472 3007 4822 117 12955 2K7 1% 0.1W QP11712955 3008 4822 117 10833 10k 1% 0.1W QP11710833 3009 4822 051 20472 4K70 5% 0.1W QP05120472 3010 4822 051 20472 4K70 5% 0.1W QP05120472 3011 4822 051 20472 4K70 5% 0.1W QP05120472 3012 4822 117 11152 4R7 5% QP11711152 3014 4822 051 20101 100R00 5% 0.1W QP05120101 3015 4822 117 12955 2K7 1% 0.1W QP11712955 3016 4822 051 20101 100R00 5% 0.1W QP05120101 3017 4822 117 12955 2K7 1% 0.1W QP11712955 3036 4822 117 11449 2K2 5% 0.1W QP11711449 3038 4822 051 20223 22K00 5% 0.1W QP05120223 3039 4822 051 20223 22K00 5% 0.1W QP05120223 3040 4822 116 83933 15K 1% 0.1W QP11683933 3041 4822 051 20822 8K20 5% 0.1W QP05120822 3043 4822 117 11504 270R 1% 0.1W QP11711504 3044 4822 117 10833 10k 1% 0.1W QP11710833 3045 4822 051 20101 100R00 5% 0.1W QP05120101 3046 4822 051 20101 100R00 5% 0.1W QP05120101 3047 4822 117 11507 6K8 1% 0.1W QP11711507 3048 4822 117 11454 820R 1% 0.1W QP11711454 3049 4822 117 11927 75R 1% 0.1W QP11711927 3050 4822 051 20471 470R00 5% 0.1W QP05120471 3051 4822 051 20472 4K70 5% 0.1W QP05120472 3052 4822 117 10361 680R 1% 0.1W QP11710361 3056 4822 117 11504 270R 1% 0.1W QP11711504 3057 4822 117 11152 4R7 5% QP11711152 3058 4822 051 20101 100R00 5% 0.1W QP05120101 3059 4822 051 20101 100R00 5% 0.1W QP05120101 3060 4822 117 11507 6K8 1% 0.1W QP11711507 3061 4822 117 11454 820R 1% 0.1W QP11711454 3062 4822 117 11927 75R 1% 0.1W QP11711927 3063 4822 117 11449 2K2 5% 0.1W QP11711449 3064 4822 051 20472 4K70 5% 0.1W QP05120472 3065 4822 117 10361 680R 1% 0.1W QP11710361 3068 4822 117 11504 270R 1% 0.1W QP11711504 3069 4822 051 20101 100R00 5% 0.1W QP05120101 3070 4822 117 11507 6K8 1% 0.1W QP11711507 3071 4822 117 11454 820R 1% 0.1W QP11711454 3072 4822 117 11927 75R 1% 0.1W QP11711927 3073 4822 117 11449 2K2 5% 0.1W QP11711449 3074 4822 051 20472 4K70 5% 0.1W QP05120472 3075 4822 117 10361 680R 1% 0.1W QP11710361 3077 4822 117 11927 75R 1% 0.1W QP11711927 3078 4822 117 11449 2K2 5% 0.1W QP11711449 3100 4822 051 20101 100R00 5% 0.1W QP05120101 3101 4822 051 20472 4K70 5% 0.1W QP05120472 3102 4822 117 10833 10k 1% 0.1W QP11710833 72 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) 3103 4822 117 10833 10k 1% 0.1W QP11710833 3105 4822 117 10833 10k 1% 0.1W QP11710833 3106 4822 117 10833 10k 1% 0.1W QP11710833 3107 4822 051 20101 100R00 5% 0.1W QP05120101 3108 4822 117 11152 4R7 5% QP11711152 3109 4822 117 11152 4R7 5% QP11711152 3110 4822 117 10833 10k 1% 0.1W QP11710833 3112 4822 117 12955 2K7 1% 0.1W QP11712955 3113 4822 117 12955 2K7 1% 0.1W QP11712955 3114 4822 117 10833 10k 1% 0.1W QP11710833 3117 3118 4822 051 20101 100R00 5% 0.1W QP05120101 3119 4822 051 20101 100R00 5% 0.1W QP05120101 3120 4822 117 10833 10k 1% 0.1W QP11710833 3121 4822 117 10833 10k 1% 0.1W QP11710833 3122 4822 117 12955 2K7 1% 0.1W QP11712955 3123 4822 117 12955 2K7 1% 0.1W QP11712955 3124 4822 117 10833 10k 1% 0.1W QP11710833 3126 4822 051 20101 100R00 5% 0.1W QP05120101 3127 4822 117 10833 10k 1% 0.1W QP11710833 3129 4822 117 12955 2K7 1% 0.1W QP11712955 3130 4822 051 20101 100R00 5% 0.1W QP05120101 3131 4822 117 10833 10k 1% 0.1W QP11710833 3132 4822 117 12955 2K7 1% 0.1W QP11712955 3135 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3136 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3137 4822 117 12635 10R 1% 0.125W QP11712635 3138 4822 117 11139 1k5 1% 0.1W QP11711139 3139 4822 117 11931 750R 1% 0.1W QP11711931 3140 2120 108 92619 SM ERJ6EN 2K2PM1 3141 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3142 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3143 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3144 4822 117 11953 560R 1% 0.1W QP11711953 3145 2120 108 92625 SM ERJ6EN 5K6PM1 3147 2120 108 92616 SM ERJ6EN 1k2 PM1 3148 5322 117 12487 1k 1% 0.125W RC12G QQ11712487 3150 4822 117 11927 75R 1% 0.1W QP11711927 3153 4822 051 20101 100R00 5% 0.1W QP05120101 3154 4822 117 11927 75R 1% 0.1W QP11711927 3157 4822 117 11927 75R 1% 0.1W QP11711927 3158 4822 117 11449 2K2 5% 0.1W QP11711449 3159 4822 051 20101 100R00 5% 0.1W QP05120101 3160 4822 117 10833 10k 1% 0.1W QP11710833 MISCELLANEOUS 1002 2422 026 05047 CONNECTOR CINCH H 6P F RDWHYE B QU02605047 1003 4822 267 10994 CONNECTOR 4P MDIN QP26710994 1004 2422 025 16526 CONNECTOR 22P F 1.00 FFC 0.3 R QU02516526 1005 4822 267 31729 CONNECTOR QP26731729 1006 2422 026 05049 CON BM CINCH H 3P F QU02605049 1007 2422 025 16525 CONNECTOR 16P F 1.00 FFC 0.3 R QU02516525 5000 4822 157 70601 COIL 100UH (920927085A) QP15770601 5003 5007 4822 242 10756 FILTER L/C DSS306-92Y5S221M100 QP24210756 7020 9322 155 28667 CONNECTOR GP1FA550TZ (SRPJ)L AV CIRCUIT BOARD (/N1B) CAPACITORS 2032 4822 126 13482 CER. 470NF +80 -20% 16V QP12613482 2353 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2354 4822 126 14076 CER. 220N 25V QP12614076 2355 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2357 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2358 4822 122 33575 CER. 220pF 5% 63V QP12233575 2359 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2360 4822 126 13692 CER. 47pF 1% 63V QP12613692 2361 4822 126 13692 CER. 47pF 1% 63V QP12613692 2371 4822 122 33575 CER. 220pF 5% 63V QP12233575 2372 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2373 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2377 4822 122 33575 CER. 220pF 5% 63V QP12233575 2378 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2382 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2383 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2385 4822 124 40769 ELECT 4.7 F 20% 100V QP12440769 2395 4822 122 33575 CER. 220pF 5% 63V QP12233575 2402 4822 122 33575 CER. 220pF 5% 63V QP12233575 2404 4822 122 33575 CER. 220pF 5% 63V QP12233575 2408 4822 122 33575 CER. 220pF 5% 63V QP12233575 2409 4822 122 33575 CER. 220pF 5% 63V QP12233575 2412 4822 124 40433 ELECT 47 F 20% 25V QP12440433 2450 5322 122 32654 CER. 22N 63V QQ12232654 2452 4822 126 14076 CER. 220N 25V QP12614076 2453 4822 124 40433 ELECT 47 F 20% 25V QP12440433 2455 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2456 4822 124 22339 ELECT 100 E 16V QP12422339 2457 5322 126 10511 CER. 1NF 5% 50V QQ12610511 2458 5322 122 32654 CER. 22N 63V QQ12232654 2459 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2460 5322 122 32654 CER. 22N 63V QQ12232654 2461 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2462 4822 124 22339 ELECT 100 E 16V QP12422339 2463 5322 126 10511 CER. 1NF 5% 50V QQ12610511 2464 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2469 5322 122 32654 CER. 22N 63V QQ12232654 2471 4822 126 14585 CER. 100NF 10% 50V QP12614585 2472 4822 124 40433 ELECT 47 F 20% 25V QP12440433 2488 4822 126 14585 CER. 100NF 10% 50V QP12614585 2495 4822 126 14585 CER. 100NF 10% 50V QP12614585 2496 5322 122 32654 CER. 22N 63V QQ12232654 2497 4822 124 81151 ELECT 22 F 50V QP12481151 2498 4822 124 41584 ELECT 100 F 20% 10V QP12441584 2499 4822 122 33575 CER. 220pF 5% 63V QP12233575 2505 2506 4822 124 40763 ELECT 2.2 F 100V QP12440763 2509 2511 4822 124 40763 ELECT 2.2 F 100V QP12440763 2520 4822 122 33575 CER. 220pF 5% 63V QP12233575 2523 2527 5322 122 32654 CER. 22N 63V QQ12232654 2537 2538 4822 124 40763 ELECT 2.2 F 100V QP12440763 2539 4822 124 40763 ELECT 2.2 F 100V QP12440763 2540 4822 124 40763 ELECT 2.2 F 100V QP12440763 2541 4822 126 14585 CER. 100NF 10% 50V QP12614585 2542 4822 126 14491 CER. 2.2 F 10V QP12614491 2543 4822 126 13692 CER. 47pF 1% 63V QP12613692 2544 4822 124 40248 ELECT 10 F 20% 63V QP12440248 2545 4822 124 40433 ELECT 47 F 20% 25V QP12440433 73 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) DIODES 6302 4822 130 83757 DIODE BAS216 QP13083757 6401 4822 130 11047 DIODE BZX284-C9V1 QP13011047 6403 4822 130 83757 DIODE BAS216 QP13083757 6404 4822 130 11383 DIODE BZX284-C5V1 QP13011383 SEMICONDUCTORS 7400 9322 134 92676 IC ANA L78L33 7401 4822 209 17423 IC ANA UAD1328T QP20917423 7403 4822 209 32071 IC ANA MC33079D QP20932071 7900 5322 209 14481 IC DIG HEF4053BT QQ20914481 7905 7917 4822 209 17512 IC ANA TEA6420D QP20917512 7006 5322 130 60159 TRS. BC846B QQ13060159 7007 5322 130 60159 TRS. BC846B QQ13060159 7008 5322 130 60159 TRS. BC846B QQ13060159 7009 4822 130 60373 TRS. BC856B QP13060373 7010 5322 130 60159 TRS. BC846B QQ13060159 7014 7300 4822 130 60373 TRS. BC856B QP13060373 7301 5322 130 60159 TRS. BC846B QQ13060159 7304 9322 134 86668 TRS. LF80C 7310 5322 130 60159 TRS. BC846B QQ13060159 7329 5322 130 60159 TRS. BC846B QQ13060159 7330 5322 130 60159 TRS. BC846B QQ13060159 7331 4822 130 40959 TRS. BC547B QP13040959 7332 4822 130 60373 TRS. BC856B QP13060373 7333 4822 130 41246 TRS. BC327-25 QP13041246 7334 5322 130 60159 TRS. BC846B QQ13060159 7335 5322 130 60159 TRS. BC846B QQ13060159 7402 4822 130 42804 TRS. BC817-25 QP13042804 7404 4822 130 42615 TRS. BC817-40 QP13042615 7407 7918 5322 130 60159 TRS. BC846B QQ13060159 7935 7936 4822 130 60373 TRS. BC856B QP13060373 7939 7941 4822 130 60373 TRS. BC856B QP13060373 7942 4822 130 60373 TRS. BC856B QP13060373 7943 5322 130 60159 TRS. BC846B QQ13060159 7944 5322 130 60159 TRS. BC846B QQ13060159 7945 4822 130 60373 TRS. BC856B QP13060373 7946 4822 130 60373 TRS. BC856B QP13060373 7947 5322 130 60159 TRS. BC846B QQ13060159 7949 5322 130 60159 TRS. BC846B QQ13060159 RESISTORS 3036 4822 117 11449 2K2 5% 0.1W QP11711449 3038 4822 051 20223 22K00 5% 0.1W QP05120223 3039 4822 117 10834 47k 1% 0.1W QP11710834 3040 4822 051 20273 27K00 5% 0.1W QP05120273 3041 4822 051 20822 8K20 5% 0.1W QP05120822 3043 4822 117 13577 330R 1% 1.25W QP11713577 3044 4822 051 20223 22K00 5% 0.1W QP05120223 3045 4822 051 20101 100R00 5% 0.1W QP05120101 3046 4822 051 20101 100R00 5% 0.1W QP05120101 3049 4822 117 11927 75R 1% 0.1W QP11711927 3050 4822 117 11503 220R 1% 0.1W QP11711503 3056 4822 117 13577 330R 1% 1.25W QP11713577 3058 4822 051 20101 100R00 5% 0.1W QP05120101 3059 4822 051 20101 100R00 5% 0.1W QP05120101 3062 4822 117 11927 75R 1% 0.1W QP11711927 3063 4822 051 10102 1K00 2% 0.25W QP05110102 3300 4822 117 13577 330R 1% 1.25W QP11713577 3301 4822 051 20101 100R00 5% 0.1W QP05120101 3313 4822 117 11503 220R 1% 0.1W QP11711503 3314 4822 051 10102 1K00 2% 0.25W QP05110102 3315 4822 051 20471 470R00 5% 0.1W QP05120471 3316 4822 117 10834 47k 1% 0.1W QP11710834 3318 4822 117 10834 47k 1% 0.1W QP11710834 3319 4822 051 10102 1K00 2% 0.25W QP05110102 3320 4822 117 10834 47k 1% 0.1W QP11710834 3321 4822 051 20101 100R00 5% 0.1W QP05120101 3322 4822 051 20101 100R00 5% 0.1W QP05120101 3323 4822 051 20471 470R00 5% 0.1W QP05120471 3325 4822 117 10834 47k 1% 0.1W QP11710834 3339 4822 051 10102 1K00 2% 0.25W QP05110102 3340 4822 051 10102 1K00 2% 0.25W QP05110102 3343 4822 117 11927 75R 1% 0.1W QP11711927 3345 4822 117 11927 75R 1% 0.1W QP11711927 3347 4822 051 10102 1K00 2% 0.25W QP05110102 3348 4822 051 10102 1K00 2% 0.25W QP05110102 3349 4822 117 10834 47k 1% 0.1W QP11710834 3351 4822 051 20471 470R00 5% 0.1W QP05120471 3359 4822 117 10834 47k 1% 0.1W QP11710834 3363 4822 051 10102 1K00 2% 0.25W QP05110102 3366 4822 117 10834 47k 1% 0.1W QP11710834 3394 4822 051 20471 470R00 5% 0.1W QP05120471 3397 4822 117 10834 47k 1% 0.1W QP11710834 3407 4822 117 11927 75R 1% 0.1W QP11711927 3408 4822 117 11927 75R 1% 0.1W QP11711927 3409 4822 117 11503 220R 1% 0.1W QP11711503 3413 4822 117 10834 47k 1% 0.1W QP11710834 3425 4822 117 11927 75R 1% 0.1W QP11711927 3432 4822 117 11927 75R 1% 0.1W QP11711927 3442 4822 051 20101 100R00 5% 0.1W QP05120101 3444 4822 117 10833 10k 1% 0.1W QP11710833 3445 4822 117 10833 10k 1% 0.1W QP11710833 3446 4822 117 12955 2K7 1% 0.1W QP11712955 3447 4822 117 12955 2K7 1% 0.1W QP11712955 3448 4822 117 10833 10k 1% 0.1W QP11710833 3451 4822 117 10833 10k 1% 0.1W QP11710833 3453 4822 117 10833 10k 1% 0.1W QP11710833 3454 4822 117 10833 10k 1% 0.1W QP11710833 3455 4822 117 10833 10k 1% 0.1W QP11710833 3457 4822 051 20101 100R00 5% 0.1W QP05120101 3459 4822 117 10833 10k 1% 0.1W QP11710833 3461 4822 117 10833 10k 1% 0.1W QP11710833 3462 4822 117 12955 2K7 1% 0.1W QP11712955 3463 4822 117 12955 2K7 1% 0.1W QP11712955 3464 4822 117 10833 10k 1% 0.1W QP11710833 3505 4822 051 20101 100R00 5% 0.1W QP05120101 3507 4822 051 20101 100R00 5% 0.1W QP05120101 3508 4822 117 12521 68R 1% 0.1W QP11712521 3511 4822 117 10833 10k 1% 0.1W QP11710833 3512 4822 117 10833 10k 1% 0.1W QP11710833 3517 4822 051 20101 100R00 5% 0.1W QP05120101 3519 4822 051 20562 5K6 5% 0.1W QP05120562 3610 4822 051 20472 4K70 5% 0.1W QP05120472 3611 4822 051 20472 4K70 5% 0.1W QP05120472 3612 4822 117 10834 47k 1% 0.1W QP11710834 3613 4822 117 12955 2K7 1% 0.1W QP11712955 3614 4822 051 20223 22K00 5% 0.1W QP05120223 3615 4822 117 11152 4R7 5% QP11711152 3616 4822 051 20472 4K70 5% 0.1W QP05120472 3617 4822 117 10833 10k 1% 0.1W QP11710833 3618 4822 051 10102 1K00 2% 0.25W QP05110102 3619 4822 117 10833 10k 1% 0.1W QP11710833 3620 4822 051 10008 0R00 5% 0.25W QP05110008 3621 4822 051 20472 4K70 5% 0.1W QP05120472 74 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) 3622 4822 117 10833 10k 1% 0.1W QP11710833 3623 4822 051 20472 4K70 5% 0.1W QP05120472 3624 4822 117 10833 10k 1% 0.1W QP11710833 3625 4822 051 10102 1K00 2% 0.25W QP05110102 3629 4822 117 11927 75R 1% 0.1W QP11711927 3632 4822 051 20101 100R00 5% 0.1W QP05120101 3634 4822 117 11449 2K2 5% 0.1W QP11711449 3635 4822 117 11503 220R 1% 0.1W QP11711503 3636 4822 117 10837 100k 1% 0.1W QP11710837 3643 3646 4822 117 10837 100k 1% 0.1W QP11710837 3647 4822 117 10837 100k 1% 0.1W QP11710837 3648 4822 117 13577 330R 1% 1.25W QP11713577 3651 3653 4822 117 13577 330R 1% 1.25W QP11713577 3672 4822 117 11927 75R 1% 0.1W QP11711927 3675 3676 4822 117 10353 150R 1% 0.1W QP11710353 3677 4822 117 11927 75R 1% 0.1W QP11711927 3678 4822 051 20101 100R00 5% 0.1W QP05120101 3685 3687 4822 051 20472 4K70 5% 0.1W QP05120472 3688 4822 051 20101 100R00 5% 0.1W QP05120101 3689 4822 051 20101 100R00 5% 0.1W QP05120101 3690 4822 051 10102 1K00 2% 0.25W QP05110102 3694 3695 4822 117 10833 10k 1% 0.1W QP11710833 3696 4822 117 10833 10k 1% 0.1W QP11710833 3697 4822 051 10102 1K00 2% 0.25W QP05110102 3700 3701 4822 051 20471 470R00 5% 0.1W QP05120471 3702 4822 051 10102 1K00 2% 0.25W QP05110102 3703 4822 117 11507 6K8 1% 0.1W QP11711507 3707 3720 4822 117 11148 56K 1% 0.1W QP11711148 3721 4822 117 10353 150R 1% 0.1W QP11710353 3722 4822 117 11148 56K 1% 0.1W QP11711148 3723 4822 117 11148 56K 1% 0.1W QP11711148 3724 4822 051 20229 22R00 5% 0.1W QP05120229 3731 3732 4822 117 13577 330R 1% 1.25W QP11713577 3747 3748 4822 117 10837 100k 1% 0.1W QP11710837 3761 3762 4822 117 11504 270R 1% 0.1W QP11711504 3763 4822 051 20101 100R00 5% 0.1W QP05120101 3764 4822 117 10833 10k 1% 0.1W QP11710833 3765 4822 117 10833 10k 1% 0.1W QP11710833 3768 4822 117 10834 47k 1% 0.1W QP11710834 3772 3773 4822 117 10833 10k 1% 0.1W QP11710833 3774 4822 117 10834 47k 1% 0.1W QP11710834 3800 4822 051 20472 4K70 5% 0.1W QP05120472 3801 4822 051 20472 4K70 5% 0.1W QP05120472 !3802 4822 117 11152 4R7 5% QP11711152 !3803 4822 117 11152 4R7 5% QP11711152 3804 4822 117 10834 47k 1% 0.1W QP11710834 3805 4822 117 10833 10k 1% 0.1W QP11710833 3999 4822 117 12842 QP11712842 MISCELLANEOUS 1300 4822 265 11154 CONNECTOR 52030-2210 (22P) QP26511154 1301 4822 265 11103 CONNECTOR 52030-1610 (16P) QP26511103 1303 4822 267 10994 CONNECTOR 4P MDIN QP26710994 1304 2422 033 00334 CON BM EURO H 42P F BK GRND-L QU03300334 1402 4822 265 11566 CONNECTOR 3P YKC21-3930 QP26511566 1405 4822 267 31729 CONNECTOR QP26731729 1410 4822 265 41392 CONNECTOR B7B-EH-A QP26541392 5400 4822 157 70601 COIL 100µH (920927085A) QP15770601 6400 4822 130 10845 CONNECTOR GP1F32T QP13010845 FRONT CIRCUIT BOARD CAPACITORS 2100 /N1B 4822 122 33575 CER. 220pF 5% 63V QP12233575 2101 /N1B 4822 122 33575 CER. 220pF 5% 63V QP12233575 2102 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2103 5322 122 32531 CER. 100pF 5% 50V QQ12232531 2105 4822 126 12105 CER. 33NF 50V QP12612105 2106 4822 124 40248 ELECT 10µF 20% 63V QP12440248 2107 4822 126 12105 CER. 33NF 50V QP12612105 2111 2114 5322 122 32658 CER. 22pF 5% 50V QQ12232658 2115 5322 122 32658 CER. 22pF 5% 50V QQ12232658 2116 4822 126 12105 CER. 33NF 50V QP12612105 2117 4822 124 40248 ELECT 10µF 20% 63V QP12440248 2122 4822 126 12105 CER. 33NF 50V QP12612105 2123 4822 124 11947 ELECT 10µF 20% 16V QP12411947 2124 3198 028 42290 ELECT 22µF 35V 2125 5322 122 32658 CER. 22pF 5% 50V QQ12232658 2126 4822 124 40248 ELECT 10µF 20% 63V QP12440248 2128 5322 122 31647 CER. 1NF 10% 63V QQ12231647 2129 3198 028 42290 ELECT 22µF 35V 2130 3198 028 42290 ELECT 22µF 35V 2201 4822 126 12105 CER. 33NF 50V QP12612105 2211 5322 122 32531 CER. 100pF 5% 50V QQ12232531 DIODES 6100 /N1B 4822 130 83757 DIODE BAS216 QP13083757 6101 4822 130 11666 DIODE BZX284-C8V2 QP13011666 6102 4822 130 10794 DIODE BZX284-C10 QP13010794 6104 4822 130 83757 DIODE BAS216 QP13083757 6200 4822 130 82978 LED LTL-16KPE-P QP13082978 SEMICONDUCTORS 7104 /N1B 3104 123 94532 IC DIG TMP87CH74F-1E29-V2. 18-DVDSLAVE QW12394532 7104 /A1B, /S1G,/U1B 3104 123 94761 IC DIG ROM TMP87CH74 QW12394761 7112 4822 209 31257 IC ANA MC79L24ACP QP20931257 7100 5322 130 60159 TRS. BC846B QQ13060159 7101 /N1B 5322 130 60159 TRS. BC846B QQ13060159 7102 5322 130 60159 TRS. BC846B QQ13060159 7103 5322 130 60159 TRS. BC846B QQ13060159 7105 4822 130 40855 TRS. BC337 QP13040855 7106 4822 130 40854 TRS. BC327 QP13040854 7107 5322 130 60159 TRS. BC846B QQ13060159 7108 5322 130 60159 TRS. BC846B QQ13060159 7109 4822 130 60373 TRS. BC856B QP13060373 7110 4822 212 30842 REMOTE RECEIVER TSOP1736SB1 QP21230842 75 POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) POS. NO VERS. COLOR PART NO. (PCS) DESCRIPTION PART NO. (MJI) RESISTORS 3100 /N1B 4822 051 20223 22K00 5% 0.1W QP05120223 3101 /N1B 4822 051 20273 27K00 5% 0.1W QP05120273 3102 /N1B 4822 117 10834 47k 1% 0.1W QP11710834 3103 4822 117 11149 82k 1% 0.1W QP11711149 3104 /N1B 4822 117 10837 100k 1% 0.1W QP11710837 3106 /N1B 4822 117 11503 220R 1% 0.1W QP11711503 3108 4822 117 11149 82k 1% 0.1W QP11711149 3109 4822 051 20472 4K70 5% 0.1W QP05120472 3113 3114 4822 051 20109 10R00 5% 0.1W QP05120109 3115 4822 051 20472 4K70 5% 0.1W QP05120472 3116 4822 117 11149 82k 1% 0.1W QP11711149 3117 4822 117 11152 4R7 5% QP11711152 3118 4822 117 10833 10k 1% 0.1W QP11710833 3119 4822 117 10833 10k 1% 0.1W QP11710833 3120 4822 051 20471 470R00 5% 0.1W QP05120471 3121 4822 051 20472 4K70 5% 0.1W QP05120472 3122 4822 051 20109 10R00 5% 0.1W QP05120109 3123 4822 117 10833 10k 1% 0.1W QP11710833 3125 4822 051 20109 10R00 5% 0.1W QP05120109 3130 4822 051 20109 10R00 5% 0.1W QP05120109 3131 4822 117 11152 4R7 5% QP11711152 3132 4822 117 13577 330R 1% 1.25W QP11713577 3133 4822 051 20109 10R00 5% 0.1W QP05120109 3134 4822 117 13577 330R 1% 1.25W QP11713577 3135 4822 117 11503 220R 1% 0.1W QP11711503 3136 4822 051 10102 1K00 2% 0.25W QP05110102 3137 4822 117 10833 10k 1% 0.1W QP11710833 3138 4822 051 20471 470R00 5% 0.1W QP05120471 3139 4822 051 20472 4K70 5% 0.1W QP05120472 3140 4822 117 10833 10k 1% 0.1W QP11710833 3142 4822 117 13577 330R 1% 1.25W QP11713577 3143 4822 117 10833 10k 1% 0.1W QP11710833 3144 4822 117 10837 100k 1% 0.1W QP11710837 3145 4822 117 10833 10k 1% 0.1W QP11710833 3151 4822 051 20101 100R00 5% 0.1W QP05120101 MISCELLANEOUS 0002 3139 244 00440 FTD HOLDER DVD711 QT24400440 0020 /A1B, /S1G,/U1B 2422 025 04849 CONNECTOR,BMT 2P QU02504849 1100 4822 276 13775 SWITCH PUSH BUTTON QP27613775 1101 4822 276 13775 SWITCH PUSH BUTTON QP27613775 1102 4822 276 13775 SWITCH PUSH BUTTON QP27613775 1106 4822 276 13775 SWITCH PUSH BUTTON QP27613775 1109 1110 2422 540 98423 RES CER 8MHZ CSTS*MG03 QU54098423 1111 /N1B 4822 276 13775 SWITCH PUSH BUTTON QP27613775 1113 2722 171 07172 VIDEO DECODER UNIT 14-MT-27GNK 1115 4822 267 10565 CONNECTOR PRINTED CIRCUIT 4P QP26710565 1117 /N1B 4822 267 10565 CONNECTOR PRINTED CIRCUIT 4P QP26710565 1117 /A1B, /S1G,/U1B 2412 020 00724 CONNECTOR 2P 1118 4822 267 10637 CONNECTOR 5P QP26710637 1205 /N1B 4822 267 10567 CONNECTOR 4P QP26710567 1205 /A1B, /S1G,/U1B 2422 025 12488 CONNECTOR 2P QU02512488 CAUTION For repairing the DVD Module ADS-1, the serice application software "ComPair" is needed. The application CD-ROM "ComPair" is available via MARANTZ orgauization or PCS. A "service Bulletin" will oublish the latest "ComPair" information. Published by MT0065 Service DPS Hasselt Printed in the Netherlands Subject to modification � 3122 785 10840 ©Copyright reserved 2000 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips. DVD-Video Player DVD Module ASD-1 (Euro) 3104 129 21910 (Non euro) 3104 129 21920 CL06532065-000.eps 180500 Contents Page 1 Technical specifications 2 2 Warnings and remarks 4 3 Directions for use (not available) 6 4 Mechanical instructions 7 5 Test instructions 9 Diagnostic software description 17 6 Block diagram Servo part 29 Block diagram Digital part 30 7 Electrical diagrams & pwb’s Diagr. PWB Servo DALAS (Diagram 1) 31 37-42 Servo MACE (Diagram 2) 32 37-42 Decoder (Diagram 3) 33 37-42 Memory (Diagram 4) 34 37-42 STI 5505 (Diagram 5) 35 37-42 Service interface and back-end (Diagram 6) 36 37-42 Testpoint overview 43 37-42 8 Alignments (not available) 45 9 IC Descriptions 45 10 Sparepart list 85 Technical Specifications GB 2 ASD-1 1. 1. Technical Specifications 1.1 Connections 1.1.1 Connector 1600: Supply input connector. 1. +3V3stby 2. +3V3stby 3. +5V 4. +5Vstby 5. Vreserved 6. GND 7. GND 8. GND 9. -8Vstby 10. Standby control line 11. +12Vstby 12. GND 1.1.2 Connector 1603: A/V 1 connector. 1. P50 2. Blue Video 3. Green Video 4. GND 5. Red Video 6. CVBS 7. GND 8. Slow blanking scart 9. -8Vstby 10. +5V 11. +5V 12. Audio mute 13. GND 14. I2S data0 out 15. I2S wordselect 16. I2S bitclock 17. GND 18. I2S systemclock 19. Center_on 20. Kar_bypass 21. Kar_bypass 22. GND 1.1.3 Connector 1604: A/V 2 connector. 1. GND 2. Hor. sync. 3. GND 4. I2S data 2 out 5. GND 6. I2S data 1 out 7. -8Vstby 8. I2C clock 9. +12Vstby 10. I2C data 11. Vreserved 12. +3V3 13. GND 14. C video 15. GND 16. Y video 1.1.4 Connector 1501: I2C interface connector. 1. I2C clock 2. GND 3. I2C data 4. Standby control line 5. P50 1.1.5 Connector 1602: Service connector. 1. TXD 2. Service activation 3. RXD 4. Reserved for RTS 5. 5: GND 6. Reserved for CTS 7. +5V 1.2 Signal specifications This the specification of all signals as described under “Connections” H = +5V ±0.5V h = 3V3 ±0.3V L = 0V ±0.5V l = 0V ±0.3V Stby : If the set supports a “standby” function, all supply voltages marked with “stby” have to stay on during standby. Standby control line : HStandby mode : LOn mode. P50 : Connection between front and A/V board, and can be used as P50 signal line. The signal is not connected to the module electronics. Slow blanking scart : This signal switches between : 0V (220Ωoutput impedance) : 12Vstby/2 (455Ω output impedance) : 12vstby (690Ω output impedance) Audio mute : Can be used for audio mute transistors during stop or power on/off. : Mute on : +5Vstby : Mute off: -8Vstby via a 10kΩ resistor. I2S data0 out : I2S front data output. : Level h/l I2S wordselect / I2S bitclock : I2S timing signals : Level h/l I2S systemclock : 256xFS audio systemclock. : Level H/L Kar_bypass : Bypasses the karaoke chip on the A/V board. : Bypass activeH : Bypass offL Center_on : Switches the center audio to the scart output. : Center to scarth : L/R to scartl SPDIF out : Digital audio output : Level H/L Technical Specifications GB 3 ASD-1 1. Hor. Sync : Video Horizontal synchronisation : Level h/l I2S data1 out : I2S surround data output. : Level: h/l. I2S data2 out : I2S center/sub data output. : Level h/l. I2C clock / I2C data : I2C databus : Level: H/L TXD / RXD / RTS / CTS : Service UART to be connected direct to PC serial input. : Output levelsH/L : Input levelsRS232 compliant Service activation : Signal openNormal module start-up : Signal tied to GND Module start-up in service mode. Vreserved : Reserved in case the A/V board requires an extra supply voltage. : This supply is limited by a positive polarised 47uF/16V elco + 100nF/16V. 1.3 Performance: 1.3.1 Digital output CDDA/LPCM : according IEC958 MPEG1 is converted to LPCM : MPEG2, AC3 audio. : according IEC1937 DTS. : according IEC61937 amendment 1. : Digital output level is 0V / 5V with GND as reference. To meet the standards a decouple circuit is necesary. 1.3.2 I2S output Accuracy : Up to 24bit. Sample rate : 44.1kHz / 48kHz. Standard : Philips I2S output Number of I2S outputs : 3 (6 channel: Front / Surround / Center- Bass) Deemphasis : Already processed in module. Audio source streams : CDDA / MPEG1 / LPCM / MPEG2 / AC3 : No DTS decoding. Audio trick modes : Dolby Pro Logic (multichannel downmix on front output) : 3D sound. 1.3.3 Analog output The module has no analog audio ouput. : The analog audio specification will be determined by the external DAC circuit. 1.3.4 Video. Standards : The video output standard will follow the source material. : The OSD standard is switchable between PAL or NTSC. Outputs : The module has 6 analog outputs (3 formats): Y/C CVBS RGB. Specification. : The output is fully according PQR3 IMS except : Output load>1kΩ to GND / Cap. load <47pF. : Level0.5Vpp with 100% white : DC-levelSync bottom = -0.65V ±10% : Some specification points are significantly better then PQR3 : SNR on all video outputs is better then 60dB. : Video bandwidth >5MHz (±3dB) Warnings and Laser safety instructions GB 4 ASD-1 2. 2. Warnings and Laser safety instructions SHOCK, FIRE HAZARD SERVICE TEST: CAUTION: After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the face or Front Panel of product and controls and chassis bottom, Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before return to user/customer. Ref.UL Standard NO.1492. NOTE ON SAFETY: Symbol : Fire or electrical shock hazard. Only original parts should be used to replace any part with symbol Any other component substitution(other than original type), may increase risk or fire or electrical shock hazard. F ATTENTION Tous les IC et beaucoup d’autres semi- conducteurs sont sensibles aux décharges statiques (ESD). Leur longévité pourrait être considérablement écourtée par le fait qu’aucune précaution n’est prise a leur manipulation. Lors de réparations, s’assurer de bien être relié au même potentiel que la masse de l’appareil et enfiler le bracelet serti d’une résistance de sécurité. Veiller a ce que les composants ainsi que les outils que l’on utilise soient également a ce potentiel. D WARNUNG Alle IC und viele andere Halbleiter sind empfindlich gegen elektrostatische Entladungen (ESD). Unsorgfältige Behandlung bei der Reparatur kann die Lebensdauer drastisch vermindern. Sorgen sie dafür, das Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig voor elektrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen verminderen. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevita potrebbe essere fortemente ridatta in caso di non osservazione della piu grande cauzione alla loro manipolazione. Durante le riparazioni occorre quindi essere collegato allo stesso potenziale che quello della massa dell’apparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential. WARNING Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke toestand wordt terug gebracht en dat onderdelen, identiek aan de gespecifieerde worden toegepast. Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten. Der Originalzustand des Gerats darf nicht verandert werden. Fur Reparaturen sind Original-Ersatzteile zu verwenden. Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli specificati. Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et que soient utilisées les pièces de rechange identiques à celles spécifiées. “Pour votre sécurité, ces documents doivent être utilisés par des spécialistes agrées, seuls habilités à réparer votre appareil en panne.” GB NL I D I F GB NL CL 96532065_002.eps 120799 Warnings and Laser safety instructions GB 5 ASD-1 2. LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 780 nm (VCD/CD) Output Power: 7 mW (DVD) 10 mW (VCD/CD) Beam divergence: 60 degree USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. AVOID DIRECT EXPOSURE TO BEAM WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player WARNING LOCATION: INSIDE ON LASER COVERSHIELD CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM ATTENTION RAYO NNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU ! CL 06532065_051.eps 230500 Directions for use GB 6 ASD-1 3. 3. Directions for use There is no DFU available Mechanical instructions GB 7 ASD-1 4. 4. Mechanical instructions 4 4822 358 10266 BELT 9 3139 198 80010 SWITCH 10 4822 532 13097 TULE 11 3139194 00270 TRAY 12 3139 197 50060 TRAY MOTOR ASSY CL06532065-001.eps 180500 Mechanical instructions GB 8 ASD-1 4. 9305 023 61101 VAL6011/01 LOADER COMPLETE 1 3139 197 60090 GENEVA LP LOADER ASSY 2 9305 022 60101 VAM6001/01 3+4 3139 194 00710 SUSPENSION (YELLOW) 5+6 3139 194 00620 SUSPENSION (BLUE) 7 3139 197 60060 CLAMPER ASSY CL06532065-002.eps 180500 Test instructions mono board DVD-ASD1 GB 9 ASD-1 5. 5. Test instructions mono board DVD-ASD1 5.1 General • Impedance of measuring-equipment should be > 1MΩ. • Most tests have to be done by software commands. Together with the software command you will find a Ref.# nbr. This is the number of the diagnostic nulceus used for this test. More detailed information can be find in the chapter “Diagnostic Nuclei”. • Levels: Most measurements are digital measurements. The high and low levels in this document got to have next specification: low : < 0.3V high : > 3.0V LOW : < 0.4V HIGH : > 4.5V • All voltages marked with “stby” have to stay on during standby. 5.2 General start-up measurements 5.2.1 Supply check: Pin nbr. Supply 1600-1 3V3 1600-2 3V3 1600-3 +5V0V during STAND BY 1600-4 +5Vstby 1600-5 +6V 1600-6 0V 1600-7 0V 1600-8 0V 1600-9 -8V 1600-10 0V5V during STAND BY 1600-11 +12Vstby 0V Check the supply currents to be sure there are no large failures on the board. Before measuring the currents, make sure that no A/V board, display board or Mercury 1 loader is connected to the mono board and that the PC interface cable is connected to the board. Also check if the servo part gets its power. Testpoint F608: +3V3 ±5% Testpoint F101: +9V ±5% The supply currents can be measured using a Tektronix AM503B current probe. Supply power consumption 3V3 400mA ±10% 5V 370mA ±10% 5Vstby < 5mA -8V 55mA ±10% fluctuation: ±20mA 12Vstby 30mA ±20% fluctuation: ±150mA 5.2.2 Reset check: The reset circuit is triggered by the stand-by line. First make sure that the STB_CONT line is HIGH by connecting 5V to testpoint F505. Then switch STB_CONT over to LOW and check next timing at the STI5505 reset input (testpoint F503): Figure 5-1 T 1 = 150msec ±25% (From 0V to 3V3 -3db) If the reset input doesn’t go high then check the circuit around transistor 7501. 5.2.3 Clock check To check the correct functioning of the STI5505, we first have to check the presence of all clocks. All clocks to be measured with 0.02% tolerance. Clock-name Testpoint Frequency 27M_CLK F051 27MHz PCM_CLK F566 11.2896MHz Figure 5-2 PM3392A ch2 ch1 ch1: dT= 148ms dV=2.41 V CH1 1.00 V= CH2 0.2 V= MTB50.0ms- 2.10dv ch2- 1 2 T T1 RESET TIMING CL06532065_003.eps 180500 PM3394B ch1 CH1 2.00 V~ MTB20.0ns ch1+ 1 CL06532065_004.eps 180500 Test instructions mono board DVD-ASD1 GB 10 ASD-1 5. Figure 5-3 5.3 µµµµP environment: 5.3.1 General: All the tests are carried out by software tests. To start the software tests, connect a PC to the serial bus of the STI5505. Use connector 1602 for this connection: Connector pin Signal 1602-1 TXD (STI5505 out) 1602-2 Service-mode select 1602-3 RXD (STI5505 in) 1602-4 RTS (STI5505 out) 1602-5 GND 1602-6 CTS (STI5505 in) 1602-7 +5V Now start the terminal program. Make sure that the service-pin of the µP is pulled low (pin 1602-2) and then reset the µP (make the STB_CONT line low). The terminal program of your PC should now display: “DVD2 Diagnostic software version ...”. This message already means that the µP is running. The first 5 commands from the diagnostic software will be carried out automaticly during diagnostic start-up. The other commands can be carried out by selecting the “command input”. Just type the reference nbr. to do the test. To be sure that the µP is able to run the diagnostic software, serial port will be checked during start-up. 5.3.2 Memory check: The µP has a data bus that is connected to a DRAM (not present!!) and a Flash. The µP has also an internal link to the MPEG SDRAM interface. Next databus checks will be done at start-up to check this data- bus and SDRAM bus. There are 2 memory checks left that can be done by hand command 5.4 General I/O port & peripherals check 5.4.1 I2C bus / EEprom check To access the EEprom, the I2C bus is used. So by writing and reading to the EEprom the chip and the bus is checked. With next commands a certain byte is written to the EEprom. The original information will always be written back into the EEprom. The complete Eeprom can also be checked on failures by writing to all addresses and reading back. This test takes a long time (110 sec). 5.4.2 Audio clock switch check For a DVD disc the audio clock has to be switched from 44.1KHz sampling to 48KHz sampling. To do so IO-port 1 / 4 has to be switched. Send next commands and check the audio-clock Figure 5-4 Ref. # Reference Name Remark (1) BasicSpAcc Serial port Access test/initialisation (2) BasicDramWrR DRAM Write Read Ref. # Command Name Remark (2b) BasicInterconSDRAM Data and address bus Interconnection (2c) BasicInterconFlash Data and address bus Interconnection PM3394B ch1 CH1 2.00 V~ MTB20.0ns ch1+ 1 CL06532065_005.eps 180500 Ref. # Command Name Remark 6 PapChksFl Checksum FLASH 16 CompSdramWrR SDRAM Write Read Ref. # Command Name Remark 11 PapI2cNvram I2C NVRAM access Ref. # Command Name Remark 15 PapNvramWrR NVRAM Write Read Ref. # Remark Testpoint Frequency 7a (Clock A_CLK in 44.1kHz mode) F566 11.2896MHz ± 0.02% 7b (Clock A_CLK in 48kHz mode) F566 12.288MHz ± 0.02% PM3394B ch1 CH1 2.00 V~ MTB20.0ns ch1+ 1 CL06532065_006.eps 180500 Test instructions mono board DVD-ASD1 GB 11 ASD-1 5. Figure 5-5 5.4.3 Audio deemphasise check The STI5505 output pins PIO 4-0 and PIO 4-1 were used to switch deemphasis on a previous type of DAC. This function is not used anymore, because deemphasis is done internally in STI5505, but the name still remains. The lines are now used for a series of functions such as centre_on_stereo or karaoke_bypass. The PIO 4-0 has got a pull-up to +5V and the PIO 4-1 has not. To check these pins these commands can be used. Ref. # Command Name Remark Testpoint Value 18e AudioDeemp0TristateOn PIO 4-0 Tristate On------ 56a AudioDeemp0On PIO 4-0 OnF630 HIGH 56b AudioDeemp0Off PIO 4-0 0 OffF630 low 18f AudioDeemp0TristateOff PIO 4-0 Tristate Off------ 56c AudioDeemp1On PIO 4-1 OnF633 high 56d AudioDeemp1Off PIO 4-1 OffF633 low 5.4.4 Audio mute check Switch on the Mute circuit by sending next command: Check the Mute output again at testpoint F625: 4.7V ±10% Switch off the Mute circuit by sending next command Check the Mute output at testpoint F625: -8V ±10% 5.4.5 Audio I2S check To check the audio output, connect a audio DAC to the I2S output (DVD950 A/V board) and start-up the audio test. Look at the audio outputs from the A/V board for both sine and pink noise. The audio signal (sine or pink noise) will also be present on the digital ouput (SPDif). This can be checked by connecting an amplifier with digital input. Check the I2S output. LRCLK at testpoint F641 Figure 5-6 SCLK at testpoint F637 Figure 5-7 PCM_OUT0 at testpoint F638 PCM_OUT1 at testpoint F659 PCM_OUT2 at testpoint F658 Ref. # Command Name Remark 19a AudioMuteOn AudioMuteOn Ref. # Command Name Remark 19a AudioMuteOff AudioMuteOff PM3394B ch1 CH1 2.00 V~ MTB20.0ns ch1+ 1 CL06532065_007.eps 180500 Ref. # Command Name Remark Audio outputs 21a AudioSineOn Audio Sine signal Off Audio Sine signal On Sine, 1kHz on stereo Press stop button 20a AudioPinkNoi seOn Audio Pinknoise On Pink Noise on 6 channels 20b AudioPinkNoi seOff Audio Pinknoise Off PM3394B ch1 CH1 2.00 V~ MTB10.0us ch1+ 1 CL06532065_008.eps 180500 PM3394B ch1 CH1 2.00 V~ MTB 100ns ch1+ 1 CL06532065_009.eps 180500 Test instructions mono board DVD-ASD1 GB 12 ASD-1 5. Figure 5-8 PCM_CLK at testpoint F640 Figure 5-9 SPDIF at testpoint F644 Figure 5-10 To switch the audio signal off, press the STOP button on the front. Without A/V board all levels should be switching between low and high except: – PCM_OUT1 and PCM_OUT2 only between low and high for pink noise. For sine, this is low. – PCM_CLK and SPDIF switches between LOW and HIGH Alternatively, there is a check that can be done without A/V board. First, let the decoder generate pink noise on the audio outputs. Measure then these signals on level and frequency. Signal Level between Frequency LRCLK low/high 48kHz ± 0.02% SCLK low/high 3.072MHz ± 0.02% PCM_CLK LOW/HIGH 12.288 MHz ± 0.02% PCM_OUT0, 1, 2 low/high N/A SPDIF LOW/HIGH N/A Put the pink noise off: 5.5 VIDEO 5.5.1 Video output check Check DC output-level at all video-outputs at conn 1603- 2,3,5,6 and conn 1604-16: -0.65V ± 10% Generate a color-bar via next software commands: Check video output at the next testpoints: F646: R_VID Figure 5-11 F649: G_VID PM3394B ch1 CH1 1.00 V~ MTB 500ns ch1+ 1 CL06532065_010.eps 180500 PM3394B ch1 CH1 1.00 V~ MTB20.0ns ch1+ 1 CL06532065_011.eps 180500 PM3394B ch1 CH1 2.00 V~ MTB 250ns ch1+ 1 CL06532065_012.eps 180500 Ref. # Command Name Remark 20a AudioPinkNoiseOn Audio Pinknoise On Ref. # Command Name Remark 20b AudioPinkNoiseOff Audio Pinknoise Off Ref. # Command Name Remark 23a VideoColDencOn Colourbar DENC On 23b VideoColDencOff Colourbar DENC Off PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_013.eps 180500 Test instructions mono board DVD-ASD1 GB 13 ASD-1 5. Figure 5-12 F653: B_VID Figure 5-13 F657: CVBS Figure 5-14 F665: C_VID Figure 5-15 F666: Y_VID Figure 5-16 5.5.2 Scart-switching voltage An aditional part of the video-path is the scart-switching voltage. This voltage can be 0V, 6V, 12V. Check at testpoint F620 the output-voltage while using next commands: 5.5.3 Video Hsync check. To measure the correctness of this output, F656 should be checked. PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_014.eps 180500 PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_015.eps 180500 PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_0163.eps 180500 Ref. # Command Name Remark 25a VideoScartLo Sends out 0V ± 0.5V 25b VideoScartMi Sends out 6V ± 10% 25c VideoScartHi Sends out 12V ± 10% Ref. # Command Name Remark Value 23a VideoColDe ncOn Colourbar DENC on15.625 kHz ± 0.02% Vpeak-peak > 3V 23b VideoColDe ncOff Colourbar DENC off No measurements needed PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_017.eps 180500 PM3394B ch1 CH1 200mV~ MTB20.0us ch1+ 1 CL06532065_018.eps 180500 Test instructions mono board DVD-ASD1 GB 14 ASD-1 5. Figure 5-17 5.6 Servo 5.6.1 General start-up measurements: Reset the Basic Engine part Check Vref Name Testpoint Value Vref F188 2.5V+/-0.3 Check I2S interface Name Testpoint Value B_BCLK F347 6.0MHz +/-0.1 Figure 5-18 CL1F33712.0MHz +/-0.2 Figure 5-19 B_WCLKF343HIGH StopclkF338HIGH B_SyncF344HIGH B_V4F348HIGH 5.6.2 Spindle Motor: Before switching on the discmotor, check the following testpoints: Name Testpoint Value Stby F357 high Stby-out F355 LOW Moto1 F361 3V±0.3 Switch the Discmotor on/off with next commands: Check the following signals when discmotor has been switched on:: Name Pin nr. Frequency Stby F357 low Stby-out F355 HIGH Moto1 F361 3V±0.5V A3 F350 see oscillogram A2 F352 see oscillogram A1 F353 see oscillogram Figure 5-20 Ref. # Command Name Remark 44 BeReset Basic Engin PM3394B ch1 CH1 2.00 V~ MTB20.0us ch1+ 1 HSYNC CL06532065_019.eps 180500 PM3394B ch1 CH1 2.00 V~ MTB50.0ns ch1+ 1 CL06532065_020.eps 180500 Ref. # Command Name Remark 39a BeDiscmotorOn Discmotor on 39b BeDiscmotorOff Discmotor off PM3394B ch1 CH1 2.00 V~ MTB50.0ns ch1+ 1 CL06532065_021.eps 180500 PM3394B ch1 CH1 5.00 V~ MTB20.0ms ch1+ 1 CL06532065_022.eps 180500 Test instructions mono board DVD-ASD1 GB 15 ASD-1 5. T1 F280 see oscillogram T2 F368 see oscillogram T3 F371 see oscillogram Figure 5-21 VH F365 3V±0.5V H1+ F354 see oscillogram H1- F359 see oscillogram H2+ F364 see oscillogram H2- F366 see oscillogram H3+ F367 see oscillogram H3- F370 see oscillogram Figure 5-22 Switch the discmotor off. 5.6.3 Radial Swith the radial control on/off with the following commands: Check the following signals: Name Testpoint Value Rad - F128 4.3V±0.5V Rad + F121 4.3V±0.5V Figure 5-23 Figure 5-24 Check for pulse density signal RA at testpoint F227 Figure 5-25 Check if laser is switched on (visual check of laserlight). Switch the radial control off. Ref. # Command Name Remark 40a BeRadialOn Radial control on 40b BeRadialOff Radial control off PM3394B ch1 CH1 2.00 V~ MTB2.00ms ch1+ 1 CL06532065_023.eps 180500 PM3394B ch1 CH1 200mV~ MTB2.00ms ch1+ 1 CL06532065_024.eps 180500 PM3394B ch1 CH1 200mV~ MTB 100us ch1+ 1 CL06532065_025.eps 180500 Test instructions mono board DVD-ASD1 GB 16 ASD-1 5. 5.6.4 Sledge Use the following commands to move the sledge: Check pulse density signal SL at testpoint F221 Figure 5-26 Name Testpoint Value Sl - F012 4.5V±0.5V Sl + F011 4.5V±0.5V Measure peak to peak signal on SL- and SL+ while moving sledge outwards. Name Testpoint Value Sl - F012 10Vptp +/-0.5 Sl + F011 10Vptp +/-0.5 Measure input sledge control (sledge in home position) Name Testpoint Value Sinph F182 2.2V±0.5V Cosph F192 2.2V±0.5V 5.6.5 Tray: To open and close the tray use the following commands: Measure the driver outputs of the BA5938FM for the tray closed. Name Testpoint Value Vo2 - F116 4.3V±2.0V Vo2 + F111 4.3V±2.0V Measure again the driver outputs while the tray is opening. Name Testpoint Value Vo2 - F116 2.0V±1.0V Vo2 + F111 6.0V±1.0V 5.6.6 Focus To switch the Focus motor on/off, use the following commands: Measure the driver outputs of the BA5938FM for the Focus off. Name Testpoint Value foc - F124 4.3V±0.5V foc + F127 4.3V±0.5V Switch the focus on Measure again the driver outputs Name Testpoint Value Foc - (sawtooth) F124 1V±0.2V Foc + (sawtooth) F127 1V±0.2V Figure 5-27 Check for pulse density signal FO at testpoint F234 Figure 5-28 Check for laserlight. Switch the focus off 5.6.7 Hf path Play DVD test disc. Measure outputs of diodes A, B, C, D, E, F. Name Testpoint Value A F140 2.6V±0.2V B F141 2.6V±0.2V C F143 2.6V±0.2V D F144 2.6V±0.2V E F147 2.6V±0.2V F F148 2.6V±0.2V At outputs of diodes A, B, C, D the following oscillogram can be measured: Ref. # Command Name Remark 41a BeSledgeIn Sledge inwards 41b BeSledgeOut Sledge outwards Ref. # Command Name Remark 43a BeTrayIn Tray in 43b BeTrayOut Tray out Ref. # Command Name Remark 38a BeFocusOn Focus on 38b BefocusOff Focus off PM3394B ch1 CH1 2.00 V~ MTB 500ns ch1+ 1 CL06532065_028 180500 PM3394B ch1 CH1 500mV~ MTB 100us ch1+ 1 CL06532065_029.eps 180500 Test instructions mono board DVD-ASD1 GB 17 ASD-1 5. Figure 5-29 cl06532065-031 Measure DVDALAS outputs Name Testpoint Value RFO DC F146 2.5V ±0.2V O1 F156 25mV±10mV O2 F159 25mV±10mV O3 F169 25mV±10mV O4 F166 25mV±10mV S1 F174 25mV±10mV S2 F175 25mV±10Mv At output RFO, the following oscillogram can be measured: Figure 5-30 5.7 Diagnostic software description Introduction 5.7.1 Introduction Purpose This document describes all interfaces from the outside world to the diagnostic software, what is needed to use these interfaces and how to access them. Changes for DVDv2b are marked. Scope This document has been realised within the framework of the product development of the second generation DVD video player. This player forms the basis for future DVD developments as described in the DVDv2 Overall Project Management Plan. 5.7.2 Definitions and abbreviations Definitions Control PC Automatic test equipment, part of the production control system in the factory, to control the execution of Diagnostic Nuclei in the DVD player. Diagnostic Nucleus Part of the Diagnostic Software. Each nucleus contains an atomic and software independent diagnostic test, testing a functional part of the DVD player hardware on component level. Script Part of the Diagnostic Software. Each script contains a sequence of Diagnostic Nuclei to be executed. Service PC PC used by a service- or repair-person to communicate with the Diagnostic Software in the DVD player. Abbreviations FDS Full Diagnostic Software 5.8 Overview of Interfaces The table below shows an overview of the user interfaces of the Diagnostic Software. The table is based on logical interface, interfaces as seen from user perspective. A logical interface can use one or more physical interface components. The DVD has only a single RS232 port, implying that all interfaces using this port are mutually exclusive. PM3394B ch1 CH1 100mV~ MTB 500ns ch1+ 1 CL06532065_031.eps 180500 PM3394B ch1 CH1 500mV~ MTB 250ns ch1+ 1 CL06532065_032.eps 180500 Test instructions mono board DVD-ASD1 GB 18 ASD-1 5. In the next chapters the logical user interfaces are described in more detail including the exact use of the physical interface components. 5.9 Description Of Interfaces 5.9.1 Menu Interface The menu interface is part of the Level 2 / Second Line diagnostic mode. Via the menu interface it is possible to control the execution of the Diagnostic Nuclei. Set-up physical interface components Hardware required: • Service PC • one free COM port on the Service PC • special cable to connect DVD player to Service PC The service PC must have a terminal emulation program (e.g. OS2 WarpTerminal or Procomm) installed and must have a free COM port (e.g. COM1). Activate the terminal emulation program and check that the port settings for the free COM port are: 19200 bps, 8 data bits, no parity, 1 stop bit and no flow control. The free COM port must be connected via a special cable to the RS232 port of the DVD player. This special cable will also connect the test pin, which is available on the connector, to ground (i.e. activate test pin). 5.9.2 Code nr. PC interface cable: 3122 785 90017 Activation Switch the player on and the following text will appear on the screen of the terminal (program): The first line indicates that the Diagnostic software has been activated and contains the version number of the diagnostic; this is also an indication that the first basic nucleus (nucleus number 1) has been executed succesfully. The next three lines are the succesful result of the subsequent basic tests (nuclei 2, 3, 4 and initialisation of Karaoke chip respectively). If not all these messages appear on the terminal screen, then the related nucleus found an error. The last line is the prompt asking to choose for an interface form. If a choice for Menu Interface has been made, the main menu will appear. For the layout of the menus, see page 25. To switch between interfaces, the DVD player needs to be switched off and on again. Note1 : The DVDv2B player has no power-ON key, but should be turned on by connecting the power-cable. Note2 : The Dram tests are no longer executed because the player has no DRAM . Note3 : When the stack is located in the internal memory, the test with the SRAM doesn't work and will be left out. Note4 : The karaoke initialisation will also take place if there is no karaoke-chip in the player. Usage A selection can be given by the user by typing the number of the menu-item chosen at the prompt. Each entry must be terminated with a . Invalid selections will cause an error message by the Menu Handler. Example: Result and output of an activated (and terminated) nucleus will be sent back to the service terminal. Example: After the user presses a key, the current menu is rebuilt on screen. Pressing < return > at the prompt without any further input at the terminal will always rebuild the main menu. Termination The menu interface is terminated by switching off the DVD player. Logical Interface Description Physical interface components Menu Interface Menu-driven activation of individual nuclei, used for Level 2/ Second Line diagnostic mode. Users are service or repair people Service PC running a terminal emulation program, connected to the RS232 port of the DVD player Test pin Command Line Interface Used during Level 1 diagnostic mode. Used to send commands from the Control PC into the DVD hardware. Control PC, running a control program (e.g. Asterix), connected to RS232 port of the DVD player Test pin Script Interface Used to execute Player Test Script (including reading the error log) and Dealer Test Script. Local keyboard Local display S2B interface Used for S2B communication with the Basic Engine Service PC, running a S2B monitor program, connected to the RS232 port of DVD player Test pin Download Interface Used to download diagnostic software into the DVD player Service PC running a terminal emulation program, connected to the RS232 port of the DVD player Test pin DVDv2 Diagnostic Software version 1.0 SDRAM Interconnection test passed Basic SDRAM test passed Karaoke init OK (M)enu, (C)ommand (S)2B-interface or (D)ownload? [M]:@ M <-

Select> CL06532065-033.eps 180500 CL96532111_021.eps 071099 Select > 60 0001 Invalid menu selection ER @ Press RETURN to continue�@ CL96532111_022.eps 071099 Select > 16 1601 Data line X is not connected to the SDRAM ER @ Press RETURN to continue�@ Test instructions mono board DVD-ASD1 GB 19 ASD-1 5. 5.9.3 Command Line Interface The command line interface is part of level 1 diagnostic mode. Via a command line interface the execution of Diagnostic Nuclei can be controlled. Set-up physical interface components Hardware required: • Control PC • one free COM port on the Control PC • special cable to connect DVD player to the Control PC The control PC must use the following port settings for the used COM port: 19200 bps, 8 data bits, no parity, 1 stop bit and no flow control. The control PC is connected with a special cable to the RS232 port of the DVD player. Via the same connection the test pin will be connected to ground. Activation After power on the next text will sent to the control PC The first line indicates that the Diagnostic software has been activated and contains the version number; this is also an indication that the first basic nucleus (nucleus number 1) has been executed succesfully. The next three lines are the succesful result of two subsequent basic tests (nuclei 2, 3, 4and karaoke initialisation respectively). If not all these messages appear on the terminal screen, then the related nucleus found an error. The fifth line lets the user choose between the two possible interface forms. The last line is the prompt ("DD>"). The diagnostic software is now ready to receive commands. Note1 : The DVDv2B player has no power-ON key, but should be turned on by connecting the power-cable. Note2 : When it is a player without DRAM, the DRAM tests are left out. Usage The commands that can be given are the names or the numbers of the nuclei. A command must be terminated with a < return > character from the control PC. When typing commands, the backspace key can be used to make corrections. In case of typing errors in the command, an error message is returned. Example: If the command (the nucleus name or number) is recognised, the nucleus is executed. Result and output of an activated (and terminated) nucleus will be sent back to the control PC according to the standard layout as defined in Appendix C. Example in case the command is correct: Example in case the result is an error: Termination The command line interface is terminated by switching off the DVD player. 5.9.4 S2B Interface (not for service) Set-up physical interface components Hardware needed: • Control PC • one free COM port on the Control PC • special cable to connect DVD player to Control PC • S2B monitor tool running on the Control PC Activation To start the S2B interface, connect the RS232 cable to the Control PC in the correct manner. Then start the PC, start the monitor tool and start the DVD player; turn off the monitor tool, turn on S2B monitor tool. The S2B monitor tool now takes all communication. The S2B interface is activated by sending the bit pattern 110x xxxx with the first character to the DVD player, when the user is asked to choose an interface type. The command handler will then activate the S2B pass-through nucleus. The character sent will be passed to this nucleus without loss. Note: The DVDv2B player has no power-ON key, but should be turned on by connecting the power-cable. Termination To terminate S2B pass-through mode, switch off the DVD player. 5.10 Script Interfaces This interface is used during execution of the Player Script and the Dealer Script to display output and error messages. The local display will be used to display the output and the error messages. 5.10.1 Dealer Script Set-up physical interface components Hardware required: • DVD player The DVD player is tested stand-alone: no other equipment than the DVD player is needed. Activation The dealer script is activated by pressing OPEN/CLOSE and PAUSE on the local keyboard of the DVD player simultaneously during power-on. CL06532065_034.eps 180500 DVDv2 Diagnostic Software version 1.0 SDRAM Interconnection test passed Basic SDRAM test passed Karaoke init OK (M)enu, (C)ommand (S)2B-interface or (D)ownload? [M]:@ C <- DD> CL96532111_024.eps 071099 DD > CompSdarmWrR 0001 Unknown command ER @ DD> CL96532111_025.eps 071099 DD > CompSdarmWrR 1600 OK @ DD> CL96532111_026.eps 071099 DD > CompSdarmWrR 1601 Address line X not connected to the SDRAM @ DD> Test instructions mono board DVD-ASD1 GB 20 ASD-1 5. Note : The DVDv2B player has no power-ON key, but should be turned on by connecting the power-cable. Usage The test requires no user interaction. A number of nuclei will be run before a message is returned indicating if there is a failure in the DVD player. During the execution of a script, a progress indicator is displayed on the local display of the DVD player. The counter at the right side of the display counts down from the number of nuclei to be run to zero. At zero all nuclei from the script have been run and the result (PASS/Error) is displayed on the local display of the DVD player. When the dealer script has been completed, the results are displayed in the following manner: Termination To turn off the dealer test, the DVD player must be powered down. 5.10.2 Player Script Set-up physical interface components Hardware needed: • DVD player • television set, connected to the DVD player • 6 audio speakers • an external video source Activation To activate the player script, press OPEN, CLOSE and STOP keys on the local keyboard of the DVD player simultaneously during power-on. Usage The player test requires human interaction to decide whether nuclei give correct output, e.g. the user needs to confirm the results of the display test. This needs to be given through the local keyboard on the DVD player. Which keys can be used for this purpose is described with each test. Module test (with user interaction) During the first phase of the dealer test, the three main modules (Digital PWB, Display PWB and Basic Engine) are tested; some interaction from the user is required. 1. Testing the Display PWB This involves testing the local display and keyboard, but also testing the remote control and the leds. The Display Test During the display test, different patterns will be shown on the local display of the DVD player. The user needs to step through these patterns using the PLAY key on the local keyboard. If any of the displayed patterns is incorrect, the display test has failed, and also the player test has failed. The test patterns on display will be repeated in a loop (stepped through using PLAY) until the user presses NEXT on the local keyboard to proceed to the next test. The LED Test Next is the LED test; the LEDs on the DVD player are lit. Pressing PLAY will indicate that all LEDs are operational. To indicate that a LED did not light up, the user must press the PAUSE key. Pressing PLAY or PAUSE will proceed the user into the next test. The Keyboard Test During the keyboard test, the user needs to press all the keys on the local keyboard one by one. On the local display each key is represented by its scancode (a hexadecimal 2-digit code identifying the key to the DVD player). Pressing a key will show its representing code on the local display of the DVD player: the first hexadecimal digit identifies the key pressed, the second indicates how many times this particular key was detected. In case the key is pressed more than once, the scancode is displayed as many times, with the second digit of its code increased each time. The display of scancodes scrolls from right to left, with the most recent scancode at the right. The following example gives a possible layout of the local display during the display/remote control test: To terminate the keyboard test, press the NEXT key on the local keyboard of the DVD player and keep it pressed for 1 (one) full second. The keyboard test will terminate with a message on the local display. In case the keyboard test was successful, the message is: In case the keyboard test was not successful, the message will be: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 + CL96532111_017.eps 071099 CL96532111_018.eps 071099 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CL96532111_019.eps 071099 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 + 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_004.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_007.eps 130999 Test instructions mono board DVD-ASD1 GB 21 ASD-1 5. If the "tbFAIL"-message is displayed, the player test has failed. This is the end of the player test: turn off the DVD player, or press NEXT on the local keyboard of the DVD player to proceed to the next test. The remote control test For the remote control test, the user must press a key (any key) on the DVD's remote control. The display at the start of the test looks as follows: When a remote control code has been received, its scancode is displayed as follows: The NEXT key can be pressed to exit this test. However, if the user requires to test all keys on the remote control, (s)he can continue to press keys and these will all be displayed on the local display. With a code-table at hand this test can be used to test the full functionality of the DVD's remote control. When the user has pressed NEXT on the local keyboard (NOT on the remote control!), the result of the remote control test is shown on the local display as follows: in case of succes; if the test fails. Pressing NEXT on the local keyboard again will proceed to the next test. 2. Testing the Monoboard The picture tests involve putting a predefined picture on the connected television set, and asking the user for confirmation. When the picture has been put on screen, the local display asks for confirmation by the user as follows: If the user presses PLAY, he confirms the test; pressing PAUSE will indicate a fault in the test. At this time, the player test had failed and the DVD player can be switched off, or the user can proceed to the next test by pressing NEXT on the local keyboard of the DVD player. Pressing the NEXT key on the local keyboard will start the next picture test (Colour set-up functional test). When the picture tests are finished, the sound tests are run. A predefined sound will be generated, and again the user is asked to confirm this. The local display looks as follows: Pressing PLAY confirms the test, PAUSE indicates test failure. If the test is faulty, the player test failed and the DVD player can be shut off. Subsequent sound tests will be numbered in ascending order. Pressing NEXT on the local keyboard of the DVD player will take the user into the next test. 3. Testing the Basic Engine Most tests on the basic engine require user interaction. When the basic engine tests are started, the version of the basic engine which is present in the DVD player is shown on the local display, as follows: 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ CL 96532097_008.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532111_032.eps 071099 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_009.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_011.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_012.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_013.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_014.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_015.eps 130999 Test instructions mono board DVD-ASD1 GB 22 ASD-1 5. The version number is displayed in decimal representation (the underscore replacing the dot). When the user presses NEXT on the local keyboard, the tests on the basic engine are started. First, the tray operation is tested. The user can move the tray in and out by pressing the PLAY or PAUSE key on the local keyboard (both keys have essentially the same function). The results need to be checked visually by the user, the software cannot detect any faults. The local display looks as follows: To indicate this is a test of which the result is to be checked by the user, the first word on the local display is "do". Except for testing the tray, this test is also meant to give the user the opportunity to put a disc into the DVD player for subsequent basic engine tests. Some of the following tests need a disc in the DVD player to operate properly. Always put a disc into the DVD player during this test! At the end of the basic engine tests there is opportunity to remove it (before the looptests start). Pressing the NEXT key on the local keyboard proceeds to the next test. Second test is the sledge test; the user is asked to move the sledge by using the keys PLAY and PAUSE on the local keyboard (both keys have essentially the same function). This test needs to be checked visually by the user; the software cannot detect any faults. The local display during this test looks as follows: After pressing NEXT on the local keyboard the discmotor is tested; the local display looks as follows: The user is required to listen if the disc motor is running; this must be confirmed by pressing PLAY on the local keyboard. The PAUSE key is used to indicate the discmotor does not run. Pressing NEXT on the local keyboard starts the focus test. The local display looks as follows during this test: By pressing PLAY the user confirms successful focussing by the basic engine; pressing PAUSE indicates a fault in the focus function. Pressing NEXT on the local keyboard starts the radial function; the local display looks as follows: Again, PLAY confirms the result, PAUSE indicates an error. After pressing NEXT on the local keyboard, the grooves/jump test is started. As this is also a test that cannot be checked by the software, the user needs to perform a visual test. The local display looks as follows: By pressing PLAY the next grooves/jump position is taken; pressing PAUSE will go to the previous grooves/jump position. Switching through the different positions is done in a cyclic manner. Press the NEXT key on the local keyboard to proceed to the last basic engine test: again, the tray is tested. This has been done at the beginning of the basic engine test already, the repeat is only meant to enable the user to remove the disc in the tray before proceeding. The local display will look as follows: Press PLAY or PAUSE to operate the tray; remove the disc in the tray. The tray will be closed automatically (if needed) before proceeding to the next tests (by pressing NEXT on the local keyboard). Read Error Log 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_016.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL96532097_017.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_018.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_019.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_020.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_021.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_016.eps 130999 Test instructions mono board DVD-ASD1 GB 23 ASD-1 5. The contents of the error log will be displayed on the local display, as follows : Note: This is an example only; no actual errorcode is intended The first two characters on the local display ("EL") indicate that the read-out mode of the error log is activated. After the hyphen 8 hexadecimal digits (one faultcode) are displayed. Below the row of 7-segment displays the highlighted number indicates the number of the faultcode being displayed. (Not for DVDv2B) The highest number indicates the oldest faultcode. If, in the future, more than 15 faultcodes need to be displayed, the "+" character can be used to indicate the display of a faultcode in the range 16 - 30. To step through the different fault codes, the PLAY (next) and PAUSE (previous) key on the local keyboard can be used. The display of faultcodes is cyclic. If the error log does not contain any fault codes, all displayed error codes will be "000 00000". To switch off the display of the error log, the NEXT key must be pressed on the local keyboard. Read Error Bits The error bits are used to indicate that an error occurred once or more times; if that is the case the bit representing the error is set. To read out this field of error bits, the local display is used. Only the numbers of the errors where the bit is set will be displayed on the local display. The layout of the local display is (globally) as follows2: The number of the set bits is displayed in a cyclic manner. Scrolling through the set error bits can be done with the PLAY key for 'next' and PAUSE key for 'previous'. Pressing the PLAY key at the last bit number will display the first bit number again, pressing the PAUSE button at the first bit number will display the last bit number in the list. The representation of bit numbers is decimal. If no error bits are set, the number on the right side of the display will be "00" Module Looptest The module looptest is an infinite loop in which a number of nuclei are executed over and over again. The nuclei run are the same as in the dealer test; user interaction is not required. During this looptest, the display looks as follows3: The leftmost three digits indicate which of the DVD player's modules is faulty; the explanation is in the following table: After the hyphen the (decimal) number indicates the number of times the looptest was performed. The right side of the display shows an error code DNER (in decimal representation), which is built from a nucleus number (DN) and an error number (ER). This code indicates the last nucleus that returned an error code. For explanation of this DNER code, see document [SDD_DN]. Pressing NEXT on the local keyboard of the DVD player will exit this loop and show the end result of the player test. End result of the player test is equal to the last display shown above: it shows which module is faulty and which nucleus caused the last error, as well as how many loops were performed. Termination To terminate the player test, switch off the DVD player. 5.11 Download Interfaces (not for service) The download interface enables the user to download another version of diagnostic software into the RAM of the DVD player. The downloaded software will overrule the software which is placed in the DVD player's ROM; running the original diagnostic software is disabled until the DVD player is switched off and on again. For download of diagnostic software, the RS232 port may be used. 5.11.1 Set-up physical interface components Hardware required: • Service PC • one free COM port on the Service PC • special cable to connect DVD player to Service PC The service PC must have a terminal emulation program (e.g. OS2 WarpTerminal or Procomm in Windows95) installed and must have a free COM port (e.g. COM1). Activate the terminal emulation program and check that the port settings for the free COM port are: 19200 bps, 8 data bits, no parity, 1 stop bit and no flow control. The free COM port must be connected via a special cable to the RS232 port of the DVD player. This special cable will also connect the test pin, which is available on the connector, to ground (i.e. activate test pin). 5.11.2 Activation Switch the DVD player on and the following text will appear on the screen of the terminal (emulation program): 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ CL 96532097_022.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_023.eps 130999 1 ⋅ 2 ⋅ 3 ⋅ 4 ⋅ 5 ⋅ 6 ⋅ 7 ⋅ 8 ⋅ 9 ⋅ 10 ⋅ 11 ⋅ 12 ⋅ 13 ⋅ 14 ⋅ 15 + CL 96532097_025.eps 130999 Displayed Value Indication for each module Loader Mono- board Display PCB 000 ok ok ok 001 ok ok faulty 010 ok faulty ok 011 ok faulty faulty 100 faulty ok ok 101 faulty ok faulty 110 faulty faulty ok 111 faulty faulty faulty CL 06532065_052.eps 230500 Test instructions mono board DVD-ASD1 GB 24 ASD-1 5. The DVD player is now in a wait-mode, awaiting the download of a file in Motorola S3-format. Enter the download command (which will be an "upload" from the terminal!) at the terminal: Progress seen by the diagnostic software is indicated by displaying the character "*" on screen repeatedly; if the download software encounters an error, the end of the downloaded file will be awaited and instead of the "*"- character, the "+"- character will be used to indicate (erroneous) progress. When download is finished, the following message will come from the DVD player: When the user then presses a key, the DVD player will report and start to run the downloaded software. Note1 : The DVDv2B player has no power-ON key, but should be turned on by connecting the power-cable. Note2 : For players without DRAM, the DRAM-tests will be scipped. 5.11.3 Usage The usage of the downloaded software depends on the contents of that software and cannot be described here. 5.11.4 Termination (not for service) To exit the download-interface and remove the downloaded software from the DVD player, switch off the DVD player. External Scripts A script is a sequence of nucleus calls. Internal scripts (e.g. scripts built into the diagnostic software itself) are in the form of a C-language module. However it cannot be expected from a customer to write C-modules in order to create new scripts. The scripts that can be made externally are therefor in one of the following two forms: 1. A Procomm or Telex script Procomm or Telex can be used to write diagnostic scripts. The script language of both communication packages contains possibilities for construction of loops and branches in the scripts. Commands then going over the line will be exactly the same as described in the chapter "Command Interface". The diagnostic software (the engine) will receive normal RS232 commands and processes these as defined, sending results of these nuclei back over the RS232 line. In the Terminal the Procomm or Telex script determines which command sequence is followed 2. An Asterix-script Asterix-scripts are C-programs in which commands are sent to the diagnostic software (the engine). The construction of branches and loops is again located in the remote machine, i.e. the Asterix machine. Commands going over the line will be exactly the same as described in the chapter "Command Interface". The diagnostic software (the engine) will receive normal RS232 commands and processes these as defined, sending results of the called nuclei back over the RS232 line. In the Asterix PC the C-program determines which command sequence is followed. Layout of menus and submenus for the Service Terminal NOTE: a symbol "-->" in the next menu layouts indicates that that specific menu choice will invoke the display of a submenu. This symbol will also be used in the implementation of the menus (i.e. the "-->" will also appear in the user interface). Main Menu MAIN MENU 1. Audio --> 2. Basic Engine --> 3. Display PWB --> 4. Processor & Peripherals --> 5. Karaoke --> 6. Log --> 7. Miscellaneous --> 8. Video --> First Level Submenus AUDIO MENU 1. Deemphasis --> 2. Mute --> 3. PinkNoise --> 4. SineWave --> BASIC ENGINE MENU 1. Disc Motor --> 2. Focus --> 3. Grooves --> 4. Radial --> 5. Reset [44] 6. Sledge --> 7. Tray --> 8. Version [37] DISPLAY PWB MENU 1. Display [30] 2. Keyboard [27] 3. LEDs [29] 4. Remote control [28] 5. Version [28] LOG MENU 1. Read last errors [31] 2. Read error bits [32] CL06532065_035.eps 180500 DVDv2 Diagnostic Software version 1.0 SDRAM Interconnection test passed Basic SDRAM test passed Karaoke init OK (M)enu, (C)ommand (S)2B-interface or (D)ownload? [M]:@ D <- DVD diagnostic software awaiting download...@ CL96532111_028.eps 071099 upload CL96532111_029.eps 071099 Press return to start downloaded program... Download succesful CL96532111_030.eps 071099 DVD Diagnostic Software version X.X Test instructions mono board DVD-ASD1 GB 25 ASD-1 5. 3. Reset [33] PROCESSOR AND PERIPHERALS MENU 1. Clock --> 2. DRAM Write/Read [9] 3. Flash --> 4. I2C --> 5. S2B --> 6. SDRAM Write/Read [16] MISCELLANEOUS MENU 1. NVRam Utils --> 2. PalNtsc Line --> (Not for DVDv2B) 3. 2B Utils --> 4. Statistics Info --> 5. Read Application Version [46] VIDEO MENU 1. Colourbar --> 2. Scart --> KARAOKE MENU 1. Karaoke Mode Off [48a] 2. Karaoke Mode On [48b] 3. KaraokeMicInput [49] 4. KaraokeKey On [50a] 5. KaraokeKey Off [50b] 6. Karaoke Echo On [51a] 7. Karaoke Echo Off [51b] Second level submenus DEEMPHASIS MENU 1. Deemphasis 0 On [18a] 2. Deemphasis 0 Off [18b] 3. Deemphasis 1 On [18c] 4. Deemphasis 1 Off [18d] for DVDv2B: 1. Deemphasis On [18a] 2. Deemphasis Off [18b] 3. Deemp 0 Tristate On [18e] 4. Deemp 0 Tristate Off [18f] 5. Deemp 1 Tristate On [18g] 6. Deemp 1 Tristate Off [18h] MUTE MENU 1. Mute On [19a] 2. Mute Off [19b] PINKNOISE MENU 1. Pinknoise On [20a] 2. Pinknoise Off [20b] SINEWAVE MENU 1. Audio Sine On [21a] 2. Audio Burst On [21b] DISC MOTOR MENU 1. Disc Motor On [39a] 2. Disc Motor Off [39b] FOCUS MENU 1. Focus On [38a] 2. Focus Off [38b] GROOVES MENU 1. Jump Grooves to Inside [42a] 2. Jump Grooves to Middle [42b] 3. Jump Grooves to Outside [42c] RADIAL MENU 1. Radial Control On [40a] 2. Radial Control Off [40b] SLEDGE MENU 1. Sledge Inwards [41a] 2. Sledge Outwards [41b] TRAY MENU 1. Open Tray [43b] 2. Close Tray [43a] LASER MENU 1. Laser Cd On[58a] 2. Laser Cd Off[58b] 3. Laser DVD On[58c] 4. Laser DVD Off[58d] UCLOCK MENU 1. µClock A_CLK in CDDA Mode [7a] 2. µClock A_CLK in DVD Mode [7b] FLASH MENU 1. Checksum FLASH [6] 2. Flash write access [10] I2C MENU 1. I2C NVRAM Access [11] 2. I2C Display PWB [12] S2B MENU 1. S2B Echo [13] 2. S2B Pass-through [14] NVRAM MENU 1. NVRAM Config [34] 2. NVRAM reset [35] 3. NVRAM Mod [36] 4. NVRAM write/read [15] PAL/NTSC MENU (Not for DVDv2B) 1. PalNtscHi [45a] 2. PalNtscLo [45b] 2B UTILS MENU 1. I2C Scart Check [54] 2. Scart to DVD [55a] 3. Scart Pass through [55b] 4. VideoColSetupI2C [52] 5. VideoColSetupHi [53a] 6. VideoColSetupLo [53b] VIDEO COLOURBAR MENU 1. Colourbar DENC On [23a] 2. Colourbar DENC Off [23b] SCART MENU 1. Scart Low [25a] 2. Scart Medium [25b] 3. Scart High [25c] STATISTICS INFO MENU 1. Total Nr of Times Tray Open [47a] 2. Toat Time Power On [47b] 3. Total Play-time CDDA & VCD [47c] 4. Total Play-time DVD [47d] Test instructions mono board DVD-ASD1 GB 26 ASD-1 5. Screen layout with menus When menus are used, no specific screen layout can be given: menu information will not be in a special format, except for the layout as mentioned in the previous paragraphs. A typical menu session can look as follows: ---------------< top of screen >------------------------------------------- DVDv2 Diagnostic Software version 1.0 SDRAM Interconnection test passed Basic SDRAM test passed Karaoke init OK (M)enu, (C)ommand, (S)2B-interface or (D)ownload? [M]:@ M <-- MAIN MENU 1. Audio --> 2. Basic Engine --> 3. Display PWB --> 4. Processor & Peripherals --> 5. Karaoke --> 6. Log --> 7. Miscellaneous --> 8. Video --> Select> 4 <-- PROCESSOR AND PERIPHERALS MENU 1. Clock --> 2. DRAM Write/Read [9] 3. Flash --> 4. I2C --> 5. S2B --> 6. SDRAM Write/Read [16] Select> 6 <-- ------------------< bottom of screen >---------------------------- Depending on the height of the screen, the text will start scrolling off the top of the screen. Layout of Results diagnostic nuclei on control/service PC Results returned from a Diagnostic Nucleus to the control/ service PC will have a maximum length of 300 characters and are terminated by a CR character (included in the string length) The result has the following layout < number >< string > [OK l ER] @< CR > The use of the "@" enables the Asterix system on the Control PC to parse the output string of each nucleus into a database. < number > is a 4-digit decimal number padded with leading zeros if its value is less than 4 digits. The first two digits identify the generating nucleus (or goup of nuclei), the latter two digits indicate the error number. < string > is a text string containing information about the result of the Diagnostic Nucleus. < number > and < string > are defined in [SDD_DN] in the output sections of each Nucleus. Examples: CL96532111_031.eps 071099 1. 0001 Unknown command ER @ 2. 3100 OK @ 3. 0901 Data line X is not connected to the DRAM ER @ Test instructions mono board DVD-ASD1 GB 27 ASD-1 5. 5.12 Diagnostic Nuclei Each nucleus contains an atomic and independent diagnostic test, testing a functional part of the DVD player hardware on component level. Each Nucleus returns a result message to its caller. Some tests (e.g. generating a colour bar) can only return an "OK" result. Internal communication will be done via a uniform interface between the diagnostic Engine, Scripts and the Diagnostic Nuclei. The diagnostic Engine can only operate if a certain (minimal) set of hardware is functioning properly. To test this set of hardware, a set of basic diagnostic nuclei is embedded in the DVD player. Each basic diagnostic nucleus will only test that part of the hardware which is required for execution of the diagnostic Engine, e.g. a RAM test will only test that part of RAM that is used by the diagnostic engine. After the Diagnostic Engine is operational it is possible to do a full RAM diagnostic. All basic diagnostic nuclei start with prefix 'Basic'. In the overview each Diagnostic Nucleus consists of a reference number, a reference name and remarks. Reference number and name are coupled and one of them is enough for unique identification. The reference number can be used to find the description of the Diagnostic Nucleus in paragraph Error! Reference source not found..# where # is the reference number. 5.12.1 Basic Diagnostic Nuclei 5.12.2 Processor and Peripherals 5.12.3 Components 5.12.4 Audio 5.12.5 Video Ref. Reference Name Remark 1 BasicSpAcc Serial port Access test/ initialisation 2a BasicInterconDram Data and address bus Interconnection (only for DVDv2A) 2b BasicInterconSdram Data and address bus interconnection 3 BasicDramWrR DRAM Write Read (only for DVDv2A) 4 BasicSdramWrR SDRAM Write Read 5 BasicSramWrR SRAM Write Read Ref. Reference Name Remark 6 PapChksFl Checksum FLASH 7a PapUclkAclkCdda uClock A_CLK in CD-DA mode 7b PapUclkAclkDvd uClock A_CLK in DVD mode 9 PapDramWrR DRAM Write Read (only for DVDv2A) 10 PapFlashWrAcc FLASH Write Access 11 PapI2cNvram I2C NVRAM access 12 PapI2cDisp I2C Display PWB 13 PapS2bEcho S2B Echo 14 PapS2bPass S2B Pass-through 15 PapNvramWrR NVRAM Write Read Ref. # Reference Name Remark 16 CompSdramWrR SDRAM Write Read Ref. Reference Name Remark 17 AudioSig Audio Signature (Optional) 18a AudioDeemp0On Audio De-emphasis 0 On AudioDeempOn (DVD2B) Audio De-emphasis On (DVDv2B) 18b AudioDeemp0Off Audio De-emphasis 0 Off AudioDeempOff (DVD2B) Audio De-emphasis Off (DVDv2B) 18c AudioDeemp1On Audio De-emphasis 1 On (Not for DVDv2B) 18d AudioDeemp1Off Audio De-emphasis 1 Off (Not for DVDv2B) 18e AudioDeemp0Tristat eOn Audio De-emphasis 0 in tristate/bidirectional mode (DVDv2B) 18f AudioDeemp0Tristat eOff Audio De-emphasis 0 back in output mode (Off) (DVDv2B) 18g AudioDeemp1Tristat eOn Audio De-emphasis 1 in tristate/bidirectional mode (DVDv2B) 18h AudioDeemp1Tristat eOff Audio De-emphasis 1 back in output mode (Off) (DVDv2B) 19a AudioMuteOn Audio Mute On 19b AudioMuteOff Audio Mute Off 20a AudioPinkNoiseOn Audio Pinknoise On 20b AudioPinkNoiseOff Audio Pinknoise Off 21a AudioSineOn Audio Sine signal On/Off 21b AudioSineBurst Audio Sine signal Burst 56a AudioDeemp0On PIO-pins as used in 2A for Deemphasis 56b AudioDeemp0Off PIO-pins as used in 2A for Deemphasis 56c AudioDeemp1On PIO-pins as used in 2A for Deemphasis 56d AudioDeemp1Off PIO-pins as used in 2A for Deemphasis Ref. Reference Name Remark 23a VideoColDencOn Colourbar DENC On 23b VideoColDencOff Colourbar DENC Off 25a VideoScartLo Scart Low 25b VideoScartMi Scart Medium 25c VideoScartHi Scart High 52 VideoColSetupCom Colour Setup Communication 53a VideoColSetupHi Colour Setup High 53b VideoColSetupLo Colour Setup Low 54 VideoScartSwCom m Scart Switch communication 55a VideoScartSwDvd Scart Switch Dvd 55b VideoScartSwPass Scart Switch Pass-through Test instructions mono board DVD-ASD1 GB 28 ASD-1 5. 5.12.6 DisplayPWB (slave processor) 5.12.7 Log (error logging in NVRAM) 5.12.8 Miscellaneous 5.12.9 Basic Engine 5.12.10 Karaoke Note: A new Compair version for repair of the MONO boards will be developed. 57a VideoScartPinLo PIO-pins as used in 2A for Scart-switching 57b VideoScartPinMi PIO-pins as used in 2A for Scart-switching 57c VideoScartPinHi PIO-pins as used in 2A for Scart-switching Ref. Reference Name Remark 26 DispVer Version number 27 DispKeyb Keyboard 28 DispRc Remote Control 29 DispLed LEDs 30 DispDisplay Display Ref. Reference Name Remark 31 LogReadErr Read last Errors 32 LogReadBits Read errors Bits 33 LogReset Reset Ref. Reference Name Remark 34 MiscReadConfig Read Configuration area from NVRAM 35 MiscNvramReset NVRAM Reset 36 MiscNvramMod Modify NVRAM contents 45a MiscPalNtscHi Check if PAL/NTSC line is high (Not for DVDv2B) 45b MiscPalNtscLo Check if PAL/NTSC line is low (Not for DVDv2B) 46 MiscApplVer Read version of application software 47a MiscTrayOpenNr Read the number of times the tray opened 47b MiscPowerOnTime Read the total time the player's power has been on 47c MiscPlayTimeCddaVcd Read the Playtime of CDDA and VCD discs 47d MiscPlayTimeDvd Read the Playtime of DVD discs Ref. Reference Name Remark 37 BeVer Version number 38a BeFocusOn Focus On 38b BeFocusOff Focus Off 39a BeDiscmotorOn Discmotor On 39b BeDiscmotorOff Discmotor Off Ref. Reference Name Remark 40a BeRadialOn Radial control On 40b BeRadialOff Radial control Off 41a BeSledgeIn Sledge Inwards 41b BeSledgeOut Sledge Outwards 42a BeGroovesIn jump Grooves to Inside 42b BeGroovesMid jump Grooves to Middle 42c BeGroovesOut jump Grooves to Outside 43a BeTrayIn Tray In 43b BeTrayOut Tray Out 44 BeReset Reset Basic Engine 58a LaserCdOn CD Laser on 58b LaserCdOff CD Laser off 58c LaserDvdOn DVD Laser on 58d LaserDvdOff DVD Laser off Ref. Reference Name Remark 48a KaraokeModeOff Switch Karaoke mode off 48b KaraokeModeOn Switch Karaoke mode on 49 KaraokeMicInput Check path from the microphone input to audio output 50a KaraokeKeyOn Set Karaoke Key to the maximum level (1200 cent) 50b KaraokeKeyOff Set Karaoke Key to flat octave (0 cent) 51a KaraokeEchoOn Set Echo Control fuction on 51b KaraokeEchoOff Set Echo Control function off Ref. Reference Name Remark Block diagrams 29 ASD-1 6. 6. Block diagrams Servo DISK MOTOR SLEDGE MOTOR TRAY MOTOR 6 MHz 8.46 MHz LM833D uP (8051 CORE) ADC 7207 SAA7399 MACE2 SERVO B_V4 B_SYNC B_FLAG B_DATA B_BCLK B_WCLK 6 SAA7335HL/E/M2 HD61 DECODER HF-IN 3 7304 BA6856FP MOTOR-IC HALL-FEEDBACK DRIVE MOTO-IN TACHO-OUT LOADER CDM OPU DVD-LASER CD-LASER RADIAL FOCUS M HALL M HALL M END-SWITCH 4-WIRES FLEX 24P FLEX 11P FLEX 8P PCS-PRE-AMPL DRIVERS 7104 7103 4 2 4 4 2 4 +5 GND PCS PHI-INPUT REF BA5938FM SERVO OUTPUTS TRAY-SWITCH SLEDGE RADIAL FOCUS TRAY1 TRAY2 5 2 2 CONTROL LINES 1104 1106 1301 1100 1 1 7311 CONTROL BUS DATA/ADDRESS BUS AD[0:7] AD[0:7] A[8:16] A[0:16] A[0:7] AD[0:7] AD[0:7] PSENN FLASH ROM ADRESS LATCH 7202 7201 MEMORY 132K S-RAM DATA ADDRESS CONTROL 8 15 1 4268_136 2012 Laser#1 Laser#2 Diode Amplifiers Processing DPD Land/Groove Swap Dual Laser Supply Serial I/Face Push Pull 3 Beam Tracking Var Gain Servo Signals DVD CD D1-D6 MUX CALF_MACE O_CENTRAL Land V & I references Header Offset Mute compensations MUX SILD SICL SIDA 4 6 4 6 TO STi5505 ON DIAGRAM 5 DVDALAS2+ TZA1033 RFo STB_DALAS ASD1 BOARD SERVO PART 7310 7102 CY7C199-15C AM29F002 74HCT573D BLOCKDIAGRAM DIGITAL PART TXD_BE RXT_BE CFR SUR 4 TO/FROM STi5505 ON DIAGRAM 5 S2B I2S HPSW EQUALIZER 7110-7111 7100-7106-7101 RSTN POR 1 3 2 t CL06532065_036.eps 180500 30 ASD-1 6. Block diagrams Didital 7504 ST24E32M6 7505 7612-7618 7611 SERVICE RESETN -8Vstby 7600 7503 STi5505 SERVICE 4 I/O OSD DECODER ENCODER CONTROLLER I2C SDRAM CONTROLLER PROGRAMMABLE VIDEO AUDIO MPEG DECODER DEMULTIPLEXER MEMORY INTERFACE HOST ST20 UART UART INTERFACE FRONT END 16Mb B_SYNC B_FLAG B_BCLK B_DATA B_WCLK B_V4 1501 STB_CONT AM29LV160BT 7401 MK2742 7616 SEL_ACLK CTS_SER RTS_SER RXD_SER TXD_SER 4 SUR CFR RXD_BE TXD_BE S2B 4 I2S 6 1602 1600 TO/FROM DISPLAY BOARD A/V-MUX INTERFACE SERIAL SUPPLY POWER STB_CONT +6Vstby +5Vstby +5V +3V3 SYNTHESIZER FLASH CLOCK 27 MHz 1603 MUTE MUTE_AV SCART 0_6_12V DEEM[0:1] P50 6 -5V +5V R/C G B/CVBS CVBS/Y TO/FROM CONN. CONN. CONN. CONN. 0/6/12V SERVICE +12Vstby 7608,7609,7610 7604, 7607 AUDIO VIDEO SUBPICTURE 3V3 5V VIDEO FILTER BUFFER 2 4 SCART[0:1] MUTE SCLK PCM_OUT0 PCM_CLK LRCLK SPDIF_OUT R_OUT G_OUT B_OUT C_OUT CVBS_OUT Y_OUT 2 4 3 1604 CONN. BOARD A/V-MUX TO 2 OPTION +12Vstby +3V3 +6Vstby -8Vstby HSYNC PCMout1 PCMout2 Y - C EEPROM DIG_OUT BCLK DATA ACLK WCLK SDA SCLK 2 2 2 2 SDA SCLK SCLK SDA 7405 SDRAM 7404 MT48LC1M16A1TG -7S 16Mb SDRAM 16Mb SDRAM INTERFACE SYSTEM DATA BUS SYSTEM ADDRESS BUS SYSTEM CONTROL BUS CVBS RGB S-VHS DIG. OUT PCM (3X) I2C 4268_136 2012 TO /FROM MACE2 (DIAGRAM 2) FROM HD61 DECODER (DIAGRAM 3) ASD1 BOARD DIGITAL PART P50 PCM__CLK MT48LC1M16A1TG-7S RSTN 5 4 6 CL06532065_037.eps 180500 Electrical diagrams and PWB’s 31 ASD-1 7. 7. Electrical diagrams and PWB’s SERVO DALAS X2 + + + + - X2 X2 MT X2 X2 X2 X2 X2 MUTE VOLTAGE CONTROL LOGIC TRAY - - - MUX VAR GAIN LAND/ GROOVE SWAP MUTE LAND MUX DPD PUSH PULL OFFSET COMPENS. 3 BEAM TRACKING DIODE AMPLIFIERS PROCESSING HEADER 3115 B12 F131 C3 3149 E8 12 13 F159 E8 F160 E2 F021 F7 F119 B9 3119 B7 F036 E9 2143 B1 2116 E4 9 3148 G9 F154 E2 F180 G4 F181 G1 F152 D6 3129 C5 3191 B9 3192 B12 2 3 4 3135 D5 3180 I2 F117 B3 TO / FROM LOADER 3151 E3 F162 E4 F163 H10 3183 F10 3184 I6 3185 I5 F120 B12 F121 B2 F128 C2 F129 C5 F130 C1 3178 I5 F013 I2 3101 A6 3125 C4 A 3188 A8 3 3144 E1 5 3146 E8 3147 E8 F183 G4 F118 B9 F197 G11 F022 G12 F023 H5 F024 H6 F035 E9 E F167 F4 3126 C4 3181 I8 3128 C2 3138 G9 3130 C12 3131 C13 2129 G8 F147 D2 F039 E11 7106 A7 F177 G1 F178 G7 F155 E7 F156 E8 F017 E5 2130 H2 2131 H3 3143 G9 3136 D6 3145 E7 3197 C9 3137 D6 F116 A2 F112 A6 F198 G12 F199 I7 F164 F4 F165 F7 F166 F8 7104-B H2 F111 A2 F169 F8 3182 F10 F171 F3 3139 E4 3140 E5 3193 C13 3194 H8 3195 I8 F192 H2 F101 A10 2103 A5 2104 A6 2105 A7 F189 G8 F190 H1 2100 A9 3150 E3 TO / FROM LOADER TO LOADER 2133 H4 2134 H3 3198 D10 3120 F12 2138 H6 F014 B4 F015 E4 F016 F4 3100 A5 12 13 F144 D2 3113 B4 7114 E10 2118 G9 2119 G10 3141 E2 2107 B6 3142 E5 2113 D8 2114 D7 7110 C4 7111 C5 7112 E10 F135 C1 2108 B6 F179 I9 F132 C4 F133 C11 F153 E2 3122 B12 3123 B5 3124 B12 3179 E11 3187 I2 3127 C12 3189 A3 7104-A G2 B F168 F7 D F170 F2 F F109 A7 3177 H8 3132 D12 3133 D13 3134 D7 F143 D2 4 2115 D5 6 7 3171 G3 3172 G2 7113 E10 F110 A1 1 2106 B3 7115 D11 F107 A4 8 7 8 2135 H4 2136 H5 2137 G12 F157 G10 F158 E7 F011 I2 3199 E9 F037 E10 7101 A8 F150 E1 3173 F12 3112 A6 F186 G4 3114 B12 F184 G1 F185 G4 F122 B5 F123 B11 F124 B2 1105 D8 1106 G1 3190 A4 2127 I10 3166 G8 1 3168 I9 F137 C12 2110 B3 F139 C7 F018 E5 9 10 11 I F182 G2 F019 D6 F020 D6 3164 F3 3165 I9 F172 H9 F038 E11 F173 F4 3174 G12 3175 H6 F 3121 B12 F127 B2 3116 B4 3117 B5 F161 E4 F125 B6 F126 B9 F191 H7 2102 A3 F194 I5 F195 I5 3153 H9 3154 F3 7105-A G12 7105-B G10 2141 I2 2101 A10 2117 E6 3102 A5 3103 A4 G H 2144 B2 2145 B2 3118 B8 5 3167 G3 F149 E2 F148 D2 1100-1 A1 1100-2 A1 3155 F8 F187 G1 F188 G4 F145 D7 F146 D8 2121 E2 2122 F4 A 7109 A9 2128 G8 3152 E8 2132 H3 6 F141 D2 F142 D12 2142 F11 3176 H8 F136 C2 3104 A7 F196 I5 E F113 A6 F114 A8 F115 B12 7103 A10 2140 I6 D F175 F8 2120 E2 2139 I8 10 11 1100-3 A1 G H I 2111 B11 2109 B3 C F174 F8 3170 G3 1100-4 A1 1104 B1 F193 H6 3186 I7 2123 H10 2124 F7 2125 G3 2126 G2 3157 F8 F176 G7 F102 A6 F103 A4 F104 A7 F105 A1 F106 A5 F134 C4 OPTION OPTION OPTION 3156 F3 3106 A7 3107 A12 2 F012 I2 3159 F7 F151 E5 3161 F8 3162 F3 B C 7116 E12 3105 A2 3158 H9 3108 A12 3160 F3 3110 A8 3111 A5 3196 B9 2112 C4 F108 A12 F138 C2 7100 A5 F140 C2 7102 E4 3169 G3 3163 F1 OPTION OPTION OPTION OPTION 1 OPTION OPTION OPTION OPTION OPTION OPTION F036 F158 BC847B 7112 F037 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD +5V 2118 22n 3151 F118 F199 100R 3198 2135 15p 15K 3176 470R F137 47R 3136 68K 3177 3199 3133 2R2 3171 10K 3196 12K 3152 100R 3 4 5 6 7 8 52271-XX90 1106 1 2 +5V F144 7100 BFS20 +5A3 1R 3139 47R 3112 10K 3147 1100-2 2 F103 F145 220p 2143 F189 2.5V 100R 3183 2100 100n +5V F106 F129 3 2 220p 2145 F101 BFS20 7106 1 120R 3165 F120 F151 F149 10K 3105 220R 3179 47R 3140 3120 1K F173 +5V F015 3192 F116 10n 2142 150R 3111 1K 3182 F196 F178 F022 +5D 100n 4n7 2104 2120 2128 180p +5A2 4R7 3141 2139 100n 3160 100R F122 3173 F181 2111 100n 100K F115 2R2 3131 39K 3166 +5V F179 330R 3168 F192 F174 5 6 7 8 4 F177 F155 7105-B MC34072 +5V +5V 2123 100n F160 F023 F117 F150 F014 F183 +5V +12Vstby 2140 330p +5V 3194 3122 470R 100R 3158 10K 3123 +5V +5V 2138 22p 2141 1105 100n 3107 2R2 +12Vstby 2137 100n F104 +3V3D 7113 BC847B F148 F011 BC847B 7114 5 6 7 8 4 3135 2R2 2144 220p LM833D 7104-B 22K 3148 F142 +3V3S 3190 F180 2117 100n 2.0V 3130 F167 22p 2106 2R2 VREF 10K 3125 +5A1 10 VCC2 21 VCC3 3 VIN1 4 VIN2 VIN3 20 24 VIN4 25 VIN5 12 VO2+ 13 VO2- 18 VO3+ 17 VO3- VO4+ 26 27 VO4- 2 VOL+ 1 VOL- 19 23 BIAS 16 FWD 8 GND1 14 GND2 28 GND3 29 MT1 30 MT2 MUTE 7 5 NC1 6 NC2 9 NC3 11 NC5 15 REV 22 VCC1 1100-4 4 BA5938FM 7103 F113 3149 F102 +5V 12K 2127 100n F161 F162 F111 F156 F013 3162 100R 220R 3143 3117 1100-3 3 3191 180R F153 F039 F024 F154 F152 +5V 2126 100n +3V3S 100R 3169 F166 BC857B 7115 3127 22K 2116 100n F176 100R +5V 6K8 3138 3154 F134 3145 12K 560R 3181 2109 1n5 F019 F163 10K 3155 F185 3 2 1 8 4 +5V 3195 F012 LM833D 7104-A 22p 2130 F110 F124 2121 220n 3172 100K 100R 3170 3189 3188 F197 330R 3134 7109 L78M09 GND 2 IN 1 OUT 3 3132 2R2 F136 390R 3119 +5A4 F126 +5Vx F127 4 3180 100K MC34072 7105-A 3 2 1 8 47R 3110 2113 100n F198 F159 3113 8K2 BC847B 7111 F119 2131 22n 7116 BC847B F182 F038 F035 F195 1K5 3102 2108 390p 47R 3106 F021 3129 3K9 F017 91R 3144 F165 27K 3187 2115 100n F146 F147 10K F132 F194 3157 F143 TM 19 VDDA1 8 VDDA2 59 VDDA3 53 VDDA4 44 VDDD3 22 VDDD5 30 VDDL 63 VSSA1 9 VSSA2 58 VSSA3 57 VSSA4 43 VSSD 26 27K 3163 O-C 46 O-CENTRAL 40 O-D 45 R-EXT 60 RF-REF 54 RFN 56 RFP 55 S1 42 S2 41 SICL 24 SIDA 23 SILD 25 STB 31 TD1 35 TD2 37 TDO 34 HEADER 21 LAND 20 LPF-DPD1 38 LPF-DPD2 39 NC1 11 NC2 17 NC3 18 NC4 32 NC5 49 NC6 50 NC7 51 NC8 52 O-A 48 O-B 47 61 CD-MI 62 CD-REF 5 COM 28 COO 29 COP 27 DVD-A 12 DVD-B 13 DVD-C 14 DVD-D 15 DVD-LO 64 DVD-MI 10 DVD-REF 16 FTC 33 FTC-REF 36 7102 TZA1033 CD-A 1 CD-B 2 CD-C 3 CD-D 4 CD-E 6 CD-F 7 CD-LO +3V3S F186 F138 +5Vx +9V +5L F016 3126 10K 3121 +5V F140 27K 10M 3186 3197 1.5V 680R 3118 F139 F107 F105 2.0V 1K5 3103 22 23 24 3 4 5 6 7 8 9 +3V3S F133 1 10 11 12 13 14 15 16 17 18 19 2 20 21 F175 1104 15p 2133 12K 1.5V F141 F109 3142 100R F130 F125 3156 3185 1R 2103 47u 1100-1 1 F184 F121 7101 BFS20 1 3 2 F191 1R 3178 3101 47R 3193 10K 3146 3167 100R F135 F131 F123 F190 F114 2101 100n F018 2R2 3137 2112 1n 390R 3104 3K9 3116 3184 120K 3115 2R2 F157 2107 68p F168 2105 22p 2110 2n2 2114 100p 2129 100n 2136 1.5V +5L 180p 3164 2R2 F188 F169 3114 2R2 +5V F108 2R2 3175 3128 91R F187 7110 BST82 F170 15p 2132 F128 100R 3150 47p 2102 F172 470R 3124 3161 2R2 +5V 2.5V 2119 22n F020 2122 22n F171 4R7 3174 2134 15p 4R7 3100 F193 +9V 3108 2R2 F112 2124 100n 22R 3153 F164 12K 2125 100n SL- SL+ 3159 SICL SIDA SILD RAC-SW RFP A1_MACE ALPHA0 CALF_MACE LDCD MON1 O-CENTRAL LD-DVD RFP S1 S2 SINPH V-REF F E VO2+ RFo RAD+ RAD- LDCD RAD- FOC+ LD-DVD FOC- V-REF E F D C B Ax RAD+ SL- SL+ VO2- TRAY2 TRAY1 HPSW COSPH O1 O2 C B C B V-REF MON2 TRAYSW FO RA VO2- VO2+ REFCOS REFSIN SL FOC- FOC+ MON1 MON2 03 04 Ax D Ax D V-REF STB_DALAS RAD- RAD+ FOC- FOC+ SL- SL+ VO2- VO2+ V-REF CL06532065_038.eps 180500 32 ASD-1 7. Electrical diagrams and PWB’s SERVO MACE EN C1 1D core 8051 SFR RAM ROM ref. AGC ADC/ Laser control control Slegde control Port 5 Port 3 Port Port 1 GEN. TEST DEBUG 4 Port 2 0 Port System interface P6 CLOCK PCS counter Radial Focus Track Defect Signal cond. Ex Dx OPC control detector 2213 H4 2214 H13 F220 C2 F221 C2 F242 E13 F243 E10 4 3211 D2 3210 C2 3202 A7 3203 A4 C 1 2 2216 H12 2226 A4 2227 A6 2228 A7 7 2209 D14 F268 H8 F269 H7 3206 B2 3227 H13 3228 I8 3229 H13 3212 D13 F200 A5 F201 A5 3250 G2 3205 B2 3204 A4 3208 C2 F027 G2 F026 G2 F240 D13 F241 E10 3230 H8 3231 H6 3232 H12 3240 B10 3241 B1 3254 H8 3251 H8 3252 H8 3253 H5 3209 C2 2210 D1 2212 H3 F289 I7 F290 I7 F291 I6 F292 I6 2215 H11 3215 D2 3214 D2 5 F276 H6 F277 H6 F278 H4 F255 F10 F256 F10 F257 F11 F258 F2 F259 F11 1201 I13 1205 A4 2203 A10 2204 B2 3200 A4 3201 A6 F266 H9 F267 H8 F254 F10 F271 H8 F272 H9 F273 H5 3 F212 B10 F213 B2 6 F262 F10 F263 G2 F264 H4 F265 H3 F025 G2 F032 H8 F031 I8 3213 D14 F208 A5 F209 A6 F210 A5 F202 A9 F203 A6 F204 A4 F205 A7 F028 H4 8 9 10 11 F216 B10 F217 B2 F218 C10 F219 C10 F222 C11 F284 H8 F285 H13 F286 H12 F244 E13 F245 E10 F214 B10 F215 B2 F230 D2 F231 D11 F232 D11 F233 D1 F293 I8 F294 I12 F274 H5 F275 H5 F238 D13 D F279 H4 F280 H6 F281 H14 F248 E13 F249 E10 3219 F2 3220 F10 2205 B2 2206 C1 2207 D1 2208 D13 2 F223 C11 F224 C2 F225 C11 F299 B2 F239 D10 F260 F14 F261 F2 10 11 12 13 F246 E13 F247 E10 F270 H9 F207 A6 D E F F211 A4 F250 E2 F251 E13 F252 E10 F253 E13 7207 A3 3246 C2 3247 F10 F206 A5 12 13 14 1 3225 H5 3 4 5 F287 I11 F288 I12 F228 C11 F229 D11 3236 H9 3237 H2 3238 I8 3239 F10 F295 I7 F296 I7 F297 A4 F298 A10 3259 A6 3260 A7 5200 A9 6200 H12 7201 D12 7202 D13 14 A B C 3242 C1 3243 C2 3221 F2 3222 F1 3223 F2 3224 H3 3245 A5 H I 3248 G2 F226 C1 F227 C2 8 9 OPTION 3244 C2 E F282 H7 F283 H7 H I 3249 G2 F029 H5 F030 I8 3255 I7 3256 I7 3257 I8 3258 I12 7203 H12 F234 D2 F235 D11 F236 D2 F237 D10 3226 H4 G F G A B F033 D13 F034 D13 6 7 3234 I11 3235 I12 1205 CSTCC OPTION OPTION OPTION OPTION OPTION +3V3S 2K7 6200 BAS316 F242 3208 F213 3211 4K7 11K 3222 F292 2206 33n 10K 3220 10K 3238 +3A F298 F258 3224 150R F236 F299 F028 F026 F250 +3V3S F240 +5V +5VC F288 F287 2215 22u +5V F232 +5V F221 F278 3213 4R7 F276 +3A F226 3249 10K 3239 F296 F297 F218 +3A F285 F243 2210 1n F274 100n 2205 F208 3221 10K F295 F200 2214 22n 1201 F291 3254 F225 10K 3219 +3V3S F202 F235 F239 +3V3S 100n 2228 3259 1R F275 2227 100n F233 F230 F261 3245 F272 3258 F259 +3A F280 F255 F212 F260 F283 +5VC 1R 3202 100n 2212 3257 F256 F265 F267 F222 12K 3229 8K2 3234 2R2 3232 4K7 3227 1n 2216 +3V3S F254 F031 3203 1M F224 3256 100MHZ 2203 100n 3240 10K 5200 F207 1R 3260 7 14 8 13 9 12 11 10 GND 1 20 Vcc F205 74HCT573 7201 2 19 3 18 4 17 5 16 6 15 F245 F234 +3A 2208 +3V3S 3250 F216 100n 10K 3206 F210 F229 F215 F241 10K 3228 F286 3214 3K9 3210 3K9 +3V3S F219 F284 F289 F253 3212 4R7 F214 +3A F030 F204 +3V3S F029 F223 +3V3S F027 +3A F025 F228 3253 3200 10K 3246 3252 +3A F266 F279 F294 F271 10K 3237 2213 100n +3V3S F277 F201 +5V F246 F211 2204 100n F220 F268 BC857B 7203 +3V3S 3255 +3V3S F033 F247 +3A 3251 F269 3223 11K F273 3215 10K F217 F264 2226 100n F293 +3A 3209 4K7 F203 F238 10K 3230 100n 2209 200K 3225 3204 330R 100K 3235 F290 F237 3248 F248 F251 F244 F206 +3V3S 3242 22K 3244 F231 3236 4K7 W_ F249 A7 27 A8 A9 26 13 DQ0 14 DQ1 15 DQ2 17 DQ3 18 DQ4 DQ5 19 DQ6 20 21 DQ7 22 E_ 24 G_ RP_NC 1 32 VCC 16 VSS 31 12 A0 11 A1 23 A10 A11 25 4 A12 28 A13 29 A14 3 A15 2 A16 30 A17 10 A2 9 A3 8 A4 7 A5 6 A6 5 F034 7202 M29F002 F282 3201 1R F032 F281 3247 F257 F262 3205 10K 3241 22K 3243 VssDc1 82 VssDc2 21 56 VssDp1 VssDp2 95 VssDp3 43 VssDp4 31 VssDp5 11 VssDp6 68 41 WRN WRNH 19 127 XDET XTLI 7 XXTLO 6 +3V3S TXD2 40 Uopb 118 117 Uopt VRH 105 VddAop 120 VddAs 110 VddDc1 83 VddDc2 22 57 VddDp1 VddDp2 96 VddDp3 44 VddDp4 32 VddDp5 12 VddDp6 69 VssAop 119 VssAs 109 33 39 RXD2 S1 112 S2 113 SELPLL 5 125 SINPHI SL 72 SRV_INT_LGR 89 TEN 85 TL_FTL 81 84 TPWM TS1 99 TS2 102 TS3 103 TXD1 34 79 P6 104 PSENn 53 PW 124 PXT0 17 PXT1 18 16 PXT2 PXT2en 15 RA 70 RAC_SW 10 RDN 42 20 RDNH 9 REFCOS 8 REFSIN RP 80 RSTI 98 RXD1 13 INT3|ALEh 14 IREFT 114 LDON 97 LLP 94 MON_A 74 MON_D 73 2 NC1 3 NC2 NC3 36 NC4 37 NC5 NC6 67 NC7 100 NC8 101 88 OPC_INT OTD FOK 87 FTCH 115 FTCL 116 H0|A16 23 24 H1|A17 H2|CSDN 25 H3|CSBN 26 H4 27 28 H5 H6 29 H7 30 I2CSCL 90 I2CSDA 91 35 INT0_PWD INT1 38 INT2 ALPHAO 4 ATIPin 77 CALF 123 CLKOUT 76 CLO 86 126 COSPHI D1|MIRN 106 107 D2|TLN D3|REN 108 111 D4|FEN DEB_OUT 75 DEFIn 92 DEFOn 93 DSDen 78 EAn 55 FO 71 A2 122 A8 45 A9 46 1 ACT_EMFN 128 ACT_EMFP AD0 58 AD1 59 AD2 60 AD3 61 AD4 62 AD5 63 AD6 64 AD7 65 ALE 54 7207 SAA7399HL A1 121 A10 47 A11 48 A12 49 A13 50 A14 51 52 A15 F227 F252 F209 F263 3226 10K 1n 2207 F270 WE RSTN 3231 10K S2 RAD- RAD+ A1_MACE PSENn AM(14) AM(13) AM(12) AM(11) AM(10) RAC-SW ALPHA0 POR ATIP_IN S1 O2 O1 COSPH PORN CALF_MACE ALE AMD(7) AMD(6) AMD(5) AMD(4) AMD(3) AMD(2) AMD(1) AMD(0) AM(9) AM(8) AM(15) INT O-CENTRAL SILD SICL OTD-HD61 TRAYSW CSI AM(17) STBY p93-89 04 03 TRAY1 p93-89 SINPH SUR TXD_BE POR HPSW STB_DALAS ATIP_IN T1 AM(0:17) AM(0:17) AMD(0:7) {ALE,PSENn,RDI,WRI,CSI,WE,OTD-HD61,POR,PORN,RSTN,INT,MOTO1,RFo,T1,T2,T3} +3A p93-89 SIDA CFR RXD_BE TRAY2 AM(7) AM(8) AM(9) AMD(7) AMD(6) AMD(5) AMD(4) AMD(3) AMD(2) AMD(1) AMD(0) AMD(0) AMD(1) AMD(2) AMD(3) AMD(4) AMD(5) AMD(6) AMD(7) {CFR,SUR,RXD_BE,TXD_BE} FO RA SL REFCOS REFSIN +5V PSENn WRI RDI WE RFo ALE AM(0) AM(1) AM(10) AM(11) AM(12) AM(13) AM(14) AM(15) AM(16) AM(2) AM(3) AM(4) AM(5) AM(6) 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD H2 I6 H9 E2 E2 CL06532065_039.eps 180500 Electrical diagrams and PWB’s 33 ASD-1 7. Decoder CLOCK GENERATION CONTROL ANALOG DATA CAPTURE SUB-CPU INTERFACE MOTOR INTERFACE TACHO BLOCK SERIAL OUT INTERFACE DETECTOR BIT DETECTOR DEMOD - + REV PS - + H BIAS CONTROL GAIN DRIVER + - + - + + - + - + - + - F336 F7 F337 F7 F364 H12 F315 C10 11 12 2310 G11 2309 F7 F349 G9 F350 G12 3302 A7 3304 B3 3305 C3 3309 C5 F344 F8 F365 I13 7310 A10 4 13 C 3 F329 D10 3334 F8 F371 I9 F372 I12 3337 F9 3338 F9 F340 F6 F341 F7 3300 A11 3301 A6 2 1 3310 E5 F338 F8 F351 G9 F343 F9 F342 F9 7304 G11 6303 G8 5 6 7312 I13 7315 H7 F325 D10 3329 I13 3330 B5 F312 B4 8 2304 B5 3316 G9 F316 C5 10 3319 H13 3320 H6 2312 H12 2311 H12 3323 H8 11 H I A B 9 10 5300 A8 5301 A5 F332 E10 F333 E10 F334 E10 F335 E10 F369 I13 2305 C5 2306 C2 2307 C3 F352 G12 F313 B10 3331 B4 3332 C4 F366 I12 12 F309 B4 3313 F6 D F327 D10 2319 C4 F308 B10 3335 F8 3336 F8 F305 B10 7 3339 C5 3340 H9 1300 A6 1301 G13 F363 H9 F367 I12 F368 I9 F319 C5 F320 C10 F321 C10 F322 C5 F323 C10 E F326 D10 2313 H12 3324 I9 F346 F8 F356 H13 F317 C10 2302 A5 2303 A5 B C 3317 G9 3318 H7 3312 F6 3325 I12 3321 H12 3322 H8 H I 3328 I12 6 5 F300 A11 F301 A8 F302 A7 F303 A5 F304 A6 13 1 2 3 4 F370 I12 2314 H8 F339 F6 F347 F9 F348 F8 F361 H9 F362 H8 F311 B10 F310 B10 E F 2315 I9 2318 B3 G F F307 B10 F306 B5 G F328 D10 8 F353 G12 F354 H12 F355 H9 6301 G8 6302 G9 7 3333 F8 F314 B5 9 2300 A11 2301 A8 TO LOADER 7311 A6 F373 I12 F324 D10 F345 F8 NOT MOUNTED F318 C10 A D 3311 F7 3326 I13 3327 I12 F330 D10 F331 E10 F357 H6 F358 H7 F359 H12 F360 H8 58 46 WRI +5VB F342 F346 81 VDDD7 92 VDDD8 98 VDDD9 5 VREF 1 VSSA1 7 VSSA2 11 VSSD1 20 VSSD2 VSSD3 32 45 VSSD4 60 VSSD5 73 VSSD6 82 VSSD7 93 VSSD8 99 VSSD9 WCLK 50 STOPCLK 54 SYNC 18 T1 17 T2 21 TEST1 22 TEST2 52 V4 VDDA1 100 9 VDDA2 10 VDDD1 19 VDDD2 31 VDDD3 44 VDDD4 59 VDDD5 72 VDDD6 84 RAD8 85 RAD9 71 RDA0 70 RDA1 68 RDA2 67 RDA3 66 RDA4 RDA5 65 64 RDA6 63 RDA7 47 RDI 4 REFHI 3 REFLO 61 RRW 29 SCL 28 SDA 12 OTD 23 PORE 74 RAD0 75 RAD1 87 RAD10 88 RAD11 RAD12 89 90 RAD13 91 RAD14 76 RAD2 77 RAD3 78 RAD4 79 RAD5 80 RAD6 83 RAD7 IREF 2 97 MEAS1 13 MOTO1 15 MOTO2|T3 24 MUXSW 14 NC1 86 NC10 16 NC2 25 NC3 36 NC4 NC5 38 42 NC6 51 NC7 62 NC8 69 NC9 CRIN 94 95 CROUT 49 CSI 43 DA0 41 DA1 40 DA2 39 DA3 37 DA4 35 DA5 34 DA6 33 DA7 56 DATA 53 EBUOUT 55 FLAG 6 HFIN 30 INT SAA7335HL 7311 8 AGCOUT 48 ALE BCAIN 27 57 BCLK 96 CFLG 26 CL1 +5VB +5VA +5VB F327 22n 2305 22n 2304 +5V F321 F316 1M F336 +5VB 2306 10u 3301 +5V 3313 4K7 3339 4K7 3312 +5V +5VA 11 I|O1 12 I|O2 13 I|O3 15 I|O4 16 I|O5 17 I|O6 18 I|O7 19 OE_ 22 28 VCC WE_ 27 100n 2300 6 A11 7 A12 8 A13 9 A14 10 A2 24 A3 25 A4 26 A5 1 A6 2 A7 3 A8 4 A9 5 CE_ 20 GND 14 I|O0 F317 CY7C199 7310 A0 21 A1 23 A10 F318 F315 F305 F310 F347 22K 3330 F333 1R 3316 +5V F308 NC2 2 NC3 4 6 NC4 NC5 15 PS 23 REV 24 RNF 28 VCC 25 VH 19 VM1 26 VM2 27 +5V EC 22 21 ECR FG1 18 FG2 17 FG3 16 GND 8 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 MT1 29 MT2 30 NC1 1 +5VB 7304 BA6856FB A1 7 A2 5 A3 3 CNF 20 3300 4R7 +5VB 3325 6K8 2311 100n F323 3340 +5VA +5V +5V F313 BC857B F341 2302 +5VA 7312 F354 +5V 100n 5301 47u 2303 F334 100MHZ 2K7 F370 22n 2307 3305 F330 F332 2K7 3304 F363 F331 +5VB F325 F361 F329 100MHZ 22K 3311 F368 F324 5300 F301 F300 F357 F303 3320 4K7 F302 100n 2301 F309 F356 F314 +5VB F352 F340 F345 +5VB F344 100R 3333 3302 CSTCC 1300 2309 100n 220R 6301 3K3 3331 F335 +12Vstby S1D 3310 6302 S1D +5V 22K 100n 2310 6K8 3321 10K 3309 100n 100n 2313 F320 2312 3323 4K7 3337 100R 100n 2314 22K F311 3328 22K 3329 +5V F307 2315 100n 3319 47R +5V F343 F364 F366 F372 F367 F373 F328 F349 F351 F326 6303 F355 F358 S1D 4K7 F304 F306 3318 F369 F339 F365 100R F350 100R F348 3336 3332 3K3 3335 120p 2318 F322 F338 F312 F337 1R 3317 3327 6K8 7 8 9 52271-1190 1301 1 10 11 2 3 4 5 6 4K7 3322 F371 47R 3326 100K 3324 F359 F362 F360 7315 +5V F353 BC847B 100R 3334 2319 27p F319 100R 3338 RAMDA21 RAMDA11 RAMDA01 RAMAD91 RAMAD81 RAMAD71 RAMAD61 RAMAD51 RAMAD41 RAMAD31 RAMAD21 RAMAD141 RAMAD131 RAMAD121 RAMAD111 RAMAD101 RAMAD11 RAMAD01 RAMAD141 RAMAD41 RAMAD31 RAMAD21 RAMAD51 RAMAD61 RAMAD71 RAMAD81 RAMAD91 RAMAD11 RAMAD01 RAMRW RAMDA71 RAMDA61 RAMDA51 RAMDA41 RAMDA31 T2 T1 RAMRW RAMDA31 RAMDA41 RAMDA51 RAMDA61 RAMDA71 RAMDA21 RAMDA11 RAMDA01 RAMAD101 RAMAD111 RAMAD121 RAMAD131 AMD(2) AMD(1) AMD(0) AMD(0:7) ALE RDI WRI B_WCLK B_BCLK B_DATA B_FLAG B_SYNC B_V4 MOTO1 STBY T3 MEAS1 AMD(7) AMD(6) AMD(5) AMD(4) AMD(3) 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD CL06532065_040.eps 180500 34 ASD-1 7. Electrical diagrams and PWB’s Memory VDDQ LCBR DATA INPUT REGISTER PROGRAMMING LRAS LCBR 512Kx16 BANK SELECT OUTPUT BUFFER VSS VSSQ TIMING REGISTER NC 512Kx16 ADDRESS REGISTER LCKE BURST LENGTH LATENCY & DECODER COLUMN LWCBR LCAS LWE REGISTER COL. BUFFER LQDM ROW DECODER REFRESH COUNTER ROW BUFFER LDQM LWE I/O CONTROL SENSE AMP LRAS VDD VDDQ LCBR DATA INPUT REGISTER PROGRAMMING LRAS LCBR 512Kx16 BANK SELECT OUTPUT BUFFER VSS VSSQ TIMING REGISTER NC 512Kx16 ADDRESS REGISTER LCKE BURST LENGTH LATENCY & DECODER COLUMN LWCBR LCAS LWE REGISTER COL. BUFFER LQDM ROW DECODER REFRESH COUNTER ROW BUFFER LDQM LWE I/O CONTROL SENSE AMP LRAS VDD H I E F G H 3412 E5 3413 F5 3414 F5 3415 F5 3416 G5 3418 E4 3402 E1 3403 F8 3404 F11 1 2 3 7400-A E2 7400-B F2 7400-C I6 7 8 9 10 5400 A3 5402 I9 5403 I12 4 5 6 13 14 A B C D SDRAM Interface 7 8 9 10 11 12 F428 I8 F430 H2 F431 H1 F432 G5 F434 F5 F435 F5 SYSTEM DATA Bus TOP RAM/ROM Interface 2400 B3 2401 C9 2402 C10 2403 C12 I A B C D E F G 3405 F5 3406 I7 3407 I3 3409 H7 3410 I6 2417 H3 2418 I10 2419 I13 2420 I13 3400 C1 3401 C2 OPTION OPTION 7400-D E3 7401 C6 7402 H2 7403 H3 7404 D9 7405 D12 7406 B3 F406 E2 F415 G8 F416 G11 F419 I10 11 12 13 14 1 MEMORY PART BOTTOM SYSTEM ADDRESS Bus 2 3 4 5 6 OPTION OPTION OPTION OPTION F420 I13 F421 A3 F422 C2 F423 C2 F424 C2 F425 C2 2404 C13 2405 B6 2406 C9 2407 C10 2408 C12 2409 C13 2410 C9 2411 C10 2412 C12 2413 C13 2414 H7 2415 E1 2416 H2 3404 10K 2410 100n 100n 2411 +5V_DS VDD_MEM2 10K 3405 10K 3402 2417 100n 2401 100n 13 38 44 26 50 4 10 41 47 WE_ 15 VDD_MEM2 6 DQ4 8 DQ5 9 DQ6 11 DQ7 12 39 DQ8 40 DQ9 DQMH 36 14 DQML 33 37 RAS_ 17 1 25 7 A8 32 A9 BA 19 CAS_ 16 34 CKE 35 CLK 18 CS_ DQ0 2 DQ1 3 42 DQ10 43 DQ11 45 DQ12 46 DQ13 48 DQ14 49 DQ15 DQ2 5 DQ3 MT48LC1M16A1TG 7404 21 A0 22 A1 A10 20 23 A2 24 A3 27 A4 28 A5 29 A6 30 A7 31 74HCT1G04 7403 2 3 NC 1 5 4 100n 2416 2408 100n 2400 100n +5V_DS 5400 100MHZ 100n 2412 +5V_DS 22R 3407 74HCT1G79 7402 2 1 3 4 5 +3V3 +5V_DS F430 100u 2418 +3V3 F424 +5V_DS 3418 F423 2404 100n VDD_MEM2 100MHZ 5402 74HCT00D 7400-A 1 2 7 14 3 2414 100n VDD_MEM2 +5VOSC F431 F416 RD_ 19 RESET_|STROBE_ 3 SCL|SCL-IN 2 SDA|SDA-OUT 20 VDD 10 VSS 18 WR_ 3401 100R 6 A0 1 CLK 17 CS_ 7 DB0 8 DB1 9 DB2 11 DB3 12 DB4 13 DB5 14 DB6 15 DB7 4 IACK_|SDA-IN 5 INT_|SCL-OUT 16 VDD_MEM2 PCF8584T 7406 F415 100n 2403 100n 2402 3410 100n 2406 3409 VDD_MEM +5Vstby F434 100n 2405 VDD_MEM F432 3414 3415 VDD_MEM 3413 74HCT00D 7400-C 9 10 7 14 8 3412 F419 100R 3406 F425 3416 41 47 15 WE_ 39 DQ9 40 36 DQMH DQML 14 33 37 17 RAS_ 1 25 7 13 38 44 26 50 4 10 35 CS_ 18 2 DQ0 3 DQ1 DQ10 42 DQ11 43 DQ12 45 DQ13 46 DQ14 48 DQ15 49 5 DQ2 6 DQ3 8 DQ4 9 DQ5 11 DQ6 12 DQ7 DQ8 A0 21 A1 22 20 A10 A2 23 A3 24 A4 27 A5 28 A6 29 A7 30 A8 31 A9 32 19 BA 16 CAS_ CKE 34 CLK 7405 MT48LC1M16A1TG F422 F421 100n 2415 100n 2409 DQ8 18 DQ9 14 OE_ 1 RESET_ 23 VCC 13 VSS1 32 VSS2 44 WE_ BYTE_ 12 CE_ 15 DQ0 17 DQ1 20 DQ10 22 DQ11 25 DQ12 27 DQ13 29 DQ14 31 DQ15|A-1 19 DQ2 21 DQ3 24 DQ4 26 DQ5 28 DQ6 30 DQ7 16 A12 37 A13 36 A14 35 A15 34 A16 3 A17 2 A18 43 A19 9 A2 8 A3 7 A4 6 A5 5 A6 4 A7 42 A8 41 A9 33 Am29LV160BT 7401 11 A0 10 A1 40 A10 39 A11 38 F420 47u 2419 2413 100n 12 13 7 14 11 F428 +5V_DS 7400-D 74HCT00D VDD_MEM F435 100R 3400 2420 47u 2407 100n 4 5 7 14 6 7400-B 74HCT00D F406 VDD_MEM 3403 10K 100MHZ 5403 27M_CLKOUT WAIT SCL_EXE SDA_EXE CE1 DQMU DQML CE1 A1 D0 D1 D2 D3 D4 D5 D6 D7 RWN CLK_8MHz DTACKn IRQ_I2C RESET_I2C AUXCLK 27M_CLK1 CLK_8MHz CASN CLK CSN2 RASN WEN DTACKn AD10 AD11 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD0 AD1 AD10 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD11 AD9 CASN CLK CSN1 DQMU DQML RASN WEN AD0 AD1 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD CL06532065_041.eps 290500 OPTION = NOT USED FOR FUTURE APPLICATION: I2C FROM MASTER TO SLAVE FOR SYSTEMS / COMBI'S Electrical diagrams and PWB’s 35 ASD-1 7. STI 5505 LPCM AUDIO IRQ PORT 0 I/O PORT 1 I/O Subpicture Video Audio SDRAM CONTROLLER SYSTEM USE JTAG PORT 2 I/O PORT 3 I/O PORT 4 I/O FRONT-END uP ST20cpu A/V/Sub demultiplexer MPEG DECODER Subpicture decoder TEST 2 I S ADDRESS DATA Interface MEMORY interface VIDEO ENCODER DECODER AC3 MPEG1/2 OSC F568 F2 F569 F14 F573 G14 13 F589 H12 13 14 2526 I11 14 2528 I11 2515 I4 3538 I13 3540 C9 3541 B7 3542 B8 F507 B9 F508 B9 F509 B9 F510 B9 F511 A1 F567 F14 F513 B11 9 10 3 F590 H13 2 3552 B10 F519 C9 F520 C7 3555 B9 3556 B9 3557 B9 3501 B3 1506-18 C14 2516 I5 2521 I9 F558 D14 F559 E14 F560 E14 F562 E14 F564 F14 BASIC ENGINE INTERFACE Bus F597 I8 F595 I8 F596 I8 2517 I5 2518 I5 2519 I9 F502 B5 3 4 5 6 2520 I9 8 F583 G2 3561 B9 F515 B1 2525 I10 1 2529 I11 3537 I12 F504 B9 F505 B9 F506 B9 F592 I8 F593 I8 F594 I8 3511 C6 3512 C6 3513 A10 3573 I12 3515 C6 3545 D14 3546 C7 3547 B6 3548 A10 F512 B1 3550 B10 2522 I10 3502 B5 3516 C6 3517 C13 3519 C9 3520 C11 2506 D14 A 3551 B10 3503 B11 3506 B4 I2C Bus 3504 B11 2527 H13 3505 B11 F516 B1 F517 B11 F518 B6 F503 A6 F556 D12 F557 D12 2513 I4 5503 A1 5504 B1 2512 I4 1506-8 A14 F566 F14 3563 C7 3562 C7 SYSTEM ADDRESS Bus F514 B8 F578 G2 F579 G2 3549 B10 3523 D13 2509 E13 2510 I3 3564 C7 F531 C10 F574 G14 F576 G14 F521 C10 2524 I10 2530 I11 2531 I11 2532 B1 2533 A1 7 8 9 1506-16 C14 1506-17 C14 3509 B11 3536 I14 7504 I13 F546 C9 F547 C9 F548 C9 1506-3 A14 1506-4 A14 1506-14 B14 1506-13 B14 1506-7 A14 H 1506-9 B14 2523 I10 3534 I12 3535 I13 F598 I8 C 1506-1 A14 2507 D14 2508 E14 3507 B5 3553 B11 3554 B10 2534 B1 2535 B1 3500 B3 10 11 12 F539 C6 5501 H11 2514 I4 I 2500 A3 2502 B5 2503 B6 2504 C11 2511 I3 7505 A2 F050 I14 F051 I14 F052 C7 F053 C7 3521 C12 F580 G2 G E F H F581 G2 F532 C10 F533 C10 F534 C10 F522 C11 F523 C13 3558 B9 3559 B9 3560 B9 B 3508 B11 1506-15 B14 F540 C6 TO/FROM DISPLAY 7501 B5 F588 H12 7 F582 G2 F586 H11 F587 H13 F549 C9 F552 C7 F054 C12 F055 D14 F056 F14 3524 D14 3525 E14 1506-12 B14 D E 1506-23 D14 B F524 C10 1506-11 B14 1506-10 B14 1506-2 A14 3565 C8 3566 C7 3567 C7 3568 C8 3569 I12 3570 F14 3571 A2 3572 B2 1506-6 A14 G I 1506-24 D14 C D 1506-5 A14 SDRAM Interface F541 C12 F542 C9 F543 C7 F544 C9 F545 C9 F553 C8 F554 D8 3522 C12 F555 D6 F058 C7 F059 C8 F060 C8 F500 A13 1506-19 C14 SYSTEM DATA Bus 1 F535 C5 1501-2 B1 1501-3 B1 1501-4 B1 1501-5 B1 F F501 A11 2 F536 C6 F537 C11 F538 C6 F529 D7 F530 C10 HSYNC 5502 I11 F585 H11 11 12 7503 D2 F528 C11 1506-21 C14 1506-22 C14 3514 C6 3526 F2 4 5 6 F599 I8 RAM/ROM Interface F525 C11 F526 C7 F527 C7 1506-20 C14 VDD_STI OPTION OPTION OPTION OPTION OPTION OPTION OPTION OPTION OPTION OPTION OPTION 2505 B11 A 1501-1 A1 F521 F531 F553 F599 +5Vstby F554 5504 F573 VDD_STI 8 68R 3571 1501-1 F528 1506-8 3572 3547 3K3 3562 68R 3534 10K 1506-20 20 VDD_STI F594 5503 3570 100R F503 VDD_STI 3566 3557 100R 3551 F592 VDD_STI F512 F514 VDD_STI 3569 F524 F544 VDD_STI 3541 47R VDD_STI 3520 10K 1506-7 7 F504 3542 47R 1506-12 12 4K7 3507 100n 2511 3546 100R 3508 68R F060 3501 3559 F576 3K3 F556 F527 100R 3550 F587 100n 2525 100n 2518 F579 F533 F559 100n 2503 F522 1506-24 24 F506 VDD_STI F518 F596 F589 F566 3K3 3500 3K3 3517 2u2 5501 3555 3540 4K7 VDD_STI F529 F523 21 3K3 3512 2512 100n 1506-21 2507 F546 F595 100n 3563 F558 100n 2515 2520 VDD_STI 2505 22n 100n F542 +5VOSC F540 VDD_STI VDD_STI VDD_STI F569 100n 2528 F578 F505 3549 F501 3565 47p F562 2532 F557 F574 VDD_STI 3552 3553 F500 F581 F530 100R F513 VDD_STI 100R 1506-14 14 3536 F548 3554 2535 1n F585 F532 1501-4 F583 1506-22 22 1 VDD_STI 1506-1 F580 F536 10K 100n 2514 3505 F567 100n 2521 10K 3504 F535 F564 VDD_STI 10K 3513 3561 100n 2513 11 F586 330p 1506-23 23 1506-11 2509 3558 3524 100R F516 F515 3522 10K F560 15 2519 100n 3 F059 1506-15 F520 1506-3 VDD_STI 3556 330R 3537 1n 2534 10K VDD_STI VDD9 110 VDDA1 53 VDDA2 60 VDDA_PCM 48 VREF_PCM 49 VSSA1 54 VSSA2 61 VSSA_PCM 50 V_REF_DAC_RGB 58 V_REF_DAC_YCC 65 WE0n 121 WE1n 122 Y_OUT 62 3509 VDD10 119 VDD11 130 VDD12 139 VDD13 149 VDD14 159 VDD15 171 VDD16 184 VDD17 208 VDD2 18 VDD3 34 VDD4 67 VDD5 75 VDD6 86 VDD7 95 VDD8 102 SDCS0n 84 SDCS1n 85 SDRASn 88 SDWEn 90 SPDIF_OUT 47 TCK 188 TDI 186 TDO 189 TEST1 30 TEST2 31 32 TEST3 TEST4 33 TEST5 41 TMS 187 TRSTn 190 VDD1 1 PIO-4|3 194 PIO-4|4 195 PIO-4|5 196 PIO-4|6 197 PIO-4|7 14 PIXCLK_27MHz 118 PPC_CLK 137 PPCn_MODE 138 RAS0n_OR_CE4n 127 RAS1n_OR_HOLDREQ 128 136 READY RSTn 29 R_OUT 57 133 R|W_|DMAACK SCLK 43 SDCASn 89 3 PIO-2|3 5 PIO-2|4 6 PIO-2|5 7 PIO-2|7 8 PIO-3|0 201 PIO-3|1 202 PIO-3|2 203 PIO-3|3 204 PIO-3|4 205 PIO-3|5 206 PIO-3|6 207 2 PIO-3|7 PIO-4|0 191 PIO-4|1 192 PIO-4|2 193 PCM-OUT1 21 PCM-OUT2|PIO-0|6 PCM_CLK 45 PCM_OUTO 44 PIO-0|0 15 PIO-0|3 16 PIO-0|4 17 PIO-0|5 20 PIO-0|7 22 PIO-1|0 9 PIO-1|2 10 PIO-1|3 198 199 PIO-1|4 PIO-1|5 11 PIO-1|6 12 PIO-1|7 13 PIO-2|0 96 103 GND8 GND9 111 G_OUT 56 HSYNCn 51 IRQ0 23 IRQ1 25 I_REF_DAC_RGB 59 I_REF_DAC_YCC 66 LRCLK 46 MEMCLKIN 104 MEMCLKOUT 76 ODD_OR_EVEN 52 OEn 123 OSD_ACTIVE 117 24 DQMU 105 GND1 4 GND10 120 GND11 131 GND12 140 GND13 150 GND14 160 GND15 172 GND16 185 GND17 200 GND2 19 GND3 35 GND4 68 GND5 77 GND6 87 GND7 DQ1 93 DQ10 108 DQ11 109 DQ12 112 DQ13 113 DQ14 114 DQ15 115 DQ2 94 DQ3 97 DQ4 98 DQ5 99 DQ6 100 DQ7 101 DQ8 106 DQ9 107 DQML 91 DATA11 154 DATA12 155 DATA13 156 DATA14 157 DATA15 158 DATA2 143 DATA3 144 DATA4 145 DATA5 146 DATA6 147 DATA7 148 DATA8 151 DATA9 152 DMAXFER 134 DQ0 92 B_FLAG 38 B_OUT 55 B_SYNC 39 B_V4 42 B_WCLK 40 CAS0n_OR_HOLDACK 129 CAS1n_OR_DMAREQn 132 CE1n 124 CE2n 125 CE3n 126 CSn 135 CVBS_OUT 64 C_OUT 63 DATA0 141 DATA1 142 DATA10 153 ADR2 162 ADR20 182 ADR21 183 ADR3 163 ADR4 164 ADR5 165 ADR6 166 ADR7 167 ADR8 168 ADR9 169 AUXCLK 116 BRM0_OR_OSLINK_SEL 26 BRM1_OR_BOOTFROMROM 27 BRM2 28 B_BCLK 37 B_DATA 36 AD5 70 AD6 71 AD7 72 AD8 73 AD9 74 ADR1 161 ADR10 170 ADR11 173 ADR12 174 ADR13 175 ADR14 176 ADR15 177 ADR16 178 ADR17 179 ADR18 180 ADR19 181 7503 STI5505 AD0 78 AD1 79 AD10 82 AD11 83 AD2 80 AD3 81 AD4 69 16 F582 2531 4u7 1506-16 1506-17 17 F538 100n 2523 2526 100n 3515 10K F051 F056 F058 +5Vstby 3538 680R 1506-4 4 1506-10 10 VDD_STI 100n 2510 VDD_STI 1506-19 19 F552 F053 5 3564 VDD_STI 1506-6 6 1506-5 VDD_STI F517 F541 3K3 3523 F593 F526 F525 F549 3516 F545 1E0 2E1 3E2 6SCL 5 SDA 8 VCC 4 VSS 7WC_ 10K M24C32 7505 F054 1501-5 F050 1506-9 9 TS 1 VDD 4 1506-2 2 VDD_STI 7504 FXO-31FT GND 2 OUT 3 F509 F507 F052 100n 2527 47p 2533 F590 F543 3560 F588 F598 3567 VDD_STI 10K 3519 100n 2516 3548 3502 22K 3n3 2508 F547 220R F055 3514 10K 3545 3568 3526 10K 3506 10K 2502 4u7 2530 4u7 2522 100n 2500 100n 2u2 VDD_STI +5Vstby 1506-13 13 5502 2517 100n 2504 100p VDD_STI F539 18 1501-2 3511 3K3 VDD_STI 1506-18 F555 1501-3 100n 3521 10K 3535 15K 2524 7501 BC847B F534 10K 3525 VDD_STI F502 F597 F537 F511 2506 10u 3503 10K F510 100R 3573 F519 F568 F508 100n 2529 VDD_STI kar_by_pass RESET_I2C SERVICE SPDIF_OUT SCL_EXE SDA_EXE OSD_ACTIVE SEL_ACLK2 YC2 YC1 YC0 IRQ_I2C 27M_CLKOUT RESETN TCK PCMout1 PCMout2 SDA P50 STB_CONT PCM_CLK CE1 centre_on 27M_CLK1 TXD_SER {SCLKo,PCM_OUTO,PCM_CLK,LRCLKo,SPDIF_OUT,R_OUT,G_OUT,B_OUT,C_OUT,CVBS_OUT,Y_OUT,27M_CLK} WAIT AUXCLK B_SYNC B_V4 B_BCLK B_FLAG YC5 YC4 YC3 HSYNC FLASH_OEN OSLINKIN YC0 YC1 YC2 YC3 YC4 YC5 YC6 YC7 OSD_ACTIVE VSYNC VSYNC HSYNC OSLINKOUT CPUreset CPUanalyse ErrorOUT FLASH_OEN YC7 centre_on kar_by_pass MUTE SERVICE RXD_SER YC6 AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 SCL SDA CTS_SER RTS_SER B_DATA B_WCLK DQML WEN RASN CASN CSN2 CSN1 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 AD11 AD10 A4 A3 A2 A1 D8 D9 D10 D11 D12 D13 D14 D15 TDO LRCLKo PCM_OUTO SCLKo G_OUT B_OUT DQMU RSTN RAS0ND RAS1ND RWN A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 OS_BOOT CAS0ND CAS1ND CE_ROMN D0 D1 D2 D3 D4 D5 D6 D7 CLK OEND SCL SEL_ACLK1 TXD_BE RXD_BE 27M_CLK 27M_CLK 27M_CLK STB_CONT CVBS_OUT C_OUT Y_OUT R_OUT TMS TDI TRSTN 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD 4 4 4 4 6 6 2 4 4 4 4 6 6 6 6 6 6 6 6 4 CL06532065_042.eps 180500 36 ASD-1 7. Electrical diagrams and PWB’s Service interface and Back-end OSCILL. CRYSTAL BUFFER/ CLOCK +2 BUFFER OUTPUT OUTPUT BUFFER OUTPUT BUFFER BUFFER OUTPUT BUFFER OUTPUT SYNTHESIS CLOCK CONTROL CICUITRY AND CLOCK SYNTHESIS CONTROL CICUITRY CLOCK SYNTHESIS AND 1603-2 G13 5602 F10 5603 F1 3619 D9 F660 I9 F661 I10 F663 I9 3681 H8 3682 H8 7600-D B12 7600-C A12 3684 I8 3685 I8 3686 E2 3617 D12 3618 D8 1604 G13 1605 E1 1606 E1 5610 D1 6600 C9 7600-A A11 TO AUDIO / VIDEO MUX. BOARD F644 E11 F643 F10 F630 D12 F631 B3 1603-3 F13 1607 E1 1608 E1 2600 A12 1603-7 D13 1603-8 C13 1603-9 C13 F622 C10 F623 D2 F624 C10 F625 D13 3624 E11 3623 E11 FROM SUPPLY 5608 I9 F618 C2 5607 I9 F619 C11 F620 C13 F621 C6 5604 F10 F629 D10 3688 E3 3689 F3 3690 E4 F628 E6 5600 A13 5601 E5 D 2604 C3 2603 B2 1603-19 E13 7616 G1 1603-20 E13 1603-21 F13 F659 H13 7621 E3 F600 A13 3663 G11 3620 A13 3621 B13 3622 C9 3677 F8 3678 G6 3679 G8 3680 G8 2605 C8 F639 E8 F638 E12 2601 A13 2602 B13 2644 F13 2645 F13 3687 E2 3611 B13 3612 B6 3613 B6 3691 G1 3615 C11 3616 D12 3608 B11 3609 C12 3610 A13 1603-22 D13 I 1603-4 D13 3614 C6 1603-6 G13 1600 B1 E F 7600-B B11 F626 D10 F627 D2 F616 B13 F617 B7 F615 B2 5609 A2 3626 F11 3627 B7 3628 C7 3629 C10 F652 G10 F653 G11 F640 E11 5605 G10 5606 H9 12 13 A B C F613 B12 F614 B2 7614 G10 7615 H10 2607 D2 F651 G9 7618 I10 7620 E2 2611 D1 2614 F9 TO AUDIO/VIDEO MUX. BOARD F632 F1 1603-5 F13 1602-1 A13 1602-2 A13 1603-10 C13 F664 I10 2606 C9 F649 F11 1603-13 D13 1603-14 E13 1603-15 E13 1603-16 E13 1603-17 D13 10 2646 H4 3605 D5 3606 C10 3607 B12 BLM31 3683 I8 3630 C8 4 F665 I13 F666 I11 H 3631 F9 G H I 3636 C13 3637 C12 BLM31 A B C D E F 3625 E11 F671 E2 F672 E2 F673 E3 F674 E3 TO/FROM PC INTERFACE 1603-18 E13 F637 E12 F641 E11 F601 A13 F602 A13 F603 A12 F604 A3 F647 F9 F648 F10 1602-5 B13 1602-6 B13 1602-7 A13 1603-1 E13 F645 I3 2608 B3 2609 C2 2610 F6 7604 B7 7605 B3 7607 B6 3664 G10 3665 E11 3667 E11 3669 G1 3670 G1 F605 A2 F606 A12 7 2623 H10 9 10 11 12 F654 H9 SERIAL PC INTERFACE 2615 F10 11 9 1 2 3 2640 F12 2641 F12 2642 F12 2643 F12 F609 B6 3632 F10 3633 G9 3635 B13 F610 B7 F611 B13 F612 B12 F657 H11 F658 H13 6 7 8 F669 C11 F670 C2 2622 H9 3658 I10 2624 I9 2625 I9 2626 I9 2627 I9 13 F636 C2 F635 E12 8 1603-11 C13 1603-12 D13 1602-3 A13 1602-4 B13 3673 G3 3674 D11 3675 I4 3676 E5 7612 F11 7613 F11 3655 I10 3656 I10 3657 H10 7617 I10 3659 I10 3642 B6 2616 G9 2617 G10 2618 F2 2619 F2 5 6 3660 H11 3661 G10 3662 G11 2632 C9 2633 C9 2634 C2 2635 C3 F655 H10 F656 H13 F633 E12 F634 C3 G 2638 D3 2639 D4 2636 C4 2637 D2 F607 A13 F608 B3 OPTION OPTION OPTION OPTION OPTION OPTION 7609 C10 3647 G9 3648 H9 3651 I9 3654 I9 2620 G9 2621 G10 1 2 3 4 5 3671 G1 3672 C3 F646 F11 7600-E A9 7600-F A8 7608 C11 7610 D10 7611 F5 2641 1603-11 11 OPTION OPTION OPTION 47R 3672 22p 1K -Vvid 12 14 7 -Vvid 3659 F606 74HCT14D 7600-F 13 1603-21 21 F626 F635 2627 47p 5600 F649 1n5 2601 22p 2645 +5VOSC -8Vstby 2643 22p 7 PS0 15 PS1 16 PS2 1 VDD1 4 VDD2 13 X1 3 X2 2 BC847B 7613 7616 MK2742 13_5M 10 27M 9 3_68M 14 ACLK 6 AS0 8 AS1 12 GND1 5 GND2 11 PCLK 2606 100u +5V -Vvid 1602-7 PH-S 7 3658 1K F641 1603-19 19 +5V 5605 15u +6Vstby +5V +5V 5603 3681 100n 2603 F654 1K 3660 1603-22 22 22n 2600 F609 430R 2623 47p 100n 3657 100n 2636 47p 2620 2618 1603-1 1 7615 F625 3619 22K BC847B +5V VDD_STI 2602 +5V 22K 3618 +5V 1n5 1603-17 17 +5V +5VOSC 2634 100n 1602-5 PH-S 5 3611 10K 100u 2632 100K 3609 +5V F644 1606 3637 3K3 F651 1603-3 3 F621 F669 3628 470R VDD_STI 7609 BC857B F652 F623 3671 22K 3617 10K 47K 3606 F631 PH-S 1602-6 6 100n 2610 F666 F613 1602-2 PH-S 2 -8Vstby 6K8 3635 F670 F632 F637 5608 15u 5 6 14 7 3622 100R 7600-C 74HCT14D 3651 430R 3678 +5V BC847B 7604 3610 10K -Vvid 3684 +3V3 47p 2624 +5V 3683 3689 22K +5V 1K 3662 22K 3687 2621 +5Vstby 7600-B 74HCT14D 3 4 14 7 47p 100R 3623 F603 3663 1K 1603-20 20 +5V 7611 74HCT1G125 2 1 5 3 4 F629 PH-S 1602-4 4 1607 3685 F601 13 14 15 16 2 3 4 5 6 7 8 9 1604 1 10 11 12 100MHZ 5610 -Vvid F630 LD1117 7605 1 GND 3 IN 2 OUT 7 +12Vstby +12Vstby 430R 3656 74HCT14D 7600-D 9 8 14 F658 100K 3607 1603-13 13 7600-A 74HCT14D 1 2 14 7 100R 3625 F638 VDD_STI 7 100u 2611 3682 1603-7 3679 F633 15u 5602 F605 F611 F607 10K 3615 F653 3620 100R 3688 4K7 F671 430R +5V 3673 3655 5606 15u +5V 430R 3633 3647 430R F622 +5VOSC +3V3 F610 430R F664 F672 3661 1605 1603-6 6 1608 47u 2609 +3V3S 430R 3664 F647 2614 47p 15u 5607 10K 3642 F619 2633 100u F617 2604 100u F624 F614 12 2 3 4 5 6 7 8 9 1600 1 10 11 3686 22K 2616 -8Vstby 47p 1PS76SB10 6600 47p 10K 3613 2622 1603-16 16 F615 3614 10K 3680 1603-10 10 F646 F618 F648 2617 47p STB_CONT +5V 2639 100n VDD_STI 3691 10u 2608 3670 +5Vstby -Vvid F663 F616 220R F661 F645 3630 F602 F674 100n 2638 -8Vstby 2626 47p 2625 47p -8Vstby +6Vstby 3632 430R 15u 5604 BC847B 7612 F628 BC847B 7607 1603-9 9 3669 100n 2635 7621 BC817-25 -8Vstby 3621 100R 2644 22p 3676 F657 4K7 3629 430R 3648 100MHZ 5601 F660 F620 F656 +5V 2605 22n BC847B 7617 F636 F639 1603-2 2 BC847B 7618 +5VOSC 8 3612 10K 1603-8 6K8 BC857B 7608 +5V 3636 BC847B +3V3 +5V 3616 10K 7610 F612 1603-15 15 2615 47p F665 F655 7614 BC847B 3674 100MHZ 5609 F608 330R 3667 2619 100n 3665 22R 7620 BC857B 22p 2640 3690 F634 +5V PH-S 1602-1 1 1603-4 4 1603-14 14 1603-12 12 F640 3 F604 +5VOSC 1602-3 PH-S 5 430R 3654 2642 22p 1603-5 18 2637 100n 1603-18 -Vvid 3605 2607 100u +5V 74HCT14D 7600-E 11 10 14 7 +5V F627 +5Vstby +12Vstby F673 -8Vstby 3624 100R 430R 3631 470R 3627 3608 100K 3677 1K 3626 F643 F600 22p 2646 F659 3675 SCLK LRCLK CFLG B_FLAG MEAS1 P50 SEL_ACLK2 SEL_ACLK1 CVBS_OUT C_OUT {SCLKo,PCM_OUTO,PCM_CLK,LRCLKo,SPDIF_OUT,R_OUT,G_OUT,B_OUT,C_OUT,CVBS_OUT,Y_OUT,27M_CLK} SCLKo PCM_OUTO PCM_CLK LRCLKo SPDIF_OUT CVBS R_OUT G_OUT B_OUT RTS_SER HSYNC Y_OUT R_VID PCMout2 PCMout1 SCL SDA Y_VID C_VID B_VID G_VID RXD_SER CTS_SER SERVICE TXD_SER SCART0 SCART1 0_6_12V 0_6_12V MUTE MUTE_AV 3104 123 4268.4 PB 4268 ASD1 MONO-BOARD 5 5 5 5 5 6 5 CL06532065_043.eps 180500 Electrical diagrams and PWB’s 37 ASD-1 7. Top view CL06532065_044.eps 230500 SUPPLY AV1 AV2 SERVICE I2C 38 ASD-1 7. Electrical diagrams and PWB’s Detailed Top view 1 CL06532065_045.eps 180500 Electrical diagrams and PWB’s 39 ASD-1 7. Detailed Top view 2 CL06532065_046.eps 180500 40 ASD-1 7. Electrical diagrams and PWB’s Bottom view CL06532065_047.eps 180500 Electrical diagrams and PWB’s 41 ASD-1 7. Detailed Bottom view 1 CL06532065_048.eps 180500 42 ASD-1 7. Electrical diagrams and PWB’s Detailed Bottom view 2 CL06532065_049.eps 180500 Electrical diagrams and PWB’s 43 ASD-1 7. Testpoint overview VH H3- Stby-out T2 MOTO1 H3+ H1+ H2+ A1 A2 A3 H1- H2- Stby 9V FOC- O1 O2 O4 O3 RAD+ FOC+ RAD- S2 S1 A B C D F E 2.5V 3V3 PCM_CLK B_VID VO2- VO2+ 27M_CLK R-VID G-VID CVBS T1 CL1 STOPCLK RFO B_V4 B_BCLK B_WCLK B_SYNC LRCLK PCMOUT0 SCLK DEEMPH1 SPDIF PCM_CLK DEEMPH0 HSYNC C_VID PCMOUT2 MUTE PCMOUT1 SCART Y_VID STB_CONT RSTN SL+ FO SL RA Sinph SL- Cosph T3 CL06532065_050.eps 180500 44 ASD-1 7. Electrical diagrams and PWB’s Personal notes: Personal notes: Alignments GB 45 ASD-1 8. 8. Alignments No alignments available 9. IC Descriptions. 9.1 SAA7399 (MACE2) General. Mace2 is a name used for the successor of the ACE1 IC. The term MACE (mini-ACE) is used because MACE2 does not have a decoder on board. Application area's: Mainly CD- R(W) and prototyping of DVD(-ROM) or high speed CD- ROM. Functions implemented on-board of MACE2: A further improved digital servo module. Derived from the ACE1 servo module, but with improvements (make the input switchable between diode signal and error signal processing, improved brake). The 80C51 micro-controller with external ROM. The OPC. Optimum Power calibration, used for CDR. The PCS. Position Control Sledge. A way to speed up sledge movement using hall sensors. Figure 9-1 Overall block diagram MACE2. 9.2 Features • Focus and Radial servo loop. • Built-in access procedure. • Selectable servo error or servo diode inputs. • Focus noise performance equivalent to DSICS • Automatic closed loop gain control available for focus and radial loops • High speed track crossing velocity measurement > 350 kHz. • Fast Radial Brake circuitry. • Sledge motor servo loop, with pulsed sledge support and PCS • Incorporated micro-controller equivalent to 80C51 --> 66MHz. • Programmable wait state controller. • Two embedded RAM's of 416 bytes and 1.5 kB res. • Optimum Power Calibration Hardware support up to write at N=8. • Debug facilities. • Memory mapped interface to sub-modules. • Programmable clock multiplier. • 8 Multipurpose I/O lines. • 5 external interrupt lines. • External Flash ROM support. • Sledge stepper motor support. 9.3 The Digital Servo block. In a CD system, there are some 12 control loops active. About six of them are needed to adjust the servo error signals, that is once per disc rotation offsets, signal amplitudes and loop gains (AGC's) are adjusted to enlarge system robustness and to avoid expensive potentiometer adjustments in production. The other six loops determine the laser spot position on the disc in the radial, axial (focus) and tangential directions. The servo in MACE2 takes care of these controls. The servo inside Mace2 also has to take care that the spot accesses a required position as fast as possible. This access system consists of two parts, namely the actuator and the sled, which are within a certain range, mechanically and electrically independent. So during an access the servo has to control as well the actuator as the sled. 9.4 Functional description servo Figure 9-2 Mace2 servo block diagram. The following functions can be distinguished: – A to D conversion: a direct AD-conversion of the diode/ error currents. – Pulse density D to A conversion: Noise shaper output stages. – Control unit: Provides mainly the communication and on/ off functions. – Focus normaliser: A partial division of focus and sum signal. Special saturating provisions are included when dividing through very small numbers. – Initialisation control: Includes the radial normaliser, automatic radial offset compensation and level initialisation for the Track Position Indicator (TPI) for both diode and error input signals. – TPI/TL generation and adaptive debounce: Generates Track loss (TL) which is protected against disc defects. The TL is made out of the unprotected TPI signal. The debouncer (with improved debounce times) minimises the disturbing effect of HF on the TL and Rp crossovers for the track count circuitry. IC Descriptions. GB 46 ASD-1 9. – Defect detector: Holds the focus and/or radial control signal on disc dropouts. – Speed control: Used during access. With radial actuator feed forward. – Focus control: PID controller with wide range adjustable characteristics. – Radial control: PID controller with wide range adjustable characteristics. – Sledge control: PID controller with wide range adjustable characteristics and a pulsed sledge controller. – Laser Low Power: Switches the laser from write back to read power whenever the device tends to go off-track. 9.5 Input circuits servo Five out of six of the MACE2 servo inputs can be switched between diode current inputs (for audio and data application) and error signal inputs (for recordable applications). The analogue signals from the diode pre processor are converted into a digital representation using A/D converters. 9.6 Focus control. 9.6.1 Focus start-up. To bring the actuator in focus position a triangular shaped voltage is applied to the actuator to perform a search movement. When the lens moves from or to the disc, CA (central aperture) is monitored to reach a certain programmable absolute level. When this value is CA level is reached, the FOK signal becomes true and FEn is passed to the FEn level detector. At the moment this FEn level is reached the wait for the focus mode is entered and the focus control loop is enabled to detect a sign inversion in the FEn signal. When this zero crossing in this FEn signal is detected, the loop is closed to function as PID controlled loop and is switched to the PID mode. During focus start-up a dither signal is added to the output signal of the integrator. It prevents the actuator from hitting its natural resonance. With this technique quantisation, effects are compensated for during start-up. 9.6.2 Focus Position Control loop. The focus control loop contains a digital PID controller that has 5 parameters available to the user. These coefficients influence the integrating, proportional and differential action of this PID and a digital low pass filter following the PID. The fifth coefficient influences the loop gain. 9.6.3 Dropout detection. This detector can be influenced by one parameter. The FOK signal will become false and the integrator of the PID will hold if the CA signal drops below this programmable absolute CA level. When the FOK signal becomes false, it is assumed as caused by a black dot in the first place. 9.6.4 Focus Loss detection and Fast restart. Whenever FOK is false longer than about 2 ms, it is assumed that the focus point is lost. A fast restart procedure is initiated which is capable of restarting the focus loop within 200 to 300 ms depending on the uP-programmed coefficients. 9.6.5 Focus Automatic Gain Control loop. The loop gain of the focus control loop can be corrected automatically to eliminate tolerances in the focus loop. This gain control injects a signal into the loop that is used to correct the loop gain. Since this decreases the optimal performance, the gain control should only activated shortly (for instance when starting a new disc). 9.7 Radial control. The MACE2 digital controller includes the following radial servo functions: 9.7.1 Level initialisation: During start-up an automatic adjustment procedure is activated to set the values of the radial error gain, offset and satellite sum/MIRN signal gain for TPI level generation. The initialisation procedure runs in a radial open loop situation and is < 200 ms. This start-up time period may coincide with the last part of the turntable motor start-up time period. 9.7.2 Automatic gain adjustment: Because of this initialisation the amplitude of the RE signal is adjusted within _10% around the nominal RE amplitude. Offset adjustment: The additional offset in RE due to the limited accuracy of the start-up procedure is less than +/- 50nm. 9.7.3 TPI level generation: The accuracy of the initialisation procedure is such that the duty cycle range of TPI becomes 0.4 < duty cycle < 0.6. Sledge home: Sledge moves to reference position at the inner side of the disc with user defined voltage. Tracking control: The actuator is controlled using a PID loop filter with user defined coefficients. Access: In Mace2 there are two fundamentally different ways to perform an access: Using the PCS A more detailed description of this access method is given in an other section. Using the servo controlled access: The way it was done in the predecessors of Mace2.This access procedure is divided into 3 different modes, depending on the requested jump size: access type size access speed Actuator jump decreasing velocity Sledge jump maximum power to sledge 1 Controlled sl. jump controlled brake power The access procedure makes use of a track counting mechanism, a velocity signal based upon the number of tracks passed within a fixed time interval, a velocity setpoint calculated from the number of tracks to go and a user programmable parameter indicating the maximum sledge performance. If the number of tracks to jump is too large, then the Sledge jump mode is activated, else the actuator jump is performed. The requested jump size together with the required sledge braking distance at maximum access speed defines the value of the maximum numbers of tracks. During the actuator jump mode, velocity control with a PI controller is used for the actuator. The sledge is then continuously controlled using the filtered value of the integrator contents of the actuator. All filter parameters (for actuator and sledge) are user programmable. IC Descriptions. GB 47 ASD-1 9. In the sledge jump mode maximum power (user programmable) is applied to the sledge in the correct direction, while the actuator becomes idle. Radial Automatic Gain Control loop: The loop gain of the radial control loop can be corrected automatically to eliminate tolerances in the radial loop. This gain control injects a signal into the loop which is used to correct the loop gain. Since this decreases the optimal performance the gain control should only be activated shortly (for instance when starting a new disc). This gain control differs from the earlier mentioned level initialisation. This level initialisation should be done first. The level initialisation without the gain control reduces tolerances from the front- end only. 9.8 The radial PID. Since we are dealing with a big variety of applications and drives, the servo controllers in MACE2 should be adjustable within a large frequency range. In order to read out the track properly -a track consists of sequential ordered data pit's which hold audio, video or ROM data - the focus and radial position controls must follow the moving track within some tenths of a micrometer, despite of disc imperfections and external disturbances. For instance, a rotating disc causes, due to track eccentricity, track unroundness, or disc skew, track movements up to some millimetres. The control loop reduces this to about one tenth of a micrometer. 9.9 Initialisation control. Due to optical, electrical and mechanical tolerances in CD players, properties of the servo signals such as offset and gain can vary. In general, without proper signal processing, a simple PID controller function cannot cope with this relatively large offset and gain spreads. Therefore, gain and offset adjustments during manufacture or active control, to compensate for these signal imperfections, become inevitable. Adjustment procedures in the factory are expensive. So, automatic adjustment procedures have been implemented in order to avoid most of the potentiometer adjustments. In the MACE2 servo automatic adjustments are applied to the radial error signal only. 9.10 The AGC. The Automatic Gain Control is used in the MACE2 digital servo to adjust the radial and focus bandwidths to a nominal value. Injecting a signal in the loop and measuring the phase of its resulting signal (wobble method) does this. Principle of the Automatic Gain Control. The principle of the Automatic Gain Control (AGC) circuit, as used in MACE2, is drawn in the next figure. Figure 9-3 Principle of the automatic gain control. A sine wave signal with a certain frequency is injected in the control loop at the summation point. The resulting signal is measured before the injection point. The injected signal is shaped by H/1+H . This measured signal is multiplied by a phase shifted version of the injected signal. The result of the multiplication is low pass filtered and integrated. (The integrator is started at the nominal gain of the control loop). The result of the integration is fed to the adjustable loop gain. This principle, synchronous detection, is also known as 'wobble method'. 9.11 The Fast brake. The fast brake is an aid to speed up radial capture after a high-speed jump. It is a separate radial control with a much higher bandwidth. The radial control output can be switched between fast brake mode and original radial control mode. The fast brake helps the radial actuator at the end of a jump to "stick" to the right track. In fast brake mode, the actuator starts to follow the track movements. It's a bit like jumping on a moving train. If you run as fast as the train, you can just step in. After a radial open loop jump the tracks are moving (as a result of eccentricity) at a very high speed underneath the radial actuator. This speed is too high for a normal radial control loop to do radial capture. When the radial control is switched over to fast brake mode for a short term, this moving of the tracks underneath the actuator becomes much slower, (because the actuator follows the track movement), so when you switch back to original radial control, it's much easier to do radial capture. 9.12 The Defect Detector. Because of the possible earlier mentioned defects (fingerprints, etc) a defect detection circuit is incorporated into the MACE2 servo. If a defect is detected, the radial and focus error signals may be zeroed, resulting in better playability. 9.12.1 Operation: The defect detector prevents the light spot from going out of focus and going off track due to disc dropout excitations. The defect detector can be switched on and off under software control and can be applied to the focus control only, or both to the focus and radial control. Whenever this circuit detects a defect, it will hold all radial and focus controls. The hold signal is generated whenever the reflected light intensity drops rapidly (< 1:5 ms) down to roughly 75% of the actual intensity level. In that case the output of the comparator becomes active and controls the focus and radial signal switch. This circuit improves the playability of the application (black dot performance, etc) and is programmable to optimise it for specific disc defects. The actions of this circuit can be monitored on the DEFO pin (active high). An external defect detection circuit can be added by removing the connection between DEFO and DEFI (normal operation) and inserting the external circuitry. These signals are afflicted with some uncertainties caused by: – Disc defects like scratches and fingerprints – The HF information on the disc, which is considered as noise by the detector signals. 9.13 Laser Drive On. The LDON pin is used to switch the laser drive off and on. It is an open drain output. In case the laser is on, the output has a high impedance. The pin will be automatically driven if the focus control loop is switched on. IC Descriptions. GB 48 ASD-1 9. 9.14 Laser Low Power (LLP). The LLP output can be used by write-able systems to switch the laser back to read power when the light spot goes off- track while writing discs. To prevent that the neighbour tracks are damaged when the spot goes off-track the laser has to be switched very fast to the safe read power. The laser is not switched off (like LDON does), so the system can carry on reading. The tracking (radial) and focus error signals are used to disable the laser write power. This is done through the LLPn, active low Laser Low Power, signal. Note that LLPn is a servo output, which is inverted before it is output via the LLP pin, so the LLP pin is active high. So, if any of the following conditions is true, the laser write power is disabled by the MACE2 servo. – Off Track, more than a quarter off a track away from the correct one – ORD, radial error signal too large. Larger than the given setpoint, which should be chosen at a critical write failure level. An adjustable band pass filter first processes the radial error signal. – OFD, focus error signal too large. Larger than the given setpoint, which should also be chosen with care. An adjustable band pass filter also first processes the focus error signal. All settings of the focus and radial part are independent. – OTR, prot stat flag which becomes active if ORD becomes active during an actual laser write ( LWR) action. This flag is reset only by a status read ( RSTAT) command. So until then LLPN stays active. – OFO, prot stat flag that becomes active if OFD becomes active during an actual laser write action. Same idea as OTR. This error detection circuit can be switched off (apart from the Off Track detection) by raising the setpoint levels to its maximum value. 9.15 The OPC. The OPC block in Mace2 is used for the following functions: • During write actions, it stores Pw samples, which can be evaluated by the microprocessor. • During OPC read actions, it stores A1, A2 and CALF samples, which are used for calculating the asymmetry and the modulation index. • The OPC block is used for EFM detection. • During reading of a disc, it stores A1 and CALF samples, which can be monitored. Although the OPC block is used for multiple functions, it got it's name from the OPC procedure, which is it's main task. The OPC (Optimum Power Calibration) procedure is used in CD-R/CD-RW/DVD-RAM applications. It is used to "calibrate" the laser write power in writable systems. It reads in 3 analogue signals from an analogue pre- processor like AEGER-2 (A1, A2, and CALF) and the actual write power (Pw) from the laser controller and feeds an analogue output signal Alpha0 back to AEGER-2. A1, A2 and CALF represent the max, min and average value of the EFM signal respectively. Alpha0 controls the laser write power. All analogue signals are converted to an 8 bit digital signal. Conversion frequency at 16.9MHz base clock is 88kHz (each channel). Figure 9-4 Definition of the A1, A2 and CALF signals. 9.16 Definition of terms. The asymmetry ( and modulation index m of the EFM signal are calculated from the analogue inputs: 9.17 Rough description of the OPC procedure Basically the OPC procedure tries to find out the optimum laser power to be used on a specific disc. The OPC procedure uses about 15 ATIP frames. These frames are located in the "PCA" area. This is a special part of the disc used only for power calibration. The drive first checks whether there are 15 frames "empty" in the PCA. Next the OPC is performed in these 15 frames. The OPC operation consists of two stages: A "write" and a "read" stage. First 15 ATIP frames are written (during which the OPC block stores Pw samples), and then the same 15 ATIP frames are read back again, (during which the OPC block stores A1, A2 and CALF samples). During the write stage, random EFMis written in a test area located on the inner side of the disc. During this recording the write power is increased stepwise from a low to a high power level. Figure 9-5 Figure 5: OPC write profile. First during 3 ATIP frames the power is increased in rather big steps (rough OPC). During this action Pw samples are stored into memory. During the rough OPC, the OPC makes 7 steps per ATIP frame. This gives 21 samples into the OPC memory. From these samples, the microprocessor can calculate what's roughly the best alpha0 setting for this typical disc. After 2 frames of calculations, another 10 ATIP frames are written using smaller steps (fine OPC) around the alpha0 setting, which gave the best result during the rough OPC. The second stage of the OPC procedure is the "read" phase A1- A2 A1+A2 m A1+ A2 A1+CALF IC Descriptions. GB 49 ASD-1 9. in which the pattern recorded in the previous stage is read back. During this read phase the OPC block stores A1, A2 and CALF samples from exact the same location where during the OPC write phase the Pw samples where stored. The samples for A1, A2, CALF and Pw are listed side by side into memory. After the read back phase the processor calculates at which setting of alpha0 the least jitter is encountered. This setting will be used to write the disc with. 9.18 The OPC top level. The OPC block as a whole has 5 possible modes: – Recording mode: This can be either OPC writing (writing EFM test patterns to disc and Alpha0 stepping) or standard write mode (i.e. alpha0 is constant). – OPC reading: Reading back OPC test patterns from disc. – Normal read mode: detects the presence of EFM. – DVD read mode: used for DVD-RAM experiments. – EFMD only mode: no data being written to the AUX RAM, but the EFM detector and the PW monitor still running. Contents of the QUX RAM remain unchanged. All actions in the OPC hardware are synchronised to the ATIP frame sync, which can be either generated internally or received from the encoder/decoder during writing. The microprocessor writes data asynchronously to the OPC hardware. The OPC block synchronises this data to the sync either internally generated, or obtained from CDR60. 9.19 The Analogue to Digital converter. The analogue to digital converter of the OPC is shared with the ADC required by the PCS. 9.20 The digital input filters. The combined ADC for the OPC and the PCS delivers a multiplexed stream of 8 bit words. A sequential low-pass filter filters this multiplexed stream. The 4 analogue multiplexed input signals from the OPC (A1, A2, CALF and Pw) are filtered by 4 identical LPF's. (One for each channel). This filters can be adapted to various speeds by changing the subsampling factor (i.e. the sample rate of the filter), the cut off frequency scales with the sample frequency. The sample frequency of the filter is equivalent to the OPC timebase frequency, which is the output of the pre-scaler. 9.21 OPC demux. The OPC demux block demultiplexes the stream supplied by the LPF. This same block also changes the format of the digital data from signed (representation inside the filter) to unsigned (representation in the rest of the OPC). The demultiplexing process introduces one baseclock delay. 9.22 The sequencer. The OPC sequencer controls the timing of all the hardware actions in the OPC hardware. It generates the OPC timebase and locks it to the ATIP pulse. A programmable pre-scaler generates the OPC timebase. Dividing the ADC sample clock by 8 derives the input clock of this pre-scaler. (= Identical to the sample rate per channel). The pre-scaler can divide this clock by a number in the range from 1-16. The division factor can be programmed via the OPC ctrl register. The OPC timebase is locked to the selected ATIP source, which can be either an external ATI P sync or an internally generated sync. (Programmable). The OPC timebase clock supplies the sample frequency for the input LPF's, the OPC pre-processor and the EFM detector. The sequencer controls the timing of all the hardware actions in the OPC hardware. The sequencer is started either by an external ATIP sync or an internally generated sync (programmable). All data acquisition and alpha0 settings change synchronised to this sync signal (rising edge of the ATIP sync). An exception on this is the switching of the ATIP input itself, which is immediately changed whenever the bit in the OPC ctrl register is changed. When this was latched on the ATIP source itself, it would create a deadlock when there was no ATIPin from CDR-60. 9.23 The Pw monitor The Pw monitor is used during the "OPC write" and normal write mode. The comparator compares the incoming Pw with two programmable thresholds PW MAX and PW MIN. Both these thresholds can be programmed via the OPC PW register, which contains 4 bits for each threshold. Internally both 4-bit thresholds PW MAX and PW MIN are extended to 8 bit values. The compare function performs an unsigned compare. The first threshold is used to detect fingerprints. The second is used to check the correct operation of the laser driver. Figure 9-6 OPC PW monitor. IC Descriptions. GB 50 ASD-1 9. DVDALAS2plus Advanced Analogue DVD Signal Processor and Laser Supply TZA1033 FEATURES • Operates with DVD-ROM,DVD-RAM, DVD+RW, DVD-RW, CD-ROM and CD-RW media • Operates up to 64x CD-ROM and 8x DVD-ROM • Support for Dual Light pen DVD systems (DVD/CDRW) • DVD-RAM (C) playback capability • DVD-RAM Land-Groove servo polarity switching • 3 different tracking servo strategies: Conventional 3 beam tracking for CD Differential Phase Detection (DPD) for DVD-ROM (including option to emulate traditional drop out detection; drop out concealment) Advanced Push Pull with dynamic offset compensation for DVD-RAM (recorded and unrecorded areas) • Radial error signal for fast track counting (FTC) • 2 different strategies to read header data: - Full bandwidth Push Pull signal - Left and Right side signal • Universal photo diode IC interface using internal conversion resistors and offset cancelation • Flexible adaption to different light pen configurations • Input buffer amplifiers with low-pass filtering • RF data amplifier with wide (programmable) bandwidth equivalent to 64xCD / 8x DVD when using equaliser function • Built-in equalisers cover CAV inner-outer disc range at highest speed. • Programmable RF gain for DVD-ROM / DVD-RAM / CD-RW / CDROM applications(approx 50dB range) • Balanced RF-Data signal transfer (single ended still supported) • Fully automatic laser control including stabilization and an ON/OFF switch, plus a separate supplypin for power efficiency • Automatic monitor diode polarity selection. • 3 and 5 V compatible digital interface • Enhanced signal conditioning in DPD circuit for optimal tracking performance under noisy conditions. GENERAL DESCRIPTION The DVDALAS2 is an analogue preprocessor and laser supply circuit for DVD / CD read only players. The device contains data amplifiers, several options for radial tracking and focus control. The preamplifier forms a versatile, programmable interface between dual, voltage output CD/DVD mechanisms to Philips' digital signal processor family for CD and DVD (Gecko, HDR65, Iguano, etc..) The device contains serval options for radial tracking: Conventional 3 beam tracking for CD; Differential Phase Detector (DPD) for DVD; Push Pull for DVD-RAM with flexible L/R weighing to compensate dynamic offsets e.g. beamlanding offset. A radial error signal is generated to allow fast track count (FTC) during track jumps. The dynamic range of this preamp/processor combination can be optimized for the LF servo and RF data paths. The gain in both channels can be programmed separately. This will guarantee an optimal playability for all kind of discs. Several functions are included to allow playback of DVD-RAM(C) discs: • The header information can be read via the data output path (RF) • DC offset compensation techniques provide a fast settling after disc errors. • Radial servo Polarity switch for land/groove • two settings for focus offset correction for land and groove The device can accommodate astigmatic, single foucault and double foucault detectors and can be used with P-type lasers with N- or P-sub monitor diodes. After an initial adjustment, the circuit will maintain control over the laser diode current. With an on-chip reference voltage generator, a constant and stabilized output power is ensured independent of ageing. A separate power supply connection allows the internal power dissipation to be reduced by connecting a low voltage supply. ORDERING INFORMATION TYPE NUMBER PACKAGE NAME DESCRIPTION VERSION TZA1023 LQFP64 Plastic low pro?le QFP64; body 10 x 10 x 1.4 mm SOT314-2 IC Descriptions. GB 51 ASD-1 9. DVDALAS2plus Advanced Analogue DVD Signal Processor and Laser Supply TZA1033 DEVICE BLOCK DIAGRAM Laser#1 Laser#2 Diode Ampli?ers Processing DPD Land/Groove Swap Dual Laser Supply Serial I/Face Push Pull 3 Beam Tracking Var Gain Balanced HF Servo Signals OPU Interface Control Interface DVD CD D1-D6 MUX FTC Land V & I references Rext Header Offset Data & header Mute compensations MUX FTC comp. IC Descriptions. GB 52 ASD-1 9. DVDALAS2plus Advanced Analogue DVD Signal Processor and Laser Supply TZA1033 PINNING Name Pin Description CD-A 1 CD pick up input A CD-B 2 CD pick up input B CD-C 3 CD pick up input C CD-D 4 CD pick up input D CD-REF 5 CD pick up reference voltage CD-E 6 CD pick up input E CD-F 7 CD pick up input F DVD-A 12 DVD pick up input A DVD-B 13 DVD pick up input B DVD-C 14 DVD pick up input C DVD-D 15 DVD pick up input D DVD-ref 16 DVD pick up reference voltage O-A 48 Servo current output for Focus-A O-B 47 Servo current output for Focus-B O-C 46 Servo current output for Focus-C O-D 45 Servo current output for Focus-D O-central 40 Testpin for offset cancelation TD2 37 Internally connected FTC-ref 36 Servo output voltage reference input S1 42 Servo current output for radial tracking S2 41 Servo current output for radial tracking TD1 35 Internally connected FTC 33 Fast track count voltage output RFP 55 pos. RF output signal RFN 56 neg. RF output signal RF-REF 54 DC Reference signal input RF LPF-DPD1 38 DPD Low pass bandwidth capacitor, channel pos LPF-DPD2 39 DPD Low passbandwidth capacitor, channel neg Land 20 Land/groove toggle input HEADER 21 Header detector window input CD-MI 62 CD laser monitor input DVD-MI 10 DVD laser monitor input CD-LO 61 CD laser output DVD-LO 64 DVD laser output COP 27 Positive inputFTC comparator COM 28 Inverting inputFTC comparator COO 29 FTC comparator output IC Descriptions. GB 53 ASD-1 9. DVDALAS2plus Advanced Analogue DVD Signal Processor and Laser Supply TZA1033 SIDA 23 Serial host interface data input SICL 24 Serial host interface clock input SILD 25 Serial host interface load VDDA1 8 Analog Supply voltage 1 (RF input) VDDA2 59 Analog Supply voltage 2 (RF internal) VDDA3 53 Analog Supply voltage 3 (RF output stage) VDDA4 44 Analog Supply voltage 4 (Servo) VDDD5 30 Digital Supply voltage (5V dig core) VDDD3 22 Digital Supply voltage (3V I/O pads and FTC comp.) VDDL 63 Supply voltage for laser VSSA1 9 Analog Ground 1 VSSA2 58 Analog Ground 2 VSSA3 57 Analog Ground 3 VSSA4 43 Analog Ground 4 VSSD 26 Digital ground Rext 60 Reference current input (Connect 12k1 to VSSA4) STB 31 Standby input TM 19 Testmode input TDO 34 test data out Name Pin Description IC Descriptions. GB 54 ASD-1 9. DVDALAS2plus Advanced Analogue DVD Signal Processor and Laser Supply TZA1033 PINNING Fig.2 Pin configuration. handbook, full pagewidth XXX MXXxxx 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 NEW CD-A CD-C CD-B CD-D CD-REF CD-E CD-F VDDA1 VSSA1 DVD-MI - DVD-A DVD-B DVD-C DVD-D DVD-REF TM VSSD COP COM COO VDDD5 STB - LAND HEADER VDDD3 SIDA SICL SILD - - FTC TDO TD1 FTC-REF TD2 LPF-DPD1 LPF-DPD2 O-CENTRAL S2 S1 VSSA4 VDDA4 O-D O-C O-B O-A VDDA3 VSSA3 CD-LO R-EXT VDDA2 VSSA2 DVD-LO RFN RFP RF-REF VDDL CD-MI - - - - TZA1023 IC Descriptions. GB 55 ASD-1 9. BA6856FP: 3 PHASE MOTOR DRIVER FOR DVD PLAYERS Features • /3-phase, full-wave pseudo linear driving system • built-in power save • built-in therma shut down circuit • built-in current limit circuit • built in Hall bias circuit • built in FG-output (3-phase parallel output) • with switching function of regular/ reverse rotations blockdiagram - + REV PS - + H BIAS CONTROL GAIN DRIVER + - + - + - + - + - + - MT1 29 MT2 30 NC1 NC2 NC3 NC4 NC5 PS 23 REV 24 RNF 28 VCC 25 VH 19 VM1 26 VM2 27 A1 A2 A3 CNF 20 EC 22 21 ECR FG1 18 FG2 17 FG3 16 GND 8 H1+ H1- H2+ H2- H3+ H3- BA6856FB 3 5 7 1 2 9 10 4 6 11 12 15 13 14 IC Descriptions. GB 56 ASD-1 9. pin description PIN No PIN NAME DESCRIPTION 1 N.C. Not connected 2 N.C. Not connected 3 A3 Output 3 for motor 4 N.C. Not connected 5 A2 Output 2 for motor 6 N.C. Not connected 7 A1 Output 1 for motor 8 GND Ground 9 H1 + Hall input Amp1. positive input 10 H1 - Hall input Amp1. negative input 11 H2 + Hall input Amp2. positive input 12 H2 - Hall input Amp2. negative input 13 H3 + Hall input Amp3. positive input 14 H3 - Hall input Amp3. negative input 15 N.C. Not connected 16 FG3 FG3 signal output terminal 17 FG2 FG2 signal output terminal 18 FG1 FG1 signal output terminal 19 VH Hall Bias 20 CNF Capacitor connection pin for phase compensation 21 ECR Torque control standard voltage input terminal 22 EC Torque control voltage input terminal 23 PS POWER SAVE switch 24 REV Reverse terminal 25 VCC Power supply for sinal division 26 VM2 Power supply 2 for driver 27 VM1 Power supply 2 for driver 28 RNF Power supply for driver division FIN FIN GND Terminal lay-out VM2 VCC REV PS EC ECR CNF VH FG1 FG2 N.C. A2 A1 GND H1+ H1- H2+ H2- RNF VM1 FG3 N.C. H3+ H3- N.C. N.C. N.C. A3 IC Descriptions. GB 57 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 FEATURES • Compatibility with CD-I, CD-ROM, MPEG-video DVD-ROM and DVD-video applications • Designed for very high playback speeds • Typical CD-ROM operation up to n = 12, DVD-ROM to n = 1.9, maximum rates (tbf) • Matched filtering, quad-pass error correction (C1-C2-C1-C2), overspeed audio playback function included (up to 3 kbytes buffer) • Lock-to-disc playback, Constant Angular Velocity (CAV), pseudo-Constant Linear Velocity (CLV) and CLV motor control loops • Interface to 32 kbytes SRAM for DVD error correction and de-interleave • Sub-code/ header processing for DVD and CD formats • Programmable HF equalizer • In DVD mode it is still compatible with Philips block decoders • Sub-CPU interface can be parallel or fast I2C-bus • On-chip clock multiplier. GENERAL DESCRIPTION This device is a high-end combined Compact Disc (CD) and Digital Versatile Disc (DVD) compatible decoding device. The device operates with an external 32 kbytes S-RAM memory for de-interleaving operations. The device provides quad-pass error correction for CD-ROM applications (C1-C2-C1-C2) and operates in lock-to-disk, CAV, pseudo CLV and CLV modes. In DVD modes double-pass C1-C2 error correction is used which is capable of correcting up to 5 C1 frame errors and 16 C2 frame errors. The SAA7335 contains all the functions required to decode an EFM or EFM+ HF signal directly from the laser pre-amplifier, including analog front-end, PLL data recovery, demodulation and error correction. The spindle motor interface provides both motor control signals from the demodulator and, in addition, contains a tachometer loop that accepts tachometer pulses from the motor unit. The SAA7335 has two independent microcontroller interfaces. The first is a serial I2C-bus and the second is a standard 8-bit multiplexed parallel interface. Both of these interfaces provide access to a total of 32 × 8-bit registers for control and status. This data sheet contains an descriptive overview of the device together with electrical and timing characteristics. For a detailed description of the device refer to the user guide “SAU/UM96018”. Supply of this CD/DVD IC does not convey an implied license under any patent right to use this IC in any CD or DVD application. QUICK REFERENCE DATA SYMBOL PARAMETER MIN. TYP. MAX. UNIT VDDD digital supply voltage 4.5 5.0 5.5 V IDDD digital supply current − 70 300 mA VDDA analog supply voltage 4.5 5.0 5.5 V IDDA analog supply current − 70 300 mA fxtal crystal input frequency 4 25 tbf MHz Tamb operating ambient temperature −20 − +70 °C Tstg storage temperature −55 − +125 °C IC Descriptions. GB 58 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 ORDERING INFORMATION BLOCK DIAGRAM TYPE NUMBER PACKAGE NAME DESCRIPTION VERSION SAA7335GP LQFP100 plastic low pro?le quad ?at package; 100 leads; body 14 × 14 × 1.4 mm SOT407-1 Fig.1 Simplified block diagram. handbook, full pagewidth MGK242 DEMODULATOR EFM/EFM+ PLL BIT DETECTOR SRAM 32 KBYTES SPINDLE MOTOR CONTROL motor control SAA7335 CLOCK GENERATOR SUB-CPU INTERFACE ADC HF input clock input DECODER block decoder output I2S-BUS OUTPUT INTERFACE IC Descriptions. GB 59 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 PINNING SYMBOL PIN TYPE DESCRIPTION VSSA1 1 supply analog ground 1 Iref 2 I analog current reference input for ADC REFLo 3 I analog low reference input for ADC REFHi 4 I analog high reference input for ADC VREF 5 I analog negative input HFIN 6 I analog positive input VSSA2 7 supply analog ground 2 AGCOUT 8 O analog test pin output VDDA2 9 supply analog supply voltage 2 VDDD1 10 supply digital supply voltage 1 VSSD1 11 supply digital ground 1 OTD 12 I off track detect input MOTO1 13 O 3-state motor control output n.c. 14 − not connected, reserved MOTO2/T3 15 I/O motor control output/tachometer 3 input n.c. 16 − not connected, reserved T1 17 I tachometer 1 input T2 18 I tachometer 2 input VDDD2 19 supply digital supply voltage 2 VSSD2 20 supply digital ground 2 TEST1 21 I test input 1 TEST2 22 I test input 2 POR 23 I power-on reset input MUXSWICH 24 I use clock multiplier input n.c. 25 − not connected, reserved CL1 26 O divided clock output BCAIN 27 I BCA input SDA 28 I/O sub-CPU I2C-bus serial data input/output SCL 29 I sub-CPU I2C-bus serial clock input INT 30 O sub-CPU interrupt output (open-drain) VDDD3 31 supply digital supply voltage 3 VSSD3 32 supply digital ground 3 da7 33 I/O sub-CPU data bus bit 7 input/output (parallel) da6 34 I/O sub-CPU data bus bit 6 input/output (parallel) da5 35 I/O sub-CPU data bus bit 5 input/output (parallel) n.c. 36 − not connected, reserved da4 37 I/O sub-CPU data bus bit 4 input/output (parallel) n.c. 38 − not connected, reserved da3 39 I/O sub-CPU data bus bit 3 input/output (parallel) da2 40 I/O sub-CPU data bus bit 2 input/output (parallel) IC Descriptions. GB 60 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 da1 41 I/O sub-CPU data bus bit 1 input/output (parallel) n.c. 42 − not connected, reserved da0 43 I/O sub-CPU data bus bit 0 input/output (parallel) VDDD4 44 supply digital supply voltage 4 VSSD4 45 supply digital ground 4 WRi 46 I sub-CPU write enable input (active LOW) RDi 47 I sub-CPU read enable input (active LOW) ALE 48 I sub-CPU address latch enable input CSi 49 I sub-CPU chip select input (active HIGH) STOPCLOCK 50 O stop clock output n.c. 51 − not connected, reserved V4 52 O serial subcode output (for CD) EBUOUT 53 O digital audio output SYNC 54 O I2S-bus sector sync output FLAG 55 O I2S-bus correction ?ag output DATA 56 O I2S-bus serial data output BCLK 57 I/O I2S-bus bit serial clock input/output WCLK 58 I/O I2S-bus word clock input/output VDDD5 59 supply digital supply voltage 5 VSSD5 60 supply digital ground 5 RAMRW 61 O RAM read/write control output n.c. 62 − not connected, reserved RAMDA7 63 I/O RAM data bus bit 7 input/output RAMDA6 64 I/O RAM data bus bit 6 input/output RAMDA5 65 I/O RAM data bus bit 5 input/output RAMDA4 66 I/O RAM data bus bit 4 input/output RAMDA3 67 I/O RAM data bus bit 3 input/output RAMDA2 68 I/O RAM data bus bit 2 input/output n.c. 69 − not connected, reserved RAMDA1 70 I/O RAM data bus bit 1 input/output RAMDA0 71 I/O RAM data bus bit 0 input/output VDDD6 72 supply digital supply voltage 6 VSSD6 73 supply digital ground 6 RAMAD0 74 O RAM address bit 0 output RAMAD1 75 O RAM address bit 1 output RAMAD2 76 O RAM address bit 2 output RAMAD3 77 O RAM address bit 3 output RAMAD4 78 O RAM address bit 4 output RAMAD5 79 O RAM address bit 5 output RAMAD6 80 O RAM address bit 6 output VDDD7 81 supply digital supply voltage 7 SYMBOL PIN TYPE DESCRIPTION IC Descriptions. GB 61 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 VSSD7 82 supply digital ground 7 RAMAD7 83 O RAM address bit 7 output RAMAD8 84 O RAM address bit 8 output RAMAD9 85 O RAM address bit 9 output n.c. 86 − not connected, reserved RAMAD10 87 O RAM address bit 10 output RAMAD11 88 O RAM address bit 11 output RAMAD12 89 O RAM address bit 12 output RAMAD13 90 O RAM address bit 13 output RAMAD14 91 O RAM address bit 14 output VDDD8 92 supply digital supply voltage 8 VSSD8 93 supply digital ground 8 CRIN 94 I analog crystal input CROUT 95 O analog crystal output CFLG 96 O correction statistics output MEAS1 97 O front-end telemetry output VDDD9 98 supply digital supply voltage 9 VSSD9 99 supply digital ground 9 VDDA1 100 supply analog supply voltage 1 SYMBOL PIN TYPE DESCRIPTION IC Descriptions. GB 62 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 Fig.2 Pin configuration. handbook, full pagewidth 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 80 79 78 77 76 RAMAD1 RAMAD0 VSSD6 VDDD6 RAMDA0 RAMDA1 n.c. RAMDA2 RAMDA3 RAMDA4 RAMDA5 RAMDA6 RAMDA7 n.c. RAMRW VSSD5 VDDD5 WCLK BCLK DATA FLAG SYNC EBUOUT V4 n.c. MGK241 VSSA1 Iref REFLo REFHi VREF HFIN VSSA2 AGCOUT VDDA2 VDDD1 VSSD1 OTD MOTO1 n.c. MOTO2/T3 n.c. T1 T2 VDDD2 VSSD2 TEST1 TEST2 POR MUXSWICH n.c. RAMAD6 RAMAD5 RAMAD4 RAMAD3 RAMAD2 VDDA1 VSSD9 VDDD9 MEAS1 CFLG CROUT CRIN VSSD8 VDDD8 RAMAD14 RAMAD13 RAMAD12 RAMAD11 RAMAD10 n.c. RAMAD9 RAMAD8 RAMAD7 VSSD7 VDDD7 VDDD3 VSSD3 da7 da6 da5 n.c. da4 n.c. da3 da2 da1 n.c. da0 VDDD4 VSSD4 WRi RDi ALE CSi STOPCLOCK CL1 BCAIN SDA SCL INT 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 SAA7335 IC Descriptions. GB 63 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 FUNCTIONAL DESCRIPTION Analog front-end This block converts the HF input to the digital domain using an 8-bit ADC proceeded by an AGC circuit to obtain the optimum performance from the convertor. This block is clocked by ADCCLK which is set by the external crystal frequency plus a flexible clock multiplier and divider block. PLL and bit detector This subsystem recovers the data from the channel stream. The block corrects asymmetry, performs noise filtering and equalisation and finally recovers the bit clock and data from the channel using a digital PLL. The equalizer and the data slicer are programmable. Digital logic All the digital system logic is clocked from the master ADC clock (ADCCLK) described above. Advanced bit detector The advanced bit detector offers improved data recovery for multi-layer discs and contains two extra detection circuits to increase the margins in the bit recovery block: 1. Adaptive slicer: adds a second stage slicer with higher bandwidth 2. Run length 2 push-back: all T2 run lengths are pushed back to T3, thereby automatically determining the erroneous edge and shifting the transitions on that edge. Demodulator FRAME SYNC PROTECTION CD MODE This circuit detects the frame synchronization signals. Two synchronization counters are used in the SAA7335: 1. The coincidence counter: this is used to detect the coincidence of successive syncs. It generates a sync coincidence signal if 2 syncs are 588 ±1 EFM clocks apart. 2. The main counter: this is used to partition the EFM signal into 17-bit words. This counter is reset when: a) A sync coincidence is generated b) A sync is found within ±6 EFM clocks of its expected position. The sync coincidence signal is also used to generate the lock signal which will go active HIGH when 1 sync coincidence is found. It will reset to LOW when, during 61 consecutive frames, no sync coincidence is found. FRAME SYNC PROTECTION DVD MODE This circuit detects the frame synchronization signals. Two synchronization counters are used in the SAA7335: 1. The coincidence counter: this is used to detect the coincidence of successive syncs. It generates a sync coincidence signal if 2 syncs are 1488 ±3 EFM+ clocks apart. 2. The main counter: this is used to partition the EFM+ signal into 16-bit words. This counter is reset when: a) A sync coincidence is generated b) A sync is found within ±10 EFM+ clocks of its expected position. The sync coincidence signal is also used to generate the lock signal which will go active HIGH when 1 sync coincidence is found. It will reset to LOW when, during 61 consecutive frames, no sync coincidence is found. EFM/EFM+ demodulation The 14-bit EFM (16-bit EFM+) data and subcode words are decoded into 8-bit symbols. IC Descriptions. GB 64 ASD-1 9. DSP for CD and DVD-ROM systems SAA7335 Microcontroller interface The SAA7335 has two microcontroller interfaces, one serial I2C-bus and one parallel (8051 microcontroller compatible). The two communication modes may be operated at the same time, the modes are described below: 1. Parallel mode: protocol compatible with 8052 multiplexed bus: a) da0 to da7 = address/data bus b) ALE = Address Latch Enable, latches the address information on the bus c) WRi = active LOW write signal for write to SAA7335 d) RDi = active LOW read signal for read from SAA7335 e) CSi = active HIGH Chip Select signal (this signal gates the RDi and WRi signals). 2. I2C-bus mode: I2C-bus protocol where SAA7335 behaves as slave device where: a) SDA = I2C-bus data b) SCL = I2C-bus clock c) I2C-bus slave address (write mode) = 3EH d) I2C-bus slave address (read mode) = 3FH e) Maximum data transfer rate = 400 kbits/s. MICROCONTROLLER INTERFACE (I2C-BUS MODE) Bytes are transferred over the interface in single bytes of which there are two types; write data commands and read data commands. The sequence for a write data command (1 data byte) is as follows: • Send START condition • Send address 3EH (write) • Write command address byte • Write data byte • Send STOP condition. The sequence for a read data command (that reads 1 data byte) is as follows: • Send START condition • Send address 3EH (write) • Write status address byte • Send STOP condition • Send START condition • Send address 3FH (read) • Read data byte • Send STOP condition. READING AND WRITING DATA TO THE SAA7335 The SAA7335 has 32 × 8-bit configuration and status registers as shown in Table 1. Not all locations are currently defined and some remain reserved for future upgrades. These can be written to or read from via the microcontroller interface using either the serial or parallel control bus. IC Descriptions. GB 65 ASD-1 9. Am29LV160BT/Am29LV160BB 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Sector Erase Flash Memory DISTINCTIVE CHARACTERISTICS I Single power supply operation — Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications — Regulated voltage range: 3.0 to 3.6 volt read and write operations and for compatibility with high performance 3.3 volt microprocessors I Manufactured on 0.35 µm process technology I Supports Common Flash Memory Interface (CFI) I High performance — Full voltage range: access times as fast as 90 ns — Regulated voltage range: access times as fast as 80 ns I Ultra low power consumption (typical values at 5 MHz) — 200 nA Automatic Sleep mode current — 200 nA standby mode current — 10 mA read current — 20 mA program/erase current I Flexible sector architecture — One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirty-one 64 Kbyte sectors (byte mode) — One 8 Kword, two 4 Kword, one 16 Kword, and thirty-one 32 Kword sectors (word mode) — Supports full chip erase — Sector Protection features: A hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked in-system or via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors I Top or bottom boot block configurations available I Embedded Algorithms — Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors — Embedded Program algorithm automatically writes and verifies data at specified addresses I Minimum 100,000 write cycle guarantee per sector I Package option — 48-ball FBGA — 48-ball µBGA — 48-pin TSOP — 44-pin SO I Compatibility with JEDEC standards — Pinout and software compatible with single- power supply Flash — Superior inadvertent write protection I Data# Polling and toggle bits — Provides a software method of detecting program or erase operation completion I Ready/Busy# pin (RY/BY#) — Provides a hardware method of detecting program or erase cycle completion (not available on 44-pin SO) I Erase Suspend/Erase Resume — Suspends an erase operation to read data from, or program data to, a sector that is not being erased, then resumes the erase operation I Hardware reset pin (RESET#) — Hardware method to reset the device to reading array data IC Descriptions. GB 66 ASD-1 9. GENERAL DESCRIPTION The Am29LV160B is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 48-ball µBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte- wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers. The device offers access times of 80, 90, and 120 ns, allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls. The device requires only a single 3.0 volt power sup- ply for both read and write functions. Internally gener- ated and regulated voltages are provided for the program and erase operations. The Am29LV160B is entirely command set compatible with the JEDEC single-power-supply Flash stan- dard. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine that controls the erase and programming circuitry. Write cycles also internally latch addresses and data needed for the programming and erase operations. Reading data out of the device is similar to reading from other Flash or EPROM devices. Device programming occurs by executing the program command sequence. This initiates the Embedded Program algorithm—an internal algorithm that auto- matically times the program pulse widths and verifies proper cell margin. The Unlock Bypass mode facili- tates faster programming times by requiring only two write cycles to program data instead of four. Device erasure occurs by executing the erase com- mand sequence. This initiates the Embedded Erase algorithm—an internal algorithm that automatically pre- programs the array (if it is not already programmed) be- fore executing the erase operation. During erase, the device automatically times the erase pulse widths and verifies proper cell margin. The host system can detect whether a program or erase operation is complete by observing the RY/BY# pin, or by reading the DQ7 (Data# Polling) and DQ6 (toggle) status bits. After a program or erase cycle has been completed, the device is ready to read array data or accept another command. The sector erase architecture allows memory sectors to be erased and reprogrammed without affecting the data contents of other sectors. The device is fully erased when shipped from the factory. Hardware data protection measures include a low VCC detector that automatically inhibits write operations dur- ing power transitions. The hardware sector protection feature disables both program and erase operations in any combination of the sectors of memory. This can be achieved in-system or via programming equipment. The Erase Suspend/Erase Resume feature enables the user to put erase on hold for any period of time to read data from, or program data to, any sector that is not selected for erasure. True background erase can thus be achieved. The hardware RESET# pin terminates any operation in progress and resets the internal state machine to reading array data. The RESET# pin may be tied to the system reset circuitry. A system reset would thus also reset the device, enabling the system microprocessor to read the boot-up firmware from the Flash memory. The device offers two power-saving features. When addresses have been stable for a specified amount of time, the device enters the automatic sleep mode. The system can also place the device into the standby mode. Power consumption is greatly reduced in both these modes. AMD's Flash technology combines years of Flash memory manufacturing experience to produce the highest levels of quality, reliability and cost effectiveness. The device electri- cally erases all bits within a sector simultaneously via Fowler-Nordheim tunneling. The data is programmed using hot electron injection. IC Descriptions. GB 67 ASD-1 9. PRODUCT SELECTOR GUIDE Note: See “AC Characteristics” for full specifications. BLOCK DIAGRAM Family Part Number Am29LV160B Ordering Part Number: VCC =3.0–3.6 V 80R V CC = 2.7–3.6 V 90 120 Max access time, ns (tACC) 80 90 120 Max CE# access time, ns (tCE) 80 90 120 Max OE# access time, ns (tOE) 30 35 50 Input/Output Buffers X-Decoder Y-Decoder Chip Enable Output Enable Logic Erase Voltage Generator PGM Voltage Generator Timer VCC Detector State Control Command Register VCC VSS WE# BYTE# CE# OE# STB STB DQ0–DQ15 (A-1) Sector Switches RY/BY# RESET# Data Latch Y-Gating Cell Matrix Address Latch A0–A19 21358C-1 IC Descriptions. GB 68 ASD-1 9. CONNECTION DIAGRAMS A1 A15 A18 A14 A13 A12 A11 A10 A9 A8 A19 NC WE# RESET# NC NC RY/BY# A17 A7 A6 A5 A4 A3 A2 1 16 2 3 4 5 6 7 8 17 18 19 20 21 22 23 24 9 10 11 12 13 14 15 A16 DQ2 BYTE# VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ9 DQ1 DQ8 DQ0 OE# VSS CE# A0 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 48 33 47 46 45 44 43 42 41 40 39 38 37 36 35 34 25 32 31 30 29 28 27 26 A1 A15 A18 A14 A13 A12 A11 A10 A9 A8 A19 NC WE# RESET# NC NC RY/BY# A17 A7 A6 A5 A4 A3 A2 1 16 2 3 4 5 6 7 8 17 18 19 20 21 22 23 24 9 10 11 12 13 14 15 A16 DQ2 BYTE# VSS DQ15/A-1 DQ7 DQ14 DQ6 DQ13 DQ9 DQ1 DQ8 DQ0 OE# VSS CE# A0 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 48 33 47 46 45 44 43 42 41 40 39 38 37 36 35 34 25 32 31 30 29 28 27 26 21358C-2 Reverse TSOP Standard TSOP IC Descriptions. GB 69 ASD-1 9. KEY TIMING PARAMETERS SPEED CLOCK ACCESS TIME SETUP HOLD CL = 3** -6 166 MHz 5.5ns 2ns 1ns -7 143 MHz 5.5ns 2ns 1ns -8A 125 MHz 6ns 2ns 1ns *Off-center parting line **CL = CAS (READ) latency 1 Meg x 16 Configuration 512K x 16 x 2 banks Refresh Count 2K or 4K Row Addressing 2K (A0-A10) Bank Addressing 2 (BA) Column Addressing 256 (A0-A7) SYNCHRONOUS DRAM MT48LC1M16A1 S - 512K x 16 x 2 banks PIN ASSIGNMENT (Top View) 50-Pin TSOP FEATURES • PC100 functionality • Fully synchronous; all signals registered on positive edge of system clock • Internal pipelined operation; column address can be changed every clock cycle • Internal banks for hiding row access/precharge 1 Meg x 16 - 512K x 16 x 2 banks architecture with 11 row, 8 column addresses per bank • Programmable burst lengths: 1, 2, 4, 8 or full page • Auto Precharge Mode, includes CONCURRENT AUTO PRECHARGE • Self Refresh and Adaptable Auto Refresh Modes - 32ms, 2,048-cycle refresh or - 64ms, 2,048-cycle refresh or - 64ms, 4,096-cycle refresh • LVTTL-compatible inputs and outputs • Single +3.3V ±0.3V power supply • Supports CAS latency of 1, 2 and 3 OPTIONS MARKING • Configuration 1 Meg x 16 (512K x 16 x 2 banks) 1M16A1 • Plastic Package - OCPL* 50-pin TSOP (400 mil) TG • Timing (Cycle Time) 6ns (166 MHz) -6 7ns (143 MHz) -7 8ns (125 MHz) -8A • Refresh 2K or 4K with Self Refresh Mode at 64ms S • Part Number Example: MT48LC1M16A1TG-7S Note: The # symbol indicates signal is active LOW. VDD DQ0 DQ1 VssQ DQ2 DQ3 VDDQ DQ4 DQ5 VssQ DQ6 DQ7 VDDQ DQML WE# CAS# RAS# CS# BA A10 A0 A1 A2 A3 VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 Vss DQ15 DQ14 VssQ DQ13 DQ12 VDDQ DQ11 DQ10 VssQ DQ9 DQ8 VDDQ NC DQMH CLK CKE NC A9 A8 A7 A6 A5 A4 Vss 16Mb (x16) SDRAM PART NUMBER PART NUMBER ARCHITECTURE MT48LC1M16A1TG S 1 Meg x 16 GENERAL DESCRIPTION The 16Mb SDRAM is a high-speed CMOS, dynamic random-access memory containing 16,777,216 bits. It is internally configured as a dual 512K x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the 512K x 16-bit banks is organized as 2,048 rows by 256 columns by 16 bits. Read and write accesses to the SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed IC Descriptions. GB 70 ASD-1 9. 16Mb: x16 SDRAM G E N E R A L D E S C R I P T I O N ( c o n t i n u e d ) but it also allows the column address to be changed on every clock cycle to achieve a high-speed, fully random access. Precharging one bank while accessing the alternate bank will hide the PRECHARGE cycles and provide seamless, high-speed, random-access operation. The 1 Meg x 16 SDRAM is designed to operate in 3.3V, low-power memory systems. An auto refresh mode is provided, along with a power-saving, power-down mode. All inputs and outputs are LVTTL-compatible. SDRAMs offer substantial advances in DRAM operat- ing performance, including the ability to synchronously burst data at a high data rate with automatic column- address generation, the ability to interleave between inter- nal banks in order to hide precharge time, and the capability to randomly change column addresses on each clock cycle during a burst access. sequence. Accesses begin with the registration of an AC- TIVE command, which is then followed by a READ or WRITE command. The address bits registered coincident with the ACTIVE command are used to select the bank and row to be accessed (BA selects the bank, A0-A10 select the row). The address bits registered coincident with the READ or WRITE command are used to select the starting column location for the burst access. The SDRAM provides for programmable READ or WRITE burst lengths of 1, 2, 4 or 8 locations, or the full page, with a burst terminate option. An AUTO PRECHARGE function may be enabled to provide a self-timed row precharge that is initiated at the end of the burst sequence. The 1 Meg x 16 SDRAM uses an internal pipelined architecture to achieve high-speed operation. This architec- ture is compatible with the 2n rule of prefetch architectures, IC Descriptions. GB 71 ASD-1 9. 16Mb: x16 SDRAM 11 11 11 RAS# REFRESH CONTROLLER 2,048 REFRESH COUNTER CAS# 256 256 (x16) 8 COLUMN- ADDRESS BUFFER BURST COUNTER ROW- ADDRESS MUX CLK CS# WE# CKE 256 (x16) BANK1 MEMORY ARRAY (2,048 x 256 x 16) SENSE AMPLIFIERS I/O GATING DQM MASK LOGIC CONTROL LOGIC COLUMN DECODER COLUMN- ADDRESS LATCH 8 MODE REGISTER ROW- ADDRESS LATCH 11 ROW DECODER 11 COMMAND DECODE DQ0- DQ15 A0-A10, BA 16 8 DQML, DQMH 256 2,048 BANK0 MEMORY ARRAY (2,048 x 256 x 16) ROW DECODER ROW- ADDRESS LATCH 11 12 ADDRESS REGISTER 12 SENSE AMPLIFIERS I/O GATING DQM MASK LOGIC DATA INPUT REGISTER DATA OUTPUT REGISTER 16 16 FUNCTIONAL BLOCK DIAGRAM 1 Meg x 16 SDRAM IC Descriptions. GB 72 ASD-1 9. 16Mb: x16 SDRAM PIN DESCRIPTIONS P I N N U M B E R S S Y M B O L T Y P E D E S C R I P T I O N 35 CLK Input Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers. 34 CKE Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CLK signal. Deactivating the clock provides PRECHARGE POWER-DOWN and SELF REFRESH operations (all banks idle), ACTIVE POWER-DOWN (row ACTIVE in either bank) or CLOCK SUSPEND operation (burst/access in progress). CKE is synchronous except after the device enters power-down and self refresh modes, where CKE becomes asynchronous until after exiting the same mode. The input buffers, including CLK, are disabled during power- down and self refresh modes, providing low standby power. CKE may be tied HIGH. 18 CS# Input Chip Select: CS# enables (registered LOW) and disables (registered HIGH) the command decoder. All commands are masked when CS# is registered HIGH. CS# provides for external bank selection on systems with multiple banks. CS# is considered part of the command code. 15, 16, 17 WE#, CAS#, Input Command Inputs: RAS#, CAS# and WE# (along with CS#) define the RAS# command being entered. 14, 36 DQML, Input Input/Output Mask: DQM is an input mask signal for write accesses and an DQMH output enable signal for read accesses. Input data is masked when DQM is sampled HIGH during a WRITE cycle. The output buffers are placed in a High-Z state (two-clock latency) when DQM is sampled HIGH during a READ cycle. DQML corresponds to DQ0-DQ7; DQMH corresponds to DQ8-DQ15. DQML and DQMH are considered same state when referenced as DQM. 19 BA Input Bank Address Inputs: BA defines to which bank the ACTIVE, READ, WRITE or PRECHARGE command is being applied. BA is also used to program the twelfth bit of the Mode Register. 21-24, 27-32, 20 A0-A10 Input Address Inputs: A0-A10 are sampled during the ACTIVE command (row- address A0-A10) and READ/WRITE command (column-address A0-A7, with A10 defining AUTO PRECHARGE) to select one location out of the 512K available in the respective bank. A10 is sampled during a PRECHARGE command to determine if all banks are to be precharged (A10 HIGH). The address inputs also provide the op-code during a LOAD MODE REGISTER command. 2, 3, 5, 6, 8, 9, DQ0- Input/ Data I/Os: Data bus. 11, 12, 39, 40, 42, DQ15 Output 43, 45, 46, 48, 49 33, 37 NC – No Connect: These pins should be left unconnected. 7, 13, 38, 44 VDDQ Supply DQ Power: Provide isolated power to DQs for improved noise immunity. 4, 10, 41, 47 VSSQ Supply DQ Ground: Provide isolated ground to DQs for improved noise immunity. 1, 25 VDD Supply Power Supply: +3.3V ±0.3V. 26, 50 VSS Supply Ground. IC Descriptions. GB 73 ASD-1 9. PRODUCT PREVIEW PQFP208 (Plastic Quad Flat Pack) ORDER CODE : STi5505ACV STi5505 (Rev. Ax) DVD BACKEND DECODER WITH INTEGRATED HOST PROCESSOR . INTEGRATED 32-BIT RISC HOST CPU - 2KBYTES INSTRUCTION CACHE, 2KBYTES DATA CACHE/SRAM - 50K DHRYSTONES/SEC (2.1) - 50MHz . VIDEO DECODER - FULLY SUPPORTS MPEG-2 MP@ML - MEMORY REDUCTION - PAL IN 12MBITS . SUBPICTURE DECODER . HIGH PERFORMANCE ON-SCREEN DISPLAY . AUDIO DECODER - 5.1 CHANNEL DOLBY AC-3® / MULTI CHANNEL MPEG-2 DECODING - DOWNMIX TO STEREO OR TO DOLBY PRO-LOGIC COMPATIBLE OUTPUTS FOR MPEG-2 AND AC-3 - IEC6958 - IEC61937 COMPATIBLE OUTPUT - LPCM (DVD) MODE SUPPORTED - 6 CHANNELS OUTPUT . PAL/NTSC ENCODER - MACROVISIONTM 7.01/6.1 COMPATIBLE - TELETEXT, AND CLOSED CAPTION . HIGH PERFORMANCE SDRAM INTERFACE . PROGRAMMABLE MEMORY INTERFACE FOR DRAM, ROM, PERIPHERALS ETC. . FRONT-END CHANNEL IC INTERFACE - DVD, VCD AND CD-DA COMPATIBLE - DSS - DVB BISTREAMS - SERIAL AND PARALLEL INTERFACES - HARDWARE SECTOR FILTERING - INTEGRATED CSS DECRYPTION AND TRACK BUFFER . INTEGRATED PERIPHERALS - 2 UARTS, 1 I2C CONTROLLER, 3 PWM OUT- PUTS, 3 TIMERS, 3 CAPTURE TIMERS, SMART CARD - 34 BITS OF PROGRAMMABLE I/O - OS LINK . PROFESSIONAL TOOLSET SUPPORT - ANSI C COMPILER AND LIBRARIES - OPERATING SYSTEMS SUPPORT - ADVANCED DEBUGGING TOOLS . 208 PIN PQFP PACKAGE DESCRIPTION The STi5505 provides a very highly integrated back- end solution for DVD and combo DVD-DVB (Set Top Box) applications. The STi5505 incorporates a host CPU which handles both general application (DVD navigation, CD-DA, VCD, DVB) and drivers of the different embedded periphals (audio/video, subpicture decoders, OSD, PAL/NTSC encoder...). The STi5505 offers one of the best cost-effective (memory savings, internal peripherals availability) solu- tion to DVD-DVB applications with rapid time to mar- ket (Reference design, DVD-DVB Software Toolkit). DMA CHANNELS ARBITOR FRONT-END INTERFACE (SECTOR PROCESSOR & DVD DECRYPTION) 2K INSTRUC. CACHE 2K DATA CACHE AND 2K SRAM OS LINK 2 UART 1 I2C PIO 3 PWM SMART CARD DIAGNOSTICS CONTROLLER AND SYSTEM SERVICES EXTERNAL MEMORY INTERFACE MPEG2/AC3 AUDIO 5.1 CHANNEL PAL/NTSC TELETEXT INTERFACE MPEG2 VIDEO SUBPICTURE OSD ST20 CPU Figure 1 : General Block Diagram IC Descriptions. GB 74 ASD-1 9. I - GENERAL DESCRIPTION The performance offered by the ST20 CPU and its associated hardware (decoders, encoder, periphe- rals...) allows an integrated and unified DVD or DVD-DVB software solution. All the following operations are performed inside the STi5505 : - application management (DVD Navigation, VCD, CD-DA, DVB-Program Guide ...), - device data retrieval drivers (demultiplex, stream buffer management ...), - device presentation drivers (video decoder, sub- picture decoder, on-screen display, audio de- coder, PAL/NTSC encoder ...), - embedded peripherals drivers (UART, I2C, Pro- grammable I/O, Smart Card ...). I.1 - ST20 32-bit CPU The ST20 micro-core family has been developped by SGS-THOMSON Microelectronics to provide the tools and building blocks to enable the devel- opment of highly integrated application-specific 32- bits device at the lowest cost and fastest time to market. The STi5505 integrates a ST20 C2 core with the following characteristics : - 50K Dhrystones/s at 50MHz, - 8/16 bits instructions (32 most common instruc- tions in 8 bits), - instruction cache 2Kbytes - write back replace- ment policy, - internal SRAM 2Kbytes to ensure fast access to critical code, data, interrupt handler ... - data cache 2 Kbytes - write back replacement policy, The STi5505's ST20 is provided with advanced debugging tools : - on-chip real-time emulation, - debugging with minimal impact on software and performance, - non intrusive attachment to the host via JTAG (IEEE1149.1), - no intrusion into the performance of the CPU core, - no intrusion into user code space by a debug kernel, - only 40bytes used for breakpoint handler. I.2 - Video Decoder The video decoder implemented in the STi5505 uses a patented memory reduction/bandwith re- duction scheme to offer the user the best band- width/memory size compromise. The algorithm is lossless and uses "on-the-fly" decoding to reduce the memory requirements to two frame buffers in memory reduction mode. In this mode, PAL decoding is contained in 12Mbits. When used in bandwith reduction mode, the mem- ory usage is the normal three buffers but the band- with required by the decoder is significantly reduced compared to a classical implementation. In summary, the features of the decoder are : - MPEG-2 Main Profile/Main Level (MP@ML) support, - MPEG-2 program streams, Packet Elementary streams and MPEG-1 system streams support, - memory reduction architecture allowing sharing of single 16 Mbits SDRAM between MPEG de- coding, micro and transport functions - memory expandable to 32 Mbits of SDRAM, - letter box (16:9) filter, - pan-scan, horizontal and vertical image resizing, - automatic error concealment. I.3 - Subpicture Decoder The STi5505 has a hardware DVD compliant sub- picture decoder. Subpicture units are copied by DMA into subpicture bit buffer. The subpicture decoder can decode complete sub- picture units without any interaction from the ST20. The main subpicture decoder features are : - up to 720x480 or 720x576 subpicture area, - internal LUTs for Sub Picture, Highlight and PCI (4 bits color and contrast outputs), - internal color LUT (4 bits from SP, HL, PCI to 24 Y,Cr,Cb bits) for SP color inputs to MPEG, OSD, SP mixer. I.4 - Audio Decoder The audio decoder cell is a fully compatible Dolby AC-3 / MPEG-1/MPEG-2 decoder capable of decoding both 5.1 and 2 channel streams compat- ible with the DVD standard. Downmix from 5.1 channels is supported for both Dolby and MPEG-2 streams. The output can be sent directly to external DACs or formatted for transmission in accordance with the IE6958 stand- ard. The decoder can also handle linear PCM in accord- ance with the DVD standard. An integrated down- sampler is provided for conversion from 96 kHz to 48kHz. STi5505 (Rev. Ax) IC Descriptions. GB 75 ASD-1 9. The main features of the decoder core are : - Decodes 5.1 Dolby AC-3 Digital surround, - Output to 6 channels. Downmix modes : 1, 2, 3 or 4 channels for MPEG and AC-3 streams, - Karaoke mode for DVD. MPEG-2 capable, AC-3 capable, - MPEG-1, 2-channel audio decoder layers 1 and 2, - MPEG-2, 6-channel audio decoder layer 2, - PCM : transparent. downsampling 96 to 48 kHz, - Accepts MPEG-2 PES stream format for : MPEG- 2, MPEG-1, Dolby AC-3 and Linear PCM, - IEC6958 Output Interface, - CD-DA PCM format (subcode output in IEC6958 user data), - Downmix for Dolby Pro Logic compatible outputs for AC-3 and MPEG-2 (Pro Logic encoder), - Pro Logic decoder, - PLL for Internal 44.1 and 48kHz PCM clock generation, - On chip pink noise generator. I.5 - High Performance On-Screen Display The graphics performance of the STi5505 sup- ports the new requirements for intelligent program guides and interactive applications. The display interface supports up to 256 colors for each OSD region and a transparency feature al- lows mixing of video with the OSD. Fast access graphics and many other additional features are available and are supported by a graphics library. Very high system performance is obtained by closely coupling the ST20 RISC processor and cache with the MPEG audio/video core and display memory. Low latency RISC access and DMA engines allow rapid construction of bit maps. I.6 - PAL/NTSC Encoder The STi5505 integrates a PAL/NTSC encoder. It converts the digital MPEG/Sub Picture/OSD stream into a standard analog baseband PAL/NTSC signal and into RGB analog compo- nents. Six analog output pins are available on which it is possible to output CVBS, S-VHS (Y/C) and RGB formats. The encoder handles interlaced and non-interlaced mode. It can perform Closed Captions, CGMS or Teletext encoding and allows Macrovision 7.01/6.1 copy protection. The encoder supports both master and slave modes for synchronization. I.7 - Memory Interfaces The STi5505 has been designed to minimize sys- tem costs by enabling various memory savings. Two kinds of memory interfaces are used on the STi5505 : a programmable External Memory Inter- face (EMI) and a high performance SDRAM inter- face. The External Memory Interface supports several address ranges (memory banks). In each bank, a set of signals are entirely programmable and can be used to map 8/16 bits peripherals such as Front End channel ICs in DVD applications. The EMI contains a zero glue logic DRAM and a low-cost EPROM interface. This interface can be programmed to interface very easily peripherals. The SDRAM memory interface supports gluelessly 125 MHz SDRAMs providing the adequate band- withs to achieve MPEG decoding and display, OSD drawing and display, and general system use. Memory savings can be realized on ROM require- ments too : the ST20 VL-RISC micro-core has the highest code density of any 32 bit CPU, leading to the lowest cost program ROM. I.8 - Front-End Interface The STi5505 's front end interface accepts : - DVD, VCD and CD-DA sectors, - DVB-DSS transport stream. In DVD mode, DVD, VCD and CD-DA information can be input into STi5505 through a serial interface or a generic parallel interface. In serial mode, data are captured and filtered from I2S and V4 interfaces by an internal sector proces- sor. V4 interface is used to capture VCD and CD- DA subcode information. In parallel mode, sector processor is bypassed. I - GENERAL DESCRIPTION (continued) STi5505 (Rev. Ax) IC Descriptions. GB 76 ASD-1 9. The main features of the DVD interface are : - DVD, VCD and CD-DA compatible, - hardware sector filtering, - subcode error correction for CD-DA, - integrated CSS decryption, - integrated track buffer support, - DMA engine to ST20 memory. In DVB-DSS mode, DVB-DSS transport stream is input through a serial interface. The STi5505 ex- tracts and descrambles Packet Elementary Streams belonging to one user selected program to be decoded and presented. The main features of the DVB-DSS interface are : - descrambling (transport packet and packet ele- mentary streams in DVB mode, transport packet in DSS mode ; up to 32 streams descrambling), - PID and section filtering, - clock recovery, - DMA engine. In DVB-DSS mode, a high speed digital interface allows to transfer packets between the Set Top Box and external units, either for recording or playback purposes. This interface provides also full support for an external IEEE1394 connection. I.9 - Integrated Peripherals Several peripherals generally used in DVD players or DVD-DVB combos have been integrated into the STi5505. They are : - two UARTs to interface remote control receivers, DVD front end, modem ..., - one I2C controller to interface serial memories, remote control receivers, microcontrollers..., - 2 SmartCard interfaces (ISO7816-3) for DVB- DSS conditionnal access, pay per view ..., - PWM/timer module for control of system clock, - 34 programmable I/O pins, - OS Link interface, - JTAG with boundary scan for debug. I - GENERAL DESCRIPTION (continued) STi5505 (Rev. Ax) IC Descriptions. GB 77 ASD-1 9. II - PIN DESCRIPTION 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 208 206 205 204 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 140 139 138 137 143 142 141 147 146 145 144 149 148 153 152 151 150 156 155 154 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 160 159 158 157 162 161 207 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 88 89 90 91 92 87 93 94 95 96 97 98 100 101 102 103 104 99 VDD PIO3[7] PIO2[0] GND PIO2[3] PIO2[4] PIO2[5] PIO2[7] PIO1[0] PIO1[2] PIO1[5] PIO1[6] PIO1[7] PIO4[7] PIO0[0] PIO0[3] PIO0[4] VDD GND PIO0[5] PIO0[6]/PCM_OUT2 PIO0[7] IRQ[0] PCM_OUT1 IRQ[1] PWM0/OSLINK_SEL PWM1/BOOTFROMROM PWM2 RST TEST1 TEST2 TEST3 TEST4 VDD GND B_DATA B_BCLK B_FLAG B_SYNC B_WCLK TEST5 B_V4 SCLK PCM_OUT0 PCM_CLK LRCLK SPDIF_OUT VDDA_PCM V_REF_PCM VSSA_PCM HSYNC ODD/EVEN VDDA VSSA B_OUT G_OUT R_OUT I_REF_DAC_RGB V_REF_DAC_RGB VDDA VSSA Y_OUT C_OUT CV_OUT V_REF_DAC_YCC I_REF_DAC_YCC VDD GND AD[4] AD[5] AD[6] AD[7] AD[8] AD[9] VDD MEMCLKOUT GND AD[0] AD[1] AD[2] AD[3] AD[11] AD[10] SDCS[0] SDCS[1] VDD GND SDRAS SDCAS SDWE DQML DQ[0] DQ[1] DQ[2] VDD GND DQ[3] DQ[4] DQ[5] DQ[6] DQ[7] VDD GND MEMCLKIN DQMU DQ[8] DQ[9] DQ[10] DQ[11] VDD GND DQ[12] DQ[13] DQ[14] DQ[15] AUXCLK OSD_ACTIVE PIXCLK_27MHz VDD GND BE[1] OE CE[1] CE[2] CE[3] RAS0/CE[0] RAS1 CAS0/HOLDACK VDD GND CAS1/DMAREQ R/W/DMAACK DMAXFER CS WAIT/READY PROCCLK PPC_MODE VDD GND DATA[0] DATA[1] DATA[2] DATA[3] DATA[4] DATA[5] DATA[6] DATA[7] VDD GND DATA[8] DATA[9] DATA[10] DATA[11] DATA[12] DATA[13] VDD PIO3[6] PIO3[5] PIO3[4] PIO3[3] PIO3[2] PIO3[1] PIO3[0] GND PIO1[4] PIO1[3] PIO4[6] PIO4[5] PIO4[4] PIO4[3] PIO4[2] PIO4[1] PIO4[0] TRST TDO TCK TMS TDI GND VDD ADR[21] ADR[20] ADR[19] ADR[18] ADR[17] ADR[16] ADR[15] ADR[14] ADR[13] ADR[12] ADR[11] GND VDD ADR[10] ADR[9] ADR[8] ADR[7] ADR[6] ADR[5] ADR[4] ADR[3] ADR[2] ADR[1] GND VDD DATA[15] DATA[14] STi5505 PQFP208 (Top View) BE[0] II.1 - Pin Connections STi5505 (Rev. Ax) IC Descriptions. GB 78 ASD-1 9. II - PIN DESCRIPTION (continued) II.2 - Pin List Pin Name Type Function SUPPLIES 1, 18, 34, 67, 75, 86, 95, 102, 110, 119, 130, 139, 149, 159, 171, 184, 208 VDD Power Supply 4, 19, 35, 68, 77, 87, 96, 103, 111, 120, 131, 140, 150, 160, 172, 185, 200 GND Ground 53, 60 VDDA Analog Power Supply for DENC D/A Converters 54, 61 VSSA Analog Ground for DENC D/A Converters 48 VDDA_PCM Analog Power Supply for PLL PCM 49 V_REF_PCM Analog Reference for PLL PCM 50 VSSA_PCM Analog Ground for PLL PCM FRONT-END INTERFACE 36 B_DATA I I2S Data (DVD) or PARA_DATA[2] (DVD//) or Link Data (DVB/DSS) 40 B_WCLK I/O I2S Word Clock or PARA_DATA[6] (DVD//) or NRSS_CLK (DVB/DSS) 37 B_BCLK I I2S Bit Clock (DVD) or PARA_DATA[3] (DVD//) or Link Bit Clock (DVB/DSS) 38 B_FLAG I Error Flag (DVD) or PARA_DATA [4] (DVD//) or Link Sync (DVB/DSS) 39 B_SYNC I Sector / Abs Time Sync (DVD) or PARA_DATA[5] (DVD//) or Link Not Valid (DVB/DSS) 42 B_V4 I Versatile Input Pin (Subcode Input) or PARA_DATA[7] (DVD//) or NRSS_IN (DVB/DSS) VIDEO OUTPUT INTERFACE 57 R_OUT O Red Output 56 G_OUT O Green Output 55 B_OUT O Blue Output 63 C_OUT O Chroma Output 64 CV_OUT O Composite Video Output 62 Y_OUT O Luma Output 59 I_REF_DAC_RGB I DAC Current Reference 66 I_REF_DAC_YCC I DAC Current Reference 58 V_REF_DAC_RGB I DAC Voltage Reference 65 V_REF_DAC_YCC I DAC Voltage Reference 117 OSD_ACTIVE I/O OSD Active 118 PIXCLK_27MHz I System Clock Input 51 HSYNC I/O Horizontal Sync 52 ODD/EVEN I/O Vertical Sync AC-3/MPEG1-2 AUDIO OUTPUT INTERFACE 43 SCLK O Serial Bit Clock 44 PCM_OUT0 O Audio Serial Output Data 0 24 PCM_OUT1 O Audio Serial Output Data 1 21 PCM_OUT2 O Audio Serial Output Data 2 45 PCM_CLK I/O PCM Clock In or Out 46 LRCLK O Left/Right Clock 47 SPDIF_OUT O SPDIF Output STi5505 (Rev. Ax) IC Descriptions. GB 79 ASD-1 9. II - PIN DESCRIPTION (continued) Pin Name Type Function EXTERNAL INTERRUPTS 23, 25 IRQ[0:1] I External Interrupts PROGRAMMABLE I/O AND ALTERNATE FUNCTION (see Device Configuration Chapter) 15 PIO0 [0] I/O General Purpose I/O or PARA_SYNC (DVD//Front End) or Sc1Data (Smart Card 1 Data I/O) 16 PIO0 [3] I/O General Purpose I/O or PARA_REQ (DVD//Front End) or Sc1Clk (Smart Card 1 Clock) 17 PIO0 [4] I/O General Purpose I/O or PARA_STR (DVD//Front End) or Sc1RST (Smart Card 1 Reset) 20 PIO0 [5] I/O General Purpose I/O or PARA_DATA[0] (DVD//Front End) or Sc1Cmd VCC (Smart Card 1 Voltage Enable) 21 PIO0 [6] I/O General Purpose IO or Sc1DataDir (Smart Card 1 Dir) 22 PIO0 [7] I/O General Purpose I/O or PARA_DATA[1] (DVD//Front End) or Sc1Detect(Smart Card 1 Detect) 9 PIO1 [0] I/O General Purpose I/O or I2C Data 10 PIO1 [2] I/O General Purpose I/O or I2C Clock 198, 199 PIO1 [3:4] I/O General Purpose IO 11 PIO1 [5] I/O General Purpose IO or ASC1 TXD 12 PIO1 [6] I/O General Purpose IO or ASC1 RXD 13 PIO1 [7] I/O General Purpose IO or ASC3 TXD 3 PIO2 [0] I/O General Purpose I/O or Sc0Data (Smart Card 0 Data I/O) 5 PIO2 [3] I/O General Purpose I/O or Sc0Clk (Smart Card 0 Clock) 6 PIO2 [4] I/O General Purpose I/O or Sc0RST (Smart Card 0 Reset) 7 PIO2 [5] I/O General Purpose I/O or Sc0CmdVCC (Smart Card 0 Voltage Enable) 8 PIO2 [7] I/O General Purpose I/O or Sc0Detect (Smart Card 0 Detect) 201 PIO3 [0] I/O General Purpose IO or OSLink In 202 PIO3 [1] I/O General Purpose IO or OSLink Out 203 PIO3 [2] I/O General Purpose IO or CPUReset 204 PIO3 [3] I/O General Purpose IO or CPU Analyse 205 PIO3 [4] I/O General Purpose IO or ErrorOut 206, 207, 2 PIO3 [5:7] I/O General Purpose IO 191-197 PIO4 [0:6] I/O General Purpose IO 14 PIO4 [7] I/O General Purpose IO or ASC3 RXD JTAG INTERFACE 188 TCK I Test Clock 186 TDI I Test Data Input 189 TDO O Test Data Input 187 TMS I Test Mode Select 190 TRST I Test Reset SYSTEM USE 28 PWM2 O PWM2 Output 27 PWM1/BOOTFROMROM O/I PWM1 Output or Configuration Oslink Pins 26 PWM0/OSLINK_SEL O/I PWM0 Output or Boot from ROM during Reset 29 RST I Reset 116 AUXCLK O Auxilary Clock for Any Purpose II.2 - Pin List (continued) STi5505 (Rev. Ax) IC Descriptions. GB 80 ASD-1 9. II - PIN DESCRIPTION (continued) Pin Name Type Function SDRAM INTERFACE 78-81, 69, 70-74, 82, 83 AD[0:11] O SDRAM Address Bus 92-94, 97-101, 106-109, 112-115 DQ[0:15] I/O SDRAM Data (Lower Byte) 84, 85 SDCS[0:1] O SDRAM Chip Selects 89 SDCAS O SDRAM CAS 88 SDRAS O SDRAM RAS 90 SDWE O SDRAM Write Enable 104 MEMCLKIN I SDRAM Memory Clock Input 76 MEMCLKOUT O SDRAM Memory Clock Output 91 DQML O DQ Mask Enable (Lower) 105 DQMU O DQ Mask Enable (Upper) EXTERNAL MEMORY INTERFACE 161-170, 173-183 ADR[1:21] I/O External Memory Address Bus 141-148, 151-158 DATA[0:15] I/O External Memory Data Bus 128 RAS1/HOLDREQ O DRAM RAS or reserved 136 WAIT/READY I/O External Wait States or Reserved 133 R/W/DMAACK I/O DRAM R/W Strobe or Reserved 121, 122 BE[0:1] O Byte enable 129 CAS0/HOLDACK O/I DRAM CAS or Reserved 132 CAS1/DMAREQ O DRAM CAS or Reserved 124-126 CE[1:3] O Chip Select for Banks 1 - 3 135 CS I Reserved 137 PROCCLK I/O ST20 Clock or Reserved 127 RAS0/CE0 O DRAM RAS or Chip Select for Bank 0 134 DMAXFER I Reserved 138 PPC_MODE I Reserved 123 OE I/O Output Enable or Reserved SDAV/P1394 INTERFACE 30 TEST1 I/O DATA_RX/STROBE_TX (SDAV Mode) or SDAV_CLK (P1394 Mode) 31 TEST2 I/O STROBE_RX/DATA_TX (SDAV Mode) or DATA_IN/DATA_OUT (P1394 Mode) 32 TEST3 I/O Direction (SDAV Mode) or DATA_VALID In/Out (P1394 Mode) MISCELLANEOUS 41 TEST5 O NRSS_OUT (DVB/DSS) II.2 - Pin List (continued) STi5505 (Rev. Ax) IC Descriptions. GB 81 ASD-1 9. III.1 - Functional Modules Figure 1 shows the subsystem modules that make up the STi5505. These modules are outlined below. III.1 - CPU The Central Processing Unit (CPU) on the STi5505 is the ST20-C2 32-bit processor core. It contains instruction processing logic, instruction and data pointers and an operand register. It directly ac- cesses the high speed on-chip SRAM memory, which can store data or programs, and uses the Caches to reduce access time to off chip program and data memory. The processor can access memory via the general purpose External Memory Interface (EMI) or via the SDRAM EMI which is shared with the MPEG de- coder. III.2 - Memory Subsystem The STi5505 on-chip SRAM memory system provides 160 Mbytes/s internal data bandwidth, supporting pipe- lined 2 cycles internal memory access at 25ns cycle times. The STi5505 memory system consists of 2 Kbytes of SRAM, 2Kbytes of instruction cache, a 2Kbytes data cache that can be programmed to be SRAM, and an external memory interface (EMI). The STi5505 product has 2 Kbytes of on-chip SRAM. The advantage of this is the ability to store time critical code on chip, for instance interrupt routines, software kernels or device drivers, and even frequently used data without these being flushed from the caches. The instruction and data caches are direct mapped with a write-back system for the data cache and support burst accesses to the external memories for refill and write-back which are effective for increasing perform- ance with page-mode and SDRAM memories. The STi5505 EMI controls access to the external memory and peripherals while the SDRAM EMI provides access to the SDRAM buffer for the MPEG decoders, ST20 and DMA peripherals. The STi5505 EMI can access a 16 Mbytes (or greater if DRAM is used) physical address space in each of the four general purpose memory banks, and provides sustained transfer rates of up to 80 Mbytes/s. Peripherals that support an asynchro- nous data acknowledge are supported as is an external Power PC which can share the bus with the STi5505 and access the SDRAM buffer through the device. High memory bandwidths up to 200 Mbytes/s can be supported by the SDRAM EMI. The STi5505 internal memory interconnect pro- vides buffering and arbitration of memory access requests to sustain very high throughput of memory accesses. III.3 - Syste m Services Module The STi5505 system services module includes : - Phase locked loop (PLL) - accepts 27MHz input and generates all the internal high frequency clocks needed for the CPU and the OS-Link. - test access port - JTAG compatible. - Diagnostics controller accessed via the JTAG port providing : - Bootstrapping during development - Hardware breakpoint and watchpoint - Real time trace - External LSA triggering support. III.4 - Serial Communications To facilitate the connection of this system the front end device and other peripherals, two UARTs (ASCs) are included in the device. The UARTs provide an asynchronous serial interface. The UART can be programmed to support a range of baud rates and data formats, for example, data size, stop bits and parity. Two synchronous serial communications (SSC) interfaces are provided on the device. These can be used for a remote control device for example via an I2C or SPI bus. III.5 - Interrupt Subsystem The STi5505 interrupt subsystem supports eight prioritized interrupt levels. Two external interrupt pins are provided. Level assignment logic allows any of the internal or external interrupts to be assigned and, if necessary, share any interrupt level. III.6 - Front End Interf ace & DVD Decryption The front end interface accepts sectors in the case of DVD, MPEG-1 system stream in the case of VCD and PCM data for CD-DA applications on an I2S interface. In the case of VCD and CD-DA disks the subcode information is input via a simple asynchro- nous serial interface similar to a UART. The bitstream and subcode stream then pass through a "sector processor" block which handles sector filtering in the case of DVD and sectorizing using the subcode stream for VCD and CD-DA systems. III - FUNCTIONAL DESCRIPTION STi5505 (Rev. Ax) IC Descriptions. GB 82 ASD-1 9. The block also handles overspeed processing for all systems. The capturing of CD-DA sectors is based on a flywheel tiner to improve robusters by concealing erros in the subcode stream. For DVD the data, having had sector headers removed, then passes through a DVD conformant de-cryption stage and is written into any of the system memo- ries using a programmable DMA engine. When a subcode stream is present it is locally buffered, by subcode block and can be read by the CPU for subsequent processing, if required. III.7 - PWM and counter module This unit includes three separate pulse width modulator (PWM) generators using a shared counter, and three timer compare and capture channels sharing a second counter. The counters can be clocked from a pre-scaled internal clock or from a pre-scaled external clock via the capture clock input and the event on which the timer value is captured is also programmable. The PWM counters are 8-bit with 8-bit registers to set the output high time. The capture/compare counter and the compare and capture registers are 32-bit. III.8 - Parallel Programmable IO module 40 bits of parallel I/O are provided. 34 of then are connected to actual PIO pins. Each bit is program- mable as an output or an input. The output can be configured as a totem pole or open drain driver. Input compare logic is provided which can generate an interrupt on any change on any input bit. Many pins of the STi5505 device are multi-function and can either be configured as PIO or connected to an internal peripheral signal. III.9 - MPEG Video decoder The video decoder is a real-time video compres- sion processor supporting the MPEG-1 and MPEG- 2 standards at video rates up to 720 x 480 x 60 Hz and 720 x 576 x 50 Hz. Picture format conversion for display is performed by vertical and horizontal filters. User-defined bitmaps may be superimposed on the display picture through use of the on-screen display function. III.10 - PAL/NTSC encoder The digital encoder which is integrated in the STi5505 converts a multiplexed 4:2:2 YUV stream into a standard analog baseband PAL/NTSC signal and into RGB analog components. The encoder can also perform closed-caption, CGMS or teletext encoding and allows MacrovisionTM 7.01/6.1 copy protection. III.11 - MPEG-2 Audio / Dolby AC-3 Decoder The audio decoder is a Dolby AC-3 decoder capable of decoding both 5.1 and 2 channel DVD comfor- mant bitstreams. The decoder also handles MPEG- 1 (layers 1 & 2) and MPEG-2 layer 2 (6 channels). Downmix to 2 channels is possible for Dolby and MPEG standards with optional pro-logic encoding. The decoder directly accepts MPEG-2 PES streams as input. The decoder is capable of supporting IEC6958-IEC61937 formatted outputs for AC-3 and MPEG audio, linear PCM (left & right,16, 18, 20 & 24 bits), zero output (Mute mode) and PCM audio. III - FUNCTIONAL DESCRIPTION (continued) STi5505 (Rev. Ax) IC Descriptions. GB 83 ASD-1 9. ST24E32 ST25E32 32K SERIAL I2C EEPROM with EXTENDED ADDRESSING NOT FOR NEW DESIGN AI01201B 3 E0-E2 SDA VCC ST24E32 ST25E32 WC SCL VSS Figure 1. Logic Diagram COMPATIBLE with I2C EXTENDED ADDRESSING TWO WIRE SERIAL INTERFACE, SUPPORTS 400kHz PROTOCOL 1 MILLION ERASE/WRITE CYCLES, OVER the FULL SUPPLY VOLTAGE RANGE 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE ± 4.5V to 5.5V for ST24E32 version ± 2.5V to 5.5V for ST25E32 version WRITE CONTROL FEATURE BYTE and PAGE WRITE (up to 32 BYTES) BYTE, RANDOM and SEQUENTIAL READ MODES SELF TIMED PROGRAMING CYCLE AUTOMATIC ADDRESS INCREMENTING ENHANCED ESD/LATCH UP PERFORMANCES ST24E32and ST25E32 are replaced by the M24C32 DESCRIPTION The ST24/25E32 are 32K bit electrically erasable programmable memories (EEPROM), organized as 8 blocks of 512x 8 bits. The ST25E32operates with a power supply value as low as 2.5V. Both PlasticDual-in-Line andPlasticSmallOutline pack- ages are available. E0 - E2 Chip Enable Inputs SDA Serial Data Address Input/Output SCL Serial Clock WC Write Control VCC Supply Voltage VSS Ground Table 1. Signal Names 8 1 SO8 (M) 200mil Width 8 1 PSDIP8 (B) 0.25mm Frame IC Descriptions. GB 84 ASD-1 9. SDA VSS SCL WC E1 E0 VCC E2 AI01202B ST24E32 ST25E32 1 2 3 4 8 7 6 5 Figure 2A. DIP Pin Connections 1 AI01203C 2 3 4 8 7 6 5 SDA VSS SCL WC E1 E0 VCC E2 ST24E32 ST25E32 Figure 2B. SO Pin Connections Each memory is compatible with the I2C extended addressing standard, two wire serial interface which uses a bi-directional data bus and serial clock. The ST24/25E32carry a built-in 4 bit, unique device identification code (1010) corresponding to the I2C bus definition. The ST24/25E32behave as DESCRIPTION (cont'd) slave devices in the I2C protocol with all memory operations synchronized by the serial clock. Read and write operations are initiated by a START conditiongeneratedby thebus master. TheSTART condition is followed by a stream of 4 bits (identifi- cation code 1010), 3 bit Chip Enable input to form a 7 bit Device Select, plus one read/write bit and terminatedby an acknowledge bit. Symbol Parameter Value Unit TA Ambient Operating Temperature ±40 to 125 °C TSTG Storage Temperature ±65 to 150 °C TLEAD Lead Temperature, Soldering (SO8) (PSDIP8) 40 sec 10 sec 215 260 °C VIO Input or Output Voltages ±0.6 to 6.5 V VCC Supply Voltage ±0.3 to 6.5 V VESD Electrostatic Discharge Voltage (Human Body model) (2) 4000 V Electrostatic Discharge Voltage (Machine model) (3) 500 V Notes: 1. Except for the rating ºOperating Temperature Rangeº, stresses above those listed in the Table ºAbsolute Maximum Ratingsº may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above thoseindicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the SGS-THOMSON SURE Program and other relevantquality documents. 2. 100pF through 1500Ω; MIL-STD-883C, 3015.7 3. 200pF through 0Ω; EIAJ IC-121 (condition C) Table 2. Absolute Maximum Ratings (1) ST24E32, ST25E32 Spare parts list GB 85 ASD-1 10. 10. Spare parts list VAL6011 Various 0001 3139 197 60090 GENEVA LP LOADER ASSY 0002 9305 022 60101 VAM6001/01 0003 3139 194 00710 SUSPENSION 0004 3139 194 00710 SUSPENSION 0005 3139 194 00620 SUSPENSION 0006 3139 194 00620 SUSPENSION 0007 3139 197 60060 CLAMPER ASSEMBLY Loader Various 0004 4822 358 10266 0009 3139 198 80010 0010 4822 532 13097 TULE 0011 3139 194 00270 0012 3139 197 50060 Monoboard Various 1104 2422 025 15963 CON BM H 24P F 0.50 FFC SMD R 1106 2422 025 16158 CON BM H 8P F 1.00 FFC 0.3 R 1205 2422 540 98428 RES CER SM 8M467 CSTCC8.46MHz R 1300 2422 540 98426 RES CER SM 6MHz CSTCC6.00MHz R 1301 4822 267 51454 CONN. 11P FEMALE 1603 2422 025 16389 CON BM V 22P F 1.00 FFC 0.3 R 1604 2422 025 16388 CON BM V 16P F 1.00 FFC 0.3 R � 2100 4822 126 14305 100nF 10% 16V 0603 2101 4822 126 14305 100nF 10% 16V 0603 2103 4822 124 80151 47µF 16V 2104 4822 126 13193 4.7nF 10% 63V 2105 4822 122 33761 22pF 5% 50V 2107 4822 126 13956 68pF 5% 63V CASE 0603 2108 4822 126 14315 390pF 5% 50V 0603 2109 2020 552 95697 2110 2222 861 15222 50V 2N2 PM5 2111 4822 126 14305 100nF 10% 16V 0603 2112 5322 126 11578 1nF 10% 50V 0603 2113 4822 126 14305 100nF 10% 16V 0603 2114 4822 122 31765 100pF 2% 63V 2115 4822 126 14305 100nF 10% 16V 0603 2116 4822 126 14305 100nF 10% 16V 0603 2117 4822 126 14305 100nF 10% 16V 0603 2120 4822 126 14305 100nF 10% 16V 0603 2121 4822 126 13879 220nF 20% 16V 2123 4822 126 14305 100nF 10% 16V 0603 2124 4822 126 14305 100nF 10% 16V 0603 2125 4822 126 14305 100nF 10% 16V 0603 2126 4822 126 14305 100nF 10% 16V 0603 2127 4822 126 14305 100nF 10% 16V 0603 2128 4822 126 14508 180pF 5% 50V 0603 2129 4822 126 14508 180pF 5% 50V 0603 2130 4822 122 33761 22pF 5% 50V 2131 4822 126 14494 22nF 10% 25V 0603 2136 4822 126 14305 100nF 10% 16V 0603 2137 4822 126 14305 100nF 10% 16V 0603 2138 4822 126 14305 100nF 10% 16V 0603 2139 4822 126 14305 100nF 10% 16V 0603 2140 4822 126 14241 0603 50V 330P COL R 2141 4822 122 33761 22pF 5% 50V 2142 5322 126 11583 10nF 10% 50V 0603 2143 4822 126 13883 220pF 5% 50V 2144 4822 126 13883 220pF 5% 50V 2145 4822 126 13883 220pF 5% 50V 2203 4822 126 14305 100nF 10% 16V 0603 2204 4822 126 14305 100nF 10% 16V 0603 2205 4822 126 14305 100nF 10% 16V 0603 2206 4822 126 14549 33nF 16V O6O3 2207 5322 126 11578 1nF 10% 50V 0603 2208 4822 126 14305 100nF 10% 16V 0603 2209 4822 126 14305 100nF 10% 16V 0603 2210 5322 126 11578 1nF 10% 50V 0603 2212 4822 126 14305 100nF 10% 16V 0603 2213 4822 126 14305 100nF 10% 16V 0603 2215 4822 124 23237 22µF 6.3V 2216 5322 126 11578 1nF 10% 50V 0603 2226 4822 126 14305 100nF 10% 16V 0603 2227 4822 126 14305 100nF 10% 16V 0603 2228 4822 126 14305 100nF 10% 16V 0603 2300 4822 126 14305 100nF 10% 16V 0603 2301 4822 126 14305 100nF 10% 16V 0603 2302 4822 126 14305 100nF 10% 16V 0603 2303 4822 124 80349 47µF 20% 6.3V 2306 4822 124 23002 10µF 16V 2309 4822 126 14305 100nF 10% 16V 0603 2310 4822 126 14305 100nF 10% 16V 0603 2314 4822 126 14305 100nF 10% 16V 0603 2315 4822 126 14305 100nF 10% 16V 0603 2318 5322 122 33861 120pF 10% 50V 2319 4822 126 11669 27pF 2401 4822 126 14305 100nF 10% 16V 0603 2402 4822 126 14305 100nF 10% 16V 0603 2403 4822 126 14305 100nF 10% 16V 0603 2404 4822 126 14305 100nF 10% 16V 0603 2405 4822 126 14305 100nF 10% 16V 0603 2406 4822 126 14305 100nF 10% 16V 0603 2407 4822 126 14305 100nF 10% 16V 0603 2408 4822 126 14305 100nF 10% 16V 0603 2409 4822 126 14305 100nF 10% 16V 0603 2410 4822 126 14305 100nF 10% 16V 0603 2411 4822 126 14305 100nF 10% 16V 0603 2412 4822 126 14305 100nF 10% 16V 0603 2413 4822 126 14305 100nF 10% 16V 0603 2418 4822 124 12095 100µF 20% 16V 2419 4822 124 80349 47µF 20% 6.3V 2420 4822 124 80349 47µF 20% 6.3V 2500 4822 126 14305 100nF 10% 16V 0603 2502 3198 030 74780 EL SM 35V 4U7 PM20 COL R 2503 4822 126 14305 100nF 10% 16V 0603 2504 4822 122 31765 100pF 2% 63V 2505 4822 126 14494 22nF 10% 25V 0603 2506 4822 124 23002 10µF 16V 2507 4822 126 14305 100nF 10% 16V 0603 2508 5322 126 11579 3.3nF 10% 63V 2509 4822 126 14241 0603 50V 330P COL R 2510 4822 126 14305 100nF 10% 16V 0603 2511 4822 126 14305 100nF 10% 16V 0603 2512 4822 126 14305 100nF 10% 16V 0603 2513 4822 126 14305 100nF 10% 16V 0603 2514 4822 126 14305 100nF 10% 16V 0603 2515 4822 126 14305 100nF 10% 16V 0603 2516 4822 126 14305 100nF 10% 16V 0603 2517 4822 126 14305 100nF 10% 16V 0603 2518 4822 126 14305 100nF 10% 16V 0603 2519 4822 126 14305 100nF 10% 16V 0603 2520 4822 126 14305 100nF 10% 16V 0603 2521 4822 126 14305 100nF 10% 16V 0603 2522 4822 126 14305 100nF 10% 16V 0603 2523 4822 126 14305 100nF 10% 16V 0603 2524 4822 126 14305 100nF 10% 16V 0603 2525 4822 126 14305 100nF 10% 16V 0603 2526 4822 126 14305 100nF 10% 16V 0603 2527 4822 126 14305 100nF 10% 16V 0603 2528 4822 126 14305 100nF 10% 16V 0603 2529 4822 126 14305 100nF 10% 16V 0603 2530 3198 030 74780 EL SM 35V 4U7 PM20 COL R 2531 3198 030 74780 EL SM 35V 4U7 PM20 COL R 2532 4822 122 33777 47pF 5% 63V 2533 4822 122 33777 47pF 5% 63V 2534 5322 126 11578 1nF 10% 50V 0603 2535 5322 126 11578 1nF 10% 50V 0603 2600 4822 126 14494 22nF 10% 25V 0603 2601 4822 126 14247 0603 50V 1N5 COL R 2602 4822 126 14247 0603 50V 1N5 COL R 2603 4822 126 14305 100nF 10% 16V 0603 2604 4822 124 12095 100µF 20% 16V 2605 4822 126 14494 22nF 10% 25V 0603 2606 4822 124 12095 100µF 20% 16V 2607 4822 124 12095 100µF 20% 16V 2608 4822 124 23002 10µF 16V 2609 4822 124 80151 47µF 16V 2610 4822 126 14305 100nF 10% 16V 0603 2611 4822 124 12095 100µF 20% 16V 2614 4822 122 33777 47pF 5% 63V 2615 4822 122 33777 47pF 5% 63V 2616 4822 122 33777 47pF 5% 63V 2617 4822 122 33777 47pF 5% 63V 2618 4822 126 14305 100nF 10% 16V 0603 2619 4822 126 14305 100nF 10% 16V 0603 2620 4822 122 33777 47pF 5% 63V 2621 4822 122 33777 47pF 5% 63V 2622 4822 122 33777 47pF 5% 63V 2623 4822 122 33777 47pF 5% 63V 2624 4822 122 33777 47pF 5% 63V 2625 4822 122 33777 47pF 5% 63V 2626 4822 122 33777 47pF 5% 63V 2627 4822 122 33777 47pF 5% 63V 2632 4822 124 12095 100µF 20% 16V 2633 4822 124 12095 100µF 20% 16V 2634 4822 126 14305 100nF 10% 16V 0603 2635 4822 126 14305 100nF 10% 16V 0603 2636 4822 126 14305 100nF 10% 16V 0603 2637 4822 126 14305 100nF 10% 16V 0603 2638 4822 126 14305 100nF 10% 16V 0603 2639 4822 126 14305 100nF 10% 16V 0603 � 3100 4822 117 11152 4Ω7 5% 3102 5322 117 13034 1k5 1% 0.063W 0603 RC22H 3103 5322 117 13034 1k5 1% 0.063W 0603 RC22H 3104 5322 117 13062 390Ω 1% 0.063W 0603 RC22H 3105 4822 051 30103 10k 5% 0.062W 3106 4822 051 30479 47Ω 5% 0.062W 3107 4822 051 20228 2Ω2 5% 0.1W 3108 4822 051 20228 2Ω2 5% 0.1W 3110 4822 051 30479 47Ω 5% 0.062W 3111 5322 117 13058 150Ω 1% 0.063W 0603 RC22H 3112 5322 117 13021 47Ω 1% 0.063W 0603 RC22H 3114 4822 051 20228 2Ω2 5% 0.1W 3115 4822 051 20228 2Ω2 5% 0.1W 3116 5322 117 13042 3k9 1% 0.063W 0603 RC22H 3117 4822 051 30181 180Ω 5% 0.062W 3118 4822 051 30681 680Ω 5% 0.062W 3119 5322 117 13062 390Ω 1% 0.063W 0603 RC22H 3120 4822 051 30102 1k 5% 0.062W 3121 4822 051 30273 27k 5% 0.062W 3122 4822 051 30471 470Ω 5% 0.062W 3123 4822 051 30103 10k 5% 0.062W 3124 4822 051 30471 470Ω 5% 0.062W 3125 4822 051 30103 10k 5% 0.062W 3126 4822 051 30103 10k 5% 0.062W 3127 4822 051 30223 22k 5% 0.062W 3128 2322 704 69109 3129 4822 051 30392 3k9 5% 0.063W 0603 3130 4822 051 20228 2Ω2 5% 0.1W 3131 4822 051 20228 2Ω2 5% 0.1W 3132 4822 051 20228 2Ω2 5% 0.1W 3133 4822 051 20228 2Ω2 5% 0.1W 3134 5322 117 13047 330Ω 1% 0.063W 0603 RC22H 3135 4822 117 13613 2Ω2 5% 0603 3137 4822 117 13613 2Ω2 5% 0603 3138 5322 117 13053 6k8 1% 0.063W 0603 RC22H 3139 4822 117 12917 1Ω 5% 0.062W CASE0603 3140 4822 051 30479 47Ω 5% 0.062W 3141 4822 117 11152 4Ω7 5% 3142 5322 117 13028 12k 1% 0.063W 0603 RC22H 3143 5322 117 13043 220Ω 1% 0.063W 0603 RC22H 3144 2322 704 69109 3146 4822 051 30103 10k 5% 0.062W 3147 4822 051 30103 10k 5% 0.062W 3148 5322 117 13022 22k 1% 0.063W 0603 RC22H 3153 4822 117 12139 22Ω 5% 0.062W 3155 4822 051 30103 10k 5% 0.062W 3157 4822 051 30103 10k 5% 0.062W 3158 5322 117 13017 100Ω 1% 0.063W 0603 RC22H 3160 4822 051 30101 100Ω 5% 0.062W 3161 4822 117 13613 2Ω2 5% 0603 3162 4822 051 30101 100Ω 5% 0.062W 3163 4822 051 30273 27k 5% 0.062W 3164 4822 117 13613 2Ω2 5% 0603 Spare parts list GB 86 ASD-1 10. 3165 5322 117 13063 120Ω 1% 0.063W 0603 RC22H 3166 4822 051 30393 39k 5% 0.062W 3167 4822 051 30101 100Ω 5% 0.062W 3168 5322 117 13047 330Ω 1% 0.063W 0603 RC22H 3169 4822 051 30101 100Ω 5% 0.062W 3170 4822 051 30101 100Ω 5% 0.062W 3171 4822 051 30101 100Ω 5% 0.062W 3172 4822 117 13632 100k 1% 0603 0.62W 3173 4822 117 13632 100k 1% 0603 0.62W 3174 4822 117 11152 4Ω7 5% 3175 4822 117 13613 2Ω2 5% 0603 3176 4822 051 30153 15k 5% 0.062W 3178 4822 117 11151 1Ω 5% 3179 4822 051 30221 220Ω 5% 0.062W 3180 4822 117 13632 100k 1% 0603 0.62W 3181 4822 051 30561 560Ω 5% 0.062W 3182 5322 117 13018 1k0 1% 0.063W 0603 RC22H 3183 5322 117 13017 100Ω 1% 0.063W 0603 RC22H 3184 2322 704 61204 3185 4822 117 11151 1Ω 5% 3187 4822 051 30273 27k 5% 0.062W 3189 4822 051 30008 0Ω jumper 3190 4822 051 30008 0Ω jumper 3191 4822 051 30008 0Ω jumper 3192 4822 051 30008 0Ω jumper 3193 4822 051 30008 0Ω jumper 3194 4822 051 30008 0Ω jumper 3195 4822 051 30008 0Ω jumper 3197 4822 051 30008 0Ω jumper 3198 5322 117 13049 470Ω 1% 0.063W 0603 RC22H 3199 5322 117 13042 3k9 1% 0.063W 0603 RC22H 3200 4822 051 30103 10k 5% 0.062W 3201 4822 117 11151 1Ω 5% 3202 4822 117 11151 1Ω 5% 3203 4822 051 30105 1M 5% 0.062W 3204 4822 051 30331 330Ω 5% 0.062W 3205 4822 051 30103 10k 5% 0.062W 3206 4822 051 30103 10k 5% 0.062W 3208 4822 051 30272 2k7 5% 0.062W 3209 4822 051 30472 4k7 5% 0.062W 3210 4822 051 30392 3k9 5% 0.063W 0603 3211 4822 051 30472 4k7 5% 0.062W 3212 4822 117 11152 4Ω7 5% 3213 4822 117 11152 4Ω7 5% 3214 4822 051 30392 3k9 5% 0.063W 0603 3215 4822 051 30103 10k 5% 0.062W 3219 4822 051 30103 10k 5% 0.062W 3220 4822 051 30103 10k 5% 0.062W 3221 4822 051 30103 10k 5% 0.062W 3224 4822 051 30151 150Ω 5% 0.062W 3225 2322 704 62004 3226 4822 051 30103 10k 5% 0.062W 3227 4822 051 30472 4k7 5% 0.062W 3229 4822 051 30123 12k 5% 0.062W 3230 4822 051 30103 10k 5% 0.062W 3231 4822 051 30103 10k 5% 0.062W 3232 4822 117 13613 2Ω2 5% 0603 3234 4822 117 12902 8k2 1% 0.063W 0603 3235 4822 117 13632 100k 1% 0603 0.62W 3236 4822 051 30472 4k7 5% 0.062W 3237 4822 051 30103 10k 5% 0.062W 3238 4822 051 30103 10k 5% 0.062W 3239 4822 051 30103 10k 5% 0.062W 3240 4822 051 30103 10k 5% 0.062W 3242 4822 051 30008 0Ω jumper 3243 4822 051 30008 0Ω jumper 3246 4822 051 30008 0Ω jumper 3247 4822 051 30008 0Ω jumper 3249 4822 051 30008 0Ω jumper 3250 4822 051 30008 0Ω jumper 3251 4822 051 30008 0Ω jumper 3252 4822 051 30008 0Ω jumper 3253 4822 051 30008 0Ω jumper 3254 4822 051 30008 0Ω jumper 3255 4822 051 30008 0Ω jumper 3256 4822 051 30008 0Ω jumper 3257 4822 051 30008 0Ω jumper 3258 4822 051 30008 0Ω jumper 3259 4822 117 11151 1Ω 5% 3260 4822 117 11151 1Ω 5% 3300 4822 117 11152 4Ω7 5% 3301 4822 051 30105 1M 5% 0.062W 3302 4822 051 30221 220Ω 5% 0.062W 3304 4822 051 30272 2k7 5% 0.062W 3305 4822 051 30272 2k7 5% 0.062W 3309 4822 051 30103 10k 5% 0.062W 3310 4822 051 30223 22k 5% 0.062W 3311 4822 051 30223 22k 5% 0.062W 3312 4822 051 30472 4k7 5% 0.062W 3313 4822 051 30472 4k7 5% 0.062W 3316 4822 051 20108 1Ω 5% 0.1W 3317 4822 051 20108 1Ω 5% 0.1W 3318 4822 051 30472 4k7 5% 0.062W 3319 4822 051 30479 47Ω 5% 0.062W 3320 4822 051 30472 4k7 5% 0.062W 3321 4822 051 30682 6k8 5% 0.062W 3322 5322 117 13026 4k7 1% 0.063W 0603 RC22H 3323 5322 117 13026 4k7 1% 0.063W 0603 RC22H 3324 4822 117 13632 100k 1% 0603 0.62W 3325 4822 051 30682 6k8 5% 0.062W 3326 4822 051 30479 47Ω 5% 0.062W 3327 4822 051 30682 6k8 5% 0.062W 3328 4822 051 30223 22k 5% 0.062W 3329 4822 051 30223 22k 5% 0.062W 3330 4822 051 30223 22k 5% 0.062W 3331 4822 051 30332 3k3 5% 0.062W 3332 4822 051 30332 3k3 5% 0.062W 3333 4822 051 30101 100Ω 5% 0.062W 3334 4822 051 30101 100Ω 5% 0.062W 3335 4822 051 30101 100Ω 5% 0.062W 3336 4822 051 30101 100Ω 5% 0.062W 3337 4822 051 30101 100Ω 5% 0.062W 3338 4822 051 30101 100Ω 5% 0.062W 3339 4822 051 30008 0Ω jumper 3340 4822 051 30008 0Ω jumper 3403 4822 051 30103 10k 5% 0.062W 3404 4822 051 30103 10k 5% 0.062W 3405 4822 051 30103 10k 5% 0.062W 3412 4822 051 30008 0Ω jumper 3414 4822 051 30008 0Ω jumper 3416 4822 051 30008 0Ω jumper 3500 4822 051 30332 3k3 5% 0.062W 3501 4822 051 30332 3k3 5% 0.062W 3502 4822 051 30223 22k 5% 0.062W 3503 4822 051 30103 10k 5% 0.062W 3504 4822 051 30103 10k 5% 0.062W 3505 4822 051 30103 10k 5% 0.062W 3506 4822 051 30103 10k 5% 0.062W 3507 4822 051 30472 4k7 5% 0.062W 3508 4822 051 30689 68Ω 5% 0.063W 0603 RC21 RST SM 3509 4822 051 30103 10k 5% 0.062W 3511 4822 051 30332 3k3 5% 0.062W 3512 4822 051 30332 3k3 5% 0.062W 3513 4822 051 30103 10k 5% 0.062W 3514 4822 051 30103 10k 5% 0.062W 3515 4822 051 30103 10k 5% 0.062W 3516 4822 051 30103 10k 5% 0.062W 3517 4822 051 30332 3k3 5% 0.062W 3519 4822 051 30103 10k 5% 0.062W 3520 4822 051 30103 10k 5% 0.062W 3521 4822 051 30103 10k 5% 0.062W 3522 4822 051 30103 10k 5% 0.062W 3523 4822 051 30332 3k3 5% 0.062W 3524 4822 051 30101 100Ω 5% 0.062W 3525 4822 051 30103 10k 5% 0.062W 3526 4822 051 30103 10k 5% 0.062W 3534 4822 051 30103 10k 5% 0.062W 3535 4822 051 30153 15k 5% 0.062W 3536 4822 051 30101 100Ω 5% 0.062W 3537 4822 051 30331 330Ω 5% 0.062W 3538 4822 051 30681 680Ω 5% 0.062W 3541 4822 051 30479 47Ω 5% 0.062W 3542 4822 051 30479 47Ω 5% 0.062W 3545 4822 051 30221 220Ω 5% 0.062W 3546 4822 051 30101 100Ω 5% 0.062W 3548 4822 051 30008 0Ω jumper 3549 4822 051 30008 0Ω jumper 3550 4822 051 30101 100Ω 5% 0.062W 3551 4822 051 30101 100Ω 5% 0.062W 3552 4822 051 30008 0Ω jumper 3554 4822 051 30008 0Ω jumper 3564 4822 051 30008 0Ω jumper 3566 4822 051 30008 0Ω jumper 3570 4822 051 30101 100Ω 5% 0.062W 3571 4822 051 30689 68Ω 5% 0.063W 0603 RC21 RST SM 3572 4822 051 30689 68Ω 5% 0.063W 0603 RC21 RST SM 3605 4822 051 30008 0Ω jumper 3606 4822 117 12925 47k 1% 0.063W 0603 3607 4822 117 13632 100k 1% 0603 0.62W 3608 4822 117 13632 100k 1% 0603 0.62W 3609 4822 117 13632 100k 1% 0603 0.62W 3610 4822 051 30103 10k 5% 0.062W 3611 4822 051 30103 10k 5% 0.062W 3612 4822 051 30103 10k 5% 0.062W 3613 4822 051 30103 10k 5% 0.062W 3614 4822 051 30103 10k 5% 0.062W 3615 4822 051 30103 10k 5% 0.062W 3616 4822 051 30103 10k 5% 0.062W 3618 4822 051 30223 22k 5% 0.062W 3619 4822 051 30223 22k 5% 0.062W 3620 4822 051 30101 100Ω 5% 0.062W 3621 4822 051 30101 100Ω 5% 0.062W 3622 4822 051 30101 100Ω 5% 0.062W 3623 4822 051 30101 100Ω 5% 0.062W 3624 4822 051 30101 100Ω 5% 0.062W 3625 4822 051 30101 100Ω 5% 0.062W 3626 4822 051 30102 1k 5% 0.062W 3627 4822 051 30471 470Ω 5% 0.062W 3628 4822 051 30471 470Ω 5% 0.062W 3629 4822 051 30472 4k7 5% 0.062W 3630 4822 051 30221 220Ω 5% 0.062W 3631 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3632 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3633 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3635 4822 051 30682 6k8 5% 0.062W 3636 4822 051 30682 6k8 5% 0.062W 3637 4822 051 30332 3k3 5% 0.062W 3642 4822 051 30103 10k 5% 0.062W 3647 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3648 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3651 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3654 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3655 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3656 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3657 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3658 4822 051 30102 1k 5% 0.062W 3659 4822 051 30102 1k 5% 0.062W 3660 4822 051 30102 1k 5% 0.062W 3661 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3662 4822 051 30102 1k 5% 0.062W 3663 4822 051 30102 1k 5% 0.062W 3664 2322 704 64301 RST SM 0603 RC22H 430Ω PM1 R 3665 4822 117 12139 22Ω 5% 0.062W 3667 4822 051 30331 330Ω 5% 0.062W 3669 4822 051 30008 0Ω jumper 3670 4822 051 30008 0Ω jumper 3671 4822 051 30223 22k 5% 0.062W 3672 4822 051 30479 47Ω 5% 0.062W 3673 4822 051 30101 100Ω 5% 0.062W 3677 4822 051 30008 0Ω jumper 3678 4822 051 30008 0Ω jumper 3679 4822 051 30008 0Ω jumper 3681 4822 051 30008 0Ω jumper 3683 4822 051 30008 0Ω jumper 3685 4822 051 30008 0Ω jumper 3686 4822 051 30223 22k 5% 0.062W 3687 4822 051 30223 22k 5% 0.062W 3688 4822 051 30472 4k7 5% 0.062W 3689 4822 051 30223 22k 5% 0.062W � 5200 4822 157 11717 BLM31P500SPT 5300 4822 157 11717 BLM31P500SPT 5301 4822 157 11717 BLM31P500SPT 5402 4822 157 11499 BLM11P600SPT 5403 4822 157 11499 BLM11P600SPT 5501 4822 157 70299 2.2µH (NL322522T-2R2J) 5502 4822 157 70299 2.2µH (NL322522T-2R2J) 5503 4822 157 71206 BLM21A601SPT 5504 4822 157 71206 BLM21A601SPT 5600 4822 157 71206 BLM21A601SPT 5601 4822 157 11499 BLM11P600SPT 5602 4822 157 10547 15µH 5% 5603 4822 157 71206 BLM21A601SPT 5604 4822 157 10547 15µH 5% 5605 4822 157 10547 15µH 5% 5606 4822 157 10547 15µH 5% 5607 4822 157 10547 15µH 5% 5608 4822 157 10547 15µH 5% 5609 4822 157 11717 BLM31P500SPT 5610 4822 157 11717 BLM31P500SPT � 6200 4822 130 11397 BAS316 6301 9322 128 69685 S1D Spare parts list GB 87 ASD-1 10. 6302 9322 128 69685 S1D 6303 9322 128 69685 S1D 6600 4822 130 11528 1PS76SB10 �� 7100 5322 130 42718 BFS20 7101 5322 130 42718 BFS20 7102 9352 637 37518 7103 4822 209 17229 BA5938FM 7104 4822 209 30095 LM833D 7105 4822 209 32073 MC34072D 7106 5322 130 42718 BFS20 7109 4822 209 15083 AN78M09 7110 5322 130 60803 BST72A 7111 5322 130 60159 BC846B 7112 5322 130 60159 BC846B 7113 5322 130 60159 BC846B 7114 5322 130 60159 BC846B 7115 4822 130 60373 BC856B 7116 5322 130 60159 BC846B 7201 9351 869 80118 7202 3104 123 95660 7203 4822 130 60373 BC856B 7207 9352 636 60557 SAA7399HL/M2A 7304 4822 209 16877 BA6856FP 7310 4822 209 15899 CY7C199-15C 7311 9352 622 13557 SAA7335HL 7312 4822 130 60373 BC856B 7315 5322 130 60159 BC846B 7401 9322 132 01668 AM29LV160B 7404 9322 144 59668 IC SM MT48LC1M16A1TG- 7S (MRN)R 7405 9322 144 59668 IC SM MT48LC1M16A1TG- 7S (MRN)R 7501 5322 130 60159 BC846B 7503 9322 151 16671 IC SM STI5505AVC (ST00) Y 7504 4822 242 10838 27MHZ 120P FX0-31FT 7505 8204 056 05580 IC SM M24C32- WMN6TNKSA 7600 5322 209 71568 PC74HCT14T 7604 5322 130 60159 BC846B 7605 4822 209 17398 LD1117DT33 7607 5322 130 60159 BC846B 7608 4822 130 60373 BC856B 7609 4822 130 60373 BC856B 7610 5322 130 60159 BC846B 7611 9352 456 80115 7612 5322 130 60159 BC846B 7613 5322 130 60159 BC846B 7614 5322 130 60159 BC846B 7615 5322 130 60159 BC846B 7616 4822 209 16062 MK2742-03S 7617 5322 130 60159 BC846B 7618 5322 130 60159 BC846B 7620 4822 130 60373 BC856B 7621 4822 130 42804 BC817-25
